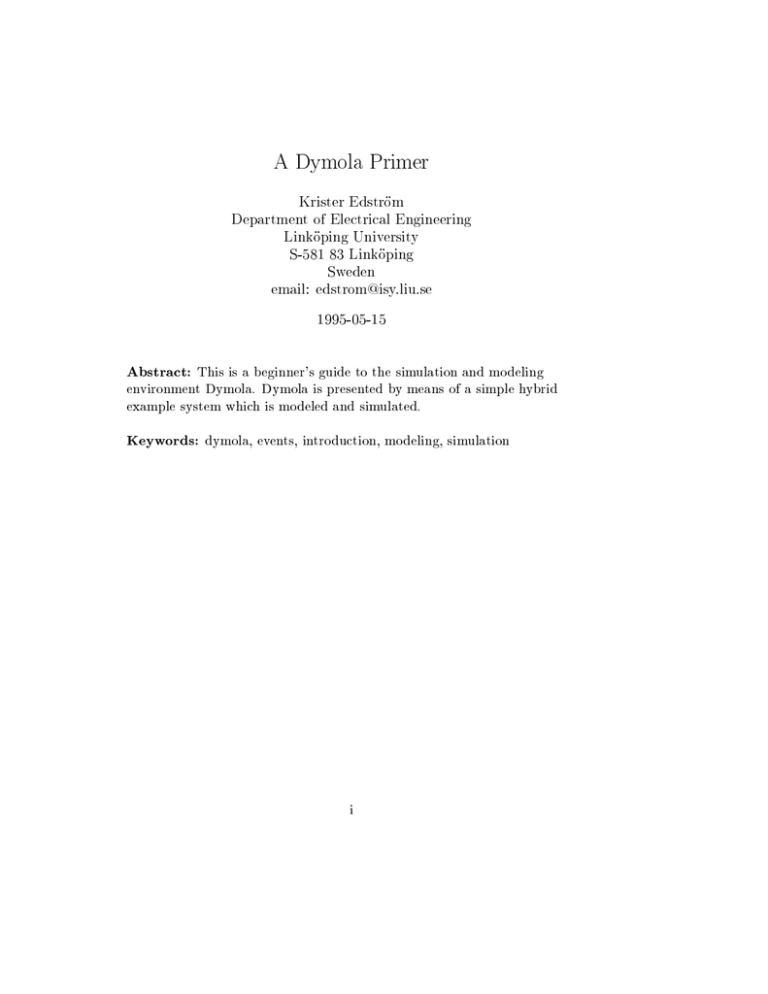

A Dymola Primer
A Dymola Primer
Krister Edstrom
Department of Electrical Engineering
Linkoping University
S-581 83 Linkoping
Sweden
email: [email protected]
1995-05-15
Abstract: This is a beginner's guide to the simulation and modeling
environment Dymola. Dymola is presented by means of a simple hybrid
example system which is modeled and simulated.
Keywords: dymola, events, introduction, modeling, simulation
i
ii
Contents
1 Introduction
2 An Introductory Example
3 Working with Dymola
3.1 The Dierent Parts : : : : : : : : :
3.2 Object Orientation : : : : : : : : :
3.3 Dymodraw : : : : : : : : : : : : :
3.3.1 Window Description : : : :
3.3.2 Before Starting Dymodraw
3.3.3 Entering a Model : : : : : :
3.3.4 Creating Libraries : : : : :
3.4 Dymola : : : : : : : : : : : : : : :
3.4.1 Before Starting Dymola : :
3.4.2 Using Dymola : : : : : : : :
3.4.3 Creating a Script : : : : : :
3.5 Dymoview : : : : : : : : : : : : : :
3.5.1 Plotting the Output : : : :
3.5.2 Animation : : : : : : : : : :
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
2
3
3
3
4
4
4
4
8
9
9
9
11
11
12
12
4 Errors and bugs
13
A Dymola Code
B Dymola Script
C Dymola Library
15
16
16
4.1 Dymodraw : : : : : : : : : : : : : : : : : : : : : : : : : : : : 13
4.2 Dymola : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 13
4.3 Dymoview : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 13
iii
iv
1 Introduction
Dymola is a modeling and simulation environment based on a declarative
simulation language, Dymosim. A declarative language is a language where
the user species relations between variables, and not assigns variables. In
a non-declarative language the following to statements are dierent:
u = Ri
i = u=R
The rst line assigns the value of Ri to the variable u and the second line
assigns u=R to the variable i. In a declarative language the statements
u = Ri
i = u=R
0 = u ; Ri
are the same. They are just stating the relationship between the variables.
The system deals with problems such as algebraic loops, causality propagation and handling of discrete events. Due to its complex user's interface
the system is rather dicult to use for the beginner.
The report will show how to use the Dymola environment to create models and make simulations. The Dymosim language and the more advanced
use of the system will not be discussed here. The more advanced user is
recommended to read 2].
1
2 An Introductory Example
The example we will be using in this report is a model of a bouncing ball,
see gure 1. The ball will be represented by a mass m which is subject
to a gravitational eld g and an air resistance, given by a force Fa which
is proportional to the velocity v of the ball. The bounces are modeled as
events, i.e. abrupt changes in the model. Using Newton's rst and second
Fa
mg
Figure 1: Two models of a falling ball.
laws we obtain the following equations describing the motion of the falling
ball:
mg + Fa v = ma
x_ = v
v_ = a
(1)
(2)
(3)
The bounce is supposed to be fully elastic so when the ball reaches the
ground only the sign of the velocity changes.
2
3 Working with Dymola
3.1 The Dierent Parts
The Dymola environment includes four dierent parts called Dymodraw,
Dymola, Dymosim and Dymoview. Note that both the environment and
one of the parts are called Dymola. The rst part, Dymodraw is used for
the modeling process it is here the model is entered. When the model is
entered it can be prepared for simulation in the part called Dymola, e.g.
the equations of the model can be partitioned and compiled. The prepared
model is simulated with Dymosim and nally the results are presented in
Dymoview. A description of each one of these parts follows below.
3.2 Object Orientation
Dymola is object oriented in the sense that a model can be built from submodels. A /sub/model can be an instance of a certain predened model
class with certain specied parameters see gure 2. If e.g. the model class
model class
gravity
model ball
submodel(gravity) G m=10
model class
damper
submodel(friction) F k=5
submodel(inertia) I m=10
model class
inertia
Figure 2: Using instances of model classes.
resistor with a general resistance r is specied, a /sub/model R1 which is a
certain model of a resistor can be specied as follows:
/sub/model(Resistor) R1 r=10
A nice way to work with Dymola is to create libraries which contain all the
model classes needed for simulating a model. When working with electric
circuits, a library can for instance consist of the following model classes:
3
source, resistor, capacitor and inductor. The model will then be a list of
submodels, e.g. certain instances of model classes, and a description of how
they are connected.
3.3 Dymodraw
This is the subprogram in which new models are created. This can be done
either graphically or textually. For more information about Dymodraw see
1].
3.3.1 Window Description
When using Dymodraw, four dierent types of windows appear, see gure 3.
The Log Window, in which error messages and the most important
commands are logged
The Edit Windows, which are the 'working' windows. It is here where
new models and model classes are created.
The Library Windows, in which existing model classes can be viewed.
When creating a model in an Edit Window, submodels can be dragged
from a Library Window and dropped in the Edit Window.
The Tool and Palette Windows are used for creating connections (cuts)
between submodels and the graphics shown in a Library Window.
3.3.2 Before Starting Dymodraw
Before starting Dymodraw it is necessary to choose which le directory to
use. This is done by modifying the le $dymola/insert/dymodraw.ini.
The reason for doing this is that it enables the possibility to drag and drop
submodels which shall be included in the model. When using libraries,
problems can occur if two model classes with the same name are entered, or
if the same model class is entered twice see section 4.
3.3.3 Entering a Model
Independently of how the model is created, graphically or textually, the
decomposition of the model is made in the same way. The rst step is to
create the model classes that will be used. Let us divide our model of the
4
Figure 3: The four dierent types of windows. Log window, edit window,
library window and tools window.
falling ball into three submodels one describing the eect of gravity, one the
air friction and the last one the acceleration and the bounce see gure 4.
The connections between the submodels are the velocity, v, and the force,
F . When working with mechanical systems, gravity, air friction and acceleration due to a force are three common phenomena. To make future use
of such phenomena easier, three model classes can be constructed, namely
inertia, friction and gravity. Consider construction of the model class gravity.
Textually this model class can be constructed by writing the following Dymola code in a text editor:
model class gravity
cut C (v/-F)
parameter m=1
parameter g=10
F=m*g
end
This code tells us that we are creating a model class. When using an instance
5
model class Friction
Air Friction
model class Inertia
Inertia
v, F
and
Bounce
Model Class Gravity
Gravity
Figure 4: Decomposition of the model into three submodels.
of this model class, the model is connected to other models by velocity, v,
and force, F . The connection with other parts of the model is dened by the
cut command. In the cut command the name of the cut is dened, and also
the cut variables. There are two kinds of cut variables, those assigned to a
common value, and those adding to zero. The variables before the '/'-sign
are assigned to the common value and the ones after add to zero. In the
model class above the name of the cut is C . The variable v is assigned to
the same value as the variables in the same position in cut denitions of the
other parts of the model, and the variables in the same position as ;F adds
to zero. The minus sign is due do a positive reference direction upwards.
Two parameters are introduced, the mass and the gravity. The parameter values can be changed when running Dymola without recompiling the
model. Finally the equation yielding the force is entered.
To enter the model with Dymodraw we rst have to give the model a
name. This is done by choosing Edit/New Class from the menu and then
typing the name here gravity. To make it an instance of a certain model
class, the name of the model class has to be entered as name of super class .
For example, if we are working with electrical components we can create
a model class twoport in which the connection with other components is
dened. Then model classes such as resistor, inductor and capacitor can
be made as instances of the model class twoport describing the physical
properties of the components. Finally /sub/models can be made from these
6
model classes, e.g.
submodel(resistor) R1 r=10.
Here we have no super class. To make the model a model class we choose
Edit/Change Attributes and at the last line we change the 'n' to a 'y'. These
steps will create the rst line in the code above.
Next step is to dene how to connect instances to other models. Drag
and drop any cut from the Cuts Window to the Edit Window by clicking at
cut in the Cuts Window and then in the Edit Window containing the model.
Click twice at the cut appearing in the Model Window and write v= ; F
in the largest square in the window appearing. Parameters are entered by
Edit/Declarations , where
parameter m=1
parameter g=10
is entered. Then choose Close/Update . The equation is entered in the same
way, choosing Edit/Equation. To make it easy to use the drag and drop
facility for submodels, an icon for the model class can be made. Choose
View/Icon Layer and create an icon by using the Tools and Palette Windows.
Go back by choosing View/Diagram Layer . Finally the model class is saved,
File/Save e.g. as gravity.dym.
When looking at the created le, default $dymola/bin/gravity.dym,
the same code as above will be found, with some extra comments, containing
graphical information.
With one of the methods shown above, construct a model class called
friction. If the model class is entered graphically, start with creating a new
Edit Window, View/New Window .
model class friction
cut C (v/F)
parameter k=1
F=-k*v
end
Also create the following model class called inertia:
model class inertia
cut C (v/F)
parameter m=1
local a=0
7
der(v)=a
F=-m*a
end
The next step is to create a model class covering both the inertia and the
bounce, called inertiab, and the nal step is to connect inertiab, friction and
gravity.
To create a model with the name inertiab and super class inertia, chose
Edit/New Class . Make it a model class by Edit/Change Attributes . Some
new equations have to be added via Edit/Equations , namely
der(x)=v
when x<0 then
init(v)=-v
endwhen
where the last three rows handle the bounce. When reaching the ground,
the sign of the velocity is changed. A new declaration has to be done by
Edit/Declarations , and
local x=2
The cut and the acceleration are taken care of by the underlying model class
inertia. Create an icon for the model class and save it.
To connect the submodels we create another model, ball, which is not
a model class and does not have a super class. Insert three submodels by
using the command Edit/Insert Component three times, one of class gravity
named e.g. G, one of class inertiab named IB and the third of class friction
named F. Connect them with lines by clicking on the line below 'TEXT' in
the Tools Window and then on the cuts visible in the Edit Window. Save
the model.
The model of the bouncing ball is now complete and can be entered in
Dymola. The complete code can be found in Appendix A.
3.3.4 Creating Libraries
To enable the drag and drop facility mentioned above, libraries have to be
created. The rst thing to do is to collect all model classes that shall be
in the library in the same le, e.g. ball.lib and make sure that they are
read into Dymodraw. Create a new model, not a model class, e g ballgra
and enter all the model classes into this model without connecting them.
Save the model as ballgra.lib. The code in this le can be found in
8
Appendix C. Add the following three lines to the Dymola initiation le
$dymola/insert/dymodraw.ini
open {path}/ball.lib
open {path}/ballgra.lib
window l 0.0 0.0 0.5 0.5 ballgra
where the rst two lines is for reading the two les, and the last line is for
opening a Library Window. The l stands for library - the window type.
The gures tell where the window will appear on the screen. The two rst
gures tells where the upper left corner of the window will be placed and
the two last gures is the distance to the lower right corner. The unit is
the length/height of the screen, so the above example will create a Library
Window in the upper left fourth of the screen. ballgra tells which model
to be plotted in the window.
If those lines are not included in the initiation le, the model classes can
still easily be entered into Dymodraw by choosing File/Open and opening
ball.lib.
3.4 Dymola
In the Dymola part of the Dymola environment the code for simulation is
created and compiled. It is also possible to manipulate the model in other
ways. Dymola is also used to start Dymosim. For more information about
Dymola and Dymosim see 2] and 3] respectively. The Dymola Window is
shown in gure 5.
3.4.1 Before Starting Dymola
Similar to Dymodraw, the les that will be used when simulating a model
have to be entered. This can be done either by entering the used model
classes in Dymodraw or by putting all the model classes in the same le
as the model and load it into Dymola. Another alternative is to create a
Dymola script which will load the necessary model classes see section 3.4.3.
3.4.2 Using Dymola
Dymola is easily started from Dymodraw by choosing 'File/Run Dymola '.
The most straightforward way to make the simulation is to follow the steps
below.
9
Figure 5: Dymola Window.
Enter the model into Dymola by File/Enter Model .
Set the ag 'Events' by Translation/Set . Change the last line to 'set
Events on' and choose File/Update . This ag has to be set for Dymola
to handle events. More about the ags is found in 2].
Partition the model, i.e. sort the equations and propagate into numerical causality by Translation/Partition .
Translate the model to the programming language Dymosim by Out-
put/Model . The code will be saved in the le $dymola/bin/dsmodel.c.
Compile the model. The model is transferred to the programming
language C and then compiled by Simulation/Compile
Determine some parameter values for simulation, e.g. start and stop
time by Simulation/Simulation.
10
Generate an experiment description, to get an internal representation
of the chosen parameters and coecients by Simulation/Output Experiment . The result is saved in $dymola/bin/dsin.txt.
Simulate by Simulation/Simulate . This command starts Dymosim.
The le $dymola/bin/dsres.tex contains the result. Dymoview will
automatically start when the simulation is done. A problem often
occur when Dymoview is started see section 4.
There are some other features that can be useful. All parameters and
initial conditions can be changed. This is done by Variables/Parameters or
Variables/Initial . Before resimulating the model, another output experiment
has to be created. It is also possible to do some manipulation of the equations, and get information about the variables.
Output/Variables gives information about the variable type, such as
state variable, through variable or parameter. The result of this command can be found in the le $dymola/bin/dsmodel.var.
Output/Equations saves the equations of the model in the le
$dymola/bin/dsmodel.equ.
Output/Sorted Equations sorts the equations and saves them in the le
$dymola/bin/dsmodel.sor.
Output/Solved Equations solves the equations and saves them in the
le $dymola/bin/dsmodel.sol.
The results can be shown in the Dymola Window instead of being saved to
a le by setting the ag 'AutoFileName' to 'o'.
3.4.3 Creating a Script
A convenient way of working with Dymola is to create scripts for the simulation. A script for simulating the bouncing ball following the steps above can
be found in Appendix B. The script shall be saved to a le with the extension dyc and entered into Dymola with the menu option File/Run Script @ .
3.5 Dymoview
In Dymoview there are two dierent types of windows: the Dynamic Model
Viewer and the Plot Window see gure 6. In the Dynamic Model Viewer the
models are entered into Dymoview. Here animations of the models are also
11
Figure 6: Dymoview Dynamic Model Window and Dymoview Plot Window.
made. The Plot Window is for plotting the dierent variables as functions
of time. See also 4]
3.5.1 Plotting the Output
First the result from the simulation has to be entered in Dymoview. This
is done in the Dynamic Model Viewer by selecting File/Read Dymosim. The
default result le is dsres.txt . The plot is then presented in the Plot Window
View/Plot Window by selecting the variables to be plotted under Variables .
3.5.2 Animation
It is possible to make 3D animation in Dymoview. To be able to make an
animation some special model classes has to be used when the simulation
model is constructed. These model classes can be found under the library
$dymola/library/dymoview.
12
4 Errors and bugs
Since Dymola is a rather new program, there are quite a few bugs. Here are
the ones I have found.
4.1 Dymodraw
In Dymodraw the same model or model class can never be entered twice.
This will create a runtime error, and Dymodraw has to be restarted. It is
important to know this when one chooses which libraries are going to be
included when Dymodraw is started.
A rule to remember is the following: whenever an error occurs, save and
restart Dymodraw.
4.2 Dymola
The same rule as for Dymodraw is to be obeyed in Dymola whenever an
error occurs, the program seems to stop working properly. The best thing
to do is to save and restart Dymola.
4.3 Dymoview
A problem often occurs when Dymoview is started. If the error message
'Dymoview could not nd any data in the le' appears, open the result le
$dymola/bin/dsres.tex and look at the last line before the data starts
the line beginning with 'oat data'. Typically there is a missing parenthesis
in that line. If the line reads
float data
44,6)
change it to
float data( 44,6)
Then the le can be reloaded.
Another error is that when a 3D view controller is started, the program
execution can not be terminated.
13
References
1] Dynasim AB, Research Park Ideon, S-223 70 Lund, Sweden. DymodrawDynamic Model Drawing, User's Manual, 1994.
2] Dynasim AB, Research Park Ideon, S-223 70 Lund, Sweden. DymolaDynamic Modeling Language, User's Manual, 1994.
3] Dynasim AB, Research Park Ideon, S-223 70 Lund, Sweden. DymosimDynamic Model Simulator, User's Manual, 1994.
4] Dynasim AB, Research Park Ideon, S-223 70 Lund, Sweden. DymoviewDynamic Model Viewer, User's Manual, 1994.
14
A Dymola Code
model class gravity {* (-100, -100) (100, 100) grid (2, 2)}
cut B {* CutB at (-4.84715, 42.8438) (-12.8472, 50.8438)} (v/-F)
parameter m=1
parameter g=10
F=m*g
{* layer icon}
{* text "GRAVITY" (-156, -106) (154, 104) color=0 }
end
model class friction {* (-100, -100) (100, 100) grid (2, 2)}
cut B {* CutB at (-12.9624, 35.1628) (-20.9624, 43.1628)} (v/F)
parameter k=1
F=-k*v
{* layer icon}
{* text "FRICTION" (-156, -106) (156, 106) color=1 }
end
model class inertia {* (-100, -100) (100, 100) grid (2, 2)}
cut B {* CutB at (-9.17416, 44.8545) (-17.1742, 52.8545)} (v/F)
parameter m=1
local a=0
der(v)=a
F=-m*a
{* layer icon}
{* text "INERTIA" (-154, -106) (156, 106) color=2 }
end
model class (inertia) inertiab {* (-100, -100) (100, 100) grid (2, 2)}
local x=2
der(x)=v
when x<0 then
init(v)=-v
endwhen
{* layer icon}
{* text "BOUNCE" (-144, -32) (156, -106)}
end
15
model ball {* (-100, -100) (100, 100) grid (2, 2)}
submodel (gravity) G {* at (-130, 94) (-36, 34)}
submodel (friction) F {* at (28, 104) (124, 26)}
submodel (inertiab) IB {* at (20, 6) (104, -86)}
connect G:B at F:B {* via (-88, 50) (68, 50)}
connect F:B at IB:B {* via (68, 50) (56, -62)}
end
B Dymola Script
enter model
@{path}/ball.lib
@{path}/ball.dym
set events on
partition
output model
compile
simulation Stoptime=10 Algorithm=8
output experiment
simulate
C Dymola Library
model ballgra {* (-100, -100) (100, 100) grid (2, 2)}
submodel (gravity) G {* at (-128, 88) (-42, 50)}
submodel (friction) F {* at (30, 112) (124, 26)}
submodel (inertia) I {* at (-126, 32) (-40, -14)}
submodel (inertiab) IB {* at (32, 28) (120, -10)}
submodel (ball) B {* at (-64, -102) (72, -20)}
end
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
