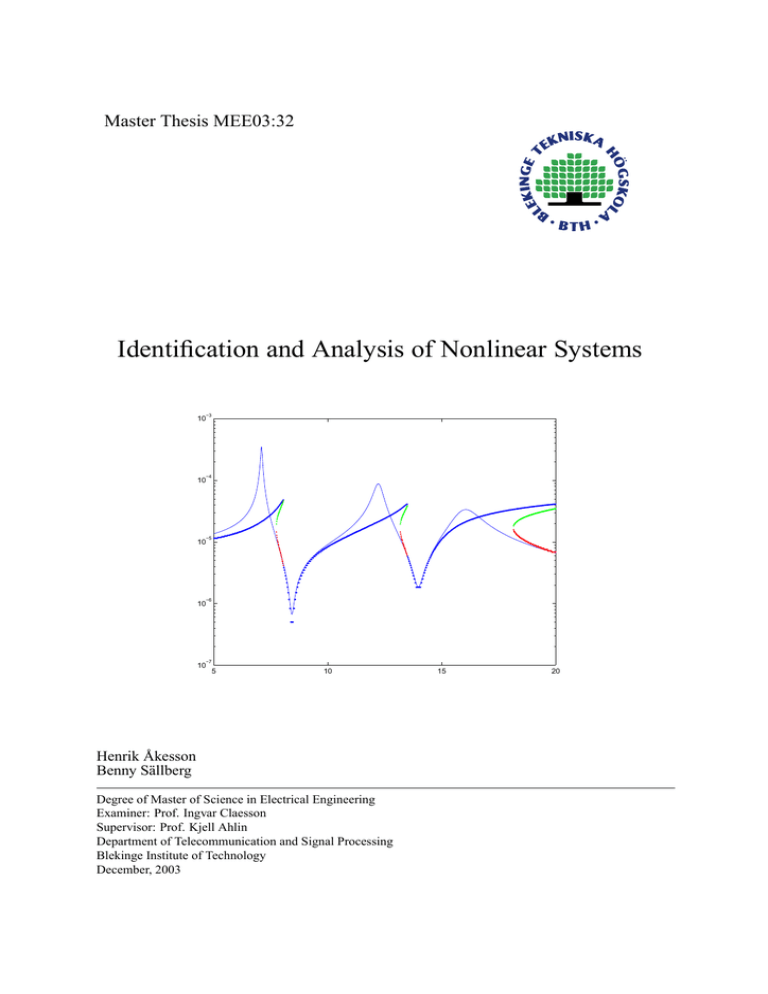

Identification and Analysis of Nonlinear Systems Master Thesis MEE03:32 Henrik Åkesson Benny Sällberg

Identification and Analysis of Nonlinear Systems Master Thesis MEE03:32 Henrik Åkesson Benny Sällberg

Master Thesis MEE03:32

Identification and Analysis of Nonlinear Systems

10

−3

10

−4

10

−5

10

−6

10

−7

5 10 15 20

Henrik Åkesson

Benny Sällberg

Degree of Master of Science in Electrical Engineering

Examiner: Prof. Ingvar Claesson

Supervisor: Prof. Kjell Ahlin

Department of Telecommunication and Signal Processing

Blekinge Institute of Technology

December, 2003

Abstract

In classical mechanical engineering the predominant group of system analysis and identification tools relies on Linear Systems, where research have been carried out for over half a century. Usage of Linear Systems is most widely spread, often due to its simple mathematics and formulation for many engineering problems. Although linearizing is a means for simplifying a problem, it will introduce more or less severe modelling errors.

In some cases the errors due to linearizing are too large to be practically acceptable, and therefore nonlinear structures and models are sometimes introduced.

This thesis aims in implementing and evaluating some popular methods and algorithms for nonlinear structure analysis and identification, with emphasis on systems having nonlinear terms. Preferably the algorithms should be optimized in their computational load.

The result are several algorithms for nonlinear analysis and identification. The ones giving best results were the frequency based methods Reverse Path and a Frequency Domain Structure Selection Method (FDSSA). The time domain based method, Nonlinear Autoregressive Moving Average with Exogenous Input (NARMAX), in which a lot of hope had been put, did perform very well in giving good system descriptions, but due to its nonphysical representation it was not suitable for usage in this thesis.

The algorithms and methods were finally applied for two cases, a four system black-box case and an experimental test-rig case. The methods did perform well in three out of four systems in the first case, but the methods did not perform well for the second case, due to problems in applying correct levels of excitation force at the test-rig’s resonance frequencies.

Contents

1 Introduction

2 Theoretic Background

2.1

Linear Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.1

Degree of freedom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.2

Basic mechanical system SDOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.3

Larger mechanical systems MDOF . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Nonlinear Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.1

Brief Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.2

Theoretical Representation of Nonlinearities . . . . . . . . . . . . . . . . . . . . . .

2.2.3

Presentation of Nonlinear Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 System Identification and Analysis 10

3.1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

3.2

Linear System Identification and Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

3.2.1

Non-Parametrical Spectrum Identification . . . . . . . . . . . . . . . . . . . . . . . .

10

3.2.2

SISO Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

3.2.3

Time Series Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

3.2.4

Special Types of Random Processes . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

3.2.5

Modal Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

3.3

Nonlinear System Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

3.3.1

NARMAX Modelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

3.3.2

Reverse Path Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

3.3.3

Frequency Domain Structure Selection Algorithm . . . . . . . . . . . . . . . . . . . .

20

3.3.4

Finding the Nonlinear Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

3.4

Nonlinear System Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

3.4.1

Harmonic Balance Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

3.4.2

Hilbert Transformation Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

3.4.3

Statistical Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

4 System Synthesis 30

4.1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

4.2

Linear System Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

4.2.1

Time Response Synthesis using Laplace Transformation . . . . . . . . . . . . . . . .

30

4.2.2

Synthesis by Digital Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

4.3

Nonlinear Systems Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35

4.3.1

Analytical Time Responses Synthesis . . . . . . . . . . . . . . . . . . . . . . . . . .

35

4.3.2

Synthesis by Ordinary Differential Equation Solvers . . . . . . . . . . . . . . . . . .

36

4.3.3

Synthesis by Extended Digital Filter Structures . . . . . . . . . . . . . . . . . . . . .

38

4.4

Synthesis Quality Assessments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

1

7

9

5

7

9

2

3

2

2 ii

5 Experimental Evaluation of Black-box Systems 40

5.1

Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

5.2

The Experiment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

5.2.1

The First System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

5.2.2

The Second System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

5.2.3

The Third System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

5.2.4

The Fourth System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

5.2.5

The Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56

6 Experimental Evaluation of Test-Rig 57

6.1

Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

6.2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

6.3

System Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

6.3.1

Linear Part of System Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

6.3.2

Nonlinear Part of System Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

6.3.3

Nonlinear Property Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

6.4

Experimental Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59

6.4.1

Measurement Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59

6.4.2

Equipment List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59

6.4.3

Work Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59

6.5

Choice of Performance and Excitation Signals . . . . . . . . . . . . . . . . . . . . . . . . . .

61

6.6

Measurement Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

6.6.1

Measurement Settings, Collection from Signal Calc when using build-in functions . .

61

6.6.2

Measurement Settings, Collection from Signal Calc when using excitation signal produced in matalab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

6.6.3

Channels Settings for measurement 1-3 . . . . . . . . . . . . . . . . . . . . . . . . .

61

6.6.4

Channels Settings for measurement 4-11 . . . . . . . . . . . . . . . . . . . . . . . .

62

6.7

Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

62

6.8

Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

80

7 Summary and Conclusions 81

7.1

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

81

7.2

Conclusions and Further Research . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

81

A Derivations of Impulse-, Step-, and Ramp Invariance 82

A.1 Derivation of Impulse Invariance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

82

A.2 Derivation of Step Invariance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

83

A.3 Derivation of Ramp Invariance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

84

B Modified Bootstrap Structure Detection 86

iii
