Multi Zone Specification Hybrid Flex Inverter Submittal Data

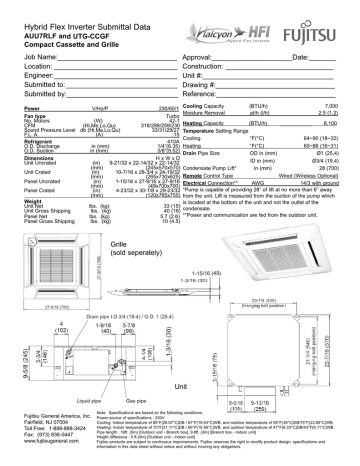

Hybrid Flex Inverter Submittal Data Multi Zone Specification AUU7RLF and UTG-CCGF AUU9RML Compact Cassette and Grille Multizone Cassette Job Name:_______________________________ Location: ________________________________ Engineer:________________________________ Submitted to: _____________________________ Submitted by:_____________________________ Power V/Hz/P 230/60/1 Fan type Turbo No. Motors (W) 42-1 CFM (Hi,Me,Lo,Qu) 318/288/259/230 Sound Pressure Level db (Hi,Me,Lo,Qu) 33/31/29/27 .15 F.L. A. (A) Refrigerant 410A O.D. Discharge in (mm) 1/4”(6.35) 3/8”(9.52) O.D. Suction in (mm) Dimensions HxWxD Unit Uncrated (in) 9-21/32 x 22-14/32 x 22-14/32 (mm) (245x570x570) Unit Crated (in) 10-7/16 x 28-3/4 x 24-19/32 (mm) (265x730x625) Panel Uncrated (in) 1-15/16 x 27-9/16 x 27-9/16 (mm) (49x700x700) Panel Crated (in) 4-23/32 x 30-1/8 x 29-23/32 (mm) (120x765x755) Weight Unit Net lbs. (kg) 33 (15) Unit Gross Shipping lbs. (kg) 40 (18) Panel Net lbs. (kg) 5.7 (2.6) Panel Gross Shipping lbs. (kg) 10 (4.5) Approval:_____________________Date:_______ Construction: ____________________________ Unit #:__________________________________ Drawing #:_______________________________ Reference:_______________________________ Cooling Capacity Moisture Removal (BTU/h) pt/h (l/h) _ 7,000 2.5 (1.2) Heating Capacity (BTU/h) ___________ 8,100 Temperature Setting Range Cooling °F(°C) 64~90 (18~32) Heating °F(°C) 60~88 (16~31) Drain Pipe Size OD in (mm) Ø1 (25.4) ID in (mm) Ø3/4 (19.4) Condensate Pump Lift* in (mm) 28 (700) Remote Control Type Wired (Wireless Optional) Electrical Connection** AWG 14/3 with ground *Pump is capable of providing 28” of lift at no more than 6” away from the unit. Lift is measured from the suction of the pump which is located at the bottom of the unit and not the outlet of the condensate. **Power and communication are fed from the outdoor unit. Grille (sold seperately) Unit Fujitsu General America, Inc. Fairfield, NJ 07004 Toll Free: 1-888-888-3424 Fax: (973) 836-0447 www.fujitsugeneral.com Note: Specifications are based on the following conditions. Power source of specifications : 230V Cooling: Indoor temperature of 80°F(26.67°C)DB / 67°F(19.44°C)WB, and outdoor temperature of 95°F(35°C)DB/75°F(23.89°C)WB. Heating: Indoor temperature of 70°F(21.11°C)DB / 60°F(15.56°C)WB, and outdoor temperature of 47°F(8.33°C)DB/43°F(6.11°C)WB. Pipe length : 16ft. (5m) [Outdoor unit - Branch box], 9.8ft. (3m) [Branch box - Indoor unit] Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit] Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications and information in this data sheet without notice and without incuring any obligations.
