A
ADVISOR Pro
AIPB-961768-O
Advisor Pro ALPHANUMERIC PAGER

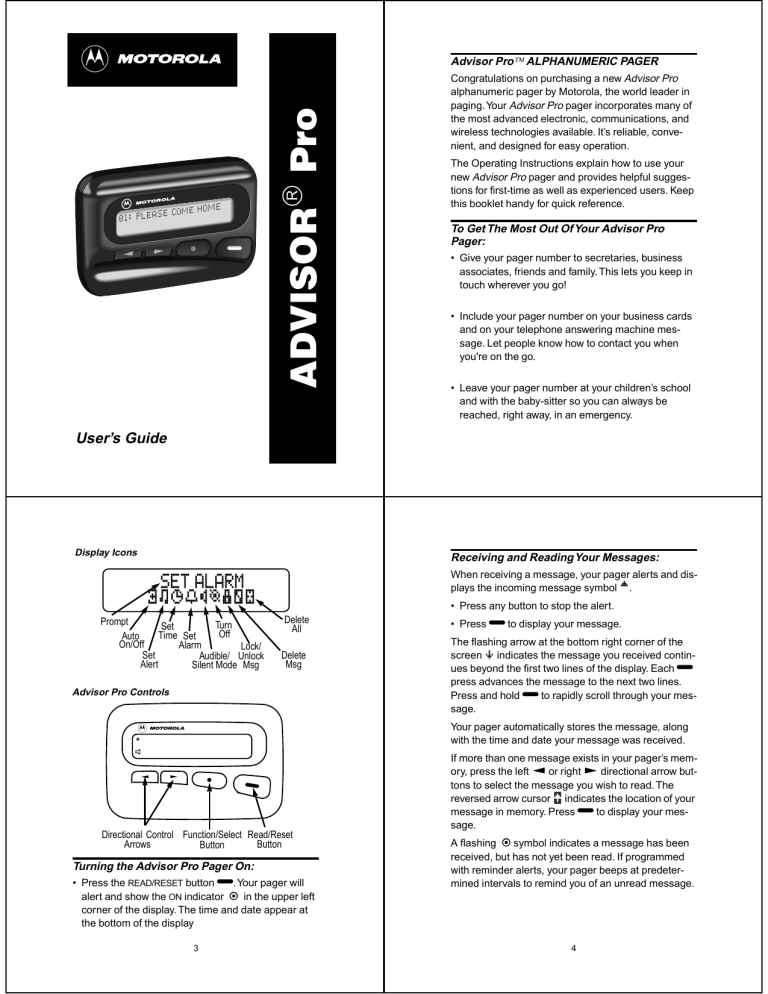

Congratulations on purchasing a new Advisor Pro
alphanumeric pager by Motorola, the world leader in
paging. Your Advisor Pro pager incorporates many of
the most advanced electronic, communications, and
wireless technologies available. It’s reliable, convenient, and designed for easy operation.
The Operating Instructions explain how to use your
new Advisor Pro pager and provides helpful suggestions for first-time as well as experienced users. Keep
this booklet handy for quick reference.
To Get The Most Out Of Your Advisor Pro
Pager:
• Give your pager number to secretaries, business
associates, friends and family. This lets you keep in
touch wherever you go!
• Include your pager number on your business cards
and on your telephone answering machine message. Let people know how to contact you when
you're on the go.
• Leave your pager number at your children’s school
and with the baby-sitter so you can always be
reached, right away, in an emergency.
User’s Guide
Display Icons
Receiving and Reading Your Messages:
When receiving a message, your pager alerts and displays the incoming message symbol ü.
SET ALARM
åÈÑÖÉóíïñ
Prompt
Turn
Set
Off
Time Set
Auto
On/Off
Alarm
Lock/
Set
Audible/ Unlock
Alert
Silent Mode Msg
• Press any button to stop the alert.
Delete
All
Delete
Msg
Advisor Pro Controls
A
• Press Ë to display your message.
The flashing arrow at the bottom right corner of the
screen Ü indicates the message you received continues beyond the first two lines of the display. Each Ë
press advances the message to the next two lines.
Press and hold Ë to rapidly scroll through your message.
Your pager automatically stores the message, along
with the time and date your message was received.
Directional Control Function/Select Read/Reset
Arrows
Button
Button
Turning the Advisor Pro Pager On:
• Press the READ/RESET button Ë. Your pager will
alert and show the ON indicator ë in the upper left
corner of the display. The time and date appear at
the bottom of the display
3
If more than one message exists in your pager’s memory, press the left ä or right ã directional arrow buttons to select the message you wish to read. The
reversed arrow cursor Ó indicates the location of your
message in memory. Press Ë to display your message.
A flashing ësymbol indicates a message has been
received, but has not yet been read. If programmed
with reminder alerts, your pager beeps at predetermined intervals to remind you of an unread message.
4
Using the Function Menu:
Backlighting:
• Press the FUNCTION/SELECT button Á to display the
function menu.
• To view your display in low light conditions, turn on
your pager's backlight by pressing and holding Á
for 1.5 seconds. If no further buttons are pressed,
the backlight automatically turns off when the display goes blank. You can also turn off the backlight
by pressing and holding Á for 1.5 seconds.
The function menu gives you access to the many features of your pager through a series of icons and
prompts. For example, when the function menu screen
first displays, the TURN OFF icon ó flashes, indicating
the present position of the cursor. The TURN OFF
prompt also displays on the first line on the LCD. As you
move the cursor left or right across the icons, a corresponding prompt appears. To activate your function
selection, press Á.
Locking and Unlocking Messages:
Up to 10 messages can be “locked” in memory, preventing them from being replaced when your pager’s
memory is full or from being deleted if the DELETE
ALL function ñ is chosen.
NOTE: To escape from any field without making any
changes, press Ë.
• Press the READ/RESET button Ë.
Turning Your Pager Off:
• Select the message you wish to lock by using the
ä or ã directional buttons.
• Press Á to display the function menu.
• The TURN OFF icon ó flashes when this menu item
first appears.
• Press Á to select the TURN OFF function. Press Á
again to turn your pager off.
• Press the FUNCTION/SELECT button Á to display the
function menu.
• Press ã to move the cursor to the LOCK MSG icon
í.
• Press the Á to lock the message. The padlock icon
í appears, indicating the message has been locked.
To unlock ì a locked í message, use the same procedure outlined above.
5
6
Setting the Clock:
Setting the Alert Pattern:
• While in the function menu, move the cursor left to the
SET TIME icon Ñ by pressing the ä.
• Press ä to move the cursor to the alert icon È.
• PressÁ to display the SET TIME screen. The cursor
flashes in the hour position. The ä increments the
flashing digits. This is defined by the + icon shown on
the display above the button.
• Advance to the desired hour by pressing ä.
• Move the cursor to the minute field by pressing ã.
• Repeat the process for each field hour, minute, AM/
PM/24 hr., day/month/year.
• Press Á to initiate the change.
If you move your cursor past the last field in the row
(far right), it automatically wraps around and appears
at the first function icon in the row (far left).
NOTE: To escape from any field without making any
changes, press Ë.
• Press Á to display the function menu.
• Press Á to display the SET ALERT screen.
• Move to the desired alert and press Á to initiate the
alert change. The selected alert number flashes while
a 2 second sample of the selected alert plays through
the internal speaker.
NOTE: To escape from any field without making any
changes, press Ë.
Setting the Alert Mode (Silent/Audible):
• Press Á to display the function menu.
• Press ã to move the cursor to the AUDIBLE MODE
É or SILENT MODE Ç icon.
The AUDIBLE MODE icon É appears if the pager is in
the silent alert mode (prompting you to enter that
mode, if desired). The SILENT MODE icon Ç appears
if the pager is in the audible alert mode (prompting
you to enter that mode, if desired).
• Press Á to select the desired alert.
If the selected mode is É, your pager emits a short
“chirp.” If the selected mode is Ç, and if equipped with a
vibrator, your pager vibrates.
7
8
• Press Á to display the function menu.
Setting the Alarm
If your pager is equipped with the ALARM feature, and
you wish to set the alarm:
• Press Á to display the function menu.
• Press the ä to move the cursor to the SET ALARM
Ö icon.
• Press Á to display the set alarm screen.
When the screen first appears, the cursor is at the leftmost position. This icon defines the alarm status:
either alarm enable À, or alarm disable Ã.
• Press the left directional button to increment or toggle
between alarm enable À and alarm disable Ã.
• Press ä to move the cursor to the AUTO ON/OFF
icon å.
• Press Á to display the AUTO ON/OFF screen.
When the screen first appears, the cursor appears at the
left-most position. This icon defines the AUTO ON/OFF status: either AUTO ON/OFF Enabled å, or Disabled õ.
• Press ä to increment or toggle between AUTO ON/
å or Disable õ.
OFF Enable
• Press ã to move the cursor to the hour field. The
auto ON time is shown on the left and the auto OFF
time is shown on the right.
• Repeat the process for each field (hour, minute).
• Repeat the process for each field for both the ON
time and the OFF time (hour, minute, and AM/PM if your
pager is set to display time in the 12 hour mode).
• Press ã to move the cursor to the hour field.
• Press Á to make the change.
• Press Á to activate the AUTO ON/OFF function.
The alarm indicator À appears if an alarm has been
set. At the selected time, your pager either vibrates or
emits a unique 8-second alert, depending on the alert
mode.
The indicator Î displays in the upper left-hand corner of the display if the AUTO ON/OFF function has been
enabled. If the ON time is equal to the OFF time, the
AUTO ON/OFF function is not enabled.
NOTE: To escape from any field without making any
changes, press Ë.
NOTE: To escape from any field without making any
changes, press Ë.
Setting the Auto On/Off function:
If your pager is equipped with the AUTO ON/OFF feature, and you wish to activate this feature:
9
Deleting Messages from Memory:
You can clear or delete an unlocked message from
memory while you are viewing it, or through the function menu.
• Select the message you wish to delete from memory by pressing ä or ã directional buttons to the
desired memory position.
• Press Á to display the function menu.
• Press ã to move the cursor to the DELETE MSG
icon ï.
• Press Á to receive confirmation of delete request.
10
sage has already been received. Your new message
will contain the latest time stamp.
Out of Range: With this option installed, whenever you
are too far away from your paging system's transmitter to
reliably receive messages, your pager displays an OUT
OF RANGE message and an out-of-range icon ö.
Cleaning Your Advisor Pro Pager:
To clean smudges and grime from the exterior of the
Advisor Pro housing, use a soft, nonabrasive cloth
moistened in a mild soap and water solution. Rinse the
surface using a second cloth moistened in clean water.
Do not use alcohol or other cleaning solutions.
• Press Á to delete the message.
If your pager is equipped with the DELETE ALL feature, and you wish to delete all unlocked messages
from memory, move the cursor within the function
menu screen to the DELETE ALL icon ñ and press Á
twice.
Other Features:
Repair and Maintenance:
Your Advisor Pro pager, properly handled, is capable of
many years of trouble-free service. However, should it
ever require service, Motorola’s National Service Organization, staffed with specially trained technicians, offers
conveniently located repair and maintenance facilities
worldwide.
Low Battery Alert: A low battery icon Ì appears in
place of the date at the onset of low battery conditions.
An audible low battery alert is also heard at that time.
Duplicate Message: If the same message is received
more than once, DUPLICATE appears at the beginning of your new message to indicate that your mes11
12
Battery Information:
Patent Information:
NOTE: The battery door is hinged and does not need
to be removed.
This Motorola product is manufactured under one or
more Motorola U.S. Patents. A listing of these patents is
provided inside the battery compartment which can be
seen by removing the battery door. Other U.S. Patents
covering this product are pending.
Your Advisor Pro pager is designed to operate with a
AAA-size alkaline battery (do not use carbon zinc batteries). See diagram (across) for battery door location. To install or replace the battery, place the pager face down in
the palm of your hand. Then,
➊ Unlock the battery door by sliding the door latch up
with your thumb.
➋ Slide the battery door to your right (toward the outer
edge).
➌ Lift the battery door toward you to install or replace
the battery.
Advisor Pro Icon Quick Reference List
Display Annunciators
ë Power On Icon
Ï Auto On/Off Mode Enabled Icon
Î Combined Power On and Auto On/Off Mode
Enabled Icon
Í Audible Alert Mode Enabled Icon
Message Status Icons
➊
➌
Ì
➋
Advisor Pro Rear View (Battery Replacement)
CAUTION: Do not insert the battery backwards. All messages stored and/or locked in memory will be erased.
13
í
ì
ï
ò
È
Ö
+
í
î
Ÿ
Ó
ü
é
Lock Message Icon
Cursor on Locked Message
Maildrop Indicator
Cursor on Message Indicator
Message In Memory Indicator
Memory Full Indicator (optional)
Function Menu Icons
É
Ç
ó
Set Audio Alert Icon (or)
Set Silent Alert Icon
Turn Pager Off Icon
14
Lock Message Icon
Unlock Message Icon
Delete Message Icon
Delete All Messages Icon
Escape to Main Screen
Set Alert Icon
Set Alarm Icon
Other Icons
å
õ
Ñ
ô
AM
PM
Ã
À
Ì
ö
Ü
à
+
Enter Auto On/Off Menu and Auto On/Off
Enabled Icon
Auto On/Off Disabled Icon
Set Time Icon
24 Hour Time Indicator
AM Time Indicator
PM Time Indicator
Disable Alarm Icon
Enable Alarm Icon
Low Battery Alert Icon
Out Of Range Indicator
Message Continuation Indicator
Press Right Arrow Button Prompt
Increment Value
t , Motorola, and ADVISOR are registered
trademarks of Motorola, Inc.
Advisor Pro is a trademark of Motorola, Inc.
 1993, 1994 by Motorola, Inc.,
Paging Products Group,
1500 Gateway Boulevard.,
Boynton Beach, FL 33426-8292 U.S.A.
All Rights Reserved
@[email protected]
6881022B55-A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
