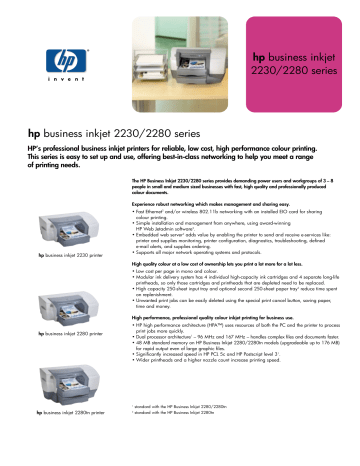

hp business inkjet
2230/2280 series
hp business inkjet 2230/2280 series
HP’s professional business inkjet printers for reliable, low cost, high performance colour printing.
This series is easy to set up and use, offering best-in-class networking to help you meet a range
of printing needs.
The HP Business Inkjet 2230/2280 series provides demanding power users and workgroups of 3 – 8
people in small and medium sized businesses with fast, high quality and professionally produced
colour documents.
Experience robust networking which makes management and sharing easy.
hp business inkjet 2230 printer
• Fast Ethernet2 and/or wireless 802.11b networking with an installed EIO card for sharing
colour printing.
• Simple installation and management from anywhere, using award-winning
HP Web Jetadmin software2.
• Embedded web server2 adds value by enabling the printer to send and receive e-services like:
printer and supplies monitoring, printer configuration, diagnostics, troubleshooting, defined
e-mail alerts, and supplies ordering.
• Supports all major network operating systems and protocols.
High quality colour at a low cost of ownership lets you print a lot more for a lot less.
• Low cost per page in mono and colour.
• Modular ink delivery system has 4 individual high-capacity ink cartridges and 4 separate long-life
printheads, so only those cartridges and printheads that are depleted need to be replaced.
• High capacity 250-sheet input tray and optional second 250-sheet paper tray2 reduce time spent
on replenishment.
• Unwanted print jobs can be easily deleted using the special print cancel button, saving paper,
time and money.
High performance, professional quality colour inkjet printing for business use.
hp business inkjet 2280 printer
• HP high performance architecture (HPA™) uses resources of both the PC and the printer to process
print jobs more quickly.
• Dual processor architecture1 – 96 MHz and 167 MHz – handles complex files and documents faster.
• 48 MB standard memory on HP Business Inkjet 2280/2280tn models (upgradeable up to 176 MB)
for rapid output even of large graphic files.
• Significantly increased speed in HP PCL 5c and HP Postscript level 31.
• Wider printheads and a higher nozzle count increase printing speed.
1
hp business inkjet 2280tn printer
2
standard with the HP Business Inkjet 2280/2280tn
standard with the HP Business Inkjet 2280tn
hp business inkjet
2230/2280 series
technical specifications
ordering information
print technology
HP Thermal Inkjet
printhead nozzles
304 black, 912 color (304 per color printhead), total of 1216 nozzles
print speed
document type
draft
normal
black text A4
up to 15 ppm
up to 11 ppm
mixed text/colour graphics A4
up to 14 ppm
up to 7.5 ppm
full page colour A4
up to 6 ppm
up to 2.5 ppm
Approximate figures - exact speed dependent on document type, print mode and
c8119a
hp business inkjet 2230 printer
four ink cartridges (1 each black, cyan,
magenta, and yellow), four printheads
(1 each black, cyan, magenta, and
yellow), printer software CD-ROM,
power cord, reference guide, setup guide
processor speed
HP Business Inkjet 2230 printer: 96 MHz; HP Business Inkjet 2280/tn printer: 96 MHz + 167 MHz
print quality
black
colour
best
up to 6.5 ppm
up to 1.5 ppm
up to 0.5 ppm
system configuration.
recommended system
requirements
memory
hp business inkjet 2280 printer
includes same as above plus:
preinstalled hp PCL 5c and
hp postscript level 3 emulation
c8121a
hp business inkjet 2280tn printer
includes same as above plus:
preinstalled hp jetdirect 615n EIO
print server (10/100 Base-TX),
second 250-sheet paper tray
c8230a
250-sheet second paper tray
c8229a
hp PCL 5c and hp postscript level
3 emulation upgrade kit
j6057a
hp jetdirect 615n internal print
server (EIO, 10/100 Base-TX)
j4167a
hp jetdirect 610n internal print
server (EIO, Token Ring)
j6058a
hp jetdirect 680n 802.11b
internal wireless print server
Up to 1200 x 600 dpi
HP Photoret III precision technology for ultimate photo-quality without compromising speed
operating systems compatibility Supported: HP Business Inkjet 2230 printer: Microsoft® Windows® 95, 98, Me, NT® 4.0, 2000, XP; MS-DOS® 3.3 or above;
HP Business Inkjet 2280/tn printer: Microsoft Windows 95, 98, Me, NT 4.0, 2000, XP; Apple® Macintosh® OS 8.6
and above (incl. OS X); MS-DOS 3.3 or above.
Optional: HP Business Inkjet 2230 printer: Apple Macintosh (with HP PCL 5c/Postscript level 3 upgrade kit).
network operating
systems compatibility
c8120a
Supported: HP Business Inkjet 2230 printer: Microsoft Windows 95, 98, Me, NT 4.0, 2000, XP.
HP Business Inkjet 2280/tn printer: Microsoft Windows 95, 98, Me, NT 4.0, 2000, XP; Novell® IntranetWare;
NetWare 3.12, 4.x, 5.x, NDS and NDPS; HP-UX 10.20, 11.x; Solaris™ 7; IBM® OS/2 Warp 4.x; AIX 3.2.5 and
later; MPE-iX; Mac® OS 8.6 and later; RedHat Linux 6.2; SuSE Linux 6.4; ArtiSoft® LANtastic via HP Jetdirect printer
servers; automatic switching between languages and ports.
Optional: HP Business Inkjet 2230 printer: Novell® IntranetWare; NetWare 3.12, 4.x, 5.x, NDS and NDPS; HP-UX
10.20, 11.x; Solaris™ 7; IBM OS/2 Warp 4.x; AIX 3.2.5 and later; MPE-iX; Mac OS 8.6 and later; RedHat Linux 6.2;
SuSE Linux 6.4; ArtiSoft LANtastic via HP Jetdirect printer servers.
Supported: HP Business Inkjet 2230 printer: Microsoft Windows 95/98; Pentium® 266, 32 MB RAM; Windows Me;
Pentium 266, 64 MB RAM; Windows NT 4.0; Pentium 266, 64 MB RAM; Windows 2000: Pentium 266, 64 MB RAM;
Windows XP: Pentium 300, 128 MB RAM.
HP Business Inkjet 2280/tn printer: Microsoft Windows 95/98; Pentium 266, 32 MB RAM; Windows Me; Pentium 266,
64 MB RAM; Windows NT 4.0; Pentium 266, 64 MB RAM; Windows 2000: Pentium 266, 64 MB RAM; Windows XP:
Pentium 300, 128 MB RAM; Apple Macintosh OS 8.6: 32 MB RAM.
Standard: HP Business Inkjet 2230 printer: 16 MB; HP Business Inkjet 2280/tn printer: 48 MB
Upgrade: Expandable up to 176 MB through industry-standard DIMM slot on HP PCL 5/Postscript level 3 card (standard
with the HP Business Inkjet 2280/tn printer).
printer languages
Standard: HP Business Inkjet 2230 printer: PCL 3 with High Performance Architecture (HPA); HP Business Inkjet 2280/tn
printer: PCL 3 with High Performance Architecture (HPA), HP PCL 5c, HP Postscript level 3.
Optional: HP Business Inkjet 2230 printer: HP PCL 5c, HP Postscript level 3.
control panel
Intuitive operation and easy to understand messages, two-line 32 character LCD display (messages can be displayed in
15 languages) and one bi-color (red/green) LED; buttons: power, resume, job cancel, menu, item, value.
typefaces
HP Business Inkjet 2280/2280tn: 45 TrueType™ and 35 PostScript® fonts built-in, all HP Postscript and HP PCL 5Ce
accessible; optional HP Fontsmart software provides simple font management, intellifont and TrueType rasterizer built
into PCL 5Ce; built-in support for Arabic, Cyrillic, Greek and Hebrew symbol sets.
smart software features
HP Zoomsmart, tiling, watermarks, different first page, optimised for photocopy/fax mode, handouts, manual duplex.
duty cycle
10,000 pages per month
recommended media weight
Paper: 60 to 105 g/m2, cardstock: 110 to 200 g/m2.
media sizes
Standard: A4, A5, A6. Custom: 102 x 152 mm to 216 x 356 mm.
media types
Paper (plain, inkjet, photo - matte and glossy), transparency, brochure - matte and glossy, labels, cards, envelopes.
maximum print area
203 x 343 mm
print margins:
Top: 1 mm, left: 6.35 mm, right: 6.35 mm, bottom: 11.7 mm.
media handling
power supply
Standard 250-sheet input capacity, optional second 250-sheet paper tray (standard with the HP Business Inkjet 2280tn),
standard 150-sheet output capacity. Tray 1 (upper tray): paper - up to 250 sheets, cardstock - up to 100, labels - up
to 40; tray 2 (lower tray) paper up to 250 sheets. Duplex printing: Two sided printing capability: manual (driver
support provided).
Internal universal power supply
power requirements
Input voltage 100-240 AC (+/- 10%), 50/60 Hz (+/-3 Hz).
power consumption
2 watts maximum (off), 8 watts maximum (non-printing), 68 watts maximum (printing).
interface and connectivity
Standard: HP Business Inkjet 2230 printer: IEEE 1284-compliant bidirectional parallel port, two open EIO slots; HP Business
Inkjet 2280 printer: IEEE 1284-compliant bidirectional parallel port, HP PCL 5c and HP Postscript level 3 emulation
upgrade kit in first EIO slot, one open EIO slot; HP Business Inkjet 2280tn printer: IEEE 1284-compliant bidirectional
parallel port, HP PCL 5c and HP Postscript level 3 emulation upgrade kit in first EIO slot, HP Jetdirect 615n internal print
server for Fast Ethernet 10/100Base-TX in second EIO slot.
Optional: HP Jetdirect (EIO) internal print servers; HP Jetdirect external print servers; HP wireless 802.11b (EIO) internal
print server; HP Jetdirect connectivity card (EIO) for USB, serial, and LocalTalk connectivity.
dimensions (w x d x h)
HP Business Inkjet 2230/80 printer: 512 x 514 x 208 mm, HP Business Inkjet 2280tn printer: 512 x 517 x 291 mm.
product weight
HP Business Inkjet 2230/80 printer: 10.5 kg. HP Business Inkjet 2280tn printer: 14.5 kg.
operating environment
Environmental ranges: Operating temperature: 5 to 40° C. Operating humidity: 20 to 80% RH.
Recommended operating temperature: 15 to 35° C. Storage temperature: -40 to 60° C. Noise level per ISO 9296:
Sound power: 59 dB(A), Sound pressure: 49 dB(A) by-stander position.
ENERGY STAR
Yes
certifications
EMI certification: CE (European Union), B mark (Poland), GOST (Russia); Regulatory standards: Safety certifications:
TÜV-GS (Germany), SABS (South Africa).
warranty
1 year limited warranty
http://www.hp.com
http://www.hp.com/go/businessinkjet
For more information, please call your local HP sales office or representative: Austria: 0810/006080 (local rate call), Algeria: (0)61 56 45 43,
Bahrain: 800 728, Belgium: (02) 778 34 00, Luxembourg: (+352) 263 160 34, Bulgaria: (+359) 2960 1940, Croatia and Slovenia: (+385 1) 60 60 200,
Czech republic: (00 420 2) 613 07 111 (Prague), Denmark: 45991700 or 70101125, Egypt: 532 5222, Estonia: (+372) 6505 263, Finland: (09) 88721,
France: (1) 69 82 6060, Germany: 0180 532 6222 (12 Cent/min), Greece: (01) 678 96 00, Hungary: (+36) 1 382-1111, Iceland: (354) 570 1000,
Ireland: + 353 1 6158200, Israel: (972) 9 8304848, Italy: (02) 92121, Kazakhstan: +7 (3272) 980 824, Latvia: (371) 800 80 12, Lithuania:
(370) 2 787 333, Middle East: 00971 4 883 4427, Morocco (African Region): +212 22 40 47 47, Netherlands: (020) 5476666, Norway: 22 735600,
Poland: infolinia 0-801 607 607 (0,29 zl + VAT/min), Portugal: (808) 206 001, Romania: (+401) 205 3300, RSA: (27)11 785 1000, Russia:
+7 (095) 797 35 00, Saudi Arabia: 800 124 4646, Slovakia: +421-2-50205611, Spain: (91) 6311600, Sweden: (08) 444 2000, Switzerland:
0848 88 44 66, Tunisia: 71 891 222, Turkey: +90 (216) 579 71 71, UAE: 8004910, UK: 08705 474747, Ukraine: +380 44 490 61 20,
Yugoslavia: +381 11 322 80 14.
accessories
any hp jetdirect EIO print server
f1622c
hp 128 MB SDRAM, PC-133
module
c2951a
hp IEEE-1284-compliant
bidirectional parallel cable 2 m
c2950a
hp IEEE-1284-compliant
bidirectional parallel cable 3 m
supplies
c4844ae
hp no. 10 large black ink
cartridge (69 ml)
c4836ae
hp no. 11 cyan ink
cartridge (28 ml)
c4837ae
hp no. 11 magenta ink
cartridge (28 ml)
c4838ae
hp no. 11 yellow ink
cartridge (28 ml)
c4810ae
hp no. 11 long-life black
print head
c4811ae
hp no. 11 long-life cyan
print head
c4812ae
hp no. 11 long-life magenta
print head
c4813ae
hp no. 11 long-life yellow
print head
support pack and services
h5576pa/pe
hp supportpack - next day
replacement, 1 year post warranty
h7674a/e
hp supportpack - next day
replacement, 3 years
The information contained in this
document is subject to change without
notice. Energy Star is a U.S. registered
mark of the United States Environmental
Protection Agency. All other products
mentioned herein may be trademarks
of their respective companies.
Microsoft, Windows and MS Windows
are U.S. registered trademarks of
Microsoft Corporation.
© Copyright Hewlett-Packard 2002
Printed in the EU 05/02
5980-9452EEE
