a
ONE TECHNOLOGY WAY
• P.O.

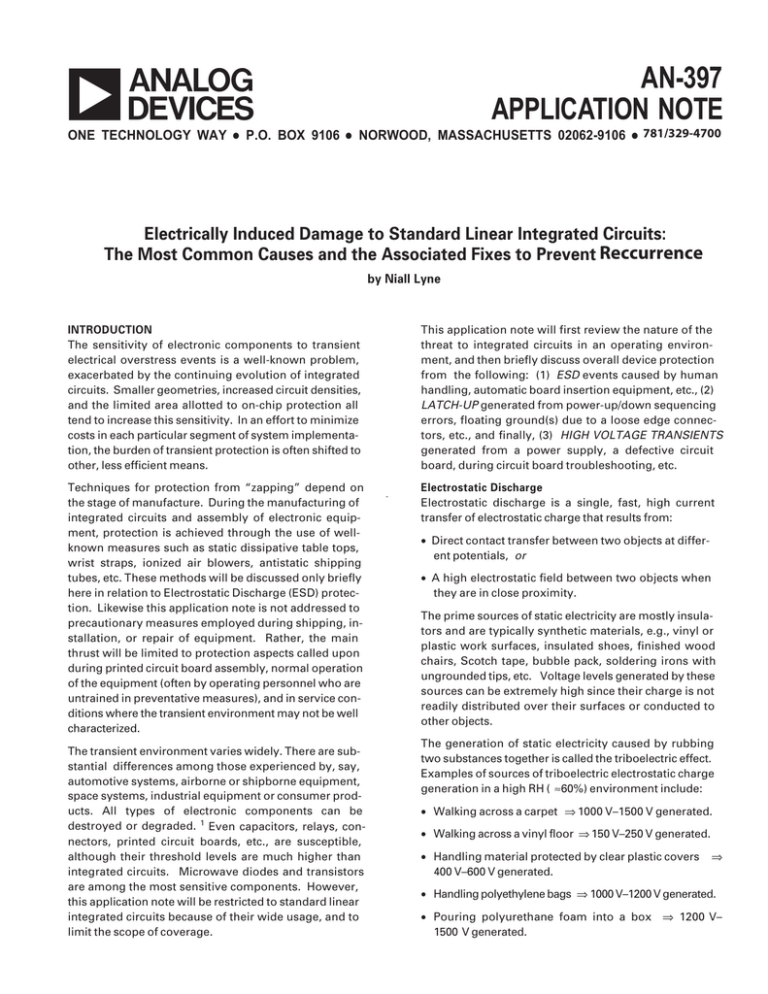

AN-397
APPLICATION NOTE
BOX 9106
• NORWOOD, MASSACHUSETTS 02062-9106 • 781/329-4700
Electrically Induced Damage to Standard Linear Integrated Circuits:
The Most Common Causes and the Associated Fixes to Prevent Reccurrence
by Niall Lyne
INTRODUCTION
The sensitivity of electronic components to transient
electrical overstress events is a well-known problem,
exacerbated by the continuing evolution of integrated
circuits. Smaller geometries, increased circuit densities,
and the limited area allotted to on-chip protection all
tend to increase this sensitivity. In an effort to minimize
costs in each particular segment of system implementation, the burden of transient protection is often shifted to
other, less efficient means.
This application note will first review the nature of the
threat to integrated circuits in an operating environment, and then briefly discuss overall device protection
from the following: (1) ESD events caused by human
handling, automatic board insertion equipment, etc., (2)
LATCH-UP generated from power-up/down sequencing
errors, floating ground(s) due to a loose edge connectors, etc., and finally, (3) HIGH VOLTAGE TRANSIENTS
generated from a power supply, a defective circuit
board, during circuit board troubleshooting, etc.
Techniques for protection from “zapping” depend on
the stage of manufacture. During the manufacturing of
integrated circuits and assembly of electronic equipment, protection is achieved through the use of wellknown measures such as static dissipative table tops,
wrist straps, ionized air blowers, antistatic shipping
tubes, etc. These methods will be discussed only briefly
here in relation to Electrostatic Discharge (ESD) protection. Likewise this application note is not addressed to
precautionary measures employed during shipping, installation, or repair of equipment. Rather, the main
thrust will be limited to protection aspects called upon
during printed circuit board assembly, normal operation
of the equipment (often by operating personnel who are
untrained in preventative measures), and in service conditions where the transient environment may not be well
characterized.
Electrostatic Discharge
Electrostatic discharge is a single, fast, high current
transfer of electrostatic charge that results from:
The transient environment varies widely. There are substantial differences among those experienced by, say,
automotive systems, airborne or shipborne equipment,
space systems, industrial equipment or consumer products. All types of electronic components can be
destroyed or degraded. 1 Even capacitors, relays, connectors, printed circuit boards, etc., are susceptible,
although their threshold levels are much higher than
integrated circuits. Microwave diodes and transistors
are among the most sensitive components. However,
this application note will be restricted to standard linear
integrated circuits because of their wide usage, and to
limit the scope of coverage.
• Direct contact transfer between two objects at different potentials, or
• A high electrostatic field between two objects when
they are in close proximity.
The prime sources of static electricity are mostly insulators and are typically synthetic materials, e.g., vinyl or
plastic work surfaces, insulated shoes, finished wood
chairs, Scotch tape, bubble pack, soldering irons with
ungrounded tips, etc. Voltage levels generated by these
sources can be extremely high since their charge is not
readily distributed over their surfaces or conducted to
other objects.
The generation of static electricity caused by rubbing
two substances together is called the triboelectric effect.
Examples of sources of triboelectric electrostatic charge
generation in a high RH ( ≈60%) environment include:
• Walking across a carpet ⇒ 1000 V–1500 V generated.
• Walking across a vinyl floor ⇒ 150 V–250 V generated.
• Handling material protected by clear plastic covers
400 V–600 V generated.
⇒
• Handling polyethylene bags ⇒ 1000 V–1200 V generated.
• Pouring polyurethane foam into a box ⇒ 1200 V–
1500 V generated.
• ICs sliding down an open antistatic shipping tube ⇒
25 V–250 V generated.
Comparison of HBM, MM, and CDM Waveforms
Figure 4 shows 400 V HBM, MM, and CDM discharge
waveforms on the same current vs. time scale. These
waveforms are of great use in predicting what failure
mechanism may result on a particular device type due to
ESD events simulated by one of these three models.
Note: For low RH (<30%) environments, generated voltages can be >10 × those listed above.
ESD Models
To evaluate the susceptibility of devices to simulated
stress environments a host of test waveforms have been
developed. The three most prominent of these waveforms currently in general use for simulating ESD events
in semiconductor or discrete devices are: The Human
Body Model (HBM), the Machine Model (MM), and the
Charged Device Model (CDM). The test circuits and current waveform characteristics for these three models
are shown in Figures 1 to 3. Each of these models represents a fundamentally different ESD event. Consequently, correlation between the test results for these
models is minimal.
The rise time for the HBM waveform is <10 ns (typically
6 ns–9 ns), and this waveform decays exponentially towards 0 V with a fall time of >150 ns. MIL-STD-883 3
Method 3015 Electrostatic Discharge Sensitivity Classification requires a rise time of <10 ns and a delay time of
150 ± 20 ns (Method 3015 defines delay time as the time
for the waveform to drop from 90% of the peak current
to 36.8% of the peak current). The peak current for the
HBM waveform is ≈400 V/1500 Ω or 0.267A. Although
this peak current is much lower than that for 400 V CDM
and MM events, the relatively long duration of the total
HBM event results in a discharge of relatively high
energy.
2
AMPS
Human Body Model: 2
Simulates the discharge event that occurs when a person charged to either a positive or negative potential
touches an IC at a different potential.
HBM
t
20ns/DIV
RLC=1.5kɏ,7,500nH,100pF.
6
I
10MΩ
S1
4
7,500nH 1.5kΩ
MM
HVPS
AMPS
2
DUT
100pF
0
t
20ns/DIV
–2
t
–4
Figure 1. Human Body Model
AMPS
Machine Model:
Japanese model based on a worst-case HBM.
RLC=~0ɏ(typically10ɏto20ɏ),500nH,200pF.
10MΩ
S1
HVPS
500nH
200pF
~0ɏ(typically
10ɏto20ɏ)
I
t
The MM waveform consists of both positive-going and
negative-going sinusoidal peaks with peak magnitudes
that decay exponentially. The initial MM peak has a rise
time of ≈14 ns, i.e., only slightly greater than that of the
single HBM peak. The total duration of the MM waveform is comparable to that for the HBM waveform. However, the peak current for the first peak of the 400 V MM
event is ≈5.8 A, which is the highest of the three models.
The next four peaks, though decreasing in current, still
all have magnitudes of >1 A. These multiple high current
peaks of substantial duration result in an overall discharge energy that is by far the highest of the three
models because there is no current limiting; R = 0 Ω.
Charged Device Model:
Simulates the discharge that occurs when a pin on an IC
charged to either a positive or negative potential contacts a conductive surface at a different (usually ground)
potential.
RLC=~25ɏ(sparkresistance),1nHto5nH,1pFto20pF.
CHARGE
HVPS
t
Figure 4. Relative Comparison of 400 V HBM, MM,
and CDM Discharges
DUT
1Ω
CDM
20ns/DIV
Figure 2. Machine Model
1GΩ
2
I
DISCHARGE
The CDM waveform corresponds to the shortest known
real-world ESD event. The socketed CDM waveform has
a rise time of 400 ps, with the total duration of the CDM
event of ≈2 ns. The CDM waveform is essentially unipolar, although some slight ringing occurs at the end of the
CDM event that results in some negative-going peaks.
DIELECTRIC
t
GROUND PLANE
Figure 3. Charged Device Model
–2–
• Prohibit the use of prime static generators, e.g.,
Scotch tape.
Witha400Vchargingvoltage,asocketedCDMdisͲ
chargewillhaveapeakcurrentofbetween2Aand
8Adependingonpackagetype.However,thevery
shortdurationoftheoverallCDMeventresultsinan
overalldischargeofrelativelylowenergy.
• Follow up with ESD audits at a minimum of three
month intervals.
• Training: Keep in mind, the key to an effective ESD
control program is “TRAINING.” Training should be
given to all personnel who come in contact with integrated circuits and should be documented for certification purposes, e.g., ISO 9000 audits.
SummaryofESDModels
TableIisareferencetablethatcomparesthemost
importantcharacteristicsofthethreeESDsimulation
models.
Table I.
Model
HBM
MM
Socketed CDM
Simulate
Human Body
Machine
Charged Device
Origin
US Military
Late 1960s
Japan 1976
AT&T 1974
Real World
Yes
Generally No
Yes
RC
1.5 kΩ, 100 pF
0 Ω, 200 pF
Rise Time
<10 ns
14 ns*
400ps**
IPEAK at 400 V
0.27 A
5.8 A*
2.1 A**
Package
Dependent
No
No
Yes
Leakage
Recovery
No
No
Yes
Standard
Document
JEDEC
JS-001-2011
JEDEC
JESD22-A115B
(Standard
Test Method)
JEDEC
JESD22-C101E
Determining whether a device failed as a result of ESD
or Electrical Overstress (EOS) can be difficult and is often best left to Failure Analysis Engineers. Typically
ESD damage is less obvious than that of EOS when electrical analysis and internal visual analysis are
performed. In the case of ESD, events of 1 kV or more
(depending on the ESD rating of the device) can rupture
oxides (inter layer dielectric of the die) and damage
junctions in less than 10 ns (see Figure 6). Alternately,
EOS conditions leading to 1 to 3 amps of current for a
duration of ≥1 ms can cause sufficient self-heating of
bond wires to fuse them. Such conditions can occur as a
result of latch-up. Lower currents can cause rapid melting of chip metallization and other interconnect layers
(see Figure 5).
1 Ω , 1 pF–20 pF
* These values are per ESD Association Standard S5.2. EIAJs standard ED-4701 Method C-111 includes no waveform specifications.
** These values are for the direct charging (socketed) method.
Prevention
When auditing a facility in which ESD protective measures will be taken, the following should be considered:
4
Figure 5. Scanning Electron Microscope View of a
Fused Metallization Site, as a Result of Electrical
Overstress
• There must be a grounded workbench on which to
handle static sensitive devices incorporating:
a) Personal ground strap (wrist strap)
b) Conductive trays or shunts, etc.
c) Conductive work surface
d) Conductive floor or mat
e) A common ground point
• All steel shelving or cabinets used to store devices
must be grounded.
• The relative humidity should be controlled; the desirable range is 40 to 60 percent. Where high relative
humidity levels cannot be maintained, the use of ionized air should be used to dissipate electrostatic
charges.
Figure 6. Scanning Electron Microscope CrossSectional View of a CDM ESD Site. This subsurface site
could not be viewed from the surface with an optical
microscope.
• All electrical equipment used in the area must be
grounded.
–3–
A quick analysis can be performed on site to evaluate if a
device may have been overstressed or may have been
subjected to an ESD event. In order to perform this
analysis, to compare the pin-to-pin I/V results of the suspect device to those of a known good device, a curve
tracer or similar equipment should be used. A typical
set of I/V traces for a short circuit, open circuit or ESD
leakage on a digital input pin (with reference to the V SS
supply pin) of a 12-bit DAC is shown in Figure 7.
This triggering mechanism can occur if excessive voltage overshoot is present at the I/O pin, or if the signal
arrives at the input before the power supplies are applied to the device, or due to electrostatic discharge.
This latch-up is usually limited to the devices directly
connected to the pin.
INPUT
GND
VDD
OUTPUT
GND
p+
–
n+
+
n+
p+
p+
n-well
ε
p-sub
OUTPUT
n+
VDD
SHORT CIRCUIT
Figure 9a. Output Overvoltage Triggering. Initial hole
current flows when the output voltage is raised above
VDD . This current causes a voltage rise in the substrate
under the NMOS device.
GOOD TRACE
OPEN CIRCUIT
INPUT
GND
ESD LEAKAGE
p+
n+
n+
GND
p+
p+
–
V/DIV. : 2V
I / DIV. : 50—A
p-sub
ε
OUTPUT
n+
+
n-well
RSUB
Figure 9b. Current Multiplication. The substrate
voltage rise actively biases the second parasitic
transistor into conduction. The electron current
subsequently causes a voltage drop in the n-well,
further turning on the first transistor. If the product of
the current gains is larger than one, the final current
flow between the supplies can be self-sustaining,
limited only by internal resistance’s, i.e., an SCR.
Figure 7. Example of an Unpowered Curve Trace
Analysis of a Digital Pin versus a Supply Pin (VSS)
LATCH-UP
Latch-up is a potentially destructive situation in which a
parasitic active device is triggered, shorting the positive
and negative supplies together. If current flow is not
limited, electrical overstress will occur. The classic case
of latch-up occurs in CMOS output devices, in which the
driver transistors and wells form a pnpn SCR structure
when one of the two parasitic base-emitter junctions is
momentarily forward biased during an overvoltage
event. The SCR turns on and essentially causes a short
between V DD and ground.
Although triggering is by an overvoltage event (typically
of only a diode drop above or below the power supplies), the industry practice is to classify the I/O susceptibility in terms of the amount of excess current the pin
can source or sink in this overvoltage condition before
the internal parasitic resistance's develop enough voltage drop to sustain the latch-up condition. A value of
100 mA is generally considered adequate, with 200 mA
considered immune to latch-up.
Triggering Mechanisms
There are two main triggering mechanisms. First, if the
input/output (I/O) pin voltage is raised above the positive supply, or lowered below the negative supply, one
of the parasitic transistors is turned on. The current returning to the supply through the collector causes a voltage drop across the base-emitter of the second parasitic
transistor. In turn, the collector current of the second
transistor maintains a forward bias on the base-emitter
of the first transistor. If the product of the two transistor
gains is greater than unity, the condition may be selfsustaining and can persist even after the external voltage is removed.
The second triggering mechanism occurs if a supply
voltage is raised enough to break down an internal junction, injecting current into the SCR previously described.
This triggering mechanism can occur due to supply transients, or electrostatic discharges shunted to a supply
rail. Unlike the case of I/O triggering, latch-up can occur
anywhere on the die and is not limited to the vicinity of
the external power connections or I/O pins.
The susceptibility to power supply overvoltage is usually limited by the fabrication process on which the device is manufactured, and can be found in the data sheet
under the Absolute Maximum Rating specification. If
this rating is exceeded, permanent EOS damage may
occur. Operating a device near the maximum ratings
may degrade the long term reliability of the device. Also
the electrical specifications are applicable only at the
supply specified on the data sheet and will not be guaranteed above these ratings.
VDD
RWELL
QP
VDD
OUTPUT
OUTPUT
QN
OUTPUT
RSUB
GND
Figure 8. Parasitic SCR. The Diffusions in a CMOS
output form a parasitic SCR. The resistors are labeled
for an n-well process.
–4–
However, the one exception to this rule is when the
input range of a device exceeds the supply voltage
range of the device, e.g., by design the AD7893-10 12bit A/D subsystem, the input range is ±10 V and the
supply is +5 V.
Design Rules
The following is a set of rules to be followed for all designers using CMOS and Bipolar-CMOS ICs: 5
1. Digital inputs and outputs should not be allowed to
exceed V DD by more than 0.3 volts at any time. This
includes a power-down situation when V DD = 0 volts.
2. If the digital inputs and outputs of a device can go
below DGND at any time, a Schottky diode (such as
an HP5082-2835) connected from those inputs or outputs to DGND will effectively clamp negative excursions at –0.3 volts to –0.4 volts. This prevents the
emitter-base junction of the parasitic NPN transistor
from being turned on, and also prevents SCR
triggering. Figure 11 shows the connections for the
Schottky diodes.
2. Digital inputs and outputs should also not be allowed
to go below DGND by more than –0.3 volts.
3. For mixed signal devices, DGND should not be allowed to exceed AGND by 0.3 volts.
4. For a CMOS or Bipolar-CMOS DAC, I OUT should, in
general, not be allowed to drop below AGND by more
than 0.3 volts. Some DACs can tolerate significant
IOUT current flow, however, without any danger of
latch-up.
+5V
+5V
INPUT CLAMPED
AND DAMPED
1N914
0V
–0.3
Latch-Up Prevention Techniques
The following recommendations should be implemented in general, for all applications with CMOS and
Bipolar-CMOS ICs that violate one or more of the previously discussed rules:
VDD
IC#2
VDD
IC#1
ROUT
RDAMPING
L
RSUB
I/P
OUTPUT
1. If the digital inputs or outputs of a device can go beyond V DD at any time, a diode (such as a 1N914) connected in series with V DD will prevent SCR action and
subsequent latch-up. This works because the diode
prevents the base current of the parasitic lateral-PNP
transistor from flowing out the V DD pin, thus preventing SCR triggering. This is shown in Figure 10.
PARASITIC
TRACE
INDUCTANCE
Rp-well
DGND
HP50822835
RIN
CIN
HP50822835
DGND
Diodes are also a reliable solution if power-up sequencing is identified as the failure mechanism. In
such a case, the insertion of a Schottky diode between the logic inputs and the V DD supply rail (the
anode of the diode connected to the logic inputs), will
ensure that the logic inputs do not exceed the V DD
supply by more than 0.3 volts, thus preventing latchup of the device.
+5V
COMMON GROUND
Figure 11. Adding Schottky diodes from the inputs
and outputs of a CMOS IC to DGND protects against
undervoltages causing conduction of the parasitic
NPN, thus inhibiting SCR action. The series damping resistor makes ringing due to long PC board
traces die out more quickly.
3. If the DGND potential can occasionally exceed AGND
by more than 0.3 volts, a Schottky diode placed between the two pins of the device will prevent conduction of the associated parasitic NPN transistor. This
provides additional protection against latch-up as
shown in Figure 12. An extra diode connected in inverse parallel with the one just mentioned provides
clamping of DGND to AGND in the other direction
and will help to minimize digital noise from being injected into the IC.
0V
1N914
VDD IC POWERED UP
IC POWERED DOWN
VDD
IC#1
ROUT
IDD ≈ 0
IC#2
OUTPUT
IIN ≈ 0
INPUT
Ib ≈ 0
RSUB
Ic = 0
Rp-well
DGND
COMMON GROUND
To identify over- and under-voltage events as described
in points (2) and (3) above, the use of a storage oscilloscope is suggested, set at the maximum ratings specification for each pin. Set the Time/Div. to the minimum
setting on the oscilloscope (preferably in the ns range).
This test should be conducted over a long period of
time, e.g., overnight.
DGND
IDGND ≈ 0
Figure 10. Adding an inexpensive silicon diode in
series with the VDD pin of the unpowered IC effectively prevents the parasitic lateral-PNP transistor’s
base current from flowing and inhibits SCR action.
4. In circuits where the I OUT pin of a CMOS IC can be
pulled below AGND, another Schottky diode clamp
between these two terminals will prevent sensitive
–5–
reverse standoff voltage (V R), which approximates the
circuit absolute maximum operating voltage. When a
transient occurs, the TVS clamps instantly to limit the
spike voltage to a safe level, called the clamping voltage
(V C ), while conducting potentially damaging current
away from the protected component.
+5V
LATERAL
PNP
R3
R1
R2
VERTICAL
NPN
TRANSIENT PEAK
R4
HP5082-2835
SCHOTTKY
DIODES
+30V
DGND
AGND
+20V
Figure 12. Connecting Schottky diodes between
DGND and AGND prevents conduction of the
parasitic NPN transistor, and helps to minimize
injected noise from DGND to the analog output.
IC FAILURE THRESHOLD
TVS CLAMPING
VOLTAGE (VC)
+12V
NORMAL OPERATING
VOLTAGE
TIME
ICs from latching up. This condition sometimes occurs with high speed bipolar operational amplifiers
that are used as current-to-voltage converters following a DAC. During power-up or power-down transitions, the op amp’s inverting input presents a low
impedance from I OUT to the negative supply rail. An
unprotected DAC may fail without the recommended
Schottky diode clamp to AGND.
Figure 13. Transients of several thousand volts can be
clamped to a safe level by the TVS.
TVSs are designed, specified and tested for transient
voltage protection, while a Zener diode is designed and
specified for voltage regulation. Therefore, for transient
protection the TVS should be selected over the Zener.
The surge power and surge current capability of the
TVS are proportional to its junction area. Surge ratings
for silicon TVS families are normally specified in kilowatts of peak pulse power (P P) during a given waveform.
Early devices were specified with a 10/1000 μs waveform (10 μs rise to peak and 1000 μs exponential decay
to one half peak), while more recent devices are rated
for an 8/20 μs test waveform. Power ratings range from
5 kW for 10/1000 μs, down to 400 W for 8/20 μs. This
power is derived from the product of the peak voltage
across the TVS and the peak current conducted through
the device.
5. In designs that have long digital PC board traces between components and are therefore prone to inductive ringing problems, a series damping resistor of
10 Ω–100 Ω will be beneficial. This resistor increases
the damping factor of the equivalent series RLC network and causes the ringing to decay more quickly.
This will help to prevent conduction of the input or
output protection diodes.
High Voltage Transients
If power supply overvoltaging is identified as the failure
mechanism, a reliable solution is the insertion of a
TransZorb* transient voltage suppressor (TVS). What is
a TVS and how does it work?
TVSs have circuit operating voltages available in increments from 5 V up to 376 V for some families. Because
of the broad range of voltages and power ratings available (as well as the universal presence of transient voltages), TVSs are used in a wide variety of circuits and
applications.
Transient voltage suppressors 6 (TVSs) are devices used
to protect vulnerable circuits from electrical overstress
such as that caused by ESD, inductive load switching
and lightning-induced line transients. Within the TVS,
damaging voltage spikes are limited by clamping or avalanche action of a rugged silicon pn junction which reduces the amplitude of the transient to a nondestructive
level.
As an example, consider a pressure transducer which
operates at 28 V, placed in an environment in which it
encounters a transient voltage of 140 V peak, having a
source impedance of 2 Ω and a duration of 10/1000 μs.
The failure threshold of the transducer is 40 V, therefore
the TVS must clamp at 40 V or less. The current delivered by this transient is:
In a circuit, the TVS should be “invisible” until a
transient appears. Electrical parameters such as breakdown voltage (V BR ), standby (leakage) current (I D ), and
capacitance should have no effect on normal circuit
performance.
I = (140 V – 40 V)/2 Ω = 50 A
Note that the voltage clamping action of the TVS results
in a voltage divider whereby the open circuit voltage of
the transient appears across the combination of the
source impedance and the TVS device. Thus the TVS
To limit standby current and to allow for variations in
V BR caused by the temperature coefficient of the TVS,
the TVS breakdown voltage is usually 10% above the
*TransZorb is a registered trademark of General Semiconductor
Industries, Inc.
–6–
clamping voltage is subtracted from the transient voltage leaving a net source voltage of 100 V. When the
clamping voltage is high compared to the transient peak
voltage, the current is significantly reduced.
TYPICAL TVS APPLICATIONS
DC Line Applications
TransZorb TVSs on power lines prevent IC failures
caused by transients, power supply reversals or during
switching of the power supply between on and off
(Figure 16).
This circuit can be protected with a 5 kW rated TransZorb
TVS which will easily sustain the surge current.
TRANSIENT
VOLTAGE
CLAMPED
TRANSIENT
2Ω
Ic
ZS
5kW
TVS
28V
LOAD
Figure 16.
Figure 14. A 5 kW TVS is required to handle the surge
current.
For power sources utilizing the TransZorb TVS, the
TransZorb TVS is chosen such that the reverse stand-off
voltage is equal to or greater than the dc output voltage.
For certain applications it may be more desirable to replace the series resistor (R) with an inductor (Figure 17).
An alternate and more economical approach is to add a
series resistor to effectively increase the source impedance thus limiting surge current as illustrated in Figure
15. Since the current drawn by the transducer under
normal operation is small (<20 mA typical), performance is not adversely affected by a reduction in supply
current.
15V
DC
INPUT
For a small load current, 10 mA, the voltage drop across
the added resistance is minimal, about 250 mV for a
25 ohm resistor. Adding this resistor reduces the surge
current to:
TO
LOAD
AC
INPUT
TO
LOAD
RECTIFIER
NETWORK
Figure 17.
Signal Line Applications
Input pins are vulnerable to low energy, high voltage
static discharges or crosstalk transmitted to the signal
wires. Limited protection is provided by the clamp
diode or an input network within the IC substrate
(Figure 18).
I = (140 V – 40 V)/(2 Ω + 25 Ω) = 3.7 A
This is less than one-tenth the surge current without the
resistor. A TVS with lower power rating is able to
handle the resulting current. In this case a 500 W suppressor replaces the 5 kW device, saving board space
and cost.
2Ω
R
R
Ic
25Ω
Ic
OR
ZS
28V
500W
TVS
LOAD
Figure 18.
Transients generated on the line can vary from a few microseconds to several milliseconds in duration and up to
10,000 volts in magnitude. Excess current passing
through the diode can cause an open circuit condition or
a slow degradation of the circuit performance.
TransZorb TVSs located on the signal line can absorb
this excess energy (Figure 19).
Figure 15. The series resistor reduces transient current
allowing a much smaller TVS to be used.
Carbon composition resistors are recommended for this
application because of their energy dissipation capability. Steady state power dissipated by the resistor (V ×I) is
2.5 mW requiring the lowest rated resistor available for
adequate margin.
IN
OUT
SIGNAL WIRE
Figure 19.
A further reference on the subject of using TransZorbs
for circuit protection is Analog Devices Application Note
AN-311, entitled ”How to Reliably Protect CMOS Circuits
against Power Supply Overvoltaging.“
–7–
IN SUMMARY
Designing an application with maximum protection of
the integrated circuits is a challenging problem with a
solution that depends on many factors. The following is
a brief summary of the protection schemes discussed in
this application note:
REFERENCES
1
Henry Domingos, ”Circuit Design for EOS/ESD Protection,” Proc. 1982 EOS/ESD Symp., pp. 1–17 to 1–21.
1. Personnel should be trained in the proper handling
techniques for prevention of EOS/ESD damage.
2. A good facilities ground system including shielding
of equipment and data lines should be implemented.
3. Use transient suppressors judiciously, i.e., check if
there are spikes on the supply and the ground lines
which may exceed the maximum ratings of those
pins.
4. Review the proper power-up sequence of the
device(s). The correct order should normally be:
GND, Main supplies (if possible the substrate supply
being first), V CC , V REF+/– and finally all other pins.
2
John A. Schmidt, Manager of Technical Services IMCS
Corporation, Santa Clara, CA, ”CDM–The Newest ESD
Test Model,“ 1991.
3
MIL-STD-883 Method 3015, ”Electrostatic Discharge
Sensitivity Classification,“ Military Standard Test
Methods and Procedures for Microelectronics.
4
ESD Prevention Manual, 1986. Norwood MA; Analog
Devices Inc., pp 9-11. Contains additional references.
5
Mark Alexander, ”Understanding and Preventing
Latch-Up in CMOS DACs,“ AN-109. Free from Analog
Devices, PMI Division.
6
General Instrument, Power Semiconductor Division
Data Book/11th edition, pp. 633, 696–703. Contains additional references.
Andrew Olney, Analog Devices, Inc., personal communication
5. Review the data sheet, in particular the maximum ratings section.
Remaining devices from a lot that may have been
mistested or subjected to the same conditions as those
of any failing devices should be evaluated to determine
if latent damage may be present. This analysis should
be performed due to the possibility that overstress conditions existed which did not cause immediate failure
but induced subtle damage that could result in longterm reliability problems.
PRINTED IN U.S.A.
Finally, the issue of input overvoltage protection for amplifiers is not discussed in this application note. However, it is exclusively discussed in two other Analog
Devices publications; (1) Joe Buxton, ”Simple Techniques Protect Amplifiers from Input Overvoltage,“ Analog Dialogue 28-3, 1994, and (2) Joe Buxton, ”Input
Overvoltage Protection,“ System Applications Guide ,
Analog Devices, 1993, pp 1–56 to 1–74.
©1995–2012 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
AN10536-0-2/12(A)
–8–
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
