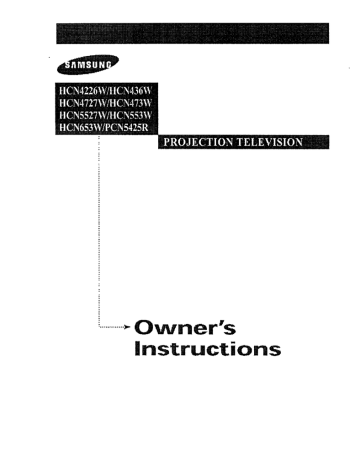

Owner's

Instructions

l Warninq

Safety

! Important

Instructions

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

dangerous to make any kind of contact with any inside part of

This symbol indicates high voltage is present inside, It is this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this producL

Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Article 820 40 of the National Electrical Code (Section 54 of

Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Caution: FCC/CSA regulations state that any unauthorized ehanges or modillca

tlons to this equipment may void the user's authority to operate it.

Caution: To prevent etectric shoek, match the wide Made of plug to the wide slot, and fully insert the plug.

Attention: pour eviter les chocs electriques, introduire la lame le ptus large de la

fiche dans la borne correspondante de la prise et pousserjusqu'au fond.

Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.

Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights.

To prevent damage which may result in fire or electric shock hazard,

do not

expose this appliance to rain

or moisture.

Thank You for Choosing Samsung

Thank you for choosing Samsung!

Your new Samsung Projection TV represents the latest in television technolog_ We designed it with easy to use on screen menus and dosed captioning capabilities, making it one of the best products in its class. We are proud to offer you a product that will provide convenient, dependable service and enjoyment for years to come.

Important Safety Information

Always be careful when using your TV receiver.

To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.

• Read all safety and operating instructions before operating your T_

• Keep

• Heed the safety all warnings and operating instructions for future re%fence.

on the TV receiver and in the operating instructions.

• Follow all operating and use instructions.

• Unplug the TV receiver from the wall outlet befure cleaning.

Use a damp cloth; do not use liquid or aerosol cleaners.

• Never add any attachments and/or equipment without approval of the manufacturer.

Such additions can increase the risk of fire, electric shock, or other personal injury.

• Do not use the TV receiver where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc.

• Do not place the TV on an unstable cart, stand, tripod, bracket, or table where it can fail. A falling TV carl cause serious injury to a child or adult, and serious damage to the appliance.

Use only with a cart, stand, tripod, bracket, or table recommended by the manu facturer or sold with the TV[ Follow the manufacturer_ instruc tions when mounting the unit, and use a mounting accessory rec ommended by the manufacturer.

Move the TV and cart with care.

Quick stops, excessive force, and uneven surfaces can make the unit and cart unsteady and likely to overturn.

• Provide ventilation for the TV receiver.

The unit is designed with slots in the cabinet for ventilation to protect it from overheating.

Do not block these openings with any object, and do not place the TV receiver on a bed, sofa, rug, or other similar surface.

Do not place it near a radiator or heat register.

If you place the TV receiver on a rack or bookcase, ensure that there is adequate ventilation and that you've followed tile manufacturer_ instructions for mounting.

• Operate your TV receiver only from the type of power source indicated on the marking label.

If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power compan_

• Use only a grounded or polarized outlet.

For your safety, this TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one wag If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.

SAFELY

2 s_._

• Protect the power cord.

Power supply cords should be routed so that they won't be walked on or pinched by objects placed on or against them.

Pay particular attention to cords at plugs, con venience receptacles, and the point where they exit from the unit.

• Unplug the TV from the wall outlet and disconnect the antenna or cable system during a light ning storm or when left unattended and unused for long periods of time. This will prevent dam age to the unit due to lightning and power line surges.

• Avoid overhead power lines. An outside antenna system should not be placed in the vich]ity of overhead power lines or other electric light or power circuits or where it can fail into such power lines or circuits.

When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits.

Contact with such lines can be fatal.

• Do not overload the wall outlet or extension cords.

Overloading can result in fire or electric shock.

• Do not insert anything through the openings in the unit, where they can touch dangerous volt age points or damage parts.

Never spill liquid of any kind on the TV

• Ground outdoor antennas.

If an outside antenna or cable system is connected to the TV_ be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electrical Code,

ANSI/NFPA No.70

1984, provides infurmation about proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLEQF

ANTENNAGROUNDING

• Do not attempt to service the TV yourself.

Refer all servicing to qualified service personnel.

Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the fullowing conditions: when the power supply cord or plug is damaged if liquid has been spilled on the unit or if objects have fallen into the unit if the TV has been exposed to rain or water if the TV does not operate normally by following the operating instructions if the TV has been dropped or the cabinet has been damaged when the TV exhibits a distinct change in performance

• If you make adjustments yourself, adjust only those controls that are covered by the operating instructions.

Adjusting other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to normal.

• When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in additional damage to the unit.

• Upon completion of any service or repairs to this TV] ask the service technician to perform safety checks to determine that the TV is in a safe operating condition.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference that may cause undesired operation.

This television receiver provides display of television closed captioning in accordance with

15.119

of the FCC rules.

Important

Regarding

Viewing

Warranty

Television

Information

Format

Standard screen format televisions (4:3, the aspect ratio of the screen width to height) are primarily designed to view standard format l'ull motion video.

The images displayed on them should pi-imari[y be in the standard 4:3 ratio format and constantly moving.

Displaying stationary graphics and images on screen, such as the dark top and bottom letterbox bars (wide screen pictures), should be limited to no moi-e than 1 5% of the total television viewing per week.

Wide screen format televisions (1 6:9, the aspect i-atio of the screen width to height) are primarily designed to view wide screen format fuli motion video.

The images displayed on them should primarily be in the wide screen 1 6:9 ratio format, or expanded to fill the screen if your model offers this feature, and constantly moving.

Displaying stationary graphics and images on screen, such as the dark side bars on non expanded standard format television video and programming, should be limited to no more than 15% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described abo\ e for all televisions.

Displaying ar_y stationarly images that

exceed tile above guidelines can cause uneven aging of picture tubes (CRTs) that leave subtle, but permanent burned in ghost inlages in the television picture. To avoid this, vary the programruing and images, and prinla_41y display full screen moving inlages, not stationaly patterns or

da_k bars. On television models that offer picture sizing features, use these controls to view the different ft_rmats as a full screen picture.

Be careful in the selection and duration of television formats used for vie_ving.

Uneven

CRT aging as a result of' format selection and use, as well as other burned in images, is not covered by your Samsung limited warranty.

1 (]ON] EN] S

CONTENTS ]

Chapter

Chapter

Chapter

1: Your

New

TV

...............

List of Features ..........................................

Familiarizing Yuurself with Yuur New TV ......................

Front Panel Buttons ...............................

Fi-ont/Side Panel Jacks .............................

Using the Component Shelf .........................

Rear Pane[ Jacks (Depending oil the model) .............

Remote Control ..................................

2: Installation

................

2.1

Connecting VHF and UHF Antennas .........................

Antennas with 300 ohm Flat 7bvin Leads ...............

Antennas with 75 ohm Round Leads ..................

Separate VHF and UHF Antennas ....................

Connecting Cable TV .....................................

Cable without a Cable Box ..........................

Connecting to a Cable Box that Descramb[es

All Channels ....................................

Connecting to a Cable Box that Descramb[es some Channels ..................................

2.3

2.3

Connecting a VCR .......................................

Connecting a Second VCR to Record from the TV ........

2.5

2.6

Connecting a Camcorder ..................................

2.7

Connecting a DVD Player, DTV Set Top Box (480i, 480p, 10800 . . .2.8

Connecting a DTV Set Top Box .............................

2.9

Connecting to Y, PJ,, Pl (480p, 10800 .................

Cormecting to DVI (Digital Visual Interface)(480p,

2.9

720p, 10800 . .2.10

Installing Batteries in the Remote Control ....................

2.11

2.1

2.1

2.2

2.2

2.2

2.2

3: Operation

..................

Turning the TV On and Off ................................

Plug & Play Feature ......................................

Using the PerfFct Focus Feature .............................

Adjusting Manual convergence .............................

Adjust Red Convergence ...........................

Viewing the Menus and On Screen Displays ...................

Viewing the Menus ...............................

Viewing the Display ...............................

Selecting a Menu Language ................................

Selecting the Antenna Input ................................

Memorizing the Channels .................................

Selecting the Video Signal source .....................

Storing Channels in Memory (Automatic Method) ........

Adding and Erasing Channels (Manual Method) .........

Changing Channels .....................................

Using the Channel Buttons ........................

Using the Number Buttons ........................

Using the Previous Channel ........................

Selecting Youi- Favorite Channels ...........................

To Store Your Favorite Channels: ....................

To View Your Favorite Channels: ....................

Adding and Erasing Channels (Manual Method) ...............

Labeling the Channels ...................................

Picture Control ........................................

Customizing the Picture ...........................

Using Automatic Picture Settings ....................

Selecting the Coloi- Tone ..........................

3.1

3.12

3.13

3.14

3.14

3.15

3.16

3.7

3.7

3.8

3.8

3.9

3.9

3.10

3. lO

3. lO

3.10

3.11

3.11

3.11

3.5

3.6

3.6

3.6

3.1

3.1

3.3

3.4

1.1

1,1

1.2

1,2

1.3

1.3

1.4

1.5

CONTENTS

Chapter

Chapter

Chapter

Appendix

3: Operation (Cont.)

..........

Sound Control .........................................

Adjusting the Vulume ............................

Using Mute ....................................

Customizing the Sound ...........................

Using Automatic Sound Settings ....................

Setting the Clock .......................................

Option 1: Setting the Clock Manually ................

Option 2: Using the Local PBS Channel to Automatically

Set the TV Clock ................................

Viewing an External Signal Source ..........................

3.16

3.16

3.16

3.16

3.17

3.18

3.19

3.19

3.20

3.21

4: Special Features

............

4.1

Fine Tuning Channels

....................................

Digital Noise Reduction ...................................

Changing the Screen Size ..................................

Using the R.suff Feature ...................................

Setting the On/Off Timer ..................................

Setting the Sleep Timer ...................................

Extra sound settings ......................................

Choosing a Multi Channel Sound (MTS) track .................

Viewing Closed Captions ..................................

Viewing Picture in Picture ................................

4.6

4.7

4.8

4.9

4.10

Activating Picture in Picture .......................

4.10

Selecting a Signal Source (Antenna or Cable) fur PiP .....

4.11

Selecting a Signal Source (External A/V) for PIP .........

4.11

Swapping the Contents of the PiP image and Main image .4.12

4.1

4.2

4.3

4.4

4.5

Changing the Size of the PIP Window ................

Changing the PIP Channel .........................

Changing the Location (Rotating) the PIP mode ........

Scanning the Available Channels ....................

Using the VChip .......................................

4.12

4.13

4.13

4.13

4.14

Setting Up Your Personal ID Number (PIN) ............

How to Enable/Disable the VChip ...................

G, PG, PG 13, R, NC 17, X ........................

How to Reset the TV after the VChip Blocks

4.14

4.15

How to Set up Restrictions Using the "TV guidelines" . . . .4.15

How to Set up Restrictions using the MPAA Ratings:

4.17

a Channel ("Emergency Escape") ....................

Viewing the Demonstration ........................

Customizing Yuur Remote Control ..........................

4.18

4.19

4.20

Setting Up Your Remote Control to Operate Yuur

VCR or DVD ...................................

4.20

Setting Up Your Remote Control to Operate Yuur

Cable Box .....................................

4.21

5: Troubleshooting

............

Identifying Pi-oblems .....................................

...........................

Cleaning and Maintaining Yuur TV ..........................

Using Yuur TV in Another Country ..........................

Specifications ...........................................

5.1

5.1

A.1

A. 1

A. 1

A. 1

Your NEW TV

List of Features

Your Samsung TV vvas designed with the latest tecbnolog_v This TV is a high perfurmance unit that includes the following special features:

Easy to use remote control

Easy to use on screen menu system

Automatic timer to turn the TV on and off

Adjustable picture and sound settings that can be stored in the TV_ memory

Automatic channel tuning fur up to 181 channels

A special filter to reduce or eliminate reception problems

Fine tuning control for the sharpest picture possible

A built in multi channel sound decoder for stereo and bilingual listening

Built in, dual channel speakers

A special sleep timer

Picture in Picture

Component Video Input jacks to obtain a sharper image from external sources

Peribct Focus

_._

(2}lAP I ON} Y( t}l N]\% V

I Your NEw TV

Familiarizing Yourself with The TV

Front Panel Buttons

The buttons on the front panel control your TV_ bask features, menu.

Tu use the more advanced features, you must use the including remote control.

the on screen

HCN42%W HCN436W

0 • • • @ •

HON4727W / HON5527W

0 • O0 • O0 •

HCN473W / HCN553W / HCN653W

000 • 0 • O0

0 @ •

PCN5425R

• • 000

O00000 • •

O TV/VIDEO

All the inputs connected to the external component jacks will be shown in regular sequence.

0 MUTE

Press to temporarily cut off the sound.

0 MENU

Pressto see an on screen menuofyour TV'sfeatures,

0 VOL-, +

Press to increase or decrease the volume,

Also used to select items on the on screen menu.

0 CHeF and OH&

Press to change channels. Also press to highlight various items on the on screen menu.

O Remote Control Sensor

Aim the remote control towards this spot on the TV.

Timer indicator

When the TVis turned on,the limer indicatorblinks aboutten times, Thisindicatorilluminateswhen the

]imer modeis set to the" On" positionafter settingthe clockand eitherthe On timeror Offtimer,with the remotecontrol.Evenifthe power is turnedof[, this indicatorstayslit. (Clockmustbe set before usingthis function,),

0 POWER

Press to turn the TV on and off,

YOUR NEW TV ]

Front or Side Panel Jacks

You {tall use the front or side pane[jacks to connect an A/V component that is used only occasionally, such as a camcorder or video game.

(For infurmation oll connecting equipment, see pages 2.1

2.10.)

O

@

O

O

O PERFECT FOCUS

Pressto adjustforthe optimumpicture setin the Factory,

0 VIDEO INPUT jack

Useto connectavideo signalfrom a camcorderor a videogame.

O AUDIO INPUT jacks

Useto connectthe audiosignalsfroma camcorderor video game.

O S-VIDEO INPUT jack

Useto connectan S Videosignalfrom a camcorderor a videogame,

Using the Component Shelf

Yuu can place a VCR, a DVD playez, etc.

oll the Component Shelf.

1

Press the symbol" _,1' in the center of the

Component Shelf dooc

2

As shown in figure below, hold the center of door and lift it up,

3

After placing a cornponent on the shelf, hold the center of door and pull it down as shown in figure below.

4

Shut the door by pressing the" _&" symbol.

F

/ Note: When placinga component on

,_ _

Lventilation.

1.3

( .AP._ o :

Y)tl/ Nt_ rv

Your NEw TV ]

Rear Panel Jacks (Depending on the model)

Use the zear parle] jacks to connect an A/V component that _vi[] be connected continu ously, such as a VCR or a DVD player.

Because there are two sets of input jacks, you can connect two diffVrent A/V components

(i.e., a VCR and a DVD, 2 VCRs, etc.)

For more inft_rmation oil connecting equipment, see pages 2.1

2.10.

0

00

• 0 • 0

0 0

() ANTENNA terminals

Two independent cables or antennas can be connected to these terminals, Use ANT-A and

ANTB terminals to receive a signal from VHF/

UHFantennas or your cable system.

Use the ANT-A OUTterminal to send the signal being received by the ANTA terminal out to another component (such as a Cable Set Top Box).

The PIP channel can be received only when a signal source is connected to ANTA,

O S-VIDEO INPUT jack

Connectto an S VHSVCRor DVDplayer,

0 COMPONENT 1(480i,

1080i) AUDIO/VIDEO

480p,

INPUT jacks andP signals,suchasa DVD(orDTVSet TopBox.

O

AUDIO-VIDEO MONITOR

OUTPUT jacks

Connect to the audio/video inputjacks of a recording VCR.

Note: The monitor out does not operate in DVD or DTV mode.

O

DIGITAL INPUT (Digital

Visual Interface) jack

Receivesthe digitalvideosignalsfroma settop box.(TheDVIjackis notavailableon PCN5425R.)

0 COMPONENT 2, 3(480p,

1080i) AUDIO/VIDEO INPUT jacks

O

VIDEO INPUT jacks

Connect to the video output jacks of VCRs,

DVD players and similar devices (Two sets are available: Video1 and Video2), 0 DVI AUDIO INPUT jacks

Receives the digital audio signals from a set top box, O AUDIO INPUTjacks

Connect to the audio outputjacks of VCRs,

DVD players and similar devices,

Your NEw TV ]

Remote Control

You can use the remote control up to about 23 fi_et from the ']'V_When ush]g the remote, always point it directly at the TV

You can also use your remote control to operate your VCR and cable box. See page 4.20

for details.

10t Power

Turns the TV on and off,

O +100

Press to select channels over 100.

For example, to select channel

121,press" +100," then press" 2" and" 12

O Still(Main)

Press to stop the action during a particular scene, Press again to resume normal video.

CHv and CHA

(Channel Up/Down)

Press CHv or CHA to change channels.

VOL -, VOL +

Press increase or decrease the volume.

0 Sleep

Press to select a preset time inter val for automatic shutoff.

0 Display

Press to display the current chan nel and the audio video settings,

O Aspect

Pressto changethe screensize.

O BBE

13BEis a built-in effect that adds clarity, punch and dynamics to the sound,

0 MTS (Multichannel

Television Stereo)

Press to choose stereo, mono or

Separate Audio Program (SAP broadcast).

iiiiiiiiiiii!!i

@ Mute

Press to temporarily cut off the sound.

Pre-CH

Tunesto the previous channel.

_) IV/Video

All the inputs connected to the external component jacks will be shown in regular sequence.

@

Menu

Displays the main on screen menu,

Caption

Controls the caption decoder.

PIP

Activates picture in picture,

_) Perfect Focus

Press to adjust for tile optimum picture set in the Factory.

Fav.

CH (Favorite

Channel)

Pressto switch betweenyour favoritechannels.

1.5

(;.,,,p. _o :

Y)tl/ N_ rv

I Your NEw TV

Remote Control (continued)

ANT A/B

Press to select the ANT A or

ANT&

R.surf

Press to automatically return to a preferred charnel after a user preset time delay.

S.Mode

Adjust the TV sound by selecting one of the preset factory settings

(or select your personal, cus tomized sound settings),

P.Mode

Adjust the TV picture by select ing one of the preset factory set tings (or select your personal, customized picture settings),

VCR controls

Controls VCRtape functions:

Rewind, Play, Fast Forward, Stop,

Pause,

PiP Controls

Source

Press to select one of the avail able signal sources for the PIP window,

Scan

Press to memorize (scan) the available channels,

Locate

Press to move the PIP window to any of the four corners of the TV screen,

Exchanges the video signal that is currently displayed on the main screen with the signal in the PIP window,

Size

Press to make the PIP window small, large or double screen.

• Double window doesn't function on models

HCN4226W/HCN4727W,

HCN5527W/PCN5425R.

614

Displays the available channels in sequence, (These buttons change channels in the PIP win dow only).

Mode

Selects a target device to be controlled by the Samsung remote controi(Le,, TV,VCR,

Cable box or DVD),

@

Set

Used during set up of this

Samsung remote control, so that it will work compatibly with other devices (VCR,cable box,

DVD.)

@

V.Chip

Press to set up and activate the parental locks,

Add/Erase

Press to add or erase channels in the TV's memory,

C]I_P ii ON}: Yot}}_ NI;_ IV

1.6

INSTALLATION

Connecting VHF and UHF Antennas

If youz antenna has a set of leads that look like this, see "Antennas with

300 ohm Flat _vin Leads," below.

If youz antenna has one lead that looks like this, see "Antennas with 75 ohm

Round Leads," oil page 2.2.

If you have two antennas, see "Sepai-ate

VHF and UHF Antennas," oil page 2.2.

Antennas with 300-ohm Flat Twin Leads

If' you aze using an off air antenna (such as a zoof antenna or "zabMt eazs") that has 300 ohm twin fiat leads, follow the dizections below.

Place the wires from [h_ twin leads under the screws on the 300_75 ohm adaptor (not supplied). Use a screwdriver

_etighten the screws.

2

Plugme aoaptorintothe

ANT-Aor ANr-Bterminal

_n the rear panel.

i

INSTALLATION ]

Antennas with 75-ohm

Plug the antenna lead into the AN%A or ANT-B terminal o

Round Leads

Separate VHF and UHF Antennas

If you have two separate antennas foz your TV (one VHF and one UHF), you must combine the two antenna signals befoze connecting the antennas to the T_ This pzoceduze requh-es a an optional combinez adaptor (available at most electronics shops).

Connect both antenna earls to the combiner.

2

3lugthe combinerinto

Connecting Cable TV

You can connect different cable systems to youz TV, inciuding cable without a cable box, and cable with a cable box that descrambles some oz all channels.

Cable without

If you want to connect a Cable Box eabIe, and you do not need to use a cable box:

Plug the incoming cable into the ANT-A or ANT-B antenna terminoi on the rear of the TV.

(} I,\P] l _( / ]NSIAI AI( /N _ * 2

INSTALLATION ]

Cable with a Cable box that Descrambles All Channels terminal might be

Iabeled" ANT OUT'r

Connect the other end of ] this cable to th_ or ANT_Bterminal on the rear of the TV,

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles orgy some channels (such as premium channels), fallow the instructions below. You will need a two way splitter, an RE (A/B) switch, and fuur lengths of' coaxial cable. (These items are available at most electronics stores.)

This terminal might be labeled

"ANT IN," "VI [F IN," or simply,

"IN."

,-indanddisconnect the cable mat _s connectee to the ANTENNAIN ter_(] mmal on your c_bJe box,

IN NA

2

Connect this cabJem a

[wo-way SplIEeL neemleg

8plKler

3

CoRnet[ a coaxial cable

3etween an OUTPUT [er

"Rli]al oR Ltle S_ Lter ai1c

[ne {N terminaI otl the

cable box.

riP.orrllrlg

CableBox

2.3

(HAP] I IV(} ]NSI\I],\I_N

INSTALLATION

4 /

Connect a coaxial cable betweentheANTENNA

OUT terminal on the cable box and the B: !N

terminal on the A/B

] nr_[_]

_-_ ]_

Cable1

Splitter

Cable Box

RF (A/B)

8whch

Connect another cable between the other OUT terminaJ on the splitter and the A- IN terminal on the RF(A/B) switch,

Irrupting

¢,a_e

8plffler

_

CableBox

RF (A/B)

Swnch

Connect i cable between the OUT terminai on the RF (A/B) switch and the VHFIUHF terminal on the rear o[ the TV.

Incoming

Cable

Splitter

Cable Box

RF (A/B)

Switch

After you've made this connection, set the A/B switch to the "A" position for normal view ing. Set the A/B switch to tile "B" position to view scrambled channels.

(When you set the

A/B switch to "B," you will need to tune your TV to the cable box_ output channel, which is usually channel 3 or 4.)

(} I,\P] 1%_11 ]NSIAI AII(/N

2.4

INSTALLATION ]

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 2.1 2.3).

Skip step 1 if you have not yet connected to an antenna or a cable system.

TV Rear Panel

1

Connect a coaxia, cable between me

ANTENNA OUTterminat 3n the VCRann me antenna [ermlt_al Oll [n6 IV,

A coaxial

VCR came

[f not is usuall] check you_ included mcal wilh electronics a

From_1_

2

Connect a set of audio canes between the

AUDIO OUljacks on the VCR and the

AUDIO acks on the TV.

Ii you have a mono VCR. connect L monc t{3 VC R a[loio OUt 1I£111gOH]y O[le atlOlO cable.

3

Connect a video cable between the VIDEO

OUT ae_ on [he VCR and the VIDEO jack or me TV.

If you have a S-VI IS VCR use the SWideo eOflllect 31_ arl_1 _l_lnove t{le video cable

Do nol comxect the [dec cable and the S

Video cable to video 1 simuhaneousl

FoJlow the instructions oJ Camcmder Tape" in _Viewing to view your a VCR

VCR tape.

VCR RearPanel

Note: This figure shows tile Standard Connectol_jack panel.

The actual configuration on your TV may

be different, depending on tile model.

2,5 (IiA}*] [ IV() INS \IIA ()M

I I

Connecting a Second VCR to Record from the TV

Yuur TV can send out signals of its picture and sound to be recorded by a second VCR.

To do this, connect your second VCR as follows:

W RearPanel

1

Connect a set of audio canes between

[he AUDIO OUT acks on the TV and the

AUD 3 INjacKs onme ICR.

l'he VCR input jacks might be eJthei on 1he fzont or _ar of the VCR

2

Connecta videocable betweenthe

VIDEOOUI _ckonthe TV andthe

VIDEOINjackon the VCR

R_fbrtc Zorn VCR_instmrlions fur

H)ore ]ii_)Ima[ioll al)ou[ how ) recoi(l

[/£igo_ this kJrlo Ol Co£1rleciloIl

VCRRearPanel cH,w_ _ I_o I s_ x_o 26

INSTALLATION ]

Connecting a Camcorder

Tile side panel jacks on your TV make it easy to cormect a eamcorder you to view the cameorder tapes without ushlg a VCR.

to your TV[ They allow

1

Locate the A/V outpuk _CKSon me camcorder, [hey are USUallyfound on the side or rear of the camcome_

2

Connect an audio cable between the

AUDIO OUTPUT acK on [ne camcomer and the AUDIO mrmma_s on me side of me TV,

_f _/0[1 h_Me ]'nono t_a]TK-o£dPi atlGlo k/inono } Ca]Tl_OfdPi only orle midio cable

-o[l[iP_l o13f us3n c

3

Connect a video cable between the

VIDEOOUTPUTjack on the camcorder and the \ lEO terminaI on the sidet of the TV.

The atK}io -victeo cables S} low]l here are u_uall_ included wilh_ Cam_mde[ /i[

IlOt check ou£ local _lecl]_oz'llcs slofe.

It yo[i["camco[ae£ is sleYeo "_uneed tc

"OYlIleCt a SP[ O[ tWO cables

TV Side Panel

Note: This figure shows tile Standard Connectol_jack panel.

The actual configuration on your TV may

be diffurent, depending on tile model.

2,7 (IiAP] I INS \l],\ ()N

I I

Connecting

(480i, 480p, a DVD Player,

1080i)

DTV Set-Top Box

The rear panel jacks on your TV make it easy to connect a DVD player (or DTV Set Tap

Box) to your TV_

Connecting to Y, PB,P.

TVRearPanel

Connect a set of audio cables between the DVDaudio injacks on the IX/and the AUDIO OUTjacks on the DVD player or DTV Set Top Box,

2

TO enable Component video viewing, connect video cables between the Y, P_, and PJ_inputs on the IV and Y,P_,and PJ_

(or Y,C_,C.) outputs on the DVD player

(or DTV Set-Fop Box),

Note: For an e×planation ot

Component video, see your DVD

Connecting to regular audio and video jacks

TVRearPanel

1

Connect a set of audio cables betweer the AUDIO tNjac_s on the TV and the

AUDIO OUTjacks on the DVD player or DTV Set-Toa Box"

2

Connect video cables between the

VIDEO OUTjack on the DVD player or DTV Set-Top Box) and the VIDEO

INjacK on the [V.

DVD Player/DWSet-TopBox

DVD Player/DTVSet-TopBox

Note: This figure shows tile Standard Connector jack panel.

The actual configuration be different, dependilJg on tile mode1.

on your TV may

C}I,\]'] I I_t_ I sial al_ 2,8

INSTALLATION ]

Connecting a DTV Set-Top Box

Connecting to Y, PB, PR (480p, 1080i)

Connect the Y, P, and P video outputs of' the set top box to their corresponding inputs on the T_ Next, connect the Left and Right audio from the set top box to the corresponding

L and R terminaIs on the T_ (The connections for a typical set top box are shown below.)

TVR_IP_el

1

Connect a set ofaud a cables between the DTVSet:roB Box audio inJaCKS3n the TV and the AUDIO OU]jacks on the

DTVSet-Too box

2

TOenableComponentwoeowewmg connectvideo cablesbetweenthe Y Ps andP_inButsonthe TVandY.P,,andPF or ¥, C., Cu) OUtBU[S 3n the DTV Set-Top

DOX,

Note: For an explanauon o]

_olYipo[len[ video, see :c £

DTVSeb-topboxs owners ins£mclion.

DTVSet-T0pBox

2.9

( HAP]i ivy(} [NSM]&©N

INSTALLATION ]

Connecting to DVI (Digital Visual Interface)(480p, 720p, 1080i)

By inputting a high bandwidth Digital Content Protection high definition picture source to the DVI INPUT jack on the TV_ high definition pktures can be displayed oil the screen in their digital form.

(This DVI INPUT jack is for use in the future when

High bandwidth Digital Content Protection DTV decoder, DVD players and D VHS are put on the market.)

"iV RealPanel

1

Connect a set of audio cables betweer the DTVSet-Top Box audio injacKs on the TV and the AUDIO OUTjackson the

DTVSet*Too box

2

Connect a set of audio cables Detweer the AUDtO INPUTjacks on the vane the AUDIO OU] acks on the Set Top

Box

3

Connect a DVt cable betwee_ the DVI INPU] _CKontheTVandthe

DVI OUTjack on the Set TOEBox.

Not_Z For" _n t_xpl&rla[iQ [1 O[

_oInpollen[ VI_PO See 1o[iT

DTV Set-top boxs owners instruction

DTVSet-T0pBox

Notes

• The DVI INPUT jack can only be use with 480p, 720p, and 1080i picture signals.

Set the DTV decoder DVI OUTPUTjaek output setting to 480p, 720p or 108@.

Por detailed information, refer to the Set Top Box instruction manual.

• The DVI INPUT jack is not compatible with the picture signal of a personal computer.

• Use a DVI 25 pin cable (commercially available) in order to digitally connect the TV with a

DTV decoder.

INSTALLATION ]

Installing Batteries in the Remote Control

Make sure to match the "+" and

"--" ends of the batteries with the diagram inside the compartment.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.

The remote control can be used up to about 23 tbet from the TM

(Assuming typical TV usage, the

Batteries last for about one yeai_)

2.1 1

(flAP] k IVy(/ ]NS kl]:k /JN

OPERATION

Turning the TV On and Off

Press the Power button,

You can also use the POWER button on the tbont panel.

Plug & Play Feature

When the TV is initiaI[y powered subsequently: Setting the language,

On, five basic customer settings proceed

Ant.

input check, and Auto program/Setting automatically the Clock.

and

1

Press the Power button on the remote control. i p_&P_y

The message" Ptug & Play" is displayed,

It flickers for a little while and then the _Language" menu is . ...........................................................................................................................................................

automatically displayed

Press the VOL + or VOL- button to select the desired language. Press the Menu button to enter the language, and then the YANT/CATV" menu is autom@ticatty displayed,

3

Press the VOL+ or VOL- button to select the aes_reom video stgnaI source.

Press the Menu button to enter the video signal source and then the "Ant Inau[ check" is automauca.y

amp_ayec

±_loet IE_t continued...

(2HAl,l} 1¢ IEl}¢i IV ()PHAIlON 3.

1

OPERATION

¸4¸¸¸¸

Make sure that the antenna is Connected to the TV.

And then press the VOL+ or VOL- button to activate

"Auto Program" or press the

MENU button to skip,

(refer to _Auto program" i_IT 4

]

Press the VOL+ or VOL- button to move to the hour

Qr minute, Set the hour or minute by pressing the

CNAorCNv button,

(refer to" Setting the clock"

( i

When you have finished, press the Menu button.

The message" Enjoyyour watching.," is diepJayed.

7

If you want to reset this feature

(1) Pressthe Menu button,

(2)Press the CH v button three times to setect the

Function menu and pree the VOI + button.

select 7Piug& Play" and press the VOL+ button

The message _Plug &

Play" is displayed,

Note: Plug & Play feature doesn't woFk when the Vchip is on oi- when in the A/V mode.

3.2

(;.,,1., h]._.: rv o,,}},,,,i,

OPERATION ]

Using the Perfect Focus Feature

When the picture size is distorted after moving the TV set adjust for the optimum picture size set in the Factory.

use the Perfect Focus feature to

-_ You can also select Perfbct

Focus by pressing the Perfect Focus button.

Press the CHV button to select "Convergence", then press the VO[ + button.

3

Press the CH v button to select" Perfect Focus", tbe_

Dress the got + button,

Perform Perfect Focus in the

[olIowing sequence: Green

Rec _ Blue.

Press Menu button to exit,

/ i nr:_

3

Notes

• If any error happens during Perfect Focus, then perform Perfect Focus once again.

• If'you can't make adjustments after Perfbct Focus, then make manual adjustments.

Still you can't make adjustments, contact your Service Center.

• The Perfect Focus function doesn't operate when component input is in 480R

(2HAI']}}¢ IHRi IV ()P} AIlON

3.3

OPERATION ]

Adjusting Manual Convergence

If' the color appears alignment.

Be sure spread to use out the or "smeared" remote control on the screen, the for tile convergence convergence adjustments.

probably

Fh-st steps: needs

Press the Menu button.

Press the Cl.lv

button to setect ?Function", then press the VOL+ button.

Language : Enfllisll

2

Press the City button to seiect" Convergence", then press the VOL+ but[on.

Convergence

The _Manual Convergence" screen will appear, and the word _Red" wi!i be high_

Iighted:

R_d I* iiiiiiii_iiiiiiiiiiiiiii_i_i_iiiiiiiiiiiiiiiiiii_i continued...

3.4

c.,,],], l,]._., rv o,,}},,,,i,

OPERATION

Adjust Red Convergence

4

White" Red" is highlighted, press the VOL+ button A crosshair pattern Will appear on the screen

After moving the cursor to the pOSlbOn you want m aajust Using the number buttons 2{upl, 4(leftl

6{rtghtL 8taowm on me remote control aejust Red Convergence by pressing the'gOt +1MOLJ0B/x

!OHv buttons,

]

R=_u_m_==_,

=_a

2.&&5:P_t_ o:_

• uG_e_'a ± t_ IMwva f a horizontal red Itne _s visible use

CHA and CHV buttons to move the Iine so that i1 is sugerlmBosee on

[Be no[izon[al center4ine (i,e., make a single horizontal line that is as

WRite &is DOSSIDle.t

6

"a vertical rea line is VISIBle use the VOL + and VOL - buttonsm move the hne so that _t _ssuperim_ posed on the vertical-center ,he

/i.e.. make a single vertical line that

ISaS WRite aS DQSSIDteJ pbau we _mom =onm_

Rad

U_own ;_ UR []Menu

pla_m, use mmow _ormo

Red

2.4.8

S:P_rdon 0:R/B

@ UWDown ;at;taR []Menu

7

For 'Blue' ad*ustmenL no me same as me above.

After the red convergence is correcdy adjusted, press Menu to exit att the menus,

(2HAI,llR IHRi IV ()P} AIlON 3.5

OPERATION ]

Viewing the

Viewing the Menus

1

With the power on press the Menu button

The" Picture" menu appears on the screen, tts left side has hve icons: Picture, Sound,

Menus and On-Screen Displays

_1 The on-screen menus disappear f_'om the screen after thirty seconds.

Press the CH/N or CH V button to the move items in the menu

(the icons blink when highlighted), Press the VOL ÷ or VOL- button to display, change, ot use the selected items. Press th e VOL+ button to enter items in the menu,

-91 You can also use the Menu,

CHANNEL, and VOLUME buttons on the control panel of the TV to make selections.

Press the Menu button to exit,

Viewing the Display

The display identifies the current channel and the status of certain audio video settings.

-ql The on-screen displays disappear after ten seconds.

Press the Display button on the remote control.

The TV wiii display the channel, the type of audio, and the status of certain video and audio settings,

(" " indicates a channel has be_n manual!y fine tuned.) m

_,_n :

=

36 (:.,,1., h]i_.]:rv o,,}},,,,i,

OPERATION ]

Selecting a Menu

Language

Press the Me_ button.

Press the CH v button to select" Function", then press the VOL + b_tton.

Press the CI-Iv button to select'! Language",then press the VOL+ or VOL. button to select the Ian

Press the Menu button to exit,

..........

;

Selecting the Antenna Input

You can connect to tvvro different signal sources by choosing the antenna input (Antenna A or

Antenna B),

Press the Menubutton,

Pressthe CHv button to select'!Channel", then pressthe VOL+ buttonto enter.

2

Press the VOL + or VOL. button to select _A" or_ B",

Press the Menu button to exit.

i

(2HAI']}}¢ IHRi IV ()P} AII()N

37

OPERATION ]

Memorizing the Channels

Your TV can memorize and store all of the available channels for both "off' air" (antenna) and cable chanrle[s.

After the available channels are memorized, use the CH A and CH V but tons to scan through the channels.

This eliminates the need to change channels by entming the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (manual).

Selecting the Video Signal-source

Before your television can begin memorizinf_ tile available channels, you must specify tile type of' signal source that is connected to the TV (i.e., an antenna or a cable system).

1

Press Menu outran

Press the CH v button to select" ChanneI".

then press the VOL + button

Pressthe CHv buttonto select"ANT/CATV",then

PresstheVOL+or VOI. buttonto cycle through thesechoices:

ANT or IRC(all cableIV).

Note: STD, HRC and IRC identify various types of' cable TV systems.

Contact your local cable company to identify the type of' cable system that exists in your particular area.

At this point the signal source has been selected. Proceed to "Storing Channels in Memory"

(next page).

38 C}l,x],]{i I]]R}{]: rv ()},}{},,.,i,,N

OPERATION ]

Storing Channels

1

First.select the correc[ s_gnaIsource rANT. STD

HRC,tRCI, See steps 1-2 on previous page,

Press the Menu button

Press the CH v button to select ° Channel' men press the VOL+ button in Memory (Automatic Method)

2

Press the CH v button to select" Auto Program _, then

Dress the VO[ + button.

AUtO Program

_M_'e i_t _E)dt

3

The TV will begin memorizing all of the available channels

Alter all the available cban_els are s[oreG [he

Auto program menu reap_

[}ears. Press the Menu

DUttORtOextt.

_P_mm

_4 mBdt

The TV automatically cycles through all of the available channels and stores them in memory.

This takes about one to two minutes.

Adding and Erasing Channels (Manual Method)

Use the number buttons to directly select the channel that wiIl be added or erased,

Press the Add/Erase button:

Repeatedly pressing this button will alternate between

"Added" and" Erased£

Press the Menu button to exit,

Yuu can view any channel (including buttons on the remote control.

an erased channel) by using the number

CH,',,P]}}¢ IH}¢_ IV ()P} AII()N

39

OPERATION ]

Changing

Using the Channel

Channels

Buttons

Press the CH/X or CHV button to change channels.

W'hen you press GHA or CHv, the TV changes channels in sequence.

You will see all the channels that the TV has memorized.

(The TV must have nmmorized at least three channels.) You will not see channels that were either erased or not memorized.

Using the Number Buttons

Use the number buttons to quickly tune to any channel.

Press the number buttons to go directly to a channel.

For example, to select channel 27, press "2," then "7!i The TV wilt change channels when you press the second number.

When you use the number buttons, you can directly select channels that were either erased or not

IlleI_lorized.

To select a channel over 100, press the +100 button.

(For channel 122, press "+100," then "2," then

"2.")

To change to single-digit press "0," then "4.") channels (0 9) faster, press "0" betore the single digit.

(For channel "4,"

Using the Previous Channel press the pre-CH buttQn, The W changes to the last channel you were watching.

OPERATION ]

Selecting Your Favorite Channels

You can store up to ten of your favorite channels for each available input source (such as TV and CATV). Then, when you press the Fav.CH button oil the remote control, the TV displays only the favorite channels you previously stored, allowing you to quicMy and easily flnd fre quently watched channels.

Channels: To Store Your Favorite

1

Press the Menu button

Press the CH V button to select" Channel then press the gOL +

DUtIOR

2

Press the CH v button m select _Fav,channet men aress the got + button,

Press the VOL + or VOLbutton to select the first channel, lo select more favorite channels, press CI-IA or lo erase the memorized

Favorite Channel, setect the channet by pressing the VOL+NOL. buttons and then press the

Add/Erase button,

To View Your Favorite Channels:

Press the Fav.CHbutton repeatedly tojump from one favorite channel to another.

_1 Note: Only memorizect channels can be set as Favorite channe]s

CH/,a']H_ ]H}_II IVOPt A]]() 3.q

q

OPERATION ]

Adding and Erasing Channels (Manual Method)

1

Press the Menu button.

B_ess the CH V button to select" Channel", then press me VO[ + button

2

B_essthe CH V button [o select" Add/Erase ther

Dress the VOL + button

_ Idlmw _Se]_t J_dt

3

B_ess the VOL + button men oress CH A I CEl v or numoer DUt[OrlS 10 select the channe you wan[ [G a(](] OFerase

Press t]e Menu button.

4

Press the CH A ot

CI-I v buttor to se_ec_

Select",

B'ess the VO/+ or VOLbutton to se act"Adde_ or" Erased'

Press the Menu button to exit

[he menu.

Se[ecl : Added

OPERATION ]

Labeling the Channels

Use this feature to assign an easy to remember label to any channel (i.e., "CBS", "ESPN",

"PBS2", CNN1% etc.) A [abel consists of four fietds, where each field is a letter, a num bet, "*", or a blank. When the DISPLAY button is pressed, the channel label will appear next to the channel number.

1

Press CHA or CHV m rune m me channel that will be labeled

_1 Note: You cannot se]ect

"Labeling '_ in the A/V mode

2

Press the Menu button

Press the CH v button to seiecT Channel" men press the V0L + Button

_MM _. Se]emt gBdt

3

Press the CH v but[on To select ° Labeling

Dress me VOL+ button to

Degm _aBenng,

The left-most field will be mgn.gnmo,

Each label has four fields.

See top parag/aon.t

4

Press the CH A or CH V button to seIect a _etter a number, or _1 blanK,

_Pressthe CH/N or

CH v button results m mls seouence:A.B

.Z. blank

&l ,..£

5

Press the VOL + bu[mn switch to the next field wh ch will be nlgnllgrlteo,

Select a second letter or

Digit pressing me _H A or

CH g buttor as above,

Repeat the process m select tile Iast two oigt[s,

_1_

Press the Menu button to exit the menu,

M_

ABC

B E_I

(>/,P]H_]H}_HiV OPt A]]( 3.1

3

OPERATION ]

Picture Control

You can use the on screen menus to change the contrast, brightness, tint, color, and sharpness according to personal preference.

(Alternatively, you can use one of" the

"automatk" settings.

See next page.)

Customizing the Picture

Press the Menu button,

Xl ii i iii ii

The" Picture" icon will be highlighted, then press the

VO/÷ or VO/- button repeatedty, uetil the word is selected,

"CUStOm"

•....

Mode : Custom

Z

Press the CH V button to select "Adjust _, thee press the VOL + button,

(The words Contrast,

Brightness, Sharpness,

3

Press the VOL+ butto_

_Thewords Contrast,

Brightness, Sharpness

Colo- and Tintwill appear on me screetl _Press the

CH A c CH v button to select a particular item.

: 80

_M_ _ AdjuM I[l_dt

4

Press the VOL+ or VOLbutton to increase or decrease the value of a parucui_ir terfl

-ql After a@usting an item, the gauge wilI automaticalIy disappear(after about 4 seconds).

OPERATION ]

Using Automatic Picture Settings

Your TV has three automatic picture settings ("Dynamic", "Standard" and "Movie") that are preset at the factory.

Yuu can activate either Dynamic, Standard or Movie by pressing RMode

(or by maMng a selection from the menu).

©z, you can select "Custom" which automatically recalls youz personalized picture settings.

Press the Menu button,

Picture icon wiII be highlighted.

Mode : Custom

Press the VOL+ or gOLbuRonto select the

_Standard" or _Movie° picture setting,

Mode :Dynamic

Alternate method:

Simply press the P.Mode

button on the remote control to select one of the standard picture settings.

Standard

Choose StandaM for the standard factory settings.

Choose Dynamic fbr viewing the TV during the day or when there is bright light in the room.

Choose Movie when viewing the Movie.

Choose Custom if you want to at!just

the settings according erence (see "Customizing the Picture, page 3.14).

to personal pref _ c./,P.}_ ]H}_HiV On A]]( 3.1 5

OPERATION

Selecting the Color Tone

1

Press the Menu button.

They Picture" icon will be highlighted, Then press t_e VOL÷ button,

]

Press the CNV button to select" Color Tone"

3 { (/(

Press the VOL ÷ or VOL- button to select" Normal" i

?Warm1"; "Warm2", "Coot2"

Press the Menu button to exit.

Sound Control

Adjusting the Volume

Press the VOL + or VOL- buttons to increase or decrease the volume.

Using Mute

At any time, you can temporarily cut off the sound using the Mute button.

Press the Mute button and the sound cuts off.

Theword" Mute" win aPpear in the Iower-ieft corner of the screen

To tern m_te off, press the Mute button again, or simply press either the VOL- or VOL÷ button,

OPERATION ]

Customizing the Sound

The sound settings can be adjusted to suit your personal perfbrences.

Alternatively, you can use one of the "automatic" settings. See next page.)

Press the Men u button+

Press the CH v button to select _Sound"; the press the VOL÷ button.

Press the VOL+ or VOL button repeatedly, until the word"Custom" isselected.

(When Custom is selected, the words" Equalizer_ wilt appear on the screen,)

Press the CH v button to select _Equalizer" then press the VOL+ button.

Press the I/OL + or I/OLbutton tO highlight a partita 7 far item to be changed.

Press the CR A or CHV button to increase or decrease the vaIue of a particular item,

Press the Menu button exit,

CH/,a']H_ ]H}_II iVOPt A]]( 3.q

7

OPERATION ]

Using Automatic Sound Settings

Yuur TV has four automatic sound settings ("Standard," "Music," "Movie," and "Speech") that are preset at the factor_ You can activate either Standard, Music, Movie oi- Speech by press ing the &MODE button (or by making a selection from the menu).

Or, you can select

"Custom," which automatically recalls your personalized sound settings.

Press the Me.. button

Press the CH N/button to select the _Sound"; then press the gO/, button.

2¸¸/¸¸ ¸

{

Press the VOL. Or VOI + button repeatedly to select the _Standard," _Music,"

"Movie," "Speech" or

"Custom" sound settings.

Mode Standard

/

Alternate method:

Simply press the &MODE button on the remote control to select one of the

Standard sound settings.

$_anda_d

Choose Standard for the standard factory settings.

Choose Music when watching music videos or concerts.

Choose Speech when watching a show that is mostly dialogue (i.e., news).

Choose Movies when watching movies.

Choose Custom to recall your personalized settings.

OPERATION ]

Setting the Clock

Setting the clock is necessary in order to use the various timer features of' the TV. Also, you can check the time while watching the TV[ (Just press Display)

Option 1: Setting the Clock Manually

1

Press the Menu button

Englsfl

Press the OHv button to select" Function", then

Dress the VOL + button,

2

Press the CH v out[on m select" Time men_

Press the VOL+ button: The time menu will aDoear on me screer and _Clock" wilI be highhghte&

Clocl

T_m_ oo ooar_

3

Press the VOL + button again itne nours digit._

wilt Denighlightedt

Press the CH A or

CH v button repea[eal}

until the correct nou[ appears

4

Alter the hour is enterea.

Press the VOL + button

_[ tills point the minutes digits will be highlighteOL

Press me CH A O-

CH N/ button to select the correct minutes,

Alter selectlrlg me cod rect mlrlutes, Dress the

VOL+ button

Press the Menu button to exit

@ Adjt_lt • MOW mJ_it

-41 When selecting the hou*s, be sure to select the proper time of day

(AM or PM).

-41 The time will appear every time you press the Display button

(;H/,P]H_]H}_HiV OPt A]]( 3.q

9

OPERATION ]

Option 2: Using the Local PBS Channel the TV Clock to Automatically Set

Press the MENU,

Press the CH v button to select" Function", then press the VOL_ button i!!!!!!!_iiiiiiiiiiiiiil;_tiiiiiiiiiiiiiiiiii!_iiiiiiiii

Press the CH x/button to select" Auto clock set" menu, then Press the 1/01.+ button,

>

Press the V01. + button to select Auto clock set

_ Orl", tiiiiiii_!_[[[[[[[[[[[[[[[_iS_[[[[[[[[[[[[[[[[[[]_!_a##

Press the CH V button

to select" PBS channel" While" PBS channel" is selected, press the t/01.+ button to activate the channelnumber field.

Press the 6H i or

CH v button to select your local PBS chan_el.

continued...

OPERATION ]

Press the CH v button to select _Time Zone"

While "Time Zone° is selecb ed, then press the VOL+or

VOL- to change the Time zone,

Sequence: A/L, EAST,CEN,,

MTN., PAC.,ALAS., HAW.

[

:EAST

_t[[[[[[[[[[[[[[[[[[

Press the CH V button to select" DST" time). While zDST'! is select_ ed, press the VOL+or VOLt button to indicate "Yes" or

NO".

The clock is set,

Press the MENU button to exit.

Viewing an External Signal Source

such as VCRs, DVD, Set Tup box and the TV source (broadcast or cable).

1

Press the TV/Video button,

YOU will switch be_een _

2:;

@ O

_ W_

TV signal,

When you connect equipment to the TV,you can choose between the following sets ofjacks : Video 1, Video 2, S_Video1, Component 1,

Component 2, Component 3(option) o[ DVl on the TV's real panel! and

Video 3 or S_Video2 on the TV's side panel,

CH/,.P]H_ ] H}_H IV OPt A]]( 3.2

q

SPECIAL FEATURES

Fine Tuning

Use fine tuning to manually

Channels

adjust a particular channel for optimal reception.

1

Select the aooroBrla[e char_No

Press the Menu button

Press the CH v button [o select the "Channel" [nep

Dress the VOL + button

2

Press the CH V button to select Finelune

_l_em _Adjm g_it

Press the VOL+ or VOL button to adjust the fine

-ql After you at!just

the fine tuning,

"*" will appear when you press

Display while watching this channel.

fo store the fine tuning setting inthe TV's memory, press the Oil A butto n.

(A star icon<*>will appear.) Fil'eTune

10 reset the fine tuning to

00%press the OH V button ..............................................................................

Press the Menu button to exit.

4.1

(.,,,, ,, l(t,i Sl,}IAIFIAIUI]S

SPECIAL FEATURES ]

Digital Noise Reduction

If' the broadcast

Reduction feature signal received to help reduce by your any

TV is weak, static and you ghosting can activate that may the appear

Digital Noise on tile screen.

Press the Menu button.

Press the CH v button tO select" Picture", then press the VOL ÷ button.

Mod_ : custom

Press the CH V button setect" DigitaI NR"

Press the VOL + or VO button to select" On",

Press the Menu button to

(}l,\p iI r(t)l SP} IA] rl_]t)RiS

4.2

SPECIAL FEATURES ]

Changing the Screen Size

4:3 TV

Wide TV (16:9)

Wide Panorama DVD

Zoom 4:3 Cinema

Wide Panorama

4:3 i DVD g_ 3-

Cinema

_n=

4.3

(HAP El_ IP()UI

• Wide:

• Panorama:

• DVD:

Sets the picture to 16:9 wide mode.

Use this mode tbr the wide aspect ratio of a panoramic picture.

Magnifies the size of the picture and moves the magnified picture up.

You can also move the picture on screen pressing the CFIA or CFIV button.

• Zoom: Magnifies the size of the picture on screen.

You can also move the picture on screen pressing the CFIA or CFIV button.

Sets the picture to 4:3 normal mode.

• 4:3(Normai):

• Cinema: The broadcasting signal is enlm_ed automatically

The margins appear grayed.

to optimum screen size.

PCN5425R have no change in screen size and only mm_ins will turn gray

Notes

• Changing the Screen size doesn't work with Componentl, 2, 3(480p/DVI)

The PCN542oR models operate olny Zoom function with Component signals.

1, 2, 3(1080i/DVI) signals.

• Screen size cannot be changed in the PIP mode.

• It's possible to be a little dift_rence to perfbrm a grey ietterbox by the specification of the DVD or VCR Tapes.

• Tim PCN5425R might not show caption in Movie mode,

SPECAI _?EAIUIiS

SPECIAL FEATURES I

Using the R.surf

feature

This feature aRovv,s you to set the TV to return to a particular channel after a certain amount of' time. For example, you may be watching a channel when commercials start.

You can set the R.Surf to "5 minutes", then svv,[tch channels.

After 5 minutes, the TV will return to the original channel To use the R.surf:

White you are watching the channel to which you want to return, press the

ILsurf button. The onscreen display wil! read

_Suffoff" :

Press the P.surfbutton again to set the timer in thirty second intervals, up to fi_e minutes.

$_ _:30

=

The time you set wilt begin counting down on the screen, When the time runs out, the TV will return to the channel you were watching when YOUset the timer.

(}I,\P 11 _(tll S}'I lz\] _l _]tl}_iS

4.4

SPECIAL FEATURES ]

Setting the On/Off Timer

Press the Menu button,

Press the CH v button to select _Function", then press the VOL + button

: English

-q Before using the timer, you must set the TV's clock. (See "Setting the

Clock" on page 3.19)

When any of the tilners are set, the

"Timer" LED will illuminate (front panel ot TV).

Press the CH V button to select °T_me",then press the VOL + button, i"7=7=777"77"77"77"77"77"77"77"77"77"77"77"7T"_"

Press the CH v button to select "On time'!,

Press the VOL + button to select the _On time" hours,

The hours digits wilt be highlighted,)

PressthegHA or CHV button repeatedly to select the appropriate hours (Le,, the hour when the TV wilt on Time 06 : 00 am Of[

-<1 When you set the hours, make sure the correct time of day (AM or

PM) appears to the left of the hour.

Press the VOL + button minutes.

(The minutes digits will be highlighted,}

PresstheOHA or CHV : button to select the appro: priate minutes,

4.5

C.,,]'.

]()uI Sl,} IAI FIAIUIiS

I SPECIAL FEATURES

5

Press the VOL + button to seiect" On/Off,"

Press the CIt A or

OHv button button to turn the on-timer" On,"

(Repeatedly pressing the ell A or OHx/button

I r15 deactivate the "On time," select "Off" during this step.

To set the Off time, press the CI-Iv button t_ s#tect

Press the VO/÷ button and set the hours and minutes. (Follow the same procedure as in steps I76 aboye.)

.

<

Of[Time

When finished setting the timer, press the Menu button to exit.

.....

_,= If no tunction buttons

(including remote control buttons or tbont panel buttons) are operated tor three hours after the TV is turned on with the by "On time" tbatm_, the

TV will be automatically turned oft.

Setting the Sleep Timer

The sleep timer automatically shuts off the TV after a preset time (from 10 to 180 minutes).

_2

-41 After about a seconds, the sleep display will disappear from the screen, and the time interval will be set.

Press Sleep repeatedly until the appropriate time interva!

appears (aay of the p[eset values from _Off' to Y18ff ),

(}l,\P 1_ _()HI S}'_ IA] _I%]H}¢IS

46

SPECIAL FEATURES J

Extra

The following

sound settings

sound settings

1

Press the Menu button

(Surround, Auto Volume, Melody, BBE) can be adjusted to suit your persoila] preferences.

Belbro using tho timer, you must set the TV's clock.

(See "Setting the

Clock" on page 3.19)

Custom

Pressthe CH v button m select" Sound' men

Dress the VOL+ button,

When any of the timers are set, the

"Timer" LED will illuminate (front panel of TV).

2

Press the CH v button to select"S. Function men press [he VOL+ button

3

Press the CH A or CH v button button to select the reouired item, the press the

VOL + button to seiec[ 0n ° ,

Press the Menu button to eXit

Surround

Your Samsung TV can create a "surround" ef'fi_ct such that the sound seems to come from aI[ directions.

Once the "Surround" is set to "Oil", the setting applies to sound ef_)cts such as Standard, Music, Movie and Speech.

Auto Volume

Each broadcasting station has its own signal conditions, which cain make it necessary to adjust the volume every time the channel is changed.

"Auto volume" lets you auto maticalty adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Melody

You cain hear dear a melody sound when the TV is powered on or Off'.

BBE

BeE is a built in effect that adds clarity, punch and dynamics to the sound.

47

(ll,\p _[ ]ouI SI,} IAI FIAIUIiS

SPECIAL FEATURES ]

Choosing

Soundtrack a Multi-Channel Sound (MTS)

Depending on the particular program being broadcast, you can listen to stereo, mono, or a

Separate Audio Program.

(SAP audio is usually a foreign language translation.

Sometimes SAP has unrelated information like news or weather.)

1

Press the Menu Button

: custom

Quick way to access the MTS menu: Just press the "MTS" button on tile relnote control.

Press the ONv buttor m select _Sound" men

Dress the VOI. + button,

¢M_ _=_lect g_xit

2

Press the CH V button to select" MTS" then Press the got + or 1/01.- button m select" Mono2 _SAE" o-

"Stereo

Press the Menu button to exit

TS s{e_eo

The text at the bottom of the menu tells you if the incoming audio is Stereo, SAP, or Mono.

Choose

Choose having

Choose foreign

Stereo

Mono for channels difficulty

SAP to listen language for channels receiving to the translation.

that are broadcasting that are broadcasting a stereo signal.

Separate in stereo.

in mono, or if you are

Audio Program, which is usually a

(}I,\P iI _()t)l SPl IA] _1%]t)}¢iS _.8

SPECIAL FEATURES ]

Viewing Closed Captions

Your TV decodes and displays the closed captions that are broadcast with certain TV shows.

These captions are usually subtitles fur the hearing impaired or foreign language trans lations.

All VCRs record the closed caption signal from television programs, so home record ed video tapes also provide closed captions.

Most pre recorded commercial video tapes pro vide dosed captions as well. Check for the closed caption symbol in your television schedule and on the tape's packaging: [_,

1

Press the Menu button

-,111Quick way to access captions menu: Simply press the "Caption" button on the remote control:

Press the CH v button to select _Function" the_

Dress the VOL+ button,

2

Press the CB V b_[ron to select" Caot_on men

Dress the VOL + burton

3

Press the VOL+ or VOL-

DUFf On to [Ugn Ctose{] tion lg on or off', cap*

_1 Misspellings characters and unusual sonletimes occur during closed caption transmissions, especially those of live events.

There may be a small delay before captions appear when you change channels.

These are not malfunctions of the Tg_

OM_m :t bk_It gl E_dt

4

D-ess the CH v button to select" Mode.

men Dress the VOL+ or VOL- button to select" Caotion" or" Text,

5

Depending on the particular broadcast, it might be necessary to make changes to _Channels" and" Field" :

Usethe 6tl/k, Ol-Iv _ VO/+ and VO[. buttons to make the changes.

(Follow the same procedure as in StePS 374 above:)

Press the Menu button to exit.

Note: The Caption

Components feature or Component3 doesn't mode.

work in Componentl

In caption mode, captions appear at the bottom of the screen, and they usually cover only a small portion of the picture.

In text mode, intbrmation unrelated to the program, such as news or weather, is displayed.

"l},xt often covers a lm_e portion of the screen.

channels

display ditterent information:

Field 2 carries additional information in that supplements the information

Field 1. (For example, Channel 1 may have subtitles in English, while Channel 2 has subtitles in

Spanish.)

(480p, 10800,

49

(.,_1, ,{,lot,i EPELMFIAItH]S

SPECIAL FEATURES 1

Viewing Picture-in-Picture

You can use the PIP feature to simultaneously watch two video sources.

Note: The PIP feature does not work with Component 1, Component2, Component3 mode.

When PIP is selected in the Zoom mode, the Mode is automatically converted into the Normal mode.

Activating Picture-in-Picture

1

Press the Menu button

Pres_ the CI-I V button tc select _ PIP_ men press the VO/+ buttor i

Quick way to access the PIP menu: Simply press the "PIP" button on the remote control.

-'q If you turn TV off while watching and turn it on again, the PIP window will disappear.

'_ 'Pro

Press the Menubutton to exit, I

Notes

• PictuIe in Picture doesn't function when the Vchip is active.

• %teen size cannot be changed in the PIP mode.

• The PIP feature doesn't work with Component 1 or Component2, 3 signals.

• When the cable box output is connected to ANTB, it cannot be viewed in the PIP window.

• Double Window isn't available on models HCN4226W / HCN4727W / HCN5527W /

PCN5425R.

( }lAP ii [ ()t}}¢ _1'} IA] ]'1%]U}¢IS

4.1

o

SPECIAL FEATURES ]

Selecting a Signal Source (Antenna or Cable) for PIP

1

Press the Menu eu[mn.

Press the CH V button to select" PIF men Dress the VOL+ button.

2

Press the CH v button [o select" ANT/CATV2

If an antenna is connectec me semng is "ANT.

If a Cable TV system is prov_amgthe signal, press me

VOL ÷ or VO[ - button until me appropriate type of cable system is is displayea

STD.""HRC or"lRC"

Press the Menu button to exit,

Selecting a Signal Source (External A/V) for PiP

Press the Menu button.

Press the CH v button to select" PIF, then press t he

VOL + button.

_t PiP : On

HI iiiii_

_.u_/_ iiiiiiii

.........................

iiiiiiiii_

Quick way to access the signal

"Source" button on the remote source (PIP): Simply press the control.

-<1 if you select "T_", the PIP image is tile same as the main inlage

/2

i ¸¸¸¸¸¸

Press the CH V button to select ?SOURCE, then pressthe VOL + or 90Lbutton to cycle through aI] of the avai!able signal sources:

" TV_ " Video l" " Video Z' ,

_Video 3"/ S-Video !!

Press the Menu button to exit,

4.1 1 (.,,1., 1()(11 F}AIt]I]s

SPECIAL FEATURES I

Swapping

1 the Contents

Press the Menu button,

Press the Cltv button to select _PIP", then Dress me

VOL+ button, of the PIP Image and Main Image

<1 Quick way to access swapping:

Simply press the "Swap" button on the remote control.

2

Press the CH v button to select"Swap, men press the rot + o[ VOL- button

The image in me PiP winoow w_ appear on the main screen, ano vice versa

Press the Menu button to exit

Note: When ANTB is selected, the PiP

SWAp function doesn't work.

Changing the Size of the PIP Window ili I ii _ i [

Press the Menu button,

Press the CH v button to select ?PW, then press th E

VOL+ button.

i i ii i ZI_ _ i i i i i i i i i i i

_1 Quick way to access PIP size:

Simply press the "Size" button on the remote control.

Press the CH V button to select" Size," then

VOL + or VOL- button to select the _Small"," Double

Screen", _Large!, _Stock

Ticker" ; _4 Pictures" or

13 Pictures".

Press the Menu button to exit.

........................................

HCN4226W/HCN4727W/HCN5527W/

PCN5425R:

Lal_e, Small, Stock Ticker

HCN436W/I

HCN653W:

ICN473W/I [CN553W/

Double Screen, Laid, e, Small, Stock

Ticket 4 Pictures, 13 Pictures.

(]IIAP ii _()UR _P} IA] ]'1%]URIS

4.1

2

SPECIAL FEATURES

Changing the PIP Channel

]

Quick way to access PIP C] [:

Simply press the (PIP) "CI [" button on the remote control.

Z

Z

Press the CH V button to select" Channel," then press the VOL+ or VOL button to change the channel that appears in the PtP window,

Z exit.

Note: The PIP channels are not available when RE is set to ANTB.

(The PIP channels lhlk to AN%A).

Changing the Location (Rotating) in PiP mode

When you press the Locatebutton repeatedly, the PtP window moves from corner to corner on the TV screen,

Scanning the Available Channels

This procedure scans all of the available channels and then stores

Press the Scan button, and the memorized channels will appear in sequence for 2 to 3 seconds per channel

Press the Scan button again to stop the scanning process,

When Scan stops, the viewing mode will return to its original set_ ring.

4.1 3 ( .,,,,,, l(),ll slq(:IAIr}Alt)l]s

SPECIAL FEATURES ]

Using the V-Chip

The VChip children.

feature automatically locks out programming

The user must fh-st enter a PIN (personal that

ID number) is deemed before any inappropriate of the V Chip for restrictions can be set up or changed.

Note : When the Vchip feature is active, the PIP and channel auto program features do not function.

Setting Up Your Personal ID Number (PIN)

1

Press me MENU.

Press the Ctt v button [o selectthe"Functio_ men

Bress the VOL÷ Burton

-_ Quick way to access the V_Chip menu: Simply press the V.Chip

button on the remote control.

2

Press the CN v button to select the "V-chip", then oress thegOL + button.

The" Enter Pin" screen witt appear. Enteryour 4-d_git

PIN number

Note: The default PIN number for a new TV set is 0-0-0-0. n

3

After enterincoa valid PIN riumBer, me WChlp screen w appear

Press the OHv button and select" Change p_n, . then

Dress me VOL + button

Change P_n •

4

Whi e the "Change pm field is selected Dress the

VOL+ button

]he Change pin screen w aooear, Choose any

4-digits for your PiN and enter mem,

As soon as the 4 digits are enteree the" Confirm new pin screer aDoears.

Re-enter the same 4 digits. When the Confirm screen o_sappea[s, your P{N has been memorize(]¸

Press the Menu button to exit.

-_1 Note: if you forget the PIN, press the remote-control keys in the following sequence, which resets the pin to 0-()-0-0:

POWER OFF "_ MUTE + 8 "_ 2

4 "_ POWER ON.

( }lAP 11 [ ot]}¢ S}'_ IA] ]'] %]t]}¢lS

4.1

4

SPECIAL FEATURES ]

How to Enable/Disable

1

Press the Menu button,

Press the CH v button to select _Function", then press the VOL+ button, the V-Chip

Press the CH V button to select" V-Chip," then

press the VOL+ button,

The" Enter Pin" screen witt appear, Enter your 4-digi

PIN number,

To enable the V_Chipfeature press the VOL+ button so

[hat the "V.Cbip lock" field is

Yes. (Pressing the VOL+ bub ton wi[I alternate between

Yes and NO.)

: Yes

How to Set up Restrictions Using the "TV guidelines"

First, set up a personal identification number (PIN), and enable the V Chip.

(See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.

Press the Menu button.

Press the CH v button to seleet t Function," then press the VOL+ button.

4.1

5 ( .,,,,,,

i1 SP](:IAI

SPECIAL FEATURES J

2

Press the CH V button to seiect the "V-Chip". then

Dress the VOL ÷ Button

The" Enter Pin" screer wiII appear.

Enter your

4-dt_" t PiN number.

3

Press the CH v button to select the "TV Guidelines" men Dress the VOI + DulleR,

V43_ _LeCk

TV Gm_ellnes

: NO

I,

_Mm _ 8_14_t glExll

4

The "TV Guiae nes screen wilI appear

Press the CN A, CH V buttons to select one of me six age_Daseacategories:

TV_Y Young Cnllarer

T%Y7 Chitdren 7 and over

TV_G Generat audience

TWPG Parent Guidance

TVq4 Viewers 14 and ove r

TV*MA Mature audience

-_1 Note: These cate_ _ries consist ot

Two separate groups: TV_Yand TV-Y7 tyoung children througn age 71. md

TV-G through TV-MA (everybody elsel.

The restrictions lot these two groups work independently: If a household includes very young children as well as young adults, the TV 4uidelines must De set up separatel 3 tor each age grou[.

_ee next step.

5

At this ooint, one of the IV-Ratings is selectea tntue cotorJ

PresstheVOL+bution:Depenamgonyourex_stingsetup

"'J= Unbbcked. B- Blockedl atetter d" or"B" witIstarLbiinking.

While the" U" or" B" _s rea press [he CH A or CH v button to block or unoIocK me category

Press the VOL + baron once to save the TV guidelines. A TV_Ratingwill be selected (BLUEt and no letters will blink. To exit this screer 3tess the Menu button again. To seiect a different IV-Rating Dress the CN/N or CN v

DuEon and then repeat me []recess

Note 1: The TV_YT.TV-PG TVq4 and TV_MA have additionaI opt ons. See the next step to change any of the following sun-ratings

FV:Fantas] VlOler_ce

D: DiaIoc

L: Adult language

S: Sexual situation

V: Viotence

Note2: TheV-Chipwillautomaticallybloekcertaincategoriesthatare"morerestrictive." Forexample, ifyou block "TV-Y" category, then TV-Y7will automaticall 7 be blocked. Similarly, if you block the TV-G categor 7 then all the categories in the "young adult" group will be blocked (TV-G.TV-PG. TV-14 and TV-MAL

The sub-ratings tD. L S. Vt work together similarly. Seenext secbon.t

(]}lAP ii _OU}¢ _}'} IA] ]'1%]U}¢IS 4.

q

6

_PECIAL FEATURES ]

6

How to set the FV D. L. S and V sub-ratings:

First select one of these TV-Ratings: TV_Y7[V-PG IV-14 or TV-MA (See Step 4, on previous paget

Next Nhite the TV-Rating is selec[eo (BLUE).repeatedly press the VOL + button. This will cycle mrougn me avau-

A bhnktng letter (_U" or "B") wilt be displayed for each sub-rating. While the _U" or ° B" is blinking, Bless me

CB A or CBx,_ BUttonto cnange the sub*rating.

Press the VOL + button once to save the TV guidelines. A TV-Rating will be selectee BLUE).and no Ietters wl blink. To exit this screer Dress the VOL + button again. TOselect a different TV-Raung. press me CFI/x or CFIv button and then repeat the Process

Note: The V-ohio wiII automatically DIOCKcertain categories that are" More restrictive". For example, if you mock

L suB-rating in TV-PG then the" L" sub-rahngs in TV-14 and I -MA wi automaticalb De DIocKed.

7

Press the Menu Buuon [nree time- _ to ctea/all me screens. [Or proceed to the next section ano set uDaootuona[ restrictions based on the MPAA codesL

How to Set up Restrictions

R, NC-17, X using the MPAA Ratings: G, PG, PG-13,

The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application is ibr movies.

(Eventually. movie videocassettes will be encoded with

MPAA ratings.) When the _Chip lock is on, the TV will automatically block any programs that are coded with o_ectionable ratings (either MPAA or T_Ratings}.

¸¸1¸¸

Press the Menu button.

Press the CH _/button to select the _Function" ; then press the VOL + button, v c_,_p _.

4.1

7 ( },,,,,,, Ii SI'](:IAI

SPECIAL FEATURES

2

Press the CH v button to select th e "V-chip" _thee p[ess the VOL + butten.

The" Enter Pin" Screen wilt appear. Enter you[ 4-digit

PIN number

[

The "V-Chip" screen witl appear,

Press the CH v butto_ select" MPAA rating" _then press the VOL + button.

PG

Genera] aud!ence {no restric!ions)_ .

Paren!a!guidance sugges!ed:

The ?MPAA rating" scree n will appear,

Repeatedly press the OHN/ button to select a particular

MPAA category,

Pressing the CH V button

Witlcycle throaghtheMPAA categories:

'

,

R R (Restricted, Children under 17 should be accompan!ed byan adu!t) .

.NC-17 NOch!ldren under age ! 7

.X

.

NR

X !Adu!ts onty!:

Notrated.

.

While a particular category is highlighted, move thejoystick to the right to activate it,

A blinking letter (" U" or" B") will be displayed. Press the OHA or OHv button to select" U" or" B'%

Press the VOI. + button to save the settings.

Note: The V Chip will automatically block any category that is" more restrictive," For example, if you block the" PG

13" category, then" R," "NC t7," and" X" will automatically be blocked also.

How to Reset the TV after the V-Chip

Blocks a Channel ("Emergency Escape'3 if the [V s [unea to a res[ncteo cnannel, the V-Ch 3 will block it. The screen Wiltgo blank and the following message Wilt appear: _Excessiw rating

To resume normal viewing, tune to a diffE-en[ cnannei using the number buttons, Ur,der certain conditions

[oepeno_ng on the rating of the [ocaI TV programs_ the V_Chip m_ght Iock out all the channels, In tb s case. use

the WCh _ function for an emergency escape :

Press the Menu button 1oo_sp_ay[ne menu, Press the CH v button to select the" Function menu ann Dress

[he VOL+ button,

PresstheCHVDu[[onToselec[me V_Ch_[} menuanaoresstheVOL+button.

EnteryourPINnumber, and

Press the WChiu button on [ne remote control Enter jour PiN number one move [nejoysbck to the ngn[ [o

[emporany disable the V-Chip LOCK.

( }I,%PTII [(t]R _}'_ IA] ]'] %]t]}#IS

4.1 8

I SPECIAL FEATURES I

Viewing the Demonstration

Tu become familiaz with the various menus pzovided the built-in demonstzation.

by youz television, you can view

Press the Menu batten.

Picture icon witI be highlighted (blinking),

2

Press the CI.IV button to select _Demonstration", then

3

Each of the menu opi ons

_soBpayed m turn.

Wher you wisn to stop the demonstration pres_ an_ etJtton on the remote control

Note:

The Component3 ack _s available on HCN436W

HCN473W HCN553Wt

HCN653W,

Press tne Menu button to exit

IlL

_' _'1

_

:I -[ m3_

.....

4.1 9 {.,,1,1, 1<,11sP]ci/kl[}AIt)I]S

SPECIAL FEATURES ]

Customizing Your Remote Control

Yuur TV comes equipped with a "universaI" remote control.

In addition to controlling the TV, the universal remote can also operate most VCRs, DVDs and cable boxes (even if your VCR, cable box or DVD are made by manufacturers other than

Samsung).

Setting Up Your Remote Control to Operate Your VCR (or DVD)

Press the MODE button and make sure that the VCR(0r DVD) LED

The remote control has four

"modes": "T_" "VCR", "Cable" and "DVD." Press the "MODE" button to switch the remote control to the "VCR" (or DVD) mode.

On yOUr Samsung remote control, press set.

i

4

ii i i::iil

Enter3digitsoftheVCR orDVD codelisted on page4.22 for your brand of VCR (or DVD).

Press the Power button 0n the remote control. Y0urVCR

(or DVD)should turn on. If your VCR{or DVD)turns on, your remote control is now set correctly,

Once your remote control is set up, press the MODE button any time you want to use the remote to operate your VCR(or

DVD),

sureyou of

"0."

If more than one code listed, try the first one.

-_1 If your VCR (or DVD) does not turn on, repeat steps 2, 3, and

4, but try one of the other codes listed for the brand of your particular VCR (or DVD).

If no other codes are listed, try each code, 000 through 089.

-,91 When your remote control is in the "VCR" (or DVD) mode, the volume buttons still control your

TV's volunm.

When your remote is in the "TV" mode, the VCR control buttons

(PLAY, PAUSE, etc.) will still opeP ate your VCR.

(:ll,%P ii F()UI¢ _P} IA] ]'1%]URIS

4.2O

SPECIAL FEATURES ]

Setting Up Your Remote Control to Operate Your Cable Box

Press the MODEbutton and make sure that th_ Cable

LEDis ilIuminated.

<1 The remote control has fuur

"modes": "TW' "VCR," "CABLE", and "DVD."

Press the "MODE" button to switch the remote control to the "Cable" mode.

On your Samsung remote control, press SET.

Enter 3 digits of the cable box code Iieted below for Your brand of cable box.

Make sure you enter 3 digits of the code, even if the first digit is a

"0." (if more than one code listed, try the first one.)

Press Power.

Your cable box should torn on. Ifyour cable box turns on, your remote centre! is new _set up" correctly,

Once your remote control is set up press the MODE button any time you want to use the remote to operate your cable box.

-ql if your cable box does not turn on, repeat steps 2, 3, and 4, but try one of the other codes listed for your particular brand of cable box.

(if no other codes are listed, try each cable box code, t)t)t) through 1)77.)

-<1 When your remote control is in the "CABLE" mode, the volume buttons still control your TV's vob ume.

Also, the VCR control buttons

(PLAY, PAUSE, etc.) will still operate your VCR.

421

(}I,,H _ l()(ll SI'ICIAI FIAItll]S

SPECIAL FEATURES ]

VCR Codes

Admiml

Aiwa

Akai

Audio Dynamics

Bell & How_l

Broksor_

006, 079

015

017,022, 023, 027, 030

002

010

Candle 007,009,013,

Cannon 008, 053

Citizen 007, 009,013, 045, 046, 052

Colortyme 014

Craig

CuRm-Mathes

Daewoo

DBX

Dimensia

007, 014,

015,046, 053, 064, 067

013, 045, 076

014_016

000

Dynatech

E1ectrohora_

015

027

Fisher 002,012,018,019, 043, 048, 058

Funai

GE

Go video

Harman Kardon

Hitachi

Instant Replay

]C Permey

JCL

JVC

Keawood

015

000,007, 008, 032, 053

007

014

005, 015, 035, 036

008

002, 007, 008, 014,

008, 002,014, 016, 030, 046

002, 014, 089

002,014, 016, 030, 046

R1.H

LG

Lloyd

Logik

LXI

O73

009, 014, 046, 060

015

031

015

Magnavox

Marantz

Marta

MEI

Memorex

MGA

Midland

Mi_ota

008, 029, 053, 056

002, 008, 014,016,

029, 030, 046, 061

009

008

008, 009, 012, 015

027

032

005, 035

IVfitsubishi

Montgomery

MTC ward

005, 027, 035, 040

006

007, 015

Multitech 007, 015, 031,032

002, 014, 016, 030, 046,061,064

Optimus

Parmsordc

Pentax

Pentex Reserch+

Philco

006

008, 053, 075, 077

005, 035

046

008, 029, 053, 056

Philips

Ftoneer

Portland

ProScan

008, 029

005, 016, 033, 050

044, 045, 052

000

Quartz

Quasar

002

008, 053

Radio Shack/Realistic 002, 006,008,

009,012, 015, 019, 027, 045, 053

RCA 000, 005, 007,008, 028,

035, 037, 054, 069

Samsung 007, 013, 022,032,042,077

Ser_ui 016

_yo

SeoR

Sears

Sharp

Shintom

Signature

Sony

Sylvama

Symphon_

Taridy

Tashiko

002, 012

013, 041,049, 0fib

002, 005, 009,012, 018,

019, 035,043, 048

006, 027, 039, 045

017, 026, 031,055

015

017, 026, 038

008, 015, 029, 053, 056

015

002_015

009

Tatting

Teae

Te_

030

015,030, 069

008

Termka

TMK

Toshiba

Totevision

Uni_ch

Vector Research

Victor

008, 009, 015, 021

067

005, 013, 019, 048, 049

007,

007

014, 016

016

video Concepts

Videosc_ic

Wards

Yamaha

Zenith

014, 016

007

005, 006, 007,008, 009,

012, 013, 015, 027, 031,035

002, 014, 016, 030, 046

Cable Box

Codes

Anvision

Cablestar

Eagle

Eastern Int.

General lnstrument

007,008

007,008

007,008

002

046

GI 004,005,015,023,024,

025,030,036,067,068,069

HamYm

Hitachi

Jerroid

003,012,013,034,048

037,043,046

004,005,015,023,024,

025, 030, 036, 046, 062, 065

Macom

Magnavox

037, 043

007, 008, 019,

026,028,029,032,033,040,041

021,

NSC

Oak

009

016,038

OskSigma

Panasordc

016

003,027,039,061,

073,074

Philips

Pioneer

Randtek

007, 008, 019, 021,026,

028, 029, 032, 033, 040, 041

018, 020, 044, 074, 077

007, 008

RCA

Regal

Regency

SA

Semsang

000,027,066

003,012,013

002,033

070,071,072

044,003,022,063,064

Signature

Sprucer

Starcom

046

027

046

Stargate2000

Sylvania

Texscan

Tocom

058

011,059

011,059

017,021,049,050,055,073

Unika

Universal

031,032,041

051,052

_rlewster 007, 008, 019, 021,026,

028, 029, 032, 033, 040, 041

Warner Amex 044

Zenith 014,042,057,061,

075,076

DVD Codes [ Philips

Proscan

RCA

Toshiba

P_msonic

Sony

Saraslmg

001

002

002

003

004

008

000

Note: Tile lvmote control might not be compatible with aii DVD

Players, VCRs, arid Cable boxes.

(;HAP i< r 01]}¢ SP CIA] ] ]A]/U¢ S

4.22

TROUBLES}lOOTING

If the TV seems to have a problem, first try this list of possible problems and solutions.

If none of these troubleshooting tips apply, then call your nearest service center.

Problems Identifying

Problem

Poor picture.

Poor sound quality.

No picture or sound.

No color, wrong colors oi tints.

Picture roils vertically.

The TV operates erratically.

Your remote control does not operate your TV[

The TV won't turn on.

Possible Solution

Try another channel.

Adjust the antenna.

Check all wire connections.

Try another channel.

Adjust the antenna.

Try another channel.

Press the TV/Video button.

Make sure the TV is plugged in.

Check the antenna connections.

Make sure the program is broadcast in color.

Adjustthe picture settings.

Adjust the antenna.

Check all wire connections.

Unplug the TV for 30 seconds, then try operating it again.

Press the "MODE" button to put your remote control in the "TV" mode.

Make sure the wall outlet is working.

Note

Wide TV(16:9)

: If you watch a still image or the screen in the Normal(4:3) for a long time, images may be burned onto the screen.

aspect ratio format

Normal TV(4:3)

: If you watch a still image or the screen in the Wide(16:9) aspect ratio format for a long time, images may be burned onto the screen.

5.1

( }{AP] I ] VE ]R<[IB] _SII<)O]/NG

APPENDIX

Cleaning and Maintaining Your TV

With proper care, your TV unit will give you many years of service.

Please follo_v these guidelines to get the maximum performance from your T_/_

Placement

Do not place the TV near extremely hot, cold, humid oi- dusty places.

Do not place the TV near appliances with electric motors that create magnetic fields, such asvacuum c]eaners.

Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth or paper.

Place the TV in a vertical position only.

Liquids

Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage.

Cabinet

Never open the cabinet or touch the parts inside.

Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.

Do not put heavy objects on top of the cabinet

Temperature

If your TV is suddenly moved from a cold to a warlq] place, unplug the power cord, and allow at least two hours for moisture that may have formed inside the unit to dry completel_

Using Your TV in Another Country

If you plan to take your TV with you to a foreign country, please be aware of the diflbrent television systems that are in use around the worM. A TV designed for one system may not work properly with another system due to diff'erences in the TV channel frequencies

Specifications

Model

Dimensions

HCN4226W&{CN436W&{CN472Tv%1

HCN473WffICN5527W/HCN553W/HCN653W/PCN5425R

ACI2OV

60Ez

240 Watt_

HCN4226W: 1002x 450 x 1079mm; 394 x i77 x 424 inches

HCN436W: 1002x 485 x 1343mm : 394 x 19x 528 imhes

HCN4727W: 1132x 626 x 1320mm; 440 x 240 x 519 inches

HCN473W: 1132x 588 x i325 mm ; 446 x 23 1x 52 1 inches

HCNSS27W: 1312x 695 x 144i mm; 516 x 274 x 5(17inches

HCN553W: i312 x 651 x 1435mm; 516 x 956 x 564 inches

HCN653W: i529 x 736 x 1587mm : 600 x 289 x 624 ind_es

PCN5425R: I162 x 605 x 1400mm; 457 x 238 x 551 inche_

HCN422(IW: 49 Kg; 108lbs,HCN436W: 585 K_; i28 Ibs

HCN5527W/HCN553W :!)95 Kt_; 219 lbs

HCNB53W: I36 Kg; 299 lbs,PCN5425R: 70 K_; I54 ]bs

APPEN]>IX A.

_.2

AppI NI/]X

MEMO ]

MEMO ]

SERVICE DIVISION

400 Valley Road, Suite 201_

Motmt Arlington, NJ 07856

TEL

: 1-800-SAMSUNG (1-800-726-7864)

Www.gamsungu.qa.COln

BP68-00054A-02

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

advertisement
