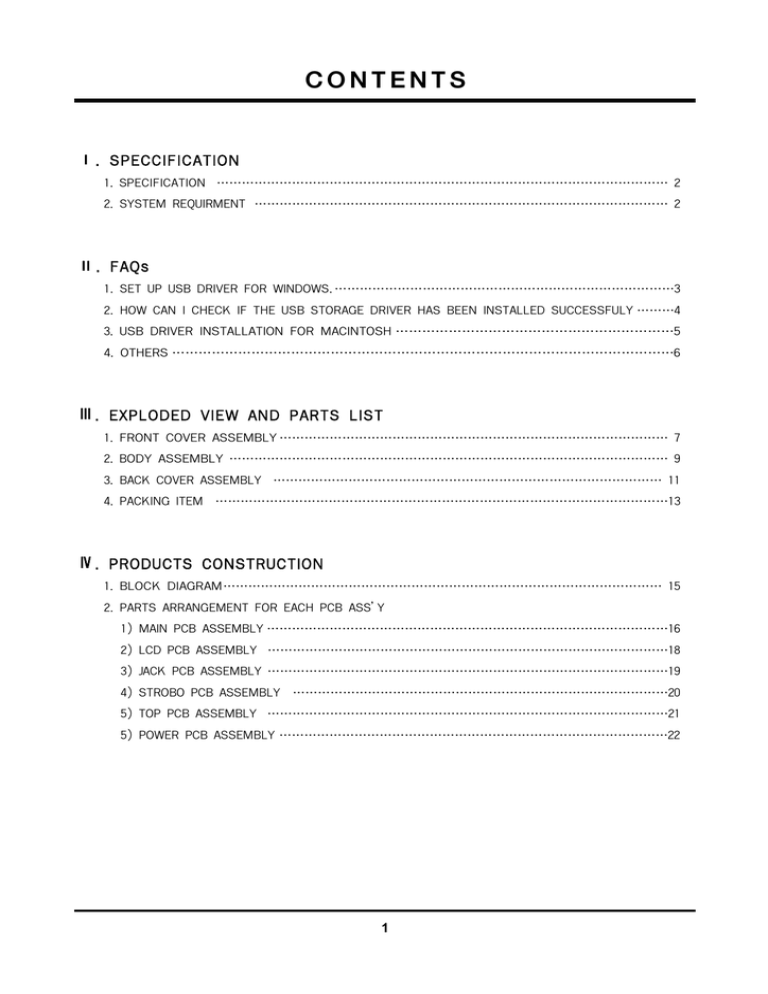

CONTENTS
Ⅰ. S P E C C I F I C A T I O N
1. SPECIFICATION ……………………………………………………………………………………………… 2
2. SYSTEM REQUIRMENT ……………………………………………………………………………………… 2
Ⅱ. FAQs
1. SET UP USB DRIVER FOR WINDOWS.………………………………………………………………………3
2. HOW CAN I CHECK IF THE USB STORAGE DRIVER HAS BEEN INSTALLED SUCCESSFULY ………4
3. USB DRIVER INSTALLATION FOR MACINTOSH ………………………………………………………5
4. OTHERS ……………………………………………………………………………………………………6
Ⅲ. EXPLODED VIEW AND PARTS LIST
1. FRONT COVER ASSEMBLY ………………………………………………………………………………… 7
2. BODY ASSEMBLY …………………………………………………………………………………………… 9
3. BACK COVER ASSEMBLY ………………………………………………………………………………… 11
4. PACKING ITEM ………………………………………………………………………………………………13
Ⅳ. PRODUCTS CONSTRUCTION
1. BLOCK DIAGRAM…………………………………………………………………………………………… 15
2. PARTS ARRANGEMENT FOR EACH PCB ASS’Y
1) MAIN PCB ASSEMBLY ……………………………………………………………………………………16
2) LCD PCB ASSEMBLY ……………………………………………………………………………………18
3) JACK PCB ASSEMBLY ……………………………………………………………………………………19
4) STROBO PCB ASSEMBLY ………………………………………………………………………………20
5) TOP PCB ASSEMBLY ……………………………………………………………………………………21
5) POWER PCB ASSEMBLY …………………………………………………………………………………22
1
Ⅰ. SPECIFICATIONS
1. Specifications
Image Sensor
Lens
Digital Zoom
Viewfinder
LCD Monitor
Focusing
Focus distance
Shutter
Shutter Speed
Exposure
ISO Equivalent
Driver Mode
White Balance
Flash
Flash Range
Self-timer
Storage
FIle Format
Image Size
Stroge Capacity(16MB)
Image Play
Interface
Power Source
Dimensions(WxHxD)
Weight
1/1.8" CCD Seneor with 3.3Mega pixels(Effective no. of pixels:3.1M)
f= 8 ~ 24mm(35mm film equivalent : 38 ~ 114mm)
F 3.4 ~ F3.6
Record mode : 2X, Play mode : 2X
Real image optical viewfinder
1.8”color TFT LCD
Auto focusing
Normal : 0.4m ~ Infinity, Macro : 0.08m ~ 0.4m
Mechanical and Electronic shutter
2 ~ 1/500sec.
Program AE / Exposure compensation ±2EV (0.5EV steps)
100
Single / Continuous / Multi-shot 16 / Self-timer
Auto/Manual(Daylight, Fluorescent, Tungsten)
Auto flash/Fill-in flash/Flash off/Red-eye reduction/Slow Sinc
Wide : 0.4m ~ 3.0m, Tele : 0.4m ~ 2.0m
10sec.
CompactFlash Card
JPEG(DCF compliant), DPOF compliant
Large : 2048X1536 pixels, Medium : 1024X768 pixels
Small : 800X600 pixels
Large : Super fine 8±1, FIne : 12±2, Normal : 16±3
Medium : Super fine 34±2, FIne : 50±4, Normal : 78±6
Small : Super fine 80±2, FIne : 128±8, Normal : 188±10
Single image / Thumbnail / Slide show
Digital output connector : USB
Video output : NTSC / PAL (user selectable)
DC power input connector : 6.0V
2 X AA alkaline(high capacity recommended) / Ni-MH batteries.
AC adapter (optional)
116x73x62mm
280g (without batteries and card)
2. System requirement
FOR WINDOWS
Windows 98, 98SE, ME, 2000, XP
MMX Pentium Processor 233MHZ or above
Min. 32MB of RAM
110MB of available harddisk space
USB port, CD-ROM Driver
SVGA(800X600 pixels), capable of displaying at least 16bits color
(24bit color display adaptor, True color display recommended)
FOR MACINTOSH
Power Mac G3 or later
OS 8.6 or later
Min 32MB RAM
110MB of available harddisk space
USB port, CD-ROM Driver
2
Ⅱ. FAQs
▶ Set up USB driver for Windows .
When you put the Driver CD-ROM provided withe this camera into the CD-ROM driver, the following
frame is automatically run.
1. Start installation of Digimax 330 window will be displayed. Click[NEXT] to start installation.
2. After completing 'set up', click[Finish].
3. When the USB driver installation is completed a icon will be displayed on desktop.
3
Ⅱ. FAQs
▶ How can I check if the USB Stroge driver has been installed
successfully?
Connect camera to the PC with the provided USB cable and turn it on at the PC mode.
This time, if verified normally,「Samsung Digimax 330」will be displayed in the system properties
as shown in the following figure.
To check System properties, double click 「Start → Setting → Controller → System → Device
Manager → Imaging Device」or place the mouse cursor on「My Computer」icon of PC
screen, press the right button of mouse, and select「properties」from the menu and the
「Samsung Digimax 200 」will be dispalyed in the system properties as shown in the following figure.
4
Ⅱ. FAQs
▶ USB Driver installation for Macintosh.
The following operation is required for both OS8.6 and OS 9.X.
1. Select appropriate driver for your operation
system.
The driver for OS X(10) use the OS 9.x.
2. Dobule click icon for installation.
3. When "Welcome" dialog box appers, click[Continue...]
4. Click the install button to install.
5. Look the warring message then click the continue button.
If you want to leave, please click the cancel to leave.
6. Install was successful and click the restart button to initial your system.
5
Ⅱ. FAQs
Q1. How can use this camera for download from WIN XP?
A.1. When you insert the TWAIN Driver CD and driver is installed automatically
and then " New hardware found" message will appear when connecting the USB cable to PC.
Please refer to the installation method as below;
The Found New Hardware Wizard will start automatically, and select [Install the software
automatically(Recommended)] and click the [Next] button.
a. a warning message will appear. However the driver can be used with Windows XP stably.
b. Therefore click [Continue Anyway] to proceed installation.
c. The driver will be installed on your computer.
Q2. How to install the Mac OS X(10)?
A2. The Driver for Mac OS X use is not offered additionally but it's Mac OS 9.X or better,
thus you can use it.
There will be no problem for Mac OS X.
Q3. I have set up the correct date and time and the caamera appears to be retaining this correctly
the date/time does not appear on any photographs either on the LCD screen or on the computer
after downloading from the camera. Why is this?
A3. Digimax 330 is available to display the date & time on LCD monitor but unable overlay of
date & time information on images.
If you want to overlay of date & time on images, you should be input the text in the Adobe photodelux.
6
Ⅲ. EXPLODED VIEWS AND PARTS LIST
1. FRONT COVER ASSEMBLY
1-11
1-6
1-2
1-1
1-9
1-3
1-3
1-10
1-4
1-7
1-10
1-8
1-5
7
Ⅲ. EXPLODED VIEWS AND PARTS LIST
▶ PARTS LIST
Fig.No.
1-1
Parts No.
Parts Name
Q'ty
9007-1754-01A
FRONT COVER ASS'Y (DIGIMAX 330)
1
9007-1757-01A
FRONT COVER ASS'Y (KENOX DIGIMAX 330)
1
1-2
7217-2491-01A
SB BUTTON COVER
1
1-3
6107-0497-01A
SB BUTTON SPRING
1
1-4
7217-2492-01A
FRONT VOBER (DIGIMAX 330)
1
7217-2516-01A
FRONT VOBER (KENOX DIGIMAX 330)
1
1-5
7217-2493-01A
BARREL PANEL
1
1-6
7217-2494-01A
GRIP COVER
1
1-7
7217-2495-01A
FINDER WINDOW
1
1-8
7217-2496-01A
IGBT WINDOW
1
1-9
7217-2497-01A
SELF WINDOW
1
1-10
6003-0328-01A
SCREW
2
1-11
6003-0329-01A
SCREW
3
1-12
9007-1755-01A
BATTERY COVER ASS'Y
1
8
Remarks
Ⅲ. EXPLODED VIEWS AND PARTS LIST
2. BODY ASSEMBLY
2-6
2-2
2-19
2-7
2-8
2-19
2-18
2-10
2-19
2-19
2-4
2-14
2-15
2-1
2-12
2-16
2-20
2-3
2-19
2-5
2-11
2-13
2-9
2-17
2-19
2-18
9
Ⅲ. EXPLODED VIEWS AND PARTS LIST
▶ PARTS LIST
Fig.No.
Parts No.
Parts Name
Q'ty
2-1
2201-0004-01A
CAP ELEC.
1
2-2
0704-0081-01A
COLER LCD PANEL
1
2-3
7211-0642-01A
REFLECTOR BASE
1
2-4
7011-0405-01A
STRAP PLATE
1
2-5
7211-0643-01A
IGBT MASK
1
2-6
7211-0644-01A
TFT LCD HOLDER
1
2-7
9008-0500-01A
MAIN PCB ASS'Y
1
2-8
9008-0501-01A
POWER PCB ASS'Y
1
2-9
9008-0502-01A
LCD PCB ASS'Y
1
2-10
9008-0503-01A
TOP PCB ASS'Y
1
2-11
9008-0504-01A
FLASH PCB ASS'Y
1
2-12
9008-0505-01A
JACK PCB ASS'Y
1
2-13
9002-1058-01A
BARREL ASS'Y
1
2-14
9001-0881-01A
BODY ASS'Y
1
2-15
7011-0406-01A
BATTERY CONTACT-A
2
2-16
7011-0407-01A
BATTERY CONTACT-B
1
2-17
6003-0332-01A
SCREW
3
2-18
6003-0328-01A
SCREW
2
2-19
6003-0329-01A
SCREW
8
2-20
7211-0645-01A
TRIPOD
1
10
Remarks
Ⅲ. EXPLODED VIEWS AND PARTS LIST
3. BACK COVER ASSEMBLY
3-1
3-16
3-11
3-10
3-9
3-5
3-2
3-12
3-7
3-20
3-18
3-17
3-19
3-3
3-4
3-20
3-15
3-8
3-20
3-13
3-6
11
3-14
Ⅲ. EXPLODED VIEWS AND PARTS LIST
▶ PARTS LIST
Fig.No.
Parts No.
Parts Name
Q'ty
3-1
9007-1756-01A
BACK COVER ASS'Y
1
3-2
6107-0498-01A
4WAY KEY SPRING
1
3-3
7017-0330-01A
POWER BUTTON FIX PRESSURE
1
3-4
6107-0499-01A
POWER BUTTON SPRING
1
3-5
7411-0895-01A
CF CARD DOOR HINGE
1
3-6
7307-0052-01A
3 MODE BUTTON RUBBER
1
3-7
7217-2498-01A
BACK COVER
1
3-8
7217-2499-01A
LED WINDOW
1
3-9
7217-2500-01A
CF CARD DOOR
1
3-10
7217-2501-01A
MODE DIAL
1
3-11
7217-2502-01A
4WAY KEY
1
3-12
7217-2503-01A
POWER BUTTON
1
3-13
7217-2504-01A
3 MODE BUTTON
1
3-14
7309-0359-01A
JACK COVER
1
3-15
7217-2505-01A
TFT LCD WINDOW
1
3-16
7217-2506-01A
MODE DIAL COVER
1
3-17
6003-0330-01A
SCREW
1
3-18
6003-0331-01A
SCREW
1
3-19
7017-0331-01A
E RING
1
3-20
6003-0329-01A
SCREW
2
12
Remarks
Ⅲ. EXPLODED VIEWS AND PARTS LIST
4. PACKING ITEM
4-1
4-2
4-4
4-3
SAMSUNG CAMERA
User Manual
Digital Camera
Digimax 330
4-7
4-5
16
4-6
13
Ⅲ. EXPLODED VIEWS AND PARTS LIST
▶ PARTS LIST
Fig.No.
Parts No.
Parts Name
Q'ty
4-1
3802-0016-01A
USB CABLE
1
4-2
3802-0017-01A
VIDEO CABLE
1
4-3
4609-0025-01A
DRIVER CD-ROM
1
4609-0026-01A
PHOTODELUX 2.0 CD-ROM
1
4609-0027-01A
PHOTODELUX4.0 CD-ROM
1
6806-1173-01A
USER MANUAL(KOREAN)
1
6806-1174-01A
USER MANUALl (ENGLISH)
1
4-5
1107-0015-01A
CF CARD 16MB
1
4-6
7409-1195-01A
STRAP
1
4-7
6904-0212-01A
POUCH
1
4-4
14
Remarks
Ⅳ. PRODUCT CONSTRUCTION
1. BLOCK DIAGRAM
LCD PANEL
POWER BOARD
LCD BOARD
FLASH BOARD
DIGITAL BOARD
Power switch
Lcx74
Resetu9
DAC
FLASH
MEMORY-
CF-CARD-CF1
u13
GPIO-EXT
AFE-u15
LCX374
LCX244
MCU
MD2305F-u1
TG-u16
LX32
JTAG
LENS
CCD ,MOTOR
SDRAM-u14
RTC-u12
MOTR DRIVER 3
u6,u7,u8
KEYPAD
LCD
TOP BOARD
JACK BORAD USB
15
EEPROM-u11
Ⅳ. PRODUCT CONSTRUCTION
2. PARTS ARRANGEMENT FOR EACH PCB ASS'Y
1) MAIN PCB Assembly
a) Parts Arrangement
<TOP>
16
Ⅳ. PRODUCT CONSTRUCTION
<BOTTOM>
17
Ⅳ. PRODUCT CONSTRUCTION
2) LCD PCB Assembly
a) Parts Arrangement
<TOP>
<BOTTOM>
18
Ⅳ. PRODUCT CONSTRUCTION
3) Jack PCB Assembly
a) Parts Arrangement
<BOTTOM>
19
Ⅳ. PRODUCT CONSTRUCTION
4) Strobo PCB Assembly
a) Parts Arrangement
<BOTTOM>
20
Ⅳ. PRODUCT CONSTRUCTION
5) Top PCB Assembly
a) Parts Arrangement
<BOTTOM>
21
Ⅳ. PRODUCT CONSTRUCTION
6) Power PCB Assembly
a) Parts Arrangement
<BOTTOM>
22
