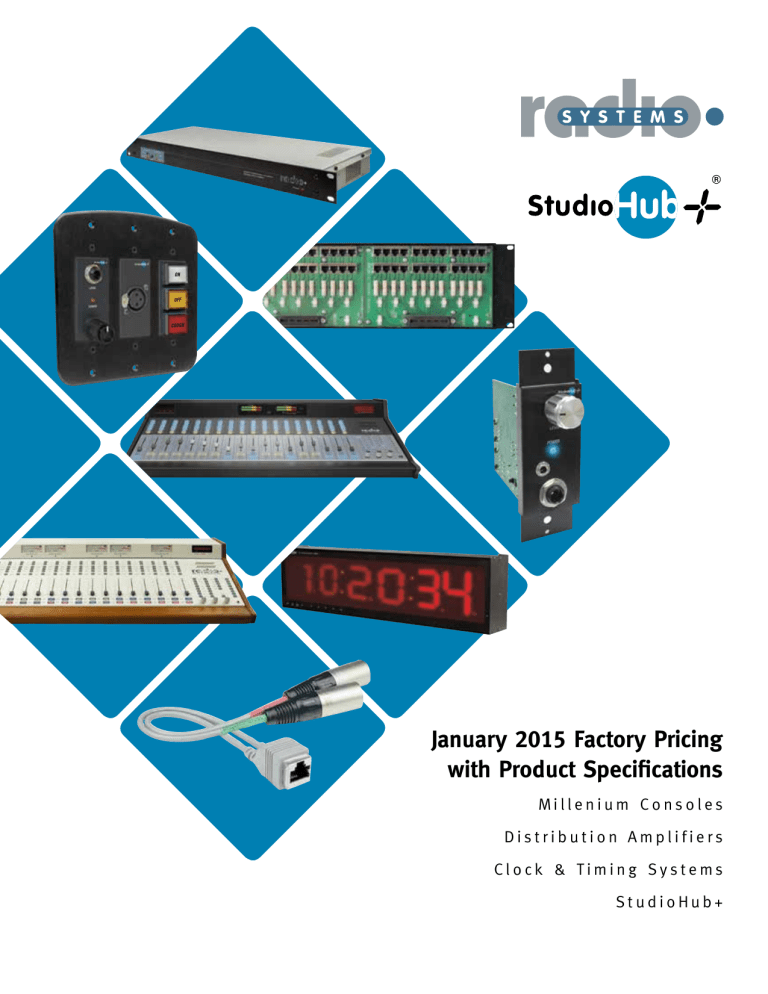

January 2015 Factory Pricing
with Product Specifications
Millenium Consoles
Distribution Amplifiers
C l o c k & Ti m i n g Sy s t e m s
StudioHub+
2
millenium Analog consoles
Millenium Analog Console (Model RS-18A shown)
Features:
• Full metering with programmable LED
peak indicators
• 8 position switcher for external devices
• 3 output buses from every channel
• Complete monitoring section
• Cue logic is user programmable to function in several modes
• Channel on/off keypad switches are LED illuminated
• Easiest to wire and service inthe industry
The RS Series Consoles have been known for their superb value since we
introduced them 22 years ago, and we’ve sold thousands of them. Today, Radio
Systems’ Millenium Series carry on this tradition with enhanced capabilities and
dramatic new styling. They offer a dazzling combination of superior specifications, user flexibility, and a wide range of features for surprisingly low prices!
Each channel on every console provides 3 output buses, which can be selected
simultaneously for simulcast and mix-minus applications. The channel on/off
keypad switches control channel audio as well as all logic and control states.
An accurate time-of-day clock and event timer (which also slaves to the Radio
Systems’ CT-Clock System) is included in every console. The
8-position switcher is a standard console feature which can be be utilized to
remotely control any external device or as the controls for the optional four
source audio switcher or intercom selector card. Full metering with programmable LED peak indicators is provided on every model as well.
Analog SPECIFICATIONS
Models Available:
Frequency response: +/- 0.2 dB 20 Hz to 20 kHz
RS-6a: 6 channel
RS-12a: 12 channel
RS-18a: 18 channel
RS-24a: 24 channel
Monitor Sends:
Level: 1 volt rms nominal, 10 volts rms maximum, balanced
Available Accessories:
headphone
Copy stand
StudioHub+ Harness
Source cables - specify length and type
Spare power supply
Additional clock/timer (RS-18A and RS-24A models only)
Additional meter (RS-18A and RS-24A models only)
Auxiliary relay
gain set jumpers and selectable input attenuators
Level: jumper selectable gain settings to accommodate
nominal input levels from -60 dBm to +10 dBm.
Maximum input level: +22 dBm
Impedance: 20K ohms or jumper selected
Headroom: 22 dBm at any level
Distortion: .05% typical, .1% maximum
Impedance: 50 ohms to front panel jack, 330 ohms to prefader
Available Options:
Line Outputs:
Type: actively balanced
Level: adjustable 0 dBm to +10 dBm,
Dimensions:
Audio Inputs:
Type: differentially balanced instrumentation amplifiers with
maximum output +22 dBm
Impedance: 100 ohms
Distortion: .008% at nominal operating level,
20 Hz to 20 kHz, Pgm,
Aud and Mono outputs signal to noise: 88 dB (or better)
below +4 dBm with 0 dBv input level, 20 kHz bandwidth,
600 ohm source impedance (line to line) 74 dB (or better)
below +4 dBm output with -50 dBv input level, 20 kHz bandwidth, 150 ohm source impedance (mic to line)
Headphone Output:
Level: 1 volt rms nominal, 10 volts rms maximum into 600 ohm
(external amp) output
Cue Output:
2 watts rms into 8 ohm speaker
All consoles are 27 inches deep and 9 inches tall
6 channel: 20.75 inches long
12 channel: 32.75 inches long
18 channel: 44.75 inches long
24 channel: 56.75 inches long
Selector logic card
Enhanced remote interface card
Intercom card
Intercom speaker
Four source switcher card
DA Mixer
Four output mix-minus boards
IFB switcher
Colored fader knobs
Warranty:
2 years parts and service
Specifications subject to change without notice
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
3
millenium Analog consoles
Part #
Description
Factory
Price Analog Consoles
RS-6A5P
RS-6ARJ
RS-12A5P RS-12ARJ RS-18A5P RS-18ARJ 6 Channel Analog Console with 5 Pin I/O connectors 6 Channel Analog Console with RJ-45 I/O connectors 12 Channel Analog Console with 5 Pin I/O connectors 12 Channel Analog Console with RJ-45 I/O connectors 18 Channel Analog Console with 5 Pin I/O connectors 18 Channel Analog Console with RJ-45 I/O connectors 4,995.00
4,995.00
6,995.00
6,995.00
8,995.00
8,995.00
ANALOG CONSOLE ACCESSORIES
CONSOLE-KITSM COPY-6A
For RS-6A 6 Channel Analog Console
Small Console Kit Copy Stand
For RS-12A 12 Channel Analog Console
CONSOLE-KITMD
COPY-12A
Medium Console Kit
Copy Stand
For RS-18A 18 Channel Analog Console
CONSOLE-KITLG
COPY-18A
Large Console Kit
Copy Stand
495.00
395.00
PS-CONSOLE
PS-CONSOLEHS
For All Consoles
Power Supply for all Consoles
Redundant Power Supply for all Consoles
1,295.00
1,295.00
Analog system options
LOGIC
Selector Logic Card - Adds logic to front panel selector
REMOTE
Enhanced Interface Card - On/Off relay closure & opto-isolated input control
ROUTER
Four Source Switcher Card - 1x4 stereo router
INTERCOM
Intercom Kit - Supports up to 4 stations
SPEAKER
Intercom Speaker - 2-way speaker with call button DA-MIXER
4 inputs to any of 8 outputs
FOURMIX-KIT
Four Output Mix-Minus Kit - 4 mix-minuses from 6 input channels SIXMIX-IN
Six Input Mix-Minus Board - Adds 6 additional channels to the above
DUAL-IFB
Interrupts four mono or two stereo sends (StudioHub+ RJ-45 Connectors)
P&G
Penny & Giles Fader Option with Cue detent (per channel)
4PDT
Accessory Relay - Mechanical type (4PDT)
SPDT
Accessory Relay - Electronic type (SPDT)
DUAL-A/D
Adds two AES outputs to any analog console RJ-45 I/O
295.00
295.00
375.00
345.00
225.00
150.00
225.00
350.00
150.00
225.00
1,000.00
750.00
350.00
195.00
50.00
50.00
575.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
4
millenium HYBRID consoles
Millenium Hybrid Console (Model RS-18HRJ shown)
Features:
• Full metering with programmable LED
peak indicators
• 8 position switcher for external devices
• 3 output buses from every channel
• Complete monitoring section
• Cue logic is user programmable to function in several modes
• Channel on/off keypad switches are LED illuminated
• Easiest to wire and service in the industry
Our “Hybrid Analog&Digital” Consoles offer the best of both worlds with
dependable analog circuitry plus dual digital outputs for Program and Audition
buses and high-resolution LED metering.
Famous StudioHub+ connectivity on all inputs and outputs ensure fast plugand-play installation.
Radio Systems’ Millenium Hybrid Broadcast Consoles are a superb value.
Thousands of RS Series Consoles have been sold since they were introduced
15 years ago, and today the Millenium Series carries on this tradition with
enhanced capabilities and dramatic new styling. Take a hard look at Millenium
broadcast consoles. They offer a dazzling combination of superb specifications,
sleek modern styling and a wide range of features—all at unexpectedly low
prices!
HYBRID SPECIFICATIONS
Models Available:
RS-6HRJ: 6 channel
RS-12HRJ: 12 channel
RS-18HRJ: 18 channel
Digital Line Outputs
Signal Format: AES-3
Signal Compliance: 24 bit
Output Sample Rate: 48 kHz/44.1 kHz /32 kHz-Crystal Selected
Digital Reference: Crystal (internal)
Analog Audio Inputs:
Conversions: A/D 24-bit, Delta-Sigma,
Type: differentially balanced instrumentation amplifiers with 256x oversampling
gain set jumpers and selectable input attenuators
Level: jumper selectable gain settings to accommodate
nominal input levels from -60 dBm to +10 dBm.
Maximum input level: +22 dBm
Impedance: 20K ohms or jumper selected
Headroom: 22 dBm at any level
Analog Line Outputs
Type: actively balanced
Level: adjustable 0 dBm to +10 dBm,
maximum output +22 dBm
Impedance: 100 ohms
Distortion: .008% at nominal operating level, 20 Hz to
20 kHz, Pgm, Aud and Mono outputs signal to noise: 88
dB (or better) below +4 dBm with 0 dBv input level, 20 kHz
bandwidth, 600 ohm source impedance (line to line) 74 dB
(or better) below +4 dBm output with -50 dBv input level, 20
kHz bandwidth, 150 ohm source impedance (mic to line)
Frequency Response: +/- .2 dB 20 Hz to 20 kHz
RJ-45 “StudioHub+” Connectors
Monitor Sends
Level: 1 volt rms nominal, 10 volts rms maximum,
balanced RJ-45 “StudioHub+” Connectors
Headphone Output:
Level: 1 volt rms nominal, 10 volts rms maximum into 600 ohm
headphone
Distortion: .05% typical, .1% maximum
Impedance: 50 ohms to front panel jack, 330 ohms to prefader
(external amp) output
Cue Output:
2 watts rms into 8 ohm speaker
RJ-45 “StudioHub+” Connectors
Available Accessories:
Copy stand
StudioHub+ Harness
Source cables - specify type
Spare power supply
Auxiliary relay
Available Options:
Selector logic card
Enhanced remote interface card
Intercom Card
Four source switcher card
DA Mixer
Four output mix-minus boards
IFB switcher
Colored fader knobs
Warranty:
2 years parts and service
Specifications subject to change without notice
Dimensions:
All consoles are 27 inches deep and 9 inches tall
6 channel: 20.75 inches long
12 channel: 32.75 inches long
18 channel: 44.75 inches long
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
5
millenium HYBRID consoles
Factory
Part #
Description
Price HYBRID Consoles
RS-6HRJ
RS-12HRJ RS-18HRJ 6 Channel Analog & Digital Console with RJ-45 I/O connectors 12 Channel Analog & Digital Console with RJ-45 I/O connectors 18 Channel Analog & Digital Console with RJ-45 I/O connectors 5,495.00
7,495.00
9,495.00
HYBRID CONSOLE ACCESSORIES
CONSOLE-KITSM COPY-6D
For RS-6HRJ 6 Channel Hybrid Console
Small Console Kit Copy Stand
For RS-12HRJ 12 Channel Hybrid Console
CONSOLE-KITMD
COPY-12D
Medium Console Kit
Copy Stand
For RS-18HRJ 18 Channel Hybrid Console
CONSOLE-KITLG
COPY-18D
Large Console Kit
Copy Stand
495.00
495.00
PS-CONSOLE
PS-CONSOLEHS
For All Consoles
Power Supply for all Consoles
Redundant Power Supply for all Consoles
1,295.00
1,295.00
295.00
395.00
375.00
445.00
HYBRID system options
LOGIC
REMOTE
ROUTER
INTERCOM
SPEAKER
DA-MIXER
FOURMIX-KIT
SIXMIX-IN
DUAL-IFB
P&G
4PDT
SPDT
Selector Logic Card - Adds logic to front panel selector
Enhanced Interface Card - On/Off relay closure & opto-isolated input control
Four Source Switcher Card - 1x4 stereo router
Intercom Kit - Supports up to 4 stations
Intercom Speaker - 2-way speaker with call button 4 inputs to any of 8 outputs
Four Output Mix-Minus Kit - 4 mix-minuses from 6 input channels Six Input Mix-Minus Board - Adds 6 additional channels to the above
Interrupts four mono or two stereo sends (StudioHub+ RJ-45 Connectors)
Penny & Giles Fader Option with Cue detent (per channel)
Accessory Relay - Mechanical type (4PDT)
Accessory Relay - Electronic type (SPDT)
225.00
150.00
225.00
350.00
150.00
225.00
1,000.00
750.00
350.00
195.00
50.00
50.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
6
Millenium Digital Consoles
Millenium Digital Console (Model RS-18D shown)
Features:
• Analog or Digital capable on every channel
• 32 bit resolution
• Sample rate conversion on every input
• 10 extra auxiliary output buses
• Up to 10 fully programmable
mix-minus outputs
• Serial RS-232 interface
• Sleek new front-panel styling
• PC connect bus routing software included
• Simultaneous analog or digital outputs
of every bus
The tradition of the Millenium Console continues with a complete digital
transformation. The Millenium Digital is now 100% AES/EBU capable on
every input and output. In addition, performance has been enhanced with
10 fully programmable mix-minus outputs and a serial interface to third party
equipment.
Millenium Digital Consoles are available in 6, 12 and 18 channel frame sizes,
appropriate for any-size application. All consoles offer identical channel
features, monitor stages and available option card complements. Optional
I/O connectors are available for all input and output circuit boards with easyto-wire 5-pin balanced removable screw terminal connectors or with StudioHub+ standard RJ-45 connectors.
Digital SPECIFICATIONS
Measurements are made with 600 ohm loads connected
to the analog outputs.
0 dBu equals 0.775 volts RMS independent of load
impedance, 0 dBm equals 0.775 volts into a 600 ohm load.
Reference Level: +4dBu equals -20 dBFS. FSD equals
Full Scale Digital equals +24 dBu
Analog Line Inputs:
Input Impedance: 40 k ohms, instrumentation amplifier balanced Input Level Range: jumper selectable nominal input
level of -16 dBu, -6dBu or +4 dBu
Input Level Trim: software trim (digital gain adjust) +/-12.5 dB.
Input Headroom: 20 dB above nominal input
Analog Monitor Inputs:
Input Impedance: 10 k ohms minimum, differentially balanced
Input Level Range: Adjustable +4 dBu nominal, -10 dBu minimum Input Headroom: 20 dB above nominal input
Microphone Preamplifiers:
Input Impedance: 10 k ohms
Source Impedance: 150 ohms
Input Level Range: Selectable in 5 dB steps, -62 dBu to - 22dBu
Equivalent Input Noise: -128 dBu, 150 ohm source, 20 kHz
measurement bandwidth
Input Headroom: 20 dB above nominal input
Digital Inputs:
Signal Format: AES-3, S/PDIF
Signal Compliance: 24 bit
Input Sample Rate: 32 kHz - 96 kHz, sample rate conversion is
provided for all digital inputs
Input Level: -20 dBFS nominal
Input Level Trim: software trim (digital gain adjust) +/-12.5 dB.
Input Headroom: 20 dB above nominal input
Digital Outputs:
Signal Format: AES-3
Signal Compliance: 24 bit
Output Sample Rate: 48 kHz
Digital Reference: Crystal (internal) or external AES-3
input at 48 kHz 100 ppm
Internal Sample Rate: 48 kHz
Processing Resolution: 32 bit floating point DSP
Conversions: A/D 24-bit, Delta-Sigma, 256x oversampling; D/A
24-bit, Delta-Sigma, 256x oversampling
Latency: <1.0 ms, analog in to analog out
22 kHz measurement bandwidth, 112 dB “A” weighted Digital
Input to Digital Output: 123 dB referenced to FSD, 22 kHz
measurement bandwidth, 126 dB “A” weighted
Total Harmonic Distortion + Noise
Analog Input to Analog Output: <0.008%, 20 Hz to 20 kHz, +23
dBu input, +23 dBu output, 22 kHz measurement bandwidth
Analog Input to Digital Output: <0.004%, 20 Hz to 20 kHz, +23
dBu input, +23 dBu output, 22 kHz measurement bandwidth
Digital Input to Digital Output: <0.0005%, 20 Hz to 20 kHz, -1
dBFS input, -1 dBFS output, 22 kHz measurement bandwidth
Digital Input to Analog Output: <0.004%, 20 Hz to 20 kHz , -1
dBFS input, +23 dBu output, 22 kHz measurement bandwidth
Isolation
Program-to-Program or Program-to-Utility: >88 dB, 20 Hz to
20 kHz A Input to B Input, B Input to A Input, >100 dB
Stereo Separation
Analog Program Outputs: >88 dB, 20 Hz to 20 kHz
Frequency Response
Warranty
Line Input to Program or Utility Output: +0 dB/-0.5 dB,
20 Hz to 20 kHz
Microphone Input to Program or Utility Output: +0dB/-.5dB,
20 Hz to 20 kHz
Warranty is two years from date of receipt. All factory nonwarranty service is guaranteed for 90 days. For full warranty
information, refer to the product manual.
Technical assistance is available at all times at no charge by
telephone or written correspondence. Items to be returned for
repair must include a Return Authorization number obtained
from Radio Systems.
Analog Outputs
Dynamic Range
Output Source Impedance: Utility Buses <3 ohms balanced,
all others 90 ohms.
Output Load Impedance: 600 ohms minimum
Nominal Output Level: +4 dBu
Maximum Output Level: +24 dB
Analog Input to Analog Output: 106 dB referenced to FSD,
22 kHz measurement bandwidth, 109 dB “A” weighted Analog
Input to Digital Output: 109 dB referenced to FSD, 22 kHz
measurement bandwidth, 112 dB “A” weighted
Digital Input to Analog Output: 109 dB referenced to FSD,
*Specifications are subject to change without notice.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
7
Millenium Digital Consoles
Factory
Part #
Description
Price Digital Consoles
RS-6D5P
RS-6DRJ RS-12D5P RS-12DRJ
RS-18D5P RS-18DRJ
6 Channel Digital Console with 5 Pin I/O connectors 6 Channel Digital Console with RJ-45 I/O connectors 12 Channel Digital Console with 5 Pin I/O connectors 12 Channel Digital Console with RJ-45 I/O connectors 18 Channel Digital Console with 5 Pin I/O connectors 18 Channel Digital Console with RJ-45 I/O connectors 5,995.00
5,995.00
8,995.00
8,995.00
11,995.00
11,995.00
Digital Console ACCESSORIES
CONSOLE-KITSM
COPY-6D
For RS-6D 6 Channel Digital Console
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
Copy Stand
295.00
395.00
CONSOLE-KITMD
COPY-12D
For RS-12D 12 Channel Digital Console
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
Copy Stand
375.00
445.00
CONSOLE-KITLG
COPY-18D
For RS-18D 18 Channel Digital Console
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
Copy Stand
495.00
495.00
PS-CONSOLE
For All Consoles
Power Supply for all Consoles
1,295.00
PS-CONSOLEHS
Redundant Power Supply for all Consoles
1,295.00
Digital system options
REMOTE
ROUTER
INTERCOM
SPEAKER
DA-MIXER
DUAL-IFB
P&G
4PDT
SPDT n/a
Enhanced Interface Card - On/Off relay closure &
opto-isolated input control
Four Source Switcher Card - 1 x 4 stereo router
Intercom Kit - supports up to 4 stations Intercom Speaker - 2-way speaker with call button 4 inputs to any of 8 outputs Interrupts four mono or two stereo sends (StudioHub+ RJ-45 Connectors)
Penny & Giles Fader Option with Cue detent (per channel)
Accessory Relay - Mechanical Type (4PDT) Accessory Relay - Electronic Type (SPDT) Colored Fader Knobs - Blue, Grey
150.00
225.00
350.00
150.00
225.00
350.00
195.00
50.00
50.00
5.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
8
millenium NETWORK consoles
Millenium Network Console (Model RS-18DNET shown)
Features:
• Livewire compatible
• Add Livewire® nodes and software
to expand to a full network system
• 6 or 12 channels of local audio input
with A/B switching
• Internal mix engine for stand alone
operation
• Internal Axia GPI for remote control
operation
• Select any Axia input on any LCD
above the 6 Axia faders
• 8 selectable preset “scenes” of
Axia configurations
®
Millenium consoles featuring Livewire® begin a tradition of shared standards and plugand-play compatibility for the broadcast industry. Radio Systems Livewire® consoles
offer both stand-alone functionality and Livewire IP-Audio network connectivity. And
because it’s a STANDARD - Millenium consoles now also communicate with any Axia
device or any Livewire-enabled product from a growing list of manufacturers.
Local channels feature two inputs each of stereo analog inputs with mic thru line-level
sensitivity. Digital inputs are AES/EBU or S/PDIF with sample rate conversion. Livewire
channels feature a rotary encoder and LCD two-line read-out for the display and
selection of any system-wide Livewire source. Outputs include two stereo and 10 fully
programmable mix-minus buses. All buses also create Livewire streams accessible
throughout the Livewire network.
With Millenium Livewire consoles you can input local studio audio AND share audio between consoles or playback iPlay equipped digital delivery systems - with no additional
hardware! For remote analog or digital I/O add any number of Axia Livewire nodes.
Finally, use any Windows® PC to run iPlay® or PathfinderPC® software for system
configuration or Windows Media local audio playback.*
*Qualified Ethernet Switch requred for larger system configurations
Network Specifications
(Local analog and digital input and output specifications are
identical to digital console specifications)
Digital Audio Inputs and Outputs
Reference Level: +4 dBu (-20 dB FSD)
Impedance: 110 Ohm, balanced (XLR)
Signal Format: AES-3 (AES/EBU)
AES-3 Input Compliance: 24-bit with selectable sample rate conversion,
32 kHz to 96kHz input sample rate capable.
AES-3 Output Compliance: 24-bit
Digital Reference: Internal (network timebase) or external
reference 48 kHz, +/- 2 ppm
Internal Sampling Rate: 48 kHz
Output Sample Rate: 44.1 kHz or 48 kHz
A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
Latency <3 ms, mic in to monitor out, including network and processor loop
Livewire® is a registered trademark of TLS Corporation
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
9
millenium NETWORK consoles
Factory
Part #
Description
Price Digital Consoles
RS-6DNET
6 Channel Digital Console with 6 channels of IP audio
12,495.00
RS-12DNET
12 Channel Digital Console with 6 channels of IP audio
14,995.00
RS-18DNET
18 Channel Digital Console with 6 channels of IP audio
16,995.00
NETWORK Console ACCESSORIES
COPY-6D
CONSOLE-KITSM
For RS-6DNET 6 Channel Network Console
Copy Stand
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
395.00
295.00
COPY-12D
CONSOLE-KITMD
For RS-12DNET 12 Channel Network Console
Copy Stand
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
445.00
375.00
COPY-18D
CONSOLE-KITLG
For RS-18DNET 18 Channel Network Console
Copy Stand
Pre-wiring kit of StudiHub+ Patch Cables and Adapters
495.00
495.00
PS-NET PS-NETHS For All Network Consoles
Power Supply for all Livewire Consoles
Redundant Livewire Console Power Supply
1,495.00
1,495.00
NETWORK system options
REMOTE
Enhanced Interface Card - On/Off relay closure and opto-isolated input control
150.00
ROUTER
Four Source Switcher Card - 1 x 4 stereo router
225.00
INTERCOM
Intercom Kit - supports up to 4 stations 350.00
SPEAKER
Intercom Speaker - 2-way speaker with call button 150.00
DA-MIXER
4 inputs to any of 8 outputs
225.00
DUAL-IFB
Interrupts four mono or two stereo sends (StudioHub+ RJ-45 Connectors)
350.00
P&G
Penny & Giles Fader Option with Cue detent (per channel)
195.00
4PDT
Accessory Relay - Mechanical Type (4PDT) 50.00
SPDT Accessory Relay - Electronic Type (SPDT) 50.00
For additional replacement parts, see preceding section for the Millenium Digital Console
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
10
Description
Part #
Factory
Price SPARE & REPLACEMENT CIRCUIT BOARDs
Analog 6 Channel Control Board
Compatible with Analog 5 Pin & StudioHub+ RJ-45 Consoles
18516
$800.00
Compatible with Digital 5 Pin & StudioHub+ RJ-45 Consoles
18522
$850.00
Analog 6 Channel Audio Board for 5 Pin 16795
$995.00
Digital 6 Channel Control Board
Compatible with Analog 5 Pin Consoles
Analog 6 Channel Audio Board for StudioHub+ RJ-45 16796$995.00
Compatible with StudioHub+ RJ-45 Consoles
Digital 6 Channel Mother Board for 5 Pin 14904
$800.00
14905
$800.00
Digital daughter plug-in Board for Digital Consoles
15304
$200.00
Analog daughter plug-in Board for Digital Consoles
15303
$200.00
Compatible with Digital 5 Pin Consoles
Digital 6 Channel Mother Board for StudioHub+ RJ-45 Compatible with Digital StudioHub+ RJ-45 Consoles
Analog Output Board for 5 Pin 14800B$995.00
Compatible with Analog & Digital 5 Pin Consoles
Analog Output Board for StudioHub+ RJ-45
15354B
$995.00
Compatible with Analog & Digital StudioHub+ RJ-45 Consoles
Digital Output Board for 5 Pin 16786$1,795.00
Compatible with Digital 5 Pin Consoles
Digital Output Board for StudioHub+ RJ-45 16787$1,795.00
Compatible with Digital StudioHub+ RJ-45 Consoles
Digital Monitor Board for Digital Consoles
15277
$500.00
Analog Monitor Board for Analog Consoles
10887
$500.00
Console Clock/Timer for all Consoles
14401B
$195.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
11
Factory
Description
Part #
Price SPARE CONSOLE PARTS
These parts are compatible with all consoles.
Fader Assembly
18262
$75.00
Rotary Pot Assembly for Monitor, Headphone or Cue
11025
$35.00
Headphone Jack Assembly
7548
$20.00
Bus Select Keypad
15272
$25.00
ON/OFF Select Keypad
15273
$50.00
Monitor Select Keypad
15274
$50.00
Fader Knob - Blue
18512
$6.00
Fader Knob - Grey
15408
$6.00
REPLACEMENT SEMICONDUCTOR KITS
Semiconductor Parts Kit for all Analog Consoles
Includes every console semiconductor
and spare fuses - (for thru-hole PCB Consoles)
11006
$250.00
Semiconductor Parts Kit for all Digital Consoles
Includes every console semiconductor
and spare fuses - (for thru-hole PCB Consoles) 15325
$300.00
Analog Discount Spare Parts Kit #1 for Analog 5 Pin Consoles
Includes 1 output board, 2 faders,
semiconductor parts kit
11007
$1,295.00
Analog Discount Spare Parts Kit #2 for Analog 5 Pin Consoles
Includes 1 each of every circuit board,
2 faders and full semiconductor kit
11008
$3,500.00
Analog Discount Spare Parts Kit #1 for Analog RJ-45 Consoles
Includes 1 output board, 2 faders,
semiconductor parts kit
16860
$1,295.00
Analog Discount Spare Parts Kit #2 for Analog RJ-45 Consoles
Includes 1 each of every circuit board,
2 faders and full semiconductor kit
16861
$3,500.00
Digital Discount Spare Parts Kit #1 for Digital 5 Pin Consoles
Includes 1 output board, 2 faders,
semiconductor parts kit
15326
$2,195.00
Digital Discount Spare Parts Kit #2 for Digital 5 Pin Consoles
Includes 1 each of every circuit board,
2 faders and full semiconductor kit
15327
$5,195.00
Digital Discount Spare Parts Kit #1 for Digital RJ-45 Consoles
Includes 1 output board, 2 faders,
semiconductor parts kit
10002
$3,500.00
Digital Discount Spare Parts Kit #2 for Digital RJ-45 Consoles
Includes 1 each of every circuit board,
2 faders and full semiconductor kit
18495
$5,195.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
12
clocks & timing systems
CT-2002
Thin Display
CT-2002
Large 2” Display
CT-2002
Remote Control
CT-2002
Large 4” Display
CT-2002
Desktop .5” Display
GPS Antenna
CLOCKs & TIMING SPECIFICATIONS
Time Base
Thin, Desktop and 2 Inch and 4 Inch:
Crystal oscillator with frequency trim provided.
Power
90 -246 VAC +/- 10%, 60/50 Hz
(external “wall wart” supply included.
GPS Desktop and GPS 2 Inch will maintain time
of day for 10 hours during power interruption with
internal 9V battery (not included).
CT-DESK
RJ-45 Connection
Serial Time Code In
Serial Time Code Out
Terminal Strip
RJ-45 SHIELD TO GND
Serial Time Code In +
Serial Time Code In Ground
Serial Time Code Out Serial Time Code Out +
Ground
Start Switch
Stop Switch
Reset Switch
Mode Switch
Ground
Time Closure 1
Time Closure 2
Time Closure 3
Time Closure 4
Ground
Down Time Closure at “0”
Top-of-Hour Reset Input
Dimensions
Thin Displays - 7” Wide x 2.5” High x 1.25” Deep
Desktop Displays - 7” Wide x 2.5” High x 4.5” Deep
2” Displays - 15.125” Wide x 5.25” High x 3.00” Deep
4” Displays - 24.50” Wide x 7.00” Highx 3.00” Deep
Options
Rack Mounts
GPS Extender Cables (increases cable length
from antenna up to 250’)
Windows Computer Sync Software for GPS units.
Windows only.
Warranty
One year parts and service.
CT-DESKGPS
RJ-45 Connection
GPS Antenna
DIP Switches
Time Zone Offset
Terminal Strip
Serial Time Code Out +
Serial Time Code Out Ground
Start Switch
Stop Switch
Reset Switch
Mode Switch
Ground
1 Hz Out
Ahead
Back
DC to Clocks
10 Hz to Clocks
Ground
Common
Top-of-Hour Output - N.O. output
CT-2INCH & CT-4INCH (2 inch shown)
Serial Synchronizing Data
1- Serial Time Code In +
2- Serial Time Code In 3- Ground
4- Serial Time Code Out 5- Serial Time Code Out +
Remote Control
6- Ground
7- Start Switch
8- Stop Switch
9- Reset Switch
10- Mode Switch
Clock Triggers
11- Ground
12- Time Closure #1
13- Time Closure #2
14- Time Closure #3
15- Time Closure #4
Ancillary I/O
16- Ground
17- Down Time Closure at “0”
18- Top-of-Hour Input
19- Ground
20- +15V DC
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
13
clocks & timing systems
Features:
Thin Display
• Simultaneous clock/up-timer/downtimer on all models
• All units function as a remote timer
slave display
• High Intensity .56”, 2.3” and
4” LED displays
• Thin, Desktop, Wall and Rack mount
models
• Reliable, RF-immune RS-422 serial
data interface
• GPS, SMPTE & OCXO reference
options
• Local & parallel remote control
• I/R remote control included with
Desktop, 2 Inch and 4 Inch models
for down timing and special programming of slave models
Only 1 1/4” deep for surface mounting
Simultaneous clock/up timer. Receives, displays and sends Radio Systems CT- compatible serial time mode. Time-of-Day clock functions independently or as a master when
remote drive signal is available. Timer displays may be set to display remote (master)
timer or function independently. Top-of-hour reset input. IR remote (optional - must be
ordered separately) provides access to the following features: down timer, 12/24 clock
select, RSI or SMPTE serial time code input, time-of-day offset, four time-of-day
comparisons with wired remote output, top-of-hour-reset offset, remote timer display.
Desktop Display
1/2” high LED display in desktop cabinet
Simultaneous clock/up timer. Receives, displays and sends Radio Systems CT- compatible serial time mode. Time-of-Day clock functions independently or as a master
when remote drive signal is available. Timer displays may be set to display remote
(master) timer or function independently. Top-of-hour reset input. IR remote (included)
provides access to the following features: down timer, 12/24 clock select, RSI or
SMPTE serial time code input, time-of-day offset, four time-of-day comparisons with
wired remote output, top-of-hour-reset offset, remote timer display.
2 and 4” Inch Large Displays
2” and 4” high LED display for wall or rack mounting (2” high unit only)
Simultaneous clock/up timer. Receives, displays and sends Radio Systems CTcompatible serial time mode. Time-of-Day clock functions independently or as a master when remote drive signal is available. Timer displays may be set to display remote
(master) timer or function independently. Top-of-hour reset input. IR remote (included)
provides access to the following features: down timer, 12/24 clock select, RSI or
SMPTE serial time code input, time-of-day offset, four time-of-day comparisons with
wired remote output, top-of-hour-reset offset, remote timer display.
GPS Synchronization Option
GPS Antenna in weatherproof mount available for desktop, 2” & 4” Displays
Factory
Part #
Description
Price
CT2002 CLOCKS and TIMERS
CT-THIN
CT-DESK
CT-DESKGPS
CT-2INCH
CT-2INCHGPS
CT-4INCH
CT-IR
CT-RACKMED
CT-RACKLG
CT-SYNC
GPS-SYNC
CT-150CABLE
CT-250CABLE
CT-2002 Thin
CT-2002 Desktop
CT-2002 Desktop w/GPS Antenna
CT-2002 Large 2”
CT-2002 Large w/GPS Antenna
CT-2002 Large 4”
I/R Remote
Thin/Desktop Rack Mount
Large 2” Rack Mount PC Computer Sync Kit - generate or read RS serial time code to or from a PC
GPS Computer Sync Kit - generate or read GPS time code to a PC
150’ GPS Extender Cable
250’ GPS Extender Cable
250.00
295.00
795.00
795.00
1,295.00
995.00
35.00
50.00
50.00
295.00
495.00
75.00
150.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
14
Distribution amplifiers
DA 4x4b
Available with rear panel Euro-style removable 5-pin
barrier strips or StudioHub+ ready RJ-45 connectors
Barrier Strip Version - model DA 4x4b
Features:
• Versatile configurations — quad,
stereo or mono
• Front panel individual output levels
• Internal torroidal transformer
• Super-low noise and distortion
specifications
• Individual rear panel removable I/O
barrier strip connectors or
StudioHub+ RJ-45
• 110/220 volt - CE certified
• Front panel audio presence and
overload LED indicators
• Also available: DA-2x4b with stereo
and mono configurations
StudioHub+ Version - model DA 2x8
Radio Systems’ DA-4x4b may be the best DA ever made. We’ve lowered the noise
to a whisper at 102 dB below +4 dBm out with an internal toroidal transformer that
dramatically reduces internal electrical interference fields. Distortion in the DA-4x4b
is so low that it is hard to measure as a result of low noise op-amps and a careful
design of the output amplifiers. The unit has 4 isolated sections which can be easily
wired and configured as a stereo 2x8, quad 4x4, or mono 1x16 DA. Each section
features its own input LED and an overload indicator. And each output has its own
level set, front panel attenuator.
Distribution SPECIFICATIONS
DA-4x4b
Channels
4 inputs x 4 outputs (DA-4x4b)
2 inputs x 4 outputs (DA-2x4b)
Maximum Output Level: +25 dBm
(into 600 ohm load)
Front Panel Indicators
Power, audio level illuminates at -24 dBm
(one per input channel), peak level illuminates at
+ 24 dBm (one per input channel)
Distortion: (thd + n): .002% 20 Hz to 20 kHz
(any output level into 600 ohm load)
Input Impedance: 40K ohms, balanced and bridging
Input Gain: 0 to +36 dB
(16 dB, 26 dB, 36 dB – jumper selectable)
Output Impedance: 60 ohms, balanced
Frequency Response: +0/-.1 dB 20 Hz to 20 kHz
Distortion: (SMPTE imd): .003%
(any output level into 600 ohm load)
Distortion: (dim) .002% (into 600 ohm load)
Noise: 102 dB below +4 dBm (full bandwidth
into 600 ohm load)
Output Channel Isolation (crosstalk): -105 dB
(full bandwidth)
Dynamic Range: 123 dB
Headroom: 21 dB above +4 dBm output
(into 600 ohm load)
Common Mode Rejection: -50 dB (full bandwidth)
Dimensions: 19 inch (EIA rack mount) wide x 1.75
inches (1ru) high x 7.75 inches deep (with connectors)
Shipping Weight: 8 pounds
Factory
Part #
Description
Price
Distribution amplifiers
DA-4x4B
DA-2x4B
DA-2x8SH
DDA-1x4SH
DDA-1x8SH
MJ-DDA Model DA 4x4b
Model DA 2x4b
Model DA 2x8 - with StudioHub+ RJ-45 connectors
Model DDA 1x4 - with StudioHub+ RJ-45 connectors
Model DDA 1x8 - with StudioHub+ RJ-45 connectors
MatchJack Digital Distribution Amplifier
595.00
495.00
595.00
595.00
795.00
175.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
15
ADAPTERS
Factory
Description
Part #
Price
8” FEMALE ADAPTERS - FEMALE RJ-45 to XLR/TRS/RCA
1
2
ADAPT-XLRF
1. RJ-45 Female to XLR Female - 8”- Balanced
ADAPT-XLRF
18.00 2. RJ-45 Female to XLR Male - 8”- Balanced
ADAPT-XLRM
18.00
3. RJ-45 Female to 1/4” TRS Male - 8”- Balanced
ADAPT-TRSM
18.00
4. RJ-45 Female to RCA Male - 8”- Unbalanced
ADAPT-RCAM
18.00
5. RJ-45 Female to one 1/8” Male - 8”- Unbalanced
ADAPT-MINIM
18.00
ADAPT-XLRM
3
ADAPT-TRSM
4
ADAPT-RCAM 6. RJ-45 Female to two 1/8” Male - 8”- Balanced ADAPT-MINIMBAL 18.00
5
7. RJ-45 Female to Bare End - 8”
ADAPT-TAIL
15.00
8. RJ-45 Female to TA3 XLR Female - 8”- Balanced
(Mini XLR for NPR Content Depot)
ADAPT-MINIMBAL
ADAPT-TA3
18.00
ADAPT-MINIF
18.00
ADAPT-MINIM
6
7
9. RJ-45 Female to one 1/8” Female - 8”- Unbalanced
ADAPT-TAIL
8
ADAPT-TA3
9
Note: Use these female adapters in combination with any length of RJ-45 to RJ-45 patch cables
to create connector/cable combination of any length.
ADAPT-MINIF
6 ft. MALE CABLES - MALE RJ-45 to XLR/TRS/RCA
1. RJ-45 Male to XLR Female - 6ft.- Balanced
CABLE-XLRF
22.00 2. RJ-45 Male to XLR Male - 6ft.- Balanced
CABLE-XLRM
22.00
3. RJ-45 Male to 1/4” TRS Male - 6ft. - Balanced
CABLE-TRSM
22.00
4. RJ-45 Male to RCA Male - 6ft. - Unbalanced
CABLE-RCAM
22.00
5. RJ-45 Male to one 1/8” Male - 6ft. - Unbalanced
CABLE-MINIM
22.00
1
2
CABLE-XLRF
CABLE-XLRM
3
4
CABLE-TRSM
6. RJ-45 Male to two 1/8” Male - 6ft. - Balanced
CABLE-MINIMBAL 22.00
CABLE-RCAM
5
7. RJ-45 Male to Bare End - 6ft.
CABLE-MINIM
7
CABLE-TAIL
6
8. RJ-45 Male to one 1/8” Female - 6ft. - Unbalanced
CABLE-TAIL
18.00
CABLE-MINIF22.00
CABLE-MINIMBAL
8
CABLE-MINIF
Note: Use these 6ft. male cables as stand-alone connector/cable combinations.
These RJ-45 Male 6ft. cables are designed for use with Axia Nodes, Wheatstone Blades,
and Logitek JetStream audio engines.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
16
BREAK-OUT
ADAPTERS
Factory
Description
Part #
Price DONGLES
RJ-45 to “D” connector adapters. Available for all major manufacturers’ analog and digital products that utilize “D” I/O connectors
Single
Dual
Quad
Single RJ-45 Dongle
Call
25.00
Dual RJ-45 Dongle
Call
35.00
Quad RJ-45 Dongle
Call
45.00
Dual “D” to Quad RJ-45 Dongle
Call
55.00
Dual “D” to Dual Quad RJ-45 Dongle
Call
65.00
AES/EBU 2-Way Splitter
SH-AESSPLIT
75.00
Stereo to mono summing pad, 6dB attentuation
ADAPT-SUM
35.00
Stereo “T” Splitter Adapter (8 wire for DC Power)
ADAPT-PWR
25.00
Left/Right “T” Splitter Adapter
ADAPT-L/R
25.00
Left/Left “T” Splitter Adapter
ADAPT-L/L
25.00
In Line Attenuator (10dB attenuation)
ATTEN-10DB
35.00
In Line Attenuator (15dB attenuation)
ATTEN-15DB
35.00
In Line Attenuator (20dB attenuation)
ATTEN-20DB
35.00
RJ-45 to RJ-45 Shielded Coupler
(female to female - all eight wires)
ADAPT-COUPLER
6.00
ADAPT-PUNCH
12.00
RJ-45 Breakout Adapter to Screw Terminals
Designed to loop through patch cables for screw
terminal acces to all eight CAT-5 leads.
ADAPT-BO
35.00
DUAL RJ-45 Breakout Adapter to Push Terminals
Designed GPI Breakout of 2 GPI ports
ADAPT-GPI
45.00
RS 5 Pin Console Adapter for Millenium Consoles
ADAPT-RS
15.00
Broadcast Tools Lower Row Adapter
ADAPT-BTL
25.00
Broadcast Tools Upper Row Adapter
ADAPT-BTU
25.00
Henry Engineering Adapter
ADAPT-HENRY
25.00
Kramer Electronics Adapter
ADAPT-KRAMER
25.00
ADAPT-AXIA
25.00
Note: For a list of available dongles with pin-out configurations see:
http://www.studiohub.com/donglelist.html
Splitters, Attenuators AND COUPLERS
ATTEN-10DB
ADAPT-PWR
RJ-45 Coupler
BREAK-OUT
RJ-45 MALE to bare end (10ft. length) Made with CAT-5 cable for punch block use.
ADAPT-PUNCH
ADAPT-BO
ADAPT-GPI
ADAPT-RS
ADAPT-BTL
ADAPT-HENRY Axia DB15 Connector to two RJ-45’s
ADAPT-AXIA
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
17
CAT-5 Patch Cords
Factory
Description
Part #
Price CAT-5 CABLES
Various lengths of shielded RJ-45 patch cords and cable for all StudioHub+ applications
CAT-5 Patch & Bulk Cable
All StudioHub+ cabling is shielded and CAT-5 certified
Various lengths and colors of shielded RJ-45 patch cords for all StudioHub+ connections
RJ-45 Patch Cable - 1’
Patch-1
1.50
RJ-45 Patch Cable - 2’
Patch-2
1.50
RJ-45 Patch Cable - 3’
Patch-3
1.50
RJ-45 Patch Cable - 5’ Patch-5
2.00
RJ-45 Patch Cable - 7’
Patch-7
2.00
RJ-45 Patch Cable - 10’ Patch-10
3.00
RJ-45 Patch Cable - 12’ Patch-12
4.00
RJ-45 Patch Cable - 15’ Patch-15
4.00
RJ-45 Patch Cable - 20’
Patch-20
5.00
RJ-45 Patch Cable - 25’ Patch-25
5.00
RJ-45 Patch Cable - 35’ Patch-35
9.00
RJ-45 Patch Cable - 50’ Patch-50
12.00
RJ-45 Patch Cable - 75’
Patch-75
14.00
RJ-45 Patch Cable - 100’
Patch-100
20.00
RJ-45 Patch Cable - 125’
Patch-125
25.00
RJ-45 Patch Cable - 150’
Patch-150
30.00
CAT-5 and CAT-2 CABLES
CAT-5 25 Pair Tie Line cable with RJ-21X connectors on both ends
RJ-21 Cable - Specify length
RJ21TIE-xxx
CALL
CAT-3 25 Pair Remote Control cable with RJ-21X connectors on both ends
RJ-21 Cable - Specify length
RJ21RC-xxx
CALL
BULK CABLE
BULK CAT-5 CABLES
CAT-5 25 Pair Unshielded 500’ Roll
CAT5-25-500
CALL
CAT-5 4 Pair Shielded Solid Wire 1000’ Roll
Grey
CAT5-1000GYCALL
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
18
ACTIVE panels
Factory
Description
Part #
Price PANELS
Headphone Amp Stereo 1/2 Watt Amp Headphone Amp Stereo w No Volume Control Dual Headphone Amp Stereo 1/2 Watt Amp SH-HPB
RCA and mini balanced RJ-45 inputs & outputs 125.00
SH-HPBNV
110.00
SH-HPDUAL175.00
Mic Pre-Amp Mono female XLR connector
SH-MIC
SH-HPB
SH-MIC125.00
SH-MATCHPANEL175.00
3 Mixer Plate Stereo 3 channel mixer with mix-minus
SH-MIXER325.00
Monitor Level Panel In-line level control
SH-LEVEL175.00
SH-MIXER
Dual VU Meter Panel (Specify Vertical or Horizontal)
Monitor Amp Panel 8 watt monitor amp w/Speaker
SH-VU175.00
SH-AMPSPKR175.00
SH-VU
Monitor Amp Panel 8 watt monitor amp w/o Speaker
4 Source Switch Panel 4 Stereo sources to
1 stereo output
SH-SW4SS
4-16 Position Switchers in a 1 RU mount
4, 8, 12, & 16 input models
SH-AMP175.00
SH-SW4SS175.00
SH-SW4POS 295.00
SH-SW8POS470.00
SH-SW12POS645.00
SH-SW16POS820.00
4-16 Position Switchers
SH-HP, SH-1XLRF and SH-3BUT
with SH-SURF3 Mount
SH-HP, SH-1XLRF and SH-3BUT
with SH-SURF3 Mount with RJ-45 in/out
SH-HP and SH-1XLRF with SH-SURF2 Mount
SH-TALENT
SH-TALENT345.00
SH-TALENTRJ365.00
SH-GUEST195.00
SH-GUEST
Part numbers in red require DC power. See power supply options.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
19
PASSIVE panels
Factory
Description
Part #
Price PANELS
Active and passive panels that mount separately or as assemblies.
Single XLR Female Panel One female XLR connector
SH-1XLRF
35.00
Dual XLR Female Adapter Mono/Stereo Panel SH-2XLRF
45.00
Single XLR Male Panel One male XLR connector
SH-1XLRM
35.00
Dual XLR Male Adapter Mono/Stereo Panel SH-2XLRM
45.00
SH-2XLRMF
45.00
SH-1XLRF
SH-2XLRF
Dual XLR Male-Female Panel TRS 1/4” & Mini Panel Unbalanced in stereo
SH-1XLRM
SH-2XLRM
SH-1/4UNBAL 55.00
TRS 1/4” & Mini Panel Balanced dual mono
SH-1/4BAL
55.00
1 Push-Button Panel - with solder terminals
SH-1BUT
75.00
1 Push-Button Panel - with RJ-45 connector*
SH-1BUTRJ 100.00
SH-1BUT
2 Push-Button Panel - with solder terminals
SH-2BUT
110.00
SH-2BUT
2 Push-Button Panel - with RJ-45 connector*
3 Push-Button Panel - with solder terminals
SH-3BUT
3 Push-Button Panel - with RJ-45 connector*
SH-2BUTRJ 135.00
SH-3BUT
145.00
SH-3BUTRJ 165.00
*”BUTRJ” push button panels terminate in RJ-45 connectors and integrate directly
with RS Millenium A and Millenium D remote control products.
SH-1/4BAL
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
20
MATCHJACKS
Factory
Description
Part #
Price MatchJacks connect RJ-45 patch cables to various source equipment.
1. Pre-Amplifier-Output
(RCA consumer output to balanced line level input)
1
MJ-OUT95.00
MJ-OUT
2
2. Pre-Amplifier-Input
(balanced line level output to consumer RCA input)
MJ-IN
95.00
MJ-SPDIFOUT
95.00
MJ-SPDIFIN 95.00
5. A to D AES/EBU Converter
(includes PS-WWUCUBE 12 volt wall adapter
power supply)
MJ-AD 145.00
6
6. D to A AES/EBU Converter (includes PS-WWUCUBE 12 volt wall adapter power supply)
MJ-DA 145.00
7
7. AES/EBU Distribution Amp
(4 Output, includes 9 volt wall adapter power supply)
MJ-DDA 175.00
SH-AESSPLIT
75.00
MJ-IN
3
3. S/PDIF to AES/EBU Converter
MJ-SPDIFOUT
4. AES/EBU to S/PDIF Converter (passive)
4
MJ-SPDIFIN
5
MJ-AD
MJ-DA
MJ-DDA
8
8. AES/EBU 2-Way Splitter Transformer (passive) splitter to provide
2 AES/EBU outputs from one input.
SH-AESSPLIT
Part numbers in red require DC power. See power supply options.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
21
Power Supplies
Factory
Description
Part #
Price POWER SUPPLIES
Power Supplies to provide “DC-Link” power distribution to Hubs and active Panels and MatchJacks.
StudioHub+ External Power Supply
+/- 15 v DC regulated 4 Amps: wall mountable.
Universal input voltage from 90-245VAC
Powers all StudioHub+ Hubs and Cubes
PS-EXTU
Universal
4Amp External
Supply with 5 pin
MTA Connector
350.00
AC Wall Adapter Power Supply
Universal voltage from 90-250VAC. +/- 15 volts, 400 mA.
Powers active plates or MatchJacks.US style power plug adapter supplied as standard.
PS-WWI
Universal AC
Wall Adaptor
with interchangeable AC Plugs.
US style (shown) supplied as standard.
(order SH version with 3 pin MTA)
(order CUBE version with 3 pin MTE)
PS-AU
(Australia)
PS-EXTU
PS-EU
(Europe)
PS-UK
(United Kingdom)
Powers active SH+ panels - with US plug
Powers PS-CUBE & Axia SH+ panels with US plug
Australian Power Plug Adapter
European Power Plug Adapter
United Kingdom Power Plug Adapter
PS-WWUSH 25.00
PS-WWCUBE 25.00
PS-AU
n./c
PS-EU
n./c
PS-UK
n./c
Power Supply Cube Power Inserter
Adds “DC-link” to power up to four CAT-5 cables routed through the PS-CUBE.
Use a PS-EXTU for up to 4 amps or a PS-WWUCUBE for up to 400 mA.
Power Inserter Cube
Use a Console-Cable to power from Millenium Console - 6ft.
Use a Console-Cable to power from Millenium Console - 1ft.
Use PS-Cable to power from Millenium Console - 6ft.
PS-CUBE
16998
15884
16600
65.00
15.00
12.00
15.00
Power Supply Combiner Board
PS-COMBINE 125.00
Diode combine 2 PS-EXTU supplies for redundant power.
2 DC inputs x 1 combined output.
LED status indicators. Mounts in lower half of standard hub chassis.
Current consumption for each StudioHub+ active device is charted below.
Refer to this list when calculating the total number of devices that can be run
on any individual power supply.
SH+ items which require power supplies are noted in red.
PS-CUBE
4 Ch Power Inserter
PS-COMBINE
Part # MJ-OUT MJ-IN MJ-SPDIFOUT*
MJ-AD MJ-DA MJ-DDA **
SH-DUALMATCH SH-HP SH-MIC SH-MIXER 3 SH-AMPSPKR SH-LEVEL SH-VUV DA6-DC DA12-DC Description Analog MatchJack Out (IHF to Pro) Analog MatchJack In (Pro to IHF) MatchJack OUT (S/PDIF and Optical to AES) Digital MatchJack A to D Digital MatchJack D to A Digital MatchJack Distribution Amplifier Dual Match Panel Headphone Panel Mic Pre-Amp Panel Input Stereo Mixer with mix-minus Monitor Amp Panel (w/ Speaker) Monitor Panel Dual VU Meter Panel DA Hub (Single) DA Hub (Dual) Current
75 mA
35 mA
100 mA
150 mA
150 mA
165 mA
100 mA
100 mA
55 mA
125 mA
1400 mA
145 mA
150 mA
575 mA
1150 mA
*The MJ-SPDIFIN unit is passive and consumes no power
**Powered via 9VDC (single ended) wall adapter power supply
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
22
HUBS
Factory
Description
Part #
Price Source Gear Interconnection
HUB16-DC
16 Channel RJ-45 Hub with DC-Link
16 I/O channels with 2 RJ-45’s and 110 punch connectors.
Adds DC-Link compatability with optional PS-EXTU.
HUB16-DC
295.00
8 Channel RJ-45 Hub with DC-Link
Same as above - 1/2 Hub/single board/8 channel version
HUB8-DC
195.00
HUB8-DC
ACTIVE HUBS
Dual Stereo Analog Distribution Amplifier
2 stereo inputs to 12 stereo outputs. Individual level sets. DA12-DC695.00
Single Stereo Analog Distribution Amplifier
Same as above - 1/2 Hub/single board/6 channel version.
DA6-DC495.00
DA6-DC
DA12-DC
FOUR-STUDIOSW
Four Channel Studio Switcher Hub
Stereo four channel switcher with arming logic. Supports two or four
studio push button panels (Unit has an integrated power supply.)
FOUR-STUDIOSW695.00
Part numbers in red require DC power. See power supply options.
Break-Out Harnessing
HUB32
32 Channel mini-Amp Hub
32 channels of audio break-outs from rear mini-Amp connectors to
front panel RJ-45’s in a 1 RU mount. Internally programmable
per channel for analog stereo, mono or AES/EBU
HUB32
495.00
12 Channel Break-Out-Box
8 output channels and 4 input channels of custom break out for
4000, 5000, & 6000 ASI series audio cards in a 1 RU mount.
Front panel SCSI connectors, break out analog & digital
card signals.
HUB12
295.00
HUB12
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
23
TIE LINE HUBS AND PATCH PANELS
Factory
Description
Part #
Price MINILINES
TIE
TIE LINES
TIE24-4
375.00
RJ-21 to 12 (x2) 4-Wire RJ-45’s w/110 Punch Connectors
Same as above - 1/2 Hub/single board/12 channel
version. Requires 1 CAT-5 25 pair RJ-21
connectorized cable.
TIE12-4
230.00
RJ-21 to 24 (x2) 4-Wire RJ-45’s w/DC-Link
Same as TIE24-4 w/o 110 Connectors;
adds DC-Link compatability.
TIE24-4DC
395.00
RJ-21 to 12 (x2) 4-Wire RJ-45’s w/DC-Link
Same as TIE12-4 w/o 110 Connectors;
adds DC-Link compatability.
TIE12-4DC
245.00
RJ-21 to 24 4-Wire RJ-45’s
24 Channels of RJ-45 4-wire tie lines on a 1 r.u.
rack plate or wall mount. Requires 2 CAT-5 25 pair
RJ-21 connectorized cables.
MINITIE24-4
245.00
RJ-21 to 12 4-Wire RJ-45’s
12 Channels of RJ-45 4-wire tie lines on a wallmount plate. Requires 1 CAT-5 25 pair RJ-21
connectorized cables.
MINITIE12-4
125.00
TIE24-4 TIE24-4DC MINITIE24-4
MINITIE12-4
PATCH PANELS
Model #A-1
Model #A-2
STUDIOHUB+ PATCH 48 STEREO ANALOG BOARD
JU8
SHIELD
JU7
SHIELD
JU6
SHIELD
JU5
SHIELD
JU4
SHIELD
STUDIOHUB+ PATCH 48 AES/EBU BOARD
JU3
SHIELD
JU2
SHIELD
JU1
SHIELD
JU8
SHIELD
STEREO ANALOG ADAPTER (1/3 WIDTH REAR PANEL ADAPTER)
ELD
ABC
STUDIOHUB+
PATCH
48 AES/EBU
BOARD
STUDIOHUB+
PATCH
48 STEREO
STUDIOHUB+
PATCH
48 I/OANALOG
BOARD BOARD
JU2
SHIELD
JU1
SHIELD
R PANEL ADAPTER)
JU7
JU8 JU8 JU7
JU7
JU8
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
JU6
JU6
JU5
JU6
JU5
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
JU4
JU3
JU4
JU3
JU4
JU3
SHIELD SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
JU1
JU2
JU1
JU2
JU1
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
STEREO
ANALOG
ADAPTER
WIDTH
REAR
PANEL
ADAPTER)
AES/EBU
ADAPTER
(1/3 (1/3
WIDTH
REAR
PANEL
ADAPTER)
I/O ADAPTER
(1/3 WIDTH
REAR
PANEL
ADAPTER)
ABC
ABC
Model
#A-3
Model
#A-4
Model
#A-1
Model
#A-2
Model
#A-5
ABC
ABC
ABC
ABC
STUDIOHUB+
PATCH
I/O BOARD
STUDIOHUB+
PATCH
4848
STEREO
ANALOG BOARD
STUDIOHUB+
PATCH
AES/EBU
BOARD
STUDIOHUB+
PATCH
4848RJ-21
BOARD
ABC
ABC
J1
JU6
SHIELD
JU5
SHIELD
JU2
JU1
JU2 SHIELD JU1 SHIELD
SHIELD
SHIELD
ADAPTER)
PANEL ADAPTER)
JU8
JU7
JU6
JU5
JU4
JU3
JU2
JU1
JU8
JU7
JU6
JU5
JU4 JU3
JU3
JU2 JU1
JU1
JU4 SHIELD
JU2 SHIELD
JU8
BNC
75 OHM
BOARD
SHIELD JU7 SHIELD JU6 SHIELD JU5
SHIELD
SHIELD
SHIELD
SHIELDSHIELD
SHIELD SHIELDSHIELDSHIELD
SHIELD SHIELDSHIELDSHIELD
SHIELDSHIELD SHIELDSHIELD
SHIELD SHIELD
75ADAPTER
Ohm
ADAPTER
(1/3 WIDTH
REAR
PANEL
ADAPTER)
I/O
(1/3
WIDTH
REAR
PANEL
ADAPTER)
STEREO
ANALOG
ADAPTER
(1/3REAR
WIDTH
REAR
PANEL
ADAPTER)
AES/EBU
ADAPTER
(1/3WIDTH
WIDTH
PANEL
ADAPTER)
RJ-21 ADAPTER
(1/2
REAR PANEL
ADAPTER)
ABC
RD
ABC
Model
#A-3
Model
#A-6
Model
#A-2
Model
#A-5
Model
#A-4
STUDIOHUB+
PATCH
48ABC
110BOARD
PUNCH-DOWN
ABC
ABC
ABC BOARDABC
STUDIOHUB+
PATCH
48 I/O BOARD
STUDIOHUB+
PATCH
48 RJ-21
STUDIOHUB+
PATCH
48 AES/EBU
BOARD
J4
J3
J2
J1
ABC
J1
JU2 JU2
JU1 JU1
SHIELD
SHIELD SHIELD
SHIELD
LD
JU8
JU7
JU6
JU5
JU4
JU3
JU2
JU1
JU8
JU7
JU6
JU5
JU4
JU3
JU2
JU1
JU7
JU5
JU4
JU3 SHIELD JU2
JU1 SHIELD
JU8
SHIELD
SHIELD JU6 SHIELD
SHIELD
SHIELDBOARD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
BNC 75
OHM
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
SHIELD
LPANEL
ADAPTER)
RAPTER)
ADAPTER)
110
ADAPTER
(1/3
WIDTH
REAR
PANEL
ADAPTER)
I/O
ADAPTER
(1/3
WIDTH
REAR
PANEL
ADAPTER)
75
Ohm
ADAPTER
(1/3
WIDTH
REAR
PANEL
ADAPTER)
RJ-21
ADAPTER
(1/2
WIDTH
REAR
PANEL
ADAPTER)
AES/EBU
ADAPTER
(1/3
WIDTH
REAR
PANEL
ADAPTER)
ABC
ABC
JU1
SHIELD
JU1
SHIELD
JU8
SHIELD
DAPTER)
ADAPTER)
L ADAPTER)
ABC PATCH
ABC
ABC
ABC
STUDIOHUB+
PATCH
48 PUNCH-DOWN
RJ-21
BOARD BOARD
STUDIOHUB+
48 110
J1
J4
JU2
SHIELD
Model#A-5
#A-4
Model
Model
#A-6
JU7
SHIELD
J3
J2
ABC
ABC
JU6
JU5
JU4
JU3
75 OHM BOARD
SHIELD BNC
SHIELD
SHIELD
SHIELD
JU2
SHIELD
JU1
SHIELD
75
Ohm
ADAPTER
(1/3
WIDTH
REAR
PANEL
ADAPTER)
RJ-21
ADAPTER
WIDTH
REAR
PANEL
ADAPTER)
110
ADAPTER
(1/3(1/2
WIDTH
REAR
PANEL
ADAPTER)
Model #A-6
STUDIOHUB+ PATCH 48 110 PUNCH-DOWN BOARD
J4
J3
JU8
SHIELD
JU7
SHIELD
JU6
SHIELD
J1
J2
JU5
SHIELD
JU4
SHIELD
JU3
SHIELD
JU2
SHIELD
110 ADAPTER (1/3 WIDTH REAR PANEL ADAPTER)
JU1
SHIELD
JU2
SHIELD
JU1
SHIELD
ABC
ABC
Patch48 - 2 row x 24 RJ-45 jacks with front panel normalling switches.
JU8
SHIELD
JU7
SHIELD
JU6
JU5
JU4
JU3
SHIELD BNC
SHIELD
SHIELD
SHIELD
75 OHM BOARD
JU2
SHIELD
JU1
SHIELD
75 Ohm ADAPTER (1/3 WIDTH REAR PANEL ADAPTER)
AES/EBU
Model
Model#A-4
#A-2
Model
#A-6
48 Channel Patch Panel - Equip with any mix of up to six of the following rear panel adapters
PATCH-48795.00
(PATCH-48A4 only adds additional cost)
ABC
ABC
ABC
ABC
JU8 JU8
SHIELD
JU7
SHIELD
ABC
ABC
STUDIOHUB+
PATCH
AES/EBU BOARD
STUDIOHUB+
PATCH
48 11048
PUNCH-DOWN
BOARD
J3
ABC
JU6
BNCJU5
75 OHM
SHIELD
SHIELD
ABC
J1
J2
JU4
BOARD
SHIELD
JU3
SHIELD
SHIELD
JU2
SHIELD
JU1
SHIELD
75
Ohm ADAPTER
(1/3 WIDTH
REAR
PANEL
ADAPTER)
AES/EBU
ADAPTER
WIDTH
REAR
PANEL
ADAPTER)
110 ADAPTER
(1/3 (1/3
WIDTH
REAR
PANEL
ADAPTER)
Model#A-6
#A-4
Model
Rear Panel Removeable Adapters- two or three wide across
4 RJ-45’s for stereo analog connections
2 RJ-45’s for AES/EBU connections
8 RJ-45’s forModel
straight-thru
connections
#A-6
8 BNC connectors for 50 Ohm BNC connections
RJ-21 connectors (use 2 across, or 4 total)
8 110 punchdown connections
4 stereo RJ-45 inputs to 8 “Left, Left” RJ-45 outputs
ABC
ABC
ABC PATCH
ABC
ABC
ABC
STUDIOHUB+
48 110 PUNCH-DOWN
BOARD
J3
JU8
SHIELD
JU7
SHIELD
JU6
SHIELD
JU5
ABC
ABC
J1
J2
JU4
JU3
SHIELD
BNC
75 OHM BOARD
SHIELD
SHIELD
JU2
SHIELD
JU1
SHIELD
75
ADAPTER
WIDTH
REAR
PANEL
ADAPTER)
110Ohm
ADAPTER
(1/3 (1/3
WIDTH
REAR
PANEL
ADAPTER)
STUDIOHUB+ PATCH 48 110 PUNCH-DOWN BOARD
J4
J1
JU3
SHIELD
ABC
ABC
ABC BOARD
ABC
STUDIOHUB+
PATCH 48 AES/EBU
J4
JU1
SHIELD
JU4
SHIELD
Model
Model #A-2
#A-4
ABC
J4
JU1
SHIELD
D
JU7
SHIELD
AES/EBU ADAPTER (1/3 WIDTH REAR PANEL ADAPTER)
Model
#A-2
Model
#A-1
Model
#A-3
ARD
D
RJ-21 to 24 (x2) 4-Wire RJ-45’s w/110 Punch Connectors
24 Channels of RJ-45 4-wire tie lines. Each channel
has 2 RJ-45’s in parallel and a 110 punch connector.
Requires 2 CAT-5 25 pair RJ-21 connectorized cables.
J3
JU8
SHIELD
JU7
SHIELD
JU6
SHIELD
J1
J2
JU5
SHIELD
JU4
SHIELD
JU3
SHIELD
JU2
SHIELD
110 ADAPTER (1/3 WIDTH REAR PANEL ADAPTER)
JU1
SHIELD
PATCH-48A1
N/C
PATCH-48A2
N/C
PATCH-48A3
N/C
PATCH-48A4 125.00
PATCH-48A5
N/C
PATCH-48A6
N/C
PATCH-48A7
N/C
48 Channel Patch Panel - equipped with six rear panel 50 Ohm BNC connectors.
PATCH-48BNC 1,265.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
24
PRODUCT PACKAGES
Factory
Description
Part #
Price Pre-Packaged Cable Bundles
Discounted package of various lengths shielded RJ-45 patch cords for all StudioHub+ applications
Mini Patch Cable Kit w/20 Patch Cables PATCH-KITMN 50.00
1 each of 1’, 2’, 3’, 20’, 25’ shielded patch cables,
3 each 5’, 7’, 10’, 12’, 15’ shielded patch cables
Small Patch Cable Kit w/35 Patch Cables 2 each of 1’, 2’, 3’, 20’, 25’ shielded patch cables,
5 each 5’, 7’, 10’, 12’, 15’ shielded patch cables
PATCH-KITSM 100.00
Medium Patch Cable Kit w/55 Patch Cables 3 each of 1’, 2’, 3’, 20’, 25’ shielded patch cables,
8 each 5’, 7’, 10’, 12’, 15’ shielded patch cables
PATCH-KITMD 150.00
Large Patch Cable Kit w/75 Patch Cables PATCH-KITLG 200.00
5 each of 1’, 2’, 3’, 20’, 25’ shielded patch cables,
10 each 5’, 7’, 10’, 12’, 15’ shielded patch cables
Pre-Packaged Adapter Bundles
Discounted package of various adapters for all StudioHub+ applications
Mini Adapter Kit w/20 Adapters ADAPT-KITMN 325.00
(5) RJ-45 to XLR (female) adapters, (4) RJ-45 to XLR (male) adapters,
(3) RJ-45 to 1/4” adapters, (4) RJ-45 to bare ends,
(2) RJ-45 to RCA (male), (2) RJ-45 to 1/8” mini (male)
Small Adapter Kit w/40 Adapters ADAPT-KITSM 645.00
(12) RJ-45 to XLR (female) adapters, (8) RJ-45 to XLR (male) adapters,
(5) RJ-45 to 1/4” adapters, (5) RJ-45 to bare end,
(5) RJ-45 to RCA (male), (5) RJ-45 to 1/8” mini (male)
Medium Adapter Kit w/60 Adapters ADAPT-KITMD 925.00
(20) RJ-45 to XLR (female) adapters, (15) RJ-45 to XLR (male) adapters,
(5) RJ-45 to 1/4” adapters, (5) RJ-45 to bare end,
(5) RJ-45 to RCA (male), (5) RJ-45 to 1/8” mini (male)
Large Adapter Kit w/80 Adapters ADAPT-KITLG1,295.00
(20) RJ-45 to XLR (female) adapters, (15) RJ-45 to XLR (male) adapters,
(15) RJ-45 to 1/4” adapters, (15) RJ-45 to bare end,
(10) RJ-45 to RCA (male), (5) RJ-45 to 1/8” mini (male)
Pre-Packaged Bundles FOR AXIA NODES/WHEATSTONE BLADES/LOGITEK JETSTREAM
Discounted package of various lengths shielded RJ-45 patch cords and adapters to install various consoles.
AXIA NODE KIT- w/ADAPTERS & PATCH CORDS
ADAPT-KITAX325.00
IP Kit w/16 Adapters and Patch Cords for AXIA Nodes
8 RJ-45 to XLRF adapters, 8 RJ-45 to XLRM adapters, sixteen 7’ patch cables
AXIA NODE KIT- w/MALE RJ-45 to XLR CABLES
ADAPTM-KITAX325.00
IP Kit w/16 male RJ-45’s and integrated 6’ cables for AXIA Nodes
8 male RJ-45 to XLRF female connectors, 8 male RJ-45 to XLRM connectors
WHEATSTONE BLADE KIT
ADAPT-KITWH350.00
IP Kit w/GPI Adapter, 16 Adapters and Patch Cords for WHEATSTONE Blades
One Dual RJ45 Breakout adapter to push terminals, 8 RJ-45 to XLRF adapters,
8 RJ-45 to XLRM adapters, sixteen 7’ patch cables
LOGITEK JETSREAM INPUT KIT
INPUT-KITLO78.00
IP Kit w/4 Adapters and Patch Cords for LOGITEK JetStream Input Cards
Four RJ-45 to XLRF adapters, four 10’ patch cables
LOGITEK JETSTREAM OUTPUT KIT
OUTPUT-KITLO78.00
IP Kit w/4 Adapters and Patch Cords for LOGITEK JetStream Output Cards
Four RJ-45 to XLRM adapters, four 10’ patch cables
LOGITEK JETSTREAM MIC KIT
MIC-KITLO78.00
IP Kit w/4 Adapters and Patch Cords for LOGITEK JetStream Microphone Cards
Four RJ-45 to XLRM adapters, four 10’ patch cables
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
25
CONSOLE KIT BUNDLES
Includes patch cables and adapters to connect your console to source equipment inputs and outputs.
Package priced lower than purchasing individual products.
Small Console Kit
(5) XLR Female Adapters
(3) XLR Male Adapters
(1) 1/4” TRS Adapters
(1) Pigtail Adapters
(1) RJ-45 to RCA (male)
(1) RJ-45 to 1/8” mini (male)
(4) 7’ CAT-5 Shielded Patch Cords
(6) 10’ CAT-5 Shielded Patch Cords
(6) 12’ CAT-5 Shielded Patch Cords
(4) 15’ CAT-5 Shielded Patch Cords
Part #: CONSOLE- KITSM
Factory Price: $295.00
Medium Console Kit
Large Console Kit
(7) XLR Female Adapters
(5) XLR Male Adapters
(2) 1/4” TRS Adapters
(2) Pigtail Adapters
(2) RJ-45 to RCA (male)
(2) RJ-45 to 1/8” mini (male)
(10) 7’ CAT-5 Shielded Patch Cords
(10) 10’ CAT-5 Shielded Patch Cords
(5) 12’ CAT-5 Shielded Patch Cords
(5) 15’ CAT-5 Shielded Patch Cords
(10) XLR Female Adapters
(5) XLR Male Adapters
(3) 1/4” TRS Adapters
(3) Pigtail Adapters
(2) RJ-45 to RCA (male)
(2) RJ-45 to 1/8” mini (male)
(10) 7’ CAT-5 Shielded Patch Cords
(12) 10’ CAT-5 Shielded Patch Cords
(10) 12’ CAT-5 Shielded Patch Cords
(8) 15’ CAT-5 Shielded Patch Cords
Part #: CONSOLE- KITMD
Factory Price: $375.00
Part #: CONSOLE- KITLG
Factory Price: $495.00
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
26
MOUNTS
Factory
Description
Part #
Price MOUNTS FOR PANELS
“Rack-up” any combination of active or passive StudioHub+ plates
SH-WELL1 SH-WELL2 SH-WELL3
In Table Well Mounts
Single Dual Triple Quad
Blank Filler Panel
SH-WELL1 25.00
SH-WELL2 30.00
SH-WELL3 35.00
SH-WELL4 40.00
SH-BLANK 12.00
On Table Surface Mounts
Single
Dual Triple Quad
SH-SURF130.00
SH-SURF2 35.00
SH-SURF3 40.00
SH-SURF445.00
SH-SURF1 SH-SURF2 SH-SURF3
SH-RACK4
Rack Mounts
4 Position 1 RU
10 Position 3 RU
SH-RACK4 35.00
SH-RACK10 45.00
Table Mounts
Consolette 4 Position Mount Four Across Mount - Mounts to flat surface
SH-CON 225.00
SH-FLAT4 40.00
Under Countertop Mount
SH-MOON95.00
SH-RACK10
SH-CON
Includes wood consolette
and 4-position metal mount.
Electronic panels shown
available separately.
SH-FLAT4
Includes mounting hardware and
template. Intended for flat surface
mount.
SH-MOON
Includes wood under table mount.
Headphone amp shown available
separately.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
27
ORDERING INFORMATION
Warranty
Warranty is two years for consoles, one year for all other products. All factory non-warranty service is guaranteed for 90 days.
For full warranty information, refer to the product manual.
Technical assistance is available during normal business hours at no charge by telephone or written correspondence. Items to
be returned for repair must include a Return Authorization number obtained from Radio Systems.
Shipping
Prices are FOB Logan Township, NJ. Shipping charges are the responsibility of the buyer. The customer bears the risk of loss
from the point of shipment. Upon request, Radio Systems will drop ship an order to a third party at no additional charge.
Ordering
Radio Systems will accept orders via mail, telephone, fax or e-mail from authorized dealers. However, in case of phone, fax or
e-mail orders, we must receive the signed original marked “Confirming.”
Power
All Radio Systems products operate at 110v/220v, 60Hz/50Hz power. Certain products may require voltage selector switch to be
enabled. Refer to product manual for details.
Specifications
Radio Systems reserves the right to make changes in specifications and/or pricing without notice. Whenever possible, however,
we will make every effort to notify the dealer of the change(s).
Shipping Weights and Measurements
Product
Dimensions (inches)
Weight
6 Channel Console With Power Supply
40 x 34 x 15
105 lbs. (dim wt.)
12 Channel Console
40 x 34 x 15
105 lbs. (dim wt.)
Console Power Supply
26 x 15 x 14
20 lbs.
18 Channel Console
52 x 34 x 15
137 lbs. (dim wt.)
24 Channel Console
64 x 34 x 15
165 lbs. (dim wt.)
DA 4x4b
23 x 13 x 3
8 lbs.
CT-THIN
7 x 2.5 x 1.25
3 lbs.
CT-DESK
7 x 2.5 x 4.5
3 lbs.
CT-2INCH
20 x 9 x 8
7 lbs.
CT-4INCH
28 x 18 x 6
15 lbs.
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
Radio Systems, Inc. • 601 Heron Drive • Logan Township, NJ 08085 • phone: 856-467-8000 • fax: 856-467-3044 • email: [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
