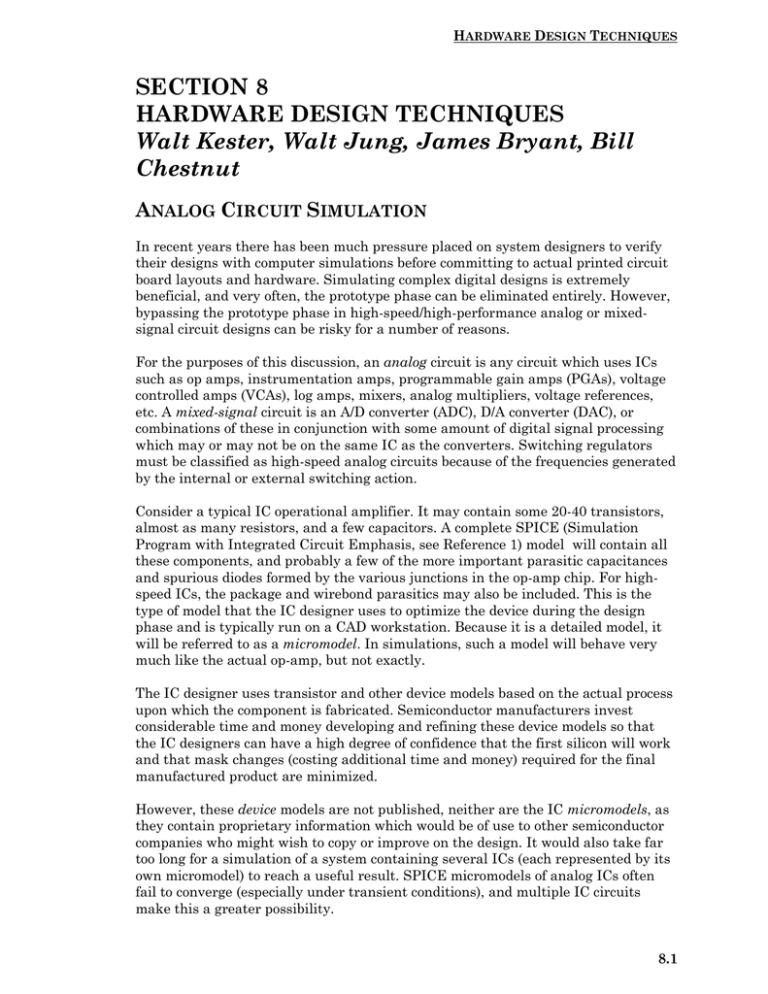

HARDWARE DESIGN TECHNIQUES

Walt Kester, Walt Jung, James Bryant, Bill

Chestnut

A

NALOG

C

IRCUIT

S

IMULATION

In recent years there has been much pressure placed on system designers to verify their designs with computer simulations before committing to actual printed circuit board layouts and hardware. Simulating complex digital designs is extremely beneficial, and very often, the prototype phase can be eliminated entirely. However, bypassing the prototype phase in high-speed/high-performance analog or mixedsignal circuit designs can be risky for a number of reasons.

For the purposes of this discussion, an analog circuit is any circuit which uses ICs such as op amps, instrumentation amps, programmable gain amps (PGAs), voltage controlled amps (VCAs), log amps, mixers, analog multipliers, voltage references, etc. A mixed-signal circuit is an A/D converter (ADC), D/A converter (DAC), or combinations of these in conjunction with some amount of digital signal processing which may or may not be on the same IC as the converters. Switching regulators must be classified as high-speed analog circuits because of the frequencies generated by the internal or external switching action.

Consider a typical IC operational amplifier. It may contain some 20-40 transistors, almost as many resistors, and a few capacitors. A complete SPICE (Simulation

Program with Integrated Circuit Emphasis, see Reference 1) model will contain all these components, and probably a few of the more important parasitic capacitances and spurious diodes formed by the various junctions in the op-amp chip. For highspeed ICs, the package and wirebond parasitics may also be included. This is the type of model that the IC designer uses to optimize the device during the design phase and is typically run on a CAD workstation. Because it is a detailed model, it will be referred to as a micromodel. In simulations, such a model will behave very much like the actual op-amp, but not exactly.

The IC designer uses transistor and other device models based on the actual process upon which the component is fabricated. Semiconductor manufacturers invest considerable time and money developing and refining these device models so that the IC designers can have a high degree of confidence that the first silicon will work and that mask changes (costing additional time and money) required for the final manufactured product are minimized.

However, these device models are not published, neither are the IC micromodels, as they contain proprietary information which would be of use to other semiconductor companies who might wish to copy or improve on the design. It would also take far too long for a simulation of a system containing several ICs (each represented by its own micromodel) to reach a useful result. SPICE micromodels of analog ICs often fail to converge (especially under transient conditions), and multiple IC circuits make this a greater possibility.

8.1

H

ARDWARE

D

ESIGN

T

ECHNIQUES

For these reasons, the SPICE models of analog circuits published by manufacturers or software companies are macromodels (as opposed to micromodels), which simulate the major features of the component, but lack fine detail. Most manufacturers of linear ICs (including Analog Devices) provide these macromodels for components such as operational amplifiers, analog multipliers, references, etc. (Reference 2 and

3). These models represent approximations to the actual circuit, and parasitic effects such as package capacitance and inductance and PC board layout are rarely included. The models are designed to work with various versions of SPICE simulation programs such as PSpice® (Reference 4) and run on workstations or personal computers. The models are simple enough so that circuits using multiple

ICs can be simulated in a reasonable amount of computation time and with good certainty of convergence. Consequently, SPICE modeling does not always reproduce the exact performance of a circuit and should always be verified experimentally using a carefully built prototype.

Finally, there are mixed-signal ICs such as A/D and D/A converters which have no

SPICE models, or if they exist, the models do not simulate dynamic performance

(Signal-to-noise, effective bits, etc.), and prototypes of circuits using them should always be built. In addition to mixed-signal ICs, switching regulators do not lend themselves to SPICE modelling. The dynamics of either magnetic-based or switched capacitor-based regulators are far too complex for simple macromodels.

ANALOG CIRCUIT SIMULATION CONSIDERATIONS

n ADSpice Macromodels (Over 500) Exist for the Following: u Amplifiers u Analog Multipliers u Multiplexers and Switches u Voltage References n No Practical SPICE Macromodels for: u ADCs, DACs u Switching Regulators n There is No Substitute for a Good Prototype!!

Figure 8.1

P

ROTOTYPING

T

ECHNIQUES

James Bryant, Walt Kester

The basic principle of a breadboard or prototype is that it is a temporary structure, designed to test the performance of a circuit or system, and must therefore be easy to modify.

8.2

H

ARDWARE

D

ESIGN

T

ECHNIQUES

There are many commercial prototyping systems, but almost all of them are designed to facilitate the prototyping of digital systems, where noise immunities are hundreds of millivolts or more. Non copper-clad Matrix board, Vectorboard, wire-wrap, and plug-in breadboard systems are, without exception, unsuitable for high performance or high frequency analog prototyping because their resistance, inductance, and capacitance are too high. Even the use of standard IC sockets is inadvisable in many prototyping applications.

An important consideration in selecting a prototyping method is the requirement for a large-area ground plane. This is required for high frequency circuits (including switching power supplies) as well as low speed precision circuits (including references and low dropout linear regulators), especially when prototyping circuits involving ADCs or DACs. The differentiation between high-speed and high-precision mixed-signal circuits is difficult to make. For example, 16+ bit ADCs (and DACs) may operate on high speed clocks (>10MHz) with rise and fall times of less than a few nanoseconds, while the effective throughput rate of the converters may be less than 100kSPS. Successful prototyping of these circuits requires that equal attention be given to good high-speed and high-precision circuit techniques. Switching regulators also fall into the high-speed catagory. Even though their desired output is a DC voltage, low output ripple voltage is highly dependent upon the use of proper high-speed grounding, layout, and decoupling techniques.

The simplest technique for analog prototyping uses a solid copper-clad board as a ground plane (Reference 5 and 6). The ground pins of the ICs are soldered directly to the plane, and the other components are wired together above it. This allows HF decoupling paths to be very short. All lead lengths should be as short as possible, and signal routing should separate high-level and low-level signals. Connection wires should be located close to the surface of the board to minimize the possibility of stray inductive coupling. In most cases, 18-gauge or larger insulated wire should be used. Parallel runs should not be "bundled" because of possible coupling. Ideally the layout (at least the relative placement of the components on the board) should be similar to the layout to be used on the final PCB. This approach is often referred to as deadbug prototyping because the ICs are often mounted upside down with their leads up in the air (with the exception of the ground pins, which are bent over and soldered directly to the ground plane). The upside-down ICs look like deceased insects, hence the name.

Figure 8.2 shows a hand-wired breadboard using two high speed op amps which gives excellent performance in spite of its lack of esthetic appeal. The IC op amps are mounted upside down on the copper board with the leads bent over. The signals are connected with short point-to-point wiring. The characteristic impedance of a wire over a ground plane is about 120

, although this may vary as much as ±40% depending on the distance from the plane. The decoupling capacitors are connected directly from the op amp power pins to the copper-clad ground plane. When working at frequencies of several hundred MHz, it is a good idea to use only one side of the board for ground. Many people drill holes in the board and connect both sides together with short pieces of wire soldered to both sides of the board. If care is not taken, however, this may result in unexpected ground loops between the two sides of the board, especially at RF frequencies.

8.3

H

ARDWARE

D

ESIGN

T

ECHNIQUES

HANDWIRED "DEADBUG" PROTOTYPE

Figure 8.2

Pieces of copper-clad board may be soldered at right angles to the main ground plane to provide screening, or circuitry may be constructed on both sides of the board

(with connections through holes) with the board itself providing screening. In this case, the board will need standoffs at the corners to protect the components on the underside from being crushed.

When the components of a breadboard of this type are wired point-to-point in the air

(a type of construction strongly advocated by Robert A. Pease of National

Semiconductor (Reference 6) and sometimes known as "bird's nest" construction) there is always the risk of the circuitry being crushed and resulting short-circuits.

Also, if the circuitry rises high above the ground plane, the screening effect of the ground plane is diminished, and interaction between different parts of the circuit is more likely. Nevertheless, the technique is very practical and widely used because the circuit may easily be modified (assuming the person doing the modifications is adept at using a soldering iron, solder-wick, and a solder-sucker).

Copper-clad boards are available with pre-drilled holes on 0.1" centers (Reference 7).

Because of the loss of copper area due to the pre-drilled holes, this technique does not provide as low a ground impedance as a completely covered copper-clad board.

However, this type of board is convenient if the ICs in the prototype have the proper pin spacing.

In a variation of this technique, the ICs and other components are mounted on the non-copper-clad side of the board. The holes are used as vias, and the point-to-point wiring is done on the copper-clad side of the board. The copper surrounding each

8.4

H

ARDWARE

D

ESIGN

T

ECHNIQUES

hole used for a via must be drilled out to prevent shorting. This approach requires that all IC pins be on 0.1" centers. Low profile sockets can be used for low frequency circuits, and the socket pins allow easy point-to-point wiring.

There is a commercial breadboarding system which has most of the advantages of the above techniques (robust ground, screening, ease of circuit alteration, low capacitance and low inductance) and several additional advantages: it is rigid, components are close to the ground plane, and where necessary, node capacitances and line impedances can be calculated easily. This system is made by Wainwright

Instruments and is available in Europe as "Mini-Mount" and in the USA (where the trademark "Mini-Mount" is the property of another company) as "Solder-Mount"

(Reference 8).

Solder-Mount consists of small pieces of PCB with etched patterns on one side and contact adhesive on the other. These pieces are stuck to the ground plane, and components are soldered to them. They are available in a wide variety of patterns, including ready-made pads for IC packages of all sizes from 3-pin SOT-23 packages to 64-pin DILs, strips with solder pads at intervals (which intervals range from

0.040" to 0.25", the range includes strips with 0.1" pad spacing which may be used to mount DIL devices), strips with conductors of the correct width to form microstrip transmission lines (50 Ω , 60 Ω , 75 Ω or 100 Ω ) when mounted on the ground plane, and a variety of pads for mounting various other components. Self-adhesive tinned copper strips and rectangles (LO-PADS) are also available as tie-points for connections. They have a relatively high capacitance to ground and therefore serve as low-inductance decoupling capacitors. They come in sheet form and may be cut with a knife or scissors. A few of the many types of Solder-Mount building-block components are shown in Figure 8.3.

SAMPLES OF "SOLDER-MOUNT" COMPONENTS

Figure 8.3

8.5

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The main advantage of Solder-Mount construction over "bird's nest" or "deadbug" is that the resulting circuit is far more rigid, and, if desired, may be made far smaller

(the latest Solder-Mounts are for surface-mount devices and allow the construction of breadboards scarcely larger than the final PC board, although it is generally more convenient if the prototype is somewhat larger). Solder-Mount is sufficiently durable that it may be used for small quantity production as well as prototyping.

Both the "deadbug" and the "Solder-Mount" prototyping techniques become somewhat tedious for complex analog or mixed-signal circuits. Larger circuits are often better prototyped using more formal layout techniques.

Another approach to prototyping analog circuits is to actually lay out a single or double-sided board using CAD techniques. PC-based software layout packages offer ease of layout as well as schematic capture to verify connections (Reference 9).

Although most layout software has some amount of auto-routing capability, this feature is best left to digital designs. After the components are placed in their desired positions, the interconnections should be routed manually following good analog layout guidelines. After the layout is complete, the software verifies the connections per the schematic diagram net list.

Many design engineers find that they can use CAD techniques to lay out simple boards themselves, or work closely with a layout person who has experience in analog circuit boards. The result is a pattern-generation tape (or Gerber file) which would normally be sent to a PCB manufacturing facility where the final board is made. Rather than use a PC board manufacturer, however, automatic drilling and milling machines are available which accept the PG tape directly (Reference 10).

These systems produce single and double-sided circuit boards directly by drilling all holes and use a milling technique to remove copper, and to create insulation paths for the finished board. The result is a board very similar to the final manufactured double-sided PC board, the chief exception being that there is no "plated-through" hole capability, and any "vias" between the two layers of the board must be wired and soldered on both sides. Minimum trace widths of 25 mils (1 mil = 0.001") and 12 mil spacing between traces are standard, although smaller trace widths can be achieved with care. The minimum spacing between lines is dictated by the size of the milling bit, typically 10 to 12 mils.

Figures 8.4 and 8.5 show the top and bottom side of a switching regulator prototype based on the ADP3000. A CAD system was used in the layout, and the board was fabricated using a PC board milling machine (board cutter). The size of the board is approximately 2.5" by 3.5".

The input to the regulator is on the left-hand side of the board (top view), and it is decoupled directly to the ground plane with three 33µF/16V tantalum surface mount capacitors. Note that the connections are directly from the input pad to the ground plane for minimum parasitic series resistance and inductance. The ADP3000 IC is mounted in a low-profile socket on the bottom side of the board near the center. The external energy transfer inductor is located in the upper part of the board slightly to the right of the center of the board. It is mounted in an encapsulated plastic package suitable for surface mounting. The output of the ADP3000 is decoupled with a

8.6

H

ARDWARE

D

ESIGN

T

ECHNIQUES

33µF/16V surface mount capacitor and is followed by an LC filter before connecting to the output load.

Notice that all connections are short, especially those to the surface mount capacitors. This isolates the high-speed switching currents to a small area and prevents interference with other circuits which the regulator may be supplying.

HANDWIRED PROTOTYPE (ADP3000) TOP VIEW

Figure 8.4

In Figure 8.5 (bottom view) note that the ADP3000 is mounted in a low profile IC socket for convenience. The "catch diode" is located directly beneath the ADP3000.

The two resistors to the right of the ADP3000 set the output voltage, and the resistor above and to the left of the ADP3000 is the current-limiting resistor. The loop of wire allows the inductor current to be monitored with a current probe. Note that the resistors are in individual pin sockets to allow easy modifications.

8.7

H

ARDWARE

D

ESIGN

T

ECHNIQUES

HANDWIRED PROTOTYPE (ADP3000) BOTTOM VIEW

Figure 8.5

IC sockets, however, can degrade the performance of high speed or high precision analog ICs. Although they make prototyping easier, even low-profile sockets often introduce enough parasitic capacitance and inductance to degrade the performance of the circuit. If sockets must be used in high speed circuits, an IC socket made of individual pin sockets (sometimes called cage jacks) mounted in the ground plane board may be acceptable (clear the copper, on both sides of the board, for about

0.5mm around each ungrounded pin socket and solder the grounded ones to ground on both sides of the board). Both capped and uncapped versions of these pin sockets are available (AMP part numbers 5-330808-3, and 5-330808-6, respectively). The pin sockets protrude through the board far enough to allow point-to-point wiring interconnections between them (see Figure 8.6).

The spring-loaded gold-plated contacts within the pin socket makes good electrical and mechanical connection to the IC pins. Multiple insertions, however, may degrade the performance of the pin socket, and pin sockets should never be used in the high-current paths associated with linear or switching regulators. The uncapped versions allow the IC pins to extend out the bottom of the socket. After the prototype is functional and no further changes are to be made, the IC pins can be soldered directly to the bottom of the socket, thereby making a permanent and rugged connection.

8.8

H

ARDWARE

D

ESIGN

T

ECHNIQUES

PIN SOCKETS (CAGE JACKS) HAVE MINIMUM PARASITIC

RESISTANCE, INDUCTANCE, AND CAPACITANCE

SPRING

CONTACTS

COPPER

SOLDER

SOLDER

PCB DIELECTRIC

PCB DIELECTRIC

SOLDER

SOLDER

CAPPED OR UNCAPPED

VERSIONS AVAILABLE

Figure 8.6

The prototyping techniques discussed so far have been limited to single or doublesided PC boards. Multilayer PC boards do not easily lend themselves to standard prototyping techniques. If multilayer board prototyping is required, one side of a double-sided board can be used for ground and the other side for power and signals.

Point-to-point wiring can be used for additional runs which would normally be placed on the additional layers provided by a multi-layer board. However, it is difficult to control the impedance of the point-to-point wiring runs, and the high frequency performance of a circuit prototyped in this manner may differ significantly from the final multilayer board.

Other difficulties in prototyping may occur with op amps or other linear devices having bandwidths greater than a few hundred megahertz. Small variations in parasitic capacitance (<1pF) between the prototype and the final board may cause subtle differences in bandwidth and settling time. Oftentimes prototyping is done with DIP packages, when the final production package is an SOIC. This can account for differences between prototype and final PC board performance. However this option may not be available, as many new ICs are only being introduced in surface mount packages.

E

VALUATION

B

OARDS

Walt Kester

Most manufacturers of analog ICs provide evaluation boards (usually at a nominal cost) which allow customers to evaluate products without constructing their own prototypes. Regardless of the product, the manufacturer has taken proper precautions regarding grounding, layout, and decoupling to ensure optimum device performance. The artwork or CAD file is usually made available free of charge,

8.9

H

ARDWARE

D

ESIGN

T

ECHNIQUES

should the customer wish to copy the layout directly or make modifications to suit the application.

Figure 8.7 shows the very compact evaluation board for the ADP3300 50mA low dropout linear regulator. The ADP3300 is located in the center of the board and is in a SOT-23 6-lead package. The input capacitor (C1) and output capacitor (C2) are both 0.47µF low inductance surface mount devices. The Noise Reduction capacitor

(C3) is 10nF. Resistor R1 is a pullup resistor for the open-collector error output pin.

The entire active circuit (located within the small square) is approximately 0.6" by

0.6" (15.2mm by 15.2mm).

EVALUATION BOARD FOR ADP3300

LOW DROPOUT REGULATOR

Figure 8.7

Switching regulators, such as the ADP1148, place more exacting demands on layout and decoupling. The evaluation board for the ADP1148 is shown in Figures 8.8 (top view) and 8.9 (bottom view - ground plane). The board size is approximately 2" by 2"

(5.1cm by 5.1cm). The input decoupling capacitors (C1 and C1A) are each 220µF/25V general purpose aluminum electrolytic capacitors. Also there is a 1µF tantalum in parallel with C1 and C1A (labeled C2).

The output capacitors (C6 and C6A) are each low ESR OS-CON 220µF/10V. The

ADP1148 is located to the right of the center of the board and is in a 14-pin SOIC surface mount package. The energy transfer inductor (L1) is a 68µH surface mount part from Coiltronics. Other readily visible components making up the regulator are two power MOSFETs (Q1 and Q2) and a 0.05

current sense resistor (R2).

8.10

H

ARDWARE

D

ESIGN

T

ECHNIQUES

EVALUATION BOARD FOR ADP1148

SWITCHING REGULATOR - TOP VIEW

Figure 8.8

EVALUATION BOARD FOR ADP1148 SWITCHING

REGULATOR - BOTTOM VIEW (GROUND PLANE)

Figure 8.9

8.11

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The bottom side of the board (ground plane, or "solder side") is shown in Figure 8.9.

Note that with the exception of a single crossover and a few vias, the entire layer is ground plane. This in conjunction with the compact layout ensures that high frequency ground currents generated by the switching action of the regulator are localized to prevent EMI/RFI.

Evaluation boards can range from relatively simple ones (linear regulators, for example) to rather complex ones for mixed-signal ICs such as A/D converters. ADC evaluation boards often have on-board memory and DSPs for analyzing the ADC performance. Software is often provided with these more complex evaluation boards so that they can interface with a personal computer to perform complex signal analysis such as histogram and FFT testing.

In summary, good analog designers utilize as many tools as possible to ensure that the final system design performs correctly. The first step is the intelligent use of IC macromodels, where available, to simulate the circuit. The second step is the construction of a prototype board to further verify the design and the simulation.

The final PCB layout should be then be based on the prototype layout as much as possible.

Finally, evaluation boards can be extremely useful in evaluating new analog ICs, and allow designers to verify the IC performance with a minimum amount of effort.

The layout of the components on the evaluation board can serve as a guide to both the prototype and the final PC board layout. Gerber files are generally available for all evaluation board layouts and may be obtained at no charge.

8.12

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFERENCES: SIMULATION, PROTOTYPING, AND

EVALUATION BOARDS

1.

Paolo Antognetti and Guiseppe Massobrio, Ed, Semiconductor Device

Modeling with SPICE, McGraw Hill, 1988.

2.

3.

4.

5.

6.

7.

Amplifier Applications Guide, Section 13, Analog Devices, Inc.,

Norwood, MA, 1992.

Boyle, et al, Macromodelling of Integrated Circuit

Operational Amplifiers, IEEE Journal of Solid State Circuits,

Vol. SC-9, no.6, December 1974.

PSpice® Simulation software.

MicroSim Corporation, 20 Fairbanks, Irvine, CA 92718, 714-770-3022

Jim Williams, High Speed Amplifier Techniques, Linear Technology

Application Note 47, August, 1991.

Robert A. Pease, Troubleshooting Analog Circuits, Butterworth-

Heinemann, 1991.

Vector Electronic Company, 12460 Gladstone Ave., Sylmar, CA 91342,

Tel. 818-365-9661, Fax. 818-365-5718.

8.

9.

RDI Wainwright, 69 Madison Ave., Telford, PA,

18969-1829, Tel. 215-723-4333, Fax. 215-723-4620.

Wainwright Instruments GmbH, Widdersberger Strasse 14,

DW-8138 Andechs-Frieding, Germany. Tel: +49-8152-3162,

Fax: +49-8152-40525.

Schematic Capture and Layout Software:

PADS Software, INC, 165 Forest St., Marlboro, MA, 01752 and

ACCEL Technologies, Inc., 6825 Flanders Dr., San Diego, CA,

92121

10.

Prototype Board Cutters:

LPKF CAD/CAM Systems, Inc., 1800 NW 169th Place,

Beaverton, OR, 97006 and

T-Tech, Inc., 5591-B New Peachtree Road, Atlanta, GA,

34341

11.

Howard W. Johnson and Martin Graham, High-Speed Digital Design,

PTR Prentice Hall, 1993.

12.

Practical Analog Design Techniques, Analog Devices, 1995.

13.

High Speed Design Techniques, Analog Devices, 1996.

8.13

H

ARDWARE

D

ESIGN

T

ECHNIQUES

G

ROUNDING

T

ECHNIQUES FOR

R

EGULATOR

C

IRCUITS

Walt Kester, Walt Jung

The importance of maintaining a low impedance large area ground plane is critical to practically all analog circuits today, especially high current low dropout linear regulators or switching regulators. The ground plane not only acts as a low impedance return path for high frequency switching currents but also minimizes

EMI/RFI emissions. In addition, it serves to minimize unwanted voltage drops due to high load currents. Because of the shielding action of the ground plane, the circuit's susceptibility to external EMI/RFI is also reduced. When using multilayer

PC boards, it is wise to add a power plane. In this way, low impedances can be maintained on both critical layers.

Figure 8.10 shows a grounding arrangement for a low dropout linear regulator such as the ADP3310. It is important to minimize the total voltage drop between the input voltage and the load, as this drop will subtract from the voltage dropped across the pass transistor and reduce its headroom. For this reason, these runs should be wide, heavy traces and are indicated by the wide interconnection lines on the diagram. The low-current ground (GND) and VOUT (sense) pins of the ADP3310 are connected directly to the load so that the regulator regulates the voltage at the load rather than at its own output. The IS and VIN connections to the RS current sense resistor should be made directly to the resistor terminals to minimize parasitic resistance, since the current limit resistor is typically a very low value (milliohms).

In fact, for very low values it may actually consist of a PC board trace of the proper width, length, and thickness to yield the desired resistance.

GROUNDING AND SIGNAL ROUTING TECHNIQUES FOR

LOW DROPOUT REGULATORS METHOD 1

V

IN

R

S

C1

V

IN

IS GATE

ADP3310

LDO

LINEAR REG.

V

OUT

GND

C2

LOAD

8.14

POWER

COMMON

è

SHORT CONNECTION

TO GROUND PLANE

Figure 8.10

è

SHORT

HEAVY TRACES

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The input decoupling capacitor (C1) should be connected with short leads at the regulator input in order to absorb any transients which may couple onto the input voltage line. Similarly, the load capacitor (C2) should have minimum lead length in order to absorb transients at that point and prevent them from coupling back into the regulator. The single-point connection to the low impedance ground plane is made directly at the load.

Figure 8.11 shows a grounding arrangement which is similar to that of Figure 8.10

with the exception that all ground connections are made with direct connections to the ground plane. This method works extremely well when the regulator and the load are on the same PC board, and the load is distributed around the board rather than located at one specific point. If the load is not distributed, the connection from

VOUT (sense) should be connected directly to the load as shown by the dotted line in the diagram. This ensures the regulator provides the proper voltage at the load regardless of the drop in the trace connecting the pass transistor output to the load.

V

IN

GROUNDING AND SIGNAL ROUTING FOR

LOW DROPOUT REGULATOR METHOD 2

R

S

ALTERNATE

CONNECTION

(SEE TEXT)

C2A

C2B

C1

IS GATE

V

IN

ADP3310

LDO

LINEAR REG.

V

OUT

GND

LOAD

POWER

COMMON

è

SHORT CONNECTION

TO GROUND PLANE

è

SHORT

HEAVY TRACES

Figure 8.11

Switching regulators present major challenges with respect to layout, grounding, and filtering. The discussion above on linear regulators applies equally to switchers, although the importance of DC voltage drops may not be as great.

There is no way to eliminate high frequency switching currents in a switching regulator, since they are necessary for the proper operation of the regulator. What one must do, however, is to recognize the high switching current paths and take proper measures to ensure that they do not corrupt circuits on other parts of the

8.15

H

ARDWARE

D

ESIGN

T

ECHNIQUES

board or system. Figure 8.12 shows a generic synchronous switching regulator controller IC and the associated external MOSFET switching transistors. The heavy bold lines indicate the paths where there are large switching currents and/or high

DC currents. Notice that all these paths are connected together at a single-point ground which in turn connects to a large area ground plane.

GROUNDING AND SIGNAL ROUTING TECHNIQUES

FOR SWITCHING REGULATORS METHOD 1

V

IN

V

CC

C1

LOAD

C2B

SWITCHING

REGULATOR

CONTROLLER C2A

SGND PGND

è

HIGH TRANSIENT

CURRENTS: USE

SHORT, HEAVY

TRACES

POWER

COMMON

Figure 8.12

In order to minimize stray inductance and resistance, each of the high current paths should be as short as possible. Capacitors C1 and C2A must absorb the bulk or the input and output switching current and shunt it to the single-point ground. Any additional resistance or inductance in series with these capacitors will degrade their effectiveness. Minimizing the area of all the loops containing the switching currents prevents them from significantly affecting other parts of the circuit. In actual practice, however, the single-point concept in Figure 8.12 is difficult to implement without adding additional lead length in series with the various components. The added lead length required to implement the single-point grounding scheme tends to degrade the effects of using the single-point ground in the first place.

A more practical solution is to make multiple connections to the ground plane and make each of them as short as possible. This leads to the arrangement shown in

Figure 8.13, where each critical ground connection is made directly to the ground plane with the shortest connection length possible. By physically locating all critical components associated with the regulator close together and making the ground connections short, stray series inductance and resistance are minimized. It is true that several small ground loops may occur using this approach, but they should not cause significant system problems because they are confined to a very small area of the overall ground plane. Refer back to Figure 8.9 (ADP1148 switching regulator

8.16

H

ARDWARE

D

ESIGN

T

ECHNIQUES

evaluation board - ground plane side) and note that this approach to grounding was used.

V

IN

GROUNDING AND SIGNAL ROUTING TECHNIQUES

FOR SWITCHING REGULATORS METHOD 2

V

CC

C1

SWITCHING

REGULATOR

CONTROLLER

LOAD

C2A

C2B

SGND PGND

POWER

COMMON

è

SHORT CONNECTION

TO GROUND PLANE

è

SHORT

HEAVY TRACES

Figure 8.13

8.17

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFERENCES ON GROUNDING

1.

2.

High Speed Design Techniques, Analog Devices, 1996,

Chapter 7.

Walt Kester, A Grounding Philosophy for Mixed-Signal Systems,

Electronic Design, Special Analog Issue, June 23, 1997, p. 29.

8.18

H

ARDWARE

D

ESIGN

T

ECHNIQUES

P

OWER

S

UPPLY

N

OISE

R

EDUCTION AND

F

ILTERING

Walt Jung, Walt Kester, Bill Chestnut

Precision analog circuitry has traditionally been powered from well regulated, low noise linear power supplies. During the last decade however, switching power supplies have become much more common in electronic systems. As a consequence, they also are being used for analog supplies. Good reasons for the general popularity include their high efficiency, low temperature rise, small size, and light weight.

In spite of these benefits, switchers do have drawbacks, most notably high output noise. This noise generally extends over a broad band of frequencies, resulting in both conducted and radiated noise, as well as unwanted electric and magnetic fields.

Voltage output noise of switching supplies are short-duration voltage transients, or spikes. Although the fundamental switching frequency can range from 20kHz to

1MHz, the spikes can contain frequency components extending to 100MHz or more.

While specifying switching supplies in terms of RMS noise is common vendor practice, as a user you should also specify the peak (or p-p) amplitudes of the switching spikes, with the output loading of your system.

The following section discusses filter techniques for rendering a switching regulator output analog ready, that is sufficiently quiet to power precision analog circuitry with relatively small loss of DC terminal voltage. The filter solutions presented are generally applicable to all power supply types incorporating switching element(s) in their energy path. This includes various DC-DC converters as well as popular 5V

(PC type) supplies.

An understanding of the EMI process is necessary to understand the effects of supply noise on analog circuits and systems. Every interference problem has a

source, a path, and a receptor [Reference 1]. In general, there are three methods for dealing with interference. First, source emissions can be minimized by proper layout, pulse-edge rise time control/reduction, filtering, and proper grounding.

Second, radiation and conduction paths should be reduced through shielding and physical separation. Third, receptor immunity to interference can be improved, via supply and signal line filtering, impedance level control, impedance balancing, and utilizing differential techniques to reject undesired common-mode signals. This section focuses on reducing switching power supply noise with external post filters.

Tools useful for combating high frequency switcher noise are shown by Figure 8.14.

They differ in electrical characteristics as well as practicality towards noise reduction, and are listed roughly in an order of priorities. Of these tools, L and C are the most powerful filter elements, and are the most cost-effective, as well as small sized.

8.19

H

ARDWARE

D

ESIGN

T

ECHNIQUES

SWITCHING REGULATOR NOISE REDUCTION TOOLS

n Capacitors n Inductors n Ferrites n Resistors n Linear Post Regulation n Proper Layout and Grounding Techniques n PHYSICAL SEPARATION FROM SENSITIVE

ANALOG CIRCUITS!!

Figure 8.14

Capacitors are probably the single most important filter component for switchers.

There are many different types of capacitors, and an understanding of their individual characteristics is absolutely mandatory to the design of effective practical supply filters. There are generally three classes of capacitors useful in 10kHz-

100MHz filters, broadly distinguished as the generic dielectric types; electrolytic,

film, and ceramic. These can in turn can be further sub-divided. A thumbnail sketch of capacitor characteristics is shown in the chart of Figure 8.15.

TYPES OF CAPACITORS

Aluminum

Electrolytic

(General

Purpose)

Aluminum

Electrolytic

(Switching

Type)

Tantalum

Electrolytic

OS-CON

Electrolytic

Polyester

(Stacked

Film)

Ceramic

(Multilayer)

Size 100 µF 120 µF 120 µF 100 µF 1 µF 0.1 µF

Rated

Voltage

25 V 25 V 20 V 20 V 400 V 50 V

ESR

0.6

@

100 kHz

0.18

@

100 kHz

0.12

@

100 kHz

0.02

@

100 kHz

0.11

@

1 MHz

0.12

@

1 MHz

Operating

Frequency

(*)

≅≅

100 kHz

≅≅

500 kHz

≅≅

1 MHz

≅≅

1 MHz

≅≅

10 MHz

(*) Upper frequency strongly size and package dependent

Figure 8.15

≅≅

1 GHz

8.20

H

ARDWARE

D

ESIGN

T

ECHNIQUES

With any dielectric, a major potential filter loss element is ESR (equivalent series resistance), the net parasitic resistance of the capacitor. ESR provides an ultimate limit to filter performance, and requires more than casual consideration, because it can vary both with frequency and temperature in some types. Another capacitor loss element is ESL (equivalent series inductance). ESL determines the frequency where the net impedance characteristic switches from capacitive to inductive. This varies from as low as 10kHz in some electrolytics to as high as 100MHz or more in chip ceramic types. Both ESR and ESL are minimized when a leadless package is used.

All capacitor types mentioned are available in surface mount packages, preferable for high speed uses.

The electrolytic family provides an excellent, cost-effective low-frequency filter component, because of the wide range of values, a high capacitance-to-volume ratio, and a broad range of working voltages. It includes general purpose aluminum

electrolytic types, available in working voltages from below 10V up to about 500V, and in size from 1 to several thousand µ F (with proportional case sizes). All electrolytic capacitors are polarized, and thus cannot withstand more than a volt or so of reverse bias without damage. They also have relatively high leakage currents

(up to tens of µ A, and strongly dependent upon design specifics).

A subset of the general electrolytic family includes tantalum types, generally limited to voltages of 100V or less, with capacitance of 500 µ F or less[Reference 3]. In a given size, tantalums exhibit a higher capacitance-to-volume ratios than do general purpose electrolytics, and have both a higher frequency range and lower ESR. They are generally more expensive than standard electrolytics, and must be carefully applied with respect to surge and ripple currents.

A subset of aluminum electrolytic capacitors is the switching type, designed for handling high pulse currents at frequencies up to several hundred kHz with low losses [Reference 4]. This capacitor type competes directly with tantalums in high frequency filtering applications, with the advantage of a broader range of values.

A more specialized high performance aluminum electrolytic capacitor type uses an organic semiconductor electrolyte [Reference 5]. The OS-CON capacitors feature appreciably lower ESR and higher frequency range than do other electrolytic types, with an additional feature of low low-temperature ESR degradation.

Film capacitors are available in very broad value ranges and an array of dielectrics, including polyester, polycarbonate, polypropylene, and polystyrene. Because of the low dielectric constant of these films, their volumetric efficiency is quite low, and a

10 µ F/50V polyester capacitor (for example) is actually a handful. Metalized (as opposed to foil) electrodes does help to reduce size, but even the highest dielectric constant units among film types (polyester, polycarbonate) are still larger than any electrolytic, even using the thinnest films with the lowest voltage ratings (50V).

Where film types excel is in their low dielectric losses, a factor which may not necessarily be a practical advantage for filtering switchers. For example, ESR in film capacitors can be as low as 10m

or less, and the behavior of films generally is very high in terms of Q. In fact, this can cause problems of spurious resonance in filters, requiring damping components.

8.21

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Typically using a wound layer-type construction, film capacitors can be inductive, which can limit their effectiveness for high frequency filtering. Obviously, only noninductively made film caps are useful for switching regulator filters. One specific style which is non-inductive is the stacked-film type, where the capacitor plates are cut as small overlapping linear sheet sections from a much larger wound drum of dielectric/plate material. This technique offers the low inductance attractiveness of a plate sheet style capacitor with conventional leads [see References 4, 5, 6].

Obviously, minimal lead length should be used for best high frequency effectiveness.

Very high current polycarbonate film types are also available, specifically designed for switching power supplies, with a variety of low inductance terminations to minimize ESL [Reference 7].

Dependent upon their electrical and physical size, film capacitors can be useful at frequencies to well above 10MHz. At the highest frequencies, only stacked film types should be considered. Some manufacturers are now supplying film types in leadless surface mount packages, which eliminates the lead length inductance.

Ceramic is often the capacitor material of choice above a few MHz, due to its compact size, low loss, and availability up to several

µ

F in the high-K dielectric formulations (X7R and Z5U), at voltage ratings up to 200V [see ceramic families of

Reference 3]. NP0 (also called COG) types use a lower dielectric constant formulation, and have nominally zero TC, plus a low voltage coefficient (unlike the less stable high-K types). NP0 types are limited to values of 0.1

µ F or less, with

0.01

µ

F representing a more practical upper limit.

Multilayer ceramic “chip caps” are very popular for bypassing/ filtering at 10MHz or more, simply because their very low inductance design allows near optimum RF bypassing. For smaller values, ceramic chip caps have an operating frequency range to 1GHz. For high frequency applications, a useful selection can be ensured by selecting a value which has a self-resonant frequency above the highest frequency of interest.

All capacitors have some finite ESR. In some cases, the ESR may actually be helpful in reducing resonance peaks in filters, by supplying “free” damping. For example, in most electrolytic types, a nominally flat broad series resonance region can be noted in an impedance vs. frequency plot. This occurs where |Z| falls to a minimum level, nominally equal to the capacitor’s ESR at that frequency. This low Q resonance can generally be noted to cover a relatively wide frequency range of several octaves.

Contrasted to the very high Q sharp resonances of film and ceramic caps, the low Q behavior of electrolytics can be useful in controlling resonant peaks.

In most electrolytic capacitors, ESR degrades noticeably at low temperature, by as much as a factor of 4-6 times at –55

°

C vs. the room temperature value. For circuits where ESR is critical to performance, this can lead to problems. Some specific electrolytic types do address this problem, for example within the HFQ switching types, the –10

°

C ESR at 100kHz is no more than 2

×

that at room temperature. The

OSCON electrolytics have a ESR vs. temperature characteristic which is relatively flat.

As noted, all real capacitors have parasitic elements which limit their performance.

The equivalent electrical network representing a real capacitor models both ESR

8.22

H

ARDWARE

D

ESIGN

T

ECHNIQUES

and ESL as well as the basic capacitance, plus some shunt resistance (see Figure

8.16). In such a practical capacitor, at low frequencies the net impedance is almost purely capacitive. At intermediate frequencies, the net impedance is determined by

ESR, for example about 0.12

to 0.4

at 125kHz, for several types. Above about

1MHz these capacitor types become inductive, with impedance dominated by the effect of ESL. All electrolytics will display impedance curves similar in general shape to that of Figure 8.17. The minimum impedance will vary with the ESR, and the inductive region will vary with ESL (which in turn is strongly effected by package style).

i v

CAPACITOR EQUIVALENT CIRCUIT

AND PULSE RESPONSE

I

PEAK

= 1A

ESR = 0.2

0

INPUT

CURRENT di dt

==

1 A

100 ns

Equivalent f = 3.5MHz

ESL = 20nH

VPEAK

==

ESL

••

++

ESR

••

IPEAK di dt

==

400 mV

C = 100µF

X

C

= 0.0005

@ 3.5MHz

OUTPUT

VOLTAGE

ESR I

PEAK

= 200mV

0

Figure 8.16

Regarding inductors, Ferrites (non-conductive ceramics manufactured from the oxides of nickel, zinc, manganese, or other compounds) are extremely useful in power supply filters [Reference 9]. At low frequencies (<100kHz), ferrites are inductive; thus they are useful in low-pass LC filters. Above 100kHz, ferrites become resistive, an important characteristic in high-frequency filter designs. Ferrite impedance is a function of material, operating frequency range, DC bias current, number of turns, size, shape, and temperature. Figure 8.18 summarize a number of ferrite characteristics.

8.23

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ELECTROLYTIC CAPACITOR

IMPEDANCE VERSUS FREQUENCY

C (100µF)

REGION

ESL (20nH)

REGION

LOG

|Z|

ESR (0.2

Ω)

REGION

ESR = 0.2

10kHz 1MHz

LOG FREQUENCY

Figure 8.17

FERRITES SUITABLE FOR HIGH FREQUENCY FILTERS

n Ferrites Good for Frequencies Above 25kHz n Many Sizes and Shapes Available Including Leaded "Resistor

Style"

n Ferrite Impedance at High Frequencies Primarily Resistive --

Ideal for HF Filtering

n Low DC Loss: Resistance of Wire Passing Through Ferrite is

Very Low

n High Saturation Current Versions Available n Choice Depends Upon: u Source and Frequency of Interference u Impedance Required at Interference Frequency u Environmental: Temperature, AC and DC Field Strength,

Size / Space Available

n Always Test the Design!

Figure 8.18

8.24

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Several ferrite manufacturers offer a wide selection of ferrite materials from which to choose, as well as a variety of packaging styles for the finished network (see

References 10 and 11). A simple form is the bead of ferrite material, a cylinder of the ferrite which is simply slipped over the power supply lead to the decoupled stage.

Alternately, the leaded ferrite bead is the same bead, pre-mounted on a length of wire and used as a component (see Reference 11). More complex beads offer multiple holes through the cylinder for increased decoupling, plus other variations. Surface mount beads are also available.

PSpice ferrite models for Fair-Rite materials are available, and allow ferrite impedance to be estimated [see Reference 12]. These models have been designed to match measured impedances rather than theoretical impedances.

A ferrite’s impedance is dependent upon a number of inter-dependent variables, and is difficult to quantify analytically, thus selecting the proper ferrite is not straightforward. However, knowing the following system characteristics will make selection easier. First, determine the frequency range of the noise to be filtered.

Second, the expected temperature range of the filter should be known, as ferrite impedance varies with temperature. Third, the DC current flowing through the ferrite must be known, to ensure that the ferrite does not saturate. Although models and other analytical tools may prove useful, the general guidelines given above, coupled with some experimentation with the actual filter connected to the supply output under system load conditions, should lead to a proper ferrite selection.

Using proper component selection, low and high frequency band filters can be designed to smooth a noisy switcher’s DC output so as to produce an analog ready

5V supply. It is most practical to do this over two (and sometimes more) stages, each stage optimized for a range of frequencies. A basic stage can be used to carry all of the DC load current, and filter noise by 60dB or more up to a 1-10MHz range. This larger filter is used as a card entry filter providing broadband filtering for all power entering a PC card. Smaller, more simple local filter stages are also used to provide higher frequency decoupling right at the power pins of individual stages.

8.25

H

ARDWARE

D

ESIGN

T

ECHNIQUES

S

WITCHING

R

EGULATOR

E

XPERIMENTS

In order to better understand the challenge of filtering switching regulators, a series of experiments were conducted with representative devices (see Figure 8.19).

The first series of experiments were conducted on a low power switching regulator, the ADP3000. The regulator was tested in the boost configuration with a 2V input and a 5V/100mA output. The prototype board shown previously in Figures 8.4 and

8.5 was used for the tests.

The second series of experiments were conducted on the ADP3000 configured in the buck mode with a 9V input and a 5V/100mA output. Again, the prototype board shown previously in Figures 8.4 and 8.5 was used for the tests.

The third series of experiments involved the ADP1148 synchronous buck regulator with a 9V input and a 3.3V/1A output. An evaluation board similar to that shown in

Figures 8.8 and 8.9 was used.

The fourth series of experiments were conducted on the ADP1148 synchronous buck regulator driving an ADP3310 low dropout linear regulator. The ADP1148 was configured for a 9V input and a 3.75V/1A output, and the ADP3310 for a 3.3V/1A output.

The fifth series of experiments were made on the ADP3605 +5V to –3V switched capacitor voltage converter. The ADP3605 output load was set for 100mA.

FILTERING SWITCHING REGULATOR OUTPUTS -

SUMMARY OF EXPERIMENTS

n ADP3000, 2V to 5V/100mA Boost Regulator n ADP3000, 9V to 5V/100mA Buck Regulator n ADP1148, 9V to 3.3V/1A Buck Regulator n ADP1148, 9V to 3.75V/1A Buck Regulator with

ADP3310, 3.3V/1A Linear LDO Post Regulator

n ADP3605, 5V to –3V/100mA Switched Capacitor

Voltage Converter

Figure 8.19

In addition to observing typical input and output waveforms, the objective of these experiments was to reduce the output ripple to less than 10mV peak-to-peak, a value suitable for driving most analog circuits.

Measurements were made using a Tektronix wideband digitizing oscilloscope with the input bandwidth limited to 20MHz so that the ripple generated by the switching

8.26

H

ARDWARE

D

ESIGN

T

ECHNIQUES

regulators could be more readily observed. In a system, power supply ripple frequencies above 20MHz are best filtered locally at each IC power pin with a low inductance ceramic capacitor and perhaps a series-connected ferrite bead.

Probing techniques are critical for accurate ripple measurements. A standard passive 10X probe was used with a "bayonet" probe tip adapter for making the ground connection as short as possible (see Figure 8.20). Use of the "ground clip lead" is not recommended in making this type of measurement because the lead length in the ground connection forms an unwanted inductive loop which picks up high frequency switching noise, thereby corrupting the signal being measured.

PROPER PROBING TECHNIQUES

PROBE

"GROUND CLIP"

CONNECTOR

SLIP-ON

"BAYONET"

GROUND

ADAPTER

"GROUND CLIP"

LEAD

(DO NOT USE!!)

SIGNAL

CONTACT

GROUND PLANE

CONTACT

IC

Figure 8.20

Note: Schematic representation of proper physical grounding is almost impossible. In all the following circuit schematics, the connections to ground are made to the ground plane using the shortest possible connecting path, regardless of how they are indicated in the actual circuit schematic diagram.

ADP3000 2V

TO

5V/100

M

A B

OOST

R

EGULATOR

Figure 8.21 shows the connection diagram for the ADP3000 used as a 2V to

5V/100mA boost regulator. The actual switch is internal to the device. Multiple capacitors are used on both the input and output in order to lower the ESR and ESL.

8.27

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 2V TO 5V BOOST REGULATOR

V

IN

2V

L1, 12.5µH

1N5817

+ + +

33µF

16V

33µF

16V

33µF

16V

C1

100µF

(33µF/16V × 3)

120

1

I

LIM

2

V

IN

GND

5

SW1

ADP3000-ADJ

SENSE

SW2

4

3

8

301k

100k

+

C2

100µF

16V

(33µF × 3)

V

OUT

5V

100mA

+

+

33µF 33µF 33µF

L1 = COILTRONICS CTX25-4

C1, C2 = SPRAGUE 293D-SERIES

SURFACE MOUNT TANTALUM

Figure 8.21

The input waveform of the boost regulator is shown in Figure 8.22 and is typical of the gated-oscillator type of regulation used in the ADP3000. It consists of series of gradually decreasing ramp waveforms during the time the inductor is being switched at the 400kHz internal oscillator rate. When the output voltage reaches the proper value, the internal oscillator is turned off, and the input capacitors recharge, as indicated by the positive-going ramp voltage. During this interval, the output voltage gradually decays until the point at which the internal oscillator is gated on again, and the cycle repeats itself.

The output waveform for the circuit is shown in Figure 8.23. This waveform is also characteristic of gated-oscillator boost regulators as indicated by the pulsating waveforms followed by the decaying ramp voltage. It should be noted that the ripple in this waveform is almost entirely determined by the equivalent ESR of the parallel combination of the output capacitors. Adding more capacitors would reduce the ripple, but a more effective method is to add an LC filter on the output as shown in

Figure 8.24.

8.28

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 - BOOST INPUT WAVEFORM

V

OUT

5V

100mA 37mV p-p

V

IN

2V

+ + +

33

µF

33

µF

33

µF

ADP3000

BOOST

REGULATOR

CIRCUIT

+ + +

33

µF

33

µF

33

µF

C1 = 100µF

(33µF/16V × 3)

C2 = 100µF

(33µF/16V × 3)

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = C2 = 33uF/16V x 3 , SPRAGUE 293D SURFACE MOUNT TANTALUM

Figure 8.22

ADP3000 BOOST - OUTPUT WAVEFORM

V

OUT

5V

100mA 32mV p-p

V

IN

2V

+ + +

33

µF

33

µF

33

µF

ADP3000

BOOST

REG

CIRCUIT

+ + +

33

µF

33

µF

33

µF

C1 = 100µF

(33µF/16V × 3)

C2 = 100µF

(33µF/16V × 3)

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = C2 = 33µF/16V x 3 , SPRAGUE 293D SURFACE MOUNT TANTALUM

Figure 8.23

8.29

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 BOOST FILTERED OUTPUT, CONDITION #1

V

IN

2V

L

F

12.5µH

+

33

µF

+

33

µF

+

33

µF

ADP3000

BOOST

REG

CIRCUIT

+ + +

33

µF

33

µF

33

µF

V

OUT

5V

100mA

+

C

F

47

µF

14mV p-p

C1 = 100µF

(33µF/16V × 3)

C2 = 100µF

(33µF/16V × 3)

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

OUTPUT FILTER:

L

F

= 12.5µH, COILTRONICS CTX25-4

C

F

= 47µF/10V SURFACE MOUNT TANTALUM

Figure 8.24

The inductor selected (LF = 12.5µH) was the same value and type used as the energy transfer inductor in the regulator circuit, thereby ensuring the inductor has adequate current-carrying capability. The capacitor (CF = 47µF) was a surface mount tantalum. Peak-to-peak ripple was reduced from 32mV to 14 mV, consisting mostly of high frequency spikes. In order to reduce the high frequency spikes, a second capacitor (CF2 = 10µF) was added in parallel with the 47µF. This output filter combination reduced the ripple to approximately 3mV as shown in Figure 8.25.

The ESL of the 10µF capacitor was approximately 2.2nH (Kemet T491C-series).

From this experiment, we concluded that the 47µF surface mount tantalum filter capacitor had an ESL/ESR combination which was not sufficiently low to remove the high frequency ripple components. The capacitor was removed and replaced with a

33µF tantalum (Sprague 293D-series). In addition, the regulator output capacitor

(C2) was reduced to a single 33µF tantalum (also Sprague 293D-series). The resulting output waveform is shown in Figure 8.26. Note that the high frequency components have been removed, but a small amount of ripple remains at the frequency of the gated oscillator bursts (approximately 40kHz).

8.30

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 BOOST FILTERED OUTPUT, CONDITION #2

V

IN

2V

L

F

12.5µH

V

OUT

5V

100mA

+

33

µF

+

33

µF

+

33

µF

ADP3000

BOOST

REG

CIRCUIT

+ + +

33

µF

33

µF

33

µF

+

C

F1

47

µF

+

C

F2

10

µF

3mV p-p

C1 = 100µF

(33µF/16V × 3)

C2 = 100µF

(33µF/16V × 3)

VERTICAL SCALE: 10mV / DIV

OUTPUT FILTER: L

F

HORIZ. SCALE:

= 12.5µH, COILTRONICS CTX25-4

5µs / DIV

C

F1

C

F2

= 47µF/10V SURFACE MOUNT TANTALUM

= 10µF/16V SURFACE MOUNT TANTALUM, KEMET T491C SERIES

Figure 8.25

ADP3000 BOOST FILTERED OUTPUT, CONDITION #3

L

F

12.5µH

V

OUT

5V

100mA

6mV p-p

V

IN

2V

+

33

µF

+

33

µF

+

33

µF

ADP3000

BOOST

REG

CIRCUIT

+

33

µF

+ +

C

F1

33

µF

C

F2

10

µF

C1 = 100µF

(33µF/16V × 3)

C2 = 33µF/16V

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

CHANGED C2 TO SINGLE 33µF/16V SURFACE MOUNT TANTALUM

OUTPUT FILTER: (CHANGED C

F1

L

F

)

= 12.5µH, COILTRONICS CTX25-4

C

F1

C

F2

= 33µF/16V SURFACE MOUNT TANTALUM, SPRAGUE 293D SERIES

= 10µF/16V SURFACE MOUNT TANTALUM, KEMET T491C SERIES

Figure 8.26

8.31

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 9V

TO

5V/100

M

A B

UCK

R

EGULATOR

The circuit for the ADP3000 9V to 5V/100mA buck regulator is shown in Figure

8.27. The input waveform is shown in Figure 8.28. Note that the pulsating waveform followed by an increasing ramp voltage is characteristic of the gatedoscillator buck input. The corresponding output waveform is shown in Figure 8.29.

The output filter chosen (see Figure 8.30) consisted of a 12.5µH inductor followed by a 33µF capacitor in parallel with a 10µF capacitor (identical to the filter used in the circuit shown in Figure 8.26). The ripple was reduced from 30mV to approximately

6mV peak-to-peak.

ADP3000 9V TO 5V BUCK APPLICATION

V

IN

9V

+

33

µF

+

33

µF

+

C1

100µF/16V

(33µF × 3)

33

µF

120

1

I

LIM

2

V

IN

3

SW1

FB

8

ADP3000-ADJ

SW2

4

GND

5

L1, 12.5µH

R2

301k

1N5817

R1

100k

L1 = COILTRONICS CTX25-4

C1, C2 = SPRAGUE 293D-SERIES

SURFACE MOUNT TANTALUM

V

OUT

5V

100mA

+

C2

33µF

16V

Figure 8.27

8.32

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 BUCK INPUT WAVEFORM

V

OUT

5V

100mA 60mV p-p

V

IN

9V

+ + +

33

µF

33

µF

33

µF

ADP3000

BUCK

REG

CIRCUIT

+

33

µF

C1 = 100µF

(33µF/16V × 3)

C2 = 33µF/ 16V

VERTICAL SCALE: 20mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 33uF/16V x 3 , SPRAGUE 293D SURFACE MOUNT TANTALUM

C2 = 33µF/16V , SPRAGUE 293D SURFACE MOUNT TANTALUM

Figure 8.28

ADP3000 BUCK OUTPUT WAVEFORM

V

OUT

5V

100mA 30mV p-p

V

IN

9V

+ + +

33

µF

33

µF

33

µF

ADP3000

BUCK

REG

CIRCUIT

+

33

µF

C1 = 100µF

(33µF/16V × 3)

C2 = 33µF/ 16V

VERTICAL SCALE: 20mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 33uF/16V x 3 , SPRAGUE 293D SURFACE MOUNT TANTALUM

C2 = 33µF/16V , SPRAGUE 293D SURFACE MOUNT TANTALUM

Figure 8.29

8.33

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3000 BUCK FILTERED OUTPUT

V

IN

9V

+ + +

33

µF

33

µF

33

µF

ADP3000

BUCK

REG

CIRCUIT

+

33

µF

L

F

12.5µH

V

OUT

5V

100mA

+

C

33

F1

µF

+

C

10

F2

µF

6mV p-p

C1 = 100µF

(33µF/16V × 3)

C2 = 33µF/ 16V

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 33uF/16V x 3 , SPRAGUE 293D SURFACE MOUNT TANTALUM

C2 = 33µF/16V , SPRAGUE 293D SURFACE MOUNT TANTALUM

OUTPUT FILTER:

L

F

= 12.5µH, COILTRONICS CTX25-4

C

F1

C

F2

= 33µF/16V SPRAGUE 293D SURFACE MOUNT TANTALUM

= 10µF/16V SURFACE MOUNT TANTALUM, KEMET T491C SERIES

Figure 8.30

ADP1148 9V

TO

3.3V/1A B

UCK

R

EGULATOR

The circuit for the ADP1148 9V to 3.3V/1A buck regulator is shown in Figure 8.31, and the input waveform in Figure 8.32. The input waveform is characteristic of the

PWM buck regulator. The decaying portion of the waveform occurs when the inductor is connected to the input. The flat portion is when the input is disconnected from the inductor. The fundamental switching frequency is approximately 150kHz.

The output waveform of the ADP1148 buck regulator is shown in Figure 8.33. Note that the output filter capacitors consist of two leaded OS-CON types with very low

ESR (approximately 0.02

Ω each). This results in a low ripple of 6mV peak-to-peak, which is acceptable without further filtering.

8.34

H

ARDWARE

D

ESIGN

T

ECHNIQUES

V

IN

, 9V

ADP1148 BUCK REGULATOR APPLICATION

10nF

V

IN

INT V

CC

P-DRIVE

ADP1148-3.3

SHUTDOWN

I

TH

SENSE (+)

IRF7204

P-CH

1µF

C1

L, 50µH

+

220µF/25V

R

SENSE

0.1

V

OUT

3.3V/1A

R

C

, 1k

1000pF

+

C2

+

C

C

3300pF

C

T

C

T

SENSE (–)

N-CH

220µF

10V

220µF

10V

470pF

SGND

N-DRIVE

PGND

10BQ040

IRF7403

C1 = 220µF/25V GEN PURPOSE AL ELECTROLYTIC

+ 1µF CERAMIC

Figure 8.31

L=COILTRONICS CTX-50-4

C2 = 220µF/10V OSCON × 2

ADP1148 BUCK INPUT WAVEFORM - CONDITION 1

V

IN

9V

V

OUT

3.3V

1A 200mV p-p

+

1µF 220µF

25V

ADP1148

BUCK

REG

CIRCUIT

+ +

220

µF

10V

220

µF

10V

C1 = 220 µF

+1 µF

C2 = 440µF

(220µF/10V × 2)

VERTICAL SCALE: 100mV / DIV

HORIZ SCALE: 5µs / DIV

C1 = 1µF CERAMIC + 220µF/25V GENERAL PURPOSE AL ELECTROLYTIC

C2 = 220 µF/10V OSCON × 2

Figure 8.32

In order to evaluate the effects of an output filter, the ripple was increased by replacing the two OS-CON output capacitors with a single 100µF leaded tantalum.

The resulting output ripple was increased to 40mV and is shown in Figure 3.34.

Now, the effects of a filter could be evaluated. It consisted of a 50µH inductor followed by a 100µF leaded tantalum. Ripple was reduced from 40mV to 3mV as shown in Figure 3.35.

8.35

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP1148 BUCK OUTPUT WAVEFORM - CONDITION 1

V

IN

9V

V

OUT

3.3V

1A

6mV p-p

+

1µF 220µF

25V

ADP1148

BUCK

REG

CIRCUIT

+ +

220

µF

10V

220

µF

10V

C1 = 220 µF

+1 µF

C2 = 440µF

(220µF/10V × 2)

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 1µF CERAMIC + 220µF/25V GENERAL PURPOSE AL ELECTROLYTIC

C2 = 220 µF/10V OSCON × 2

Figure 8.33

V

IN

9V

+

1µF 220µF

25V

ADP1148 BUCK OUTPUT - CONDITION 2

V

OUT

3.3V

1A 40mV p-p

ADP1148

BUCK

REG

CIRCUIT

+

100µF

20V

8.36

C1 = 220 µF

+1 µF

C2 = 100µF/20V

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 1µF CERAMIC + 220µF/25V GENERAL PURPOSE AL ELECTROLYTIC

C2 = 100µF/20V LEADED TANTALUM, KEMET T356-SERIES (ESR = 0.6

)

Figure 8.34

H

ARDWARE

D

ESIGN

T

ECHNIQUES

V

IN

9V

+

1µF 220µF

25V

ADP1148 BUCK FILTERED OUTPUT

L

F

50µH

V

OUT

3.3V

1A

3mV p-p

ADP1148

BUCK

REG

CIRCUIT

+

100µF

20V

+

C

F

100µF

20V

C1 = 220 µF

+1 µF

C2 = 100µF/20V

VERTICAL SCALE: 10mV / DIV

HORIZ. SCALE: 5µs / DIV

C1 = 1µF CERAMIC + 220µF/25V GENERAL PURPOSE AL ELECTROLYTIC

C2 = 100µF/20V LEADED TANTALUM, KEMET T356-SERIES (ESR = 0.6

)

OUTPUT FILTER

L

F

=COILTRONICS CTX-50-4

C

F

= 100µF/20V LEADED TANTALUM, KEMET T356-SERIES

Figure 8.35

ADP1148 9V

TO

3.75V B

UCK

R

EGULATOR FOLLOWED BY

ADP3310 3.3V L

INEAR

L

OW

D

ROPOUT

P

OST

R

EGULATOR

Linear regulators are often used following switching regulators for better regulation and lower noise. Low dropout (LDO) regulators such as the ADP3310 are desirable in these applications because they require only a small input-to-output series voltage to maintain regulation. This minimizes power dissipation in the pass device and may eliminate the need for a heat sink. Figure 8.36 shows the ADP1148 buck regulator configured for a 9V input and a 3.75V/1A output. The output drives an

ADP3310 linear LDO regulator configured for 3.75V input and 3.3V/1A output. The input and output of the ADP3310 is shown in Figure 8.37. Notice that the regulator reduces the ripple from 25mV to approximately 5mV.

8.37

H

ARDWARE

D

ESIGN

T

ECHNIQUES

V

IN

, 9V

C

C

2200pF

10nF

R

C

, 1k

C

T

470pF

ADP1148 BUCK REGULATOR DRIVING

ADP3310 LOW DROPOUT REGULATOR

WAVEFORMS

+

V

IN

INT V

CC

P-DRIVE

ADP1148

SD

IRF7204

P-CH

1µF

220µF

35V

C1

L, 68µH

R

SENSE

0.1

3.75V

IN

IFR7404

GATE

OUT

I

TH

SENSE (+)

ADP3310-3.3

1000pF

+

C2

GND

C

T

SENSE (–)

R1

20k

N-CH

100µF

20V

SGND

N-DRIVE

FB

PGND

10BQ040

R2

10k

IRF7403

3.3V

1A

C3

10µF

35V

Figure 8.36

WAVEFORMS FOR ADP1148 BUCK REGULATOR

DRIVING ADP3310 LOW DROPOUT REGULATOR

ADP1148 OUTPUT

(ADP3310 INPUT)

ADP3310 OUTPUT

25mV p-p 5mV p-p

8.38

VERTICAL SCALE: 10mV/DIV

HORIZ. SCALE: 5µs/DIV

Figure 8.37

VERTICAL SCALE: 10mV/DIV

HORIZ. SCALE: 5µs/DIV

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3605 +5V to –3V/100mA Switched Capacitor Voltage

Converter

Figure 8.38 shows the application circuit for the ADP3605 switched capacitor voltage converter. All three capacitors (input, output, and pump) are 10µF surface mount tantalum (Kemet T491C-series). Input and output waveforms are shown in

Figure 8.39, where the output ripple is approximately 120mV peak-to-peak.

The addition of a 10µH/10µF output filter reduced the ripple to approximately 5mV as shown in Figure 8.40.

ADP3605 SWITCHED CAPACITOR VOLTAGE

CONVERTER APPLICATION CIRCUIT

WAVEFORMS

V

IN

+4.5V TO +6V V

OUT

= –3V/100mA

V

OUT

+ C3

10µF

16V

+

C1

V

IN

Cp+

ADP3605

V

SENSE

C2

10µF

16V

+

10µF

16V

Cp-

SD

GND

C1 = C2 = C3 = 10µF/16V SURFACE MOUNT TANTALUM, KEMET T491C SERIES

Figure 8.38

8.39

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ADP3605 INPUT AND OUTPUT WAVEFORMS

100mV p-p

INPUT OUTPUT

120mV p-p

VERTICAL SCALE: 100mV/DIV

HORIZ. SCALE: 5µs/DIV

VERTICAL SCALE: 100mV/DIV

HORIZ. SCALE: 5µs/DIV

V

IN

+4.5V TO +6V

+

+

C1

10µF

16V

V

IN

Cp+

V

OUT

V

SENSE

ADP3605

C3

10µF

16V

Cp-

SD GND

Figure 8.39

ADP3605 FILTERED OUTPUT

L

F

10µH

–3V

100mA

+

C2

10µF

16V

+

C

F

10µF

16V

5mV p-p

L

F

= 10µH, COILTRONICS CTX10-3

C1 = C2 = C3 = C

F

= 10µF/16V, KEMET T491C SERIES

VERTICAL SCALE: 10mV/DIV

HORIZ. SCALE: 5µs/DIV

Figure 8.40

S

UMMARY OF

R

ESULTS OF

E

XPERIMENTS

The preceding experiments serve to illustrate the large number of tradeoffs which can be made when filtering switching regulator outputs. The success of any combination is highly dependent upon a compact layout and the use of a large area

8.40

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ground plane. As has been stated earlier, all connections to the ground plane should be made as short as possible to minimize parasitic resistance and inductance.

Output ripple can be reduced by the addition of low ESL/ESR capacitors to the output. However, it may be more efficient to use an LC filter to accomplish the ripple reduction. In any case, proper component selection is critical. The inductor should not saturate under the maximum load current, and its DC resistance should be low enough as not to induce significant voltage drop. The capacitors should have low ESL and ESR and be rated to handle the required ripple current.

Low dropout linear post regulators provide both ripple reduction as well as better regulation and can be effective, provided the sacrifice in efficiency is not excessive.

Finally, it is difficult to predict the output ripple current analytically, and there is no substitute for a prototype using the real-world components. Once the filter is proven to provide the desired ripple attenuation (with some added safety margin), care must be taken that parts substitutions or vendor changes are not made in the final production units without first testing them in the circuit for equivalent performance.

SUMMARY OF RESULTS

n Proper Layout and Grounding (using Ground Plane) Mandatory n Low ESL/ESR Capacitors Give Best Results n External LC Filters Very Effective in Reducing Ripple n Linear Post Regulation Effective for Noise Reduction and Best

Regulation

n Completely Analytical Approach Difficult, Prototyping is

Required for Optimum Results

n Once Design is Finalized, Do Not Switch Vendors or Use Parts

Substitutions Without First Verifying Their Performance in

Circuit

n High Frequency Localized Decoupling at IC Power Pins is Still

Required

Figure 8.41

L

OCALIZED

H

IGH

F

REQUENCY

P

OWER

S

UPPLY

F

ILTERING

The LC filters described in the previous section are useful in filtering switching regulator outputs. However, it may be desirable to place similar filters on the individual PC boards where the power first enters the board. Of course, if the switching regulator is placed on the PC board, then the LC filter should be an integral part of the regulator design.

Localized high frequency filters may also be required at each IC power pin (see

Figure 8.42). This simple filter can be considered an option, one which is exercised

8.41

H

ARDWARE

D

ESIGN

T

ECHNIQUES

dependent upon the high frequency characteristics of the associated IC and the relative attenuation desired. It uses Z1, a leaded ferrite bead such as the Panasonic

EXCELSA39, providing a resistance of more than 80

at 10MHz, increasing to over

100 Ω at 100MHz. The ferrite bead is best used with a local high frequency decoupling cap right at the IC power pins, such as a 0.1

µ

F ceramic unit shown.

HIGH FREQUENCY LOCALIZED DECOUPLING

+5V

FROM

CARD-ENTRY

FILTER

Z1

LEADED FERRITE BEAD

PANASONIC EXCELSA39

(OPTIONAL)

TO ADDITIONAL

STAGES

ANALOG

IC U1

0.1

µµ

F

CERAMIC

Figure 8.42

The following list summarizes the switching power supply filter layout/construction guidelines which will help ensure that the filter does the best possible job:

(1) Pick the highest electrical value and voltage rating for filter capacitors which is

consistent with budget and space limits. This minimizes ESR, and maximizes filter performance. Pick chokes for low

∆L at the rated DC current, as well as low DCR.

(2) Use short and wide PCB tracks to decrease voltage drops and minimize

inductance. Make track widths at least 200 mils for every inch of track length for lowest DCR, and use 1 oz or 2 oz copper PCB traces to further reduce IR drops and inductance.

(3) Use short leads or better yet, leadless components, to minimize lead inductance.

This minimizes the tendency to add excessive ESL and/or ESR. Surface mount packages are preferred. Make all connections to the ground plane as short as possible.

(4) Use a large-area ground plane for minimum impedance.

8.42

H

ARDWARE

D

ESIGN

T

ECHNIQUES

(5) Know what your components do over frequency, current and temperature

variations! Make use of vendor component models for the simulation of prototype designs, and make sure that lab measurements correspond reasonably with the

simulation. While simulation is not absolutely necessary, it does instill confidence in

a design when correlation is achieved(see Reference 15).

The discussion above assumes that the incoming AC power is relatively clean, an assumption not always valid. The AC power line can also be an EMI entry/exit path!

To remove this noise path and reduce emissions caused by the switching power supply or other circuits, a power line filter is required.

It is important to remember that AC line power can potentially be lethal! Do not

experiment without proper equipment and training! All components used in power line filters should be UL approved, and the best way to provide this is to specify a packaged UL approved filter. It should be installed in such a manner that it is the first thing the AC line sees upon entering the equipment. Standard three wire IEC style line cords are designed to mate with three terminal male connectors integral to many line filters. This is the best way to achieve this function, as it automatically grounds the third wire to the shell of the filter and equipment chassis via a low inductance path.

Commercial power line filters can be quite effective in reducing AC power-line noise.

This noise generally has both common-mode and differential-mode components.

Common-mode noise is noise that is found on any two of the three power connections

(black, white, or green) with the same amplitude and polarity. In contrast, differential-mode noise is noise found only between two lines. By design, most commercially available filters address both noise modes (see Reference 16).

8.43

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFERENCES: NOISE REDUCTION AND FILTERING

1.

EMC Design Workshop Notes, Kimmel-Gerke Associates, Ltd.,

St. Paul, MN. 55108, (612) 330-3728.

2.

3.

4.

5.

6.

Walt Jung, Dick Marsh, Picking Capacitors, Parts 1 & 2, Audio,

February, March, 1980.

Tantalum Electrolytic and Ceramic Capacitor Families, Kemet

Electronics, Box 5928, Greenville, SC, 29606, (803) 963-6300.

Type HFQ Aluminum Electrolytic Capacitor and type V Stacked

Polyester Film Capacitor, Panasonic, 2 Panasonic Way, Secaucus,

NJ, 07094, (201) 348-7000.

OS-CON Aluminum Electrolytic Capacitor 93/94 Technical Book,

Sanyo, 3333 Sanyo Road, Forrest City, AK, 72335, (501) 633-6634.

Ian Clelland, Metalized Polyester Film Capacitor Fills High Frequency

Switcher Needs, PCIM, June 1992.

7.

8.

9.

Type 5MC Metallized Polycarbonate Capacitor, Electronic Concepts, Inc.,

Box 1278, Eatontown, NJ, 07724, (908) 542-7880.

Walt Jung, Regulators for High-Performance Audio, Parts 1 and 2,

The Audio Amateur, issues 1 and 2, 1995.

Henry Ott, Noise Reduction Techniques in Electronic Systems,

2d Ed., 1988, Wiley.

10. Fair-Rite Linear Ferrites Catalog, Fair-Rite Products, Box J, Wallkill,

NY, 12886, (914) 895-2055.

11.

Type EXCEL leaded ferrite bead EMI filter, and type EXC L leadless ferrite bead, Panasonic, 2 Panasonic Way, Secaucus, NJ, 07094,

(201) 348-7000.

12. Steve Hageman, Use Ferrite Bead Models to Analyze EMI Suppression,

The Design Center Source, MicroSim Newsletter, January, 1995.

13. Type 5250 and 6000-101K chokes, J. W. Miller, 306 E. Alondra Blvd.,

Gardena, CA, 90247, (310) 515-1720.

14.

DIGI-KEY, PO Box 677, Thief River Falls, MN, 56701-0677,

(800) 344-4539.

15.

Tantalum Electrolytic Capacitor SPICE Models, Kemet Electronics,

Box 5928, Greenville, SC, 29606, (803) 963-6300.

16. Eichhoff Electronics, Inc., 205 Hallene Road, Warwick, RI., 02886,

(401) 738-1440.

8.44

H

ARDWARE

D

ESIGN

T

ECHNIQUES

T

HERMAL

M

ANAGEMENT

Walt Jung, Walt Kester

For reliability reasons, modern semiconductor-based systems are increasingly called upon to observe some form of thermal management. All semiconductors have some specified safe upper limit for junction temperature (TJ), usually on the order of

150°C (but sometimes 175°). Like maximum power supply potentials, maximum junction temperature is a worst case limitation which shouldn’t be exceeded. In conservative designs, it won’t be approached by less than an ample safety margin.

This is a critical point, since the lifetime of all semiconductors is inversely related to their operating junction temperature. The cooler semiconductors can be kept during operation, the more closely they will approach maximum useful life.

Thermal basics

The general symbol

θ

is used for thermal resistance, that is:

θ

= thermal resistance, in units of °C/watt (or, °C/W).

θ

JA and

θ

JC are two more specific terms used in dealing with semiconductor thermal issues, which are explained below.

In general, a device with a thermal resistance θ equal to 100°C/W will exhibit a temperature differential of 100°C for a power dissipation of 1W, as measured between two reference points. Note that this is a linear relation, so a 500mW dissipation in the same part will produce a 50°C differential, and so forth. For any power P (in watts), calculate the effective temperature differential ( ∆ T) in °C as:

T = P

× θ

, where

θ

is the total applicable thermal resistance. Figure 8.43 summarizes these thermal relationships.

As the relationships signify, to maintain a low TJ, either

θ

or the power dissipated

(or both) must be kept low. A low ∆ T is the key to extending semiconductor lifetimes, as it leads to low maximum junction temperatures.

In semiconductors, one temperature reference point is always the device junction, taken to mean the hottest spot inside the chip operating within a given package.

The other relevant reference point will be either the case of the device, or the

ambient temperature, TA, that of the surrounding air. This then leads in turn to the above mentioned individual thermal resistances,

θ

JA and

θ

JC.

8.45

H

ARDWARE

D

ESIGN

T

ECHNIQUES

THERMAL DESIGN BASICS

n

θθ

= Thermal Resistance (°C/W)

n

∆∆

T = P ×

θθ n

θθ

JA

= Junction - to - Ambient Thermal Resistance

n

θθ

JC

= Junction - to - Case Thermal Resistance

n

θθ

CA

= Case - to - Ambient Thermal Resistance

n

θθ

JA

=

θθ

JC

+

θθ

CA

n T

J

= T

A

+ (P ×

θθ

JA

), P = Total Device Power

Dissipation

n T

J(Max)

= 150°C (Sometimes 175°C)

Figure 8.43

T

A

T

C

T

J

θθ

CA

θθ

JC

Taking the more simple case first,

θ

JA is the thermal resistance of a given device measured between its junction and the ambient air. This thermal resistance is most often used with small, relatively low power ICs which do not dissipate serious amounts of power, that is 1W or less.

θ

JA figures typical of op amps and other small devices are on the order of 90-100°C/W for a plastic 8 pin DIP package. It must be understood that thermal resistances are highly package dependent, as different materials have differing degrees of thermal conductivity. As a general rule of thumb, thermal resistance for the conductors within packaging materials is closely analogous to electrical resistances, that is copper is the best, followed by aluminum, steel, and so on. Thus copper lead frame packages offer the highest performance

(lowest θ ).

A summary of the thermal resistances of various IC packages is shown in Figures

8.44, 8.45, and 8.46. In general, most of these packages do not lend themselves to easy heat sink attachment (with notable exceptions, such as the older round metal can types or the TO-220 package). Devices which are amenable to heat sink attachment will often be noted by a θ

JC dramatically lower than the

θ

JA. See for example the 15 pin SIP package (used by the AD815), the TO-220 package, and the

TO-263 package.

8.46

H

ARDWARE

D

ESIGN

T

ECHNIQUES

STANDARD PACKAGE THERMAL RESISTANCES - 1

Package ADI Designation

θ

JA (ºC/W)

θ

JC (ºC/W) Comment

3 pin SOT-23

5 pin SOT-23

6 pin SOT-23

SOT-23-3

SOT-23-5

SOT-23-6

300

190

165

180

92

ADT45/ADT50

ADT05

ADP3300

8 pin plastic DIP N-8

8 pin ceramic DIP D-8

8 pin SOIC

8 pin SOIC

R-8

R-8

8 pin metal can H-08A (TO-99) 150

90

110

160

90

10 pin metal can H-10A (TO-100) 150

12 pin metal can H-12A (TO-8) 100

25

30

22

60

60

45

AD823

AD712

ADP3367 Thermal

Coastline

OP07

AD582

AD841

Figure 8.44

STANDARD PACKAGE THERMAL RESISTANCES - 2

Package ADI Designation

θ

JA (ºC/W)

θ

JC (ºC/W)

Comment

14 pin plastic DIP N-14

14 pin ceramic DIP D-14

14 pin SOIC R-14

150

110

120

30

AD713

AD585

AD813

AD815 Through-Hole 15 pin SIP Y-15

16 pin plastic DIP N-16

16 pin ceramic DIP D-16

16 pin SOIC R-16

18 pin ceramic DIP D-18

41

120

95

85

120

2

40

22

35

AD524

AD811

AD7575

Figure 8.45

8.47

H

ARDWARE

D

ESIGN

T

ECHNIQUES

STANDARD PACKAGE THERMAL RESISTANCES - 3

Package ADI Designation

θ

JA (ºC/W)

θ

JC (ºC/W)

Comment

20 pin plastic DIP N-20

20 pin ceramic DIP D-20

20 pin SOIC R-20

102

70

74

31

10

24

24 pin plastic DIP N-24

24 pin ceramic DIP D-24

28 pin plastic DIP N-28

28 pin ceramic DIP D-28

28 pin SOIC R-28

TO-220

TO-263 (D2PAK)

105

120

74

51

71

53

73

3

3

35

35

24

8

23

AD7547

Through-Hole

Surface Mount

Figure 8.46

θ

JC is the thermal resistance of a given device as measured between its junction and the device case. This form is most often used with larger power semiconductors which do dissipate significant amounts of power, that is typically more than 1W. The reason for this is that a heat sink generally must be used with such devices, to maintain a sufficiently low internal junction temperature. A heat sink is simply an additional low thermal resistance device attached externally to a semiconductor part to aid in heat removal. It will have some additional thermal resistance of its own, also rated in °C/W.

Rather than just a single number, θ in this case will be composed of more than one component, i.e.,

θ

1,

θ

2, etc. Like series resistors, thermal impedances add, making a net calculation relatively simple. For example, to compute a net

θ

JA given a relevant θ

JC, the thermal resistance of the heat sink,

θ

CA, or case to ambient is added to the

θ

JC as:

θ

JA =

θ

JC +

θ

CA, and the result is the θ

JA for that specific circumstance.

A real example illustrating these relationships is shown by Figure 8.47. These curves indicate the maximum power dissipation vs. temperature characteristic for a device using standard 8-pin SOIC and a thermal coastline 8-pin SOIC. Expressed in this fashion, the curves are often referred to as derating curves. The proprietary

Analog Devices' thermal coastline package allows additional power to be dissipated with no increase in package size. For a TJ(max) of 150°C, the upper curve shows the allowable power in a thermal coastline package. This corresponds to a θ which can be calculated by dividing the

T by P at any point. For example, 1W of power is

8.48

H

ARDWARE

D

ESIGN

T

ECHNIQUES

allowed at a TA of 60°C, so the

T is 150°C – 60°C = 90°C. Dividing by 1W gives the thermal coastline package’s θ of 90°C/W. Similarly, the standard 8-pin SOIC package yields 160°C/W. Given such data as these derating curves, the

θ

JA for a given device can be readily determined, as above.

MAXIMUM POWER DISSIPATION VS. TEMPERATURE

FOR STANDARD AND THERMAL COASTLINE 8-PIN SOICs

2.0

8-PIN THERMAL COASTLINE SOIC

1.5

1.0

0.5

8-PIN STANDARD SOIC

0

-50 -40 -30 -20 -10 0 +10 +20 +30 +40 +50 +60 +70 +80 +90

AMBIENT TEMPERATURE (°C)

Figure 8.47

A physical comparison of the standard 8-pin SOIC leadframe and the Analog

Devices' thermal coastline leadframe is shown in Figure 8.48 and 8.49. Note that the geometry of the thermal coastline leadframe increases the amount of heat transferred to the pins by decreasing the face-to-face distance between the leadframe and the paddle as well as increasing the width of the adjoining faces.

8.49

H

ARDWARE

D

ESIGN

T

ECHNIQUES

THERMAL COASTLINE PACKAGE

3

4

1

2

8

7

6

5

1

2

3

4

STANDARD LEADFRAME SOIC

Figure 8.48

THERMAL COASTLINE SOIC

8

7

6

5

DETAILS OF THERMAL COASTLINE PACKAGE

STANDARD FRAME THERMAL COASTLINE FRAME

Lead 1

Lead 2

Center of

Package

Paddle

Face-to-face distance,

Lead 1 from lead to paddle reduced by a factor of

1.5 to 2

Lead 2

Width of adjoining faces increased by factor of 2 to 2.5

Figure 8.49

Paddle

Center of

Package

8.50

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Heat Sink and Airflow Considerations

The fundamental purpose of heat sinks and airflow is to allow high power dissipation levels while maintaining safe junction temperatures. There are many tradeoffs which can be made between airflow and heat sink area, and this section examines some of them.

A thermal model of an IC and a heat sink is shown in Figure 8.50. The critical parameter is the junction temperature, TJ, which must be kept below 150ºC for most ICs. The model shows the various thermal resistances and temperatures at various parts of the system. TA is the ambient temperature, TS is the heat sink temperature, TC is the IC case temperature, and TJ is the junction temperature.

The heat sink is usually attached to the IC in such a manner as to minimize the difference between the IC case temperature and the heat sink temperature. This is accomplished by a variety of means, including thermal grease, machined surface contact area, etc. In any case, the thermal resistance between the heat sink and the

IC case can usually be made less than 1ºC/W.

HEAT SINK BASICS

T

A

T

A

T

S

θθ

SA

T

C

T

J

HEAT SINK

IC

θθ

JA

=

θθ

JC

+

θθ

CS

+

θθ

SA

T

S

T

C

,

θθ

CS

≈≈

0

θθ

JA

≈≈ θθ

JC

+

θθ

SA

θθ

SA

≈≈ θθ

JA

θθ

JC

T

S

T

C

θθ

CS

P

D

= DEVICE POWER DISSIPATION

T

J(MAX)

= MAXIMUM JUNCTION TEMPERATURE

T

A(MAX)

= MAXIMUM AMBIENT TEMPERATURE

θθ

JA

==

( )

−−

(

PD

)

θθ

SA

≈≈

( )

−−

(

PD

Figure 8.50

T

J

)

−− θθ

JC

θθ

JC

The junction-to-ambient thermal resistance, θ

JA, is therefore the sum of the three thermal resistance terms:

θ

JA =

θ

JC +

θ

CS +

θ

SA , where

θ

JC is the junction-to-case thermal resistance,

θ

CS the case-to-heat sink thermal resistance, and θ

SA the heat sink-to-ambient thermal resistance. Each term is multiplied by the device power dissipation, PD, to determine the temperature rise associated with each thermal resistance:

TJ = PD( θ

JA) = PD (

θ

JC +

θ

CS +

θ

SA).

8.51

H

ARDWARE

D

ESIGN

T

ECHNIQUES

In most situations the maximum junction temperature, TJ(MAX), maximum ambient temperature, TA(MAX), and PD are known quantities, and it is desired to calculate the required heat sink thermal resistance,

θ

SA, which will limit the junction temperature to TJ(MAX) under the specified conditions. We know that the junction-to-ambient thermal resistance, θ

JA, can be expressed in terms of TJ(MAX),

TA(MAX), and PD as follows:

θ

JA

=

TJ(MAX

)

(

PD

)

.

We also know that θ

SA can be expressed in terms of

θ

JA,

θ

CS, and

θ

JC:

θ

SA =

θ

JA –

θ

JC –

θ

CS =

TJ(MAX

)

(

PD

)

− θ

JC

− θ

CS

.

In most cases, θ

CS can be less than 1ºC/W with the use of thermal grease, and the expression for the maximum allowable heat sink-to-ambient resistance reduces to:

θ

SA

PD

)

− θ

JC

.

A design example will help clarify the process and identify the various tradeoffs.

Consider the low dropout linear regulator circuit shown in Figure 8.51 based on the

ADP3310.

V

IN

= 5V

LDO THERMAL DESIGN EXAMPLE

11m

V

OUT

= 3.3V / 3A

+

+

1k

V

IN

IS GATE

ADP3310-3.3

V

OUT

EN

GND

LOAD

FET: NDP6020P OR NDB6020P (FAIRCHILD)

θθ

JC

= 3°C / W

P

D

= (5V – 3.3V)(3A) = 5.1W

θθ

SA

≈≈

T

J(MAX)

= 125°C , T

A(MAX)

= 50°C

( )

−−

(

PD

)

−− θθ

JC

==

125

−−

50

−− ==

.

−− ==

.

°°

Figure 8.51

8.52

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The power dissipated in the FET pass transistor (Fairchild NDP6020P or

NDB6020P) due to the 1.7V drain-to-source voltage drop and the 3A output current is 5.1W. Now assume that we want to hold the maximum transistor junction temperature to TJ(MAX) = 125ºC at an ambient temperature of TA(MAX) = 50ºC.

The junction-to-case thermal resistance of the FET is specified by the manufacturer to be 3ºC/W. We can now calculate the maximum allowable heat sink case-toambient thermal resistance (neglecting

θ

CS, the case-to-heat sink thermal resistance):

θ

SA

<

TJ(MAX

)

(

PD

)

− θ

JC

= − = .

° C W .

The 6020P Fairchild FET is available in two packages as shown in Figure 8.52. The

TO-220 style has a junction-to-ambient thermal resistance of 53ºC/W (no airflow) and has a metal tab which is designed to be bolted to a heat sink. The TO-263 style has a junction-to-ambient thermal resistance of 73ºC/W (no airflow) and is designed for surface mounting. The metal drain tab of the surface mount package is designed to be soldered directly to the PC board pad which acts as a heat sink.

TO-220 AND TO-263 (D

2

PAK) PACKAGES

FOR FAIRCHILD NDP6020P/NDB6020P FETs

TO-263

(NDB SERIES)

S

G

D

TO-220

(NDP SERIES)

θθ

JA

= 73°C/W

θθ

JC

= 3°C/W

S

D

G

0.4"

10.16mm

θθ

JA

= 53°C/W

θθ

JC

= 3°C/W

Figure 8.52

We will first select a suitable heat sink for the TO-220 package. Heat sink manufacturers such as AAVID Thermal Technologies have a variety of heat sinks suitable for a wide range of power dissipation levels. Selection tables provide nominal power dissipation, thermal resistance, and physical size for each heat sink available for a given package style.

8.53

H

ARDWARE

D

ESIGN

T

ECHNIQUES

A heat sink suitable for the TO-220 package is shown in Figure 8.53. It is a finned heat sink manufactured by AAVID Thermal Technologies (AAVID part number

582002B12500). The width of the heat sink is approximately 1.9". The entire assembly is bolted to the PC board, and the through-hole pins of the FET are then soldered to pads on the PC board.

The sink-to-ambient thermal resistance of this heat sink as a function of airflow is shown in Figure 8.54. Notice that even with no airflow, the thermal resistance is approximately 5ºC/W, which is much less than the calculated maximum allowable value of 11.7ºC/W. This heat sink will therefore provide more than adequate design margin under the specified operating conditions.

AAVID 582002B12500 HEAT SINK FOR TO-220

(Courtesy AAVID Thermal Technologies, Inc.)

1.9"

Figure 8.53

8.54

H

ARDWARE

D

ESIGN

T

ECHNIQUES

θθ

SA

(°C/W)

THERMAL RESISTANCE VS. AIRFLOW FOR

AAVID 582002B12500 HEAT SINK

5

Courtesy

AAVID Thermal Technologies, Inc.

4

3

2

1

0

0 100 200 300

AIRFLOW (LFPM)

Figure 8.54

400 500

Now consider the alternate package, the surface mount TO-263 package. Because the drain pad connection acts as a heat sink, the thermal resistance is a function of the drain pad area on the PC board. Figure 8.55 shows the thermal resistance of the package as a function of PC board drain pad area which is acting as the heat sink.

Note that even with 2 square inches of pad area, the thermal resistance is still

30ºC/W, which is well above the calculated maximum allowable value of 11.7ºC/W.

8.55

H

ARDWARE

D

ESIGN

T

ECHNIQUES

θθ

SA

THERMAL RESISTANCE OF TO-263 (D

2

PAK) VS.

DRAIN PAD AREA - NO AIRFLOW

70

Courtesy

AAVID Thermal Technologies, Inc.

60

(°C/W)

50

40

30

0

(0)

0.5

(323)

1.0

(645)

1.5

(967)

DRAIN PAD PCB AREA, in

2

(mm

2

)

Figure 8.55

2.0

(1290)

The situation can be improved by the addition of a surface-mount heat sink as shown in Figure 8.56 (AAVID part number 573300). This heat sink solders to two pads on the PC board which are extensions of the drain pad connecting area. The thermal resistance of this combination as a function of airflow is shown in Figure

8.57. Note that with the addition of the surface mount heat sink, the thermal resistance of the combination is reduced to approximately 10ºC /W with a reasonable amount of airflow (200 linear feet per minute). The curve also shows the thermal resistance with no heat sink as a function of airflow, clearly indicating that a heat sink is required in order to meet the design requirements in a surface mount package.

8.56

H

ARDWARE

D

ESIGN

T

ECHNIQUES

AAVID 573300 HEAT SINK FOR TO-263 D

2

PAK

(Courtesy AAVID Thermal Technologies, Inc.)

1"

Figure 8.56

THERMAL RESISTANCE OF AAVID 573300

SURFACE MOUNT HEAT SINK VS. AIRFLOW

25

20

θθ

SA

(°C/W)

15

TO-263,

PAD AREA > 1.6in

2

10

Courtesy

AAVID Thermal Technologies, Inc.

AAVID 573300

HEAT SINK

5

0

0 100 200 300

AIRFLOW (LFPM)

Figure 8.57

400 500

8.57

H

ARDWARE

D

ESIGN

T

ECHNIQUES

These examples illustrate the basic process of thermal design and heat sink selection. Larger heat sinks may lessen or even eliminate the need for airflow.

However, when operating heat sinks with no air flow, the heatsink must be oriented such that thermal convection currents can carry the heat away from the heat sink.

If additional airflow is required, the air must be allowed to pass freely around the heat sink with no obstruction. Note that small SOIC packages are also useful in conjunction with PCB copper heatsink areas (see References 6 and 7).

Further information on thermal management using heat sinks can be obtained from

References 1-7.

REFERENCES: THERMAL MANAGEMENT

1.

Power Consideration Discussions, AD815 Data Sheet, Analog Devices.

2.

Heat Sinks for Multiwatt

 Packages, AAVID Thermal Technologies, Inc.,

One Kool Path, Laconia, NH, 03246, (603) 528-3400.

3.

4.

5.

General Catalog, AAVID Thermal Technologies, Inc., One Kool Path,

Laconia, NH, 03246, (603) 528-3400.

Seri Lee, How to Select a Heat Sink, AAVID Thermal Technologies,

Available on internet site: http://www.aavid.com.

Seri Lee, Optimum Design and Selection of Heat Sinks, 11

th

IEEE

SEMI-THERM™ Symposium, 1995. Also available on internet site:

http://www.aavid.com.

6.

7.

Alan Li, et all, Maximum Power Enhancement Techniques for SO-8 Power

MOSFETs, Fairchild Semiconductor application note AN1029, April 1996, http://www.fairchildsemi.com.

Rob Blattner, Wharton McDaniel, Thermal Management in On-Board DC-to-

DC Power Conversion, Temic application note, http://www.temic.com.

8.58

H

ARDWARE

D

ESIGN

T

ECHNIQUES

EMI/RFI C

ONSIDERATIONS

Electromagnetic interference (EMI) has become a hot topic in the last few years among circuit designers and systems engineers. Although the subject matter and prior art have been in existence for over the last 50 years or so, the advent of portable and high-frequency industrial and consumer electronics has provided a comfortable standard of living for many EMI testing engineers, consultants, and publishers. With the help of EDN Magazine and Kimmel Gerke Associates, this section will highlight general issues of EMC (electromagnetic compatibility) to familiarize the system/circuit designer with this subject and to illustrate proven techniques for protection against EMI.

A P

RIMER ON

EMI R

EGULATIONS

The intent of this section is to summarize the different types of electromagnetic compatibility (EMC) regulations imposed on equipment manufacturers, both voluntary and mandatory. Published EMC regulations apply at this time only to equipment and systems, and not to components. Thus, EMI hardened equipment does not necessarily imply that each of the components used (integrated circuits, especially) in the equipment must also be EMI hardened.

Commercial Equipment

The two driving forces behind commercial EMI regulations are the FCC (Federal

Communications Commission) in the U. S. and the VDE (Verband Deutscher

Electrotechniker) in Germany. VDE regulations are more restrictive than the FCC’s with regard to emissions and radiation, but the European Community will be adding immunity to RF, electrostatic discharge, and power-line disturbances to the

VDE regulations, and now requires mandatory compliance. In Japan, commercial

EMC regulations are covered under the VCCI (Voluntary Control Council for

Interference) standards and, implied by the name, are much looser than their FCC and VDE counterparts.

All commercial EMI regulations primarily focus on radiated emissions, specifically to protect nearby radio and television receivers, although both FCC and VDE standards are less stringent with respect to conducted interference (by a factor of 10 over radiated levels). The FCC Part 15 and VDE 0871 regulations group commercial equipment into two classes: Class A, for all products intended for business environments; and Class B, for all products used in residential applications. For example, Figure 8.58 illustrates the electric-field emission limits of commercial computer equipment for both FCC Part 15 and VDE 0871 compliance.

8.59

H

ARDWARE

D

ESIGN

T

ECHNIQUES

RADIATED EMISSION LIMITS FOR

COMMERCIAL COMPUTER EQUIPMENT

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

Frequency (MHz)

30 - 88

88 - 216

216 - 1000

Class A (at 3m)

300 µV/m

500 µV/m

700 µV/m

Class B (at 3m)

100 µV/m

150 µV/m

200 µV/m

Figure 8.58

In addition to the already stringent VDE emission limits, the European Community

EMC standards (IEC and IEEE) now requires mandatory compliance to these additional EMI threats: Immunity to RF fields, electrostatic discharge, and powerline disturbances. All equipment/systems marketed in Europe must exhibit an immunity to RF field strengths of 1-10V/m (IEC standard 801-3), electrostatic discharge (generated by human contact or through material movement) in the range of 10-15kV (IEC standard 801-2), and power-line disturbances of 4kV EFTs

(extremely fast transients, IEC standard 801-4) and 6kV lightning surges (IEEE standard C62.41).

Military Equipment

The defining EMC specification for military equipment is MIL-STD-461 which applies to radiated equipment emissions and equipment susceptibility to interference. Radiated emission limits are very typically 10 to 100 times more stringent than the levels shown in Figure 8.58. Required limits on immunity to RF fields are typically 200 times more stringent (RF field strengths of 5-50mV/m) than the limits for commercial equipment.

Medical Equipment

Although not yet mandatory (as of December, 1997), EMC regulations for medical equipment are presently being defined by the FDA (Food and Drug Administration) in the USA and the European Community. The primary focus of these EMC regulations will be on immunity to RF fields, electrostatic discharge, and power-line disturbances, and may very well be more stringent than the limits spelled out in

MIL-STD-461. The primary objective of the medical EMC regulations is to guarantee safety to humans.

Industrial- and Process-Control Equipment

Presently, equipment designed and marketed for industrial- and process-control applications are not required to meet pre-existing mandatory EMC regulations. In fact, manufacturers are exempt from complying to any standard in the USA.

However, since industrial environments are very much electrically hostile, all equipment manufacturers are required to comply with all European Community

EMC regulations as of 1996.

8.60

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Automotive Equipment

Perhaps the most difficult and hostile environment in which electrical circuits and systems must operate is that found in the automobile. All of the key EMI threats to electrical systems exist here. In addition, operating temperature extremes, moisture, dirt, and toxic chemicals further exacerbate the problem. To complicate matters further, standard techniques (ferrite beads, feed-through capacitors, inductors, resistors, shielded cables, wires, and connectors) used in other systems are not generally used in automotive applications because of the cost of the additional components.

Presently, automotive EMC regulations, defined by the very comprehensive SAE

Standards J551 and J1113, are not yet mandatory. They are, however, very rigorous. SAE standard J551 applies to vehicle-level EMC specifications, and standard J1113 (functionally similar to MIL-STD-461) applies to all automotive electronic modules. For example, the J1113 specification requires that electronic modules cannot radiate electric fields greater than 300nV/m at a distance of 3 meters. This is roughly 1000 times more stringent than the FCC Part 15 Class A specification. In many applications, automotive manufacturers are imposing J1113

RF field immunity limits on each of the active components used in these modules.

Thus, in the very near future, automotive manufacturers will require that IC products comply with existing EMC standards and regulations.

EMC Regulations’ Impact on Design

In all these applications and many more, complying with mandatory EMC regulations will require careful design of individual circuits, modules, and systems using established techniques for cable shielding, signal and power-line filtering against both small- and large-scale disturbances, and sound multi-layer PCB layouts. The key to success is to incorporate sound EMC principles early in the design phase to avoid time-consuming and expensive redesign efforts.

A D

IAGNOSTIC

F

RAMEWORK FOR

EMI/RFI P

ROBLEM

S

OLVING

With any problem, a strategy should be developed before any effort is expended trying to solve it. This approach is similar to the scientific method: initial circuit misbehavior is noted, theories are postulated, experiments designed to test the theories are conducted, and results are again noted. This process continues until all theories have been tested and expected results achieved and recorded. With respect to EMI, a problem solving framework has been developed. As shown in Figure 8.59, the model suggested by Kimmel-Gerke in [Reference 1] illustrates that all three elements (a source, a receptor or victim, and a path between the two) must exist in order to be considered an EMI problem. The sources of electromagnetic interference can take on many forms, and the ever-increasing number of portable instrumentation and personal communications/computation equipment only adds the number of possible sources and receptors.

8.61

H

ARDWARE

D

ESIGN

T

ECHNIQUES

A DIAGNOSTIC FRAMEWORK FOR EMI

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

ANY INTERFERENCE PROBLEM CAN BE BROKEN DOWN INTO:

n The SOURCE of interference n The RECEPTOR of interference n The PATH coupling the source to the receptor

SOURCES PATHS RECEPTORS

Microcontroller

u

Radiated

u

Microcontroller

u

Capacitive

Inductive Communications

u

ESD

Communications

Transmitters

Power

Disturbances

Lightning

Conducted

u

u Power

u

Other Electronic

Systems

Figure 8.59

Interfering signals reach the receptor by conduction (the circuit or system interconnections) or radiation (parasitic mutual inductance and/or parasitic capacitance). In general, if the frequencies of the interference are less than 30MHz, the primary means by which interference is coupled is through the interconnects.

Between 30MHz and 300MHz, the primary coupling mechanism is cable radiation

and connector leakage. At frequencies greater than 300MHz, the primary mechanism is slot and board radiation. There are many cases where the interference is broadband, and the coupling mechanisms are combinations of the above.

When all three elements exist together, a framework for solving any EMI problem can be drawn from Figure 8.60. There are three types of interference with which the circuit or system designer must contend. The first type of interference is that generated by and emitted from an instrument; this is known as circuit/system

emission and can be either conducted or radiated. An example of this would be the personal computer. Portable and desktop computers must pass the stringent FCC

Part 15 specifications prior to general use.

8.62

H

ARDWARE

D

ESIGN

T

ECHNIQUES

THREE TYPES OF INTERFERENCE

EMISSIONS - IMMUNITY - INTERNAL

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

HANDHELD

TRANSMITTER

RADIO

TRANSMITTER

RADIATED

EMISSIONS

LIGHTNING

INTERNAL

ELECTRONICS

HUMAN ESD

POWER

DISTURBANCE

Figure 8.60

CONDUCTED

EMISSIONS

The second type of interference is circuit or system immunity. This describes the behavior of an instrument when it is exposed to large electromagnetic fields, primarily electric fields with an intensity in the range of 1 to 10V/m at a distance of

3 meters. Another term for immunity is susceptibility, and it describes circuit/system behavior against radiated or conducted interference.

The third type of interference is internal. Although not directly shown on the figure, internal interference can be high-speed digital circuitry within the equipment which affects sensitive analog (or other digital circuitry), or noisy power supplies which can contaminate both analog and digital circuits. Internal interference often occurs between digital and analog circuits, or between motors or relays and digital circuits.

In mixed signal environments, the digital portion of the system often interferes with analog circuitry. In some systems, the internal interference reaches such high levels that even very high-speed digital circuitry can affect other low-speed digital circuitry as well as analog circuits.

In addition to the source-path-receptor model for analyzing EMI-related problems,

Kimmel Gerke Associates have also introduced the FAT-ID concept [Reference 1].

FAT-ID is an acronym that describes the five key elements inherent in any EMI problem. These five key parameters are: frequency, amplitude, time, impedance, and

distance.

8.63

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The frequency of the offending signal suggests its path. For example, the path of lowfrequency interference is often the circuit conductors. As the interference frequency increases, it will take the path of least impedance, usually stray capacitance. In this case, the coupling mechanism is radiation.

Time and frequency in EMI problems are interchangeable. In fact, the physics of

EMI shows that the time response of signals contains all the necessary information to construct the spectral response of the interference. In digital systems, both the signal rise time and pulse repetition rate produce spectral components according to the following relationship: fEMI

=

π ⋅

1 trise

Eq. 8.1

For example, a pulse having a 1ns rise time is equivalent to an EMI frequency of over 300MHz. This time-frequency relationship can also be applied to high-speed analog circuits, where slew rates in excess of 1000V/ greater than 500MHz are not uncommon.

µ

s and gain-bandwidth products

When this concept is applied to instruments and systems, EMI emissions are again functions of signal rise time and pulse repetition rates. Spectrum analyzers and high speed oscilloscopes used with voltage and current probes are very useful tools in quantifying the effects of EMI on circuits and systems.

Another important parameter in the analysis of EMI problems is the physical dimensions of cables, wires, and enclosures. Cables can behave as either passive antennas (receptors) or very efficient transmitters (sources) of interference. Their physical length and their shield must be carefully examined where EMI is a concern.

As previously mentioned, the behavior of simple conductors is a function of length, cross-sectional area, and frequency. Openings in equipment enclosures can behave as slot antennas, thereby allowing EMI energy to affect the internal electronics.

P

ASSIVE

C

OMPONENTS

: Y

OUR

A

RSENAL AGAINST

EMI

Minimizing the effects of EMI requires that the circuit/system designer be completely aware of the primary arsenal in the battle against interference: passive

components. To use successfully these components, the designer must understand their non-ideal behavior. For example, Figure 8.61 illustrates the real behavior of the passive components used in circuit design. At very high frequencies, wires become transmission lines, capacitors become inductors, inductors become capacitors, and resistors behave as resonant circuits.

8.64

H

ARDWARE

D

ESIGN

T

ECHNIQUES

ALL PASSIVE COMPONENTS EXHIBIT

"NON-IDEAL" BEHAVIOR

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

COMPONENT LF BEHAVIOR HF BEHAVIOR

RESPONSE

Z

WIRE f

Z f

CAPACITOR

Z

INDUCTOR f

Z

RESISTOR f

Figure 8.61

A specific case in point is the frequency response of a simple wire compared to that of a ground plane. In many circuits, wires are used as either power or signal returns, and there is no ground plane. A wire will behave as a very low resistance (less than

0.02

Ω /ft for 22-gauge wire) at low frequencies, but because of its parasitic inductance of approximately 20nH/inch, it becomes inductive at frequencies above

13kHz. Furthermore, depending on size and routing of the wire and the frequencies involved, it ultimately becomes a transmission line with an uncontrolled impedance.

From our knowledge of RF, unterminated transmission lines become antennas with gain. On the other hand, large area ground planes are much more well-behaved, and maintain a low impedance over a wide range of frequencies. With a good understanding of the behavior of real components, a strategy can now be developed to find solutions to most EMI problems.

R

ADIO

F

REQUENCY

I

NTERFERENCE

The world is rich in radio transmitters: radio and TV stations, mobile radios, computers, electric motors, garage door openers, electric jackhammers, and countless others. All this electrical activity can affect circuit/system performance and, in extreme cases, may render it inoperable. Regardless of the location and magnitude of the interference, circuits/systems must have a minimum level of immunity to radio frequency interference (RFI). The next section will cover two general means by which RFI can disrupt normal instrument operation: the direct effects of RFI sensitive analog circuits, and the effects of RFI on shielded cables.

8.65

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Two terms are typically used in describing the sensitivity of an electronic system to

RF fields. In communications, radio engineers define immunity to be an instrument’s susceptibility to the applied RFI power density at the unit. In more general EMI analysis, the electric-field intensity is used to describe RFI stimulus.

For comparative purposes, Equation 8.2 can be used to convert electric-field intensity to power density and vice-versa: r

E



 V m



= 61.4 PT



 mW cm2



Eq. 8.2

where E = Electric Field Strength, in volts per meter, and

PT = Transmitted power, in milliwatts per cm2.

From the standpoint of the source-path-receptor model, the strength of the electric

field, E, surrounding the receptor is a function of transmitted power, antenna gain, and distance from the source of the disturbance. An approximation for the electricfield intensity (for both near- and far-field sources) in these terms is given by

Equation 8.3: r

E



 V m



=

5.5

PT d

GA

Eq. 8.3

where E = Electric field intensity, in V/m;

PT = Transmitted power, in mW/cm2;

GA = Antenna gain (numerical); and d = distance from source, in meters

For example, a 1W hand-held radio at a distance of 1 meter can generate an electricfield of 5.5V/m, whereas a 10kW radio transmission station located 1km away generates a field smaller than 0.6V/m.

Analog circuits are generally more sensitive to RF fields than digital circuits because analog circuits, operating at high gains, must be able to resolve signals in the microvolt/millivolt region. Digital circuits, on the other hand, are more immune to

RF fields because of their larger signal swings and noise margins. As shown in

Figure 8.62, RF fields can use inductive and/or capacitive coupling paths to generate noise currents and voltages which are amplified by high-impedance analog instrumentation. In many cases, out-of-band noise signals are detected and rectified by these circuits. The result of the RFI rectification is usually unexplained offset voltage shifts in the circuit or in the system.

8.66

H

ARDWARE

D

ESIGN

T

ECHNIQUES

RFI CAN CAUSE RECTIFICATION IN

SENSITIVE ANALOG CIRCUITS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

INPUTS PICK UP HIGH FREQUENCY ENERGY ON

SIGNAL LINE, WHICH IS DETECTED BY THE AMPLIFIER

VCC

OUTPUT DRIVERS CAN BE JAMMED, TOO: ENERGY

COUPLES BACK TO INPUT VIA VCC OR SIGNAL LINE

AND THEN IS DETECTED OR AMPLIFIED

Figure 8.62

There are techniques that can be used to protect analog circuits against interference from RF fields (see Figure 8.63). The three general points of RFI coupling are signal

inputs, signal outputs, and power supplies. At a minimum, all power supply pin connections on analog and digital ICs should be decoupled with 0.1µF ceramic capacitors. As was shown in Reference 3, low-pass filters, whose cutoff frequencies are set no higher than 10 to 100 times the signal bandwidth, can be used at the inputs and the outputs of signal conditioning circuitry to filter noise.

Care must be taken to ensure that the low pass filters (LPFs) are effective at the highest RF interference frequency expected. As illustrated in Figure 8.64, real lowpass filters may exhibit leakage at high frequencies. Their inductors can lose their effectiveness due to parasitic capacitance, and capacitors can lose their effectiveness due to parasitic inductance. A rule of thumb is that a conventional low-pass filter

(made up of a single capacitor and inductor) can begin to leak when the applied signal frequency is 100 to 1000 higher than the filter’s cutoff frequency. For example, a 10kHz LPF would not be considered very efficient at filtering frequencies above 1MHz.

8.67

H

ARDWARE

D

ESIGN

T

ECHNIQUES

KEEPING RFI AWAY FROM ANALOG CIRCUITS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

REMOTE

LOCAL

V

POS

V

NEG

Decouple all voltage supplies to analog chip with high-frequency capacitors

Use high-frequency filters on all lines that leave the board

Use high-frequency filters on the voltage reference if it is not grounded

Figure 8.63

A SINGLE LOW PASS FILTER LOSES EFFECTIVENESS

AT 100 - 1000 f3 dB

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

TYPICALLY 100 - 1000 f3dB

FILTER

ATTENUATION f3dB

FREQUENCY

Figure 8.64

8.68

H

ARDWARE

D

ESIGN

T

ECHNIQUES

Rather than use one LPF stage, it is recommended that the interference frequency bands be separated into low-band, mid-band, and high-band, and then use individual filters for each band. Kimmel Gerke Associates use the stereo speaker analogy of woofer-midrange-tweeter for RFI low-pass filter design illustrated in

Figure 8.65. In this approach, low frequencies are grouped from 10kHz to 1MHz, mid-band frequencies are grouped from 1MHz to 100MHz, and high frequencies grouped from 100MHz to 1GHz. In the case of a shielded cable input/output, the high frequency section should be located close to the shield to prevent highfrequency leakage at the shield boundary. This is commonly referred to as feed-

through protection. For applications where shields are not required at the inputs/outputs, then the preferred method is to locate the high frequency filter section as close the analog circuit as possible. This is to prevent the possibility of pickup from other parts of the circuit.

MULTISTAGE FILTERS ARE MORE EFFECTIVE

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

FEEDTHROUGH

CAPACITOR

FERRITE

BEAD

IRON

CORE

.01

µµ

F

.01

µµ

F

1

µµ

F

TWEETER

MIDRANGE

STEREO SPEAKER ANALOGY

Figure 8.65

WOOFER

Another cause of filter failure is illustrated in Figure 8.66. If there is any impedance in the ground connection (for example, a long wire or narrow trace connected to the ground plane), then the high-frequency noise uses this impedance path to bypass the filter completely. Filter grounds must be broadband and tied to low-impedance points or planes for optimum performance. High frequency capacitor leads should be kept as short as possible, and low-inductance surface-mounted ceramic chip capacitors are preferable.

8.69

H

ARDWARE

D

ESIGN

T

ECHNIQUES

NON-ZERO (INDUCTIVE AND/OR RESISTIVE) FILTER

GROUND REDUCES EFFECTIVENESS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

FILTER

HF

ENERGY

HF

ENERGY

BOND IMPEDANCE

Figure 8.66

S

OLUTIONS FOR

P

OWER

-L

INE

D

ISTURBANCES

The goal of this next section is not to describe in detail all the circuit/system failure mechanisms which can result from power-line disturbances or faults. Nor is it the intent of this section to describe methods by which power-line disturbances can be prevented. Instead, this section will describe techniques that allow circuits and systems to accommodate transient power-line disturbances.

Figure 8.67 is an example of a hybrid power transient protection network commonly used in many applications where lightning transients or other power-line disturbances are prevalent. These networks can be designed to provide protection against transients as high as 10kV and as fast as 10ns. Gas discharge tubes

(crowbars) and large geometry zener diodes (clamps) are used to provide both differential and common-mode protection. Metal-oxide varistors (MOVs) can be substituted for the zener diodes in less critical, or in more compact designs. Chokes are used to limit the surge current until the gas discharge tubes fire.

Commercial EMI filters, as illustrated in Figure 8.68, can be used to filter less catastrophic transients or high-frequency interference. These EMI filters provide both common-mode and differential mode filtering. An optional choke in the safety ground can provide additional protection against common-mode noise. The value of this choke cannot be too large, however, because its resistance may affect power-line fault clearing. These filters work in both directions: they are not only protect the equipment from surges on the power line but also prevent transients from the internal switching power supplies from corrupting the power line.

8.70

H

ARDWARE

D

ESIGN

T

ECHNIQUES

POWER LINE DISTURBANCES CAN GENERATE EMI

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

V

GAS DISCHARGE

TUBES

"CROWBARS"

CHOKES

TRANSIENT

SUPPRESSORS

BIG ZENERS

OR MOVs

LINE

N

LOAD

G

COMMON-MODE AND DIFFERENTIAL MODE PROTECTION

Figure 8.67

SCHEMATIC FOR A COMMERCIAL POWER LINE FILTER

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

HOT

LINE

NEU

GND

HOT

LOAD

NEU

OPTIONAL

NOTE: OPTIONAL CHOKE ADDED FOR COMMON-MODE PROTECTION

Figure 8.68

Transformers provide the best common-mode power line isolation. They provide good protection at low frequencies (<1MHz), or for transients with rise and fall times greater than 300ns. Most motor noise and lightning transients are in this range, so isolation transformers work well for these types of disturbances. Although the isolation between input and output is galvanic, isolation transformers do not provide sufficient protection against extremely fast transients (<10ns) or those caused by high-amplitude electrostatic discharge (1 to 3ns). As illustrated in Figure 8.69, isolation transformers can be designed for various levels of differential- or common-

8.71

H

ARDWARE

D

ESIGN

T

ECHNIQUES

mode protection. For differential-mode noise rejection, the Faraday shield is connected to the neutral, and for common-mode noise rejection, the shield is connected to the safety ground.

FARADAY SHIELDS IN ISOLATION TRANSFORMERS

PROVIDE INCREASING LEVELS OF PROTECTION

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

STANDARD TRANSFORMER - NO SHIELD

NOTE CONNECTION FROM SECONDARY

TO SAFETY GROUND TO ELIMINATE

GROUND-TO-NEUTRAL VOLTAGE

SINGLE FARADAY SHIELD

CONNECT TO SAFETY GROUND FOR

COMMON-MODE PROTECTION

SINGLE FARADAY SHIELD

CONNECT TO NOISY-SIDE NEUTRAL

WIRE FOR DIFFERENTIAL-MODE

PROTECTION

TRIPLE FARADAY SHIELD

CONNECT TO SAFETY GROUND FOR

COMMON MODE

CONNECT TO NEUTRALS FOR

DIFFERENTIAL MODE

Figure 8.69

P

RINTED

C

IRCUIT

B

OARD

D

ESIGN FOR

EMI

P

ROTECTION

This section will summarize general points regarding the most critical portion of the design phase: the printed circuit board layout. It is at this stage where the performance of the system is most often compromised. This is not only true for signal-path performance, but also for the system’s susceptibility to electromagnetic interference and the amount of electromagnetic energy radiated by the system.

Failure to implement sound PCB layout techniques will very likely lead to system/instrument EMC failures.

Figure 8.70 is a real-world printed circuit board layout which shows all the paths through which high-frequency noise can couple/radiate into/out of the circuit.

Although the diagram shows digital circuitry, the same points are applicable to precision analog, high-speed analog, or mixed analog/digital circuits. Identifying critical circuits and paths helps in designing the PCB layout for both low emissions and susceptibility to radiated and conducted external and internal noise sources.

8.72

H

ARDWARE

D

ESIGN

T

ECHNIQUES

METHODS BY WHICH HIGH FREQUENCY ENERGY

COUPLE AND RADIATE INTO CIRCUITRY VIA PLACEMENT

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

COUPLING TO I/O VIA

CROSSTALK OR RADIATION

COUPLING VIA COMMON

POWER IMPEDANCE

RADIATION FROM

POWER WIRING

COUPLING VIA COMMON

GROUND IMPEDANCE

Figure 8.70

RADIATION

FROM I/O

WIRING

A key point in minimizing noise problems in a design is to choose devices no faster

than actually required by the application. Many designers assume that faster is better: fast logic is better than slow, high bandwidth amplifiers are clearly better than low bandwidth ones, and fast DACs and ADCs are better, even if the speed is not required by the system. Unfortunately, faster is not better, but worse where

EMI is concerned.

Many fast DACs and ADCs have digital inputs and outputs with rise and fall times in the nanosecond region. Because of their wide bandwidth, the sampling clock and the digital inputs can respond to any form of high frequency noise, even glitches as narrow as 1 to 3ns. These high speed data converters and amplifiers are easy prey for the high frequency noise of microprocessors, digital signal processors, motors, switching regulators, hand-held radios, electric jackhammers, etc. With some of these high-speed devices, a small amount of input/output filtering may be required to desensitize the circuit from its EMI/RFI environment. Adding a small ferrite bead just before the decoupling capacitor as shown in Figure 8.71 is very effective in filtering high frequency noise on the supply lines. For those circuits that require bipolar supplies, this technique should be applied to both positive and negative supply lines.

To help reduce the emissions generated by extremely fast moving digital signals at

DAC inputs or ADC outputs, a small resistor or ferrite bead may be required at each digital input/output.

8.73

H

ARDWARE

D

ESIGN

T

ECHNIQUES

POWER SUPPLY FILTERING AND SIGNAL LINE

SNUBBING GREATLY REDUCES EMI EMISSIONS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

VCC

FERRITE

BEAD

FERRITE BEAD OR

10 - 33

RESISTOR

GND

MICROPROCESSOR

OR OTHER HIGH-SPEED

CLOCKED CIRCUIT

Figure 8.71

Once the system’s critical paths and circuits have been identified, the next step in implementing sound PCB layout is to partition the printed circuit board according to circuit function. This involves the appropriate use of power, ground, and signal planes. Good PCB layouts also isolate critical analog paths from sources of high interference (I/O lines and connectors, for example). High frequency circuits (analog and digital) should be separated from low frequency ones. Furthermore, automatic signal routing CAD layout software should be used with extreme caution, and critical paths routed by hand.

Properly designed multilayer printed circuit boards can reduce EMI emissions and increase immunity to RF fields by a factor of 10 or more compared to double-sided boards. A multilayer board allows a complete layer to be used for the ground plane, whereas the ground plane side of a double-sided board is often disrupted with signal crossovers, etc. If the system has separate analog and digital ground and power planes, the analog ground plane should be underneath the analog power plane, and similarly, the digital ground plane should be underneath the digital power plane.

There should be no overlap between analog and digital ground planes nor analog and digital power planes.

The preferred multi-layer board arrangement is to embed the signal traces between the power and ground planes, as shown in Figure 8.72. These low-impedance planes form very high-frequency stripline transmission lines with the signal traces. The return current path for a high frequency signal on a trace is located directly above and below the trace on the ground/power planes. The high frequency signal is thus contained inside the PCB, thereby minimizing emissions. The embedded signal trace approach has an obvious disadvantage: debugging circuit traces that are hidden from plain view is difficult.

8.74

H

ARDWARE

D

ESIGN

T

ECHNIQUES

"TO EMBED OR NOT TO EMBED"

THAT IS THE QUESTION

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

BEFORE

AFTER

Route

Power

Power

Route

Ground

Route

Route

Ground

Advantages of Embedding

Lower impedances, therefore lower emissions and crosstalk

Reduction in emissions and crosstalk is significant above 50MHz

Traces are protected

Disadvantages of Embedding

Lower interboard capacitance, harder to decouple

Impedances may be too low for matching

Hard to prototype and troubleshoot buried traces

Figure 8.72

Much has been written about terminating printed circuit board traces in their characteristic impedance to avoid reflections. A good rule-of-thumb to determine when this is necessary is as follows: Terminate the line in its characteristic

impedance when the one-way propagation delay of the PCB track is equal to or

greater than one-half the applied signal rise/fall time (whichever edge is faster). A conservative approach is to use a 2 inch (PCB track length)/nanosecond (rise-, falltime) criterion. For example, PCB tracks for high-speed logic with rise/fall time of

5ns should be terminated in their characteristic impedance if the track length is equal to or greater than 10 inches (including any meanders). The 2 inch/nanosecond track length criterion is summarized in Figure 8.73 for a number of logic families.

This same 2 inch/nanosecond rule of thumb should be used with analog circuits in determining the need for transmission line techniques. For instance, if an amplifier must output a maximum frequency of fmax, then the equivalent risetime, tr, can be calculated using the equation tr = 0.35/fmax. The maximum PCB track length is then calculated by multiplying the risetime by 2 inch/nanosecond. For example, a maximum output frequency of 100MHz corresponds to a risetime of 3.5ns, and a track carrying this signal greater than 7 inches should be treated as a transmission line.

8.75

H

ARDWARE

D

ESIGN

T

ECHNIQUES

LINE TERMINATION SHOULD BE USED WHEN

LENGTH OF PCB TRACK EXCEEDS 2 inches/ns

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

DIGITAL IC

FAMILY

GaAs tr, ts

(ns)

0.1

PCB TRACK LENGTH

(inches)

0.2

PCB TRACK LENGTH

(cm)

0.5

AC

ALS

LS

TTL

HC

ECL

Schottky

FAST

AS

4

6

8

10

0.75

3

3

3

1.5

6

6

6

8

12

16

20

3.8

15

15

15

20

30

40

50

18 36 90 t

r

t

f

= rise time of signal in ns

= fall time of signal in ns

For analog signals @ f

max

, calculate t

r

= t

f

= 0.35 / fmax

Figure 8.73

Equation 8.4 can be used to determine the characteristic impedance of a PCB track separated from a power/ground plane by the board’s dielectric (microstrip transmission line):

Zo

87

ε r + 1.41

ln

 5.98d



0.89w + t



Eq. 8.4

where ε r = dielectric constant of printed circuit board material; d = thickness of the board between metal layers, in mils; w = width of metal trace, in mils; and t = thickness of metal trace, in mils.

The one-way transit time for a single metal trace over a power/ground plane can be determined from Eq. 8.5:

(

)

Eq. 8.5

For example, a standard 4-layer PCB board might use 8-mil wide, 1 ounce (1.4 mils) copper traces separated by 0.021" FR-4 (

88 Ω and 1.7ns/ft (7"/ns), respectively.

ε r=4.7) dielectric material. The characteristic impedance and one-way transit time of such a signal trace would be

8.76

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFERENCES ON EMI/RFI

2.

3.

1.

4.

EDN’s Designer’s Guide to Electromagnetic Compatibility, EDN,

January, 20, 1994, material reprinted by permission of Cahners Publishing

Company, 1995.

Designing for EMC (Workshop Notes), Kimmel Gerke Associates, Ltd., 1994.

Systems Application Guide, Chapter 1, pg. 21-55, Analog Devices,

Incorporated, Norwood, MA, 1994.

Henry Ott, Noise Reduction Techniques In Electronic Systems,

Second Edition, New York, John Wiley & Sons, 1988.

5.

Ralph Morrison, Grounding And Shielding Techniques In

Instrumentation, Third Edition, New York, John Wiley & Sons, 1986.

6.

Amplifier Applications Guide, Chapter XI, pg. 61, Analog Devices,

Incorporated, Norwood, MA, 1992.

7. B.Slattery and J.Wynne, Design and Layout of a Video Graphics

System for Reduced EMI, Analog Devices Application Note AN-333.

8.

Paul Brokaw, An IC Amplifier User Guide To Decoupling, Grounding,

And Making Things Go Right For A Change, Analog Devices

Application Note, Order Number E1393-5-590.

9.

A. Rich, Understanding Interference-Type Noise, Analog Dialogue, 16-3,

1982, pp. 16-19.

10. A. Rich, Shielding and Guarding, Analog Dialogue, 17-1, 1983, pp. 8-13.

11.

EMC Test & Design, Cardiff Publishing Company, Englewood, CO.

An excellent, general purpose trade journal on issues of EMI and EMC.

8.77

H

ARDWARE

D

ESIGN

T

ECHNIQUES

S

HIELDING

C

ONCEPTS

The concepts of shielding effectiveness presented next are background material.

Interested readers should consult References 1,2, and 6 cited at the end of the section for more detailed information.

Applying the concepts of shielding requires an understanding of the source of the interference, the environment surrounding the source, and the distance between the source and point of observation (the receptor or victim). If the circuit is operating close to the source (in the near-, or induction-field), then the field characteristics are determined by the source. If the circuit is remotely located (in the far-, or radiationfield), then the field characteristics are determined by the transmission medium.

A circuit operates in a near-field if its distance from the source of the interference is less than the wavelength ( λ ) of the interference divided by 2 π , or λ /2 π. If the distance between the circuit and the source of the interference is larger than this quantity, then the circuit operates in the far field. For instance, the interference caused by a

1ns pulse edge has an upper bandwidth of approximately 350MHz. The wavelength of a 350MHz signal is approximately 32 inches (the speed of light is approximately

12"/ns). Dividing the wavelength by 2 π yields a distance of approximately 5 inches, the boundary between near- and far-field. If a circuit is within 5 inches of a 350MHz interference source, then the circuit operates in the near-field of the interference. If the distance is greater than 5 inches, the circuit operates in the far-field of the interference.

Regardless of the type of interference, there is a characteristic impedance associated with it. The characteristic, or wave impedance of a field is determined by the ratio of its electric (or E-) field to its magnetic (or H-) field. In the far field, the ratio of the electric field to the magnetic field is the characteristic (wave impedance) of free space, given by Zo = 377

. In the near field, the wave-impedance is determined by the nature of the interference and its distance from the source. If the interference source is high-current and low-voltage (for example, a loop antenna or a power-line transformer), the field is predominately magnetic and exhibits a wave impedance which is less than 377

. If the source is low-current and high-voltage (for example, a rod antenna or a high-speed digital switching circuit), then the field is predominately electric and exhibits a wave impedance which is greater than 377 Ω .

Conductive enclosures can be used to shield sensitive circuits from the effects of these external fields. These materials present an impedance mismatch to the incident interference because the impedance of the shield is lower than the wave impedance of the incident field. The effectiveness of the conductive shield depends on two things: First is the loss due to the reflection of the incident wave off the shielding material. Second is the loss due to the absorption of the transmitted wave

within the shielding material. Both concepts are illustrated in Figure 8.74. The amount of reflection loss depends upon the type of interference and its wave impedance. The amount of absorption loss, however, is independent of the type of interference. It is the same for near- and far-field radiation, as well as for electric or magnetic fields.

8.78

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFLECTION AND ABSORPTION ARE THE TWO

PRINCIPAL SHIELDING MECHANISMS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

INCIDENT RAY

REFLECTED RAY

TRANSMITTED

RAY

SHIELD

MATERIAL

ABSORPTIVE

REGION

Figure 8.74

Reflection loss at the interface between two media depends on the difference in the characteristic impedances of the two media. For electric fields, reflection loss depends on the frequency of the interference and the shielding material. This loss can be expressed in dB, and is given by:

µ

σ r f r

3 r2

Eq. 8.6

where σ r

= relative conductivity of the shielding material, in Siemens per meter;

µ r

= relative permeability of the shielding material, in Henries per meter; f = frequency of the interference, and r = distance from source of the interference, in meters

For magnetic fields, the loss depends also on the shielding material and the frequency of the interference. Reflection loss for magnetic fields is given by:

 f r2 r

µ r

Eq. 8.7

8.79

H

ARDWARE

D

ESIGN

T

ECHNIQUES

and, for plane waves ( r >

λ

/2

π

), the reflection loss is given by:

σ r

µ r f

Eq. 8.8

Absorption is the second loss mechanism in shielding materials. Wave attenuation due to absorption is given by:

Eq. 8.9

where t = thickness of the shield material, in inches. This expression is valid for plane waves, electric and magnetic fields. Since the intensity of a transmitted field decreases exponentially relative to the thickness of the shielding material, the absorption loss in a shield one skin-depth (

δ

) thick is 9dB. Since absorption loss is proportional to thickness and inversely proportional to skin depth, increasing the thickness of the shielding material improves shielding effectiveness at high frequencies.

Reflection loss for plane waves in the far field decreases with increasing frequency because the shield impedance, Zs, increases with frequency. Absorption loss, on the other hand, increases with frequency because skin depth decreases. For electric fields and plane waves, the primary shielding mechanism is reflection loss, and at high frequencies, the mechanism is absorption loss. For these types of interference, high conductivity materials, such as copper or aluminum, provide adequate shielding. At low frequencies, both reflection and absorption loss to magnetic fields is low; thus, it is very difficult to shield circuits from low-frequency magnetic fields.

In these applications, high-permeability materials that exhibit low-reluctance provide the best protection. These low-reluctance materials provide a magnetic shunt path that diverts the magnetic field away from the protected circuit. Some characteristics of metallic materials commonly used for shielded enclosures are shown in Figure 8.75.

A properly shielded enclosure is very effective at preventing external interference from disrupting its contents as well as confining any internally-generated interference. However, in the real world, openings in the shield are often required to accommodate adjustment knobs, switches, connectors, or to provide ventilation (see

Figure 8.76). Unfortunately, these openings may compromise shielding effectiveness by providing paths for high-frequency interference to enter the instrument.

8.80

H

ARDWARE

D

ESIGN

T

ECHNIQUES

CONDUCTIVITY AND PERMEABILITY FOR

VARIOUS SHIELDING MATERIALS

MATERIAL

Copper

RELATIVE

CONDUCTIVITY

1

RELATIVE

PERMEABILITY

1

Aluminum 1 0.61

Steel

Mu-Metal

0.1

0.03

1,000

20,000

Conductivity: Ability to Conduct Electricity

Permeability: Ability to Absorb Magnetic Energy

Figure 8.75

ANY OPENING IN AN ENCLOSURE CAN ACT AS

AN EMI WAVEGUIDE BY COMPROMISING

SHIELDING EFFECTIVENESS

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

SEAMS

SWITCHES

DISPLAY

PANEL

VENTILATORS

DATA

CABLES

POWER

CABLES

Figure 8.76

8.81

H

ARDWARE

D

ESIGN

T

ECHNIQUES

The longest dimension (not the total area) of an opening is used to evaluate the ability of external fields to enter the enclosure, because the openings behave as slot antennas. Equation 8.10 can be used to calculate the shielding effectiveness, or the susceptibility to EMI leakage or penetration, of an opening in an enclosure:



λ



Eq. 8.10

where λ = wavelength of the interference and

L = maximum dimension of the opening

Maximum radiation of EMI through an opening occurs when the longest dimension of the opening is equal to one half-wavelength of the interference frequency (0dB shielding effectiveness). A rule-of-thumb is to keep the longest dimension less than

1/20 wavelength of the interference signal, as this provides 20dB shielding effectiveness. Furthermore, a few small openings on each side of an enclosure is preferred over many openings on one side. This is because the openings on different sides radiate energy in different directions, and as a result, shielding effectiveness is not compromised. If openings and seams cannot be avoided, then conductive gaskets, screens, and paints alone or in combination should be used judiciously to limit the longest dimension of any opening to less than 1/20 wavelength. Any cables, wires, connectors, indicators, or control shafts penetrating the enclosure should have circumferential metallic shields physically bonded to the enclosure at the point of entry. In those applications where unshielded cables/wires are used, then filters are recommended at the point of shield entry.

Sensors and Cable Shielding

The improper use of cables and their shields is a significant contributor to both radiated and conducted interference. As illustrated in Figure 8.77, effective cable and enclosure shielding confines sensitive circuitry and signals within the entire shield without compromising shielding effectiveness.

Depending on the type of interference (pickup/radiated, low/high frequency), proper cable shielding is implemented differently and is very dependent on the length of the cable. The first step is to determine whether the length of the cable is electrically

short or electrically long at the frequency of concern. A cable is considered

electrically short if the length of the cable is less than 1/20 wavelength of the highest frequency of the interference, otherwise it is electrically long. For example, at

50/60Hz, an electrically short cable is any cable length less than 150 miles, where the primary coupling mechanism for these low frequency electric fields is capacitive.

As such, for any cable length less than 150 miles, the amplitude of the interference will be the same over the entire length of the cable. To protect circuits against lowfrequency electric-field pickup, only one end of the shield should be returned to a low-impedance point. A generalized example of this mechanism is illustrated in

Figure 8.78.

8.82

H

ARDWARE

D

ESIGN

T

ECHNIQUES

LENGTH OF SHIELDED CABLES DETERMINES AN

"ELECTRICALLY LONG" OR "ELECTRICALLY SHORT"

APPLICATION

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

SHIELDED ENCLOSURE A

SHIELDED ENCLOSURE B

LENGTH

SHIELDED

CABLE

FULLY SHIELDED ENCLOSURES CONNECTED BY FULLY

SHIELDED CABLE KEEP ALL INTERNAL CIRCUITS AND

SIGNAL LINES INSIDE THE SHIELD.

TRANSITION REGION: 1/20 WAVELENGTH

Figure 8.77

CONNECT THE SHIELD AT ONE POINT AT THE LOAD

TO PROTECT AGAINST LOW FREQUENCY (50/60Hz)

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

CAPACITIVE COUPLING

TO CABLE

RECEIVER

CABLE SHIELD

GROUNDED AT LOAD

RECEIVER

en en en

EQUIVALENT

CIRCUITS en

Figure 8.78

8.83

H

ARDWARE

D

ESIGN

T

ECHNIQUES

In this example, the shield is grounded at the receiver. An exception to this approach (which will be highlighted again later) is the case where line-level

(>1Vrms) audio signals are transmitted over long distances using twisted pair, shielded cables. In these applications, the shield again offers protection against lowfrequency interference, and an accepted approach is to ground the shield at the driver end (LF and HF ground) and ground it at the receiver with a capacitor (HF ground only).

In those applications where the length of the cable is electrically long, or protection against high-frequency interference is required, then the preferred method is to connect the cable shield to low-impedance points at both ends (direct connection at the driving end, and capacitive connection at the receiver). Otherwise, unterminated transmission lines effects can cause reflections and standing waves along the cable.

At frequencies of 10MHz and above, circumferential (360

°

) shield bonds and metal connectors are required to main low-impedance connections to ground.

In summary, for protection against low-frequency (<1MHz), electric-field interference, grounding the shield at one end is acceptable. For high-frequency interference (>1MHz), the preferred method is grounding the shield at both ends, using 360 ° circumferential bonds between the shield and the connector, and maintaining metal-to-metal continuity between the connectors and the enclosure.

Low-frequency ground loops can be eliminated by replacing one of the DC shield connections to ground with a low inductance 0.01

ground.

µ

F capacitor. This capacitor prevents low frequency ground loops and shunts high frequency interference to

The best shield can be compromised by poor connection techniques. Shields often use

“pig-tail” connections to make the connection to ground. A “pig-tail” connection is a single wire connection from shield to either chassis or circuit ground. This type of connection is inexpensive, but at high frequency, it does not provide low impedance.

Quality shields do not leave large gaps in the cable/instrument shielding system.

Shield gaps provide paths for high frequency EMI to enter the system. The cable shielding system should include the cable end connectors. Ideally, cable shield connectors should make 360° contact with the chassis ground.

As shown in Figure 8.79, pigtail terminations on cables very often cause systems to fail radiated emissions tests because high-frequency noise has coupled into the cable shield, generally through stray capacitance. If the length of the cable is considered

electrically long at the interference frequency, then it can behave as a very efficient quarter-wave antenna. The cable pigtail forms a matching network, as shown in the s, to radiate the noise which coupled into the shield. In general, pigtails are only recommended for applications below 10kHz, such as 50/60Hz interference protection. For applications where the interference is greater than 10kHz, shielded connectors, electrically and physically connected to the chassis, should be used.

8.84

H

ARDWARE

D

ESIGN

T

ECHNIQUES

"SHIELDED" CABLE CAN CARRY HIGH FREQUENCY

CURRENT AND BEHAVES AS AN ANTENNA

Reprinted from EDN Magazine (January 20, 1994), © CAHNERS PUBLISHING COMPANY 1995, A Division of Reed Publishing USA

EQUIVALENT

CIRCUIT

SHIELD

ICM

ICM

ICM = COMMON-MODE CURRENT

Figure 8.79

8.85

H

ARDWARE

D

ESIGN

T

ECHNIQUES

REFERENCES: CABLE SHIELDING

1.

2.

3.

H.W. Ott, Noise Reduction Techniques in Electronic Systems,

Second Edition, John Wiley & Sons, Inc., New York, 1988.

Ralph Morrison, Grounding and Shielding Techniques in

Instrumentation, Third Edition, John Wiley & Sons, Inc.,

New York, 1988.

Systems Application Guide, Section 1, Analog Devices, Inc.,

Norwood, MA, 1993.

4.

5.

AD620 Instrumentation Amplifier, Data Sheet, Analog Devices, Inc.

A. Rich, Understanding Interference-Type Noise, Analog Dialogue,

16-3, 1982, pp. 16-19.

6. A. Rich, Shielding and Guarding, Analog Dialogue, 17-1, 1983, pp. 8-13.

7.

EDN’s Designer’s Guide to Electromagnetic Compatibility, EDN,

January, 20, 1994, material reprinted by permission of Cahners

Publishing Company, 1995.

8.

Designing for EMC (Workshop Notes), Kimmel Gerke Associates,

Ltd., 1994.

9.

James Bryant and Herman Gelbach, High Frequency Signal

Contamination, Analog Dialogue, Vol. 27-2, 1993.

10.

Walt Jung, System RF Interference Prevention, Analog Dialogue,

Vol. 28-2, 1994.

11.

Neil Muncy, Noise Susceptibility in Analog and Digital Signal

Processing Systems, presented at 97th Audio Engineering Society

Convention, Nov. 1994.

8.86

H

ARDWARE

D

ESIGN

T

ECHNIQUES

GENERAL REFERENCES: HARDWARE

DESIGN TECHNIQUES

3.

4.

1.

Linear Design Seminar, Section 11, Analog Devices, Inc., 1995.

2.

E.S.D. Prevention Manual

Available free from Analog Devices, Inc.

B.I. & B. Bleaney, Electricity & Magnetism, OUP 1957, pp 23,24, & 52.

Paul Brokaw, An I.C. Amplifier User's Guide to Decoupling, Grounding

and Making Things Go Right for a Change, Analog Devices Application

Note, Available free of charge from Analog Devices, Inc.

5.

Jeff Barrow, Avoiding Ground Problems in High Speed Circuits,

R.F. Design, July 1989.

AND

Paul Brokaw & Jeff Barrow, Grounding for Low- and High-Frequency

Circuits, Analog Dialogue, 23-3 1989.

Free from Analog Devices.

6.

International EMI Emission Regulations

Canada

Japan

CSA C108.8-M1983

CISPR (VCCI)/PUB 22

FDR VDE 0871/VDE 0875

USA FCC-15 Part J

7.

Bill Slattery & John Wynne, Design & Layout of a Video Graphics System

for Reduced EMI, Analog Devices Application Note (E1309-15-10/89)

Free from Analog Devices.

8.

William R. Blood, Jr., MECL System Design Handbook

(HB205, Rev. 1), Motorola Semiconductor Products, Inc., 1988.

9.

RDI Wainwright, 69 Madison Ave., Telford, PA,

18969-1829, Tel. 215-723-4333, Fax. 215-723-4620.

Wainwright Instruments GmbH, Widdersberger Strasse 14,

DW-8138 Andechs-Frieding, Germany. Tel: +49-8152-3162,

Fax: +49-8152-40525.

10.

Ralph Morrison, Grounding and Shielding Techniques in

Instrumentation, Third Edition, John Wiley, Inc., 1986.

11.

Henry W. Ott, Noise Reduction Techniques in Electronic Systems,

Second Edition, John Wiley, Inc., 1988.

12.

Robert A. Pease, Troubleshooting Analog Circuits, Butterworth-

Heinemann, 1991.

8.87

H

ARDWARE

D

ESIGN

T

ECHNIQUES

13.

Jim Williams, Editor, Analog Circuit Design: Art, Science, and

Personalities, Butterworth-Heinemann, 1991.

14.

Doug Grant and Scott Wurcer, Avoiding Passive Component Pitfalls,

The Best of Analog Dialogue, pp. 143-148, Analog Devices, Inc., 1991.

15.

Walt Jung and Richard Marsh, Picking Capacitors, Part I., Audio,

February, 1980.

16.

Walt Jung and Richard Marsh, Picking Capacitors, Part II., Audio,

March, 1980.

17.

Daryl Gerke and Bill Kimmel, The Designer's Guide to Electromagnetic

Compatibility, EDN Supplement, January 20, 1994.

18.

Walt Kester, Basic Characteristics Distinguish Sampling A/D Converters,

EDN, September 3, 1992, pp.135-144.

19.

Walt Kester, Peripheral Circuits Can Make or Break Sampling ADC

System, EDN, October 1, 1992, pp. 97-105.

20.

Walt Kester, Layout, Grounding, and Filtering Complete Sampling

ADC System, EDN, October 15, 1992, pp. 127-134.

21.

Howard W. Johnson and Martin Graham, High-Speed Digital Design,

PTR Prentice Hall, 1993.

22.

High Speed Design Techniques, Analog Devices, 1996.

23.

Walt Kester, A Grounding Philosophy for Mixed-Signal Systems,

Electronic Design Special Analog Issue, June 23, 1997, p. 29.

8.88

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
