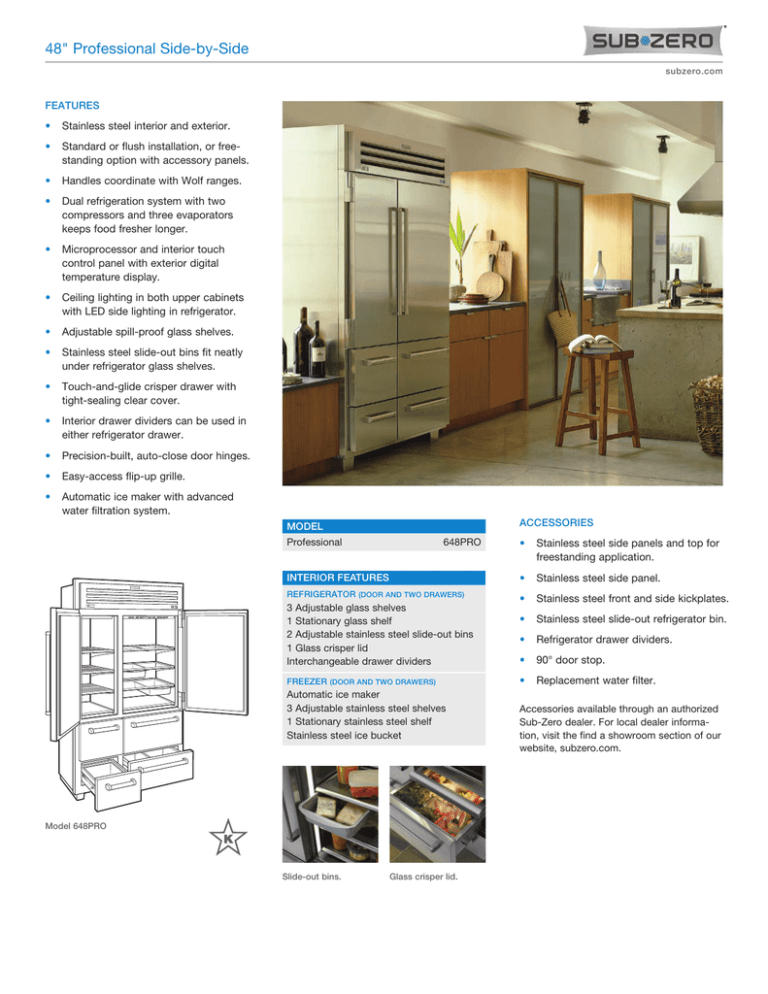

48" Professional Side-by-Side
48" Professional Side-by-Side
subzero.com
FEATURES
•Stainless steel interior and exterior.
•Standard or flush installation, or freestanding option with accessory panels.
•Handles coordinate with Wolf ranges.
•Dual refrigeration system with two
compressors and three evaporators
keeps food fresher longer.
•Microprocessor and interior touch
control panel with exterior digital
temperature display.
•Ceiling lighting in both upper cabinets
with LED side lighting in refrigerator.
•Adjustable spill-proof glass shelves.
•Stainless steel slide-out bins fit neatly
under refrigerator glass shelves.
•Touch-and-glide crisper drawer with
tight-sealing clear cover.
•Interior drawer dividers can be used in
either refrigerator drawer.
•Precision-built, auto-close door hinges.
•Easy-access flip-up grille.
•Automatic ice maker with advanced
water filtration system.
ACCESSORIES
MODEL
Professional
648PRO
•Stainless steel side panels and top for
freestanding application.
INTERIOR FEATURES
•Stainless steel side panel.
REFRIGERATOR (DOOR AND TWO DRAWERS)
•Stainless steel front and side kickplates.
3 Adjustable glass shelves
1 Stationary glass shelf
2 Adjustable stainless steel slide-out bins
1 Glass crisper lid
Interchangeable drawer dividers
FREEZER (DOOR AND TWO DRAWERS)
Automatic ice maker
3 Adjustable stainless steel shelves
1 Stationary stainless steel shelf
Stainless steel ice bucket
Model 648PRO
Slide-out bins.
Glass crisper lid.
•Stainless steel slide-out refrigerator bin.
•Refrigerator drawer dividers.
•90° door stop.
•Replacement water filter.
Accessories avail­able through an authorized
Sub-Zero dealer. For local dealer information, visit the find a showroom section of our
website, subzero.com.
48" Professional Side-by-Side
subzero.com
DIMENSIONS
SPECIFICATIONS
PRODUCT
Dimensions
Door Clearance
Weight
ELECTRICAL
25 7/8" (657)
48" (1219)
48"W x 84"H x 24"D
30 3/4"
860 lb
7"
E
(178)
6"
(152)
CAPACITY
Refrigerator
Freezer
18.5 cu ft
11.7 cu ft
75 1/2" (1918)
FROM FLOOR
84"
(2134)
42 1/8"
(1070)
RIGHT SIDE
OF OPENING
ELECTRICAL
Supply
Service
115 VAC, 60 Hz
15 amp circuit
PLUMBING
PLUMBING
Supply
Pressure
30 1/2"
1/ 4"
OD copper, braided
stainless steel or PEX tubing
35–120 psi
For standard installation, face frame of unit
extends 2" beyond cabinetry. For flush installation, face frame is flush with surrounding
cabinetry.
Specifications are subject to change without
notice. Visit subzero.com/specs for the most
up-to-date information.
(775)
RIGHT SIDE
OF OPENING
4" (102)
HEIGHT DIMENSIONS ± 1/2" (13)
30 3/16" (767)
6"
(152)
23 7/8"
(606)
14 1/2"
(132)
3" (76)
AREA EXTENDS 1/2" (13)
FORWARD ON FLOOR
21"
(533)
(368)
5 3/16"
30 3/4"
(781)
± 1/8"
Dimensions may vary
(3). Dimensions in
parentheses are millimeters unless otherwise
specified.
2 3/8" (60)
STANDARD INSTALLATION
FLUSH INSTALLATION
24"D(610)
OPENING
DEPTH
26"D(660)
OPENING
DEPTH
TOP VIEW
83 3/4"
(2127)
H
OPENING
HEIGHT
SIDE VIEW
©Sub-Zero, Inc. all rights reserved. TOP VIEW
841/8"
H
(2137)
OPENING
HEIGHT
47 1/2W
" (1206)
OPENING WIDTH
FRONT VIEW
SIDE VIEW
48"W
(1219)
OPENING WIDTH
FRONT VIEW
6/2014
