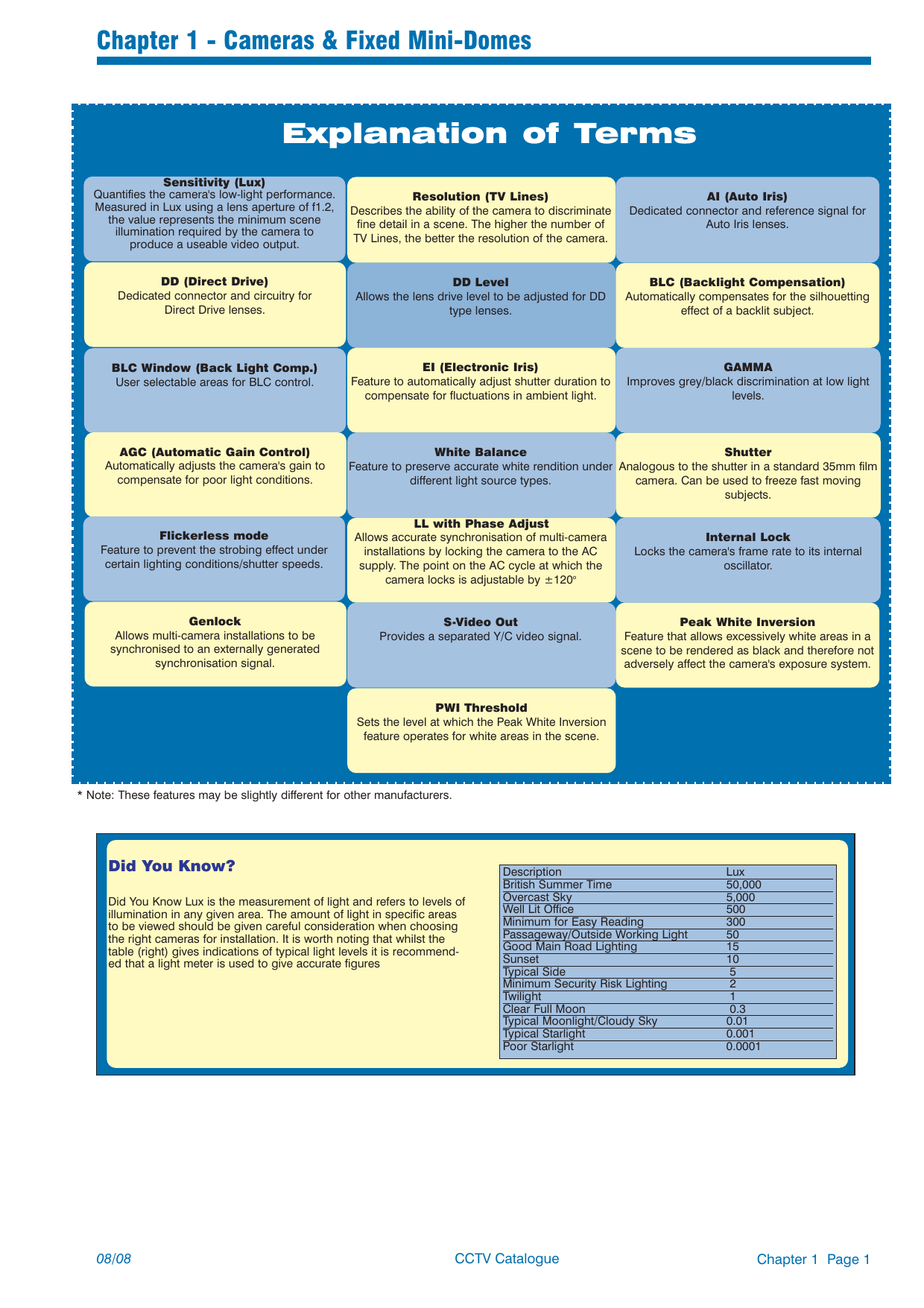

Chapter 1 - Cameras & Fixed Mini-Domes
Explanation of Terms
Sensitivity (Lux)
Quantifies the camera's low-light performance.
Measured in Lux using a lens aperture of f1.2,
the value represents the minimum scene
illumination required by the camera to
produce a useable video output.
Resolution (TV Lines)
Describes the ability of the camera to discriminate
fine detail in a scene. The higher the number of
TV Lines, the better the resolution of the camera.
AI (Auto Iris)
Dedicated connector and reference signal for
Auto Iris lenses.
DD (Direct Drive)
Dedicated connector and circuitry for
Direct Drive lenses.
DD Level
Allows the lens drive level to be adjusted for DD
type lenses.
BLC (Backlight Compensation)
Automatically compensates for the silhouetting
effect of a backlit subject.
BLC Window (Back Light Comp.)
User selectable areas for BLC control.
EI (Electronic Iris)
Feature to automatically adjust shutter duration to
compensate for fluctuations in ambient light.
GAMMA
Improves grey/black discrimination at low light
levels.
AGC (Automatic Gain Control)
Automatically adjusts the camera's gain to
compensate for poor light conditions.
Flickerless mode
Feature to prevent the strobing effect under
certain lighting conditions/shutter speeds.
Genlock
Allows multi-camera installations to be
synchronised to an externally generated
synchronisation signal.
White Balance
Shutter
Feature to preserve accurate white rendition under Analogous to the shutter in a standard 35mm film
different light source types.
camera. Can be used to freeze fast moving
subjects.
LL with Phase Adjust
Allows accurate synchronisation of multi-camera
installations by locking the camera to the AC
supply. The point on the AC cycle at which the
camera locks is adjustable by ±120o
S-Video Out
Provides a separated Y/C video signal.
Internal Lock
Locks the camera's frame rate to its internal
oscillator.
Peak White Inversion
Feature that allows excessively white areas in a
scene to be rendered as black and therefore not
adversely affect the camera's exposure system.
PWI Threshold
Sets the level at which the Peak White Inversion
feature operates for white areas in the scene.
* Note: These features may be slightly different for other manufacturers.
Did You Know?
Did You Know Lux is the measurement of light and refers to levels of
illumination in any given area. The amount of light in specific areas
to be viewed should be given careful consideration when choosing
the right cameras for installation. It is worth noting that whilst the
table (right) gives indications of typical light levels it is recommended that a light meter is used to give accurate figures
08/08
Description
British Summer Time
Overcast Sky
Well Lit Office
Minimum for Easy Reading
Passageway/Outside Working Light
Good Main Road Lighting
Sunset
Typical Side
Minimum Security Risk Lighting
Twilight
Clear Full Moon
Typical Moonlight/Cloudy Sky
Typical Starlight
Poor Starlight
CCTV Catalogue
Lux
50,000
5,000
500
300
50
15
10
5
2
1
0.3
0.01
0.001
0.0001
Chapter 1 Page 1
Chapter 1 - Cameras & Fixed Mini-Domes
Colour Cameras - High Resolution
Features
• 1/3" CCD image sensor with approx. 470,000 picture
elements
• Super high horizontal resolution of 520 TV lines for
maximum detail and a noticeably larger, sharper picture
• High sensitivity - minimum illumination of 0.5 lx (GAIN
HI: 50 IRE) or 0.2 lx(GAIN HI: 20 IRE)
• Built-in DSP (digital signal processing) circuitry delivers
superior colour reproduction and reduced noise
• Two types of backlight compensation selectable
• Auto tracing or manual white balance selectable
• Variable high speed electronic shutter, 8 modes (VCC6580P)
• Electronic iris for indoor use with manual or fixed iris
lens
• Runs to 24VAC or 12 to 15VDC power sources (VCC6585P)
• 220 to 230VAC, 50Hz operation (VCC-6580P)
VCC-6580 & VCC-6585 High Resolution Colour Cameras
The VCC-6580P & VCC-6585P high resolution colour
cameras from Sanyo have 1/3" CCD image sensor with
approx. 470,000 picture elements. They have a super high
horizontal resolution of 520 TV lines.
Technical Specification
Scanning System
PAL Standard 625 Lines, 25
frames/sec
Image sensor
1/3” (approx. 4.8x3.6mm) interline
transfer method CCD
Effective picture elements 752 (H) x 582 (V)
Resolution
520 TV lines (horizontal), 400 TV
lines (vertical)
Minimum illumination
0.5 Ix (GAIN HI) - 50 IRE / 1.0 Ix
approx
(GAIN NORM) at F1.2
0.2 Ix (GAIN HI) - 20 IRE / 0.4 Ix
(GAIN NORM) at F1.2
Video output level
1.0 V (p-p) / 75 ohms, composite
Video S/N ratio
More than 50 dB (AGC off)
Backlight compensation ON/OFF - Slide SW (side)
ON = Multi-spot photometry (2mode) /Centre - zone photometry
system - Slide SW (side) (activated
when auto iris lens used)
White balance
Auto / Manual - Slide SW (side)
Colour adjust a manual R, B - VR (side)
Gain control
Normal / High - Slide SW (side)
Electronic Shutter
VCC-6580P: 1/50, 1/120, 1/250,
1/500, 1/1000, 1/2000, 1/4000,
1/10000 sec DIP SW (side)
Light Control
Auto Iris / Electronic Iris
Lens mount
CS/C mount (C mount: using Cmount adaptor, sold separately)
Flange back
12.5 mm ±0.5 mm adjustment
Auto iris lens
DC type
Auto Iris output
DC:Drive coil (+,-- ), Brake (Damp)
coil (+,- )
Lens iris level
LEVEL: L to H ----VR (side)
Electric Iris
ON (EI) / OFF (AI) --- Slide SW
(side)
Electric Iris range
1.0 to 50,000 Ix (with F1.2 lens)
(GAIN NORM)
0.5 TO 50,000 Ix (with F1.2 lens)
(GAIN HIGH)
Synchronising system Internal sync / Line lock --- Slide
SW (side)
Chapter 1 Page 2
V phase adjustment
Video signal
Auto iris lens
Sockets
Power supply
Operating Temp
Storage Temp
Power requirement
Power consumption
Camera mount
Dimensions (approx)
Weight (approx)
LINE PHASE --- VR (rear)
VIDEO OUT --- BNC (rear)
LENS --- 4-pin (side)
VCC-6585P: 24V AV, GND --- 3-pin
terminal (rear)
12 to 15V DC, GND --- 2-pin
terminal (rear)
- 10oC to 50oC Humidity: within 90%
RH
- 20oC to 70oC Humidity: within 70%
RH
VCC-6580P: 220 -- 230V AC
(±10%), 50Hz
VCC-6585P: 24V AC, 50 Hz / 12 to
15V DC
3.6W (approx)
1/4” -- 20 UNC (top/bottom
selectable)
VCC-6580P: 67(W) x 54(H) x
127(D) mm
VCC-6585P: 56(W) x 45(H) x
99(D) mm
VCC-6580P: 600g (without lens)
VCC-6585P: 280g (without lens)
Product Codes
VCC-6580P
VCC-6585P
VCC-6580-TP
VCC-6585P-TP
CCTV Catalogue
Mains Colour camera, 520TVL
Low voltage Colour camera, 520TVL
Mains Colour Camera 520TVL/240VAC
with an American Dynamics twisted pair
module
Low Voltage Colour Camera 12v DC
/24VAC with an American Dynamics
twisted pair module
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Colour Cameras - Medium Resolution
Features
•
•
•
•
•
•
•
•
•
1/3-inch IT CCD with 290,000 effective pixels
Auto White Balance Tracking (ATW) and one-touch Auto
White Balance (AWB)
Auto White Balance adjustment range from 2,300°K to
10,000°K
Automatic Gain Control (Max. 26 dB)
S/N ratio 50 dB (AGC off)
Back-light Compensation
Automatic Electronic Shutter
DC iris lens connection
TK-C750 / TK-C751EG 1/3” CCD Colour Cameras
JVC’s high-sensitivity TK-C750E and TK-C751EG
surveillance cameras pack powerful features, including an
innovative digital signal processor for Super LoLux (0.28 lux
minimum) shooting applications and outstanding colour
reproduction, yet deliver them in a package that offers
outstanding value and reliability.
1/3-Inch CCD with 290,000 Effective Pixels
JVC’s TKC750E and TK-C751EG come with a 1/3-inch
Interline Transfer (IT) CCD for accurate colour reproduction,
high sensitivity, and crisp pictures with no image lag or
distortion.
Detail Correction — Horizontal and Vertical: 2H (dual)
JVC’s TK-C750E and TK-C751EG provide exceptional detail
- horizontal and vertical - with a 2 H line memory for security
imaging applications.
Digital Signal Processor (DSP)
JVC’s innovative Digital Signal Processor (DSP)
automatically adjusts camera parameters to ensure sharp,
natural pictures (330 TV lines of horizontal resolution) in
near total darkness. It also provides a Super LoLux shooting
capability for mission critical surveillance applications.
Automatic Gain Control (AGC)
Automatic Gain control (AGC: range from 0 to 26 dB),
supported by CCD and DSP functions, automatically
adjusts gain to the appropriate value for the ambient
lighting conditions.
Auto White Balance
Built-in Automatic White Balance Tracking (ATW) and Onetouch Auto White Balance (AWB). Auto White Balance is
adjusted automatically over the colour temperature range of
2,300°K to 10,000°K. White balance also can be adjusted
with one-touch operation for easy camera set-up under
various lighting conditions.
Signal to Noise Ratio of 50 dB at zero AGC
The signal to noise ratio of TK-C750E and TK-C751EG, at
zero AGC, is 50 dB, giving very accurate reproduction of
colours. Even if AGC is automatically activated, the pictures
remain sharp and the colours accurate.
Technical Specification
Product Codes
Image device
Sync system
Scanning frequency
Horizontal resolution
Video output
TKC-750E
TKC-751E
1/3" IT CCD, 500 (H) x 582 (V)
Internal, Line Lock
15.625 kHz (H), 50.0 Hz (V)
330 TV lines
Composite video signal 1 V(p-p),
75 ohms, unbalanced
Video S/N ratio
50 dB (AGC off)
Minimum required illumination
0.28 lux (25%)
0.55 lux (50%)
Auto electronic shutter 1/50 — 1/100,000 sec.
Lens mount
C/CS mount
Power requirement
TK-C750E: AC 24 V (50/60 Hz)
TK-C751EG: AC 220 V240 V (50/60
Hz)
Power consumption
TK-C750E: 240 mA
TK-C751EG: 42 mA
Operating temp range -10°C to 50°C
0°C to 40°C (recommended )
Weight
TK-C750E: 340g
TK-C751EG: 680g
08/08
CCTV Catalogue
Low Voltage Colour camera, 330TVL
Mains Colour camera, 330TVL
Chapter 1 Page 3
Chapter 1 - Cameras & Fixed Mini-Domes
Monochrome Cameras - High Resolution
Features
•
•
•
•
•
IR Sensitive
Phase adjustment
Sensitive down to 0.08lux
Back-light compensation
Automatic Gain Control (AGC)
Vista VPM500 & VPM502 High Resolution Monochrome Cameras
The VPM500 & VPM502 are 580TVL high resolution
monochrome cameras which offer quality and performance.
Because the cameras are engineered to an exacting
specification you can be assured that they are robust and
suitable for use in a wide range of environments, both
internal and external.
All the cameras in the range produce quality monochrome
images even in very low light levels. They come with simple
user-adjustments and are very quick and simple to install.
The built-in backlight compensation greatly enhances their
ability to produce clear, sharp images even in areas of
differing light levels. Additionally, the Automatic Gain Control
works to automatically correct the image as lighting levels
drop.
Technical Specification
Product Codes
General
Sensor
Total Number of pixels
Resolution
Video Output
Sensitivity
Signal to Noise Ratio
Electronic Shutter
BLC
VPM500
1/3” (CCD)
752(H)x582(V)
570TVL
1.0 Vp-p, 75ohms
0.08Lux
50dB (AGC Off)
1/50 – 1/100,000 sec
On (Centre 40%)
Function (DIP Switch)
Lens
AGC
EI
Synchronisation
DC/video
On/off
On/off
Line lock/internal
Function (POT)
Vertical Phase Adjust
DC Iris Level Adjust
Connections
Video Output
Power Input
Adjustable 0º – 360º
(230V options only)
Adjustable
Mounting hole
BNC
Wired power cord (mains) 2-pin
terminal block (LV)
4-pin mini din jack (standard)
C/CS mount (selected through
back focus)
1/4” – 20 UNC (top/bottom)
Physical Dimensions
Net (lxwxh)
Weight
12x62x54mm
225g (12V DC)/505g (230V)
Materials
Colour
RAL7035
Auto Iris output
Lens mount
Electrical
Power Supply
Power Consumption
VPM502
1/3" High Resolution Mono Camera
570TVL (230V AC)
1/3" High Resolution Mono Camera
570TVL (12V DC)
230V – 50Hz ± 1Hz (mains),
12V DC 10% (LV)
5.0W (mains), 4.0W (LV)
Environmental
Operating Temperature -10°C to +50°C
Chapter 1 Page 4
CCTV Catalogue
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Monochrome Cameras - Medium Resolution
Features
•
•
•
•
•
•
•
•
•
High-performance 1/3" Interline Transfer CCD
DC 12V, AC24V, AC 230V Power Supply
Emphasises simplicity by refined cosmetic design
High degree of compatibility with video or DC-type
lenses
Supports standard C or CS mount lenses
Equipped with electronic iris
Quick connection to auto iris lens with 4-pin connector
AGC adjustment
Include BLC function
Vista VEC12SM & VEC10SM Medium Resolution Monochrome Cameras
The Vista VEC12SM & VEC10SM are high-performance 1/3"
Interline Transfer CCD cameras, available with DC 12V,
AC24V, AC 230V power supply.
Technical Specification
Product Codes
Power source
VEC12SM
VEC10SM
Power consumption
Image sensor
Picture element (HxV)
EIA Standard
High resolution
CCIR Standard
High resolution
Scanning system
Scanning frequency
VEC12SM: DC 12V +/-10%
VEC10SM: AC 230V, 50Hz +/-1Hz
VEC12SM: Max. 4.0 Watts
VEC10SM: Max. 5.0 Watts
1/3" B&W CCD
1/3 Med Res Mono Camera Low Voltage
1/3 Med Res Mono Mains Camera
(HICB31XH) : 510 x 492
(HICB32XH) : 768 x 494
(HICB33XH) : 500 x 582
(HICB34XH) : 752 x 582
2:1 interlace
EIA : 15.75KHz(H), 60Hz(V)
CCIR : 15.625KHz(H), 50Hz(V)
Operating temperature -10oC ~ 50oC
Sync. system
VEC12SM: Internal
VEC10SM: Line lock
Electronic shutter
EIA : 1/60 ~1/100,000 sec
CCIR : 1/50 ~1/100,000 sec
Signal format
EIA : 525 lines, CCIR : 625 lines
Resolution
Standard : 380 TVL
High Resolution : 570TVL
Min. Illumination
0.08 Lux (F1.2 Lens, 50IRE)
Video output
1.0 Vp-p (75 ohm)
S/N ratio
46dB (AGC off)
BLC size
40% centre
Sync. level
40 IRE
Electronic Iris
ON / OFF (Dip switch)
Auto iris
DC / VIDEO type auto iris
selectable (Dip switch)
AGC
ON / OFF (Dip switch)
Video output
BNC connector
Power input
VEC12SM: 3-pin terminal block
VEC10SM: Power cord
Auto iris output
4-pin mini din jack
Lens mount
Mounting hole
C/CS mount
1 / 4 "-20 UNC top and bottom
Dimensions (WXHXD)
62 x 54 x 127 mm
Weight
VEC12SM: 225g
VEC10SM: 505g
08/08
CCTV Catalogue
Chapter 1 Page 5
Chapter 1 - Cameras & Fixed Mini-Domes
Day/Night Cameras
Features
•
•
•
•
•
•
WDR via Dual Scan CCD
Day/Night Pperation
External Day/Night switching input
Privacy zones
RS485 remote control
UTP output
Vista VPC530WDR & VPC534WDR Hi-Res Day/Night Cameras with WDR
Features include four privacy zones which can be used to
blank sections of the image such as ATM card machines.
High performance day/night operation is ensured with the
camera’s moving IR filter while the external day/night
switching point integrates with IR lighting to ensure
consistent operation and zero hunting.
The VPC530/534DN/WDR are 480TVL high resolution
day/night cameras with Wide Dynamic Range (WDR) for
high contrast lighting conditions. RS485 remote control
allows installers and endusers to adjust camera features
from the control room via standard control equipment.
The consistently high quality images captured by the
cameras are complimented by the simple to navigate onscreen display, not only making installation quick and simple
but also reducing service times.
Technical Specification
General
Sensor
Total Number of pixels
Resolution
Video Output
Sensitivity
Signal to Noise Ratio
Electronic Shutter
Synchronisation
Function
Auto Exposure
Digital Slow Shutter
White balance
Lens
AGC
Shutter Speed
BLC
WDR
Colour
Privacy Zone
Day/Night
Day night delay
Display
Cam ID
Effect
Preset Settings
External Control
RS485 Protocol
Chapter 1 Page 6
Connections
Video Output
Power Input
1/3” Double scan (sony CCD)
Day/Night WDR
795(H)x596(V)
480/520tVL
1.0 Vp-p, 75ohms
0.5/0.04Lux (0.001 Lux (Dss/BW
[email protected] F1.2, 50 iRe)
50dB (aGC Off)
1/50-1/100,000 sec
Line lock/internal
Mounting hole
BNC, s-Video, UtP
Wired Power Cord (mains) 2-Pin
Terminal block (LV)
4-Pin mini din jack (standard)
C/CS mount (selected through
back focus)
1/4”-20 UNC (Top/ bottom)
Physical Dimensions
Net
Gross
Weight
125x74x66mm (LxWxH)
220x137x131mm (LxWxH)
480g (mains)/300g (LV)
Material
Colour
RaL7035
Auto Iris output
Lens mount
Auto/Manual Shutter/Flicker
less/AGC/DSS
Off/x2-x160
ATW/AWB/indoor/Outdoor/Manual
Manual/DC/Video
On/Off
1/50-1/50,000 sec
On/Off (selectable BLC Zone)
On/Off
Rolling On/Off
On (4 point)/Off
Auto/Colour/monochrome/external
switch
5, 10 or 20seconds
Display mode selection (On/Off)
Camera iD selection (001-255)
Mirror, Negative/Positive,
Sharpness, Freeze, Digital Zoom
Default/save & Exit/Exit
RS485
Vista PowerDome
Electrical
Power Supply
100-240V aC 50Hz,
12V DC/24V AC ± 10% (LV)
5.5W (mains)/4.5W (LV)
Power Consumption
Environmental
Operating Temperature -10°C to +50°C
Product Codes
VPC534WDR
VPC530WDR
CCTV Catalogue
1/3" Day/Night Camera with Wide
Dynamic Range (12V DC or 24V AC)
1/3" Day/Night Camera with Wide
Dynamic Range (230V AC)
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Features
• Features are the same as 540 TVL High Resolution
Colour Cameras (in the colour camera section), the
Day/Night models also include:
• Focus adjust mode for ease of installation and
focus accuracy
• On-screen menu display for easy programming
(such as camera titles)
• Monitor mode to optimise output for CRT or LCD
displays
• Advanced pixel correction
• Factory default settings
• Auxiliary input and output
• Selectable 4 zone BLC
• Manual shutter mode
540 TVL True Day/Night Fixed Cameras
ADCTDN cameras offer the same features as the ADCSHR
series but also include a moving mechanical IR cut filter that
provides True Day/Night functionality. For scenes with
typical lighting such as daylight or lit indoor applications, the
camera provides a 540 TVL super, high resolution image.
When light levels drop, the camera automatically removes
its’ IR cut filter and switches from colour to B/W to capture
images in very low light. This action can also be triggered
manually via an auxiliary input or can trigger an auxiliary
output to turn on optional accessories such as IR
illuminators.
ADCTDN cameras also offer many advanced, easy-to-use
features, like on-screen menu programming with default
settings. Advanced pixel correction, focus adjust mode for
focus accuracy, selectable four zone BLC, manual shutter
mode, and a monitor mode to optimise for CRT or LCD
displays are also included. For a total solution, IR corrected
lenses are available for use with the ADCTDN series.
Technical Specification
Imager
Interline Transfer 1/3-inch CCD
Video Output
1.0 Vp-p/75Ù, Composite
Active Pixel Count (HxV) ADCTDN2412P: PAL: 752 x 582
ADCTDN0230P: PAL: 752 x 582
Minimum Scene Illumination
Colour Mode
0.4 lux, f1.2, AGC on
Black & White Mode 0.02 lux, f1.2, AGC on
Horizontal Resolution 540 TVL
Auto Iris Lens
Type Video iris/DC iris
Backlight Compensation 4 zones/Off
synchronisation
Internal/Line-lock
White Balance
ATW/ATW wide AWC (one touch)
Manual mode (adjustable)
S/N Ratio
-50 dB
Input Power
ADCTDN2412P: 2-pin Screw
Terminal
ADCTDN0230P: Line cord with
Euro plug
Composite Video
BNC
Auxiliary Input/Output 2-pin Push Terminal
DC/Video Auto Iris
ADCTDN2412P: 4-pin Square
ADCTDN0230P: 4-pin
AC Voltage
ADCTDN2412P: PAL: 24 VAC
(+20%, -20%) @ 50/60 Hz
ADCTDN0230P: NTSC: N/A
PAL: 230 VAC (220 to 240 VAC) @
50/60 Hz
DC Voltage
12 VDC (+10%, -10%)
Power Consumption
ADCTDN2412P: 4.8 watts (400 mA)
ADCTDN0230P: 75 mA
Lens Mount
C/CS
Camera Mount
1/4-inch x 20 (top or bottom)
Dimensions (W x H x L) 67 x 63 x 126 mm
Unit Weight
ADCTDN2412P: 480 g
ADCTDN0230P: 700 g
08/08
Shipping Weight
ADCTDN2412P: 700 g
ADCTDN0230P: 1.1 kg
Body Colour
Light Grey (Pantone 427c)
Operating Temperature -10oC to 50oC
Storage Temperature
-30oC to 60oC
Humidity
<90% RH (non-condensing)
Emissions
ADCTDN2412P: PAL: EN61000-6-3
ADCTDN0230P:
PAL: EN61000-6-3, EN61000-3-2,
EN61000-3-3
Immunity
PAL: EN50130-4
Safety
ADCTDN2412P: CSA C22.2
ADCTDN0230P: NTSC: EN60950-1
Product Codes
ADCTDN2412P 540TVL True Day/Night Fixed Camera,
24VAC/12VDC, PAL
ADCTDN0230P 540TVL True Day/Night Fixed Camera,
230VAC, PAL
CCTV Catalogue
Chapter 1 Page 7
Chapter 1 - Cameras & Fixed Mini-Domes
Covert Cameras & PIR Packages
Features
• An ideal camera for detecting rather than deterring crime
• Excellent picture quality
• Discreet, stylish case designed to blend inconspicuously
into any commercial environment
• Ideal for use where EV 400 detectors are already
installed
• Camera views through tiny 1.5mm diameter hole for
maximum discretion
• Comes with pre-focused (1m - ¥) factory-fitted lens
• Ideal for the video verification of alarms
• Simple and speedy to install
• Comes with versatile wall or ceiling mount bracket for
exact camera positioning
• Comes with free audio capability
• Comes with lint-free cleaning cloth to remove grease
and dirt from case and lens
EV 400 Colour Monochrome PIR Packaged Covert Cameras
These cameras are mounted into standard Aritech
packages, which match the detectors from the current
intruder range making these cameras very difficult to
distinguish between a camera and a detector.
Available in colour and monochrome and are provided with
a 12V PSU and microphone.
Technical Specification
Product Codes
Image sensor
603.001.129
Horizontal resolution
Lens options
Electronic shutter
Sensitivity
Video output
Supply voltage
Working temperature
Microphone
Audio output
Audio bandwidth
Chapter 1 Page 8
1/4” CCD sensor, 500 (H) x 582 (V)
pixels
350 TV lines or greater
3.6mm pinhole
Automatic linear shutter
10.0 lux
PAL, 1Vp-p, 75 Ohms
12 Vdc + 10%
-5°C to +40°C
Omni-directional electret
1Vp-p, 600 Ohms
100Hz - 10KHz, +/- 3dB
603.001.131
CCTV Catalogue
Covert 1/3" Monochrome Camera P.I.R.
Package (3.6mm pin hole lens) with PSU
TYEV-400MPA
Covert 1/3" Colour Camera PIR Package
(3.6mm pin hole lens) TYEV-400CPA
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Features
• An ideal camera for detecting rather than deterring crime
• Excellent picture quality
• Discreet, stylish case designed to blend inconspicuously
into any commercial environment
• Ideal for use where EV 500 detectors are already used
• Ideal for video verification of alarms
• Contains anti-tamper switch an ‘normally closed’ alarm
switch
EV 500/MPAW & EV 500/CPW Operational PIR Covert Cameras
Identical to the EV500 Aritech PIR detector, the covert
cameras match the detectors from the current intruder range
and remain completely unobtrusive when used in
conjunction with the Aritech intruder alarm systems. The
12Vdc camera is available in colour and monochrome and
incorporates a microphone for audio capability. These are
now supplied with the brackets.
These units not only offer covert surveillance capability, but
also a fully working PIR detector, allowing to initiate
recording or to integrate the CCTV system into the intruder
system.
Technical Specification
Product Codes
Image Sensor
603.001.128
Horizontal Resolution
Sensitivity
Supply voltage
Audio output
Lens
08/08
TYEV 500/MPAW: 1/3” CCD,
512(H) x 582(V)
TYEV 500/CPW: 1/3” CCD, 512(H)
x 582(V)
TYEV 500/MPAW: 380 TV lines
TYEV 500/CPW: 330 TV lines
TYEV 500/MPAW: 3.0 lux
TYEV 500/CPW: 10.0 lux
12 Vdc
1Vp-p
3.6mm pinhole
EV-500-CPW
CCTV Catalogue
Covert 1/3" Monochrome Camera
Working PIR (3.6mm pin hole lens) with
PSU TYEV-500MPAW
Covert 1/3" Colour Camera Working
PIR (3.6mm pin hole lens) with
TYEV-500CPW
(NO MICROPHONE)
Chapter 1 Page 9
Chapter 1 - Cameras & Fixed Mini-Domes
Bullet / Tube Cameras - Black & White
Features
• Scanning system CCIR standard 625 lines, 25 frames /
sec.
• Sensor 1/3” Sony Hyper HAD CCD
• Picture elements Total: 537(h) x 597(v) - Effective :
500(h) x 582(v)
• Synchronising system Internal synchronisation
• Resolution More than 420 lines
• Video S/N ratio More than 50 dB (AGC OFF)
• Minimum illumination 0.01 lux
• Blacklight compensation Active histogram Gamma 1
• Electronic shutter Equivalent to continuous variable
shutter speed between 1/50 sec. and 1/100 000 sec.
• Power requirement Powered by coaxial cable Consumption : 2.1 Watts
• Finishing touches Silver
NL506PSCX Waterproof Camera Powered by Co-Axial Cable
The NL506PSCX range of cameras has a compact built in
1/3” CCD Hyper HAD sensor from Sony which also boasts
a very robust construction. The high sensitivity and their
great reliability make it possible to obtain the best
performance, whatever the environment.
Optimal picture quality, a very realistic reproduction and a
remarkable reliability make these cameras an ideal choice
for professionals for commercial and industrial CCTV
systems in both indoor and outdoor applications.
Technical Specification
Product Codes
Built in lens
Angle of view
Water Ingress Rating
TS-506PSC
Accessories
Standard: 3.6 mm / F2.0 70° with 3.6 mm lens
IP 68 - Can be used outside Submarine : 3 atmospheres
Bracket, sunshield, I adaptor
and 30 cable
B&W Tube 1/3" camera ,Sony CCD,
equipped with a 3.6mm lens F1.2,
420TVL, 0.01 Lux (Europe only)
Camera
Operating temperatures -15°C ~ 55°C
Weight/Dimensions
200 g - 105(L) x 28(d) mm
without bracket and sunshield
Cable length max
200 m (RG-58U) - 350 m (RG-59U)
- 500 m (RG-61U)
Power requirement
230 Vac - 50 Hz.
Power supply
Operating temperature -15°C ~ 55°C - Humidity < 90%
Weight & Dims
60(l) x 44(h) x 96(d) mm - 600 g
IP68 rated
Delivered with 30 meter cable and 12 VDC power supply
Chapter 1 Page 10
CCTV Catalogue
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Bullet / Tube Cameras - Colour
Features
•
•
•
•
•
•
•
1/3" IT CCD
Compact and light weight
Automatic Day & Night function
Over 12 meters effective range
Automatic IR trigger-on under low illumination
Automatic IR off under normal illumination
Water resistant
ZC-BNX3039PHA Colour IR Camera
The ZC-BNX3039PHA Colour IR range of cameras comes
complete with a 3.0-9.0mm auto iris high speed varifocal
lens providing optimum performance in demanding
lighting conditions.
The cameras also have an automatic IR trigger on under
low illumination and an automatic IR trigger off under
normal lighting to allow effective IR illumination. The IR
cameras are water resistant, with an IP55 rating making
them suitable for outdoor use.
The lens and infrared leds provide optimum performance
in demanding lighting conditions making the cameras
suitable for around the clock surveillance.
Technical Specification
Product Codes
TV System
PAL
Focal Length
3.0 ~ 9mm, F= 1.4 ~ F360 c
Image Sensor
1/3” IT CCD
Resolution
>480 TVL
Scanning System
2:1 Interlace
Scanning Frequency (H/V)
15.625 KHz (H) x 540Hz (V)
Minimum Illuminance 0 lux
Effective elements
752 (H) x 582 (V)
Video output
1.0 Vpp /75 Ohm
Day & Night
Mechanical
S/N ratio
(AGC: off) >50dB
Electric Shutter 1/50sec. (FL OFF)m 1/120sec (FL ON)
Gamma Characteristic 0.45
White Balance
ATW
Power Consumption
12Vcc
6.5W
24Vca
6.0W/430mA
IP Rating
IP55
IR LED
16 LED
Operating Temperature & Humidity
10°C ~50°C, 85° RH max
Storage Temperature & Humidity
20°C ~60°C, 90° RH max
Dimensions
117(L)mm x 84 (D)mm
Weight
(approximate) 650g
Adjustment volume
DC Iris level
Switches
ELC/ALC, BLC
Angle of view
115.4° ~ 39.8°
90.3° ~ 31.9°
66.4° ~ 23.9°
ZC-BNX3039PHA
08/08
CCTV Catalogue
Day/Night Mechanical IR Camera
Chapter 1 Page 11
Chapter 1 - Cameras & Fixed Mini-Domes
Bullet / Tube Cameras - Day/Night
Features
•
•
•
•
•
•
Colour camera Day/Night - CCD 1/3”
Robust & compact build
Resolution More than 330 lines
High sensitivity
Electronic shutter
Suitable for internal & external applications
NLWC4531X Bullet Colour Camera Built in IR LEDs
The NLWC4531X camera range has a compact built in 1/3”
CCD sensor and has a very robust construction. The high
sensitivity and the great reliability of this product makes it
possible to obtain the best performance, whatever the
environment.
Optimal picture quality, very realistic reproduction and a
remarkable reliability make these cameras an ideal choice
for professionals for both commercial and industrial CCTV
systems in both indoor and outdoor applications.
Technical Specification
Product Codes
Scanning system
NLWC4531X-3.6 Colour Tube Camera Day/Night 330 TVL,
built in IR, 3.6mm lens. (Europe only)
PAL Standard 625 lines, 25 frames
/ sec.
Horizontal : 15.625KHz, Vertical :
50Hz
Sensor
Capteur CCD 1/3”
Picture elements
512(h) x 582(v)
Scanning
Entrelacement 2:1
Synchronising system Internal
Resolution
More than 330 lines
Video output
PAL composite 1 Vp-p / 75 Ohms BNC connector
Video S/N ratio
More than 48 dB (AGC OFF)
Minimum illumination
1 lux (F2.0) - 0 lux (10 meters IR
ON)
Electronic shutter
Equivalent to continuous variable
shutter speed between 1/50 sec.
and 1/100 000 sec.
IR projector
12 Leds - Range : about 10 meters
Lens
3.6 mm / F 1.8
Angle of view
70°
Water Ingress Rating
IP 68 - Can be used outside
Finishing touches
Silver
Power requirement
Typical : 12V dc ± 10% - Jack
connector
Consumption
100 mA - 230 mA IR ON
Accessories
Bracket and sunshield
Operating temperature -10oC ~ 55oC
Storage temperature
-30oC ~ 80oC
Weight
400 g
Dimensions (mm)
65 (D) x 62 (H) x 115 (L)
Chapter 1 Page 12
CCTV Catalogue
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Features
•
•
•
•
•
•
•
•
Sony Hyper HAD CCD 1/3? colour camera
Day/night (no IR sensitive)
Signal/noise ratio: less than 50 dB (AGC Off)
Horizontal resolution: more than 550 lines
Powered by coaxial cable
Submarine camera (IP68) - 3 atmospheres
With built in 3.6 mm standard lens
Compact size and easy use
NLWC6920HX-DN Day/Night Watertight Camera Powered by Co-Axial Cable
The NLWC6920HX-DN range of colour/monochrome
cameras are manufactured to a very high quality and
incorporate a 1/3” CCD sensor. These cameras are
designed to operate within a large range of commercial,
industrial and domestic applications.
The high quality camera delivers optimum performance
whatever the environment. The NLWC6920HX-DN camera is
aesthetically pleasing, reliable, easy to install and will
complement any professional CCTV systems.
Technical Specification
Product Codes
Standard
NLWC6920HX-DN
Standard CCIR 625 lines, 25
frames/sec.
Horizontal : 15.625 kHz, Vertical :
50 Hz
Sensor
1/3” CCD - Day/night Sony hyper
HAD
Picture element
Total : 795 (h) x 596 (v)
Effective : 752 (h) x 582 (v)
Visible spectrum
400 - 700 nm (No sensitive to IR)
Scanning system
Interlace 2:1
Synchronisation
Internal
Resolution
More than 550 lines
Video output
PAL composite 1 Vc-c / 75 Ohms BNC connector
S/N ratio
Less than 50 dB (AGC Off)
Sensitivity
0.05 lux
Electronic shutter
Variable to continuous electronic
shutter between 1/50 sec. and
1/100 000 sec.
Back light compensation Active histogram
Gamma
1
White balance
ATW large tape : 2400° K to
11000°K
Day/night switching
Auto
Lens
f 3.6 mm / 2.0
Angle of view
70°
Finishing touches
Silver
Water Ingress Rating
IP68 - can be used outside Submarine : 3 atmospheres
Camera
Power Supply
Self-powered by coaxial cable Consumption : 3 W
Operating Temp.
-15oC ~ 55oC
Weight & Dims
200 g - 110 (L) mm x 32 (d) mm
Cable Length Max
200 m (RG-58U) / 350 m (RG-59U)
/ 500 m (RG-61U)
Power supply
Operating Temp.
Storage Temp.
Weight & Dims
230 Vac - 50 Hz
15oC ~ 55oC Humidity < 90%
-20oC ~ 70oC
600 g - 60(l) x 44(h) x 96(d) mm
Accessories
Bracket, sunshield, adaptor l and
30m cable
08/08
CCTV Catalogue
Tube Camera Day/Night with
PSU (Europe only)
Chapter 1 Page 13
Chapter 1 - Cameras & Fixed Mini-Domes
Fixed Internal Mini-Dome Cameras
Features
• Economical, high quality camera for indoor applications
where vandalism is not a concern
• 540 TVL super high resolution 1/3" camera provides
superior image quality and colour reproduction
• Night-Saver mode for low light conditions
• Three vari-focal auto iris lens options
• Snap-on bubble liner for covert appearance
• Advanced pivoting axis provides greater viewing flexibility
• Easy installation with quick mounting accessory
Discover Indoor Mini Domes
The Discover Indoor series of Mini-Domes offers you the
budget-friendly price you want while delivering the high
quality camera you need. The Discover Indoor super high
resolution Mini-Dome has 540 TVL and also includes a userselectable Night-Saver mode. The Night-Saver mode
automatically switches the cameras to B/W in scenes with
less lighting to provide you with better low-light detail
performance.
For challenging lighting environments, a selectable
expanded auto white balance mode is available. Vivid
colours and powerful low light performance provide some of
the best images available on the market today.
Easy installation and adjustment features mean that your
system can quickly be up and running.
An advanced pivoting 3-axis gimbal lets you position the
camera at exactly the angle you need, while optimal white
balance provides the clearest, most colour-perfect images
possible. Three different vari-focal auto iris lens size options
are available (2.5 – 6 mm, 3.8 – 9.5 mm, and 9 – 22 mm) to
provide the flexibility needed to get the exact scene you
want.
Choose between a clear or tinted bubble; the included
bubble liner adds an extra layer of covertness.
Discover Indoor Mini-Domes can easily be mounted on a
surface by using the three mounting screws or with the
quick installation mounting accessory included with each
unit.
Technical Specification
Imager
Video Output
Horizontal Resolution
Active Pixel Count (H x V)
1/3 inch CCD
1.0 Vp-p/75 ohm, BNC
540 TVL
NTSC: 768 x 494
(PAL: 752 x 582)
Minimum Scene Illumination
0.65 lux @ F1.2
Sync System
Line-lock, adjustable or internal
S/N Ratio
50 dB
White Balance
Automatic White Balance
AWB Ranges - Normal (Extended)
2700 – 11,000 K
(2,000 – 18,000 K)
Backlight Compensation centre weighted on/off
Flickerless Mode
Selectable on/off
Night-Saver Mode
Selectable on/off
Power Consumption
4.2 watts
Weight
0.3 kg
Housing
Polycarbonate
Dome
Polycarbonate
Dimensions
100 x 120 mm
Housing Colour
White
Environmental Rating
Indoor only
Bubble Diameter
95 mm
Bubble Thickness
1.0 mm
Bubble F-Stop
F1.0 (tinted); F0 (clear)
Pan & Effective Tilt
360o & 180o (+/- 90o)
Power Input1
12 VDC -10% +20%
24 VAC +/-20%, 50/60 Hz
Electrical & Environmental
Power Connection
Flying lead or plug
Operating Temperature
-10o to 50o C
Storage Temperature
-20o to 60o C
Humidity
90% (non-condensing)
Regulatory
Emissions
FCC part 15 Class B
CE: EN55022
ICES-003
CE: EN50130-4
UL/cUL; CSA C22.2
RoHS Compliant
Immunity
Safety
Mounts
White
ADCDDRONE
Drone, no camera or lens
capability
Wall mount w/pendant cap
Outside corner adaptor for use
with ADCDMWALL
Pendant cap, three-quarter inch
thread
Corner mount
Pole mount for use with
ADCDMWALL
4S electrical box adaptor
ADCDMWALL
ADCDMCRNRO
ADCDMPEND
ADCDMCRNR
ADCDMPOLE
ADCDMELEC
Product Codes
ADCPWH0922CP
ADCPWH0922TP
ADCPWH2506CP
ADCPWH2506TP
ADCPWH3895CP
ADCPWH3895TP
Discover Indoor Minidome 1/3"
540TVL,9.0-2 2.0mm, Clear Bubble PAL
Discover Indoor Minidome 1/3"
540TVL,9.0-2 2.0mm,Tinted Bubble PAL
Discover Indoor Minidome 1/3"
540TVL,2.5- 6.0mm,Clear Bubble PAL
Discover Indoor Minidome 1/3"
540TVL,2.5- 6.0mm,Tinted Bubble PAL
Discover Indoor Minidome 1/3"
540TVL,3.8- 9.0mm,Clear Bubble PAL
Discover Indoor Minidome 1/3"
540TVL,3.8- 9.0mm,Tinted Bubble PAL
All Discover Indoor MD - Europe Only
Chapter 1 Page 14
CCTV Catalogue
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Features
•
•
•
•
•
•
•
•
•
•
1/3” IT CCD
Super High Resolution
Integrated Varifocal lens
Impressive colour reproduction
Digital Signal Processing
Day/Night version available
Line lock with phase adjustment
Backlight compensation
Automatic gain control
Easy adjustment with the unique 3 axis gimble
CBC ZC-D5000 Series Super High Resolution Colour & Colour/Mono Domes
The ZC-D5000 Dome camera has a high performance CCD
image sensor combined with the new DSP chip delivering a
super high resolution of 540TVL. The dome range is
available as colour or as Day & Night. The domes come with
low voltage input, allowing either 12Vdc or 24 Vac. The
dome camera is complete with a 2.8-12.0mm auto iris high
speed varifocal lens (ZC-D5212PHA), or 2.8-12mm IR auto
iris varifocal lens (ZC-DN5212PHA), providing optimum
performance in demanding lighting conditions.
Further setup can be achieved by selecting the switches on
the camera body. These include backlight compensation,
AGC on/off, auto white balance/auto white tracing (colour
only). The camera has a 3 axis gimble for adjusting the
camera position, allowing the camera to be ceiling mounted
or wall mounted.
Technical Specification
Product Codes
TV System
Pal
Focal Length
2.8-12mm
Max aperture Ratio
1:1.3
Angle of View (Wide to Tele)
D:
121.8° ~ 29.6°
H:
98.2.° ~ 23.8°
V:
73.6° ~ 17.8° (Col)
D:
133° ~ 29.7°
H:
102.2° ~ 23.7°
V:
74.2° ~ 17.8° (Day/Night)
Image Sensor
1/3” IT CCD
Effective Elements
752 (H) x 582 (V)
Scanning Frequency
15.625kHz / 50.0Hz
Iris
F1.3 - 360
Resolution (Horizontal) 540 TVL
Minimum Illumination 50 IRE Colour Model: 1.41 lux (D
D/N: OFF), 0.94 lux (D D/N: ON)
Colour/Mono Model: 0.12 lux
(Night mode, B/W)
With IR Illuminance
0.00 lux (Night mode, B/W)
S/N Ratio
> 50dB (AGC gain : minimum)
Gamma Characteristics 0.45
Sync System
INT./L.L.
Electric Shutter
1/50 sec. Fixed (Flickerless:OFF)
1/120 sec. Fixed (Flickerless: ON)
White Balance
ATW
Power Supply
12 V DC/ 24 V AC
Power Consumption
DC 12V 3.0W
AC 24V 4.2W, 250mA
Ambient Temp.Operation -10°C ~+50°C
Storage : -20°C ~+60°C
Ambient Humidity Operation
85% RH max. / Storage : 95% RH
max.
External Dimensions
144(D)mm x 110 (H)mm
Weight (approximate) 490g
Adjustment Volume
DC iris level, Line phase
ZC-D5212PHA Varifocal Mini Dome Colour Hi-Res
ZC-DN5212PHA Varifocal colour/mono Minidome hi-res
08/08
CCTV Catalogue
Chapter 1 Page 15
Chapter 1 - Cameras & Fixed Mini-Domes
Features
• Aesthetic design
• High resolution
• Unique Pan Focus feature available
Sanyo Mini Dome Series
Sanyo minidomes are suitable for use in indoor
applications. When using a varifocal lens, objects in front of
and behind the main focus point appear blurred. This has
led to the development of deep-focus techniques allowing
simultaneous focusing on all objects in the field of view.
Early research and develop by SANYO has resulted in
successful product development of a x2.6 pan-focus lens
offering a picture with a greater depth of field. Now clearer
pictures, even of distant objects, can be achieved with
cameras for surveillance applications.
VCC-P7575PA Internal Static Colour Minidome
• Colour 520 Tv Line resolution
• X2.6 Pan focus* lens 2.8 – 7.3mm
• Min illumination 1.9 lux (50IRE at f1.9 Gain high)
• Dual Low Volt Operation 12vdc or 24v ac
• Suitable for both Ceiling and Wall mounting
VCC-9685VP Internal Static Colour Dome
• Colour 540TV Line resolution
• Built in Varifocal Auto Iris lens 2.8 -8mm
• Suitable for Indoor use
• Min illumination 0.5 lux (50IRE at F0.95 Gain High)
• Suitable for both Ceiling and Wall mount
• Manually adjustable pan % tilt angles : pan Ceiling 200
deg (+/- 100deg) Wall 180 deg (+/- 90 deg) tilt Ceiling 0
to 90 deg Wall 0 to 90 deg
• Dual Low voltage Operation 12v dc or 24v ac
Technical Specification
Product Codes
VCC-9685VP
Colour
Lens
VCC-P7575PA
VCC-9685VP
540TV Line resolution
Built in Varifocal Auto Iris lens 2.8 8mm
Use
Suitable for Indoor use
Min illumination
0.5 lux (50IRE at F0.95 Gain High)
Mounting
Suitable for both Ceiling and Wall
mount
Manually adjustable pan & tilt angles
pan:Ceiling 200 deg (+/- 100deg)
Wall 180 deg (+/- 90 deg)
tilt: Ceiling 0 to 90 deg
Wall 0 to 90 deg
Dual Low voltage
Operation 12v dc or 24v ac
VCC-P7575PA
Colour
Min illumination
Volt Operation
Mounting
Chapter 1 Page 16
Pan focus Minidome 520TVL LV (Uk Only)
Varifocal Minidome 540TVL (UK only)
520 Tv Line resolution
X2.6 Pan focus* lens 2.8 – 7.3mm
1.9 lux (50IRE at f1.9 Gain high)
Dual Lo
12vdc or 24v ac
Suitable for both Ceiling and Wall
mounting
CCTV Catalogue
08/08
Chapter 1 - Cameras & Fixed Mini-Domes
Fixed Vandal Resistant Mini-Dome Cameras
Features
• High impact vandal resistant housing that retains shape
even after forceful impact
• High impact vandal resistant polycarbonate bubbles
(clear and tinted)
• Snap-on bubble liner for an extra level of covertness
• Advanced pivoting axis provides greater viewing
flexibility
• Three quality auto iris lens options for better image
quality and improved low light performance
• Multiple camera options, including WDR model with
latest Pixim technology
• Night-Saver mode for extreme low light conditions
• Easy installation with eight mounting options (surface,
flush, pendant, wall, wall-pole, wall-exterior corner, inside
corner, electrical box)
• Discover Drone option
• IP66 and NEMA4X-rated for -30° to 50°C
Discover Mini Domes
The Discover series of Mini-Domes delivers a vandal
resistant camera solution at a non-vandal resistant price.
This series of high performance Mini-Domes includes high
impact, vandal resistant dome housings built to withstand
even the harshest environments. Unlike other dome
housings in the industry, which are made of metal, the
Discover series housing is made with extremely durable
composite and polycarbonate materials that have “shape
memory”. The Discover housing comes with a choice of
clear or tinted vandal resistant bubbles and includes a
bubble liner to make it more covert. An advanced pivoting
axis lets you position the camera at exactly the angle you
need, while optimal white balance provides the clearest,
most colour-perfect images possible.
With three different types of mini-domes to choose from,
there’s a Discover solution just right for your particular
requirements. The Discover wide dynamic range (WDR)
Mini-Dome uses over 504 lines of resolution and a pixel-bypixel shutter speed that lets you see better in areas where
both very bright and dark areas exist, such as an
entranceway.
This model also features up to a 2x digital zoom to get an
even closer view of the action. Night-Saver mode improves
performance in low light situations, automatically switching
from colour to monochrome as light dims and reverting
back to colour once light is restored.
The WDR mini-dome also includes a DVR-Saver mode
which helps conserve valuable hard drive space, reducing
the size of video files by up to 30% when used with an
Intellex® digital video management system.
The Discover high resolution Mini-Dome has 540 TVL and
also includes a user-selectable Night-Saver mode. For
challenging lighting environments, a selectable expanded
auto white balance mode is available. Vivid colours and
powerful low light performance provide some of the best
images available on the market today.
The Discover standard resolution camera offers a cost
effective solution for the value-conscious with 330 TVL. It is
available with a 3.8 – 9.5 mm vari-focal, auto iris lens. The
Discover series includes a drone option—which looks like a
mini-dome from the outside but without a camera inside—
and is perfect for crime deterrence at an even greater cost
savings.
Technical Specification
Dimensions (H x W)
92 x 136 mm
Housing Colour
White or Black
Environmental Rating
IP66
Bubble Diameter
94 mm
Bubble Thickness
2.5 mm
Bubble F-Stop
F1.0 (tinted); F0 (clear)
Pan & Effective Tilt (at 17 in) Range1
360o & 180o (+/-90o
Power Input
2 12 VDC -10% +20%
24 VAC +/-20%, 50/60 Hz
Power Connection
Flying lead or plug
Operating Temperature
-30o to 50oC
Humidity
90% (non-condensing)
Storage Temperature
-20o to 60oC
Emissions
FCC part 15 Class B
CE: EN55022
Immunity
CE: EN50130-4
Safety
UL/cUL; CSA C22.2
08/08
Lenses
2.5 – 6 mm auto iris lens
F-Stop F1.3 ~ 360
Field of View (H x V)
108.2o x 80.4o (wide) &
47.6o x 35.6o (tele)
3.8 – 9.5 mm auto iris lens
F-Stop F1.2 ~ 360
Field of View (H x V)
74.2ox 54.0o (wide) & 30.0ox 22.4o
(tele)
9 . 22 mm auto iris lens
F-Stop F1.8 ~ 360
Field of View (H x V)
30.7o x 22.7o (wide) &
14.1o x 10.6o (tele)
CCTV Catalogue
Chapter 1 Page 17
Chapter 1 - Cameras & Fixed Mini-Domes
Discover Mini Domes Contd.
Product Codes
ADCDW0922CU-3AG
ADCDW0922TU-3AG
ADCDW2506CU-3AG
ADCDW2506TU-3AG
ADCDW3895CU-3AG
ADCDW3895TU-3AG
ADCDH2506CP-3AG
ADCDH3895CP-3AG
ADCDH0922CP-3AG
ADCDH2506TP-3AG
ADCDH3895TP-3AG
ADCDH0922TP-3AG
Chapter 1 Page 18
Discover, mini-dome, WDR, 504+
TVL, 9-22 mm, night/DVR saver,
n/outdr clear, NTSC/PAL (Europe
& UK)
Discover, mini-dome, WDR, 504+
TVL, 9-22 mm, night/DVR saver,
in/outdr tint, NTSC/PAL (Europe
& UK)
Discover, mini-dome, WDR, 504+
TVL,2.5-6 mm, night/DVR saver,
in/outdr clear,NTSC/PAL (Europe
&UK)
Discover, mini-dome, WDR, 504+
TVL,2.5-6 mm, night/DVR saver,
in/outdr tint, NTSC/PAL (Europe
& UK)
Discover, mini-dome, WDR, 504+
TVL,3.8-9.5 mm, night/DVR saver,
Discover, mini-dome, WDR, 504+
TVL,3.8-9.5 mm, night/DVR saver,
in/outdr tint,NTSC/PAL (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 2.5-6mm AI, Nite saver,
in/outdr, clear bubble (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 3.8-9.5mm AI, Nite saver,
in/outdr, clear Bubble (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 9-22mm AI, Nite saver,
in/outdr, clear bubble (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 2.5-6mm AI, Nite saver,
in/outdr, tint bubble (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 3.8- 9.5mm AI, Nite saver,
in/outdr, tint bubble (Europe &
UK)
VR, Discover, colour, 540 TVL,
PAL, 9- 22mm AI, Nite saver,
in/outdr, tint bubble (Europe &
UK)
ADCDS3895CP-3AG
ADCDS3895TP-3AG
ADCDDRONE
Accessories
ADCBBTRC
ADCBBTRT
ADCWBTRC
ADCWBTRT
ADCDMCRNR
ADCDMPEND
ADCDMPOLE
ADCDMWALL
ADCDSLC
Mounts & Accessories
ADCDSLC
CCTV Catalogue
VR, Discover, colour, 330 TVL,
PAL, 3.8-9.5mm AI, Nite saver,
in/outdr, clear Bubble (Europe
only)
VR, Discover, colour, 330 TVL,
PAL, 3.8-9.5mm AI, Nite saver,
in/outdr, tint bubble (Europe
only)
Drone, Discover, no camera or
lens capability, recessed or
surface dome, dark tint bubble
(Europe only)
Discover, clear bubble w/black
trim ring (Europe & UK)
Discover, tinted bubble w/black
trim ring (Europe only)
Discover, clear bubble w/white
trim ring (Europe only)
Discover, tinted bubble w/white
trim ring (Europe only)
Discover, mount, corner (Europe
& UK)
Discover, mount, pendant cap
with 3/4" thread (Europe & UK)
Discover, mount adaptor, pole,
use with ADCDMWALL (Europe
only)
Discover, mount, wall, with pen
dant cap (Europe & UK)
Discover Service Connector
(Europe only)
Video service lead cable (Europe
only)
04/08
Chapter 1 - Cameras & Fixed Mini-Domes
Features
ZC-CB2
• Completely vandalism-proof
• adaptor with side cable connection for surface mounting
• Housing weatherproof as defined by IP 67 for installation
outdoors
• Quick and easy to install
ZC-OH2
CBC ZC-OH2 Outdoor Housing
The ZC-OH2 outdoor housing gives the mini cameras in
dome housing ZC-D1036, ZC-D2550 and ZC-D3000 series.
effective protection against weather conditions, to a level
that conforms to IP 67. Tough coated materials serve as an
effective screen for the sensitive camera components. The
smooth design, practically without edges, makes it all but
invulnerable to wilful damage. In addition, the safety screws
have been kept to a minimum so as to prevent the unit’s
being opened by unauthorised persons.
The ZP-DCS10 smoke cover is enormously resistant: it can
even withstand blows from a 4.5 kg sledgehammer, without
the camera suffering any damage at all!
The ZC-FM1 embedded mount makes it possible for the
mini cameras ZC-D1036, ZC-D2550 and ZC-D3000 series to
be installed on pendant ceilings.
In addition, the ZC-PM1 adaptor for indoor housing and ZCPM2 adaptor for outdoor housing allow flexible suspension
from either wall or ceiling. To install the camera on the
ceiling, you just need to purchase the tube you require in a
suitable length. The prescribed diameter is 25.4 mm (1") for
the ZC-PM1 and 19.05 mm (3/4") for the ZC-PM2.
The ZC-WM1 and ZC-WM2 wall mount brackets already
come with suitable adapters. Both require a free surface of
no more than 113 × 113 mm to be mounted.
To give the ZC-OH2 the best possible protection against
vandalism, the cables are concealed. Where this is not
possible, the ZC-CB2 basic adaptor allows the cable to be
introduced from the side for surface mounting.
All fittings are immediately ready for use, and are provided
with everything that is needed for installation.
With the ZC-OH2, the mini camera can be mounted with
just a few simple manoeuvres. All you do is insert the entire
base of the housing, including the standard circuit board, in
the outdoor housing and screw it firmly into place. After the
camera has been positioned, the housing can remain
closed. No maintenance is necessary, which makes it the
ideal tool for systems where surveillance needs to be
carried on in the long term.
Technical Specification
Product Codes
ZC-CB2 ZC-CB2
ZC-OH2
Dimensions
Weight
ZC-OH2 Outdoor
Dimension
Weight
04/08
Basic adaptor for CBC
minidomes. Allows the cable to be
introduced from the side for
surface mounting.
(Ø × H) 160 × 30 mm
445g
ZC-CB2
Outdoor housing IP67 for ZC-D1036, ZCD2550 and ZC-D3000 series (Europe only)
Basic adaptor for CBC minidomes
(Europe only)
housing IP67 for
ZC-D1000, and ZC-D3000 series.
Effective protection against
weather conditions IP 67 rate.
(Ø × H) 148 × 108 mm.
425 g (with camera)
CCTV Catalogue
Chapter 1 Page 19
Chapter 1 - Cameras & Fixed Mini-Domes
Features
• Vandal resistant
• Wide dynamic range
• 3 axis gimble
Sanyo External Vandal Resistant Wide Dynamic Static Colour Dome
When using a varifocal lens, objects in front of and behind
the main focus point appear blurred. This has led to the
development of deep-focus techniques allowing
simultaneous focusing on all objects in the field of view.
Early research and development by SANYO has resulted in
the successful launch of a x2.6 pan-focus lens offering a
picture with a greater depth of field. Now clearer pictures,
even of distant objects, can be achieved with cameras for
surveillance applications.
Technical Specification
Colour
Range
Weatherproof
Camera Casing
Min illumination
Lens
480TV line resolution
Wide Dynamic
IP66 rated enclosure
Vandal resistant
1.0 lux (50 IRE at F1.4 colour
mode)
X 2.3 Built in Auto Iris
Varifocal lens 2.6 – 6mm
Mounting
Suitable for both Ceiling and Wall
mounting
Manually adjustable : Pan 0-360
deg , tilt 0 to 120 deg
Operation 12v dc or 24v ac
Pan & Tilt Angles
Dual Low voltage
Product Codes
VDC-W1595VP
Minidome V-focal VR WDR IP66 UK Only
Features
• Robust aluminum construction for vandal-resistant
performance
• User-friendly design for easy access and adjustment of
camera settings
• 520 TVL 1/3” CCD with Mechanical Filter Technology™ for
outstanding optical capability
• 18m of high performance active infrared night vision
(WZ45N)
• IP66 certified for performance in extreme weather conditions
• Conduit-ready for installation versatility
Vandal Resistant/Integrated Day-Night™ Dome Cameras
The WZ45N Integrated Day-Night™ Dome camera is a true
Day Night vandal-resistant, user-friendly surface mount
camera designed for effective 24/7 surveillance. The WZ45
Dome camera is a vandal-resistant, user-friendly surface
mount camera designed for effective daytime surveillance
and low-light conditions.
Both powered by Extreme CCTV night vision, they provide
video surveillance in day or dark conditions.
All-weather ready with practical enhancements, they are
ideal for a wide variety of security applications including
schools, commercial property and correctional facilities.
Technical Specification
CCD Camera
1/3” CCD with Mechanical Filter
Technology
Filtering
Mechanical Filter Technology
Resolution
High resolution 520 TVL
Night-Time Sensitivity 0 Lux (infrared on)
Day-Night Switching Photocell-controlled, automatic
Electronics Iris
1/60 ~ 1/100,000 (NTSC) | 1/50 ~
1/100,000s (PAL)
Output Signal
1V P-P composite video, 75 Ohms
S/N Ratio
Greater than 48dB
Gamma
0.45
Lens
3-12mm varifocal auto-iris
LEDs
High efficiency 18-LED infrared array
Wavelength
850nm
Housing
Surface mount dome, vandal
resistant
Chapter 1 Page 20
Gimbals
Voltage
Construction
Finish
Power Supply
Auxiliary Output
Conduit Compatible
Operational Temp.
Environmental
3D gimbal for easy installation
12 VDC or 24 VAC/DC
Robust aluminum
Powder coat silver
Not included
Local video out for easy video
verification
Yes
-30°C to +55°C
IP66 certified
Product Codes
WZ45NVA3120
WZ45VA3120
CCTV Catalogue
VR minidome with IR illumination
VR minidome requires additional IR
illumination for optimum monochrome
operation.
04/08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
