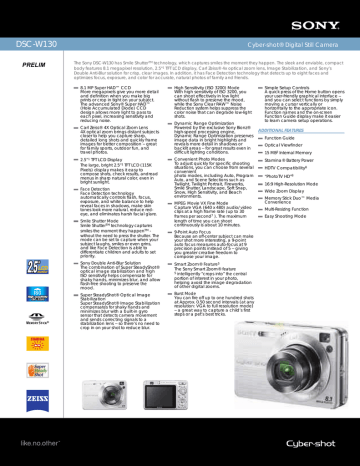

DSC-W130 Cyber-shot® Digital Still Camera

DSC-W130 Cyber-shot® Digital Still Camera
Cyber-shot® Digital Still Camera
The Sony DSC-W130 has Smile ShutterTM technology, which captures smiles the moment they happen. The sleek and enviable, compact
body features 8.1 megapixel resolution, 2.5"1 TFT LCD display, Carl Zeiss® 4x optical zoom lens, Image Stabilization, and Sony’s
Double Anti-Blur solution for crisp, clear images. In addition, it has Face Detection technology that detects up to eight faces and
optimizes focus, exposure, and color for accurate, natural photos of family and friends.
8.1 MP Super HAD™ CCD
More megapixels give you more detail
and definition when you make big
prints or crop in tight on your subject.
The advanced Sony® Super HAD™
(Hole Accumulated Diode) CCD
design allows more light to pass to
each pixel, increasing sensitivity and
reducing noise.
Carl Zeiss® 4X Optical Zoom Lens
4X optical zoom brings distant subjects
closer to help you capture sharp,
detailed long shots and quickly frame
images for better composition -- great
for family sports, outdoor fun, and
travel photos.
2.5”1 TFT LCD Display
The large, bright 2.5”1 TFT LCD (115K
Pixels) display makes it easy to
compose shots, check results, andread
menus in sharp natural color, even in
bright sunlight.
Face Detection
Face Detection technology
automatically controls flash, focus,
exposure, and white balance to help
reveal faces in shadows, make skin
tones look more natural, reduce redeye, and eliminates harsh facial glare.
Smile Shutter Mode
Smile ShutterTM technology captures
smiles the moment they happenTM without the need to press the shutter. The
mode can be set to capture when your
subject laughs, smiles or even grins,
and like Face Detection is able to
differentiate children and adults to set
High Sensitivity (ISO 3200) Mode
With high sensitivity of ISO 3200, you
can shoot effectively in low light
without flash to preserve the mood,
while the Sony Clear RAW™ Noise
Reduction system helps suppress the
color noise that can degrade low-light
Dynamic Range Optimization
Powered by the exclusive Sony Bionz®
high-speed processing engine,
Dynamic Range Optimization preserves
image data in bright highlights and
reveals more detail in shadows or
backlit areas -- for great results even in
difficult lighting conditions.
Convenient Photo Modes
To adjust quickly for specific shooting
situations, you can choose from several
photo modes, including Auto, Program
Auto, and Scene Selections such as
Twilight, Twilight Portrait, Fireworks,
Smile Shutter, Landscape, Soft Snap,
Snow, High Sensitivity, and Beach
MPEG Movie VX Fine Mode
Capture VGA (640 x 480) audio/video
clips at a high frame rate (up to 30
frames per second7 ). The maximum
length of time you can shoot
continuously is about 10 minutes.
9-Point Auto Focus
Because an off-center subject can make
your shot more interesting, a 9-point
auto focus measures auto-focus at 9
precision points instead of 5 -- giving
you greater creative freedom to
compose your image.
Sony Double Anti-Blur Solution
The combination of Super SteadyShot®
optical image stabilization and high
ISO sensitivity helps compensate for
shaky hands, minimizes blur, and allow
flash-free shooting to preserve the
Smart Zoom® Feature5
The Sony Smart Zoom® feature
5 intelligently “crops into” the central
portion of interest in your photo,
helping avoid the image degradation
of other digital zooms.
Super SteadyShot® Optical Image
Super SteadyShot® Image Stabilization
compensates for shaky hands and
minimizes blur with a built-in gyro
sensor that detects camera movement
and sends correcting signals to a
stabilization lens -- so there’s no need to
crop in on your shot to reduce blur.
Burst Mode
You can fire off up to one hundred shots
at Approx. 0.50 second intervals (at any
resolution: VGA to full resolution mode)
-- a great way to capture a child’s first
steps or a pet’s best tricks.
Simple Setup Controls
A quick press of the Home button opens
your user-friendly graphical interface -and you can select functions by simply
moving a cursor vertically or
horizontally to the appropriate icon.
Function names and the on-screen
Function Guide display make it easier
to learn camera setup operations.
Function Guide
Optical Viewfinder
15 MB2 Internal Memory
Stamina® Battery Power
HDTV Compatibility 8
“PhotoTV HD”8
16:9 High-Resolution Mode
Wide Zoom Display
Memory Stick Duo™ Media
Multi-Resizing Function
Easy Shooting Mode
Cyber-shot® Digital Still Camera
Megapixel: 8.1 MP
Focal Length: 5.35-21.4mm
35mm Equivalent: 32-128mm
Focus: 9-Area Multi-Point AF, Center AF, Spot
AF, Semi Manual Focus (0.5m / 1.0m /
3.0m / 7.0m / Unlimited distance)
Aperture Range: Auto(F2.8/F7.1(W), 2 steps
with ND Filter) / Program Auto(F2.8/F7.1
(W), 2 steps with ND Filter)
Imaging Device: 1/2.5" Super HAD™ CCD
Recording Media: 15MB internal Flash
Memory, optional Memory Stick™ DUO
Media, optional Memory Stick DUO PRO™
White Balance: Automatic, Cloudy, Daylight,
Fluorescent 1, Fluorescent 2, Fluorescent
3, Incandescent, Flash
Self Timer: Yes (10 seconds, 2 seconds, Off)
Memory Stick PRO™ Media Compatibility:
Tested to support up to 16GB Memory
Stick DUO PROTM media capacity2 ; does
not support Access Control security
Still Image Mode(s): Normal, Burst, Bracket
Red-Eye Reduction: Yes (On/Off all modes)
Burst Mode: Max 100 Shots at 2.0fps
Erase/Protect: Yes/Yes
Date/Time Stamp: No/ No
Media/Battery Indicator: Yes/Yes
Color Mode(s): Black & White, Natural,
Sepia, Vivid
Convenience Features
Real Imaging Processor™ Technology:
AF Illuminator Light: Yes
PictBridge Compatible: Yes
Exposure Compensation: Plus / Minus 2.0EV,
1 / 3EV step
ISO: Auto / 100 / 200 / 400 / 800 / 1600 / 3200
Filter Diameter: N/A
Smart Zoom® Technology: 5M:Approx.5.0x
(Total), 3M:Approx.6.4x(Total),
VGA:Approx.20x(Total), 16:9
Digital Zoom: 0-2.0X (Precision)
Optical Zoom: 4x
Macro Mode: Yes
Total Zoom: 8x
Minimum Focus Distance: W: Approx. 1 9/16
(4cm) - Infinity / T: Approx. 19 11/16(50cm)
- Infinity
Face Detection: Yes
Battery Type: Lithium-Ion NP-BG1
Battery Capacity: 3.6V, 960 mAh
Service and Warranty Information
Limited Warranty: 1 Year Parts & Labor
Multi-Pattern Measuring: Yes
Scene Mode(s): Smile Shutter, Beach, High
Sensitivity, Landscape, Snow, Soft Snap,
Twilight, Twilight Portrait, and Fireworks
Movie Mode(s): MPEG VX Fine(640x480 at
30fps) (MPEG VX Fine requires Memory
Stick DUO PRO™ media), MPEG VX
Standard(640x480 at 16fps), Presentation
(320 x 240 at 8fps)
Power Save Mode: Yes (after approx. 3 min.
of inactivity)
In-Camera Editing: Red-eye correction, soft
focus, cross filter, partial color filter, fisheye filter, trimming, retro, radial blur, and
unsharp masking
Super SteadyShot® optical image
stabilization: Yes
NP-BG1 rechargeable battery
Inputs and Outputs
Optional Accessories
Accessory Terminal: Multi connector
Audio/Video Output(s): Yes via Mutli-Use
USB Port(s): Yes - supports USB 2.0
HD Output: Yes (1080i)
Accessory Kit (ACC-CLGB)
Rechargeable Lithium-Ion Battery (NP-BG1)
Conversion Lens Adaptor Mount (VAD-WB)
Wide Angle Conversion Lens (VCL-DH0730)
Super Telephoto Conversion Lens (VCLDH2630)
Telephoto Conversion Lens (VCL-DH1730)
Polarizing Kit Filter (VF-30CPKS)
External Slave Flash w/Bracket (HVL-FSL1B)
Genuine Leather Cases (LCSTWA/TWB/TWC/TWD)
GPS Unit Kit (GPS-CS1KA)
Memory Stick Duo™ PRO (MSX-512S)
Memory Stick Duo™ PRO (MSX-1GST)
Memory Stick Duo™ PRO (MSX-2GS)
Memory Stick Duo™ PRO (MSX-M4GS)
Memory Stick Duo™ Adaptor (MSAC-M2)
Memory Stick Duo™ USB Adptr (MSAC-US40)
LCD: 2.5"1 LCD Display (115K pixels)
Viewfinder: Optical
Lens Construction: 6 elements in 5 groups
(including 3 aspheric elements)
Microphone/Speaker: Yes / Yes
Lens Type: Carl Zeiss® Vario-Tessar®
Docking Station: Yes, via optional HD cradle
Operating Conditions
Flash Effective Range: ISO Auto: Approx.0.2Approx.3.9m(W) / Approx.0.5-Approx.1.9m
(T),ISO3200: up to Approx.7.1m(W) /
Flash Mode(s): Auto / Flash On / Slow
Syncro / Flash Off
Supplied Software: Windows: Picture Motion
Browser Vers 3.0.01 + USB Driver
Operating System Compatibility: Microsoft®
2000 Professional, XP Home and
Professional; Macintosh® OS 9.1/9.2/OS X
Supplied Accessories
BC-CSG battery charger
A/V and USB multi-connector cables
Wrist strap
Software CD-ROM
Note: No Memory Stick® DUO media or
adaptors are included.
Color: Silver
UPC Code: 027242723993
1. Viewable area; measured diagonally.
2. Available storage capacity may vary and a portion of the memory is used for data management
3. HD viewing requires a Sony HD connector cable or HD Cyber-shot Station® cradle and HDTV. All sold
4. Music tracks can be up to five minutes long. When using Music Transfer to download music, tracks
longer than five minutes will be reduced to five minutes when uploading to the Cyber-shot.
5. Smart Zoom® feature will not work at highest resolution setting.
6. Up to 6 shots while in Smile Shutter mode.
7. Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo™ media.
8. Special TV settings are required. Further details are available in the BRAVIA® instruction manual.
© 2008 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony,
BIONZ, Smile Shutter, BRAVIA TV, Clear RAW, Cyber-shot, Memory Stick Duo, Memory Stick PRO Duo,
Smart Zoom, Stamina, Super HAD, and Super SteadyShot are trademarks of Sony. All other
trademarks are trademarks of their respective owners.
Please visit the Dealer Network for more information at
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 03/10/2008
