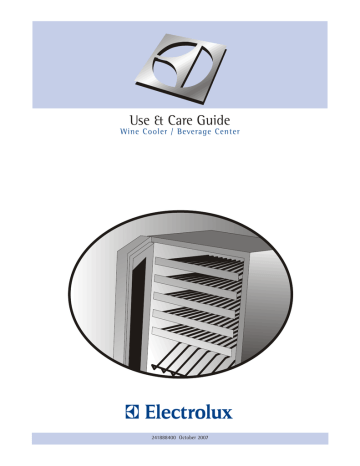

Use & Care Guide Wine Cooler / Beverage Center

Use & Care Guide Wine Cooler / Beverage Center

Use & Care Guide

Wine Cooler / Beverage Center

241888400 October 2007

2

Finding Information

Please Read and Save This

Guide

Thank you for choosing Electrolux, the new premium brand in home appliances. This Use &

Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new wine cooler / beverage center.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record key product information.

IMPORTANT

PLEASE READ all instructions completely before attempting to install or operate the unit.

All wine coolers / beverage centers require a connection to an electrical power source.

Improper hook-up can result in a safety hazard and potential damage to the product or contents!

Proper installation, in accordance with the manufacturer’s specifications and all local codes, is the sole responsibility of the consumer.

The manufacturer is not responsible for any installation expenses or damages incurred due to improper installation. If you are unsure of your ability to safely connect electric power to the unit, consult a licensed and insured professional to perform all electrical work.

Once you have your unit installed, we suggest you keep this manual in a safe place for future reference. Should any problems occur, refer to the

Troubleshooting” section of this manual. This information will help you quickly identify a problem and get it remedied. In the event you require assistance, please contact the dealer where you purchased your unit.

Make a Record for Quick

Reference

Whenever you call to request information or service, you will need to know your model number and serial number. You can find this information on the serial plate located on the ceiling of your unit and on the product registration card.

Product Registration Card

The package containing this manual also includes your product registration information. Warranty coverage begins at the time your Electrolux wine cooler / beverage center was purchased.

NOTE

Registering your product with Electrolux enhances our ability to serve you. You can register online (at the Internet address below) or by dropping your Product Registration Card in the mail. Complete and mail the Product

Registration Card as soon as possible to validate the registration date.

Please record the purchase date of your Electrolux unit and your dealer’s name, address and telephone number.

_________________________________________

Purchase Date

_________________________________________

Electrolux Model Number

_________________________________________

Electrolux Serial Number

_________________________________________

Dealer Name

_________________________________________

Dealer Address

_________________________________________

Dealer Telephone

Keep this manual and the sales receipt together in a safe place for further reference.

Questions?

For toll-free telephone support in the U.S. and

Canada:

1-877- 4ELECTROLUX (1-877-435-3287)

For online support and Internet product information: www.electroluxusa.com

Finding Information

Table of Contents

Finding Information ................................................................................. 2

Please Read and Save This Guide ......................................................................................2

Make a Record for Quick Reference ...................................................................................2

Product Registration Card ..................................................................................................2

Questions? .........................................................................................................................2

Safety .................................................................................................. 4

Important Safety Instructions ............................................................................................4

Safety Precautions .........................................................................................................4

Definitions .....................................................................................................................4

General Precautions .......................................................................................................4

Installation ........................................................................................... 5

Installing the Wine Cooler / Beverage Center .....................................................................5

Site Preparation .................................................................................................................6

Leveling ............................................................................................... 7

Leveling the Unit ................................................................................................................7

Door Reversal ........................................................................................ 8

Reversing the Door ............................................................................................................8

Start-Up and Temperature Control ............................................................... 11

Starting the Unit ...............................................................................................................11

Adjusting the Temperature ...............................................................................................11

Operation............................................................................................. 12

Description of Features ....................................................................................................12

Alarms ..............................................................................................................................12

Sabbath Mode ..................................................................................................................13

Storage ............................................................................................... 13

Proper Storage .................................................................................................................13

Display Rack (Wine Cooler Only) .....................................................................................13

Stocking Recommendations (Wine Cooler Only) .............................................................13

Maintenance ......................................................................................... 14

Maintaining Your Wine Cooler / Beverage Center .............................................................14

Exterior Cleaning for Your Stainless Steel Model .........................................................14

Interior Cleaning ..........................................................................................................14

Wine Rack Removal/Installation ..................................................................................14

Glass Shelf Removal/Installation (Beverage Center Only) ............................................15

Troubleshooting ..................................................................................... 16

Before You Call for Service ...............................................................................................16

If Service is Required .......................................................................................................16

Warranty Information .............................................................................. 17

3

4

Safety

Important Safety Instructions

Safety Precautions

Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

WARNING

• Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.

• Altering, cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire and/or loss of property and/or life and will void the warranty.

• Do not lift unit by door handle.

CAUTION

• Use care when moving the unit. Some edges are sharp and may cause personal injury.

Wear gloves when moving or repositioning the unit.

• Never install the unit behind closed doors.

Be sure front grille is free of obstruction.

Obstructing free air flow can cause the unit to malfunction, and may void the warranty.

• Allow unit temperature to stabilize for 24 hours before use.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION

• Use only genuine Electrolux replacement parts. Imitation parts can damage the unit and may void the warranty.

IMPORTANT

Indicates installation, operation or maintenance information which is important but not hazardrelated.

General Precautions

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw away your old appliance, take off the doors and leave shelves in place so that children may not easily climb inside.

Installation

Installing the Wine Cooler / Beverage Center

Your Electrolux wine cooler / beverage center has been designed for either free-standing or built-in installation. When built-in, your wine cooler does not require additional air space for top, sides or rear. In either case, the front grille must NOT be obstructed.

NOTE

To ease unit installation and removal, it is recommended that the cabinet rough opening dimensions be increased by at least

¼

inch over the dimensions given for your unit.

NOTE

All units require zero clearance when installed flush with a cabinet or wall. Electrolux stainless steel models require a minimum 2

⁷⁄₈ inch handle clearance when installed against a wall or cabinet that extends beyond the front edge of the unit.

Width

23

13

/

16

inch

Unit Dimensions

Height

34-35 inches

Depth

26

3

/

4

inch

5

Product Dimensions

6

Installation

Site Preparation

1 Position the unit on a flat, level surface capable of supporting the entire weight of the unit. Remember the unit will be significantly heavier once it is fully loaded.

2 This unit requires a grounded and polarized

115 VAC, 60Hz, 15A circuit (normal household current).

3 Avoid connecting the unit to a Ground

Fault Interruptor (GFI). GFIs are prone to nuisance tripping which will cause the unit to shut down. GFIs are generally not used on circuits which power equipment that must run unattended for long periods of time.

4 The unit must be installed according to your local codes and ordinances.

6 Wipe out inside of unit with a damp cloth.

7 Be sure to install the Anti-Tip bracket. Follow the instructions provided with the Anti-Tip bracket kit.

DANGER

ELECTROCUTION HAZARD!

Electrical Grounding Required. This appliance is equipped with a three prong (grounding) polarized plug for your protection against possible shock hazards.

• NEVER remove the round grounding prong from the plug.

• NEVER use a two-prong grounding adapter.

• NEVER use an extension cord to connect power to the unit.

Where a two-prong wall receptacle is encountered or a longer power cord is required, contact a qualified electrician to have it replaced in accordance with applicable electrical codes.

5 Position the unit to allow free air flow through the front grille.

Leveling

Leveling the Unit

Position the unit on a flat, level surface capable of supporting the entire weight of the unit when full.

This unit contains four (4) adjustable leveling legs. Turn the legs clockwise to raise and counterclockwise to lower.

7

8

Door Reversal

Reversing the Door

To reverse the door:

1 Disconnect power to the wine cooler / beverage center.

2 Remove toe grille by removing two (2) Philips screws. Remove plastic cap, reverse it and place it in the other side of the toe grille.

4 Remove upper right-hand (RH) hinge bracket by loosening four (4) Torx screws. Be careful to support the door while loosening and removing the upper hinge bracket.

3 Disconnect door harness from connector bracket behind lower front panel. Pull harness from behind lower front panel so it is hanging below the door.

5 Lift the door off of the lower RH hinge bracket. Turn the door upside down and place on a soft, non-abrasive surface.

Door Reversal

6 Remove access cover by removing two (2)

Philips screws.

7 Shift door harness from one side to the other.

Replace access cover.

9 Install metal left-hand (LH) door stop by installing hex head screw.

10 Install plastic LH door stop by installing hex head screw.

11 Remove lower RH door hinge by removing two (2) hex head screws.

9

8 Remove plastic RH door closer by removing hex head screw. Remove metal RH door stop by removing hex head screw.

12 Install lower LH door closer in lower LH door hinge by installing hex head screw.

13 Install lower LH door hinge by installing two

(2) hex head screws.

10

Door Reversal

14 Remove button plugs from left side of cabinet and place in right side of cabinet. Remove button plug from upper left side of door and place in upper right side of door. Place door on lower LH hinge bracket.

16 Route door harness behind lower front panel.

Reconnect door harness to bracket.

17 Reattach toe grille by installing two (2) Philips screws.

15 Install upper LH hinge bracket by installing four (4) Torx screws.

18 Reapply power.

Start-Up and Temperature Control

11

Starting the Unit

Your wine cooler / beverage center is shipped in the ON position; however, you may turn it ON or OFF by pressing and holding the ON/OFF for three (3) seconds.

Adjusting the Temperature

To accurately check the temperature, insert a reliable thermometer into a plastic (non-breakable) bottle, partially filled with water.

Tighten the bottle cap securely.

Place the bottle in the desired area for 24 hours. Refrain from opening the unit during the testing period. After 24 hours, check the temperature of the water.

Press the (+) or (–) indicator to adjust the temperature to the desired setting. The temperature display will begin to blink with the first touch. Adjust the temperature by touching the key. After three

(3) seconds of inactivity, the display will beep to accept the new temperature.

Factors that affect the internal temperatures of the cabinet include:

1 Temperature setting.

2 Room temperature where installed.

3 Number of times the door is opened and closed.

4 Amount of time the internal light is illuminated. This affects primarily wines/beverages on the top racks/shelves.

5 Installation in direct sunlight or near a heat source.

12

Operation

Description of Features

vacation mode Conserves energy by disabling interior lights and keypad inputs.

mute sounds Tones emitted by each keypress can be turned off based on user preference. The sounds are muted when the red indicator is lit. The

mute sounds

key also is used to acknowledge alarm conditions, denoted by a flashing red indicator. Press and hold the

mute sounds

key for three (3) seconds to enable

control lock

, which prevents undesired changes to the unit settings.

Temperature display will show “LOC”.

temperature mode Simultaneously pressing the (+) and (–) keys causes the temperature display to toggle from Fahrenheit to Celsius and back again.

display light Manually activates the lights, regardless of whether the door is closed. Each successive keypress will advance the interior lights from “Off” to “Low Intensity” to “Maximum

Intensity” then to “Off” again. Interior lighting is automatically disabled after 120 minutes, at which point the lights may be manually activated again if desired.

on off Press and hold for three (3) seconds. This allows the user to turn off the cooling system. The temperature display will display

“OFF”. THIS DOES NOT REMOVE POWER

FROM THE UNIT.

Alarms

door ajar

high temp

(Beverage

Center Only)

power fail

If the door has been left open for five (5) minutes, an audible alarm will sound and the

door ajar

indicator will illuminate on the right side of the display. The

mute sounds

indicator will blink. Pressing the

mute sounds

key will acknowledge the alarm and disable the audible portion. The

door ajar

indicator will continue to blink until the door is closed.

In the event of a high temperature condition, an audible alarm will sound, the temperature display will blink and display “HI” and the

high temp

indicator on the right side of the display will blink. The

mute sounds

indicator will blink. Pressing the

mute sounds

key will acknowledge the alarm and disable the audible portion. All other modes are turned off until the alarm is acknowledged. The

high temperature

indicator and “HI” will stay illuminated until a normal safe range operating temperature has been reached, at which time the temperature display will show the actual temperature.

In the event of a power failure or initial power-up, an audible alarm will sound and the

power fail

indicator on the right side of the display will blink. The

mute sounds

indicator will blink. Pressing the

mute sounds

key will acknowledge the alarm and disable the audible portion. All other functions are disabled until the alarm is acknowledged, at which point the

power fail

indicator is turned off and the unit will resume normal operation. The

high temp

alarm (beverage center only) may also be illuminated until a safe temperature has been reached.

Sabbath Mode

Sabbath mode disables portions of the unit and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community.

Sabbath mode is enabled and disabled by pressing and holding the vacation mode key for five

(5) seconds. Temperature display shows “Sb” while in Sabbath mode.

The customer may open or close the door at any time without concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones or alarms. After power failure, the unit will immediately return to Sabbath mode.

While in Sabbath mode, alarm indicators may illuminate, but will not be accompanied by audible alarms. The alarm indicators will continue to blink until the Sabbath mode is exited and the alarm condition is remedied.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.

Proper Storage

The wine cooler will accommodate 46 bottles (750 ml size). There are five (5) upper racks that will hold eight (8) bottles each and one lower display rack that will hold six (6) bottles. Specially designed wine racks allow for proper horizontal storage of the wine. The cork remains moist which keeps air from entering the bottle.

The beverage center will accommodate eight (8) bottles on the two (2) lower racks that hold four

(4) bottles each. Additional storage capacity is provided on the glass shelves above the racks.

Display Rack

(Wine Cooler Only)

The bottom rack in your wine cooler is designed for storage as well as for display purposes. The unit holds six (6) bottles in the display rack.

Stocking Recommendations

(Wine Cooler Only)

The wine racks allow for the proper horizontal storage of wine. The bottles are properly positioned so that the wine remains in contact with the cork to assure that the cork does not become dry. Use the procedure listed below to stock your wine cooler.

White and sparkling wines should be maintained on the bottom to middle racks and red wine on the top racks.

Your wine cooler should be stocked beginning with the bottom display rack at the back and working forward staggering the bottles.

Subsequent racks should be stocked similarly, starting with the back of each rack.

Storage

13

14

Maintenance

Maintaining Your Wine Cooler/

Beverage Center

Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations.

Exterior Cleaning for Your Stainless

Steel Model

• Your stainless steel model may discolor when exposed to chlorine gas, pool chemicals, salt water, or cleaners with bleach.

• Keep your stainless unit looking new by cleaning with a high quality, all-in-one stainless steel cleaner/polish on a monthly basis. Frequent cleaning will remove surface contamination that could lead to rust. Some installations will require cleaning on a weekly basis.

• DO NOT CLEAN WITH STEEL WOOL PADS.

• DO NOT USE CLEANERS THAT ARE

NOT SPECIFICALLY INTENDED FOR

STAINLESS STEEL (this includes glass, tile and counter cleansers).

• If any surface discolors or rusting appears, clean it quickly with Bon-Ami or Barkeepers

Friend Cleanser and a non-abrasive cloth.

Always clean in the direction of the grain.

Always finish this process with a high quality, all-in-one stainless steel cleaner/polish to prevent further problems.

• USE OF ABRASIVE PADS SUCH AS

SCOTCHBRITE WILL CAUSE THE

GRAINING IN THE STAINLESS TO

BECOME BLURRED.

• Rust that is allowed to linger can penetrate into the surface of the stainless steel and become impossible to remove.

Interior Cleaning - as Required

1 Disconnect power to the wine cooler / beverage center.

2 Remove racks if desired, see “WINE RACK

REMOVAL/INSTALLATION”

below.

3 Wipe down the interior with a solution of nonabrasive mild detergent and warm water.

4 Rinse with clear water.

5 Reconnect power to the unit.

Wine Rack Removal/Installation

1 Open door fully.

2 Extend wine rack fully.

3 Ball bearing slide features plastic release latches on each side. Push release latches, then pull wine rack out.

4 To reinstall, push ball bearing slides in fully.

Slide rack into ball bearing slide ensuring each side engages properly.

CAUTION

• Stainless steel models exposed to chlorine gas and moisture such as areas with spas or swimming pools, may have some discoloration of the stainless steel.

Discoloration from chlorine gas is normal.

Follow exterior cleaning instructions.

• NEVER USE CHLORIDE TO CLEAN

STAINLESS STEEL.

Glass Shelf Removal/Installation

(Beverage Center Only)

1 Open door fully.

2 Method 1 - removal of entire shelf

assembly:

a. Lift up on front edge and rear portion of shelf. Cantilever brackets will disengage from ladder.

b. To reinstall, slide shelf into cabinet ensuring the cantilever brackets engage fully in the proper holes. It may help to extend the glass portion.

Maintenance

15

3 Method 2 - glass shelf removal: a. Extend shelf fully.

b. Ball bearing slide features plastic release latches on each side. Push release latches then pull shelf out.

c. To reinstall, push ball bearing slides in fully. Slide shelf rack into ball bearing slide ensuring each side engages properly.

16

Troubleshooting

Before You Call for Service

If the unit appears to be malfunctioning, read through this manual first. If the problem persists, check the Troubleshooting Guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. Some remedies listed in the Troubleshooting Guide are very complex. Consulting or contracting a qualified service technician may be necessary.

If Service is Required

Contact the dealer where you purchased the unit if service is required. State the model and serial number and explain the problem. The model and serial number plate is located on the ceiling of your unit.

If you do not know the name of the selling dealer or a local service company, you can check online at

www.electroluxusa.com

or call

1-877-435-3287

.

DANGER

ELECTROCUTION HAZARD

NEVER attempt to repair or perform maintenance on the unit until the main electrical power has been disconnected.

Problem

Unit not cold enough.

Possible Cause

• Control set too warm.

Adjust temperatures (see “Adjusting

the Temperature” in the “

Start-Up

and Temperature Control” section).

• Light staying on.

• Airflow to front grille blocked.

Unit too cold.

• Door gasket not sealing properly.

• Control set too cold.

Adjust temperatures (see “Adjusting

the Temperature” in the “

Start-Up

and Temperature Control” section).

No interior light.

• Failed LED assembly.

Light will not go out when door is closed.

• Manual light control is ON.

• Door switch not making contact.

Remedy

• Adjust temperature colder. Allow

24 hours for temperature to stabilize.

• Turn off manual light control. See

Operation” Section.

• Airflow must not be obstructed to front grille. See “Installation

Section.

• Adjust door gasket.

• Adjust temperature warmer.

Allow 24 hours for temperature to stabilize.

• Contact a qualified Electrolux

Service Technician.

• Turn off manual light control. See

Operation” Section.

• Check for proper door alignment.

Warranty Information

17

Major Appliance Warranty Information

1.

2.

3.

4.

5.

6.

7.

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser, evaporator, dryer or tubing) of your appliance is covered by a two through fi ve year limited warranty. During the 2nd through

5th years from your original date of purchase, Electrolux will repair or replace any parts in the cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

8.

9.

10.

11.

12.

13.

14.

This warranty does not cover the following:

Products with original serial numbers that have been removed, altered or cannot be readily determined.

Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

Rust on the interior or exterior of the unit.

Products purchased “as-is” are not covered by this warranty.

Food loss due to any refrigerator or freezer failures.

Products used in a commercial setting.

Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

Service calls to repair or replace appliance light bulbs, air fi lters, water fi lters, other consumables, or knobs, handles, or other cosmetic parts.

Pickup and delivery costs; your appliance is designed to be repaired in the home.

Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

Damages to the fi nish of appliance or home incurred during transportation or installation, including but not limited to fl oors, cabinets, walls, etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fi res, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT

AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW,

BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES

SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED

WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.

YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required.

If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux

Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux

Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifi cations as described or illustrated are subject to change without notice.

USA

1-877-435-3287

Electrolux Major Appliances North America

P.O. Box 212378

Augusta, GA 30907

Canada

1-800-2

65

-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada L5V 3E4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
