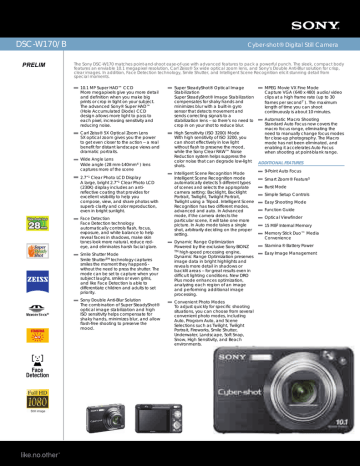

DSC-W170/B Cyber-shot® Digital Still Camera PRELIM

DSC-W170/B Cyber-shot® Digital Still Camera  PRELIM
Cyber-shot® Digital Still Camera
The Sony DSC-W170 matches point-and-shoot ease-of-use with advanced features to pack a powerful punch. The sleek, compact body
features an enviable 10.1 megapixel resolution, Carl Zeiss® 5x wide optical zoom lens, and Sony’s Double Anti-Blur solution for crisp,
clear images. In addition, Face Detection technology, Smile Shutter, and Intelligent Scene Recognition elicit stunning detail from
special moments.
10.1 MP Super HAD™ CCD
More megapixels give you more detail
and definition when you make big
prints or crop in tight on your subject.
The advanced Sony® Super HAD™
(Hole Accumulated Diode) CCD
design allows more light to pass to
each pixel, increasing sensitivity and
reducing noise.
Super SteadyShot® Optical Image
Super SteadyShot® Image Stabilization
compensates for shaky hands and
minimizes blur with a built-in gyro
sensor that detects movement and
sends correcting signals to a
stabilization lens -- so there’s no need to
crop in on your shot to reduce blur.
Carl Zeiss® 5X Optical Zoom Lens
5X optical zoom gives you the power
to get even closer to the action -- a real
benefit for distant landscape views and
dramatic portraits.
High Sensitivity (ISO 3200) Mode
With high sensitivity of ISO 3200, you
can shoot effectively in low light
without flash to preserve the mood,
while the Sony Clear RAW™ Noise
Reduction system helps suppress the
color noise that can degrade low-light
Wide Angle Lens
Wide angle (28 mm-140mm4 ) lens
captures more of the scene
2.7”1 Clear Photo LCD Display
A large, bright 2.7”1 Clear Photo LCD
(230K) display includes an antireflective coating that provides for
excellent visibility to help you
compose, view, and share photos with
superb clarity and color reproduction,
even in bright sunlight.
Face Detection
Face Detection technology
automatically controls flash, focus,
exposure, and white balance to help
reveal faces in shadows, make skin
tones look more natural, reduce redeye, and eliminates harsh facial glare.
Smile Shutter Mode
Smile ShutterTM technology captures
smiles the moment they happen6 without the need to press the shutter. The
mode can be set to capture when your
subject laughs, smiles or even grins,
and like Face Detection is able to
differentiate children and adults to set
Sony Double Anti-Blur Solution
The combination of Super SteadyShot®
optical image stabilization and high
ISO sensitivity helps compensate for
shaky hands, minimizes blur, and allow
flash-free shooting to preserve the
Intelligent Scene Recognition Mode
Intelligent Scene Recognition mode
automatically detects 5 different types
of scenes and selects the appropriate
camera setting: Backlight, Backlight
Portrait, Twilight, Twilight Portrait,
Twilight using a Tripod. Intelligent Scene
Recognition has two different modes,
advanced and auto. In Advanced
mode, if the camera detects the
particular scene, it will take one more
picture. In Auto mode takes a single
shot, arbitrarily deciding on the proper
Dynamic Range Optimization
Powered by the exclusive Sony BIONZ
TM high-speed processing engine,
Dynamic Range Optimization preserves
image data in bright highlights and
reveals more detail in shadows or
backlit areas -- for great results even in
difficult lighting conditions. New DRO
Plus mode enhances optimization,
analyzing each region of an image
and performing additional image
Convenient Photo Modes
To adjust quickly for specific shooting
situations, you can choose from several
convenient photo modes, including
Auto, Program Auto, and Scene
Selections such as Twilight, Twilight
Portrait, Fireworks, Smile Shutter,
Underwater, Landscape, Soft Snap,
Snow, High Sensitivity, and Beach
MPEG Movie VX Fine Mode
Capture VGA (640 x 480) audio/video
clips at a high frame rate (up to 30
frames per second7 ). The maximum
length of time you can shoot
continuously is about 10 minutes.
Automatic Macro Shooting
Standard Auto Focus now covers the
macro focus range, eliminating the
need to manually change focus modes
for close-up photography. The Macro
mode has not been eliminated, and
enabling it accelerates Auto Focus
when shooting at point-blank range.
9-Point Auto Focus
Smart Zoom® Feature5
Burst Mode
Simple Setup Controls
Easy Shooting Mode
Function Guide
Optical Viewfinder
15 MB2 Internal Memory
Memory Stick Duo™ Media
Stamina® Battery Power
Easy Image Management
Cyber-shot® Digital Still Camera
Megapixel: 10.1 MP
Focal Length: 5-25mm
35mm Equivalent: 28-140mm
Focus: 9-Area Multi-Point AF, Center AF, Spot
AF, Semi Manual Focus (0.5m / 1.0m /
3.0m / 7.0m / Unlimited distance)
Aperture Range: Auto( F3.3/F8.0(W), 2
steps) / Program auto( F3.3/F8.0(W), 2
steps) with ND Filter
Shutter Speed: Auto(1/4 - 1/1,600) / Program
Auto(1" - 1/1,600)
Exposure Compensation: Plus / Minus 2.0EV,
1 / 3EV step
ISO: Auto / 80 / 100 / 200 / 400 / 800 / 1600 /
Filter Diameter: N/A
Digital Zoom: Smart Zoom / Precision Digital
Zoom / Off
Optical Zoom: 5x
Macro Mode: Yes
Imaging Device: 1/2.3" Super HAD™ CCD
Recording Media: 15MB internal Flash
Memory, optional Memory Stick® DUO
Media, optional Memory Stick DUO PRO™
White Balance: Automatic, Cloudy, Daylight,
Fluorescent 1, Fluorescent 2, Fluorescent
3, Incandescent, Flash
Self Timer: Yes (10 seconds, 2 seconds, Off)
Memory Stick PRO™ Media Compatibility:
Tested to support up to 16GB Memory
Stick DUO PROTM media capacity1 ; does
not support Access Control security
Still Image Mode(s): Normal, Burst, Bracket
Red-Eye Reduction: Yes (On/Off all modes)
Burst Mode: Max 100 Shots at 1.6fps (All
Erase/Protect: Yes/Yes
Date/Time Stamp: No/ No
Media/Battery Indicator: Yes/Yes
Color Mode(s): Black & White, Natural,
Sepia, Vivid
Convenience Features
Real Imaging Processor™ Technology:
AF Illuminator Light: Auto / Off, (W:Approx.
2.0m , T:Approx. 1.7m)
PictBridge Compatible: Yes
Multi-Pattern Measuring: Yes
Scene Mode(s): Beach, High Sensitivity,
Landscape, Snow, Soft Snap, Twilight,
Twilight Portrait, Fireworks, Smile Shutter,
and Underwater.
Movie Mode(s): MPEG VX Fine with Audio
(640x480 at 30fps) (MPEG VX Fine requires
Memory Stick DUO PRO™ media), MPEG
VX Standard with Audio (640x480 at 16fps),
Presentation (320 x 240 at 8fps)
Power Save Mode: Yes (after approx. 3 min.
of inactivity)
In-Camera Editing: Trimming, Red Eye
Correction, Soft Focus, Partial Color,
Fisheye Lens, Cross Filter, Retro, Radial
Blur, Unsharp Masking, and Happy Face.
Super SteadyShot® optical image
stabilization: Yes
Inputs and Outputs
Accessory Terminal: Multi connector
Audio/Video Output(s): Yes via Mutli-Use
USB Port(s): Yes -supports USB 2.0
HD Output: Yes (1080i)
LCD: 2.7" Clear Photo LCD (230K Pixels)
Viewfinder: Optical
Lens Construction: 9 elements in 7 groups
(including 1ED glass element and
3aspheric elements)
Microphone/Speaker: Yes/ Yes
Lens Type: Carl Zeiss® Vario-Tessar®
Docking Station: Yes, via optional HD cradle
Operating Conditions
Flash Effective Range: ISO Auto: (W):Approx.
0.2 - Approx. 4.2m / (T):Approx. 0.5 Approx. 2.7m
ISO 3200: (W): uo to Approx. 8.4m /
(T):Approx. 5.3m
Flash Mode(s): Auto, Forced On, Forced
Off, Slow Synch
Total Zoom: 10x
Minimum Focus Distance: W: Approx. 3 15/16
(10cm) - Infinity / T: Approx. 19 11/16
(50cm) - Infinity
Face Detection: Yes
Battery Type: Lithium-Ion NP-BG1
Battery Capacity: 3.6V, 960 mAh
Service and Warranty Information
Limited Warranty: 1 Year Parts & Labor
Supplied Software: Windows: Picture Motion
Browser Vers 3.0.02 + USB Driver
Operating System Compatibility: Microsoft®
2000 Professional, XP Home and
Professional; Macintosh® OS 9.1/9.2/OS X
Weight: 4.4 oz (124 g) Body; 5.5 oz. (155 g)
including Battery and optional Memory
Stick® DUO Media
Measurements: 3 9/16" x 2 5/16" x 7/8" (91 x
58 x 22.9 mm)
Supplied Accessories
NP-BG1 rechargeable battery
BC-CSG battery charger
A/V and USB multi-connector cables
Wrist strap
Software CD-ROM
Note: No Memory Stick DUO TM Media or
adaptors are included.
Color: Black
UPC Code: 027242726758
1. Viewable area; measured diagonally.
2. Available storage capacity may vary and a portion of the memory is used for data management
3. HD viewing requires a Sony HD connector cable or HD Cyber-shot Station® cradle and HDTV. All sold
4. Music tracks can be up to five minutes long.When using Music Transfer to download music, tracks
longer than five minutes will be reduced to five minutes when uploading to the Cyber-shot.
5. Smart Zoom® feature will not work at highest resolution setting.
6. Up to 6 shots while in Smile Shutter mode.
7. Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo™ media.
8. Special TV settings are required. Further details are available in the BRAVIA® instruction manual.
© 2008 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony,
BIONZ, Smile Shutter, BRAVIA TV, Clear RAW, Cyber-shot, Memory Stick Duo, Memory Stick PRO Duo,
Smart Zoom, Stamina, Super HAD, and Super SteadyShot are trademarks of Sony. All other
trademarks are trademarks of their respective owners.
Please visit the Dealer Network for more information at
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 03/12/2008
