PSB48YGX
GE Profile™ 48" Built-In Side-By-Side Refrigerator with Dispenser
25-3/8" Case Depth

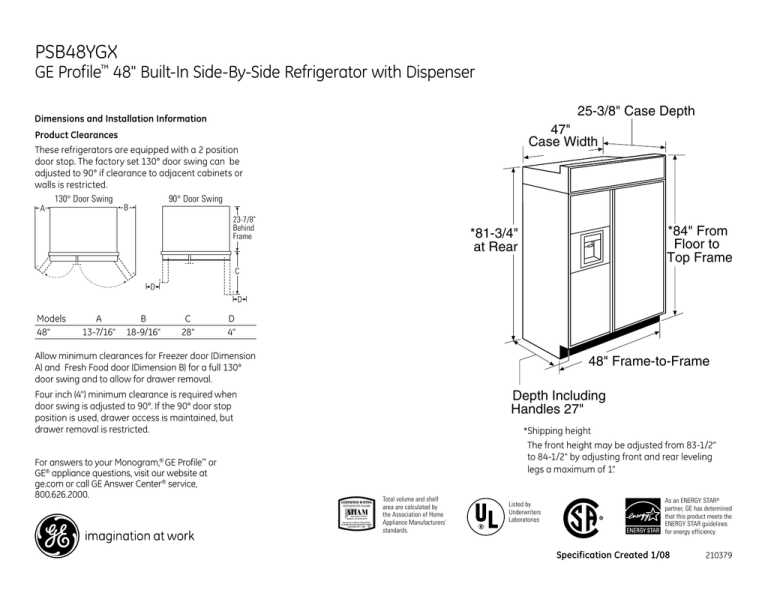

Dimensions and Installation Information
47"
Case Width
Product Clearances
These refrigerators are equipped with a 2 position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
130° Door Swing
90° Door Swing
A
B
23-7/8"
Behind
Frame
*84" From
Floor to
Top Frame
*81-3/4"
at Rear
C
D
D
Models
48"
A
B
13-7/16" 18-9/16"
C
28"
D
4"
Allow minimum clearances for Freezer door (Dimension
A) and Fresh Food door (Dimension B) for a full 130°
door swing and to allow for drawer removal.
48" Frame-to-Frame
Depth Including
Handles 27"
Four inch (4") minimum clearance is required when
door swing is adjusted to 90°. If the 90° door stop
position is used, drawer access is maintained, but
drawer removal is restricted.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
*Shipping height
*The front height may be adjusted from 83-1/2"
to 84-1/2" by adjusting front and rear leveling
legs a maximum of 1".
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
As an Energy Star®
partner, GE has determined
that this product meets the
Energy Star guidelines
for energy efficiency.
Specification Created 1/08
210379
The Installation Space
PSB48YGX
3"
*Finished Width
GE Profile™ 48" Built-In Side-By-Side Refrigerator with Dispenser
7"
Dimensions and Installation Information
Grounding the Refrigerator
important—Please read carefully
for personal safety, this appliance must be
properly grounded.
The power supply cord of this appliance is equipped
with a three-prong (grounding) plug which mates with
a standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
do not, under any
circumstances, cut
or remove the third
(ground) prong from
the power cord.
do not use an adapter plug
to connect the refrigerator
to a 2-prong outlet.
do not use an extension cord
with this appliance.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
Side Panels
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will
be exposed.
*Depending on
installation
height.
24"
7"
74"
From Floor
to Bottom
of Electrical
24"
5"
Water Supply 5"
3 1/2"
3 1/2"
*84"
*3" to 4"
1-1/2"
Flooring
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should be
strong enough to support a fully loaded refrigerator, or
approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
*The finished cutout width must be: 41-1/2" for 42" models
Water and Electrical Locations
The opening must be prepared with the electrical and
water supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinets, depending on your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or
rear wall. The water line installed should be 1/4" O.D.
copper tubing or GE SmartConnect™ tubing between
the cold water line and water connection location. The
line should be long enough to extend to the front of the
refrigerator. Installation of an easily accessible shutoff
valve in the water line is required.
Listed by
Underwriters
Laboratories
As an Energy Star®
partner, GE has determined
that this product meets the
Energy Star guidelines
for energy efficiency.
Specification Created 1/08
210379
PSB48YGX
GE Profile™ 48" Built-In Side-By-Side Refrigerator with Dispenser
1/4" Framed Panel Dimensions
If you choose to install framed panels, they must be cut to the dimensions
shown. The panels will slide into the frame on the door and grille.
important NOTE:
5/16"
Trim
Maximum
weight for Fresh Food panel is
Door
Reveal
70 pounds and 30 pounds total for Freezer
panels.
3/4" Custom Panel Dimensions
For a more custom appearance, 3/4" framed custom panels may be installed on
trimmed models. The overlay panel is secured to a 1/4" finished backer panel.
The custom panel then slides into the trim. Please see installation instructions
for detailed information.
Door
1/4"
Panel
3/4"
Custom
Panel
.250 + .750 = 1.000 Maximum Total Panel Thickness
A
Grille Panel
B
F
Dispenser
Cutout
C
G
Freezer
Panel
Fresh Food
Panel
D
E
important NOTE:
Dispenser Trim
The refrigerator is supplied with factory installed
dispenser trim.
• If panel is less than 1/4" thick, a noticeable gap will
be created around the dispenser trim. Foam tape
may be applied on the door to improve the fit.
• If panel is more than 1/4" thick, the panel will not fit
behind the trim.
1/4" Front Panel Dimensions (in inches)
3/4"
1/4"
Backer
Panel
Custom Panel
Backer Panel
NOTE: Left-to-right offset is not always
equal to top-to-bottom offset.
A
B
C
D
E
F
G
48" Models 45-31/32 10-3/4 67-7/8 18-15/32 26-15/32 17-5/8 35-5/32
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
As an Energy Star®
partner, GE has determined
that this product meets the
Energy Star guidelines
for energy efficiency.
Specification Created 1/08
210379
PSB48YGX
GE Profile™ 48" Built-In Side-By-Side Refrigerator with Dispenser
Customization Basics:
Framed or Custom Panels
Stainless Steel Wrapped Models
42" wide model—PSB48YGX
Door Handles
The handles can be used to accommodate both
framed or custom panels.
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized
with decorative panels. Field installed custom door
and grille panels are required. You may install 1/4"
thick custom panels from your cabinet manufacturer.
The decorative panel slides into the factory installed
trim. Or, order black and white accessory panels from
your Profile™ dealer.
3/4" Custom Panel
Door Handles
Framed Panel
Door Handles
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
As an Energy Star®
partner, GE has determined
that this product meets the
Energy Star guidelines
for energy efficiency.
Specification Created 1/08
210379
PSB48YGX
GE Profile™ 48" Built-In Side-By-Side Refrigerator with Dispenser
Features and Benefits
• B
uilt-In Configuration - Enjoy a true, built-in appearance with the flexibility of a flush design
that blends into the decor
• Overhead Evaporator
• C
limateKeeper™ with Dual Evaporators - Two separate climates - one for the fresh food
compartment and a separate one for the freezer to help maintain freshness throughout
the refrigerator
• E
lectronic Dispenser with Actual Temperature Display - located on the dispenser to provide
easy-access and electronic accuracy in controlling fresh food and freezer temperatures
ADJUST TEMPERATURE
COLDER
WARMER
REFRIGERATOR
• S
oft-touch Dispenser with Child Lock and Door Alarm - Dispenses water and ice with gentle
pressure, complete with safety and convenience features
37° F IS RECOMMENDED
COLDER
DISPLAY
TEMP
FREEZER
DOOR ALARM
WATER
WARMER
HOLD FOR
3 SECS
TO ACTIVATE
LOCK
0° F IS RECOMMENDED
LIGHT
ICE DISPENSER
CRUSHED
CUBED
QUICK ICE
RESET FILTER
HOLD 3 SECS
• G
E Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• F rostGuard™ Technology - Protects frozen items from freezer burn by monitoring freezer door
openings and defrosting only when needed
• Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• Slide-Out Freezer Baskets - Provides ample, easy-access storage for frozen foods
• Spillproof Glass Shelves - Shelves slide out and spills stay put
• Model PSB48YGXSV - Stainless
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
As an Energy Star®
PSB42LGR partner, GE has determined
that this product meets the
Energy Star guidelines
for energy efficiency.
Specification Created 1/08
210379
