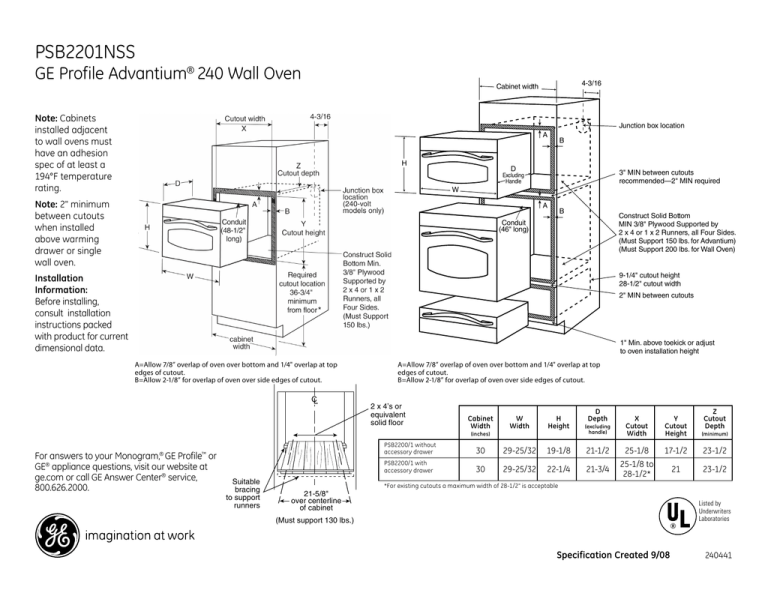

PSB2201NSS GE Profile Advantium 240 Wall Oven

PSB2201NSS GE Profile Advantium 240 Wall Oven
PSB2201NSS
GE Profile Advantium® 240 Wall Oven
Note: Cabinets
installed adjacent
to wall ovens must
have an adhesion
spec of at least a
194°F temperature
rating.
Note: 2" minimum
between cutouts
when installed
above warming
drawer or single
wall oven.
Installation
Information:
Before installing,
consult installation
instructions packed
with product for current
dimensional data.
4-3/16
Cutout width
28-1/2"
15-27/32"
Excluding
Handle
Conduit
(48-1/2"
long)
21-7/8
Junction box location
A
H
19"
Cutout depth
A
B
21"
Cutout height
Required
cutout location
36-3/4"
minimum
from floor
29-25/32
4-3/16
Cabinet width
B
D
3" MIN between cutouts
recommended—2" MIN required
Excluding
Handle
W
Junction
box
location
240-Volt
models only
A
B
Construct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Must Support 150 lbs. for Advantium)
(Must Support 200 lbs. for Wall Oven)
Conduit
(46" long)
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides.
(Must Support
150 lbs.)
9-1/4" cutout height
28-1/2" cutout width
2" MIN between cutouts
30
1" Min. above toekick or adjust
to oven installation height
A= Allow
overlap
of over
oven
over bottom
and allow
A=Allow
7/8”7/8"
overlap
of oven
bottom
and 1/4" edge
overlapofatcutout,
top
edges of cutout.
B=Allow 2-1/8” for overlap of oven over side edges of cutout.
CL
A=Allow 7/8” overlap of oven over bottom and 1/4" overlap at top
edges of cutout.
B=Allow 2-1/8” for overlap of oven over side edges of cutout.
2 x 4’s or
equivalent
solid floor
Cabinet
Width
W
Width
H
Height
(inches)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
PSB2200/1 without
accessory drawer
PSB2200/1 with
accessory drawer
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
30
30
29-25/32
29-25/32
19-1/8
22-1/4
D
Depth
Z
Cutout
Depth
X
Cutout
Width
Y
Cutout
Height
(minimum)
21-1/2
25-1/8
17-1/2
23-1/2
21-3/4
25-1/8 to
28-1/2*
21
23-1/2
(excluding
handle)
*For existing cutouts a maximum width of 28-1/2" is acceptable
Listed by
Underwriters
Laboratories
(Must support 130 lbs.)
Specification Created 9/08
240441
PSB2201NSS
GE Profile Advantium® 240 Wall Oven
Preparation with an Accessory Drawer
Prepare the opening
The Advantium 240V can be installed in combination with
other GE/Monogram appliances. Always follow each product's
Installation Instructions to compete the installation.
Single Advantium 240V Installation:
Order a 30" wide single oven cabinet or cut the opening in a wall
to the dimensions shown.
* For existing cutouts, a
23-1/2”
30”
maximum width of 28-1/2" is
acceptable. If the opening is
slightly wider, secure a furring
25-1/8”
Min.*
strip on each side of the
cutout for securing the oven.
• Always maintain 36-3/4"
21”
minimum height from
Construct
Base
the floor to the cutout in
Min. 3/8”
Plywood
any single or combined
Supported
by 2x4 or 2x2
36-3/4”
installation.
Runners all
Min.
• Allow 3/4" to 2-1/8" case trim
Four Sides
overlap on the sides and 7/8"
overlap on the bottom of
the opening for all models.
The amount of overlap on
the sides depends on the actual cutout width. Allow 1-1/4" case
trim overlap on the top for models PSB2200 and PSB2201 and for
models ZSC2200, ZSC2201 and ZSC2202.
• Oven overlaps will conceal cut edges on all sides of the opening.
For answers to your Monogram, GE Profile or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
®
™
Prepare the opening (cont.)
When installed over a single oven or a
warming drawer, allow at least 2" between
the two openings. This separation will
provide clearance for bottom overlap of the
Advantium 240V and the other appliance
overlaps.
Construct a solid oven floor of 3/8" min. thick
plywood supported by 2 x 4 or 2 x 2 runners
on all sides.
• the support must be level and rigidly
mounted, flush with the bottom edge of
the
cutout.
Installation
over a GE/Monogram
Installation over a GE/Monogram Oven
and Warming Drawer:
Warming Drawer:
30”
23-1/2”
25-1/8”
Min.*
21”
Construct Solid
Bottom Min.
3/8” Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
2” Min.
(3” recommended)
Per Oven
Requirement
2” Min.
45-1/4”
Min. Per warming drawer requirement
Warming Drawer:
23-1/2”
30”
25-1/8”
Min.*
21”
Construct
Solid Bottom
Min. 3/8”
Plywood
Supported
by 2x4 or 2x2
Runners all
Four Sides
2” Min.
(3” recommended)
Per warming
drawer
requirement
36-3/4”
Min.
* For existing cutouts, a maximum width of
28-1/2" is acceptable. If the opening is slightly
wider, secure a furring strip on each side of
the cutout for securing the oven.
Note: Additional clearances between the
cutouts may be required. Check to be sure the
oven supports above the Warming Drawer
location do not obstruct the required interior
depth and height. See Warming Drawer
installation instructions for details.
* For existing cutouts, a maximum width of
28-1/2" is acceptable. If the opening is slightly
wider, secure a furring strip on each side of
the cutout for securing the oven.
Note: Additional clearances between the
cutouts may be required. Check to be sure the
oven supports above the Warming Drawer
location do not obstruct the required interior
depth and height. See Warming Drawer
installation instructions for details.
Caution: For personal safety, the mounting
surface must be capable of supporting the
cabinet load, in addition to the added weight
of this approximate 80-pound oven and 30pound drawer, plus additional oven loads of up
to 50 pounds or a total weight of 160 pounds.
Listed by
Underwriters
Laboratories
Specification Created 9/08
240441
PSB2201NSS
GE Profile Advantium® 240 Wall Oven
Features and Benefits
• Speedcook Technology - Cooks up to 8 times faster than a conventional oven
• 4 Ovens in 1 to Meet Your Cooking Needs - Speedcook, True European Convection,
Warming/Proofing, Sensor Microwave
OVEN
MICROWAVE
CONV
SPEED
COOK
BAKE
BROIL
COOK
CUSTOM
WARM
PROOF
DEFROST
SPEED COOK
EXPRESS
REHEAT
FAVORITE
START
PAUSE
TIMER
CLEAR
OFF
RECIPES
BACK
HELP
POWER
TEMP
OPTIONS
• Optimizes cook time for consistent results
• Saves valuable time by eliminating preheating
• 16" Turntable - Allows complete rotation of a 9" x 13" casserole dish
• Over 175 preprogrammed recipes
• Full-width oven rack for multi-level cooking
• Includes speedcooking grill tray for preparing meats
• Model PSB2201NSS - Stainless steel
Accessories:
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Optional
Storage
Drawer
Available
(JX2201NSS)
Specification Created 9/08
240441
