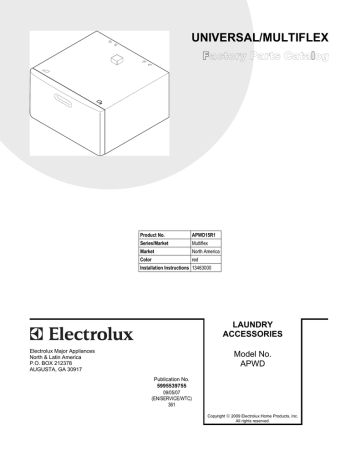

UNIVERSAL/MULTIFLEX LAUNDRY ACCESSORIES Model No.

UNIVERSAL/MULTIFLEX LAUNDRY ACCESSORIES Model No.
UNIVERSAL/MULTIFLEX
Product No.
APWD15R1
Series/Market
Multiflex
Market
North America
Color
red
Installation Instructions 13463000
LAUNDRY
ACCESSORIES
APWDCover.eps APWD2.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Model No.
APWD
Publication No.
5995539755
09/05/07
(EN/SERVICE/WTC)
361
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995539755
APWD15R1
PEDESTAL
05/09
2
APWD15R1
Publication No: 5995539755
PEDESTAL
POS. NO
1
2
3
5
6
7
8
10
12
15
16
20
36
38
52
PART NO.
134600240
134442300
134600340
134443700
134830300
134609900
134816300
134797140
134477400
134509900
134510400
134549700
131841604
134802700
131931202
DESCRIPTION
Drawer, red, assembly
• Divider, drawer, inner, (2)
Panel, drawer, red, front
Slide, drawer track, (2)
Bracket, mounting, front
Spacer, plate, washer, (2)
Bracket, mounting, rear
Cabinet, pedestal, red
Screw, sheet metal, 6-20 x 0.375, (2)
Screw, machine, 6-32 x 0.625, (2)
Nut, locking, 6-32, (2), nylon insert
Screw, 10-16 x 0.500, (28)
Leveling Leg Assy, bolt, pad & nut
Panel, back
Dampener, vibration, foam
*
134862800
Installation Kit, mtg hardware
# Functional Parts
* Non-Illustrated Parts
3
05/09
