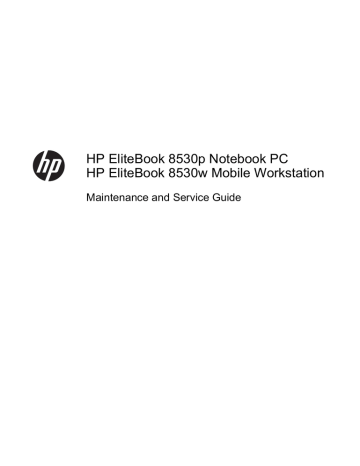

HP EliteBook 8530p Notebook PC
HP EliteBook 8530w Mobile Workstation
Maintenance and Service Guide
© Copyright 2008, 2009, 2011, 2012
Hewlett-Packard Development Company,
L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Core are
trademarks or registered trademarks of Intel
Corporation in the United States and other
countries. Microsoft, Windows, and
Windows Vista are either trademarks or
registered trademarks of Microsoft
Corporation in the United States and/or
other countries. SD Logo is a trademark of
its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Fourth Edition: April 2012
Document Part Number: 469429-004
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv
Safety warning notice
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification ................................................................................................................ 9
Display components ............................................................................................................................. 9
Top components ................................................................................................................................. 10
Pointing devices ................................................................................................................. 10
Buttons, switches, and fingerprint reader .......................................................................... 11
Keys ................................................................................................................................... 12
Lights ................................................................................................................................. 13
Front components .............................................................................................................................. 15
Left-side components ......................................................................................................................... 16
Rear components ............................................................................................................................... 17
Right-side components ....................................................................................................................... 17
Bottom components ........................................................................................................................... 18
3 Illustrated parts catalog ............................................................................................................................... 19
Service tag ......................................................................................................................................... 19
Computer major components ............................................................................................................. 20
Plastics Kit .......................................................................................................................................... 27
Cable Kit ............................................................................................................................................. 28
Mass storage devices ......................................................................................................................... 29
Miscellaneous parts ............................................................................................................................ 30
Sequential part number listing ............................................................................................................ 31
4 Removal and replacement procedures ....................................................................................................... 38
Preliminary replacement requirements ............................................................................................... 38
Tools required .................................................................................................................... 38
Service considerations ....................................................................................................... 38
Plastic parts ....................................................................................................... 38
Cables and connectors ..................................................................................... 39
Drive handling ................................................................................................... 39
v
Grounding guidelines ......................................................................................................... 40
Electrostatic discharge damage ........................................................................ 40
Packaging and transporting guidelines ............................................. 41
Workstation guidelines ..................................................................... 41
Equipment guidelines ....................................................................... 42
Component replacement procedures ................................................................................................. 43
Service tag ......................................................................................................................... 43
Computer feet .................................................................................................................... 44
Battery ............................................................................................................................... 45
SIM .................................................................................................................................... 46
Optical drive ....................................................................................................................... 47
Display inverter .................................................................................................................. 49
Hard drive .......................................................................................................................... 51
Bluetooth module ............................................................................................................... 54
RTC battery ....................................................................................................................... 55
Memory modules ............................................................................................................... 57
WWAN module .................................................................................................................. 59
Keyboard ........................................................................................................................... 61
Modem module .................................................................................................................. 64
WLAN module .................................................................................................................... 65
Switch cover ...................................................................................................................... 66
Display assembly ............................................................................................................... 69
Top cover ........................................................................................................................... 76
TouchPad .......................................................................................................................... 79
Fan ..................................................................................................................................... 81
Heat sink ............................................................................................................................ 83
Processor ........................................................................................................................... 86
Graphics card .................................................................................................................... 87
Speaker assembly ............................................................................................................. 89
System board ..................................................................................................................... 90
RJ-11 connector cable ....................................................................................................... 93
ExpressCard assembly ...................................................................................................... 94
USB/audio board ............................................................................................................... 96
5 Computer Setup ............................................................................................................................................ 98
Starting Computer Setup .................................................................................................................... 98
Using Computer Setup ....................................................................................................................... 99
Navigating and selecting in Computer Setup ..................................................................... 99
Restoring factory settings in Computer Setup ................................................................... 99
Computer Setup menus ................................................................................................................... 100
File menu ......................................................................................................................... 100
vi
Security menu .................................................................................................................. 100
Diagnostics menu ............................................................................................................ 102
System Configuration menu ............................................................................................ 103
6 Specifications .............................................................................................................................................. 106
Computer specifications ................................................................................................................... 106
15.4-in, WUXGA display specifications ............................................................................................ 107
15.4-in, WSXGA+ display specifications .......................................................................................... 108
15.4-in, WXGA display specifications ............................................................................................... 109
Hard drive specifications .................................................................................................................. 110
DVD±RW and CD-RW SuperMulti DL Combo Drive specifications ................................................. 111
Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double Layer ............................................... 112
DVD-ROM Drive specifications ........................................................................................................ 113
System DMA specifications .............................................................................................................. 114
System interrupt specifications ......................................................................................................... 115
System I/O address specifications ................................................................................................... 116
System memory map specifications ................................................................................................. 118
7 Screw listing ................................................................................................................................................ 119
Phillips PM2.0×5.0 captive screw ..................................................................................................... 120
Phillips PM2.5×11.0 captive screw ................................................................................................... 121
Phillips PM3.0×5.0 screw ................................................................................................................. 122
Torx T8M2.5×8.0 screw ................................................................................................................... 123
Phillips PM2.5×9.0 captive screw ..................................................................................................... 126
Black Torx 8M2.0×7.0 captive screw ............................................................................................... 127
Silver Torx 8M2.5×12.0 captive screw ............................................................................................. 128
Phillips PM2.5×5.0 screw ................................................................................................................. 129
Phillips PM2.5×3.0 screw ................................................................................................................. 131
Phillips PM2.0×3.0 broadhead screw ............................................................................................... 132
Black Phillips PM2.0×3.0 screw ....................................................................................................... 133
Black Phillips PM2.5×7.0 screw ....................................................................................................... 134
Black Phillips PM2.0×4.0 barrel screw ............................................................................................. 135
Silver HM2.5×6.0 hex screw locks ................................................................................................... 136
Black Phillips PM2.0×5.0 screw ....................................................................................................... 137
8 Backup and recovery .................................................................................................................................. 138
Backup and recovery in Windows Vista ........................................................................................... 138
Overview .......................................................................................................................... 138
Backing up your information ............................................................................................ 138
Performing a recovery ..................................................................................................... 139
vii
Using the Windows recovery tools .................................................................. 140
Using f11 ......................................................................................................... 140
Using a Windows Vista operating system DVD (purchased separately) ......... 141
Backup and Recovery in Windows XP ............................................................................................. 142
Backing up your information ............................................................................................ 142
When to back up ............................................................................................. 142
Backup suggestions ........................................................................................ 142
Backing up individual files or folders ............................................................... 143
Backing up all files and folders ........................................................................ 143
Creating recovery points ................................................................................. 143
Scheduling backups ........................................................................................ 144
Performing a recovery ..................................................................................................... 144
Initiating a recovery in Windows ...................................................................... 145
9 Connector pin assignments ....................................................................................................................... 146
Audio-out (headphone) ..................................................................................................................... 146
Audio-in (microphone) ...................................................................................................................... 146
External monitor ............................................................................................................................... 147
RJ-11 (modem) ................................................................................................................................ 148
RJ-45 (network) ................................................................................................................................ 148
Universal Serial Bus ......................................................................................................................... 149
10 Power cord set requirements .................................................................................................................. 150
Requirements for all countries and regions ...................................................................................... 150
Requirements for specific countries and regions ............................................................................. 151
11 Recycling ................................................................................................................................................... 152
Battery .............................................................................................................................................. 152
Display .............................................................................................................................................. 152
Index ................................................................................................................................................................. 158
viii
1
Product description
Category
Description
HP EliteBook
8530p
Notebook PC
Product Name
HP EliteBook 8530p Notebook PC
√
HP EliteBook 8530w Mobile Workstation
Processors
HP EliteBook
8530w Mobile
Workstation
√
Intel® Core™2 Extreme processors
QX9300, Quad Core 2.53-GHz processor 12MB L2 cache, 1066-MHz front side bus (FSB)
√
X9100, Dual-Core 3.06-GHz processor 6-MB
L2 cache, 1066-MHz FSB
√
Intel Core2 Quad processors
Q9100, 2.26-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
Q9000, 2.00-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
Intel Core2 Duo processors
T9900, 3.06-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
√
T9800, 2.93-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
√
T9600, 2.8-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
√
T9550, 2.66-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
√
T9400, 2.53-GHz processor 6-MB L2 cache,
1066-MHz FSB
√
√
P9500, 2.53-GHz processor 3-MB L2 cache,
1066-MHz FSB
√
√
P8800, 2.66-GHz processor 3-MB L2 cache,
1066-MHz FSB
√
√
P8700, 2.53-GHz processor 3-MB L2 cache,
1066-MHz FSB
√
√
P8600, 2.4-GHz processor 3-MB L2 cache,
1066-MHz FSB
√
√
1
Category
Chipset
Graphics
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
P8400, 2.26-GHz processor 3-MB L2 cache,
1066-MHz FSB
√
√
Intel PM45 Express Chipset with iAMT 4.0
support
√
√
Southbridge Intel ICH9M-enhanced
√
√
ATI M86M ATI Mobility Radeon HD 3650
graphics card with 256 MB of graphics
subsystem memory (supports Hypermemory)
√
ATI M86M ATI Mobility FireGL V5700 graphics
card with 256 MB of graphics subsystem
memory (supports Hypermemory)
√
nVidia NB9P-GLM2 graphics card with 512 MB
of graphics subsystem memory (supports
Quadro FX 770M)
√
HDMI 1.3 compliance
√
OpenGL driver support
Panel
2
Chapter 1 Product description
√
√
All display assemblies include 3 wireless local
area network (WLAN) antennas
√
√
15.4-in WUXGA AntiGlare with webcam
√
√
15.4-in WSXGA+ AntiGlare with webcam
√
√
15.4-in WXGA AntiGlare with webcam
√
√
15.4-in WUXGA AntiGlare with 2 wireless wide
area network (WWAN) antennas
√
√
15.4-in WSXGA+ AntiGlare with 2 WWAN
antennas
√
√
15.4-in WXGA AntiGlare with 2 WWAN
antennas
√
√
15.4-in WUXGA AntiGlare
√
√
15.4-in WSXGA+ AntiGlare
√
√
15.4-in WXGA AntiGlare
√
√
15.4-in WUXGA AntiGlare for computers with
Extreme and Quad CPUs
√
15.4-in WSXGA+ AntiGlare for computers with
Extreme and Quad CPUs
√
15.4-in WXGA AntiGlare for computers with
Extreme and Quad CPUs
√
15.4-in WUXGA AntiGlare with webcam for
computers with Extreme and Quad CPUs
√
15.4-in WXGA AntiGlare with webcam for
computers with Extreme and Quad CPUs
√
Category
Description
HP EliteBook
8530p
Notebook PC
15.4-in WXGA AntiGlare with webcam for
computers with Extreme and Quad CPUs
Memory
Hard drives
HP EliteBook
8530w Mobile
Workstation
√
Support privacy filter
√
√
Two customer-accessible/upgradable memory
module slots
√
√
Supports dual-channel memory
√
√
Supports up to 8 GB of system RAM
√
√
PC2-6400, 800-MHz, DDR2
√
√
Supports the following configurations:
√
√
Supports 9.5-mm, 6.35-cm (2.50-in) hard
drives
√
√
Customer-accessible
√
√
Serial ATA
√
√
Supports the following drives:
√
√
√
√
HP 3D DriveGuard
√
√
RAID 0/1 Support
√
√
●
8192 (4096 × 2, dual-channel) (select
models)
●
6144 (4906 + 2048)
●
5120 (4096 + 1024)
●
4096 (2048 × 2, dual-channel)
●
4096 (4096 x1)
●
3072 (2048 + 1024)
●
2048 (1024 × 2, dual-channel)
●
2048 (2048 × 1)
●
1024 (1024 × 1)
●
500-GB, 7200- and 5400-rpm
●
320-GB, 7200-rpm
●
250-GB, 7200- and 5400-rpm
●
160-GB, 7200- and 5400-rpm
●
120-GB, 5400-rpm
Supports the following solid-state drives:
●
128-GB
●
80-GB
3
Category
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
Upgrade bay
Fixed (removal of 1 screw required)
√
√
Customer-accessible
√
√
Serial ATA
√
√
12.7-mm tray load
√
√
Supports the following drives:
√
√
Supports external USB diskette drive only
√
√
Supports boot from external USB diskette drive
√
√
Microphone
Integrated dual-array microphone
√
√
Audio
HD audio - ADI 1984A
√
√
Webcam
Integrated 2.1-megpixel webcam with business
card reader support
√
√
Modem
56K V.92 1.5-in data/fax modem with digital
line guard
√
√
HD audio interface
√
√
Intel 10/100/1000 network interface card (NIC)
with iAMT
√
√
S4/S5 wake on LAN: DC - no
√
√
S4/S5 wake on LAN: AC - yes
√
√
NIC power down technology
√
√
Diskette drive
Ethernet
Wireless
●
DVD±RW and CD-RW Super Multi DL
Combo Drive with LightScribe
●
Blu-ray Disc ROM with SuperMulti DVD+/R/RW DL Drive
●
DVD-ROM Drive
Integrated WLAN options by way of wireless module:
Three WLAN antennas built into display
assembly
√
√
Support for no WLAN option
√
√
Support for the following WLAN formats:
√
√
●
Intel 802.11a/b/g/n
●
Intel 802.11a/b/g
●
Intel 802.11a/b/g/n with iAMT 4.0 support
●
Intel 802.11a/b/g with iAMT support
Integrated WWAN options by way of wireless module:
Two WWAN 5-band antennas built into display
assembly
4
Chapter 1 Product description
√
√
Category
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
Subscriber identity module (SIM) security
(customer-accessible in battery bay)
√
√
Support for the following WWAN formats:
√
√
●
Evolution-data optimized (EVDO)
●
High-speed downlink packet access
(HSDPA)
Integrated personal area network (PAN) options by way of Bluetooth® module:
External media card
Ports
Docking
Keyboard/pointing devices
Support for no PAN option
√
√
Broadcom Bluetooth
√
√
One ExpressCard/54 slot
√
√
Integrated Media Card Reader with SD, MMC,
MS, MSpro, xD, Memory Stick Duo support
√
√
Audio-in (stereo microphone)
√
√
Audio-out (stereo headphone)
√
√
HDMI
√
√
RJ-11 (modem)
√
√
RJ-45 (Ethernet, includes link and activity
lights)
√
√
USB 2.0 (4)
√
√
eSATA/USB 2.0 combo (1)
√
√
VGA (Dsub 15-pin) supporting 1600 × 1200
external resolution at 75-GHz (hot plug with
auto-detect)
√
√
1394a
√
√
3-pin AC power
√
√
HP Docking Station
√
√
HP Advanced Docking Station
√
√
12.3-in keyboard with durable key cap coating
√
√
Dual point (pointing stick and TouchPad) with 3
pointing stick buttons and 3 TouchPad buttons
and vertical scrolling (taps enabled as default)
√
√
Windows Vista® Hardware Start Button
√
√
5
Category
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
Power requirements
AC adapter with localized cable plug support
(3-wire plug with ground pin, supports 3-pin DC
connector):
√
√
8-cell, 2.55-Ah (73-Wh) Li-ion battery
√
√
Support for 8-cell Extended Life Battery
√
√
Support for 12-cell Ultra Capacity Battery
√
√
Integrated fingerprint reader
√
√
Integrated smart card reader
√
√
Security cable slot
√
√
Trusted platform module (TPM) V.1.2
√
√
Full volume encryption
√
√
Preboot authentication (password, smart card,
biometric)
√
√
√
√
Security
Operating system
●
180-W
●
150-W
●
120-W
Preinstalled:
Windows 7 Professional 32
Windows Vista Business 64 (select regions)
√
Windows Vista Business 64 with WWAN
(select regions)
√
Windows Vista Business 32 (select regions)
√
√
Windows Vista Business 32 with WWAN
(select regions)
√
√
Windows Vista Home Basic 32 (select regions)
√
√
Windows Vista Home Basic 32 with WWAN
(select regions)
√
√
Windows Vista Business with XP Professional
image (select regions)
√
√
Windows Vista Business with XP Professional
image with WWAN (select regions)
√
√
FreeDOS
√
√
FreeDOS with WWAN
√
√
Windows 7 Professional 32 with Microsoft®
Office 2007 Personal with Powerpoint
√
√
Windows 7 Professional 32 with Microsoft
Office 2007 Personal
√
√
Preinstalled with Microsoft® Office:
6
Chapter 1 Product description
Category
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
Windows 7 Professional 32 with Microsoft
Office 2007 Professional
√
√
Windows 7 Professional 32 with Microsoft
Office 2007 Ready
√
√
Windows Vista Ultimate 32 with Office 2007
Ready (select regions)
√
√
Windows Vista Ultimate 32 with Office 2007
Ready with WWAN (select regions)
√
√
Windows Vista Business 64 with Office 2007
Ready
√
Windows Vista Business 64 with Office 2007
Ready with WWAN
√
Windows Vista Business 32 with Office 2007
Ready
√
√
Windows Vista Business 32 with Office 2007
Ready with WWAN
√
√
Windows Vista Home Basic 32 with Office
2007 Ready
√
√
Windows Vista Home Basic 32 with Office
2007 Ready with WWAN
√
√
Windows Vista Business with XP Professional
with Office 2007 Ready
√
√
Windows Vista Business with XP Professional
with Office 2007 Ready with WWAN
√
√
Windows Vista Business 32 with Office 2007
Professional (Japan only)
√
Windows Vista Business 32 with Office 2007
Professional with WWAN (Japan only)
√
Windows Vista Business 32 with Office 2007
Personal (Japan only)
√
Windows Vista Business 32 with Office 2007
Personal with WWAN (Japan only)
√
Windows Vista Business 32 with Office 2007
Personal with PowerPoint (Japan only)
√
Windows Vista Business 32 with Office 2007
Personal with PowerPoint with WWAN (Japan
only)
√
Windows Vista Business with XP Professional
with Office 2007 Professional (Japan only)
√
√
Windows Vista Business with XP Professional
with Office 2007 Professional with WWAN
(Japan only)
√
√
Windows Vista Business with XP Professional
with Office 2007 Personal (Japan only)
√
√
7
Category
Description
HP EliteBook
8530p
Notebook PC
HP EliteBook
8530w Mobile
Workstation
Windows Vista Business with XP Professional
with Office 2007 Personal with WWAN (Japan
only)
√
√
Windows Vista Business with XP Professional
with Office 2007 Personal with PowerPoint
(Japan only)
√
√
Windows Vista Business with XP Professional
with Office 2007 Personal with PowerPoint with
WWAN (Japan only)
√
√
Windows 7 Professional 32
√
√
Windows Vista Ultimate 32
√
√
Windows Vista Business 32/64
√
√
Windows Vista Home Basic 32
√
√
Windows XP Professional
√
√
DRDVD Windows 7
√
√
DRDVD Windows XP Professional
√
√
DRDVD Windows Vista
√
√
Office Ready restore DVD
√
√
Restore Media:
Supported:
Windows XP 64 (Service Pack 2)
√
Certified:
Novell: SuSE Linux Enterprise Desktop
Serviceability
8
Chapter 1 Product description
√
√
AC adapter
√
√
Battery (system)
√
√
Hard drive
√
√
Keyboard
√
√
Memory module
√
√
Optical drive
√
√
WLAN module
√
√
End-user replaceable parts:
2
External component identification
Display components
Item
Component
Function
(1)
WWAN antennas (2) (select models only)*
Send and receive wireless signals to communicate with
WWANs.
(2)
WLAN antennas (3) (select models only)*
Send and receive wireless signals to communicate with
WLANs.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Display components
9
Top components
Pointing devices
Item
Component
Function
(1)
Pointing stick
Moves the pointer and selects or activates items on the
screen.
(2)
Center pointing stick button
Functions like the center button on an external mouse.
(3)
Right pointing stick button
Functions like the right button on an external mouse.
(4)
TouchPad scroll zone
Scrolls up or down.
(5)
Right TouchPad button
Functions like the right button on an external mouse.
(6)
Center TouchPad button
Functions like the center button on an external mouse.
(7)
Left TouchPad button
Functions like the left button on an external mouse.
(8)
TouchPad
Moves the pointer and selects or activates items on the
screen.
(9)
Left pointing stick button
Functions like the left button on an external mouse.
NOTE: This table describes factory settings. View or change pointing device preferences as follows:
10
●
In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.
●
In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.
Chapter 2 External component identification
Buttons, switches, and fingerprint reader
Item
Component
Function
(1)
Power button
●
When the computer is off, press the button to turn
on the computer.
●
When the computer is on, press the button to shut
down the computer.
●
When the computer is in the Sleep state (Windows
Vista) or in Standby (Windows XP), press the button
briefly to exit the Sleep state or Standby.
●
When the computer is in Hibernation, press the
button briefly to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the
computer.
To learn more about power settings, follow these steps:
(2)
Info button
●
In Windows Vista, select Start > Control Panel >
System and Maintenance > Power Options.
●
In Windows XP, select Start > Control Panel >
System and Maintenance > Power Options.
Launches Info Center, which enables you to open various
software solutions.
Top components
11
Item
Component
Function
(3)
Wireless button
Turns the wireless feature on or off, but does not
establish a wireless connection.
NOTE: A wireless network must be set up in order to
establish a wireless connection.
(4)
Internal display switch
Turns off the display if the display is closed while the
power is on.
(5)
Presentation button
Starts the presentation feature.
(6)
Volume mute button
Mutes and restores speaker sound.
(7)
Volume scroll zone
Adjusts speaker volume. Slide your finger to the left to
decrease volume and to the right to increase volume.
You can also press the left side of the volume scroll zone
to decrease volume, or press the right side of the volume
scroll zone to increase volume.
(8)
HP Fingerprint Sensor (finger print reader)
Allows a fingerprint logon to Windows, instead of a
password logon.
Keys
NOTE:
12
Your computer may look slightly different from the illustration in this section.
Item
Component
Function
(1)
esc key
Displays system information when pressed in
combination with the fn key.
(2)
Pointing stick
Moves the pointer and selects or activates items on the
screen.
Chapter 2 External component identification
Item
Component
Function
(3)
fn key
Executes frequently used system functions when pressed
in combination with a function key or the esc key.
(4)
Windows logo key
Displays the Windows Start menu.
(5)
Pointing stick buttons
Function like the buttons on an external mouse
(6)
Windows applications key
Displays a shortcut menu for items beneath the pointer.
(7)
Embedded numeric keypad keys
Can be used like the keys on an external numeric
keypad.
(8)
Function keys
Execute frequently used system functions when pressed
in combination with the fn key.
Item
Component
Function
(1)
Wireless lights (2)†
●
Turquoise: An integrated wireless device, such as a
wireless local area network (WLAN) device, the HP
Mobile Broadband Module, and/or a Bluetooth
device, is on.
●
Amber: All wireless devices are off.
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state
(Windows Vista) or in Standby (Windows XP).
●
Off: The computer is off or in Hibernation.
Lights
(2)
Power lights (2)*
Top components
13
Item
Component
Function
(3)
Battery light
●
Amber: A battery is charging.
●
Blinking turquoise: A battery is close to full charge
capacity.
●
Blinking amber: A battery that is the only available
power source has reached a low battery level. When
the battery reaches a critical battery level, the
battery light begins blinking rapidly.
●
Off: If the computer is plugged into an external
power source, the light turns off when all batteries in
the computer are fully charged. If the computer is
not plugged into an external power source, the light
stays off until the battery reaches a low battery level.
●
Blinking turquoise: The hard drive or optical drive is
being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked
the internal hard drive.
(4)
Drive light
(5)
Caps lock light
On: Caps lock is on.
(6)
Num lock light
On: Num lock is on or the embedded numeric keypad is
enabled.
(7)
Volume mute light
●
Turquoise: Computer sound is on.
●
Amber: Computer sound is off.
(8)
Volume down light
Blinking: The volume scroll zone is being used to
decrease speaker volume.
(9)
Volume up light
Blinking: The volume scroll zone is being used to
increase speaker volume.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open.
The power light on the front of the computer is visible whether the computer is open or closed.
†The 2 wireless lights display the same information. The light on the wireless button is visible only when the computer is
open. The wireless light on the front of the computer is visible whether the computer is open or closed.
14
Chapter 2 External component identification
Front components
Item
Component
Function
(1)
Wireless light
●
Turquoise: An integrated wireless device, such as a
WLAN device, the HP Mobile Broadband Module,
and/or a Bluetooth device, is turned on.
●
Amber: All wireless devices are turned off.
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state
(Windows Vista) or in Standby (Windows XP).
●
Off: The computer is off or in Hibernation.
●
Amber: A battery is charging.
●
Blinking turquoise: A battery is close to full charge
capacity.
●
Blinking amber: A battery that is the only available
power source has reached a low battery level. When
the battery reaches a critical battery level, the
battery light begins blinking rapidly.
●
Off: If the computer is plugged into an external
power source, the light turns off when all batteries in
the computer are fully charged. If the computer is
not plugged into an external power source, the light
stays off until the battery reaches a low battery level.
●
Blinking turquoise: The hard drive or optical drive is
being accessed.
●
Amber (select models only): HP 3D DriveGuard has
temporarily parked the hard drive.
(2)
(3)
(4)
Power light
Battery light
Drive light
(5)
Speakers
Produce sound.
(6)
Display release latch
Opens the computer.
Front components
15
Left-side components
Item
Component
Function
(1)
USB ports (2)
Connect optional USB devices.
(2)
RJ-45 (network) jack
Connects a network cable.
NOTE: The RJ-45 (network) jack provides Gigabit
Ethernet functionality.
(3)
Vent
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
16
(4)
HDMI port
Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or
audio component.
(5)
eSATA port
Connects an eSATA device.
(6)
1394 port (select models only)
Connects an optional IEEE 1394 or 1394a device, such
as a camcorder.
(7)
Media Card Reader
Supports the following optional digital card formats:
Memory Stick (MS), Memory Stick Duo (MS Duo),
Memory Stick Pro (MSpro), MultiMedia Card (MMC),
Secure Digital (SD) Memory Card, and xD-Picture Card.
(8)
Smart card reader
Supports optional smart cards.
(9)
ExpressCard slot
Supports optional ExpressCards.
Chapter 2 External component identification
Rear components
Item
Component
Function
(1)
Power connector
Connects an AC adapter.
(2)
External monitor port
Connects an external VGA monitor or projector.
Right-side components
Item
Component
Function
(1)
Audio-out (headphone) jack
Produces sound when connected to optional powered
stereo speakers, headphones, ear buds, a headset, or
television audio.
(2)
Audio-in (microphone) jack
Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(3)
USB ports (2) (select models only)
Connect optional USB devices.
(4)
Optical drive
Reads optical discs and, on select models, also writes to
optical discs.
(5)
RJ-11 (modem) jack
Connects a modem cable.
(6)
Security cable slot
Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
Rear components
17
Bottom components
Item
Component
Function
(1)
Battery bay
Holds the battery and a wireless subscriber identity
module (SIM). The SIM slot is located inside the battery
bay.
NOTE: The battery must be installed for the SIM to
operate.
(2)
Battery release latch
Release the battery from the battery bay.
(3)
Docking connector
Connects an optional docking device.
(4)
Vents (7)
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
(5)
Memory module compartment
Contains a memory module slot and an HP Broadband
Module.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region. If you replace the module and then receive a
warning message, remove the module to restore
computer functionality, and then contact technical
support through Help and Support.
18
(6)
Hard drive bay
Holds the hard drive.
(7)
Business card holder
Holds an optional business card.
(8)
Accessory battery connector
Connects an optional accessory battery.
Chapter 2 External component identification
3
Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
●
Product name (1). This is the product name affixed to the front of the computer.
●
Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.
●
Part number/Product number (p/n) (3). This number provides specific information about the
product's hardware components. The part number helps a service technician to determine what
components and parts are needed.
●
Model description (4). This is the alphanumeric identifier used to locate documents, drivers, and
support for the computer.
●
Warranty Period (5). This number describes the duration (in years) of the warranty period for the
computer.
Service tag
19
Computer major components
20
Item
Description
(1)
Display assembly for use with HP EliteBook 8530p computer models equipped with WLAN and WWAN capability
(includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
Chapter 3 Illustrated parts catalog
Spare part number
Item
Description
Spare part number
15.4-in, WXGA
495043-001
15.4-in, WSXGA+
495044-001
15.4-in, WUXGA
495045-001
Display assembly for use with HP EliteBook 8530w computer models equipped with WLAN and WWAN capability
(includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA
495046-001
15.4-in, WSXGA+
495047-001
15.4-in, WUXGA
495048-001
Display assembly for use with HP EliteBook 8530p computer models equipped with WLAN and WWAN capability
and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers
and cables)
15.4-in, WXGA with integrated webcam
495049-001
15.4-in, WSXGA+ with integrated webcam
495050-001
15.4-in, WUXGA with integrated webcam
495051-001
Display assembly for use with HP EliteBook 8530w computer models equipped with WLAN and WWAN capability
and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers
and cables)
15.4-in, WXGA with integrated webcam
506809-001
15.4-in, WSXGA+ with integrated webcam
506810-001
15.4-in, WUXGA with integrated webcam
506811-001
Display assembly for use with HP EliteBook 8530w computer models equipped with Intel Core2 Extreme and
Quad processors, and WLAN and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
15.4-in, WXGA
515889-001
15.4-in, WSXGA+
515890-001
15.4-in, WUXGA
515891-001
Display assembly for use with HP EliteBook 8530w computer models equipped with Intel Core2 Extreme and
Quad processors, WLAN and WWAN capability, and integrated webcam (includes 3 WLAN antenna transceivers
and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA with integrated webcam
515892-001
15.4-in, WSXGA+ with integrated webcam
515893-001
15.4-in, WUXGA with integrated webcam
515894-001
Display internal components:
Display bezel for use with HP EliteBook 8530p computer models equipped with WLAN and
WWAN capability
501111-001
Display bezel for use with HP EliteBook 8530w computer models equipped with WLAN and
WWAN capability
506812-001
Display bezel for use with HP EliteBook 8530p computer models equipped with WLAN and
WWAN capability
501112-001
Computer major components
21
Item
(2)
(3)
22
Description
Spare part number
Display bezel for use with HP EliteBook 8530w computer models equipped with WLAN and
WWAN capability and integrated webcam
506813-001
Display hinges for use with HP EliteBook 8530p computer models
495070-001
Display hinges for use with HP EliteBook 8530w computer models
502334-001
Display inverter
487431-001
Display panel enclosure
600907-001
Display cable
600908-001
Switch cover
495073-001
LED board (includes cable)
501232-001
Keyboard with pointing stick (includes pointing stick and pointing stick cable)
For use in Belgium
495042-A41
For use in Brazil
495042-201
For use in the Czech Republic
495042-221
For use in Denmark
495042-081
For use in France
495042-051
For use in French Canada
495042-121
For use in Germany
495042-041
For use in Greece
495042-DJ1
For use in Hungary
495042-211
For use in Iceland
495042-DD1
For use in Israel
495042-BB1
For use in Italy
495042-061
For use in Japan
495042-291
For use in Latin America
495042-161
For use in the Netherlands
495042-B31
For use in Norway
495042-091
For use in Portugal
495042-131
For use in Russia
495042-251
For use in Saudi Arabia
495042-171
For use in Slovakia
495042-231
For use in Slovenia
495042-BA1
For use in South Korea
495042-AD1
For use in Spain
495042-071
For use in Sweden
495042-B71
For use in Switzerland
495042-BG1
Chapter 3 Illustrated parts catalog
Item
(4)
Description
Spare part number
For use in Taiwan
495042-AB1
For use in Thailand
495042-281
For use in Turkey
495042-141
For use in the United Kingdom
495042-031
For use in the United States
495042-001
Top cover
NOTE: The top cover spare part kits do not include the fingerprint reader board and
cable. The fingerprint reader board and cable are available using spare part number
495063-001.
(5)
For use with computer models with Core2 Duo or Extreme Dual-Core processors
502335-001
For use with HP EliteBook 8530w computer models with Quad Core processors
502336-001
For use with HP EliteBook 8530p computer models
495068-001
Fingerprint reader board (not illustrated; includes fingerprint reader board cable)
495063-001
TouchPad (includes TouchPad cable)
With 3 TouchPad buttons and 3 pointing stick buttons for use with keyboards with pointing
stick (includes TouchPad cable)
(6)
WLAN module
Intel Wi-Fi Link 1300 802.11a/b/g/n 1x2WLAN module with iAMT 4.0 support:
●
For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados,
Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the
Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong
Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
480985-001 or
506078-001
Intel Wi-Fi Link 5300 802.11a/b/g/n 3x3 WLAN module with iAMT 4.0 support:
●
For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados,
Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the
Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong
Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
480986-001 or
506679-001
Intel Wi-Fi Link 5100 802.11 a/b/g 1x2 WLAN Module with iAMT 4.0 support:
●
(7)
For use in Russia, Ukraine, and Pakistan
482957-001 or
506680-001
Fan
For use with the HP EliteBook 8530p computer models or the HP EliteBook 8530w
computer models
495079-001
For use with the Quad Core processor
495080-001
Heat sink (includes a heat sink clip and replacement thermal material)
Thermal Material Kits (not illustrated)
For use with the Quad Core processor and nVidia graphics card
501116-001
For use with the Quad Core processor and ATI graphics card
495074-001
Computer major components
23
Item
(8)
Description
Spare part number
For use with the Dual-Core processor and nVidia graphics card
495075-001
For use with the Dual-Core processor and ATI graphics card
501117-001
Graphics card (includes replacement thermal material)
ATI M86M ATI Mobility Radeon HD 3650 graphics card with 256 MB of graphics subsystem
memory (supports Hypermemory)
495081-001
ATI M86M ATI Mobility FireGL V5700 graphics card with 256 MB of graphics subsystem
memory (supports Hypermemory)
502337-001
nVidia NB9P-GLM2 graphics card with 512 MB of graphics subsystem memory (supports
Quadro FX 770M)
502338-001
Plastics Kit (see Plastics Kit on page 27 for more Plastics Kit spare part information):
495076-001
(9a)
ExpressCard slot protective insert
(9b)
Memory module compartment cover
(9c)
Bluetooth module cover
(9d)
Hard drive cover
Base enclosure rubber screw covers (2, not illustrated)
Computer feet (4, not illustrated)
(10)
Processor
Intel Core2 Extreme processors
QX9300, 2.53-GHz Quad Core processor (12-MB L2 cache, 1066-MHz FSB)
501107-001
X9100, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
501106-001
Intel Core2 Quad processors
Q9100, 2.26-GHz processor (6-MB L2 cache, 1066-MHz FSB)
506808-001
Q9000, 2.0-GHz processor (6-MB L2 cache, 1066-MHz FSB)
508257-001
Intel Core2 Duo processors
24
T9900, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
618809-001
T9800, 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB)
515897-001
T9600, 2.8-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495041-001
T9550, 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB)
515896-001
T9400, 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495040-001
P9600, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618812-001
P9500, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
515895-001
P8800, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618810-001
P8700, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618811-001
P8600, 2.4-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495039-001
P8400, 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495038-001
Chapter 3 Illustrated parts catalog
Item
Description
(11)
Modem module
Spare part number
NOTE: The modem module spare part kit does not include a modem module cable. The
modem module cable is included in the Cable Kit, spare part number 495064-001. See
Cable Kit on page 28 for more Cable Kit spare part number information.
For use in all countries except for Asia Pacific and Japan
461750-001
For use in Asia Pacific and Japan
461750-011
(12)
SIM
not spared
(13)
System board
For use in all countries and regions except Russia and China:
●
For use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors
500906-001
●
For use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core
processors
500905-001
●
For use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors
500907-001
For use only in Russia and China:
●
For use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core
processors
510349-001
●
For use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors
510350-001
●
For use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors
510348-001
(14)
RTC battery
501115-001
(15)
Speaker assembly
495072-001
(16)
USB/audio board (includes USB board cable and audio board cable)
495065-001
(17)
8-cell, 2.55-Ah (73-Wh) Li-ion battery
(18)
(19)
(20)
(21)
For use in all countries and regions except for Japan
493976-001
For use in Japan
534057-291
Base enclosure (includes rubber feet)
For use with HP EliteBook 8530w computer models with Quad Core processor
495083-001
For use with HP EliteBook 8530p computer models
495082-001
Optical drive (includes bezel)
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
495061-001
Blu-ray Disc ROM with SuperMulti DVD+/-R/RW DL Drive
495062-001
DVD-ROM Drive
495060-001
Memory modules (PC2-6400, 667-MHz, DDR2)
4-GB
598855-001
2-GB
598858-001
1-GB
598861-001
Optical drive bracket
502332-001
Computer major components
25
Item
Description
(22)
WWAN module
HP un2400 Mobile Broadband Module
(23)
Spare part number
483377-001
Broadcom Bluetooth module (does not include Bluetooth module cable)
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module
cable is included in the Cable Kit, spare part number 495064-001. See Cable Kit on page 28 for more Cable Kit
spare part number information.
For use in all countries and regions
(24)
26
483113-001
Hard drive (includes hard drive bracket)
500-GB, 7200-rpm
634924-001
500-GB, 5400-rpm
634632-001
320-GB, 7200-rpm
603783-001
250-GB, 7200-rpm
495059-001
160-GB, 7200-rpm
483186-001
160-GB, 7200-rpm (Seagate only)
580297-001
160-GB, 5400-rpm
514071-001
128-GB solid-state drive
574721-001
HP Intel 80-GB solid-state drive
636545-001
80-GB solid-state drive
501113-001
Cable Kit (not illustrated; see Cable Kit on page 28 for more Cable Kit spare part number
information)
495064-001
Hard drive hardware kit (includes rails and screws)
634022-001
Chapter 3 Illustrated parts catalog
Plastics Kit
Item
Description
Spare part number
Plastics Kit:
495076-001
(1)
Memory module compartment cover (includes one captive screw, secured by a C-clip)
(2)
Hard drive cover (includes 2 captive screws, secured by C-clips)
(3)
Bluetooth module cover
(4)
Computer feet (4)
(5)
ExpressCard slot protective insert
Plastics Kit
27
Cable Kit
Item
28
Description
Spare part number
Cable Kit:
495064-001
(1)
RJ-11 connector cable
(2)
Microphone
(3)
USB/audio cable
Chapter 3 Illustrated parts catalog
Mass storage devices
Item
Description
(1)
Optical drive
Spare part number
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
495061-001
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
495062-001
DVD-ROM Drive
495060-001
(2)
Optical drive bracket
502332-001
(3)
Hard drive (includes bracket)
500-GB, 7200-rpm
634924-001
500-GB, 5400-rpm
634632-001
320-GB, 7200-rpm
603783-001
250-GB, 7200-rpm
495059-001
160-GB, 7200-rpm
483186-001
160-GB, 7200-rpm (Seagate only)
580297-001
160-GB, 5400-rpm
514071-001
128-GB solid-state drive (SSD)
574721-001
HP Intel 80-GB solid-state drive
636545-001
80-GB solid-state drive
501113-001
Hard drive hardware kit (includes rails and screws)
634022-001
Mass storage devices
29
Miscellaneous parts
Description
Spare part number
AC adapters
90-W AC adapter, 3P/RC
463955-001
90-W AC adapter, RC/V EM (for use in India)
535593-001
90-W AC adapter, RC/V 3W
613153-001
90-W AC adapter, RC/V EM 3W (for use only in India)
613160-001
90-W AC adapter, RC/V 3W
620656-001
120-W AC adapter, 3P/RC
463953-001
120-W AC adapter, RC/V 3W
613154-001
150-W AC adapter, 3P/RC
463954-001
150-W AC adapter, RC/V 3W
613156-001
180-W AC adapter, 3P/RC
463952-001
External MultiBay II
366143-001
External MultiBay II power cable and stand
366144-001
HP Extended Life Battery
456946-001
MultiBay 8X DVD-ROM Drive
373314-001
MultiBay 24X DVD/CD-RW Combo Drive
373315-001
Nylon carrying case
325814-001
USB 1.1 diskette drive
359118-001
Power cords:
30
For use in Australia
490371-011
For use in Brazil
490371-201
For use in Europe, the Middle East, and Africa
490371-021
For use in Israel
490371-BB1
For use in Italy
490371-061
For use in Japan
490371-291
For use in the People's Republic of China
490371-AA1
For use in South Africa
490371-AR1
For use in South Korea
490371-AD1
For use in Switzerland
490371-111
For use in the United Kingdom
490371-031
Chapter 3 Illustrated parts catalog
Description
Spare part number
For use in the United States
490371-001
Screw Kit
495077-001
●
Phillips PM3.0x5.0 screw
●
Phillips PM2.5×9.0 captive screw
●
Phillips PM2.5×7.0 screw
●
Phillips PM2.5×5.0 screw
●
Phillips PM2.5×3.0 screw
●
Phillips PM2.0×11.0 captive screw
●
Phillips PM2.0×5.0 captive screw
●
Phillips PM2.0×5.0 screw
●
Phillips PM2.0×4.0 barrel screw
●
Phillips PM2.0×3.0 screw
●
Phillips PM2.0×3.0 broadhead screw
●
Torx T8M2.5x12.0 captive screw
●
Torx T8M2.5x8.0 screw
●
Torx T8M2.5×7.0 captive screw
Sequential part number listing
Spare part
number
Description
456946-001
HP Extended Life Battery
461750-001
Modem module
NOTE: The modem module spare part kit does not include a modem module cable. The modem module
cable is included in the Cable Kit, spare part number 485064-001. See Cable Kit on page 28 for more Cable
Kit spare part number information.
461750-011
Modem module for use in Asia-Pacific and Japan.
463952-001
180-W AC adapter
463953-001
120-W AC adapter
463954-001
150-W AC adapter
463955-001
90-W AC adapter
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g/n 1x2 WLAN module with iAMT 4.0 support for use in Antigua and
Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands,
Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti,
Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
Sequential part number listing
31
32
Spare part
number
Description
480986-001
Intel Wi-Fi Link 5300 802.11a/b/g/n 3x3 WLAN module with iAMT 4.0 support for use in Antigua and
Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands,
Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti,
Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
482957-001
Intel Wi-Fi Link 5100 802.11 a/b/g 1x2 WLAN Module with iAMT 4.0 support for use in Russia, Ukraine, and
Pakistan
483113-001
Bluetooth module for use in all countries and regions
483186-001
160-GB, 7200-rpm hard drive
483377-001
HP un2400 Mobile Broadband Module
486565-001
Pointing stick
487431-001
Display inverter
490371-001
Power cord for use in North America
490371-011
Power cord for use in Australia
490371-021
Power cord for use in Europe, the Middle East, and Africa
490371-031
Power cord for use in the United Kingdom
490371-061
Power cord for use in Italy
490371-111
Power cord for use in Switzerland
490371-201
Power cord for use in Brazil
490371-291
Power cord for use in Japan
490371-AA1
Power cord for use in the People's Republic of China
490371-AD1
Power cord for use in South Korea
490371-AR1
Power cord for use in South Africa
490371-BB1
Power cord for use in Israel
493976-001
8-cell, 2.55-Ah (73-Wh) Li-ion battery for use in all countries and regions except Japan
495038-001
Intel Core2 Duo P8400, 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495039-001
Intel Core2 Duo P8600, 2.4-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495040-001
Intel Core2 Duo T9400, 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495041-001
Intel Core2 Duo T9600, 2.8-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495042-001
Keyboard with pointing stick for use in the United States (includes keyboard and pointing stick cables)
495042-031
Keyboard with pointing stick for use in the United Kingdom (includes keyboard and pointing stick cables)
495042-041
Keyboard with pointing stick for use in Germany (includes keyboard and pointing stick cables)
495042-051
Keyboard with pointing stick for use in France (includes keyboard and pointing stick cables)
495042-061
Keyboard with pointing stick for use in Italy (includes keyboard and pointing stick cables)
495042-071
Keyboard with pointing stick for use in Spain (includes keyboard and pointing stick cables)
495042-081
Keyboard with pointing stick for use in Denmark (includes keyboard and pointing stick cables)
Chapter 3 Illustrated parts catalog
Spare part
number
Description
495042-091
Keyboard with pointing stick for use in Norway (includes keyboard and pointing stick cables)
495042-121
Keyboard with pointing stick for use in French Canada (includes keyboard and pointing stick cables)
495042-131
Keyboard with pointing stick for use in Portugal (includes keyboard and pointing stick cables)
495042-141
Keyboard with pointing stick for use in Turkey (includes keyboard and pointing stick cables)
495042-161
Keyboard with pointing stick for use in Latin America (includes keyboard and pointing stick cables)
495042-171
Keyboard with pointing stick for use in Saudi Arabia (includes keyboard and pointing stick cables)
495042-201
Keyboard with pointing stick for use in Brazil (includes keyboard and pointing stick cables)
495042-211
Keyboard with pointing stick for use in Hungary (includes keyboard and pointing stick cables)
495042-221
Keyboard with pointing stick for use in the Czech Republic (includes keyboard and pointing stick cables)
495042-231
Keyboard with pointing stick for use in Slovakia (includes keyboard and pointing stick cables)
495042-251
Keyboard with pointing stick for use in Russia (includes keyboard and pointing stick cables)
495042-281
Keyboard with pointing stick for use in Thailand (includes keyboard and pointing stick cables)
495042-291
Keyboard with pointing stick for use in Japan (includes keyboard and pointing stick cables)
495042-A41
Keyboard with pointing stick for use in Belgium (includes keyboard and pointing stick cables)
495042-AB1
Keyboard with pointing stick for use in Taiwan (includes keyboard and pointing stick cables)
495042-AD1
Keyboard with pointing stick for use in South Korea (includes keyboard and pointing stick cables)
495042-B31
Keyboard with pointing stick for use in the Netherlands and Europe (includes keyboard and pointing stick
cables)
495042-B71
Keyboard with pointing stick for use in Sweden (includes keyboard and pointing stick cables)
495042-BA1
Keyboard with pointing stick for use in Slovenia (includes keyboard and pointing stick cables)
495042-BB1
Keyboard with pointing stick for use in Israel (includes keyboard and pointing stick cables)
495042-BG1
Keyboard with pointing stick for use in Switzerland (includes keyboard and pointing stick cables)
495042-DD1
Keyboard with pointing stick for use in Iceland (includes keyboard and pointing stick cables)
495042-DJ1
Keyboard with pointing stick for use in Greece (includes keyboard and pointing stick cables)
495043-001
15.4-in WXGA display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
495044-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability (includes 3 WLAN antenna transceivers and 2 WWAN antenna transceivers and
cables)
495045-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
495046-001
15.4-in WXGA display assembly for use with HP EliteBook 8530w computer models equipped with WLAN
and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
495047-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530w computer models equipped with
WLAN and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
Sequential part number listing
33
34
Spare part
number
Description
495048-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530w computer models equipped with WLAN
and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
495049-001
15.4-in WXGA display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
495050-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
495051-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530p computer models equipped with WLAN
and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
495059-001
250-GB, 7200-rpm hard drive (includes hard drive bracket)
495060-001
DVD-ROM Drive
495061-001
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
495062-001
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
495063-001
Fingerprint reader board (includes fingerprint reader board cable)
495064-001
Cable Kit (see Cable Kit on page 28 for more Cable Kit spare part information)
495065-001
USB/audio board (includes USB cable and audio cable)
495068-001
Top cover for use with HP EliteBook 8530p computer models
495070-001
Display hinges for use with HP EliteBook 8530p computer models
495072-001
Speaker assembly
495073-001
Switch cover (includes LED board and cable)
495074-001
Thermal Material Kit for use with the Quad Core processor and ATI graphics card
495075-001
Thermal Material Kit for use with the Dual-Core processor and nVidia graphics card
495076-001
Plastics Kit (see Plastics Kit on page 27 for more Plastics Kit spare part information)
495077-001
Screw Kit
495078-001
Rubber Kit
495079-001
Fan for use with the HP EliteBook 8530p computer models or HP EliteBook 8530w computer models
495080-001
Fan for use with HP EliteBook 8530w computer models with the Quad Core processor
495081-001
ATI M86M ATI Mobility Radeon HD 3650 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory; includes replacement thermal material)
495082-001
Base enclosure (includes rubber feet) for use with HP EliteBook 8530p computer models
495083-001
Base enclosure (includes rubber feet) for use with HP EliteBook 8530w computer models
495084-001
Wireless Antenna Kit
495085-001
ExpressCard assembly
500905-001
System board for use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core processors
500906-001
System board for use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors
Chapter 3 Illustrated parts catalog
Spare part
number
Description
500907-001
System board for use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors
501106-001
Intel Core2 Extreme X9100, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
501107-001
Intel Core2 Extreme QX9300, 2.53-GHz processor (12-MB L2 cache, 1066-MHz FSB)
501111-001
Display bezel for use with HP EliteBook 8530p computer models equipped with WLAN and WWAN
capability
501112-001
Display bezel for use with HP EliteBook 8530p computer models equipped with WLAN and WWAN
capability and integrated webcam
501113-001
80-GB solid-state drive (SSD)
501115-001
RTC battery
501116-001
Thermal Material Kit for use with the Quad Core processor and nVidia graphics card
501117-001
Thermal Material Kit for use with the Dual-Core processor and ATI graphics card
501232-001
LED board (includes cable)
502332-001
Optical drive bracket
502334-001
Display hinges for use with HP EliteBook 8530w computer models
502335-001
Top cover for use with computer models with Core2 Duo or Extreme Dual-Core processors
502336-001
Top cover for use with HP EliteBook 8530w computer models with Quad Core processors
502337-001
ATI M86M ATI Mobility FireGL V5700 graphics card with 256 MB of graphics subsystem memory (supports
Hypermemory; includes replacement thermal material)
502338-001
nVidia NB9P-GLM2 graphics card with 512 MB of graphics subsystem memory (supports Quadro FX 770M;
includes replacement thermal material)
506678-001
Intel Wi-Fi Link 5100 802.11a/b/g/n 1x2 WLAN module with iAMT 4.0 support for use in Antigua and
Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands,
Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti,
Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
506679-001
Intel Wi-Fi Link 5300 802.11a/b/g/n 3x3 WLAN module with iAMT 4.0 support for use in Antigua and
Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands,
Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti,
Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia,
Taiwan, Uruguay, the United States, Venezuela, and Vietnam
506680-001
Intel Wi-Fi Link 5100 802.11 a/b/g 1x2 WLAN Module with iAMT 4.0 support for use in for use in Russia,
Ukraine, and Pakistan
506807-001
TouchPad with 3 TouchPad buttons and 3 pointing stick buttons (for use with keyboards with pointing stick;
includes TouchPad cable)
506808-001
Intel Core2 Quad Q9100, 2.26-GHz processor (6-MB L2 cache, 1066-MHz FSB)
506809-001
15.4-in WXGA display assembly for use with HP EliteBook 8530w computer models equipped with WLAN
and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
506810-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530w computer models equipped with
WLAN and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables
and 2 WWAN antenna transceivers and cables)
Sequential part number listing
35
36
Spare part
number
Description
506811-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530w computer models equipped with WLAN
and WWAN capability and integrated webcam (includes 3 WLAN antenna transceivers and cables and 2
WWAN antenna transceivers and cables)
506812-001
Display bezel for use with HP EliteBook 8530w computer models equipped with WLAN and WWAN
capability
506813-001
Display bezel for use with HP EliteBook 8530w computer models equipped with integrated webcam and
WLAN and WWAN capability
508257-001
Intel Core2 Quad Q9000, 2.00-GHz processor (6-MB L2 cache, 1066-MHz FSB)
510348-001
System board for use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors only in
Russia and China
510349-001
System board for use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core processors only
in Russia and China
510350-001
System board for use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors only in Russia
and China
514071-001
160-GB, 5400-rpm hard drive
515889-001
15.4-in WXGA display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, and WLAN and WWAN capability (includes 3 WLAN antenna
transceivers and cables and 2 WWAN antenna transceivers and cables)
515890-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, and WLAN and WWAN capability (includes 3 WLAN antenna
transceivers and cables and 2 WWAN antenna transceivers and cables)
515891-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, and WLAN and WWAN capability (includes 3 WLAN antenna
transceivers and cables and 2 WWAN antenna transceivers and cables)
515892-001
15.4-in WXGA display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, WLAN and WWAN capability, and integrated webcam (includes 3
WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
515893-001
15.4-in WSXGA+ display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, WLAN and WWAN capability, and integrated webcam (includes 3
WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
515894-001
15.4-in WUXGA display assembly for use with HP EliteBook 8530w computer models equipped with Intel
Core2 Extreme and Quad processors, WLAN and WWAN capability, and integrated webcam (includes 3
WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
515895-001
Intel Core2 Duo P9500, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
515896-001
Intel Core2 Duo T9550, 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB)
515897-001
Intel Core2 Duo T9800, 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB)
534057-291
8-cell, 2.55-Ah (73-Wh) Li-ion battery for use in Japan
535593-001
90-W AC adapter, RC/V EM (for use in India)
574721-001
128-GB solid-state drive (SSD)
580297-001
160-GB, 7200-rpm hard drive (Seagate only)
598855-001
4-GB memory module (PC2-6400, 800-MHz, DDR2)
598858-001
2-GB memory module (PC2-6400, 800-MHz, DDR2)
Chapter 3 Illustrated parts catalog
Spare part
number
Description
598861-001
1-GB memory module (PC2-6400, 800-MHz, DDR2)
600907-001
Display panel enclosure
600908-001
Display cable
603783-001
320-GB, 7200-rpm hard drive (includes hard drive bracket)
613153-001
90-W AC adapter, RC/V 3W
613154-001
120-W AC adapter, RC/V 3W
613156-001
150-W AC adapter, RC/V 3W
613160-001
90-W AC adapter, RC/V EM 3W for use only in India
618809-001
Intel Core2 Duo T9900, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
618810-001
Intel Core2 Duo P8800, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618811-001
Intel Core2 Duo P8700, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618812-001
Intel Core2 Duo P9600, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
620656-001
90-W AC adapter, RC/V 3W
634022-001
Hard drive hardware kit (includes rails and screws)
634632-001
500-GB, 5400-rpm hard drive
634924-001
500-GB, 7200-rpm hard drive
636545-001
HP Intel 80-GB solid-state drive
Sequential part number listing
37
4
Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Phillips P0 and P1 screwdrivers
●
Torx T8 screwdriver
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.
Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.
38
Chapter 4 Removal and replacement procedures
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Preliminary replacement requirements
39
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event
40
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
Chapter 4 Removal and replacement procedures
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or
packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded
tools and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
Preliminary replacement requirements
41
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible
straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
42
Material
Use
Voltage protection level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
Chapter 4 Removal and replacement procedures
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 97 screws and screw locks, in 17 different sizes, that must be removed,
replaced, or loosened when servicing the computer. Make special note of each screw and screw lock
size and location during removal and replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
●
Product name (1). This is the product name affixed to the front of the computer.
●
Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.
●
Part number/Product number (p/n) (3). This number provides specific information about the
product's hardware components. The part number helps a service technician to determine what
components and parts are needed.
●
Model description (4). This is the alphanumeric identifier used to locate documents, drivers, and
support for the computer.
●
Warranty period (5). This number describes the duration (in years) of the warranty period for the
computer.
Component replacement procedures
43
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Plastics Kit, spare
part number 495076-001. There are 4 rubber feet that attach to the base enclosure in the locations
illustrated below.
44
Chapter 4 Removal and replacement procedures
Battery
Description
Spare part number
8-cell, 2.55-Ah (73-Wh) Li-ion battery for use in all countries and regions except Japan
493976-001
8-cell, 2.55-Ah (73-Wh) Li-ion battery for use in Japan
534057-291
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside-down on a flat surface, with the battery bay toward you.
2.
Slide the battery release latch (1) to release the battery.
3.
Remove the battery (2) from the computer.
Install the battery by inserting it into the battery bay until you hear a click.
Component replacement procedures
45
SIM
NOTE:
This section applies only to computer models with WWAN capability.
NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the
computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.
Before removing the SIM, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the SIM:
1.
Press in on the SIM (1). (The module is partially ejected from the SIM slot.)
2.
Remove the SIM (2) from the SIM slot.
Reverse this procedure to install the SIM.
46
Chapter 4 Removal and replacement procedures
Optical drive
NOTE:
All optical drive spare part kits include an optical drive bezel.
Description
Spare part number
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
495061-001
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
495062-001
DVD-ROM Drive
495060-001
Optical drive bracket
502332-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the optical drive:
1.
Position the computer with the right side toward you.
2.
Remove the Phillips PM2.5×12.0 captive screw (1) that secures the optical drive to the
computer.
3.
Push the optical drive tab (2) to release the optical drive from the computer.
4.
Remove the optical drive (3) from the computer.
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the rear
toward you.
Component replacement procedures
47
6.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
7.
Remove the optical drive bracket (2).
Reverse this procedure to install an optical drive.
48
Chapter 4 Removal and replacement procedures
Display inverter
NOTE: If it has been determined that the display inverter is the component that must be replaced to
complete the computer repair, the display assembly does not have to be removed. Follow the
procedures in this section to replace the display inverter. For information on replacing the display
assembly and the display hinges, see Display assembly on page 69.
Description
Spare part number
Display inverter (includes 2-sided tape)
487431-001
Before removing the display inverter, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the display inverter:
1.
Turn the computer right-side up, with the front toward you.
2.
Open the computer as far as possible.
3.
Remove the two rubber screw covers (1) on the bottom edge of the display bezel.
4.
Remove the two Phillips PM2.5×7.0 screws (2) that secure the display bezel bottom edge to the
display assembly.
5.
Flex the inside edges of the left and right sides (1) and the display bezel bottom edge (2) until
the bezel disengages from the display assembly.
Component replacement procedures
49
6.
Release the display bezel bottom edge (3) from the display assembly.
7.
Remove the two Phillips PM2.5×5.0 screws (1) that secure the display inverter to the display
enclosure.
8.
Release the inverter (2) from the display enclosure as far as the display panel cable and
backlight cable allow.
9.
Disconnect the backlight cable (3) and the display panel cable (4) from the display inverter.
10. Remove the display inverter.
Reverse this procedure to install the display inverter.
50
Chapter 4 Removal and replacement procedures
Hard drive
NOTE: All hard drive spare part kits include a hard drive bracket.
Description
Spare part number
500-GB, 7200-rpm hard drive
634924-001
500-GB, 5400-rpm hard drive
634632-001
320-GB, 7200-rpm hard drive
603783-001
250-GB, 7200-rpm hard drive
495059-001
160-GB, 7200-rpm hard drive
483186-001
160-GB, 7200-rpm hard drive (Seagate only)
580297-001
160-GB, 5400-rpm hard drive
514071-001
128-GB solid-state drive (SSD)
574721-001
HP Intel 80-GB solid-state drive
636545-001
80-GB solid-state drive
501113-001
Hard drive hardware kit (includes rails and screws)
634022-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the hard drive:
1.
Position the computer with the front toward you.
2.
Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the
computer.
Component replacement procedures
51
52
3.
Lift the right side of the hard drive cover (2), swing it to left, and remove the cover. The hard
drive cover is included in the Plastics Kit, spare part number 495076-001
4.
Loosen the Phillips PM2.5×11.0 captive screw (1) that secures the hard drive to the computer.
5.
Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the left to disconnect it
from the system board.
6.
Remove the hard drive (4) from the hard drive bay.
7.
If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×5.0 hard drive
bracket screws (1) from each side of the hard drive.
Chapter 4 Removal and replacement procedures
8.
Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures
53
Bluetooth module
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The
Bluetooth module cable is included in the Cable Kit, spare part number 495064-001. See Cable Kit
on page 28 for more Cable Kit spare part number information.
Description
Spare part number
Bluetooth module for use in all countries and regions
483113-001
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the hard drive (see Hard drive on page 51).
Remove the Bluetooth module:
1.
Position the computer upside-down with the rear toward you.
2.
Remove the Bluetooth cover by lifting it straight up (1) and off the computer as far as the cable
connected to the module will allow.
NOTE: The Bluetooth module is housed in the cover.
54
3.
Remove the Bluetooth module from the clip in the cover by sliding it straight down and out of the
cover (2).
4.
Disconnect the Bluetooth module cable (3) from the Bluetooth module.
Chapter 4 Removal and replacement procedures
Reverse this procedure to reassemble and install the Bluetooth module.
RTC battery
Description
Spare part number
RTC battery
501115-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the RTC battery:
1.
Position the computer upside-down with the front toward you.
2.
Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module
compartment cover to the computer.
3.
Lift the right side of the cover (2), swing it up and to the left, and remove the cover. The memory
module compartment cover is included in the Plastics Kit, spare part number 495076-001.
4.
Disconnect the RTC battery cable (1) from the system board.
Component replacement procedures
55
5.
Slide the RTC battery (2) out of the rubber pouch on the bottom of the system board.
Reverse this procedure to install the RTC battery.
56
Chapter 4 Removal and replacement procedures
Memory modules
Description
Spare part number
1-GB (PC2-6400, 800-MHz, DDR2)
598861-001
2-GB (PC2-6400, 800-MHz, DDR2)
598858-001
4-GB (PC2-6400, 800-MHz, DDR2)
598855-001
Before removing the expansion memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the expansion memory module:
1.
Position the computer upside-down with the front toward you.
2.
Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module
compartment cover to the computer.
3.
Lift the right side of the cover (2), swing it up and to the left, and remove the cover. The memory
module compartment cover is included in the Plastics Kit, spare part number 495076-001.
4.
Spread the retaining tabs (1) on each side of the expansion memory module slot to release the
memory module. (The edge of the module opposite the slot rises away from the computer.)
Component replacement procedures
57
5.
Remove the expansion memory module (2) by pulling the module away from the slot at an
angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install an expansion memory module.
Remove the primary memory module:
1.
Spread the retaining tabs (1) on each side of the primary memory module slot to release the
memory module. (The edge of the module opposite the slot rises away from the computer.)
2.
Remove the primary memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a primary memory module.
58
Chapter 4 Removal and replacement procedures
WWAN module
CAUTION: The WWAN module and the WLAN module are not interchangeable.
Description
Spare part number
HP un2400 Mobile Broadband Module
483377-001
Before removing the WWAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the SIM (see SIM on page 46).
Remove the WWAN module:
1.
Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module
compartment cover to the computer.
2.
Lift the right side of the cover (2), swing it up and to the left, and remove the cover. The memory
module compartment cover is included in the Plastics Kit, spare part number 495076-001.
3.
Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The
blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.
4.
Remove the two Phillips PM2.5×3.0 screws (2) that secure the WWAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
Component replacement procedures
59
5.
Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion.
Reverse this procedure to install the WWAN module.
60
Chapter 4 Removal and replacement procedures
Keyboard
For use in:
Spare part number
For use in:
Spare part number
Keyboards with pointing stick (includes pointing stick cable):
Belgium
495042-A41
The Netherlands and Europe
495042-B31
Brazil
495042-201
Norway
495042-091
The Czech Republic
495042-221
Portugal
495042-131
Denmark
495042-081
Russia
495042-251
France
495042-051
Saudi Arabia
495042-171
French Canada
495042-121
Slovakia
495042-231
Germany
495042-041
Slovenia
495042-BA1
Greece
495042-DJ1
Spain
495042-071
Hungary
495042-211
Sweden and Finland
495042-B71
Iceland
495042-DD1
Switzerland
495042-BG1
Israel
495042-BB1
Taiwan
495042-AB1
Italy
495042-061
Thailand
495042-281
Japan
495042-291
Turkey
495042-141
South Korea
495042-AD1
The United Kingdom
495042-031
Latin America
495042-161
The United States
495042-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
Remove the keyboard:
1.
Turn the computer upside-down, with the rear toward you.
Component replacement procedures
61
62
2.
Loosen the two Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer.
3.
Turn the computer right-side up, with the front toward you.
4.
Open the computer as far as possible.
5.
Slide the four keyboard retention tabs (1) toward you. The tabs are located between the esc and
f1 keys, between the f4 and f5 keys, between the f8 and f9 keys, and between the f12 and scroll
keys.
6.
Lift the rear edge of the keyboard (2), and then rotate the keyboard forward until it rests upsidedown on top of the TouchPad.
7.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
disconnect the keyboard cable (2) from the system board.
Chapter 4 Removal and replacement procedures
8.
Release the ZIF connector (3) to which the pointing stick cable is attached, and disconnect the
pointing stick cable (4) from the system board.
9.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures
63
Modem module
NOTE: The modem module spare part kit does not include a modem module cable. The modem
module cable is included in the Cable Kit, spare part number 495064-001. See Cable Kit on page 28
for more Cable Kit spare part number information.
Description
Spare part number
Modem module
461750-001
Modem module for use in Asia Pacific and Japan
461750-011
Before removing the modem module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
Remove the modem module:
64
1.
Turn the computer right-side up, with the front toward you.
2.
Remove the Phillips PM2.0×4.0 barrel screws (1) that secure the modem module to the system
board.
3.
Disconnect the modem module (2) from the system board by lifting it straight up.
Chapter 4 Removal and replacement procedures
4.
Disconnect the modem module cable (3) from the modem module.
Reverse this procedure to install the modem module.
WLAN module
CAUTION: The WLAN module and the WWAN module are not interchangeable.
Description
Spare part number
Intel Wi-Fi Link 5100 802.11a/b/g/n 1x2 WLAN module with iAMT 4.0 support:
●
For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,
Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic,
Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia,
Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United
States, Venezuela, and Vietnam
480985-001 or
506678-001
Intel Wi-Fi Link 5300 802.11a/b/g/n 3x3 WLAN module with iAMT 4.0 support:
●
For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,
Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic,
Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia,
Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United
States, Venezuela, and Vietnam
480986-001 or
506679-001
Intel Wi-Fi Link 5100 802.11 a/b/g 1x2 WLAN Module with iAMT 4.0 support:
●
For use in Russia, Ukraine, and Pakistan
482957-001 or
506680-001
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Component replacement procedures
65
4.
Remove the battery (see Battery on page 45).
5.
Remove the keyboard (see Keyboard on page 61).
Remove the WLAN module:
1.
Turn the computer right-side up, with the front toward you.
2.
Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal.
The white WLAN antenna cable is connected to the WLAN module “Aux” terminal. If the
computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable (2)
is connected to the middle terminal on the WLAN module.
3.
Remove the two Phillips PM2.0×4.0 barrel screws (3) that secure the WLAN module to the
computer. (The edge of the module opposite the slot rises away from the computer.)
4.
Remove the WLAN module (4) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (5) to prevent incorrect insertion.
Reverse this procedure to install the WLAN module.
Switch cover
Description
Spare part number
Switch cover (includes LED board and cable)
495073-001
Before removing the switch cover, follow these steps:
66
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Chapter 4 Removal and replacement procedures
4.
Remove the battery (see Battery on page 45).
5.
Remove the keyboard (see Keyboard on page 61).
Remove the switch cover:
1.
Turn the computer upside-down, with the rear toward you.
2.
Remove the three Phillips PM2.0×2.0 broadhead screws that secure the switch cover to the
computer.
3.
Turn the computer right-side up, with the front toward you.
4.
Open the computer as far as possible.
5.
Release the switch cover by lifting the left and right inside edges of the switch cover (1) until it
disengages from the computer.
6.
Lift the switch cover (2) up and forward and rest it on the computer while being careful not to
disconnect the LED board cable from the system board.
Component replacement procedures
67
7.
Disconnect the LED board cable (1) from the ZIF connector on the system board, and then
remove the switch cover from the computer (2).
Reverse this procedure to install the switch cover.
68
Chapter 4 Removal and replacement procedures
Display assembly
Description
Spare part number
Display assemblies for use with HP EliteBook 8530p computer models equipped with WLAN and WWAN capability (includes
3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA
495043-001
15.4-in, WSXGA+
495044-001
15.4-in, WUXGA
495045-001
Display assemblies for use with HP EliteBook 8530w computer models equipped with WLAN and WWAN capability (includes
3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA
495046-001
15.4-in, WSXGA+
495047-001
15.4-in, WUXGA
495048-001
Display assemblies for use with HP EliteBook 8530p computer models equipped WLAN and WWAN capability and
integrated webcam (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA
495049-001
15.4-in, WSXGA+
495050-001
15.4-in, WUXGA
495051-001
Display assemblies for use with HP EliteBook 8530w computer models equipped with WLAN and WWAN capability and
integrated webcam (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables)
15.4-in, WXGA
506809-001
15.4-in, WSXGA+
506810-001
15.4-in, WUXGA
506811-001
Display assemblies for use with HP EliteBook 8530w computer models equipped with Intel Core2 Extreme and Quad
processors, and WLAN and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
15.4-in, WXGA
515889-001
15.4-in, WSXGA+
515890-001
15.4-in, WUXGA
515891-001
Display assemblies for use with HP EliteBook 8530w computer models equipped with Intel Core2 Extreme and Quad
processors, WLAN and WWAN capability (includes 3 WLAN antenna transceivers and cables and 2 WWAN antenna
transceivers and cables)
15.4-in, WXGA with integrated webcam
515892-001
15.4-in, WSXGA+ with integrated webcam
515893-001
15.4-in, WUXGA with integrated webcam
515894-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
Component replacement procedures
69
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Disconnect the wireless antenna cables from the WLAN module (see WLAN module
on page 65) and the WWAN module (see WWAN module on page 59).
6.
Remove the following components:
a.
Keyboard (see Keyboard on page 61)
b.
Switch cover (see Switch cover on page 66)
Remove the display assembly:
70
1.
Position the computer right-side up with the front toward you.
2.
Disconnect the display panel cable (1) from the system board.
3.
Remove the wireless antenna cables from the clips (2) and (3) and routing channels (4) built into
the top cover.
4.
Position the computer upside-down with the rear toward you.
Chapter 4 Removal and replacement procedures
5.
Remove the following:
(1) One round screw cover on each side
(2) One large round screw cover and one wedge screw cover on each side
(3) Four Torx T8M2.5×7.0 screws
(4) One Phillips PM2.5×5.0 screw in the battery bay
6.
Remove the two Torx T8M2.5×7.0 screws (1) that secure the display assembly to the computer.
Component replacement procedures
71
7.
Lift the display assembly (2) straight up and remove it.
CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables
routed out of the display right hinge are routed and arranged properly. Each antenna cable has
an exposed section of cable and a metallic grounding sleeve (1). The grounding sleeve must
completely cover the exposed section of cable. Each cable must be secured inside a space in
the copper grounding clip (2). Left to right, the cables must be installed in a white, yellow, red,
black sequence.
Failure to follow these routing instructions can result in degradation of the computer's WLAN and
WWAN performance.
72
Chapter 4 Removal and replacement procedures
8.
If it is necessary to replace the display bezel or display hinges, remove the following:
(1) Four rubber screw covers on the display bezel top edge
(2) Two rubber screw covers on the display bezel bottom edge
(3) Four Phillips PM2.5×7.0 screws on the display bezel top edge
(4) Two Phillips PM2.5×7.0 screws on the display bezel bottom edge
NOTE: See Display inverter on page 49 for display inverter replacement instructions.
9.
Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the
display bezel until the bezel disengages from the display enclosure.
10. Remove the display bezel (3). The display bezel is available using the following spare part
numbers:
●
501111-001 (for use with HP EliteBook 8530p computer models equipped with WLAN and
WWAN capability)
●
501112-001 (for use with HP EliteBook 8530p computer models equipped with WLAN and
WWAN capability and inegrated webcam)
●
506812-001 (for use with HP EliteBook 8530w computer models equipped with WLAN and
WWAN capability)
●
506813-001 (for use with HP EliteBook 8530w computer models equipped with WLAN and
WWAN capability and integrated webcam)
Component replacement procedures
73
11. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×5.0 screws (1)
that secure each display hinge to the display panel.
12. Remove the display hinges (2). The left and right display hinges are available using spare part
number 495070-001.
13. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display panel to the display
enclosure.
The enclosure is available using spare part number 600907-001. The display cable is available
using spare part number 600908-001.
74
Chapter 4 Removal and replacement procedures
14. Remove the display panel (2).
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures
75
Top cover
Description
Spare part number
For use with computer models with Core2 Duo or Extreme Dual-Core processors
502335-001
For use with HP EliteBook 8530w computer models with Quad Core processors
502336-001
For use with HP EliteBook 8530p computer models
495068-001
Fingerprint reader board (includes fingerprint reader board cable)
495063-001
Before removing the top cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
Remove the top cover:
76
1.
Turn the computer upside-down, with the front toward you.
2.
Remove the two rubber screw covers (1). The rubber screw covers are included in the Plastics
Kit, spare part number 495076-001.
3.
Remove the seven Torx T8M2.5×7.0 screws (2) that secure the top cover to the base enclosure.
Chapter 4 Removal and replacement procedures
4.
Remove the four Phillips PM 2.0x3.0 broadhead screws (3)
5.
Turn the computer right-side up, with the rear toward you.
6.
Remove the four Torx T8M2.5×8.0 screws (1) and the two HM2.5×6.0 screw locks (2) that
secure the top cover to the computer.
7.
Remove the microphone cable from the routing path in the top cover, and then disconnect the
microphone cable from the system board.
Component replacement procedures
77
8.
Disconnect the TouchPad board ZIF cable (1) and the fingerprint reader board ZIF cable (2)
from the system board.
9.
Lift the rear edge of the top cover (1) and swing it up and forward until it rests at an angle.
10. Remove the top cover (2).
Reverse this procedure to install the top cover.
78
Chapter 4 Removal and replacement procedures
TouchPad
NOTE: All TouchPad spare part kits include a TouchPad cable. The TouchPad cable is also
included in the Cable Kit, spare part number 495064-001.
Description
Spare part number
With 3 TouchPad buttons and 3 pointing stick buttons for use with keyboards with pointing stick
506807-001
Before removing the TouchPad, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
Remove the TouchPad:
1.
Turn the top cover upside-down, with the front toward you.
2.
Remove the four Phillips PM2.0×3.0 screws that secure the TouchPad bracket to the top cover.
Component replacement procedures
79
3.
Slide the bracket forward and remove it, routing the cable through the opening in the bracket.
4.
Disconnect the TouchPad cable (1) from the system board.
5.
Remove the TouchPad (2).
Reverse this procedure to install the TouchPad.
80
Chapter 4 Removal and replacement procedures
Fan
Description
Spare part number
For use with HP EliteBook 8530p computer models or HP EliteBook 8530w computer models
495079-001
For use with HP EliteBook 8530w computer models with Intel QX9300 Quad Core processor
495080-001
Before removing the fan, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
Remove the fan:
1.
Position the computer right-side up, with the front toward you.
2.
Disconnect the fan cable (1) from the system board.
3.
Remove the two Torx 8M2.5x7.0 screws (2) that secure the fan to the base enclosure.
4.
Lift the front edge of the fan to remove it from (3) from the base enclosure.
Component replacement procedures
81
Reverse this procedure to install the fan.
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of
the computer.
The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is
designed to turn on automatically when high temperature conditions exist. These conditions are
affected by high external temperatures, system power consumption, power management/battery
conservation configurations, battery fast charging, and software requirements. Exhaust air is
displaced through the ventilation grill located on the left side of the computer.
82
Chapter 4 Removal and replacement procedures
Heat sink
Description
Spare part number
Heat sink (includes a heat sink clip and replacement thermal material)
Thermal Material Kits
For use with the Quad Core processor and nVidia graphics card
501116-001
For use with the Quad Core processor and ATI graphics card
495074-001
For use with the Dual-Core processor and nVidia graphics card
495075-001
For use with the Dual-Core processor and ATI graphics card
501117-001
Before removing the heat sink, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
Remove the heat sink:
1.
Position the computer right-side up, with the front toward you.
Component replacement procedures
83
2.
Remove the four Torx T8M2.0x7.0 captive screws (1) and the four Torx T8M2.5×12.0 captive
screws (2) that secure the heat sink to the base enclosure.
3.
Lift the right side of the heat sink (1) to disengage it from the graphics card.
4.
Remove the heat sink (2) by sliding it to the right.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1), (2),
and (3), the processor (1), the Northbridge chip (2), and various capacitors (3) each time the heat sink
is removed. Thermal material is included with all heat sink and processor spare part kits.
84
Chapter 4 Removal and replacement procedures
Reverse this procedure to install the heat sink.
Component replacement procedures
85
Processor
NOTE: All processor spare part kits include replacement thermal material. The Thermal Material Kit
is also available using spare part numbers 501117-001 (for use with Dual-Core processor and ATI
graphics card), 495075-001 (for use with Dual-Core processor and nVidia graphics card), 495074-001
(for use with Quad Core processor and ATI graphics card), and 501116-001 (for use with Quad Core
processor and nVidia graphics card),
Description
Spare part number
Intel Core2 Extreme QX9300, 2.53-GHz processor (12-MB L2 cache, 1066-MHz FSB)
501107-001
Intel Core2 Extreme X9100, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
501106-001
Intel Core2 Quad Q9100, 2.26-GHz processor (6-MB L2 cache, 1066-MHz FSB)
506808-001
Intel Core2 Quad Q9000, 2.0-GHz processor (6-MB L2 cache, 1066-MHz FSB)
508257-001
Intel Core2 Duo T9900, 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
618809-001
Intel Core2 Duo T9800, 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB)
515897-001
Intel Core2 Duo T9600, 2.8-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495041-001
Intel Core2 Duo T9550, 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB)
515896-001
Intel Core2 Duo T9400, 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB)
495040-001
Intel Core2 Duo P9600, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618812-001
Intel Core2 Duo P9500, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
515895-001
Intel Core2 Duo P8800, 2.66-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618810-001
Intel Core2 Duo P8700, 2.53-GHz processor (3-MB L2 cache, 1066-MHz FSB)
618811-001
Intel Core2 Duo P8600, 2.4-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495039-001
Intel Core2 Duo P8400, 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB)
495038-001
Before removing the processor, follow these steps:
86
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
Chapter 4 Removal and replacement procedures
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
h.
Heat sink (see Heat sink on page 83)
Remove the processor:
1.
Position the computer right-side up, with the front toward you.
2.
Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn
counterclockwise until you hear a click.
3.
Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed
on the processor slot when you install the processor.
Reverse this procedure to install the processor.
Graphics card
NOTE:
All graphics card spare part kits include replacement thermal material.
Description
Spare part number
ATI M86M ATI Mobility Radeon HD 3650 graphics card with 256 MB of graphics subsystem
memory (supports Hypermemory)
495081-001
ATI M86M ATI Mobility FireGL V5700 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory)
502337-001
nVidia NB9P-GLM2 graphics card with 512 MB of graphics subsystem memory (supports Quadro
FX 770M)
502338-001
Thermal Material Kits
For use with the ATI Quad Core processor
495074-001
For use with the nVidia Quad Core processor
501116-001
Component replacement procedures
87
Description
Spare part number
For use with the ATI Dual-Core processor
501117-001
For use with the nVidia Quad Core processor
495075–001
Before removing the graphics card, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
h.
Heat sink (see Heat sink on page 83)
Remove the graphics card:
88
1.
Position the computer right-side up, with the front toward you.
2.
Remove the two Phillips PM2.0×5.0 screws (1) that secure the graphics card to the computer.
(The edge of the board opposite the graphics card slot rises away from the computer.)
Chapter 4 Removal and replacement procedures
3.
Remove the graphics card (2) by sliding it away from the graphics card slot at an angle.
NOTE: The graphics card is designed with a notch (3) to prevent incorrect insertion.
Reverse this procedure to install the graphics card.
Speaker assembly
Description
Spare part number
Speaker assembly
495072-001
Before removing the speaker assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
Component replacement procedures
89
Remove the speaker assembly:
1.
Position the computer right-side up, with the front toward you.
2.
Disconnect the speaker cable (1) from the system board.
3.
Remove the two Torx PM2.5×7.0 screws (2) that secure the speaker assembly to the base
enclosure.
4.
Remove the speaker assembly (3) from the base enclosure.
Reverse this procedure to install the speaker assembly.
System board
NOTE: All system board spare part kits include replacement thermal material. The Thermal Material
Kit is also available using spare part numbers 413706-001 (for use in all countries or regions except
Japan and Asia countries and regions) and 445853-001 (for use only in Japan and Asia Pacific
countries and regions).
Description
Spare part number
System boards for use in all countries and regions except Russia and China:
For use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors
500906-001
For use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core processors
500905-001
For use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors
500907-001
System boards for use only in Russia and China:
90
For use in HP EliteBook 8530w models with Intel Core2 Extreme Dual-Core processors
510349-001
For use in HP EliteBook 8530w models with Intel Core2 Quad-Core processors
510350-001
For use in HP EliteBook 8530p and 8530w models with Intel Core2 Duo processors
510348-001
Chapter 4 Removal and replacement procedures
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
h.
Heat sink (see Heat sink on page 83)
i.
Speaker assembly (see Speaker assembly on page 89)
j.
Modem module (see Modem module on page 64)
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
SIM (see SIM on page 46)
●
Memory module (see Memory modules on page 57)
●
WLAN module (see WLAN module on page 65)
●
WWAN module (see WWAN module on page 59)
●
Processor (see Processor on page 86)
●
Graphics card (see Graphics card on page 87)
●
ExpressCard assembly (see ExpressCard assembly on page 94)
Remove the system board:
1.
Position the computer right-side up, with the front toward you.
Component replacement procedures
91
2.
Disconnect the following cables from the system board:
(1) RJ-11 connector cable
(2) USB/audio board cable
(3) Bluetooth module cable
3.
Position the base enclosure with the rear panel toward you.
4.
Remove the one black Phillips PM2.0×3.0 screw (1) that secures the system board frame to the
base enclosure.
5.
Lift the system board (2) and frame and slide them to the right (3) to remove them from the base
enclosure.
NOTE: When removing the system board and frame, be sure that the USB/audio board cables
route cleanly through the openings in the system board frame.
Reverse the preceding procedure to install the system board.
92
Chapter 4 Removal and replacement procedures
RJ-11 connector cable
NOTE:
The RJ-11 connector cable is included in the Cables Kit, spare part number 452198-001.
Before removing the RJ-11 connector cable, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
h.
Heat sink (see Heat sink on page 83)
i.
Modem module (see Modem module on page 64)
j.
System board (see System board on page 90)
Remove the RJ-11 connector cable:
1.
Position the computer right-side up, with the front toward you.
2.
Remove the RJ-11 connector (1) from the clip built into the base enclosure.
Component replacement procedures
93
3.
Remove the RJ-11 connector cable from the clips and routing channel (2) built into the base
enclosure.
4.
Remove the RJ-11 connector cable from the base enclosure.
Reverse this procedure to install the RJ-11 connector cable.
ExpressCard assembly
Description
Spare part number
ExpressCard assembly
495085-001
Before removing the ExpressCard assembly, follow these steps:
94
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
Chapter 4 Removal and replacement procedures
h.
Heat sink (see Heat sink on page 83)
i.
Modem module (see Modem module on page 64)
j.
System board (see System board on page 90)
Remove the ExpressCard assembly:
1.
Turn the system board upside-down, with the front toward you.
2.
Remove the four Phillips PM2.0×5.0 screws that secure the ExpressCard assembly to the
system board.
3.
Detach the slots on the ExpressCard assembly from the tabs on the ExpressCard connector (1).
4.
Remove the ExpressCard assembly (2).
Reverse this procedure to install the ExpressCard assembly.
Component replacement procedures
95
USB/audio board
Description
Spare part number
USB/audio board (includes USB cable and audio cable)
495065-001
Before removing the USB/audio board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 45).
5.
Remove the following components:
a.
Hard drive (see Hard drive on page 51)
b.
Optical drive (see Optical drive on page 47)
c.
Keyboard (see Keyboard on page 61)
d.
Switch cover (see Switch cover on page 66)
e.
Display assembly (see Display assembly on page 69)
f.
Top cover (see Top cover on page 76)
g.
Fan (see Fan on page 81)
h.
Heat sink (see Heat sink on page 83)
i.
Modem module (see Modem module on page 64)
j.
System board (see System board on page 90)
Remove the USB/audio board:
96
1.
Position the computer right-side up, with the front toward you.
2.
Disconnect the cable from the USB/audio board (1).
3.
Remove the Torx T82.5×8.0 screw (2) that secures the USB/audio board to the base enclosure.
Chapter 4 Removal and replacement procedures
4.
Lift the left side of the USB/audio board (3) until the USB and audio connectors disengage from
the openings in the base enclosure.
5.
Remove the USB/audio board and cables from the base enclosure.
Reverse this procedure to install the USB/audio board.
Component replacement procedures
97
5
Computer Setup
Starting Computer Setup
Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating
system is not working or will not load.
NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your
computer.
NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup
only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
98
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter BIOS Setup.
Chapter 5 Computer Setup
Using Computer Setup
Navigating and selecting in Computer Setup
The information and settings in Computer Setup are accessed from the File, Security, Diagnostics,
and System Configuration menus.
To navigate and select in Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
●
To select a menu or a menu item, use the keyboard arrow keys and then press enter, or
use a pointing device to click the item.
●
To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen.
●
To close open dialog boxes and return to the main Computer Setup screen, press esc, and
then follow the on-screen instructions.
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the
keyboard to navigate and make selections in Computer Setup.
2.
Press f10 to enter BIOS Setup.
3.
Select the File, Security, Diagnostics, or System Configuration menu.
To exit Computer Setup menus, choose one of the following methods:
●
To exit Computer Setup menus without saving your changes, click the Exit icon in the lower-left
corner of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Ignore changes and exit, and then press enter.
– or –
●
To save your changes and exit Computer Setup menus, click the Save icon in the lower-left
corner of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Restoring factory settings in Computer Setup
NOTE:
Restoring defaults will not change the hard drive mode.
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter BIOS Setup.
Using Computer Setup
99
3.
Use a pointing device or the arrow keys to select File > Restore defaults.
4.
Follow the on-screen instructions.
5.
To save your changes and exit, click the Save icon in the lower-left corner of the screen, and
then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
Computer Setup menus
The menu tables in this section provide an overview of Computer Setup options.
NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by
your computer.
File menu
Select
To do this
System Information
●
View identification information for the computer and the
batteries in the system.
●
View specification information for the processor, cache
and memory size, system ROM, video revision, and
keyboard controller version.
Set System Date and Time
Set or change the date and time on the computer.
Restore defaults
Replace the configuration settings in Computer Setup with
the original factory settings. (Hard drive mode, password
settings, and security settings are not changed when you
restore the factory settings.)
Ignore changes and exit
Cancel any changes entered during the current session.
Then exit and restart the computer.
Save changes and exit
Save any changes entered during the current session. Then
exit and restart the computer. Your changes go into effect
when the computer restarts.
Security menu
NOTE:
Some of the menu items listed in this section may not be supported by your computer.
Select
To do this
Setup BIOS Administrator Password
Set up a BIOS administrator password.
100 Chapter 5 Computer Setup
Select
To do this
User Management (requires a BIOS administrator password)
●
Create a new BIOS user account.
●
View a list of ProtectTools users.
Password Policy (requires a BIOS administrator password)
Revise password policy criteria.
HP SpareKey
Enable/disable HP SpareKey (enabled by default).
Always Prompt for HP SpareKey Enrollment
Enable/disable HP SpareKey enrollment (enabled by
default).
Fingerprint Reset on Reboot (If Present)
Reset/clear the fingerprint reader ownership (select models
only; disabled by default).
Allow Reset of HP ProtectTools security keys
Enable/disable reset of HP ProtectTools security keys.
Change Password
Enter, change, or delete a BIOS administrator password.
HP SpareKey Enrollment
Enroll or reset HP SpareKey, which is a set of security
questions and answers used if you forget your password.
DriveLock Passwords
●
Enable/disable DriveLock on any computer hard drive
(enabled by default).
●
Change a DriveLock user password or master
password.
NOTE: DriveLock settings are accessible only when you
enter Computer Setup by turning on (not restarting) the
computer.
TPM Embedded Security
Enable/disable support for Trusted Platform Module (TPM)
Embedded Security, which protects the computer from
unauthorized access to owner functions available in
Embedded Security for ProtectTools. For more information,
refer to the ProtectTools software Help.
NOTE: You must have a setup password to change this
setting.
Automatic DriveLock
Enable/disable Automatic DriveLock support.
Disk Sanitizer
Run Disk Sanitizer to destroy all existing data on the primary
hard drive or the drive in the upgrade bay.
CAUTION: If you run Disk Sanitizer, the data on the
selected drive is destroyed permanently.
System IDs
Enter a user-defined computer asset tracking number and
ownership tag.
Computer Setup menus 101
Diagnostics menu
Select
To do this
System Diagnostics menu
●
102 Chapter 5 Computer Setup
F1 System Information—Displays the following
information:
◦
Identification information for the computer and the
batteries in the system.
◦
Specification information for the processor, cache
and memory size, system ROM, video revision,
and keyboard controller version.
●
F2 Start-up Test—Verifies the system components
needed for starting the computer.
●
F3 Run-In Test—Runs a comprehensive check on
system memory.
●
F4 Hard Disk Test—Runs a comprehensive self-test on
any hard drive in the system.
●
F5 Error Log—Displays a log file if any errors have
occurred.
System Configuration menu
NOTE:
Some of the listed System Configuration options may not be supported by your computer.
Select
To do this
Language
Change the Computer Setup language.
Boot Options
●
Set a Startup Menu delay (in seconds).
●
Enable/disable Custom Logo (disabled by default).
●
Enable/disable Display Diagnostic URL (enabled by
default).
●
Enable/disable CD-ROM boot (enabled by default).
●
Enable/disable SD Card boot (enabled by default).
●
Enable/disable floppy boot (enabled by default).
●
Enable/disable PXE Internal NIC boot (enabled by
default).
●
Set the Express Boot Popup delay in seconds.
●
Set the boot order.
●
Enable/disable USB legacy support (enabled by
default). When enabled, USB legacy support allows the
following:
Device Configurations
◦
Use of a USB keyboard in Computer Setup even
when a Windows® operating system is not
running.
◦
Startup from bootable USB devices, including a
hard drive, diskette drive, or optical drive
connected by a USB port to the computer.
●
Select a parallel port mode: ECP (Enhanced
Capabilities Port), standard, bidirectional, or EPP
(Enhanced Parallel Port).
●
Enable/disable fan always on while connected to an AC
outlet (enabled by default).
●
Enable/disable LAN Power Save (select models only).
When enabled, saves power by turning off the LAN
when not in use (enabled by default).
●
Enable/disable Data Execution Prevention. When
enabled, the processor can disable some virus code
execution, which helps to improve computer security.
●
SATA (Serial Advanced Technology Attachment) device
mode. The following options are available:
◦
AHCI (Advanced Host Controller Interface)
◦
IDE (Integrated Drive Electronics)
◦
RAID (select models only)
Computer Setup menus 103
Select
To do this
NOTE: Availability of the options above varies by
computer model.
Built-In Device Options
104 Chapter 5 Computer Setup
●
Enable/disable secondary battery fast charge (enabled
by default).
●
Enable/disable HP QuickLook 2 (enabled by default).
●
Enable/disable Virtualization Technology (select models
only; disabled by default).
●
Enable/disable TXT (Intel Trusted Execution
Technology) (select models only; disabled by default).
●
Enable/disable Dual-Core CPU (select models only;
enabled by default).
●
Enable/Disable Unified Extensible Firmware Interface
(UEFI) mode (disabled by default).
●
Enable/disable the wireless button state (enabled by
default).
●
Enable/disable embedded WWAN device radio (select
models only; enabled by default).
●
Enable/disable embedded Bluetooth device radio
(enabled by default).
●
Enable/disable the Network Interface Controller (LAN)
(enabled by default).
●
Set the wake on LAN state. Options include the
following:
◦
Disabled
◦
Boot to Network (set by default)
◦
Follow Boot Order
●
Enable/disable the fingerprint device (enabled by
default).
●
Enable/disable a modem device (enabled by default).
●
Enable/disable the embedded WLAN device (enabled
by default).
●
Enable/disable LAN/WLAN switching (disabled by
default).
●
Enable the ambient light sensor (enabled by default).
●
Enable/disable the Notebook Multibay device (enabled
by default).
●
Enable/disable the integrated camera (select models
only; enabled by default).
Select
To do this
Port Options (all are enabled by default)
NOTE:
All port options are enabled by default.
●
Enable/disable the Smart Card slot.
●
Enable/disable the ExpressCard slot.
●
Enable/disable the serial port.
●
Enable/disable the parallel port.
●
Enable/disable the flash media reader.
●
Enable/disable the USB port.
CAUTION: Disabling the USB port also disables
MultiBay devices and ExpressCard devices on the
advanced port replicator.
●
AMT Options
Enable/disable the 1394 port.
NOTE:
All AMT options are disabled by default.
●
Enable/disable Firmware Verbosity.
●
Enable/disable AMT Setup Prompt (CTRL-P).
●
Enable/disable USB Key Provisioning Support.
●
Enable/disable Unconfigure AMT on Next Boot.
●
Enable/disable Terminal Emulation Mode
●
Enable/disable Firmware Progress Event Support.
●
Enable/disable include TYPE-131 in SMBIOS.
Set Security Level
Change, view, or hide security levels for all BIOS menu
items.
Restore Security Defaults
Restore the default security settings.
Computer Setup menus 105
6
Specifications
Computer specifications
Metric
U.S.
Length
26.0 cm
10.24 in
Width
35.7 cm
14.00 in
Height (front to rear)
2.8 to 3.4 cm
1.10 to 1.34 in
Weight (equipped with optical drive, 8-cell battery, one 512MB memory module, pointing stick, and TouchPad)
2.77 kg
6.1 lbs
Dimensions
Input power
Operating voltage
19.0 V dc @ 4.74 A – 90 W
Operating current
4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C
32°F to 95°F
Operating (writing to optical disc)
5°C to 35°C
41°F to 95°F
Nonoperating
-20°C to 60°C
-4°F to 140°F
Relative humidity
Operating
10% to 90%
Nonoperating
5% to 95%
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia)
-15 m to 3,048 m
50 ft to 10,000 ft
Nonoperating (14.7 to 4.4 psia)
-15 m to 12,192 m
-50 ft to 40,000 ft
Shock
Operating
125 g, 2 ms, half-sine
Nonoperating
200 g, 2 ms, half-sine
Random vibration
Operating
106 Chapter 6 Specifications
0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep
rate
Metric
Nonoperating
U.S.
1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within
this range of temperatures.
15.4-in, WUXGA display specifications
Metric
U.S.
Height
20.7 cm
8.15 in
Width
33.1 cm
13.03 in
Diagonal
39.1 cm
15.39 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.197 × 0.197 mm
Format
1920 × 1200
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
7.0 W
Viewing angle
+/-40 horizontal, +/–50° vertical (typical)
15.4-in, WUXGA display specifications 107
15.4-in, WSXGA+ display specifications
Metric
U.S.
Height
20.7 cm
8.15 in
Width
33.1 cm
13.03 in
Diagonal
39.1 cm
15.39 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.197 × 0.197 mm
Format
1680 × 1050
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
7.0 W
Viewing angle
+/-40 horizontal, +/–50° vertical (typical)
108 Chapter 6 Specifications
15.4-in, WXGA display specifications
Metric
U.S.
Height
20.7 cm
8.15 in
Width
33.1 cm
13.03 in
Diagonal
39.1 cm
15.39 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.197 × 0.197 mm
Format
1366 × 768
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
7.0 W
Viewing angle
+/-40 horizontal, +/–50° vertical (typical)
15.4-in, WXGA display specifications 109
Hard drive specifications
500-GB*
320-GB*
250-GB*
160-GB*
Height
9.5 mm
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
70 mm
Weight
101 g
101 g
101 g
101 g
Interface type
SATA
SATA
SATA
SATA
Transfer rate
100 MB/sec
100 MB/sec
100 MB/sec
100 MB/sec
Security
ATA security
ATA security
ATA security
ATA security
Dimensions
Seek times (typical read, including setting)
Single track
3 ms
3 ms
3 ms
3 ms
Average
13 ms
13 ms
13 ms
13 ms
Maximum
24 ms
24 ms
24 ms
24 ms
Logical blocks
1,048,576,000
625,141,400
488,397,168
312,560,640
Disc rotational speed
7200 and 5400 rpm
7200 rpm
7200 and 5400 rpm
7200 rpm and 5400
rpm
Operating temperature
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
110 Chapter 6 Specifications
DVD±RW and CD-RW SuperMulti DL Combo Drive
specifications
Applicable disc
Center hole diameter
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CDROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD),
Multisession CD (Photo-CD, CD-EXTRA,
Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVDR, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R and CD-RW
DVD+R, DVD+RW, DVD-R, DVDRW, DVD-RAM
1.5 cm (0.59 in)
Disc diameter
Standard disc
12 cm (4.72 in)
Mini disc
8 cm (3.15 in)
Disc thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD
DVD
Random
< 175 ms
< 230 ms
Full stroke
< 285 ms
< 335 ms
Audio output level
Line-out, 0.7 Vrms
Cache buffer
2 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD-ROM
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
Transfer mode
Multiword DMA Mode
Startup time
< 15 seconds
Stop time
< 6 seconds
DVD±RW and CD-RW SuperMulti DL Combo Drive specifications 111
Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW
Double Layer
Applicable disc
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CDTEXT,
CD-ROM, CD-ROM XA,
MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession
CD (Photo-CD, CD-EXTRA, Portfolio,
CD-R, CD-RW), CD-R, CD-RW,
DVDROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM, HDROM (Single Layer), HD-ROM (Dual
Layer), HD DVD-R, HD DVD-R for
Dual Layer, HD DVD-RW
CD-R and CD-RW DVD+R, DVD+R(9),
DVD+RW, DVD-R, DVD-R(9),DVD-RW,
DVD-RAM
Access time
CD
DVD
HD
Random
170 ms
170 ms
230 ms
Cache buffer
8 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
1X BD-ROM
4,500 KB/sec
1X BD-R read
4,500 KB/sec
1X BD-RE read
4,500 KB/sec
Transfer mode
Multiword DMA Mode
112 Chapter 6 Specifications
DVD-ROM Drive specifications
Applicable disc
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital
Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form
2), CD-R, CD-RW, Photo CD (single and multisession), CD-Bridge
Center hole diameter
1.5 cm (0.59 in)
Disc diameter
Standard disc
12 cm (4.72 in)
Mini disc
8 cm (3.15 in)
Disc thickness
1.2 mm (0.047 in)
Track pitch
0.74 µm
Access time
CD
DVD
Random
< 100 ms
< 125 ms
Full stroke
< 175 ms
< 225 ms
Audio output level
Line-out, 0.7 Vrms
Cache buffer
512 KB
Data transfer rate
CD-R (24X)
3600 KB/s (150 KB/s at 1X CD rate)
CD-RW (10X)
1500 KB/s (150 KB/s at 1X CD rate)
CD-ROM (24X)
3600 KB/s (150 KB/s at 1X CD rate)
DVD (8X)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
Multiword DMA mode 2
16.6 MB/s
Startup time
< 10 seconds
Stop time
< 3 seconds
DVD-ROM Drive specifications 113
System DMA specifications
Hardware DMA
System function
DMA0
Not applicable
DMA1*
Not applicable
DMA2*
Not applicable
DMA3
Not applicable
DMA4
Direct memory access controller
DMA5*
Available for PC Card
DMA6
Not assigned
DMA7
Not assigned
*PC Card controller can use DMA 1, 2, or 5.
114 Chapter 6 Specifications
System interrupt specifications
Hardware IRQ
System function
IRQ0
System timer
IRQ1
Standard 101-/102-Key or Microsoft Natural Keyboard
IRQ2
Cascaded
IRQ3
Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD
IRQ4
COM1
IRQ5*
Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax
Modem with SmartCP
IRQ6
Diskette drive
IRQ7*
Parallel port
IRQ8
System CMOS/real-time clock
IRQ9*
Microsoft ACPI-compliant system
IRQ10*
Intel USB UHCI controller—24C2
Intel 82852/82855 GM/GME Graphic Controller
Realtek RTL8139 Family PCI Fast Ethernet Controller
IRQ11
Intel USB EHCI controller—24CD
Intel USB UHCI controller—24C4
Intel USB UHCI controller—24C7
Intel Pro/Wireless 2200BG
TI OHCI 1394 host controller
TI PCI1410 CardBus controller
IRQ12
Synaptics PS/2 TouchPad
IRQ13
Numeric data processor
IRQ14
Primary IDE channel
IRQ15
Secondary IDE channel
*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.
NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial
port may assert IRQ3 or IRQ4.
System interrupt specifications 115
System I/O address specifications
I/O address (hex)
System function (shipping configuration)
000 - 00F
DMA controller no. 1
010 - 01F
Unused
020 - 021
Interrupt controller no. 1
022 - 024
Opti chipset configuration registers
025 - 03F
Unused
02E - 02F
87334 “Super I/O” configuration for CPU
040 - 05F
Counter/timer registers
044 - 05F
Unused
060
Keyboard controller
061
Port B
062 - 063
Unused
064
Keyboard controller
065 - 06F
Unused
070 - 071
NMI enable/RTC
072 - 07F
Unused
080 - 08F
DMA page registers
090 - 091
Unused
092
Port A
093 - 09F
Unused
0A0 - 0A1
Interrupt controller no. 2
I/O Address (hex)
System Function (shipping configuration)
0A2 - 0BF
Unused
0C0 - 0DF
DMA controller no. 2
0E0 - 0EF
Unused
0F0 - 0F1
Coprocessor busy clear/reset
0F2 - 0FF
Unused
100 - 16F
Unused
170 - 177
Secondary fixed disk controller
178 - 1EF
Unused
1F0 - 1F7
Primary fixed disk controller
1F8 - 200
Unused
201
JoyStick (decoded in ESS1688)
202 - 21F
Unused
116 Chapter 6 Specifications
I/O address (hex)
System function (shipping configuration)
220 - 22F
Entertainment audio
230 - 26D
Unused
26E - 26
Unused
278 - 27F
Unused
280 - 2AB
Unused
2A0 - 2A7
Unused
2A8 - 2E7
Unused
2E8 - 2EF
Reserved serial port
2F0 - 2F7
Unused
2F8 - 2FF
Infrared port
300 - 31F
Unused
320 - 36F
Unused
370 - 377
Secondary diskette drive controller
378 - 37F
Parallel port (LPT1/default)
380 - 387
Unused
388 - 38B
FM synthesizer—OPL3
38C - 3AF
Unused
3B0 - 3BB
VGA
3BC - 3BF
Reserved (parallel port/no EPP support)
3C0 - 3DF
VGA
3E0 - 3E1
PC Card controller in CPU
3E2 - 3E3
Unused
3E8 - 3EF
Internal modem
3F0 - 3F7
“A” diskette controller
3F8 - 3FF
Serial port (COM1/default)
CF8 - CFB
PCI configuration index register (PCIDIVO-1)
CFC - CFF
PCI configuration data register (PCIDIVO-1)
System I/O address specifications 117
System memory map specifications
Size
Memory address
System function
640 KB
00000000-0009FFFF
Base memory
128 KB
000A0000-000BFFFF
Video memory
48 KB
000C0000-000CBFFF
Video BIOS
160 KB
000C8000-000E7FFF
Unused
64 KB
000E8000-000FFFFF
System BIOS
15 MB
00100000-00FFFFFF
Extended memory
58 MB
04800000-07FFFFFF
Super extended memory
58 MB
04800000-07FFFFFF
Unused
2 MB
08000000-080FFFFF
Video memory (direct access)
4 GB
08200000-FFFEFFFF
Unused
64 KB
FFFF0000-FFFFFFFF
System BIOS
118 Chapter 6 Specifications
7
Screw listing
This section provides specification and reference information for the screws and screw locks used in
the computer. All screws listed in this section are available in the Screw Kit, spare part number
495077-001.
119
Phillips PM2.0×5.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
4
5.0 mm
2.0 mm
4.5 mm
Where used:
(1) Two screws that secure the hard drive cover to the computer (screws are captured on the cover
by C-clips)
(2) Two screws that secure the memory module compartment cover to the computer (screws are
captured on the cover by C-clips)
120 Chapter 7 Screw listing
Phillips PM2.5×11.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
2
11.0 mm
2.5 mm
5.0 mm
Where used: One screw that secures the hard drive to the computer
Phillips PM2.5×11.0 captive screw 121
Where used: One screw that secures the optical drive to the computer
Phillips PM3.0×5.0 screw
Color
Quantity
Length
Thread
Head diameter
Silver
4
5.0 mm
3.0 mm
5.0 mm
Where used: 4 screws that secure the hard drive bracket to the hard drive
122 Chapter 7 Screw listing
Torx T8M2.5×8.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
23
8.0 mm
2.5 mm
5.0 mm
Where used: 2 screws that secure the display assembly to the computer
Where used: 4 screws that secure the display assembly to the computer
Torx T8M2.5×8.0 screw 123
Where used: 8 screws that secure the top cover to the base enclosure
Where used: 2 screws that secure the fan to the base enclosure
Where used: 2 screws that secure the speaker assembly to the base enclosure
124 Chapter 7 Screw listing
Where used: 1 screw that secures the USB/audio board to the base enclosure
Where used: 4 screws that secure the top cover to the top of the computer
Torx T8M2.5×8.0 screw 125
Phillips PM2.5×9.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
2
9.0 mm
2.5 mm
5.0 mm
Where used: 2 captive screws that secure the keyboard to the computer
126 Chapter 7 Screw listing
Black Torx 8M2.0×7.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
4
7.0 mm
2.0 mm
4.5 mm
Where used: 4 screws that secure the heat sink to the base enclosure
Black Torx 8M2.0×7.0 captive screw 127
Silver Torx 8M2.5×12.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Silver
4
12.0 mm
2.5 mm
4.5 mm
Where used: 4 screws that secure the heat sink to the base enclosure
128 Chapter 7 Screw listing
Phillips PM2.5×5.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
7
5.0 mm
2.5 mm
5.0 mm
Where used: 2 screws that secure the display assembly to the display enclosure
Where used: 1 screw that secures each display hinge bracket to the display assembly
Phillips PM2.5×5.0 screw 129
Where used: 2 screws that secure the display inverter to the display assembly
Where used: 2 screws that secure the display panel to the display enclosure
130 Chapter 7 Screw listing
Phillips PM2.5×3.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
2
3.0 mm
2.5
4.5 mm
Where used: 2 screws that secure the WWAN module to the computer
Phillips PM2.5×3.0 screw 131
Phillips PM2.0×3.0 broadhead screw
Color
Quantity
Length
Thread
Head diameter
Black
7
3.0 mm
2.0 mm
4.5 mm
Where used: 3 screws that secure the switch cover to the computer
Where used: 4 screws that secure the top cover to the base enclosure
132 Chapter 7 Screw listing
Black Phillips PM2.0×3.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
9
3.0 mm
2.0 mm
4.5 mm
Where used: 4 screws that secure the TouchPad bracket to the top cover
Where used: 1 screw that secures the system board to the base enclosure
Black Phillips PM2.0×3.0 screw 133
Where used: 2 screws that secure each display hinge to the computer
Black Phillips PM2.5×7.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
6
7.0 mm
2.5 mm
5.0 mm
Where used: 6 screws that secure the display bezel to the display assembly
134 Chapter 7 Screw listing
Black Phillips PM2.0×4.0 barrel screw
Color
Quantity
Length
Thread
Head diameter
Black
4
4.0
2.0
4.5
Where used: 2 screws that secure the modem module to the system board
Where used: 2 screws that secure the WLAN module to the system board
Black Phillips PM2.0×4.0 barrel screw 135
Silver HM2.5×6.0 hex screw locks
Color
Quantity
Length
Thread
Head diameter
Silver
2
6.0 mm
2.5 mm
6.0 mm
Where used: 2 hex screw locks that secure the top cover to the base enclosure
136 Chapter 7 Screw listing
Black Phillips PM2.0×5.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
6
5.0 mm
2.0 mm
4.5 mm
Where used: 4 screws that secure the ExpressCard assembly to the system board
Where used: 2 screws that secure the graphics card to the system board
Black Phillips PM2.0×5.0 screw 137
8
Backup and recovery
Backup and recovery in Windows Vista
Overview
To protect your information, use the Backup and Restore Center to back up individual files and
folders, back up your entire hard drive (select models only), or create system restore points. In case
of system failure, you can use the backup files to restore the contents of your computer.
The Backup and Restore Center provides the following options:
●
Backing up individual files and folders
●
Backing up the entire hard drive (select models only)
●
Scheduling automatic backups (select models only)
●
Creating system restore points
●
Recovering individual files
●
Restoring the computer to a previous state
●
Recovering information using recovery tools
NOTE:
For detailed instructions, perform a search for these topics in Help and Support.
NOTE: In case of system instability, HP recommends that you print the recovery procedures and
save them for later use.
Backing up your information
Recovery after a system failure is as complete as your most current backup. You should create your
initial backup immediately after software setup. As you add new software and data files, you should
continue to back up your system on a regular basis to maintain a reasonably current backup.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
●
Store personal files in the Documents folder, and back it up regularly.
●
Back up templates that are stored in their associated programs.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
138 Chapter 8 Backup and recovery
To create a screen shot:
1.
Display the screen you want to save.
2.
Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
3.
Open a word-processing document, and then select Edit > Paste.
The screen image is added to the document.
4.
●
Save the document.
When backing up to discs, use any of the following types of discs (purchased separately): CD-R,
CD-RW, DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you use will depend
on the type of optical drive installed in your computer.
NOTE: DVDs and DVDs with double-layer (DL) support store more information than CDs, so
using them for backup reduces the number of recovery discs required.
●
When backing up to discs, number each disc before inserting it into the optical drive of the
computer.
To create a backup using Backup and Restore Center, follow these steps:
NOTE:
Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore Center.
2.
Follow the on-screen instructions to back up your entire computer (select models only) or your
files.
NOTE: Windows® includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
Performing a recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
●
Windows recovery tools: You can use the Backup and Restore Center to recover information
you have previously backed up. You can also use Windows Startup Repair to fix problems that
might prevent Windows from starting correctly.
●
f11 recovery tools: You can use the f11 recovery tools to recover your original hard drive image.
The image includes the Windows operating system and software programs installed at the
factory.
Backup and recovery in Windows Vista 139
NOTE: If you are unable to boot (start up) your computer, you must purchase a Windows Vista
operating system DVD to reboot the computer and repair the operating system. For additional
information, refer to the “Using a Windows Vista operating system DVD (purchased separately)”
section in this guide.
Using the Windows recovery tools
To recover information you previously backed up, follow these steps:
1.
Click Start > All Programs > Maintenance > Backup and Restore Center.
2.
Follow the on-screen instructions to recover your entire computer (select models only) or your
files.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
To recover your information using Startup Repair, follow these steps:
CAUTION: Using Startup Repair completely erases hard drive contents and reformats the hard
drive. All files you have created and any software installed on the computer are permanently
removed. When reformatting is complete, the recovery process restores the operating system, as well
as the drivers, software, and utilities from the backup used for recovery.
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the Windows partition and the HP Recovery partition. To
find the partitions, select Start > Computer.
NOTE: If the Windows partition and the HP Recovery partition have been deleted, you must
recover your operating system and programs using the Windows Vista operating system DVD
and the Driver Recovery disc (both purchased separately). For additional information, refer to
the “Using a Windows Vista operating system DVD (purchased separately)” section in this guide.
3.
Restart the computer, and then press f8 before the Windows operating system loads.
4.
Select Repair your computer.
5.
Follow the on-screen instructions.
NOTE: For additional information on recovering information using the Windows tools, perform a
search for these topics in Help and Support.
Using f11
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files
you have created and any software installed on the computer are permanently removed. The f11
recovery tool reinstalls the operating system and HP programs and drivers that were installed at the
factory. Software not installed at the factory must be reinstalled.
140 Chapter 8 Backup and recovery
To recover the original hard drive image using f11, follow these steps:
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the HP Recovery partition. To find the partition, select
Start > Computer.
NOTE: If the HP Recovery partition has been deleted, you must recover your operating system
and programs using the Windows Vista operating system DVD and the Driver Recovery disc
(both purchased separately). For additional information, refer to the “Using a Windows Vista
operating system DVD (purchased separately)” section in this guide.
3.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
4.
Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5.
Follow the on-screen instructions.
Using a Windows Vista operating system DVD (purchased separately)
If you are unable to boot (start up) your computer, you must purchase a Windows Vista operating
system DVD to reboot the computer and repair the operating system. Make sure that your most
recent backup (stored on discs or on an external drive) is easily accessible. To order a Windows Vista
operating system DVD, go to http://www.hp.com/support, select your country or region, and follow the
on-screen instructions. You can also order the DVD by calling technical support. For contact
information, refer to the Worldwide Telephone Numbers booklet included with the computer.
CAUTION: Using a Windows Vista operating system DVD completely erases hard drive contents
and reformats the hard drive. All files you have created and any software installed on the computer
are permanently removed. When reformatting is complete, the recovery process helps you restore the
operating system, as well as drivers, software, and utilities.
To initiate recovery using a Windows Vista operating system DVD, follow these steps:
NOTE:
This process takes several minutes.
1.
If possible, back up all personal files.
2.
Restart the computer, and then insert the Windows Vista operating system DVD into the optical
drive before the Windows operating system loads.
3.
When prompted, press any keyboard key.
4.
Follow the on-screen instructions.
5.
Click Next.
6.
Select Repair your computer.
7.
Follow the on-screen instructions.
Backup and recovery in Windows Vista 141
Backup and Recovery in Windows XP
Backing up your information
NOTE: You can recover only the files that you have previously backed up. HP recommends that
you use the Windows backup utility to create a hard drive backup as soon as you set up your
computer.
With the Windows backup utility, you can perform the following tasks:
●
Backing up your information regularly to protect your important system files
●
Creating system recovery points that allow you to reverse undesirable changes to your computer
by restoring the computer to an earlier state
●
Scheduling backups at specific intervals or events
NOTE: The Windows backup utility backs up only data files. The operating system, drivers, and
programs are located on the operating system disc and System Recovery disc that are included with
the computer.
When to back up
●
On a regularly scheduled basis
NOTE: Set reminders to back up your information periodically.
●
Before the computer is repaired or restored
●
Before you add or modify hardware or software
Backup suggestions
●
Connect the computer to external power before performing backup and recovery procedures.
●
Create system recovery points.
●
Store personal files in the My Documents folder and back up these folders periodically.
●
Back up templates stored in their associated programs.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document:
a.
Display the screen you want to save.
b.
Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
c.
Open a word-processing document, click Edit > Paste.
142 Chapter 8 Backup and recovery
The screen image is added to the document.
d.
Save the document.
Backing up individual files or folders
You can back up individual files or folders to an optional external hard drive or to a network drive.
NOTE: This process will take several minutes, depending on the file size and the speed of the
computer.
To back up individual files or folders:
1.
Select Start > All Programs > Accessories > System Tools > Backup.
The Backup or Restore Wizard page opens.
2.
Click Next.
3.
Click Backup files and settings, and then click Next.
4.
Follow the on-screen instructions.
Backing up all files and folders
When you back up all files and folders, you are saving all personal files and folders, all system files,
and configuration settings at one time.
NOTE: When you back up all files and folders, this does not include the operating system or
programs.
NOTE: This process may take over an hour, depending on your computer speed and the amount of
data being stored.
NOTE:
drive.
A copy of the backup files can be stored on an optional external hard drive or on a network
To back up all files and folders:
1.
Select Start > All Programs > Accessories > System Tools > Backup.
The Backup or Restore Wizard page opens.
2.
Click Next.
3.
Click Backup files and settings, and then click Next.
4.
Click All information on this computer, and then click Next.
5.
Follow the on-screen instructions.
Creating recovery points
When you back up system modifications since your last backup, you are creating system recovery
points. This allows you to save a snapshot of your hard drive at a specific point in time. You can then
recover back to that point if you want to reverse subsequent changes made to your system.
Backup and Recovery in Windows XP 143
NOTE: The first system recovery point, a snapshot of the entire image, is automatically created the
first time you perform a backup. Subsequent recovery points make copies of changes made after that
time.
HP recommends that you create recovery points at the following times:
●
Before you add or extensively modify software or hardware
●
Periodically, whenever the system is performing optimally
NOTE: Recovering to an earlier recovery point does not affect data files or e-mails created since
that recovery point.
To create a system recovery point:
1.
Select Start > All Programs > Accessories > System Tools > System Restore.
The System Restore window opens.
2.
Click Create a new restore point, and then click Next.
3.
Type a short description of the restore point. This will be used as the name of the restore point.
4.
Click Create.
5.
Follow the on-screen instructions.
Scheduling backups
You can schedule backups for the entire system, for recovery points, or for specific files and folders.
Backups can be scheduled at specific intervals (daily, weekly, or monthly) or at specific events, such
as at system restart or when you log on.
To schedule backups:
1.
Select Start > All Programs > Accessories > System Tools > Schedule Tasks.
The Schedule Tasks window opens.
2.
Double-click Add Scheduled Task, and then click Next.
3.
Select Backup in the Application list, and then click Next.
4.
Type a name for the backup, select when you want the backup to be performed, and then click
Next.
5.
Enter your user name, password, and password again to confirm. Click Next, and then click
Finish.
Performing a recovery
The Windows backup utility helps you recover important files that you have previously backed up in
case of system failure.
NOTE: To recover the operating system and programs, use the operating system disc and System
Restore disc that are included with the computer.
144 Chapter 8 Backup and recovery
Initiating a recovery in Windows
To initiate a recovery in Windows, follow these steps:
1.
If possible, back up all personal files.
2.
Select Start > All Programs > Accessories > System Tools > Backup.
The Backup or Restore Wizard page opens.
3.
Click Restore files and settings, and the click Next.
4.
Follow the on-screen instructions.
Backup and Recovery in Windows XP 145
9
Connector pin assignments
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
Audio-in (microphone)
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
146 Chapter 9 Connector pin assignments
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
External monitor 147
RJ-11 (modem)
Pin
Signal
1
Unused
2
Tip
3
Ring
4
Unused
5
Unused
6
Unused
RJ-45 (network)
Pin
Signal
1
Transmit +
2
Transmit -
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
148 Chapter 9 Connector pin assignments
Universal Serial Bus
Pin
Signal
1
+5 VDC
2
Data -
3
Data +
4
Ground
Universal Serial Bus 149
10 Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or
region where the computer is used.
Requirements for all countries and regions
The requirements listed below are applicable to all countries and regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage
rating of 125 or 250 V AC, as required by the power system of each country or region.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320
Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
150 Chapter 10 Power cord set requirements
Requirements for specific countries and regions
Country/region
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People's Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region
where it will be used.
2.
The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3.
The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4.
The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
5.
The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
Requirements for specific countries and regions 151
11 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the
backlight. When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display
assembly that might require special handling at end-of-life. Disposal of mercury may be regulated
because of environmental considerations. For disposal or recycling information, contact your local
authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
This section provides disassembly instructions for the display assembly. The display assembly must
be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific
details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary
from one computer model to another.
152 Chapter 11 Recycling
Perform the following steps to disassemble the display assembly:
1.
Remove all screw covers (1) and screws (2) that secure the display bezel to the display
assembly.
2.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3.
Remove the display bezel (3).
Display 153
4.
Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).
5.
Remove all screws (1) that secure the display panel assembly to the display enclosure.
6.
Remove the display panel assembly (2) from the display enclosure.
7.
Turn the display panel assembly upside-down.
8.
Remove all screws that secure the display panel frame to the display panel.
9.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the
display panel frame.
154 Chapter 11 Recycling
10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
Display 155
15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Turn the display panel upside-down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
17. Remove the backlight frame from the display panel.
156 Chapter 11 Recycling
18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
Display 157
Index
Symbols/Numerics
1394 port 16
A
AC adapter, spare part numbers
30, 31
accessory battery connectort 18
AMT options 105
AMT setup prompt (CTRL-P)
105
firmware progress event
supporty 105
firmware verbosity 105
terminal emulation mode 105
TYPE-131 in SMBIOS 105
unconfigure AMT on next
boot 105
USB key provisioning support
105
antennas, disconnecting 59, 66
audio, product description 4
audio-in jack
location 17
pin assignments 146
audio-out jack
location 17
pin assignments 146
B
backing up files 138
backup
files and folders 143
hard drive 143
modifications made to
system 143
scheduling 144
Backup and Restore Center 138,
139
158 Index
base enclosure, spare part
number 25, 34
battery
location 18
removal 45
spare part number 25, 31, 36,
45
battery bay 18
battery latch 18
battery light 14, 15
BIOS Administrator password
100
Blu-ray Disc ROM Drive
specifications 112
Blu-ray Disc ROM with SuperMulti
DVD±R/RW DL Drive
removal 47
spare part number 25, 29, 34,
47
Bluetooth module
removal 54
spare part number 32
spare part numbers 26, 54
Bluetooth module cover,
illustrated 27
boot options 103
boot order 103
bottom components 18
built-in device
ambient light sensor 104
Bluetooth device radio 104
embedded WLAN 104
fingerprint reader 104
integrated camera 104
LAN/WLAN switching 104
modem 104
Network Interface Controller
(LAN) 104
Notebook Multibay 104
Wake on LAN 104
wireless button 104
WWAN device radio 104
built-in device options 104
buttons
info 11
pointing stick 10, 13
power 11
presentation 12
TouchPad 10
volume mute 12
wireless 12
C
Cable Kit
contents 28
spare part number 26, 28, 34
cables, service considerations 39
caps lock light 14
carrying case, spare part
number 30
chipset, product description 2
components
bottom 18
buttons 11
display 9
fingerprint reader 11
front 15
keys 12
left-side 16
lights 13
pointing devices 10
rear 17
right-side 17
switch 11
top 10
computer feet
illustrated 27
locations 44
spare part number 44
Computer Setup
accessing 98
Diagnostics menu 102
File menu 100
navigating and selecting 99
restoring factory settings 99
Security menu 100
System Configuration menu
103
using 99
computer specifications 106
connectors
docking 18
power 17
service considerations 39
creating a backup 138
creating recovery points 143
D
device configurations 103
Diagnostics menu 102
Disk Sanitizer 101
diskette drive
precautions 39
product description 4
spare part number 30
display assembly
removal 69
spare part numbers 20, 21,
33, 36, 69
display assembly with integrated
webcam
spare part numbers 34, 35,
36
display bezel
release 49
removal 73
spare part numbers 21, 22,
35, 36, 73
display bezel with integrated
webcam, spare part number 35
display cable, spare part number
22, 37, 74
display component recycling 152
display components 9
display hinge
removal 74
spare part number 22, 34, 35,
74
display inverter
removal 49
spare part number 22, 49
display panel
product description 2
removal 75
display panel enclosure, spare part
number 22, 37, 74
display release latch 15
display specifications 107, 108,
109
display switch 12
docking connector 18
docking support, product
description 5
drive light 14, 15
DriveLock password 101
DriveLock, automatic 101
drives
boot order 103
preventing damage 39
Dual-Core CPU 104
DVD-ROM Drive
precautions 39
removal 47
spare part number 25, 29, 30,
34, 47
specifications 113
DVD/CD-RW Combo Drive
precautions 39
spare part number 30
DVD±RW and CD-RW SuperMulti
DL Combo Drive with LightScribe
removal 47
spare part number 25, 29, 34,
47
E
electrostatic discharge 40
eSATA port 16
esc key 12
Ethernet, product description 4
Execution Disable 103
ExpressCard assembly
removal 94
spare part number 34, 94
ExpressCard slot 16
ExpressCard slot insert,
illustrated 27
extended life battery, spare part
number 31
external media cards, product
description 5
external monitor port
location 17
pin assignments 147
External MultiBay II power cable
and stand, spare part number
30
External MultiBay II, spare part
number 30
F
f11 recovery 140
fan
removal 81
spare part number 23, 81
spare part numbers 34
feet
illustrated 27
locations 44
spare part number 44
File menu 100
fingerprint reader board, spare part
number 23, 34
fn key 13
front components 15
function keys 13
G
graphics card
removal 87
spare part numbers 24, 34,
35, 87
graphics, product description 2
grounding equipment and
methods 42
H
hard disk test 102
hard drive
location 18
precautions 39
product description 3
removal 51
Index 159
spare part numbers 26, 29,
34, 37, 51
specifications 110
hard drive backup 143
hard drive bay 18
hard drive bracket, removal 53
hard drive cover
illustrated 27
removal 52
hard drive recovery 140, 145
HDMI port 16
headphone jack
location 17
pin assignments 146
heat sink
removal 83
spare part number 23, 83
hinge
removal 74
spare part number 22, 34, 35,
74
HP Extended Life Battery, spare
part number 30
HP Fingerprint Sensor 12
HP QuickLook 2 104
HP SpareKey enrollment 101
HP un2400 Mobile Broadband
Module
spare part number 26, 59
HP un2400 Mobile Broadband
Module, spare part number 32
I
I/O address specifications 116
info button 11
interrupt specifications 115
inverter
removal 49
spare part number 32, 49
J
jacks
audio-in 17
audio-out 17
headphone 17
microphone 17
modem 17
network 16
RJ-11 17
RJ-45 16
160 Index
K
keyboard
product description 5
removal 61
spare part numbers 22, 32, 61
keypad keys 13
keys
esc 12
fn 13
function 13
keypad 13
pointing stick 12
Windows applications 13
Windows logo 13
L
LAN Power Save 103
language, changing in Computer
Setup 103
LED board
spare part number 22
spare part numbers 35
left-side components 16
legacy support, USB 98, 103
lights
battery 14, 15
caps lock 14
drive 14, 15
num lock 14
power 13, 15
volume down 14
volume mute 14
volume up 14
wireless 13, 15
M
mass storage devices, spare part
numbers 29
Media Card Reader 16
memory map specifications 118
memory module
product description 3
removal 57
spare part numbers 25, 57
memory module compartment 18
memory module compartment
cover
illustrated 27
removal 55, 57, 59
microphone
illustrated 28
product description 4
microphone jack
location 17
pin assignments 146
model name 1
modem jack
location 17
pin assignments 148
modem module
product description 4
removal 64
spare part number 25, 31, 64
monitor port
location 17
pin assignments 147
N
network jack
location 16
pin assignments 148
num lock light 14
O
operating system, product
description 6
optical drive
location 17
precautions 39
product description 4
removal 47
spare part numbers 25, 29, 47
specifications 111, 112, 113
optical drive bracket
spart part number 29, 35, 47
P
packing guidelines 41
parallel port mode 103
passwords 100
pin assignments
audio-in jack 146
audio-out jack 146
external monitor port 147
headphone jack 146
microphone jack 146
modem jack 148
monitor port 147
network jack 148
RJ-11 148
RJ-45 jack 148
Universal Serial Bus (USB)
port 149
plastic parts 38
Plastics Kit
contents 27
spare part number 24, 27, 34
pointing device
components 10
illustrated 10
product description 5
pointing device components
pointing stick 10
pointing stick buttons 10
TouchPad 10
TouchPad buttons 10
TouchPad scroll zone 10
pointing stick 10, 12
pointing stick buttons 10, 13
pointing stick, spare part number
32
port options 105
1394 port 105
ExpressCard slot 105
flash media reader 105
parallel port 105
serial port 105
Smart Card slot 105
USB port 105
ports
1394 16
eSATA 16
external monitor 17
HDMI 16
monitor 17
product description 5
Universal Serial Bus (USB)
16, 17
power button 11
power connector 17
power cord
set requirements 150
spare part numbers 30, 32
power light 13, 15
power requirements, product
description 6
presentation button 12
processor
product description 1
removal 86
spare part numbers 24, 32, 86
product description
audio 4
chipset 2
diskette drive 4
display panel 2
docking support 5
Ethernet 4
external media cards 5
graphics 2
hard drives 3
keyboard 5
memory module 3
microphone 4
modem module 4
operating system 6
optical drives 4
pointing devices 5
ports 5
power requirements 6
processors 1
product name 1
security 6
serviceability 8
webcam 4
wireless 4
product name 1
R
RAID (Redundant Array of
Independent Disks) devices
103
rear components 17
recovering information 139
recovery partition 140
recovery points 143
removal/replacement
preliminaries 38
procedures 43
restore security defaults 105
restore the factory settings 100
restoring the hard drive 140
right-side components 17
RJ-11 connector cable
illustrated 28
removal 93
RJ-11 jack
location 17
pin assignments 148
RJ-45 jack
location 16
pin assignments 148
RTC battery
removal 55
spare part number 25, 35, 55
Rubber Kit
spare part numbers 34
run-in test 102
S
SATA (Serial Advanced
Technology Attachment)
devices 103
AHCI (Advanced Host
Controller Interface) 103
IDE (Integrated Drive
Electronics) 103
scheduling backups 144
Screw Kit
contents 119
spare part number 31, 34
screw listing 119
Secondary Battery Fast Charge
104
security cable slot 17
Security menu 100
allow reset of HP ProtectTools
security keys 101
always prompt for HP
SpareKey enrollment 101
Automatic DriveLock 101
change password 101
Disk Sanitizer 101
DriveLock 101
fingerprint reader reset 101
HP Sparekey 101
HP Sparekey enrollment 101
password policy 101
set up BIOS Administrator
password 100
System IDs 101
user management 101
security, product description 6
service considerations 38
service tag 19, 43
serviceability, product
description 8
set security level 105
Index 161
setup utility
Diagnostics menu 102
File menu 100
navigating and selecting 99
restoring factory settings 99
Security menu 100
System Configuration menu
103
SIM
removal 46
spare part number 25
smart card reader 16
solid-state drive, spare part
numbers 26, 29, 35, 36, 51
speaker assembly
removal 89
spare part number 25, 34, 89
speakers 15
specifications
Blu-ray Disc ROM Drive 112
computer 106
display 107, 108, 109
DVD-ROM Drive 113
DVD±RW and CD-RW
SuperMulti DL Combo
Drive 111
hard drive 110
I/O addresses 116
interrupts 115
memory map 118
optical drive 111, 112, 113
system DMA 114
start-up test 102
static-shielding materials 42
switch cover
removal 66
spare part number 22, 34, 66
system backup 143
system board
removal 90
spare part number 25
spare part numbers 34, 35, 90
System Configuration menu 103
system date and time 100
System Diagnostics menu 102
system DMA 114
system fan 103
system IDs 101
system information 100
system memory map 118
162 Index
system recovery points 143
T
Thermal Material Kit, spare part
numbers 23, 34, 35, 83, 87
thermal material, replacement 84
tools required 38
top components 10
top cover
removal 76
spare part number 23, 76
spare part numbers 34, 35
TouchPad 10
removal 79
spare part numbers 23, 35, 79
TouchPad buttons 10
TouchPad scroll zone 10
transporting guidelines 41
TXT (Intel® Trusted Execution
Technology) 104
U
Unified Extensible Firmware
Interface (UEFI) mode 104
Universal Serial Bus (USB) port
location 16, 17
pin assignments 149
USB legacy support 98, 103
USB/audio board
removal 96
spare part number 25, 96
spare part numbers 34
USB/audio cable, illustrated 28
V
vents 16, 18
Virtualization Technology 104
volume down light 14
volume mute button 12
volume mute light 14
volume scroll zone 12
volume up light 14
W
webcam, product description 4
Windows applications key 13
Windows logo key 13
Windows Vista operating system
DVD 141
Wireless Antenna Kit, spare part
number 34
wireless antennas,
disconnecting 59, 66
wireless button 12
wireless light 13, 15
wireless, product description 4
WLAN antennas, locations 9
WLAN module
removal 65
spare part number 31, 32, 35,
65
spare part numbers 23
workstation guidelines 41
WWAN antennas, locations 9
WWAN module
removal 59
spare part number 26, 32, 59
