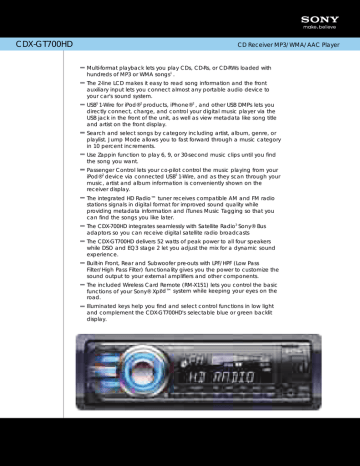

CDX-GT700HD CD Receiver MP3/WMA/AAC Player

CDX-GT700HD  CD Receiver MP3/WMA/AAC Player
CDX-GT700HD
CD Receiver MP3/WMA/AAC Player
Multi-format playback lets you play CDs, CD-Rs, or CD-RWs loaded with
hundreds of MP3 or WMA songs1 .
The 2-line LCD makes it easy to read song information and the front
auxiliary input lets you connect almost any portable audio device to
your car's sound system.
USB5 1-Wire for iPod®2 products, iPhone®2 , and other USB DMPs lets you
directly connect, charge, and control your digital music player via the
USB jack in the front of the unit, as well as view metadata like song title
and artist on the front display.
Search and select songs by category including artist, album, genre, or
playlist. Jump Mode allows you to fast forward through a music category
in 10 percent increments.
Use Zappin function to play 6, 9, or 30-second music clips until you find
the song you want.
Passenger Control lets your co-pilot control the music playing from your
iPod®2 device via connected USB5 1-Wire, and as they scan through your
music, artist and album information is conveniently shown on the
receiver display.
The integrated HD Radio™ tuner receives compatible AM and FM radio
stations signals in digital format for improved sound quality while
providing metadata information and iTunes Music Tagging so that you
can find the songs you like later.
The CDX-700HD integrates seamlessly with Satellite Radio3 Sony® Bus
adaptors so you can receive digital satellite radio broadcasts
The CDX-GT700HD delivers 52 watts of peak power to all four speakers
while DSO and EQ3 stage 2 let you adjust the mix for a dynamic sound
experience.
Built-in Front, Rear and Subwoofer pre-outs with LPF/HPF (Low Pass
Filter/High Pass Filter) functionality gives you the power to customize the
sound output to your external amplifiers and other components.
The included Wireless Card Remote (RM-X151) lets you control the basic
functions of your Sony® Xplōd™ system while keeping your eyes on the
road.
Illuminated keys help you find and select control functions in low light
and complement the CDX-GT700HD's selectable blue or green backlit
display.
CDX-GT700HD
Features
MP3/WMA playback1 Multi-format playback lets you play CDs, CD-Rs, or CD-RWs
loaded with hundreds of MP3 or WMA songs1 .
Detachable Face with Front Aux In The 2-line LCD makes it easy to read song
information and the front auxiliary input lets you connect almost any portable
audio device to your car's sound system.
USB5 1-Wire for Digital Music Players USB5 1-Wire for iPod® 2 products, iPhone®2,
and other USB DMPs lets you directly connect, charge, and control your digital
music player via the USB jack in the front of the unit, as well as view metadata
like song title and artist on the front display.
Quick-BrowZer® with Jump Mode feature Search and select songs by category
including artist, album, genre, or playlist. Jump Mode allows you to fast forward
through a music category in 10 percent increments.
Zappin™ function Use Zappin function to play 6, 9, or 30-second music clips until
you find the song you want.
Passenger Control Passenger Control lets your co-pilot control the music playing
from your iPod® 2 device via connected USB5 1-Wire, and as they scan through
your music, artist and album information is conveniently shown on the receiver
display.
Integrated HD Radio™ Tuner4 The integrated HD Radio™ tuner receives
compatible AM and FM radio stations signals in digital format for improved sound
quality while providing metadata information and iTunes Music Tagging so that
you can find the songs you like later.
ADDITIONAL FEATURES
Satellite Radio3 Ready
EQ3, DSO and 52 Watts x 4 High Power
Selectable Pre-outs with LPF/HPF
Wireless Card Remote included
Selectable Key illumination
CD Receiver MP3/WMA/AAC Player
Output Power: 52W x4 High Power - 17 watts per channel minimum continuous
average power into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
Current Drain: 3 - 5 amps
Input Power: 12 V DC car battery (negative ground (earth))
Input Voltage: 12 V DC car battery (negative ground)
Inputs and Outputs
RCA Audio Output(s): Front, Rear, and Subwoofer RCA pre-amp outputs
Digital Audio Input(s): -Ability to use all forms of USB devices may vary as not all
devices are compatible.
This unit can be connected to the following iPods. Update your iPod to the latest
software before you use it.
-iPod Nano 1st generation*
-iPod Nano 2nd generation (aluminum)
-iPod Nano 3rd generation (video)
-iPod 5th generation (video)*
-iPod Classic
-iPod Touch
-iPhone
When you connect iPod Nano1st generation or iPod 5th generation, Passenger
Control is not available.
-This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer
Protocol) type USB devices compliant with the USB standard.
-This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not covered
in this manual, consult your nearest Sony dealer.
USB Port(s): Front USB - Full Speed
Antenna Terminal(s): Aerial Input Terminal
12V Trigger Output(s): Power antenna
Amplifier turn on
Remote Jack: Optional wired remote terminal
Audio In: Front Aux input with variable level: -8dB ∼ +18dB
Front USB input
Sony Bus audio/controll terminal
Infrared Port: Wireless remote
Dimensions
Specifications
Convenience Features
Weight: 1.3Kg
Measurements: 178 x 50 x 179mm
CD Text Display: CD and MP3 / WMA data displayed
Illumination: Switchable: Blue / Green
On-Screen Clock: 12H
Supplied Accessories
General
Optional Accessories
Disc Capacity: 1
Color: Dark Titanium / Black
Replacement remote: RM-X151
CD changer (10 discs): CDX-757MX
CD changer (6 discs): CDX-T69
Source selector: XA-C40
Aux-in selector: XA-300
USB Connection Cable for iPod®: RC-100IP
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
Frequency Response: CD: 10-20,000 Hz
Wow and Flutter: Below measurable limit
Station Preset(s): 18 FM / 12 AM
Digital-to-Analog Converter: 24bit
Tuner Frequency Range: FM:Tuner Frequency Range(MHz): 87.5-107.9, AM:Tuner
Frequency Range(kHz): 530-1710
Tone Control(s): Low +/- 10 dB at 60 Hz
Mid +/- 10 dB at 1 kHz
High +/- 10dB at 10 kHz
Tuner Type: SSIR-EXA
Volume Control: Tel/Nav Attenuation Circuitry
CD Playback: CD, CD-R / CD-RW (MP3/WMAfiles)
Band: AM / FM
Signal-to-Noise Ratio (dB): CD: 120 dB
Convenience
Parts for installation and connections (1 set)
RM-X151 wireless remote
Color: Dark Titanium / Black
UPC Code: 027242778566
1. Not all MP3, WMA, AAC files may playback due to file variations. Copyright protected ACC-LC files cannot
be played back.
2. Ability to use all generations of iPod products may vary as not all products are compatible. Compatible with
iPod® touch, iPod Nano 3rd generation, iPod classic, iPod Nano 2nd generation, iPod 5th generation, iPod
Nano 1st generation, iPod 4th generation, iPod mini.
3. Satellite radio service requires a satellite radio tuner and service subscription, sold separately.
4. HD Radio™ reception requires tuner to be within range of station’s HD Radio™ signal.
5. Ability to use all forms of USB devices may vary as not all devices are compatible.
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is
prohibited. Sony, Quick-BrowZer, Walkman, Xplōd, ZAPPIN, and the Sony and Xplōd logos are trademarks of
Sony. iPod is a trademark of Apple Inc. All other trademarks are trademarks of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate and may vary.
Tilt Range: 45°
Amplifier Section
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Tuner
FM Usable Sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 71 dB (mono), 80dB (HD Radio broadcast)
Frequency Response: FM: 20-15,000 Hz (conventional broadcast)
FM: 20-20,000 Kz (HD Radio broadcast)
Stereo Separation: 50 dB at 1 KHz (Conventional broadcast)
80 dB at 1 KHz (HD Radio broadcast)
Power
Power Consumption (in Operation): 45w
Please visit the Dealer Source for current information at
www.sony.com/dealersource
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 09/01/2010
