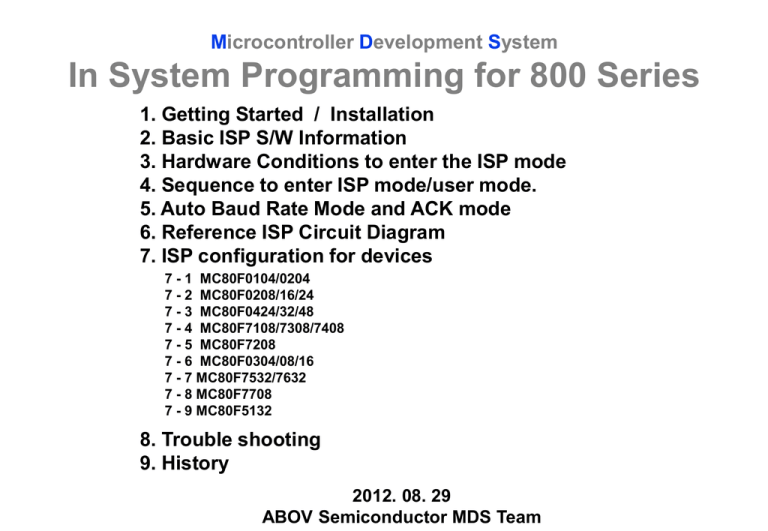

M

icrocontroller

D

evelopment

S

ystem

In System Programming for 800 Series

1. Getting Started / Installation

2. Basic ISP S/W Information

3. Hardware Conditions to enter the ISP mode

4. Sequence to enter ISP mode/user mode.

5. Auto Baud Rate Mode and ACK mode

6. Reference ISP Circuit Diagram

7. ISP configuration for devices

7 - 1 MC80F0104/0204

7 - 2 MC80F0208/16/24

7 - 3 MC80F0424/32/48

7 - 4 MC80F7108/7308/7408

7 - 5 MC80F7208

7 - 6 MC80F0304/08/16

7 - 7 MC80F7532/7632

7 - 8 MC80F7708

7 - 9 MC80F5132

8. Trouble shooting

9. History

2012. 08. 29

ABOV Semiconductor MDS Team

1. Getting Started / ISP Installation

The In-System Programming (ISP) is performed without removing the microcontroller from the system. The In-System Programming

(ISP) facility consists of a series of internal hardware resources coupled with internal firmware through the serial port. The In-

System Programming (ISP) facility has made in-circuit programming in an embedded application possible with a minimum of additional expense in components and circuit board area.

The following section details the procedure for accomplishing the installation procedure.

1. Power off a target system.

2. Configure a target system as ISP mode.

- Refer to chapter3. Hardware Conditions to enter the ISP mode at page3.

3. Attach a ISP B/D into a target system.

4. Connect the serial(RS-232C) cable between a ISP board and available serial port of your PC.

5. Run the ABOV ISP software.

- Down load the ISP S/W from www.abov.co.kr

.

- Unzip the download file and run ISP_800.exe

6. Select a COM port and a device in the ISP S/W.

7. Power on a target system.

8. Execute ISP command such as read, program, auto... by pressing buttons on the ISP S/W.

1 MDS Team

2. Basic ISP S/W Information

Com Port

Select Device

Selected

OSC.

If connection is failed, change stop bits

Select a serial port.

Select a target MCU. User can select mode between auto baud rate and ACK. For example, MC80F0324 support both mode. Select MC80F0324 for auto baud and MC80F0324_ACK for ACK mode.

Specify your target oscillator value with discarding below point in ACK mode only.

Load File

Save File

Blank

Check

Program

Read

Verify

Load the data from the selected file storage into the memory buffer.

Save the current data in your memory buffer to a disk storage by using the Motorola HEX format.

Verify whether or not a device is in an erased or un-programmed state.

This button enables you to place new data from the memory buffer into the target device.

Read the data in the target MCU into the buffer for examination. The checksum will be displayed on the checksum box.

Assures that data in the device matches data in the memory buffer. If your device is secured, a verification error is detected.

Configure target MCU. Option

Write

Erase

Detected

System

OSC.

Erase the data in your target MCU before programming it.

Display user system clock which is detected in

Auto baud rate mode.

Auto Following sequence is performed ; 1.Erase

2.Program 3.Verify 4.Option Write

Fill Buffer Fill the selected area with a user specified data.

Goto Display the selected page.

Note 1. MCU configuration value is erased after erase operation. It must be configured to match with user target board. Otherwise, it is failed to enter ISP mode, or its operation is not desirable.

Note 2. For MC80F0204/ MC80F0316 devices, if the user selected OSC. configuration is not matched with user target board, the ISP operation is also failed. Careful attention is needed during configuring OSC. type.

2 MDS Team

3. Hardware Conditions to enter the ISP mode

Logic High

Note2)

ALEB

RST/VPP

user mode switch

Vdd

user reset circuit

ISP mode

47K

Note3)

Note1)

TxD

Vdd

VDD

Note1)

RxD

GND

Note4)

ACLK (Optional)

Do not power the target B/D on in floating stare at the reset/Vpp.

It is possible to write a random data in user flash memory.

VPP

MCU_TX

VDD

MCU_RX

GND

ISP B/D

ACLK (Optional)

User Application Board

Note1) If other signals affect UART communication in ISP mode, disconnect these pins by using jumper or switch.

Note2) if ALEB is sharing with other function, toggle the port between ISP and user mode.

Note3) The pull down resister is optional. If user set to ISP Mode without connection ISP B/D, the Vpp/Reset Port is

in floating state. The pull down resistor is for blocking this undefined state. Do not power on a application B/D

in ISP mode without connecting a ISP board

Note4) Refer to explaining the auto baud rate and ACK mode at page5.

ISP Board

3 MDS Team

4. Sequence to enter ISP mode/user mode.

* Sequence to enter ISP mode from user mode.

1) Power off a target system.

2) Configure a target system as ISP mode.

3) Attach a ISP B/D into a target system.

4) Run the ISP S/W.

5) Select the target device.

6) Power on a target system.

*Sequence to enter user mode from ISP mode.

1) Close the ISP S/W.

2) Power off a target system

3) Configure a target system as user mode.

4) Detach a ISP B/D from a target system.

5) Power on

XIN

VDD

VPP

Min.10us [email protected]

2~12MHz

Logic high

ALEB status reset init. ISP mode

For MC80F0104, MC80F0204, MC80F0304, MC80F0308, MC80F0316, MC80F7708

Important!!!

If POR and R35 are enabled, Vdd and Vpp should be turned on simultaneously to enter ISP mode.

Normal sequence above can not enter ISP mode when POR and R35 options are enabled.

Please follow below sequence instead of normal one.

1) Power off a target system.

2) Configure a target system as ISP mode.

3) Attach a ISP B/D into a target system.

4) Run the ISP S/W

5) Select target MCU - It makes condition to make Vpp to turn on when Vdd is turned on.

6) Power on a target system. : At this point, ISP mode is entered because the Vdd and Vpp are turned on simultaneously.

* This function is applied in ISP S/W ver.1.92 release at May 4 th

2006.

Timing Diagram to enter the ISP mode

4

MDS Team

5. Auto Baud Rate Mode and ACK mode

* Auto Baud Rate Mode

The ISP S/W detects user system clock and MCU configure a baud rate automatically. Do not need to connect the ACK pin of target MCU to ISP B/D.

*ACK mode

The ISP S/W can not detect user system clock. Users have to enter a user system clock. This mode is only used when failed to detect user system clock automatically. Need to connect the ACK pin to ISP B/D.

Mode

Devices

Auto Baud

Rate

ACK. mode

MC80F0104

MC80F0204

MC80F0304/08/16

MC80F7708

MC80F5132

MC80F0208/16/24

MC80F0424/32/48

MC80F7108

MC80F7208

MC80F7308

MC80F7408

 o o o o o o

Reference

Frequency

(MHz)

5.0688

5.5296

5.9904

6.4512

6.9120

7.8336

8.7552

9.2160

10.1376

11.0592

11.9808

15.6672

1.8432

1.9968

3.0720

3.5328

3.6864

3.9168

4.1472

4.6080

Detected MCU operating frequency in Auto Baud Rate Mode

Available

Frequency

(MHz)

1.79~1.89

1.94~2.05

2.98~3.16

3.43~3.63

3.58~3.79

3.80~4.03

4.03~4.27

4.47~4.74

4.92~5.22

5.37~5.69

5.81~6.17

6.26~6.64

6.71~7.11

7.60~8.06

8.50~9.01

8.94~9.49

9.84~10.44

10.73~11.39

11.63~12.34

15.20~16.13

19200 bps

O

O

O

O

57600 bps

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

5

MDS Team

6. Reference ISP Circuit Diagram

Note3)

*Note2

* Note2) * Note1)

* Note2)

Note1) This block is only for ACK mode. If the auto baud rate is enabled, this circuit is not needed.

Note2) The external power of ISP Board is only needed when the target system Vdd is out of from

4.5 to 5.5V.

Note3) This circuit is same with MagnaChip supplied ISP board.

*

ISP function is not supported under 2MHz system clock. For the ISP operation, power consumption required

is minimum 30mA.

6

MDS Team

7-1 ISP configuration for MC80F0104/0204

RXD

/R04/AN4/EC0

TXD

/

R05/AN5/T0O

ACK

/R06/AN6/T2O

R07/AN7/EC1

1

2

3

4

VDD

5

ALEB

/R10/AN0/AVREF/PWM1O

6

R11/INT0/PWM3O 7

R12/INT1/BUZO 8

R13

R14

9

10

16

15

14

20

19

18

17

13

R03/AN3/INT2

R02/AN2/SOUT

R01/AN1/SI

R00/INT3/SCK

VSS

RESETB/VPP

R34/

XOUT

R33/

XIN

12

11

R32/AN15

R31/AN14

RXD

/R04/AN4/EC0

TXD

/

R05/AN5/T0O

ACK

/R06/AN6/T2O

R07/AN7/EC1

3

4

1

2

VDD

5

ALEB

/R10/AN0/AVREF/PWM1O

R11/INT0/PWM3O

6

7

R12/INT1/BUZO 8

16

15

14

13

12

11

10

9

R03/AN3/INT2

R02/AN2/SOUT

R01/AN1/SI

R00/INT3/SCK

VSS

RESETB/VPP

R34/

R33/

XOUT

XIN

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

Important!!!

If POR and R35 are enabled, Vdd and Vpp should be turned on simultaneously to enter ISP mode. Please follow below directions.

1. Turn off target Vdd.

2. Select target MCU again.

- It makes condition to make Vpp to turn on when Vdd is turned on.

3. Turn on target Vdd.

* Refer to page 4

* This function is applied in ISP S/W ver.1.92 release at May 4th 2006.

7

MDS Team

7-2 ISP configuration for MC80F0208/16/24

VDD

1

(AIN4) R64

2

(AIN5) R65

3

(AIN6) R66

4

(AIN7) R67

5

R00

6

R01

7

R02

8

R03

9

R04

10

R05

11

R06

12

R07

13

(INT0) R10

14

(INT1) R11

15

(INT2) R12

16

(BUZO) R13

17

(EC0) R15

18

RESETB/VPP 19

XIN

20

XOUT 21

42

R63 (AIN3)

41

R62 (AIN2)

40

R61 (AIN1)

39

R60 (AIN0)

38

R54 (PWM3O)

37

AVDD

36

R51 (EC1)

35

R50 (INT3)

34

R47 /

TxD

33

R46 /

RxD

32

R45 /

ACK

31

R44 (SO)

30

R43 (SI)

29

R42 (SCK)

28

R41

27

R40

26

R33 (TxD2)

25

R32 (RxD2)

24

R31 (ACK2)

*Note1

23

R30 /

ALEB

22 VSS

(PWM3O) R54

34

(AIN0) R60

35

(AIN1) R61

36

(AIN2) R62

37

(AIN3) R63

38

VDD

39

(AIN4) R64

40

(AIN5) R65

41

(AIN6) R66

42

(AIN7) R67

43

NC

44

Note1) ACK pin is optional. Refer to 5. Auto Baud Rate Mode and ACK mode at page 5

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

8

MC80F0208/16/24Q

22

NC

21

R33 (TxD2)

20

R32 (RxD2)

19

R31 (ACK2)

18

R30 /

ALEB

17

VSS

16 XOUT

15

XIN

14 RESETB/VPP

13

R15 (EC0)

12

R13 (BUZO)

MDS Team

7-3-1 ISP configuration for MC80F0424/3248

(AIN8) R70

1

(AIN9) R71

2

(AIN10) R72

3

(AIN11) R73

4

(AIN12) R74

5

(AIN13) R75

6

(AIN14) R76

7

(AIN15) R77

8

R00

9

R01

10

R02

11

R03

12

R04

13

R05

14

R06

15

R07

16

(INT0) R10

17

(INT1) R11

18

(INT2) R12

19

(BUZO) R13

20

(T0O) R14

21

(EC0) R15

22

R16

23

R17

24

R20

25

(XTIN) R21

26

(XTOUT) R22

27

R23

28

RESETB/VPP

29

XIN

30

XOUT

31

VSS

32

64 VDD

63

R67 (AIN7)

62

R66 (AIN6)

61

R65 (AIN5)

60

R64 (AIN4)

59

R63 (AIN3)

58

R62 (AIN2)

57

R61 (AIN1)

56

R60 (AIN0)

55

AVDD

54

AVSS

53

R54 (PWM3O)

52

R53 (PWM1O)

51

R52 (T2O)

50

R51 (EC1)

49

R50 (INT3)

48

R47 /

TxD

47

R46 /

RxD

46

R45 /

ACK

45

R44 (SO)

44

R43 (SI)

43

R42 (SCK)

42

R41

41

R40

40

R37

39

R36

38

R35

37

R34

36

R33(TxD1)

35

R32(RxD1)

34

R31(ACK1)

33

R30/

ALEB

*Note1

(AIN2) R62

52

(AIN3) R63

53

(AIN4) R64

54

(AIN5) R65

55

(AIN6) R66

56

(AIN7) R67

57

VDD

58

(AIN8) R70

59

(AIN9) R71

60

(AIN10) R72

61

(AIN11) R73

62

(AIN12) R74

63

(AIN13) R75

64

MC80F0448Q/32Q/24Q

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

Note1) ACK pin is optional. Refer to 5. Auto Baud Rate Mode and ACK mode at page 5

32

R35

31

R34

30

R33(TxD1)

29

R32(RxD1)

28

R31(ACK1)

27

R30 /

ALEB

26

VSS

25

XOUT

24

XIN

23

RESETB/VPP

22

R23

21

R22 (XTOUT)

20

R21 (XTIN)

9

MDS Team

7-3-2 ISP configuration for MC80F0424/32/48

(AIN1) R61

49

(AIN2) R62

50

(AIN3) R63

51

(AIN4) R64

52

(AIN5) R65

53

(AIN6) R66

54

(AIN7) R67

55

VDD 56

(AIN8) R70

57

(AIN9) R71

58

(AIN10) R72

59

(AIN11) R73

60

(AIN12) R74

61

(AIN13) R75

62

(AIN14) R76

63

(AIN15) R77

64

MC80F0448L/32L/24L

32

R37

31

R36

30

R35

29

R34

28

R33(TxD1)

27

R32(RxD1)

26

R31(ACK1)

25

R30 /

ALEB

24 VSS

23 XOUT

22 XIN

21 RESETB

20

R23

19

R22 (XTOUT)

18

R21 (XTIN)

17

R20

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

10

Note1) ACK pin is optional. Refer to 5. Auto Baud Rate Mode and ACK mode at page 5

MDS Team

7-4 ISP configuration for MC80F7108/7308/7408

R06/INT0

R04/BUZO

VDD

VSS

BIAS

XOUT

XIN

VREG

SXIN

SXOUT

RESETB/VPP

9

10

11

5

6

7

8

1

2

3

4

MC80F7108Q

MC80F7108L

33

32

31

30

R73/SEG19 /

R72/SEG18 /

R71/SEG17

29

28

27

26

R70/SEG16

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

RXD

TXD

25

24

R63/SEG11

R62/SEG10

23

R61/SEG9

R23/AD3

R22/AD2

ALEB

R21/AD1

R20/AD0

/ R01/EC0

4

5

R06/INT0

R04/BUZO

VDD

6

7

VSS

BIAS

XOUT

XIN

VREG

SXIN

SXOUT

RESETB/VPP

8

9

10

11

12

13

14

15

16

1

2

3

R07/INT1

R10/PWM1/T2O

17

18

R50/SEG0

19

R51/SEG1

20

R52/SEG2

21

42

41

COM0

COM1/SEG34

40

COM2/SEG33

31

30

29

28

39

38

COM3/SEG32

R73/SEG19 /

RXD

R72/SEG18 /

TXD 37

36

35

34

33

32

R71/SEG17

R70/SEG16

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

R63/SEG11

R62/SEG10

R61/SEG9

27

26

25

24

23

22

R60/SEG8

R57/SEG7

R56/SEG6

R55/SEG5

R54/SEG4

R53/SEG3

R06/INT0

R04/BUZO

VDD

VSS

BIAS

XOUT

XIN

VREG

SXIN

SXOUT

REMOUT

8

9

10

11

4

5

6

7

1

2

3

MC80F7408Q

MC80F7408L

33

32

31

30

29

28

27

26

R73/SEG19 /

RXD

R72/SEG18 /

TXD

R71/SEG17

R70/SEG16

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

25

24

R63/SEG11

R62/SEG10

23

R61/SEG9

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

11

MDS Team

7-5 ISP configuration for MC80F7208

ALEB

/R01/EC0

R06/INT0

R04/BUZO

NC

VDD

VSS

NC

1

2

VCL2

VCL1

VLCDC

9

10

6

7

8

3

4

5

VCL0

XOUT

XIN

VREG

SXIN

SXOUT

REMOUT

RESETB/VPP

R07/INT1

11

12

13

14

15

16

17

18

19

MC80F7208Q

41

40

39

38

37

36

35

34

33

47

46

45

44

43

42

51

50

49

48

R76/SEG22

R75/SEG21

R74/SEG20

R73/SEG19/RXD

R72/SEG18/TXD

R71/SEG17

R70/SEG16

NC

NC

NC

NC

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

R63/SEG11

R62/SEG10

R61/SEG9

R60/SEG8

R06/INT0

R04/BUZO

NC

VDD

VSS

NC

VCL2

VCL1

VLCDC

VCL0

XOUT

1

7

8

9

2

3

4

5

6

10

11

XIN

VREG

SXIN

SXOUT

REMOUT

12

13

14

15

16

MC80F7208L

44

43

42

41

40

48

47

46

45

39

38

37

36

35

34

33

R74/SEG20

R73/SEG19/RXD

R72/SEG18/TXD

R71/SEG17

R70/SEG16

NC

NC

NC

NC

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

R63/SEG11

R62/SEG10

R61/SEG9

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

12

MDS Team

7-6 ISP configuration for MC80F0304/08/16

RXD

/R04/AN4/EC0

TXD

/R05/AN5/T0O

ACK

/R06/AN6/T2O

R07/AN7/EC1

VDD

1

2

3

4

5

ALEB

/R10/AN0/AVREF 6

R11/INT0/PWM3O

R12/INT1/BUZO

7

8

R13 9

R14

10

R15 11

R16

12

R17/AN8

13

R23/AN9

14

28

27

26

25

24

R03/AN3/INT2

R02/AN2/SOUT

R01/AN1/SI

R00/INT3/SCK

VSS

23

22

RESETB/

VPP

R34/

XOUT

21 R33/

XIN

RXD

/R04/AN4/EC0

TXD

/R05/AN5/T0O

ACK

/R06/AN6/T2O

R07/AN7/EC1

VDD

ALEB

/R10/AN0/AVREF

6

1

2

3

4

5

R11/INT0/PWM3O

R12/INT1/BUZO

7

8

20

19

18

R32/AN15

R31/AN14

R30/AN13

R13

R14

9

10

R15

11

R16

12 17

16

R26/AN12

R25/AN11

R17/AN8 13

R20

14 15 R24/AN10

R21

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

R22

15

16

32

31

30

29

28

R03/AN3/INT2

R02/AN2/SOUT

R01/AN1/SI

R00/INT3/SCK

VSS

27

26

RESETB/VPP

R34/

XOUT

25

R33/

XIN

23

22

21

24 R32/AN15

R31/AN14

R30/AN13

R27

20 R26/AN12

19 R25/AN11

18

17

R24/AN10

R23/AN9

Important!!!

If POR and R35 are enabled, Vdd and Vpp should be turned on simultaneously to enter ISP mode. Please follow below directions.

1. Turn off target Vdd.

2. Select target MCU again.

- It makes condition to make Vpp to turn on when Vdd is turned on.

3. Turn on target Vdd.

* Refer to page 4

* This function is applied in ISP S/W ver.1.92 release at May 4th 2006.

13

MDS Team

7-7-1 ISP configuration for MC80F7532

19

20

21

22

15

16

17

18

23

24

10

11

12

13

14

1

2

3

4

5

6

7

8

9

SEG29/R85

SEG28/R84

SEG27/R83

SEG26/R82

SEG25/R81

SEG24/R80

SEG23/R77

SEG22/R76

SEG21/R75

SEG20/R74

SEG19/R73

SEG18/R72

SEG17/R71

SEG16/R70

SEG15/R67

SEG14/R66

SEG13/R65

SEG12/R64

SEG11/R63

SEG10/R62

SEG9/R61

SEG8/R60

SEG7/R57

SEG6/R56

MC80F7532Q

( 80MQFP )

46

45

44

43

50

49

48

47

42

41

55

54

53

52

51

64

63

62

61

60

59

58

57

56

XOUT

XIN

VDD

REMOUT

R13/SI/ RX

R12/SOUT/ TX

*Note1

R11/INT2/SCK/ ACK

R10/PWM1/T2O

R07/INT1

R06/INT0

R05/EC1

R04/BUZO

R03/RX0

R02/TX0

R01/EC0

R00/PWM0/T0O

VSS

R27/AN7

R26/AN6

R25/AN5

R24/AN4

R23/AN3

R22/AN2

R21/AN1

SEG27/R83

SEG26/R82

SEG25/R81

SEG24/R80

SEG23/R77

1

2

3

4

5

SEG22/R76

SEG21/R75

SEG20/R74

SEG19/R73

SEG18/R72

SEG17/R71

SEG16/R70

6

7

8

9

10

11

12

SEG15/R67

SEG14/R66

SEG13/R65

SEG12/R64

13

14

15

16

SEG11/R63

SEG10/R62

17

18

SEG9/R61

19

SEG8/R60 20

MC80F7532T

( 80TQFP )

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

VDD

REMOUT

R13/SI/ RX

*Note1

R12/SOUT/ TX

R11/INT2/SCK/ ACK

R10/PWM1/T2O

R07/INT1

R06/INT0

R05/EC1

R04/BUZO

R03/RX0

R02/TX0

R01/EC0

R00/PWM0/T0O

VSS

R27/AN7

R26/AN6

R25/AN5

R24/AN4

R23/AN3

14

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

Note1) ACK pin is optional. Refer to 5. Auto Baud Rate Mode and ACK mode at page 5

MDS Team

7-7-2 ISP configuration for MC80F7632

SEG33/COM2

SEG32/COM3

SEG23/R77

SEG22/R76

SEG21/R75

SEG20/R74

SEG19/R73

SEG18/R72

SEG17/R71

SEG16/R70

SEG15/R67

SEG14/R66

SEG13/R65

SEG12/R64

SEG11/R63

SEG10/R62

SEG9/R61

SEG8/R60

SEG7/R57

9

10

11

12

13

14

15

16

17

18

19

1

2

3

4

5

6

7

8

MC80F7632Q

( 64MQFP )

41

40

39

38

37

36

35

34

33

47

46

45

44

43

42

51

50

49

48

XIN

VDD

REMOUT

R13/SI/ RX

R12/SOUT/ TX *Note1

R11/INT2/SCK/ ACK

R10/PWM1/T2O

R07/INT1

R06/INT0

R05/EC1

R04/BUZO

R03/RX0

R02/TX0

R01/EC0

R00/PWM0/T0O

R27/AN7

R26/AN6

R25/AN5

R24/AN4

SEG23/R77

SEG22/R76

SEG21/R75

SEG20/R74

SEG19/R73

SEG18/R72

SEG17/R71

SEG16/R70

SEG15/R67

SEG14/R66

SEG13/R65

SEG12/R64

SEG11/R63

SEG10/R62

SEG9/R61

SEG8/R60

7

8

9

10

11

1

2

3

4

5

6

12

13

14

15

16

MC80F7632L

( 64LQFP )

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

VDD

REMOUT

R13/SI/ RX

R12/SOUT/ TX

*Note1

R11/INT2/SCK/ ACK

R10/PWM1/T2O

R07/INT1

R06/INT0

R05/EC1

R04/BUZO

R03/RX0

R02/TX0

R01/EC0

R00/PWM0/T0O

R27/AN7

R26/AN6

15

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

Note1) ACK pin is optional. Refer to 5. Auto Baud Rate Mode and ACK mode at page 5

MDS Team

7-8 ISP configuration for MC80F7708

R06/INT0

R04/BUZO

VDD

VSS

R41

XOUT

XIN

R44

R45

R46

RESETB/VPP

9

10

11

5

6

7

8

1

2

3

4

MC80F7708Q

33

32

31

30

R73/SEG19

R72/SEG18

R71/SEG17

29

28

27

26

R70/SEG16

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

25

24

R63/SEG11

R62/SEG10

23

R61/SEG9

R23/AD3

R22/AD2

ALEB

R21/AD1

R20/AD0

/ R01/EC0

R06/INT0

R04/BUZO

VDD

VSS

R41

XOUT

XIN

R44

SXIN

SXOUT

RESETB/VPP

R07/INT1

R10/PWM1/T2O

16

17

18

RX

R50/SEG0

TX

R51/SEG1

ACK

R52/SEG2

19

20

21

12

13

14

15

8

9

10

11

4

5

6

7

1

2

3

42

41

COM0

COM1/SEG34

40

COM2/SEG33

31

30

29

28

39

38

COM3/SEG32

R73/SEG19

R72/SEG18

37

36

35

34

33

32

R71/SEG17

R70/SEG16

R67/SEG15

R66/SEG14

R65/SEG13

R64/SEG12

R63/SEG11

R62/SEG10

R61/SEG9

27

26

25

24

23

22

R60/SEG8

R57/SEG7

R56/SEG6

R55/SEG5

R54/SEG4

R53/SEG3

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

Important!!!

If POR and R35 are enabled, Vdd and Vpp should be turned on simultaneously to enter ISP mode. Please follow below directions.

1. Turn off target Vdd.

2. Select target MCU again.

- It makes condition to make Vpp to turn on when Vdd is turned on.

3. Turn on target Vdd.

* Refer to page 4

* This function is applied in ISP S/W ver.1.92 release at May 4th 2006.

16

MDS Team

7-9 ISP configuration for MC80F5132

MCU Tx R13 1

MCU Rx

R12 2

ACK

R11 3

ALEB

R10 4

24 R14

23 R15

22 R16

21 R17

VDD = 4.5V

VDD 5 20 REMOUT

XIN

XOUT 6

XIN 7

19 RESETB

24 Pin

18 R30

VPP

R00 8

R01 9

R02 10

R03 11

R20 12

17 R07

16 R06

15 R05

14 R04

13 GND GND

*VDD must be 4.5V.

* ALEB

must be in logic high state.

* Refer to at page 3. Hardware Conditions to enter the ISP mode.

MCU Tx

1

MCU Rx

2

ACK

3

ALEB

R10

4

VDD = 4.5V

VDD

5

XOUT

6

XIN

XIN

7

R00

8

R01

9

R02

10

R03

11

R20

12

R21

13

R22

14

28

R14

27

R15

26

R16

25

R17

24

REMOUT

23

RESETB

VPP

28 Pin

22

R30

21

R07

20

R06

19

R05

18

R04

17

GND

GND

16

R24

15

R23

MDS Team

8. Trouble shooting

1. USB to serial cable issue (2006-08-31)

- A USB to serial cable with a chipset(PL-2303) of prolific technology has a compatibility problem with the ISP S/W.

If you failed to interface with ISP S/W, please use other USB to serial cable.

17

MDS Team

9. History

Ver. 1.52

1. MC80F7708 device support added (2007-01-10)

18

MDS Team

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
