ENGLISH

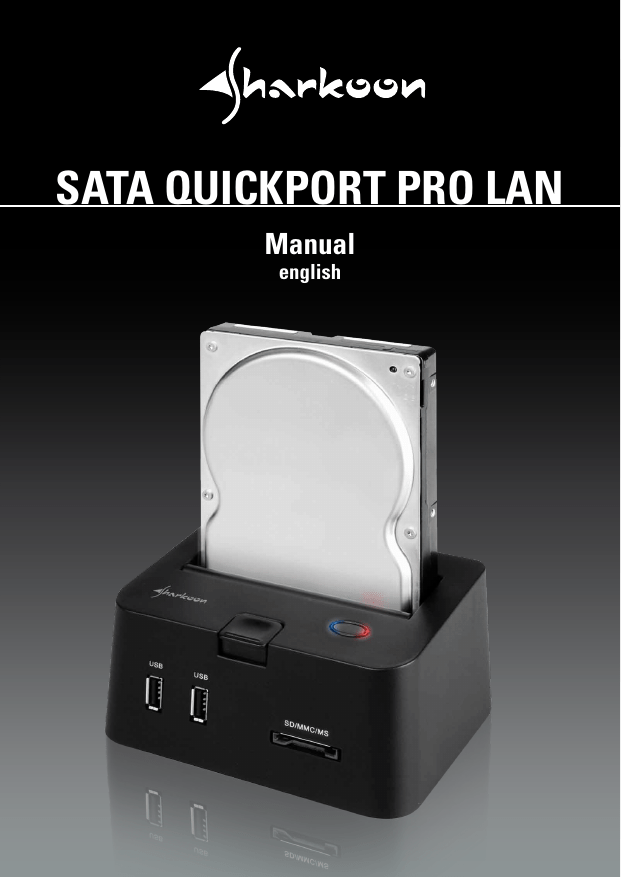

SATA QUICKPORT PRO LAN
Manual
english
SATA QUICKPORT PRO LAN
1. Features
2. Parts and accessories
3. The device at a glance
4. Getting started
4.1 Hardware installation
4.1.1 Local usage
4.1.2 Network usage
4.2 Software installation (Windows for example)
5. The user interface
5.1 The user interface’s menu bar
5.1.1 The File menu
5.1.1.1 The Setting submenu
5.1.1.2 Exiting the program (Quit entry)
5.1.2 The View menu
5.1.3 The Help menu
5.2 The context menus
5.2.1 The USB server context menu
5.2.1.1 Backup Firmware
5.2.1.2 Update Firmware
5.2.1.3 Change Password
5.2.1.4 Restart Server
5.2.2 The USB devices context menu
6. Configuration via web interface
6.1 Status (device status)
6.2 Network
6.3 Reset device
6.4 Factory Default
6.5 Firmware Update
6.6 Password Change
7. Important notes
8. Example of use (Windows XP)
SATA QUICKPORT PRO LAN
ENGLISH
Content
Dear customer!
Have a good time with our product!
SHARKOON Technologies GmbH
1. Features
•
•
•
•
•
•
•
•
•
Enables the direct connection of a SATA HDD to your PC
Suitable for 2.5“ and 3.5“ SATA HDDs
NDAS functionality due to a network connector and included
server software
USB front hub (2 connectors)
Card reader (SD, SDHC, MMC/MS)
External interfaces: USB2.0, eSATA and LAN (RJ-45)
Premium quality
On/off button
LEDs for power and HDD access
SATA QUICKPORT PRO LAN
ENGLISH
Congratulations for purchasing one premium quality SHARKOON
product.
For a long life time and to take full advantage of this product we
recommend that you read this manual completely.
A
C
B
D
E
•
•
•
•
•
•
F
SATA QuickPort Pro LAN (A)
Power adaptor (B)
Tools CD with software and manual (PDF / C)
USB cable (D)
eSATA cable (E)
Patch cable (F)
Note:
If you are missing any of the items listed above, please contact
customer service via e-mail at [email protected] or call:
+ 49 (0) 6403 – 775 6100
SATA QUICKPORT PRO LAN
ENGLISH
2. Parts and accessories
B
A
C
E
D
A
B
C
D
E
–
–
–
–
–
Drive bay for SATA HDDs (2.5“ and 3.5“)
On/off button with integrated LED for power and HDD access
HDD eject button
USB front hub
Card reader
A B
A
B
C
D
E
–
–
–
–
–
C
D
E
Power connector
Network connector (RJ-45)
USB connector
eSATA connector
Reset button
SATA QUICKPORT PRO LAN
ENGLISH
3. The device at a glance
4.1 Hardware installation
Note:
Hard disk drive, card reader and USB front hub are accessed via
USB while only the HDD may be addressed over eSATA. This
means that after connecting the device to your PC over USB and
eSATA the HDD will be accessed via eSATA while the card reader
and the USB front hub are addressed over USB.
Using the SATA QuickPort Pro LAN in your network means that
it can not be connected over eSATA or USB to a PC simultaneously.
Therefore we suggest you to decide how you intend to use the
device in advance to avoid further problems.
4.1.1 Local usage
1. 2. 3. 4. 5. 6. Connect the included USB and eSATA cable to the according
connectors of the SATA QuickPort Pro LAN and your PC.
Connect the included power adapter to the SATA QuickPort
Pro LAN and a wall outlet.
Slide a 2.5“ or 3.5“ SATA HDD into the HDD slot of the
device.
Insert a compatible memory card into the card reader and
connect a maximum of two USB devices with the USB front
hub of the SATA QuickPort Pro LAN.
Switch on the device.
Your operating system will automatically recognize the
connected devices.
SATA QUICKPORT PRO LAN
ENGLISH
4. Getting started
4.1.2 Network usage
Connect the included patch cable to the network plug of the
SATA QuickPort Pro LAN and an available network connector
of your switch/hub/router/PC or similar.
Connect the included power adapter to the SATA QuickPort
Pro LAN and a wall outlet.
Install the included software.
4.2 Software installation (Windows for example)
1. 2. 3. 4. 5. Insert the included Tools CD into your CD/DVD drive.
Use the Windows Explorer to open the directory of the
inserted Tools CD.
Double click (left mouse button) “Setup.exe”.The installation
procedure will start.
Follow the installation wizard’s instructions.
To complete the installation you will be prompted to reboot
your PC. Confirm this indication.
After successfully rebooting your system, the following icon
will appear on your desktop:
Double-click (left mouse button) this icon to launch the
software.
SATA QUICKPORT PRO LAN
ENGLISH
1. 2. 3. Note:
You need to install this server software on every PC from
which you want to access the SATA QuickPort Pro LAN.
6. 7. 8. Slide a 2.5“ or 3.5“ SATA HDD into the HDD slot of the
device.
Insert a compatible memory card into the card reader and
connect a maximum of two USB devices with the USB front
hob of the SATA QuickPort Pro LAN.
Switch on the device.
SATA QUICKPORT PRO LAN
ENGLISH
First set the desired language for the user interface:
File > Setting > Languages:
A
D
A –
B –
C –
D –
E –
B
E
C
F
Menu bar containing the entries “File“, “View“ and
“Help“
USB server with appropriate IP address
USB device attached to the USB server (for example a
USB stick). Green icon = device available, red icon =
device not available
“Search“ button: by clicking (left mouse button) this button the search for devices connected to the USB server
will be started
“Config“ (configuration) button (only shown when the
USB server has been selected): left-click this button to
SATA QUICKPORT PRO LAN
ENGLISH
5. The user interface
open the USB server’s web interface
“Connect“ button (only shown when an attached USB
device has been selected): left-click this button to select
the according USB device and to lock it for other users
Note:
The software will detect the connected USB server and associated devices automatically. Furthermore the USB server supports automatic and manual IP address assignment; automatic
address assignment via DHCP is selected by default.
In case your firewall prompts you during the installation process
allow the USB server to access the respective network resources.
5.1 The user interface’s menu bar
5.1.1 The File menu
The File menu offers the submenu “Setting“ and the entry “Quit“.
5.1.1.1 The Setting submenu
The Setting submenu contains the entries “Polling Interval“ and
“Receive Disconnect Request“ as well as the submenu “Languages“
SATA QUICKPORT PRO LAN
ENGLISH
F –
2. The “Polling Interval” entry:
This entry lets you define whether and – if yes – in which
interval the USB server will poll the status of the connected
USB device(s).
After selecting this menu entry the following window will
open up:
Enter “0” to deactivate this function.
Enter any value > 20 seconds to activate this function and to
set the interval.
3. The “Receive Disconnect Request” entry:
In case a device is already in use by user A and user B wants
to access this device simultaneously he can send the following request to B:
SATA QUICKPORT PRO LAN
ENGLISH
1. The “Languages submenu”:
From the flip-out menu select the desired language for the
user interface.
ENGLISH
The receipt of this automated request may be turned on/off
here.
5.1.1.2 Exiting the program (Quit entry)
Select this menu entry to quit the program.
5.1.2 The View menu
The view menu offers the alternatively selectable entries “Servers And Devices“ and “Devices Only“.
1. The “ Servers and Devices” entry:
Select this option to display both the USB Server and
connected USB devices in the user interface.
2. The “Devices Only” entry:
If this option has been selected, the user interface will only
show the attached USB devices.
SATA QUICKPORT PRO LAN
5.1.3 The help menu
ENGLISH
Via the “About“ entry you can access some program information.
5.2 The context menus
By right-clicking the USB server and the devices entry respectively in the user interface you can access the according context
menus.
The devices context menu differs depending on whether the device is available (green icon) or blocked (red icon).
SATA QUICKPORT PRO LAN
5.2.1 The USB server context menu
ENGLISH
A
B
C
D
E
A –
B –
C –
D –
E –
Enter a name for the USB server here
DHCP on (manual IP address off) / DHCP off (manual IP
address on)
Define which port(s) shall be connected during program
start-up automatically
“Set“ saves your changes, “Cancel“ discards them
The entries “Backup Firmware“, “Update Firmware“,
“Change Password“ and “Restart Server“
SATA QUICKPORT PRO LAN
5.2.1.1 Backup Firmware
5.2.1.2 Update Firmware
In case you have a more actual version of the USB server’s firmware available you may update the current firmware version via
this entry. With “Browse” you select the locally saved update
version. “Submit” starts, “Cancel” terminates the update procedure.
A current firmware version can be found at www.sharkoon.com.
SATA QUICKPORT PRO LAN
ENGLISH
The USB server offers the possibility to backup the firmware.
The pop-up window (see below) already offers a target path for
the backup file. Via “Browse” you can change this default path.
“Submit” starts the backup, “Cancel” will terminate the action.
5.2.1.3 Change Password
5.2.1.4 Restart Server
Select this entry to restart the USB server. A restart may be necessary when the server does not react or other problems have
occurred.
You may also force a restart by pressing the reset button on the
device.
5.2.2 The USB devices context menu
1. The details entry displays some information regarding the
attached devices.
SATA QUICKPORT PRO LAN
ENGLISH
In this input window (see below) you may assign a new password. This password is required to configure different settings
of the USB server.
ENGLISH
2. The “Request Disconnect“ entry is used to send a message
to the current user of a blocked device to ask him to unblock
the device:
This entry only appears when the device is blocked
(red icon).
SATA QUICKPORT PRO LAN
1. 2. 3. Start the server software by double-clicking (left mouse
button) the program icon.
Start your browser.
Enter the server’s IP address (without “http://” or “www” put
in front) into the browser’s address line. The IP address
assigned to the server can be found in the user interface of
the server program:
or from the server’s context menu:
Alternatively select the server’s entry from the user interface
and click „Config“:
4. The browser will display the server’s web interface after wards.
SATA QUICKPORT PRO LAN
ENGLISH
6. Configuration via web interface
ENGLISH
6.1 Status (device status)
A
B
C
A –
B –
C –
Left-click the link to select the respective entry.
This area displays various USB server information:
Server Name, Manufacturer, Model, Firmware Version
and Server Up-Time (time elapsed since server has been
started).
These areas display various information regarding the
connected devices: Device Name, Link Status, Device
Status and Current User.
SATA QUICKPORT PRO LAN
6.2 Network
ENGLISH
A
B
C
D
A –
B –
C –
D –
Left-click the link to select the respective entry.
This area displays the current network status: IP Setting
(automatic or manual IP address assignment), IP Address
(IP address assigned to the server), Subnet Mask, MAC
Address (the server’s MAC address).
This area allows configuring the network settings.
With “DHCP Setting” you define whether the network
address shall be assigned automatically (Enable) or
manually (Disable).
The respective manual settings you enter into the areas
“IP Address” and “Subnet Mask”.
With “Server Name” you may define your own server
name.
To protect the server settings from unwanted changes
you need to assign a “Password”.
“Submit” saves your changes while “Clear” will discard
them.
SATA QUICKPORT PRO LAN
6.3 Reset device
ENGLISH
A
A
B
–
–
B
Left-click the link to select the respective entry.
Perform a reset after entering the assigned password
into the “Password” area and confirm by clicking the
“Submit” button, “Clear” will discard your entry.
6.4 Factory Default
A
A –
B –
B
Left-click the link to select the respective entry.
To recover the factory default settings enter the password into the “Password” area and confirm by leftclicking the “Submit” button, “Clear” will discard your
entry.
SATA QUICKPORT PRO LAN
6.5 Firmware Update
ENGLISH
A
B
C
A –
B –
C –
Left-click the link to select the respective entry.
To perform a firmware update, download the respective
software from our website and save it locally. Then enter
the according password (see above) into the “Password”
area and select the source path of the local update file
with “Search”.
“Submit” will confirm and start the update procedure.
“Clear” cancels the action.
6.6 Password Change
A
B
SATA QUICKPORT PRO LAN
–
–
Left-click the link to select the respective entry.
To change the current password enter it into the
“Current Password” area, then enter the newly assigned
password into the “New Password” area. Confirm the
new password by re-typing it into the “Confirm New
Password” area. Left-clicking “Submit” will complete
this procedure, “Clear” will abort.
7. Important notes
1. You need to install the server software on every PC, from
which you want to access the SATA QuickPort Pro LAN.
2. Your operating system will treat the connected USB device
as if it was directly connected to the PC. This means that
potential drivers (e.g. printer drivers) need to be installed on
the system (for further details refer to the manuals of the
according devices).
3. As the devices will be handled like directly attached hardware, we suggest to remove memory devices (HDDs, USB
sticks etc.) using the “Safely remove hardware” function
before terminating the connection via “Disconnect”.
The server software will also prompt you with the following
note:
SATA QUICKPORT PRO LAN
ENGLISH
A
B
Other USB devices such as printers, scanners etc. do not
require this step and can directly be disconnected.
4. The USB to IP translation may cause a decrease in transfer
speed compared to the native operation of the USB devices
and is caused by technical means.
8. Example of use (Windows XP)
User A at his desktop wants to access a hard disk drive that is
directly inserted into the SATA QuickPort Pro LAN.
For this purpose he runs the server software which already has
been installed on his system.
The user interface of the server software will display the server
and the associated devices (fig. 1):
A
B
C
D
fig. 1
In this example 4 devices have been connected to the SATA
QuickPort Pro LAN directly:
A
B
C
D
–
–
–
–
Compatible memory card inside the card reader
USB stick at the 1. USB front connector
USB stick at the 2. USB front connector
SATA HDD inside the HDD slot
SATA QUICKPORT PRO LAN
ENGLISH
A now may access and utilize the HDD as if it was directly connected to his PC.
User B also wants to access the HDD connected to the SATA
QuickPort Pro LAN. He also runs the already installed server software.
The user interface will display the server and the associated device.
The red icon indicates that the device is currently in usage and is
not available; the “Connect” button is set in grey (fig. 2).
fig. 2
Using the devices context menu (fig. 3), B can send a request
(fig. 4) to A who is currently blocking the device.
SATA QUICKPORT PRO LAN
ENGLISH
The green icon indicates that the device is available.
To access the device A selects it (1x left click) and then clicks (left
mouse button) the “Connect” button.
The operating system will install all required drivers and afterwards it will be displayed by the Windows Explorer.
ENGLISH
fig. 3
fig. 4
This request will be displayed on A’s screen. A can decide
whether he agrees to release the device “Yes” or not “No”.
As soon as A has released the device, B will receive the following prompt and can “Connect” to the device.
When B does not need the device any longer he can cancel the
connection via “Disconnect” and release the device for further
usage.
SATA QUICKPORT PRO LAN
Legal disclaimer
All named products and descriptions are trademarks and/or registered trademarks of
the respective manufacturers and are accepted as protected.
As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications
may vary.
The legal rights of the enclosed software belong to the respective owner. Please observe the license terms of the manufacturer before using the software.
All rights reserved especially (also in extracts) for translation, reprinting, reproduction
by copying or other technical means. Infringements will lead to compensation.
All rights reserved especially in case of assignation of patent or utility patent. Means
of delivery and technical modifications reserved.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
Please be informed about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.
© SHARKOON Technologies GmbH 2009
www.sharkoon.com
SATA QUICKPORT PRO LAN
ENGLISH
Warning:
For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
