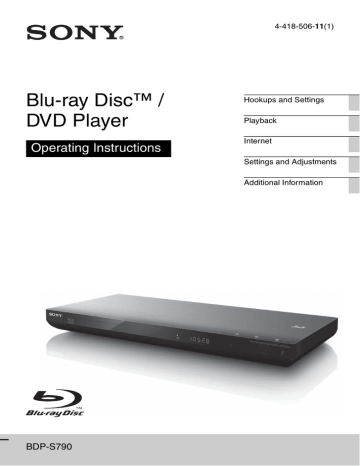

Blu-ray Disc™ /

DVD Player

Operating Instructions

4-418-506-11(1)

Hookups and Settings

Playback

Internet

Settings and Adjustments

Additional Information

BDP-S790

2

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The shielded Interface cable (LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC

Rules.

b

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in

Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

Contains FCC ID : EW4DWMW069

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.______________

Serial No.______________

For customers in the USA

If this product is not working properly, please call

1-866-909-7669.

3

Precautions

4

This equipment has been tested and found to comply with the limits set out in the EMC

Directive using a connection cable shorter than 3 meters.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug that might block the ventilation holes.

• Do not install this player in a confined space, such as a bookshelf or similar unit.

• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place the player outdoors, in vehicles, on ships, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Do not place metal objects in front of the front panel. It may limit reception of radio waves.

• Do not place the player in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless LAN function.

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.

• Take out any discs when you move the player. If you don’t, the disc may be damaged.

• Disconnect the AC power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord being damaged. Do not use the

AC power cord if it is damaged, as doing so may result in an electric shock or fire.

– Do not pinch the AC power cord between the player and wall, shelf, etc.

– Do not put anything heavy on the AC power cord or pull on the AC power cord itself.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, your ears and the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

On connecting to the HDMI OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

allowing young children to watch 3D video images.

Adults should supervise young children to ensure they follow the recommendations listed above.

• Be sure to disconnect the HDMI cable when moving the player.

• Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the HDMI connector into the HDMI OUT jack.

On watching 3D video images

Some people may experience discomfort

(such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual and/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website (http://

esupport.sony.com/) for the latest information. The vision of young children

(especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray

Disc™ and DVD media. These systems, called AACS (Advanced Access Content

System) and CSS (Content Scramble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the AACS may adopt or change its restriction rules after the time of purchase.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer

Information Center at http://www.cinavia.com.

5

6

To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information

Center, P.O. Box 86851, San Diego, CA, 92138,

USA.

Copyrights and Trademarks

• “AVCHD” and the “AVCHD 3D/

Progressive” logo are trademarks of

Panasonic Corporation and Sony

Corporation.

• Java is a trademark of Oracle and/or its affiliates.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony

Computer Entertainment Inc.

• This product incorporates High-Definition

Multimedia Interface (HDMI™) technology. HDMI, the HDMI logo and

High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

• “Blu-ray Disc,” “DVD+RW,” “DVD-RW,”

“DVD+R,” “DVD-R,” “DVD VIDEO,”

“Super Audio CD,” and “CD” logos are trademarks.

• “BD-LIVE,” “BD-LIVE” logo, and

“BONUSVIEW” are trademarks of Blu-ray

Disc Association.

• “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of Blu-ray Disc Association.

• “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation.

• “BRAVIA” is a trademark of Sony

Corporation.

• “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• This product incorporates proprietary technology under license from Verance

Corporation and is protected by U.S. Patent

7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation.

Copyright 2004-2010 Verance Corporation.

All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

• Windows Media is either a registered trademark or trademark of Microsoft

Corporation in the United States and/or other countries.

This product contains technology subject to certain intellectual property rights of

Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content.

If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

• This product meets ENERGY STAR

® guidelines for energy efficiency.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY

STAR is a registered mark owned by the

U.S. government.

• Music and video recognition technology and related data are provided by Gracenote

®

.

Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit

www.gracenote.com

.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote.

Gracenote Software, copyright © 2000present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote

patents. Gracenote, CDDB, MusicID,

MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United

States and/or other countries.

Opera Browser

Opera(r) Browser from Opera Software ASA.

Copyright 1995-2010 Opera Software ASA. All rights reserved.

• This product includes SkypeKit Version 3

Copyright 2003-2010, Skype Limited

Patents Pending

Skype, associated trade marks and logos and the “S” symbol are trade marks of Skype

Limited.

• Wi-Fi

®

, Wi-Fi Protected Access

®

and Wi-

Fi Alliance

®

are registered marks of the Wi-

Fi Alliance.

• Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are marks of the Wi-Fi Alliance.

• The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

• DLNA

®

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital

Living Network Alliance.

• All other trademarks are trademarks of their respective owners.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

End User License Information

Gracenote

®

End User License

Agreement

This application or device contains software from

Gracenote, Inc. of Emeryville, California

(“Gracenote”). The software from Gracenote (the

“Gracenote Software”) enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases

(collectively, “Gracenote Servers”) and to perform other functions. You may use Gracenote

Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the

Gracenote Software, and Gracenote Servers for your own personal non-commercial use only.

You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR

EXPLOIT GRACENOTE DATA, THE

GRACENOTE SOFTWARE, OR

GRACENOTE SERVERS, EXCEPT AS

EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and

Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote

Data, the Gracenote Software, and Gracenote

Servers. Gracenote reserves all rights in

Gracenote Data, the Gracenote Software, and the

Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that

Gracenote, Inc. may enforce its rights under this

Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are.

For more information, see the web page for the

Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of

Gracenote Data are licensed to you “AS IS.”

Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the

Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that

7

8

Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote

Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL

WARRANTIES EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE, AND NON-

INFRINGEMENT. GRACENOTE DOES NOT

WARRANT THE RESULTS THAT WILL BE

OBTAINED BY YOUR USE OF THE

GRACENOTE SOFTWARE OR ANY

GRACENOTE SERVER. IN NO CASE WILL

GRACENOTE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL

DAMAGES OR FOR ANY LOST PROFITS OR

LOST REVENUES.

© Gracenote, Inc. 2009

Table of Contents

WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hookups and Settings

Step 1: Connecting the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 2: Preparing for Network Connection . . . . . . . . . . . . . . . . . . 18

Step 3: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Playback

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Playing from a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Playing via a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Internet

Browsing Websites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Enjoying Skype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Settings and Adjustments

Using the Settings Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Network Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

BD/DVD Viewing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Parental Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Music Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Resetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Additional Information

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9

Guide to Parts and Controls

Front panel

10

A [/1 (on/standby)

Turns on the player, or sets to standby mode.

B Disc tray

C Front panel display

N, X: Lights up during playback or pause.

: Lights up when enabling the repeat setting.

: Lights up when outputting

720p/1080i/1080p video signals.

D Z (open/close)

E N (play)

F x (stop)

G

(USB) jack

Connect a USB device to this jack.

H Remote sensor

To lock the disc tray (Child Lock)

You can lock the disc tray to prevent it being opened by mistake.

When the player is turned on, hold down

N on the player for more than 10 seconds. The disc tray is locked or unlocked.

About soft-touch buttons/indicators

These buttons, 1, 4, 5 and 6, function when the soft-touch button indicators are lit.

You can turn on/off the indicators by setting [Dimmer] in the [System

Settings] setup (page 35).

b

These buttons work when you touch them lightly. Do not press them with excessive force.

z

These buttons still work, even if you turn off the indicators by setting [Dimmer] to [Off].

Rear panel

A LINE OUT (VIDEO) jack

B DIGITAL OUT (COAXIAL)

jack

C Ventilation holes

D CONTROL S IN / IR IN jack

If you have a CONTROL Scompatible Sony TV or AV amplifier (receiver), use a

CONTROL S cable (not supplied) to connect to the CONTROL S

(output) jack. Refer to the instruction manual supplied with your TV or AV amplifier (receiver).

E DIGITAL OUT (OPTICAL)

jack

F LINE OUT (R-AUDIO-L) jacks

G HDMI OUT 1 jack

H HDMI OUT 2 jack

I

(USB) jack

J LAN (100) terminal

11

12

Remote

The available functions of the remote differ depending on the disc or the situation.

OPEN/

CLOSE INPUT

TV

VOL

DISPLAY

AUDIO 3D SUBTITLE

YELLOW BLUE RED GREEN

SEN

R

E

T

U

T

O

P

M

EN

U

R

N

PO

P U

P/M

EN

OP

TI

O

N

S

HOME

PREV REPLAY ADVANCE NEXT

PLAY

NETFLIX

PAUSE STOP

z

• Number 5, AUDIO, VOL +, and N PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

• Gray-colored buttons glow in the dark.

The player automatically returns to standby mode

If any button on the player or remote is not pressed for more than 30 minutes, the player automatically returns to standby mode.

A Z OPEN/CLOSE

Opens or closes the disc tray.

-TV- INPUT

Switches between TV and other input sources.

-TV- [/1 (on/standby)

Turns on the TV, or sets to standby mode.

[/1 (on/standby)

Turns on the player, or sets to standby mode.

B Number buttons (0 - 9)

Enters the title/chapter numbers, etc.

VOL +/–

Adjusts the TV volume.

DISPLAY (page 21)

Displays the playback and web browsing information on the screen.

AUDIO (page 34)

Selects the language track when multi-lingual tracks are recorded on

BD-ROMs/DVD VIDEOs.

Selects the sound track on CDs.

3D (page 24)

Converts 2D content into simulated

3D content when connected to 3Dcompatible devices.

SUBTITLE (page 34)

Selects the subtitle language when multi-lingual subtitles are recorded on BD-ROMs/DVD VIDEOs.

C Color buttons (YELLOW/

BLUE/RED/GREEN)

Shortcut keys for interactive functions.

D TOP MENU

Opens or closes the BD’s or DVD’s

Top Menu.

SEN

Accesses the “Sony Entertainment

Network™” online service.

POP UP/MENU

Opens or closes the BD-ROM’s

Pop-up Menu, or the DVD’s menu.

OPTIONS (page 24)

The options menu that can be selected appears on the screen.

HOME

Enters the player’s home menu.

Displays the wallpaper when pressed on the category icon of the home menu.

RETURN

Returns to the previous display.

</M/m/,

Moves the highlight to select a displayed item.

Center button (ENTER)

Enters the selected item.

E . PREV/NEXT >

Skips to the previous/next chapter, track, or file.

REPLAY/ADVANCE

Briefly replays the current scenes for

10 seconds/briefly fast forwards the current scenes for 15 seconds.

m/M (fast/slow/freeze

frame)

• Fast reverses/fast forwards the disc when pressed during playback.

Each time you press the button during playback of videos, the search speed changes.

• Plays in slow motion, when pressed for more than one second in pause mode.

• Plays one frame at a time, when pressed briefly in pause mode.

z

During Blu-ray 3D Disc playback, slowmotion reverse play and single-frame reverse play are not available.

N PLAY

Starts or re-starts playback.

NETFLIX

Accesses the “NETFLIX” online service.

X PAUSE

Pauses or re-starts playback.

x STOP

Stops playback and remembers the stop point (resume point).

The resume point for a title/track is the last point you played or the last photo for a photo folder.

13

14

Home menu display

The home menu appears when you press

HOME. Select a category using

</,.

Select an item using

M/m, then press

ENTER.

Item Category

[Setup]: Adjusts the player settings.

[Photo]: Displays photos.

[Music]: Plays music.

[Video]: Plays videos.

[Network]: Displays network items.

Hookups and Settings

Step 1: Connecting the Player

Do not connect the AC power cord until you have made all the other connections.

For supplied accessories, see “Supplied accessories” (page 43).

Connecting to your TV

Select one of the following connection methods according to the input jacks on your

TV.

Match the color of the plug to that of the jack when connecting.

High Speed HDMI Cable

*1

(not supplied)

Audio/video cable (supplied)

High quality

Standard quality b

Do not connect the player through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

15

16

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your

AV amplifier (receiver). When you select A or B, make the appropriate settings in

the [Audio Settings] setup (page 33).

High Speed HDMI Cable

*1

(not supplied)

High Speed HDMI Cable

(not supplied)

*2

*1

t Set [BD Audio MIX Setting] (page 33).

Coaxial digital cable (not supplied) or

Optical digital cable (not supplied) t Set [Dolby Digital]

*3

/[DTS]

*4

(page 34).

Audio/video cable (supplied)

About AV Separation Mode

This mode allows you to output video signals via the HDMI OUT 1 jack and audio signals via the HDMI OUT 2 jack

separately (page 36).

Example:

The illustration below shows an example where a TV (3D-compatible) and an AV amplifier (not 3D-compatible) are connected.

U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-

HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

*1

*1

AV amplifier

(not 3D-compatible)

TV (3D-compatible)

*1

Use a High Speed HDMI Cable. We recommend using a Sony HDMI cable

*2

To enjoy 3D viewing, connect a TV and an

AV amplifier that are both 3D-compatible.

*3

(available at your nearest Sony dealer or local authorized Sony service facility, with part number 1-834-169-22, as of February

2012, or equivalent).

Manufactured under license from Dolby

Laboratories.

*4

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby

Laboratories.

Manufactured under license under U.S.

Patent Nos: 5,956,674; 5,974,380;

6,226,616; 6,487,535; 7,212,872;

7,333,929; 7,392,195; 7,272,567 & other

17

Step 2: Preparing for

Network Connection

Wired Setup

Use a LAN cable to connect to the LAN

(100) terminal on the player.

LAN cable

(not supplied)

Broadband router

ADSL modem/

Cable modem

Internet z

Using a shielded interface cable (LAN cable) is recommended.

Wireless Setup

Use the wireless LAN that is built into the player.

Before setting the network settings

When your wireless LAN router (access point) is Wi-Fi Protected Setup (WPS)compatible, you can easily set the network settings with the WPS button.

If not, check the following information in advance, and record it in the space provided below.

– The network name (SSID* identifies your network*

2

.

1

) that

SSID*

1

:

– If security is set on your wireless network, the security key (WEP key,

WPA key)*

2

.

Security key:

*1

SSID (Service Set Identifier) is a name that

*2 identifies a particular wireless network.

You need to check the setting of your wireless LAN router for information about the SSID and security key.

For details:

– visit the following website:

http://www.sony.com/bluraysupport/

– refer to the instruction manual supplied with the wireless LAN router

– consult the manufacturer of the wireless

LAN router.

18

LAN cable

(not supplied)

Wireless

LAN router

ADSL modem/

Cable modem

Internet z

Use a wireless LAN router supporting

802.11b/g or 802.11b/g/n.

Step 3: Easy Setup

When turned on for the first time

Wait for a short while before the player turns on and starts [Easy

Setup].

1

Insert two Size AA (R6) batteries

by matching the 3 and # ends on

the batteries to the markings inside the battery compartment.

5

Perform [Easy Setup].

Follow the on-screen instructions to make the basic settings using </M/ m/, and ENTER on the remote.

</M/m/,

ENTER

2

Plug the player into the AC outlet.

to AC outlet

3

Press [/1 to turn on the player.

4

Turn on the TV, then switch the input selector on your TV so that the signal from the player appears on your TV screen.

19

20

Playback

Playing a Disc

For playable discs, see “Playable discs”

(page 43).

1

Switch the input selector on your

TV so that the signal from the player appears on your TV screen.

2

Press Z OPEN/CLOSE, and place

a disc on the disc tray.

1

Connect a USB memory to the

USB jack on the rear of the player

(page 11).

As your local storage, use a 1 GB or larger USB memory.

2

Prepare for BD-LIVE (BD-LIVE only).

• Connect the player to a network

(page 18).

• Set [BD Internet Connection] to

[Allow] (page 35).

3

Insert a BD-ROM with

BONUSVIEW/BD-LIVE.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

Playing side facing down

3

Press Z OPEN/CLOSE to close the

disc tray.

Playback starts.

If playback does not start automatically, select in the

[Video], [Music], or [Photo] category, and press ENTER.

Enjoying BONUSVIEW/BD-

LIVE

Some BD-ROMs with the “BD-LIVE” logo* have bonus content and other data that can be downloaded for enjoyment.

* z

To delete data in the USB memory, select

[Erase BD Data] in the [Video], and press

ENTER

. All data stored in the buda folder will be erased.

Enjoying Blu-ray 3D

You can enjoy a Blu-ray 3D Disc with the “Blu-ray 3D” logo*.

*

1

Prepare for Blu-ray 3D Disc playback.

• Connect the player to your 3Dcompatible devices using a High

Speed HDMI cable.

• Set [3D Output Setting] and [TV

Screen Size Setting for 3D] in the

[Screen Settings] setup (page 32).

2

Insert a Blu-ray 3D Disc.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

z

Refer also to the instruction manuals supplied with your TV and the connected device.

E Playback information

Displays the Play mode, Playing status bar, Disc type, Video codec,

Bitrate, Repeat type, Elapsed time, and Total playing time.

F Chapter number

G The currently selected angle

Displaying the play information

You can check playback information, etc., by pressing DISPLAY.

The displayed information differs depending on the disc type and player status.

Example: when playing a BD-ROM

Playing from a USB

Device

You can play video/music/photo files on the connected USB device.

For playable USB devices, see “Playable types of files” (page 44).

1

Connect the USB device to the

USB jack on the player (page 10).

Refer to the instruction manual supplied with the USB device before connecting.

2

Select [Video], [Music], or [Photo] on the home menu

using </,.

3

Select [USB device (front)]

using M/m, and press ENTER.

A Output resolution/Video frequency

B Title number or name

C The currently selected audio setting

D Available functions ( audio, subtitle) angle,

21

22

Playing via a Network

Enjoying Sony

Entertainment Network

(SEN)

Serves as a gateway delivering the selected Internet content and a variety of on-demand entertainment straight to your player.

z

Some Internet content requires registration via a PC before it can be played.

For further details, visit the following website:

http://www.sony.com/bluraysupport/

1

Connect the player to a network

(page 18).

2

Press SEN.

3

Select the Internet content and a variety of on-demand

entertainment using </M/m/,,

and press ENTER.

A Control display

Press </M/m/, or ENTER for playback operations.

B Playing status bar

Status bar, Cursor indicating the current position, Playing time,

Duration of the video file

C Network condition

indicates the signal strength for

wireless connection.

indicates the wired connection.

D Network transmission speed

E The next video file name

F The currently selected video file name

Playing files on a Home

Network (DLNA)

The player (DLNA Player) can play video/music/photo files stored on another DLNA-compatible product

(DLNA Server) via a network.

To use the control panel during video streaming

The control panel appears when a video file starts playing. The displayed items may differ depending on the Internet content provider.

To display again, press DISPLAY.

Server

Player

1

Prepare for using DLNA.

• Connect the player to a network

(page 18).

• Prepare the other necessary

DLNA-compatible products.

Refer to the instruction manual supplied with the product.

2

Select the DLNA Server icon from

[Video], [Music], or

[Photo] on the home menu.

3

Select the file you want to play

using M/m, and press ENTER.

with DLNA and the PARTY

STREAMING function, or vice versa.

PARTY host

To control the player using another product (Renderer)

When you play files from a DLNA

Server on the player, you can use a

DLNA Controller-compatible product (a phone, etc.) to control playback.

Server

Renderer

Controller z

Refer to the instruction manual supplied with the DLNA Controller.

PARTY guest

PARTY guest

1

Prepare for PARTY STREAMING.

• Connect the player to a network

(page 18).

• Connect the products which are compatible with the PARTY

STREAMING function to a network.

2

Select a track in [Music] on the home menu.

3

Select [Start PARTY] from the options menu.

Playing the same music in different rooms (PARTY

STREAMING)

You can play music files on the player

(PARTY host) in other rooms simultaneously through Sony products

(PARTY guest) which are compatible

To join in a PARTY (for the PARTY guest only)

Select [PARTY] in [Music], then select the PARTY host device icon.

To close the PARTY

Select [Close PARTY] from the options menu.

z

The sale and lineup of products that are compatible with the PARTY STREAMING function differ depending on the area.

23

24

Searching for the video/ music information

You can acquire content information based on Gracenote technology and search for the related information.

1

Connect the player to a network

(page 18).

2

Insert a disc you want to search.

• Video: For a BD-ROM or DVD-

ROM only

• Music: For a CD-DA only

3

Select [Video] or [Music]

using </,.

4

Select [Video Search] or

[Music Search] using M/m,

and press ENTER.

The content information is displayed.

Example: List of the selected cast’s works

A Content details

Displays a list of related information, such as title, cast, track, or artist.

B Playback History

Displays a title in playback history of a BD-ROM/DVD-ROM/CD-DA.

C Search History

Displays a list of search history.

To search for further related information

Select an item in the lists, then select the service for searching.

Available Options

Various settings and playback operations are available by pressing

OPTIONS. The available items differ depending on the situation.

Common options

Item

Repeat

Setting

3D Menu

Play/Stop

Play from beginning

Details

Sets the repeat mode.

• Simulated 3D:

Adjusts the simulated

3D effect.

• 3D Depth

Adjustment: Adjusts the depth of 3D image.

Starts or stops the playback.

Plays the item from the beginning.

[Video] only

Item

3D Output

Setting

A/V SYNC

Details

Sets whether or not to output 3D video automatically.

Adjusts the gap between picture and sound, by delaying the sound output in relation to the picture output (0 to 120 milliseconds).

Item

Pause

Top Menu

Details

Video Settings • Picture Quality

Mode: Selects the picture settings.

• Texture Remaster:

Adjusts the sharpness and detail of the edges.

• Super Resolution:

Improves the resolution.

• Smoothing: Reduces on-screen banding by smoothing gradations on flat areas.

• Contrast Remaster:

Automatically arranges the black and white levels so that the screen is not too dark and the image is modulated.

• Clear Black: Adjusts the display of the dark elements of the image. All shading is not suppressed; it allows beautifully reproduced black tones.

Pauses the playback.

Menu/Popup

Menu

Displays the BD’s or

DVD’s Top Menu.

Displays the BD-

ROM’s Pop-up Menu or DVD’s menu.

Title Search

Chapter

Search

Searches for a title on

BD-ROMs/DVD

VIDEOs and starts playback from the beginning.

Searches for a chapter and starts playback from the beginning.

Item

Angle

Details

Switches to other viewing angles when multi-angles are recorded on BD-

ROMs/DVD VIDEOs.

IP Content NR

Pro

Adjusts the picture quality of Internet content.

Video Search

Displays information on the BD-ROM/DVD-

ROM based on

Gracenote technology.

[Music] only

Item

Add

Slideshow

BGM

Details

Registers music files in the USB memory as slideshow background music (BGM).

Start PARTY Starts a PARTY with the selected source.

This item may not appear, depending on the source.

Leave PARTY Leaves from a PARTY which the player is participating in. The

PARTY STREAMING function continues among other participating products.

Close PARTY Closes a PARTY which the player is participating in. The

PARTY STREAMING function ends for all other participating products.

Music Search Displays information on the CD-DA based on

Gracenote technology.

25

26

[Photo] only

Item

Slideshow

Speed

Slideshow

Effect

Slideshow

BGM

Details

Changes the slideshow speed.

Sets the effect for slideshows.

• Off: Turns off the function.

• My Music from USB:

Sets the music files registered in [Add

Slideshow BGM].

• Play from Music CD:

Sets the tracks in CD-

DAs.

Change

Display

Switches between [Grid

View] and [List View].

Plays a slideshow.

Slideshow

Rotate Left Rotates the photo counterclockwise by

90 degrees.

Rotate Right

Rotates the photo clockwise by 90 degrees.

Internet

Browsing Websites

You can connect to the Internet and enjoy websites.

1

Connect the player to a network

(page 18).

2

Select [Network] on the home

menu using </,.

3

Select [Internet Browser]

using M/m, and press ENTER.

To quit the Internet browser

Press HOME.

Internet browser display

You can check the website information by pressing DISPLAY.

The display information differs depending on the website and page status.

z

Some websites use functions which this browser does not support. Some websites may not be displayed correctly, or may not function.

To enter a URL

Select [URL entry] from the options menu. Enter the URL using the software keyboard, then select [Enter].

To set the default start page

While displaying the page you want to set, select [Set as start page] from the options menu.

To return to the previous page

Select [Previous page] from the options menu.

When the previous page does not appear even if you select [Previous page], select

[Window List] from the options menu and select the page you want to return to from the list.

A Page title

B Page address

C Cursor

To view a linked site, press </M/ m/, to move the cursor, and press

ENTER.

D SSL icon

Appears when the website is secured.

E Signal strength indicator (wireless network connection only)

F Progress bar/Loading icon

Appears when the page is being read, or during file download/ transfer.

G Text input field

Press ENTER and select [Input] from the options menu to display the software keyboard.

27

28

H Scroll bar

Press

<

/ M/m/

,

to move the page display.

Available options

Various settings and operations are available by pressing OPTIONS.

The available items differ depending on the situation.

Item

Browser

Setup

Details

• Zoom: Increases or decreases the size of the displayed contents.

• JavaScript Setup:

Enables or disables

JavaScript.

• Cookie Setup: Sets whether or not to accept cookies.

• SSL Alarm Display:

Enables or disables

SSL.

Input

Break

Displays the software keyboard to enter characters while browsing a website.

Moves the cursor to the next line in the text input field.

Delete

Window List

Erases one character on the left side of the cursor during text input.

Displays a list of currently opened windows of website.

Allows you to return to a previously displayed website by selecting the window.

Bookmark List Displays the bookmark list.

Item

URL entry

Details

Allows you to enter a

URL when the software keyboard is displayed.

Moves to the previous/ next page.

Previous page/Next page

Cancel loading

Reload

Add to

Bookmark

Set as start page

Open in new window

Character encoding

Display certificate

Stops loading a page.

Reloads the same page.

Adds the currently displayed website to the bookmark list.

Sets the currently displayed website as the default start page.

Opens a link in a new window.

Sets the character code.

View server certificates sent from pages that support SSL.

Enjoying Skype

Skype is a communication software using the Internet.

You can enjoy Skype-to-Skype video calls/voice calls for free with the player.

PC

1

Prepare for Skype.

• Connect the player to a network

(page 18).

• Connect the web camera with microphone to the USB jack

(page 10).

2

Select [Network] on the home

menu using </,.

3

Select press ENTER.

When you start Skype for the first time, follow the on-screen instructions and sign in to use

Skype. If you do not have your own account, create one.

z

For information about available web cameras, visit the following website:

http://www.sony.com/bluraysupport/

Using the Skype menu

After signing-in, you can make/receive a call or make Skype settings.

C Tab area

• Contacts: Displays the contacts to call.

• History: Displays the call history.

• Tools: Enables useful functions such as contact search.

• Settings

To make a call

Select the contact icon you want to call in the Skype menu, and press ENTER.

To receive a call

Activate Skype and sign in.

To quit Skype

Press HOME.

Once you sign in, your password will be saved in the player when you quit Skype.

To delete your password, sign out of

Skype before quitting.

To sign in using another account

Select [Sign Out] from the options menu.

Select on the home menu, and follow the on-screen instructions.

Skype display

A Your Skype name

B Signal strength indicator (wireless network connection only)

A Contact name

B Video of the contact (for video calls only)

29

30

C Signal strength indicator/Network transmission speed (wireless network connection only)

D Video of yourself (for video calls only)

E Available buttons

The available buttons differ depending on the situation.

• Full screen/Window screen:

Changes the display mode.

• Hang Up

• Hold/Resume

• Mute/Unmute

• Start My Video/Stop My Video:

Displays/hides the video of yourself.

• Voice call/Video call

Available options

Various settings and operations are available by pressing OPTIONS.

The available items differ depending on the situation.

Item Details

Change

Display

Changes the display for contact/history.

Change

Status

Changes the Skype status.

Exits Skype.

Sign Out

About Skype

Displays the copyright screen.

Help Displays the Skype help.

Settings and Adjustments

Using the Settings

Displays

Select [Setup] on the home menu when you need to change the settings of the player.

The default settings are underlined.

1

Select [Setup] on the home

menu using </,.

2

Select the setup category icon

using M/m, and press ENTER.

Icon Explanation

Network Update

(page 31)

Updates the software of the player.

Screen Settings

(page 32)

Makes the video settings according to the type of connecting jacks.

Audio Settings

(page 33)

Makes the audio settings according to the type of connecting jacks.

BD/DVD Viewing

Settings (page 34)

Makes detailed settings for

BD/DVD playback.

Parental Control

Settings (page 35)

Makes detailed settings for the Parental Control function.

Icon Explanation

Music Settings

(page 35)

Makes detailed settings for

Super Audio CD playback.

System Settings

(page 35)

Makes the player-related settings.

Network Settings

(page 36)

Makes detailed settings for the Internet and network.

Easy Setup (page 37)

Re-runs the Easy Setup to make the basic settings.

Resetting (page 37)

Resets the player to the factory settings.

Network Update

Select [OK] to update the player’s software via the network.

z

• We recommend the network update every 2 months or so.

• For information about update functions, visit the following website:

http://www.sony.com/bluraysupport/

31

32

Screen Settings

Pan & Scan: Displays a full-height picture on the entire screen, with trimmed sides.

3D Output Setting

Auto: Normally select this.

Off: Select this to display all content in

2D.

z

If you enjoy 4K/24p 3D contents, set to [Off] in [3D Output Setting].

TV Screen Size Setting for 3D

Sets the screen size of your 3Dcompatible TV.

TV Type

16:9: Select this when connecting to a wide-screen TV or a TV with a wide mode function.

4:3: Select this when connecting to a 4:3 screen TV without a wide mode function.

Screen Format

Full: Select this when connecting to a

TV with a wide mode function.

Displays a 4:3 screen picture in 16:9 aspect ratio, even on a wide-screen

TV.

Normal: Changes the picture size to fit the screen size with the original picture aspect ratio.

DVD Aspect Ratio

Letter Box: Displays a wide picture with black bands on the top and bottom.

Cinema Conversion Mode

Auto: Normally select this. The player automatically detects whether the material is video-based or filmbased, and switches to the appropriate conversion method.

Video: The conversion method suited for video-based material will always be selected, regardless of the material.

Output Video Format

HDMI: Normally select [Auto]. Select

[Original Resolution] to output the resolution recorded on the disc.

When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

Video: Automatically sets the lowest resolution.

BD-ROM 24p Output

Auto: Outputs 1080/24p or 4K/24p video signals only if you connect a

1080/24p or 4K/24p-compatible TV with the HDMI OUT jack.

On: Select this if your TV is compatible with 1080/24p or 4K/24p video signals.

Off: Select this if your TV is not compatible with 1080/24p or 4K/

24p video signals.

DVD-ROM 24p Output

Auto: Outputs 1080/24p or 4K/24p video signals only if you connect a

1080/24p or 4K/24p-compatible TV with the HDMI OUT jack.

Off: Select this if your TV is not compatible with 1080/24p or 4K/

24p video signals.

4K Output

Auto: Outputs 4K/24p video signals automatically if you connect a 4K/

24p -compatible device and make the appropriate settings in [BD-

ROM 24p Output] or [DVD-ROM

24p Output], and also outputs 4K/

24p photo images if you play 2D photo files.

Off: Turns off the function.

YCbCr/RGB (HDMI)

Auto: Automatically detects the connected TV type, and switches to the matching color setting.

YCbCr (4:2:2): Outputs YCbCr 4:2:2 video signals.

YCbCr (4:4:4): Outputs YCbCr 4:4:4 video signals.

RGB: Outputs RGB video signals.

HDMI Deep Color Output

Auto: Normally select this.

16bit/12bit/10bit: Outputs 16bit/12bit/

10bit video signals when the connected TV is compatible with

Deep Color.

Off: Select this when the picture is unstable or colors appear unnatural.

SBM (Super Bit Mapping)

On: Smooths the gradation of video signals output from the HDMI OUT jack.

Off: Select this when outputting distorted video signals or unnatural color.

Pause Mode

Auto: Normally select this. Dynamic moving pictures appear without blurring.

Frame: Displays static pictures at high resolution.

Audio Settings

Audio (HDMI)

Auto: Normally select this. Outputs audio signals according to the status of the connected HDMI device.

PCM: Outputs PCM signals from the

HDMI OUT jack.

DSD Output Mode

On: Outputs DSD signals from the

HDMI OUT jack when playing a

Super Audio CD. When [On] is selected, no signal is output from other jacks.

Off: Outputs PCM signals from the

HDMI OUT jack when playing a

Super Audio CD.

BD Audio MIX Setting

On: Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio.

Off: Outputs the primary audio only.

Select this to output HD audio signals to an AV amplifier

(receiver).

33

34

Dolby Digital / DTS

Downmix PCM: Converts to output

Linear PCM signals. Select this when connecting an audio device without a built-in Dolby Digital/

DTS decoder.

Bitstream: Select this when connecting an audio device with a built-in

Dolby Digital/DTS decoder.

DTS Neo:6

Cinema: Outputs the simulated multichannel sound from 2 channel sources via the HDMI OUT jack according to the capability of the connected device using [DTS Neo:6

Cinema] mode.

Music: Outputs the simulated multichannel sound from 2 channel sources via the HDMI OUT jack according to the capability of the connected device using [DTS Neo:6

Music] mode.

Off: Outputs the sound with its original number of channels via the HDMI

OUT jack.

Audio DRC

Auto: Performs playback at the dynamic range specified by the disc (BD-

ROM only). Other discs are played back at the [On] level.

On: Performs playback at a standard compression level.

Off: No compression works. A more dynamic sound is produced.

Downmix

Surround: Outputs audio signals with surround effects. Select this when connecting an audio device that supports Dolby Surround (Pro

Logic) or DTS Neo:6.

Stereo: Outputs audio signals without surround effects. Select this when connecting an audio device that does not support Dolby Surround (Pro

Logic) or DTS Neo:6.

BD/DVD Viewing

Settings

BD/DVD Menu Language

Selects the default menu language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language

Code], the display for entering the language code appears. Enter the code for your language by referring to

“Language code list” (page 47).

Audio Language

Selects the default track language for

BD-ROMs or DVD VIDEOs.

When you select [Original], the language given priority in the disc is selected.

When you select [Select Language

Code], the display for entering the language code appears. Enter the code for your language by referring to

“Language code list” (page 47).

Subtitle Language

Selects the default subtitle language for

BD-ROMs or DVD VIDEOs.

When you select [Select Language

Code], the display for entering the language code appears. Enter the code for your language by referring to

“Language code list” (page 47).

BD Hybrid Disc Playback Layer

BD: Plays BD layer.

DVD/CD: Plays DVD or CD layer.

BD Internet Connection

Allow: Normally select this.

Do not allow: Prohibits Internet connection.

Internet Video Unrated

Allow: Allows the playback of unrated

Internet videos.

Block: Blocks the playback of unrated

Internet videos.

Music Settings

Parental Control

Settings

Password

Sets or changes the password for the

Parental Control function. A password allows you to set a restriction on BD-

ROM or DVD VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for

BD-ROMs, DVD VIDEOs, and Internet videos.

Parental Control Area Code

Playback of some BD-ROMs, DVD

VIDEOs, or Internet videos can be limited according to the geographic area.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

BD Parental Control/DVD Parental

Control/Internet Video Parental

Control

By setting Parental Control, scenes can be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

Super Audio CD Playback Layer

Super Audio CD: Plays the Super Audio

CD layer.

CD: Plays the CD layer.

Super Audio CD Playback Channel

DSD 2ch: Plays the 2ch area.

DSD Multi: Plays the multi-channel area.

System Settings

OSD Language

Selects your language for the player onscreen displays.

Dimmer

Bright: Bright lighting.

Dark: Low lighting.

Off: Turns off the lighting during playback. Low lighting other than during playback.

Control for HDMI

On: The following BRAVIA Sync features are available:

–One-Touch Play

–System Power-Off

–Language Follow

35

36

Off: Turns off the function.

z

For details, refer to the instruction manual supplied with the TV or components. To enable the BRAVIA Sync features, connect your TV via the HDMI OUT 1 jack.

HDMI: Linked to TV-off

On: Automatically turns off the player and HDMI-compatible components when the connected TV enters standby mode (BRAVIA Sync).

Off: Turns off the function.

AV Separation Output Mode

On: Outputs video signals via the HDMI

OUT 1 jack and audio signals via the

HDMI OUT 2 jack separately.

Off: Outputs video signals and audio signals simultaneously via both the

HDMI OUT 1 jack and the HDMI

OUT 2 jack.

Quick Start Mode

On: Shortens the startup time when turning on the player.

Off: Reduces standby power consumption.

Off: Turns off the function.

Software Update Notification

On: Sets the player to inform you of newer software version information

(page 31).

Off: Turns off the function.

Gracenote Settings

Auto: Automatically downloads disc information when disc playback stops. Connect to the network for downloading.

Manual: Downloads the disc information when [Video Search] or

[Music Search] is selected.

System Information

Displays the player’s software version information and the MAC address.

Software License Information

Displays the Software License

Information.

Network Settings

Auto Display

On: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.

Off: Displays information only when you press DISPLAY.

Screen Saver

On: Turns on the screen saver function.

The screen saver image appears when you do not use the player for more than 10 minutes while an onscreen display is displayed.

Internet Settings

Connect the player to the network

beforehand. For details, see “Step 2:

Preparing for Network Connection”

(page 18).

Wired Setup: Select this when you connect to a broadband router using a LAN cable.

Wireless Setup(built-in): Select this when you use the wireless LAN that is built into the player for wireless network connection.

View Network Status: Displays the current network status.

z

For further details, visit the following website and check the FAQ contents:

http://www.sony.com/bluraysupport/

Network Connection Diagnostics

You can run the network diagnostic to check if the network connection has been made properly.

Connection Server Settings

Sets whether or not to display the connected server.

Renderer Options

Auto Access Permission: Sets whether or not to allow automatic access from a newly detected DLNA controller-compatible product.

Renderer Name: Displays the player’s name as it is listed on other DLNA products on the network.

Renderer Access Control

Displays a list of DLNA controllercompatible products and sets whether or not each product is accessible via this player.

PARTY Auto Start

On: Starts a PARTY or joins an existing

PARTY at the request of a networked product compatible with the PARTY STREAMING function.

Off: Turns off the function.

Media Remote Device Registration

Registers your “Media Remote” device.

Registered Media Remote Devices

Displays a list of your registered “Media

Remote” devices.

Remote Start

On: Permits turning on the system from the “Media Remote” device.

Off: Turns off the function.

Easy Setup

Easy Initial Settings

Runs [Easy Initial Settings] to make the basic settings. Follow the on-screen instructions.

Easy Network Settings

Runs [Easy Network Settings] to make the basic network settings. Follow the on-screen instructions.

Resetting

Reset to Factory Default Settings

You can reset the player settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

Initialize Personal Information

You can erase your personal information stored in the player.

37

38

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

The display language on the screen switches automatically when connected to the HDMI OUT jack.

, When [Control for HDMI] is set to

[On] (page 35), the display language

on the screen automatically switches according to the language setting of the connected TV (if you change the setting on your TV, etc.).


There is no picture or the picture is not output correctly.

, Check that all the connecting cables

are securely connected (page 15).

, Switch the input selector on your TV to display the signal from the player.

, Reset the video output resolution to the lowest resolution by pressing x on the player for more than 10 seconds.

, For HDMI connections, try the following: 1Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the

HDMI cable.

, The HDMI OUT jack is connected to a

DVI device that does not support copyright protection technology.

, For HDMI connections, check the

[Output Video Format] settings in the

[Screen Settings] setup (page 32).

, When the analog signals are also output, set [BD-ROM 24p Output] or

[DVD-ROM 24p Output] to [Off] in

the [Screen Settings] setup (page 32).

, For BD-ROMs, check the [BD-ROM

24p Output] setting in the [Screen

Settings] setup (page 32).

Sound

There is no sound or the sound is not output correctly.

, Check that all the connecting cables

are securely connected (page 15).

, Switch the input selector on your AV amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver).

, If the audio signal does not come through the DIGITAL OUT

(OPTICAL/COAXIAL)/HDMI OUT jack, check the audio settings

(page 33).

, For HDMI connections, try the following: 1Turn the player off and on again. 2Turn the connected equipment off and on again.

3

Disconnect and then reconnect the

HDMI cable.

, For HDMI connections, if the player is connected to a TV through an AV amplifier (receiver), try connecting the

HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

, There is no sound if you connect an

AV amplifier to the HDMI OUT 1 jack, and set [AV Separation Output

Mode] to [On] (page 36). Set [AV

Separation Output Mode] to [Off], or connect the AV amplifier to the HDMI

OUT 2 jack (See “About AV

Separation Mode” (page 17).).

, The HDMI OUT jack is connected to a

DVI device. (DVI jacks do not accept audio signals.)

, The device connected to the HDMI

OUT jack does not support the audio format of the player. Check the audio

settings (page 33).

The HD Audio (Dolby Digital Plus,

Dolby TrueHD, DTS-HD High

Resolution Audio, and DTS-HD

Master Audio) is not output by bitstream.

, Set [BD Audio MIX Setting] to [Off] in the [Audio Settings] setup

(page 33).

, Check that the connected AV amplifier

(receiver) is compatible with each HD

Audio format.

The interactive audio is not output.

, Set [BD Audio MIX Setting] to [On] in

the [Audio Settings] setup (page 33).

Disc

The disc does not play.

, The disc is dirty or skewed.

, The disc is upside down. Insert the disc with the playback side facing down.

, The disc has a format that cannot be

played back by this player (page 43).

, The player cannot play a recorded disc that has not been correctly finalized.

, The region code on the BD or DVD does not match the player.

USB device

The player does not detect a USB device connected to the player.

, Make sure that the USB device is securely connected to the USB jack.

, Check if the USB device or a cable is damaged.

, Check if the USB device is on.

, If the USB device is connected via a

USB hub, connect the USB device directly to the player.

SEN (Sony Entertainment

Network)

The picture/sound is poor/certain programs display a loss of detail, especially during fast-motion or dark scenes.

, Picture/sound quality may be poor depending on Internet content providers.

, Picture/sound quality may be improved by changing the connection speed. We recommend a connection speed of at least 2.5 Mbps for standard definition video (10 Mbps for high definition video).

, Not all videos will contain sound.

The picture is small.

, Press M to zoom in.

39

Skype

There is severe humming or noise.

, Set the volume of the connected TV lower.

, Try moving the web camera with microphone away from the speakers of the connected TV.

interrupt the communication. Move the player away from such devices, or turn off such devices.

The desired wireless router is not shown in the wireless network list.

, Press RETURN to return to the previous screen, and try [Wireless

Setup(built-in)] again. If the desired wireless router is still not detected, select [Manual registration].

Network connection

The player cannot connect to the network.

, Check the network connection

(page 18) and the network settings

(page 36).

The message [A new software version is available. Please go to the "Setup" section of the menu and select

"Network update" to perform the update.] appears on the screen when turning the player on.

, See “Network Update” (page 31) to

update the player to a newer software version.

You cannot connect your PC to the

Internet after [Wi-Fi Protected Setup

(WPS)] is performed.

, The wireless settings of the router may change automatically if you use the

Wi-Fi Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.

You cannot start the PARTY

STREAMING function.

, Check that [PARTY Auto Start] is set to [On] in [Network Settings]

(page 37).

40

You cannot connect the player to the wireless LAN router.

, Check if the wireless LAN router is on.

, Depending on the surrounding environment, such as the wall material, radio wave receiving condition, or obstacles between the player and the wireless LAN router, the communication distance may be shortened. Move the player and the wireless LAN router closer to each other.

, Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may

“Control for HDMI” (BRAVIA

Sync)

The [Control for HDMI] function does not work (BRAVIA Sync).

, Check that your TV is connected via the HDMI OUT 1 jack. If your TV is connected via the HDMI OUT 2 jack,

BRAVIA Sync is disabled.

, Check that [Control for HDMI] is set

to [On] (page 35).

, If you change the HDMI connection, turn the player off and on again.

, If power failure occurs, set [Control for HDMI] to [Off], then set [Control

for HDMI] to [On] (page 35).

, Check the following and refer to the instruction manual supplied with the component.

– the connected component is compatible with the [Control for

HDMI] function.

– the connected component’s setting for the [Control for HDMI] function is correct.

, When you connect the player to a TV through an AV amplifier (receiver),

– if the AV amplifier (receiver) is not compatible with the [Control for

HDMI] function, you may be unable to control the TV from the player.

– if you change the HDMI connection, disconnect and reconnect the AC power cord, or a power failure occurs, try the following: 1Switch the input selector of the AV amplifier

(receiver) so that the picture from the player appears on the TV screen.

2

Set [Control for HDMI] to [Off], then set [Control for HDMI] to [On]

(page 35). Refer to the instruction

manual supplied with the AV amplifier (receiver).

The System Power-Off function does not work (BRAVIA Sync).

, Check that [Control for HDMI] and

[HDMI: Linked to TV-off] are set to

[On] (page 35).

Others

Playback does not start from the beginning of content.

, Press OPTIONS, and select [Play from beginning].

Playback does not start from the resume point where you last stopped playing.

, The resume point may be cleared from memory depending on the disc when

– you open the disc tray.

– you disconnect the USB device.

– you play other content.

– you turn off the player.

The disc tray does not open and

“LOCK” or “D ON” appears on the front panel display.

, When “LOCK” appears, the player is locked. To cancel the Child Lock, hold down N on the player until

“UNLOCK” appears on the front panel

display (page 10).

, When “D ON” appears, contact your

Sony dealer or local authorized Sony service facility.

The disc tray does not open and you cannot remove the disc even after you

press Z.

, Try the following: 1Press down Z and N on the player for more than 10 seconds, until the tray opens.

2

Remove the disc. 3When “OPEN” appears on the front panel display, press down [/1 on the player for more than 10 seconds, until the player turns off.

41

42

“Exxxx” or “TEMP” appears on the front panel display.

, When “Exxxx” appears, contact your nearest Sony dealer or local authorized

Sony service facility and give the error code.

, When “TEMP” appears, try the following: 1Check that the ventilation holes on the rear of the player are not blocked. 2Place the player in a location with adequate ventilation to prevent heat build-up in the player.

The player does not respond to any button.

, Moisture has condensed inside the

player (page 4).

, Hold down [/1 on the player for more than 10 seconds until the indicators on the front panel display turn off.

If the player still does not respond to any button, disconnect then reconnect the AC power cord.

Specifications

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (OPTICAL):

Optical output jack/–18 dBm

(wave length 660 nm)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LINE OUT VIDEO:

Phono jack/1.0 Vp-p/75 ohms

LAN (100):

100BASE-TX Terminal

CONTROL S IN / IR IN:

Mini jack

USB:

USB jack Type A (For connecting a

USB memory, memory card reader, digital still camera, and digital video camera)

Wireless

Wireless LAN standard:

IEEE802.11b/g/n

Frequency range:

2.4 GHz band: Channels 1-11

Modulation:

DS-SS Modem and OFDM Modem

General

Power requirements:

120 V AC, 60 Hz

Power consumption:

21 W

Dimensions (approx.):

430 mm × 193 mm × 42 mm

(17 in. × 7

5

/

8

in. × 1

11

/

16

in.)

(width/depth/height) incl. projecting parts

Mass (approx.):

1.9 kg (3 lb 3 oz)

Operating temperature:

5 ºC to 35 ºC (41 °F to 95 °F)

Operating humidity:

25 % to 80 %

Supplied accessories

Audio/video cable (phono plug ×3) (1)

Remote commander (remote) (1)

Size AA (R6) batteries (2)

Specifications and design are subject to change without notice.

Playable discs

Blu-ray

Disc

DVD

CD

*3

*1

*3

BD-ROM

BD-R

*2

/BD-RE

*2

DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

Super Audio CD

*1

Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version.

The audio output differs depending on the

*2 source, connected output jack, and selected audio settings.

BD-RE: Ver.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic

*3 pigment type BD-R (LTH type)

The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the instruction manual supplied with the recording device.

Discs that cannot be played

• BDs with cartridge

• BDXLs

• DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

• Data part of CD-Extras

• Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than NTSC, such as PAL (this player conforms to the NTSC color system).

Note on Discs

This product is designed to playback discs that conform to the Compact Disc

(CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Note on playback operations of BDs/

DVDs

Some playback operations of BDs/

DVDs may be intentionally set by software producers. Since this player plays BDs/DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

43

44

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play

BD-ROMs/DVD VIDEOs labeled with identical region codes or

ALL

.

Region code

Playable types of files

Video

File format

MPEG-1 Video/

PS

*1*2

MPEG-2 Video/PS,

TS

*1*3

MPEG-4 AVC

*1*2

WMV9

*1*2

AVCHD

*2*4

Xvid

Extensions

“.mpg,”

“.mpeg,”

“.m2ts,” “.mts”

“.mkv,” “.mp4,”

“.m4v,” “.m2ts,”

“.mts”

“.wmv,” “.asf”

*5

“.avi”

Music

File format Extensions

MP3 (MPEG-1 Audio

Layer III)

“.mp3”

AAC/HE-AAC

*1*2*6

“.m4a”

“.wma” WMA9

Standard

*1*2*6

LPCM

“.wav”


File format

JPEG

PNG

GIF

MPO

Extensions

“.jpg,” “.jpeg”


*7


*7

“.mpo

*8

*1

The player does not play coded files such as

DRM.

*2

The player does not play this file format on a DLNA server.

*3

The player can only play standard definition video on a DLNA server.

*4

The player can play AVCHD Ver. 2.0

(AVCHD 3D/Progressive) format files.

*5

The player plays AVCHD format files that are recorded on a digital video camera, etc.

*6

The AVCHD format disc will not play if it has not been correctly finalized.

The player does not play coded files such as

Lossless.

*7

The player does not play animated PNG or animated GIF files.

*8

For MPO files other than 3D, the key image or the first image is displayed.

b

• Some files may not play depending on the file format, file encoding, recording condition, or DLNA server condition.

• Some files recorded or edited on a PC may not play.

• The player can recognize the following files or folders in BDs, DVDs, CDs and USB devices:

– up to folders in the 9th layer, including the root folder

– up to 500 files/folders in a single layer

• The player can recognize the following files or folders stored in the DLNA server:

– up to folders in the 19th layer

– up to 999 files/folders in a single layer

• Some USB devices may not work with this player.

• The player can recognize Mass Storage

Class (MSC) devices (such as flash memory or an HDD), Still Image Capture Device

(SICD) class devices and 101 keyboard

(front USB jack only).

• To avoid data corruption or damage to the

USB memory or devices, turn the player off when connecting or removing the USB memory or devices.

• The player may not play high bit rate video files on DATA CDs smoothly. You are recommended to play such files using a

DATA DVD or DATA BD.

About wireless LAN security

Since communication via the wireless

LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this player supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network.

WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct for the deficiencies of WEP.

TKIP assures a higher security level than

WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP.

AES assures a higher security level than

WEP or TKIP.

45

46

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

• Do not use the following discs.

– A lens cleaning disc.

– A disc that has a non-standard shape (e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or sticker adhesive on it.

• Do not resurface the playing side of a disc to remove surface scratches.

Code numbers of controllable TVs

While holding down -TV- [/1, enter the

TV manufacturer’s code using the number buttons.

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer

Sony

Hitachi

LG/Goldstar

Mitsubishi/MGA

NEC

Panasonic

Philips

Pioneer

RCA

Samsung

Sharp

Toshiba

16

10

20

18

07

13

04

19

21

Code number

01 (default)

02

04

Language code list

For details, see “BD/DVD Viewing

Settings” (page 34).

The language spellings conform to the

ISO 639: 1988 (E/F) standard.

Code Language

1027 Afar

1032 Afrikaans

1044 Arabic

1051 Aymara

1053 Bashkir

1059 Bulgarian

1061 Bislama

1028 Abkhazian

1039 Amharic

1045 Assamese

1052 Azerbaijani

1057 Byelorussian

1060 Bihari

1066 Bengali

1067 Tibetan

1079 Catalan

1097 Czech

1105 Danish

1130 Bhutani;

Dzongkha

1144

1149

1151

1165

English

Spanish

Basque

Finnish

1070

1093

1103

1109

1142

Breton

Corsican

Welsh

German

Greek

1145 Esperanto

1150 Estonian

1157 Persian

1166 Fiji

1171 Faroese

1181 Frisian

1174 French

1183 Irish

1186 Scots Gaelic 1194 Galician

1196 Guarani 1203 Gujarati

1209 Hausa

1226 Croatian

1233 Armenian

1239 Interlingue

1217 Hindi

1229 Hungarian

1235 Interlingua

1245 Inupiak

1248 Indonesian

1254 Italian

1261 Japanese

1283 Javanese

1297 Kazakh

1253

1257

1269

1287

Icelandic

Hebrew

Yiddish

Georgian

1298 Greenlandic;

Kalaallisut

1300 Kannada 1299 Cambodian;

Khmer

1301

1307

Korean

Kurdish

1305 Kashmiri

1311 Kirghiz

1313 Latin 1326 Lingala

1327 Laothian; Lao 1332 Lithuanian

1334 Latvian

1347 Maori

1350 Malayalam

1353 Moldavian

1345 Malagasy

1349 Macedonian

1352 Mongolian

1356 Marathi

Code Language

1357 Malay

1363 Burmese

1369 Nepali

1379 Norwegian

1358 Malese;

Maltese

1365 Nauru

1376 Dutch

1393 Occitan

1403 Oromo

1417 Punjabi;

Panjabi

1408

1428

Oriya

Polish

1435 Pashto;

Pushto

1463 Quechua

1436 Portuguese

1481 Rhaeto-

Romance

1482 Kirundi; Rundi 1483 Romanian

1489 Russian

1495 Sanskrit

1491 Kinyarwanda

1498 Sindhi

1501 Sangho;

Sango

1503 Singhalese;

Sinhalese

1502

1505

Serbo-

Croatian

Slovak

1506 Slovenian

1508 Shona

1507 Samoan

1509 Somali

1511 Albanian 1512 Serbian

1513 Siswati; Swati 1514 Sesotho;

Sotho southern

1515 Sundanese 1516 Swedish

1517 Swahili 1521 Tamil

1525 Telugu

1528 Thai

1527

1529

Tajik

Tigrinya

1531 Turkmen

1534 Setswana;

Tswana

1538 Turkish

1532 Tagalog

1535 Tonga; Tonga islands

1539 Tsonga

1540

1557

1572

1587

1632

1684

Tatar

Ukrainian

Uzbek

Volapük

Xhosa

Chinese

1703 not specified

1543 Twi

1564 Urdu

1581 Vietnamese

1613 Wolof

1665 Yoruba

1697 Zulu

47

48

Parental control/area code

For details, see “Parental Control Area

Code” (page 35).

Code Area

2044 Argentina

2046 Austria

2070 Brazil

2092 China

2115 Denmark

2174 France

2200 Greece

2047 Australia

2057 Belgium

2090 Chile

2093 Colombia

2165 Finland

2109 Germany

2219 Hong Kong

2248 India

2239 Ireland

2238 Indonesia

2254 Italy

2276 Japan 2304 Korea

2333 Luxembourg 2363 Malaysia

2362 Mexico 2376 Netherlands

2390 New Zealand 2379 Norway

2427 Pakistan

2428 Poland

2424

2436

Philippines

Portugal

2489 Russia

2149 Spain

2501 Singapore

2499 Sweden

2086 Switzerland 2543 Taiwan

2528 Thailand 2184 United

Kingdom

Index

Numerics

3D

12

,

20

3D Output Setting

32

4K Output

33

A

AUDIO

12

Audio Settings

33

B

BD/DVD Viewing

Settings

34

BD-LIVE

20

BD-R

43

BD-RE

43

Bitstream

39

Blu-ray Disc

43

BONUSVIEW

20

BRAVIA Sync

40

C

CD

43

Child Lock

10

,

41

Color buttons

13

Connecting

AV amplifier

(Receiver)

16

Network

18

TV

15

Control for HDMI

35

,

40

D

Deep Color

33

Dimmer

35

Display

12

DLNA

22

,

23

,

37

Dolby Digital

34

DSD Output Mode

33

DTS

34

DVD

43

E

Easy Setup

19

,

37

G

Gracenote

24

Gracenote Settings

36

H

HDMI

32

,

33

HOME

13

,

31

Home menu

31

I

Internet Browser

27

Internet content

22

IP Content NR Pro

25

M

MAC address

36

Music Settings

35

N

Network Settings

36

Network Update

31

O

OPTIONS

13

OSD Language

35

P

Parental Control

35

Parental Control

Settings

35

PARTY STREAMING

23

Play information

21

Playable discs

43

POP UP/MENU

13

Q

Quick Start Mode

36

R

Region code

44

Remote

12

Resetting

37

Resetting the player

37

Resume

13

,

41

S

Screen Settings

32

SEN

13

,

22

Setup

31

Skype

28

Software update

31

,

36

SUBTITLE

12

System Settings

35

T

TOP MENU

13

Troubleshooting

38

TV Screen Size Setting for 3D

32

TV Type

32

U

Update

31

USB

21

W

WEP

45

WPA2-PSK (AES)

45

WPA2-PSK (TKIP)

45

WPA-PSK (AES)

45

WPA-PSK (TKIP)

45

49

The software of this player may be updated in the future. For information about any available updates and the latest Operating Instructions, please visit the following website:

http://www.sony.com/bluraysupport/

© 2012 Sony Corporation

Printed in Malaysia

4-418-506-11(1)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
