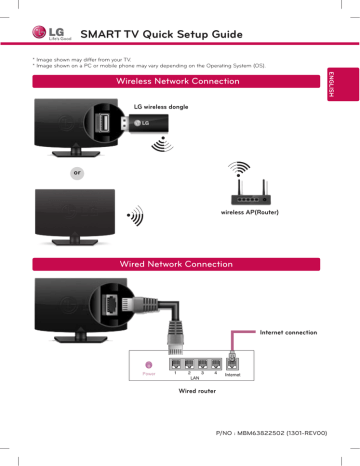

SMART TV Quick Setup Guide
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending on the Operating System (OS).
ENGLISH
Wireless Network Connection
LG wireless dongle
or
wireless AP(Router)
Wired Network Connection
Internet connection
Wired router
P/NO : MBM63822502 (1301-REV00)
NETWORK SETTING
ENGLISH
Premium Apps are pre-installed on the TV. These may vary by country.
1 Press the SMART
button REC
to access the Home
menu. Select Settings and press Wheel(OK).
1
4 The device automatically tries to connect to the
network available (wired network first).
Network Connection
More
Connecting to the network.
Cancel
More
Settings

If you select Cancel or it fails to connect to the
network, the network list available is displayed.
Choose the network you wish to use.
Network Connection
Settings
2
Choose the network you want.
2 Select the NETWORK → Network Connection menu.
Wired Network
Wireless : AAA
Wireless : BBB
NETWORK
Wireless : CCC
Wireless : 11111
Network Connection
Manual Setup
Wireless : 22222
Network Status
Refresh List
Wi-Fi Direct
MiracastTM/Intel's WiDi
My TV Name
: 42LA6400-DA
For wireless AP(Router) that have the ꔒ symbol, you
need to enter the security key.
Network Connection
Wireless : AAA
Enter security key of network.
Forgot your password? Contact your AP manufacturer.
3 Select the Start Connection.
Fo
ne
Network Connection
To use network, prepare the following items.
To connect to a wired network:
To connect to a wireless network:
Requires a wireless router or access point.
Connect a LAN cable to the back of TV.
or
Start Connection
5 The connected network is displayed.
Select Complete to confirm the network connection.
If you select the Other Network List, the available
network list is displayed again.
W
1
Network Connection
2
Network is connected.
Wireless:AAA
Select [Other Network List] to connect to another network.
Complete
Please call LG Customer Service if you experience any problems.
Other Network List
3
4
Troubleshooting Network Problems
button REC
to access the Smart
Home menu. Select Settings and press Wheel(OK).
Network Status
More
TV
Gateway
DNS
Internet
More
Input List
Settings
Internet
Tv Guide
DVR
SmartSh
Universal...
User Guide
Pr.List
Recent List

When an appears on TV and Gateway, but an
X on DNS.
1 Unplug the power cord of the AP(Router), cable
modem and try to connect after 5 seconds.
2 Initialize(Reset) the AP(Router) or cable modem.
3 Contact internet companies or AP(Router)
companies.
Settings
2 Select the NETWORK → Network Status menu.
Network Status
NETWORK
TV
Gateway
DNS
Internet
Network Connection
Network Status
When an appears on TV, Gateway and DNS,
but an X on Internet.
Wi-Fi Direct
MiracastTM/Intel's WiDi
My TV Name
: 42LA6400-DA
u
n.
Check the AP(Router) or consult your Internet
service provider.
Follow the instructions below that correlate to your
network status.
Check the TV or the AP(Router).
Network Status
TV
When an
Gateway
DNS
Internet
appears on TV, but an X on Gateway.
1 Check the connection status of the TV, AP(Router)
and cable modem.
2 Power off and power on the TV, AP(Router) and
cable modem.
3 If you are using a static IP, enter the IP directly.
4 Contact internet companies or AP(Router)
companies.
Additional points to check when using a wireless
yy
connection
1 Check the password for the wireless
connection in the AP(Router) settings window.
2 Change the AP(Router) SSID (network name)
or the wireless channel.
1 Unplug the power cord of the AP(Router), cable
modem and try to connect after 5 seconds.
2 Initialize(Reset) the AP(Router) or cable modem.
3 Check that the MAC address of the TV/AP(Router)
is registered with your Internet service provider. (The
MAC address displayed on the right pane of the
network status window should be registered with
your Internet service provider.)
4 Check the AP(Router) manufacturer’s website
to make sure your router has the latest firmware
version installed.
ENGLISH
1 Press the SMART
Installation & Setting
ENGLISH
Install the SmartShare PC SW(DLNA) and SmartShare PC SW(MediaLink) program on your PC.
1
1 Go to www.lg.com. Then, select your region.
2
2 Select SUPPORT. Then, search for your model.
3
3 Select Drivers & Software or SOFTWARE UPDATE. Then, select SmartShare PC SW(DLNA)
4 You can run the program when installation is complete.
NOTE
DLNA service is only available if TV and other devices are connected via a single AP(Router).
yy
4
5
6
7
8
H
B
c
(
Please call LG Customer Service if you experience any problems.
DLNA Connection to Smartphone
2 Install/run the app for sharing content on your smartphone (It's called SmartShare on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Add the selected file to the playlist.
7 Select a TV model name on which to play the files. (The TV model name is on a label on the side of the TV and
in the customer support menu.)
8 Play the media file to view and enjoy it on your TV.
Updating the TV Firmware
HOME →
Settings → SUPPORT → Software Update
By default, the TV will notify you of new software updates. You can use the Software Update menu to manually
check for available updates.
Software Update
Set it to On.
When an updated file is detected, the file is downloaded automatically.
Automatic Update Mode
If an update is available, the update automatically starts without prompting.
Check Update Version
Checks the latest update version installed. When a new update is available, the
download process can be performed manually.
Tag On
(Depending on model)
Tag On is a data transmission technology that can be used on smartphones with NFC
(Near Field Communication). Simply by tapping your smartphone to a Tag On sticker,
you can share content between your smartphone and TV.
• To connect your smartphone to the TV using Tag On, they must be connected on the
same Wi-Fi network or Miracast™/Intel’s WiDi of the smart TV is set to On.
-Do not attach the sticker to a metal part of the TV. Otherwise, your smartphone
cannot recognize the Tag On sticker.
-Do not crumple or fold the Tag On sticker. Otherwise, the Tag On is not recognized.
Tag On
-To purchase a Tag On sticker, please contact the LG Electronics Service Center.
-This function is supported only on a smartphone with Android 4.0 (ICS) or later.
ENGLISH
1 Check that Wi-Fi is enabled on your smartphone. To use DLNA, both devices must on the same local network.
Wi-Fi Direct Setting
ENGLISH
HOME →
Settings → NETWORK → Wi-Fi Direct
If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.
With Smart Share, you can share files or screens of devices connected to Wi-Fi Direct.
[Device Screen]
1 If Wi-Fi Direct is set to On, a list of available devices
Wi-Fi Direct
On
Wi-Fi Direct
Device Name
[TV Screen]
a
Connection
Connection
TAAAA
BBBB

[TAAAA]
Do you want to request a connection?
Yes
No
appears.
To use Wi-Fi Direct, go to
»»
set Wi-Fi Direct( a ) to On.
Settings → NETWORK and
2 When you are prompted to request connection, select Yes.
Wi-Fi Direct is now connected to your TV.
In
m
on
y
1
2
*If you are not using Wi-Fi Direct to minimize the interference between Wi-Fi devices, it is recommended to set
Wi-Fi Direct( a ) to Off. You can only use devices that support Wi-Fi Direct.
MiracastTM Setting
Miracast allows a portable device to securely send video and sound to the TV wirelessly.
1 Miracast should be set to 'ON' on your mobile device And TV.
[Device Screen]
MiracastTM / Intel's WiDi
Go to the Network settings to set the Miracast.
The device which is applied MiracastTM and intel's WiDi
technology can be shown on the TV.
MiracastTM / Intel's WiDi
On
a
Connection
Device Name
2 When your TV or portable device is detected, select the device.
Connection
TAAAA
Please call LG Customer Service if you experience any problems.
3
*L
*T
*F
*O
*Y
*I
WiDi (Wireless Display) Setting
NOTE
When you connect the TV and laptop, you should set up TV mode for “Live TV” and “ external input”.
yy
If not, your computer cannot detect LG Smart TV.
d
1 Intel's WiDi is set to On. Connect your laptop to AP(Router). (Without AP, it is possible to use this function; it is
recommended to connect to AP.) Your laptop runs the Intel WiDi(
) program.
2 It detects LG Smart TVs available, which supports WiDi. In the list, select the TV you want and click Connect.
Enter the number( a ) shown on the screen into the input field( b ) on your laptop and then click Continue.
(4-digit number: under WiDi 3.1.29, 8-digit number: above WiDi 3.5)

[Intel Notebook] Request connection
Enter the following Security keys.
PIN**** a
b
Remain: 92 second(s)
Cancel
[TV Screen]
[Notebook Screen]
3 The TV screen appears on the laptop screen. The wireless environment may affect the screen display. If the
connection is poor, the Intel WiDi connection may be lost.
* LG TVs do not need to register.
* TV sound setting for Digital Sound Out is set to PCM.
* For more information on Intel WiDi, visit 'http://intel.com/go/widi'.
* On the Intel's WiDi, WiDi device is not searched. Close the Intel's WiDi, then search WiDi.
* You can control your PC using the Magic Remote Control.
* Intel's WiDi laptop is not appeared in the Miracast /WiDi menu in TV network menu.
ENGLISH
Intel’s WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network for
mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos, photos,
online shows and more in full HD on your TV with great image clarity and sound.
*
*
On-Screen Remote
ENGLISH
To use the Universal Control function (It may not be available depending on the country/model.)
With the Magic Remote Control, you can easily control your set-top box, Blu-ray player, home theater system, and
Sound Bar.
1 Check if the device is connected to the TV.
2 After pressing the '
' button on the Magic Remote Control, select the device you want to control in the
Change Device tab. The Screen Remote that can control the device appears.
3 You can control external devices using the Screen Remote on the screen.
(This may not work with the '
' button for some models.)
a
d
e
b
»»a
»»b
»»c
»»d
»»e
: Change Device tab
: Device control buttons
: Expand the ScreenRemote
: Exits the Screen Remote
the position of the
: Moves
ScreenRemote to left or right
c
4 Control external devices using the navigation keys, wheel (OK), or BACK button on the Magic Remote Control.
External Device Menu
External Device Menu
Please call LG Customer Service if you experience any problems.
