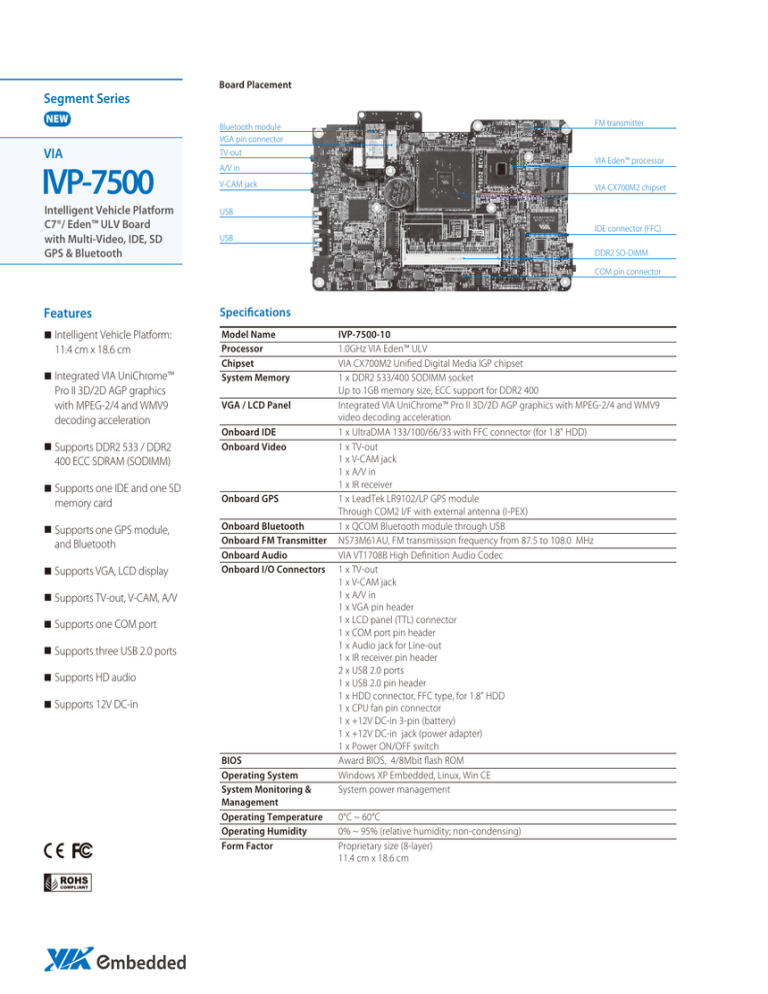

IVP-7500 VIA Features Specifications

IVP-7500 VIA Features Specifications
Segment Series
NEW
VIA
IVP-7500
Intelligent Vehicle Platform
C7®/ Eden™ ULV Board
with Multi-Video, IDE, SD
GPS & Bluetooth
Board Placement
FM transmitter
Bluetooth module
VGA pin connector
TV-out
VIA Eden™ processor
A/V in
V-CAM jack
VIA CX700M2 chipset
USB
IDE connector (FFC)
USB
DDR2 SO-DIMM
COM pin connector
Features
Specifications
„„ Intelligent Vehicle Platform:
11.4 cm x 18.6 cm
Model Name
Processor
Chipset
System Memory
„„ Integrated VIA UniChrome™
Pro II 3D/2D AGP graphics
with MPEG-2/4 and WMV9
decoding acceleration
„„ Supports DDR2 533 / DDR2
400 ECC SDRAM (SODIMM)
„„ Supports one IDE and one SD
memory card
„„ Supports one GPS module,
and Bluetooth
„„ Supports VGA, LCD display
VGA / LCD Panel
Onboard IDE
Onboard Video
Onboard GPS
Onboard Bluetooth
Onboard FM Transmitter
Onboard Audio
Onboard I/O Connectors
„„ Supports TV-out, V-CAM, A/V
„„ Supports one COM port
„„ Supports three USB 2.0 ports
„„ Supports HD audio
„„ Supports 12V DC-in
BIOS
Operating System
System Monitoring &
Management
Operating Temperature
Operating Humidity
Form Factor
IVP-7500-10
1.0GHz VIA Eden™ ULV
VIA CX700M2 Unified Digital Media IGP chipset
1 x DDR2 533/400 SODIMM socket
Up to 1GB memory size, ECC support for DDR2 400
Integrated VIA UniChrome™ Pro II 3D/2D AGP graphics with MPEG-2/4 and WMV9
video decoding acceleration
1 x UltraDMA 133/100/66/33 with FFC connector (for 1.8" HDD)
1 x TV-out
1 x V-CAM jack
1 x A/V in
1 x IR receiver
1 x LeadTek LR9102/LP GPS module
Through COM2 I/F with external antenna (I-PEX)
1 x QCOM Bluetooth module through USB
NS73M61AU, FM transmission frequency from 87.5 to 108.0 MHz
VIA VT1708B High Definition Audio Codec
1 x TV-out
1 x V-CAM jack
1 x A/V in
1 x VGA pin header
1 x LCD panel (TTL) connector
1 x COM port pin header
1 x Audio jack for Line-out
1 x IR receiver pin header
2 x USB 2.0 ports
1 x USB 2.0 pin header
1 x HDD connector, FFC type, for 1.8" HDD
1 x CPU fan pin connector
1 x +12V DC-in 3-pin (battery)
1 x +12V DC-in jack (power adapter)
1 x Power ON/OFF switch
Award BIOS, 4/8Mbit flash ROM
Windows XP Embedded, Linux, Win CE
System power management
0°C ~ 60°C
0% ~ 95% (relative humidity; non-condensing)
Proprietary size (8-layer)
11.4 cm x 18.6 cm
Board Placement
Power ON/OFF switch
GPS module
SD card reader
LCD panel connector
IR receiver
Line-out
DC-in
Ordering Information
Model Name
IVP-7500-10
Development kit
CPU Frequency
1.0GHz Eden™ ULV
Description
Intelligent Vehicle Platform with 1.0GHz Eden™ CPU, multi-video, COM, USB, IDE & GPS
IVP-7500 development kit with CPU heat sink, fan and cables
Block Diagram
Development Kit Packing List
DC INPUT :
VIA
Processor
C7/EDEN 1.0G
NANOBGA2
A/V IN CONN
CRT I/F
CMOS PANEL CONN
CMOS
I/F
LVDS I/F
CMOS RX
VIA
Core Chipset
CX700M2
DBM CONN
IDE BUS
CMOS
Panel
VIA
HD AUDIO
VT1708
SD
Socket
SUPER I/O
VT1211/W85697HF
Capture I/F
TI
RS-232
MAX3243
Leadtek
GPS
Module
LR9101LP
AUDIO AMP
TPA0112
COM*1
COM1 D-SUB CONN
Antenna CONN
LPC
BIOS
PS2 I/F to AZ153F00
USB PORT (2.0) *2
LINE OUT JACK
FAN CONN
VIA/WINBOND
PS2 PORT *2
Consumer IR
MIC IN JACK
LINE/SPEAKER OUT
HD LINK
VIA
SD Card
CONTROLLER
VT6205SD
LPC BUS
VIA
SD Card
CONTROLLER
C8051F321
MIC IN
SMB BUS
USB BUS
Bluetooth
& WLAN
SMB BUS
DDR2 SDRAM
SODIMM x1
TV I/F
TV-OUT CONN
FM Transmitter
NS73M-61AU
Capture I/F
Philips
SAA7114H
CRT D-SUB CONN
INPUT VOLTAGE +12V, +5V, +3V, A5V,
--> +12V, +5V, +3.3V, 2.5V, +1.5V, +0.9V,
VTT, +VCORE, +5V_SB, +3V_SB,
+V_DIMM, A5V, A3V, A1.5V, +1.2V
Items
1 x Serial port cable (to COM1)
1 x USB cable
1 x VGA cable (to D-sub 15)
1 x DC_Power-in cable (from adapter)
1 x FFC cable + HDD convernter board
1 x Heat sink (for CPU)
1 x Fan (for CPU)
PRIMARY IDE
IDE HDD
1.8”
* All product specifications are subject to change without notice. Update: March 3, 2009.
