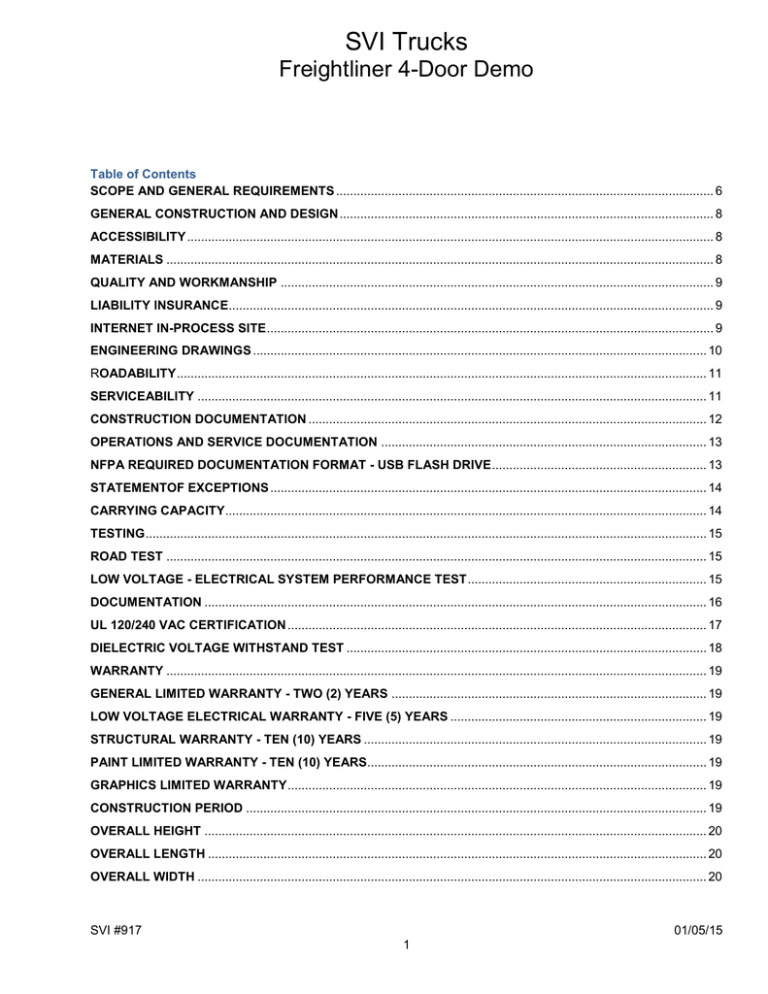

SVI Trucks
Freightliner 4-Door Demo
Table of Contents
SCOPE AND GENERAL REQUIREMENTS ............................................................................................................. 6
GENERAL CONSTRUCTION AND DESIGN ............................................................................................................ 8
ACCESSIBILITY ........................................................................................................................................................ 8
MATERIALS .............................................................................................................................................................. 8
QUALITY AND WORKMANSHIP ............................................................................................................................. 9
LIABILITY INSURANCE............................................................................................................................................ 9
INTERNET IN-PROCESS SITE ................................................................................................................................. 9
ENGINEERING DRAWINGS ................................................................................................................................... 10
ROADABILITY ......................................................................................................................................................... 11
SERVICEABILITY ................................................................................................................................................... 11
CONSTRUCTION DOCUMENTATION ................................................................................................................... 12
OPERATIONS AND SERVICE DOCUMENTATION .............................................................................................. 13
NFPA REQUIRED DOCUMENTATION FORMAT - USB FLASH DRIVE .............................................................. 13
STATEMENTOF EXCEPTIONS .............................................................................................................................. 14
CARRYING CAPACITY........................................................................................................................................... 14
TESTING .................................................................................................................................................................. 15
ROAD TEST ............................................................................................................................................................ 15
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ..................................................................... 15
DOCUMENTATION ................................................................................................................................................. 16
UL 120/240 VAC CERTIFICATION ......................................................................................................................... 17
DIELECTRIC VOLTAGE WITHSTAND TEST ........................................................................................................ 18
WARRANTY ............................................................................................................................................................ 19
GENERAL LIMITED WARRANTY - TWO (2) YEARS ........................................................................................... 19
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS .......................................................................... 19
STRUCTURAL WARRANTY - TEN (10) YEARS ................................................................................................... 19
PAINT LIMITED WARRANTY - TEN (10) YEARS.................................................................................................. 19
GRAPHICS LIMITED WARRANTY ......................................................................................................................... 19
CONSTRUCTION PERIOD ..................................................................................................................................... 19
OVERALL HEIGHT ................................................................................................................................................. 20
OVERALL LENGTH ................................................................................................................................................ 20
OVERALL WIDTH ................................................................................................................................................... 20
SVI #917
01/05/15
1
SVI Trucks
Freightliner 4-Door Demo
DELIVERY AND DEMONSTRATION ..................................................................................................................... 20
CAB CHASSIS SPECIFICATIONS ......................................................................................................................... 21
CHASSIS MODIFICATIONS ................................................................................................................................... 27
LUBRICATION AND TIRE DATA PLATE .............................................................................................................. 27
VEHICLE DATA PLATE .......................................................................................................................................... 27
OVERALL HEIGHT, LENGTH DATA PLATE (US) ................................................................................................ 28
FRONT BUMPER .................................................................................................................................................... 28
AIR HORN(S) ........................................................................................................................................................... 28
FRONT TOW PROVISIONS .................................................................................................................................... 28
EXHAUST ................................................................................................................................................................ 29
RADIO ANTENNA INSTALLATION ....................................................................................................................... 29
SEAT SCBA BRACKETS ....................................................................................................................................... 29
SEAT BELT COLOR ............................................................................................................................................... 29
SEAT BELT WEB LENGTH - COMMERCIAL CAB ............................................................................................... 29
SEAT BELT MONITORING AND VEHICLE DATA RECORDER (VDR) SYSTEMS ............................................. 30
SEAT BELT MONITORING ..................................................................................................................................... 30
VEHICLE DATA RECORDER (VDR) ...................................................................................................................... 30
OCCUPANT RESTRAINT INDICATOR .................................................................................................................. 30
SIX (6) – LED TIRE PRESSURE VISUAL INDICATORS ....................................................................................... 30
HELMET STORAGE ................................................................................................................................................ 30
CAB CRASH TEST CERTIFICATION .................................................................................................................... 31
CAB MIRRORS, DRIVER ADJUSTABLE .............................................................................................................. 31
CAB STEP COVER AND BATTERY COMPARTMENT ......................................................................................... 31
BATTERY CHARGING RECEPTACLE LOCATION .............................................................................................. 31
HUB AND NUT COVERS ........................................................................................................................................ 31
MUDFLAPS ............................................................................................................................................................. 31
AIR BRAKE SYSTEM QUICK BUILD-UP .............................................................................................................. 31
ROAD EMERGENCY SAFETY KIT ........................................................................................................................ 31
BODY DESIGN ........................................................................................................................................................ 32
EXTERIOR ALUMINUM BODY ............................................................................................................................... 33
ROOF CONSTRUCTION ......................................................................................................................................... 34
BODY SUBFRAME ................................................................................................................................................. 34
BODY MOUNTING .................................................................................................................................................. 34
10" REAR STEP BUMPER ..................................................................................................................................... 34
REAR TOW EYES ................................................................................................................................................... 34
SVI #917
01/05/15
2
SVI Trucks
Freightliner 4-Door Demo
GROUND LIGHTS ................................................................................................................................................... 35
WHEEL WELL EXTERIOR PANEL ........................................................................................................................ 35
DIEFORMED BEADED EDGE BODY FENDERS .................................................................................................. 35
WHEEL WELL LINERS ........................................................................................................................................... 35
BODY PAINT SPECIFICATIONS ............................................................................................................................ 36
BODY PAINT PREPARATION ................................................................................................................................ 36
PAINT PROCESS .................................................................................................................................................... 36
MACHINE POLISHED ............................................................................................................................................. 36
PAINT - ENVIRONMENTAL IMPACT ..................................................................................................................... 36
BODY UNDERCOATING ........................................................................................................................................ 37
UNDERCOAT WARRANTY .................................................................................................................................... 37
PAINT WARRANTY ................................................................................................................................................ 37
COMPARTMENT INTERIOR FINISH ...................................................................................................................... 37
REFLECTIVE STRIPE REQUIREMENTS............................................................................................................... 38
REFLECTIVE STRIPE - CAB SIDE ........................................................................................................................ 38
REFLECTIVE STRIPE - CAB FRONT .................................................................................................................... 38
REFLECTIVE STRIPE - CAB DOOR INTERIOR.................................................................................................... 38
REFLECTIVE STRIPE - BODY SIDES ................................................................................................................... 39
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS ................................................................................. 39
LETTERING ............................................................................................................................................................. 39
UPPER BODY SIDE LETTERING .......................................................................................................................... 39
EXTERIOR COMPARTMENT DOORS ................................................................................................................... 40
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM)..................................................................................... 40
BODY HEIGHT MEASUREMENTS ........................................................................................................................ 41
BODY WIDTH DIMENSIONS .................................................................................................................................. 41
STREETSIDE COMPARTMENT - FRONT (S1)...................................................................................................... 42
COMPARTMENT LAYOUT ..................................................................................................................................... 42
STREETSIDE COMPARTMENT - AHEAD OF REAR WHEELS (S2) ................................................................... 44
COMPARTMENT LAYOUT ..................................................................................................................................... 44
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S3) ......................................................................... 46
COMPARTMENT LAYOUT ..................................................................................................................................... 46
STREETSIDE COMPARTMENT - REAR (S4) ........................................................................................................ 47
COMPARTMENT LAYOUT ..................................................................................................................................... 47
CURBSIDE COMPARTMENT - FRONT (C1) ......................................................................................................... 48
COMPARTMENT LAYOUT ..................................................................................................................................... 48
SVI #917
01/05/15
3
SVI Trucks
Freightliner 4-Door Demo
CURBSIDE COMPARTMENT - AHEAD OF REAR WHEEL (C2) ......................................................................... 50
COMPARTMENT LAYOUT ..................................................................................................................................... 50
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C3) ............................................................................... 51
COMPARTMENT LAYOUT ..................................................................................................................................... 51
CURBSIDE COMPARTMENT - REAR (C4) ........................................................................................................... 52
COMPARTMENT LAYOUT ..................................................................................................................................... 52
REAR COMPARTMENT - CENTER (RC1) ............................................................................................................. 53
COMPARTMENT LAYOUT ..................................................................................................................................... 53
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC ................................................................................................ 56
12 VOLT MULTIPLEX CONTROL CENTER .......................................................................................................... 59
MULTIPLEX SYSTEM VISTA IV V-MUX COLOR DISPLAY ................................................................................. 60
BATTERY SYSTEM ................................................................................................................................................ 61
BATTERY SWITCH ................................................................................................................................................. 61
BATTERY SOLENOID ............................................................................................................................................ 61
BATTERY CONDITIONER ...................................................................................................................................... 61
SHORE POWER INLET .......................................................................................................................................... 61
ENGINE COMPARTMENT LIGHT .......................................................................................................................... 62
BACK-UP ALARM ................................................................................................................................................... 62
REAR VIEW CAMERA ............................................................................................................................................ 62
TAIL LIGHTS ........................................................................................................................................................... 62
MIDSHIP MARKER/TURN SIGNAL ........................................................................................................................ 63
MARKER LIGHTS ................................................................................................................................................... 63
CAB STEP LIGHTS / GROUND LIGHTS ............................................................................................................... 63
LICENSE PLATE LIGHT ......................................................................................................................................... 63
ELECTRONIC SIREN .............................................................................................................................................. 63
SIREN SPEAKER .................................................................................................................................................... 63
SCENE LIGHTS ....................................................................................................................................................... 63
TRAFFIC ADVISOR LIGHT..................................................................................................................................... 64
WARNING LIGHT PACKAGE ................................................................................................................................. 65
UPPER LEVEL OPTICAL WARNING DEVICES .................................................................................................... 66
LOWER LEVEL OPTICAL WARNING DEVICES ................................................................................................... 68
ONAN PTO GENERATOR ...................................................................................................................................... 69
GENERATOR ENGAGEMENT ............................................................................................................................... 69
WARRANTY PERIOD ............................................................................................................................................. 69
GENERATOR SPLASH GUARD ............................................................................................................................ 70
SVI #917
01/05/15
4
SVI Trucks
Freightliner 4-Door Demo
GENERATOR MOUNTING...................................................................................................................................... 70
MANUALS AND SCHEMATICS ............................................................................................................................. 70
POWER-TAKE-OFF GENERATOR DRIVE ............................................................................................................ 70
LOADCENTER ........................................................................................................................................................ 71
GENERATOR MONITORING PANEL .................................................................................................................... 71
SHORE POWER INLET - BATTERY CHARGER ................................................................................................... 71
OUTLETS AND CIRCUITS...................................................................................................................................... 71
LINE VOLTAGE ELECTRICAL SYSTEM ............................................................................................................... 72
GENERAL REQUIREMENTS.................................................................................................................................. 72
120/240 VAC SCENE LIGHTING ............................................................................................................................ 79
Light Tower Paint ..................................................................................................................................................... 80
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE ................................................................................................. 81
EQUIPMENT ............................................................................................................................................................ 81
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER ................................................................................ 81
SVI #917
01/05/15
5
SVI Trucks
Freightliner 4-Door Demo
SCOPE AND GENERAL REQUIREMENTS
It is the intent of the Fire Department to secure an emergency apparatus to withstand the continuous use
encountered in the emergency service. The apparatus shall be of the latest type, symmetrically proportioned and
constructed with due consideration of the load to be sustained.
All parts not specifically mentioned herein, but which are necessary in order to furnish a complete emergency
apparatus, shall be furnished and shall conform to the best practices known to the emergency industry.
If any Bidder has questions in connection with these specifications, please contact the Fire Department in writing
at least seven (7) days before bid date. It is not the purpose of these specifications to eliminate any qualified
Bidder.
The Fire Department will review the question, and where information sought is not clearly indicated or specified, in
the Fire Department's opinion, same will issue a clarifying or correcting addendum bulletin. Proper interpretation
or the making of any necessary inquiry will be the Bidders responsibility. Oral answers will not be binding on the
Fire Department.
To be considered, all proposals must be made in accordance with these "Instructions for Bidders".
The apparatus and all major components shall be manufactured in North America. Where the following detailed
specifications require specific brand names, model number, dimension or capacities of components such as:
axles, brakes, spring suspension, frame, steering gear, drive line, universal joints, engine transmission, alternator,
batteries, air brake system, they have been specified for the service because of their reliability/availability of
replacement parts on a local basis.
Since components specified by brand name, model number, dimension, size or capacity are readily available to
all manufacturers and/or potential Bidders, substitutes or alternates claimed to be equal may not be acceptable.
The Fire Department specifications, along with Manufacturer's specifications and any forms, questionnaires, and
listed exceptions, shall be submitted as a part of the Bidder's entire bid proposal.
In no case shall a Bidder photocopy Fire Department's specifications and submit as their proposal specifications
and request for proposal.
Each Bidder is required to provide in his request for proposal a "complete and accurate description" of their own
detailed product and engineering specifications.
In addition, all Bidders are required to submit Fire Department's specifications in their proposal, noting items
where the Bidder’s proposal differs and consecutively number each item. The number shall correspond with the
bidder’s exception, variation, or clarification page which must be attached to their proposal.
All specifications herein contained are considered as minimum. No exceptions to these minimum standards shall
be allowed relating to gauge, alloy, and type of metal, size of compartments and overall design.
The delivered apparatus shall have a certified G.V.W.R. weight sticker applied to vehicle on delivery to assure the
apparatus meets all laws pertaining to the weight carrying capacity of the vehicle.
Should the Contractor’s current published data or specifications exceed these specifications, they shall be
considered minimum and be furnished. Bidders shall furnish, with their proposal, technical information graphs,
charts, photographs, engineering diagrams, drive train certification or other means to show that the equipment
specified fully complies with this specification.
In the event the published literature furnished by the Bidder is at variance with the requirements of any item of this
specification, the Bidder shall explain in detail, with full engineering support data, the reasons why the proposed
equipment will meet this specification and not be considered an exception thereto.
SVI #917
01/05/15
6
SVI Trucks
Freightliner 4-Door Demo
The apparatus body manufacturer shall be prime Bidder and shall identify the location of their facility and the
number of regular full time employees. A complete history of the Bidder's company shall be supplied in his
request for proposal request for proposals are requested from responsible manufacturers who are engaged in the
manufacture of emergency apparatus. Fire Department does not request proposals from bankrupt, reorganized or
unproven manufacturers.
Each Bidder shall submit a list of a minimum of ten (10) Departments where the vendor has delivered similar type
and size apparatus within the last five (5) years with contact addresses and telephone numbers. Bidders shall
submit photographs with their proposal showing similar emergency apparatus manufactured.
The Request for Proposal must be in the same sequences as these specifications for ease of comparison. Any
bid not in this sequence shall be disregarded and immediately rejected. (No Exceptions).
Failure to comply with all conditions mentioned under General Terms and Conditions, or the failure to conform to
the specifications, will be reasonable cause for the rejection. Any request for proposal containing options not
asked for or not containing all statements contained on the said price form, shall be rejected.
Request for proposal may be withdrawn by certified mail or telegraphic request from Bidders prior to the time fixed
for opening. Negligence on the part of the Bidder in preparing the bid confers no right for the withdrawal of the bid
after it has been opened. No Bidder may withdraw his bid after the time set for opening thereof.
SVI #917
01/05/15
7
SVI Trucks
Freightliner 4-Door Demo
GENERAL CONSTRUCTION AND DESIGN
The design of the equipment shall be in accordance with the best engineering practices. The equipment design
and accessory installation shall permit accessibility for use, maintenance and service. All components and
assemblies shall be free of hazardous protrusions, sharp edges, cracks or other elements which might cause
injury to personnel or equipment. All components shall be designed and protected so that heavy rains or other
adverse weather conditions will not interfere with normal servicing or operation.
All oil, hydraulic and air tubing lines, and electrical wiring shall be located in protective positions properly attached
to the frame or body structure and shall have protective loom or grommets at each point where they pass through
structural members, except where a through frame connector is necessary.
The apparatus shall be designed and the equipment mounted with due consideration to distribution of load
between the front and rear axles so that all specified equipment including personnel will be carried without injury
to the apparatus. All dimensions are approximate and subject to a plus or minus 1/4" tolerance.
The following specifications describe minimum requirements for an emergency services vehicle designed for
severe duty applications.
The materials specified are considered absolute minimum. Exceptions will not be accepted or permitted since all
raw materials of the specified type are available to all Manufacturers. Since all custom Manufacturers have the
ability to shear, break, and weld as these specifications require, all basic design requirements shall be complied
with.
Subletting any part of the fabrication, painting, or finishing of the apparatus will not be acceptable.
ACCESSIBILITY
Parts and components shall be located or positioned for rapid and simple inspection and recognition of excessive
wear or potential failure. Whenever functional layout of operating components determines that physical or visual
interference between items cannot be avoided, the item predicted to require the most maintenance shall be
located for best accessibility.
Cover plates which must be removed for component adjustment or part removal should be equipped with quick
disconnect fasteners or hinged panels.
Drains, filler plugs, grease fittings, hydraulic lines, bleeders, and check points for all components should be
located so that they are readily accessible and do not require special tools for proper servicing. Design practices
should minimize the number of tools required for maintenance.
MATERIALS
The materials specifications are considered absolute minimum. Exceptions will not be accepted or permitted since
all raw materials of specified type are available to all manufacturers. Since all manufacturers have the ability to
shear, break and weld as these specifications require, all basic design requirements shall be complied with.
Materials shall conform to the specifications listed herein. When not specifically listed, materials shall be of the
best quality for purpose of commercial practice. Materials shall be free of all defects and imperfections that might
affect the serviceability of finished product.
SVI #917
01/05/15
8
SVI Trucks
Freightliner 4-Door Demo
QUALITY AND WORKMANSHIP
The manufacturing process, including quality control, shall be consistent with present industry standards. All
equipment, material, and articles required under these specifications are to be new or fabricated from new
materials produced from recovered materials. The term "Recovered Materials" means materials which have been
collected or recovered from solid waste and reprocessed to become a source of raw materials, as opposed to
virgin raw materials. None of the above shall be interpreted to mean that the use of used or rebuilt products is
allowed under this document. The term "Heavy Duty", as used to describe an item, shall mean in excess of the
standard, quantity, quality, or capacity and represents the best, most durable, strongest, etc., part, component,
system, etc., that is available. The Fire Department or their designate shall be the sole judge of quality,
construction and stability of the apparatus and equipment being offered.
Welding shall not be employed in the assembly of the apparatus in a manner that will prevent the ready removal
of any component part for service or repair. All steel and stainless steel welding shall be done to American
Welding Society D1.1-83 recommendations for structural steel welding. All aluminum welding shall be done to
American Welding Society and ANSI D1.2-83 requirements for structural welding of aluminum.
Defective components shall not be furnished. Parts, equipment, and assemblies, which have been repaired or
modified to overcome deficiencies, shall not be furnished without the approval of the Fire Department. Welded,
bolted, and riveted construction utilized shall be in accordance with the highest standards of the industry.
Component parts and units shall be manufactured to definite standard dimensions with proper fits, clearances,
and uniformity. General appearance of the vehicle shall not show any evidence of poor quality of work.
LIABILITY INSURANCE
The manufacturer shall furnish with the bid a certificate of insurance for;
Workman's Compensation and Employer's Liability Insurance covering for all employees.
General Liability (each occurrence) of $1,000,000.00. General Aggregate coverage of $2,000,000.00. Products
Completed / Operations Aggregate coverage of $2,000,000.00. Medical Expense coverage of $5,000 (any one
person). Personal Injury of $1,000,000.00.
Automobile liability of $1,000,000.00 combined single limit (each accident), including any auto, all owned autos,
scheduled autos, hired autos, non-owned autos, and garage liability.
Excess Umbrella Liability coverage of $4,000,000.00 each occurrence, Aggregate of $4,000,000.00.
Garage Keepers Liability coverage of $4,500,000.00 combined limit.
All insurance policies must be;



Maintained for the life of the contract,
Must provide ten (10) days notice before cancellation,
Must cover all operations of the contractor, or anyone employed by them.
INTERNET IN-PROCESS SITE
The manufacturer shall post and maintain a website where the Fire Department will be able to view digital images
of their apparatus as its being built. The digital images shall be posted once a week starting when the body begins
production or when the cab/chassis arrives and shall continue until the final completion of unit.
SVI #917
01/05/15
9
SVI Trucks
Freightliner 4-Door Demo
ENGINEERING DRAWINGS
The evaluation of bids shall also be based on design, engineering reliability, and completeness of drawings. No
Bidder's proposal shall be considered unless complete engineering drawings to these specifications are submitted
with the request for proposal package. Failure to submit factory prepared blueprints with bid shall result in
automatic rejection. Submission of "bid drawings" are in addition to "production drawings" which must be
submitted for Fire Department approval prior to construction. Bid drawings shall allow the Fire Department the
ability to fully evaluate required product.
The engineering drawings shall be produced on computer aided design (CAD) equipment to assure critical
tolerance and detail only available with CAD equipment. The drawings shall be on "B" size paper, 17" x 11" in
size, and views must be 1/4" = 1' - 0" scale. This shall allow the Fire Department the ability to compare drawings
of all manufacturers on an "equal" basis. The drawings shall be completed only by the body manufacturer, and
must be exactly to Fire Department specifications. Submission of "similar to" drawings or "statements referring to
later submission of drawings after award of contract" shall be automatically rejected.
Since the request for proposal package will require extensive evaluation by Fire Department, all Bidders must
submit exactly the same engineering drawings at the same scale, on the same size paper. For easy comparison
of drawings, they must be on a 17" x 11" sheet as follows:












All bid drawings will be stamped BID DRAWING.
All items shown on the drawing will be pre-designed with regards to layout and functionality prior to the
completion of the BID DRAWING.
Two (2) 17” x 11” color drawings will be supplied with the bid proposal. Black and white or blue line drawings
will not be accepted.
There shall be five (5) views of the truck with the doors closed (Top, Left, Right, Front, Rear), four (4) views of
the truck with the doors open (Top, Left, Right, Rear) and four (4) views of any walk-in area (Top, Left, Right,
Rear).
All compartment door openings and usable space shall be clearly shown in inches.
The trucks overall length, height, width, wheelbase and cab-to-axle dimensions shall be clearly shown.
The angles of approach and departure shall be shown in the maximum loaded condition to the nearest
degree.
All lighting packages will be clearly shown on the drawing and verified accurate per the most current NFPA
standards (when applicable).
The exterior view shall show all scene lights, marker lights, speakers, horns, exhaust, tow points, exterior
outlets, windows, winch receivers, tow hitches, exterior ladders and any other item important to the function of
the vehicle.
The open view shall show all trays, shelves, air system components, hydraulic components, tool boards,
storage modules and any other items important to the function of the vehicle.
The interior view for all walk-in areas shall show all seating positions, desks, cabinets, windows, tech
equipment, radio locations and any other item important to the function of the vehicle.
Any changes to the BID drawing will require a revision which will be clearly annotated in the upper right hand
side of the drawing showing the revision number, reason for the revision, date and who made the changes.
Text Block Items;







Purchaser's name.
Body size and material type.
Chassis manufacturer and model number.
Unit description.
Wheelbase (WB) , Cab-to-axle (CA) distance.
Overall length (OAL), Overall width, (OAW), Overall height (OAH).
Scale, date, drawn by, drawing number and sheet number.
SVI #917
01/05/15
10
SVI Trucks
Freightliner 4-Door Demo
VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS
The cab/chassis shall be equipped with a stability control system. The system shall have, at a minimum, a
steering wheel position sensor, a vehicle yaw sensor, a lateral accelerometer and individual wheel brake controls.
FIRE APPARATUS PERFORMANCE
The fire apparatus shall meet the requirements of this standard at elevations of 2000 ft (600 m) above sea level.
The fire apparatus shall meet all the requirements of this standard while stationary on a grade of 10 percent in
any direction.
The fire apparatus shall meet the requirements of this standard in ambient temperature conditions between 32°F
(O°C) and 110°F (43°C).
ROADABILITY
The apparatus, when loaded to its estimated in-service weight, shall be capable of the following performance
while on dry, paved roads that are in good condition:
1) From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 km/hr) within 25 seconds
on a level road.
2) The apparatus shall be able to attain a minimum top speed of 50 mph (80 km/hr) on a level road.
3) The apparatus shall be able to maintain a speed of at least 20 mph (32 km/hr) on any grade up to and
including 6 percent.
The maximum top speed of fire apparatus with a GVWR over 26,000 lb (11,800 kg) shall not exceed either 68
mph (105 km/hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus,
whichever is lower.
If the combined water tank and foam agent tank capacities on the fire apparatus exceed 1250 gal (4732 L), or the
GVWR of the vehicle is over 50,000 lb (22,680 kg), the maximum top speed of the apparatus shall not exceed
either 60 mph (85 km/ hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the
apparatus, whichever is lower.
SERVICEABILITY
The fire apparatus shall be designed to allow the manufacturer’s recommended routine maintenance checks of
lubricant and fluid levels to be performed by the operator without lifting the cab of a tilt-cab apparatus or without
the need for hand tools.
Where special tools are required for routine service on any component of the apparatus, such tools shall be
provided with the apparatus.
Apparatus components that interfere with repair or removal of other major components shall be attached with
fasteners, such as cap screws and nuts, so that the components can be removed and installed with ordinary hand
tools. These components shall not be welded or otherwise permanently secured into place.
SVI #917
01/05/15
11
SVI Trucks
Freightliner 4-Door Demo
CONSTRUCTION DOCUMENTATION
The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents:
The manufacturers record of apparatus construction details, including the following information:
1) Owner’s name and address
2) Apparatus manufacturer, model, and serial number
3) Chassis make, model, and serial number
a) GAWR of front and rear axles and GVWR
b) Front tire size and total rated capacity in pounds (kilograms)
c) Rear tire size and total rated capacity in pounds (kilograms)
d) Chassis weight distribution in pounds (kilograms) with water and manufacturer-mounted equipment (front
and rear)
e) Engine make, model, serial number, rated horsepower and related speed, and governed speed; and if so
equipped, engine transmission PTO(s) make, model, and gear ratio
f) Type of fuel and fuel tank capacity
g) Electrical system voltage and alternator output in amps
h) Battery make, model, and capacity in cold cranking amps (CCA)
i) Chassis transmission make, model, and serial number; and if so equipped, chassis transmission PTO(s)
make, model, and gear ratio
4) Pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial
number
5) Pump transmission make, model, serial number, and gear ratio
6) Auxiliary pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and
serial number
7) Water and Foam tank certified capacity in gallons or liters
8) Paint manufacturer and paint number(s)
9) Company name and signature of responsible company representative
10) If the apparatus is a mobile foam fire apparatus, the certification of foam tank capacity
11) Certification of compliance of the optical warning system
12) Siren manufacturer’s certification of the siren
13) Written load analysis and results of the electrical system performance tests
14) Certification of slip resistance of all stepping, standing, and walking surfaces
15) If the apparatus has a fire pump, the pump manufacturer’s certification of suction capability
16) If the apparatus is equipped with a fire pump and special conditions are specified by the purchaser, the pump
manufacturer’s certification of suction capacity under the special conditions
17) If the apparatus has a fire pump, a copy of the apparatus manufacturer’s approval for stationary pumping
applications
18) If the apparatus has a fire pump, the engine manufacturer’s certified brake horsepower curve for the engine
furnished, showing the maximum governed speed
19) If the apparatus has a fire pump, the pump manufacturer’s certification of the hydrostatic test
20) If the apparatus has a fire pump, the certification of inspection and test for the fire pump
21) If the apparatus is equipped with an auxiliary pump, the apparatus manufacturer’s certification of the
hydrostatic test
22) When the apparatus is equipped with a water tank, the certification of water tank capacity
23) If the apparatus has a foam proportioning system, the foam proportioning system manufacturer’s certification
of accuracy and the final installer’s certification the foam proportioning system meets this standard
24) If the system has a CAFS, the documentation of the manufacturer’s pre delivery tests
25) If the apparatus has a line voltage power source, the certification of the test for the power source
26) If the apparatus is equipped with an air system, air tank certificates, the SCBA fill station certification, and the
results of the testing of the air system installation
27) Any other required manufacturer test data or reports.
SVI #917
01/05/15
12
SVI Trucks
Freightliner 4-Door Demo
OPERATIONS AND SERVICE DOCUMENTATION
The Contractor shall deliver with the fire apparatus at least two (2) sets of complete operation and service
documentation covering the completed apparatus as delivered and accepted.
The documentation shall address at least the inspection, service, and operations of the fire apparatus and all
major components thereof.
The Contractor shall also deliver with the fire apparatus the following documentation for the entire apparatus and
each major operating system or major component of the apparatus:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
19)
Manufacturer’s name and address
Country of manufacture
Source for service and technical information
Parts replacement information
Descriptions, specifications, and ratings of the chassis, pump (if applicable), and aerial device (if applicable)
Wiring diagrams for low voltage and line voltage systems to include the following information:
a) Pictorial representations of circuit logic for all electrical components and wiring
b) Circuit identification
c) Connector pin identification
d) Zone location of electrical components
e) Safety interlocks
f) Alternator–battery power distribution circuits
g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
Lubrication charts
Operating instructions for the chassis, any major components such as a pump or aerial device, and any
auxiliary systems
Precautions related to multiple configurations of aerial devices, if applicable
Instructions regarding the frequency and procedure for recommended maintenance
Overall apparatus operating instructions
Safety considerations
Limitations of use
Inspection procedures
Recommended service procedures
Troubleshooting guide
Apparatus body, chassis and other component manufacturer’s warranties
Special data required by this standard
A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus
The Contractor shall deliver with the apparatus all manufacturer's operations and service documents supplied with
components and equipment that are installed or supplied by the Contractor.
NFPA REQUIRED DOCUMENTATION FORMAT - USB FLASH DRIVE
The vehicle construction details and the operations and service documentation as required per NFPA 1901 latest
edition shall be provided on a USB Flash Drive. These manuals shall be divided into sections for ease of
reference. There shall be two (2) USB flash drives provided with the completed vehicle.
SVI #917
01/05/15
13
SVI Trucks
Freightliner 4-Door Demo
STATEMENTOF EXCEPTIONS
The Contractor shall deliver with the fire apparatus either a certification that the apparatus fully complies with all
requirements of this standard or alternatively, a Statement of Exceptions specifically describing each aspect of the
completed apparatus that is not fully compliant with the requirements of this standard at the time of delivery.
The Statement of Exceptions shall contain, for each noncompliant aspect of the apparatus or missing required
item, the following information:
1) A separate specification of the section of the applicable standard for which compliance is lacking
2) A description of the particular aspect of the apparatus that is not in compliance therewith or required
equipment that is missing
3) A description of the further changes or modifications to the delivered apparatus that must be completed to
achieve full compliance
4) Identification of the entity that will be responsible for making the necessary post delivery changes or
modifications or for supplying and installing any missing required equipment to the apparatus to achieve full
compliance with this standard
Prior to or at the time of delivery of the apparatus, the Statement of Exceptions shall be signed by an authorized
agent of the entity responsible for final assembly of the apparatus and by an authorized agent of the purchasing
entity, indicating mutual understanding and agreement between the parties regarding the substance thereof.
An apparatus that is delivered subject to a Statement of Exceptions other than a certification of full compliance
shall not be placed in emergency service until the apparatus has been modified as necessary to accomplish full
compliance with this standard.
CARRYING CAPACITY
The GAWR and the GCWR or GVWR of the chassis shall be adequate to carry the weight of the completed
vehicle when loaded to its estimated in-service weight. The Body Manufacturer shall establish the estimated in
service weight during the design of the vehicle
The estimated in-service weight shall include the following:
1)
2)
3)
4)
5)
6)
7)
The chassis, body and tank(s)
Full fuel, lubricant, and other chassis or component fluid tanks or reservoirs
Full water and other agent tanks
*250 lb (114 kg) in each seating position
Fixed equipment such as pumps, aerial devices, generators, reels and air systems as installed
Ground ladders, suction hose, designed hose load in their hose beds and on their reels
An allowance for miscellaneous equipment that is the greatest of the values for type of vehicle per NFPA
1901, a Purchaser provided list of equipment to be carried with weights or a Purchaser specified
miscellaneous equipment allowance.
The Body Manufacturer shall engineer and design the vehicle such that the completed unit, when loaded to its
estimated in-service weight, with all movable weights distributed as close as is practical to their intended inservice configuration, does not exceed the GVWR.
A final Body Manufacturer’s certification of the GVWR or GCWR, along with a certification of each GAWR, shall
be supplied on a label affixed to the vehicle.
Apparatus Type
Equip. Storage Area
Special Service Fire Minimum of 120 cu ft
Apparatus
(3.4 cu mt) of enclosed
compartmentation.
Apparatus Size
30,001 lb to 40,000 lb
(14,001 kg to 18,000 kg)
GVWR
SVI #917
Equipment Allowance
lb.
kg.
4,000
1,800
01/05/15
14
SVI Trucks
Freightliner 4-Door Demo
TESTING
ROAD TEST
Road test shall be conducted in accordance with this section to verify that the completed apparatus is capable of
compliance with Roadability Section.
The tests shall be conducted at a location and in a manner that does not violate local, state or provincial or federal
traffic laws.
The tests shall be conducted on dry, level, paved roads that are in good condition. The apparatus shall be loaded
to its estimated in service weight.
The engine shall not operate in excess of the maximum governed speed. Acceleration tests shall consist of two
runs in opposite directions over the same route. The fire apparatus shall attain a speed of 35 mph (55 km/hr) from
a standing start within 25 seconds. The fire apparatus shall attain a minimum top speed of 50 mph (80 km/hr).
If the apparatus is equipped with an auxiliary braking system, the Body Manufacturer shall road test the system to
confirm that the system is functioning as intended by the auxiliary braking system manufacturer.
If the apparatus is equipped with an air brake system, the service brakes shall bring the apparatus, when loaded
to its GVWR, to a complete stop from an initial speed of 20 mph (32.2 km/hr) in a distance not exceeding 35 ft
(10.7 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil or grease.
If the apparatus is equipped with a hydraulic brake system, the service brakes shall bring the apparatus, when
loaded to its GVWR, to a complete stop from an initial speed of 30 mph (48.2 km/hr) in a distance not exceeding
88 ft (26.8 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil or
grease.
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
The vehicles low voltage electrical system shall be tested and certified by the manufacturer. The certified test
results shall be delivered with the completed vehicle. Tests shall be performed when the air temperature is
between 0°F and 110°F (–18°C and 43°C).
TEST SEQUENCE
The following three (3) tests shall be performed in the order in which they appear below. Before each test, the
batteries shall be fully charged until the voltage stabilizes at the voltage regulator set point and the lowest charge
current is maintained for ten (10) minutes. Failure of any of these tests shall require a repeat of the sequence.
1. RESERVE CAPACITY TEST
The engine shall be started and kept running until the engine and engine compartment temperatures are
stabilized at normal operating temperatures and the battery system is fully charged. The engine shall be shut off
and the minimum continuous electrical load shall be activated for ten (10) minutes.
All electrical loads shall be turned off prior to attempting to restart the engine. The battery system shall then be
capable of restarting the engine. Failure to restart the engine shall be considered a test failure of the battery
system.
SVI #917
01/05/15
15
SVI Trucks
Freightliner 4-Door Demo
2. ALTERNATOR PERFORMANCE TEST
TEST AT IDLE
The minimum continuous electrical load shall be activated with the engine running at idle speed. The engine
temperature shall be stabilized at normal operating temperature. The battery system shall be tested to detect the
presence of battery discharge current. The detection of battery discharge current shall be considered a test
failure.
TEST AT FULL LOAD
The total continuous electrical load shall be activated with the engine running up to the engine manufacturer’s
governed speed. The test duration shall be a minimum of two (2) hours. Activation of the load management
system shall be permitted during this test.
An alarm sounded by excessive battery discharge, as detected by the warning system required in 13.3.4, or a
system voltage of less than 11.8 V dc for a 12 V nominal system, 23.6 V dc for a 24 V nominal system, or 35.4 V
dc for a 42 V nominal system for more than 120 seconds shall be considered a test failure.
3. LOW VOLTAGE ALARM TEST
The following test shall be started with the engine off and the battery voltage at or above 12 V for a 12 V nominal
system, 24 V for a 24 V nominal system or 36 V for a 42 V nominal system.
With the engine shut off, the total continuous electrical load shall be activated and shall continue to be applied
until the excessive battery discharge alarm activates. The battery voltage shall be measured at the battery
terminals.
The test shall be considered a failure if the alarm does not sound in less than 140 seconds after the voltage drops
to 11.70 V for a 12 V nominal system, 23.4 V dc for a 24 V nominal system, or 35.1 V for a 42 V nominal system.
The battery system shall then be able to restart the engine. Failure to restart the engine shall be considered a test
failure.
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
DOCUMENTATION
The manufacturer shall deliver the following with the fire apparatus:
1) Documentation of the electrical system performance tests
2) A written electrical load analysis, including the following:
a) The nameplate rating of the alternator
b) The alternator rating
c) Each of the component loads specified that make up the minimum continuous electrical load
d) Additional electrical loads that, when added to the minimum continuous electrical load, determine the total
continuous electrical load
e) Each individual intermittent electrical load
SVI #917
01/05/15
16
SVI Trucks
Freightliner 4-Door Demo
UL 120/240 VAC CERTIFICATION
The 120/240 volt electrical system shall be third-party, independent, audit-certified through Underwriters
Laboratory (UL) to the current edition of NFPA 1901 to perform as listed below;
The prime mover shall be started from a cold start condition, and the unloaded voltage and frequency shall be
recorded.
The line voltage electrical system shall be loaded to at least 100% of the continuous rated wattage stated on the
power source specification label. Testing with a resistive load bank shall be permitted.
The power source shall be operated in the manner specified by the apparatus manufacturer as documented on
instruction plates or in operation manuals. The power source shall be operated at a minimum of 100% of the
continuous rated wattage as stated on the power source specification label for a minimum of two (2) hours.
The load shall be adjusted to maintain the output wattage at or above the continuous rated wattage during the
entire 2-hour test.
The following conditions shall be recorded at least every 1/2 hour during the test:
1)
2)
3)
4)
The power source output voltage, frequency and amperes
The prime mover’s oil pressure, water temperature and transmission temperature, if applicable
The power source hydraulic fluid temperature, if applicable
The ambient temperature and power source air inlet temperature
The following conditions shall be recorded once during the test for power sources driven by dedicated auxiliary
internal combustion engines:
1) Altitude
2) Barometric pressure
3) Relative humidity
If the generator is driven by the chassis engine and the generator allows for operation at variable speeds, the
chassis engine speed shall be reduced to the lowest rpm allowed for generator operation and the voltage and
frequency shall be recorded.
The load shall be removed and the unloaded voltage and frequency shall be recorded.
Voltage shall be maintained within ±10% of the voltage stated on the power source specification label during the
entire test. Frequency shall be maintained within ±3 Hz of the frequency stated on the power source specification
label during the entire test.
The total continuous electrical loads, excluding those loads associated with the equipment defined in NFPA
22.15.7.3.11.2, shall be applied during the testing unless an auxiliary engine drives the power source.
If the apparatus is equipped with a fire pump, the 2-hour certification test of the power source shall be completed
with the fire pump pumping at 100% capacity at 150 psi (1000 kPa) net pump pressure. The test shall be
permitted to be run concurrently with the pump certification test.
SVI #917
01/05/15
17
SVI Trucks
Freightliner 4-Door Demo
DOCUMENTATION
The Body Manufacturer shall deliver the following with the fire apparatus:
The results of each test shall be recorded on an appropriate form and provided with the delivery of the fire
apparatus.
DIELECTRIC VOLTAGE WITHSTAND TEST
The line voltage wiring and permanently connected devices and equipment shall be subjected to a dielectric
voltage withstand test of 900 volts for one (1) minute. The testing shall be performed after all body work has been
completed.
The test shall be conducted as follows:
1)
2)
3)
4)
5)
Isolate the power source from the panel board and disconnect any solid state low voltage components
Connect one lead of the dielectric tester to all the hot and neutral buses tied together
Connect the other lead to the fire apparatus frame or body
Close any switches and circuit breakers in the circuit(s)
Apply the dielectric voltage for one (1) minute in accordance with the testing equipment manufacturer’s
instructions
The electrical polarity of all permanently wired equipment, cord reels and receptacles shall be tested to verify that
wiring connections have been properly made.
Electrical continuity shall be verified from the chassis or body to all line voltage electrical enclosures, light
housings, motor housings, light poles, switch boxes and receptacle ground connections that are accessible to fire
fighters in normal operations.
If the apparatus is equipped with a transfer switch, it shall be tested to verify operation and that all non grounded
conductors are switched.
Electrical light towers, floodlights, motors, fixed appliances and portable generators shall be operated at their full
rating or capacity for 30 minutes to ensure proper operation.
SVI #917
01/05/15
18
SVI Trucks
Freightliner 4-Door Demo
WARRANTY
A full statement shall be provided of the warranties for the vehicle(s) being bid. Warranties should clearly describe
the terms under which the vehicle manufacturer accepts responsibility for the cost to repair defects caused by
faulty design, quality of work or material and for the applicable period of time after delivery.
Cost of repairs refers to all costs related thereto including, but not limited to, the cost of materials and the cost of
labor.
The Body Manufacturer shall warrant all materials and accessories used on the vehicle(s), whether fabricated by
manufacturer or purchased from an outside source and will deal directly with the Fire Department on all warranty
work.
GENERAL LIMITED WARRANTY - TWO (2) YEARS
The vehicle shall be free of defects in material and workmanship for a period of two (2) years or 36,000 miles (or
57,936 kilometers), whichever occurs first starting thirty (30) days after the original invoice date.
The Contractor must be the "single source" coordinator of all warranties on the vehicle.
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS
The vehicle low voltage electrical system shall be free of defects in material and workmanship for a period of five
(5) years or 60,000 miles (or 96,561 kilometers), whichever occurs first, starting thirty (30) days after the original
invoice date.
STRUCTURAL WARRANTY - TEN (10) YEARS
The body shall be free of structural or design failure or workmanship for a period of ten (10) years, or 100,000
miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the original invoice date.
PAINT LIMITED WARRANTY - TEN (10) YEARS
The body shall be free of bubbling or peeling as a result of a defect in the method of manufacture for a period of
ten (10) years or 100,000 miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the
original invoice date. Pro-rated warranties will not be acceptable.
GRAPHICS LIMITED WARRANTY
The 3M graphics installation shall be warranted for a period of two (2) years. The 3M materials installed on
completed vehicle shall be warranted for seven (7) years. The 3M Diamond grade film (if specified) shall be
warranted for ten (10) years.
CONSTRUCTION PERIOD
The completed vehicle shall be delivered within three hundred (300) days after receipt of a purchase order or
contract.
Contractor shall not be held liable for delays of chassis delivery due to accidents, strikes, floods or other events
not subject to their control. Contractor shall provide immediate written notice to Fire Department as to delays and
to what extent these delays have in completing vehicle within the stated construction time period.
SVI #917
01/05/15
19
SVI Trucks
Freightliner 4-Door Demo
OVERALL HEIGHT
The overall height (OAH) of the vehicle shall be approximately “ (9' - 10") from the ground. This measurement
shall be taken on flat ground with the tires properly inflated, in the unloaded condition, at that highest point of the
vehicle.
OVERALL LENGTH
The overall length (OAL) of the vehicle shall be approximately 361“ (30' - 1").
OVERALL WIDTH
The overall width (OAW) of the body at drip rails shall be 102“ (8' - 6"), and body shall be 100" (8' - 4").
ANGLE OF APPROACH
The angle of approach for this vehicle shall not be less than eight (8) degrees when it is loaded to the estimated
in-service weight as specified by the current edition of NFPA 1901.
ANGLE OF DEPARTURE
The angle of departure for this vehicle shall not be less than eight (8) degrees when it is loaded to the estimated
in-service weight as specified by the current edition of NFPA 1901.
DELIVERY AND DEMONSTRATION
The Contractor shall be responsible for the delivery of the completed unit to the Fire Department's location. On
initial delivery of the apparatus, the Contractor shall supply a qualified representative to demonstrate the
apparatus and provide initial instruction to representatives of the Fire Department regarding the operation, care
and maintenance of the apparatus and equipment supplied at Fire Department location.
The Delivery Engineer shall set delivery and instruction schedule with the person appointed by Fire Department.
After delivery of the apparatus, the Fire Department shall be responsible for ongoing training of its personnel to
proficiency regarding the proper and safe use of the apparatus and associated equipment.
SVI #917
01/05/15
20
SVI Trucks
Freightliner 4-Door Demo
CAB CHASSIS SPECIFICATIONS
Vehicle Configuration
M2 106 CONVENTIONAL CHASSIS
2016 MODEL YEAR SPECIFIED
SET BACK AXLE - TRUCK
General Service
RESCUE AND EMERGENCY SERVICE
EMERGENCY VEHICLES BUSINESS SEGMENT
MEDIUM TRUCK 2 YEAR WARRANTY
EXPECTED FRONT AXLE LOAD: 14000 lbs
EXPECTED REAR DRIVE AXLE LOAD: 23000 lbs
EXPECTED GROSS VEHICLE WEIGHT CAPACITY : 37000 lbs
Engine
CUM ISC-350 350 HP @ 2000 RPM; 2200 GOV, 1000 LB/FT @ 1400 RPM
Engine Equipment
2013 EPA/CARB EMISSION CERTIFICATION
NFPA COMPLIANT EMBER SCREEN AND FIRE RETARDANT DONALDSON
AIR CLEANER
DR 12V 275 AMP 40-SI QUADRAMOUNT PAD ALTERNATOR WITH REMOTE
BATTERY VOLTAGE SENSE
(3) ALLIANCE MODEL 1031, GROUP 31, 12 VOLT MAINTENANCE FREE 2280
CCA THREADED STUD BATTERIES WITH POSITIVE JUMPSTART POST
BATTERY BOX FRAME MOUNTED
WIRE GROUND RETURN FOR BATTERY CABLES WITH ADDITIONAL FRAME
GROUND RETURN
POSITIVE LOAD DISCONNECT WITH CAB MOUNTED CONTROL SWITCH
MOUNTED OUTBOARD DRIVER SEAT
CUMMINS TURBOCHARGED 18.7 CFM AIR COMPRESSOR WITH INTERNAL
SAFETY VALVE
CUMMINS EXHAUST BRAKE INTEGRAL WITH VARIABLE GEOMETRY TURBO
WITH ON/OFF DASH SWITCH
RH MTD HORIZONTAL AFTERTREATMENT WITH TAILPIPE EXITING
FORWARD OF REAR TIRES
HORTON DRIVEMASTER ON/OFF FAN DRIVE
AUTOMATIC FAN CONTROL WITHOUT DASH SWITCH, NON ENGINE
MOUNTED
CUMMINS SPIN ON FUEL FILTER
COMBINATION FULL FLOW/BYPASS OIL FILTER
1100 SQUARE INCH ALUMINUM RADIATOR
ANTIFREEZE TO -34F, ETHYLENE GLYCOL PRE-CHARGED SCA HEAVY
DUTY COOLANT
GATES BLUE STRIPE COOLANT HOSES OR EQUIVALENT
CONSTANT TENSION HOSE CLAMPS FOR COOLANT HOSES
SVI #917
01/05/15
21
SVI Trucks
Freightliner 4-Door Demo
ELECTRIC GRID AIR INTAKE WARMER
DELCO 12V 38MT HD STARTER WITH INTEGRATED MAGNETIC SWITCH
Transmission
ALLISON 3000 EVS 5 SPD AUTOMATIC TRANSMISSION WITH PTO
PROVISION
Transmission Equipment
MAGNETIC PLUGS, ENGINE DRAIN, TRANSMISSION DRAIN, AXLE(S) FILL
AND DRAIN
PUSH BUTTON ELECTRONIC SHIFT CONTROL, DASH MOUNTED
WATER TO OIL TRANSMISSION COOLER
TRANSMISSION OIL CHECK AND FILL WITH ELECTRONIC OIL LEVEL CHECK
SYNTHETIC TRANSMISSION FLUID (TES-295 COMPLIANT)
Front Axle and Equipment
DETROIT DA-F-14.7-3 14,700# FF1 71.5 KPI/3.74 DROP SINGLE FRONT AXLE
MERITOR 16.5X5 Q+ CAST SPIDER CAM FRONT BRAKES, DOUBLE ANCHOR,
FABRICATED SHOES
FIRE AND EMERGENCY SEVERE SERVICE, NON-ASBESTOS FRONT LINING
FRONT BRAKE DUST SHIELDS
MERITOR AUTOMATIC FRONT SLACK ADJUSTERS
TRW TAS-85 POWER STEERING
2 QUART SEE THROUGH POWER STEERING RESERVOIR
SYNTHETIC 75W-90 FRONT AXLE LUBE
Front Suspension
14,600# TAPERLEAF FRONT SUSPENSION
MAINTENANCE FREE RUBBER BUSHINGS - FRONT SUSPENSION
FRONT SHOCK ABSORBERS
Rear Axle and Equipment
23,000 LB FIRE/EMERGENCY SINGLE REAR AXLE
IRON REAR AXLE CARRIER WITH STANDARD AXLE HOUSING
MXL 17T MERITOR EXTENDED LUBE MAIN DRIVELINE WITH HALF ROUND
YOKES
MERITOR 16.5X7 Q+ CAST SPIDER CAM REAR BRAKES, DOUBLE ANCHOR,
FABRICATED SHOES
FIRE AND EMERGENCY SEVERE SERVICE NON-ASBESTOS REAR BRAKE
LINING
REAR BRAKE DUST SHIELDS
HALDEX GOLDSEAL LONGSTROKE 1-DRIVE AXLE SPRING PARKING
CHAMBERS
MERITOR AUTOMATIC REAR SLACK ADJUSTERS
SYNTHETIC 75W-90 REAR AXLE LUBE
SVI #917
01/05/15
22
SVI Trucks
Freightliner 4-Door Demo
Rear Suspension
AIRLINER 23,000# REAR SUSPENSION
SINGLE AIR REAR SUSPENSION LEVELING VALVE
TRANSVERSE CONTROL RODS
REAR SHOCK ABSORBERS - ONE AXLE (AIR RIDE SUSPENSION)
Brake System
AIR BRAKE PACKAGE
WABCO 4S/4M ABS WITH TRACTION CONTROL
NFPA COMPLIANT ENHANCE STABILITY CONTROL
BW AD-9 BRAKE LINE AIR DRYER WITH HEATER
STANDARD AIR SYSTEM PRESSURE PROTECTION SYSTEM
CUSTOM STEEL AIR BRAKE RESERVOIRS
BW DV-2 AUTO DRAIN VALVE WITHOUT HEATER - WET TANK
Electrical Connections
UPGRADED CHASSIS MULTIPLEXING UNIT
UPGRADED BULKHEAD MULTIPLEXING UNIT
Wheelbase & Frame
11/32X3-1/2X10-15/16 INCH STEEL FRAME 120KSI
(63 INCH) REAR FRAME OVERHANG
Chassis Equipment
THREE-PIECE 14 INCH CHROME STEEL BUMPER WITH COLLAPSIBLE ENDS
AND LH WING CUTOUT FOR SPEAKER
FRONT TOW HOOKS - FRAME MOUNTED
FENDER AND FRONT OF HOOD MOUNTED FRONT MUDFLAPS
GRADE 8 THREADED HEX HEADED FRAME FASTENERS
Fuel Tanks
50 GALLON ALUMINUM FUEL TANK
6 GALLON DIESEL EXHAUST FLUID TANK
ALLIANCE FUEL FILTER/WATER SEPARATOR
EQUIFLO INBOARD FUEL SYSTEM
Tires
GOODYEAR G661 HSA 12R22.5 16 PLY RADIAL FRONT TIRES (MATCH
MARKED)
GOODYEAR G288 11R22.5 16 PLY RADIAL REAR TIRES
Hubs
CONMET PRE-SET BEARING IRON FRONT HUBS
CONMET PRE-SET BEARING IRON REAR HUBS
Wheels
22.5X8.25 10-HUB PILOT POLISHED ALUMINUM DISC FRONT WHEELS
22.5X8.25 10-HUB PILOT POLISHED ALUMINUM DISC REAR OUTER WHEELS
SVI #917
01/05/15
23
SVI Trucks
Freightliner 4-Door Demo
Cab Exterior
154 INCH BBC HIGH-ROOF ALUMINUM CONVENTIONAL CREW CAB
AIR CAB MOUNTS
NFPA COMPLIANT EXTERIOR GRAB HANDLES
HOOD MOUNTED CHROMED PLASTIC GRILLE
CHROMED HOOD MOUNTED AIR INTAKE GRILLE
TUNNEL & FIREWALL LINER
DUAL 25 INCH ROUND STUTTER TONE HOOD MOUNTED AIR HORNS
(1) RH FOOT SWITCH WITH DASH SWITCH FOR HORN BUTTON TO
CONTROL AIR HORN, DEFAULT TO ELECTRIC <85 PSI
SINGLE ELECTRIC HORN
DOOR LOCKS AND IGNITION SWITCH KEYED THE SAME
INTEGRAL HEADLIGHT/MARKER ASSEMBLY WITH CHROME BEZEL
LED AERODYNAMIC MARKER LIGHTS
DAYTIME RUNNING LIGHTS
DUAL 102” WEST COAST BRIGHT FINISH HEATED MIRRORS WITH LH AND
RH REMOTE
LH AND RH 8" BRIGHT FINISH CONVEX MIRRORS MOUNTED UNDER
PRIMARY MIRRORS
63 X14 INCH TINTED REAR WINDOW
TINTED DOOR GLASS LH AND RH WITH TINTED NON-OPERATING WING
WINDOWS
TINTED WINDSHIELD
2 GALLON WINDSHIELD WASHER RESERVOIR WITHOUT FLUID LEVEL
INDICATOR, FRAME MOUNTED
Cab Interior
OPAL GRAY VINYL INTERIOR
MOLDED PLASTIC DOOR PANELS WITH ALUMINUM KICKPLATES LOWER
DOORS
BLACK MATS WITH PREMIUM INSULATION
IN DASH STORAGE BIN
(2) CUP HOLDERS LH AND RH DASH
AM/FM DASH MTD RADIO WITH FRONT AND REAR AUXILIARY INPUTS AND
J1939
(2) CUP HOLDERS LH AND RH DASH
HEATER, DEFROSTER AND AIR CONDITIONER
MAIN HVAC CONTROLS WITH RECIRCULATION SWITCH
SOLID-STATE CIRCUIT PROTECTION AND FUSES
12V NEGATIVE GROUND ELECTRICAL SYSTEM
DOOR ACTIVATED DOME/RED MAP LIGHTS, FORWARD LH AND RH AND
REAR LH, RH AND CENTER
CAB DOOR LATCHES WITH MANUAL DOOR LOCKS
(1) 12 VOLT POWER SUPPLY IN DASH
SVI #917
01/05/15
24
SVI Trucks
Freightliner 4-Door Demo
SEATS INC 911 UNIVERSAL SERIES HIGH BACK AIR SUSPENSION DRIVER
SEAT NFPA COMPLIANT
SEATS INC 911 UNIVERSAL SERIES HIGH BACK NON SUSPENSION
PASSENGER SEAT WITH UNDERSEAT STORAGE NFPA COMPLIANT
SEATS INC 911 UNIVERSAL SERIES SCBA NON SUSPENSION LH, RH AND
CENTER REAR PASSENGER SEATS WITH UNDERSEAT STORAGE NFPA
COMPLIANT
LH AND RH INTEGRAL DOOR PANEL ARMRESTS
GRAY VINYL SEAT COVERS WITH GRAY CORDURA CLOTH BOLSTERS AND
HEADRESTS
3 POINT HIGH VISIBILITY ORANGE RETRACTOR DRIVER AND RH FRONT
AND LH, CENTER AND RH REAR PASSENGER SEAT BELTS WITH NFPA
COMPLIANT VDR & SEAT BELT SENSOR
ADJUSTABLE TILT AND TELESCOPING STEERING COLUMN
4-SPOKE 18 INCH STEERING WHEEL
DRIVER AND PASSENGER INTERIOR SUN VISORS
Instruments & Controls
WOODGRAIN INSTRUMENT PANELS
BLACK GAUGE BEZELS
LOW AIR PRESSURE LIGHT AND BUZZER
2 INCH PRIMARY AND SECONDARY AIR PRESSURE GAUGES
ENGINE COMPARTMENT MOUNTED AIR RESTRICTION INDICATOR WITH
GRADUATIONS, WITH WARNING LIGHT IN DASH
ELECTRONIC CRUISE CONTROL WITH SWITCHES IN LH SWITCH PANEL
IGNITION SWITCH WITH NON REMOVABLE KEY
ODOMETER/TRIP/HOUR/DIAGNOSTIC/VOLTAGE DISPLAY: 1X7 CHARACTER,
26 WARNING LAMPS, DATA LINKED, ICU3
FIRE AND EMERGENCY SERVICE VEHICLES ENGINE WARNING
2 INCH ELECTRIC FUEL GAUGE
ELECTRICAL ENGINE COOLANT TEMPERATURE GAUGE
2 INCH TRANSMISSION OIL TEMPERATURE GAUGE
ENGINE AND TRIP HOUR METERS INTEGRAL WITHIN DRIVER DISPLAY
ELECTRIC ENGINE OIL PRESSURE GAUGE
ELECTRONIC MPH SPEEDOMETER WITH SECONDARY KPH SCALE
ELECTRONIC 3000 RPM TACHOMETER
PRE-FLIGHT, ALL OUTPUTS FLASH WITH SMART SWITCH
DIGITAL VOLTAGE DISPLAY INTEGRAL WITH DRIVER DISPLAY
SINGLE ELECTRIC WINDSHIELD WIPER MOTOR WITH DELAY
MARKER LIGHT SWITCH INTEGRAL WITH HEADLIGHT SWITCH
ONE VALVE PARK BRAKE SYSTEM WITH DASH VALVE
SELF CANCELING TURN SIGNAL SWITCH WITH DIMMER, WASHER/WIPER
AND HAZARD IN HANDLE
INTEGRAL ELECTRONIC TURN SIGNAL FLASHER WITH HAZARD LAMPS
OVERRIDING STOP LAMPS
SVI #917
01/05/15
25
SVI Trucks
Freightliner 4-Door Demo
Design
PAINT: TWO SOLID COLOR
Color
CAB COLORS: RED FBCH 911659, WHITE FBCH 2185
BLACK, HIGH SOLIDS POLYURETHANE CHASSIS PAINT
Weight Summary
Factory Weight+
Weight
Front
Weight
Rear
Total
Weight
7977 LBS
4418 LBS
12395 LBS
(+) Weights shown are estimates only.
SVI #917
01/05/15
26
SVI Trucks
Freightliner 4-Door Demo
CAB TO AXLE DIMESION
Cab to axle will be 118”.
CHASSIS MODIFICATIONS
LUBRICATION AND TIRE DATA PLATE
A permanent label in the driving compartment shall specify the quantity and type of the following fluids used in the
vehicle and tire information:

















Engine oil
Engine coolant
Chassis transmission fluid
Pump transmission lubrication fluid . . (if applicable)
Pump priming system fluid, if applicable . . (if applicable)
Drive axle(s) lubrication fluid
Air conditioning refrigerant . . (if applicable)
Air conditioning lubrication oil . . (if applicable)
Power steering fluid
Cab tilt mechanism fluid . . (if applicable)
Transfer case fluid . . (if applicable)
Equipment rack fluid (if applicable)
CAFS air compressor system lubricant . . (if applicable)
Generator system lubricant . . (if applicable)
Front tire cold pressure
Rear tire cold pressure
Maximum tire speed ratings
VEHICLE DATA PLATE
A permanent label in the driving compartment which indicates the following:





Filter part numbers for the;
 Engine
 Transmission
 Air
 Fuel
Serial numbers for the;
 Engine
 Transmission
Delivered Weights of the Front and Rear Axles
Paint Brand and Code(s)
Sales Order Number
SVI #917
01/05/15
27
SVI Trucks
Freightliner 4-Door Demo
OVERALL HEIGHT, LENGTH DATA PLATE (US)
The fire apparatus manufacturer shall permanently affix a high-visibility label in a location visible to the driver
while seated.
The label shall show the height of the completed fire apparatus in feet and inches, the length of the completed fire
apparatus in feet and inches, and the GVWR in pounds.
Wording on the label shall indicate that the information shown was current when the apparatus was manufactured
and that, if the overall height changes while the vehicle is in service, the fire department must revise that
dimension on the plate.
ACCIDENT PREVENTION
There shall be a placard in the cab seating area which reads, "ALL OCCUPANTS MUST BE SEATED AND
BELTED WHEN THE APPARATUS IS IN MOTION".
PERSONNEL CAPACITY
A label that states the number of personnel the vehicle is designed to carry shall be located in an area visible to
the driver.
ACCIDENT PREVENTION
If the rear bumper is 8" deep or more, there shall be a placard on the rear face of the body, in clear sight from the
ground, which reads, "WARNING - DO NOT RIDE ON STEPS OR DECK AREAS WHILE THE APPARATUS IS
IN MOTION. DEATH OR SERIOUS INJURY MAY RESULT".
WEARING HELMET WARNING
A label stating “DO NOT WEAR HELMET WHILE SEATED” shall be visible from each seating location.
FINAL STAGE MANUFACTURER VEHICLE CERTIFICATION
A final stage manufacturer vehicle certification label shall be provided and installed in the driver cab door jamb
area.
FRONT BUMPER
The front bumper shall be as provided by the cab/chassis manufacturer. No other alteration or modifications are
required.
AIR HORN(S)
The air horn(s) shall be supplied and installed by the cab/chassis manufacturer.
FRONT TOW PROVISIONS
The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.
SVI #917
01/05/15
28
SVI Trucks
Freightliner 4-Door Demo
EXHAUST
The exhaust system shall be as provided by cab/chassis manufacturer. The tailpipe may require some
modifications for proper ground clearances and fit with body.
The exhaust piping and discharge outlet shall be located or shielded so as not to expose any portion of the
vehicle or equipment to excessive heating.
Exhaust pipe discharge shall be directed away from any operator’s position or entry doors on body.
Where parts of the exhaust system are exposed so that they are likely to cause injury to operating personnel,
protective guards shall be provided.
RADIO ANTENNA INSTALLATION
There shall be one (1) radio antenna mounts provided and installed on the roof of the cab/chassis. The end of
each radio antenna shall be routed to a location determined by the Fire Department.
Due to multiple configurations of antenna whips, the Body Manufacturer shall provide the antenna base, and Fire
Department shall provide the whip.
SEAT SCBA BRACKETS
There shall be three (3) Zico ULLH walkaway type SCBA air pack bracket(s) provided with strap assembly
mounted in specified SCBA seats.
SEAT BELT COLOR
Section 14.1.3.4 of the NFPA 1901 Standards, 2009 edition, requires all seat belt webbing in cab to be bright red
or bright orange in color, and the buckle portion of the seat belt shall be mounted on a rigid or semi rigid stalk
such that the buckle remains positioned in an accessible location.
SEAT BELT WEB LENGTH - COMMERCIAL CAB
Sections 14.1.3.2 and 14.1.3.3 of the NFPA 1901 standards, 2009 edition, require the effective seat belt web
length for a Type 1 lap belt for pelvic restraint to be a minimum of 60", and a Type 2 pelvic and upper torso
restraint-style seat belt assembly to be a minimum of 110".
The chassis seat belt web length as supplied by the commercial chassis manufacturer shall be compliant to NFPA
Standards 14.1.3.2 and 14.1.3.3.
SVI #917
01/05/15
29
SVI Trucks
Freightliner 4-Door Demo
SEAT BELT MONITORING AND VEHICLE DATA RECORDER (VDR) SYSTEMS
SEAT BELT MONITORING
A Weldon 6204 series system with Vista IV display shall be provided and installed to allow the driver to know if all
persons seated in the vehicle are secured with seat belts before moving the vehicle. Built-in smart seating logic
shall detect if the correct sit and buckle sequence is not followed for all seats. System shall also provide an output
for an external alarm. Weldon diagnostic port will be located under dash on driver side. System shall include the
following features;
VEHICLE DATA RECORDER (VDR)
The vehicle data recorder shall have the following features;





Recorded Data Includes: Vehicle Speed, Acceleration, Deceleration, Engine Speed, Engine Throttle Position,
ABS Event, Seat Occupied Status, Seat Belt Status, Master Optical Warning Switch, Park Brake, Service
Brake, Time, Date and Engine Hours.
Password Protected by the customer
Six (6) seat position inputs for occupied and belts buckled. Additional six (6) seat expansion module available.
Easily interfaces with V-MUX™ or other multiplexing systems
Data is extracted by a standard, mini USB cable
OCCUPANT RESTRAINT INDICATOR
The occupant restraint indicator shall have the following features;




Will be displayed on Vista IV panel.
Supports commercial and custom cab seating layouts; up to 12 seats
Built-in audible alarm
Use in conjunction with Vehicle Data Recorder (VDR)
SIX (6) – LED TIRE PRESSURE VISUAL INDICATORS
Each tire shall be equipped with a VECSAFE heavy duty valve cap (or equal) LED indicator that indicates proper
tire pressure. The VECSAFE valve cap is self-calibrating. When the cap is mounted on the valve stem the first
time, it will memorize that tire pressure, and can be set to recognize a drop in pressure as little as 4 psi. It can be
checked for functionality and battery condition by simply unscrewing the cap. If it is in working condition, it will
immediately start blinking.
HELMET STORAGE
No helmet storage is required in the cab driving area.
HELMET STORAGE
No helmet storage is required in the cab crew area.
SVI #917
01/05/15
30
SVI Trucks
Freightliner 4-Door Demo
CAB CRASH TEST CERTIFICATION
A cab crash test certification from the fire apparatus manufacturer shall be provided with the equipment. A copy of
this certification shall be included with the bid.
NOTE: There shall be no exception to any portion of the cab integrity certification requirements. Nonconformance
shall lead to immediate rejection of bid.
The certification shall state that the cab does meet or exceed the requirements below:
1) European Occupant Protection Standard ECE Regulation No. 29.
2) SAE J2422 Cab Roof Strength Evaluation - Quasi-Static Loading Heavy Trucks.
CAB MIRRORS, DRIVER ADJUSTABLE
Section 14.3.5 of the NFPA 1901 Standards, 2009 edition, requires all primary rear view mirrors used by the
driver to be adjustable from the driver's position.
CAB STEP COVER AND BATTERY COMPARTMENT
The stock chassis step and fuel tank brackets shall be overlaid with 3/16" aluminum tread plate covers. The
stepping surface of the covers will be a non-slip NFPA approved stepping surface.
The following options will be cut into the step cover:
BATTERY CHARGING RECEPTACLE LOCATION
The specified battery charging receptacle and/or display panel shall be located on front face of specified cab step
cover.
HUB AND NUT COVERS
Front and rear wheels shall be provided with stainless steel hub caps and wheel nut covers.
MUDFLAPS
There shall be 1/4" rubber mudflaps provided and installed behind each set of tires to prevent throwing road
debris and lower road spray.
AIR BRAKE SYSTEM QUICK BUILD-UP
The air brake quick build-up system shall be supplied from the specified automatic electric compressor in order to
maintain full operating air pressure while the vehicle is not running.
The quick buildup system shall provide sufficient air pressure so that the apparatus has no brake drag and is able
to stop under the intended operating conditions following the 60-second buildup time.
ROAD EMERGENCY SAFETY KIT
One (1) set of three (3) dual faced triangular warning flares with fold away base complete with storage case per
DOT requirements shall be provided with the completed apparatus.
One (1) 2.5 lb. ABC type vehicle fire extinguisher with bracket per DOT requirements shall be provided and
mounted inside cab area.
SVI #917
01/05/15
31
SVI Trucks
Freightliner 4-Door Demo
BODY DESIGN
The importance of public safety associated with emergency vehicles requires that the construction of this vehicle
meet the following specifications. These specifications are written to establish the minimum level of quality and
design. All Bidders shall be required to meet these minimum requirements.
It is the intent of these specifications to fully describe the requirements for a custom built emergency type vehicle.
In order to extend the expected service life of this vehicle, the body module shall be removable from the chassis
frame and be capable of being installed on a new chassis.
The sheet metal material requirements, including alloy and material thickness, throughout the specifications are
considered to be a minimum. Since such materials are available to all Manufacturers, the material specifications
shall be strictly adhered to.
The fabrication of the body shall be formed sheet metal. Formed components shall allow the Fire Department to
have the body repaired locally in the case where any object has struck the body and caused damage. The use of
proprietary extrusions will prevent the Fire Department from such repair and shall NOT be used.
Following construction of the subframe, which supports the apparatus body, the sheet metal portion of the body
shall be built directly on the subframe. The joining of the subframe and body shall be of a welded integral
construction.
The sheet metal fabrication of the body shall be performed using inert gas continuous feed welders only. The
entire body shall be welded construction. The use of pop rivets in any portion of structural construction may allow
premature failure of the body structure. Therefore, pop rivets shall NOT be used in the construction of the
structural portions of the body. This includes side body sheets, inner panels of compartment doors, and any other
structural portions of the body.
SVI #917
01/05/15
32
SVI Trucks
Freightliner 4-Door Demo
EXTERIOR ALUMINUM BODY
The fabrication of the body shall be constructed from aluminum 3003H-14 alloy smooth plate. This shall include
compartment front panel, vertical side sheets, side upper rollover panels, rear panels and compartment door
frames.
The body compartment floors and exterior panels shall be constructed with not less than 3/16" (.187) aluminum
3003H-14 smooth plate. Interior compartment dividing walls shall be constructed with not less than 1/8" (.125)
aluminum 3003H-14 smooth plate. Lighter gauge sheet metal will not be acceptable in these areas, No
Exceptions.
The front and rear corners of body shall be formed as part of the front or rear body panels. This provides a
stronger body corner and finished appearance. The use of extruded corners, or caps will not be acceptable, No
Exceptions.
The door side frame openings shall be formed "C" channel design. An electrical wiring conduit raceway running
the full length of exterior compartments shall be provided. This raceway shall contain all 12 volt wiring running to
the rear of the apparatus, permitting easy accessibility to wiring.
Individual compartment modules, with dead air space voids between compartments, will not be an acceptable
method of compartment construction.
The compartments shall be an integral part of the body construction. Compartment floors from front of body to
ahead of rear axle, also from rear axle to rear of body shall be single one-piece sections. Compartment floors
shall be preformed, then positioned in body and welded into final position.
Compartment floors shall have a "sweep-out" design with door opening threshold positioned lower than
compartment floor, permitting easy cleaning of compartments. Angles, lips, or door moldings are not acceptable in
the base of compartment door opening. One-way rubber drain valves shall be provided in compartment floors so
that a water hose may be used to flush-out compartment area.
All exterior seams in sheet metal below frame, and around the rear wheel well area shall be welded and caulked
to prevent moisture from entering the compartments. All other interior seams and corners shall be sealed with
silicone based caulk prior to painting.
Only stainless steel bolts, nuts, and sheet metal screws shall be used in mounting exterior trim, hardware and
equipment.
DRIP RAILS
The body shall have drip rails over the side full height compartments. The drip rails shall be formed into the upper
body panels providing a ridged lower panel and a flat upper body panel surface. The use of mechanically
fastened, taped or glued on drip rails will not be acceptable, No Exceptions.
SVI #917
01/05/15
33
SVI Trucks
Freightliner 4-Door Demo
ROOF CONSTRUCTION
The roof shall be integral with the body and shall be all welded construction. The roof of the body shall not be less
than 3/16" aluminum 3003H-14 alloy tread plate, fully and continuously welded. The roof shall be reinforced with
2" x 2" x 1/4" aluminum tubing running the full width of the body.
All seams in the roof area shall be welded to the radius and supports prior to paint to prevent entry of moisture. All
roof seams shall be continuously welded.
A 2" formed radius shall be provided along the body sides. The use of extruded radius will not be acceptable, No
Exceptions.
BODY SUBFRAME
The chassis frame rails shall be fitted with 1/4" custom extruded UHMW polyethylene rail cap to isolate the body
frame members from direct contact with chassis frame rails.
The body subframe shall be constructed from 6061T6 aluminum alloy tubing. Subframe shall consist of two (2) 2"
x 6" x 1/4" aluminum tubes, the same width as the chassis frame rails, NO EXCEPTION. Welded to this tubing
shall be cross members of 2" x 6" x 1/4" aluminum. These cross members shall extend the full width of the body
to support the compartments. Cross members shall be located at front and rear of the body, below compartment
divider walls, and in front and rear of wheel well opening. Additional aluminum cross members shall be located on
16" centers, or as necessary to support walkway or heavy equipment.
To form the frame, the tubing shall be beveled and welded at each joint using 5356 aluminum alloy welding wire.
BODY MOUNTING
The body subframe shall be fastened to the chassis frame with a minimum of six (6) spring loaded body mounts.
Each mount shall be configured using a two-piece encapsulated slide bracket. The two (2) brackets shall be
fabricated of heavy duty 1/4" thick steel and shall have a powder coat finish to prevent any corrosion. Each
mounting assembly shall utilizing two (2) 3/4" diameter x 6" long grade 8 bolts and two (2) heavy duty springs.
The assembly design shall allow the body and subframe to act as one (1) component, separate from the chassis.
As the chassis frame twists under driving conditions, the spring mounting system shall eliminate any stress from
being transferred into the body. The spring loaded body mounts shall also prevent frame side rail or body damage
caused by unevenly distributed stress and strains due to load and chassis movement.
Body mountings that do not allow relief from chassis movement will not be acceptable.
10" REAR STEP BUMPER
The full width rear bumper shall be constructed from 2" x 2" x 1/4" aluminum tubing frame and covered with 3/16"
NFPA compliant aluminum tread plate. The bumper shall extend from the rear vertical body panel 10" and provide
a rear step with a minimum of 1/2" space at body for water drainage.
REAR TOW EYES
There shall be two (2) heavy duty rear mounted tow eyes securely attached to the body subframe, below the
apparatus body. The tow eyes shall be fabricated from 3/4" thick steel plate and shall have a black powder coat
finish.
SVI #917
01/05/15
34
SVI Trucks
Freightliner 4-Door Demo
GROUND LIGHTS
There shall be two (2) OnScene 9" Night Axe LED lights installed below bumper capable of providing illumination
at a minimum level of 2 fc (20 lx) on ground areas within 30 in. (800 mm) of the edge of the vehicle in areas
designed for personnel to climb onto or descend from the vehicle to the ground level.
Lighting shall be switchable but activated automatically when the vehicle park brake is set.
WHEEL WELL EXTERIOR PANEL
The exterior panel of the body wheel well enclosure shall be constructed from 3/16" smooth aluminum panels.
DIEFORMED BEADED EDGE BODY FENDERS
A die formed beaded edge shall be provided along the radius of the wheel well opening for a finished appearance.
WHEEL WELL LINERS
The wheel wells shall be provided with an easily removable polymer, circular inner fender liner. The inner liner
shall be bolted to the wheel well with stainless steel bolts and spaced away from the wheel well so the liner will
not accumulate dirt or water.
SVI #917
01/05/15
35
SVI Trucks
Freightliner 4-Door Demo
BODY PAINT SPECIFICATIONS
BODY PAINT PREPARATION
After the body and components have been fabricated they shall be disassembled prior to painting so when the
vehicle is complete there shall be finish paint beneath the removable components. The body shall be totally
removed from chassis during the paint process to insure the entire unit is covered. The body and components
shall be metal finished as follows to provide a superior substrate for painting.
The exterior body shall undergo a thorough cleaning process starting with a biodegradable phosphoric acid
solution to begin the etching process followed by a complete clear water rinse. The next step shall consist of a
chemical conversion coating applied to seal the metal substrate and become part of the metal surface for greater
film adhesion. If the compartment interior is to be painted the interior shall be acid etched as described above
then primed with an epoxy primer and all seams caulked.
All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be chrome plated. Iron fittings
shall be copper under plated prior to chrome plating.
PAINT PROCESS
The paint process shall follow the strict standards set forth by PPG Industries guidelines. Painters applying PPG
products will be PPG Certified Commercial Technicians, and re-certified every two (2) years.
The body shall go through an eight-stage paint process;
1)
2)
3)
4)
5)
6)
7)
8)
Clean bare metal using a solvent base wax & grease remover.
Finish all exterior body seams as necessary, followed by a thorough sanding of all bare metal to be painted.
Re-clean bare metal using a solvent base wax & grease remover.
Bare Metal Epoxy Primer Coat - PPG Delfleet® Evolution corrosion resistance epoxy primer to be applied at
1.0-2.0 mills DFT over clean abraded bare metal.
Primer Filler Coat - PPG Delfleet® Evolution urethane build primer to achieve total thickness of 3.0-6.0 mils
DFT after sanding.
Base coat (Color) - PPG Delfleet® Evolution High Solids Polyurethane Base coat. Apply 1.0-3.0 mils DFT of
base coat color to achieve full hiding.
Clear coat PPG Delfleet® Evolution polyurethane premium quality clear coat with improved mar resistant
finish. The clear coat shall be applied to achieve a total dry film thickness of 2.0-3.0 mils.
Curing process of the painted body shall go through a force dry/bake cycle process. The painted components
shall be baked 180 degrees for 2 hours to achieve a complete coating cure on the finished product.
MACHINE POLISHED
After the force dry/bake cycle and ample cool down time, the coated surface shall be sanded using 1,000, 1,500,
and or 3,000 grit sandpaper to remove surface defects. In the final step, the surface shall be buffed then polished
to an extra high gloss smooth finish. Total dry film thickness of paint will average between 8.0-12.0 mils.
PAINT - ENVIRONMENTAL IMPACT
The contractor shall meet or exceed all current State (his) regulations concerning paint operations. Pollution
control shall include measures to protect the atmosphere, water and soil. PPG Delfleet® Evolution paint shall be
free of all heavy metal (lead & chromate) components. Paint emissions from sanding and painting shall be filtered
and collected. All paint wastes shall be disposed of in an environmentally safe manner. Solvents used in cleanup
operations shall be collected, sent off-site for distillation and returned for reuse.
SVI #917
01/05/15
36
SVI Trucks
Freightliner 4-Door Demo
FASTENERS
Prior to the assembly and reinstallation of exterior components; i.e. warning and DOT lights, handrails, steps,
door hardware, and miscellaneous items, an isolation tape, or gasket shall be used to prevent damage to the
finish painted surfaces. These components shall be fastened to body using either a plastic insert into body metal
with stainless steel screws or zinc coated nutserts into body surface using stainless steel bolts to prevent
corrosion from dissimilar metals.
ELECTROLYSIS CORROSION CONTROL
The apparatus shall be assembled using ECK or similar corrosion control on all high corrosion potential areas.
ECK protects aluminum and stainless steel against electrolytic reaction, isolates dissimilar metals and gives
bedding protection for hardware and fasteners. ECK contains anti-seizing lubricant for threads. ECK is dielectric
and perfect for use with electrical connectors.
PAINT FINISH - SINGLE COLOR
The body shall be painted with a single color of PPG Delfleet® Evolution paint per approved customer sprayout.
Touch-up paint shall be provided with completed vehicle.

Paint Color: Match cab/chassis supplied paint color.
BODY UNDERCOATING
The entire underside of body shall be sprayed with black automotive undercoating. Undercoating shall cover all
areas underside of body and wheel well area to help prevent corrosion under the vehicle.
UNDERCOAT WARRANTY
The body undercoating shall have a warranty provided by the manufacturer for the lifetime of the vehicle or twenty
(20) years, whichever occurs first. The warranty shall be transferable between vehicle owners. Should the
undercoating material applied to the underside of the body and wheel wells of the vehicle ever flake off, peel, chip
or crack due to drying out, the damaged area shall be re-sprayed without charge to the vehicle owner.
PAINT WARRANTY
The vehicle shall be provided with a ten (10) year non-prorated warranty to the original owner. Warranty is
provided by PPG Inc. A warranty sheet with all conditions and maintenance procedures shall be provided with the
delivered vehicle. Pro-rated warranties will not be acceptable.
COMPARTMENT INTERIOR FINISH
The compartment interiors shall be treated with phosphoric acid and then sprayed with an epoxy primer applied
1.0 mil thick. All body seams will be caulked with urethane seam sealer and painted with two (2) coats of
Multicolor PPG spec. The Multicolor paint shall be solvent and oil resistant, impact and abrasion resistant, stain
and household chemical resistant, as well as mildew and fungus resistant. Paint color shall be silver/white/black.
SVI #917
01/05/15
37
SVI Trucks
Freightliner 4-Door Demo
REFLECTIVE STRIPE REQUIREMENTS
Material
All retroreflective materials shall conform to the requirements of ASTM D 4956, Standard Specification for
Retroreflective Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.
All retroreflective materials used that are colors not listed in ASTM D 4956, Section 6.1.1, shall have a minimum
coefficient of retroreflection of 10 with observation angle of 0.2 degrees and entrance angle of -4 degrees.
Any printed or processed retroreflective film construction used shall conform to the standards required of an
integral colored film as specified in ASTM D 4956, Section 6.1.1.
Minimum Requirements
A retroreflective stripe(s) shall be affixed to at least 50 percent of the cab and body length on each side, excluding
the pump panel areas, and at least 25 percent of the width of the front of the apparatus.
The stripe or combination of stripes shall be a minimum of 4 in. (100 mm) in total width.
The 4 in. (100 mm) wide stripe or combination of stripes shall be permitted to be interrupted by objects (i.e.,
receptacles, cracks between slats in roll up doors) provided the full stripe is seen as conspicuous when
approaching the apparatus.
GRAPHICS PROOF
A color graphics proof of the reflective striping layout shall be provided for approval by Fire Department prior to
installation. The graphics proof shall be submitted to Fire Department on 8.5" x 11" sheets with front, sides, rear
and plan views, each on one (1) sheet. In addition if there is any special art work an additional sheet shall be
provided showing all details.
REFLECTIVE STRIPE - CAB SIDE
The reflective stripe material shall be 6" wide, 3M Scotchcal 680 series.

This reflective stripe shall be white in color.
REFLECTIVE STRIPE - CAB FRONT
The reflective stripe material shall be 4" wide, 3M Scotchcal 680 series.

This reflective stripe shall be white in color.
REFLECTIVE STRIPE - CAB DOOR INTERIOR
Any door of the apparatus designed to allow persons to enter or exit the apparatus shall have at least 96 in.2
(62,000 mm2) of retroreflective material affixed to the inside of the door.
The stripe material shall be 3M Scotchlite 680.

This reflective stripe shall be white in color.
SVI #917
01/05/15
38
SVI Trucks
Freightliner 4-Door Demo
REFLECTIVE STRIPE - BODY SIDES
The reflective stripe material shall be 6" wide, 3M Scotchcal 680 series.

This reflective stripe shall be white in color.
The stripe shall remain in a straight line from the front of the front of cab to the rear body.
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS
At least 50 percent of the rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump
panel areas not covered by a door, shall be equipped with retroreflective striping in a chevron pattern sloping
downward and away from the centerline of the vehicle at an angle of 45 degrees. Each stripe shall be 6" width.
The rear side panels of the body on each side of a rear stairway or compartment shall have a chevron style
reflective stripe, extending from bumper height up to side compartment drip rail height. Each chevron panel shall
be a full sheet and shall have a 3M UV over laminate to protect from UV rays, scene damage, and everyday use.
Chevron panel shall have a minimum 10 year warranty for material failure, and colorfastness.
The stripe material shall be 3M Diamond Grade.
This reflective chevron stripe shall alternate red and fluorescent yellow-green in color.
LETTERING
GRAPHICS PROOF
A color graphics proof of the lettering layout shall be provided for approval by Fire Department prior to installation.
The graphics proof shall be submitted to Fire Department on 8.5" x 11" sheets with front, sides, rear and plan
views, each on one (1) sheet. In addition if there is any special art work an additional sheet shall be provided
showing all details.
The following lettering shall be provided and installed on the completed unit as follows;
UPPER BODY SIDE LETTERING
There shall be twenty (20) 10" high reflective letters furnished and installed on the vehicle.
"FIRE/RESCUE"

This reflective lettering shall be gold in color.
SVI #917
01/05/15
39
SVI Trucks
Freightliner 4-Door Demo
EXTERIOR COMPARTMENT DOORS
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM)
The apparatus shall be equipped with Robinson ROM Series III roll-up exterior compartment doors. Robinson rollup doors shall be complete with the following features;
















Doors shall be front roll with drum positioned at upper front portion of compartment to afford maximum
clearances and head room for mounting equipment to ceiling of compartment
There shall be a non-abrasive side brush seals
Every slat must have interlocking end shoes to prevent slat from moving side-to-side and binding the door
Between each slat must be a co-extruded PVC inner seal to prevent metal-to-metal contact and to repel
moisture. This inner seal is not visible to detract from appearance of door
Slats are to have interlocking joints with a folding locking flange to provide security and prevent penetration by
sharp objects
Slats to be double-wall extrusion 1.366" high by .315" thick. Exterior surface to be flat and interior surface to
be concave to prevent loose equipment from interfering with door operation
Latch system to be a full width one piece lift bar operable by one hand
A 2" wide finger pull integrated into bottom rail extrusion for easy one hand opening and closing
Clip system that connects the curtain slats to the operator drum which allows for easy tension adjustment
without tools
Each roll-up door shall have a 4" diameter counterbalance operator drum to assist in lifting the door.
Track shall be one-piece aluminum that has an attaching flange and finishing flange incorporated into its
design
Drip rail will have specially designed seal that prevents the seal from scratching the door
Bottom rail extrusion must have smooth back to prevent loose equipment from jamming the door
Bottom rail to have "V" shaped double seal to prevent water and debris from entering the compartment
Standard replacement parts to be shipped from the United States and available in as little as 48 hours
Will be free from manufacturing defects for a period of up to 7 years from date of purchase provided that the
Product is used under conditions of normal use, that regular periodic maintenance and service is performed
and that the product was installed in accordance with R•O•M’s instructions.
Each roll-up door framework shall decrease the compartment door opening by approximately 2.25" and 4.5" in
height for standard bottom rail and 6.0" in height for tall bottom rail option.
SVI #917
01/05/15
40
SVI Trucks
Freightliner 4-Door Demo
ROM DOOR BOTTOM RAIL
All exterior compartment doors shall have the standard 3.0" tall bottom rail extrusion for easy one (1) hand
opening and closing.
The specified retroreflective stripe material shall be applied on the roll-up compartment doors. The stripe shall be
precision machine cut for each door slat of the roll-up doors. Under no circumstance will the stripe material be cut
on roll-up door surface.
BODY HEIGHT MEASUREMENTS
The vertical body dimensions shall be as follows:
AHEAD OF REAR AXLE
Description
A
Bottom of Subframe to Top of Body
B
Bottom of Subframe to Bottom of Body
C
Vertical Door Opening
-with roll-up door
-with hinged door
ABOVE REAR AXLE
Description
D
Vertical Door Opening - Above Rear Wheel
-with roll-up door
-with hinged door
BEHIND REAR AXLE
Description
E
Bottom of Subframe to Bottom of Body
F
Vertical Door Opening
-with roll-up door
-with hinged door
GENERAL
Description
G
Bottom of Drip Rail to Top of Body
Dimension
74.0"
22.5"
67.5"
71.5"
Dimension
34.0"
37.0"
Dimension
20.0"
62.0"
66.0"
Dimension
23.5"
(Dimensions are generic and subject to change during the actual design process)
BODY WIDTH DIMENSIONS
The body shall be 100.0" wide, not including drip rail or non-permanent fixtures. Interior compartment depth
dimensions shall be approximately:
Area Description
Transverse Area above Subframe
Dimension
95.0"
Compartment Depth below Subframe
24.5"
SVI #917
01/05/15
41
SVI Trucks
Freightliner 4-Door Demo
STREETSIDE COMPARTMENT - FRONT (S1)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) OnScene Solutions 83 series aluminum tray base with 70% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 94" deep and as wide as the compartment layout or
door opening permits, capable of extending out either side of the body located above the level of the chassis
frame rails. Each slide base shall have a cable operated, spring loaded latch complimented by a large hand
opening and red pull handle (Pull to Release) which will lock the tray in the closed, 40% extended and 70%
extended positions. Each tray top shall be fabricated from 3/16" 3003 aluminum sheet shall have welded
corners to form a box type tray surface with an internal depth of approximately 3 ½”.


There shall be one (1) vertical partition(s) installed on tray dividing the tray into left and right sides. Each
vertical partition shall be horizontally adjustable; mounted on aluminum shelf trac on tray floor.

3M™ Diamond Grade™ Conspicuity striping shall be provided on the front and side faces of the tray. The
striping shall be 2" wide and red/white in color.
The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The
floor shall have a 2" vertical lip and a 1" return to increase strength.
SVI #917
01/05/15
42
SVI Trucks
Freightliner 4-Door Demo

One (1) Hannay ECR1616-17-18 electric cable reel(s) capable of storing 150' of 10/3 electric cable. Reel(s)
shall be designed to hold 110% of the capacity of cord length, with fully enclosed 45 amp, three (3) conductor
collector rings. Reel(s) shall be mounted to channel structure that allows for side-to-side adjustment of reel
position.

Power rewind control(s) shall be in a position where the operator can observe the rewinding operation
and not be more than 72 in. (1830 mm) above the operator’s standing position, and shall be marked with
a label indicating its function.

A label shall be provided in a visible location adjacent to reel with following information: Current rating,
Current type, Phase, Voltage, and Total cord length.

The cable reel shall equipped with 150' of 10/3 SEOW yellow cable, a molded plastic ball clamp, and a
single heavy duty L5-30 twist-lock female plug at the end.

The fairlead roller shall be mounted directly to the reel.

One (1) OnScene 64" Access LED compartment light, vertically mounted.

The controls for the specified light tower(s).

The 12 volt electrical distribution panel shall be located in the front lower compartment.
SVI #917
01/05/15
43
SVI Trucks
Freightliner 4-Door Demo
STREETSIDE COMPARTMENT - AHEAD OF REAR WHEELS (S2)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) 400 lbs. slide-out tray(s) approximately 24" deep and as wide as the compartment
layout or door opening permits. The tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3"
vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of the
slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions.


3M™ Diamond Grade™ Conspicuity striping shall be provided on the front face of the tray. The striping
shall be 2" wide and red/white in color.
There shall be one (1) OnScene Solutions 83 series aluminum tray base with 70% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 94" deep and as wide as the compartment layout or
door opening permits, capable of extending out either side of the body located above the level of the chassis
frame rails. Each slide base shall have a cable operated, spring loaded latch complimented by a large hand
opening and red pull handle (Pull to Release) which will lock the tray in the closed, 40% extended and 70%
extended positions. Each tray top shall be fabricated from 3/16" 3003 aluminum sheet shall have welded
corners to form a box type tray surface with an internal depth of approximately 3 ½”.
SVI #917
01/05/15
44
SVI Trucks
Freightliner 4-Door Demo

There shall be one (1) transverse module fabricated from 3/16” (.188) 3003H-14 aluminum alloy smooth
sheet. The module will be designed for the following long tools and equipment:

One (1) Fire Department supplied stokes basket(s). Manufacturer, model number and dimensions of the
stokes basket(s) shall be provided during the pre-construction meeting.

Two (2) Fire Department supplied backboard(s). Manufacturer, model number and dimensions of the
backboard(s) shall be provided during the pre-construction meeting.

The above module will have a solid aluminum door with a double return brake at the top for strength. The
door shall have stainless steel plates with round stainless dowels welded onto them to create the latches and
hinges for the door.

The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The
floor shall have a 2" vertical lip and a 1" return to increase strength.

One (1) OnScene 64" Access LED compartment light, vertically mounted.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
SVI #917
01/05/15
45
SVI Trucks
Freightliner 4-Door Demo
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S3)
The interior useable compartment width shall be approximately 59.0" wide.
The compartment door opening shall be approximately 52.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) OnScene Solutions 81 series aluminum tray base with 100% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 46" deep and as wide as the compartment layout or
door opening permits located above the level of the chassis frame rails. Each slide base shall have a cable
operated, spring loaded latch complimented by a large hand opening and red pull handle (Pull to Release)
which will lock the tray in the closed and full extension positions. Each tray shall be fabricated from 3/16"
3003 aluminum sheet and shall have welded corners to form a box type tray surface with an internal depth of
approximately 3 ½”.

3M™ Diamond Grade™ Conspicuity striping shall be provided on the front and side faces of the tray. The
striping shall be 2" wide and red/white in color.

There shall be one (1) OnScene Solutions 84 series aluminum tray base with 90% extension, and rating of
150 lbs. Slide-out tray(s) base shall be approximately 46" deep and as wide as the compartment layout or
door opening permits. It shall be located above the level of the chassis frame rails and shall be vertically
adjustable in height. Each slide shall have a cable operated, spring loaded latch complimented by a large
hand opening and red pull handle (Pull to Release) which will hold the tray in the closed position. Each tray
shall be fabricated from 3/16" 3003 aluminum sheet and have welded corners to form a box type tray surface
with an internal depth of approximately 3 ½”.

One (1) OnScene 36" Access LED compartment light, vertically mounted.
SVI #917
01/05/15
46
SVI Trucks
Freightliner 4-Door Demo
STREETSIDE COMPARTMENT - REAR (S4)
The interior useable compartment width shall be approximately 49.0" wide.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be two (2) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.

There shall be one (1) OnScene Solutions 86 series aluminum tray base with 100% extension, and rating of
600 lbs. The tray base shall be 30" wide maximum x 24" deep. Each slide base shall have a cable operated,
spring loaded latch complimented by a red "T" handle (Pull to Release) which shall lock the tray in the closed
and full extension positions. Each tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3 ½”
vertical lip and welded corners to form a box type tray surface and as wide as the compartment layout or door
opening permits located below the level of the chassis frame rails.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY
(non-extended floor).

One (1) OnScene 64" Access LED compartment light, vertically mounted.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
SVI #917
01/05/15
47
SVI Trucks
Freightliner 4-Door Demo
CURBSIDE COMPARTMENT - FRONT (C1)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) OnScene Solutions 83 series aluminum tray base with 70% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 94" deep; capable of extending out either side of the
body located above the level of the chassis frame rails. (Specified in opposite side compartment.)


There shall be one (1) vertical partition(s) installed on tray dividing the tray into left and right sides. Each
vertical partition shall be horizontally adjustable; mounted on aluminum shelf trac on tray floor.
The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The
floor shall have a 2" vertical lip and a 1" return to increase strength.
SVI #917
01/05/15
48
SVI Trucks
Freightliner 4-Door Demo

One (1) Hannay ECR1616-17-18 electric cable reel(s) capable of storing 150' of 10/3 electric cable. Reel(s)
shall be designed to hold 110% of the capacity of cord length, with fully enclosed 45 amp, three (3) conductor
collector rings. Reel(s) shall be mounted to channel structure that allows for side-to-side adjustment of reel
position.

Power rewind control(s) shall be in a position where the operator can observe the rewinding operation
and not be more than 72 in. (1830 mm) above the operator’s standing position, and shall be marked with
a label indicating its function.

A label shall be provided in a visible location adjacent to reel with following information: Current rating,
Current type, Phase, Voltage, and Total cord length.

The cable reel shall equipped with 150' of 10/3 SEOW yellow cable, a molded plastic ball clamp, and a
single heavy duty L5-30 twist-lock female plug at the end.

The fairlead roller shall be mounted directly to the reel.

One (1) OnScene 64" Access LED compartment light, vertically mounted.

One (1) 120/240 VAC load center.

The generator gauge panel.
SVI #917
01/05/15
49
SVI Trucks
Freightliner 4-Door Demo
CURBSIDE COMPARTMENT - AHEAD OF REAR WHEEL (C2)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) 400 lbs. slide-out tray(s) approximately 24" deep and as wide as the compartment
layout or door opening permits. The tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3"
vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of the
slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions.

There shall be one (1) OnScene Solutions 83 series aluminum tray base with 70% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 94" deep; capable of extending out either side of the
body located above the level of the chassis frame rails. (Specified in opposite side compartment.)

There shall be a transverse storage module which extends from the opposite side of the body (specified in
opposite side compartment).

The floor of the compartment above the frame rails shall be extended to the interior edge of the door. The
floor shall have a 2" vertical lip and a 1" return to increase strength.

One (1) OnScene 64" Access LED compartment light, vertically mounted.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
SVI #917
01/05/15
50
SVI Trucks
Freightliner 4-Door Demo
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C3)
The interior useable compartment width shall be approximately 59.0" wide.
The compartment door opening shall be approximately 52.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) adjustable shelf/shelves approximately 46" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edges.

One (1) OnScene 36" Access LED compartment light, vertically mounted.
SVI #917
01/05/15
51
SVI Trucks
Freightliner 4-Door Demo
CURBSIDE COMPARTMENT - REAR (C4)
The interior useable compartment width shall be approximately 49.0" wide.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.

There shall be two (2) slide-out smooth aluminum vertical tool board(s) approximately 24" deep. Each tool
board(s) vertical exterior edge shall have a double 90 degree formed edge to provide an easy grip handle.
The top and bottom of tool board(s) shall be provided with Accuride 9300 series slide tracks. Each board shall
be rated for a maximum 200 lbs. evenly distributed load. Each tool board shall utilize a pneumatic cylinder to
hold the tool board in both the opened and closed positions.

The vertical tool board material shall be 3/16" (.188) 3003H-14 aluminum alloy sheet.

Each tool board shall be horizontally adjustable; mounted on aluminum shelf trac on compartment floor.

The floor of the compartment above the frame rails shall cover the area directly above the frame rails ONLY
(non-extended floor).

One (1) OnScene 64" Access LED compartment light, vertically mounted.

Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
SVI #917
01/05/15
52
SVI Trucks
Freightliner 4-Door Demo
REAR COMPARTMENT - CENTER (RC1)
The rear center compartment shall be closed to both side rear compartments.
The rear center compartment shall begin just above the bumper height and be as high as the side compartments,
unless specified otherwise. The body sub-frame shall extend at least 20" into the compartment to allow for the
spring loaded body mounts. Compartment shall be as deep as possible below sub-frame to maximize storage.
The interior useable compartment width shall be approximately 45.0" wide.
The compartment door opening shall be approximately 38.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.

The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.

A keyed cylinder lock shall be provided in the bottom portion of the roll-up door.

One (1) nylon strap shall be provided to assist in closing the door. The strap shall be fastened to the left side
of the lower inside door sill. The strap shall extend from the left side of the lower inside door sill to a footman
loop attached to the center of the left side of the door frame.

A compartment threshold protection plate shall be installed on the bottom edge of the compartment door
opening. The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior
finish.
COMPARTMENT LAYOUT

There shall be vertically mounted aluminum Shelf-Trac for specified component installation. Shelf-Trac
extrusion shall have side extruded channels for use in mounting or securing special ancillary items, without
need for drilling into body.

There shall be one (1) 400 lbs. slide-out tray(s) approximately 24" deep and as wide as the compartment
layout or door opening permits. The tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3"
vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of the
slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions.

There shall be one (1) OnScene Solutions 81 series aluminum tray base with 100% extension, and rating of
1,000 lbs. Slide-out tray(s) base shall be approximately 46" deep and as wide as the compartment layout or
door opening permits located above the body subframe and shall be vertically adjustable in height. Each slide
shall have a cable operated, spring loaded latch complimented by a large hand opening and red pull handle
(Pull to Release) which will lock the tray in the closed and full extension positions. Each tray shall be
fabricated from 3/16" 3003 aluminum sheet and shall have welded corners to form a box type tray surface
with an internal depth of approximately 3 ½”.

Two (2) Fire Department supplied hydraulic hose reel(s) with electric rewind shall be installed. The rewind
button for each reel shall be located adjacent to the reel it controls.

The hydraulic reel shall be equipped with Fire Department supplied hydraulic hose. Contractor shall provide
plastic hose stop on hose end.
SVI #917
01/05/15
53
SVI Trucks
Freightliner 4-Door Demo

One (1) OnScene 64" Access LED compartment light, vertically mounted.

There shall be one (1) 240 VAC outlet(s) located in compartment mounted on the forward wall.

The outlet receptacle(s) shall be 30 amp, twist-lock (NEMA L6-30R).

Outlet(s) shall be powered through the on-board generator system.
SVI #917
01/05/15
54
SVI Trucks
Freightliner 4-Door Demo
PLASTIC FLOOR AND SHELF TILE
All compartment floors, shelves, and trays shall be covered with Turtle Tile plastic interlocking grating.

The plastic floor tile shall be red.

The plastic edge trim shall be red.
SIDE BODY PROTECTION - RUB RAIL
OnScene Solutions rub rails shall be provided below the compartment door openings on both the streetside and
curbside.
The rub rail shall be fabricated from 6063 extruded aluminum, measuring approximately 2-3/4" high x 1-3/8" thick
with tapered aluminum end caps. The rub rail shall be bolted to the body using stainless steel bolts and 1-1/2"
diameter x 5/8" thick rubber mount isolators to prevent damage to the body.
The rails shall incorporate LED clearance marker lighting recessed into the rail fascia to avoid damage to the light
in case of impact. The rub rail shall have an accessory mounting track integrated into the backside of the rail to
allow mounting of accessories such as ground lighting.
3M™ Diamond Grade™ Conspicuity striping shall be provided in the rub rail. The striping shall be red/white in
color.
FRONT GRAVEL GUARDS
Gravel guards shall be provided on front lower body corners. Guards shall be 12" high, extend from behind cab or
step and wrap around to the front compartment door opening fabricated from 20 gauge brushed stainless steel.
SVI #917
01/05/15
55
SVI Trucks
Freightliner 4-Door Demo
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC
General
Any low voltage electrical systems or warning devices installed on the fire apparatus shall be appropriate for the
mounting location and intended electrical load.
Where wire passes through sheet metal, grommets shall be used to protect wire and wire looms. Electrical
connections shall be with double crimp water-tight heat shrink connectors.
All 12 VDC wiring running from front to back of vehicle body shall be run in full length electrical wiring raceway
down each side of body.
Wiring
All electrical circuit feeder wiring supplied and installed by the fire apparatus manufacturer shall meet the
requirements of NFPA Chapter 13.
The circuit feeder wire shall be stranded copper or copper alloy conductors of a gauge rated to carry 125 % of the
maximum current for which the circuit is protected. Voltage drops in all wiring from the power source to the using
device shall not exceed 10 %. The use of star washers for circuit ground connections shall not be permitted.
All circuits shall otherwise be wired in conformance with SAE J1292, Automobile, Truck, Truck-Tractor, Trailer,
and Motor Coach Wiring.
Wiring and Wire Harness Construction
All insulated wire and cable shall conform to SAE J1127, Low Voltage Battery Cable, or SAE J1128, Low Voltage
Primary Cable, type SXL, GXL, or TXL.
All conductors shall be constructed in accordance with SAE J1127 or SAE J1128, except where good engineering
practice dictates special strand construction. Conductor materials and stranding, other than copper, shall be
permitted if all applicable requirements for physical, electrical, and environmental conditions are met as dictated
by the end application. Physical and dimensional values of conductor insulation shall be in conformance with the
requirements of SAE J1127 or SAE J1128, except where good engineering practice dictates special conductor
insulation. The overall covering of conductors shall be moisture-resistant loom or braid that has a minimum
continuous rating of 194°F (90°C) except where good engineering practice dictates special consideration for loom
installations exposed to higher temperatures. The overall covering of jacketed cables shall be moisture resistant
and have a minimum continuous temperature rating of 194°F (90°C), except where good engineering practice
dictates special consideration for cable installations exposed to higher temperatures.
All wiring connections and terminations shall use a method that provides a positive mechanical and electrical
connection. The wiring connections and terminations shall be installed in accordance with the device
manufacturer’s instructions. All ungrounded electrical terminals shall have protective covers or be in enclosures.
Wire nut, insulation displacement, and insulation piercing connections shall not be used.
Wiring shall be restrained to prevent damage caused by chafing or ice buildup and protected against heat, liquid
contaminants, or other environmental factors.
Wiring shall be uniquely identified at least every 2 ft (0.6 m) by color coding or permanent marking with a circuit
function code. The identification shall reference a wiring diagram.
Circuits shall be provided with properly rated low voltage overcurrent protective devices. Such devices shall be
readily accessible and protected against heat in excess of the overcurrent device’s design range, mechanical
damage, and water spray. Circuit protection shall be accomplished by utilizing fuses, circuit breakers, fusible
links, or solid state equivalent devices.
SVI #917
01/05/15
56
SVI Trucks
Freightliner 4-Door Demo
If a mechanical-type device is used, it shall conform to one of the following SAE standards:





SAE J156, Fusible Links
SAE J553, Circuit Breakers
SAE J554, Electric Fuses (Cartridge Type)
SAE J1888, High Current Time Lag Electric Fuses
SAE J2077, Miniature Blade Type Electrical Fuses
Switches, relays, terminals, and connectors shall have a direct current (dc) rating of 125 % of maximum current
for which the circuit is protected.
Power Supply
A 12 V or greater electrical alternator shall be provided. The alternator shall have a minimum output at idle to
meet the minimum continuous electrical load of the vehicle, at 200°F (93°C) ambient temperature within the
engine compartment, and shall be provided with full automatic regulation.
Minimum Continuous Electrical Load
The minimum continuous electrical load shall consist of the total amperage required to simultaneously operate the
following in a stationary mode during emergency operations:
1) The propulsion engine and transmission
2) All legally required clearance and marker lights, headlights, and other electrical devices except windshield
wipers and four-way hazard flashers
3) The radio(s) at a duty cycle of 10 percent transmit and 90 % receive (for calculation and testing purposes, a
default value of 5 A continuous)
4) The lighting necessary to produce 2 fc (20 lx) of illumination on all walking surfaces on the apparatus and on
the ground at all egress points onto and off the apparatus, 5 fc (50 lx) of illumination on all control and
instrument panels, and 50 percent of the total compartment lighting loads
5) The minimum optical warning system, where the apparatus is blocking the right-of way
6) The continuous electrical current required to simultaneously operate any fire pumps, aerial devices, and
hydraulic pumps
7) Other warning devices and electrical loads defined by the purchaser as critical to the mission of the apparatus
If the apparatus is equipped to tow a trailer, an additional 45 A shall be added to the minimum continuous
electrical load to provide electrical power for the federally required clearance and marker lighting and the optical
warning devices mounted on the trailer.
The condition of the low voltage electrical system shall be monitored by a warning system that provides both an
audible and a visual signal to persons on, in, or near the apparatus of an impending electrical system failure
caused by the excessive discharge of the battery set.
The charge status of the battery shall be determined either by direct measurement of the battery charge or
indirectly by monitoring the electrical system voltage.
If electrical system voltage is monitored, the alarm shall sound if the system voltage at the battery or at the master
load disconnect switch drops below 11.8 V for 12 V nominal systems, 23.6 V for 24 V nominal systems, or 35.4 V
for 42 V nominal systems for more than 120 seconds.
A voltmeter shall be mounted on the driver’s instrument panel to allow direct observation of the system voltage.
SVI #917
01/05/15
57
SVI Trucks
Freightliner 4-Door Demo
Electromagnetic Interference
Electromagnetic interference suppression shall be provided, as required, to satisfy the radiation limits specified in
SAE J551/1, Performance Levels and Methods of Measurement of Electromagnetic Compatibility of Vehicles,
Boats (up to 15 m), and Machines (16.6 Hz to 18 GHz).
Wiring Diagram
A complete electrical wiring schematic of actual system shall be provided with finished apparatus. Similar or
generic type electrical schematics shall NOT BE ACCEPTABLE.
Low Voltage Electrical System Performance Test
A low voltage electrical system test certification shall be provided with delivered apparatus.
SVI #917
01/05/15
58
SVI Trucks
Freightliner 4-Door Demo
12 VOLT MULTIPLEX CONTROL CENTER
The apparatus shall be equipped with a Weldon V-MUX multiplexed 12 volt electrical system that will provide
complete diagnostic capability, No Exception. The system shall have the capability of delivering multiple signals
via a CAN bus, utilizing specifications set forth by SAE J1939. The system shall be node based to maximize
stability so that failure of one node does not affect the operation of the other nodes. The system shall use
shielded twisted-pair wire for transmission of system function signals. The shielded wire shall provide protection
against EMI and RFI noise interruptions.
The multiplex system shall be responsible for providing power management functions as well as load shedding.
The warning light system shall be controlled by the multiplex system. The system shall be capable of displaying
text and/or graphic messages on a display module. The system shall be based on solid-state technology and
shall include self-contained diagnostic indicators.
Outputs:
The outputs shall perform all the following items without added modules to perform any of the tasks;
1. Load Shedding: The system shall have the capability to load shed with 8 levels any output. This means you
can specify which outputs (barring NFPA restrictions) you would like load shed. Level 1 12.9v, Level 2 12.5V,
Level 3 - 12.1V, Level 4 - 11.7V, Level 5 11.3V, Level 6 10.9V, Level 7 10.5, Level 8 10.1. Unlike conventional
load shedding devices you can assign a level to any or all outputs.
2. Load Sequencing: The system shall be able to sequence from 0 8 levels any output. With 0 being no delay
and 1 being a 1 second delay, 2 being a 2 second delay and so on. Sequencing reduces the amount of
voltage spikes and drops on your vehicle, and can help limit damage to your charging system.
3. Output Device: The system shall have solid-state output devices. Each solid-state output shall be a MOS-FET
(Metal Oxide Semiconductor - Field Effect Transistors); MOS-FETs are solid-state devices with no moving
parts to wear out. A typical relay when loaded to spec has a life of 100,000 cycles. The life of a FET is more
than 100 times that of a relay.
4. Flashing Outputs: The system shall be able to flash any output in either A or B phase, and logic is used to shut
down needed outputs in park, or any one of several combined interlocks. The flash rate can be selected at
either 80, 160 or 200 FPM. This means any light can be specified with a multiplex truck with no need to add
flashers. Flashing outputs can also be used to warn of problems or other unique idea you may come up with.
5. PWM: The modules shall have the ability to PWM at some outputs so that a headlight PWM module is not
needed.
6. Diagnostics: An output should be able to detect either a short or open circuit. The system should be able
report in “real time” a text based message that points the maintenance person to a specific output.
Inputs:
1. The inputs shall have the ability to switch by a ground or vbatt signal.
2. The inputs shall be filtered for noise suppression via hardware and software so that RF or dirty power will not
trick an input into changing its status.
Auto-Throttle:
The multiplex system shall be able to perform automatic high idle via a network gateway or by using an existing
output on a module to provide the proper signals to an OEM Engine ECU. This task should be handled with
existing inputs and outputs.
SVI #917
01/05/15
59
SVI Trucks
Freightliner 4-Door Demo
Displays:
Displays shall be able to provide real time information regarding load shedding and system status, such as
network traffic/errors or shorts and open circuits.
System Network:
The multiplex system shall contain a Peer-to-Peer network. A Master Slave Type network is not suitable for this
type of unit. A Peer-to-Peer network means that all the modules are equal on the network; a Master is not needed
to tell other nodes when to talk, No Exceptions.
System Reliability:
The multiplex system shall be able to perform in extreme temperature conditions, from 40° to +85° C (-40° to
+185° F.) The system shall be sealed against the environment, moisture, humidity, salt or fluids such as diesel
fuel, motor oil or brake fluid. The enclosures shall be rugged to withstand being mounted in various locations or
compartments around the vehicle. The modules shall be protected from over voltage and reverse polarity.
WELDON CERTIFICATION
A letter shall be provided with bid submittal that the Contractor has successfully completed the Weldon training
requirements for Level 1 of the V-MUX Certified Supplier Program and is authorized to design, build, and service
V-MUX electrical systems.
MULTIPLEX SYSTEM VISTA IV V-MUX COLOR DISPLAY
One (1) Weldon V-MUX Vista IV shall be provided. The Vista IV shall have seven switches with custom legends
and a wide temperature operating range. The four wires shall control all lighting and HVAC. The Vista IV shall
have color changes for button status. The display shall be pre-programmable (OEM Level) and be colored. The
auto climate control shall display temperature set point and outside temperatures. The Vista IV shall be ready for
back-up camera, thermal cameras and DVDs. Virtual switches, GPS, on-board diagnostics, 6” and 9” Pana Vise
options and large font size shall also be included.
The Vista IV allows for peer to peer networking. The Vista IV shall have the ability to automatically change
screens based on a predetermined state or condition for warning message or status.
The V-Mux display shall be located in the cab center console for control of all master and emergency lights.
CAB CONSOLE
A center cab console shall be provided between the Driver's and Officer's seats. Console shall be as large as
possible and fabricated of 1/8" smooth aluminum. A textured powder coat paint finish shall shall be provided for
durability and finished appearance.
The rear portion of the console shall be provided with open top storage for notebooks or maps. Two (2) adjustable
dividers shall be provided in the storage area. The forward portion of console shall be slanted for easy viewing of
the V-Mux display screen, and any siren or radio equipment. The area shall be within easy access to both Driver
and Officer.
The final design of console shall be determined by the Fire Department at the pre-construction meeting.
SVI #917
01/05/15
60
SVI Trucks
Freightliner 4-Door Demo
BATTERY SYSTEM
The battery connectors shall be heavy duty type with cables terminating in heat shrink loom. Heavy duty battery
cables shall provide maximum power to the electrical system. Where required, the cables shall be shielded from
exhaust tubing and the muffler. Large rubber grommets shall be provided where cables enter the battery
compartment.
Batteries shall be of the high-cycle type. With the engine off, the battery system shall be able to provide the
minimum continuous electrical load for 10 minutes without discharging more than 50 percent of the reserve
capacity and then to restart the engine. The battery system cold cranking amps (CCA) rating shall meet or exceed
the minimum CCA recommendations of the engine manufacturer. The batteries shall be mounted to prevent
movement during fire apparatus operation and shall be protected against accumulations of road spray, snow, and
road debris. The batteries shall be readily accessible for examination, testing, and maintenance.
A means shall be provided for jump-starting the engine if the batteries are not accessible without lifting the cab of
a tilt-cab apparatus.
Where an enclosed battery compartment is provided, it shall be ventilated to the exterior to prevent the buildup of
heat and explosive fumes. The batteries shall be protected against vibration and temperatures that exceed the
battery manufacturer’s recommendation.
A master load disconnect switch shall be provided between the starter solenoid(s) and the remainder of the
electrical loads on the apparatus. The starter solenoids shall be connected directly to the batteries.
Electronic control systems and similar devices shall be permitted to be otherwise connected if so specified by
their manufacturer.
The alternator shall be wired directly to the batteries through the ammeter shunt(s), if one is provided, and not
through the master load disconnect switch.
A green “battery on” pilot light that is visible from the driver’s position shall be provided.
A sequential switching device shall be permitted to energize the optical warning devices and other high current
devices required in minimum continuous electrical load, provided the switching device shall first energize the
electrical devices required in minimum continuous electrical load within 5 seconds.
BATTERY SWITCH
The chassis ignition key shall activate a heavy duty relay to provide 12 volt battery power to the vehicle. There
shall be a green "BATTERY ON" pilot light that is visible from the driver’s position.
BATTERY SOLENOID
Battery switch shall consist of a minimum 200 ampere, constant duty solenoid to feed from positive side of
battery.
BATTERY CONDITIONER
One (1) Kussmaul (model 091-9-1000) "Pump-Plus 1000" single battery charger/air compressor, with 120 VAC
input and 12 VDC, 15 amp output battery conditioner and a 12 volt, 80 psi air compressor shall be provided. This
system shall monitor the condition of battery(s) and provide an electrical current at variable rates to overcome
battery failure. The air compressor shall maintain air pressure in the chassis air brake system. A Kussmaul bar
graph type indicator panel shall be provided for showing status of battery conditioner.
SHORE POWER INLET
SVI #917
01/05/15
61
SVI Trucks
Freightliner 4-Door Demo
One (1) Kussmaul 120 VAC, 20 amp Super Auto-Eject shore power inlet(s) shall be provided. The shore power
connection shall automatically disengage from vehicle when chassis ignition is engaged.
The protective ground from the shoreline inlet shall be bonded to the vehicle frame.

The outlet cover shall be yellow.

The shore power plug shall be located near the Driver door area.
ENGINE COMPARTMENT LIGHT
There shall be one (1) light(s) mounted in the engine compartment with integral switch with a light output of at
least 20 candlepower (250 lumens). The engine compartment light(s) shall operate only when the master battery
switch is turned "On".
CAB HAZARD WARNING LIGHT
A red flashing or rotating light, located in the driving compartment, shall be illuminated automatically whenever the
vehicles parking brake is not fully engaged and any of the following conditions exist:





Any passenger or equipment compartment door is not closed.
Any ladder or equipment rack is not in the stowed position.
Stabilizer system is not in its stowed position.
Powered light tower is not stowed.
Any other device permanently attached to the apparatus is open, extended, or deployed in a manner that is
likely to cause damage to the apparatus if the apparatus is moved.
Compartments and equipment meeting all of the following conditions shall be permitted to be exempt from being
wired to the hazard light:





The volume is less than or equal to 4 ft3 (0.1 m3).
The compartment has an opening less than or equal to 144 in.2 (92,900 mm2).
The open door does not extend sideways beyond the mirrors or up above the top of the fire apparatus.
All equipment in the compartment is restrained so that nothing can fall out if the door is open while the
apparatus is moving.
Manually raised pole lights with an extension of less than 5 ft (1.5 m).
The hazard light shall be labeled "DO NOT MOVE APPARATUS WHEN LIGHT IS ON".
An audible alarm shall be provided for the door ajar light.
BACK-UP ALARM
The body manufacturer shall furnish and install one (1) 107 dB(A) electronic back-up alarm. Back-up alarm to
actuate automatically when the transmission gear selector is placed in reverse.
REAR VIEW CAMERA
There shall be one (1) ASA Voyager rear observation camera system provided and installed on completed unit.
The system shall include one (1) model VCC150 high resolution CCD color camera installed on the rear body.
The camera image shall be displayed on a model AOM713, 7" color flat panel display (up to 3 camera inputs)
located within the driver's range of view.
TAIL LIGHTS
SVI #917
01/05/15
62
SVI Trucks
Freightliner 4-Door Demo
Rear body tail lights shall be vertically mounted and located per Federal Motor Vehicle Safety Standards, FMVSS
and Canadian Motor Vehicle Safety Standards CMVSS. The following lights shall be furnished;



Two (2) Whelen amber LED 600 Series 60A00TAR turn signal lights
Two (2) Whelen red LED 600 Series 60BTT stop/tail lights
Two (2) Whelen Halogen 600 Series 60J000CR back-up lights with clear lens
Each of the lights above shall be mounted in a 6EFLANGE, chrome finish bezel.
MIDSHIP MARKER/TURN SIGNAL
Two (2) Whelen model T0A00MAR 2" round amber LED midship body clearance marker/turn signal lights shall be
provided and installed, one (1) light on each side of the body, in forward wheel well of rear axle. Midship
marker/turn lights shall be wired to the headlight circuit of the chassis.
MARKER LIGHTS
The body shall be equipped with all necessary clearance lights and reflectors in accordance with Federal Motor
Vehicle Safety Standards (FMVSS) and Canadian Motor Vehicle Safety Standards (CMVSS) regulations. All body
clearance lights shall be Truck-Lite Model 18 LED to reduce the need for maintenance and lower the amp draw.
Clearance lights shall be wired to the headlight circuit of the chassis.
CAB STEP LIGHTS / GROUND LIGHTS
There shall be two (2) OnScene 8" Access LED light(s) installed on the vehicle capable of providing illumination at
a minimum level of 2 fc (20 lx) on ground areas within 30 in. (800 mm) of the edge of the vehicle in areas
designed for personnel to climb onto or descend from the vehicle to the ground level.
Lighting designed to provide illumination on areas under the driver and crew riding area exits shall be switchable
but activated automatically when the exit doors are opened.
LICENSE PLATE LIGHT
One (1) Arrow #437 chrome plated LED license plate light shall be installed on the rear of the body. License plate
light shall be wired to the headlight circuit of chassis. A fastener system shall be provided for license plate
installation.
ELECTRONIC SIREN
One (1) Whelen model 295SLSA1 electronic siren control with selectable 100 or 200 watt output, hands-free
operation, user selectable siren tones, park kill, and standard hard wired microphone shall be provided and
installed in cab within easy reach of Driver. Siren power shall be wired through the master warning light switch.
SIREN SPEAKER
One (1) Whelen model SA122FMP siren speaker shall be provided, recessed in the front bumper.
The siren speaker shall be located behind the center of front bumper.
SCENE LIGHTS
The scene lighting shall be provided with specified upper side and/or rear warning lights.
SVI #917
01/05/15
63
SVI Trucks
Freightliner 4-Door Demo
TRAFFIC ADVISOR LIGHT
The Traffic Advisor shall be comprised of six (6) Whelen 500 Series TIR6 Super LED lights, individually mounted
with chrome bezels to the rear face of the apparatus and evenly distributed, if split by a hose bed, or walkway.
The lights shall be amber with a clear lens and controlled by the multiplexing system and provide Left Arrow,
Right Arrow, Center Out and Wig-Wag patterns. The wig-wag light pattern shall be activated with the E-Master
and can be switched to the other patterns at anytime through the "TRAFFIC ADVISOR" menu on the Vista
Screen.
SVI #917
01/05/15
64
SVI Trucks
Freightliner 4-Door Demo
WARNING LIGHT PACKAGE
Each apparatus shall have a system of optical warning devices that meets or exceeds the requirements of this
section.
The optical warning system shall consist of an upper and a lower warning level. The requirements for each level
shall be met by the warning devices in that particular level without consideration of the warning devices in the
other level.
For the purposes of defining and measuring the required optical performance, the upper and lower warning levels
shall be divided into four (4) warning zones. The four zones shall be determined by lines drawn through the
geometric center of the apparatus at 45 degrees to a line drawn lengthwise through the geometric center of the
apparatus. The four (4) zones shall be designated A, B, C, and D in a clockwise direction, with zone A to the front
of the apparatus.
Each optical warning device shall be installed on the apparatus and connected to the apparatus’s electrical
system in accordance with the requirements of this standard and the requirements of the manufacturer of the
device.
A master optical warning system switch that energizes all the optical warning devices shall be provided.
The optical warning system on the fire apparatus shall be capable of two (2) separate signaling modes during
emergency operations. One (1) mode shall signal to drivers and pedestrians that the apparatus is responding to
an emergency and is calling for the right-of-way. One (1) mode shall signal that the apparatus is stopped and is
blocking the right-of-way. The use of some or all of the same warning lights shall be permitted for both modes
provided the other requirements of this chapter are met.
A switching system shall be provided that senses the position of the parking brake or the park position of an
automatic transmission. When the master optical warning system switch is closed and the parking brake is
released or the automatic transmission is not in park, the warning devices signaling the call for the right-of-way
shall be energized. When the master optical warning system switch is closed and the parking brake is on or the
automatic transmission is in park, the warning devices signaling the blockage of the right-of-way shall be
energized. The system shall be permitted to have a method of modifying the two (2) signaling modes.
The optical warning devices shall be constructed or arranged so as to avoid the projection of light, either directly
or through mirrors, into any driving or crew compartment(s). The front optical warning devices shall be placed so
as to maintain the maximum possible separation from the headlights.
SVI #917
01/05/15
65
SVI Trucks
Freightliner 4-Door Demo
UPPER LEVEL OPTICAL WARNING DEVICES
The upper-level optical warning devices shall be mounted as high and as close to the corner points of the
apparatus as is practical to define the clearance lines of the apparatus. The upper-level optical warning devices
shall not be mounted above the maximum height, specified by the device manufacturer.
ZONE A - FRONT WARNING LIGHTS
There shall be one (1) Whelen Edge FN60QLED LED 60" lightbar permanently mounted to the cab roof.
The lightbar configuration (streetside to curbside) shall be:
SECTION
INTERNAL COMPONENTS
LENS COLOR
1
Red Side Linear LED
Clear
2
Red Front Corner Linear LED
Clear
3
Clear Linear LED
Clear
4
Blank
Clear
5
Red Linear LED
Clear
6
Blank (Opticom if specified)
Clear
7
Blank (Opticom if specified)
Clear
8
Red Linear LED
Clear
9
Blank
Clear
10
Clear Linear LED
Clear
11
Red Front Corner Linear LED
Clear
12
Red Side Linear LED
Clear
All clear lights shall shut down when the parking brake is set to comply with "Blocking" mode requirements as
outlined in NFPA 1901.
The lightbar shall be separately switched at the vista display in the cab.
SVI #917
01/05/15
66
SVI Trucks
Freightliner 4-Door Demo
ZONES B AND D - SIDE WARNING LIGHTS
UPPER REAR CORNER WARNING LIGHTS
There shall be two (2) Whelen M9 V-Series Red Super LED warning lights (M9V2R) with built-in lower LED scene
light provided, one (1) each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
UPPER FORWARD CORNER WARNING LIGHTS
There shall be two (2) Whelen M9 V-Series Red Super LED warning lights (M9V2R) with built-in lower LED scene
light provided, one (1) each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONE C - REAR WARNING LIGHTS
There shall be two (2) Whelen M9 V-Series Red Super LED warning lights (M9V2R) with built-in lower LED scene
light provided, one (1) each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
SVI #917
01/05/15
67
SVI Trucks
Freightliner 4-Door Demo
LOWER LEVEL OPTICAL WARNING DEVICES
To define the clearance lines of the apparatus, the optical center of the lower-level optical warning devices in the
front of the vehicle shall be mounted on or forward of the front axle centerline and as close to the front corner
points of the apparatus as is practical.
The optical center of the lower-level optical warning devices at the rear of the vehicle shall be mounted on or
behind the rear axle centerline and as close to the rear corners of the apparatus as is practical. The optical center
of any lower-level device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground for large
apparatus, and 18 in. and 48 in. (460 mm and 1220 mm) above level ground for small apparatus.
A midship optical warning device shall be mounted right and the left sides of the apparatus if the distance
between the front and rear lower-level optical devices exceeds 25 ft (7.6 m) at the optical center. Additional
midship optical warning devices shall be required, where necessary, to maintain a horizontal distance between
the centers of adjacent lower-level optical warning devices of 25 ft (7.6 m) or less. The optical center of any
midship mounted optical warning device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level
ground.
ZONE A - FRONT WARNING LIGHTS
There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - CAB INTERSECTOR LIGHT (CAB FRONT CORNERS)
There shall be two (2) Whelen 700 series (7" x 3") red Linear Super-LED lights (70R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY WHEELWELL AREA)
There shall be two (2) Whelen 500 series (5" x 2") red Linear Super-LED lights (50R02ZRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY REAR CORNERS)
There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONE C - REAR WARNING LIGHTS (LOWER REAR CORNERS)
There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the 12 volt control panel in the cab.
SVI #917
01/05/15
68
SVI Trucks
Freightliner 4-Door Demo
LINE VOLTAGE ELECTRICAL SYSTEM
ONAN PTO GENERATOR
The vehicle shall be equipped with an Onan Protec PTO generator system with a capacity of 15,000 watts at
120/240 VAC, 125/62 amps, single phase. Current frequency shall be stable at 60 hertz.
The transmission’s PTO port and PTO, or the split shaft PTO, and all associated drive shaft components shall be
rated to support the continuous duty torque requirements of the generator’s continuous duty rating as stated on
the power source nameplate.
Where the generator is driven by the chassis engine and transmission through a split shaft PTO, the driving
compartment speedometer shall register when the generator drive system is engaged.
Where the generator is driven by the chassis engine and transmission through a split shaft PTO and a chassis
transmission retarder is furnished, it shall be automatically disengaged for generator operations.
The direct drive generator shall be mounted so that it does not change the ramp breakover angle, angle of
departure, or angle of approach as defined by other components, and it shall not extend into the ground clearance
area.
The direct drive generator shall be mounted away from exhaust and muffler areas or provided with a heat shield
to reduce operating temperatures in the generator area.
GENERATOR BONDING
A minimum of four (4) 16" x 2 gauge copper ground straps shall be bolted to body sub-frame and chassis subframe for proper bonding of high voltage system. The conductor shall have a minimum amperage rating, as
defined in 310.15, “Ampacities for Conductors Rated 0–2000 Volts,” of NFPA 70, of 115 percent of the rated
amperage on the power source specification label.
GENERATOR ENGAGEMENT
A “Generator Engaged” indicator shall be provided in the driving compartment to indicate that the generator shift
has been successfully completed.
An “OK to Operate Generator” indicator shall be provided in the driving compartment to indicate that the generator
is engaged (if not always engaged), the transmission is in the proper gear (if required, automatic transmissions
only), and the parking brake is engaged (if applicable).
An interlock system shall be provided to prevent advancement of the engine speed in the driving compartment or
at any operator’s panel unless the parking brake is engaged, and the transmission is in neutral or the output of the
transmission is correctly connected to a pump or generator instead of the drive wheels.
WARRANTY PERIOD
Provided such goods are operated and maintained in accordance with Onan's written instructions, Onan warrants
that the Protec YDCR series PTO generators shall be free from defects in material and workmanship for a period
of five (5) years or one thousand (1,000) hours, whichever comes first, from the date of delivery to the first
purchaser.
SVI #917
01/05/15
69
SVI Trucks
Freightliner 4-Door Demo
GENERATOR SPLASH GUARD
A powder coat painted splash cover shall be installed to reduce the amount of road spray on the frame mounted
PTO generator. A V-ring seal shall also be installed in the cover to provide additional protection against
contaminates reaching the generator front seals.
The generator shall be engaged at the 12 volt control panel in the cab.
GENERATOR MOUNTING
The generator shall be mounted between the chassis frame rails. The generator mounting brackets shall be
fabricated using heavy duty steel tubing, or structural channel. The generator mounting shall be bolted and
removable so that the generator can be lowered from under apparatus for service, if necessary. The generator
case shall not extend below the bottom edge of the apparatus body.
MANUALS AND SCHEMATICS
Two (2) complete manuals on parts list, maintenance, wiring schematics, hydraulic schematics, circuit boards,
voltage regulator board and other components shall be provided on delivery.
POWER-TAKE-OFF GENERATOR DRIVE
There shall be a "Hot Shift" power-take-off (PTO) installed on the transmission PTO opening of the chassis. The
"Hot Shift" PTO is provided to allow the engagement of the PTO at higher engine RPM speeds. The PTO output
shall be connected to the generator through hollow tube type driveline with heavy duty universals.
The engagement of the PTO shall be in the chassis cab with a rocker switch and red pilot light to note
engagement of the PTO or via the V-Mux screen if so equipped.
The power supply to the PTO engagement control shall be wired to the parking brake and a neutral position
transmission switch to prevent engagement unless the vehicle is stopped and transmission has been placed in
neutral.
The installation of the engine, transmission, driven accessories (power takeoffs (PTO), etc.) shall meet the engine
and transmission manufacturers’ installation recommendations for the service intended.
Model part number shall be Chelsea 277SGFJP-B5XV, 126% Ratio.
ENGINE SPEED CONTROL
An engine speed auxiliary control device (high idle switch or throttle) shall be installed to maintain a stable cycle
output from generator when the apparatus is parked.
An interlock shall prevent the operation of the engine speed auxiliary control device unless the parking brake is
engaged and the transmission is in neutral or park, or the parking brake is engaged and the engine is disengaged
from the drive wheels.
The engine shall be prevented from regulating its own engine speed during times when engine rpm control is
critical for consistent apparatus functions such as generator, water pump, or aerial operation.
SVI #917
01/05/15
70
SVI Trucks
Freightliner 4-Door Demo
LOADCENTER
The loadcenter shall be a Cutler Hammer, BR Series, specifically designed for protection and distribution of
120/240 volt AC, such as lighting and small motor branch circuits. The loadcenter enclosure shall be made of 16
gauge galvanized sheet steel. The galvanized coating provides corrosion protection and as such does not require
paint. All trims used on the BR Loadcenter shall be chromate sealed and finished with electro disposition epoxy
paint (ASA61) which exceeds requirements for outdoor and indoor applications. A combination surface/flush
cover with integral door shall be supplied.
The loadcenter shall be UL/CSA listed, NO EXCEPTIONS will be allowed.
GENERATOR MONITORING PANEL
To properly monitor the generator performance and load demand during operation, the generator installation shall
be equipped with a full instrument monitor panel.




Generator frequency in hertz
Line 1 current in amperes
Line 2 current in amperes
Generator voltage in volts
The program shall support the accumulation of elapsed generator hours. Generator hours shall be displayed.
SHORE POWER INLET - BATTERY CHARGER
The above mentioned shore power inlet, and battery conditioner shall be specified in the 12 volt section.
OUTLETS AND CIRCUITS
The generator and or shore power shall supply the 120/240 volt electrical equipment and outlets outlined below.
Proper circuit protection shall be installed as noted:

Two (2) 120 volt exterior outlets, one (1) each side near rear wheel well area.

The outlet receptacle(s) shall be 20 amp, straight-blade (NEMA 5-20R).
SVI #917
01/05/15
71
SVI Trucks
Freightliner 4-Door Demo
LINE VOLTAGE ELECTRICAL SYSTEM
GENERAL REQUIREMENTS
Stability
Any fixed line voltage power source producing alternating current (ac) shall produce electric power at 60 Hz, ±3
Hz when producing power at all levels between no load and full rated power. Any fixed line voltage power source
shall produce electric power at the rated voltage ±10 percent when producing power at all levels between no load
and full rated power.
The maximum voltage supplied to portable equipment shall not exceed 275 volts to ground. Higher voltage shall
be permitted only when used to operate fixed wired, permanently mounted equipment on the apparatus.
Conformance with National Electrical Code
All components, equipment, and installation procedures shall conform to NFPA 70, National Electrical Code,
except where superseded by the requirements of this chapter. Where the requirements of this chapter differ from
those in NFPA 70, the requirements in this chapter shall apply.
Where available, line voltage electrical system equipment and materials included on the apparatus shall be listed
and used only in the manner for which they have been listed. All equipment and materials shall be installed in
accordance with the manufacturer’s instructions.
Location Ratings
Any equipment used in a dry location shall be listed for dry locations. Any equipment used in a wet location shall
be listed for wet locations.
Any equipment, except a PTO-driven generator, used in an underbody or under chassis location that is subject to
road spray shall be either listed as Type 4 or mounted in an enclosure that is listed as Type 4.
If a PTO-driven generator is located in an underbody or under chassis location, the installation shall include a
shield to prevent road spray from splashing directly on the generator.
Grounding
Grounding shall be in accordance with 250.34(A) and 250.34(B) of NFPA 70. Ungrounded systems shall not be
used.
Only stranded or braided copper conductors shall be used for grounding and bonding.
The grounded current-carrying conductor (neutral) shall be insulated from the equipment-grounding conductors
and from the equipment enclosures and other grounded parts.
The neutral conductor shall be colored white or gray in accordance with 200.6, “Means of Identifying Grounded
Conductors,” of NFPA 70.
Any bonding screws, straps, or buses in the distribution panel board or in other system components between the
neutral and equipment-grounding conductor shall be removed and discarded.
SVI #917
01/05/15
72
SVI Trucks
Freightliner 4-Door Demo
Bonding
The neutral conductor of the power source shall be bonded to the vehicle frame. The neutral bonding connection
shall occur only at the power source. In addition to the bonding required for the low voltage return current, each
body and each driving or crew compartment enclosure shall be bonded to the vehicle frame by a copper
conductor.
The conductor shall have a minimum amperage rating, as defined in 310.15, “Ampacities for Conductors Rated
0–2000 Volts,” of NFPA 70, of 115 percent of the rated amperage on the power source specification label.
A single conductor that is sized to meet the low voltage and line voltage requirements shall be permitted to be
used.
Ground Fault Circuit Interrupters
In special service vehicles incorporating a lavatory, sink, toilet, shower, or tub, 120 V, 15 or 20 A receptacles
within 6 ft (1.8 m) of these fixtures shall have ground fault circuit interrupter (GFCI) protection. GFCIs integrated
into outlets or circuit breakers or as stand-alone devices shall be permitted to be used in situations.
Power Source General Requirements
All power source system mechanical and electrical components shall be sized to support the continuous duty
nameplate rating of the power source.
The power source shall be shielded from contamination that would prevent the power source from operating
within its design specifications.
Power Source Rating
For power sources of 8 kW or larger, the power source manufacturer shall declare the continuous duty rating that
the power source can provide when installed on fire apparatus according to the manufacturer’s instructions and
run at 120°F (49°C) air intake temperature at 2000 ft (600 m) above sea level.
The rating on the power source specification label shall not exceed the declared rating from the power source
manufacturer.
Access shall be provided to permit both routine maintenance and removal of the power source for major servicing.
The power source shall be located such that neither it nor its mounting brackets interfere with the routine
maintenance of the fire apparatus.
SVI #917
01/05/15
73
SVI Trucks
Freightliner 4-Door Demo
Instrumentation
If the power source is rated at less than 3 kW, a “Power On” indicator shall be provided. If the power source is
rated at 3 kW or more but less than 8 kW, a voltmeter shall be provided.
If the power source is rated at 8 kW or more, the following instrumentation shall be provided at an operator’s
panel:




Voltmeter
Current meters for each ungrounded leg
Frequency (Hz) meter
Power source hour meter
The instrumentation shall be permanently mounted at an operator’s panel. The instruments shall be located in a
plane facing the operator. Gauges, switches, or other instruments on this panel shall each have a label to indicate
their function.
The instruments and other line voltage equipment and controls shall be protected from mechanical damage and
not obstructed by tool mounting or equipment storage.
An instruction plate(s) that provides the operator with the essential power source operating instructions, including
the power-up and power-down sequence, shall be permanently attached to the apparatus at any point where such
operations can take place.
Operation
Provisions shall be made for placing the generator drive system in operation using controls and switches that are
identified and within convenient reach of the operator.
Where the generator is driven by the chassis engine and engine compression brakes or engine exhaust brakes
are furnished, they shall be automatically disengaged for generator operations.
Any control device used in the generator system power train between the engine and the generator shall be
equipped with a means to prevent unintentional movement of the control device from its set position in the power
generation mode.
If there is permanent wiring on the apparatus that is designed to be connected to the power source, a power
source specification label that is permanently attached to the apparatus at the operator’s control station shall
provide the operator with the information required.
The power source, at any load, shall not produce a noise level that exceeds 90 dBA in any driving compartment,
crew compartment, or onboard command area with windows and doors closed or at any operator’s station on the
apparatus.
Power Supply Assembly
The conductors used in the power supply assembly between the output terminals of the power source and the
main over current protection device shall not exceed 12 ft (4 m) in length.
All power supply assembly conductors, including neutral and grounding conductors, shall have an equivalent
amperage rating and shall be sized to carry not less than 115 percent of the amperage of the nameplate current
rating of the power source.
If the power supply assembly connects to the vibrating part of a generator (not a connection on the base), the
conductors shall be flexible cord or other fine-stranded conductors enclosed in metallic or nonmetallic liquid tight
flexible conduit rated for wet locations and temperatures not less than 194°F (90°C).
SVI #917
01/05/15
74
SVI Trucks
Freightliner 4-Door Demo
Overcurrent Protection
Manually resettable over current devices shall be installed to protect the line voltage electrical system
components.
Power Source Protection
A main over current protection device shall be provided that is either incorporated in the power source or
connected to the power source by a power supply assembly.
The size of the main over current protection device shall not exceed 100 percent of the rated amperage stated on
the power source specification label or the rating of the next larger available size over current protection device,
where so recommended by the power source manufacturer.
If the main over current protection device is subject to road spray, the unit shall be housed in a Type 4–rated
enclosure.
Branch Circuit Overcurrent Protection
Over current protection devices shall be provided for each individual circuit and shall be sized at not less than 15
amps in accordance with 240.4, “Protection of Conductors,” of NFPA 70.
Any panel board shall have a main breaker where the panel has six or more individual branch circuits or the
power source is rated 8 kW or larger.
Each over current protection device shall be marked with a label to identify the function of the circuit it protects.
Dedicated circuits shall be provided for any large appliance or device (air conditioning units, large motors, etc.)
that requires 60 percent or more of the rated capacity of the circuit to which it is connected, and that circuit shall
serve no other purpose.
Panelboards
All fixed power sources shall be hardwired to a permanently mounted panel board unless one of the following
conditions exists:
1) All line voltage power connections are made through receptacles on the power source and the receptacles
are protected by integrated over current devices.
2) Only one circuit is hardwired to the power source, which is protected by an integrated over current device.
The panel shall be visible and located so that there is unimpeded access to the panel board controls. All panel
boards shall be designed for use in their intended location. The panel(s) shall be protected from mechanical
damage, tool mounting, and equipment storage.
Where the power source is 120/240 V and 120 V loads are connected, the apparatus manufacturer or line voltage
system installer shall consider load balancing to the extent that it is possible.
SVI #917
01/05/15
75
SVI Trucks
Freightliner 4-Door Demo
Wiring Methods
Fixed wiring systems shall be limited to the following:
1) Metallic or nonmetallic liquid tight flexible conduit rated at temperatures not less than 194°F (90°C) with
stranded copper wire rated for wet locations and temperatures not less than 194°F (90°C)
2) Type SOW, SOOW, SEOW, or SEOOW flexible cord rated at 600 V and at temperatures not less than 194°F
(90°C)
Electrical cord or conduit shall not be attached to chassis suspension components, water or fuel lines, air or air
brake lines, fire pump piping, hydraulic lines, exhaust system components, or low voltage wiring and shall be
arranged as follows:
1) Separated by a minimum distance of 12 in. (300 mm) from exhaust piping or shielded from such piping
2) Separated from fuel lines by a minimum distance of 6 in. (150 mm)
A means shall be provided to allow “flexing” between the driving and crew compartment, the body, and other
areas or equipment whose movement would stress the wiring.
Electrical cord or conduit shall be supported within 6 in. (150 mm) of any junction box and at a minimum of every
24 in. (600 mm) of run.
Supports shall be made of nonmetallic materials or of corrosion-resistant or corrosion-protected metal. All
supports shall be of a design that does not cut or abrade the conduit or cord and shall be mechanically fastened
to the apparatus.
Only fittings and components listed for the type of cord or conduit being installed shall be used.
Splices shall be made only in a listed junction box.
Additional Requirements for Flexible Cord Installations
Where flexible cord is used in any location where it could be damaged, it shall be protected by installation in
conduit, enclosures, or guards.
Where flexible cord penetrates a metal surface, rubber or plastic grommets or bushings shall be installed.
Wiring Identification
Each line voltage circuit originating from the main panel board shall be identified.
The wire or circuit identification either shall reference a wiring diagram or wire list or shall indicate the final
termination point of the circuit.
Where pre-wiring for future power sources or devices exists, the un-terminated ends shall be marked with a label
showing their wire size and intended function.
SVI #917
01/05/15
76
SVI Trucks
Freightliner 4-Door Demo
Wiring System Components
Only stranded copper conductors with an insulation rated for temperatures of at least 194°F (90°C) and wet
locations shall be used. Conductors in flexible cord shall be sized in accordance with Table 400.5(A) of NFPA 70.
Conductors used in conduit shall be sized in accordance with 310.15, “Ampacities for Conductors Rated 0–2000
Volts,” of NFPA 70. Aluminum or copper-clad aluminum conductors shall not be used.
All boxes shall conform to and be mounted in accordance with Article 314, “Outlet, Device, Pull, and Junction
Boxes; Conduit Bodies; Fittings; and Manholes,” of NFPA 70. All boxes shall be accessible using ordinary hand
tools. Boxes shall not be permitted behind welded or pop-riveted panels.
The maximum number of conductors permitted in any box shall be in accordance with 314.16, “Number of
Conductors in Outlet, Device, and Junction Boxes, and Conduit Bodies,” of NFPA 70.
All wiring connections and terminations shall provide a positive mechanical and electrical connection. Connectors
shall be installed in accordance with the manufacturer’s instructions. Wire nuts or insulation displacement and
insulation piercing connectors shall not be used.
Each switch shall indicate the position of its contact points (i.e., open or closed) and shall be rated for the
continuous operation of the load being controlled. All switches shall be marked with a label indicating the function
of the switch. Circuit breakers used as switches shall be “switch rated” (SWD) or better. Switches shall
simultaneously open all associated line voltage conductors. Switching of the neutral conductor alone shall not be
permitted.
Line voltage circuits controlled by low voltage circuits shall be wired through properly rated relays in listed
enclosures that control all non-grounded current-carrying conductors.
Receptacles and Inlet Devices
Wet and Dry Locations
All wet location receptacle outlets and inlet devices, including those on hardwired, remote power distribution
boxes, shall be of the grounding type, provided with a wet location cover, and installed in accordance with Section
406.8, “Receptacles in Damp or Wet Locations,” of NFPA 70.
All receptacles located in a wet location shall be not less than 24 in. (600 mm) from the ground. Receptacles on
off road fire apparatus shall be a minimum of 30 in. (750 mm) from the ground. All receptacles located in a dry
location shall be of the grounding type and shall be at least 12 in. (300 mm) above the interior floor height. No
receptacle shall be installed in a face-up position.
The face of any wet location receptacle shall be installed in a plane from vertical to not more than 45 degrees off
vertical.
Receptacle Label
Each receptacle shall be marked with a label indicating the nominal line voltage (120 volts or 240 volts) and the
current rating in amps of the circuit. If the receptacle is DC or other than single phase, that information shall also
be marked on the label.
All receptacles and electrical inlet devices shall be listed to UL 498, Standard for Safety Attachment Plugs and
Receptacles, or other recognized performance standards.
Receptacles used for DC voltages shall be rated for DC service.
SVI #917
01/05/15
77
SVI Trucks
Freightliner 4-Door Demo
Wiring Schematics
An "As-Built" Wiring diagrams for line voltage systems shall be provided to include the following information;
1)
2)
3)
4)
5)
6)
7)
Pictorial representations of circuit logic for all electrical components and wiring
Circuit identification
Connector pin identification
Zone location of electrical components
Safety interlocks
Alternator–battery power distribution circuits
Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
SVI #917
01/05/15
78
SVI Trucks
Freightliner 4-Door Demo
120/240 VAC SCENE LIGHTING
LIGHT TOWER
One (1) Command Light Knight 2, KL Series light tower(s) shall be provided and installed on the completed unit. A
flashing warning light shall be provided in cab, indicating when a light tower is not in nested position as required
by NFPA 1901.
The Command Light shall be covered by a five (5) year limited warranty from defects in materials and
workmanship. An operation, maintenance, and parts manual shall be provided with the completed unit.
The light tower shall extend 87-1/2" above the mounting surface and shall extend to full upright position in less
than 15 seconds. The overall size of nested light tower shall be approximately 26" wide x 47" long x 13" high and
weigh approximately 165 pounds.
Light Tower Construction and Design
The Command Light assembly shall be of aluminum construction, with stainless steel shafts and bronze bushings
for long life and low maintenance.
The electrically controlled unit shall not require usage of the vehicle's air supply for operation, thereby eliminating
the chance for air leaks in the vehicle braking system. Hydraulic or pneumatic type floodlights are not acceptable
alternatives to the specified all electric light tower.
The light tower shall be tested to in wind conditions of 90 mph (150 kph) minimum. Other type floodlights that
have not been tested to these conditions are not acceptable.
The light tower shall be capable of overhanging the side or back of the vehicle to provide maximum illumination to
the vicinity adjacent to the vehicle for the safety of emergency personnel in high traffic conditions. Any tower that
is only capable of rotations at the top of a pole is not an acceptable alternative to the specified tower.
Light Tower Electrical System
The light tower shall be a two-stage articulating device with a lighting bank on top of the second stage capable of
continuous 360 degree rotation. The light shall be elevated by electric linear actuators, one (1) actuator shall
elevate the light bank and one (1) actuator shall adjust the light bank angle from 0 to 110 degrees. Power for the
light bank shall be supplied through power collecting rings thus allowing continuous 360 degree rotation in either
direction.
The tower base shall have a light that illuminates the envelope of motion during any movement of the light tower
mast per NFPA 1901.
Light Tower Floodlights
The Command Light model KL405 shall be equipped with the following bank of floodlights:
Floodlight manufacturer:
Number of lamp heads:
Voltage:
Watts of each lamp head:
Total watts of light tower:
Total lumens of light tower:
Configuration:
Lumenform
Six (6) FQ 500 watt
120 volts
500 watt
3,000 watts
60,000 lumens
The light heads shall be mounted with three (3) on each side of
the light tower, giving two (2) vertical lines of three (3) when the
lights are in the upright position.
SVI #917
01/05/15
79
SVI Trucks
Freightliner 4-Door Demo
Light Tower Backlight Option
A backlight option shall be provided on the light tower. The lower pair of light heads shall be capable of being
rotated about a horizontal axis 180 degree, providing light down on the vehicle or to the opposite side of the
vehicle while allowing the fixed lights to remain pointed at the scene.
The hand-held remote control shall have an additional switch supplied for the backlight rotation option.
Light Tower Paint
The light tower shall be electrostatically powder coated with a hammer tone gray color.
Light Tower Controls
The light tower(s) shall be operated with a hand-held 15-foot umbilical line remote control. The storage station for
the remote control unit shall be equipped with a button to activate the "Auto-Park" automatic nesting feature. The
remote control shall be located per the itemized compartment list and include;
Three (3) switches; one (1) for each pair of lights.
One (1) switch for light bank rotation.
One (1) switch for elevating lower stage.
One (1) switch for elevating upper stage.
One (1) switch for optional light bank rotation.
One (1) switch for the optional strobe.
One (1) indicator light to indicate when light bank is out of the roof nesting position.
One (1) indicator light to indicate when light bank is rotated to proper nesting position.
Light Tower Mounting
The specified light tower(s) shall be recessed into the roof of body to allow light tower(s) to be stowed below roof
level. The floor and side walls of recessed area shall be fabricated as a separate module from 3/16" aluminum
treadplate with an overlapping 3" flange around perimeter roof line. The recessed area shall be completely water
tight. All electrical connections made to light tower shall be located on sidewalls for a water tight connection.
The recessed area shall have two (2) water drain holes (in opposite corners) with flexible 1" diameter hose routed
to the area below the body.
SVI #917
01/05/15
80
SVI Trucks
Freightliner 4-Door Demo
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE
In compliance with NFPA 1901 standards, the special service vehicle shall be designed for an equipment loading
allowance of 4,000 lbs. of Fire Department provided equipment based on a 30,001 - 40,000 pound gross vehicle
weight rating.
EQUIPMENT
The following equipment shall be furnished with the completed special service vehicle;

One (1) container of assorted stainless steel nuts, bolts, screws and washers used in the construction of the
apparatus shall be provided with the completed apparatus.

There shall be two (2) Zico SAC-44-E NFPA approved folding aluminum wheel chocks provided for 44"
diameter tires that together will hold the vehicle when loaded to its GVWR or GCWR, on a hard surface with a
20 % grade, with the transmission in neutral, and the parking brake released.


The wheel chock(s) shall be mounted behind rear wheels, below body on streetside.
Two (2) Streamlight FireBox halogen flashlight(s) shall be provided. Each flashlight shall be orange in color
and have a 12 volt DC charger and vehicle mount kit. Each flashlight shall have a 8 watt halogen spotlight
style bulb and reflector with 2 ultra-bright LED taillights. The flashlight(s) shall be wired to battery direct unless
otherwise specified by Fire Department.

Two (2) flashlight(s) shall be mounted in the cab on the rear forward facing seat pedestal.
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER
All other minor equipment not specified above, but required by NFPA 1901 for special service vehicles, section
10.5.1 shall be supplied and mounted by Fire Department before the unit is placed in emergency service.
SVI #917
01/05/15
81
