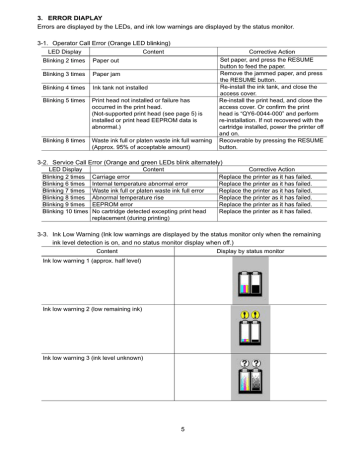

3. ERROR DIAPLAY
Errors are displayed by the LEDs, and ink low warnings are displayed by the status monitor.
3-1. Operator Call Error (Orange LED blinking)
LED Display
Content
Blinking 2 times
Paper out
Blinking 3 times
Paper jam
Blinking 4 times
Ink tank not installed
Blinking 5 times
Print head not installed or failure has
occurred in the print head.
(Not-supported print head (see page 5) is
installed or print head EEPROM data is
abnormal.)
Blinking 8 times
Waste ink full or platen waste ink full warning
(Approx. 95% of acceptable amount)
Corrective Action
Set paper, and press the RESUME
button to feed the paper.
Remove the jammed paper, and press
the RESUME button.
Re-install the ink tank, and close the
access cover.
Re-install the print head, and close the
access cover. Or confirm the print
head is “QY6-0044-000” and perform
re-installation. If not recovered with the
cartridge installed, power the printer off
and on.
Recoverable by pressing the RESUME
button.
3-2. Service Call Error (Orange and green LEDs blink alternately)
LED Display
Content
Corrective Action
Blinking 2 times Carriage error
Replace the printer as it has failed.
Blinking 6 times Internal temperature abnormal error
Replace the printer as it has failed.
Blinking 7 times Waste ink full or platen waste ink full error
Replace the printer as it has failed.
Blinking 8 times Abnormal temperature rise
Replace the printer as it has failed.
Blinking 9 times EEPROM error
Replace the printer as it has failed.
Blinking 10 times No cartridge detected excepting print head
Replace the printer as it has failed.
replacement (during printing)
3-3. Ink Low Warning (Ink low warnings are displayed by the status monitor only when the remaining
ink level detection is on, and no status monitor display when off.)
Content
Display by status monitor
Ink low warning 1 (approx. half level)
Ink low warning 2 (low remaining ink)
Ink low warning 3 (ink level unknown)
5
