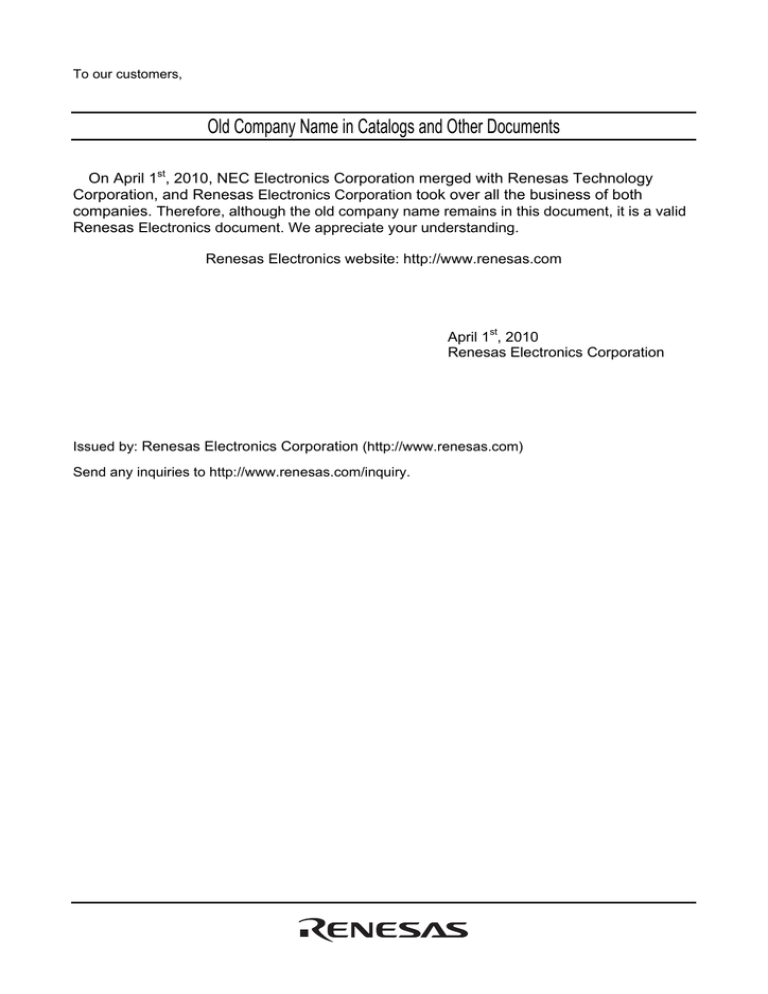

To our customers,

Old Company Name in Catalogs and Other Documents

On April 1

st

, 2010, NEC Electronics Corporation merged with Renesas Technology

Corporation, and Renesas Electronics Corporation took over all the business of both companies.

Therefore, although the old company name remains in this document, it is a valid

Renesas

Electronics document. We appreciate your understanding.

Renesas Electronics website: http://www.renesas.com

April 1

st

, 2010

Renesas Electronics Corporation

Issued by: Renesas Electronics Corporation (http://www.renesas.com)

Send any inquiries to http://www.renesas.com/inquiry.

Notice

1. All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.

2. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.

No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others.

3. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.

4. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information.

5. When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas

Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations.

6. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.

7. Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and

“Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc.

“Standard”: Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots.

“High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support.

“Specific”: Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.

8. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges.

9. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,

Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a

Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you.

10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS

Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.

11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas

Electronics.

12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.

(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries.

(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

User’s Manual

Multimedia Processor for

Mobile Applications

ITU-R BT.656 Interface

EMMA Mobile1

Document No. S19257EJ2V0UM00 (2nd edition)

Date Published April 2009

2009

Printed in Japan

[MEMO]

2

User’s Manual S19257EJ2V0UM

NOTES FOR CMOS DEVICES

1

VOLTAGE APPLICATION WAVEFORM AT INPUT PIN

Waveform distortion due to input noise or a reflected wave may cause malfunction. If the input of the

CMOS device stays in the area between V

IL

(MAX) and V

IH

(MIN) due to noise, etc., the device may malfunction. Take care to prevent chattering noise from entering the device when the input level is fixed, and also in the transition period when the input level passes through the area between V

IL

(MAX) and

V

IH

(MIN).

2 HANDLING OF UNUSED INPUT PINS

Unconnected CMOS device inputs can be cause of malfunction. If an input pin is unconnected, it is possible that an internal input level may be generated due to noise, etc., causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed high or low by using pull-up or pull-down circuitry. Each unused pin should be connected to V

DD

or GND via a resistor if there is a possibility that it will be an output pin. All handling related to unused pins must be judged separately for each device and according to related specifications governing the device.

3

PRECAUTION AGAINST ESD

A strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and ultimately degrade the device operation. Steps must be taken to stop generation of static electricity as much as possible, and quickly dissipate it when it has occurred. Environmental control must be adequate. When it is dry, a humidifier should be used. It is recommended to avoid using insulators that easily build up static electricity. Semiconductor devices must be stored and transported in an anti-static container, static shielding bag or conductive material. All test and measurement tools including work benches and floors should be grounded. The operator should be grounded using a wrist strap.

Semiconductor devices must not be touched with bare hands. Similar precautions need to be taken for

PW boards with mounted semiconductor devices.

4

STATUS BEFORE INITIALIZATION

Power-on does not necessarily define the initial status of a MOS device. Immediately after the power source is turned ON, devices with reset functions have not yet been initialized. Hence, power-on does not guarantee output pin levels, I/O settings or contents of registers. A device is not initialized until the reset signal is received. A reset operation must be executed immediately after power-on for devices with reset functions.

5

POWER ON/OFF SEQUENCE

In the case of a device that uses different power supplies for the internal operation and external interface, as a rule, switch on the external power supply after switching on the internal power supply.

When switching the power supply off, as a rule, switch off the external power supply and then the internal power supply. Use of the reverse power on/off sequences may result in the application of an overvoltage to the internal elements of the device, causing malfunction and degradation of internal elements due to the passage of an abnormal current.

The correct power on/off sequence must be judged separately for each device and according to related specifications governing the device.

6

INPUT OF SIGNAL DURING POWER OFF STATE

Do not input signals or an I/O pull-up power supply while the device is not powered. The current injection that results from input of such a signal or I/O pull-up power supply may cause malfunction and the abnormal current that passes in the device at this time may cause degradation of internal elements.

Input of signals during the power off state must be judged separately for each device and according to related specifications governing the device.

User’s Manual S19257EJ2V0UM

3

The names of other companies and products are the registered trademarks or trademarks of the respective company.

The information in this document is current as of August, 2008. The information is subject to change without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets or data books, etc., for the most up-to-date specifications of NEC Electronics products. Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information.

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may appear in this document.

NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from the use of NEC Electronics products listed in this document or any other liability arising from the use of such products. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.

Descriptions of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of a customer's equipment shall be done under the full responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by customers or third parties arising from the use of these circuits, software and information.

While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products, customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize risks of damage to property or injury (including death) to persons arising from defects in NEC

Electronics products, customers must incorporate sufficient safety measures in their design, such as redundancy, fire-containment and anti-failure features.

NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and

"Specific".

The "Specific" quality grade applies only to NEC Electronics products developed based on a customerdesignated "quality assurance program" for a specific application. The recommended applications of an NEC

Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of each NEC Electronics product before using it in a particular application.

"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio

"Special":

"Specific": and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots.

Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support).

Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems and medical equipment for life support, etc.

The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC

Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to determine NEC Electronics' willingness to support a given application.

(Note)

(1) "NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its

(2) majority-owned subsidiaries.

"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as defined above).

M8E 02. 11-1

4

User’s Manual S19257EJ2V0UM

PREFACE

Readers This manual is intended for hardware/software application system designers who wish to understand and use the ITU-R BT.656 interface functions of EMMA Mobile1 (EM1), a multimedia processor for mobile applications.

Purpose This manual is intended to explain to users the hardware and software functions of the ITU-R BT.656 interface of EM1, and be used as a reference material for developing hardware and software for systems that use EM1.

Organization This manual consists of the following chapters.

 Chapter 1

 Chapter 2

 Chapter 3

 Chapter 4

Overview

Pin functions

Registers

Description of functions

How to Read This Manual It is assumed that the readers of this manual have general knowledge of electricity, logic circuits, and microcontrollers.

To understand the functions of the ITU-R BT.656 interface of EM1 in detail

 Read this manual according to the CONTENTS.

To understand the other functions of EM1

 Refer to the user’s manual of the respective module.

To understand the electrical specifications of EM1

 Refer to the Data Sheet.

Conventions

Data significance:

Note:

Caution:

Higher digits on the left and lower digits on the right

Footnote for item marked with Note in the text

Information requiring particular attention

Numeric representation:

Data type:

Binary ... xxxx or xxxxB

Decimal ... xxxx

Hexadecimal ... xxxxH

Word … 32 bits

Halfword … 16 bits

Byte … 8 bits

User’s Manual S19257EJ2V0UM

5

Related Documents

The related documents indicated in this publication may include preliminary versions.

However, preliminary versions are not marked as such.

Document Name

MC-10118A Data sheet

μPD77630A Data sheet

User’s manual Audio/Voice and PWM Interfaces

DDR SDRAM Interface

DMA Controller

I

2

C Interface

ITU-R BT.656 Interface

Document No.

S19657E

S19686E

S19253E

S19254E

S19255E

S19256E

This manual

LCD Controller S19258E

MICROWIRE S19259E

NAND Flash Interface S19260E

SPI S19261E

UART Interface

Image Composer

Image Processor Unit

System Control/General-Purpose I/O Interface

S19262E

S19263E

S19264E

S19265E

Timer S19266E

Terrestrial Digital TV Interface

Camera Interface

USB Interface

SD Memory Card Interface

S19267E

S19285E

S19359E

S19361E

PDMA S19373E

One Chip (MC-10118A)

One Chip (μPD77630A)

S19598E

S19687E

Caution The related documents listed above are subject to change without notice. Be sure to use the latest version of each document when designing.

6

User’s Manual S19257EJ2V0UM

CONTENTS

CHAPTER 1 OVERVIEW............................................................................................................................9

1.1

General.........................................................................................................................................9

1.2

Features .......................................................................................................................................9

1.3

Function Block Diagram...........................................................................................................10

CHAPTER 2 PIN FUNCTIONS ................................................................................................................11

2.1

NTS Pins ....................................................................................................................................11

CHAPTER 3 REGISTERS ........................................................................................................................12

3.1

Registers....................................................................................................................................12

3.2

Register Functions ...................................................................................................................13

3.2.1

Control register ............................................................................................................................. 13

3.2.2

Display register ............................................................................................................................. 14

3.2.3

Status register............................................................................................................................... 15

3.2.4

Display area address register ....................................................................................................... 16

3.2.5

Display area address register UV ................................................................................................. 17

3.2.6

Address addition value register..................................................................................................... 17

3.2.7

Frame select register .................................................................................................................... 18

3.2.8

Interrupt setting registers .............................................................................................................. 19

CHAPTER 4 DESCRIPTION OF FUNCTIONS ......................................................................................26

4.1

NTS Encoder Interface .............................................................................................................26

4.1.1

Generating synchronization signals .............................................................................................. 29

4.1.2

Adjusting the phase of control clock (NTS_CLKI) .........................................................................31

4.2

Frame Buffer and Data Buffer..................................................................................................32

4.2.1

Frame buffer ................................................................................................................................. 32

4.2.2

Frame buffer storage format ......................................................................................................... 33

4.2.3

Switching frame buffers ................................................................................................................ 34

4.2.4

Data buffer .................................................................................................................................... 35

4.2.5

Gain adjustment............................................................................................................................ 36

4.3

Interrupt Sources ......................................................................................................................37

4.4

Clock Control.............................................................................................................................37

User’s Manual S19257EJ2V0UM

7

LIST OF FIGURES

Figure No. Title Page

Figure 1-1. NTS Block Diagram .................................................................................................................................. 10

Figure 4-1. Data Format in NTSC System................................................................................................................... 27

Figure 4-2. Vertical Blanking Interval in NTSC System ............................................................................................... 27

Figure 4-3. Data Format in PAL System...................................................................................................................... 28

Figure 4-4. Vertical Blanking Interval in PAL System .................................................................................................. 28

Figure 4-5. Relationship Between Horizontal- and Vertical-Direction Timing Control Signals in NTSC System.......... 29

Figure 4-6. Relationship Between Horizontal- and Vertical-Direction Timing Control Signals in PAL System............. 30

Figure 4-7. Synchronization with Rising Edge of NTS_CLKI....................................................................................... 31

Figure 4-8. Synchronization with Falling Edge of NTS_CLKI ...................................................................................... 31

Figure 4-9. Image of Frame Buffer .............................................................................................................................. 32

Figure 4-10. Frame Buffer Switching Timing ............................................................................................................... 34

Figure 4-11. Data Buffer Access ................................................................................................................................. 35

Figure 4-12. YUV Data Gain Adjustment..................................................................................................................... 36

Figure 4-13. Clock Supply Timing ............................................................................................................................... 37

LIST OF TABLES

Table No. Title Page

Table 4-1. Video Timing Reference Codes ................................................................................................................. 26

Table 4-2. SAV and EAV Setting Values in NTSC System ......................................................................................... 27

Table 4-3. SAV and EAV Setting Values in PAL System ............................................................................................ 28

Table 4-4. Interrupt Sources........................................................................................................................................ 37

8

User’s Manual S19257EJ2V0UM

CHAPTER 1 OVERVIEW

1.1 General

This document describes the ITU-R BT.656 interface (NTS) of EM1.

1.2 Features

NTS fetches YUV422-format image data from a frame buffer memory, converts it to the image to be output to the

ITU-R BT.656-compliant parallel interface in synchronization with the internal timing signals, and outputs it to an external NTSC/PAL encoder IC.

(1) Supported standards

NTSC (525/60): Effective pixels: 720

 486

PAL (625/50): Effective pixels: 720

 576

(2) Output data format

ITU-R BT.656-compliant parallel data interface for data output

(3) Input image data format

YUV422 image data

(4) Gain adjustment

Internally adjusts the gain of the input YUV data to support ITU-R BT.601.

(5) Upscaling

Can double an image vertically and horizontally.

If images need not be expanded to NTSC/PAL size, such as when playing MPEG videos, a small image is generated in the memory and is quadrupled when transferred to the encoder IC. This function reduces internal processing during image generation and memory traffic.

User’s Manual S19257EJ2V0UM

9

CHAPTER 1 OVERVIEW

1.3 Function Block Diagram

AHB

NTS

Frame buffer interface

Figure 1-1. NTS Block Diagram

Data buffer

NTS interface

NTS_DATA

APB

Processor interface

NTS registers

Clock

Reset

TM

Main controller Timing

All NTS internal units

Control Interrupt

10

User’s Manual S19257EJ2V0UM

CHAPTER 2 PIN FUNCTIONS

Pin Name I/O

NTS_DATA0 Output

After Reset

Function

ITU-R BT.656-compliant parallel data

Bit 0

NTS_DATA1 Output

ITU-R BT.656-compliant parallel data

Bit 1

NTS_DATA2 Output

ITU-R BT.656-compliant parallel data

Bit 2

NTS_DATA3 Output

ITU-R BT.656-compliant parallel data

Bit 3

NTS_DATA4 Output

NTS_DATA5 Output

NTS_DATA6 Output

NTS_DATA7 Output

NTS_VS Output

NTS_HS Output

NTS_CLK Input

ITU-R BT.656-compliant parallel data

Bit 4

ITU-R BT.656-compliant parallel data

Bit 5

ITU-R BT.656-compliant parallel data

Bit 6

ITU-R BT.656-compliant parallel data

Bit 7

Vertical synchronization signal (for debugging)

Horizontal synchronization signal (for debugging)

ITU-R BT.656 interface control clock (27

MHz)

Alternate Pin Function

AB0_A17/GIO_P28/GIO_P75/SPI_SO

CAM_YUV0

AB0_A18/GIO_P29/GIO_P76/SP1_CS0

CAM_YUV1

AB0_A19/GIO_P30/GIO_P77/SP1_CS1

CAM_YUV2

AB0_RDB/GIO_P39/GIO_P78/SP1_CS2

CAM_YUV3

AB0_WRB/GIO_P40/GIO_P79/SP1_CS3

AB0_WAIT/GIO_P41/GIO_P80/

SP1_CS4/PM1_SEN

AB0_CSB0/GIO_P42/GIO_P81/

SP1_CS5/PM1_SI

AB0_CSB1/GIO_P43/GIO_P82/PM1_SO

AB0_CSB2/GIO_P44/GIO_P73/

SP1_CLK

AB0_CSB3/GIO_P45/GIO_P74/SP1_SI

AB0_CLK/GIO_P11/GIO_P72/PM1_CLK

User’s Manual S19257EJ2V0UM

11

000CH

0010H

0014H

0018H

001CH

0020H

0024H

0028H

002CH-

005CH

0060H

0064H

0068H

006CH

0070H

0074H

CHAPTER 3 REGISTERS

The NTS registers allow word access only.

Do not access reserved registers.

Any value written to reserved bits in each register is ignored.

3.1 Registers

Base address: 4021_0000H

Address Register Name Register Symbol

Display area address register YA

Display area address register YB

Display area address register YC

Display area address register UVA

Display area address register UVB

Display area address register UVC

Address addition value register

Frame select register

NTS_CONTROL

NTS_OUT

NTS_STATUS

NTS_YAREAAD_A

NTS_YAREAAD_B

NTS_YAREAAD_C

NTS_UVAREAAD_A

NTS_UVAREAAD_B

NTS_UVAREAAD_C

NTS_HOFFSET

NTS_FRAMESEL

Reserved

Interrupt status register

Interrupt raw status register

Interrupt enable set register

Interrupt enable clear register

Interrupt source clear register

Error address register

R/W After Reset

R/W 0000_0000H

R/W 0000_0000H

R 0000_0000H

R/W

R/W

R/W

R/W

0000_0000H

0000_0000H

0000_0000H

0000_0000H

R/W

R/W

R/W

R/W

0000_0000H

0000_0000H

0000_0000H

0000_0001H

 

NTS_INTSTATUS R

NTS_INTRAWSTATUS R

NTS_INTENSET R/W

NTS_INTENCLR

NTS_INTFFCLR

W

W

0000_0000H

0000_0000H

0000_0000H

0000_0000H

0000_0000H

NTS_ERRORADR R/W 0000_0000H

NTS_SWRESET R/W 0000_0000H

007CH-

00FCH

Reserved

  

12

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

This register (NTS_CONTROL: 4021_0000H) control NTS.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

UPSCALE

R

R/W

31:4

3

OUTMODE R/W 2

CLKPOL R/W 1

ENDIAN R/W 0

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies whether to enable the upscale (zoom) function.

0: Disable

1: Enable

Selects the NTSC encoder interface output system.

0: NTSC (525/60)

1: PAL (625/60)

Selects the phase of the NTS_CLKI (27 MHz).

0: Rising edge of NTS_CLKI

1: Falling edge of NTS_CLKI

Specifies the endian of the image data being stored in the frame buffer memory.

0: Little endian

1: Big endian

User’s Manual S19257EJ2V0UM

13

CHAPTER 3 REGISTERS

This register (NTS_OUT: 4021_0004H) controls the data output to the NTS encoder interface.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved NTSOUT

Reserved

NTSOUT

R

R/W

31:2

1:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Controls the data output to the NTS encoder interface.

00: OFF (all-0 data is output), without synchronization signal output

01: ON (BlackBack output), with synchronization signal output

10: ON (BlueBack output), with synchronization signal output

11: ON (Normal output), with synchronization signal output

14

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

This register (NTS_STATUS: 4021_0008H) indicates the status of NTS. The status of the NTS output can be acquired by polling this register.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved STATUS

Reserved

STATUS

R

R

31:2

1:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the NTS output status.

00: OFF (all-0 data is output), without synchronization signal output

01: ON (BlackBack output), with synchronization signal output

10: ON (BlueBack output), with synchronization signal output

11: ON (Normal output), with synchronization signal output

User’s Manual S19257EJ2V0UM

15

CHAPTER 3 REGISTERS

3.2.4 Display area address register

These registers (NTS_YAREAAD_A: 4021_000CH, NTS_YAREAAD_B: 4021_0010H, NTS_YAREAAD_C:

4021_0014H) specify the head address of the Y-layer area in the frame buffer memory to which the YUV422-format image data is stored. A UV layer has three planes (A, B, and C), which have common specifications.

31 30 29 28 27 26 25 24

YAREAADA/B/C

23 22 21 20 19 18 17 16

YAREAADA/B/C

15 14 13 12 11 10 9 8

YAREAADA/B/C

7 6 5 4 3 2 1 0

YAREAADA/

B/C

R/W

R

31:2

1:0

0

0

Function

Specifies the head address of the frame buffer memory(Y layer).

Specify the address by byte address on a 32-bit boundary.

Fixed to 0. When these bits are read, 0 is returned for each bit.

16

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

3.2.5 Display area address register UV

These registers (NTS_UVAREAAD_A: 4021_0018H, NTS_UVAREAAD_B: 4021_001CH, NTS_UVAREAAD_C:

4021_0020H) specify the head address of the UV-layer area in the frame buffer memory to which the YUV422-format image data is stored. A UV layer has three planes (A, B, and C), which have common specifications.

31 30 29 28 27 26 25 24

UVAREAADA/B/C

23 22 21 20 19 18 17 16

UVAREAADA/B/C

15 14 13 12 11 10 9 8

UVAREAADA/B/C

7 6 5 4 3 2 1 0

UVAREAAD

A/B/C

R/W 31:2 0

Function

Specifies the head address of the frame buffer memory (UV layer).

Specify the address by byte address on a 32-bit boundary.

Fixed to 0. When these bits are read, 0 is returned for each bit. R 1:0 0

3.2.6 Address addition value register

This register (NTS_HOFFSET: 4021_0024H) specifies the total number of bytes in the horizontal direction of frame buffer areas. The setting is commonly applied to frame buffers A, B and C.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved HOFFSET

7 6 5 4 3 2 1 0

Reserved

HOFFSET

R

R/W

31:13

12:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the total number of bytes in the horizontal direction of the frame buffer areas. (The lower 2 bits are fixed to 0.)

User’s Manual S19257EJ2V0UM

17

CHAPTER 3 REGISTERS

3.2.7 Frame select register

This register (NTS_FRAMESEL: 4021_0028H) selects display frame A, B, or C.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

AREASTATUS

AREASEL

R

R

R/W

31:4

3:2

1:0

0

00

01

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the frame currently being displayed.

00: Initial state

01: Frame buffer A

10: Frame buffer B

11: Frame buffer C

Selects the frame buffer whose image is to be displayed.

00: Setting prohibited

01: Frame buffer A

10: Frame buffer B

11: Frame buffer C

18

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

3.2.8 Interrupt setting registers

These registers are used to specify various interrupt parameters. NTS uses four interrupts.

(1) Interrupt status register

This read-only register (NTS_INTSTATUS: 4021_0060H) indicates the status of the interrupt sources.

The status of the interrupt sources enabled by the interrupt enable set register can be read.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved UNDERRUN DMASTOP

Reserved

UNDERRUN

DMASTOP

DMAERR

NTSVS

R

R

R

R

R

31:4

3

2

1

0

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the status of the underrun interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the transfer stop interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the transfer error interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the NTS frame interrupt.

0: No interrupt source

1: Interrupt source occurred

User’s Manual S19257EJ2V0UM

19

CHAPTER 3 REGISTERS

(2) Interrupt raw status register

This read-only register (NTS_INTRAWSTATUS: 4021_0064H) indicates the status of the interrupt sources.

The bits corresponding to the interrupt sources are set regardless of the settings of the interrupt enable set register and the interrupt enable clear register.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved UNDERRUN

RAW

DMASTOP

RAW

DMAERRRAW NTSVSRAW

Reserved

UNDERRUN

RAW

DMASTOPR

AW

DMAERRRA

W

NTSVSRAW

R

R

R

R

R

31:4

3

2

1

0

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the status of the underrun interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the transfer stop interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the transfer error interrupt.

0: No interrupt source

1: Interrupt source occurred

Indicates the status of the NTS frame interrupt.

0: No interrupt source

1: Interrupt source occurred

20

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

(3) Interrupt enable set register

This register (NTS_INTENSET: 4021_0068H) enables issuance of interrupt requests. Only data of bits to which 1 is written is updated. When the bit corresponding to an interrupt source in this register is set to 1, the interrupt source is set, request for the interrupt is issued, and the corresponding bit of the interrupt status register is set to 1. If no bits are set to 1 in this register, no interrupt requests are issued even if an interrupt source is set, but the corresponding bit of the interrupt raw status register is set to 1.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved UNDERRUNEN DMASTOPEN DMAERREN NTSVSEN

Function

Reserved

UNDERRUNEN

DMASTOPEN

DMAERREN

NTSVSEN

R

R

31:4

3

0

0

W 3

R 2 0

W 2

R 1 0

W 1

R 0 0

W 0

Reserved. When these bits are read, 0 is returned for each bit.

Indicates whether issuance of the underrun interrupt request is enabled.

0: Not enabled, 1: Enabled

Enables issuance of the underrun interrupt request.

0: Ignored, 1: Cancels masking of the interrupt.

Indicates whether issuance of the transfer stop interrupt request is enabled.

0: Not enabled, 1: Enabled

Enables issuance of the transfer stop interrupt request.

0: Ignored, 1: Cancels masking of the interrupt.

Indicates whether issuance of the transfer stop interrupt request is enabled.

0: Not enabled, 1: Enabled

Enables issuance of the transfer stop interrupt request.

0: Ignored, 1: Cancels masking of the interrupt.

Indicates whether issuance of the NTS frame interrupt request is enabled.

0: Not enabled, 1: Enabled

Enables issuance of the NTS frame interrupt request.

0: Ignored, 1: Cancels masking of the interrupt.

User’s Manual S19257EJ2V0UM

21

CHAPTER 3 REGISTERS

(4) Interrupt enable clear register

This write-only register (NTS_INTENCLR:4021_006CH) disables (masks) issuance of interrupt requests. If the bit corresponding to an interrupt source in this register is set to 1, no interrupt requests are issued even if the interrupt source is generated. The status of the corresponding bit in the interrupt status register also remains unchanged. If no bits are set to 1 in this register, an interrupt request is issued when an interrupt source is set, and the corresponding bit of the interrupt status register is set to 1. Writing 0 to this register does not affect the setting.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved UNDERRUN

MASK

DMASTOP

MASK

DMAERR

MASK

NTSVSMASK

Reserved

UNDERRUN

MASK

DMASTOPM

ASK

DMAERRMA

SK

NTSVSMASK

Function

 31:4

0 Reserved.

W 3 0 Disables issuance of the underrun interrupt request.

1: Disables (masks) the interrupt.

W 2 0 Disables issuance of the transfer stop interrupt request.

1: Disables (masks) the interrupt.

W 1 0

W 0 0

Disables issuance of the transfer stop interrupt request.

1: Disables (masks) the interrupt.

Disables issuance of the NTS frame interrupt request.

1: Disables (masks) the interrupt.

22

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

(5) Interrupt source clear register

This write-only register (NTS_INTFFCLR: 4021_0070H) requests clearing of interrupt sources. Setting the bit corresponding to an interrupt source to 1 clears the interrupt source. Writing 0 to this register does not affect the setting.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved UNDERRUNCLR DMASTOPCLR DMAERR CLR NTSVS CLR

Reserved

UNDERRUN

CLR

DMASTOPC

LR

DMAERRCLR

NTSVSCLR

Function

 31:4

0 Reserved.

W 3 0 Requests clearing of the source of the underrun interrupt.

W 2 0

1: Clears the interrupt source.

Requests clearing of the source of the transfer stop interrupt.

1: Clears the interrupt source.

W

W

1

0

0

0

Requests clearing of the source of the transfer error interrupt.

1: Clears the interrupt source.

Requests clearing of the source of the NTS frame interrupt.

1: Clears the interrupt source.

User’s Manual S19257EJ2V0UM

23

CHAPTER 3 REGISTERS

(6) Error address register

This register (NTS_ERRORADR: 4021_0074H) retains the current HADDR status when an internal bus response ERROR, RETRY, or SPLIT is received during DMA transfer.

31 30 29 28 27 26 25 24

ERRADR

23 22 21 20 19 18 17 16

ERRADR

15 14 13 12 11 10 9 8

ERRADR

7 6 5 4 3 2 1 0

Function

ERRADR

Reserved

R

R

31:2

1

0

0

Stores HADDR upon occurrence of an error response.

Reserved. When this bit is read, 0 is returned.

LOCK R/W Error

0: Stores the address when an error response occurs.

1: An error response occurred and the address was stored.

Caution If an error response occurs when the LOCK bit is 0, the current HADDR status is stored in the

ERRADR bit and the LOCK bit is set to 1. To acquire the error status again, set the LOCK bit to 0.

Writing 1 to the LOCK bit does not affect the setting.

24

User’s Manual S19257EJ2V0UM

CHAPTER 3 REGISTERS

(7) Software reset register

This register (NTS_SWRESET: 4021_0078H) is used for switching the phase of the NTS_CLKI (27 MHz) clock.

This register resets the circuit operating at 27 MHz before the NTS_CLK phase is switched by using the

CLKPOL bit of the control register (NTS_CONTROL). Cancel this setting after changing the phase.

31 30 29 28 27 26 25 24

Reserved

23 22 21 20 19 18 17 16

Reserved

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved SWRESET

Reserved

SWRESET

R

R/W

31:1

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies whether to enable software reset.

0: Disables reset.

1: Enables reset.

User’s Manual S19257EJ2V0UM

25

CHAPTER 4 DESCRIPTION OF FUNCTIONS

4.1 NTS Encoder Interface

The ITU-R BT.656-compliant format uses the interlace system where a single screen (frame) consists of two fields.

This system does not use the vertical synchronizing (VD) and horizontal synchronizing (HD) signals for synchronizing the image, but recognizes the effective pixel area by using the two timing reference signals SAV (start of active video) and EAV (end of active video), included in the data stream, for the synchronization.

SAV and EAV each consist of 3-byte preamble data (FF/00/00) and 1-byte timing reference data.

The following table lists the timing for the NTSC system and PAL system.

Table 4-1. Video Timing Reference Codes

Data[7:0]

Bit Number

7 (MSB)

1st Word

(FF)

1

2nd Word

(00)

0

3rd Word

(00)

0

4th Word

(XY)

1

F = 0:

V = 0:

H = 0:

Field 1 is being accessed F = 1: Field 2 is being accessed

Not in a field blanking interval V = 1: In a field blanking interval

SAV, H = 1: EAV

P3 to P0: Protection bits

P3 = V EXOR H

P2 = F EXOR H

P1 = F EXOR V

P0 = F EXOR V EXOR H

26

User’s Manual S19257EJ2V0UM

(1) NTSC system

CHAPTER 4 DESCRIPTION OF FUNCTIONS

Figure 4-1. Data Format in NTSC System

Table 4-2. SAV and EAV Setting Values in NTSC System

Line No. SAV: XY Value

NTSC 1 F V H P3 P2 P1 P0

EAV: XY Value

1 F V H P3 P2 P1 P0

1 1 1 0 1 1 0 0 1 1 1 1 0 0 0 1

4 1 0 1 0 1 0 1 1 1 0 1 1 0 1 1 0

Figure 4-2. Vertical Blanking Interval in NTSC System

User’s Manual S19257EJ2V0UM

27

(2) PAL system

CHAPTER 4 DESCRIPTION OF FUNCTIONS

Figure 4-3. Data Format in PAL System

Line No.

PAL

Table 4-3. SAV and EAV Setting Values in PAL System

SAV: XY Value

1 F V H P3 P2 P1 P0 1 F V

EAV: XY Value

H P3 P2 P1 P0

311 1 0

313 1 1

336 1 1

624 1

Figure 4-4. Vertical Blanking Interval in PAL System

28

User’s Manual S19257EJ2V0UM

CHAPTER 4 DESCRIPTION OF FUNCTIONS

4.1.1 Generating synchronization signals

The horizontal-direction timing control signal is generated by using an 11-bit counter that operates with the

NTS_CLKI clock.

The vertical-direction timing control signal is generated by using a 10-bit counter that operates with the generated horizontal-direction timing control signal.

Figure 4-5. Relationship Between Horizontal- and Vertical-Direction Timing Control Signals in NTSC System

NTS_CLKI

H_COUNT

NTS_DATA

H_CONTROL

EAV

SAV

DATA_EN

FIELD

V_CONTROL

Change point

H_CONTROL

V_COUNT

V_CONTROL

FIELD

FIELD 1

FRAME

FIELD 2

User’s Manual S19257EJ2V0UM

29

H_CONTROL

V_COUNT

V_CONTROL

FIELD

CHAPTER 4 DESCRIPTION OF FUNCTIONS

Figure 4-6. Relationship Between Horizontal- and Vertical-Direction Timing Control Signals in PAL System

NTS_CLKI

H_COUNT

NTS_DATA

H_CONTROL

EAV

SAV

DATA_EN

FIELD

V_CONTROL

Change point

FIELD 1

FRAME

FIELD 2

30

User’s Manual S19257EJ2V0UM

CHAPTER 4 DESCRIPTION OF FUNCTIONS

4.1.2 Adjusting the phase of control clock (NTS_CLKI)

The timing of outputting NTS_DATA can be selected from the rising or falling edge of the NTS_CLKI clock by setting the CLKPOL bit of the NTS_CONTROL register. The NTS_DATA signal is output in synchronization with the rising edge of the NTS_CLKI clock when CLKPOL is set to 0, and with the falling edge when CLKPOL is set to 1.

As a result of this adjustment, the phase of circuits operating at 27 MHz is changed. To prevent the internal circuits from malfunctioning, reset the circuits operating at 27 MHz by using the software reset register

(NTS_SWRESET) before phase adjustment, and cancel the reset after adjustment.

Figure 4-7. Synchronization with Rising Edge of NTS_CLKI

NTS_CLKI

NTS_DATA

Remark CLKPOL = 0

Figure 4-8. Synchronization with Falling Edge of NTS_CLKI

NTS_CLKI

NTS_DATA

Remark CLKPOL = 1

User’s Manual S19257EJ2V0UM

31
