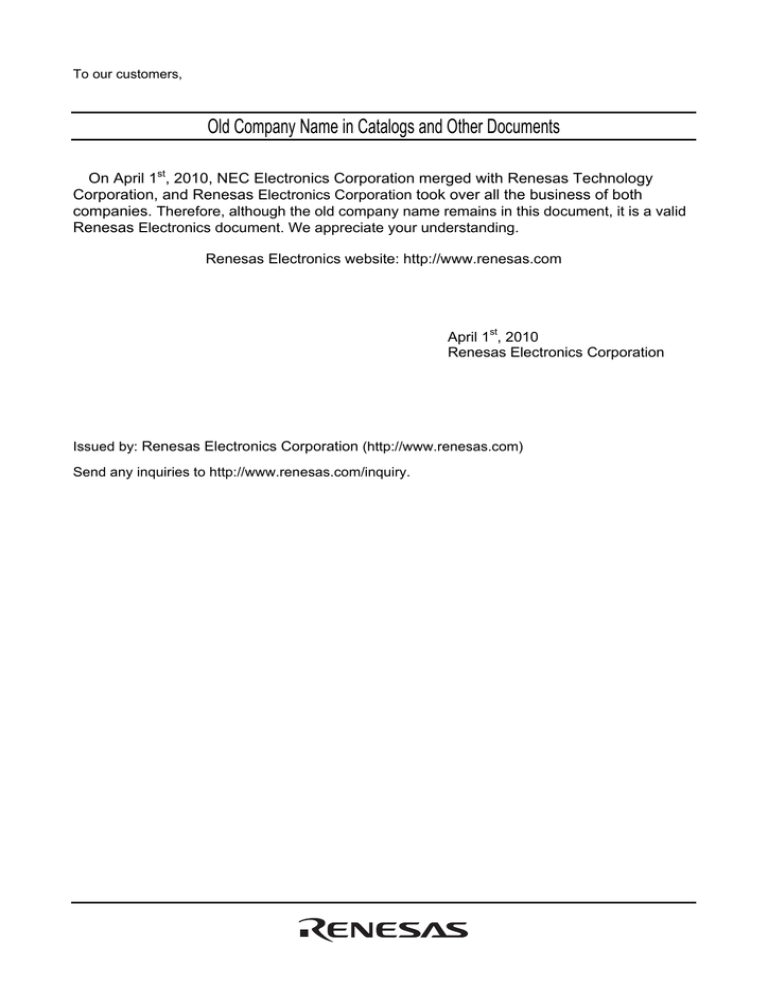

Old Company Name in Catalogs and Other Documents

Old Company Name in Catalogs and Other Documents

To our customers,

Old Company Name in Catalogs and Other Documents

On April 1

st

, 2010, NEC Electronics Corporation merged with Renesas Technology

Corporation, and Renesas

Electronics Corporation

took over all the business of both companies.

Therefore, although the old company name remains in this document, it is a valid

Renesas

Electronics document. We appreciate your understanding.

Renesas Electronics website: http://www.renesas.com

April 1

st

, 2010

Renesas Electronics Corporation

Issued by: Renesas Electronics Corporation (http://www.renesas.com)

Send any inquiries to http://www.renesas.com/inquiry.

Notice

1. All information included in this document is current as of the date this document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas Electronics products listed herein, please confirm the latest product information with a Renesas Electronics sales office. Also, please pay regular and careful attention to additional and different information to be disclosed by Renesas Electronics such as that disclosed through our website.

2. Renesas Electronics does not assume any liability for infringement of patents, copyrights, or other intellectual property rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document.

No license, express, implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of Renesas Electronics or others.

3. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part.

4. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits, software, or information.

5. When exporting the products or technology described in this document, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations. You should not use Renesas

Electronics products or the technology described in this document for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable domestic or foreign laws or regulations.

6. Renesas Electronics has used reasonable care in preparing the information included in this document, but Renesas Electronics does not warrant that such information is error free. Renesas Electronics assumes no liability whatsoever for any damages incurred by you resulting from errors in or omissions from the information included herein.

7. Renesas Electronics products are classified according to the following three quality grades: “Standard”, “High Quality”, and

“Specific”. The recommended applications for each Renesas Electronics product depends on the product’s quality grade, as indicated below. You must check the quality grade of each Renesas Electronics product before using it in a particular application. You may not use any Renesas Electronics product for any application categorized as “Specific” without the prior written consent of Renesas Electronics. Further, you may not use any Renesas Electronics product for any application for which it is not intended without the prior written consent of Renesas Electronics. Renesas Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product for an application categorized as “Specific” or for which the product is not intended where you have failed to obtain the prior written consent of Renesas Electronics. The quality grade of each Renesas Electronics product is “Standard” unless otherwise expressly specified in a Renesas Electronics data sheets or data books, etc.

“Standard”: Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and industrial robots.

“High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anticrime systems; safety equipment; and medical equipment not specifically designed for life support.

“Specific”: Aircraft; aerospace equipment; submersible repeaters; nuclear reactor control systems; medical equipment or systems for life support (e.g. artificial life support devices or systems), surgical implantations, or healthcare intervention (e.g. excision, etc.), and any other applications or purposes that pose a direct threat to human life.

8. You should use the Renesas Electronics products described in this document within the range specified by Renesas Electronics, especially with respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas Electronics shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products beyond such specified ranges.

9. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further,

Renesas Electronics products are not subject to radiation resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by fire in the event of the failure of a

Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of microcomputer software alone is very difficult, please evaluate the safety of the final products or system manufactured by you.

10. Please contact a Renesas Electronics sales office for details as to environmental matters such as the environmental compatibility of each Renesas Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS

Directive. Renesas Electronics assumes no liability for damages or losses occurring as a result of your noncompliance with applicable laws and regulations.

11. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written consent of Renesas

Electronics.

12. Please contact a Renesas Electronics sales office if you have any questions regarding the information contained in this document or Renesas Electronics products, or if you have any other inquiries.

(Note 1) “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majorityowned subsidiaries.

(Note 2) “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

User’s Manual

Multimedia Processor for

Mobile Applications

UART Interface

EMMA Mobile

TM

1

Document No. S19262EJ3V0UM00 (3rd edition)

Date Published September 2009

2009

Printed in Japan

[MEMO]

2

User’s Manual S19262EJ3V0UM

NOTES FOR CMOS DEVICES

1

VOLTAGE APPLICATION WAVEFORM AT INPUT PIN

Waveform distortion due to input noise or a reflected wave may cause malfunction. If the input of the

CMOS device stays in the area between V

IL

(MAX) and V

IH

(MIN) due to noise, etc., the device may malfunction. Take care to prevent chattering noise from entering the device when the input level is fixed, and also in the transition period when the input level passes through the area between V

IL

(MAX) and

V

IH

(MIN).

2 HANDLING OF UNUSED INPUT PINS

Unconnected CMOS device inputs can be cause of malfunction. If an input pin is unconnected, it is possible that an internal input level may be generated due to noise, etc., causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed high or low by using pull-up or pull-down circuitry. Each unused pin should be connected to V

DD

or GND via a resistor if there is a possibility that it will be an output pin. All handling related to unused pins must be judged separately for each device and according to related specifications governing the device.

3

PRECAUTION AGAINST ESD

A strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and ultimately degrade the device operation. Steps must be taken to stop generation of static electricity as much as possible, and quickly dissipate it when it has occurred. Environmental control must be adequate. When it is dry, a humidifier should be used. It is recommended to avoid using insulators that easily build up static electricity. Semiconductor devices must be stored and transported in an anti-static container, static shielding bag or conductive material. All test and measurement tools including work benches and floors should be grounded. The operator should be grounded using a wrist strap.

Semiconductor devices must not be touched with bare hands. Similar precautions need to be taken for

PW boards with mounted semiconductor devices.

4

STATUS BEFORE INITIALIZATION

Power-on does not necessarily define the initial status of a MOS device. Immediately after the power source is turned ON, devices with reset functions have not yet been initialized. Hence, power-on does not guarantee output pin levels, I/O settings or contents of registers. A device is not initialized until the reset signal is received. A reset operation must be executed immediately after power-on for devices with reset functions.

5

POWER ON/OFF SEQUENCE

In the case of a device that uses different power supplies for the internal operation and external interface, as a rule, switch on the external power supply after switching on the internal power supply.

When switching the power supply off, as a rule, switch off the external power supply and then the internal power supply. Use of the reverse power on/off sequences may result in the application of an overvoltage to the internal elements of the device, causing malfunction and degradation of internal elements due to the passage of an abnormal current.

The correct power on/off sequence must be judged separately for each device and according to related specifications governing the device.

6

INPUT OF SIGNAL DURING POWER OFF STATE

Do not input signals or an I/O pull-up power supply while the device is not powered. The current injection that results from input of such a signal or I/O pull-up power supply may cause malfunction and the abnormal current that passes in the device at this time may cause degradation of internal elements.

Input of signals during the power off state must be judged separately for each device and according to related specifications governing the device.

User’s Manual S19262EJ3V0UM

3

The names of other companies and products are the registered trademarks or trademarks of the respective company.

The information in this document is current as of September, 2009. The information is subject to change without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets, etc., for the most up-to-date specifications of NEC Electronics products. Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information.

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may appear in this document.

NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from the use of NEC Electronics products listed in this document or any other liability arising from the use of such products. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.

Descriptions of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of a customer's equipment shall be done under the full responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by customers or third parties arising from the use of these circuits, software and information.

While NEC Electronics endeavors to enhance the quality and safety of NEC Electronics products, customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. In addition, NEC

Electronics products are not taken measures to prevent radioactive rays in the product design. When customers use NEC Electronics products with their products, customers shall, on their own responsibility, incorporate sufficient safety measures such as redundancy, fire-containment and anti-failure features to their products in order to avoid risks of the damages to property (including public or social property) or injury (including death) to persons, as the result of defects of NEC Electronics products.

NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and

"Specific".

The "Specific" quality grade applies only to NEC Electronics products developed based on a customerdesignated "quality assurance program" for a specific application. The recommended applications of an NEC

Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of each NEC Electronics product before using it in a particular application.

"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots.

"Special":

"Specific":

Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support).

Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems and medical equipment for life support, etc.

The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC

Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to determine NEC Electronics' willingness to support a given application.

(Note)

(1)

"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its majority-owned subsidiaries.

(2)

"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as defined above).

M8E0904E

4

User’s Manual S19262EJ3V0UM

PREFACE

Readers This manual is intended for hardware/software application system designers who wish to understand and use the UART interface functions of EMMA Mobile1 (EM1), a multimedia processor for mobile applications.

Purpose This manual is intended to explain to users the hardware and software functions of the UART interface of EM1, and be used as a reference material for developing hardware and software for systems that use EM1.

Organization This manual consists of the following chapters.

 Chapter 1

 Chapter 2

Overview

Pin functions

 Chapter 3

 Chapter 4

 Chapter 5

Registers

Description of functions

Usage

How to Read This Manual It is assumed that the readers of this manual have general knowledge of electricity, logic circuits, and microcontrollers.

To understand the functions of the UART interface of EM1 in detail

 Read this manual according to the CONTENTS.

To understand the other functions of EM1

 Refer to the user’s manual of the respective module.

To understand the electrical specifications of EM1

 Refer to the Data Sheet.

Conventions

Data significance:

Note:

Caution:

Higher digits on the left and lower digits on the right

Footnote for item marked with Note in the text

Information requiring particular attention

Numeric representation:

Data type:

Binary ... xxxx or xxxxb

Decimal ... xxxx

Hexadecimal ... xxxxH

Word … 32 bits

Halfword … 16 bits

Byte … 8 bits

User’s Manual S19262EJ3V0UM

5

Related Documents

The related documents indicated in this publication may include preliminary versions.

However, preliminary versions are not marked as such.

Document Name

MC-10118A Data sheet

μPD77630A Data sheet

User’s manual Audio/Voice and PWM Interfaces

DDR SDRAM Interface

DMA Controller

I

2

C Interface

ITU-R BT.656 Interface

Document No.

S19657E

S19686E

S19253E

S19254E

S19255E

S19256E

S19257E

LCD Controller S19258E

MICROWIRE S19259E

NAND Flash Interface S19260E

SPI S19261E

UART Interface

Image Composer

Image Processor Unit

System Control/General-Purpose I/O Interface

This manual

S19263E

S19264E

S19265E

Timer S19266E

Terrestrial Digital TV Interface

Camera Interface

USB Interface

SD Memory Card Interface

S19267E

S19285E

S19359E

S19361E

PDMA S19373E

One Chip (MC-10118A)

One Chip (μPD77630A)

S19598E

S19687E

Caution The related documents listed above are subject to change without notice. Be sure to use the latest version of each document when designing.

6

User’s Manual S19262EJ3V0UM

CONTENTS

CHAPTER 1 OVERVIEW..........................................................................................................................10

1.1

Function Overview ....................................................................................................................10

1.2

Features .....................................................................................................................................10

1.3

I/O Signals..................................................................................................................................10

CHAPTER 2 PIN FUNCTIONS ................................................................................................................11

2.1

UART Interface Pins .................................................................................................................11

CHAPTER 3 REGISTERS ........................................................................................................................12

3.1

Registers....................................................................................................................................12

3.2

UART Registers.........................................................................................................................13

3.2.1

Receive buffer/transmit hold register ............................................................................................ 13

3.2.2

Interrupt enable register ................................................................................................................ 15

3.2.3

Interrupt identification register....................................................................................................... 16

3.2.4

FIFO control register ..................................................................................................................... 18

3.2.5

Line control register ...................................................................................................................... 21

3.2.6

Modem control register ................................................................................................................. 23

3.2.7

Line status register........................................................................................................................ 25

3.2.8

Modem status register .................................................................................................................. 27

3.2.9

Scratch register............................................................................................................................. 28

3.2.10

Divisor latch LS byte register ........................................................................................................ 28

3.2.11

Divisor latch MS byte register ....................................................................................................... 29

3.2.12

Hardware control register.............................................................................................................. 30

3.2.13

Hardware status register 2 ............................................................................................................ 31

3.2.14

Hardware status register 3 ............................................................................................................ 32

3.3

IR Encoder/Decoder Registers ................................................................................................33

3.3.1

IR control register 0....................................................................................................................... 33

3.3.2

IR control register 1....................................................................................................................... 34

3.3.3

IR control register 2....................................................................................................................... 35

3.3.4

IR control register 3....................................................................................................................... 35

3.3.5

IR control register 4....................................................................................................................... 36

CHAPTER 4 DESCRIPTION OF FUNCTIONS ......................................................................................37

4.1

Auto-Flow Mode ........................................................................................................................37

4.2

FIFOs ..........................................................................................................................................38

4.2.1

Operation in FIFO interrupt mode ................................................................................................. 38

4.2.2

Operation in FIFO polled mode..................................................................................................... 38

4.2.3

Read when the receive FIFO is empty ..........................................................................................38

4.3

Interrupt Sources ......................................................................................................................39

4.4

Clock and Reset ........................................................................................................................39

4.5

I/O Timing...................................................................................................................................39

4.5.1

Serial data..................................................................................................................................... 39

4.5.2

Timing of auto-flow CTS control.................................................................................................... 40

4.5.3

Timing of auto-flow RTS control.................................................................................................... 40

User’s Manual S19262EJ3V0UM

7

4.6

IR Encoder/Decoder Functions................................................................................................41

4.6.1

Transmission data modulation by IR encoder ...............................................................................42

4.6.2

Reception data demodulation by IR decoder ................................................................................42

4.6.3

Masking of reception data for IR decoder echo cancellation .........................................................43

4.6.4

Cautions on using IR encoder/decoder .........................................................................................44

CHAPTER 5 USAGE................................................................................................................................ 45

5.1

Initialization Method..................................................................................................................45

5.1.1

Initialization ...................................................................................................................................45

5.2

Baud Rate Setting .....................................................................................................................46

5.3

Notes on Use of FIFOs..............................................................................................................46

8

User’s Manual S19262EJ3V0UM

LIST OF FIGURES

Title Figure No. Page

Figure 4-1. IR Encoder/Decoder Block Diagram ..........................................................................................................41

Figure 4-2. Transmission Data Modulation Example ...................................................................................................42

Figure 4-3. Reception Data Demodulation Example ....................................................................................................42

Figure 4-4. IrPHY Ver. 1.4 Block Configuration Example.............................................................................................44

LIST OF TABLES

Table No. Title Page

Table 3-1. FIFO Operating Mode (Bits 7 to 5)..............................................................................................................16

Table 3-2. Interrupt Indication and Prioritization of Interrupt Sources (Bits 3 to 0 of IIR) .............................................17

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the

register...................................................................................................................................................................19

Table 3-3. Reception Trigger Level Settings (Bits 7 and 6 of FCR) .............................................................................19

Table 3-4. DMA Mode Settings (Bit 3 of FCR and Bits 3 and 2 of HCR0)....................................................................19

Table 3-5. DMA Modes and DMA Request Generation Conditions .............................................................................19

Table 3-6. Parity Type Settings (Bits 5 to 3 of LCR) ....................................................................................................22

Table 3-7. Settings for Transmission/Reception Data Length (Bits 1 and 0 of LCR)....................................................22

Table 3-8. Auto-Flow Settings (Bits 5 and 1 of MCR and Bit 6 of HCR0).....................................................................24

Table 4-1. Interrupt Sources ........................................................................................................................................39

Table 4-2. PULSE_WIDTH[7:0] Setting Examples.......................................................................................................43

Table 4-3. MASK_PERIOD[19:0] Setting Examples ....................................................................................................43

Table 4-4. IrPHY Ver. 1.4 SIR Ratings Related to Data Transfer Speed and Pulse Width ..........................................44

User’s Manual S19262EJ3V0UM

9

CHAPTER 1 OVERVIEW

This chapter describes the Universal Asynchronous Receiver/Transmitter (UART) for EM1.

The UART block incorporated in EM1 has two 64-byte FIFO buffers, one for transmission and one for reception, and is compatible with TL16C750, a general-purpose UART chip.

The IrDA SIR encoder/decoder is provided for the serial interface, which enables transmission and reception by using the RZI (Return-to-Zero-Inverted) signal.

1.2 Features

 Three UART blocks: UART0, UART1, and UART2

 Two 64-byte FIFO buffers, one for transmission and one for reception

The following operating modes are available:

 Non-FIFO mode (16450 mode)

 16-byte FIFO mode (16550 mode)

 64-byte FIFO mode

 Programmable auto-RTS and auto-CTS

 Standard asynchronous communication control bits (start, stop, and parity bits) can be added to or deleted from transmitted and received serial data. The following items can be specified:

 Character length: 5, 6, 7 or 8 bits

 Parity bit:

Even parity, odd parity, or no parity bit

 Stop bit:

 Baud rate:

1 or 2 bits

Reference clock frequency division ratio selectable from 1 to (2

16

 1)

 Modem control interface (CTS, RTS, DSR, DTR, RI, DCD)

 IrDA SIR encoder/decoder (2.4 to 115.2 kbps)

The following signals are used for UART communication.

 UARTx_SIN: UARTx data input (external pins)

 UARTx_SOUT: UARTx data output (external pins)

 UARTx_CTSB: UARTx transmission enable input (low active) (external pins)

 UARTx_RTSB: UARTx transmission request output (low active) (external pins)

 XIN: Operating clock input from ASMU (U7x_SCLK) (internal clock input)

 MR: Master reset input from ASMU (U7x_RSTZ) (internal reset input)

Remark x = 0 to 2

10

User’s Manual S19262EJ3V0UM

URT0_RTSB

URT2_RTSB

Output

Output

0

Prepared to transmit or receive connected device data

Prepared to transmit or receive data

Serial data

CHAPTER 2 PIN FUNCTIONS

2.1 UART Interface Pins

Pin Name I/O After Reset Function

Serial data

Serial data

0

Prepared to transmit or receive connected device data

Prepared to transmit or receive data

Alternate Pin Function

GIO_P85

URT1_SRIN

GIO_P86

URT1_SOUT

GIO_P85

URT0_CTSB

GIO_P86

URT0_RTSB

GIO_P108

NAND_ALE

GIO_P109

NAND_CLE

GIO_P110

NAND_D0

GIO_P111

NAND_D1

User’s Manual S19262EJ3V0UM

11

CHAPTER 3 REGISTERS

UART register addresses use half-word boundaries.

3.1 Registers

The offset addresses 0000H to 0034H are assigned to UART registers, and 0040H to 0050H are assigned to IR encoder/decoder registers.

Do not access reserved registers. The value 0000_0000H is returned for a read access.

Do not write any value other than 0 to the reserved bits in each register.

Base addresses: 5000_0000H (UART0), 5001_0000H (UART1), 5002_0000H (UART2)

Address Register Name Register Symbol R/W After Reset

0000H

0004H

0008H

000CH

0010H

0014H

0018H

001CH

Receive buffer register

Transmit hold register

Interrupt enable register

Interrupt identification register

FIFO control register

Line control register

Modem control register

Line status register

Modem status register

0024H

0028H

002CH

0030H

Divisor latch LS byte register

Divisor latch MS byte register

Hardware control register

Hardware status register 2

0034H Hardware status register 3

0038H Reserved

003CH Reserved

0040H

0044H

0048H

004CH

0050H

IR control register 0

IR control register 1

IR control register 2

IR control register 3

IR control register 4

RBR

THR

IER

IIR

FCR

LCR

MCR

LSR

MSR

SCR

DLL

DLM

HCR0

HCR2

HCR3

IRCR0

IRCR1

IRCR2

IRCR3

IRCR4

R Undefined

W

R/W 0000H

R 0001H

R/W 0000H

R/W 0000H

R/W 0000H

R

R

0060H

00xxH

Note 1

R/W

Note 2

0000H

R/W

Note 2

0000H

R/W 0000H

R 0000H

R

0000H

R/W 0000H

R/W 0002H

R/W 0000H

R/W 0000H

R/W 0000H

Notes 1. Differs depending on the condition of the connected device.

2. Bit 7 (DLAB) of the LCR register must be set to 1 before setting up the DLL and DLM registers. The DLAB bit must be set to 0 after writing to the DLL and DLM registers. For details, see 3.2.5 Line control

register.

12

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.1 Receive buffer/transmit hold register

This register (RBR/THR: 5000_0000H (UART0), 5001_0000H (UART1), 5002_0000H (UART2)) is used to read received data and write data to transmit.

This register functions as the receive buffer register (RBR) when read, or as the transmit hold register (THR) when written. In FIFO mode (bit 0 of FCR register = 1), the FIFO buffers are accessed.

15 14 13 12 11 10 9 8

0/D7 0/D6 0/D5 0/D4 0/D3 0/D2 0/D1 0/D0

7 6 5 4 3 2 1 0

D7 D6 D5 D4 D3 D2 D1 D0

0/D[7:0]

D[7:0]

R

W

R

W

15:8 Undefined

7:0 Undefined

Function

Reads received data in 2-byte units.

These bits are not used for 1-byte access. Zeroes are returned.

Writes data to transmit in 2-byte units.

These bits are not used for 1-byte access. Writing is ignored.

Reads received data.

Stores data to transmit.

 Operation in non-FIFO mode (bit 0 of FCR register = 0)

Received data is read out by reading this register, and data written to this register is stored as data to transmit.

Data of the lowest bit (D0) is transmitted or received first.

Only the lower bytes (D[7:0]) are used. This register can be accessed in byte units via the host bus interface. If this register is accessed in 2-byte units in non-FIFO mode, the higher bytes (0/D[7:0]) become invalid (all zeros returned when read, ignored when written) and only the lower bytes are used.

 Operation in FIFO mode (bit 0 of FCR register = 1)

Received data is read out from the receive FIFO by reading this register, and data written to this register is stored into the transmit FIFO as data to transmit. This register can be accessed in 1- or 2-byte units via the host bus interface. Data of the lowest bit (D0) is transmitted or received first.

If this register is read in byte units, all zeros are returned from the higher bytes (0/D[7:0]) and data in the lower bytes (D[7:0]) becomes valid. If this register is written, the higher bytes become invalid and only the lower bytes are used.

The FIFO capacity is selected by using bit 5 of the FCR register.

The 16-byte FIFO mode is selected (16550 mode) by setting bit 5 of the FCR register to 0, and the 64-byte

FIFO mode is selected by setting bit 5 of the FCR register to 1.

User’s Manual S19262EJ3V0UM

13

CHAPTER 3 REGISTERS

Cautions 1. If data is written to the transmit FIFO when it is full or if 2-byte data is written to the transmit

FIFO when only 1 byte of space is available, an overrun error occurs and no data is written to the transmit FIFO. When an overrun error occurs, bit 7 of the HCR3 register is set to 1.

2. When data is read from the empty receive FIFO or if the reading of 2-byte data from the receive FIFO is attempted when only 1 byte of data is stored, an underrun error occurs and data is not read from the receive FIFO. (All zeros are output to the host bus interface.) When an underrun error occurs, bit 7 of the HCR2 register is set to 1.

3. If the number of transmitted or received data bits is 5 to 7 bits, data in the lower bits is transmitted or received and bits exceeding the specified transfer bit count are discarded.

Example When the transfer bit count is set to 5 (bits 1 and 0 (WLS) of LCR register = 00b):

On the transmission side, data of bits 7 to 5 is discarded and data of bits 4 to 0 is transmitted.

On the reception side, “0” is written to bits 7 to 5 and valid data is written to bits 4 to 0.

14

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.2 Interrupt enable register

This register (IER: 5000_0004H (UART0), 5001_0004H (UART1), 5002_0004H (UART2)) enables the issuance of interrupt requests. Each interrupt can be set up individually for each interrupt source.

The interrupt sources corresponding to bits to which 1 is written are enabled.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

Reserved

EDSSI

ELSI

ETBEI

ERBI

R

R/W

R/W

R/W

R/W

R/W

Bit Reset

15:8

7:4

3

0

0

0

2

1

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Reserved. Written data is ignored.

Specifies whether to enable the modem status interrupt.

0: Disables the modem status interrupt.

1: Enables the modem status interrupt.

Specifies whether to enable the reception error (receiver line status) interrupt.

0: Disables the reception error interrupt.

1: Enables the reception error interrupt.

Specifies whether to enable the transmit buffer empty (transmit hold register (THR) empty) interrupt.

0: Disables the transmit buffer empty interrupt.

1: Enables the transmit buffer empty interrupt.

Specifies whether to enable the reception completion (received data available) and timeout interrupts.

0: Disables the reception completion and timeout interrupts.

1: Enables the reception completion and timeout interrupts.

Caution By setting bit 0 to “0”, reception completion and timeouts can be excluded from the interrupt sources. However, when bit 4 of the HCR0 register is set to 1 (receiver timeout DMA REQ disable), a timeout error is added to the interrupt sources, regardless of the setting of bit 0.

Remark A timeout error is detected when either of the following conditions is satisfied while the FIFO stores at least one character:

<1> The most recent serial character is received before at least the four continuous character times.

<2> The host read the FIFO most recently before four continuous character times.

Four continuous character times is equivalent to four characters of a 12-bit received character (start: 1 bit, data: 8 bits, parity: 1 bit, stop: 2 bits), that is, 768 cycles (for a 16

 clock) (12  4  16 = 768 cycles

(for a 16

 clock)).

User’s Manual S19262EJ3V0UM

15

CHAPTER 3 REGISTERS

3.2.3 Interrupt identification register

This register (IIR: 5000_0008H (UART0), 5001_0008H (UART1), 5002_0008H (UART2)) is used to identify interrupt sources.

The FIFO operating mode and interrupt sources can be checked by reading this register.

When multiple interrupts sources are generated, the interrupt source that has the highest priority is output to this register.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

FIFOs Enabled[1:0] 64 Byte FIFO

Enabled

Reserved

FIFOs Enabled[1:0]

R

R

64 Byte FIFO Enabled R

Reserved

Interrupt ID[3:0]

R

R

Bit Reset

15:8

7:6

0

00b

5

4

3:0

0

0

0001b

Function

Reserved. When these bits are read, 0 is returned for each bit.

Indicates the FIFO operating mode.

00b: Non-FIFO mode (16450 mode)

11b: 16-byte/64-byte FIFO mode (See bit 5.)

Indicates the FIFO operating mode. This bit is enabled when bits 7 and 6 are set to 11b.

0: 16-byte FIFO mode (16550 mode)

1: 64-byte FIFO mode

Reserved. When this bit is read, 0 is returned.

Among the interrupts that have occurred, these bits indicate the ID of the interrupt source that has the highest priority.

Table 3-1. FIFO Operating Mode (Bits 7 to 5)

Bits 7 to 5

000

110

FIFO Operating Mode

Non-FIFO mode (16450 mode)

16-byte FIFO mode (16550 mode)

16

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

Table 3-2. Interrupt Indication and Prioritization of Interrupt Sources (Bits 3 to 0 of IIR)

IIR[3:0]

0001 (1h)

0110 (6h)

Priority Interrupt Type

None None

1 Reception error

(receiver line status)

0100 (4h)

1100 (Ch)

0010 (2h)

0000 (0h)

2

3

4

Reception completion

(received data available)

Timeout

Transmit buffer empty

(transmit hold register (THR) empty)

Modem status

Interrupt Source Interrupt Reset Method

None

When at least one of the following occurs:

 Overrun

 Parity error

 Framing error

 Break interrupt

 In non-FIFO mode

When data reception in the receive buffer register is completed

 In FIFO mode

When the amount of data in the receive FIFO exceeds the trigger level

None

When the line status register

(LSR) is read

 In non-FIFO mode

When the receive buffer register (RBR) is read

 In FIFO mode

When the receive FIFO is read and the amount of data in the receive FIFO becomes less than the trigger level

When data reception timed out while the receive FIFO was used

When the receive FIFO is read

Transmit hold register (THR) or transmit FIFO is empty

When the IIR register is read or data is written in the transmit hold register (THR) or transmit FIFO

When at least one of the following occurs:

 CTS

 DSR (internal signal)

 DCD (internal signal)

 Trailing edge RI (internal signal)

When the modem status register (MSR) is read

Caution A transmit buffer empty interrupt (bits 3 to 0 of IIR register = 0010) is canceled by reading the IIR register or writing data to the transmit hold register (THR) or transmit FIFO. Specifically, the following operation is performed for reading the IIR register.

If the transmit buffer is empty when the IIR register is read to check the interrupt source, the read operation masks the transmit buffer empty interrupt and this interrupt no longer occurs. This masking is canceled when data is written to the transmit buffer, and the subsequent transmit buffer empty interrupts are output.

User’s Manual S19262EJ3V0UM

17

CHAPTER 3 REGISTERS

3.2.4 FIFO control register

This register (FCR: 5000_000CH (UART0), 5001_000CH (UART1), 5002_000CH (UART2)) controls the transmit/receive FIFO.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Receiver Trigger 64 Byte FIFO

Enabled Select FIFO Reset

Receiver FIFO

Reset

FIFO Enable

Reserved

Receiver Trigger *

64 Byte FIFO Enable

*

Reserved

DMA Mode Select *

Transmitter FIFO

Reset

R

R/W

R/W

R/W

R/W

Bit Reset

15:8

7:6

0

00

5

4

3

R/W 2

Function

Reserved. When these bits are read, 0 is returned for each bit.

Valid only in FIFO mode (bit 0 of FCR register = 1).

Specifies the threshold (trigger level) of data stored in the receive

0

FIFO in order to issue an interrupt request or a reception DMA request.

 In 16-byte FIFO mode (bit 5 of FCR register = 0)

00: 1 byte 01: 4 bytes

10: 8 bytes 11: 14 bytes

 In 64-byte FIFO mode (bit 5 of FCR register = 1)

00: 1 byte 01: 16 bytes

10: 32 bytes 11: 56 bytes

Valid only in FIFO mode (bit 0 of FCR register = 1).

Specifies the FIFO capacity.

0: 16 bytes (16550 mode) 1: 64 bytes

Reserved. Written data is ignored. 0

0

Specifies the DMA mode in FIFO mode. The DMA mode is specified by setting this bit with bits 3 and 2 of the HCR0 register.

0 Setting this bit to 1 generates a synchronization reset pulse (1

VBCLK cycle) and resets the transmit FIFO and FIFO address counter. This bit is automatically reset to 0.

Caution The transmit shift register (TSR) is not reset. If a reset occurs during transmission, one frame that has only zeros might be transmitted after the data in the TSR register has been transmitted.

Receiver FIFO Reset R/W 1 0

FIFO Enable * R/W 0 0

Setting this bit to 1 generates a synchronization reset pulse (1

VBCLK cycle) and resets the receive FIFO and FIFO address counter. This bit is automatically reset to 0.

Caution The receive shift register (RSR) is not reset. If a reset occurs during reception, data being received is

correctly stored in the receive FIFO after the reset.

Selects the FIFO operating mode.

0: Non-FIFO mode (16450 mode)

1: 16-/64-byte FIFO mode (selected by bit 5 of the FCR register)

18

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the register.

Table 3-3. Reception Trigger Level Settings (Bits 7 and 6 of FCR)

Bits 7 to 6 of

IIR

16-byte FIFO Mode

(Bit 5 of FCR Register = 0)

Trigger Level (Bytes)

64-byte FIFO Mode

(Bit 5 of FCR Register = 1)

Trigger Level (Bytes)

00 01

01 04

10 08

11 14

01

16

32

56

Table 3-4. DMA Mode Settings (Bit 3 of FCR and Bits 3 and 2 of HCR0)

Transmit DMA Request Bit 3 of FCR register

Bits 3 and 2 of HCR0

Receive DMA Request

0 00

1 00

0

1

01

10

Others (Setting prohibited)

Mode 0

Mode 1

Mode 1

Mode 0

Table 3-5. DMA Modes and DMA Request Generation Conditions

Mode DMA Request Generation Condition DMA Request Release Condition

When the DMA access data width is one byte (bit 5 of HCR0 = 0)

Receive DMA request

Mode 0

Mode 1

The receive FIFO stores 1 or more bytes of data.

The receive FIFO is empty.

The receive FIFO is empty. The amount of data in the receive FIFO reached the trigger level or a timeout event occurred

Note 1

.

Transmit DMA request

Mode 0

Mode 1

The transmit FIFO is empty.

The transmit FIFO is empty.

When the DMA access data width is two bytes (bit 5 of HCR0 = 1).

The transmit FIFO stores 1 or more bytes of data.

The transmit FIFO is full.

Receive DMA request

Mode 0

Transmit DMA request

Mode 1

Mode 0

Mode 1

The receive FIFO stores 2 or more bytes of data.

The receive FIFO stores 1 or fewer bytes of data

Note 2

.

The trigger level is reached or a timeout event occurs

Note 1

when the receive FIFO stores 2 or more bytes of data.

The receive FIFO stores 1 or fewer bytes of data

Note 2

.

The transmit FIFO is empty.

The transmit FIFO is empty.

The transmit FIFO stores 2 or more bytes of data.

The transmit FIFO full

User’s Manual S19262EJ3V0UM

19

CHAPTER 3 REGISTERS

Notes 1. The timeout event can be excluded from the reception DMA request issue conditions by setting bit 4 of the HCR0 register.

Bit 4 = 0: The timeout event is included in the reception DMA request issue conditions.

Bit 4 = 1: The timeout event is excluded from the reception DMA request issue conditions and added to the interrupt sources.

2. If an odd number of data bytes is received in the 2-byte access mode, the reception DMA request is canceled when the amount of data remaining in the receive FIFO becomes 1 byte. When receiving an odd number of data bytes, use 1-byte access or notify the timeout event by using an interrupt (bit 4 of

HCR0 register = 1) and read the timeout data by servicing the interrupt.

Caution In the non-FIFO mode, operation equivalent to mode 0 is performed regardless of the settings of bit 3 in the FCR register and bits 3 and 2 in the HCR0 register.

A reception DMA request is issued when receiving 1-byte data in the receive buffer register is

completed. The request is canceled when the receive buffer register is empty.

A transmission DMA request is issued when the request transmit buffer is empty. The

request is canceled when at least 1-byte data is stored in the transmit buffer.

20

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.5 Line control register

This register (LCR: 5000_0010H (UART0), 5001_0010H (UART1), 5002_0010H (UART2)) specifies the transmission/reception data format and enables access to the divisor latch.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

DLAB Break Control Stick Parity EPS PEN STB WLS[1:0]

Reserved

DLAB *

R

R/W

15:8

7

0

0

(1/2)

Function

Reserved. When these bits are read, 0 is returned for each bit.

Setting this bit to 1 enables specifying the divisor latch (DLM/DLL registers).

When this bit is set to 0 after specifying the divisor latch, access to the divisor latch is prohibited and generation of the 16x clock according to the specified value is started by the baud rate generator.

Caution The 16x clock stops after a master reset. The baud rate generator starts generating the 16x clock when it detects the change of this bit setting (from 1 to 0). After generation starts, the 16x clock will not stop unless a master reset is input.

Break Control R/W 6 0

Stick Parity *

EPS *

PEN *

R/W

R/W

R/W

5

4

3

0

0

0

Controls break state generation and transmission.

The serial output (UARTx_SOUT) is forcibly set to 0 while this bit is set to 1, and such output is canceled when this bit is set to 0. This bit directly controls the SOUT output level but does not affect the internal circuits.

Caution If this bit is set to 1 during transmission, only framing errors might be detectable on the reception side. To detect breaks for sure, this bit must be set when transmission has

completed (the transmit buffer empty).

Selects the type of parity bit used to verify transmitted/received data.

The setting of this bit is valid only when a parity bit is used (bit 3 = 1).

An even, odd, or fixed value (high or low) is set by using bit 4.

0: Parity check using an even or odd parity bit

1: Parity check using a stick parity bit

Selects the odd or even parity when bit 3 is set to 1 and bit 5 is set to 0.

Selects the level of the stick parity when bit 3 and bit 5 are set to 1.

0: Odd parity / Stick High (fixed to 1)

1: Even parity / Stick Low (fixed to 0)

Specifies whether to enable the parity check.

0: No parity bit.

1: Adds a parity bit on the transmission side.

The parity bit is checked on the reception side.

User’s Manual S19262EJ3V0UM

21

CHAPTER 3 REGISTERS

STB *

WLS[1:0] *

R/W

R/W

2

1:0

0

0

(2/2)

Function

Specifies the number of stop bits to add to data transferred via serial transmission.

0: 1 bit

1: 2 bits

Only the first stop bit is checked on the reception side, regardless of this setting.

Specifies the length of data transferred via serial transmission and reception.

00: 5 bits

01: 6 bits

10: 7 bits

11: 8 bits

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the register.

Table 3-6. Parity Type Settings (Bits 5 to 3 of LCR)

Bits 5 to 3 of LCR Parity Type

101

111 xx: Don’t Care

Stick High (fixed to “1”)

Stick Low (fixed to “0”)

Table 3-7. Settings for Transmission/Reception Data Length (Bits 1 and 0 of LCR)

WLS[1:0] of LCR Data Length

22

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.6 Modem control register

This register (MCR: 5000_0014H (UART0), 5001_0014H (UART1), 5002_0014H (UART2)) controls the interface with modems (and other peripheral devices).

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

Reserved

AFE *

Reserved

OUT2

OUT1

RTS

DTR

R

R

R/W

R/W

R/W

R/W

R/W

R/W

Bit Reset

15:8

7:6

5

0

0

0

4

3

2

1

0

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Reserved. Written data is ignored.

Specifies whether to enable auto-flow control (auto-CTS and auto-

RTS).

0: Disables auto-flow control.

1: Enables auto-flow control.

Auto-flow operation is controlled in detail by using bit 1 of this register and bit 6 of the HCR0 register.

Reserved.

Selects the level of the general-purpose output OUT2Z (internal signal).

0: High (inactive).

1: Low (active)

In local loopback mode, this bit controls DCDZ (internal signal) input.

Selects the level of the general-purpose output OUT1Z (internal signal).

0: High (inactive)

1: Low (active)

In local loopback mode, this bit controls RIZ (internal signal) input.

Selects the level of UARTx_RTSB pin output (transmission request) when auto-RTS is not used (bit 5 = 0).

0: High (inactive)

1: Low (active)

In local loopback mode, this bit controls the UARTx_CTSB input pin.

Selects the level of DTRZ (communication link establishment ready, internal signal) output.

0: High (inactive)

1: Low (active)

In local loopback mode, this bit controls DSRZ (internal signal) input.

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the register.

User’s Manual S19262EJ3V0UM

23

CHAPTER 3 REGISTERS

Bit 5 of MCR

Register

1

0

Table 3-8. Auto-Flow Settings (Bits 5 and 1 of MCR and Bit 6 of HCR0)

Auto-CTS Auto-RTS Bit 1 of MCR

Register

1

0

Bit 6 of HCR0

Register

0

1

 (Auto-RTS mode 0)

 (Auto-RTS mode 1)

 (RTSZ output is fixed to high level.)

Auto-CTS operation:

While the CTSZ pin is pulled low (requesting transmission), data in the transmit buffer (THR/transmit

FIFO) is transmitted. The transmission stops when the pin is pulled high. If the CTSZ pin is pulled high during transmission, data being transmitted (the data that remains in the transmit shift register) is transmitted and transmission stops.

Auto-RTS operation (valid only in the FIFO mode):

Auto-RTS mode 0

When the amount of data in the receive FIFO reaches the trigger level, the RTSZ pin is pulled high

(requesting that transmission be stopped). When the data in the receive FIFO is read and the FIFO empties, the pin is pulled low (requesting transmission).

Auto-RTS mode 1

 In the 16-byte FIFO mode, the RTSZ pin is pulled high when the amount of data in the receive FIFO reaches 14 bytes, and the pin is pulled low when the amount of data becomes 13 bytes or less.

 In the 64-byte FIFO mode, the RTSZ pin is pulled high when the amount of data in the receive FIFO reaches 56 bytes, and the pin is pulled low when the amount of data becomes 55 bytes or less.

Caution

When auto-flow control is not used, flow control is not performed by hardware.

Therefore, CTS monitoring and RTS control must be performed by software to prevent a

FIFO overrun.

When auto-flow is not used (bit 5 of MCR register = 0):

Bit 1 of the MCR register is used to control the RTSZ output (the value set to bit 1 is reversed and the reversed level is output to RTSZ).

When both a modem status interrupt (bit 3 of IER register = 1) and auto-CTS are set,

auto-CTS is disabled.

In the non-FIFO mode, auto-RTS is disabled.

24

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.7 Line status register

This register (LSR: 5000_0018H (UART0), 5001_0018H (UART1), 5002_0018H (UART2)) is used to check the status of transmission and reception.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Error in

Receiver FIFO

TEMT THRE BI FE PE OE DR

Reserved R

Error in Receiver FIFO R

TEMT

THRE

BI *

R

R

R

(1/2)

Bit Reset

15:8 0

Function

Reserved. When these bits are read, 0 is returned for each bit.

7

6

0

1

A zero is always read from this bit in non-FIFO mode.

This bit is set to "1" when a break interrupt error, parity error, or framing error occurs in data read from the receive FIFO in FIFO mode. Reading this register clears this bit to “0”.

This bit is set to "1" when the transmit buffer (the THR register or transmit

FIFO) and transmit shift register (TSR) empty. This bit is cleared to "0" when data is written to the transmit buffer or transmit shift register.

5 1

4 0

This bit is set to "1" when the transmit buffer (THR register or transmit

FIFO) empties.

This bit is cleared to "0" when at least 1 byte of data is written to the transmit buffer.

This bit is set to “1” when a break interrupt occurs. Reading this register clears this bit to “0”.

A break interrupt is detected when a low level signal is received for 1 frame or longer (for the total of the start bit, data stop bit, and stop bit).

When a start bit (low level) is detected, the receive block assumes that data has been sent, and receives the data.

While a break interrupt is being acknowledged (a low level signal is being input), the receive block continues to receive all zeros. (Reception stops when an overrun occurs.)

In FIFO mode, the break interrupt information is stored in the receive FIFO with all-0 data. A break interrupt is detected when the data is read.

Caution A framing error always occurs when a break interrupt is detected. A parity error might occur, depending on the settings of bits 5 to 3 of the LCR register.

User’s Manual S19262EJ3V0UM

25

CHAPTER 3 REGISTERS

FE *

PE *

OE *

DR

R

R

R

R

(2/2)

Bit Reset

3 0

2

1

0

0

0

0

Function

This bit is set to “1” when a framing error is detected in received data.

Reading this register clears this bit to “0”.

A framing error occurs when the first stop bit following the data bit or parity bit of received data is checked and it is judged to be invalid (low level).

In FIFO mode, the framing error information is stored in the receive FIFO with the receive data.

A framing error is detected when the data is read.

This bit is set to “1” when a parity error is detected in received data.

Reading this register clears this bit to “0”.

In FIFO mode, the parity error information is stored in the receive FIFO with the received data.

A parity error is detected when the data is read.

This bit is set to “1” when a receive overrun error is detected. Reading this register clears this bit to “0”.

A receive overrun occurs when the receive buffer register (RBR) or receive

FIFO is filled with received data, data is held in the receive shift register

(RSR), and the start bit of the following data is detected.

When a receive overrun error occurs, received data will no longer be stored in the receive buffer register or receive FIFO.

Data held in the receive shift register is stored in the receive buffer when a vacancy becomes available.

This bit is set to "1" when at least 1 byte of received data is stored in the receive buffer register (RBR) or receive FIFO.

This bit is cleared to "0" when all of the received data is read and the receive buffer empties.

* Do not poll these bits to check the interrupt source. Instead, check the source after the interrupt is detected.

26

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.8 Modem status register

This register (MSR: 5000_001CH (UART0), 5001_001CH (UART1), 5002_001CH (UART2)) is used to check the control signals connected to modems (or other peripheral devices).

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

DCD TERI

DSR

CTS

Reserved

DCD *

RI *

DSR *

CTS *

DCD *

TERI *

DSR *

CTS *

R

R

R

R

R

R

R

R

R

Bit Reset

15:8

7

6

5

4

3

2

1

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Undefined Indicates the inverted level of DCDZ (internal signal) input.

0: High (inactive) 1: Low (active)

In local loopback mode, the value set to bit 3 (OUT2) of the MCR register is read.

Undefined Indicates the inverted level of RIZ (internal signal) input.

0: High (inactive) 1: Low (active)

In local loopback mode, the value set to bit 2 (OUT1) of the MCR register is read.

Undefined Indicates the inverted level of DSRZ (internal signal) input.

0: High (inactive) 1: Low (active)

In local loopback mode, the value set to bit 0 (DTR : internal signal) of the MCR register is read.

Undefined Indicates the inverted level of UARTx_CTSB pin input.

0: High (inactive) 1: Low (active)

In local loopback mode, the value set to bit 1 (RTS) of the MCR register is read.

Undefined This bit is set to 1 when the level of the DCDZ (internal signal) input changes (from high to low or low to high).

Reading this register clears this bit to “0”.

Undefined This bit is set to 1 when the RIZ (internal signal) input is pulled high

(inactive).

Reading this register clears this bit to “0”.

Undefined This bit is set to 1 when the level of the DSRZ (internal signal) input changes (from high to low or low to high).

Reading this register clears this bit to “0”.

Undefined This bit is set to 1 when the level of the UARTx_CTSB pin input changes (from high to low or low to high).

Reading this register clears this bit to “0”.

* Do not poll these bits to check the interrupt source. Instead, check the source after the interrupt is detected.

User’s Manual S19262EJ3V0UM

27

CHAPTER 3 REGISTERS

This register (SCR: 5000_0020H (UART0), 5001_0020H (UART1), 5002_0020H (UART2)) can be used freely during programming.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Scratch Register

Reserved

Scratch Register

R

R/W

Bit Reset

15:8

7:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

These bits do not affect the UART operation and can be used freely during programming.

3.2.10 Divisor latch LS byte register

This register (DLL: 5000_0024H (UART0), 5001_0024H (UART1), 5002_0024H (UART2)) specifies the lower 8 bits of the divisor for the baud rate generator. Set up this register in combination with the DLM register that specifies the higher 8 bits.

The baud rate generator divides the reference clock (XIN) and generates a 16x baud rate clock for the transmit and receive blocks by using the value specified in this register.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Divisor[7:0]

Reserved

Divisor[7:0] *

R

R/W

Bit Reset

15:8

7:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the lower 8 bits of the divisor.

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the register.

Caution When the DLM and DLL registers are set up, bit 7 (DLAB) of the LCR register must be set to 1.

The DLAB bit must be set to 0 after the DLM and DLL registers are written. For details, see 3.2.5

Line control register.

28

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.11 Divisor latch MS byte register

This register (DLM: 5000_0028H (UART0), 5001_0028H (UART1), 5002_0028H (UART2)) specifies the higher 8 bits of the divisor for the baud rate generator. Set up this register in combination with the DLL register that specifies the lower 8 bits.

The baud rate generator divides the reference clock (XIN) and generates a 16x baud rate clock for the transmit and receive blocks by using the value specified in this register.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Divisor[15:8]

Reserved

Divisor[15:8] *

R

R/W

Bit Reset

15:8

7:0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the higher 8 bits of the divisor.

* If a register value is changed during operation, normal operation is not guaranteed. In this case, initialize the register.

Caution When the DLM and DLL registers are set up, bit 7 (DLAB) of the LCR register must be set to 1.

The DLAB bit must be set to 0 after the DLM and DLL registers are written. For details, see 3.2.5

Line control register.

User’s Manual S19262EJ3V0UM

29

CHAPTER 3 REGISTERS

3.2.12 Hardware control register

This additional register (HCR0: 5000_002CH (UART0), 5001_002CH (UART1), 5002_002CH (UART2)) controls the DMA controller and other hardware.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

SW Reset RTS Mode DMA 2Byte

Access Enable

Receiver timeout DMA

Disable

Receiver DMA

Mode

Transmitter

DMA Mode

Receiver DMA

Enable

Transmitter

DMA Enable

Reserved

SW Reset

RTS Mode

DMA 2Byte Access

Enable

Receiver timeout DMA

Disable

Receiver DMA Mode

Transmitter DMA

Enable

R

R/W

R/W

R/W

R/W

R/W

R/W

Bit

15:8

7

6

5

4

3

Transmitter DMA Mode R/W 2

Receiver DMA Enable R/W 1

0

Reset

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Setting this bit to 1 resets internal UART registers, except for registers for the transmit and receive FIFOs and baud rate generator

(RBR/THR, DLL, and DLM). Setting this bit to 0 cancels the reset.

Caution Before executing a software reset, reset the transmit and receive FIFOs (bits 2 and 1 of FCR register). After that, registers other than the DLL and DLM registers must be set up again.

Selects the RTS mode when auto-RTS is used.

0: Auto-RTS mode 0

1: Auto-RTS mode 1

Selects the width of data to transfer to the transmit and receive

FIFOs via DMA.

0: 1 byte

1: 2 bytes

This setting affects the conditions for generating DMA request signals.

Specifies whether to include the timeout event in the reception DMA transfer request sources.

0: Includes the timeout event in the reception DMA transfer request sources.

1: Excludes the timeout event from the reception DMA transfer request sources (and automatically adds it to the interrupt sources).

0 Specifies the DMA request mode separately for transmission and

0 reception. These bits are used with bit 3 of the FCR register.

0 Specifies whether to enable the reception DMA request output.

0: Disables reception DMA requests.

1: Enables reception DMA requests.

0 Specifies whether to enable the transmission DMA request output.

0: Disables transmission DMA requests.

1: Enables transmission DMA requests.

30

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.2.13 Hardware status register 2

This additional register (HCR2: 5000_0030H (UART0), 5001_0030H (UART1), 5002_0030H (UART2)) is used to check the receive FIFO status.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Receiver FIFO

Underrun

Receiver FIFO Data Count[6:0]

Reserved

Receiver FIFO Underrun

R

R

R

15:8

7

6:0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

When data is read from the receive FIFO when it is empty or when reading of 2-byte data from the receive FIFO is attempted when only

1 byte is stored, an underrun error occurs and this bit is set to 1.

Reading this register clears this bit to “0”.

Caution If an underrun error occurs, the receive FIFO is no longer read and all zeros are output to the host bus interface. No interrupt request is caused by an underrun error.

Indicates the number of data items remaining in the receive FIFO. Receiver FIFO Data

Count[6:0]

User’s Manual S19262EJ3V0UM

31

CHAPTER 3 REGISTERS

3.2.14 Hardware status register 3

This additional register (HCR3: 5000_0034H (UART0), 5001_0034H (UART1), 5002_0034H (UART2)) is used to check the transmit FIFO status.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Transmitter

FIFO Overrun

Transmitter FIFO Data Count[6:0]

Reserved

Transmitter FIFO Overrun

R

R

R

15:8

7

6:0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

When data is written to the transmit FIFO when it is full or when 2byte data is written to the transmit FIFO when only 1 free byte space is available, an overrun error occurs and this bit is set to 1.

Reading this register clears this bit to “0”.

Caution If an overrun error occurs, the transmit FIFO is no longer written. No interrupt request is caused by an overrun error.

Indicates the number of data items remaining in the transmit FIFO. Transmitter FIFO Data

Count[6:0]

32

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.3.1 IR control register 0

This register (IRCR0: 5000_0040H (UART0), 5001_0040H (UART1), 5002_0040H (UART2)) controls the IrDA SIR

(2.4 to 115.2 kbps) encoder/decoder.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved

Reserved

IR_MASK_OFF

IR_RXPSEL

IR_RXEN

Reserved

IR_TXPSEL

IR_MODE

OFF

R

R/W

R/W

R/W

R/W

R/W

R/W

R/W

Bit Reset

15:8

7

6

0

0

0

5

4

3:2

1

0

0

0

0

0

0

Function

Reserved. When these bits are read, 0 is returned for each bit.

Reserved. Written data is ignored.

Specifies whether to enable masking of received data (stopping pulse detection) for echo cancellation.

0: Enables masking of received data.

1: Disables masking of received data.

Specifies the polarity of reception pulses.

0: Low

1: High

Specifies whether to enable reception.

0: Stops reception.

1: Enables reception

Reserved. Written data is ignored.

Specifies the polarity of transmission pulses.

0: Low

1: High

Specifies the operating mode.

0: UART mode

1: IR transmission/reception mode

User’s Manual S19262EJ3V0UM

33

CHAPTER 3 REGISTERS

3.3.2 IR control register 1

This register (IRCR1: 5000_0044H (UART0), 5001_0044H (UART1), 5002_0044H (UART2)) specifies the valid reception pulse width.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

PULSE_WIDTH[7:0]

Reserved

PULSE_WIDTH[7:0]

R

R/W

Bit Reset

15:8

7:0

0

02H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the valid reception pulse width.

Valid width: “Value set to this bit + 1” × 1 / f

XIN

or longer

Settable range: 02H to FFH (The settings 00H and 01H are prohibited.)

Cautions 1. The valid reception pulse width is expressed by using the following expression:

Valid reception pulse width (

s)

(PULSE_WIDTH[7:0] + 1) 1/f

XIN

(MHz)

2. Valid reception pulses are detected by sampling reception pulses based on the XIN clock cycles. When the pulse level (specified by the IR_RXPSEL bit of the IRCR0 register) is successively detected the number of times specified for this register, the pulse is modulated as a valid pulse.

Depending on the phase of the reception pulse and XIN clock, a pulse that does not satisfy the above expression might be modulated as a valid pulse. The following shows the condition under which the reception pulse is always judged to be invalid:

Invalid reception pulse width (

s) < Approx. (PULSE_WIDTH[7:0]

1) 1/f

XIN

(MHz)

Example When the PULSE_WIDTH field is set to 02H

<1> Valid reception pulse width (

 s)

 3  1/f

XIN

(MHz)

<2> Invalid reception pulse width (

 s) < 1

 1/f

XIN

(MHz)

<1>

Reception pulse <2>

XIN

34

User’s Manual S19262EJ3V0UM

CHAPTER 3 REGISTERS

3.3.3 IR control register 2

This register (IRCR2: 5000_0048H (UART0), 5001_0048H (UART1), 5002_0048H (UART2)) specifies the receive data mask period to add at the end of IR transmission.

The IRCR2, IRCR3, and IRCR4 register bits (MASK_PERIOD[19:0], 20 bits in total) are used for specification.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

MASK_PERIOD[7:0]

Reserved

MASK_PERIOD[7:0]

R

R/W

15:8

7:0

0

00H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the receive data mask period to add at the end of IR transmission. The lower 8 bits are specified.

3.3.4 IR control register 3

This register (IRCR3: 5000_004CH (UART0), 5001_004CH (UART1), 5002_004CH (UART2)) specifies the receive data mask period to add at the end of IR transmission.

The IRCR2, IRCR3, and IRCR4 register bits (MASK_PERIOD[19:0], 20 bits in total) are used for specification.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

MASK_PERIOD[15:8]

Reserved

MASK_PERIOD[15:8]

R

R/W

15:8

7:0

0

00H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the receive data mask period to add at the end of IR transmission. The middle 8 bits are specified.

User’s Manual S19262EJ3V0UM

35

CHAPTER 3 REGISTERS

3.3.5 IR control register 4

This register (IRCR4: 5000_0050H (UART0), 5001_0050H (UART1), 5002_0050H (UART2)) specifies the receive data mask period to add at the end of IR transmission.

The IRCR2, IRCR3, and IRCR4 register bits (MASK_PERIOD[19:0], 20 bits in total) are used for specification.

15 14 13 12 11 10 9 8

Reserved

7 6 5 4 3 2 1 0

Reserved MASK_PERIOD[19:16]

Reserved R

MASK_PERIOD[19:16] R/W

15:4

3:0

0

00H

Function

Reserved. When these bits are read, 0 is returned for each bit.

Specifies the receive data mask period to add at the end of IR transmission. The higher 4 bits are specified.

Caution The mask extension period is expressed by using the following equation:

Mask extension period [

s) = (MASK_PERIOD[19:0] + 2)

1/f

XIN

(MHz)

Bit time

Transmit data

Start

0 1 0 1 0 0 1 1 0

Stop

1

UARTx_SOUT

(IR_TXPSEL = 0)

Receive data masking

Mask extension period

36

User’s Manual S19262EJ3V0UM

CHAPTER 4 DESCRIPTION OF FUNCTIONS

In auto-flow mode, the connected devices are also assumed to operate in auto-flow mode. If a connected device does not stop transmission by pulling RTSZ high, an overrun error occurs.
