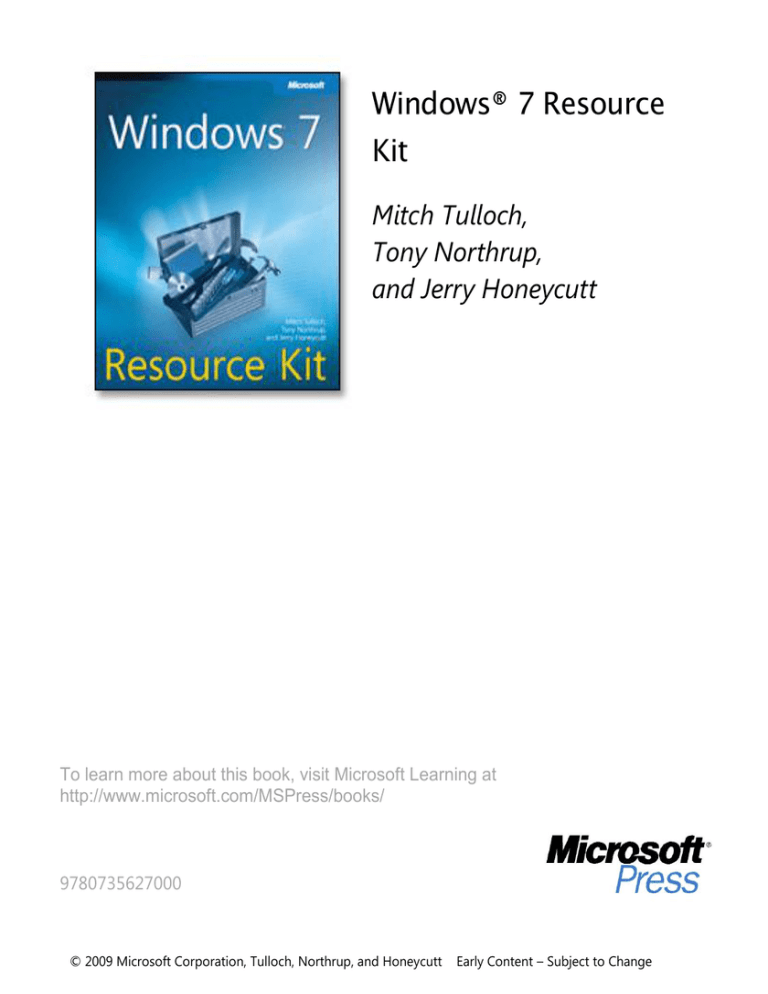

Windows® 7 Resource Kit Mitch Tulloch, Tony Northrup,

Windows® 7 Resource Kit Mitch Tulloch, Tony Northrup,

Windows® 7 Resource

Kit

Mitch Tulloch,

Tony Northrup, and Jerry Honeycutt

To learn more about this book, visit Microsoft Learning at http://www.microsoft.com/MSPress/books/

9780735627000

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Early Content – Subject to Change

Windows 7 Resource Kit Early Content – Subject to Change

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 2

Windows 7 Resource Kit

Table of Contents

Early Content – Subject to Change

Chapter 1 Overview of Windows 7 Architecture

Chapter 2 Security in Windows 7

Chapter 3 Deployment Platform

Chapter 4 Planning Deployment

Chapter 5 Testing Application Compatibility

Chapter 6 Developing Disk Images

Chapter 7 Migrating User State Data

Chapter 8 Deploying Applications

Chapter 9 Preparing Windows PE

Chapter 10 Configuring Windows Deployment Services

Chapter 11 Using Volume Activation

Chapter 12 Deploying with Microsoft Deployment Toolkit

Chapter 13 Overview of Management Tools

Chapter 14 Managing the Desktop Environment

Chapter 15 Managing Users and User Data

Chapter 16 Managing Disks and File Systems

Chapter 17 Managing Devices and Services

Chapter 18 Managing File Sharing

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 3

Windows 7 Resource Kit

Chapter 19 Managing Printing

Early Content – Subject to Change

Chapter 20 Managing Search

Chapter 21 Managing Internet Explorer

Chapter 22 Maintaining Desktop Health

Chapter 23 Support Users with Remote Assistance

Chapter 24 Managing Software Updates

Chapter 25 Managing Client Protection

Chapter 26 Configuring Windows Networking

Chapter 27 Configuring Windows Firewall and IPsec

Chapter 28 Connecting Remote Users and Networks

Chapter 29 Deploying IPv6

Chapter 30 Configuring Startup and Troubleshooting Startup

Issues

Chapter 31 Troubleshooting Hardware, Driver, and Disk Issues

Chapter 32 Troubleshooting Network Issues

Chapter 33 Troubleshooting Stop Messages

Appendix A Accessibility Features in Windows 7

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 4

Windows 7 Resource Kit

C H A P T E R 2 3

Early Content – Subject to Change

Supporting Users Using

Remote Assistance

Remote Assistance in Windows Vista included improvements in connectivity, performance, usability, and security along with feature enhancements that make it even more useful than

Remote Assistance in Windows XP. Windows 7 builds upon these earlier improvements with

Easy Connect, a new feature of Remote Assistance in Windows 7 that makes it easier than ever for novice users to request help from expert users and for experts to offer help to novices. With increased Group Policy support, command-line scripting capabilities, session logging, bandwidth optimization, and more, Remote Assistance is now an essential tool for enabling enterprises to support users in Help Desk scenarios. This chapter examines how

Remote Assistance works in Windows 7, how to use it to support end users, and how to manage it using Group Policy and scripts.

Understanding Remote Assistance

Supporting end users is an essential function of IT departments and the corporate Help Desk.

Unfortunately, conventional technical support provided over the telephone or using chat tools is generally cumbersome and inefficient. As a result, supporting users is often both timeconsuming and costly for large enterprises to implement. For example, end users often have difficulty describing the exact nature of the problem they are having. Because of their general inexperience and lack of technical knowledge, end users may try to describe their problem using nontechnical, inexact language. As a result, Help Desk personnel are generally reduced to asking a series of simple questions to try to isolate the problem the user is having. The methodical nature of these questions sometimes causes users to feel as if Help Desk personnel are being condescending, and such misunderstandings can reduce the effectiveness of the support experience and can make users tend to avoid contacting support personnel when future problems arise.

End users also often have difficulty following instructions given to them by Help Desk personnel who are trying to assist them. Well-trained support personnel will try to avoid using technical jargon when communicating with end users, but although using plain language can improve the support experience, it may also mean that resolution steps become long and tiresome. For example, telling a user how to use Disk Cleanup from System Tools in

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 5

Windows 7 Resource Kit Early Content – Subject to Change

Accessories can require several sentences or more, and this kind of communication can add time to support incidents, making them more costly to the company.

Remote Assistance (RA) solves these problems by enabling support personnel to view the user’s desktop in real time. The user seeking assistance can demonstrate the nature of the problem to the support person. This is a quicker and more efficient way to communicate a problem than using words or e-mail. If necessary, the user can also give the support person permission to assume shared interactive control of the user’s computer to show the user how to resolve the problem. The result of using Remote Assistance is faster problem resolution, an improved support experience, and a lower Total Cost of Ownership (TCO) for supporting end users in large, corporate environments.

Remote Assistance vs. Remote Desktop

Remote Assistance and Remote Desktop are different features of Windows 7 that have entirely different uses. Remote Desktop is based on Microsoft Terminal

Services and is a tool for remotely logging on to remote computers. When you use

Remote Desktop to connect to a remote computer, a new user session is established.

Remote Desktop can also establish sessions with computers that have no interactive sessions running (no users logged on locally), such as headless servers. For more information on Remote Desktop, see Chapter 28, ―Connecting Remote Users and

Networks.‖

Remote Assistance, on the other hand, is a tool for interactively helping users troubleshoot problems with their computers. To use Remote Assistance, both the

User (also called the Novice) and the Helper must be present on their computers.

Unlike Remote Desktop, Remote Assistance does not create a new session. Instead,

Remote Assistance allows the Helper to work in the existing session of the User. The

User’s desktop gets remoted to the Helper, who can then view the User’s desktop and, with the User’s consent, share control of the desktop.

Here is another way to summarize the difference between these two features: In

Remote Assistance, both users involved are looking at the same desktop using the same logon credentials (those of the interactively logged-on User) and can share control of that desktop; in Remote Desktop, when the remote person logs on, the interactively logged-on user (if one exists) is logged out.

Improvements to Remote Assistance in Windows 7

Remote Assistance in Windows 7 builds upon the many enhancements introduced earlier for this feature in Windows Vista. These earlier enhancements improved upon the earlier

Windows XP implementation of Remote Assistance and included:

Connectivity improvements with transparent NAT traversal using Teredo and IPv6.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 6

Windows 7 Resource Kit Early Content – Subject to Change

An improved user interface that is easier to launch and use

A standalone executable (Msra.exe) that accepts command-line arguments and can easily be scripted

 Improved overall performance with a smaller footprint, quicker startup and connect times, and optimized bandwidth usage for screen updates

Enhanced security with mandatory password and integration with UAC

New Offer RA via IM scenario and an open API for integration with peer-to-peer applications

 Additional Group Policy settings for improved manageability

In addition to these Windows Vista enhancements for Remote Assistance, Windows 7 adds the following new enhancements to Remote Assistance:

 Easy Connect, a new method for soliciting RA that uses the peer-to-peer collaboration infrastructure to simplify RA user interactions.

 An improved RA connection wizard that makes it easier than ever for users to solicit or offer help.

New command-line arguments for the RA executable (Msra.exe)

Remote Assistance in Windows 7 and Vista deprecate the following features that were available on Windows XP:

 No more support for the MAILTO method of solicited Remote Assistance

 No more support for voice sessions

For information on interoperability between the Windows XP, Windows Vista and Windows

7 versions of Remote Assistance, see the section titled ―Interoperability with Remote

Assistance in Windows XP‖ later in this chapter.

How Remote Assistance Works

In Remote Assistance, the person needing help is referred to as the User (or Novice), and the support person providing assistance is called the Helper (or Expert). You launch RA from the

Start menu by navigating to All Programs, clicking Maintenance, and then selecting Windows

Remote Assistance. You can also launch RA from a command prompt by typing msra.exe.

Remote Assistance has two basic modes of operation:

 Solicited RA In Solicited RA (also known as Escalated RA) the User requests assistance from the Helper by initiating the RA session using e-mail, instant messaging, or by providing the Helper with a saved copy of an invitation file

(*.MsRcIncident). Each of these methods uses a different underlying mechanism:

Solicited RA using e-mail This method requires that the e-mail clients being used by the User support Simple Mail Application Programming Interface (SMAPI).

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 7

Windows 7 Resource Kit Early Content – Subject to Change

Examples of SMAPI-compliant e-mail clients include Windows Mail, which was included in Windows Vista, and Microsoft Office Outlook 2007. Windows 7 does not have a built-in e-mail SMAPI-compliant client, but you can install Windows

Live Mail, which is available for download as part of the Windows Live Essentials suite of applications (see http://get.live.com). Web-based email services such as

Windows Live Hotmail are not SMAPI-compliant and cannot be used for soliciting or offering RA using e-mail. In this approach, the User launches the RA user interface to create an e-mail message that has an RA invitation file

(*.MsRcIncident) attached to the message. The User must specify a password for the RA session, which must be communicated to the Helper using an out-of-band

(OOB) method such as calling the Helper on the telephone. When the Helper receives the User’s RA invitation, she opens the attached ticket, enters the password that was conveyed by the User, and the RA session starts. The Helper must respond to the invitation from the User within a specified time limit (the default is 6 hours), or the invitation will expire and a new one will need to be sent.

In a domain environment, this ticket lifetime can also be configured using Group

Policy. See the section titled ―Managing Remote Assistance Using Group Policy‖ later in this chapter.

Solicited RA using file transfer This method requires that both the User and

Helper have access to a common folder (such as a network share on a file server), or that they use some other method for transferring the file (for example, by using a USB key to manually transfer the file or by uploading the file to an FTP site). The user creates an RA invitation file and saves it in the shared folder. The User must provide a password that must be communicated to the Helper using an out-ofband (OOB) method such as a telephone call. The Helper retrieves the ticket from the shared folder, opens it, enters the password, and the RA session starts. Again, the Helper must respond to the invitation within a specified time, or the invitation will expire and a new one will be needed. (The expiration time is configurable through Group Policy.)

Solicited RA using Instant Messaging This method for soliciting assistance requires that the instant messaging (IM) applications being used by both the User and the Helper support the new Microsoft Rendezvous API. An example of an IM application that supports the Rendezvous API is Windows Live Messenger, which is available for download as part of the Windows Live Essentials suite of applications

(see http://get.live.com). In this approach, the User requests assistance from someone on his buddy list. To ensure that the remote person is really the User’s buddy (and not someone masquerading as the buddy), Remote Assistance requires that a password be relayed from the User to the Helper by other means

(such as a phone call) before the Helper can connect. For more information on the

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 8

Windows 7 Resource Kit Early Content – Subject to Change

Rendezvous API, see the Windows SDK on MSDN at

http://msdn2.microsoft.com/en-us/library/aa359213(vs.85).aspx.

Solicited RA using Easy Connect This method for soliciting assistance is new in

Windows 7 and uses Peer Name Resolution Protocol (PNRP) to enable direct peerto-peer transfer of the RA invitation using the cloud. To establish the initial RA session, the User only needs to communicate a password to the Helper using an

OOB method such as by telephone. The Helper uses this password to obtain the

RA invitation from the cloud and initiate the session. Once the initial RA connection has been made, a trust relationship is established between the Helper and the User. This trust relationship is established through the exchange of contact and certificate information. Subsequent interactions are simplified since the contact information can be used to pick a Helper who is currently available.

For more information on this method for soliciting assistance, see the section titled "Scenario 1: Soliciting Remote Assistance Using Easy Connect" later in this chapter. For information on how Easy Connect works, see the sidebar titled "Direct from the Source: How Easy Connect Works" later in this chapter. For information on how PNRP works, see the sidebar titled "How it Works: PNRP and Microsoft

P2P Collaboration Services" later in this chapter.

How It Works: RA Invitation Files

Remote Assistance invitation files (.MsRcIncident) are XML-formatted file documents that include information used by the Helper’s computer that will attempt to connect.

This ticket information is encrypted to prevent unauthorized users from accessing the information if e-mail or file transfer is used to send the invitation over an unsecured network.

If the e-mail method is used to send the invitation file to the Helper, the invitation file is sent as an e-mail attachment with a filename of RATicket.MsRcIncident. If the file transfer method is used instead, the invitation file is created by default on the desktop of the User’s computer, and the filename of the invitation is Invitation.MsRcIncident.

Unsolicited RA In Unsolicited RA (also known as Offer RA), the Helper offers help to the User by initiating the RA session.

Offer RA using DCOM This is a typical corporate Help Desk scenario in which all the users are in a domain. The Helper enters either the fully qualified domain name (FQDN) or IP address of the User’s computer to connect to the User’s computer. This method requires that the Helper has been previously authorized a domain administrator to be able to offer Remote Assistance to the Users. (For information on how to authorize Helpers for offering RA, see the section titled

―Managing Remote Assistance Using Group Policy‖ later in this chapter.) This

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 9

Windows 7 Resource Kit Early Content – Subject to Change method also requires that the Helper either knows the name (the host name on a local subnet; the fully qualified name otherwise) or address (IPv4 or IPv6) of the

User’s computer.

Offer RA using Instant Messaging This method for offering assistance requires that the instant messaging (IM) applications being used by both the User and the

Helper support the Rendezvous API. In this approach, the Helper offers assistance to someone on her buddy list. If the buddy agrees, he must enter a password to be used by the Helper. The password must be relayed by an OOB mechanism to ensure that the remote person is really the User’s buddy (and not someone masquerading as the buddy). For more information on the Rendezvous API, see the Windows SDK on MSDN at http://msdn2.microsoft.com/en-

us/library/aa359213(vs.85).aspx.

How it Works: PNRP and Microsoft P2P Collaboration Services

The Microsoft P2P network and collaboration technologies are designed to enable the next generation of peer-to-peer scenarios, including shared workspaces, distributed computing, and even load balancing. These P2P technologies allow users to securely communicate and share information with each other without requiring a central server to be involved. Because P2P technologies are designed to work in networking environments with transient connectivity

—such as an ad hoc wireless network established between several laptops at a coffee shop

—they cannot rely on the server-based Domain Name System (DNS) to perform name resolution between peers. Instead, P2P name resolution is based on the Peer Name Resolution Protocol

(PNRP), a mechanism for distributed, serverless name resolution of peers in a P2P network.

PNRP works by utilizing multiple groupings of computers called clouds. These clouds correspond to two different scopes of IPv6 addresses:

Global clouds

Any given computer will be connected to a single Global cloud. For computers with IPv6 Internet connectivity, the Global cloud is Internet-wide. In networks where computers do not have IPv6 Internet connectivity, but still have Global

IPv6 addresses (such as firewalled corporate environments), the Global cloud is network-wide.

Link-local clouds

One or more clouds, each corresponding to nodes within the same subnet or network link (link-local addresses and the link-local address scope).

Peer names in PNRP are static identifiers of endpoints that can be resolved to changing IP addresses, enabling P2P communications. Peer names can be computers, users, devices, groups, services, or anything that can be identified by an

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 10

Windows 7 Resource Kit Early Content – Subject to Change

IPv6 address and port. Peer names are represented by identifiers (IDs) that are 32 bytes long and can be either unsecured (names that can be spoofed) or secured

(names that cannot be spoofed because they are derived from a public/private key pair owned by the publisher).

The underlying name resolution functions on PNRP IDs within a cloud are stored in a distributed fashion in a cache on each peer within the cloud, with each peer’s cache containing only a portion of the names for all the peers in the cloud. When a peer (the issuing peer) wants to resolve the name of another peer (the targeted peer) to its published address and port number, it follows these steps:

1. The issuing peer first consults its own PNRP cache for this information. If it finds this information, it sends a PNRP Request message to the targeted peer and waits for a response. These Request messages serve the function of enabling peers to communicate to other peers their active involvement within the cloud.

2. If the issuing peer does not find this information, it sends the Request message to the peer whose ID most closely matches (is closest numerically to) that of the targeted peer. The peer that receives this message then consults its own cache. If it finds a closer match or the match itself, it returns this information to the requesting peer. The requesting peer then goes to the returned peer and the process continues until the resolution succeeds or fails.

3. If the peer that receives this message does not find closer information in its cache, it returns the message to the issuing peer, indicating that it does not know the targeted peer. The issuing peer then repeats the previous step by sending a message to the peer whose ID next most closely matches that of the targeted peer. This process continues until the targeted peer is found (if present on the network) or not found (is no longer present within the cloud).

Looping is prevented by including in the Request message the list of peers that have already forwarded requests.

For more information on how PRNP and other Microsoft P2P technologies work, see

http://technet.microsoft.com/en-us/library/bb742623.aspx on Microsoft TechNet.

Remote Assistance Operational States

Remote Assistance has three operational states:

Waiting For Connect This state occurs when either:

The Helper has offered RA to the User, but the User has not yet agreed to allow the Helper to connect to his computer.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 11

Windows 7 Resource Kit Early Content – Subject to Change

The User has sent the Helper an invitation but the Helper has not yet responded by opening the invitation, or the Helper has opened the invitation and the User has not yet agreed to allow the Helper to connect to his computer.

In the Waiting For Connect state, the Helper cannot view or control the screen of the

User’s computer until an RA connection has been established and both computers have entered the Screen Sharing state. After the RA application has been started and is running in the Waiting For Connect state, the application should not be closed until the other party responds and establishes the connection. For example, if the

User uses the Solicit RA Using E-mail method and sends an invitation file to a Helper, the RA application opens on the User’s computer and waits for the Helper to accept the invitation. If the User closes RA on her computer before the Helper accepts the invitation, the Helper will not be able to connect to the User’s computer and the

User will need to send a new invitation.

 Screen Sharing This state occurs when the User has consented to allow the Helper to connect to his computer—either after the User has sent the Helper an invitation or the Helper has offered RA to the User. In the Screen Sharing state, an RA session has been established and the Helper can view—but not control—the screen of the

User’s computer.

When the User is prompted for consent to allow the Helper to connect to his computer, a warning message appears on the User’s computer saying that the

Helper wants to connect to his computer. This warning message is customizable using Group Policy. See the section titled ―Managing Remote Assistance Using

Group Policy‖ later in this chapter for more information.

Control Sharing This state occurs after the Screen Sharing state, when the Helper has requested control of the User’s computer and the User has consented to allow the Helper to have shared control of his computer. In the Control Sharing state, the

Helper has the same level of access to the User’s computer that the User has, and the Helper can use his own mouse and keyboard to remotely perform actions on the

User’s computer. Specifically:

If the User is a standard user on his computer, the Helper will be able to perform only those actions on the User’s computer that can be performed by a standard user on that computer.

If the User is a local administrator on his computer, the Helper will be able to perform any actions on the User’s computer that can be performed by a local administrator on that computer.

For more information on the level of control that a Helper has on a User’s computer, see the section titled ―Remote Assistance and the Secure Desktop‖ later in this chapter.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 12

Windows 7 Resource Kit Early Content – Subject to Change

User vs. Helper Functionality

After an RA connection has been established and both computers have entered the Screen

Sharing state, the User and Helper are able to perform the tasks listed in Table 23-1.

Table 23-1

Tasks That Can Be Performed by User and Helper During an RA Session

DESCRIPTION OF TASK

Chat

Send files

Save a log of session activity

Configure bandwidth usage

Pause (temporarily hide screen)

Request shared control

Give up shared control

Disconnect

Disconnect using Esc key

USER?

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes (default)

Yes

HELPER?

No

Yes

Yes

Yes

No

Yes

Yes

Yes (default)

No

Remote Assistance and NAT Traversal

Remote Assistance works by establishing a peer-to-peer connection between the User’s computer and the Helper’s computer. One challenge this poses is that it can be difficult to establish peer-to-peer connections if one or both of the computers involved are behind a gateway or router that uses Network Address Translation (NAT). NAT is an IP routing technology described by RFC 1631 that is used to translate IP addresses and TCP/UDP port numbers of packets being forwarded. NAT is typically used to map a set of private IP addresses to a single public IP address (or to multiple public addresses). Home networks using a wireless or wired router also use NAT technology.

To overcome this difficulty, Windows 7 and Windows Vista include built-in support for

Teredo, an IPv6 transition technology described in RFC 4380 that provides address assignment and automatic tunneling for unicast IPv6 connectivity across the IPv4 Internet. The

NAT traversal capability provided by Teredo in Windows 7 and Windows Vista allows RA connectivity when one or both of the users involved in an RA session are hidden behind a

NAT. The RA experience is transparent from the perspective of the users involved, regardless of whether or not NAT is being used on either user’s network. For most small business and home user environments, RA in Windows 7 and Windows Vista will seamlessly traverse a NATenabled router with no additional router configuration required. For information on

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 13

Windows 7 Resource Kit Early Content – Subject to Change enterprises that need to remotely support users who work from home, see the section titled

―Other Possible Remote Assistance Usage Scenarios‖ later in this chapter.

Note Offering RA using DCOM is not usually a Teredo scenario, because enterprise users are behind a corporate firewall and are not separated from each other by

NATs.

Remote Assistance will not connect in certain configurations. Specifically:

Teredo cannot traverse a symmetric NAT. Remote Assistance can connect only across restricted NATs and cone NATs. In most cases, this is not a significant limitation, because the large majority of deployed NATs are either the restricted or cone variety. For more information on NAT traversal support in Windows 7, see

Chapter 29, ―Deploying IPv6.‖

RA will not work if the NAT-enabled router is configured to block the specific ports used by RA. See the section titled ―Remote Assistance and Windows Firewall‖ later in this chapter for more information.

Remote Assistance will not work if the user’s NAT-enabled router is configured to block all UDP traffic.

Note To determine the type of NAT a network is using, open an elevated command prompt and type netsh interface teredo show state.

For more information on IPv6 support in Windows 7, including built-in client support for

Teredo and other IPv6 transition technologies, see Chapter 29.

To verify whether your NAT supports Remote Assistance, you can use the Internet

Connectivity Evaluation Tool at

http://www.microsoft.com/windows/using/tools/igd/default.mspx. If your NAT supports

Universal Plug and Play (UPnP), then RA should be able to get a global IPv4 address that allows anyone to connect to you. If your NAT supports Teredo/IPv6 and you are running

Windows 7 or Windows Vista, then an RA helper that is running Windows 7 or Windows Vista and is Teredo enabled should be able to connect to you.

Remote Assistance and IP Ports Used

The ports used by a Remote Assistance session depend on which version of Windows is running on the two computers involved in the session. Specifically:

 Windows 7 to Windows 7, Windows 7 to Windows Vista, or Windows Vista to

Windows Vista Dynamic ports allocated by the system in the range TCP/UDP

49152–65535

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 14

Windows 7 Resource Kit Early Content – Subject to Change

Windows 7 to XP or Windows Vista to Windows XP Port 3389 TCP (local/remote)

In addition, the Offer RA via DCOM scenario uses Port 135 (TCP).

Note If you are concerned about opening the DCOM port (TCP port 135) on your corporate firewall and want to avoid doing this but still be able to offer RA to remote users, you can do so by using Authenticated IPsec Bypass as described in http://technet2.microsoft.com/windowsserver/en/library/0e79765c-beb2-4e5e-

8a74-ea7d07598f821033.mspx?mfr=true .

Remote Assistance and Windows Firewall

The Windows Firewall is configured with a group exception for Remote Assistance. This group exception has multiple properties that are grouped together as part of the RA exception. The

RA exception properties will change depending on the network location of the computer

(private, public, or domain). For example, the default RA exception when the computer is in a public location is stricter than when the computer is in a private location. In a public location

(such as an airport), the RA exception is disabled by default and does not open ports for

Universal Plug-and-Play (UPnP) and Simple Service Discovery Protocol (SSDP) traffic. In a private network (a home or work network, for example) the RA exception is enabled by default and uPnP and SSDP traffic is permitted. In a domain-based enterprise environment, the RA exception is typically managed using Group Policy and is enabled by default in

Windows 7 (it was disabled by default in Windows Vista).

The default configuration of the Remote Assistance exception in Windows Firewall varies depending on the firewall profile. Specifically:

Private profile The RA exception in the Windows Firewall is enabled by default when the computer location is set to Private. It is configured for NAT traversal using

Teredo by default so that users in a private networking environment (for example, the home environment) can solicit help from other users who may also be behind

NATs. The private profile includes the appropriate exceptions needed to allow communication with uPnP NAT devices. If a uPnP NAT is in this environment, Remote

Assistance will attempt to use the uPnP for NAT traversal. Offer RA via DCOM is not configured in this profile.

Public profile The RA exception is disabled by default and no inbound RA traffic is permitted. Windows Firewall is configured this way by default to better protect users in a public networking environment (such as a coffee shop or airport terminal). When the RA exception is enabled, NAT traversal using Teredo is enabled. However, traffic to uPnP devices is not enabled, and Offer RA via DCOM is not enabled.

Domain Profile The RA exception when the computer is in a domain environment is geared toward the Offer RA scenario. This exception is enabled by default in

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 15

Windows 7 Resource Kit Early Content – Subject to Change

Windows 7 and is typically managed via Group Policy. Teredo is not enabled in this profile because corporate networks typically have a corporate firewall that blocks

Teredo UDP traffic. However, uPnP is enabled so that uPnP NATs can be communicated with.

Table 23-2 summarizes the state of the Remote Assistance firewall inbound exception for each type of network location. The RA exception has outbound properties as well; however, by default outbound exceptions are not enabled in Windows Firewall.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 16

Windows 7 Resource Kit Early Content – Subject to Change

Table 23-2 Default State of Remote Assistance Firewall Inbound Exception for Each Type of Network Location

NETWORK LOCATION

Private (Home or

Work)

Public

Domain

STATE OF RA

EXCEPTION

Enabled by default

Disabled by default— must be enabled by user with Admin credentials

Enabled by default in

Windows 7; disabled by default in

Windows Vista

DEFAULT PROPERTIES OF THE RA

EXCEPTION

Msra.exe application exception

 uPnP enabled for communications with uPnP NATs

 Edge traversal enabled to support

Teredo

 Msra.exe application exception

 Edge traversal enabled to support

Teredo

 Msra.exe application exception

 RAServer.exe (the RA COM server) application exception

DCOM Port 135

 uPnP enabled for communications with uPnP NATs

Remote Assistance and the Secure Desktop

When a User consents to having a Helper share control of her computer during a Remote

Assistance session, the User has the option of allowing the Helper to respond to UAC prompts

(Figure 23-1). Typically, User Account Control (UAC) prompts appear on the Secure Desktop

(which is not remoted), and consequently the Helper cannot see or respond to Secure

Desktop prompts. The Secure Desktop mode is the same mode that a user sees when she logs on to her computer or presses the Secure Attention Sequence (SAS) keystroke

(Ctrl+Alt+Delete). UAC elevation prompts are displayed on the Secure Desktop instead of the user’s normal desktop to protect the user from unknowingly allowing malware to run with elevated privileges on her computer. The user must provide consent to a UAC prompt to return to her normal desktop and continue working. This consent requires either clicking

Continue (if the user is a local administrator on her computer) or by entering local administrative credentials (if she is a Standard user on her computer).

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 17

Windows 7 Resource Kit Early Content – Subject to Change

Figure 23-1 The User has the option of allowing the Helper to respond to UAC prompts when the RA session is in Control Sharing State.

It is important to understand that the Secure Desktop on the User’s computer is not remoted to the Helper’s computer. In other words, the Helper can only respond to UAC prompts on the User’s computer using the User’s own credentials. This means that if the User is a Standard user on her computer and the Helper is a local administrator on the User’s computer, the Helper can only have administrative privileges on the User’s computer if the

User can first supply those credentials.

Enforcing this limitation is essential to ensure the security of Windows 7 desktops. The reason behind this design decision is that if RA was architected to allow the Helper to remotely elevate the User’s privileges, the User would be able to terminate the RA session and thus steal local administrative credentials from the Helper.

Remote Assistance Logging

Remote Assistance can generate a session log of RA-associated activity. Session logging is enabled by default and consists of time stamped records that identify RA-related activities on each computer. Session logs only contain information about activities that specifically relate to RA functionality, such as who initiated the session, if consent was given to a request for shared control, and so on.

Session logs do not contain information on actual tasks that the User or Helper performed during a session. For example, if the Helper is given Shared Control privileges, starts an Admin command prompt, and performs steps to reconfigure the TCP/IP configuration on the User’s computer during an RA session, the session logs will not contain a record of this action.

Session logs do include any chat activity performed during an RA session. The log generated during a session is also displayed within the chat window so that both the User and the Helper can see what is being logged during the session. Session logs also include any file transfer activity that occurs during the session, and they also record when the session has been paused.

PURPOSE OF RA SESSION LOGGING

Session logs for RA are mainly intended for enterprises that are required to maintain records of system and user activity for record-keeping purposes. They are not intended as a way to record every action performed by Help Desk personnel when troubleshooting problems with users’ computers. A typical environment in which session logging might be required would be

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 18

Windows 7 Resource Kit Early Content – Subject to Change in a banking environment, where a financial institution is required by law to maintain records of who accessed a computer and at what time.

Because the ACLs on these session logs grant the User full control over logs stored on her own computer, by default, session logs are generated on both the User’s computer and

Helper’s computer so that the Helper can archive them and protect them from tampering. The logs created on each side of an RA session are similar but not identical. This is because session logs are generated from the perspective of the computer involved—whether the

User’s computer or the Helper’s computer—and therefore complement each other instead of being identical.

In an enterprise environment, Group Policy can be used to enable or disable session logging. If session logging is not configured using Group Policy, both the User and Helper are free to disable session logging on their own computers. For more information, see the section titled ―Managing Remote Assistance Using Group Policy‖ later in this chapter.

SESSION LOG PATH AND NAMING CONVENTION

Session logs are XML-formatted documents so that they can be easily integrated into other data sets—for example, by importing them into a database managed by Microsoft SQL Server

2005. All session logs are stored under each user’s Documents folder within the following path:

Users\user_name\Documents\Remote Assistance Logs

A unique session log file is created for each RA session on the computer. Log files stored within this folder are formatted using XML and are named using the convention

YYYYMMDDHHMMSS.xml, where the time format is 24-hour. For example, a session log created at 3:45:20 P.M. on August 13, 2006, would be named 20060813154520.xml.

The XML content of a typical session log looks like this:

<?xml version="1.0" ?>

<SESSION>

<INVITATION_OPENED TIME="3:24 PM" DATE="Wednesday, May 07, 2008" EVENT="A Remote

Assistance invitation has been opened." />

<INCOMING_IP_ADDRESS TIME="3:26 PM" DATE="Wednesday, May 07, 2008">fe80::2856:e5b0: fc18:143b%10</INCOMING_IP_ADDRESS>

<CONNECTION_ESTABLISHED TIME="3:26 PM" DATE="Wednesday, May 07, 2008" EVENT="A Remote

Assistance connection has been established.">jdow</CONNECTION_ESTABLISHED>

<EXPERT_REQUEST_CONTROL TIME="3:27 PM" DATE="Wednesday, May 07, 2008" EVENT="jdow has requested to share control of the computer." />

<EXPERT_GRANTED_CONTROL TIME="3:27 PM" DATE="Wednesday, May 07, 2008" EVENT="jdow has been granted permission to share control of the computer." />

<EXPERT_CONTROL_STARTED TIME="3:27 PM" DATE="Wednesday, May 07, 2008" EVENT="jdow is sharing control of the computer." />

<EXPERT_CONTROL_ENDED TIME="3:27 PM" DATE="Wednesday, May 07, 2008" EVENT="jdow is not

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 19

Windows 7 Resource Kit sharing control of the computer." />

Early Content – Subject to Change

<CHAT_MESSAGE TIME="3:30 PM" DATE="Wednesday, May 07, 2008">jdow: test</CHAT_MESSAGE>

<CHAT_MESSAGE TIME="3:30 PM" DATE="Wednesday, May 07, 2008">jchen: ok</CHAT_MESSAGE>

<CONNECTION_ENDED TIME="3:30 PM" DATE="Wednesday, May 07, 2008" EVENT="The Remote

Assistance connection has ended." />

<INVITATION_CLOSED TIME="3:30 PM" DATE="Wednesday, May 07, 2008" EVENT="A Remote

Assistance invitation has been closed." />

</SESSION>

Using Remote Assistance in the Enterprise

The main Remote Assistance scenario within a corporate networking environment is supporting desktop computers that are on the corporate network and joined to a domain.

Users’ computers must be configured appropriately before they can be offered RA. This is done via Group Policy, as explained in the section titled ―Managing Remote Assistance Using

Group Policy‖ later in this chapter. Additionally, the Remote Assistance exception in the

Windows Firewall must be enabled. For more information, see the section titled ―Remote

Assistance and Windows Firewall‖ earlier in this chapter.

Because most corporate networks have a perimeter firewall blocking access from outside the internal network, supporting remote users who are connecting from outside the corporate network can be more difficult. However, most enterprises now use virtual private network

(VPN) technologies to allow remote users to connect to their corporate networks over the

Internet, and this kind of scenario generally poses no problem to RA functionality.

Using Remote Assistance in the Corporate Help Desk Environment

The standard approach to using Remote Assistance in an enterprise environment is for Help

Desk personnel to offer Remote Assistance to users who telephone in to request assistance. A typical scenario might be as follows:

1. User Jane Dow (the User) is having problems configuring an application on her computer. She phones Help Desk, explains her problem briefly, and asks for help.

2. A Help Desk person named Jacky Chen (the Helper) asks Jane for the fully qualified name or IP address of her computer. She responds with the information, which she can get from computer properties or by running ipconfig.

3. Jacky starts Remote Assistance on his computer and uses the Offer RA feature to offer help to Jane. This causes a dialog box to appear on Jane’s computer, asking her if she would like to allow Jacky to connect to her computer.

4. Jane accepts the offer, and at this point Jane’s desktop may temporarily change to conserve network bandwidth used by the Remote Assistance session. The Remote

Assistance window that opens on Jane’s screen tells her that she is being helped by

Jacky.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 20

Windows 7 Resource Kit Early Content – Subject to Change

5. At this point, Jacky can see Jane’s screen, but he can’t control it. Jane then explains the problem she is having, either by using the Chat feature of Remote Assistance, or more likely over the telephone. Jacky asks Jane to perform a series of steps to correct the problem and watches her screen in his own Remote Assistance window as she does this.

6. If the instructions Jacky provides are too complex or if time is limited, Jacky can ask

Jane if he can share control of her computer. If Jane agrees, Jacky clicks the Request

Control button at the top of his Remote Assistance window. A dialog box appears on

Jane’s desktop asking her if she wants to allow Jacky to share control of her desktop.

Jane accepts the prompt and also selects the option to allow Jacky to respond to User

Account Control (UAC) prompts on Jane’s computer.

7. Jacky is now connected to Jane’s computer using Jane’s credentials, and he can both view her screen and interact with it using his own mouse and keyboard. Jacky then proceeds to perform the steps needed to resolve the problem, either correcting the issue or demonstrating to Jane how to fix the problem if it occurs again in the future. If at any time Jane wants to force Jacky to relinquish control of her computer, she can click the Stop Sharing button or the Disconnect button, or she can press the Panic key

(Esc).

Note

Offer RA needs preconfiguration of the User’s computer via Group Policy. See the section titled ―Managing Remote Assistance Using Group Policy‖ later in this chapter for more information.

Other Possible Remote Assistance Usage Scenarios

Other types of Remote Assistance scenarios are also possible for businesses ranging from large enterprises to Small Office/Home Office (SOHO) environments. Examples of possible usage scenarios include:

 A user who is having a problem with configuring an application on her computer can phone Help Desk for assistance. A support person can then use Offer RA to connect to the user’s computer, ask for control of her screen, and show the user how to configure her application. This scenario is the standard one for enterprise Help Desk environments and is described in more detail in the section titled ―Using Remote

Assistance in the Corporate Help Desk Environment‖ later in this chapter.

 A user who is having trouble installing a printer sends an RA invitation to Help Desk using Windows Mail. A support person who is monitoring the Help Desk e-mail alias reads the message, opens the attached invitation file, and connects to the user’s computer. The support person asks for control of the user’s computer and walks him through the steps of installing the printer.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 21

Windows 7 Resource Kit Early Content – Subject to Change

A user is on the road and is connected to the internal corporate network using a

VPN connection over the Internet. The user is having problems configuring Windows

Mail on her computer, so she opens Windows Live Messenger and notices that someone she knows in Corporate Support is currently online. She sends an RA invitation to the support person using Windows Live Messenger, and that person responds to the invitation, asks for control, and shows the user how to configure

Windows Mail.

A user who is having problems installing an application uses Easy Connect to request help from a support technician. Because this is the first time he has requested help from this particular support technician, the user must communicate the password for the session to the support technician using an out-of-band method such as making a telephone call. The next time the user needs help however, he won't have to provide a password because of the trust relationship that was established during the first RA session between them.

The preceding list is not intended to be complete—other corporate support scenarios using RA are possible. Generally speaking, however, corporate environments will use Offer RA to provide assistance to users who phone Help Desk when they have problems. Some enterprises may also allow users to submit RA invitations either via e-mail or by saving invitation files to network shares that are monitored by support personnel. Others may use instant messaging applications that support Remote Assistance within the corpnet.

Note Helpers can have multiple RA sessions open simultaneously—one session for each User they are supporting. However, Users can have only one RA session in the

Waiting For Connect state. The invitation that was created could be sent to multiple recipients—any of whom may connect. All subsequent connect attempts will be blocked until the first helper disconnects, after which another helper may connect.

If the user disconnects the session, the RA application terminates and no further connections will be allowed.

Interoperability with Remote Assistance in Windows

Vista

Remote Assistance in Windows 7 is fully backward-compatible with Remote Assistance in

Windows Vista, with the exception that Windows Vista does not support the new Easy

Connect method for soliciting RA found in Windows 7. This means that a User on a Windows

Vista computer cannot use Easy Connect to solicit RA from a Helper on a Windows 7 computer, and a User on a Windows 7 computer cannot use Easy Connect solicit RA from a

Helper on a Windows Vista computer.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 22

Windows 7 Resource Kit Early Content – Subject to Change

Interoperability with Remote Assistance in Windows XP

Remote Assistance in Windows 7 is backward-compatible with Remote Assistance in

Windows XP, with the following limitations:

Offer RA from Windows 7 to Windows XP is supported, but Offer RA from

Windows XP to Windows 7 is not supported. This means that enterprises who want to implement Offer RA as a support solution for their Help Desk departments should ensure that computers used by support personnel who will help users running

Windows 7 are themselves running Windows 7 (and not Windows XP).

NAT traversal using Teredo and IPv6 is supported on Windows 7 to Windows 7 RA only, and not on Windows 7 to Windows XP.

 Voice support for RA in Windows XP is not supported by RA in Windows 7, and any attempt by a User on an Windows XP computer to use this feature during an RA session with a Helper on a Windows 7 computer will cause a notification message regarding this limitation to appear.

The MAILTO method of soliciting assistance that is supported by RA in Windows XP is not supported by RA in Windows 7.

 Windows Messenger (which shipped with Windows XP) does not ship with Windows

7. Users of RA with Windows Messenger in Windows XP will need to migrate to an

IM application such as Windows Live Messenger that supports Windows 7 RA.

 Offer RA via Windows Live Messenger is a supported in Windows 7 but not in

Windows XP.

Windows XP does not support the new Easy Connect method for soliciting RA found in Windows 7. This means that a User on a Windows XP computer cannot use Easy

Connect to solicit RA from a Helper on a Windows 7 computer, and a User on a

Windows 7 computer cannot use Easy Connect solicit RA from a Helper on a

Windows XP computer.

Implementing and Managing Remote Assistance

Remote Assistance is a powerful and flexible feature that can be used in many different ways to support users within large enterprises, medium-sized businesses, and SOHO environments.

This section outlines how to initiate Remote Assistance sessions from both the UI and the command line. This section also demonstrates how to use Remote Assistance in an enterprise

Help Desk environment involving two common scenarios:

 Helper offers RA to User who has telephoned Help Desk with a problem.

 User creates an RA invitation and saves it on a network share that is monitored by

Help Desk personnel.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 23

Windows 7 Resource Kit Early Content – Subject to Change

For information on other scenarios for implementing Remote Assistance, including sending invitations with Windows Mail and Windows Messenger, search for the topic ―Remote

Assistance‖ within Windows Help And Support.

Initiating Remote Assistance Sessions

Remote Assistance sessions can be initiated either from the user interface or the command line. A significant usability enhancement, from the perspective of support personnel, is that

Offer RA is no longer buried within Help And Support as it is in Windows XP, but instead is easily accessible now from the GUI.

Initiating Remote Assistance from the GUI

Initiating Remote Assistance sessions from the GUI can be done using the following methods:

 From the Start menu, click Start, click All Programs, click Maintenance, and then click

Windows Remote Assistance. This launches the Windows Remote Assistance screen.

 Click Start and type assist in the Start menu search box. When Windows Remote

Assistance appears in the search results under Programs, click it to launch the

Windows Remote Assistance screen.

2.

Either of these methods will open the initial Remote Assistance screen, shown in Figure 23-

Figure 23-2 The initial screen of Windows Remote Assistance.

Once this initial screen appears, you can do either of the following:

 Solicit RA from someone by clicking the Invite Someone You Trust To Help You

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 24

Windows 7 Resource Kit Early Content – Subject to Change option, which displays the How Do You Want To Invite Your Trusted Helper screen as shown in Figure 23-3.

 Accept an RA invitation from someone or offer RA to someone by clicking the Help

Someone Who Has Invited You option, which displays the Choose A Way to Connect

To The Other Person's Computer screen as shown in Figure 23-4.

The How Do You Want To Invite Your Trusted Helper screen (see Figure 23-3) lets you select from the following methods for soliciting RA:

Save This Invitation To A File Selecting this option lets you to save your RA invitation file to a folder on your computer or to an available shared folder on the network.

Use E-mail To Send An Invitation Selecting this option launches your e-mail client application, creates a new message, and attached the invitation file to the message.

Note that if you do not have an SMAPI-compatible e-mail client application on your computer, this option will be unavailable.

Use Easy Connect Selecting this option creates and publishes your RA invitation file to the cloud using PNRP and displays a 12-character password which you must communicate out of band to your Helper in order for him to accept your invitation. If however you previously used Easy Connect to establish an RA session with the same

Helper, the Helper can accept your invitation without any password being required.

Note If the computer has IPv6 disabled or is behind a NAT router that blocks

Teredo traffic, the Easy Connection option will be unavailable for selection.

Figure 23-3: The screen for soliciting Remote Assistance to someone.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 25

Windows 7 Resource Kit Early Content – Subject to Change

The Choose A Way to Connect To The Other Person's Computer screen ( see Figure 23-4) lets you accept an RA invitation from someone or offer RA to someone. The following options are available on this screen for accepting an RA invitation from someone:

Use An Invitation File Selecting this option lets you browse your local file system or network share for the RA invitation from someone who needs your help. You will need the password associated with the invitation, which must be provided OOB by the User who needs help.

Use Easy Connect Selecting this option lets you browse the PNRP cloud for the RA invitation from someone who needs your help. The first time you use Easy Connect to help this individual you will need the password associated with the invitation, which must be provided OOB by the User who needs help. For subsequent times you use Easy Connect to help this individual, the password is not required.

To offer RA to someone, click the Advanced Connection Option For Help Desk link at the bottom of Figure 2-4.

Figure 23-4: The screen for offering Remote Assistance to someone.

Additional steps for soliciting and offering RA are described in the scenario sections later in this chapter.

Initiating Remote Assistance from the Command Line

Remote Assistance in Windows 7 and Windows Vista is implemented as a standalone executable called Msra.exe. You can initiate RA sessions directly from the command line or by using scripts. The syntax and usage for this command is explained in Table 23-3.

Table 23-2 Syntax and Usage for Command-Line Remote Assistance (Msra.exe)

OPTION SUPPORTED ON DESCRIPTION

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 26

Windows 7 Resource Kit

/novice

/expert

/offerRA

computer

/email

password

Windows 7

Windows Vista

Windows 7

Windows Vista

Windows 7

Windows Vista

Windows 7

Windows Vista

Early Content – Subject to Change

Launches Remote Assistance as Novice (User) in

Solicited RA mode and presents the user with the choice of either sending an RA ticket using a

SMAPI-enabled e-mail application such as

Windows Mail or by saving the invitation as a file.

After this choice has been made, Windows Remote

Assistance opens on the User’s computer in the

Waiting For Connect state.

Launches Remote Assistance in the Helper mode and presents the user with the choice of either specifying the location of an RA ticket to open or specifying the User’s computer name or address

(Offer RA). The computer name can be either a host name (if the User is on the local subnet) or a fully qualified name (DNS name), and the address can be either an IPv4 address or an IPv6 address.

Unsolicited RA without an invitation requires preconfiguration of the remote computer being helped.

Launches Remote Assistance as Helper in

Unsolicited (Offer) RA mode and uses DCOM to remotely open Remote Assistance on the User’s computer and then connect to the User’s computer to initiate an RA session. The User’s computer can be specified using either its computer name or address. The computer name can be either a host name (if the User is on the local subnet) or a fully qualified name (DNS name), and the address can be either an IPv4 address or an IPv6 address. This method is demonstrated in more detail in the section titled ―Scenario 1: Offering Remote

Assistance Using DCOM‖ later in this chapter.

Launches Remote Assistance as Novice (User) in

Solicited RA mode and creates a passwordprotected RA ticket that is attached to a new RA invitation message opened by the default SMAPIenabled e-mail client (which by default is Windows

Mail). The password must be six characters or more and must be relayed separately to the Helper. The e-mail client application launches a window with

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 27

Windows 7 Resource Kit Early Content – Subject to Change the invitation file attached. The User must enter the e-mail address of the Helper in the To field to send the message to the Helper.

/saveasfile

path password

/openfile path

password

/geteasyhelp

Windows 7

Windows Vista

Windows 7

Windows Vista

Windows 7 only

Launches Remote Assistance as Novice (User) in

Solicited RA mode and creates a passwordprotected RA ticket that is saved at the path specified. The path may be either a local folder or network share, and the User must have appropriate permissions on the destination folder to create the file. The path must include a filename for the ticket.

(The .MsRcIncident file extension will be automatically added to the filename.) The password must be six characters or more. Use of this method is demonstrated in more detail in the section titled ―Scenario 2: Soliciting Remote

Assistance by Creating RA Tickets and Saving Them on Monitored Network Shares‖ later in this chapter.

Launches Remote Assistance as Expert (Helper) in

Solicited RA mode and opens a previously created

RA ticket that was saved within the path specified.

The path may be either a local folder or network share, and the Helper must have appropriate permissions on the destination folder to open the file. The path must include the filename of a valid ticket that has the .MsRcIncident file extension. The password must be the same password that was used by the User to secure the ticket when it was created.

Launches Remote Assistance as Novice (User) in

Solicited RA mode and with the Easy Connection option already selected. Once the RA invitation has been posted to the PNRP cloud, the User is presented with a 12-character password that he must communicate out-of-band (OOB) to the

Expert (Helper) which the Helper can then use to

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 28

Windows 7 Resource Kit Early Content – Subject to Change accept the invitation and initiate the RA session.

/offereasyhelp

address

/getcontacthel p address

/offercontacth elp address

Windows 7 only

Windows 7 only

Windows 7 only

Launches Remote Assistance as Expert (Helper) in

Offer RA mode and with the Easy Connection option already selected. The Helper is presented with a dialog box for entering the 12-character password that was communicated OOB to him by the Novice (User), which is needed by the Helper in order to accept the invitation and initiate the RA session.

Launches Remote Assistance as Novice (User) in

Solicited RA mode with the Easy Connection option already selected and with the RA history contact specified by address already selected. You can find

address for a contact in your RA history by opening the RAContacthistory.xml file located in the

\users\username\appdata\local folder on your computer. The format for address is a 40-character hexadecimal string with .RAContact appended to it.

Launches Remote Assistance as Expert (Helper) in

Offer RA mode with the Easy Connection option already selected and with the RA history contact specified by address already selected. You can find

address for a contact in your RA history by opening the RAContacthistory.xml file located in the

\users\username\appdata\local folder on your computer. The format for address is a 40-character hexadecimal string with .RAContact appended to it.

Note There is no support for Windows Managing Instrumentation (WMI) scripting of Msra.exe.

Scenario 1: Soliciting RA using Easy Connect

In Windows 7 the simplest way for home users to request assistance from others is to use

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 29

Windows 7 Resource Kit Early Content – Subject to Change

Easy Connect. (Easy Connect is not intended for enterprise environments as it requires global

P2P connectivity in order to work.) In the following scenario, Tony Allen, a Novice user, requests help from Karen Berg, a friend who is an Expert user. Tony solicits Karen's help for the first time by launching Remote Assistance on his computer and selecting Invite Someone

You Trust To Help You followed by Use Easy Connect. At this point Windows Remote

Assistance displays a password as shown in Figure 23-5:

Figure 23-5: Tony's computer displays the password needed for Karen to connect using RA.

Tony telephones Karen, indicates he wants her to help him using Remote Assistance, and gives her the password. Karen now launches Remote Assistance on her own computer and selects Help Someone Who Has Invited You. Windows Remote Assistance opens and displays the dialog box shown in Figure 23-6:

Figure 23-6: Karen needs Tony's password to connect to his computer using RA

Karen enters the password Tony has given her and clicks Enter. Karen's computer searches the PNRP cloud for Tony's RA invitiation and displays Attemping To Connect in the Remote

Assistance status bar. When the invitation has been found, the status bar message changes to

Waiting For Acceptance. At this point, a dialog box will appear on Tony’s computer asking if he would like to allow Karen to connect to his computer and view his desktop (see Figure 23-

7). Tony has two minutes to respond to this dialog box before the offer times out and the dialog box disappears, which will cause a message saying, ―The person you are trying to help isn’t responding‖ to appear on Karen’s computer.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 30

Windows 7 Resource Kit

Figure 23-7: Tony must allow the RA connection to occur.

Early Content – Subject to Change

Tony clicks Yes and the RA session begins. At this point, the desktop properties of Tony’s desktop may change (based on configurable settings) to optimize the network bandwidth used by RA for screen updates on Karen’s computer. Karen can now request control from

Tony, send files to Tony or receive files from him, chat with Tony, or disconnect the session.

Tony can send and receive files, chat, or pause or disconnect the session.

Tip If you are a User and a Helper has shared control of your computer, you can immediately terminate shared control and return the session to Screen Sharing state by pressing the Panic key (Esc).

If Tony needs help again from Karen on some future occasion, the steps involved are simpler. Tony launches Remote Assistance and selects Invite Someone You Trust To Help You.

Remote Assistance displays the history list of recent contacts Tony has used before as Helpers

(Figure 23-8):

Figure 23-8: Karen is listed as a contact in Tony's history list.

Tony clicks on Karen's contact info in his history list, and this time instead of a password being displayed, a message is displayed indicating that Tony should tell Karen he needs her help (Figure 23-9):

Figure 23-9: No password is needed on subsequent requests for help that use Easy Connect.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 31

Windows 7 Resource Kit Early Content – Subject to Change

Tony telephones Karen and asks her to start Remote Assistance on her computer. Karen does this and selects Help Someone Who Has Invited You (Figure 23-10):

Figure 23-10: Tony is listed as a contact in Karen's history list.

Karen clicks on Tony's contact info in her history list. Karen's computer searches the PNRP cloud for Tony's RA invitation and displays Waiting For Acceptance in the Remote Assistance status bar when the invitation is found. Tony then clicks Yes and the new RA session begins.

You can also use the new command-line switches for Msra.exe in Windows 7 to simplify the Easy Connect experience even further. For example, if Tony frequently needs help from

Karen, Karen (the Expert user) could create a shortcut on Tony's desktop that executes the following command:

msra.exe /getcontacthelp address

Here address is the value of the ADDRESS attribute in Karen's RA history contact information on Tony's computer, which is stored as an XML element in the

RAContacthistory.xml file located in the \users\TALLEN\appdata\local folder on Tony's computer. The contents of this file might look something like this:

<?xml version="1.0"?>

<RAINVITATIONCOLL>

<RAINVITATIONITEM NAME="KBERG" COMPUTERNAME="KBERG-PC" AVATAR="Qk1QgA…[lots of characters]…"

PUBLICKEY="BgIAAAC…"

ADDRESS="5823b8d7b47af2c1cd94f32535a79d8f0569e7d0.RAContact"

TYPE="1"

TIME="20090320170235.779000"/>

</RAINVITATIONCOLL>

Using the above example, the shortcut Karen creates on Tony's computer should execute the following command:

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 32

Windows 7 Resource Kit Early Content – Subject to Change

msra.exe /getcontacthelp 5823b8d7b47af2c1cd94f32535a79d8f0569e7d0.RAContact

Karen can then create a similar shortcut on her own computer using the Tony's RA history contact information, which is stored as an XML element in the RAContacthistory.xml file located in the \users\KBERG\appdata\local folder on Karen's computer. Once this is done,

Tony can request assistance by simply double-clicking on the shortcut on his desktop, and once he has informed Karen of this, Karen then double-clicks on the corresponding shortcut on her own computer, and when Tony agrees to allow the connection the session is started.

Scenario 2: Soliciting Remote Assistance by Creating

RA Tickets and Saving Them on Monitored Network

Shares

Another way that you can use Remote Assistance in an enterprise environment is by having users create invitation files and save them on a network share that is monitored by Help Desk personnel. This way, when Help Desk determines that a new ticket has been uploaded to the share, a support person can call the user on the telephone to obtain the password for the ticket and then use the ticket to establish an RA session with the user who needs help.

To make the procedure easier, administrators can first deploy a script on users’ desktops that uses command-line Remote Assistance (Msra.exe) to create the invitation file and save it on the network share. For example, let’s say that users’ invitation files should be uploaded to

\\FILESRV3.contoso.com\Support\IncomingTickets, a folder in the Support share on the file server named FILESRV3. The following script, named SubmitTicket.vbs, could be deployed on each user’s desktop to accomplish this task: dim strPassword dim strUser dim strTicketName strPassword = InputBox("Enter a password for your ticket")

Set WshShell = Wscript.CreateObject("Wscript.Shell") strUser = WshShell.ExpandEnvironmentStrings("%username%") strTicketName = strUser & "-" & Year(Now) & "-" & Month(Now) & "-" & Day(Now) & _

"-" & Hour(Now) & "-" & Minute(Now) & "-" & Second(Now) strRA = "msra.exe /saveasfile \\FILESRV3\Support\IncomingTickets\" & _

strTicketName & " " & strPassword

WshShell.Run strRA

When the user double-clicks this script to run it, an Input box appears asking the user to provide a password to be used to secure the invitation. After the user supplies a password, a new RA ticket is created and saved in the target folder on the file server. The name of the ticket is unique and consists of the user’s name followed by the date and time, such as tallen-

YYYY-MM-DD-HH-MM-SS.MsRcIncident. When the support person monitoring the share has

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 33

Windows 7 Resource Kit Early Content – Subject to Change obtained the ticket’s password using an OOB method such as a telephone call, the support person opens the ticket. After the User grants consent, the RA connection is established.

To monitor the IncomingTickets folder in the network share, Help Desk personnel can use the file-screening capabilities of file servers running Windows Server 2008. To do this, follow these steps to create a passive file screen that monitors the folder and sends an e-mail alert to a Help Desk alias whenever a new ticket is uploaded to the folder:

1. Install or upgrade the File Server role on the Windows Server 2008 computer where the

Support folder is located.

2. Start the File Server Resource Manager console from Administrative Tools, right-click the root node, and select Configure Options.

3. Specify the DNS name of the IP address of an SMTP host that can be used to forward alert e-mails generated by the file screen you will create.

4. Click OK to close File Server Resource Manager Options and expand the console tree to select File Screens under File Screening Management.

5. Select the option Create File Screen in the Action pane.

6. Click Browse to select the Incoming folder for the File Screen Path.

7. Select the Define Custom File Screen Properties option and click Custom Properties.

8. Choose the option for Passive Screening so that uploaded tickets will only be monitored and not blocked by the screen.

9. Click Create to create a new file group called RA Tickets and use the Add button to add files of type *MsRcIncident to the group.

10. Click OK to return to the properties sheet for the new file screen and select the check box for the RA Tickets file group you just created.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 34

Windows 7 Resource Kit Early Content – Subject to Change

11. Click the E-mail tab and specify a support alias (such as [email protected]) that will be notified whenever a new ticket is uploaded to the folder. Configure a suitable subject and body for the message.

12. Click Create to create the new file screen and then choose the option to save the screen without creating a template.

13. Test the new file screen by opening a command prompt on a user’s computer and then typing msra.exe /saveasfile path password, where path is the UNC path to the

Incoming folder within the Support share on the file server, and password is any password of six or more characters that you specify.

For more information on how to implement file screening in Windows Server 2008, see the topic ―Screening Files‖ on the Microsoft Windows Server TechCenter at

http://technet2.microsoft.com/windowsserver2008/en/library/c16070f8-25f6-4d22-8040-

5299b08d6eea1033.mspx?mfr=true.

Scenario 3: Offering Remote Assistance Using DCOM

Before you can offer Remote Assistance to other users, your user account must be authorized as a Helper on the User’s computer. You should use Group Policy to do this in an enterprise environment. (See the section titled ―Managing Remote Assistance Using Group Policy‖ later in this chapter for information on how to do this.)

After a support person (or group of individuals) has been configured as a Helper for all

Windows 7 computers in a domain or OU, the support person can offer RA to users of those computers when they need assistance. For this scenario, let’s say that Tony Allen

([email protected]) is a Windows 7 user who needs assistance with an issue on his computer. Tony telephones the Help Desk department, and the call is taken by Karen Berg

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 35

Windows 7 Resource Kit Early Content – Subject to Change

([email protected]), who asks Tony for the name or IP address of his computer. Tony provides Karen with his fully qualified computer name (TALLEN-PC.contoso.com) or IP address. Karen then offers assistance to Tony by launching Remote Assistance on her computer, selecting Help Someone Who Has Invited You, clicking Advanced Connection

Option For Help Desk, and entering the name or IP address of Tony's computer (see Figure

23-11):

Figure 23-11 Karen offers help to Tony using unsolicited RA.

Tip Karen could also type msra /offerRA TALLEN-PC.contoso.com at a command prompt to quickly offer assistance to Tony.

The experience is even easier if Karen needs to offer help to Tony again on some future occasion. Karen simply launches Remote Assistance on her computer, selects Help Someone

Who Has Invited You, and clicks Advanced Connection Option For Help Desk, and the name or IP address of Tony's computer is displayed in her RA history list (Figure 23-12):

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 36

Windows 7 Resource Kit Early Content – Subject to Change

Figure 23-12: The history list makes it easy to start RA sessions with users that were helped before.

Tip Karen can also quickly display the screen in Figure 23-12 by typing msra

/offerRA at the command prompt.

Karen then clicks on Tony's computer in her history list and clicks Next, and once Tony accepts the offer the session begins.

Managing Remote Assistance Using Group Policy

In an enterprise environment, Remote Assistance can be managed using Group Policy. The policy settings for Remote Assistance are all machine settings and are found in the following policy location:

Computer Configuration\Policies\Administrative Templates\System\Remote Assistance

When these policy settings are written to the registry on targeted computers, they are stored under the following registry key:

HKLM\SOFTWARE\Policies\Microsoft\WindowsNT\Terminal Services

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 37

Windows 7 Resource Kit Early Content – Subject to Change

Remote Assistance policy settings are summarized in Table 23-4.

Table 23-4 Group Policy Settings for Remote Assistance

POLICY

Solicited

Remote

Assistance

Offer Remote

Assistance

DESCRIPTION

Enabling this policy allows users of targeted computers to use Solicited RA to request assistance using e-mail, file transfer, or instant messaging.

Disabling this policy prevents users from using Solicited RA. The default setting is Not Configured, which allows users to change their Remote

Assistance settings using the Remote tab of the System CPL in Control Panel.

If the policy is Enabled, you can further configure whether Helpers can be prevented from sharing control of the User’s computer, the maximum ticket lifetime, and the method used for sending invitations by e-mail. (Windows 7 does not support the MAILTO method—select SMAPI instead if the targeted computers are running Windows 7.) Ticket lifetime applies only to RA invitations sent by e-mail or file transfer. The default ticket lifetime when

Group Policy is not being used is 6 hours.

If this policy is Enabled, you must also enable the Remote Assistance exception in Windows Firewall to allow Solicited RA to work.

In an unmanaged environment, this setting can also be configured using the

Remote tab of the System CPL in Control Panel.

This policy is also supported on Windows XP Professional and Windows

Server 2003.

Enabling this policy allows designated Helpers to use Offer RA to offer assistance to users of targeted computers. Disabling this policy or leaving it

Not Configured prevents Offer RA from being used to offer assistance to users of targeted computers.

If the policy is Enabled, you can further configure whether Helpers can view or control the Users’ computers, and you must specify a list of Helpers who are allowed to Offer RA to the users of the targeted computers. Helpers can be either users or groups and must be specified in the form

domain_name\username or domain_name\groupname.

If this policy is Enabled, you must also enable the Remote Assistance exception in Windows Firewall to allow Offer RA to work. (In Windows 7, the

Remote Assistance exception is open by default for the domain firewall profile.)

This policy is also supported on Windows XP Professional and Windows

Server 2003. See the Explain tab of this policy setting for more details.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 38

Windows 7 Resource Kit

Allow Only

Vista Or Later

Connections

Customize

Warning

Messages

Early Content – Subject to Change

The default Windows 7 invitation file includes a XP-specific node for backward-compatibility. This node is not encrypted and allows Windows XP computers to connect to the Windows 7 computer that created the ticket.

Enabling this policy causes all RA invitations generated by users of targeted computers to not include the XP node, thereby providing an additional level of security and privacy. Disabling this policy or leaving it Not Configured leaves information such as IP address and port number unencrypted in RA invitations This policy setting applies only to RA invitations sent using e-mail or file transfer and has no effect on using instant messaging to solicit assistance or on using Offer RA to offer assistance.

In an unmanaged environment, this setting can also be configured by clicking Advanced from the Remote tab of the System Properties dialog box.

This policy is supported only on Windows Vista and later platforms.

Enabling this policy causes a specified warning to be displayed on targeted computers when a Helper wants to enter Screen Sharing State or Control

Sharing State during an RA session. Disabling this policy or leaving it Not

Configured causes the default warning to be displayed in each instance.

If the policy is Enabled, you can further specify the warning message to be displayed in each instance.

This policy is supported only on Windows Vista and later platforms.

Turn On

Session

Logging

Enabling this policy causes RA session activity to be logged on the targeted computers. For more information, see the section titled ―Remote Assistance

Logging‖ earlier in this chapter. Disabling this policy causes RA auditing to be disabled on the targeted computers. The default setting is Not

Configured, in which case RA auditing is automatically turned on.

This policy is supported only on Windows Vista and later platforms.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 39

Windows 7 Resource Kit

Turn On

Bandwidth

Optimization

Early Content – Subject to Change

Enabling this policy causes the specified level of bandwidth optimization to be used to enhance the RA experience over low-bandwidth network connections. Disabling this policy or leaving it Not Configured allows the system defaults to be used.

If the policy is Enabled, you must specify the level of bandwidth optimization you want to use from the following options:

No Optimization

No Full Window Drag

Turn Off Background

 Full Optimization (Use 8-Bit Color)

If No Optimization is selected, the User’s computer will use the Windows

Basic theme with full background, and during a shared control session, the

Helper will be able to drag full windows across the User’s screen. Additional optimization turns off effects to allow a more responsive experience for the

Helper.

This policy is supported only on Windows Vista and later platforms.

Note In Windows XP, members of the Domain Admins group are implicitly granted

Helper privileges even if they are not added to the Helpers list of the Offer Remote

Assistance policy setting. This is no longer the case in Windows 7 and Windows

Vista, where the Domain Admins group must now be explicitly added to the Helpers list to grant them Helper privileges for Offer RA.

Configuring Remote Assistance in Unmanaged

Environments

Users of unmanaged computers can enable and configure Remote Assistance using the

Remote tab of the System CPL in Control Panel (Figure 23-13). Enabling or disabling Remote

Assistance and configuring its settings this way requires local administrator credentials on the computer, so a UAC prompt will appear when the user tries to do this.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 40

Windows 7 Resource Kit Early Content – Subject to Change

Figure 23-13 Configuring RA from the Remote tab of System in Control Panel.

Note that settings changes made this way will affect all users on the system. Clicking

Advanced lets you specify whether remote control of the computer will be allowed during a

RA session, what the maximum lifetime of a RA invitation can be before it times out (the default is 6 hours), and whether invitations supported only by RA in Windows Vista or later will be created (see Figure 23-14):

Figure 23-14 Advanced configuration settings for RA.

In managed environments, when the following Group Policy setting is Enabled, the Control

Panel settings for configuring Remote Assistance become unavailable (appear dimmed):

Computer Configuration\Policies\Administrative Templates\System\Remote

Assistance\Solicited Remote Assistance

Note Group Policy settings always prevail over locally configured settings when they overlap.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 41

Windows 7 Resource Kit Early Content – Subject to Change

Additional Registry Settings for Configuring Remote

Assistance

Additional behavior for Remote Assistance can be configured by modifying certain registry settings. Specifically, per-user registry settings for Remote Assistance are found under the following key:

HKCU\Sofware\Microsoft\Remote Assistance

These settings are changeable when in the Waiting To Connect mode or when in the connected mode from the Settings button.

Caution If Group Policy is used to manage Remote Assistance settings and any configured policy settings overlap these registry settings, the policy settings prevail.

Direct from the Source: Troubleshooting Remote Assistance in

Windows 7 and Windows Vista

When I attempt to create an invitation with e-mail or save-to-file, I see a warning message that says that the Windows Firewall is currently blocking Remote

Assistance.

The Remote Assistance firewall exception will change depending on your network location (Private, Public, or Domain). If you are at home, your network location type should be set to Private, which enables the Remote Assistance firewall exception automatically. If your network location is set to Public, the Remote Assistance firewall exception is not enabled automatically for security purposes. It will need to be enabled by an administrator.

If you are connected to a managed network (for example, when you are within a corporate domain), the network location is categorized as Domain, and the Remote

Assistance exception is not enabled automatically. It is expected to be configured by

Group Policy by your system administrator.

I cannot use RA to connect from my home computer to a work computer.

RA uses Teredo (IPv6) to traverse NATs. However, Teredo cannot be used to traverse corporate edge firewalls that provide NAT for intranet clients and block dynamic ports or outbound UDP traffic. Because you do not have a globally reachable IPv4 address within the corpnet, RA cannot make a connection to you from outside the corpnet.

If I disable the Windows Firewall, I cannot make an RA connection in certain cases.

This is counterintuitive, because I expect connectivity to be less restrictive with the firewall disabled.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 42

Windows 7 Resource Kit Early Content – Subject to Change

In Windows 7 and Windows Vista, the Windows Firewall is IPv6-aware. The RA exception in the Windows Firewall enables Teredo for edge traversal. If the Windows

Firewall is disabled, the ability to use Teredo for NAT traversal is also disabled. The

Windows Firewall must be running with the RA exception enabled for RA to be able to traverse NATs using Teredo.

I cannot use RA to connect from my work to my home computer.

Your corporate firewall may be configured to block outbound peer-to-peer connections. In a managed environment (domain-joined computers), which is typically found in a corporate network, the RA exception does not enable Teredo

(edge traversal), because corporate firewalls typically block outbound UDP traffic.

NAT traversal using Teredo is disabled by default in this scenario. If the person you are trying to help is behind a UPnP NAT or is connected directly to the Internet, you should be able to make a connection. Check with your network administrator to see whether outbound peer-to-peer connections through the corporate firewall can be enabled.

When I move my laptop (or change my home network location) from a Private to

Public location, I am not able to connect to certain computers.

If you have a laptop that moves between work and home, the properties of the RA firewall exception in the Windows Firewall will change depending on whether your network location is classified as Private, Public, or Domain. In a Private location, the

RA exception is enabled by default, and if you are using a UPnP NAT, the RA exception will allow communications with the UPnP NAT to enable RA connections that make use of UPnP. In a Public network, the RA exception is not enabled by default and will need to be enabled using Administrator credentials. In addition, the default Public profile does not permit UPnP communication for security purposes, thereby restricting RA connectivity in certain cases.

I am on a low-bandwidth connection, and the person helping me is experiencing slow screen refreshes.

Under Settings, set the Bandwidth Usage to Low to reduce the bandwidth used during a Remote Assistance connection. Keep in mind that display quality decreases as bandwidth usage is limited.

Why can’t I connect to Windows XP computers that are behind a NAT as easily as I can connect to Windows 7 or Windows Vista computers?

RA in Windows XP does not support Teredo for NAT traversal. Consequently, a

Windows 7 or Windows Vista

–to–Windows XP RA connection attempt may fail in cases where both computers are behind non-UPnP NATs.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 43

Windows 7 Resource Kit

How does RA make a connection?

Early Content – Subject to Change

When the RA invita tion is created, the User’s computer will set itself as a listener on all of its IP addresses (IPv4 and IPv6), including its Teredo address. All these listeners are waiting for a connection from the Helper’s computer. The address and port information assoc iated with these different listeners is relayed to the Helper’s computer via the RA invitation (which gets transported by Messenger when

Messenger is used to launch RA). The Helper’s computer then tries to connect concurrently on all the address/port pairs in the invitation. The first successful connection that is made is used for the RA session and the rest of the connection attempts are terminated.

How do I troubleshoot a connection failure between two home-based Windows 7 or

Windows Vista computers that are behind NATs?

Refer to the RA Connectivity information in Tables 23-5 and 23-6 to verify that the network configuration you have is supported for RA connectivity. Then confirm that the Windows Firewall on the computer of the person that is being helped is running and configured for RA:

The Windows Firewall is IPv6 compatible and must be running to enable NAT traversal using Teredo.

The network location of the computer must set to Private or Public, since Teredo is not enabled in Domain or Managed settings.

The Remote Assistance exception in the firewall must be enabled to allow RA connections.

Check that there is no edge firewall between User and Helper, since it may block peer-to-peer applications like RA.

Confirm that the User and Helper are not behind a symmetric NAT and that Teredo is able to get to the Qualified state on both computers. To determine this, do the following:

1. First, initiate Teredo by forcing RA into the Waiting To Connect state. You can do this by typing msra.exe /saveasfile myinvitation mypassword at a command prompt.

2. Then, check to see if Teredo can be activated on both computers and goes into the Qualified state. Open an elevated command prompt window and type netsh

interface teredo show state at the command prompt. The output should show

Teredo in the Qualified state. If Teredo does not go to the Qualified state on both computers, an RA connection may not be possible between these two

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 44

Windows 7 Resource Kit Early Content – Subject to Change computers. Teredo will not go into the qualified state if one of the following two conditions exists:

A global Teredo server could not be reached at teredo.ipv6.microsoft.com.

The computer is behind a symmetric NAT. To verify this, look at the output of netsh interface teredo show state and check the output on the

NAT: line, which specifies NAT type.

When I am helping someone who is a Standard user, I cannot run a program that needs Administrator privileges even though I have Administrator privileges to the

User’s computer.

RA allows a User to share control of his computer with a remote Helper. If the User is a Standard user, the remote Helper is given the same privileges as the Standard user. If the Helper attempts to launch a program that requires Administrator credentials, by default these credentials must be entered locally (on the Secure

Desktop) by the User and cannot be entered remotely by Helper. This is required to prevent a security loophole where Admin programs launched by a remote Helper could be hijacked by the local User simply by terminating the RA session. In managed environments where client computers are running Windows Vista Service

Pack 1 or later, however, a new Group Policy setting can be enabled that allows RA to turn off the Secure Desktop during an RA session even if the User is a Standard user. As a result, the remote Helper can now enter administrator credentials when a

UAC prompt appears during an RA session to perform Admin-level tasks on the

User’s computer. To configure this behavior, enable the following policy setting:

Computer Configuration\Policies\Windows Settings\Security Settings\Local

Policies\Security Options\User Account Control: Allow UIAccess Applications To

Prompt For Elevation Without Using The Secure Desktop

Table 23-5 RA Connectivity for Expert on Windows XP

EXPERT ON

WINDOWS XP

Novice

(User) on

DIRECTLY

CONNECTED

Directly

Connected

Yes

BEHIND

UPNP

NAT

Yes

BEHIND

NON-

UPNP

NAT

Yes

BEHIND

CORPORATE EDGE

FIREWALL**

Yes

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 45

Windows 7 Resource Kit

Windows

XP

Behind

UPnP NAT

Behind non-UPnP

NAT

Yes

Yes, using

Msgr Only

Behind

Corporate

Edge

Firewall**

Yes, using

Msgr Only

Novice

(User) on

Windows 7 or Windows

Vista

Directly

Connected

Behind

UPnP NAT

Behind non-UPnP

NAT

Yes

Yes

Yes, using

Msgr Only

Behind

Corporate

Edge

Firewall**

Yes, using

Msgr Only

Early Content – Subject to Change

Yes Yes Yes

Yes, using

Msgr

Only

Yes, using

Msgr

Only

Yes

Yes

Yes, using

Msgr

Only

Yes, using

Msgr

Only

No

No

Yes

Yes

No

No

No

Yes, if both are behind same firewall

No, if both are behind different firewalls

Yes

Yes

No

Yes, if both are behind same firewall

No, if both are behind different firewalls

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 46

Windows 7 Resource Kit Early Content – Subject to Change

Table 23-6 RA Connectivity for Expert on Windows Vista

EXPERT ON

WINDOWS

VISTA

DIRECTLY

CONNECTED

BEHIND

UPNP NAT

BEHIND

NON-UPNP

NAT

BEHIND

CORPORATE

EDGE

FIREWALL**

Novice

(User) on

Windows

XP

Directly

Connected

Yes Yes Yes Yes

Behind

UPnP NAT

Behind non-UPnP

NAT

Behind

Corporate

Edge

Firewall**

Yes

Yes, using

Msgr Only

Yes, using

Msgr Only

Yes

Yes, using

Msgr Only

Yes, using

Msgr Only

Yes

No

No

Novice

(User) on

Windows

7 or

Windows

Vista

Directly

Connected

Yes Yes Yes

Behind

UPnP NAT

Yes Yes Yes

Behind non-UPnP

NAT

Yes, using

Teredo

*

Yes, using

Teredo*

Yes, using

Teredo*

*

Teredo connectivity is not available if both computers are behind Symmetric NATs.

Yes

No

Yes, if both are behind same firewall

No, if both are behind different firewalls

Yes

Yes

None

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 47

Windows 7 Resource Kit

Behind

Corporate

Edge

Firewall

**

No No

Early Content – Subject to Change

No Yes, if both are behind same firewall

No, if both are behind different firewalls

John Thekkethala, Program Manager

Remote Assistance and the Remote Assistance Team at Microsoft

Summary

Remote Assistance has been enhanced in Windows 7 and Windows Vista to provide better performance, improved usability, NAT-traversal flexibility, and increased security. Best practices for implementing Remote Assistance in an enterprise environment include:

 Use Group Policy to enable users of targeted computers in a domain or OU to receive offers of RA from Help Desk personnel.

Use Group Policy to enable the RA exception in the Windows Firewall.

Use Group Policy to deploy scripts to enable users to run the Msra.exe executable if you want to customize how they launch RA sessions—for example, to upload an invitation to a network share monitored by support personnel.

If all of your support computers are running Windows 7 or Windows Vista, use

Group Policy to encrypt RA tickets to hide sensitive information such as users’ IP addresses and computer names.

If corporate policy requires RA records for auditing purposes, use Group Policy to enable RA logging on your company’s desktop computers and run scripts to periodically move both Helper and User RA logs to a safe storage.

To meet corporate privacy and security requirements, use Group Policy to customize the text message that users see before they allow the Helper to view their screens or share control.

Additional Resources

The following resources contain additional information and tools related to this chapter.

**

Edge Firewall must permit outbound connection (e.g., using the Microsoft ISA Firewall Client).

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 48

Windows 7 Resource Kit Early Content – Subject to Change

Related Information

 Remote Assistance FAQ from Windows Vista Help And Support can be found at

http://windowshelp.microsoft.com/Windows/en-US/help/398b5eda-aa7f-4078-94c5-

1519b697bfa01033.mspx.

 ―Remote Assistance and Resulting Internet Communication in Windows Vista‖ at

http://technet2.microsoft.com/WindowsVista/en/library/cdfa2f21-56e5-44da-aa5a-

f22987be13511033.mspx?mfr=true.

 KB 937803, ―During a Remote Assistance session in Windows Vista, the administrator who is trying to provide remote assistance receives a black screen,‖ at

http://support.microsoft.com/kb/937803.

 Remote Assistance Rendezvous API reference from the Windows SDK can be found at http://msdn2.microsoft.com/en-us/library/aa359213(vs.85).aspx.

© 2009 Microsoft Corporation, Tulloch, Northrup, and Honeycutt Page 49

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
