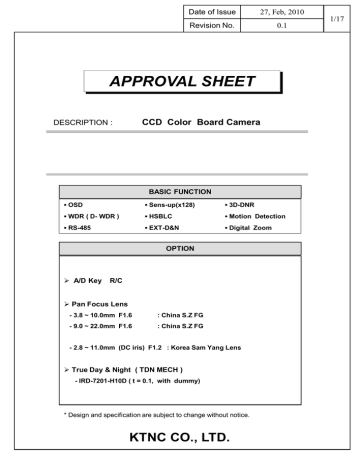

APPROVAL SHEET CCD Color Board Camera Date of Issue

APPROVAL SHEET CCD  Color  Board Camera Date of Issue
Date of Issue
27, Feb, 2010
Revision No.
0.1
1/17
APPROVAL SHEET
CCD Color Board Camera
DESCRIPTION :
BASIC FUNCTION
▪ OSD
▪ Sens-up(x128)
▪ 3D-DNR
▪ WDR ( D- WDR )
▪ HSBLC
▪ Motion Detection
▪ RS-485
▪ EXT-D&N
▪ Digital Zoom
OPTION
 A/D Key
R/C
 Pan Focus Lens
- 3.8 ~ 10.0mm F1.6
: China S.Z FG
- 9.0 ~ 22.0mm F1.6
: China S.Z FG
- 2.8 ~ 11.0mm (DC iris) F1.2 : Korea Sam Yang Lens
 True Day & Night ( TDN MECH )
- IRD-7201-H10D ( t = 0.1, with dummy)
* Design and specification are subject to change without notice.
KTNC CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
2/17
CCD COLOR BOARD CAMERA
CONTENTS
PAGE
1. SPECIFICATIONS ------------------------------------------------------------ 4
2. ENVIRONMENT CONDITION AND TEST -----------------------------
5
3. PIN DESCRIPTION ----------------------------------------------------------
5
4. APPLICATION ----------------------------------------------------------------- 7
5. OSD MENU STRUCTURE -------------------------------------------------
8
6. PROTOCALS ------------------------------------------------------------------ 11
7. PCB DIMENSION ------------------------------------------------------------
12
8. MECHANICAL FILTER -----------------------------------------------------
13
9. CIRCUIT DIAGRAM ---------------------------------------------------------- 14
10. PACKING SPECIFICATION ---------------------------------------------- 15
11.APPLICATION EXAMPLE ------------------------------------------------- 16
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
3/17
- REVISION HISTORY
Date
03. Dec. 2009
Version
0.1
Description
Initial
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
4/17
1. SPECIFICATIONS
1) Common
Scanning System
2 : 1 Interlace
Scanning Frequency (H)
15.734 KHz
15.625 KHz
Scanning Frequency (V)
59.94 Hz
50 Hz
Image Sensor
1/3” Sony ICX 212BK
1/3” Sony ICX 213BK
Total Pixels No.
976 (H) X 582 (V) 410K
Effective Pixels No.
976 (H) X 494 (V) 380K
SONY
2) Details
Specification
Synchronization
Internal
Horizontal Resolution
650 TV Lines
Luminance S/N
More Than 50dB (AGC Off)
Min. Illumination
0.1Lux / 0.001Lux (Sens-up Auto)
Video Output Signal
1Vp-p Composite(75ohm)
OSD Display
Available
F
U
N
C
T
I
O
N
Iris Control
ELC / ALC(DC)
Shutter Speed
1/60 ~ 1/90,000(NTSC), 1/50 ~ 90,000(PAL)
Gain Control
Low / Medium / High
Sens-up
Adjustable
WDR
On / Off (Level 1~7)
Digital WDR
BLC
Low / Mid / High
3D-DNR
Off / Low / Medium / High
HSBLC
16 Zone
White Balance
ATW / Push-Auto / Manual
Sharpness
Adjustable
Motion Detection
4 Zone
Privacy Masking
8 Zone
Digital Zoom
Available (Use AD-Key operating)
Baud Rate
2400 / 4800 / 9600(Basic)
Protocol
Pelco-D/P /LG
Power Consumption
Max 2.0W (Not use Pan Focus Lens)
Dimensions
38mmX38mmX1.0(T)mm
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
5/17
3) Video Output Level
NTSC
PAL
Video Level
0.714 ± 0.07V ( 100 ± 10 IRE)
Sync Level
0.286 ± 0.035V ( 40 ± 10 IRE)
Burst Level
0.286 ± 0.035V ( 40 ± 10 IRE)
Video Level
700 ± 70 mV
Sync Level
300 ± 35 mV
Burst Level
300 ± 35 mV
4) Color Reproduction
COLOR
NTSC
PAL
RED
BLUE
YELLOW
BURST
Amplitude ( % )
200 ± 40 %
130 ± 40 %
115 ± 40 %
100 %(Base)
Phase ( 。 )
103 ± 20。
345 ± 20。
170 ± 20。
180。(Base)
Amplitude ( % )
200 ± 40 %
130 ± 40 %
115 ± 40 %
100 %(Base)
Phase ( 。 )
103 ± 20。
345 ± 20。
170 ± 20。
135。(Base)
2. ENVIRONMENT CONDITION AND TEST
Humidity
-10 。C ~ 50。C ( Recommendation : - 5 。C ~ 40。C )
10 % ∼ 60 %
Temperature
Humidity
-20 。C ~ 60。C
0 % ∼ 90 %
1) Operating Condition Temperature
2) Storage Condition
3) High Temperature storage Test
Leaving the packed at Temperature of 60。C for 72 Hours, and after leaving it at
Normal Temperature for 8 Hours, there should be no Problem in Performance.
4) Low Temperature storage Test
Leaving the packed at Temperature of -20。C for 72 Hours, and after leaving it at
Normal Temperature for 8 Hours, there should be no Problem in Performance.
3. PIN DESCRIPTION
①
1
1
②
1
⑤
③
④
1
<TOP>
1
<BOTTOM>
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
6/17
Maker Molex/Yenho(12512WS-04A00,Pitch 1.25mm)
1) CN1V(DC iris)
PIN NO.
NAME
I/O
1
DAMP+
-
2
DAMP-
-
3
DRIVE+
-
4
DRIVE-
-
NOTE
Maker Molex/Yenho(12512WS-04A00,Pitch 1.25mm)
2) CN1N(IR Cut)
PIN NO.
NAME
I/O
NOTE
1
IR CUT OUT+
I
* 5V (Option 3.3V)
2
IR CUT OUT-
I
Maker Molex/Yenho(12512WS-04A00,Pitch 1.25mm)
3) CN2(IR Sensor)
PIN NO.
NAME
I/O
1
DC3.3V / +12V
O
2
GND
-
3
SENSOR
IN
NOTE
Low : B/W, High : Color
(Open Collector)
Maker Molex/Yenho(12512WS-04A00,Pitch 1.25mm)
4) CN1(Main)
PIN NO.
NAME
I/O
NOTE
1
GND
O
Line/Lock Option
2
VIDEO
O
3
GND
-
4
DC12V
I
5
TRX-
I/O
6
TRX+
I/O
7
A/D Key
I
8
MOTION
O
9
Color / BW
I
10
GND
-
Basic Option
(Video, GND, POWER)
RS-485
(RS-232C TTL, 3 Vp_p)
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
7/17
5) CN3(Pan Focus Lens)
Maker Molex/Yenho(12512WS-04A00,Pitch 1.25mm)
PIN NO.
NAME
I/O
1
ZA+
-
2
ZA-
-
3
ZB+
-
4
ZB-
-
NOTE
4. APPLICATION
1) Selectable Key Functions
NO.
MAIN FUNCTIONS
1
UP
(TELE)
2
DOWN
(WIDE)
3
LEFT
4
RIGHT
5
ENTER(MENU)
<ENTER>
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
8/17
5. OSD MENU STRUCTURE
Main Menu
SET
MENU
LENS
Sub Menu
ELC
ALC
EXPOSURE
MENU1
MENU2
SET
BRIGHTNESS
0 ~ 100
EXIT
RET / TOP / END
BRIGHTNESS
0 ~ 100
EXIT
RET / TOP / END
AGC
LOW / MID / HIGH
SHUTTER
Auto/ 1/50/ OFF/ A.FLK/
1/160~1/90000
SENS-UP
AUTO
SENS-UP LIMIT
X2 ~ X256
EXIT
RET / TOP / END
OFF
EXIT
WHITE BALANCE
RET / TOP / END
ATW
AWC-PUSH
MANUAL
WDR / BLC
WDR
(ACE-D680,D-WDR)
BLC
HSBLC
DAY & NIGHT
AUTO
COLOR TEMP
INDOOR / OUTDOOR
RED
-100 ~ 100
BLUE
-100 ~ 100
EXIT
RET / TOP / END
WDR LIMIT
1 ~7
EXIT
RET / TOP / END
BLC LIMIT
1 ~7
EXIT
RET / TOP / END
AREA SETTING
16 AREA(ON/OFF)
GRAY SCALE
GRAY / D.GRAY / BLACK
USER SCALE
0-5
MARK
ON/OFF
EXIT
RET / TOP / END
VIDEO
LEVEL
1 ~7
DWELL TIME
1/3/5/10/15 SEC
EXIT
RET / TOP / END
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
9/17
Main Menu
MENU
Sub Menu
SET
MENU1
SENSOR
MENU2
SET
DWELL TIME
1/3/5/10/15 SEC
EXIT
RET / TOP / END
DAY
NIGHT
EXT
3D-DNR
LOW / MID/ HIGH /OFF
SHARPNESS
0~68
COLOR
ON / OFF
STABILIZATOR
ON / OFF
D-EFFECT
MIRROR
ROTATE
V-FLIP
OFF
EXIT
SPECIAL
RET / TOP / END
CAMERA ID
0~255
COMMUNICATION
PROTOCOL
PELCO-D / P / LG
BAUD RATE
2400/4800/9600bps
SAVE & REBOOT
EXIT
MOTION DET
ON
ZONE NUMBER
AREA 1~4
ZONE STATE
ON / OFF
HEIGHT
12~100
WIDTH
16~100
MOVE Y
7 ~ 94
MOVE X
8 ~ 92
SENSITIVITY
0~100
EXIT
RET/ TOP/ END
OFF
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
10/17
Main Menu
MENU
Sub Menu
SET
MENU1
D-ZOOM
MENU2
SET
ZOOM
X1.1~X10.0
EXIT
RET/ TOP/ END
MASK NUMBER
AREA 1~8
DISPLAY
ON / OFF
COLOR
GRAY / WHITE /BLACK
HEIGHT
4~100
WIDTH
4~100
MOVE Y
2 ~ 98
MOVE X
2 ~ 98
EXIT
RET/ TOP/ END
ON
OFF
PRIVACY
SPECIAL
ON
OFF
SYNC
USER TITLE
INT
ON
CLR / POS / END
OFF
LANGUAGE
ENG/CHN
EXIT
RET/ TOP/ END
LENS-ELC
LENS-ALC
RESET
MODEL
3810/4090/9022
EXIT
RET/ TOP/ END
MODEL
2810
EXIT
RET/ TOP/ END
FACTORY RESET
EXIT
RET/ TOP/ END
EXIT
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
11/17
6. PROTOCOLS
1) Communication Protocol
Communication Speed
2400, 4800, 9600 bps
Start Bit
1
Data Bit
8
Parity Bit
None / even / odd
Stop Bit
1
2) Available PROTOCOL :
- PELCO-D Protocol (OSD menu set only)
3) Data Format
BYTE1
BYTE2
BYTE3
BYTE4
BYTE5
BYTE6
BYTE7
0xFF
Camera ID
Command1
Command2
Data 1
Data 2
*C.S.
*C.S. = 8 bit Check Sum
√ The data of total 7 bytes is transmitted from the external device to the camera
√ BYTE 7 : The value of Check Sum from „BYTE 2‟ to „BYTE 6‟.
Ex) In case of transmission. “0xFF, 0x01, 0x00, 0x23, 0x00, 0x5F”
C.S. = 0x01 + 0x00 + 0x23 + 0x00 + 0x5F = 0x83
Therefore, C.S. = 0x83
4) Commands
Function
Commands
0xFF, ID, 0x00, 0x23, 0x00, 0x5F
0xFF, ID, 0x00, 0x03, 0x00, 0x62
OSD MENU SET
0xFF, ID, 0x00, 0x07, 0x00, 0x5F
0xFF, ID, 0x00, 0x07, 0x00, 0x60
ZOOM IN(UP Button)
0xFF, ID, 0x00, 0x20, 0x00, 0x00
ZOOM OUT(DOWN Button)
0xFF, ID, 0x00, 0x40, 0x00, 0x00
Left Button
0xFF, ID, 0x01, 0x00, 0x00, 0x00
Right Button
0xFF, ID, 0x00, 0x80, 0x00, 0x00
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
12/17
7. PCB DIMENSION & A/D Key
UP
DOWN
RIGHT
LEFT
ENTER
TOP
A/D KEY R/C
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
13/17
8. TDN MECHA
KT&C CO., LTD.
14/17
1
2
3
4
5
VIDEO
AUDIO
GND
10
9
8
7
6
5
4
3
2
1
CN702
12505WR-10A00
AUDIO
TRX-
+12VDC
GND
VIDEO
Mai n Board Connecti on
GND
VIDEO
AUDIO
TRX-
+12VDC
TRX+
AD_KEY
SENSOR
MOTION
AUDIO
VIDEO
+12VDC
TRXTRX+
MOTION
SENSOR
R701
6.8K
R702
8.2K
R704
18K
SW705
1102SB
4
2
SW704
1102SB
R703
12K
SW703
1102SB
<RIGHT>
6
POWER
TRX(RS232 TX_TTL 3.3V)
(RS232 TX_TTL 3.3V)
TRX+
AD_KEY
MOTION
COLOR/BW
SW702
1102SB
4
2
3
1
TRX+
10
SW701
1102SB
<DOWN>
7
8
9
1
2
RX_TTL(5V)
TX_TTL(5V)
4
2
3
1
AD_KEY
GND
SENSOR
VCCA
3
R4
1K
4
2
3
1
MOTION
VCCB
GND
IC1
SN74LVC1T45
6
5
DI R
A
1
2
3
R3
470
232 TTL Level Shift Application
C1
0.1u
4
B
GND
VCCA
A
DI R
B
VCCB
IC2
SN74LVC1T45
6
5
4
<UP>
<EXAMPLE>
VIDEO
POWER
TRX+
TRX-
MOTION
COLOR/BW
<Video OUT>
JK701
BNC JACK
(VIDEO)
1
(GND)
(+12V)
C701
0.1u
2
JK703
SA-7SC-02PC
<POWER Input>
1
2
1
2
3
4
5
(D-)
(MD-Motion Detection)
(GND)
(SENSOR-Color/BW)
(D+)
JK702
USL-5SAB1-5PIN
<External Signal>
R705
2.2K
LED1
2
1
1
2
<LEFT>
3
1
4
2
3
1
CN1
12505WR-10A00
+5.0V
+3.3V
RX_TTL(3V)
C2
0.1u
10K
<R S232 T T L 3.3V O pti on>
TX_TTL(3V)
2.2K
R2
R1
Date of Issue
27, Feb, 2010
Revision No.
0.1
9. CIRCUIT DIAGRAM (I/F BOARD)
<SET>
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
15/17
11. PACKING SPECIFICATION
5x4
5x4
5x4
5x4
5x4
NO.
NAME
1
CARTON BOX
2
C/T MODEL LABEL
3
CARTON PAD
4
BOARD CUSHION
5
BOARD CAMERA
QTY
KT&C CO., LTD.
Date of Issue
27, Feb, 2010
Revision No.
0.1
16/17
10. APPLICATION EXAMPLE
ACE-WDR680
KT&C CO., LTD.
ACE – WDR680 / D680
Date of Issue
27, Feb, 2010
Revision No.
0.1
17/17
ACE-WDR680
KT&C CO., LTD.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
