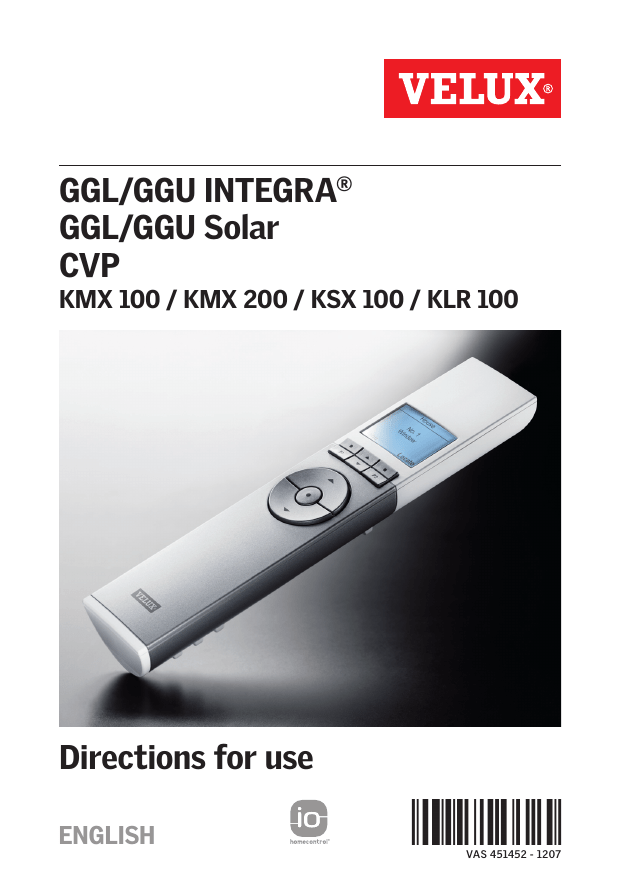

GGL/GGU INTEGRA®
GGL/GGU Solar
CVP
KMX 100 / KMX 200 / KSX 100 / KLR 100
Directions for use
ENGLISH
VAS 451452 - 1207
Contents
Congratulations on your new VELUX product
In order to make the best use of your product please read these instructions on
operation and maintenance.
Important information
4-5
Getting started
Initial set-up
Remote control functions
10-12
10
11-12
13
14-15
2 VELUX
Registering new products
Using additional activation controls
- Copying to a new remote control
- Copying to a remote control in operation
- Copying products from other types of activation controls
- Copying products to other types of activation controls
Security key
16
17
18
19
20-21
22-23
24-25
26-27
28-45
29-33
34-39
40-45
46
48
49
58-59
60-69
62-63
64-65
66-67
68-69
70-71
Resetting
Resetting and preparing for registration
Resetting the remote control
Menu functions
Menu guide
Navigating through the menus
Changing language
Room, Group and Zone
- Creating a Room
- Editing a Room
- Creating a Group
Naming
Programs
- My program
- Program under Shortcut P1/P2
- Synergy program
Disabling rain sensor
Time and date
Keypad lock
50-51
50
51
52-53
54
55
56
Extending the system
6-7
8-9
Operation
Locating and operating a product
- One window
- More than one window
Closing the window automatically
Choosing positions and luminous intensity
Display
- Display light
- Sleep mode
Rearranging order
Access code
Software version
Clearing remote control settings
72-73
74
Installation and connection
Holder for remote control
Rain sensor
Blinds, roller shutters etc
76-77
78
79
Use and maintenance
Power failure / Mislaid remote control
Maintenance
80
81-83
Further information
Display symbols
Display texts
Glossary
84
85
86
VELUX 3
Important information
Please keep instructions for future reference and hand them over to any new
user.
Product
• This product has been designed for use with genuine VELUX products. Connection to other products may cause damage or malfunction.
Safety
• The product is compatible with products with the io-homecontrol® logo.
• Before operating ensure that the window with electrical products can be
and is operated without risk of damage to property or injury to people or
animals.
• Electrical products must be disposed of in conformity with national regulations for electronic waste and not with usual household waste.
• For personal safety, never have your hand or body out of the window without first having switched off the mains or battery supply.
• Used batteries have to be disposed of in conformity with the relevant environmental regulations.
• Expected battery lifetime of the remote control: Approx 1 year.
• Children must not be allowed to play with the window and its electrical
products, and the remote control should be kept out of reach of children.
• Expected battery lifetime of the solar window operator: Approx 10 years.
• If repair or adjustment work is needed, disconnect from mains or battery
supply and ensure that it cannot be reconnected unintentionally.
• Radio frequency band: 868 MHz.
• The cable plug on products to be connected to mains supply is for indoor use
only.
• It is recommended to place a remote control in the room where the window
and its electrical products have been installed.
• The packaging can be disposed of with usual household waste.
• Radio frequency range: 300 m free field. Depending on building construction,
the indoor range is approx 30 m. However, constructions with reinforced
concrete, metal ceilings and plaster walls with steel members may reduce
the range.
• Noise level: Max 70 dB(A).
Function
Maintenance and service
• If the rain sensor gets wet, the window operator automatically closes the
window; however, the ventilation flap remains open.
Note: GGL/GGU INTEGRA, KMX and CVP are supplied with rain sensor.
• Disconnect from mains or battery supply before carrying out any maintenance or service work to the window and products connected to it and
ensure that it cannot be reconnected unintentionally during this time.
• Disabling the rain sensor while the window is open implies a risk of water
ingress.
• Maintenance and installation must be carried out in consideration to Health
and Safety at work requirements.
• To prevent the window from closing because of very fine/weak rain, fog or
dew, the rain sensor is equipped with a heating element to keep the surface
dry.
• If mains cable is damaged, it must be replaced by qualified personnel in accordance with national regulations.
• If the window has been opened manually, the window operator will not be
activated via the rain sensor.
• From fully open, it will take up to one minute from the time of activation
before the window is completely closed. Therefore, in case of sudden rain,
water may enter the room before the window is closed.
• In case of snow and/or ice, the operation of the window may be blocked.
4 VELUX
• Spare parts are available through VELUX. Please provide information from
the data plate.
• If you have any technical questions, please contact VELUX.
io-homecontrol® provides advanced and secure radio technology that is easy to install.
io-homecontrol® labelled products communicate with each other, improving comfort,
security and energy savings.
www.io-homecontrol.com
VELUX 5
Initial set-up
AUTO SET-UP
Products to be operated with the remote control must be
registered. Registration, however, depends on whether
the remote control is new or whether it is already used for
operating other products.
Prepare products
for registration and
press Register
within 10 minutes
Register
5
1
Press
"Register" to start registration.
• If the remote control is already in operation, proceed
with section Registering new products.
Info
P1
P2
AUTO SET-UP
• If the remote control is new, proceed as follows.
When the initial set-up has been completed, the registered
products will appear in the display.
2
6
Registration is running. This can take up to two minutes.
7
The display shows "Completed" when all products have
been registered.
Note: If the display shows "Failed", remove the batteries
from the remote control. Prepare the products for registration, see section Resetting and preparing for registration.
Repeat the initial set-up.
Slide off the remote control battery compartment cover
as shown. Insert the three batteries supplied (type AA,
1.5 volt). Replace cover.
AUTO SET-UP
Completed
House
LANGUAGE
3
4
Choose language:
to highlight your language.
Press
Press
"Enter" to confirm your choice.
Prepare products for registration.
Disconnect the mains or battery supply for 1 minute and
then reconnect it. The products can now be registered in
the remote control within the next 10 minutes.
6 VELUX
No. 1
Window
Eesti
English
Español
Français
8
Enter
P1
The display shows one of the registered products.
to see the other registered products.
Press
Menu
Locate
P1
P2
P2
For use of more than one remote control, all products must
be registered in one of the remote controls, see section Initial set-up. Then the information must be copied from this
remote control to the other remote controls, see section
Using additional activation controls.
VELUX 7
Remote control functions
House
Selection keys
The current function of the key is stated directly above in
the display.
- for activating the menu and confirming the chosen
menu function.
The display indicates which product is being operated, which menu function is being used etc. The
top line of the display states the chosen area. Products are as default shown under the area House.
The bottom line of the display states the function
of the two selection keys.
Note: The display shows the last product operated.
Menu
Locate
P1
P2
P1
P2
P1
P2
P1
P2
No. 1
Window
Menu
Selection, navigation and program keys
- for locating the Room, the Group, the Zone or the product to be operated.
House
No. 1
Window
Locate
Navigation keys
- for scrolling up and down in the product or menu list.
- for scrolling through the time intervals to set the
remote control to close the window automatically.
Shortcut keys P1/P2
- for activating a program by pressing just one key.
Keys for operating the product chosen
Keys for operating a product or a Group of products
OPEN/UP/ON or
CLOSE/DOWN/OFF
Short key pressure: Product will travel to maximum top or
bottom position.
Long key pressure: Product will travel to pre-set position.
See section Choosing positions and luminous intensity.
Stop and status key
STOP/STATUS
Short key pressure: The product in operation stops or the
status is shown.
Long key pressure: All products in operation stop.
8 VELUX
VELUX 9
Locating and operating a product
To be able to operate a product (eg a blind), you first have
to locate the product in question in the display.
The examples show the easiest way to find the product
you want to operate.
More than one window
One window
1
With one electrical product
Press
to start operation.
House
Three windows are equipped with window operators only.
No. 1
Window
Menu
3
With one electrical product
House
The window is equipped with a window operator only and
therefore you do not have to locate the product first.
2
No. 2
Window
The example shows how to locate and open window No. 2.
Locate
Press
to find window No. 2.
Press
to open the window.
Menu
Locate
P1
P2
With additional electrical products
House
The window is equipped with a window operator, a roller
shutter, a blind and frame lights.
No. 1
Blind
The example shows how to locate and operate the blind.
Press
to find "Blind".
Press
to start operation.
10 VELUX
Menu
Locate
P1
P2
VELUX 11
Locating and operating a product
Closing the window automatically
More than one window
When a window has been opened with the remote control,
you can set it to close again automatically after a certain
time.
For instance you might want to air your house briefly
when returning home from work. The possible settings
are: Disabled, 5 min, 10 min, 15 min, 20 min, 30 min,
45 min and 60 min.
1
2
The example shows how to time window No. 1 to close
after 10 minutes.
3
1
House
No. 1
Window
Locate window No. 1.
to open the window.
Press
Menu
Locate
With additional electrical products
Three windows are each equipped with a window operator, a roller shutter, a blind and frame lights.
Running
House
No. 1
Window
The example shows how to locate and operate blind No. 3.
Menu
1
Press
Locate
2
"Locate".
The display shows the icon
and the text "Auto Close".
Start item 3 within 5 seconds, otherwise the window will
not close automatically.
Auto Close
P1
P2
HOUSE
2
Displays the list of product types within the area House.
to highlight "Blind".
Press
Press
"Enter".
Running
Window
Roller shutter
Blind
Lights
Enter
Back
P1
P2
3
Scroll via
through the time options and choose
"in: 10 min".
Auto Close
in: 10 min
P1
P2
BLIND
House
No. 1
No. 2
No. 3
3
4
Press
Press
to highlight blind "No. 3".
"Enter".
Press
to start operation.
12 VELUX
Enter
4
The display shows the icon
window is closed.
and counts down until the
Back
No. 1
Window
Closes in 10 min
Menu
P1
P2
Locate
If you close the window earlier than chosen, the function
will be cancelled.
Note: Connected sunscreening products can be set to
operate automatically via Programs.
VELUX 13
Choosing positions and luminous intensity
A product or a Group of products can be set to travel to
a certain position.
Frame lights can be operated on the same principle. The
percentages correspond to luminous intensity.
Short key pressure: The lights are switched on or off
completely.
The example shows how to set a roller shutter to close by
50%.
Some decoration and sunscreening products can be
operated in two ways. For instance, a Venetian blind can
be be drawn up and down and its slats can be tilted. Once
the product has been located, choose Tilt or Turn
with the navigation keys
.
1
Locate the product in question, see section Locating and
operating a product.
To obtain ventilation via the ventilation flap without
when "Ventilation" is
opening the window, release key
displayed.
House
No. 2
Roller shutter
2
Product chosen is displayed. The example shows roller
shutter No. 2.
Menu
Locate
P1
P2
Go to position
50% down
3
Press and hold key
and watch the display. Each black
spot corresponds to the roller shutter closing in 10% increments. Five black spots thus correspond to it closing by
50%.
Release key
and the roller shutter will travel to the
position chosen.
Note: A short key pressure will make the roller shutter
travel to maximum top or bottom position.
14 VELUX
VELUX 15
Menu guide
Navigating through the menus
Guide to the menu functions of the remote control.
The example shows how to find the menu item Room by
means of menu choices.
Additional information about the individual function is provided in the
relevant section.
1
Press
"Menu".
House
No. 1
Window
Menu
Locate
P1
P2
MENU
HOUSE SETTINGS
Room
Group
Rearrange order
Rename
Clear
Enter
p. 20-23
p. 24-25
p. 52-53
p. 26-27
p. 56
2
Displays a list of menu items under Menu.
to highlight "House settings".
Press
Press
Back
"Enter" to confirm your choice.
House settings
User settings
System settings
Program settings
Enter
Back
P1
P2
House
No. 1
Window
Menu
USER SETTINGS
p. 18
p. 50-51
p. 48
p. 54
p. 49
Language
Locate
Display
Time and date
Access code
MENU
Keypad lock
House settings
Enter
3
Program settings
Enter
Back
Press
Press
to highlight "Room".
"Enter" to confirm your choice.
You can now proceed with the menu functions under menu
item Room.
Back
User settings
System settings
Displays a list of menu items under House settings.
HOUSE SETTINGS
Room
Group
Rearrange order
Rename
Enter
Back
P1
P2
SYSTEM SETTINGS
Register product
Copy system
Security key
Configure
Software version
Enter
p. 58-59
p. 62-63
p. 70-71
p. 68-69
p. 55
House
This way of choosing menu items is shown as follows
in the rest of the instructions:
No. 1
Window
Back
Menu
Locate
P1
P2
PROGRAM SETTINGS
p. 41-45
p. 29-37
Enable
Record
1
Press
"Menu".
2
Scroll through the menus:
Delete
Rename
Rearrange order
Enter
16 VELUX
Back
House settings
Room
VELUX 17
Changing language
Room, Group and Zone
You can change the display text language.
To make it easier to locate and operate the products it
is recommended to link each product to a Room and/or
a Group. Products are as default shown under the area
House.
The example shows how to change it into French.
House
Room 2
No. 1
Window
1
Press
"Menu".
2
Scroll through the menus:
Room 1
Menu
Locate
P1
P2
Definition of Room
A Room consists of one or more products of any type
located in the same physical room, eg bedroom or kitchen.
A product can be assigned to one Room only.
User settings
Language
LANGUAGE
Dansk
English
Français
Deutsch
Enter
3
The display shows a list of languages. The current language has been ticked.
Room 1
Definition of Group
P1
P2
Dansk
English
Français
Deutsch
Press
Press
to highlight a new language.
"Enter" to confirm your choice.
A Group consists of at least two products of the same type
(eg two roller shutters).
A Group "All" with all products of the same type is automatically created to make it easier to locate and operate
products of the same type simultaneously.
LANGUAGE
4
Room 2
Back
Groups created across more Rooms are called Zones.
Enter
Back
P1
P2
Room 1
Room 2
INFORMATION
Sauvegardé
5
The display shows that the change has been saved.
18 VELUX
Definition of Zone
A Group created across more Rooms.
You can create a Zone consisting of for instance all roller
shutters on the windows of the house facing west and
south.
VELUX 19
Creating a Room
Rooms are created to make it easier to locate and operate
your products.
The example shows two rooms
with two windows in each. Below
it is shown how to create Room 1
by moving the relevant products
from House to Room 1.
5
House
HOUSE
WINDOW
Displays the product chosen.
No. 1
• Press
"More" to move additional products to Room 1.
You will return to the list in item 4. Repeat items 4-5 until
the relevant products have been moved to Room 1.
• Press
"Continue" to proceed.
More
Continue
P1
P2
CONTINUE
6
House
No. 1
Window
Menu
1
2
Press
Save new Room
Undo product
Undo new Room
Displays a list of options.
Press
Press
to highlight "Save new Room".
"Enter" to confirm your choice.
Highlight one of the other options to undo your choice.
Locate
Enter
Back
P1
P2
"Menu".
INFORMATION
Room created
Scroll through the menus:
House settings
Room
Create
7
The display shows that a new Room has been created.
8
The display asks whether you want the remaining products
to be assigned to the next Room automatically.
PRODUCT FROM
House
3
Displays the areas, here the area House.
Press
to highlight the area with the product to be assigned to Room 1 first.
Press
"Enter" to confirm your choice.
Enter
Back
P1
P2
• Press
"Yes" to save the remaining products in
Room 2.
• Press
"No" to return automatically to the list in
item 3 and possibly create more Rooms.
Note: When creating Room 1, Room 2 will automatically be
created.
INFORMATION
Save all remaining
products in next
Room
Yes
No
INFORMATION
Room created
4
Displays a list of all products in House. The product type,
in this case Window, appears in the display. The individual
products can be identified by pressing
for a short
period of time. This will activate the product briefly.
Press
Press
20 VELUX
to highlight the product to be moved to Room 1.
"Enter" to confirm your choice.
HOUSE
WINDOW
9
No. 1
No. 2
No. 3
Enter
Back
P1
P2
The display shows that a new Room has been created.
Note: The products are automatically renumbered when assigned
to a Room.
Room 1
Room 2
VELUX 21
Editing a Room
You can edit the Rooms you have created, ie one or more
products can be moved from one Room to another.
5
The example shows how the window operator in window
No. 1 can be moved from Room 1 to Room 2.
Displays a list of the individual products within the product
type in question.
Press
to highlight the product to be moved. The individual products can be identified by pressing
for a
short period of time. This will activate the product briefly.
Press
6
Room 1
No. 1
Window
1
Press
"Menu".
2
Scroll through the menus:
Menu
Locate
P1
P2
"Enter" to confirm your choice.
Displays a list of Rooms in which the product can be
placed.
to highlight the Room in which the product is to
Press
be placed.
Press
"Enter" to confirm the new location of the
product.
WINDOW
No. 1
No. 2
No. 3
Enter
Back
P1
P2
PLACE IN
Room 1
Room 2
Room 3
Enter
Back
P1
P2
INFORMATION
Rooms modified
House settings
Room
Edit
7
The display shows that several Rooms have been modified.
MOVE FROM
3
Displays a list of the Rooms created.
Press
to highlight the Room from which the product is
to be moved.
"Enter" to confirm your choice.
Press
Room 1
Room 2
Room 3
Enter
Back
P1
P2
Note: The products are automatically renumbered when
assigned to a new Room.
ROOM 1
4
Displays a list of product types in the Room from which the
product is to be moved.
Press
Press
22 VELUX
to highlight "Window".
"Enter" to confirm your choice.
Groups are edited according to the same principle as
Rooms.
Window
Roller shutter
Enter
Back
P1
P2
VELUX 23
Creating a Group
To make it easier to locate and operate products of the
same type simultaneously, you can create a Group.
The example shows a room with four
windows, each with a window operator. It is shown how to create Group 1
consisting of the window operators on
the two windows No. 3 and No. 4. The
example presumes that Room 1 has
been created.
1
5
to highlight the product to be included in Group 1.
Press
The individual products can be identified by pressing
for a short period of time. This will activate the product
briefly.
2
3
Room 1
4
Press
Note: A number of Groups "All" each consisting of all products of the same type in the Room in question was created
automatically when Room 1 was created.
6
Press
"Menu".
2
Scroll through the menus:
"Enter" to confirm your choice.
The display asks whether additional products are to be
moved to Group 1.
No. 1
Window
Menu
Locate
P1
P2
• Press
WINDOW
No. 1
No. 2
No. 3
No. 4
Enter
Back
P1
P2
INFORMATION
"More" to move additional products to Group
• Press
1. You will return to the list in item 5. Repeat items 5-6
until these products have been moved to Group 1.
Room 1
A Group created across more Rooms is shown in the
display as a Zone.
1
Displays a list of the individual products within the product
type in question.
"Save" to create Group 1.
Add more to Group
or save Group
More
Save
P1
P2
INFORMATION
House settings
Group
7
Create
Group 1 created in
Room 1
The display shows that Group 1 has been created in
Room 1.
PRODUCT FROM
3
Displays a list of the Rooms created.
to highlight the Room in which Group 1 is to be
Press
created.
Press
"Enter" to confirm your choice.
Room 1
Room 2
Room 3
Groups are edited according to the same principle as
Rooms.
Enter
Back
P1
P2
Group 1
1
2
3
Room 1
ROOM 1
4
Displays a list of the product types in Room 1.
Press
Press
24 VELUX
to highlight "Window".
"Enter" to confirm your choice.
Window
Roller shutter
Blind
Enter
Back
P1
P2
4
Note: When operating Groups a delayed execution of
commands might occur. If you want a particular product to
respond at once, this product must be operated individually.
VELUX 25
Naming
You can change the names of House, Rooms, Zones,
Groups, products and Programs displayed into more personal names.
RENAME
K
6
The example shows how to change Room 1 into Kitchen.
Note: When you have used the function Rename, the
products are not automatically renumbered any longer.
Room 1
Enter the new name using the list of characters.
Press
Press
to highlight the character required.
"Enter" after each character.
GHI
Back
P1
P2
No. 1
Window
Menu
JKLMNO
Enter
RENAME
Save
Locate
KITCHEN
1
Press
"Menu".
2
Scroll through the menus:
House settings
P1
P2
7
Save the new name by choosing in the list when the
last character has been entered.
"Enter".
Press
CDEFGHI
JK
Enter
Back
P1
P2
Rename
INFORMATION
RENAME
3
Room
Zone
Group
Product
Displays a list of House, Rooms, Zones, Groups, products
and Programs.
Press
Press
to highlight "Room".
"Enter" confirm your choice.
8
Enter
Back
P1
P2
The display shows that the new name has been
saved.
Saved
AREA
4
Room 1
Room 2
Room 3
Displays a list of the names automatically given to the
Rooms.
Press
Press
to highlight "Room 1".
"Enter" to confirm your choice.
Enter
Back
P1
P2
RENAME
Room 1 A
ABCDEFGHI
5
Displays a list of characters including the save function
the delete function
and the space character
.
26 VELUX
Enter
Back
P1
P2
,
VELUX 27
Programs
My program
A program contains a sequence of commands on how and
when the products are to be operated.
My program is an automatically activated program which
contains a sequence of operating commands for one or
more products. The sequence is automatically activated at
a pre-set time within a period defined by a starting date
and an end date.
There are three different program types:
• My program
A personal program that will be activated automatically
without using the remote control.
For instance you can record a morning program to run
up the roller shutters in the bedroom, open the windows
and turn on the frame lights between 7 and 7.30 on
weekdays from October to April.
• Program under Shortcut P1/P2
A personal program that can be activated by using the
shortcut keys.
For instance you can record and save a program under
shortcut key P1 to close all windows in the house and
draw all blinds down by 50%.
• Synergy program
A pre-defined program that will be enabled via the
remote control and then run automatically.
The synergy program Energy Balance controls the exterior sunscreening products and contributes to optimising the energy balance of the building. In this way, you
save energy for the heating and cooling of the building.
The example shows how to program window No. 1 to open
at 18.30 and close again at 22.00 each Monday for 12
months.
House
No. 1
Window
Menu
1
Press
2
Scroll through the menus:
Program settings
Record
My program
Note: If the current time and date has not been set
already, please do so before choosing "My program".
3
Locate
"Menu".
Locate the window. The relevant product can be identified by pressing
for a short period of time. This will
activate the product briefly.
"Select" to choose the product.
Press
HOUSE
WINDOW
No. 1
No. 2
No. 3
Select
Back
P1
P2
HOUSE
WINDOW
No. 1
4
The display shows the selected product.
"Enter" to confirm your choice.
• Press
• Press
"Edit" to select additional products from the
list.
Enter
Edit
P1
P2
POSITION
Set position
Save position
5
28 VELUX
Press
Press
to highlight "Set position".
"Enter" to confirm your choice.
Enter
Back
P1
P2
VELUX 29
My program
SET DAY
SET POSITION
Monday
100% open
6
Press
to set the opening position of the window.
100% corresponds to fully open.
Press
"Enter" to confirm your setting.
11
Enter
Back
P1
P2
The display shows the chosen day of the week.
"Enter" to confirm your choice.
• Press
• Press
"Edit" to return to item 10 in case of additions or changes.
Enter
Edit
P1
P2
POSITION
Set position
Save position
7
Press
Press
to highlight "Save position".
"Enter" to confirm your choice.
SAVE
Enter
Back
P1
P2
12
The display shows various options.
to highlight "Add functions" to set the closing
Press
position of the window plus the day and time for closing.
Press
"Enter" to confirm your choice.
Save program
Add functions
Cancel recording
Enter
Back
P1
P2
SET TIME
0 0:30
8
Press
to set the time for the window to be opened.
First choose minutes.
Press
"Enter" to change to hours.
Enter
Back
P1
P2
HOUSE
WINDOW
No. 1
13
SET TIME
The display shows the latest selected product.
"Enter" to continue.
Press
Repeat items 5-11, only this time applied to the closing
settings.
Enter
The display shows various options.
to highlight "Add functions" to add add• Press
itional operating commands for the window or other
products to the program.
Press
"Enter" to return to item 13.
• Press
to highlight "Save program" to save the
program as it is.
Press
"Enter" to save the program.
Save program
Add functions
Cancel recording
Edit
P1
P2
18 : 3 0
9
Press
Press
to set hours.
"Enter" to confirm your setting.
Enter
Back
P1
P2
SET DAY
to select the day of the week for the window
10 toPress
be opened.
Press
30 VELUX
"Select".
Monday
Tuesday
Wednesday
Thursday
Select
Back
P1
P2
14
SAVE
Enter
Back
P1
P2
VELUX 31
My program
15
The display automatically suggests the name "My
program 1".
"Enter" to save the name.
Press
Follow the instructions in section Naming to change this
name.
RENAME
INFORMATION
Save
My program 1
enabled
from 01.01.2008
to 31.12.2008
My program 1
ABC
DEFGHI
Enter
Back
P1
P2
MY PROGRAM 1
16
The display asks whether to enable the program or to
keep it disabled.
to highlight "Enable".
Press
Press
"Enter" to confirm your choice.
Enable
Disable
Enter
Back
P1
P2
19
The display shows that My program 1 is enabled in the
chosen period.
Choose "Enable" under menu item Program settings
to get a full list of all recorded programs that can be
activated automatically. The list comprises both enabled
and disabled programs. The enabled programs have been
ticked and the disabled programs can be enabled any
time you want.
Note: For solar products, automatically activated programs may result in a quick discharge of the battery due
to frequent operation of the products.
Set starting and end date to enable the program.
SET DATE
Starting date
01.01.2008
Starting date:
17
Press
Press
"Edit" to choose a starting date.
"Enter" to confirm your setting.
Enter
Edit
P1
P2
SET DATE
End date
31.12.2008
End date:
18
Press
Press
32 VELUX
"Edit" to choose an end date.
"Enter" to confirm your setting.
Enter
P1
Edit
P2
VELUX 33
Program under Shortcut P1/P2
A program under Shortcut P1/P2 contains a sequence
of operating commands for one or more products. The
sequence is activated by pressing shortcut key P1 or P2.
You can record up to eight programs, four under each of
the shortcut keys. The programs can be set to be executed immediately, with a delay or at a certain time.
SET POSITION
100% open
to set the opening position of the window.
6 Press
100% corresponds to fully open.
Press
The example shows how to program window No. 1 to open
immediately and close again after 1 hour and 30 minutes
(delay) by a single pressure on shortcut key P1.
1
2
Scroll through the menus:
3
4
Locate
Locate the window. The relevant product can be identified by pressing
for a short period of time. This will
activate the product briefly.
Press
"Select" to select the product.
The display shows the selected product.
"Enter" to confirm your choice.
• Press
"Edit" to select additional products from the
• Press
list.
Press
Press
to highlight "Save position".
"Enter" to confirm your choice.
HOUSE
WINDOW
Shortcut P1/P2
Note: If the current time and date has not been set
already, please do so before choosing "Shortcut P1/P2".
P2
POSITION
7
Record
P1
Set position
Save position
No. 1
Window
"Menu".
Program settings
Back
House
Menu
Press
"Enter" to confirm your setting.
Enter
P1
Back
P1
P2
TIME CONTROL
No. 1
No. 2
No. 3
Select
Enter
Back
P2
display shows two time setting options.
8 The
to highlight "Delay", ie the time that will pass
Press
from pressing P1 till the product will be activated.
Press
"Enter" to confirm your choice.
Delay
Starting time
Enter
Back
P1
P2
HOUSE
WINDOW
DELAY
No. 1
Enter
Edit
P1
P2
to set the relevant delay. First choose minutes.
9 Press
Choose 0 minutes if you want the window to open immediately.
Press
"Enter" to change to hours.
00 h 00 min
Enter
Back
P1
P2
DELAY
POSITION
Set position
Save position
Enter
5
Press
Press
34 VELUX
to highlight "Set position".
"Enter" to confirm your choice.
P1
00 h 00 min
Back
P2
10 Press
Press
to set hours.
"Enter" to confirm your setting.
Enter
Back
P1
P2
VELUX 35
Program under Shortcut P1/P2
DELAY
SAVE
11
The display shows various options.
to highlight "Add functions" to set the closing
Press
position and time of the window.
Press
"Enter" to confirm your choice.
Save program
Add functions
Cancel recording
Enter
Back
P1
P2
00 h 30 min
16
Press
Press
to set the delay. First choose minutes.
"Enter" to change to hours.
Enter
Back
P1
P2
DELAY
HOUSE
WINDOW
01 h 30 min
No. 1
12
The display shows the latest selected product.
"Enter" to continue.
Press
Enter
Edit
P1
17
Press
Press
to set hours.
"Enter" to confirm your setting.
Enter
Back
P1
P2
P2
POSITION
display shows various options.
18 The
to highlight "Add functions" to add add• Press
Set position
Save position
13
Press
Press
to highlight "Set position".
"Enter" to confirm your choice.
Enter
Back
P1
P2
itional operating commands for the window or other
products to the program.
Press
"Enter" to return to item 12.
• Press
to highlight "Save program" to save the
program as it is.
Press
"Enter" to save the program.
SET POSITION
SAVE
Save program
Add functions
Cancel recording
Enter
Back
P1
P2
0% open
RENAME
14
Press
to set the closing position of the window. 0 %
corresponds to fully closed.
Press
"Enter" to confirm your setting.
Enter
Back
P1
P2
TIME CONTROL
15
The display shows two time setting options.
to highlight "Delay", ie the time that will pass
Press
from pressing P1 till the product will be activated.
Press
"Enter" to confirm your choice.
36 VELUX
19
The display automatically suggests the name
"Shortcut 1".
"Enter" to save the name.
Press
Follow the instructions in section Naming to change this
name.
Delay
Starting time
Save
Shortcut 1
ABC
DEFGHI
Enter
Back
P1
P2
INFORMATION
Enter
Back
P1
P2
20 The display shows that Shortcut 1 has been saved.
Shortcut 1
saved
under P1/P2
VELUX 37
Program under Shortcut P1/P2
Activating a program under Shortcut P1/P2
Interrupting a program under Shortcut P1/P2
You can activate any one of the personal shortcut
programs by pressing the shortcut key P1 or P2. You can
still use the various functions of the remote control at the
same time as one or more programs have been activated.
Icon
indicates that a program has been activated. A
shortcut program in progress can be interrupted as
follows:
House
Below four shortcut programs have been recorded under
shortcut key P1. The example shows how to activate the
program under Shortcut 3 via shortcut key P1.
No. 1
Window
1
Press
P1
or
P2
to find the shortcut program in progress.
Menu
Locate
P1
P2
House
1
Press P1 three times to activate the program under
Shortcut 3.
Note: Max time interval between each key pressure:
2 seconds. Otherwise the shortcut program that happens
to be highlighted will be activated.
No. 1
Window
SHORTCUT P1
Menu
Locate
P1
P2
2
The activated shortcut program has been ticked.
Press
Press
to highlight the program in question.
"Stop" to interrupt the program.
Shortcut 1
Shortcut 2
Shortcut 3
Shortcut 4
Stop
Back
P1
P2
SHORTCUT P1
Shortcut 1
Shortcut 2
Shortcut 3
Shortcut 4
2
Shortcut 3 is highlighted in the display and the program
automatically starts.
38 VELUX
Start
Back
P1
P2
VELUX 39
Synergy program
The synergy program Energy Balance is a pre-defined
program containing a sequence of operating commands
for roller shutters or awning blinds. If the program has
been enabled, the sequence is automatically started at the
pre-defined times. The times have been fixed so that the
sunscreening products will run up or down depending on
whether it is summer or winter and day or night.
During the summer time in Southern Europe, the sunscreening products will for instance run down in the morning and up in the evening. In this way, the sun is screened
during the time where it induces considerable heat into
the building. This means less need for inducing energy for
cooling of the building.
Control parameters
The control of the sunscreening products is automatically changed so it matches the summer and the winter
period. The program will automatically be disabled in
the transition period between summer and winter where
automatic operation of the sunscreening products does not
contribute substantially to improving the energy balance.
The transition period is 0 to 8 weeks depending on the
geographical location. In addition, the control automatically discerns between weekdays and weekend so that the
sunscreening products are not operated before 8 o'clock in
the morning at weekends.
Settings
The program can be enabled in two ways:
• Standard setting: Automatic control of the roller shutters alone.
• Customised setting: Automatic control of selected roller
shutters and awnings blinds. In addition, the location of
the windows in the building (north/south/east/west) is
taken into account.
The following examples show how to enable the program
Energy Balance, first via Standard setting and then via
Customised setting.
40 VELUX
Standard setting
Used for automatic control of the roller shutters.
House
No. 1
Window
Menu
1
Press
2
Scroll through the menus:
Locate
"Menu".
Program settings
Enable
Synergy program
ENERGY BALANCE
Energy savings
by automatic
control of
sunscreening
Continue
3
Press
"Continue".
Back
P1
P2
ENERGY BALANCE
Enable
Disable
4
Press
Press
to highlight "Enable".
"Enter" to confirm your choice.
Enter
Back
P1
P2
TIME AND DATE
5
The display shows time and date. Check that the time settings are correct so that the time control of the sunscreening products will be right.
• Press
"Enter" to confirm time and date.
• Press
"Edit" to correct time and date.
14:01
13.07.2008
Enter
Edit
P1
P2
VELUX 41
Synergy program
Customised setting
SETTING
Standard
Customised
6
Press
Press
to highlight "Standard".
"Enter" to confirm your choice.
Enter
Back
P1
P2
Used for automatic control of selected roller shutters and
awning blinds. In addition, the location of the windows
in the building (north/south/east/west) is taken into account.
If the program has been enabled via Standard setting
already, you must first disable this setting and then follow
the example below.
CLOSEST CITY
7
Press
to highlight the city that is geographically closest to the location of the building.
Press
"Enter" to confirm your choice.
Amsterdam
Berlin
Bilbao
Bolzano
Enter
Back
P1
P2
Press
2
Scroll through the menus:
Enter
Back
P1
P2
Locate
"Menu".
Enable
Synergy program
ENERGY BALANCE
Energy savings
by automatic
control of
sunscreening
INFORMATION
Energy Balance
enabled
8
No 1
Window
Menu
1
Program settings
The display shows that the program Energy Balance has
now been enabled.
House
Continue
3
Press
”Continue".
Back
P1
P2
ENERGY BALANCE
Enable
Disable
4
Press
Press
to highlight "Enable".
"Enter" to confirm your choice.
Enter
Back
P1
P2
TIME AND DATE
5
42 VELUX
The display shows time and date. Check that the time settings are correct so that the time control of the sunscreening products will be right.
• Press
"Enter" to confirm time and date.
• Press
"Edit" to correct time and date.
14:01
13.07.2008
Enter
P1
Edit
P2
VELUX 43
Synergy program
SETTING
INFORMATION
Selected products
saved
Standard
Customised
6
Press
Press
to highlight "Customised".
"Enter" to confirm your choice.
Enter
Back
P1
P2
11
The display shows that the selected products have been
saved.
Press
"Continue" to end the setting of the program.
Continue
P1
Back
P2
CLOSEST CITY
7
Press
to highlight the city that is geographically
closest to the location of the building.
"Enter" to confirm your choice.
Press
display shows a list of all roller shutters and awning
8 The
blinds connected. The relevant product can be identified by pressing
for a short period of time. This will
activate the product briefly.
Press
to highlight the product to be controlled
automatically.
Press
"Select".
INFORMATION
Amsterdam
Berlin
Bilbao
Bolzano
Enter
Back
P1
P2
question has been installed.
Press
"Enter" to confirm your choice.
display shows a list of the products that will be
10 The
controlled automatically.
• Press
"Edit" to return to item 8. Repeat items 8-10
to change or add products.
• Press
"Enter" when the list of the products to be
controlled via the program is complete.
44 VELUX
12
The display shows that the program Energy Balance has
been enabled.
Enter
Back
P1
P2
ROOM 1
ROLLER SHUTTER
No. 1
No. 2
No. 3
Select
Back
P1
P2
If you later want to add roller shutters or awning blinds
to the program Energy Balance, you must first disable
the program via the menus:
Program settings
POINT OF COMPASS
Press
to highlight the point of the compass for the
9 window
on which the roller shutter or awning blind in
Energy Balance
enabled
North
South
East
West
Enter
Back
P1
P2
Enable
Synergy program
Then the program must be customised via Customised
setting, see item 1.
Note: Products already selected and their settings are
maintained.
ROOM 1
ROLLER SHUTTER
No. 1
No. 2
No. 3
Enter
P1
Edit
P2
VELUX 45
Disabling rain sensor
If the rain sensor gets wet, the window operator automatically closes the window. However, the ventilation flap
remains open.
If you want to open the window even if it is raining, you
can disable the rain sensor for up to 60 minutes. When
the rain sensor is disabled, the window can open up to
50%.
The example shows how window No. 1 is opened even if it
is raining.
Note: If the window has not been set to close automatically, it will not close until after 60 minutes. The window
will close after these 60 minutes if the rain sensor is wet
or when it gets wet.
1
Locate the window.
to open the window.
Press
House
No. 1
Window
Menu
Locate
INFORMATION
2
The display shows that the operation can not be executed
because the window operation has been limited by the
rain sensor. You are asked whether the rain sensor is to be
disabled temporarily.
Press
"Yes" to disable the rain sensor temporarily.
Disable
rain sensor
temporarily?
Yes
P1
No
P2
The rain sensor will now be disabled for 60 minutes.
When the window is closed, the rain sensor will be enabled again.
If the window is set to close automatically, the rain sensor
will only be disabled until the window is closed automatically.
Note: It is recommended to set the window to close
automatically to reduce the risk of water ingress.
46 VELUX
VELUX 47
Time and date
Keypad lock
Time and date must be set manually the first time the
remote control is to be used. The time and date format
can be set in item 4 by choosing "Set format".
House
The keypad can be locked so that products cannot be operated without unlocking the keypad. The stop key can still
be used.
The example shows how to set the time. The date is set
correspondingly by choosing "Date" in item 3.
No. 1
Window
Menu
1
2
Press
No. 1
Window
User settings
Menu
Locate
P1
P2
Locate
"Menu".
Scroll through the menus:
House
1
Press
"Menu".
2
Scroll through the menus:
TIME AND DATE
Time and date
Time
Date
User settings
Keypad lock
Enter
3
Press
Press
to highlight "Time".
"Enter" to confirm your choice.
KEYPAD LOCK
P1
3
TIME
Set time
Set format
4
Press
Press
to highlight "Set time".
"Enter" to confirm your choice.
Disable
Enable
P2
Enter
Back
P1
P2
Press
to highlight "Enable".
Press
"Enter" to confirm your choice.
The keypad lock is immediately activated.
Enter
Back
P1
P2
SET TIME
5
6
Press
Press
Press
Press
Using the keypad even if it is locked:
to set minutes.
"Enter" to change to hours.
11: 0 0
KEYPAD LOCK
Enter
Back
P1
P2
to set hours.
"Enter" to confirm your settings.
SET TIME
Message as shown.
"Menu". Press
"Locate".
Press
The keypad has temporarily been unlocked.
The keypad will automatically be locked again 20 seconds
after it has been used.
Press
Menu
and then
Locate
Menu
P1
Locate
P2
11: 0 0
Time is shown automatically when the remote control is in
sleep mode. See section Display.
Time is automatically switched from summer time to
winter time and vice versa (European time).
48 VELUX
Enter
Back
P1
P2
Note: The keypad lock can be deactivated by choosing
"Disable" in item 3.
VELUX 49
Display
Display light
Sleep mode
In standard settings, the light in the display is turned on
when the keypad is activated and turned off again after 20
seconds. If you do not want any light in the display and you
want to prolong the battery lifetime, you can opt out of
this.
House
The life of the batteries can be prolonged by setting the
remote control to go into sleep mode. When it has been
set to go into sleep mode, the light in the display will be
turned off 20 seconds after the latest key pressure. Time
is shown.
No. 1
Window
Press any key to activate the remote control again. However, the stop key can be used at any time.
The example shows how to turn off the light in the display.
1
Press
"Menu".
Menu
Locate
P1
P2
The example shows how to set the remote control to go
into sleep mode.
House
No. 1
Window
Menu
2
1
2
Scroll through the menus:
User settings
Display
DISPLAY
Display light
Sleep mode
3
Press
Press
to highlight "Display light".
"Enter" to confirm your choice.
Enter
P1
Press
Scroll through the menus:
User settings
DISPLAY
Display
Display light
Sleep mode
Back
P2
3
Press
Press
to highlight "Sleep mode".
"Enter" to confirm your choice.
Enter
Back
P1
P2
DISPLAY LIGHT
SLEEP MODE
On
Off
Enter
4
Press
Press
to highlight "Off ".
"Enter" to confirm your choice.
Note: The light in the display can be turned on by choosing
"On" in item 4.
On
Off
Back
4
P1
Locate
"Menu".
P2
Press
Press
to highlight "On".
"Enter" to confirm your choice.
Enter
Back
P1
P2
15:43
5
When the remote control is in sleep mode, time is shown.
Note: Choose "Off " in item 4 if you do not want the
remote control to go into sleep mode.
50 VELUX
VELUX 51
Rearranging order
5
You can rearrange the order of the individual products,
Groups, Rooms and Zones displayed.
In the example, three Rooms have been created. It shows
how to rearrange the order of the roller shutters in
Room 2.
Displays a list of the individual products of the chosen
product type. The individual products can be identified by
pressing
for a short period of time. This will activate
the product briefly.
to highlight the product in question.
Press
Press
"Enter" to confirm your choice.
REARRANGE ORDER
No. 1
No. 2
No. 3
Enter
Back
P1
P2
Room 1
REARRANGE
ORDER
REARRANGE ORDER
No. 1
Window
Menu
1
2
Press
"Menu".
P1
Locate
6
P2
No. 1
No. 3
No. 2
Enter
Back
P1
P2
Scroll through the menus:
House settings
Rearrange order
Product
7
REARRANGE ORDER
3
The list of the individual products of the chosen product
type is still displayed.
to move the chosen product.
Press
Press
"Enter" to confirm the rearranged order.
Displays a list of the Rooms created containing the products in question.
Press
to highlight the Room in which the order of the
individual products is to be rearranged.
Press
"Enter" to confirm your choice.
Room 1
Room 2
Room 3
Enter
Back
P1
P2
The display asks whether the order of more products is to
be rearranged or whether the changes made until now are
to be saved.
• Press
"More" to rearrange the order of more products. You will return to the list in item 5. Repeat items
5-7 until the required order of products has been
obtained.
• Press
"Save" to save the rearranged product order.
INFORMATION
Save new order
or rearrange more
products
Save
More
P1
P2
INFORMATION
Order rearranged
REARRANGE ORDER
4
Displays a list of the product types in Room 2.
Press
to highlight the product type where the order of
the individual products is to be rearranged.
Press
"Enter" to confirm your choice.
52 VELUX
Window
Roller shutter
Awning blind
Blind
8
Enter
Back
P1
P2
The display shows that the order has been rearranged.
VELUX 53
Access code
Software version
You can choose a personal access code to protect your
personal settings, for instance against unintentional deletion of programs. The access code must consist of four
digits from 0 to 9.
1
Press
2
Scroll through the menus:
No. 1
Window
Menu
Locate
P1
P2
"Menu".
ACCESS CODE
User settings
3
When addressing technical inquiries to VELUX, you will be
asked to provide the version number of the software in the
remote control. To find this proceed as follows:
House
Press
Press
Access code
to highlight "Select/Change".
"Enter" to confirm your choice.
Select / Change
Delete
Room 1
Enter
Back
P1
P2
ACCESS CODE
4
Press
Press
Press
to choose the first digit.
"Enter" to go to the next digit.
"Enter" when the last digit has been chosen.
Enter code
1 ***
Enter
Back
P1
P2
No. 1
Window
1
Press
"Menu".
2
Scroll through the menus:
System settings
Menu
Locate
P1
P2
Software version
SOFTWARE VERSION
ACCESS CODE
004.000.000.076
Confirm code
1 2 3 4
5
Press
"Save" to confirm and save the code.
Save
Back
P1
P2
3
The display shows a code, for instance 004.XXX.XXX.XXX.
The first three digits are the version number.
Enter
Back
P1
P2
ROOM 1
Window
Roller shutter
Every time you now choose Menu, you must enter the access code before you can proceed.
Note: The access code can be cancelled by choosing
"Delete" in item 3.
54 VELUX
4
Press
"Back" to return to the previous menu.
Enter
Back
P1
P2
VELUX 55
Clearing remote control settings
When clearing the remote control settings, all personal
settings for eg Rooms, Zones, Groups and Programs and
all personal names are deleted. The products, however,
remain registered in the remote control.
Room 1
No. 1
Window
Menu
1
Press
"Menu".
2
Select the submenu:
Locate
P1
P2
House settings
HOUSE SETTINGS
3
Displays a list of menu items.
to highlight "Clear".
Press
Press
"Enter" to confirm your choice.
Group
Rearrange order
Rename
Clear
Enter
Back
P1
P2
CLEAR
4
The display asks whether you want to clear all Groups,
Rooms, Zones, Programs and personal names you might
have created.
"Yes" to confirm your choice.
• Press
• Press
"No" to cancel your choice.
Clear all Groups/
Rooms/Zones/
Programs/Names
Yes
P1
No
P2
The remote control settings are cleared.
56 VELUX
VELUX 57
Registering new products
When a new additional product has been installed, it can
be registered in a remote control already in operation.
This new product can for instance be a new INTEGRA or
Solar roof window, a blind or a roller shutter.
INFORMATION
6
The example shows how to register a new roller shutter in
the remote control and place it in Room 1.
The display shows that the new product has been registered.
New products
registered
House
Now the product must be placed.
No. 1
Roller shutter
7a
1
Prepare the product for registration.
Disconnect the mains or battery supply for 1 minute and
then reconnect it. The product can now be registered in
the remote control within the next 10 minutes.
7b
House
No. 1
Window
2
Press
tion.
Menu
Locate
P1
P2
"Menu" in the remote control already in opera-
If no Rooms have been created, the product is automatically placed in House.
Operation can start.
If Rooms have been created, the product has to be
placed in the appropriate Room.
The display shows a list of new products. The individual
for a short
products can be identified by pressing
period of time. This will activate the product briefly.
to highlight the product to be placed.
Press
Press
"Enter" to confirm your choice.
Menu
Locate
P1
P2
NEW PRODUCTS
ROLLER SHUTTER
No. 1
Enter
P1
P2
PLACE IN
3
8
Select the submenu:
System settings
SYSTEM SETTINGS
Register product
Copy system
Security key
Configure
4
Press
Press
to highlight "Register product".
"Enter" to confirm your choice.
Enter
Back
P1
P2
Displays a list of the Rooms created.
to highlight the Room in which the product is
Press
to be placed.
Press
"Enter" to confirm your choice.
Room 1
Room 2
New Room
Enter
Back
P1
P2
INFORMATION
9
The display shows that the Room has been modified.
Operation can start.
Room modified
AUTO SET-UP
5
Registration is running. This can take up to two minutes.
58 VELUX
Where more than one remote control is used, new products can also be operated with these. To do this, register
the new products in each remote control by repeating
items 2-9 for each of them.
VELUX 59
Using additional activation controls
Products and remote control settings can be copied from
one remote control to another. Copying depends on the
type of activation control and on whether the activation
control to be copied to is new or already in operation.
• Copying to a new remote control
How to copy the contents from one remote control to
another remote control not yet in operation.
• Copying to a remote control in operation
How to copy the contents from one remote control to
another remote control where the two remote controls
have not registered the same products.
• Copying products from other types of activation
controls
How to copy the products from another type of activation control to the remote control.
• Copying products to other types of activation
controls
How to copy the products in the remote control to
another type of activation control.
The following examples presuppose the use of VELUX
two-way remote controls unless otherwise mentioned.
For other io-homecontrol® compatible activation controls,
please refer to the instructions provided with the product
in question.
Note: When copying between two VELUX two-way
remote controls, all registered products and personal
settings are copied, apart from personal programs that
cannot be copied. When copying from VELUX two-way
remote controls to other types of activation controls, only
the registered products will be copied, not the remaining
settings such as personal names, Rooms, Groups etc.
60 VELUX
VELUX 61
Copying to a new remote control
You can copy the contents from a remote control already in
operation to a new one so that the latter can also operate
the products registered.
The example shows how to copy the products and the
personal settings from a remote control A in operation to a
new remote control B not yet in operation.
Step 2: Register products in remote control B
A
B
2
4
Insert the three batteries supplied
(type AA, 1.5 volt) into the remote
control as shown.
B
2
LANGUAGE
5
Choose language:
Press
"Enter".
The language chosen in remote control A is automatically
chosen for remote control B.
Eesti
English
Español
Français
Enter
P1
P2
AUTO SET-UP
Step 1: Prepare remote control A for copying
House
No. 1
Window
Menu
1
Press
2
Select the submenu:
Locate
"Menu".
Press
"Register" to start registration of each product.
Please disregard the information in the display.
Register
Info
The display now indicates that copying is in progress.
System settings
SYSTEM SETTINGS
Register product
Copy system
Security key
Configure
3
6
Prepare products
for registration and
press Register
within 10 minutes
Press
Press
to highlight "Copy system".
"Enter" to confirm your choice.
Enter
Back
P1
P2
Remote control B can now operate the same products as
remote control A.
Step 2 must now be completed within the next two minutes.
62 VELUX
VELUX 63
Copying to a remote control in operation
If you have two remote controls with different products
registered in them, you can copy the contents from one
to the other. Then all products can be operated with both
remote controls.
The example shows how to copy the products from remote control A to remote control B and at the same time
maintain the settings and the programs of both remote
controls.
A
B
2
2
Note: With the shown procedure, only the products are
copied from remote control A to remote control B and
vice versa. If you want an exact copy of remote control
A with all personal settings such as Names, Rooms and
Groups, you must proceed differently after step 2. First
reset remote control B, see section Resetting the remote
control. Then copy from remote control A as described in
section Copying to a new remote control.
Step 1: Change security key in remote controls A and B
Change the security key in both remote controls so that
they have the same security key, see section Security key.
Step 2: Register the products in remote control A
Register all products in remote control A by choosing:
Menu
System settings
Register product
If in doubt, see section Registering new products.
Remote control A can now operate both the products
from remote control B and the products it could already
operate.
Step 3: Register the products in remote control B
Register all products in remote control B by choosing:
Menu
System settings
Register product
Remote control B can now also operate both the products
from remote control A and the products it could already
operate.
After this both remote controls can operate all products.
64 VELUX
VELUX 65
Copying products from other types of activation controls
The remote control can also operate products registered
in another type of io-homecontrol® activation control if
they are copied to the remote control.
The example shows how to copy products from a VELUX
one-way remote control B to a VELUX two-way remote
control A.
Step 2: Register products in remote control A
House
No. 1
Window
Menu
A
B
2
1
2
Press
3
Select the submenu:
4
System settings
Press
Press
Locate
"Menu".
to highlight "Register product".
"Enter" to confirm your choice.
Step 1: Prepare activation control B for copying
SYSTEM SETTINGS
Register product
Copy system
Security key
Configure
Enter
Back
P1
P2
AUTO SET-UP
1
Prepare the products in activation control B for registration by pressing the RESET button on the back with a
pointed object for at least 5 seconds.
The products must now be registered in remote control A
within the next 10 minutes.
5
Registration is running. This can take up to two minutes.
B
INFORMATION
6
The display shows that the new product(s) has/have been
registered.
New products
registered
Now the product(s) must be placed. Please refer to the
instructions in section Registering new products, item 7a
and onwards.
Note: If remote control A is not yet in operation, execute
the items in section Initial set-up instead.
66 VELUX
VELUX 67
Copying products to other types of activation controls
You can copy one or more products registered in the
remote control to another type of io-homecontrol® activation control. This other type of activation control can thus
operate both its own and the copied products.
The example shows how to copy a roller shutter from a
VELUX two-way remote control A to a VELUX one-way
remote control B so that the latter can operate both the
roller shutter and the roller shutters it could already operate.
INFORMATION
Select product to
be configured
A
B
2
1
4
Press
"Enter" to continue selecting the product to be
copied to another type of activation control (B).
5
Locate the product. The individual products can be identified by pressing
for a short period of time. This will
activate the product briefly.
Note: A VELUX one-way remote control can operate
products of the same type only, in this case roller shutters.
Enter
Back
House
No. 3
Roller shutter
Step 1: Prepare remote control A for copying
6
The display shows the relevant product.
"Enter" to confirm your choice.
Press
7
The display shows that the product is ready to be registered in the activation control (B).
Products can be registered in the remote control for up to
10 minutes after they have been prepared for registration.
They are prepared by disconnecting the mains or battery
supply for 1 minute and then reconnecting it.
House
No. 1
Window
Menu
1
Press
2
Select the submenu:
Locate
SYSTEM SETTINGS
68 VELUX
INFORMATION
Product ready for
configuration
Step 2: Register products in activation control B
System settings
Press
Press
Back
"Menu".
Register product
Copy system
Security key
Configure
3
Enter
to highlight "Configure".
"Enter" to confirm your choice.
Enter
Back
P1
P2
8
Press the RESET button on the back briefly (for maximum
5 seconds) to register the new product. The product
selected can now be operated with activation control B.
B
VELUX 69
Security key
Each remote control and each product have a security key.
To allow for communication between remote control and
products, they must have the same security key. This also
ensures that external activation controls cannot communicate with the products and thus operate the products
unintentionally.
The example shows how to change the security key in
remote control A and in the products registered in A
(step 1). If you have more than one remote control, the
new security key must also be transferred to these
(step 2).
2
2
House
Step 1: Change security key in remote control A
Menu
Press
2
Scroll through the menus:
2
Locate
"Menu".
System settings
Press
2
Scroll through the menus:
Security key
4
Press
to highlight "Change".
Press
"Enter" to confirm your choice.
The display now indicates that the security key has been
changed.
The display asks whether the security key of other remote
controls is to be changed.
"No" to finish if this is the only remote control
• Press
being changed.
• Press
"Yes" if there are other remote controls.
Execute step 2 for these.
70 VELUX
No. 1
Window
Locate
Security key
SECURITY KEY
Change
Receive
3
Back
P1
House
"Menu".
System settings
Enter
2
Menu
1
SECURITY KEY
3
B
Step 2: Change security key in remote control B (and
other)
No. 1
Window
1
A
B
A
P2
Press
Press
to highlight "Receive".
"Enter" to confirm your choice.
The display indicates that the security key is being transferred from remote control A to remote control B.
Change
Receive
Enter
Back
P1
P2
CHANGE
Change security
key in another
remote control
Yes
No
VELUX 71
Resetting and preparing for registration
Electrically operated and Solar roof windows can be reset
to their initial factory settings and then be prepared for
registration.
Note: A reset removes the connection between the window with its electrical products and all remote controls.
Therefore the products cannot be operated until they have
been registered in a remote control again. To reinstate the
connection between product and remote control after reset, please refer to the instructions in section Initial set-up.
Depending on the window type there are various ways of
resetting.
Flat roof window CVP
Carefully remove the cover cap on the kerb. Press the test
button on the window operator behind the cover cap for at
least 10 seconds. The window operator and other electrical products of the window will briefly run back and forth.
Replace the cover cap.
Centre-pivot roof windows
GGL/GGU INTEGRA, GGL/GGU Solar or GGL/GGU with
KMX 100 or KSX 100
Open the window manually. (If the window is open already,
it must be closed with the remote control before it is
opened manually). Press the test button on the window
operator for at least 10 seconds. The window operator and
other electrical products of the window will briefly run
back and forth. Frame lights will flash briefly.
Top-hung roof windows
GHL, GHU, GPL, GPU and VKU with KMX 200
Open the window manually. (If the window is open
already, it must be closed with the remote control before
it is opened manually). Remove the cover of the window
operator. Press the test button on the window operator
for at least 10 seconds. The window operator and other
electrical products of the window will briefly run back and
forth. Frame lights will flash briefly. Replace the cover of
the window operator again.
72 VELUX
VELUX 73
Resetting the remote control
The remote control can be reset to its initial factory
settings if you want to delete all registered products and
start afresh.
1
Slide off the battery cover as shown.
2
Press the button on the right side of the remote control
with a pointed object for at least 5 seconds.
3
Replace the battery cover.
INFORMATION
4
Press
"Yes" to confirm that you want to reset the
remote control.
The remote control
will be reset.
Continue?
Yes
No
The remote control has now been reset. To reinstate the
connection between remote control and products, please
refer to the instructions in section Initial set-up.
74 VELUX
VELUX 75
Fitting of holder for remote control
The remote control is provided with a wall-mounted
holder, which can be fitted anywhere in your home.
If required, the remote control can be fastened with
screws to the holder.
Note: Check that the remote control can operate the
relevant products from the proposed position before it is
fastened to the holder.
1
1
Fit the back section to the wall with the two screws supplied.
2
Place the remote control in the front section. Clip the
white strap around the assembled unit. Hook the assembled unit to the back section at the top. Ensure that
the strap fits into the openings in the sides of the back
section. Lock the unit into place at the bottom.
3
Fix the unit with screw at the bottom.
Fit the back section to the wall with the two screws supplied.
2
Hook the front section onto the back section at the top,
click it into place at the bottom and fix it with a screw.
3
Place the remote control in the holder. It is secured by
means of built-in magnets.
76 VELUX
VELUX 77
Fitting of rain sensor to electrical products
Fitting of electrically operated blinds, roller shutters etc
If the rain sensor has not already been
fitted, fit it as shown, see instructions for
rain sensor. If the rain sensor gets wet, the
window operator will automatically close
the window.
Electrically operated roof windows are prepared for fitting of electrically operated interior and exterior decoration and sunscreening products as well as frame lights.
GGL
GGU
KRA
When fitting these products, the mains supply must be
switched off.
The mains supply must be switched off
when fitting the rain sensor!
SML
Fitting to top cover of roof window GGL
or GGU
Adhere the rain sensor to a dry, clean surface. Lead cable into the window as shown
and connect it to the connection box on the
motor (A).
Product availability may differ in your country. For further
information, please refer to appropriate instructions or
contact VELUX.
Products
MML
Fitting to roller shutter SML or awning
blind MML
Adhere the rain sensor to a dry, clean
surface. Lead cable under roller shutter/awning blind so that the window can
be opened when the roller shutter/awning
blind is rolled down. Then lead the cable
into the window as shown and connect it
to the connection box on the motor (A).
SML, SMG,
MML
SML/SMG
Electrically operated roller shutter
MML
Electrically operated awning blind
PML
Electrically operated Venetian blind
RML
Electrically operated roller blind
DML
Electrically operated blackout blind
FML
Electrically operated pleated blind
KRA
Frame lights
PML, RML, DML, FML
A
B
A
Flat roof window CVP is prepared for fitting of electrically
operated interior decoration and sunscreening products.
Fitting to flat roof window CVP
Fit the rain sensor from the outside.
Remove the dome by turning the fasteners
90˚ and put it in a safe place. Fasten the
bracket with the rain sensor to the frame
bracket. Replace the dome.
78 VELUX
CVP
When fitting these products, the mains supply must be
switched off.
FMG
Product availability may differ in your country. For further
information, please refer to appropriate instructions or
contact VELUX.
Products
FMG
Electrically operated pleated blind
VELUX 79
Power failure / Mislaid remote control
1
Closing centre-pivot roof windows
GGL/GGU INTEGRA, GGL/GGU Solar or
GGL/GGU with KMX 100 or KSX 100
In case of power failure / discharged
battery
The chain can be disengaged by pressing the release clip on the ventilation flap
bracket (A). Fold the chain as shown, and
close the window (B). When the power
is reconnected/the battery has been recharged, the chain can be re-engaged by
opening the window manually, unfolding
the chain and pressing the test button
briefly (C). Close the window manually.
If the remote control has been mislaid
The chain can be disengaged by pressing the release clip on the ventilation flap
bracket (A) and run back by pressing the
test button on the window operator (C).
Close the window manually.
Closing top-hung roof windows
GHL, GHU, GPL, GPU and VKU with
KMX 200
If the remote control has been mislaid
The window can be closed by removing the
cover of the window operator and pressing
the test button briefly.
Closing flat roof window CVP
If the remote control has been mislaid
The window can be closed by removing the
cover cap on the kerb and pressing the test
button on the window operator behind the
cover cap briefly.
80 VELUX
Maintenance
A
B
Cleaning the pane
Do not open the window with the remote control and
switch off the mains or battery supply! This applies to all
window types.
A
Centre-pivot and top-hung roof windows (GGL/GGU/
GPL/GPU/GHL/GHU)
Open the window manually (A). Rotate the sash fully and
secure it in position by sliding the barrel bolt(s) into the
bushing(s) at the bottom of the frame (B). This safety
feature leaves both hands free for cleaning (C).
Flat roof window (CVP)
The window must be closed during cleaning. Remove the
dome by turning the fasteners 90˚ and put it in a safe
place. Clean dome and exterior pane from the outside.
C
Clean the pane with a soft, clean, lint-free cloth/chamois
leather/non-abrasive sponge or a clean, non-metal window
squeegee. Clean water will normally be sufficient for cleaning the pane. Ordinary, non-abrasive household cleaners
can also be used. Soft water is best for cleaning panes.
Therefore, in hard-water areas add a small amount of
detergent to soften the water or wipe off all excess water
after cleaning.
Warning
• Avoid contact from silicone with the pane.
• Do not use any cleaning products containing abrasive
particles.
• Do not use chemical products for cleaning the pane or
the dome. This includes common chemical products such
as methylated spirits.
• Avoid contact with the pane from all sharp or abrasive
objects including jewellery.
• Never attempt to clean off dirt on the pane without first
applying water.
• If any works are taking place in the vicinity of the pane,
protect the pane with a clean plastic sheet to prevent
any splashes or staining from aggressive and abrasive
compounds.
B
C
VELUX 81
Maintenance
Switch off the mains or battery supply before proceeding with items 3, 4, 6 and 7!
2
Minimising condensation
3
Cleaning the air filter
4
Cleaning the flashing
5
Particularly in rooms with high levels of humidity, condensation can form on the inner pane of the window. This
can be minimised by fitting a radiator directly below the
window and by airing the room frequently.
6
Cleaning the rain sensor
Dirt on the rain sensor may cause operating problems.
Therefore, it is recommended to clean the rain sensor
with a soft wet cloth once or twice a year or when
needed.
7
Cleaning the solar cell panel
In case of accumulation of dirt on the solar cell panel,
this should be cleaned with water and ordinary household cleaners.
8
Maintenance of timber (GGL)
The timber has received basic treatment and a finished
coating at the factory and can be cleaned with ordinary
household cleaners. It must receive further treatment at
least every four years and whenever required. Windows
exposed to strong heat, strong sunlight and/or high
levels of humidity (eg in kitchens or bathrooms) must
however receive treatment at least every two years.
Surface maintenance: Remove surface treatment
(varnish or paint). Ensure surface is clean and dry and
apply primer to the timber. When dry, apply a coat of
waterbased acrylic varnish/paint (always follow the
manufacturer’s directions). Apply the same method to
the affected areas if the varnish/paint is damaged.
9
Maintenance of polyurethane (GGU)
The white polyurethane surface can be cleaned with
ordinary household cleaners.
10
Maintenance of PVC (CVP)
The PVC surface can be cleaned with mild solutions of
household cleaners; however, avoid cleaners containing
household ammonia.
The air filter can be removed and washed with ordinary
household cleaners. Fully rotate and secure the window in
cleaning position, then remove the filter from the filter rail.
(New filters are available from VELUX).
Leaves and other debris should be removed from the flashing around the window once per year to allow rainwater to
flow freely.
Snow and ice
Remove snow and ice to allow melt water to drain off from
and around the window.
82 VELUX
VELUX 83
Display symbols
Batteries must be changed within 2 weeks (type AA, 1.5
volt).
Automatic closing has been activated for the product in
question.
Automatic closing has been activated for one of the products
in the remote control.
Automatic registration of product(s) is running.
Operation of a product.
Display texts
Battery level low: The batteries in the remote control are running out of
power.
Blocked: Unknown object obstructs operation of product. Remove obstruction to obtain normal operation.
Limited by rain sensor: It is raining and the rain sensor has been activated.
You can disable the rain sensor temporarily and operate the window.
Manual operation: The window has been opened manually. Close the window manually to allow for electrical operation.
Operational defect: The product has stopped during operation. Check the
product.
Power usage high: The power usage of the frame lights is too high. The
light bulbs are too strong compared to the specifications or the lights are
defective.
The product or function requested has been ticked.
Power usage low: The power usage of the frame lights is too low. The light
bulbs are either too weak compared to the specifications or one or more
bulbs are defective. The lights might be defective.
A program has been activated.
Reduced power supply: The power supply to the product has been reduced.
Limited operation.
Slats/louvres of a decoration and sunscreening product can
be tilted/turned from 0 to 100%.
Ventilation: Ventilation via ventilation flap without opening the window.
A decoration and sunscreening product can be drawn up/
down or opened/closed from 0 to 100%.
A name can be saved, see section Naming.
Deletion of character, see section Naming.
Space character, see section Naming.
84 VELUX
VELUX 85
Glossary
Declaration of Conformity
Adjustment: VELUX electrical decoration and sunscreening products are not
adjusted to the window size on delivery. When operated the first time, they
will therefore run from bottom to top or from top to bottom of the window
without interruption. After adjustment the product is ready for use.
In accordance with the Council Directive 2006/95/EEC
Configuration: See Preparation for registration.
Memory: The following functions occupy the memory of the remote control:
Room, Group, Rename and Programs. Use of these functions will reduce the
total memory.
One-way activation control: Product based on one-way RF (radio frquency)
. This symbol can be found
communication and marked with the symbol
under the battery cover.
1
Preparation for registration: An io-homecontrol® compatible product must
be registered in an activation control before it can be operated. When a new
product is connected to mains or battery supply, it will search for an activation control for 10 minutes.
Product: An io-homecontrol® compatible product, which can be operated
with the remote control, such as an INTEGRA roof window, a roller shutter,
frame lights etc.
Registration: A product is registered in an activation control when the
security key of the activation control is assigned to the product.
Repeater: A unit increasing the range of the remote control.
Two-way activation control: Product based on two-way RF (radio fre. This symbol can be
quency) communication and marked with the symbol
found under the battery cover.
2
We herewith declare that
• VELUX roof windows GGL INTEGRA® (----21) and GGU INTEGRA® (----21),
• VELUX roof windows GGL Solar (----30) and GGU Solar (----30),
• VELUX flat roof window CVP (3MX A02),
• VELUX electrical conversion kit KMX 100 (3MG A01, 3UC A02, 3LA A01
and 3LR A01) for VELUX roof windows GGL and GGU,
• VELUX electrical conversion kit KMX 200 (3MX A01, 3LA A01 and
3LR A01) for VELUX roof windows GHL, GHU, GPL, GPU and VKU,
• VELUX solar window operator KSX 100 (3SM B01, 3SD B01 and 3LR A01)
for VELUX roof windows GGL and GGU and
• VELUX remote control KLR 100 (3LR A01)
- are in conformity with the provisions of Machinery Directive 2006/42/EEC,
EMC Directive 2004/108/EEC, Low Voltage Directive 2006/95/EEC and
R&TTE Directive 1999/5/EEC,
- have been manufactured in accordance with the harmonised standards
EN 300220-3, EN 301489-1, EN 301489-3, EN 55014-1, EN 55014-2,
EN 55022, EN 55024, EN 50366, EN 60335-1, EN 60335-2-103,
EN 61558-1 and EN 61558-2-17.
The above-mentioned VELUX roof windows, VELUX flat roof window, VELUX
electrical conversion kits and VELUX solar window operator - when the kit
or the solar window operator is installed on a VELUX roof window - are to be
considered as machines, which are not to be put into service until they have
been installed according to instructions and requirements.
The total system then complies with the essential requirements of the Council
Directives 2006/42/EEC, 2004/108/EEC, 2006/95/EEC and 1999/5/EEC.
VELUX A/S: ...............................................................................................................
(Klaus Lorentzen, Product Management)
Ådalsvej 99, DK-2970 Hørsholm .........................................................................
Declaration No. 932886-03
86 VELUX
VELUX 87
AUS:
B:
BG:
BiH:
BY:
CDN:
CH:
CHN:
CZ:
D:
DK:
E:
EST:
F:
FIN:
GB:
H:
HR:
I:
IRL:
VELUX Österreich GmbH
02245/32 3 50
VELUX Australia Pty. Ltd
(02) 9550 3288
VELUX Belgium
(010) 42.09.09
VELUX Bulgaria EOOD
02/955 99 30
VELUX Bosna i Hercegovina d.o.o.
033/626 493, 626 494
VELUX Roof Windows
(017) 217 7385
VELUX Canada Inc.
1 800 88-VELUX (888-3589)
VELUX Schweiz AG
0848 945 549
VELUX (CHINA) CO. LTD.
0316-607 27 27
VELUX Česká republika, s.r.o.
531 015 511
VELUX Deutschland GmbH
0180-333 33 99
VELUX Danmark A/S
45 16 45 16
VELUX Spain, S.A.
91 509 71 00
VELUX Eesti OÜ
621 7790
VELUX France
0821 02 15 15
0,119€ TTC/min
VELUX Suomi Oy
09-887 0520
VELUX Company Ltd.
0870 264 0102
VELUX Magyarország Kft.
(06/1) 436-0601
VELUX Hrvatska d.o.o.
01/5555 444
VELUX Italia s.p.a.
045/6173666
VELUX Company Ltd.
01 816 1618
J:
LT:
LV:
N:
NL:
NZ:
P:
PL:
RA:
RCH:
RO:
RUS:
S:
SK:
SLO:
TR:
UA:
USA:
YU:
VELUX-Japan Ltd.
03(3478)81 41
VELUX Lietuva, UAB
(85) 270 91 01
VELUX Latvia SIA
7 27 77 33
VELUX Norge AS
22 51 06 00
VELUX Nederland B.V.
030 - 6 629 629
VELUX New Zealand Ltd.
09-6344 126
VELUX Portugal, Lda
21 880 00 60
VELUX Polska Sp. z o.o.
(022) 33 77 000 / 33 77 070
VELUX Argentina S.A.
0 114 711 5666
VELUX Chile Limitada
2-231 18 24
VELUX România S.R.L.
0-8008-83589
VELUX Rossia ZAO
(495) 737 75 20
VELUX Svenska AB
042/20 83 80
VELUX Slovensko, s.r.o.
(02) 33 000 555
VELUX Slovenija d.o.o.
01 724 68 68
VELUX Çatı Pencereleri
Ticaret Limited Șirketi
0 216 302 54 10
VELUX Ukraina TOV
(044) 490 5703
VELUX America Inc.
1-800-88-VELUX
VELUX Jugoslavija d.o.o.
011 3670 468
www.velux.com
DIRECTIONS FOR USE FOR INTEGRA. ©2004, 2007 VELUX GROUP
SOFTWARE VERSION: 004.XXX.XXX.XXX
® VELUX, THE VELUX LOGO, INTEGRA, io-homecontrol AND THE io-homecontrol LOGO ARE REGISTERED TRADEMARKS
A:
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
