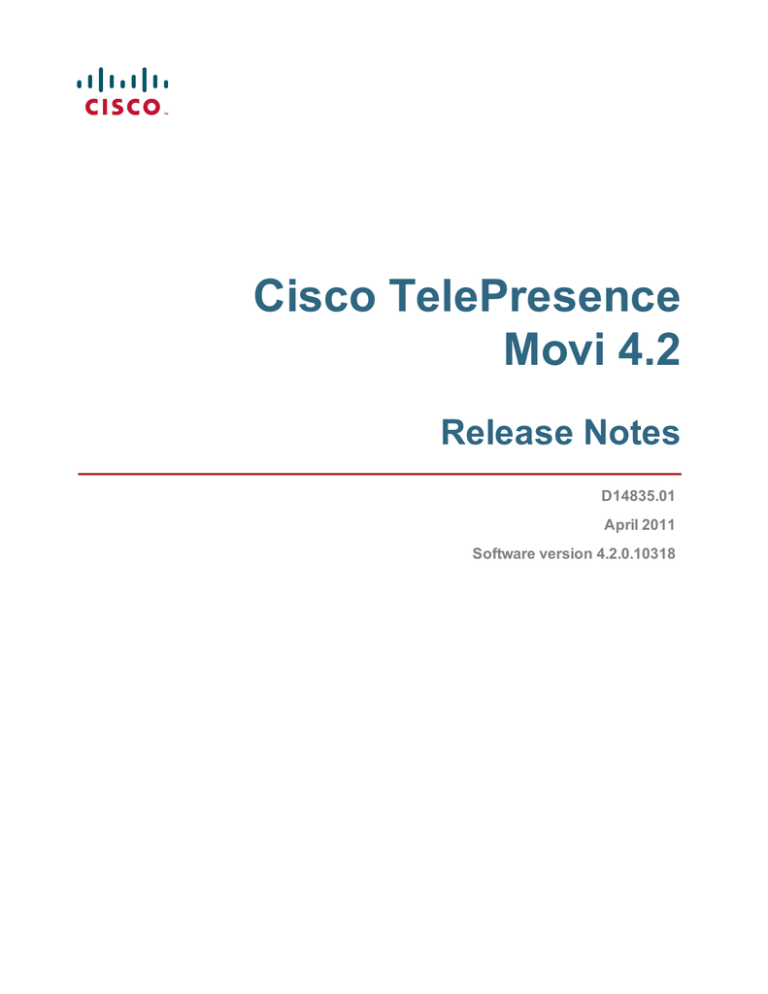

Cisco TelePresence

Movi 4.2

Release Notes

D14835.01

April 2011

Software version 4.2.0.10318

Contents

Introduction

New features and functionality

Updated look and feel

Graphics

Nomenclature

Changes to automatic updates

Automatic updates for Mac OS X

New provisioning settings for updates

Active Directory authentication with NTLM

Automatic Gain Control (AGC)

Support for IPv6

Multiple server connections with SIP outbound

Windows presentation sharing enhancements

Resolved caveats

Both platforms

Mac-specific

Windows-specific

Open caveats

Interoperability notes

Upgrading

System requirements

Infrastructure requirements

NTLM authentication client requirements

PC requirements

Mac requirements

Upgrading to Cisco TelePresence Movi 4.2

Default file locations

Downgrading

Related documents

Cisco TelePresence Movi Release Notes 4.2

15

15

15

16

16

17

14

14

14

14

10

11

12

13

8

8

7

7

6

6

6

6

6

6

5

5

4

5

5

Page 2 of 19

Checking for updates and getting help 18

Cisco TelePresence Movi Release Notes 4.2

Page 3 of 19

Introduction

Introduction

These release notes describe feature and capability changes as well as issues resolved in Cisco

TelePresence Movi for Windows and Mac OS X since version 4.1.

Cisco TelePresence Movi Release Notes 4.2

Page 4 of 19

New features and functionality

New features and functionality

Updated look and feel

The graphical user interface as well as some feature names have changed to align with other Cisco

TelePresence endpoints.

Graphics

The control window of the Windows client has a new design, and new buttons for starting and ending calls have been implemented.

The video window and pop-up toolbar have been redesigned, and a new background animation will be displayed when a call is in progress.

Nomenclature

These familiar features have been given new names:

New name Previous name

History Recent calls

Favorites My contacts

Start

End

[phone symbol]

[phone symbol]

Cisco TelePresence Movi Release Notes 4.2

Page 5 of 19

New features and functionality

Changes to automatic updates

Automatic updates for Mac OS X

The automatic update feature is now available also for Mac OS X users.

Note: Current versions of Cisco TMS do not support uploading files with the .dmg extension. The Movi

installer must therefore either be added to ..\TANDBERG\TMS\wwwTMS\Public\data\SOFTWARE\ using Windows Explorer or hosted on a different server.

New provisioning settings for updates

Note: The provisioning settings for Windows clients have changed to accommodate Mac OS X support.

The old settings for download and software version have been deprecated.

The new settings are:

Platform Download URL setting Version number setting

Windows

Windows Software URL Windows Software Version

Mac OS X OS X Software URL

OS X Software Version

Active Directory authentication with NTLM

Administrators may now set up Movi to authenticate using Active Directory usernames and passwords instead of having special authentication credentials for Movi.

Note: Back-end support for Active Directory integration requires Cisco TelePresence Video

Communication Server version X6.1 .

For guidance on deploying NTLM with Movi and Cisco VCS, refer to Authenticating Devices Cisco

TelePresence Deployment Guide.

Automatic Gain Control (AGC)

In order to provide an optimal sound level to far end users, Cisco TelePresence Movi will now dynamically amplify or attenuate the microphone signal before sending.

Movi will also reduce the microphone level in the system settings by as much as 40% if the current level is determined to be critically high. When the call ends, the system microphone level will be reset to the original state.

Note that no equivalent microphone level adjustment is made if the microphone level is too low— this will still require manual adjustment by the user.

Support for IPv6

Movi 4.2 has the ability to receive and make calls on a IPv6 network.

The IP Version and Public IP Version provisioning settings support the options:

Cisco TelePresence Movi Release Notes 4.2

Page 6 of 19

New features and functionality n

Auto

n

4 (default) n

6

WARNING:

Do not force Movi to use IPv6 unless all users are permanently on an IPv6 network. Users who sign in over IPv4, for example from a home network, will otherwise be rejected.

Also note that ICE is not supported with IPv6 for Movi. When Movi signs in over an IPv6 connection,

ICE will be disabled.

Multiple server connections with SIP outbound

This version of Cisco TelePresence Movi also introduces support for the SIP "outbound" feature, as described in RFC 5626 . The feature allows Movi to keep open connections with several servers in a cluster, and failover by transferring automatically to the next server in the cluster should one server go down. Should one connection be lost, Movi will also be reachable from multiple servers.

The provisioning settings for this feature are Multiple Server Connections and Public Multiple Server

Connections, where the "public" setting will inherit its value from the regular setting unless explicitly

configured. The default setting is Off.

Windows presentation sharing enhancements

n

Movi for Windows is now able to share the user's entire screen. Note that this will also share the Movi windows themselves. We recommend minimizing the video window when the entire screen is shared.

n

In presentations shared using the Windows client, the mouse pointer/cursor will also be shared.

n

PowerPoint 2010 presentations can now be shared on Windows XP without display issues. Full screen/slideshow mode is however not available. Regular slide view/edit mode can be used for sharing.

Cisco TelePresence Movi Release Notes 4.2

Page 7 of 19

Resolved caveats

Resolved caveats

Below are overviews of issues resolved since version 4.1.

Both platforms

These issues were resolved for both clients (Windows and Mac OS X).

Reference

ID

Description

57639

Multiple improvements and corrections to handling of multiple calls (Multiway).

Improved compatibility with Microsoft Lync.

Multiple improvements to ICE implementation.

Scrolling using the middle button on Lenovo laptops now works in all Movi windows.

67244

71659

72602

72783

Solved interoperability issues with Microsoft LifeCam VX-5000.

Scrolling using the mouse wheel now works in all Movi windows.

Improvements to MJPEG decoder resolve issues with artifacts in some images.

Adjustments to audio level will now be remembered between calls. However, if the audio level was last set to 0, it will be reset to default (50) when the next call is launched.

Memory leaks resolved.

79906

86627

80106

80436

81204

81568

81794

Resolved issue where presentation sharing from Movi would sometimes cause a conference initiated by Cisco TelePresence MPS to crash.

Correctly escaped ampersand character in SIP info search string element.

To avoid performance and audio glitches, some adjustments have been made to how high CPU usage is handled. If Movi uses too much CPU (more than 89%), the video resolution is now reduced automatically. If the system CPU load is too high (more than 95%, but Movi is using less than 89%), a warning message is displayed.

The application no longer crashes on Windows XP with Logitech B910 or C910 camera and no driver installed.

Resolved issue where presentation would turn black after stopping and resuming presentation several times in calls involving Movi on internal and external network.

Resolved issues with tinny and disappearing audio in some call scenarios.

82495

86132

83896

84640

84667

When detecting a graphics card or driver that is unsupported, usually because it is outdated,

Movi will now display a notification and exit instead of crashing.

Solved issue where audio would sometimes disappear in calls between Movi 3.1 and Movi 4.1 and later.

When encryption is set to Auto, Movi will now allow conference encryption to be enabled midcall.

Cisco TelePresence Movi Release Notes 4.2

Page 8 of 19

Resolved caveats

86829

86924

87210

87506

87510

87569

Reference

ID

Description

84844

88283

Solved issue with intermittent audio artifacts and dropouts in some calls.

85135

85298

86520

85304

Resolved issue in duo video/BFCP implementation causing presentation sharing to fail in some

Movi to Movi non-interworked calls.

Improved connectivity change detection and handling. Movi will now react faster and log out when there is loss of network.

85771

85815

86081

86493

86507

86511

86645

86677

Resolved issue where in low-bandwidth encrypted calls where packet loss forces Movi to change audio codecs from AAC-LD to G.722.1, the client would stop sending audio.

Solved TCP port selection issue causing presentation sharing to fail in some Movi to MCU conference scenarios.

Solved video display issue with Movi to Movi calls.

The TurnServer provisioning setting in Cisco TMS can now have a DNS name or an IP address as a value.

Improved audio quality, resolved several issues where audio quality degraded during call.

Resolved issue that would lock Movi in mutual hold with endpoints managed by Cisco Unified

Communications Manager (CUCM).

The libpme.dll file now has the correct versioning and certificate.

FECC timestamping improvements, solving several issues with lip synchronization.

Made sure incoming call notifications from Movi are always displayed on top regardless of "on top" settings in other applications.

Increased size limit on InternalVCS field in line with support for HTTP URL (previously IP only).

Fixed issue with small, stray UI elements in corner of video window.

Improved implementation of DNS SRV, corrected handling of priority and weight.

Improved ClearPath compatibility with Cisco TelePresence TC software.

87602

87626

87636

88053

88324

88579

Modified default audio behavior. Default level on call start as indicated by the slider is now 80, and volume boost has been increased by 10%. Also solved GUI issue where audio slider did not reflect actual audio setting on call start.

Always include reason code in SIP BYE messages.

Solved issue using DTMF with MPS.

Resolved issue where microphone level would drop when logging level for audio was set to

DEBUG.

Correctly detect repeated "Authentication Required" request when initial password provided is wrong. Stop trying to authenticate when authentication fails.

Corrected behavior of OK and Cancel buttons in modal dialogs so that they are not activated when a click is not released.

GLib.dll now reports the correct version number.

Cisco TelePresence Movi Release Notes 4.2

Page 9 of 19

Resolved caveats

Reference

ID

Description

88791 Prevented Movi from freezing in some scenarios when losing connection with an audio or video device.

Multiple stability issues resolved.

81214

84926

86591

87378

Mac-specific

Reference

ID

Description

83189 Added ability to hide Advanced link in login screen, similar to the HideAdvancedLogin option for the Windows client. To change this setting use:

defaults write com.cisco.Movi HideAdvancedLogin -bool YES|NO

84392

85326

85298

85719

86090

87424

88062

88412

Mac OS X only: Virtual machine windows that cannot be drawn or shared by Movi will no longer appear as shareable. Resolves issue where the client would sometimes crash when the presentation sharing button was clicked.

Changes to network interface will no longer cause Movi to sign out.

No longer crashing when switching from USB camera to firewire camera as source.

Movi will now log in correctly when no usable phonebook is provisioned. If no phonebook search backend is available, an error message will be displayed when attempting to search.

Mac OS X only: Resolved issue where Movi would sometimes crash when there was a network interface change during a call.

Conference information now supports native scrolling methods.

When incoming NOTIFY contains too much XML, Movi will now answer with 400 Bad Request and allow provisioning to fail. Previous handling would cause the application to display an error dialog and hang.

Cisco TelePresence Movi Release Notes 4.2

Page 10 of 19

Resolved caveats

Windows-specific

Reference

ID

Description

69028

79603

86737

86939

88138

88553

The mouse pointer is now included when sharing an application window using presentation sharing.

Made resizing the video window work correctly and consistently from all corners.

Made sure Movi default audio device names are correctly returned from the WASAPI audio API.

Movi is now able to correctly share Microsoft Powerpoint 2010 presentations on Windows XP.

Improved detection of unencrypted RTCP to avoid issues with conferences disconnected by

"Call decryption failure".

Corrected error message when phonebook search fails/is disabled.

Cisco TelePresence Movi Release Notes 4.2

Page 11 of 19

Open caveats

Open caveats

Reference

ID

Description

71834

79645

79841

80749

85104

Due to application-specific support for Windows APIs, not all applications can be shared with

Movi at this time. Platforms known to cause presentation sharing issues in Movi include Adobe

AIR and GTK+.

Windows XP only: Sharing Internet Explorer 6.0 or 8.0 as a presentation makes the presentation video flash.

Mac OS X 10.5 only: Font corruption can be seen in the video window when running Movi on

Mac OS X 10.5 (Leopard).

Mac OS X only: Sometimes when a call is rejected, the caller is not notified, and the ringing signal continues.

Mac OS X only: It is not possible to share full-screen PowerPoint presentations.

85992 When user ends a call while having another call on hold, the presence status erroneously changes to "Online". When the second call is resumed, the status remains "Online".

Cisco TelePresence Movi Release Notes 4.2

Page 12 of 19

Interoperability notes

Interoperability notes

n

For optimal performance and reliability, Cisco recommends that all users of the Cisco TelePresence

PrecisionHD™ USB Camera ensure that the camera has the latest firmware.

n

Using Movi for Mac with the Cisco TelePresence PrecisionHD™ USB camera is recommended. Note that firmware must be version 1.3 or later for Mac OS X support.

n

Built-in Apple iSight cameras are supported by Movi for Mac.

Cisco TelePresence Movi Release Notes 4.2

Page 13 of 19

Upgrading

Upgrading

The process of upgrading Movi is controlled by the IT administrator through four provisioning options in

Cisco TelePresence Management Suite: n

Windows Software URL and OS X Software URL n

Windows Software Version. and OS X Software Version

When these two options are correctly configured, users can upgrade their own Movi client by clicking a link in the application, which downloads the setup file for the new version.

This method presents users with a choice to upgrade their Movi client. If you want to make absolutely sure that all clients are upgraded, you can instead opt to use your deployment tool(s) to force the upgrade.

System requirements

Infrastructure requirements

Movi requires the Provisioning option on the Cisco VCS and in Cisco TMS to be enabled.

Product Version required

Cisco TelePresence Management Suite (Cisco TMS) 12.6 or later

Cisco Video Communication Server (Cisco VCS) X5.2 or later

X6.0 or later for ICE support

X6.1 or later for NTLM support

NTLM authentication client requirements

Movi now supports authentication with Active Directory and NTLM. For instructions on deploying

NTLM authentication with Movi and Cisco VCS, refer to the Authenticating Devices Cisco TelePresence

Deployment Guide .

Note that to useMovi for NTLM authentication with Cisco VCS, NTLMv2 must be supported by the client computer.

This requirement is especially important to be aware of if there are older computers and/or Windows XP users in your network.

On the client computer:

1. Go to My Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa

2. If the LmCompatibilityLevel setting (REG_DWORD) is 1, set to 2 or higher.

3. Save your changes.

WARNING:

With a setting of 1, authentication will fail for the client, and no warnings or error messages will be received from Cisco VCS, which passes the request on to the Active Directory server.

Cisco TelePresence Movi Release Notes 4.2

Page 14 of 19

Upgrading

PC requirements

Processor A processor supporting SSE3 (such as Pentium 4 Prescott) or better. For business-quality HD video, we recommend using the Cisco PrecisionHD™ USB camera and a 2 GHz Core 2 Duo processor or better.

Memory

Operating system

512MB RAM or more.

n

Windows XP SP2 or later n

Windows Vista SP1 or later n

Windows 7

Connection IP network connection (broadband, LAN, wireless). At least 24 kbps is required for an audio connection. For a video connection, the recommended minimum is 128 kbps.

Graphics card

OpenGL version 1.2 or higher. Hardware support for DirectX 8 or higher.

Sound card Any standard sound card (full-duplex, 16-bit or better) should work with Movi.

Note: On computers with limited processing power and/or memory, Movi will use a lot of system

resources, and reduced performance can be expected.

Mac requirements

Processor Any Intel processor. For business-quality HD video, Cisco recommends using the Cisco

PrecisionHD™ USB camera and a 2 GHz Core 2 Duo processor or better.

Operating system

Mac OS X 10.6 or later is recommended. Ensure that the latest security updates are installed.

Connection IP network connection (broadband, LAN, wireless). At least 24 kbps is required for an audio connection. For a video connection, the recommended minimum is 128 kbps.

Upgrading to Cisco TelePresence Movi 4.2

The installer will uninstall whichever previous version of Movi is present on the system, and the program file and icons are completely removed. However, all profile folders and files are kept intact on uninstall.

Cisco TelePresence Movi 4.2 will then install itself to the path n

Windows Vista and 7: ~\Program Files (x86)\Cisco\ n

Windows XP: ~\Program Files\Cisco\ n

Max OS X: ~\Applications\Cisco TelePresence Movi

If upgrading from a version prior to 4.1, the following renaming will be performed when Movi is launched: n

Windows: Existing profile folders and registry settings are renamed from ~\TANDBERG\~ to

~\Cisco\~.

n

Mac OS X: The com.tandberg.Movi.plist file is renamed to com.cisco.Movi.plist

Note: Movi 4.2 will also install itself as the operating system's default SIP protocol handler.

Cisco TelePresence Movi Release Notes 4.2

Page 15 of 19

Upgrading

Default file locations

Files

Program file

Favorites and

History

Log files for debugging purposes

Windows location Mac OS X location

n

Windows Vista and 7 (64 bit): %Program Files

(x86)%\Cisco\

n

Windows Vista and 7 (32 bit) : %Program Files%\Cisco\ n

Windows XP: ~\Program Files\Cisco\

/Applications/Cisco

TelePresence Movi

%APPDATA%\Cisco\Movi\2.0

~/Library/Application

Support/Movi

~/Library/Logs/Movi

<CSIDL_LOCAL_APPDATA>\Cisco\Movi\2.0\Logs\.

The <CSIDL_LOCAL_APPDATA> directory is hidden by default and can be found at n

Windows XP: %USERPROFILE%\Local

Settings\Application Data\

n

Windows Vista and Windows 7: %LOCALAPPDATA%

(typically %USERPROFILE%\AppData)

On a Windows computer, the Favorites and History are individual to each user logging on to Movi.

On Mac OS X, the Favorites and History are specific to the Mac user account, regardless of which Movi user is logged in.

Downgrading

Downgrading of Movi is not supported. If you wish to revert to an earlier version of Movi:

1. Uninstall the client.

2. Install the desired version of Movi.

Cisco TelePresence Movi Release Notes 4.2

Page 16 of 19

Related documents

Related documents

The following table lists documents and web sites referenced in this document. All product documentation can be found on our web site .

Document title

Cisco TelePresence Movi for Windows User Guide

Cisco TelePresence Movi for Mac User Guide

Cisco TelePresence Movi Administrator Guide

Authenticating Devices Cisco TelePresence Deployment Guide

Managing Client-Initiated Connections in the Session Initiation Protocol (SIP) http://tools.ietf.org/html/rfc5626

Document reference

D14409.07

D14733.03

D14410.09

D14819.01

RFC 5626

Cisco TelePresence Movi Release Notes 4.2

Page 17 of 19

Checking for updates and getting help

Checking for updates and getting help

We recommend registering your product at http://www.tandberg.com/services/video-conferencingproduct-registration.jsp

in order to receive notifications about the latest software and security updates.

New feature and maintenance releases are published regularly, and we recommend that your software is always kept up to date.

If you experience any problems when configuring or using the product, consult the documentation at http://www.tandberg.com/support/video-conferencing-documentation.jsp

for an explanation of how its individual features and settings work. You can also check the support site at http://www.tandberg.com/support/ to make sure you are running the latest software version.

You or your reseller can also get help from our support team by raising a case at http://www.tandberg.com/support/ . Make sure you have the following information ready: n

The software build number which can be found in the product user interface (if applicable).

n

Your contact email address or telephone number.

n

The serial number of the hardware unit (if applicable).

Cisco TelePresence Movi Release Notes 4.2

Page 18 of 19

Checking for updates and getting help

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL

ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND

RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE

PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST

TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT

ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND

ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE

SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE

FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the

University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND

SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND

THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED,

INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL,

CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST

PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE

THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2011 Cisco Systems, Inc. All rights reserved.

Cisco TelePresence Movi Release Notes 4.2

Page 19 of 19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
