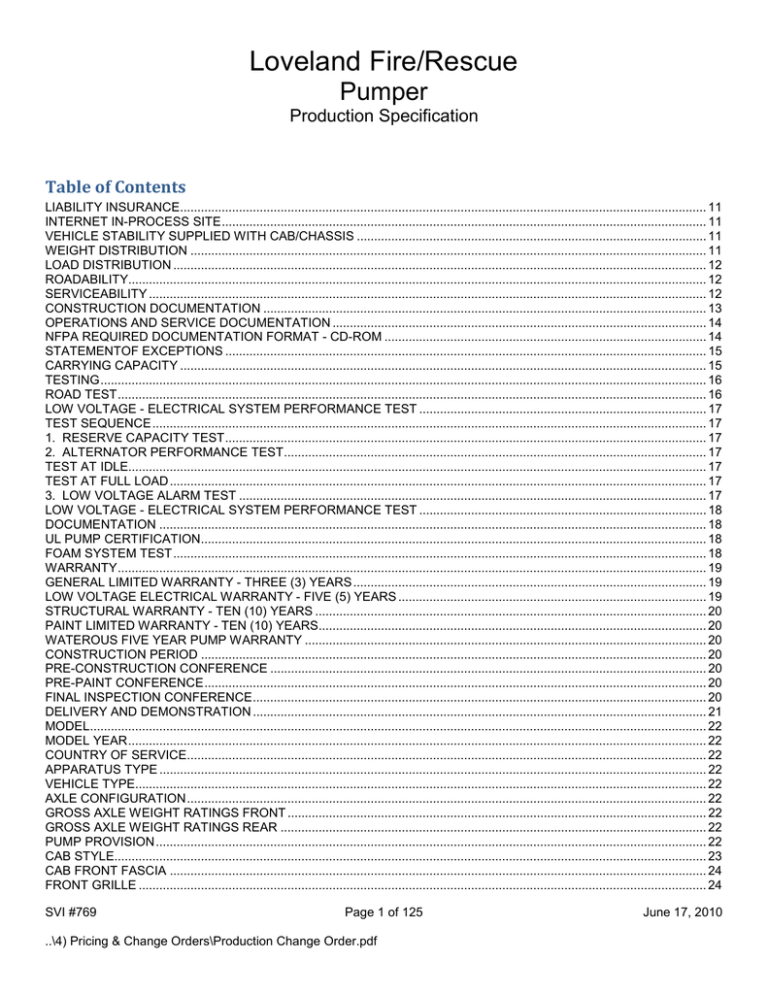

Loveland Fire/Rescue
Pumper
Production Specification
Table of Contents
LIABILITY INSURANCE ........................................................................................................................................................ 11
INTERNET IN-PROCESS SITE ............................................................................................................................................ 11
VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS ..................................................................................................... 11
WEIGHT DISTRIBUTION ..................................................................................................................................................... 11
LOAD DISTRIBUTION .......................................................................................................................................................... 12
ROADABILITY....................................................................................................................................................................... 12
SERVICEABILITY ................................................................................................................................................................. 12
CONSTRUCTION DOCUMENTATION ................................................................................................................................ 13
OPERATIONS AND SERVICE DOCUMENTATION ............................................................................................................ 14
NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM ............................................................................................. 14
STATEMENTOF EXCEPTIONS ........................................................................................................................................... 15
CARRYING CAPACITY ........................................................................................................................................................ 15
TESTING ............................................................................................................................................................................... 16
ROAD TEST .......................................................................................................................................................................... 16
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 17
TEST SEQUENCE ................................................................................................................................................................ 17
1. RESERVE CAPACITY TEST ........................................................................................................................................... 17
2. ALTERNATOR PERFORMANCE TEST .......................................................................................................................... 17
TEST AT IDLE....................................................................................................................................................................... 17
TEST AT FULL LOAD ........................................................................................................................................................... 17
3. LOW VOLTAGE ALARM TEST ....................................................................................................................................... 17
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST ................................................................................... 18
DOCUMENTATION .............................................................................................................................................................. 18
UL PUMP CERTIFICATION.................................................................................................................................................. 18
FOAM SYSTEM TEST .......................................................................................................................................................... 18
WARRANTY .......................................................................................................................................................................... 19
GENERAL LIMITED WARRANTY - THREE (3) YEARS ...................................................................................................... 19
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS ......................................................................................... 19
STRUCTURAL WARRANTY - TEN (10) YEARS ................................................................................................................. 20
PAINT LIMITED WARRANTY - TEN (10) YEARS................................................................................................................ 20
WATEROUS FIVE YEAR PUMP WARRANTY .................................................................................................................... 20
CONSTRUCTION PERIOD .................................................................................................................................................. 20
PRE-CONSTRUCTION CONFERENCE .............................................................................................................................. 20
PRE-PAINT CONFERENCE ................................................................................................................................................. 20
FINAL INSPECTION CONFERENCE ................................................................................................................................... 20
DELIVERY AND DEMONSTRATION ................................................................................................................................... 21
MODEL .................................................................................................................................................................................. 22
MODEL YEAR ....................................................................................................................................................................... 22
COUNTRY OF SERVICE ...................................................................................................................................................... 22
APPARATUS TYPE .............................................................................................................................................................. 22
VEHICLE TYPE..................................................................................................................................................................... 22
AXLE CONFIGURATION ...................................................................................................................................................... 22
GROSS AXLE WEIGHT RATINGS FRONT ......................................................................................................................... 22
GROSS AXLE WEIGHT RATINGS REAR ........................................................................................................................... 22
PUMP PROVISION ............................................................................................................................................................... 22
CAB STYLE........................................................................................................................................................................... 23
CAB FRONT FASCIA ........................................................................................................................................................... 24
FRONT GRILLE .................................................................................................................................................................... 24
SVI #769
Page 1 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB PAINT EXTERIOR ........................................................................................................................................................ 24
CAB PAINT MANUFACTURER ............................................................................................................................................ 24
CAB PAINT PRIMARY/LOWER COLOR .............................................................................................................................. 25
CAB PAINT WARRANTY...................................................................................................................................................... 25
CAB PAINT INTERIOR ......................................................................................................................................................... 25
CAB ENGINE TUNNEL ......................................................................................................................................................... 25
CAB ENTRY DOORS ........................................................................................................................................................... 25
CAB ENTRY DOOR TYPE ................................................................................................................................................... 25
CAB STRUCTURAL WARRANTY ........................................................................................................................................ 25
CAB TEST INFORMATION .................................................................................................................................................. 26
ELECTRICAL SYSTEM ........................................................................................................................................................ 26
APPARATUS WIRING PROVISION ..................................................................................................................................... 26
MULTIPLEX DISPLAY .......................................................................................................................................................... 26
DATA RECORDING SYSTEM .............................................................................................................................................. 27
POWER & GROUND STUD ................................................................................................................................................. 27
AUXILIARY POWER & GROUND STUD ............................................................................................................................. 27
EXTERIOR ELECTRICAL TERMINAL COATING ................................................................................................................ 27
ENGINE................................................................................................................................................................................. 28
DIESEL PARTICULATE FILTER CONTROLS ..................................................................................................................... 28
ENGINE PROGRAMMING HIGH IDLE SPEED ................................................................................................................... 28
ENGINE HIGH IDLE CONTROL ........................................................................................................................................... 28
ENGINE PROGRAMMING ROAD SPEED GOVERNOR .................................................................................................... 28
AUXILIARY ENGINE BRAKE ............................................................................................................................................... 28
AUXILIARY ENGINE BRAKE CONTROL............................................................................................................................. 29
FLUID FILLS ......................................................................................................................................................................... 29
ELECTRONIC ENGINE OIL LEVEL INDICATOR ................................................................................................................ 29
ENGINE WARRANTY ........................................................................................................................................................... 29
REMOTE THROTTLE HARNESS ........................................................................................................................................ 29
ENGINE PROGRAMMING REMOTE THROTTLE ............................................................................................................... 29
ENGINE PROGRAMMING IDLE SPEED ............................................................................................................................. 29
ENGINE FAN DRIVE ............................................................................................................................................................ 30
ENGINE COOLING SYSTEM ............................................................................................................................................... 30
ENGINE COOLANT .............................................................................................................................................................. 31
ELECTRONIC COOLANT LEVEL INDICATOR ................................................................................................................... 31
ENGINE PUMP HEAT EXCHANGER .................................................................................................................................. 31
COOLANT HOSES ............................................................................................................................................................... 31
ENGINE AIR INTAKE ........................................................................................................................................................... 31
ENGINE EXHAUST SYSTEM............................................................................................................................................... 32
ENGINE EXHAUST ACCESSORIES ................................................................................................................................... 32
TRANSMISSION ................................................................................................................................................................... 32
TRANSMISSION MODE PROGRAMMING .......................................................................................................................... 32
TRANSMISSION FEATURE PROGRAMMING .................................................................................................................... 33
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR .................................................................................................. 33
TRANSMISSION SHIFT SELECTOR ................................................................................................................................... 33
TRANSMISSION RETARDER CONTROL ........................................................................................................................... 33
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE ................................................................................................ 33
TRANSMISSION COOLING SYSTEM ................................................................................................................................. 34
TRANSMISSION WARRANTY ............................................................................................................................................. 34
DRIVELINE ........................................................................................................................................................................... 34
MIDSHIP PUMP / GEARBOX ............................................................................................................................................... 34
MIDSHIP PUMP / GEARBOX MODEL ................................................................................................................................. 34
MIDSHIP PUMP RATIO ........................................................................................................................................................ 34
SVI #769
Page 2 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
MIDSHIP PUMP GEARBOX DROP ..................................................................................................................................... 34
MIDSHIP PUMP LOCATION C/L SUCTION ........................................................................................................................ 34
PUMP SHIFT CONTROLS ................................................................................................................................................... 34
PUMP SHIFT CONTROL PLUMBING .................................................................................................................................. 35
FUEL FILTER/WATER SEPARATOR .................................................................................................................................. 35
FUEL LINES .......................................................................................................................................................................... 35
FUEL SHUTOFF VALVE ...................................................................................................................................................... 35
FUEL TANK........................................................................................................................................................................... 35
FUEL TANK FILL PORT ....................................................................................................................................................... 36
FRONT AXLE ........................................................................................................................................................................ 36
FRONT AXLE WARRANTY .................................................................................................................................................. 36
FRONT WHEEL BEARING LUBRICATION ......................................................................................................................... 36
FRONT SHOCK ABSORBERS............................................................................................................................................. 36
FRONT SUSPENSION ......................................................................................................................................................... 36
STEERING COLUMN/ WHEEL ............................................................................................................................................ 37
POWER STEERING PUMP .................................................................................................................................................. 37
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR ........................................................................................ 37
FRONT AXLE CRAMP ANGLE ............................................................................................................................................ 37
POWER STEERING GEAR .................................................................................................................................................. 37
CHASSIS ALIGNMENT ........................................................................................................................................................ 37
REAR AXLE .......................................................................................................................................................................... 37
REAR AXLE WARRANTY .................................................................................................................................................... 38
REAR AXLE DIFFERENTIAL LUBRICATION ...................................................................................................................... 38
REAR WHEEL BEARING LUBRICATION ............................................................................................................................ 38
VEHICLE TOP SPEED ......................................................................................................................................................... 38
REAR SUSPENSION ............................................................................................................................................................ 38
REAR SHOCK ABSORBERS ............................................................................................................................................... 38
FRONT TIRE ......................................................................................................................................................................... 38
REAR TIRE ........................................................................................................................................................................... 38
TIRE PRESSURE INDICATOR ............................................................................................................................................ 39
FRONT WHEEL .................................................................................................................................................................... 39
REAR WHEEL....................................................................................................................................................................... 39
WHEEL TRIM ........................................................................................................................................................................ 39
TIRE CHAINS........................................................................................................................................................................ 39
TIRE CHAINS ACTIVATION ................................................................................................................................................. 39
BRAKE SYSTEM .................................................................................................................................................................. 40
FRONT BRAKES .................................................................................................................................................................. 40
REAR BRAKES ..................................................................................................................................................................... 40
PARK BRAKE ....................................................................................................................................................................... 40
PARK BRAKE CONTROL..................................................................................................................................................... 41
REAR BRAKE SLACK ADJUSTERS .................................................................................................................................... 41
AIR DRYER ........................................................................................................................................................................... 41
FRONT BRAKE CHAMBERS ............................................................................................................................................... 41
REAR BRAKE CHAMBERS.................................................................................................................................................. 41
AIR COMPRESSOR ............................................................................................................................................................. 41
AIR GOVERNOR .................................................................................................................................................................. 41
MOISTURE EJECTORS ....................................................................................................................................................... 41
AIR SUPPLY LINES .............................................................................................................................................................. 42
WHEELBASE ........................................................................................................................................................................ 42
REAR OVERHANG ............................................................................................................................................................... 42
FRAME .................................................................................................................................................................................. 42
FRAME WARRANTY ............................................................................................................................................................ 43
SVI #769
Page 3 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FRAME CLEAR AREA .......................................................................................................................................................... 43
FRAME PAINT ...................................................................................................................................................................... 43
FRONT BUMPER ................................................................................................................................................................. 43
FRONT BUMPER EXTENSION LENGTH ............................................................................................................................ 43
FRONT BUMPER EXTENSION WIDTH ............................................................................................................................... 43
FRONT BUMPER PAINT ...................................................................................................................................................... 43
FRONT BUMPER APRON .................................................................................................................................................... 44
MECHANICAL SIREN ........................................................................................................................................................... 44
MECHANICAL SIREN LOCATION ....................................................................................................................................... 44
AIR HORN ............................................................................................................................................................................. 44
AIR HORN LOCATION ......................................................................................................................................................... 44
AIR HORN RESERVOIR ...................................................................................................................................................... 44
ELECTRONIC SIREN SPEAKER ......................................................................................................................................... 44
ELECTRONIC SIREN SPEAKER LOCATION ..................................................................................................................... 44
FRONT BUMPER TOW EYES ............................................................................................................................................. 44
CAB TILT SYSTEM ............................................................................................................................................................... 45
CAB TILT CONTROL RECEPTACLE ................................................................................................................................... 45
CAB WINDSHIELD ............................................................................................................................................................... 45
GLASS FRONT DOOR ......................................................................................................................................................... 45
GLASS TINT FRONT DOOR ................................................................................................................................................ 46
GLASS REAR DOOR RH ..................................................................................................................................................... 46
GLASS TINT REAR DOOR RH ............................................................................................................................................ 46
GLASS REAR DOOR LH ...................................................................................................................................................... 46
GLASS TINT REAR DOOR LH ............................................................................................................................................. 46
GLASS SIDE MID RH ........................................................................................................................................................... 46
GLASS TINT SIDE MID RH .................................................................................................................................................. 46
GLASS SIDE MID LH ............................................................................................................................................................ 46
GLASS TINT SIDE MID LH................................................................................................................................................... 47
CLIMATE CONTROL ............................................................................................................................................................ 47
CLIMATE CONTROL ACTIVATION ..................................................................................................................................... 47
A/C CONDENSER LOCATION ............................................................................................................................................. 47
A/C COMPRESSOR ............................................................................................................................................................. 47
CAB CIRCULATION FANS FRONT ..................................................................................................................................... 47
CAB INSULATION ................................................................................................................................................................ 47
UNDER CAB INSULATION .................................................................................................................................................. 48
INTERIOR TRIM FLOOR ...................................................................................................................................................... 48
INTERIOR FLOOR MAT COLOR ......................................................................................................................................... 48
INTERIOR TRIM VINYL ........................................................................................................................................................ 48
INTERIOR TRIM VINYL COLOR .......................................................................................................................................... 48
REAR WALL INTERIOR ....................................................................................................................................................... 48
INTERIOR ABS TRIM COLOR ............................................................................................................................................. 48
HEADER TRIM...................................................................................................................................................................... 49
INTERIOR TRIM SUNVISOR ............................................................................................................................................... 49
TRIM CENTER DASH ........................................................................................................................................................... 49
TRIM CENTER DASH INTERIOR PAINT ............................................................................................................................. 49
TRIM LH DASH ..................................................................................................................................................................... 49
TRIM RH DASH .................................................................................................................................................................... 49
TRIM RH DASH INTERIOR PAINT ...................................................................................................................................... 49
ENGINE TUNNEL TRIM ....................................................................................................................................................... 49
POWER POINT DASH MOUNT ........................................................................................................................................... 49
AUXILIARY POWER POINT REAR CREW .......................................................................................................................... 49
AUXILIARY POWER POINT COMPARTMENTS ................................................................................................................. 50
SVI #769
Page 4 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STEP TRIM ........................................................................................................................................................................... 50
INTERIOR DOOR TRIM ....................................................................................................................................................... 50
DOOR TRIM KICKPLATE ..................................................................................................................................................... 50
CAB PAINT INTERIOR DOOR TRIM ................................................................................................................................... 50
DOOR TRIM CUSTOMER NAMEPLATE ............................................................................................................................. 50
CAB DOOR TRIM REFLECTIVE .......................................................................................................................................... 50
INTERIOR GRAB HANDLE "A" PILLAR ............................................................................................................................... 50
INTERIOR GRAB HANDLE FRONT DOOR ......................................................................................................................... 51
INTERIOR GRAB HANDLE REAR DOOR ........................................................................................................................... 51
DASH PANEL GROUP ......................................................................................................................................................... 51
SWITCHES CENTER PANEL............................................................................................................................................... 51
SWITCHES LEFT PANEL ..................................................................................................................................................... 51
SWITCHES RIGHT PANEL .................................................................................................................................................. 51
SEAT BELT WARNING ........................................................................................................................................................ 51
SEAT MATERIAL .................................................................................................................................................................. 51
SEAT COLOR ....................................................................................................................................................................... 52
SEAT BACK LOGO ............................................................................................................................................................... 52
SEAT DRIVER ...................................................................................................................................................................... 52
SEAT BACK DRIVER ........................................................................................................................................................... 52
SEAT OFFICER .................................................................................................................................................................... 53
SEAT BACK OFFICER ......................................................................................................................................................... 53
POWER SEAT WIRING ........................................................................................................................................................ 53
SEAT REAR FACING OUTER LOCATION .......................................................................................................................... 53
SEAT CREW REAR FACING OUTER ................................................................................................................................. 54
SEAT BACK REAR FACING OUTER ................................................................................................................................... 54
SEAT MOUNTING REAR FACING OUTER ......................................................................................................................... 54
SEAT BELT ORIENTATION CREW ..................................................................................................................................... 54
SEAT FORWARD FACING CENTER LOCATION ............................................................................................................... 54
SEAT CREW FORWARD FACING CENTER ....................................................................................................................... 55
SEAT BACK FORWARD FACING CENTER ........................................................................................................................ 55
SEAT MOUNTING FORWARD FACING CENTER .............................................................................................................. 55
SEAT FRAME FORWARD FACING ..................................................................................................................................... 55
SEAT FRAME FORWARD FACING STORAGE ACCESS .................................................................................................. 55
CAB FRONT UNDERSEAT STORAGE ACCESS................................................................................................................ 56
SEAT COMPARTMENT DOOR FINISH ............................................................................................................................... 56
WINDSHIELD WIPER SYSTEM ........................................................................................................................................... 56
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR ................................................................................................... 56
CAB DOOR HARDWARE ..................................................................................................................................................... 56
DOOR LOCKS ...................................................................................................................................................................... 56
GRAB HANDLES .................................................................................................................................................................. 56
REARVIEW MIRRORS ......................................................................................................................................................... 57
REARVIEW MIRROR HEAT SWITCH ................................................................................................................................. 57
CAB FENDER ....................................................................................................................................................................... 57
MUD FLAPS FRONT ............................................................................................................................................................ 57
CAB EXTERIOR FRONT & SIDE EMBLEMS ...................................................................................................................... 57
CAB EXTERIOR MODEL NAMEPLATE ............................................................................................................................... 57
IGNITION .............................................................................................................................................................................. 57
BATTERY .............................................................................................................................................................................. 58
BATTERY TRAY ................................................................................................................................................................... 58
BATTERY BOX COVER ....................................................................................................................................................... 58
BATTERY CABLE ................................................................................................................................................................. 58
BATTERY JUMPER STUD ................................................................................................................................................... 58
SVI #769
Page 5 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ALTERNATOR ...................................................................................................................................................................... 58
BATTERY CONDITIONER ................................................................................................................................................... 58
BATTERY CONDITIONER DISPLAY ................................................................................................................................... 58
AUXILIARY AIR COMPRESSOR ......................................................................................................................................... 58
ELECTRICAL INLET ............................................................................................................................................................. 59
ELECTRICAL INLET LOCATION ......................................................................................................................................... 59
ELECTRICAL INLET CONNECTION ................................................................................................................................... 59
ELECTRICAL INLET COLOR ............................................................................................................................................... 59
HEADLIGHTS ....................................................................................................................................................................... 59
FRONT TURN SIGNALS ...................................................................................................................................................... 59
HEADLIGHT LOCATION ...................................................................................................................................................... 59
SIDE TURN/MARKER LIGHTS ............................................................................................................................................ 59
MARKER AND ICC LIGHTS ................................................................................................................................................. 59
HEADLIGHT AND MARKER LIGHT ACTIVATION .............................................................................................................. 60
GROUND LIGHTS ................................................................................................................................................................ 60
STEP LIGHTS ....................................................................................................................................................................... 60
ENGINE COMPARTMENT LIGHT........................................................................................................................................ 60
SIDE SCENE LIGHTS .......................................................................................................................................................... 60
SIDE SCENE LIGHT LOCATION ......................................................................................................................................... 60
SIDE SCENE ACTIVATION .................................................................................................................................................. 60
INTERIOR OVERHEAD LIGHTING ...................................................................................................................................... 61
MAP LIGHTS......................................................................................................................................................................... 61
DO NOT MOVE APPARATUS LIGHT .................................................................................................................................. 61
MASTER WARNING SWITCH.............................................................................................................................................. 61
HEADLIGHT FLASHER ........................................................................................................................................................ 61
HEADLIGHT FLASHER SWITCH ......................................................................................................................................... 61
INBOARD FRONT WARNING LIGHTS ................................................................................................................................ 61
INBOARD FRONT WARNING LIGHTS COLOR .................................................................................................................. 61
FRONT WARNING SWITCH ................................................................................................................................................ 62
INTERSECTION WARNING LIGHTS ................................................................................................................................... 62
INTERSECTION WARNING LIGHTS COLOR ..................................................................................................................... 62
INTERSECTION WARNING LIGHTS LOCATION ............................................................................................................... 62
SIDE WARNING LIGHTS ..................................................................................................................................................... 62
SIDE WARNING LIGHTS COLOR........................................................................................................................................ 62
SIDE WARNING LIGHTS LOCATION .................................................................................................................................. 62
SIDE AND INTERSECTION WARNING SWITCH................................................................................................................ 62
TANK LEVEL LIGHTS .......................................................................................................................................................... 62
SIREN CONTROL HEAD ...................................................................................................................................................... 62
HORN RING SELECTOR SWITCH ...................................................................................................................................... 63
AIR HORN ACTIVATION ...................................................................................................................................................... 63
MECHANICAL SIREN ACTIVATION .................................................................................................................................... 63
BACK-UP ALARM ................................................................................................................................................................. 63
INSTRUMENTATION ............................................................................................................................................................ 63
CAB EXTERIOR PROTECTION ........................................................................................................................................... 66
FIRE EXTINGUISHER .......................................................................................................................................................... 66
ROAD SAFETY KIT .............................................................................................................................................................. 66
DOOR KEYS ......................................................................................................................................................................... 66
AS BUILT WIRING DIAGRAMS............................................................................................................................................ 66
WARRANTY .......................................................................................................................................................................... 66
OPERATOR AND PARTS LIST MANUAL ............................................................................................................................ 66
ENGINE AND TRANSMISSION OPERATION MANUALS .................................................................................................. 67
ENGINE SERVICE MANUALS ............................................................................................................................................. 67
SVI #769
Page 6 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CHASSIS MODIFICATIONS ................................................................................................................................................. 68
LUBRICATION AND TIRE DATA PLATE ............................................................................................................................. 68
VEHICLE DATA PLATE ........................................................................................................................................................ 68
OVERALL HEIGHT, LENGTH DATA PLATE (US) ............................................................................................................... 69
ACCIDENT PREVENTION ................................................................................................................................................... 69
PERSONNEL CAPACITY ..................................................................................................................................................... 69
ACCIDENT PREVENTION ................................................................................................................................................... 69
WEARING HELMET WARNING ........................................................................................................................................... 69
FRONT BUMPER ................................................................................................................................................................. 69
BUMPER GRAVELSHIELD .................................................................................................................................................. 69
BUMPER COMPARTMENT HOSE WELL ........................................................................................................................... 69
AIR HORN(S) ........................................................................................................................................................................ 70
FRONT TOW PROVISIONS ................................................................................................................................................. 70
EXHAUST ............................................................................................................................................................................. 70
RADIO/ANTENNA INSTALLATION ...................................................................................................................................... 70
GPS/LAPTOP INSTALLATION WIRING .............................................................................................................................. 70
SCBA BRACKETS ................................................................................................................................................................ 70
MUDFLAPS ........................................................................................................................................................................... 70
FUEL FILL ............................................................................................................................................................................. 70
FUEL FILL ............................................................................................................................................................................. 70
BODY DESIGN ..................................................................................................................................................................... 71
EXTERIOR ALUMINUM BODY ............................................................................................................................................ 71
ROOF CONSTRUCTION ...................................................................................................................................................... 72
BODY SUBFRAME ............................................................................................................................................................... 72
BODY MOUNTING ............................................................................................................................................................... 72
18" REAR STEP BUMPER ................................................................................................................................................... 72
REAR TOW EYES ................................................................................................................................................................ 73
GROUND LIGHTS ................................................................................................................................................................ 73
WHEEL WELL EXTERIOR PANEL ...................................................................................................................................... 73
STAINLESS STEEL BODY FENDERS ................................................................................................................................ 73
WHEEL WELL LINERS ......................................................................................................................................................... 73
SCBA CYLINDER COMPARTMENTS ................................................................................................................................. 73
ALUMINUM BODY PAINT SPECIFICATIONS ..................................................................................................................... 74
BODY PAINT PREPARATION.............................................................................................................................................. 74
PAINT PROCESS ................................................................................................................................................................. 74
MACHINE POLISHED .......................................................................................................................................................... 74
PAINT - ENVIRONMENTAL IMPACT ................................................................................................................................... 74
PAINT FINISH - SINGLE COLOR......................................................................................................................................... 75
PAINT WARRANTY .............................................................................................................................................................. 75
BODY UNDERCOATING ...................................................................................................................................................... 75
UNDERCOAT WARRANTY .................................................................................................................................................. 75
COMPARTMENT INTERIOR FINISH ................................................................................................................................... 75
REFLECTIVE STRIPE .......................................................................................................................................................... 75
REFLECTIVE STRIPE - CAB SIDE ...................................................................................................................................... 76
REFLECTIVE STRIPE - CAB FRONT .................................................................................................................................. 76
CHEVRON STRIPE - CAB BUMPER ................................................................................................................................... 76
REFLECTIVE STRIPE - BODY SIDES ................................................................................................................................. 77
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS .............................................................................................. 77
LETTERING .......................................................................................................................................................................... 78
SIDE CAB DOOR LETTERING ............................................................................................................................................ 78
UPPER BODY SIDE LETTERING ........................................................................................................................................ 78
CUSTOM DECAL LOGO - 12" -18" ...................................................................................................................................... 78
SVI #769
Page 7 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
EXTERIOR COMPARTMENT DOORS ................................................................................................................................ 79
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM) .................................................................................................. 79
BODY HEIGHT MEASUREMENTS ...................................................................................................................................... 80
BODY WIDTH DIMENSIONS ............................................................................................................................................... 80
STREETSIDE COMPARTMENT - FRONT (S1) ................................................................................................................... 81
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S2) ....................................................................................... 82
STREETSIDE COMPARTMENT - REAR (S3) ..................................................................................................................... 83
CURBSIDE COMPARTMENT - FRONT (C1)....................................................................................................................... 84
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C2) .............................................................................................. 85
CURBSIDE COMPARTMENT - REAR (C3) ......................................................................................................................... 86
REAR COMPARTMENT - CENTER (RC1) .......................................................................................................................... 87
PLASTIC FLOOR AND SHELF TILE .................................................................................................................................... 88
LADDER LIFT SYSTEM, CURBSIDE ................................................................................................................................... 88
LADDER LIFT INTERLOCK.................................................................................................................................................. 88
SIDE BODY PROTECTION - RUB RAIL .............................................................................................................................. 88
REAR BODY HANDRAILS ................................................................................................................................................... 88
HOSEBED ACCESS HANDRAIL.......................................................................................................................................... 89
FOLDING STEP(S) ............................................................................................................................................................... 89
COMPARTMENT COMPONENTS DESCRIPTIONS ........................................................................................................... 89
ADJUSTABLE SHELVING HARDWARE.............................................................................................................................. 89
ADJUSTABLE SHELF/SHELVES ......................................................................................................................................... 89
SLIDE-OUT EQUIPMENT TRAY - (400 LB CAPACITY) ...................................................................................................... 89
COMPARTMENT LIGHTING ................................................................................................................................................ 90
STEP / GROUND LIGHTS .................................................................................................................................................... 90
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC .............................................................................................................. 90
12 VOLT MULTIPLEX CONTROL CENTER ........................................................................................................................ 93
BATTERY SYSTEM .............................................................................................................................................................. 93
BATTERY SWITCH .............................................................................................................................................................. 94
BATTERY SOLENOID .......................................................................................................................................................... 94
BATTERY CONDITIONER ................................................................................................................................................... 94
TAIL LIGHTS ......................................................................................................................................................................... 94
AUXILIARY BACK-UP LIGHT SWITCH ............................................................................................................................... 94
STEP LIGHTS ....................................................................................................................................................................... 94
MIDSHIP MARKER/TURN SIGNAL ..................................................................................................................................... 94
MARKER LIGHTS ................................................................................................................................................................. 94
CAB STEP LIGHTS / GROUND LIGHTS ............................................................................................................................. 95
CAB SPOTLIGHT ................................................................................................................................................................. 95
ROOF MOUNT LED FLOODLIGHT ..................................................................................................................................... 95
REAR SCENE LIGHTS ......................................................................................................................................................... 95
TRAFFIC DIRECTIONAL LIGHT .......................................................................................................................................... 95
COMMAND LIGHT - SHADOW - RT .................................................................................................................................... 96
CAB SPOTLIGHT ................................................................................................................................................................. 96
WARNING LIGHT PACKAGE ............................................................................................................................................... 97
UPPER LEVEL OPTICAL WARNING DEVICES .................................................................................................................. 97
GTT OPTICOM ..................................................................................................................................................................... 98
LOWER LEVEL OPTICAL WARNING DEVICES ................................................................................................................. 99
PUMP MODULE / PLUMBING SPECIFICATIONS ............................................................................................................ 100
PUMP MODULE COMPARTMENT .................................................................................................................................... 100
PUMP MODULE DUNNAGE AREA ................................................................................................................................... 100
PUMP OPERATORS PANEL ............................................................................................................................................. 100
FIRE PUMP SPECIFICATIONS.......................................................................................................................................... 100
1500 GPM FIRE PUMP ...................................................................................................................................................... 100
SVI #769
Page 8 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TWO STAGE FIRE PUMP .................................................................................................................................................. 100
TWO STAGE TRANSFER VALVE...................................................................................................................................... 101
UNDERWRITERS LABORATORIES FIRE PUMP TEST ................................................................................................... 101
FIRE PUMP TEST LABEL .................................................................................................................................................. 101
UL PUMP CERTIFICATION................................................................................................................................................ 101
ALTITUDE REQUIREMENT ............................................................................................................................................... 101
WATEROUS PUMP ANODES ............................................................................................................................................ 101
IMPELLERS ........................................................................................................................................................................ 102
FLAME PLATED IMPELLER HUBS ................................................................................................................................... 102
MECHANICAL SEALS ........................................................................................................................................................ 102
IMPELLER WEAR RINGS .................................................................................................................................................. 102
PUMP CASING ................................................................................................................................................................... 102
PUMP TRANSMISSION ..................................................................................................................................................... 102
AIR OPERATED PUMP SHIFT........................................................................................................................................... 103
MANUAL OVERRIDE PUMP SHIFT................................................................................................................................... 103
PUMP SHIFT INDICATING LIGHTS................................................................................................................................... 103
PRIMING SYSTEM ............................................................................................................................................................. 103
ELECTRIC PRIMING PUMP CONTROL AT PUMP PANEL .............................................................................................. 103
MASTER PUMP DRAIN ...................................................................................................................................................... 103
PUMP LUBRICATION ......................................................................................................................................................... 104
HEAT EXCHANGER ........................................................................................................................................................... 104
1/2" PUMP COOLER LINE ................................................................................................................................................. 104
PUMP COOLER CHECK VALVE ....................................................................................................................................... 104
INTAKE RELIEF VALVE ..................................................................................................................................................... 104
PUMP MANUAL .................................................................................................................................................................. 104
FIRE PUMP WARRANTY ................................................................................................................................................... 104
FIRE PUMP PAINTING ....................................................................................................................................................... 104
6" STEAMER SUCTION INLETS ........................................................................................................................................ 104
SUCTION STREETSIDE .................................................................................................................................................... 105
SUCTION CURBSIDE ........................................................................................................................................................ 105
ADVANTUS 3 FOAM SYSTEM DETAILED SPECIFICATIONS ........................................................................................ 105
PLUMBING SPECIFICATIONS .......................................................................................................................................... 108
STAINLESS STEEL INTAKE MANIFOLD .......................................................................................................................... 109
STAINLESS STEEL DISCHARGE MANIFOLD .................................................................................................................. 109
INTAKES ............................................................................................................................................................................. 109
STREETSIDE INTAKE ........................................................................................................................................................ 111
CURBSIDE INTAKE ............................................................................................................................................................ 111
TANK TO PUMP CHECK VALVE ....................................................................................................................................... 111
TANK TO PUMP VALVE ..................................................................................................................................................... 112
DISCHARGES..................................................................................................................................................................... 112
TANK FILL........................................................................................................................................................................... 113
CURBSIDE PUMP MODULE DISCHARGE(S) .................................................................................................................. 113
REAR DISCHARGE(S) ....................................................................................................................................................... 114
FRONT DISCHARGE ......................................................................................................................................................... 115
MISCELLANEOUS DISCHARGE(S) .................................................................................................................................. 116
DECK GUN ......................................................................................................................................................................... 116
BOOSTER REEL ................................................................................................................................................................ 116
BOOSTER REEL HOSE GUIDE ROLLERS....................................................................................................................... 117
BOOSTER REEL HOSE ..................................................................................................................................................... 117
SIDE MOUNT PUMP ENCLOSURE ................................................................................................................................... 117
LEFT SIDE RUNNING BOARD - SIDE MOUNT PANEL.................................................................................................... 117
RIGHT SIDE RUNNING BOARD - SIDE MOUNT PANEL ................................................................................................. 118
SVI #769
Page 9 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
RIGHT SIDE RUNNING BOARD – HOSE WELL ............................................................................................................... 118
PUMP ENCLOSURE ACCESS DOOR - LEFT SIDE UPPER ............................................................................................ 118
PUMP ENCLOSURE ACCESS DOOR - RIGHT SIDE UPPER ......................................................................................... 118
PUMP PANEL - SIDE MOUNT ........................................................................................................................................... 118
LEFT SIDE PUMP PANEL - BOLTED ................................................................................................................................ 118
RIGHT SIDE PUMP PANEL - BOLTED .............................................................................................................................. 118
LABELS ............................................................................................................................................................................... 118
COLOR CODED PUMP PANEL LABELING AND NAMEPLATES .................................................................................... 119
PRESSURE GOVERNOR and MONITORING DISPLAY .................................................................................................. 119
AUXILIARY FUEL LEVEL GAUGE ..................................................................................................................................... 120
TEST TAPS ......................................................................................................................................................................... 120
UPF "L" POLY WATER TANK ............................................................................................................................................ 120
TANK FILL / VENT .............................................................................................................................................................. 121
UPF TANK OVERFLOW ..................................................................................................................................................... 121
WATER TANK LEVEL GAUGE .......................................................................................................................................... 121
CLASS A POLYPROPYLENE FOAM CELL ....................................................................................................................... 121
FOAM TANK LEVEL GAUGE ............................................................................................................................................. 122
HOSE BED STORAGE AREA ............................................................................................................................................ 122
ALUMINUM HOSE BED DECKING .................................................................................................................................... 122
HOSE BED LIGHTS ............................................................................................................................................................ 122
HOSE BED DIVIDER(S) ..................................................................................................................................................... 123
ALUMINUM HOSE BED COVER........................................................................................................................................ 123
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE.............................................................................................................. 124
EQUIPMENT ....................................................................................................................................................................... 124
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER ............................................................................................ 125
SVI #769
Page 10 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LIABILITY INSURANCE
Bidder shall furnish with the bid a certificate of insurance for;
Workman's Compensation and Employer's Liability Insurance covering all employees.
General Liability each occurrence of $1,000,000.00, General Aggregate of $2,000,000.00 including Products Completed /
Operations Aggregate.
Personal Injury of $1,000,000.00, Fire damage of $50,000.00 and Medical expense of $10,000.00. Automobile liability of
$1,000,000.00 combined single limit (each accident), including any auto, all owned autos, scheduled autos, hired autos,
non-owned autos, and garage liability.
Excess Umbrella Liability coverage of $2,000,000.00 each occurrence, Aggregate of $2,000,000.00.
All insurance policies must be;



Maintained for the life of the contract,
Must provide ten (10) days notice before cancellation,
Must cover all operations of the contractor, or anyone employed by them.
INTERNET IN-PROCESS SITE
The Bidder shall post and maintain a website where the Loveland Fire & Rescue will be able to view digital images of their
apparatus as its being manufactured. The digital images shall be posted once a week starting when the body begins
production or when the cab/chassis arrives and shall continue until the final completion of the apparatus.
VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS
The cab/chassis shall be equipped with a stability control system. The system shall have, at a minimum, a steering wheel
position sensor, a vehicle yaw sensor, a lateral accelerometer, and individual wheel brake controls.
WEIGHT DISTRIBUTION
When the fire apparatus is loaded to its estimated in-service weight, the front-to-rear weight distribution shall be within the
limits set by the chassis manufacturer.
The front axle loads shall not be less than the minimum axle loads specified by the chassis manufacturer under full load
and all other loading conditions.
SVI #769
Page 11 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LOAD DISTRIBUTION
The apparatus manufacturer shall calculate the load distribution for the apparatus, and that load distribution plan shall be
delivered with the fire apparatus.
The manufacturer shall engineer the fire apparatus to comply with the gross axle weight ratings (GAWR), the overall gross
vehicle weight rating (GVWR), and the chassis manufacturer’s load balance guidelines.
The fire apparatus, when loaded to its estimated in service weight, shall have a side-to-side tire load variation of no more
than 7 percent of the total tire load for that axle.
Each tire shall be equipped with a visual indicator or monitoring system that indicates tire pressure.
ROADABILITY
The apparatus, when loaded to its estimated in-service weight, shall be capable of the following performance while on dry,
paved roads that are in good condition:
1) From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 km/hr) within 25 seconds on a level
road.
2) The apparatus shall be able to attain a minimum top speed of 50 mph (80 km/hr) on a level road.
3) The apparatus shall be able to maintain a speed of at least 20 mph (32 km/hr) on any grade up to and including 6
percent.
The maximum top speed of fire apparatus with a GVWR over 26,000 lb (11,800 kg) shall not exceed either 68 mph (105
km/hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is
lower.
If the combined water tank and foam agent tank capacities on the fire apparatus exceed 1250 gal (4732 L), or the GVWR
of the vehicle is over 50,000 lb (22,680 kg), the maximum top speed of the apparatus shall not exceed either 60 mph (85
km/ hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus, whichever is
lower.
SERVICEABILITY
The fire apparatus shall be designed to allow the manufacturer’s recommended routine maintenance checks of lubricant
and fluid levels to be performed by the operator without lifting the cab of a tilt-cab apparatus or without the need for hand
tools.
Where special tools are required for routine service on any component of the apparatus, such tools shall be provided with
the apparatus.
Apparatus components that interfere with repair or removal of other major components shall be attached with fasteners,
such as cap screws and nuts, so that the components can be removed and installed with ordinary hand tools. These
components shall not be welded or otherwise permanently secured into place.
SVI #769
Page 12 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CONSTRUCTION DOCUMENTATION
The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents:
The manufacturers record of apparatus construction details, including the following information:
1) Owner’s name and address
2) Apparatus manufacturer, model, and serial number
3) Chassis make, model, and serial number
a) GAWR of front and rear axles and GVWR
b) Front tire size and total rated capacity in pounds (kilograms)
c) Rear tire size and total rated capacity in pounds (kilograms)
d) Chassis weight distribution in pounds (kilograms) with water and manufacturer-mounted equipment (front and
rear)
e) Engine make, model, serial number, rated horsepower and related speed, and governed speed; and if so
equipped, engine transmission PTO(s) make, model, and gear ratio
f) Type of fuel and fuel tank capacity
g) Electrical system voltage and alternator output in amps
h) Battery make, model, and capacity in cold cranking amps (CCA)
i) Chassis transmission make, model, and serial number; and if so equipped, chassis transmission PTO(s) make,
model, and gear ratio
4) Pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial number
5) Pump transmission make, model, serial number, and gear ratio
6) Auxiliary pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial
number
7) Water and Foam tank certified capacity in gallons or liters
8) Paint manufacturer and paint number(s)
9) Company name and signature of responsible company representative
10) If the apparatus is a mobile foam fire apparatus, the certification of foam tank capacity
11) Certification of compliance of the optical warning system
12) Siren manufacturer’s certification of the siren
13) Written load analysis and results of the electrical system performance tests
14) Certification of slip resistance of all stepping, standing, and walking surfaces
15) If the apparatus has a fire pump, the pump manufacturer’s certification of suction capability
16) If the apparatus is equipped with a fire pump and special conditions are specified by the purchaser, the pump
manufacturer’s certification of suction capacity under the special conditions
17) If the apparatus has a fire pump, a copy of the apparatus manufacturer’s approval for stationary pumping applications
18) If the apparatus has a fire pump, the engine manufacturer’s certified brake horsepower curve for the engine furnished,
showing the maximum governed speed
19) If the apparatus has a fire pump, the pump manufacturer’s certification of the hydrostatic test
20) If the apparatus has a fire pump, the certification of inspection and test for the fire pump
21) If the apparatus is equipped with an auxiliary pump, the apparatus manufacturer’s certification of the hydrostatic test
22) When the apparatus is equipped with a water tank, the certification of water tank capacity
23) If the apparatus has an aerial device, the certification of inspection and test for the aerial device
24) If the apparatus has an aerial device, all the technical information required for inspections to comply with NFPA 1911,
Standard for the Inspection, Maintenance, Testing, and Retirement of In-Service Automotive Fire Apparatus
25) If the apparatus has a foam proportioning system, the foam proportioning system manufacturer’s certification of
accuracy and the final installer’s certification the foam proportioning system meets this standard
26) If the system has a CAFS, the documentation of the manufacturer’s pre delivery tests
27) If the apparatus has a line voltage power source, the certification of the test for the power source
28) If the apparatus is equipped with an air system, air tank certificates, the SCBA fill station certification, and the results
of the testing of the air system installation
29) Any other required manufacturer test data or reports.
SVI #769
Page 13 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
OPERATIONS AND SERVICE DOCUMENTATION
The contractor shall deliver with the fire apparatus at least two (2) sets of complete operation and service documentation
covering the completed apparatus as delivered and accepted.
The documentation shall address at least the inspection, service, and operations of the fire apparatus and all major
components thereof.
The contractor shall also deliver with the fire apparatus the following documentation for the entire apparatus and each
major operating system or major component of the apparatus:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
19)
Manufacturer’s name and address
Country of manufacture
Source for service and technical information
Parts replacement information
Descriptions, specifications, and ratings of the chassis, pump (if applicable), and aerial device (if applicable)
Wiring diagrams for low voltage and line voltage systems to include the following information:
a) Pictorial representations of circuit logic for all electrical components and wiring
b) Circuit identification
c) Connector pin identification
d) Zone location of electrical components
e) Safety interlocks
f) Alternator–battery power distribution circuits
g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
Lubrication charts
Operating instructions for the chassis, any major components such as a pump or aerial device, and any auxiliary
systems
Precautions related to multiple configurations of aerial devices, if applicable
Instructions regarding the frequency and procedure for recommended maintenance
Overall apparatus operating instructions
Safety considerations
Limitations of use
Inspection procedures
Recommended service procedures
Troubleshooting guide
Apparatus body, chassis, and other component manufacturer’s warranties
Special data required by this standard
A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus
The contractor shall deliver with the apparatus all manufacturers’ operations and service documents supplied with
components and equipment that are installed or supplied by the contractor.
NFPA REQUIRED DOCUMENTATION FORMAT - CD-ROM
The vehicle construction details and the operations and service documentation as required per NFPA 1901 latest edition
shall be provided on a CD-ROM. These manuals shall be divided into sections for ease of reference. There shall be two
(2) copies of the CD-ROM provided with the completed vehicle.
SVI #769
Page 14 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STATEMENTOF EXCEPTIONS
The contractor shall deliver with the fire apparatus either a certification that the apparatus fully complies with all
requirements of this standard or, alternatively, a Statement of Exceptions specifically describing each aspect of the
completed apparatus that is not fully compliant with the requirements of this standard at the time of delivery.
The Statement of Exceptions shall contain, for each noncompliant aspect of the apparatus or missing required item, the
following information:
1) A separate specification of the section of the applicable standard for which compliance is lacking
2) A description of the particular aspect of the apparatus that is not in compliance therewith or required equipment that is
missing
3) A description of the further changes or modifications to the delivered apparatus that must be completed to achieve full
compliance
4) Identification of the entity that will be responsible for making the necessary post delivery changes or modifications or
for supplying and installing any missing required equipment to the apparatus to achieve full compliance with this
standard
Prior to, or at the time of, delivery of the apparatus, the Statement of Exceptions shall be signed by an authorized agent of
the entity responsible for final assembly of the apparatus and by an authorized agent of the purchasing entity, indicating
mutual understanding and agreement between the parties regarding the substance thereof.
An apparatus that is delivered subject to a Statement of Exceptions other than a certification of full compliance shall not
be placed in emergency service until the apparatus has been modified as necessary to accomplish full compliance with
this standard.
CARRYING CAPACITY
The GAWR and the GCWR or GVWR of the chassis shall be adequate to carry the weight of the completed vehicle when
loaded to its estimated in-service weight. The Body Manufacturer shall establish the estimated in service weight during the
design of the vehicle
The estimated in-service weight shall include the following:
1)
2)
3)
4)
5)
6)
7)
The chassis, body, and tank(s)
Full fuel, lubricant, and other chassis or component fluid tanks or reservoirs
Full water and other agent tanks
*250 lb (114 kg) in each seating position
Fixed equipment such as pumps, aerial devices, generators, reels, and air systems as installed
Ground ladders, suction hose, designed hose load in their hose beds and on their reels
An allowance for miscellaneous equipment that is the greatest of the values for type of vehicle per NFPA 1901, a
Purchaser provided list of equipment to be carried with weights, or a Purchaser specified miscellaneous equipment
allowance.
The Body Manufacturer shall engineer and design the vehicle such that the completed unit, when loaded to its estimated
in-service weight, with all movable weights distributed as close as is practical to their intended in-service configuration,
does not exceed the GVWR.
SVI #769
Page 15 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
A final Body Manufacturer’s certification of the GVWR or GCWR, along with a certification of each GAWR, shall be
supplied on a label affixed to the vehicle.
Equipment
Allowance
lb.
kg.
2,000
910
Apparatus Type
Storage Areas
Apparatus Size
Pumper Fire Apparatus Equip. minimum of 40 cu ft Less than 250 cu ft
(1.1 cu mt) of enclosed ( 7 cu mt)
compartmentation.
compartment space
Hose minimum of 30
250 cu ft (7 cu mt)
2,500
1,135
cu ft (0.8 cu mt) for
or more of
2 1/2" (65 mm) or larger fire compartment space
hose.
(2) areas for pre-connects
each minimum of 3.5 cu.ft.
(0.1 cu.mt.) for 1 1/2" (38
mm) or larger fire hose.
Compartment space for pumpers is calculated based on the inside dimensions of the enclosed
compartment.
TESTING
ROAD TEST
Road test shall be conducted in accordance with this section to verify that the completed apparatus is capable of
compliance with Roadability Section.
The tests shall be conducted at a location and in a manner that does not violate local, state or provincial, or federal traffic
laws.
The tests shall be conducted on dry, level, paved roads that are in good condition. The apparatus shall be loaded to its
estimated in service weight.
The engine shall not operate in excess of the maximum governed speed. Acceleration tests shall consist of two runs in
opposite directions over the same route. The fire apparatus shall attain a speed of 35 mph (55 km/hr) from a standing
start within 25 seconds. The fire apparatus shall attain a minimum top speed of 50 mph (80 km/hr).
If the apparatus is equipped with an auxiliary braking system, the manufacturer shall road test the system to confirm that
the system is functioning as intended by the auxiliary braking system manufacturer.
If the apparatus is equipped with an air brake system, the service brakes shall bring the apparatus, when loaded to it's
GVWR, to a complete stop from an initial speed of 20 mph (32.2 km/hr) in a distance not exceeding 35 ft (10.7 m) by
actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.
If the apparatus is equipped with a hydraulic brake system, the service brakes shall bring the apparatus, when loaded to
its GVWR, to a complete stop from an initial speed of 30 mph (48.2 km/hr) in a distance not exceeding 88 ft (26.8 m) by
actual measurement on a paved, level, dry surface road that is free of loose material, oil, or grease.
SVI #769
Page 16 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
The vehicles low voltage electrical system shall be tested and certified by the manufacturer. The certified test results shall
be delivered with the completed vehicle. Tests shall be performed when the air temperature is between 0°F and 110°F (–
18°C and 43°C).
TEST SEQUENCE
The following three (3) tests shall be performed in the order in which they appear below. Before each test, the batteries
shall be fully charged until the voltage stabilizes at the voltage regulator set point and the lowest charge current is
maintained for 10 minutes. Failure of any of these tests shall require a repeat of the sequence.
1. RESERVE CAPACITY TEST
The engine shall be started and kept running until the engine and engine compartment temperatures are stabilized at
normal operating temperatures and the battery system is fully charged. The engine shall be shut off, and the minimum
continuous electrical load shall be activated for 10 minutes.
All electrical loads shall be turned off prior to attempting to restart the engine. The battery system shall then be capable of
restarting the engine. Failure to restart the engine shall be considered a test failure of the battery system.
2. ALTERNATOR PERFORMANCE TEST
TEST AT IDLE
The minimum continuous electrical load shall be activated with the engine running at idle speed. The engine temperature
shall be stabilized at normal operating temperature. The battery system shall be tested to detect the presence of battery
discharge current. The detection of battery discharge current shall be considered a test failure.
TEST AT FULL LOAD
The total continuous electrical load shall be activated with the engine running up to the engine manufacturer’s governed
speed. The test duration shall be a minimum of 2 hours. Activation of the load management system shall be permitted
during this test.
An alarm sounded by excessive battery discharge, as detected by the warning system required in 13.3.4, or a system
voltage of less than 11.8 V dc for a 12 V nominal system, 23.6 V dc for a 24 V nominal system, or 35.4 V dc for a 42 V
nominal system for more than 120 seconds shall be considered a test failure.
3. LOW VOLTAGE ALARM TEST
The following test shall be started with the engine off and the battery voltage at or above 12 V for a 12 V nominal system,
24 V for a 24 V nominal system, or 36 V for a 42 V nominal system.
With the engine shut off, the total continuous electrical load shall be activated and shall continue to be applied until the
excessive battery discharge alarm activates. The battery voltage shall be measured at the battery terminals.
The test shall be considered a failure if the alarm does not sound in less than 140 seconds after the voltage drops to
11.70 V for a 12 V nominal system, 23.4 V dc for a 24 V nominal system, or 35.1 V for a 42 V nominal system.
The battery system shall then be able to restart the engine. Failure to restart the engine shall be considered a test failure.
SVI #769
Page 17 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
DOCUMENTATION
The manufacturer shall deliver the following with the fire apparatus:
1) Documentation of the electrical system performance tests
2) A written electrical load analysis, including the following:
a) The nameplate rating of the alternator
b) The alternator rating
c) Each of the component loads specified that make up the minimum continuous electrical load
d) Additional electrical loads that, when added to the minimum continuous electrical load, determine the total
continuous electrical load
e) Each individual intermittent electrical load.
UL PUMP CERTIFICATION
The fire pump shall be tested and certified by Underwriters Laboratories, to perform as listed below;



100% of rated capacity at 150 psi (1,000 kPa) net pressure
70% of rated capacity at 200 psi (1,400 kPa) net pressure
50% of rated capacity at 250 psi (1700 kPa) net pressure
The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 500 psi (3,400
kPa).
The pump shall comply with the applicable requirements of "Standard for Automotive Fire Apparatus 1901, latest edition.
The pump shall be capable of producing fire streams that are free from objectionable pulsation under all normal operating
conditions.
FOAM SYSTEM TEST
The apparatus foam system shall be tested and certified by the manufacturer. The certification shall be delivered to the
customer with the apparatus.
The test shall be performed with the air temperature between 0 degrees F and 100 degrees F.
The foam system will be tested to comply with requirements of NFPA 1901. The basis for the test is as follows:
A base calibration range is established using water and foam concentrate from the system to be tested. Two standard
solutions are made, a minimum allowable foam percent and a maximum allowable foam percent solution for each foam
proportioning system foam percent setting to be tested. The minimum allowable and maximum allowable foam percent
solution are determined using the criteria given in NFPA 1901, "Foam Proportioning System Accuracy".
After the standard foam solutions are thoroughly mixed the conductivity (a measure of a substances ability to conduct
electricity) of each solution is measured. The conductivity of a solution is directly proportional to the percentage of foam in
the solution. The reading is recorded on the certificate by the Testing Official. From these two readings a range is
established for that particular foam proportioning system's foam percent setting.
SVI #769
Page 18 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
The foam system is then operated at the corresponding foam percent setting, flow rate, and pressure as recommended by
the foam proportioning system manufacturer. A test sample is the collected at an adequate distance downstream from the
foam proportioner being tested. When the test sample has been collected its conductivity is measured and recorded by
the Testing Official. The Testing Official then compares the conductivity reading of the test sample to the minimum and
maximum allowable conductivity readings taken from the two standard solutions. If it is greater than the minimum
allowable conductivity, but less than the maximum allowable conductivity, the foam proportioning system is determined to
be accurate at that foam percent setting.
The above procedure is performed at three foam proportioning system foam percent settings. The foam percent settings
are:
1) The minimum foam percent setting available.
2) A mid-range foam percent setting, if available.
3) The maximum foam percent setting available.
The foam proportioning system is certified to be accurate if all three foam percent settings produce conductivity,
measurements in the range of conductivity' as determined by' the standard solutions for each foam percent setting. The
Testing Official makes the final determination of the foam proportioning system accuracy as installed by' the apparatus
manufacturer.
Criteria for the following systems:



Class A foam - .1%, .5%, and 1 .0% settings if available.
Class B foam - 1.0%. 3.0%, and 6.0% settings if available.
Class A and Class B foam - .1% and 1.0% using Class A foam and at 3.0% using Class B foam or at .1% using Class
A foam and 3.0% and 6.0% using Class B foam.
WARRANTY
A full statement shall be provided of the warranties for the vehicle(s) being bid. Warranties should clearly describe the
terms under which the vehicle manufacturer accepts responsibility for the cost to repair defects caused by faulty design,
quality of work or material, and for the applicable period of time after delivery.
Cost of repairs refers to all costs related thereto including, but not limited to, the cost of materials, and the cost of labor.
The Body Manufacturer shall warrant all materials and accessories used on the vehicle(s), whether fabricated by
manufacturer or purchased from an outside source, and will deal directly with the Loveland Fire & Rescue on all warranty
work.
GENERAL LIMITED WARRANTY - THREE (3) YEARS
The vehicle shall be free of defects in material and workmanship for a period of three (3) years or 36,000 miles, whichever
occurs first starting thirty (30) days after the original invoice date.
The contractor must be the "single source" coordinator of all warranties on the vehicle.
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS
The vehicle low voltage electrical system shall be free of defects in material and workmanship for a period of five (5) years
or 60,000 miles, whichever occurs first, starting thirty (30) days after the original invoice date.
SVI #769
Page 19 of 125
June 17, 2010
..\4) Pricing & Change Orders\Production Change Order.pdf
Loveland Fire/Rescue
Pumper
Production Specification
STRUCTURAL WARRANTY - TEN (10) YEARS
The body shall be free of structural or design failure or workmanship for a period of ten (10) years, or 100,000 miles
whichever occurs first, starting thirty (30) days after the original invoice date.
PAINT LIMITED WARRANTY - TEN (10) YEARS
The body shall be free of bubbling, or peeling as a result of a defect in the method of manufacture for a period of ten (10)
years, or 100,000 miles whichever occurs first, starting thirty (30) days after the original invoice date.
WATEROUS FIVE YEAR PUMP WARRANTY
The fire pump shall be warranted by Waterous for a period of five (5) years from the date of delivery to the Loveland Fire
& Rescue.
CONSTRUCTION PERIOD
The completed vehicle shall be delivered within three hundred sixty five (365) days after receipt of a purchase order, or
contract.
Contractor shall not be held liable for delays of chassis delivery due to accidents, strikes, floods or other events not
subject to their control. Contractor shall provide immediate written notice to Loveland Fire & Rescue as to delays and to
what extent these delays have in completing vehicle within the stated construction time period.
PRE-CONSTRUCTION CONFERENCE
A pre-construction conference shall be required, at the contractor's factory for three (3) personnel from the Loveland Fire
& Rescue to finalize all construction details prior to manufacturing.
The contractor shall at his/her expense, provide transportation, lodging, rental car and meal expenses during the preconstruction conference. Any travel distance greater than 250 miles shall be by non-stop commercial air travel.
PRE-PAINT CONFERENCE
A pre-paint conference shall be required, at the contractor's factory for three (3) personnel from the Loveland Fire &
Rescue to inspect the vehicle and construction details prior to the painting process.
The contractor shall at his/her expense, provide transportation, lodging, rental car and meal expenses during the pre-paint
conference. Any travel distance greater than 250 miles shall be by non-stop commercial air travel.
FINAL INSPECTION CONFERENCE
A final inspection conference shall be required, at the contractor's factory for three (3) personnel from the Loveland Fire &
Rescue to inspect the vehicle and construction details prior to shipment of the completed vehicle. This inspection shall
take place after any specified striping and lettering is installed.
The contractor shall at his/her expense, provide transportation, lodging, rental car and meal expenses during the final
inspection conference. Any travel distance greater than 250 miles shall be by non-stop commercial air travel.
SVI #769
Page 20 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
DELIVERY AND DEMONSTRATION
The contractor shall be responsible for the delivery of the completed unit to the Loveland Fire & Rescues location. On
initial delivery of the apparatus, the contractor shall supply a qualified representative to demonstrate the apparatus and
provide initial instruction to representatives of the Loveland Fire & Rescue regarding the operation, care, and maintenance
of the apparatus and equipment supplied at Loveland Fire & Rescue location.
The delivery engineer shall set delivery and instruction schedule with the person appointed by Loveland Fire & Rescue.
After delivery of the apparatus, the Loveland Fire & Rescue shall be responsible for ongoing training of its personnel to
proficiency regarding the proper and safe use of the apparatus and associated equipment.
SVI #769
Page 21 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
MODEL
The chassis shall be a Metro Star model. The cab and chassis shall include design considerations for multiple emergency
vehicle applications, rapid transit and maneuverability. The chassis shall be manufactured for heavy duty service with the
strength and capacity to support a fully laden apparatus, one hundred (100) percent of the time.
MODEL YEAR
The chassis shall have a vehicle identification number that reflects a 2010 model year.
COUNTRY OF SERVICE
The chassis shall be put in service in the country of United States of America (USA).
APPARATUS TYPE
The apparatus shall be a pumper vehicle designed for emergency service use which shall be equipped with a
permanently mounted fire pump which has a minimum rated capacity of 750 gallons per minute (3000 L/min). The
apparatus shall include a water tank and hose body whose primary purpose is to combat structural and associated fires.
VEHICLE TYPE
The chassis shall be manufactured for use as a straight truck type vehicle and designed for the installation of a
permanently mounted apparatus behind the cab. The apparatus of the vehicle shall be supplied and installed by the
apparatus manufacturer.
AXLE CONFIGURATION
The chassis shall feature a 4 X 2 axle configuration consisting of a single rear drive axle with a single front steer axle.
GROSS AXLE WEIGHT RATINGS FRONT
The front gross axle weight rating (GAWR) of the chassis shall be 20,000 pounds.
This front gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
GROSS AXLE WEIGHT RATINGS REAR
The rear gross axle weight rating (GAWR) of the chassis shall be 24,000 pounds.
This rear gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
PUMP PROVISION
The chassis shall include provisions to mount a drive line pump in the middle of the chassis, behind the cab, more
commonly known as the midship location.
SVI #769
Page 22 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB STYLE
The cab shall be a custom, enclosed model, built specifically for use as an emergency response vehicle by a company
specializing in cab and chassis design for all emergency response applications.
The cab shall be manufactured for heavy-duty service utilizing superior strength and capacity for the application of
protecting the occupants of the vehicle. The cab shall be of a modular design offering improved strength, durability and
reduced weight. The modular design shall allow for faster, less costly replacement of components. Per pound, 6061-T6
aluminum extrusions offer a higher tensile strength, 45,000 PSI, and yield strength, 40,000 PSI, than that of lower grade
sheet such as 3003-H13. For this reason, the cab shall be of aluminum extrusion construction, which shall offer superior
strength and the truest, flattest surface ensuring less expensive paint repairs if needed.
The method of cab construction shall use a process incorporating techniques outlined in accordance with the American
Welding Society D1.1-96 requirements for structural steel welding. All aluminum welding shall be completed to the
American Welding Society and ANSI D1.2-96 requirements for structural welding of aluminum.
To provide a superior finish by reducing welds that fatigue cab metal; the roof, the rear wall and side panels shall be
assembled using proven industrial adhesives, designed specifically for aluminum fabrication, which exceed the strength of
a weld, for construction.
All interior and exterior seams shall be sealed for optimum noise reduction in addition to the most favorable efficiency for
heating and cooling retention.
The cab shall be constructed of 5052-H32 corrosion resistant aluminum plate. The cab shall incorporate tongue and
groove fitted 6061-T6 0.13 & 0.19 inch thick aluminum extrusions for extreme duty situations. A single formed, one (1)
piece extrusion shall be used for the “A” pillar, adding strength and rigidity to the cab as well as additional roll-over
protection. The cab side walls and lower roof skin shall be 0.13 inch thick; the rear wall and raised roof skins shall be 0.09
inch thick; the front cab structure shall be 0.19 inch thick.
Proposals offering products built with anything less than the alloy-temper mentioned or from any material other than
aluminum, shall not be considered.
The cab shall incorporate a fully enclosed design, allowing for a spacious cab area with no partition between the front and
rear sections of the cab. The walls of the vehicle shall include roof supports allowing for an open design. The exterior
width of the cab shall be 94.00 inches wide with a minimum interior width of 88.00 inches.
The overall cab length shall be 128.00 inches with 54.00 inches from the centerline of the front of the axle to the back of
the cab. The cab shall offer an interior height of 58.00 inches from the front floor to the headliner and a rear floor to
headliner height of 65.00 inches in the crew area, at a minimum. The cab shall offer an interior measurement from the
rear of the engine tunnel to the rear wall of the cab of 52.00 inches. All interior measurements shall include the area within
the interior trimmed surfaces and not to any unfinished surface.
In order to offer the optimum amount of cab space to occupants, there shall be no consideration given for any cab unable
to comply with the minimum measurements for interior cab space as listed.
The cab shall include a driver and officer area with two (2) cab doors. The front doors shall offer a clear opening of
40.00 inches wide X 53.50 inches high. The cab shall also include a crew area with up to two (2) cab doors. The rear
doors shall offer a clear opening of 31.00 inches wide X 61.00 inches high. This style of cab shall offer up to eight (8)
seating positions.
SVI #769
Page 23 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
The first step for the driver and officer area shall measure approximately 10.88 inches deep X 31.50 inches wide. The
intermediate step shall measure approximately 8.63 inches deep X 33.00 inches wide. The height from the first step to
the intermediate step and the intermediate step to the cab floor shall not exceed 11.00 inches.
The first step for the crew area shall measure approximately 10.88 inches deep X 21.50 inches wide. The intermediate
step shall measure approximately 11.50 inches deep X 23.50 inches wide. The height from the first step to the
intermediate step and the intermediate step to the cab floor shall not exceed 12.50 inches.
CAB FRONT FASCIA
The front cab fascia shall be constructed of 5052-H32 Marine Grade, 0.090 of an inch thick, one hundred percent primary
aluminum plate which shall be an integral part of the cab.
The cab fascia will encompass the entire front of the aluminum cab structure from the bottom of the windshield to the
bottom of the cab and shall be the “Classic” design.
The front cab fascia shall include two (2) molded plastic modules on each side accommodating a total of up to four (4)
Hi/Low beam headlights and two (2) turn signal lights or up to four (4) warning lights. Two (2) chrome plated molded
plastic bezels shall be provided on each side around each set of two lamps.
FRONT GRILLE
The front fascia shall include a flat, polished stainless steel front grille which measures approximately 35.00 inches wide X
29.00 inches high. The grille shall include a minimum free air intake of 632.90 square inches shall be installed on the
front of the cab with the upper portion of the grille hinged. The grille shall include two (2) flush push button latches which
shall allow access to the front fluid fills of the cab. The front grille shall offer easy access in examination of and adding
engine oil or wiper washer fluid as well as access to the windshield wiper motor and linkage.
CAB PAINT EXTERIOR
The cab shall be painted prior to the installation of glass accessories and all other cab trim to ensure complete paint
coverage and the maximum in corrosion protection of all metal surfaces.
All metal surfaces on the entire cab shall be ground by disc to remove any surface oxidation or surface debris which may
hinder the paint adhesion. Once the surface is machine ground a high quality acid etching of base primer shall be
applied. Upon the application of body fillers and their preparation, the cab shall be primed with a coating designed for
corrosion resistance and surface paint adhesion. The maximum thickness of the primer coat shall be 2.00 mils.
The entire cab shall then be coated with an intermediate solid or epoxy surfacing agent that is designed to fill any minor
surface defects, provide an adhesive bond between the primer and the paint and improve the color and gloss retention of
the color. The finish to this procedure shall be a sanding of the cab with 360 grit paper, the seams shall be sealed with
SEM brand seam sealer and painted with two (2) to four (4) coats of an acrylic urethane type system designed to retain
color and resist acid rain and most atmospheric chemicals found on the fire ground or emergency scene.
The cab shall then be painted with the specific color designated by the customer with a minimum thickness of 2.00 mils of
paint, followed by a clear top coat not to exceed 2.00 mils.
CAB PAINT MANUFACTURER
The cab shall be painted with PPG Industries paint.
SVI #769
Page 24 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB PAINT PRIMARY/LOWER COLOR
The primary/lower paint color shall be PPG FBCH 910784 red
CAB PAINT WARRANTY
The cab and chassis shall be covered by a limited manufacturer paint warranty which shall be in effect for ten (10) years
from the first owner’s date of purchase or in service or the first 100,000 actual miles, whichever occurs first.
CAB PAINT INTERIOR
The visible cab structure surfaces shall be painted with a Zolatone #20-72 silver gray texture finish.
CAB ENGINE TUNNEL
The cab interior shall include an integrated engine tunnel constructed of 5052-H32 Marine Grade, .190 of an inch thick,
aluminum alloy plate. The tunnel shall be a maximum of 41.50 inches wide X 23.00 inches high.
CAB ENTRY DOORS
The cab shall include four (4) entry doors, two (2) front doors and two (2) crew doors as high as possible for ease of
entering and egress when outfitted with an SCBA. The doors shall be full height and constructed of extruded aluminum
with a nominal thickness of .125 inch. The exterior skins shall be constructed of .125 inch aluminum plate.
All cab and crew doors shall be of substantial weight for the optimum strength and rigidity for the best performance in all
cab crash testing. Any cab with front and crew doors manufactured of less than the material thickness of .125 inch in both
the extrusion and exterior skin shall not be considered.
The doors shall include a double rolled style automotive rubber seal around the perimeter of each door frame and door
edge which ensures a weather tight fit.
All door hinges shall be hidden within flush mounted cab doors for a pleasing smooth appearance and perfect fit along
each side of the cab. Each door hinge shall be piano style with a 0.38 inch pin and shall be constructed of stainless steel.
The piano style hinge and hidden flush mounted door is the most favorable construction keeping dirt and debris out of the
hinge allowing for optimum operation throughout the lifetime of the door.
Proposals offering door hinge thickness any less than stated shall not be considered.
Proposals including doors that do not comply with the flush mounting as described or those including exposed hinges
shall not be considered.
CAB ENTRY DOOR TYPE
All cab entry doors shall be full length in design to fully enclose the lower cab steps.
CAB STRUCTURAL WARRANTY
The cab structure shall be warranted for a period of ten (10) years or one hundred thousand (100,000) miles which ever
may occur first. Warranty conditions may apply and shall be listed in the detailed warranty document that shall be
provided upon request.
SVI #769
Page 25 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB TEST INFORMATION
The cab shall have successfully achieved survival of the International crash test ECE-29, Addendum 28, Revision 1 as
indicated below.
As part of the ECE regulation 29 test, the frontal area of the cab is struck by a 3,700 pound pendulum weight. The weight
is brought back to a sixty degree angle and then the weight is released and allowed to swing forward, imparting some
32,600 pounds foot of force to the cab front face. The cab shall be so constructed that after the test, there will be minimal
intrusion of the cab structure into the passenger area. The doors shall remain usable for both entry and exit. Also, as part
of the test the cab roof must withstand a static load bearing test. The cab shall withstand a weight of over 60,000 pounds
without permanent damage or collapse. The above tests shall be witnessed by and attested to by an independent third
party. The test results shall be recorded on/by cameras, high speed imagers, accelerometers and strain gauges, with
notarized copies of the letters verifying the test results and videos of said test shall be available upon request.
ELECTRICAL SYSTEM
The chassis shall include a single starting electrical system which shall include a 12 volt direct current Weldon brand of
multiplexing system, suppressed per SAE J551. The wiring shall be appropriate gauge cross link with 311 degree
Fahrenheit insulation. All SAE wires in the chassis shall be color coded and shall include the circuit number and function
where possible. The wiring shall be protected by 275 degree Fahrenheit minimum high temperature flame retardant loom.
All nodes and sealed Deutsch connectors shall be waterproof.
APPARATUS WIRING PROVISION
An apparatus wiring panel shall be installed on the officer side bulkhead below the dash which shall include eight (8) open
circuits consisting of three (3) 20 amp, one (1) 30 amp, three (3) 10 amp, and one (1) 15 amp circuit, with relays and
breakers with trigger wires which shall be routed to the rocker switch panel.
MULTIPLEX DISPLAY
The multiplex electrical system shall include a Weldon Vista III display which shall be located on the left side of the dash
in the switch panel. The Vista III shall feature a full color LCD display screen which includes a message bar displaying the
time of day and important messages requiring acknowledgement by the user which shall all be displayed on the top of the
screen in the order they are received. There shall be virtual controls for the auto climate control and on-board
diagnostics. The display screen shall be video ready for back- up cameras, thermal cameras, and DVD.
The Vista III display shall measure approximately 10.38 inches wide X 7.50 inches overall. The display shall offer varying
fonts and background colors. The display shall be fully programmable to the needs of the customer and shall offer
virtually infinite flexibility for screen configuration options.
SVI #769
Page 26 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
DATA RECORDING SYSTEM
The chassis shall have a Weldon Vehicle Data Recorder system installed. The system shall be designed to meet NFPA
1901 and shall be integrated with the Weldon Multiplex electrical system. The following information shall be recorded:
•
•
•
•
•
•
•
•
•
•
•
Vehicle Speed
Acceleration
Deceleration
Engine Speed
Engine Throttle Position
ABS Event
Seat Occupied Status
Seat Belt Status
Master Optical Warning Device Switch Position
Time
Date
Each portion of the data shall be recorded at the specified intervals and stored for the specified length of time to meet
NFPA 1901 guidelines and shall be retrievable by connecting a laptop computer to the VDR system.
POWER & GROUND STUD
A 40 amp battery direct power and ground stud shall be provided and installed in the electrical distribution panel. The
stud shall be size #10 and protected with a 40 amp circuit breaker.
AUXILIARY POWER & GROUND STUD
An auxiliary set of power and ground studs shall be provided and installed behind the electrical center cover with a 40
amp breaker. The studs shall be .375 inch diameter and capable of carrying up to a 40 amp load switched with the
master power switch.
EXTERIOR ELECTRICAL TERMINAL COATING
All terminals exposed to the elements will be sprayed with a yellow protective rubberized coating to prevent corrosion.
SVI #769
Page 27 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ENGINE
The power plant for the vehicle shall offer a high pressure performance, turbo charged engine which shall feature a high
pressure common rail fuel system. This system shall be coupled with a proven Holset turbo which delivers outstanding
performance at ratings up to 425 HP. The Cummins ISL engine shall include replaceable mid-stop cylinder liners plus
heavy duty roller followers, targeted piston cooling and 30% more efficient oil cooling for improved durability and reliability.
The heavy duty design shall also feature stronger braking capacity.
The engine shall be EPA certified to meet the 2007 emissions standards without compromising performance, reliability or
durability. The Cummins ISL 425 engine shall feature an air charge cooled engine which consists of an in line six (6)
cylinder, four cycle diesel powered engine. The engine shall offer a rating of 425 horse power at 2100 RPM and shall be
governed at 2200 RPM. The torque rating shall feature 1200 foot pounds of torque at 1300 RPM with 543 cubic inches of
displacement. The Cummins ISL 425 engine shall feature an electronic governor.
A wiring harness shall be supplied ending at the back of the cab. The harness shall include a connector which shall allow
an optional harness for the pump panel. The included circuits shall be provided for a tachometer, oil pressure, engine
temperature, hand throttle, high idle and a PSG system. A circuit for J1939 data link shall also be provided at the back of
the cab.
The engine shall include an engine mounted combination full flow/by-pass oil filter with replaceable spin on cartridge for
use with the engine lubrication system. The engine shall include Citgo brand Citgard 500, or equivalent SAE 15W40 CJ4
low ash engine oil which shall be utilized for proper engine lubrication.
DIESEL PARTICULATE FILTER CONTROLS
There shall be two (2) controls for the diesel particulate filter. One (1) control shall be for regeneration and one (1) control
shall be for regeneration inhibit.
ENGINE PROGRAMMING HIGH IDLE SPEED
The engine high idle control shall maintain the engine idle at approximately 1250 RPM when engaged.
ENGINE HIGH IDLE CONTROL
The vehicle shall be equipped with an automatic high-idle speed control. It shall be pre-set so when activated, it will
operate the engine at the appropriate RPM to increase alternator output. This device shall operate only when the master
switch is activated and the transmission is in neutral with the parking brake set. The device shall disengage when the
operator depresses the brake pedal, or the transmission is placed in gear, and shall be available to manually or
automatically re-engage when the brake is released, or when the transmission is placed in neutral. There shall be an
indication on the Vista screen for the high idle speed control.
ENGINE PROGRAMMING ROAD SPEED GOVERNOR
The engine shall include programming which will govern the top speed of the vehicle.
AUXILIARY ENGINE BRAKE
A Jacobs engine compression brake, for the six (6) cylinder engine shall be provided. The engine compression brake shall
actuate the vehicle’s brake lights when engaged. A cutout relay shall be installed to disable the compression brake when
in pump mode or when an ABS event occurs. The engine brake shall activate upon 0% accelerator when in operation
mode.
SVI #769
Page 28 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AUXILIARY ENGINE BRAKE CONTROL
An engine compression brake control device shall be included. The electronic control device shall monitor various
conditions and shall activate the engine brake only if all of the following conditions are simultaneously detected:
• A valid gear ratio is detected.
• The driver has requested or enabled engine compression brake operation.
• The throttle is at a minimum engine speed position.
• The electronic controller is not presently attempting to execute an electronically controlled final drive gear shift.
The compression brake shall be controlled via an off/low/high virtual button through the Vista display.
FLUID FILLS
The front of the chassis shall accommodate fluid fills for the engine oil, and the power steering fluid through the grille.
This area shall also accommodate checks for the engine oil, and power steering fluid.
ELECTRONIC ENGINE OIL LEVEL INDICATOR
The engine oil shall be monitored electronically and shall send a signal to activate a warning in the instrument panel when
levels fall below normal. The warning shall activate in a low oil situation upon turning on the master battery and ignition
switches without the engine running.
ENGINE WARRANTY
The Cummins engine shall be warranted for a period of five (5) years or 100,000 miles, whichever occurs first.
REMOTE THROTTLE HARNESS
An apparatus interface wiring harness for the engine shall be supplied with the chassis. The harness shall include a
connector for connection to the chassis harness which shall terminate in the left frame rail behind the cab for reconnection
by the apparatus builder. The harness shall contain connectors for a Class 1 pressure governor/ throttle system as well
as a multiplexed gauge and the Enfo IV. Separate circuits shall be included for pump controls, “pump engaged” and “OK
to Pump” indication lights, open compartment ground, start signal, park brake ground, ignition signal, master power,
customer ignition, air horn solenoid switch, high idle switch and high idle indication light.
An apparatus interface wiring harness shall also be included which shall be wired to the cab harness interface connectors
and shall incorporate circuits with relays to control pump functions. This harness shall control the inputs for the
transmission lock up circuits, governor/ hand throttle controls and dash display which shall incorporate “pump engaged”
and “OK to Pump” indication lights. The harness shall contain circuits for the apparatus builder to wire in a pump switch.
ENGINE PROGRAMMING REMOTE THROTTLE
The engine ECM discreet wire remote throttle circuit will be turned on for use with a discreet wire based pump controller.
ENGINE PROGRAMMING IDLE SPEED
The engine low idle speed will be programmed at 700 rpm.
SVI #769
Page 29 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ENGINE FAN DRIVE
The engine cooling system fan shall incorporate a thermostatically controlled, Horton clutched type fan drive.
When the clutched fan is disengaged it shall facilitate improved vehicle performance, cab heating in cold climates, and
fuel economy. The fan clutch design shall be fail safe so that if the clutch drive fails the fan shall engage to prevent
engine overheating due to the fan clutch failure.
ENGINE COOLING SYSTEM
There shall be a heavy-duty aluminum cooling system designed to meet the demands of the fire industry. The cooling
system shall have the capacity to keep the engine properly cooled under all conditions of road and pumping operations.
The cooling system shall be designed and tested to meet or exceed the requirements specified by the engine and
transmission manufacturer and all EPA requirements. The complete cooling system shall utilize heavy-duty welds and be
mounted to isolate the entire system from vibration or stress. The individual cores of the cooling system shall be mounted
in a manner to allow expansion and contraction at various rates without inducing stress into the adjoining cores.
The cooling system shall be comprised of a stacked, single depth package that provides the maximum cooling capacity
for the specified engine as well as offers excellent serviceability. The main components shall include a surge tank, a
charge air cooler, a recirculation shield, and a radiator.
Proposals unable to offer a stacked single depth cooling package shall not be considered.
There shall be a single depth core that allows greater efficiency, enhanced serviceability, and lighter weight with a higher
ambient capability.
The cooling package core shall not protrude below the frame of the vehicle by more than 1.1 inch. This feature shall
improve the angle of approach thereby reducing possible damage.
The radiator shall be a cross-flow design constructed completely of aluminum with welded side tanks. The radiator shall
include a minimum of a 627 square inch core and shall be bolted to the bottom of the charge air cooler to allow a single
depth core, thus allowing a more efficient and serviceable cooling system. The radiator shall be equipped with a drain
cock to drain the coolant for serviceability.
The cooling system shall include a one piece injected molded Polymer fan blade designed to provide long life in harsh
environments. Polymer fans provide a significant weight reduction over metal fans providing longer life for fan clutch
linings and bearings along with increased fan belt life.
The cooling system shall be equipped with a surge tank that is capable of removing entrained air from the system. The
surge tank shall be equipped with a low coolant probe and sight glass to monitor the level of the coolant. The surge tank
shall have a cap that meets the engine manufactures pressure requirements as well as the system design requirements.
All radiator tubes shall be formed from aluminized steel tubing. Recirculation shields shall be installed where required to
prevent heated air from reentering the cooling package and affecting performance. When a center bumper compartment
is installed an additional shield may be required to redirect the airflow into the coolers.
The charge air cooler shall be a cross-flow design constructed completely of aluminum with welded side tanks. The
charge air cooler shall have a minimum of a 390 square inch core and be bolted to the top of the radiator to allow a single
depth core, thus allowing a more efficient and serviceable cooling system.
All charge air cooler tubes shall be formed from aluminized steel tubing and installed with silicone hump hoses and
stainless steel “constant torque” style clamps meeting the engine manufactures requirements.
SVI #769
Page 30 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ENGINE COOLANT
The cooling package shall include Extended Life Coolant (ELC). The use of ELC provides longer intervals between
coolant changes over standard coolants providing improved performance. The coolant shall contain a 50/50 mix of
ethylene glycol and de-ionized water to keep the coolant from freezing to a temperature of -34 degrees F.
Proposals offering supplemental coolant additives (SCA) shall not be considered, as this is part of the extended life
coolant makeup.
ELECTRONIC COOLANT LEVEL INDICATOR
The instrument panel shall feature a low engine coolant indicator light which shall be located in the center of the
instrument panel. An audible tone alarm shall also be provided to warn of a low coolant incident.
ENGINE PUMP HEAT EXCHANGER
A single bundle type coolant to water heat exchanger shall be installed between the engine and the radiator. The heat
exchanger shall be designed to prohibit water from the pump from coming in contact with the engine coolant. This shall
allow the use of water from the discharge side of the pump to assist in cooling the engine.
COOLANT HOSES
The cooling systems hose shall be formed silicone hose and formed aluminized steel tubing and include stainless steel
constant torque band clamps.
ENGINE AIR INTAKE
The engine air intake system shall include an ember separator air intake filter which shall be located in the front of the cab
behind the officer side fascia. This filter shall protect the downstream air filter from embers using a combination of unique
flat and crimped metal screens constructed into a galvanized steel frame. This multilayered screen shall be designed to
trap embers or allow them to burn out before passing through the pack, while creating only minimal air flow restriction
through the system. Periodic cleaning or replacement of the screen shall be all that is required after installation.
The engine shall also include an air intake filter which shall be bolted to the frame and located under the front of the cab
on the officer side. The dry type filter shall ensure dust and debris safely contained inside the disposable housing,
eliminating the chance of contaminating the air intake system during air filter service via a leak-tight seal.
The air flow distribution and dust loading shall be uniform throughout the high-performance filter cone pack, which shall
result in pressure differential for improved horsepower and fuel economy. The air intake shall be mounted within easy
access via a hinged panel behind the headlight module. The air intake system shall include a restriction indicator light in
the warning light cluster on the instrument panel, which shall activate when the air cleaner element requires replacement.
SVI #769
Page 31 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ENGINE EXHAUST SYSTEM
The exhaust system shall include a diesel particulate filter and a diesel oxidation catalyst to meet current EPA standards.
The system shall utilize 0.065 inch thick stainless steel exhaust tubing between the engine turbo and the diesel particulate
filter. This section of the exhaust system shall be wrapped with a thermal cover in order to retain the necessary heat for
system regeneration. Zero leak clamps seal all system joints between the turbo and diesel particulate filter.
From the diesel particulate filter to the end of the tailpipe the system shall be plumbed with 0.065 inch thick aluminized
steel tubing connected with overlapping band style clamps. The discharge shall terminate horizontally on the officer side
of the vehicle ahead of the rear tires.
The exhaust system shall be mounted below the frame in the outboard position providing maximum space for frame
mounted components such as midship pumps.
ENGINE EXHAUST ACCESSORIES
An exhaust temperature mitigation device shall be shipped loose for installation by the body manufacturer on the vehicle.
The temperature mitigation device shall lower the temperature of the exhaust by combining ambient air with the exhaust
gasses at the exhaust outlet.
TRANSMISSION
The drive train shall include an Allison Gen IV-E model EVS 3000 torque converting, automatic transmission which shall
include electronic controls and an output retarder. The transmission shall feature two (2) 10-bolt PTO pads located on the
converter housing.
The transmission shall include two (2) internal oil filters and Castrol TranSynd™ synthetic TES 295 transmission fluid
which shall be utilized in the lubrication of the EVS transmission. An electronic oil level sensor shall be included with the
readout located in the shift selector.
The Gen IV-E transmission shall include prognostic diagnostic capabilities. These capabilities shall include the monitoring
of the fluid life, filter change indication, and transmission clutch maintenance.
The transmission gear ratios shall be:
1st
3.49:1
2nd
1.86:1
3rd
1.41:1
4th
1.00:1
5th
0.75:1
6th
0.65:1 (if applicable)
Rev
5.03:1
TRANSMISSION MODE PROGRAMMING
The transmission, upon start-up, will select the fifth speed operation without the need to press the mode button.
SVI #769
Page 32 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TRANSMISSION FEATURE PROGRAMMING
The EVS group package number 127 shall contain the 198 vocational package in consideration of the duty of this
apparatus as a Pumper. This package shall incorporate an automatic neutral with selector override. This feature
commands the transmission to neutral when the park brake is applied, regardless of drive range requested on the shift
selector. This requires re-selecting drive range to shift out of neutral for the override.
This package shall be coupled with the use of a split shaft PTO and incorporate pumping circuits. These circuits shall be
used allowing the vehicle to operate in the fourth range lockup while operating the pump mode due to the 1 to 1 ratio
through the transmission, therefore the output speed of the engine is the input speed to the pump. The pump output can
be easily calculated by using this input speed and the drive ratio of the pump itself to rate the gallons of water the pump
can provide.
An eight (8) pin Delphi connector will be provided next to the steering column connector. This will contain the following
input/output circuits to the transmission control module.
Function ID
C
J
C
G
Description
PTO Request
Fire Truck Pump Mode (4th Lockup)
Range Indicator
PTO Enable Output
Signal Return
Wire assignment
142
122 / 123
145 (4th)
130
103
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR
The transmission fluid shall be monitored electronically and shall send a signal to activate a warning in the instrument
panel when levels fall below normal.
TRANSMISSION SHIFT SELECTOR
An Allison pressure sensitive range selector touch pad shall be provided and located to the right of the driver within clear
view and easy reach. The shift selector shall provide a prognostic indicator (wrench symbol) on the digital display between
the selected and attained indicators. The prognostics monitor various operating parameters to determine and shall alert
you when a specific maintenance function is required.
TRANSMISSION RETARDER CONTROL
The Allison transmission retarder control shall be modulated by a one-third at 0% throttle and two- thirds brake pedal
actuation and shall include a virtual button on the multiplex display. The activation of the retarder shall activate the brake
lights and shall be inactive during pump mode.
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE
When the auxiliary brake is engaged, the transmission shall automatically shift to second gear to decrease the rate of
speed assisting the secondary braking system and slowing the vehicle.
SVI #769
Page 33 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TRANSMISSION COOLING SYSTEM
The transmission shall include an air to oil cooler integrated into the lower portion of cooling package. The transmission
cooling system shall meet all transmission manufacturer requirements.
The transmission retarder application shall feature a separate water to oil cooling system consisting of a tube bundle
cooler installed into the transmission hydraulic circuit to provide additional cooling for the retarder. The tube bundle cooler
shall be mounted to the chassis, connected to the engine cooling system plumbing.
TRANSMISSION WARRANTY
The Allison EVS series transmission shall be warranted for a period of five (5) years with unlimited mileage. Parts and
labor shall be included in the warranty.
DRIVELINE
All drivelines shall be heavy duty metal tube and equipped with Spicer 1710 series universal joints. The shafts shall be
dynamically balanced prior to installation to alleviate future vibration. In areas of the driveline where a slip shaft is
®
required, the splined slip joint shall be coated with Glide Coat .
MIDSHIP PUMP / GEARBOX
A temporary jackshaft driveline shall be installed by the chassis manufacturer to accommodate the mid-ship split shaft
pump as specified by the apparatus manufacturer.
MIDSHIP PUMP / GEARBOX MODEL
The midship pump/gearbox provisions shall be for a Waterous CSUC20 pump.
MIDSHIP PUMP RATIO
The ratio for the midship pump shall be 2.27:1.
MIDSHIP PUMP GEARBOX DROP
The Waterous pump gearbox shall have a “C” (medium length) drop length.
MIDSHIP PUMP LOCATION C/L SUCTION
The pump driveline shall include a centerline of the rear axle to the center line of the suction dimension of 99.00 inches.
PUMP SHIFT CONTROLS
One (1) air pump shift control panel shall be located in the left hand side knee area below the dash. The following shall be
provided on the panel: a three (3) position control lever; an engraved PUMP ENGAGED identification light; and an
engraved OK TO PUMP identification light. The pump shift control panel shall be black with a yellow border outline and
shall include pump instructions. An instruction plate describing the transmission shift selector position used for pumping
shall be provided and located so it can be read from the driver’s position per NFPA 16.10.1.3. The road mode shall be
selected when the control lever is in the up position and pump mode shall be selected when the control lever is in the
down position.
The control lever center position shall exhaust air from both pump and road sides of pump gear box shift cylinder.
SVI #769
Page 34 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PUMP SHIFT CONTROL PLUMBING
Air connections shall be provided from the air supply tank to the pump shift control valve and from the pump shift control
valve to the frame mounted bracket. The frame mounted bracket shall include labeling identifying the pump and road
connection points with threaded .0375 NPT fittings for attaching the customer installed pump. The air supply shall be
pressure protected from service brake system.
FUEL FILTER/WATER SEPARATOR
The fuel system shall have a Fleetguard FS1003 fuel filter/water separator as a primary filter. The fuel filter shall have a
drain valve.
A water in fuel sensor shall be provided and wired to an instrument panel lamp and audible alarm to indicate when water
is present in the fuel/water separator.
A secondary fuel filter shall be included as approved by the engine manufacturer.
FUEL LINES
The fuel system lines shall be brown reinforced nylon tubing rated for diesel fuel with brass fittings installed from the tank
to engine including the return.
FUEL SHUTOFF VALVE
A fuel shutoff valve shall be installed in the fuel draw line at the primary fuel filter to allow the fuel filter to be changed
without loss of fuel to the fuel pump.
A second fuel shutoff valve shall be installed in the fuel draw line, near the fuel tank to allow maintenance to be performed
with minimal loss of fuel.
FUEL TANK
The fuel tank shall have a capacity of sixty-eight (68) gallons and shall measure 35.00 inches in width X 20.00 inches in
height X 24.00 inches in length. The increased height and reduced length allows for the use of a shorter rear frame
overhang on the chassis. The baffled tank shall be made of 14 gauge aluminized steel. The exterior of the tank shall be
painted with a PRP Corsol™ black anti-corrosive exterior metal treatment finish. This results in a tank which offers the
internal and external corrosion resistance.
The tank shall have a vent port to facilitate venting to the top of the fill neck for rapid filling without "blow-back" and a roll
over ball check vent for temperature related fuel expansion and draw.
The tank is designed with dual draw tubes and sender flanges. The tank shall have 2.00 inch NPT fill ports for right or left
hand fill. A 0.50 inch NPT drain plug shall be centered in the bottom of the tank.
The fuel tank shall be mounted below the frame, behind the rear axle. Two (2) three-piece strap hanger assemblies with
“U” straps bolted midway on the fuel tank front and rear shall be utilized to allow the tank to be easily lowered and
removed for service purposes. Rubber isolating pads shall be provided between the tank and the hanger strap
assemblies. Strap mounting studs through the rail, hidden behind the body shall not be acceptable.
SVI #769
Page 35 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FUEL TANK FILL PORT
The fuel tank fill ports shall be offset with the right fill port located in the forward position and the left fill port located in the
middle position of the fuel tank.
FRONT AXLE
The front axle shall be a Meritor Easy Steer Non drive front axle, model number MFS-20. The axle shall include a 3.74
inch drop and a 71.00 inch king pin intersection (KPI). The axle shall include a conventional style hub with a standard
knuckle.
FRONT AXLE WARRANTY
The front axle shall be warranted by Meritor for two (2) years with unlimited miles under the general service application.
Details of the Meritor warranty are provided on the PDF document attached to this option.
FRONT WHEEL BEARING LUBRICATION
The front axle wheel bearings shall be lubricated with oil. The oil level can be visually checked via clear inspection
windows in the front axle hubs.
FRONT SHOCK ABSORBERS
Two (2) Bilstein inert, nitrogen gas filled shock absorbers shall be provided and installed as part of the front suspension
system. The shocks shall be a monotubular design and fabricated using a special extrusion method, utilizing a single
blank of steel without a welded seam, achieving an extremely tight peak-to-valley tolerance and maintains consistent wall
thickness. The monotubular design shall provide superior strength while maximizing heat dissipation and shock life.
The ride afforded through the use of a gas shock is more consistent and shall not deteriorate with heat, the same way a
conventional oil filled hydraulic shock would.
The Bilstein front shocks shall include a digressive working piston assembly allowing independent tuning of the
compression and rebound damping forces to provide optimum ride and comfort without compromise. The working piston
design shall feature fewer parts than most conventional twin tube and “road sensing” shock designs and shall contribute
to the durability and long life of the Bilstein shock absorbers.
Proposals offering the use of conventional twin tube or “road sensing” designed shocks shall not be considered.
FRONT SUSPENSION
The front suspension shall include a nine (9) leaf spring pack in which the longest leaf measures 54.00 inch long and 4.00
inches wide and shall include a military double wrapped front eye. Both spring eyes shall have a case hardened threaded
bushing installed with lubrication counter bore and lubrication land off cross bore with grease fitting. The spring capacity
shall be rated at 21,500 pounds.
SVI #769
Page 36 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STEERING COLUMN/ WHEEL
The cab shall include a Douglas Autotech steering column shall be a seven (7) position tilt and 2.25 inch telescopic type
with an 18.00 inch steering wheel located on the left side of the cab designating the driver’s position. The steering wheel
shall be covered with black absorbite padding.
The steering column shall contain a horn button, self-canceling turn signal switch, four-way hazard switch and headlamp
dimmer switch.
POWER STEERING PUMP
The hydraulic power steering pump shall be a TRW PS and shall be gear driven from the engine. The pump shall be a
balanced, positive displacement, sliding vane type.
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR
The power steering fluid shall be monitored electronically and shall send a signal to activate an audible alarm and visual
warning in the instrument panel when fluid level falls below normal.
FRONT AXLE CRAMP ANGLE
The chassis shall have a front axle cramp angle of 48 degrees to the left and 44 degrees to the right.
POWER STEERING GEAR
The power steering gear shall be a TRW model TAS 65 with an assist cylinder.
CHASSIS ALIGNMENT
The chassis frame rails shall be measured to insure the length is correct and cross checked to make sure they run parallel
and are square to each other. The front and rear axles shall be laser aligned. The front tires and wheels shall be aligned
and toe-in set on the front tires by the chassis manufacturer.
The completed apparatus shall be rechecked for proper alignment once the chassis has been fully loaded and before
being placed in service.
REAR AXLE
The rear axle shall be a Meritor model RS-24-160 single drive axle. The axle shall include precision forged, single
reduction differential gearing, and shall have a rated capacity of 24,000 pounds.
The axle shall be built of superior construction and quality components to provide the rugged dependability needed to
stand up to the fire industry’s demands. The axle shall include rectangular shaped, hot-formed housing with a standard
wall thickness of 0.50 of an inch for extra strength and rigidity and a rigid differential case for high axle strength and
reduced maintenance.
The axle shall have heavy-duty Hypoid gearing for longer life, greater strength and quieter operation. Industry-standard
wheel ends for compatibility with both disc and drum brakes, and unitized oil seal technology to keep lubricant in and help
prevent contaminant damage will be used.
SVI #769
Page 37 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
REAR AXLE WARRANTY
The rear axle shall be warranted by Meritor for two (2) years with unlimited miles under the general service application.
Details of the Meritor warranty are provided on the PDF document attached to this option.
REAR AXLE DIFFERENTIAL LUBRICATION
The rear axle differential shall be lubricated with oil.
REAR WHEEL BEARING LUBRICATION
The rear axle wheel bearings shall be lubricated with oil.
VEHICLE TOP SPEED
The top speed of the vehicle shall be approximately 68 MPH +/-2 MPH at governed engine RPM.
REAR SUSPENSION
The single rear axle shall feature a Hendrickson Fire-Maax™ air suspension. The suspension shall include two optimized
air springs mounted to cast structural trailing arms, a transverse cross beam for increased roll stability and two heavy duty
shock absorbers. Dual air height control valves shall be installed to ensure equal frame height on both sides of the vehicle
regardless of the load. Axle alignment is maintained using two eccentric bushings at each frame bracket. Fire-Maax™
heavy-duty rear air ride suspension delivers the superb ride, stability, and handling required for fire and rescue vehicles.
The rear suspension capacity shall be rated at 24,000 pounds.
REAR SHOCK ABSORBERS
Shock absorbers shall be supplied by the suspension manufacturer and installed on the rear axle suspension.
FRONT TIRE
The front tires shall be Michelin 385/65R22.5 “L” tubeless radial XFE regional tread.
The front tire stamped load capacity shall be 19,840 pounds per axle with a speed capacity of 65 miles per hour when
properly inflated to 130 pounds per square inch.
The front tire US Fire Service Intermittent Usage load capacity shall be 20,000 pounds per axle with a speed capacity of
75 miles per hour when properly inflated to 120 pounds per square inch.
REAR TIRE
The rear tires shall be Michelin 11R-22.5 16PR "H" tubeless radial XDN2 all weather tread designed for exceptional
traction and mileage.
The rear tire stamped load capacity shall be 24,020 pounds per axle with a speed capacity of 75 miles per hour when
properly inflated to 120 pounds per square inch.
The rear tire US Fire Service Intermittent Usage load capacity shall be 24,820 pounds per axle with a speed capacity of
75 miles per hour when properly inflated to 120 pounds per square inch.
SVI #769
Page 38 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TIRE PRESSURE INDICATOR
There shall be a voucher provided with the chassis for a pop up style tire pressure indicator at each tire valve stem.
The indicator shall provide visual indication of pressure in the specific tire.
The tire pressure indicators shall be redeemed upon the vehicle manufacturer’s receipt of the voucher for installation by
the customer.
FRONT WHEEL
The front wheels shall be Alcoa hub piloted, 22.50 inch X 12.25 inch polished aluminum wheels. The hub piloted
mounting system shall provide easy installation and shall include two-piece flange nuts. The wheels shall feature onepiece forged strength and a polished finish that lasts.
REAR WHEEL
The outer rear wheels shall be Alcoa hub piloted, 22.50 inch X 8.25 inch LvL One™ aluminum wheels with a polished
outer surface. The inner rear wheels shall be Alcoa hub piloted, 22.50 inch X 8.25 inch aluminum wheels with LvL One™
bright machine finish. The hub piloted mounting system shall provide easy installation and shall include two-piece flange
nuts.
WHEEL TRIM
The front wheels shall include stainless steel lug nut covers and stainless steel baby moons shipped loose with the
chassis for installation by the apparatus builder. The baby moons shall have cutouts for oil seal viewing when applicable.
The rear wheels shall include stainless steel lug nut covers and band mounted spring clip stainless steel high hats
shipped loose with the chassis for installation by the apparatus builder.
®
The lug nut covers, baby moons, and high hats shall be RealWheels brand constructed of 304L grade, non-corrosive
stainless steel with a mirror finish. Each wheel trim component shall meet D.O.T. certification.
TIRE CHAINS
Onspot brand six (6) strand automatic ice chains shall be installed on the rear axle of the chassis to provide instant
traction while traveling on ice and snow at speeds below 35 mph.
TIRE CHAINS ACTIVATION
The tire chain system shall be controlled through a virtual switch on the multiplex display. The virtual switch shall display
“Active” when the tire chains are engaged. The tire chains shall be interlocked with the transmission and shall engage
when the vehicle is traveling 30 MPH or less. After traveling over 30 MPH, the vehicle must be reduced to a speed below
5 MPH for the tire chains to be engaged or re-engaged.
SVI #769
Page 39 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BRAKE SYSTEM
A rapid build-up air brake system shall be provided. The air brakes shall include a two (2) air tank, three (3) reservoir
system with a total of 4152 cubic inch of air capacity. A floor mounted treadle valve shall be mounted inside the cab for
graduated control of applying and releasing the brakes. An inversion valve shall be installed to provide a service brake
application in the unlikely event of primary air supply loss.
The rear axle spring brakes shall automatically apply in any situation when the air pressure falls below 25 PSI and shall
include a mechanical means for releasing the spring brakes when necessary. An audible alarm shall designate when
the system air pressure is below 60 PSI.
A four (4) sensor, four (4) modulator anti-lock braking system (ABS) shall be installed on the front and rear axles in order
to prevent the brakes from locking or skidding while braking during hard stops or on icy or wet surfaces. This in turn shall
allow the driver to maintain steering control under heavy braking and in most instances, shorten the braking distance. The
electronic monitoring system shall incorporate diagonal circuitry which shall monitor wheel speed during braking through a
sensor and tone ring on each wheel. A dash mounted ABS lamp shall be provided to notify the driver of a system
malfunction. The ABS system shall automatically disengage the auxiliary braking system device when required. The
speedometer screen shall be capable of reporting all active defaults using PID/SID and FMI standards.
Automatic traction control which shall be installed on the single rear axle. The automatic traction control system shall
apply the anti-lock braking system when the drive wheels loose traction. The system shall scale the electronic engine
throttle back to prevent wheel spin while accelerating on ice or wet surfaces.
Additional handling capabilities shall include roll stability control which shall monitor the vehicles rollover threshold based
on the lateral acceleration. The system shall activate a computerized device which shall slow the vehicle when the
threshold is exceeded in either direction. Normal vehicle operation shall resume once the problematic conditions cease.
Roll stability control shall be integral with the ABS and ATC systems.
A virtual style switch shall be provided and properly labeled “mud/snow”. When the switch is pressed once, the system
shall allow a momentary wheel slip to obtain traction under extreme mud and snow conditions. During this condition the
ATC light shall blink continuously notifying the driver of activation. Pressing the switch again shall deactivate the
mud/snow feature.
The electronic stability control unit (ESC) is a functional extension of the electronic braking system. It is able to detect any
skidding of the vehicle about its vertical axis as well as any rollover tendency. The control unit comprises an angularspeed sensor that measures the vehicle’s motion about the vertical axis, caused, for instance, by cornering or by skidding
on a slippery road surface. An acceleration sensor measures the vehicle’s lateral acceleration. The CAN bus provides
information on the steering angle. On the basis of lateral acceleration and steering angle, an integrated microcontroller
calculates a theoretical angular speed for the stable vehicle condition.
FRONT BRAKES
The front brakes shall be Meritor EX225 Disc Plus disc brakes with 17" vented rotors.
REAR BRAKES
The rear brakes shall be Meritor 16.50 inch X 7.00 inch S-cam drum type.
PARK BRAKE
Upon application of the push-pull valve in the cab, the rear brakes will engage via mechanical spring force. This is
accomplished by dual chamber rear brakes, satisfying the FMVSS parking brake requirements.
SVI #769
Page 40 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PARK BRAKE CONTROL
A Meritor-Wabco manual hand control push-pull style valve shall operate the parking brake system. The control shall
be yellow in color.
The parking brake actuation valve shall be mounted on the left hand dash to the right of the steering column within easy
reach of the driver.
REAR BRAKE SLACK ADJUSTERS
The rear brakes shall include Meritor automatic slack adjusters installed on the axle which features a simple, durable
design offering reduced weight. The automatic slack adjusters shall feature a manual adjusting nut which cannot
inadvertently be backed off and threaded grease fittings for easy serviceability.
AIR DRYER
The brake system shall include a Wabco System Saver 1200 air dryer with an integral 100 watt heater with a Metri-Pack
sealed connector. The air dryer incorporates an internal turbo cutoff valve that closes the path between the air
compressor and air dryer purge valve during the compressor "unload" cycle. The turbo cutoff valve allows purging of
moisture and contaminants without the loss of turbo boost pressure. The air dryer shall be located on the right hand
frame rail forward of the front wheel behind the right hand cab step.
FRONT BRAKE CHAMBERS
The front brakes shall be provided with MGM type 24 long stroke brake chambers.
REAR BRAKE CHAMBERS
The rear axle shall include a piston style MGM 30/30 long stroke brake chambers which shall convert the energy of
compressed air into mechanical force and motion. This shall actuate the brake camshaft, which in turn operates the
foundational brake mechanism forcing the brake shoes against the brake drum.
AIR COMPRESSOR
®
The air compressor provided for the engine shall be a Wabco SS318 single cylinder pass-through drive type compressor
which shall be capable of producing 18.7 CFM at 1200 engine RPMs. The air compressor shall feature a higher delivery
efficiency translating to more air delivery per horsepower absorbed. The compressor shall include an aluminum cylinder
head which shall improve cooling, reduce weight and decrease carbon formation. Superior piston and bore finishing
technology shall reduce oil consumption and significantly increasing the system component life.
AIR GOVERNOR
An air governor shall be provided to control the cut-in and cut-out pressures of the engine mounted air compressor. The
governor shall be calibrated to meet FMVSS requirements. The air governor shall be located on the air cleaner bracket on
the right frame rail behind the officer step.
MOISTURE EJECTORS
An automatic moisture ejector with a manual drain provision shall be installed on the wet tank of the air supply system.
Manual pet-cock type drain valves shall be installed on all remaining reservoirs of the air supply system.
SVI #769
Page 41 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AIR SUPPLY LINES
A dual air system plumbed with color coded reinforced nylon tubing air lines shall be installed on the chassis. The primary
(rear) brake line shall be green, the secondary (front) brake line red, the parking brake line orange and the auxiliary
(outlet) will be blue.
Brass compression type fittings shall be used on the nylon tubing. All drop hoses shall include fiber reinforced neoprene
covered hoses.
WHEELBASE
The chassis wheelbase shall be 180.00 inches.
REAR OVERHANG
The chassis rear overhang shall be 54.00 inches.
FRAME
The frame shall consist of single rails running parallel to each other with cross members forming a ladder style frame.
The frame rails shall be formed in the shape of a "C" channel, 10.25 inch web X 3.50 inches deep upper and lower
flanges X 0.38 inches thick. The high strength low alloy steel shall have a Tensile Elastic Limit of 110,000 psi. Each
single rail shall be rated by a Resistance Bending Moment (RBM) minimum of 1,830,400 inch pounds and have a
minimum section modulus of 16.64 cubic inches calculated by the radius method. The outside dimension frame shall
measure 34.25 inches in width.
Proposals calculating the frame strength using the “box method” shall not be considered.
Proposals including heat treated rails shall not be considered. Heat treating frame rails produces rails that are not uniform
in their mechanical properties throughout the length of the rail. Rails made of high strength, low alloy steel are already at
the required yield strength prior to forming the rail.
A minimum of seven (7) fully gusseted 0.25 inch thick cross members shall be installed. The inclusion of the body
mounting, or bumper mounting shall not be considered as a cross member. The cross members shall be attached using
zinc coated grade 8 fasteners. The head bolts shall be flanged type with distorted threads, held in place by flanged lock
nuts. Each cross member shall be mounted to the frame rails utilizing a minimum of 0.25 inch thick gusset reinforcement
plates at all corners balancing the area of force throughout the entire frame.
Any proposals not including additional reinforcement for each cross member shall not be considered.
Frame rails will be manufactured such that bolt attachment holes are specific for each component and shall not include
any unnecessary holes.
All relief areas shall be cut in with a minimum 2.00 inch radius at intersection points with the edges ground to a smooth
finish to prevent a stress concentration point.
The frame and cross members shall carry a lifetime warranty to the original purchaser. A copy of the frame warranty shall
be made available upon request.
Proposals offering warranties for frames not including cross members shall not be considered.
SVI #769
Page 42 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FRAME WARRANTY
The frame and cross members shall carry a limited lifetime warranty to the original purchaser. The warranty shall include
conditional items listed in the detailed warranty document which shall be provided upon request.
FRAME CLEAR AREA
The chassis frame shall be left clear of chassis mounted components inside or outside the frame rails within the first 30.00
inches behind the cab to allow space for OEM installed components. Cross members may be installed in the clear area if
required for proper frame or driveline configuration.
FRAME PAINT
The frame shall be powder coated black prior to any attachment of components.
All powder coatings, primers and paint shall be compatible with all metals, pretreatments and primers used. The cross
hatch adhesion test per ASTM D3359 shall not have a fail of more than ten (10) squares. The pencil hardness test per
ASTM D3363 shall have a final post-curved pencil hardness of H-2H. The direct impact resistance test per ASTM D2794
shall have an impact resistance of 120.00 inches per pound at 2 mils. The salt spray resistance per ASTM B-117-97
shall pass 500 hours of salt spray test. The applied process shall allow the application of other products over it and still
maintain or exceed the 500 hours salt spray test.
Any proposals offering painted frame with variations from the above process shall not be accepted. The film thickness of
vendor supplied parts shall also be sufficient to meet the performance standards as stated above.
The chassis under carriage consisting of frame, axles, driveline running gear, air tanks and other chassis mounted
components shall be painted the primary/lower cab color. Paint shall be applied prior to airline and electrical wiring
installation.
FRONT BUMPER
The chassis shall be equipped with a severe duty front bumper constructed from structural steel channel. The bumper
material shall be .38 thick ASTM A36 steel which shall measure 12.00 inches high with a 3.05 inch flange and shall be
99.00 inches wide with angled front corners.
The bumper shall be primed and painted as specified.
FRONT BUMPER EXTENSION LENGTH
The front bumper shall be extended approximately 18.00 inches ahead of the cab.
FRONT BUMPER EXTENSION WIDTH
The front bumper extension shall include an overall width of 34.25 inches.
FRONT BUMPER PAINT
The front bumper shall be painted the same as the lower cab color.
SVI #769
Page 43 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FRONT BUMPER APRON
The 18.00 inch extended front bumper shall include an apron constructed of 0.19 inch thick embossed aluminum tread
plate.
The apron shall be installed between the bumper and the front face of the cab affixed using stainless steel bolts attaching
the apron to the top bumper flange.
MECHANICAL SIREN
The front bumper shall include an electro mechanical Federal Q2B™ siren, which shall be streamlined, chrome-plated
and shall produce 123.00 decibels of sound at 10.00 feet. The Q2B™ siren produces a distinctive warning sound that is
recognizable at long distances. A unique clutch design provides a longer coast down sound while reducing the amp draw
requirements to 100 amps. The siren shall measure 10.50 inches wide X 10.00 inches high X 14.00 inches deep.
MECHANICAL SIREN LOCATION
The siren shall be recess mounted on the left side of the front fascia of the bumper centered between the radius and
frame rail.
AIR HORN
The front bumper shall include two (2) Hadley brand E-Tone air horns which shall measure 24.00 inches long with a 6.00
inch round flare. The air horn shall be a trumpet style and shall include a chrome finish on the inside and a black painted
finish on the outside of the trumpet.
AIR HORN LOCATION
The air horns shall be recess mounted in the front bumper face on the officer side of the bumper in the inboard and
outboard positions relative to the right hand frame rail.
AIR HORN RESERVOIR
One (1) air tank, with a 1200 cubic inch reservoir, shall be installed on the chassis to act as a supply tank for operating air
horns. The reservoir shall be isolated with a 90 PSI pressure protection valve on the reservoir supply side to prevent
depletion of the air to the air brake system.
ELECTRONIC SIREN SPEAKER
The bumper shall include one (1) Cast Products Inc. model SA4301, 100 watt speaker which shall be recess mounted
within the bumper fascia. The speaker shall include a flat mounting flange and be chrome in color.
ELECTRONIC SIREN SPEAKER LOCATION
The electronic siren speaker shall be located on the front bumper face in the center position between the frame rails.
FRONT BUMPER TOW EYES
The bumper shall include two (2) chrome plated tow eyes shall be installed through the front bumper. The eyes shall be
fabricated from 0.75 inch thick #1020 ASTM-A36 hot rolled steel. The inside diameter of the eye shall be 2.00 inches and
include a chamfered edge.
SVI #769
Page 44 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB TILT SYSTEM
The entire cab shall be capable of tilting 45.00 degrees to allow for easy maintenance of the engine and transmission.
The electric-over-hydraulic lift system shall include an ignition interlock and red cab lock down indicator lamp on the tilt
control which shall illuminate when holding the “Down” button to indicate safe road operation.
It shall be necessary to activate the master battery switch and set the parking brake in order to tilt the cab. As a third
precaution the ignition switch must be turned off to complete the cab tilt interlock safety circuit.
Two (2) spring-loaded hydraulic hold down hooks located outboard of the frame shall be installed to hold the cab securely
to the frame. Once the hold-down hooks are set in place, it shall take the application of pressure from the hydraulic cab
tilt lift pump to release the hooks.
Two (2) cab tilt cylinders shall be provided with velocity fuses in each cylinder port. The cab tilt pivots shall be 1.90 inch
ball and be anchored to frame brackets with 1.25 inch diameter studs.
A steel safety channel assembly shall be installed on the right side cab lift cylinder to prevent accidental cab lowering.
The safety channel assembly shall fall over the lift cylinder when the cab is in the fully tilted position. A cable release
system shall also be provided to retract the safety channel assembly from the lift cylinder to allow the lowering of the cab.
CAB TILT CONTROL RECEPTACLE
The cab tilt control cable shall include a receptacle which shall be temporarily located on the right hand chassis rail rear of
the cab to provide a place to plug in the cab tilt remote control pendant. The tilt pump shall include 8.00 feet of cable with
a 6-pin Deutsch connector that includes a cap. The remote control pendant shall also include 20.00 feet of cable which
includes a mating connector.
CAB WINDSHIELD
The cab windshield shall have a surface area of 2825.00 square inches and be of a two (2) piece wraparound design for
maximum visibility.
The distance from the driver and officer to the windshield shall be a minimum of 42.00 inches at the furthest seated
position. This distance shall ensure the safety of the driver and officer from intruding objects in the unlikely event of a
head on collision.
The glass utilized for the windshield a standard automotive tint. The left and right windshield shall be fully interchangeable
thereby minimizing stocking and maintenance costs. All proposals offering windshields not in compliance with the
minimum measurement of surface area stated above and are not fully interchangeable shall not be considered.
GLASS FRONT DOOR
The front cab doors shall include a window which is 27.00 inches in width X 26.00 inches in height. These windows shall
have the capability to roll down completely into the door housing. This shall be accomplished manually utilizing a crank
style handle on the inside of the door. A reinforced window regulator assembly shall be provided for severe duty use.
There shall be an irregular shaped fixed window which shall measure 2.50 inches wide at the top, 8.00 inches wide at the
bottom X 26.00 inches in height, more commonly known as “cozy glass” ahead of the front door roll down windows.
The windows shall be mounted within the frame of the front doors trimmed with a black anodized ring on the exterior.
SVI #769
Page 45 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
GLASS TINT FRONT DOOR
The windows located in the left and right front doors shall have a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
GLASS REAR DOOR RH
The rear right hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This window
shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced window regulator
assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR RH
The window located in the right hand side rear window shall include a dark gray automotive tint which shall allow forty-five
percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar
energy.
GLASS REAR DOOR LH
The rear left hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This window
shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced window regulator
assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR LH
The window located in the left hand side rear door shall include a dark gray automotive tint which shall allow forty-five
percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect passengers from radiant solar
energy.
GLASS SIDE MID RH
The cab shall include a window on the officer’s side behind the front and ahead of the crew doors which shall measure
16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall be rectangular in shape.
The window shall be mounted using self locking window rubber. The glass utilized for this window shall include a green
automotive tint unless otherwise noted.
GLASS TINT SIDE MID RH
The window located on the right hand side of the cab between the front and rear doors shall include a dark gray
automotive tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help
protect passengers from radiant solar energy.
GLASS SIDE MID LH
The cab shall include a window on the driver’s side behind the front door and ahead of the crew door and above the wheel
well which shall measure 16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall
be rectangular in shape. The window shall be mounted using self locking window rubber. The glass utilized for this
window shall include a green automotive tint unless otherwise noted.
SVI #769
Page 46 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
GLASS TINT SIDE MID LH
The window located on the left hand side of the cab between the front and rear doors shall include a dark gray automotive
tint which shall allow forty-five percent (45%) light transmittance. The dark tint shall aid in cab cooling and help protect
passengers from radiant solar energy.
CLIMATE CONTROL
The cab shall include a 57,600 BTU @ 425 CFM front overhead heater/defroster which shall be provided and installed
above the windshield between the sun visors.
The cab shall also include a combination heater air-conditioning unit mounted on the engine tunnel. This unit shall offer
eight (8) adjustable louvers, (4 forward facing , four rearward facing) a temperature control valve and two (2) blowers
offering three (3) speeds which shall be capable of circulating 550 cubic feet of air per minute. The unit shall be rated for
36,000 BTU of cooling and 45,000 BTU of heating. The temperature and blower controls shall be located on the heater/air
conditioning unit.
All defrost/heating systems shall be plumbed with one (1) seasonal shut-off valve at the front corner on the right side of
the cab.
The air conditioner lines shall be a mixture of custom bent zinc coated steel fittings and Aero-quip GH 134 flexible hose
with Aero-Quip EZ-Clip fittings.
CLIMATE CONTROL ACTIVATION
The front overhead heater/defroster controls shall be located on the unit. The controls for the combination heater/air
conditioning unit shall be located on the Vista display and control screen.
A/C CONDENSER LOCATION
A roof mounted A/C condenser shall be installed centered on cab forward of raised roof against the slope rise.
A/C COMPRESSOR
The air-conditioning compressor shall be a belt driven, engine mounted, open type compressor that shall be capable of
producing a minimum of 13000 BTU at 1500 engine RPMs. The compressor shall utilize R-134A refrigerant and PAG oil.
CAB CIRCULATION FANS FRONT
The cab shall include two (2) all metal 6.00 inch air circulation fans installed in the outer front cab corners. Each fan shall
be controlled by an individual virtual button on the Vista control panel. The fans can be used to help defog the windshield
or to increase air circulation for passenger comfort.
CAB INSULATION
The cab ceiling and walls shall include 1.00 inch thick foam insulation. The insulation shall act as a barrier absorbing
noise as well as assisting in sustaining the desired climate within the cab interior.
SVI #769
Page 47 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
UNDER CAB INSULATION
The underside of the cab tunnel surrounding the engine shall be lined with multi-layer foam insulation, engineered for
application inside diesel engine compartments.
The insulation shall act as a noise barrier, absorbing noise thus keeping the decibel level in the cab well within NFPA
recommendations. As an additional benefit, the insulation shall assist in sustaining the desired temperature within the cab
interior.
The insulation shall measure .56 inch thick including a 1.0#/sf PVC barrier and a moisture and heat reflective foil backing,
reinforced with fiberglass strands. The foil surface acts as protection against moisture and other contaminants. The
insulation shall meet or exceed FMVSS 302 flammability test.
The insulation shall be cut precisely to fit each section and sealed for additional heat and sound deflection. The insulation
shall be held in place by 3 mils of acrylic pressure sensitive adhesive and aluminum pins with hard hat, hold in place
fastening heads.
INTERIOR TRIM FLOOR
The floor of the cab shall be covered with a multi-layer mat consisting of 0.25 inch thick sound absorbing closed cell foam
with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The covering shall be held in place by a pressure
sensitive adhesive and aluminum trim molding. All exposed seams shall be sealed with silicone caulk matching the color
of the floor mat to reduce the chance of moisture and debris retention.
The floor shall have an overlay of 3003-H22 aluminum embossed tread plate which is 0.084 inches thick. The tread plate
shall be held down with screws and aluminum trim molding.
INTERIOR FLOOR MAT COLOR
The cab interior floor mat shall be gray in color.
INTERIOR TRIM VINYL
The cab interior shall include trim on the front and rear crew ceiling, the cab walls and the rear wall of the cab. The trim
shall be constructed of insulated vinyl over a hard board backing. The trim shall be securely fastened to the interior of the
cab utilizing snap style fasteners with a decorative cover for a more appealing appearance.
INTERIOR TRIM VINYL COLOR
The cab interior vinyl trim surfaces shall be gray in color.
REAR WALL INTERIOR
The rear wall of the cab shall be trimmed with vinyl.
INTERIOR ABS TRIM COLOR
The cab interior vacuum formed ABS composite trim surfaces shall be gray in color.
SVI #769
Page 48 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
HEADER TRIM
The cab interior shall include the header above the driver and officer positions which shall be constructed of vacuum
formed ABS panel.
INTERIOR TRIM SUNVISOR
The header shall include two (2) sun visors, one each side forward of the driver and officer seating positions above the
windshield. Each sun visor shall be constructed of Masonite and covered with padded vinyl trim.
TRIM CENTER DASH
The main center dash area shall be constructed of 5052-H32 Marine Grade, 0.13 inch thick aluminum plate.
TRIM CENTER DASH INTERIOR PAINT
The entire center dash shall be coated with a Zolatone #20-72 silver gray texture finish. Any pods attached to the dash
shall also be painted this color.
TRIM LH DASH
The left hand dash shall be a one (1) piece durable vacuum formed ABS composite housing which shall be custom
molded for a perfect fit around the instrument panel and the lower control panels to the left and right of the steering
column.
TRIM RH DASH
The right hand dash shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick, one hundred percent primary
aluminum plate and shall include a glove compartment with a hinged door and a Mobile Data Terminal (MDT)
provision. The glove compartment size will measure 14.00 inches wide X 6.38 inches high X 5.88 inches deep. The MDT
provision shall be provided above the glove compartment.
TRIM RH DASH INTERIOR PAINT
The right hand dash shall be painted with a Zolatone #20-72 silver gray texture finish.
ENGINE TUNNEL TRIM
The cab engine tunnel shall be covered with .44 of an inch thick multi-layer mat consisting of .25 inch closed cell foam, .13
of an inch thick PVC acoustical barrier and .06 inch thick non-slip pebble grain. The engine tunnel mat shall be trimmed
with anodized aluminum stair nosing trim for an aesthetically pleasing appearance.
POWER POINT DASH MOUNT
The cab shall include two (2) 12 volt lighter type receptacles in the dash dedicated as a power source for additional
portable or mobile items. The receptacles shall be wired battery direct.
AUXILIARY POWER POINT REAR CREW
The cab interior shall include two (2) 12 volt cigarette lighter type receptacle located on the forward facing seat box in the
crew area. The receptacle shall be connected to the batteries. This receptacle shall be provided to act as a power source
for additional portable or mobile items.
SVI #769
Page 49 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AUXILIARY POWER POINT COMPARTMENTS
The cab interior shall include two (2) 12 volt cigarette lighter type receptacles wired directly to the batteries. These
receptacles shall be provided to act as a power source for additional portable or mobile items and shall be located one (1)
in the glove compartment within the dash, and one (1) under the officer side seat inside the seat box riser.
STEP TRIM
Each cab entry door shall include a three step entry. The first step closest to the ground shall be constructed of polished
5032 H32 aluminum Grip Strut® grating with angled outer corners. The grating shall allow water and other debris to flow
through rather than becoming trapped within the stepping surface. The lower step shall be mounted to a frame which is
integral with the construction of the cab for rigidity and strength. The middle step shall be integral with the cab
construction and shall be trimmed in .084 inch thick 3003-H22 embossed aluminum tread plate.
INTERIOR DOOR TRIM
The doors of the cab shall include an aluminum plate the same weight and grade as the cab on the interior of the door.
The aluminum shall be then painted.
DOOR TRIM KICKPLATE
The inner door panels shall include an aluminum tread kick plate which shall be fastened to the lower portion of the door
panels.
CAB PAINT INTERIOR DOOR TRIM
The inner door panel surfaces shall be painted with a Zolatone #20-72 silver gray texture finish.
DOOR TRIM CUSTOMER NAMEPLATE
The interior door trim on the front doors shall include a customer nameplate which states the vehicle was custom built for
their Department.
CAB DOOR TRIM REFLECTIVE
The interior of each door shall include high visibility reflective tape. A white reflective tape that measures 1.00 inch in
width shall be provided vertically along the outer rear edge of the door. The lowest portion of each door skin shall include
a reflective tape chevron with red and yellow stripes and a Spartan logo. The chevron tape shall measure 6.00 inches in
height.
INTERIOR GRAB HANDLE "A" PILLAR
There shall be two (2) rubber covered 11.00 inch grab handles installed inside the cab, one on each “A” post at the left
and right door openings. The left handle shall be located 8.75 inches above the bottom of the door window opening and
the right handle shall be located 1.00 inch above the bottom of the door window opening. The handles shall assist
personnel in entering and exiting the cab.
SVI #769
Page 50 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
INTERIOR GRAB HANDLE FRONT DOOR
Each front door shall include one (1) ergonomically contoured 9.00 inch cast aluminum handle mounted horizontally on
the interior door panels. The handles shall feature a textured black powder coat finish to assist personnel entering and
exiting the cab.
INTERIOR GRAB HANDLE REAR DOOR
A black powder coated cast aluminum assist handle shall be provided on the inside of each rear crew door. A 30.00 inch
long handle shall extend horizontally the width of the window just above the window sill. The handle shall assist personnel
in exiting and entering the cab.
DASH PANEL GROUP
The main center dash area shall include three (3) removable panels located one (1) to the right of the driver position, one
(1) in the center of the dash and one (1) to the left of the officer position. The center panel shall be within comfortable
reach of both the driver and officer.
SWITCHES CENTER PANEL
The center dash panel shall include six (6) switch positions in the upper left portion of the panel.
A rocker switch with a blank legend installed directly above shall be provided for any position without a switch and legend
designated by a specific option. The non-specified switches shall be two-position, black switches with a green indicator
light. Each blank switch legend can be custom engraved by the body manufacturer. All switch legends shall have red
backlighting provided.
SWITCHES LEFT PANEL
The left dash panel shall include one (1) windshield wiper/washer control switch located in the left hand side of the panel.
The switch shall have red backlighting provided.
SWITCHES RIGHT PANEL
The right dash panel shall include no rocker switches or legends.
SEAT BELT WARNING
A Weldon seat belt warning system, integrated with the Vehicle Data Recorder system, shall be installed for each seat
within the cab. The system shall provide visual and audible warning when any seat is occupied (sixty pounds minimum),
the corresponding seat belt remains unfastened, and the park brake is released.
Once activated, the visual and audible indicators shall remain active until all occupied seats have the seat belts fastened.
The dash shall include a display on the Weldon Vista screen(s) indicating the occupancy of each seat.
SEAT MATERIAL
The seats shall include a covering of high strength, wear resistant fabric made of durable ballistic polyester. A PVC
coating shall be bonded to the back side of the material to help protect the seats from UV rays and from being saturated
or contaminated by fluids. Common trade names for this material are Imperial 1200 and Durawear.
SVI #769
Page 51 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
SEAT COLOR
All seats supplied with the chassis shall be gray in color. All seats shall include red seat belts.
SEAT BACK LOGO
The seat backs shall include the logo for SVI. The logo shall be centered on the standard headrest of the seat back and
on the left side of a split headrest.
SEAT DRIVER
The driver's seat shall be an H.O. Bostrom Firefighter Sierra model seat. The seat shall feature eight-way electric
positioning. The eight positions shall include up and down, fore and aft with 8.00 inches of travel, back angle adjustment
and seat rake adjustment. The seat shall feature integral springs to isolate shock.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt, automatic retractor and buckle as an integral part of the seat assembly.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches
measured with the seat height adjusted to the lowest position of travel.
This model of seat shall have successfully completed the static load tests set forth by FMVSS 207, 209, and 210 in effect
at the time of manufacture. This testing shall include a simultaneous forward load of 3000 pounds each on the lap and
shoulder belts and twenty (20) times the weight through the center of gravity.
The materials used in construction of the seat shall also have successfully completed testing with regard to the
flammability of materials used in the occupant compartments of motor vehicles as outlined in FMVSS 302, of which
dictates the allowable burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK DRIVER
The driver’s seat shall include a standard seat back incorporating the all belts to seat feature (ABTS). The seat back shall
feature a contoured head rest.
SVI #769
Page 52 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
SEAT OFFICER
The officer's seat shall be a H.O. Bostrom Firefighter series. The seat shall feature a tapered and padded seat, and
cushion. The seat shall be mounted in a fixed position.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK OFFICER
The officer’s seat shall feature a SecureAll™ SCBA locking system which shall be one bracket model and store all U.S.
and International SCBA brands and sizes while in transit or for storage within the seat back. The bracket shall be easily
adjustable with all adjustment points using similar hardware and adjustments with one tool.
The bracket system shall be free of straps and clamps that may interfere with auxiliary equipment on SCBA units. The
center guide fork shall keep the SCBA tank in place for a safe and comfortable fit in the seat back cavity. The SCBA unit
simply needs to be pushed against the pivot arm to engage the patented auto- locking system. Once the lock is engaged,
the top clamp shall surround the top of the SCBA tank for a secure fit in all directions.
The SecureAll™ shall include a release handle which shall be integrated into the seat cushion for quick and easy release.
This shall eliminate the need for straps or pull cords to interfere with other SCBA equipment.
POWER SEAT WIRING
The power seat or seats installed in the cab shall be wired directly to battery power.
SEAT REAR FACING OUTER LOCATION
The crew area shall include two (2) rear facing crew seats, which include one (1) located directly behind the driver seat
and one (1) located directly behind the officer seat.
SVI #769
Page 53 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
SEAT CREW REAR FACING OUTER
The crew area shall include a seat in the rear facing outboard position which shall be a H.O. Bostrom Firefighter series.
The seat shall feature a tapered and padded seat, and cushion. The seat shall be mounted in a fixed position.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK REAR FACING OUTER
The rear facing outboard seat shall feature a Bostrom SecureAll™ SCBA locking system which shall store all U.S. and
International SCBA brands and bottle sizes while in transit or for storage within the seat back. The bracket shall be easily
adjustable at all adjustment points with one tool.
The bracket system shall be free of straps that may interfere with auxiliary equipment on SCBA units. The center guide
fork shall keep the SCBA tank in place for a safe and comfortable fit in the seat back cavity. The SCBA unit simply needs
to be pushed against the pivot arm to engage the patented auto-locking system. Once the lock is engaged, the top clamp
shall surround the top of the SCBA tank for a secure fit in all directions.
The SecureAll™ shall include a release handle which shall be integrated into the center of the bottom seat cushion for
easy access and to eliminate hooking the release handle with clothing or other equipment.
SEAT MOUNTING REAR FACING OUTER
The rear facing outer seat shall be mounted facing the rear of the cab.
SEAT BELT ORIENTATION CREW
The crew position seat belts shall follow the standard orientation which extends from the outboard shoulder extending to
the inboard hip.
SEAT FORWARD FACING CENTER LOCATION
The crew area shall include two (2) forward facing center crew seats with both located at the center of the rear wall.
SVI #769
Page 54 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
SEAT CREW FORWARD FACING CENTER
The crew area shall include a seat in the forward facing center position which shall be a H.O. Bostrom Firefighter series.
The seat shall feature a tapered and padded seat, and cushion. The seat and cushion shall be hinged and compact in
design for additional room and shall remain in the stored position until occupied.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a three-point
shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The buckle portion of
the seat belt shall extend from the seat base towards the driver position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall include a
simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the weight through
the center of gravity. This model of seat installed in the cab model, as specified, shall have successfully completed the
dynamic sled testing using FMVSS 208 as a guide with the following accommodations. In order to reflect the larger size
outfitted firefighters, the test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the
50th percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall also have
successfully completed the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which decides the burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK FORWARD FACING CENTER
The forward facing center seat shall feature a SecureAll™ SCBA locking system which shall be one bracket model and
store all U.S. and International SCBA brands and sizes while in transit or for storage within the seat back. The bracket
shall be easily adjustable with all adjustment points using similar hardware and adjustments with one tool.
The bracket system shall be free of straps and clamps that may interfere with auxiliary equipment on SCBA units. The
center guide fork shall keep the SCBA tank in place for a safe and comfortable fit in the seat back cavity. The SCBA unit
simply needs to be pushed against the pivot arm to engage the patented auto- locking system. Once the lock is engaged,
the top clamp shall surround the top of the SCBA tank for a secure fit in all directions.
The SecureAll™ shall include a release handle which shall be integrated into the seat cushion for quick and easy release.
This shall eliminate the need for straps or pull cords to interfere with other SCBA equipment.
SEAT MOUNTING FORWARD FACING CENTER
The forward facing center seats shall be installed facing the front of the cab.
SEAT FRAME FORWARD FACING
The forward facing center seating positions shall include an enclosed seat frame which is located and installed on the rear
wall. The seat frame shall measure 42.38 inches wide X 12.38 inches high X 22.00 inches deep. The seat frame shall be
constructed of 5052-H32 Marine Grade, .190 inch thick, 100 percent primary smooth aluminum plate. The seat box shall
be painted with the same color as the remaining interior.
SEAT FRAME FORWARD FACING STORAGE ACCESS
There shall be two (2) access points to the seat frame storage area, one (1) on each side of the seat frame. Each access
point shall be covered by a hinged door which measures 15.00 inches in width X 10.63 inches in height.
SVI #769
Page 55 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB FRONT UNDERSEAT STORAGE ACCESS
The left and right under seat storage areas shall have a solid aluminum hinged door with non-locking latch.
SEAT COMPARTMENT DOOR FINISH
All underseat storage compartment access doors shall have a Zolatone #20-72 silver gray texture.
WINDSHIELD WIPER SYSTEM
The cab shall include a parallel arm wiper system which shall clear the windshield of water, ice and debris. There shall be
two (2) windshield wipers, one (1) for the driver and one (1) for the officer, which shall be affixed to a rod style arm. The
system shall include dual motors which shall initiate the arms in which both the driver and officer windshield wipers are
attached, initiating a back and forth motion for each wiper. The wiper motors shall be activated by an intermittent wiper
control located within easy reach of the driver’s position.
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR
The windshield washer fluid level shall be monitored electronically. When the washer fluid level becomes low the yellow
“Check Message Center” indicator light on the instrument panel shall illuminate and the message center in the
speedometer shall display a “Check Washer Fluid Level” message.
CAB DOOR HARDWARE
The cab entry doors shall be equipped with exterior pull handles, suitable for use while wearing firefighter gloves. The
handles shall be FRP composite with a black matt finish. The exterior pull handles shall include a scuff plate behind the
handle constructed of polished stainless steel. All doors shall be keyed alike and designed to prevent accidental lockout.
The interior latches shall be black flush paddle type, which are incorporated into an upper door panel.
DOOR LOCKS
Each cab entry door shall include a manually operated door lock. The each door lock may be actuated from the inside of
the cab by means of a red knob located on the paddle handle of the respective door or by using a TriMark key from the
exterior. The door locks are designed to prevent accidental lock out.
GRAB HANDLES
The cab shall include one (1) 18.00 inch knurled, anti-slip, one-piece exterior assist handle behind each cab door. The
grab handle shall be made of 14 gauge 304- stainless steel and be 1.25 inch diameter to enable non-slip assistance with
a gloved hand.
SVI #769
Page 56 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
REARVIEW MIRRORS
Retrac Aerodynamic West Coast style single vision mirror heads model 613285 shall be provided and installed on each of
the front cab doors.
The mirrors shall be mounted via 1.00 inch diameter tubular stainless steel arms to provide a rigid mounting to reduce
mirror vibration.
The mirrors shall measure 8.00 inches wide X 19.00 inches high and shall include an 8.00 inch convex mirrors with a
stainless steel back, model 980-4, installed below the flat glass to provide a wider field of vision. The flat mirrors shall be
motorized with remote horizontal and vertical adjustment. The control switches shall be mounted within easy reach of the
driver. The convex mirrors shall be manually adjustable. The flat mirror glass shall be heated for defrosting in severe cold
weather conditions.
The mirror backs shall be constructed of vacuum formed chrome plated ABS plastic housings that are corrosion resistant
and shall include an amber marker light. The mirrors shall be manufactured with the finest quality non-glare glass.
REARVIEW MIRROR HEAT SWITCH
The heat for the rearview mirrors shall be controlled through a virtual button on the multiplex display.
CAB FENDER
Full width wheel well liners shall be installed on the extruded cab to limit road splash and enable easier cleaning. Each
two-piece liner shall consist of an inner liner 16.00 inches wide made of vacuum formed ABS composite and an outer
fenderette 3.50 inches wide made of 14 gauge 304 polished stainless steel.
MUD FLAPS FRONT
The front wheel wells shall have mud flaps installed on them.
CAB EXTERIOR FRONT & SIDE EMBLEMS
The cab shall include one (1) Spartan emblem installed on the exterior of the cab above each front wheel well.
CAB EXTERIOR MODEL NAMEPLATE
The cab shall include custom “Metro Star” nameplates on the front driver and officer side doors.
IGNITION
A master battery system with a keyless start ignition system shall be provided. Each system shall be controlled by a ¼
turn Cole Hersee switch, both of which shall be mounted to the left of the steering wheel on the dash. A chrome push
type starter button shall be provided adjacent to the master battery and ignition switches.
Each switch shall illuminate a green LED indicator light on the dash when the respective switch is placed in the “ON”
position.
The starter button shall only operate when both the master battery and ignition switches are in the “ON” position.
SVI #769
Page 57 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BATTERY
The single start electrical system shall include (6) Harris BCI 31 950 CCA batteries with a 210 minute reserve capacity
and 4/0 welding type dual path starter cables per SAE J541. The cables shall have encapsulated ends with heat shrink
and sealant.
BATTERY TRAY
The batteries shall be installed within two (2) steel battery trays located on the left side and right side of the chassis,
securely bolted to the frame rails. The battery trays shall be coated with the same material as the frame.
The battery trays shall include drain holes in the bottom for sufficient drainage of water. A durable, non-conducting,
interlocking mat made by Dri-Dek shall be installed in the bottom of the trays to allow for air flow and help prevent
moisture build up. The batteries shall be held in place by non-conducting phenolic resin hold down boards.
BATTERY BOX COVER
Each battery box shall include a steel cover which protects the top of the batteries. Each cover shall include flush latches
which shall keep the cover secure as well as a black powder coated handle for convenience when opening.
BATTERY CABLE
The starting system shall include cables which shall be protected by 275 degree F. minimum high temperature flame
retardant loom, sealed and encapsulated at the ends with heat shrink and sealant.
BATTERY JUMPER STUD
The starting system shall include battery jumper studs. These studs shall be located in the forward most portion of the
driver's side lower step. The studs shall allow the vehicle to be jump started, charged, or the cab to be raised in an
emergency in the event of battery failure.
ALTERNATOR
The starting system shall include a 320 amp Leece-Neville 12 volt alternator. The alternator shall include a self-exciting
integral regulator.
BATTERY CONDITIONER
A Kussmaul 1200 Pump Plus battery conditioner shall be supplied. The battery conditioner shall be mounted in the cab
behind the driver's seat.
BATTERY CONDITIONER DISPLAY
A Kussmaul battery conditioner display shall be supplied. The battery conditioner display shall be mounted in the cab,
viewable through the cab mid side window behind the left front door.
AUXILIARY AIR COMPRESSOR
A Kussmaul Pump 12V air compressor shall be supplied. The air compressor shall be installed behind the driver's seat.
The air compressor shall be plumbed to the air brake system to maintain air pressure.
SVI #769
Page 58 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ELECTRICAL INLET
A Kussmaul 20 amp super auto-eject electrical receptacle shall be supplied. It shall automatically eject the plug when the
starter button is depressed.
A single item or an addition of multiple items must not exceed the rating of the electric inlet that it’s connected to.
Amp Draw Reference List:
Kussmaul 1000 Charger - 3.5 Amps
Kussmaul 1200 Charger - 10 Amps
Kussmaul 35/10 Charger - 10 Amps
1000W Engine Heater - 8.33 Amps
1500W Engine Heater - 12.5 Amps
120V Air Compressor - 4.2 Amps
ELECTRICAL INLET LOCATION
An electrical inlet shall be installed on the left hand side of cab over the wheel well.
ELECTRICAL INLET CONNECTION
The electrical inlet shall be connected to the battery conditioner.
ELECTRICAL INLET COLOR
The Kussmaul electrical inlet connection shall include a red cover.
HEADLIGHTS
The cab front shall include four (4) rectangular halogen headlamps with separate high and low beams mounted in bright
chrome bezels. The headlamps shall be equipped with the "Daytime Running" light feature, which shall illuminate the
headlights to 80% brilliance when the ignition switch is in the "On" position and the parking brake is released.
FRONT TURN SIGNALS
The front fascia shall include two (2) Code 3 model 65 4.00 inch X 6.00 inch LED programmable amber turn signals which
shall be installed in a chrome plastic bezel outboard of the front warning and head lamps.
HEADLIGHT LOCATION
The headlights shall be located on the front fascia of the cab directly below the front warning lights.
SIDE TURN/MARKER LIGHTS
The sides of the cab shall include (2) LED round side marker lights which shall be provided just behind the front cab
radius corners.
MARKER AND ICC LIGHTS
In accordance with FMVSS, there shall be five (5) cab LED marker lamps designating identification, center and clearance
provided. These lights shall be installed on the face of the cab within full view of other vehicles from ground level.
SVI #769
Page 59 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
HEADLIGHT AND MARKER LIGHT ACTIVATION
The headlights and marker lights shall be controlled via a virtual button on the Vista display. There shall be a virtual
dimmer control on the Vista display to adjust the brightness of the dash lights.
GROUND LIGHTS
Each door shall include an incandescent NFPA compliant ground light mounted to the under side of the cab step below
each door. Each light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall be
shock mounted for extended life. The ground lighting shall be activated by the opening of the door on the respective cab
side, when the parking brake is set and through the Vista screen.
STEP LIGHTS
The middle step located at each door shall include a NFPA compliant 4.00” round incandescent light which shall activate
with the opening of the respective door.
Each light shall produce 21 candle power of illumination and draw 1.5 amps.
ENGINE COMPARTMENT LIGHT
There shall be an incandescent NFPA compliant light mounted under the engine tunnel for area work lighting on the
engine. The light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall be shock
mounted for extended life.
SIDE SCENE LIGHTS
The cab shall include two (2) Fire Research model LED900-Q65 surface mount lights, one (1) each side. Each light shall
be 6.75 inches high X 9.00 inches wide and have a profile of less than 1.75 inches beyond the mounting surface. Wiring
shall extend from a weatherproof strain relief at the rear of the light.
Each lamp head shall have twenty-four (24) white LEDs that generate a rated 4400 lumens at 12 or 24 volts DC. The lens
shall redirect the light along the vehicle and out onto the working area. The light housing shall be aluminum with a chrome
colored bezel.
SIDE SCENE LIGHT LOCATION
The scene lighting located on the left and right sides of the cab shall be mounted rearward of the cab “B” pillar in the
10.00 inch raised roof portion of the cab between the front and rear crew doors.
SIDE SCENE ACTIVATION
The left and right side scene lights shall be activated by opening the respective side door and by individual virtual buttons
on the MUX display(s) in the cab.
SVI #769
Page 60 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
INTERIOR OVERHEAD LIGHTING
The cab shall include a two-section incandescent dome lamp with a red and clear lens located over each door. The dome
lamps shall be rectangular in shape and shall measure approximately 9.50 inches in length X 5.00 inches in width with a
black colored bezel. The clear portion of each lamp shall be activated by opening the respective door and via the
multiplex display and both the red and clear portion can be activated by individual switches on each lamp.
An additional incandescent three (3) light module with dual map lights shall be located over the engine tunnel which can
be activated by individual switches on the lamp.
MAP LIGHTS
A Federal Signal gooseneck style map light shall be provided. The light shall have a clear lens with a sliding red filter,
shall be 18.00 inches tall, and shall have a rheostat control switch on the base. The light shall be located on the right hand
side of the dash.
DO NOT MOVE APPARATUS LIGHT
The front headliner of the cab shall include a Whelen 500 series red LED light, located in the center for greatest visibility.
The light shall be 5.40 inches long X 1.70 inches wide X 0.90 inches high and shall be clearly labeled "Do Not Move
Apparatus". In addition to the flashing red light, an audible alarm shall be included which shall sound when a door is open
and the parking brake is released.
The light and alarm shall be interlocked for activation when a cab door is not firmly closed, an apparatus cabinet door is
not closed and the parking brake is released.
MASTER WARNING SWITCH
A master switch shall be included, as a button on the MUX display screen and be labeled “E Master” for identification. The
switch shall feature control over all devices wired thought it. Any warning device switches left in the “ON” position when
the master switch is activated shall automatically power up.
HEADLIGHT FLASHER
An alternating high beam headlamp flashing system shall be installed into the high beam headlamp circuit which shall
allow the high beams to flash alternately from left to right.
Deliberate operator selection of high beams will override the flashing function until low beams are again selected. Per
NFPA, these clear flashing lights will also be disabled “On Scene” when the park brake is applied.
HEADLIGHT FLASHER SWITCH
The flashing headlights shall be activated through a virtual button on the MUX display.
INBOARD FRONT WARNING LIGHTS
The cab front fascia shall include dual Code 3 65BZ LED warning lights which shall offer multiple flash patterns. The
lights shall be surface mounted to the front fascia of the cab within a chrome bezel in the inboard position.
INBOARD FRONT WARNING LIGHTS COLOR
The front warning lights mounted on the fascia in the inboard positions shall be red.
SVI #769
Page 61 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FRONT WARNING SWITCH
The front warning lights shall be controlled through a virtual control on the MUX display. This switch shall be clearly
labeled for identification.
INTERSECTION WARNING LIGHTS
The chassis shall include two (2) Code 3 65BZ LED 4.00 inch X 6.00 inch intersection warning lights, one (1) each side,
which shall offer multiple flash patterns.
INTERSECTION WARNING LIGHTS COLOR
The intersection lights shall be red.
INTERSECTION WARNING LIGHTS LOCATION
The intersection lights shall be mounted in the rear position on the side of the bumper.
SIDE WARNING LIGHTS
The cab sides shall include a Code 3 65BZ LED 4.00 inch X 6.00 inch warning light, one (1) each side, which shall offer
multiple flash patterns.
SIDE WARNING LIGHTS COLOR
The warning lights located on the side of the chassis shall be red.
SIDE WARNING LIGHTS LOCATION
The warning lights on the side of the cab shall be mounted over the front wheel well directly over the center of the front
axle.
SIDE AND INTERSECTION WARNING SWITCH
The side warning lights shall be controlled through a virtual control on the MUX display. This switch shall be clearly
labeled for identification.
TANK LEVEL LIGHTS
There shall be two (2) Whelen PS TANK water level light strips flush mounted vertically, one on each side of the cab
behind the rear crew doors. The light strips shall include four colors of LED lights, green, blue, amber and red.
SIREN CONTROL HEAD
A Federal PA4000 200 watt electronic amplifier siren head shall be provided and flush mounted in the in the switch panel
with a location specific to the customer’s needs. The siren shall feature the wail, radio broadcast, public address, yelp,
priority tones and noise cancelling microphone.
SVI #769
Page 62 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
HORN RING SELECTOR SWITCH
A virtual button on the MUX display shall allow control to either the air horn or the electric horn from the steering wheel
horn button. The electric horn shall sound by default when the selector switch is in either position which is in accordance
with FMVSS requirements.
AIR HORN ACTIVATION
The air horn actuation shall be accomplished by the steering wheel horn button and a black push button on the switch
panel. An air horn activation circuit shall be provided to the chassis harness pump panel harness connector.
MECHANICAL SIREN ACTIVATION
The mechanical siren shall be actuated by a Linemaster model SP491-S81 foot switch mounted in the front section of the
cab for use by the driver and a black push button in the switch panel on the dash. A red momentary siren brake rocker
switch shall be provided in the switch panel on the dash.
The siren shall only be active when master warning switch is on to prevent accidental engagement.
BACK-UP ALARM
An ECCO model 575 backup alarm shall be installed at the rear of the chassis with an output level of not less than 107
dB. The alarm shall automatically activate when the transmission is placed in reverse. A virtual switch shall be provided
on the MUX display to disable of the backup alarm.
INSTRUMENTATION
An ergonomically designed instrument panel shall be provided. The gauges shall be backlit with red LED lamps. All
gauges shall be driven by stepper motor movements. The instrumentation system shall be multiplexed and shall receive
engine and transmission information over the J1939 data bus to reduce redundant sensors.
The instrument panel shall contain the following gauges:
One (1) electronic tachometer shall be included. The scale on the tachometer shall read from 0 to 3000 RPM.
One (1) electronic speedometer with an integral LCD odometer/ trip odometer and hour meter shall be included. The
speedometer shall have a dual scale with miles per hour (MPH) as the dominant scale and kilometers per hour (KPH) on
the minor scale. The speedometer scale shall read from 0 to 90 MPH (0 to 140 KPH). The odometer shall display up to
9,999,999.9 miles. The trip odometer shall display up to 9,999.9 miles. The LCD screen shall also be capable of
displaying certain diagnostic functions. The hour meter shall display engine hours of operation.
One (1) three function gauge with primary system, secondary system and fuel level shall be included. The scale on the
air pressure gauges shall read from 0 to 140 pounds per square inch (PSI). The air pressure scales shall be non-linear to
expand the scales in the region of normal operation. A red indictor light in the gauge shall indicate a low air pressure.
The scale on the fuel level gauge shall read from empty to full. A yellow indicator light shall indicate low fuel at the quarter
tank level.
SVI #769
Page 63 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
One (1) four function gauge with engine oil pressure, coolant temperature, transmission oil temperature and a voltmeter
shall be included. The scale on the engine oil pressure gauge shall read from 0 to 140 pounds per square inch (PSI).
The engine oil pressure scale shall be non-linear to expand the scale in the region of normal operation. A red indicator
light in the gauge shall indicate low engine oil pressure. The scale on the coolant temperature gauge shall read from 160
to 250 degrees Fahrenheit (F). A red indicator light in the gauge shall indicate high coolant temperature. The scale on
the transmission oil temperature gauge shall read from 100 to 300 degrees Fahrenheit (F). A red indicator light in the
gauge shall indicate high transmission oil temperature. The scale on the voltmeter shall read from 8 to 16 volts. A red
indicator light shall indicate high or low system voltage.
The instrument panel shall contain an Enunciator Module that contains the following indicator lights. All indicator lights
shall contain LED lamps.
RED LAMPS
Stop Engine - indicates critical engine fault. (5)
Park Brake - indicates park brake is set.
Volts - indicates high or low system voltage. (4)
Low Oil Press - indicates low engine oil pressure. (4)
High Coolant Temp - indicates excessive engine coolant temperature. (4)
High Trans Temp - indicates excessive transmission oil temperature. (4)
Low Air - indicates low air pressure in either system one or system two. (4)
Low Coolant Level - indicates low engine coolant level. (1) (5)
Air Filter - indicates excessive engine air intake restriction. (5)
Brake System Fault – indicates a failure in the brake system (hydraulic brake systems only). (5)
Seat Belt Indicator – indicates when a seat is occupied and corresponding seat belt remains unfastened.
YELLOW LAMPS
Check Engine - indicates engine fault. (5)
Check Trans - indicates transmission fault. (5)
Wait to Start - indicates active engine air preheat cycle. (2) (5)
ABS - indicates anti-lock brake system fault. (5)
Water in Fuel - indicates presence of water in fuel filter. (1) (5)
Check Message Center – indicates there is a fault message present in the LCD digital display.
SRS – indicates a problem in the RollTek supplemental restraint system. (1) (5)
DPF – indicates a restriction of the diesel particulate filter. (3) (5)
HEST – indicates a high exhaust system temperature. (3) (5)
MIL – indicates an engine emission control system fault. (3) (5)
Low Fuel – indicates low fuel. (4)
GREEN LAMPS
Left and Right turn signal indicators.
Aux Brake Active - indicates secondary braking device is active. (1)
High Idle - indicates engine high idle is active. (1)
ATC – indicates low wheel traction for automatic tractions control equipped vehicles, also indicates mud/snow mode is
active for ATC system. (1) (5)
OK to Pump – indicates the pump engage conditions have been met. (1)
Pump Engaged – indicates the pump is currently in use. (1)
BLUE LAMPS
High beam indicator.
SVI #769
Page 64 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
The instrumentation system shall provide a constant audible alarm for the following situations:
Low air pressure.
Low engine oil pressure.
High engine coolant temperature.
High transmission oil temperature.
Low coolant level. (1)
High or low system voltage
Critical engine fault (Stop Engine).
The Check Message Center icon will illuminate and a message will be displayed in the LCD screen for the following
situations:
Cab Ajar
Low Oil Level
Door Ajar
Engine Communication Error
Transmission Communication Error
ABS Communication Error
High Coolant Temp
Turn Signal Reminder (turn signal left on for more than one (1) mile)
Low Fuel
Low Oil Pressure
Low Coolant Level
Low Battery Voltage
High Battery Voltage
Low Primary Air Pressure
Low Secondary Air Pressure
High Trans Temp
The instrumentation system will provide a continuous alarm for the following situations:
Stop Engine
Low Coolant Level (1)
Brake System Fault
Check Trans
Check Engine
ABS
Engine Communications Error
Transmission Communications Error
ABS Communications Error
Low Fuel
Low Primary Air Pressure
Low Secondary Air Pressure
Low or High Battery Voltage
High Trans Temp
Low Oil Pressure
High Coolant Temp
SVI #769
Page 65 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
The instrumentation system will provide a 160 millisecond second alarm every 880 milliseconds for the following
situations:
Seat Belt
Air Filter
Water in Fuel (1)
Cab Ajar
Low Oil Level
Door Ajar
The instrumentation system will provide a 160 millisecond second alarm every 5 seconds for the following situation:
Turn Signal Reminder (turn signal left on for more than one (1) mile)
(1) Feature only available when optionally equipped.
(2) Feature only available on engines with pre-heat capability.
(3) Feature only on vehicles with diesel particulate filter (DPF).
(4) Warning light is present in gauge.
(5) A message in the LCD screen will also be displayed.
CAB EXTERIOR PROTECTION
The cab face shall have a removable plastic film installed over the painted surfaces to protect the paint finish during
transport to the body manufacturer.
FIRE EXTINGUISHER
A 2.50 pound D.O.T approved fire extinguisher with BC rating shall be shipped loose with the cab.
ROAD SAFETY KIT
The cab and chassis shall include one (1) emergency road side triangle kit.
DOOR KEYS
The cab and chassis shall include a total of four (4) door keys for the manual door locks.
AS BUILT WIRING DIAGRAMS
The cab and chassis shall include one (1) complete set of wiring schematics and option wiring diagrams.
WARRANTY
The chassis manufacturer shall provide a limited parts and labor warranty to the original purchaser of the custom built cab
and chassis for a period of twelve (12) months, or the first 24,000 miles, whichever occurs first. The warranty period shall
commence on the date the vehicle is delivered to the end user. The warranty shall include conditional items listed in the
detailed warranty document which shall be provided upon request.
OPERATOR AND PARTS LIST MANUAL
There shall be two (2) chassis operator and parts list manuals provided with the chassis. Each manual shall include base
chassis wiring and air plumbing diagrams, specific to the chassis model. Individual option specific wiring and plumbing
diagrams shall be provided, as well as a list of any equipment or parts that are shipped loose with the chassis.
SVI #769
Page 66 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ENGINE AND TRANSMISSION OPERATION MANUALS
There shall be two (2) sets of engine operation and maintenance manuals and two (2) sets of transmission operation
manuals specific to the models ordered included with the final vehicle in the ship loose items.
ENGINE SERVICE MANUALS
There shall be one (1) set of the following Cummins ISC/ISL engine service reference manuals which shall be provided
with the final vehicle.
Engine Troubleshooting and Repair Manual, part number 4021418
Electronic Control System Troubleshooting and Repair Manual, part number 4021443
Operation and Maintenance Manual, part number 4021427
Wiring Diagram, part number 3666416
SVI #769
Page 67 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CHASSIS MODIFICATIONS
LUBRICATION AND TIRE DATA PLATE
A permanent label in the driving compartment shall specify the quantity and type of the following fluids used in the vehicle
and tire information:

















Engine oil
Engine coolant
Chassis transmission fluid
Pump transmission lubrication fluid . . (if applicable)
Pump priming system fluid, if applicable . . (if applicable)
Drive axle(s) lubrication fluid
Air conditioning refrigerant . . (if applicable)
Air conditioning lubrication oil . . (if applicable)
Power steering fluid
Cab tilt mechanism fluid . . (if applicable)
Transfer case fluid . . (if applicable)
Equipment rack fluid (if applicable)
CAFS air compressor system lubricant . . (if applicable)
Generator system lubricant . . (if applicable)
Front tire cold pressure
Rear tire cold pressure
Maximum tire speed ratings
VEHICLE DATA PLATE
A permanent label in the driving compartment which indicates the following:





Filter part numbers for the;
− Engine
− Transmission
− Air
− Fuel
Serial numbers for the;
− Engine
− Transmission
Delivered Weights of the Front and Rear Axles
Paint Brand and Code(s)
Sales Order Number
SVI #769
Page 68 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
OVERALL HEIGHT, LENGTH DATA PLATE (US)
The fire apparatus manufacturer shall permanently affix a high-visibility label in a location visible to the driver while
seated.
The label shall show the height of the completed fire apparatus in feet and inches, the length of the completed fire
apparatus in feet and inches, and the GVWR in pounds.
Wording on the label shall indicate that the information shown was current when the apparatus was manufactured and
that, if the overall height changes while the vehicle is in service, the fire department must revise that dimension on the
plate.
ACCIDENT PREVENTION
There shall be a placard in the cab seating area which reads, "ALL OCCUPANTS MUST BE SEATED AND BELTED
WHEN THE APPARATUS IS IN MOTION".
PERSONNEL CAPACITY
A label that states the number of personnel the vehicle is designed to carry shall be located in an area visible to the driver.
ACCIDENT PREVENTION
If the rear bumper is 8" deep or more, there shall be a placard on the rear face of the body, in clear sight from the ground,
which reads, "WARNING - DO NOT RIDE ON STEPS OR DECK AREAS WHILE THE APPARATUS IS IN MOTION.
DEATH OR SERIOUS INJURY MAY RESULT".
WEARING HELMET WARNING
A label stating “DO NOT WEAR HELMET WHILE SEATED” shall be visible from each seating location.
FRONT BUMPER
The front bumper shall be as provided by the cab/chassis manufacturer. No other alternation or modifications are
required.
BUMPER GRAVELSHIELD
The bumper extension gravel shield shall be provided by the cab/chassis manufacturer.
BUMPER COMPARTMENT HOSE WELL
The bumper extension shall have one (1) hose well compartment in the center of the bumper extension. The compartment
shall have a capacity of 200’ of 1-3/4 double jacketed structure hose with a 1-½ TFT nozzle with pistol grip. The well shall
be mounted between the frame extension rails.
The hose well shall be covered with a 1/8” tread plate lid attached with a stainless steel piano hinge. The cover shall have
a quick release latch. The hose connection shall be on the officer’s side of the bumper apron on a swivel mount.
The pre-connected piping shall have an auto-drain to prevent freezing.
SVI #769
Page 69 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AIR HORN(S)
The air horn(s) shall be supplied and installed by the cab/chassis manufacturer.
FRONT TOW PROVISIONS
The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.
EXHAUST
The exhaust system shall be as provided by cab/chassis manufacturer. No other alternation or modifications are required.
The exhaust piping and discharge outlet shall be located or shielded so as not to expose any portion of the apparatus or
equipment to excessive heating.
Exhaust pipe discharge shall be directed away from any operator’s position.
Where parts of the exhaust system are exposed so that they are likely to cause injury to operating personnel, protective
guards shall be provided.
RADIO/ANTENNA INSTALLATION
There shall be one (1) Loveland Fire & Rescue supplied radio(s) with antenna installed in the cab in the upper right hand
quadrant of the center dash panel.
Radio shall be installed per manufacturers’ requirements and wired for proper 12 volt power and ground.
GPS/LAPTOP INSTALLATION WIRING
One (1) GPS antenna shall be provided and mounted on cab roof. In addition, wires for the Loveland Fire & Rescue
supplied lap top MDT shall be pre-wired for installation after delivery.
SCBA BRACKETS
There shall be one (1) Zico ULLH walkaway type SCBA air pack bracket(s) provided with strap assembly mounted on the
rear streetside wall of the crew area in the cab.
MUDFLAPS
There shall be rubber mudflaps furnished and installed behind each set of tires.
FUEL FILL
There shall be one (1) Cast Products fuel fill door located in the streetside exterior wheel well panel, behind the rear axle.
The fill door shall have a spring-loaded hinged door and a permanent label with the text "DIESEL FUEL ONLY".
FUEL FILL
There shall be one (1) Cast Products fuel fill door located in the curbside exterior wheel well panel, behind the rear axle.
The fill door shall have a spring-loaded hinged door and a permanent label with the text "DIESEL FUEL ONLY".
SVI #769
Page 70 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BODY DESIGN
The importance of public safety associated with emergency vehicles requires that the construction of this vehicle meet the
following specifications. These specifications are written to establish the minimum level of quality and design. All Bidders
shall be required to meet these minimum requirements.
It is the intent of these specifications to fully describe the requirements for a custom built emergency type vehicle. In
order to extend the expected service life of this vehicle, the body module shall be removable from the chassis frame and
be capable of being installed on a new chassis.
The sheet metal material requirements, including alloy and material thickness, throughout the specifications are
considered to be a minimum. Since such materials are available to all Manufacturers, the material specifications shall be
strictly adhered to.
The fabrication of the body shall be formed sheet metal. Formed components shall allow the Loveland Fire & Rescue to
have the body repaired locally in the case where any object has struck the body and caused damage. The use of
proprietary extrusions will prevent the Loveland Fire & Rescue from such repair and shall NOT be used.
Following construction of the subframe, which supports the apparatus body, the sheet metal portion of the body shall be
built directly on the subframe. The joining of the subframe and body shall be of a welded integral construction.
The sheet metal fabrication of the body shall be performed using inert gas continuous feed welders only. The entire body
shall be welded construction. The use of pop rivets in any portion of structural construction may allow premature failure of
the body structure. Therefore, pop rivets shall NOT be used in the construction of the structural portions of the body. This
includes side body sheets, inner panels of compartment doors, and any other structural portions of the body.
EXTERIOR ALUMINUM BODY
The fabrication of the body shall be constructed from aluminum 3003H-14 alloy smooth plate. This shall include
compartment front panel, vertical side sheets, side upper rollover panels, rear panels and compartment door frames.
The body compartment floors and exterior panels shall be constructed with not less than 3/16" (.187) aluminum 3003H-14
smooth plate. Interior compartment dividing walls shall be constructed with not less than 1/8" (.125) aluminum 3003H-14
smooth plate. Lighter gauge sheet metal will not be acceptable in these areas.
The door side frame openings shall be formed "C" channel design. An electrical wiring conduit raceway running the full
length of exterior compartments shall be provided. This raceway shall contain all 12 volt wiring running to the rear of the
apparatus, permitting easy accessibility to wiring.
Individual compartment modules, with dead air space voids between compartments, will not be an acceptable method of
compartment construction.
The compartments shall be an integral part of the body construction. Compartment floors from front of body to ahead of
rear axle, also from rear axle to rear of body shall be single one-piece sections. Compartment floors shall be preformed,
then positioned in body and welded into final position.
Compartment floors shall have a "sweep-out" design with door opening threshold positioned lower than compartment
floor, permitting easy cleaning of compartments. Angles, lips, or door moldings are not acceptable in the base of
compartment door opening. One-way rubber drain valves shall be provided in compartment floors so that a water hose
may be used to flush-out compartment area.
SVI #769
Page 71 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
All exterior seams in sheet metal below frame, and around the rear wheel well area shall be welded continuous to prevent
moisture from entering compartments. All other interior seams and corners shall be sealed with silicone based caulk prior
to painting.
Only stainless steel bolts, nuts, and sheet metal screws shall be used in mounting exterior trim, hardware and equipment.
Exterior compartments shall have louvers in lower back wall of compartment for ventilation.
ROOF CONSTRUCTION
The roof shall be integral with the body and shall be all welded construction. The roof of the body shall not be less than
3/16" aluminum 3003H-14 alloy tread plate, fully and continuously welded. A 2" rounded radius shall be provided along
the body sides.
BODY SUBFRAME
To assure proper body alignment and clearance, the body subframe shall be constructed directly on the chassis.
The chassis frame rails shall be fitted with 1/4" custom extruded UHMW polyethylene rail cap to isolate the body frame
members from direct contact with chassis frame rails.
The body subframe shall be constructed from 6061T6 aluminum alloy tubing. Subframe shall consist of two (2) 2" x 4" x
1/4" aluminum tubes minimum, the same width as the chassis frame rails. Welded to this tubing shall be crossmembers of
2" x 4" x 1/4" aluminum. Smaller dimension, lighter gauge tubing or angle material subframe shall not be accepted.
These crossmembers shall extend the full width of the body to support the compartments. Crossmembers shall be located
at front and rear of the body, below compartment divider walls, and in front and rear of wheel well opening. Additional
aluminum crossmembers shall be located as necessary to support walkways or heavy equipment.
To form the frame, the tubing shall be beveled and welded at each joint using 5356 aluminum alloy welding wire.
BODY MOUNTING
The body subframe shall be fastened to the chassis frame with a minimum of four (4) spring loaded body mounts. Each
mount shall be configured using a two-piece encapsulated slide bracket. The two (2) brackets shall be fabricated of heavy
duty 1/4" thick steel and shall have a powder coat finish to prevent any corrosion. Each mounting assembly shall utilizing
two (2) 3/4" diameter x 6" long grade 8 bolts and two (2) heavy duty springs. The assembly design shall allow the body
and subframe to act as one (1) component, separate from the chassis. As the chassis frame twists under driving
conditions, the spring mounting system shall eliminate any stress from being transferred into the body. The spring loaded
body mounts shall also prevent frame side rail or body damage caused by unevenly distributed stress and strains due to
load and chassis movement.
Body mountings that do not allow relief from chassis movement will not be acceptable.
18" REAR STEP BUMPER
The full width rear bumper shall be constructed from 2" x 2" x 1/4" aluminum tubing frame and covered with 3/16" NFPA
compliant aluminum tread plate. The bumper shall extend from the rear vertical body panel 18" and provide a rear step
with a minimum of 1/2" space at body for water drainage.
SVI #769
Page 72 of 125
June 17, 2010
..\4) Pricing & Change Orders\Production Change Order.pdf
Loveland Fire/Rescue
Pumper
Production Specification
REAR TOW EYES
There shall be two (2) heavy duty rear mounted tow eyes securely attached to the chassis frame and mounted below the
apparatus body. The tow eyes shall be fabricated from 3/4" thick steel plate and shall have a black powder coat paint
finish.
GROUND LIGHTS
Two (2) OnScene Solutions 9" LED Nightstik ground lights shall be mounted below the bumper.
WHEEL WELL EXTERIOR PANEL
The exterior panel of the body wheel well enclosure shall be constructed from 3/16" smooth aluminum panels.
STAINLESS STEEL BODY FENDERS
The body wheel well openings shall be provided with round radius, polished stainless steel fenderettes. The fenderettes
shall be bolted and easily replaceable if damaged. The fenderettes shall be installed using a rubber gasket to reduce
buildup of moisture and/or debris.
WHEEL WELL LINERS
The wheel wells shall be provided with an easily removable polymer, circular inner fender liner. The inner liner shall be
bolted to the wheel well with stainless steel bolts and spaced away from the wheel well so the liner will not accumulate dirt
or water.
SCBA CYLINDER COMPARTMENTS
There shall be two (2) SCBA cylinder storage compartments located, one (1) on the curbside, and one (1) on the
streetside of rear wheel well area. Each compartment shall be capable of storing two (2) SCBA cylinders (60 min
cylinders). Each compartment shall have a vertically hinged door with a positive catch latch installed and painted primary
lower body color. Each compartment shall allow the storage of an SCBA cylinder up to 7-3/4" in diameter. The door shall
activate the "Hazard Warning Light" in the cab when not in the closed position.
SVI #769
Page 73 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ALUMINUM BODY PAINT SPECIFICATIONS
BODY PAINT PREPARATION
After the body and components have been fabricated they shall be disassembled prior to painting so when the vehicle is
complete there shall be finish paint beneath the removable components. The body shall be totally removed from chassis
during the pain process to insure the entire unit is covered. The body and components shall be metal finished as follows
to provide a superior substrate for painting.
The exterior body shall undergo a thorough cleaning process starting with a biodegradable phosphoric acid solution to
begin the etching process followed by a complete clear water rinse. The next step shall consist of a chemical conversion
coating applied to seal the metal substrate and become part of the metal surface for greater film adhesion. If the
compartment interior is to be painted the interior shall be acid etched as described above then primed with an epoxy
primer and all seams caulked.
All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be chrome plated. Iron fittings shall be
copper under plated prior to chrome plating.
PAINT PROCESS
The paint process shall follow the strict standards set forth by PPG Industries guidelines. Painters applying PPG products
will be PPG Certified Commercial Technicians, and re-certified every two (2) years.
The body shall go through an eight-stage paint process;
1)
2)
3)
4)
5)
6)
7)
8)
Clean bare metal using a solvent base wax & grease remover.
Finish all exterior body seams as necessary, followed by a thorough sanding of all bare metal to be painted.
Re-clean bare metal using a solvent base wax & grease remover.
Bare Metal Epoxy Primer Coat - PPG Delfleet® Evolution corrosion resistance epoxy primer to be applied at 1.0-2.0
mills DFT over clean abraded bare metal.
Primer Filler Coat - PPG Delfleet® Evolution urethane build primer to achieve total thickness of 3.0-6.0 mils DFT after
sanding.
Base coat (Color) - PPG Delfleet® Evolution High Solids Polyurethane Base coat. Apply 1.0-3.0 mils DFT of base
coat color to achieve full hiding.
Clear coat PPG Delfleet® Evolution polyurethane premium quality clear coat with improved mar resistant finish. The
clear coat shall be applied to achieve a total dry film thickness of 2.0-3.0 mils.
Curing process of the painted body shall go through a force dry/bake cycle process. The painted components shall be
baked 180 degrees for 2 hours to achieve a complete coating cure on the finished product.
MACHINE POLISHED
After the force dry/bake cycle and ample cool down time, the coated surface shall be sanded using 1,000, 1,500, and or
3,000 grit sandpaper to remove surface defects. In the final step, the surface shall be buffed then polished to an extra high
gloss smooth finish. Total dry film thickness of paint will average between 8.0-12.0 mils.
PAINT - ENVIRONMENTAL IMPACT
The contractor shall meet or exceed all current State (his) regulations concerning paint operations. Pollution control shall
include measures to protect the atmosphere, water and soil. PPG Delfleet® Evolution paint shall be free of all heavy metal
(lead & chromate) components. Paint emissions from sanding and painting shall be filtered and collected. All paint wastes
shall be disposed of in an environmentally safe manner. Solvents used in cleanup operations shall be collected, sent offsite for distillation and returned for reuse.
SVI #769
Page 74 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PAINT FINISH - SINGLE COLOR
The body shall be painted with a single color of PPG Delfleet® Evolution paint as described above.
Prior to the assembly and reinstallation of exterior components; i.e. warning and DOT lights, handrails, steps, door
hardware, and miscellaneous items, an isolation tape, or gasket shall be used to prevent damage to the finish painted
surfaces. These components shall be fastened to body using either a plastic insert into body metal with stainless steel
screws or zinc coated nutserts into body surface using stainless steel bolts to prevent corrosion from dissimilar metals.
Touch-up paint shall be provided with completed vehicle.

Paint Color: Match cab/chassis supplied paint color.
The painted body shall be finished with a clear coat of acrylic urethane for paint protection and maximum quality finish.
PAINT WARRANTY
The vehicle shall be provided with a ten (10) year non-prorated warranty to the original owner. Warranty is provided by
PPG Inc. A warranty sheet with all conditions and maintenance procedures shall be provided with the delivered vehicle.
BODY UNDERCOATING
The entire underside of body shall be sprayed with black automotive undercoating. Undercoating shall cover all areas
underside of body and wheel well area to help prevent corrosion under the vehicle.
UNDERCOAT WARRANTY
The body undercoating shall have a warranty provided by the manufacturer for the lifetime of the vehicle or twenty (20)
years, whichever occurs first. The warranty shall be transferable between vehicle owners. Should the undercoating
material applied to the underside of the body and wheel wells of the vehicle ever flake off, peel, chip or crack due to drying
out, the damaged area shall be re-sprayed without charge to the vehicle owner.
COMPARTMENT INTERIOR FINISH
The compartment interior shall be painted with an epoxy primer then painted with a textured Zolatone paint finish. Paint
color shall be light gray number 20-72.
REFLECTIVE STRIPE
All retroreflective materials shall conform to the requirements of ASTM D 4956, Standard Specification for Retroreflective
Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.
All retroreflective materials used that are colors not listed in ASTM D 4956, Section 6.1.1, shall have a minimum
coefficient of retroreflection of 10 with observation angle of 0.2 degrees and entrance angle of -4 degrees.
Any printed or processed retroreflective film construction used shall conform to the standards required of an integral
colored film as specified in ASTM D 4956, Section 6.1.1.
SVI #769
Page 75 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
REFLECTIVE STRIPE - CAB SIDE
A retroreflective stripe(s) shall be affixed to at least 50 percent of the cab and body length on each side.
The stripe or combination of stripes shall be a minimum of 4 in. (100 mm) in total width.
The 4 in. (100 mm) wide stripe or combination of stripes shall be permitted to be interrupted by objects (i.e., receptacles,
cracks between slats in roll up doors) provided the full stripe is seen as conspicuous when approaching the apparatus.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
There shall be a 1" Scotchcal reflective stripe located approx. 1" above the main stripe.

This reflective stripe shall be blue in color.
REFLECTIVE STRIPE - CAB FRONT
A reflective stripe shall be affixed to the front of cab. The stripe or combination of stripes shall be a minimum of 4 in. (100
mm) in total width.
A retroreflective stripe(s) shall be affixed to at least 25 percent of the width of the front of the apparatus.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
There shall be a 1" Scotchcal reflective stripe located approx. 1" above the main stripe.

This reflective stripe shall be blue in color.
CHEVRON STRIPE - CAB BUMPER
A reflective stripe shall be affixed to the front of cab. The stripe or combination of stripes shall be a minimum of 4 in. (100
mm) in total width.
The approximate 10" wide Chevron retroreflective stripe shall be affixed to at least 25 percent of the width of the front of
the apparatus with retroreflective striping in a chevron pattern sloping downward and away from the centerline of the
vehicle at an angle of 45 degrees. Each stripe shall be 6" width. Chevron panels shall have a 3M UV over laminate to
protect from UV rays, scene damage, and everyday use. Chevron panels shall have a minimum 10 year warranty for
material failure, and colorfastness.

The stripe material shall be 3M Scotchlite Diamond Grade.
All retroreflective materials required shall conform to the requirements of ASTM D 4956, Standard Specification for
Retroreflective Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.

This reflective chevron stripe shall alternate red and fluorescent yellow-green in color.
SVI #769
Page 76 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
REFLECTIVE STRIPE - BODY SIDES
A 4" minimum reflective stripe shall be affixed to the sides of the body.

The stripe material shall be 3M Scotchcal 680.

This reflective stripe shall be white in color.
There shall be a 1" Scotchcal reflective stripe located approx. 1" above the main stripe.

This reflective stripe shall be blue in color.
The stripe shall remain in a straight line from the front of the vehicle to the rear.
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS
At least 50 percent of the rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump panel
areas not covered by a door, shall be equipped with retroreflective striping in a chevron pattern sloping downward and
away from the centerline of the vehicle at an angle of 45 degrees. Each stripe shall be 6" width.
The rear side panels only of the body shall have a Chevron style reflective stripe layout, and cover as much of the rear
side panels as possible. Chevron panels shall have a 3M UV over laminate to protect from UV rays, scene damage, and
everyday use. Chevron panels shall have a minimum 10 year warranty for material failure, and colorfastness.

The stripe material shall be 3M Diamond Grade.
All retroreflective materials required shall conform to the requirements of ASTM D 4956, Standard Specification for
Retroreflective Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.

This reflective chevron stripe shall alternate red and fluorescent yellow-green in color.
SVI #769
Page 77 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LETTERING
The following lettering shall be furnished and installed on the completed unit:
SIDE CAB DOOR LETTERING
There shall be thirty six (36) 4" high SuperGold letters furnished and installed on the vehicle. Lettering shall have a clear
3M UV Protective Over Laminate applied before installation.
The lettering shall state:
“LOVELAND”
“FIRE”
“RESCUE”
There shall be two (2) 10" high reflective letters furnished and installed on the vehicle.
The lettering shall state:
“X” (Unit number, located in cab mid windows)

This reflective lettering shall be white in color.
UPPER BODY SIDE LETTERING
There shall be fifty eight (58) 7" high SuperGold letters furnished and installed on the vehicle. Lettering shall have a clear
3M UV Protective Over Laminate applied before installation.
The lettering shall state:
“Commitment, Compassion & Courage”
CUSTOM DECAL LOGO - 12" -18"
Four (4) custom designed 12" - 18" Scotchcal type retroreflective logo shall be provided and located on the rear cab
doors. The exact design and/or artwork shall be provided by the Loveland Fire & Rescue prior to construction.
SVI #769
Page 78 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
EXTERIOR COMPARTMENT DOORS
ROLL-UP DOOR CONSTRUCTION - ROBINSON (ROM)
The apparatus shall be equipped with Robinson ROM Series III roll-up exterior compartment doors. Robinson roll-up
doors shall be complete with the following features;
















Doors shall be front roll with drum positioned at upper front portion of compartment to afford maximum clearances and
head room for mounting equipment to ceiling of compartment
There shall be a non-abrasive side brush seals
Magnetic door ajar system must be integrated in lift bar handle and the retainer block to signal open door. No
mechanical switches or switches interior to the compartment shall be used
Every slat must have interlocking end shoes to prevent slat from moving side-to-side and binding the door
Between each slat must be a co-extruded PVC inner seal to prevent metal-to-metal contact and to repel moisture.
This inner seal is not visible to detract from appearance of door
Slats are to have interlocking joints with a folding locking flange to provide security and prevent penetration by sharp
objects
Slats to be double-wall extrusion 1.366" high by .315" thick. Exterior surface to be flat and interior surface to be
concave to prevent loose equipment from interfering with door operation
Latch system to be a full width one piece lift bar operable by one (1) hand
A 2" wide finger pull integrated into the bottom rail extrusion for easy one (1) hand opening and closing
Clip system that connects the curtain slats to the operator drum which allows for easy tension adjustment without
tools
Each roll-up door shall have a 4" diameter counterbalance operator drum to assist in lifting the door.
Track shall be one-piece aluminum that has an attaching flange and finishing flange incorporated into its design
Drip rail will have specially designed seal that prevents the seal from scratching the door
Bottom rail extrusion must have smooth back to prevent loose equipment from jamming the door
Bottom rail to have "V" shaped double seal to prevent water and debris from entering the compartment
Standard replacement parts to be shipped from the United States and available in as little as 48 hours
Each shutter door shall decrease the compartment door frame opening approximately 2.00" in width and approximately
4.50" in height for the bottom section of door assembly.
The specified retroreflective stripe material shall be applied on the roll-up compartment doors. The stripe shall be
precision machine cut for each door slat of the roll-up doors. Under no circumstance will the stripe material be cut on rollup door surface.
SVI #769
Page 79 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BODY HEIGHT MEASUREMENTS
The vertical body dimensions shall be as follows:
AHEAD OF REAR AXLE
Description
A
Bottom of Subframe to Top of Body
B
Bottom of Subframe to Bottom of Body
C
Vertical Door Opening
-with roll-up door
ABOVE REAR AXLE
Description
D
Vertical Door Opening - Above Rear Wheel
-with roll-up door
BEHIND REAR AXLE
Description
E
Bottom of Subframe to Bottom of Body
F
Vertical Door Opening
-with roll-up door
GENERAL
Description
G
Bottom of Drip Rail to Top of Body
Dimension
56.0"
25.0"
61"
Dimension
29.0"
Dimension
20.0"
57.0"
Dimension
13.5"
(Dimensions are generic and subject to change during the actual design process)
BODY WIDTH DIMENSIONS
The body shall be 100.0" wide, not including drip rail or non-permanent fixtures. Interior compartment depth dimensions
shall be:
Area Description
Compartment Depth
- Above Frame
- Below Frame
SVI #769
Dimension
12” min.
22” min.
Page 80 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STREETSIDE COMPARTMENT - FRONT (S1)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.

The controls for the specified light tower(s).

The 12 volt electrical distribution panel shall be located in the streetside front lower compartment.
SVI #769
Page 81 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S2)
The interior useable compartment width shall be approximately 59.0" wide.
The compartment door opening shall be approximately 52.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 82 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STREETSIDE COMPARTMENT - REAR (S3)
The interior useable compartment width shall be approximately 49.0" wide.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim components.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 83 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CURBSIDE COMPARTMENT - FRONT (C1)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 84 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C2)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 85 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CURBSIDE COMPARTMENT - REAR (C3)
The interior useable compartment width shall be approximately 49.0" wide.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be two (2) adjustable shelf/shelves approximately 12" deep.
-
Reflective Scotchcal stripe shall be provided on the front face of the shelf. The stripe shall be blue in color.

A 0.190 inch smooth plate aluminum tool mounting board shall be provided on upper rear wall of the
compartment. The tool mounting board shall be spaced ½” off the rear compartment wall to allow for mounting
hardware to be used on the rear of the board.

Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 86 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
REAR COMPARTMENT - CENTER (RC1)
The rear center compartment shall be transverse to both side rear compartments.
The rear center compartment shall start at the bottom of the body and extend up to bottom of hose bed, and extend as
deep as possible up to fuel tank allowing for body mounts.
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.

The roll-up door slats and the door trim components shall be painted to match the single tone exterior
color.

The ROM door shall be equipped with a magnetic type door ajar switch integrated in lift bar handle and the lower
retainer block to signal open door.

There shall be NO keyed lock on this roll-up compartment door.

One (1) aluminum drip pan/door finish guard shall be provided with the rollup door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening. The
threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT COMPONENTS

There shall be vertically mounted aluminum shelf trac for shelving installation.

There shall be one (1) 400 lbs. slide-out tray(s) approximately 28" deep and as wide as the compartment layout or
door opening permits. The tray top shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate
with a 3" vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of
the slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions
-

Reflective Scotchcal stripe shall be provided on the front face of the tray. The stripe shall be blue in color.
Two (2) vertically mounted OnScene Solutions LED Nightstiks.
SVI #769
Page 87 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PLASTIC FLOOR AND SHELF TILE
All compartment floors, shelves, and trays shall be covered with Dri-Dek plastic interlocking grating.

The plastic floor tile shall be black.

The plastic edge trim shall be red.
LADDER LIFT SYSTEM, CURBSIDE
A Ziamatic 12 volt DC, 60 amp, HLAS (Horizontal Ladder Access System, Part no. 3097-500-000) shall be provided
above the exterior side body compartments, on the curbside.
The lift system shall be electro-hydraulic with built-in electric safety latches and warning alarm when in operation. Access
shall still be provided to compartments with system in lowered position. Flashing lights on ends shall produce a visual
signal when the system is out of the stored position.
The ladder control panel shall be located on curbside pump panel. The ladder lift system shall be designed to store the
specified ladder compliment specified.
Storage shall be provided for the following SVI supplied ladders and pike poles;
One (1) Duo-Safety 900-A aluminum 24' 2-section ladder (14' 2 3/4" x 21 3/4" x 5 3/8")
One (1) Duo-Safety 775-A aluminum 14' roof ladder (14' 2 1/2" x 19" x 2 3/4")
One (1) Duo-Safety 585-A aluminum 10' folding ladder (11' 3 1/2" x 1 3/4" x 3 3/4")
One (1) Duo-Safety 10 FP 10' pike pole
One (1) Nupla 8' Trash/Arson hook with fiberglass handle
LADDER LIFT INTERLOCK
An interlock circuit shall be included on the ladder lift system to prevent the lift from raising if the curbside hose bed door
is in the open position.
SIDE BODY PROTECTION - RUB RAIL
There shall be side rub rails provided below the compartment door openings on both the streetside and curbside. The rub
rail shall be fabricated from 6063 extruded aluminum, measuring approximately 2-3/4" high x 1-3/8" thick with tapered
aluminum end caps. The rub rail shall be bolted to the body using stainless steel bolts and 1-1/2" diameter x 5/8" thick
rubber mount isolators to prevent damage to the body. The rails shall incorporate LED clearance marker lighting
recessed into the rail fascia to avoid damage to the light in case of impact. The rub rail shall have an accessory mounting
track integrated into the backside of the rail to allow mounting of accessories such as ground lighting.
−
3M™ Diamond Grade™ Conspicuity striping shall be provided in the rub rail. The striping shall be red in
color.
REAR BODY HANDRAILS
There shall be two (2) vertical handrails on the rear of the body. Handrails shall be NFPA compliant 1-1/4" extruded
aluminum tubing with chrome plated end stanchions.
SVI #769
Page 88 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
HOSEBED ACCESS HANDRAIL
There shall be two (2) handrail(s) mounted on rear of body to assist in access to hosebed storage area. Handrails shall be
NFPA compliant 1-1/4" extruded aluminum tubing with chrome plated end stanchions.
FOLDING STEP(S)
There shall be nine (9) NFPA approved folding step(s) furnished and installed. Three (3) steps shall be located on the
front of the body on the streetside for use in accessing the upper dunnage area, and six (6) steps shall be located on the
rear of the apparatus, three (3) per side, for use in accessing the hose bed area. Each step shall be cast aluminum with
heavy duty stainless steel spring and textured step surface.
COMPARTMENT COMPONENTS DESCRIPTIONS
All interior compartment components shall be fabricated as follows:
ADJUSTABLE SHELVING HARDWARE
Adjustable shelving hardware shall be provided indicated in the numbered compartment list.
The shelving hardware shall include a minimum of four (4) aluminum shelf tracs mounted vertically on compartment side
walls or vertical partitions. There shall be one (1) cast aluminum shelf bracket per vertical shelf trac to mount each shelf,
tray, or adjustable storage module. Shelving hardware shall be of heavy duty quality with unlimited vertical adjustment
settings.
ADJUSTABLE SHELF/SHELVES
Adjustable shelf/shelves shall be provided in exterior compartment as indicated in the numbered compartment list.
Shelves shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate with a 2" vertical flange along the
front and rear edges. Shelves shall be designed to be used with flanges either in the upward position to hold various
equipment on shelf, or in the downward position for sweep-out shelf surface.
All shelves shall be fully adjustable, from top to bottom of the compartment. There shall be at least four (4) vertical
mounting channels and shelving hardware, two (2) each side of compartment. Shelving hardware shall be of heavy duty
quality with unlimited vertical adjustment settings.
SLIDE-OUT EQUIPMENT TRAY - (400 LB CAPACITY)
Slide-out equipment tray(s) shall be provided in exterior compartment, as indicated in the numbered compartment list.
Trays shall be fabricated from 3/16" (.188) aluminum 3003H-14 alloy smooth plate. Trays shall be built with a 3" vertical
lip, with welded corners, to form a box type tray surface. Sliding tracks shall be Accuride 502 series. The length shall be
per numbered compartment list and the extension shall be 100% of the slide length. Slides shall be constructed of formed
steel with ball bearings mounted in triple track rails. The tray shall be rated for a maximum 400 lbs. evenly distributed
load.
Tray(s) shall utilize a pneumatic cylinder mounted on underside to hold the tray in both the extended and closed positions.
SVI #769
Page 89 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
COMPARTMENT LIGHTING
Each enclosed equipment compartment greater than 4 ft3 (0.1 m3) in volume and having an opening greater than 144 in.2
(92,900 mm2) shall have sufficient compartment lighting to provide a minimum of 2 fc (20 lx) at any location on the floor of
the compartment without any shelves, dividers, or equipment in the compartment.
Compartments such as ladder tunnels, pike pole storage tubes, or underbody compartments designed around the
volumetric requirements of specific equipment that can be removed without the use of article illumination shall not be
required to have compartment lighting.
All compartments shall be equipped with OnScene Nightstik LED lights with the following minimum light requirements;





Full Height Compartments, 63” Section (42 LED's)
Wheel well Compartments, 36” Section (24 LED's)
Rear Rescue Compartment, 63” Section (42 LED's)
Low Compartments, 18" Section (12 LED's), Vertical
Low Compartments, 36" Section (24 LED's), Horizontal
The OnScene Nightstik lights shall be rated at 100,000 hours of service and shall be provided with a 5 year free
replacement warranty.
STEP / GROUND LIGHTS
Step and ground lights shall be OnScene Solutions 9" LED Nightstik and be placed at any entry door and step where
personnel climb on or descend from the apparatus to ground level. OnScene LED lights shall have 6 LED lights per 9”
light, and shall be rated at 100,000 hours of service. On Scene Solutions LED lights shall be have a 5 year free
replacement warranty.
All of the required step and ground lights shall be activated when the parking brake is set.
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC
General
Any low voltage electrical systems or warning devices installed on the fire apparatus shall be appropriate for the mounting
location and intended electrical load.
Where wire passes through sheet metal, grommets shall be used to protect wire and wire looms. Electrical connections
shall be with double crimp water-tight heat shrink connectors.
All 12 VDC wiring running from front to back of vehicle body shall be run in full length electrical wiring raceway down each
side of body.
Wiring
All electrical circuit feeder wiring supplied and installed by the fire apparatus manufacturer shall meet the requirements of
NFPA Chapter 13.
The circuit feeder wire shall be stranded copper or copper alloy conductors of a gauge rated to carry 125 % of the
maximum current for which the circuit is protected. Voltage drops in all wiring from the power source to the using device
shall not exceed 10 %. The use of star washers for circuit ground connections shall not be permitted.
SVI #769
Page 90 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
All circuits shall otherwise be wired in conformance with SAE J1292, Automobile, Truck, Truck-Tractor, Trailer, and Motor Coach Wiring.
Wiring and Wire Harness Construction
All insulated wire and cable shall conform to SAE J1127, Low Voltage Battery Cable, or SAE J1128, Low Voltage Primary
Cable, type SXL, GXL, or TXL.
All conductors shall be constructed in accordance with SAE J1127 or SAE J1128, except where good engineering
practice dictates special strand construction. Conductor materials and stranding, other than copper, shall be permitted if
all applicable requirements for physical, electrical, and environmental conditions are met as dictated by the end
application. Physical and dimensional values of conductor insulation shall be in conformance with the requirements of
SAE J1127 or SAE J1128, except where good engineering practice dictates special conductor insulation. The overall
covering of conductors shall be moisture-resistant loom or braid that has a minimum continuous rating of 194°F (90°C)
except where good engineering practice dictates special consideration for loom installations exposed to higher
temperatures. The overall covering of jacketed cables shall be moisture resistant and have a minimum continuous
temperature rating of 194°F (90°C), except where good engineering practice dictates special consideration for cable
installations exposed to higher temperatures.
All wiring connections and terminations shall use a method that provides a positive mechanical and electrical connection.
The wiring connections and terminations shall be installed in accordance with the device manufacturer’s instructions. All
ungrounded electrical terminals shall have protective covers or be in enclosures. Wire nut, insulation displacement, and
insulation piercing connections shall not be used.
Wiring shall be restrained to prevent damage caused by chafing or ice buildup and protected against heat, liquid
contaminants, or other environmental factors.
Wiring shall be uniquely identified at least every 2 ft (0.6 m) by color coding or permanent marking with a circuit function
code. The identification shall reference a wiring diagram.
Circuits shall be provided with properly rated low voltage overcurrent protective devices. Such devices shall be readily
accessible and protected against heat in excess of the overcurrent device’s design range, mechanical damage, and water
spray. Circuit protection shall be accomplished by utilizing fuses, circuit breakers, fusible links, or solid state equivalent
devices.
If a mechanical-type device is used, it shall conform to one of the following SAE standards:
1)
2)
3)
4)
5)
SAE J156, Fusible Links
SAE J553, Circuit Breakers
SAE J554, Electric Fuses (Cartridge Type)
SAE J1888, High Current Time Lag Electric Fuses
SAE J2077, Miniature Blade Type Electrical Fuses
Switches, relays, terminals, and connectors shall have a direct current (dc) rating of 125 % of maximum current for which
the circuit is protected.
Power Supply
A 12 V or greater electrical alternator shall be provided. The alternator shall have a minimum output at idle to meet the
minimum continuous electrical load of the vehicle, at 200°F (93°C) ambient temperature within the engine compartment,
and shall be provided with full automatic regulation.
SVI #769
Page 91 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
Minimum Continuous Electrical Load
The minimum continuous electrical load shall consist of the total amperage required to simultaneously operate the
following in a stationary mode during emergency operations:
1) The propulsion engine and transmission
2) All legally required clearance and marker lights, headlights, and other electrical devices except windshield wipers and
four-way hazard flashers
3) The radio(s) at a duty cycle of 10 percent transmit and 90 % receive (for calculation and testing purposes, a default
value of 5 A continuous)
4) The lighting necessary to produce 2 fc (20 lx) of illumination on all walking surfaces on the apparatus and on the
ground at all egress points onto and off the apparatus, 5 fc (50 lx) of illumination on all control and instrument panels,
and 50 percent of the total compartment lighting loads
5) The minimum optical warning system, where the apparatus is blocking the right-of way
6) The continuous electrical current required to simultaneously operate any fire pumps, aerial devices, and hydraulic
pumps
7) Other warning devices and electrical loads defined by the purchaser as critical to the mission of the apparatus
If the apparatus is equipped to tow a trailer, an additional 45 A shall be added to the minimum continuous electrical load
to provide electrical power for the federally required clearance and marker lighting and the optical warning devices
mounted on the trailer.
The condition of the low voltage electrical system shall be monitored by a warning system that provides both an audible
and a visual signal to persons on, in, or near the apparatus of an impending electrical system failure caused by the
excessive discharge of the battery set.
The charge status of the battery shall be determined either by direct measurement of the battery charge or indirectly by
monitoring the electrical system voltage.
If electrical system voltage is monitored, the alarm shall sound if the system voltage at the battery or at the master load
disconnect switch drops below 11.8 V for 12 V nominal systems, 23.6 V for 24 V nominal systems, or 35.4 V for 42 V
nominal systems for more than 120 seconds.
A voltmeter shall be mounted on the driver’s instrument panel to allow direct observation of the system voltage.
Electromagnetic Interference
Electromagnetic interference suppression shall be provided, as required, to satisfy the radiation limits specified in SAE
J551/1, Performance Levels and Methods of Measurement of Electromagnetic Compatibility of Vehicles, Boats (up to 15
m), and Machines (16.6 Hz to 18 GHz).
Wiring Diagram
A complete electrical wiring schematic of actual system shall be provided with finished apparatus. Similar or generic type
electrical schematics shall NOT BE ACCEPTABLE.
Low Voltage Electrical System Performance Test
A low voltage electrical system test certification shall be provided with delivered apparatus.
SVI #769
Page 92 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
12 VOLT MULTIPLEX CONTROL CENTER
The apparatus shall have a multiplexed 12 volt electrical system that will provide complete diagnostic capability. The
system shall have the capability of delivering multiple signals via a CAN bus, utilizing specifications set forth by SAE
J1939. The system shall be node based to maximize stability so that failure of one node does not affect the operation of
the other nodes. The system shall use shielded twisted-pair wire for transmission of system function signals. The shielded
wire shall provide protection against EMI and RFI noise interruptions.
The multiplex system shall be responsible for providing power management functions as well as load shedding. The
warning light system shall be controlled by the multiplex system. The system shall be capable of displaying text and/or
graphic messages on a display module. The system shall be based on solid-state technology and shall include selfcontained diagnostic indicators.
BATTERY SYSTEM
The battery connectors shall be heavy duty type with cables terminating in heat shrink loom. Heavy duty battery cables
shall provide maximum power to the electrical system. Where required, the cables shall be shielded from exhaust tubing
and the muffler. Large rubber grommets shall be provided where cables enter the battery compartment.
Batteries shall be of the high-cycle type. With the engine off, the battery system shall be able to provide the minimum
continuous electrical load for 10 minutes without discharging more than 50 percent of the reserve capacity and then to
restart the engine. The battery system cold cranking amps (CCA) rating shall meet or exceed the minimum CCA
recommendations of the engine manufacturer. The batteries shall be mounted to prevent movement during fire apparatus
operation and shall be protected against accumulations of road spray, snow, and road debris. The batteries shall be
readily accessible for examination, testing, and maintenance.
A means shall be provided for jump-starting the engine if the batteries are not accessible without lifting the cab of a tilt-cab
apparatus.
Where an enclosed battery compartment is provided, it shall be ventilated to the exterior to prevent the buildup of heat
and explosive fumes. The batteries shall be protected against vibration and temperatures that exceed the battery
manufacturer’s recommendation.
A master load disconnect switch shall be provided between the starter solenoid(s) and the remainder of the electrical
loads on the apparatus. The starter solenoids shall be connected directly to the batteries.
Electronic control systems and similar devices shall be permitted to be otherwise connected if so specified by their
manufacturer.
The alternator shall be wired directly to the batteries through the ammeter shunt(s), if one is provided, and not through the
master load disconnect switch.
A green “battery on” pilot light that is visible from the driver’s position shall be provided.
A sequential switching device shall be permitted to energize the optical warning devices and other high current devices
required in minimum continuous electrical load, provided the switching device shall first energize the electrical devices
required in minimum continuous electrical load within five (5) seconds.
SVI #769
Page 93 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BATTERY SWITCH
One (1) battery "On/Off" switch in cab located within easy reach of Driver with green "BATTERY ON" pilot light that is
visible from the driver’s position shall be provided. The switch and pilot light shall be supplied and installed by the
cab/chassis manufacturer.
BATTERY SOLENOID
Battery switch shall consist of a minimum 200 ampere, constant duty solenoid to feed from positive side of battery.
BATTERY CONDITIONER
The battery conditioner shall be supplied and installed by the cab chassis manufacturer.
TAIL LIGHTS
Rear body tail lights shall be vertically mounted per Federal Motor Vehicle Safety Standards. The following lights shall be
furnished:



Two (2) Code 3 amber LED 65STA turn signal lights
Two (2) Code 3 red LED 65STR stop/tail lights
Two (2) Code 3 clear LED 65RV back-up lights
Two (2) Code 3 65STK3, 3-light polished aluminum bezels shall be provided, one (1) each side vertically mounted on the
rear of the apparatus body for the above tail lights.
AUXILIARY BACK-UP LIGHT SWITCH
An auxiliary switch shall be provided on the rear curbside body panel to allow the back-up lights to be switched on and off
from the exterior of the apparatus to act as additional work lights.
STEP LIGHTS
Four (4) OnScene Solutions 9" LED Night Stik lights provided, two (2) on rear body panel, and one (1) on each side
running board to illuminate the walkway areas. Each light shall be mounted in a polished cast aluminum housing to protect
against damage from personnel or equipment.
Lights shall be wired to the pump panel light switch on pump panel.
MIDSHIP MARKER/TURN SIGNAL
Two (2) Whelen LED midship body clearance marker/turn signal lights (T0A00MAR) shall be installed. There shall be one
(1) light on each side of the body, in the wheel well, ahead of the rear axle. Both lights shall have an amber lens and
operate with the chassis clearance marker and turn signals.
MARKER LIGHTS
The apparatus body shall be equipped with all necessary clearance lights and reflectors in accordance with Federal Motor
Vehicle Safety Standards (FMVSS) regulations. All body clearance lights shall be LED to reduce the need for
maintenance and lower the amp draw. Clearance lights shall be wired to the headlight circuit of the chassis.
SVI #769
Page 94 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
CAB STEP LIGHTS / GROUND LIGHTS
The step lights and/or ground lights shall be supplied and installed by the cab/chassis manufacturer. Light(s) shall be
capable of providing illumination at a minimum level of 2 fc (20 lx) on ground areas within 30 in. (800 mm) of the edge of
the vehicle in areas designed for personnel to climb onto or descend from the vehicle to the ground level.
Lighting designed to provide illumination on areas under the driver and crew riding area exits shall be switchable but
activated automatically when the exit doors are opened.
CAB SPOTLIGHT
There shall be one (1) GOLIGHT model 2049 installed on the center top of the specified lightbar. The wireless controls
shall be located on the officer side of the center dash panel area.
ROOF MOUNT LED FLOODLIGHT
One (1) Fire Research Focus LED model FCA830-Q13 roof mount light shall be installed. The lower mounting bracket
shall allow the bottom of the lamphead to pivot and the upper mounting bracket shall extend out on a turnbuckle that is
adjustable to set the lamphead angle. Wiring shall extend from a weatherproof strain relief at the rear of the lamphead.
The lamphead shall have ten (10) ultra-bright white LEDs. It shall operate at 12/24 volts DC, draw 13/6.5 amps, and
generate 13,300 lumens. The lamphead shall direct 50 percent of the light onto the action area while providing 50 percent
to illuminate the working area. The lamphead angle of elevation shall be adjustable at a pivot in the mounting arm and the
position locked with a round knurled locking knob. The lamphead shall incorporate heat-dissipating fins and be no more
than 4 3/4" high by 11 1/2" wide. The lamphead and mounting arm shall be powder coated white. The floodlight shall be
for fire service use.
The lights shall be switched at the 12 volt control panel in the cab.
REAR SCENE LIGHTS
Two (2) Code 3 88Z26 (9"x 7") recess mounted, 50 watt, halogen scene lights with a 26 degree lens and chrome flange
shall be provided on the rear of the apparatus body.
The lights shall be switched at the 12 volt control panel in the cab.
The rear scene lights shall also be activated when the apparatus is in reverse.
TRAFFIC DIRECTIONAL LIGHT
A custom designed traffic directional light shall be provided in the rear edge of the hose bed doors. The directional light
shall consist of eight (8) Code 3 model LXEX1F-A amber LED lights mounted four (4) per side. The traffic directional light
control shall be located in the Vista display in the cab within easy reach of driver.

The traffic directional light shall be surface mounted to the rear edges of the hose bed doors on the upper rear body.
SVI #769
Page 95 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
COMMAND LIGHT - SHADOW - RT
The apparatus shall be equipped with one (1) all-electric floodlight tower(s). The unit shall not require an AC generator
system, or tapping into vehicle braking system to be operated, eliminating the chance for vehicle brake problems.
Hydraulic or pneumatic type floodlights are not acceptable alternatives to the all-electric light tower specified, NO
EXCEPTIONS.
The light tower shall have four (4) weatherproof, LED 12 VDC, 13 amp, 10,000 lumen lights. Light heads shall be mounted
in a cluster to provide maximum illumination. The tower shall be capable of elevating beyond 90 degrees (full upright) to a
maximum of 110 degrees to provide illumination over the side of a vehicle, NO EXCEPTIONS. The light tower shall be
capable of 355 degree rotation.
Positioning of the light bank shall be accomplished with maintenance free, heavy duty 12 volt linear actuators. The light
tower shall be all aluminum construction, with stainless steel shafts and bronze bushings for long life and low
maintenance.
Light tower shall be controlled with a hand-held umbilical line remote control.
Command Light controls shall include:






Two (2) switches, one (1) for each light bank.
One (1) switch for elevating / retracting the arm.
One (1) switch for light bank rotation.
One (1) switch to engage autopark.
One (1) light to indicate when light bank is out of roof nest position.
One (1) light to indicate when light bank is rotated to proper nest position.
The controls shall be located per the itemized compartment list.
The light tower shall have a full extension over 4' from mounted position and extend from nest position to full upright in 15
seconds. The overall size of nested light tower shall be approximately 22" wide x 48" long x 8" high, and weight
approximately 50 lbs.
A flashing warning light shall be provided in cab, indicating when a light tower is not in nested position as required by
NFPA 1901. The operational envelope of the mast shall be automatically illuminated whenever the mast assembly is
being raised, lowered, or rotated as required by NFPA 1901.
The Command Light shall be covered by a five (5) year limited warranty from defects in materials and workmanship. An
operation, maintenance, and parts manual shall be provided with the delivered apparatus.
The specified light tower(s) shall be mounted on the roof of the apparatus body, between the pump module and the hose
bed. Exact location shall be determined by the approved sales drawing.
CAB SPOTLIGHT
There shall be one (1) GOLIGHT model 2049 installed on the center top of the specified lightbar. The wireless controls
shall be located on the officer side of the center dash panel area.
SVI #769
Page 96 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
WARNING LIGHT PACKAGE
Each apparatus shall have a system of optical warning devices that meets or exceeds the requirements of this section.
The optical warning system shall consist of an upper and a lower warning level. The requirements for each level shall be
met by the warning devices in that particular level without consideration of the warning devices in the other level.
For the purposes of defining and measuring the required optical performance, the upper and lower warning levels shall be
divided into four warning zones. The four zones shall be determined by lines drawn through the geometric center of the
apparatus at 45 degrees to a line drawn lengthwise through the geometric center of the apparatus. The four zones shall
be designated A, B, C, and D in a clockwise direction, with zone A to the front of the apparatus.
Each optical warning device shall be installed on the apparatus and connected to the apparatus’s electrical system in
accordance with the requirements of this standard and the requirements of the manufacturer of the device.
A master optical warning system switch that energizes all the optical warning devices shall be provided.
The optical warning system on the fire apparatus shall be capable of two separate signaling modes during emergency
operations. One mode shall signal to drivers and pedestrians that the apparatus is responding to an emergency and is
calling for the right-of-way. One mode shall signal that the apparatus is stopped and is blocking the right-of-way. The use
of some or all of the same warning lights shall be permitted for both modes provided the other requirements of this
chapter are met.
A switching system shall be provided that senses the position of the parking brake or the park position of an automatic
transmission. When the master optical warning system switch is closed and the parking brake is released or the automatic
transmission is not in park, the warning devices signaling the call for the right-of-way shall be energized. When the master
optical warning system switch is closed and the parking brake is on or the automatic transmission is in park, the warning
devices signaling the blockage of the right-of-way shall be energized. The system shall be permitted to have a method of
modifying the two signaling modes.
The optical warning devices shall be constructed or arranged so as to avoid the projection of light, either directly or
through mirrors, into any driving or crew compartment(s). The front optical warning devices shall be placed so as to
maintain the maximum possible separation from the headlights.
UPPER LEVEL OPTICAL WARNING DEVICES
The upper-level optical warning devices shall be mounted as high and as close to the corner points of the apparatus as is
practical to define the clearance lines of the apparatus. The upper-level optical warning devices shall not be mounted
above the maximum height, specified by the device manufacturer.
SVI #769
Page 97 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
ZONE A - FRONT WARNING LIGHT
There shall be one (1) Code 3 model 2169NFPA1, 69" long lightbar permanently mounted on cab roof.
Lightbar Configuration (streetside to curbside):
Section
1
2
3
4
5
6
7
8
9
10
11
Components
(3) LED X Single Module with Directional Optics
(1) LED X Single Module with Directional Optics
(1) LED X Single Module with Wide Optics
(1) LED X Single Module with Directional Optics
(1) LED X Single Module with Wide Optics
(1) LED X Single Module with Wide Optics
(1) LED X Single Module with Wide Optics
(1) LED X Single Module with Directional Optics
(1) LED X Single Module with Wide Optics
(1) LED X Single Module with Directional Optics
(3) LED X Single Module with Directional Optics
Color
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
Red LED/ Clear Lens
All clear lights shall shut down when the parking brake is set to comply with "Blocking" mode requirements as outlined in
NFPA 1901.
The lightbar shall be separately switched at the vista display in the cab.
GTT OPTICOM
One (1) GTT Opticom emitter light shall be provided inside specified light bar. The Opticom shall be activated with light
bar and de-activated when the park brake is set and the vehicle is in blocking mode.
ZONES B AND D - SIDE WARNING LIGHTS
UPPER REAR CORNER WARNING LIGHTS
ZONE C - REAR WARNING LIGHTS
Two (2) Code 3 model TR-3RS Triad LED beacon lights shall be provided in the rear upper zone of the body. There shall
be one (1) light mounted on each side, near the corners of the body. Each light shall have three (3) Optix LED light
modules, synchronized/alternating flash pattern, wide optics lenses, and a triangular black coated aluminum housing.
The lights shall be switched at the Vista display in the cab.
The beacons (TR-3RS) shall have red LED light modules.
SVI #769
Page 98 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
LOWER LEVEL OPTICAL WARNING DEVICES
To define the clearance lines of the apparatus, the optical center of the lower-level optical warning devices in the front of
the vehicle shall be mounted on or forward of the front axle centerline and as close to the front corner points of the
apparatus as is practical.
The optical center of the lower-level optical warning devices at the rear of the vehicle shall be mounted on or behind the
rear axle centerline and as close to the rear corners of the apparatus as is practical. The optical center of any lower-level
device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground for large apparatus, and 18 in. and
48 in. (460 mm and 1220 mm) above level ground for small apparatus.
A midship optical warning device shall be mounted right and the left sides of the apparatus if the distance between the
front and rear lower-level optical devices exceeds 25 ft (7.6 m) at the optical center. Additional midship optical warning
devices shall be required, where necessary, to maintain a horizontal distance between the centers of adjacent lower-level
optical warning devices of 25 ft (7.6 m) or less. The optical center of any midship mounted optical warning device shall be
between 18 in. and 62 in. (460 mm and 1600 mm) above level ground.
ZONE A - FRONT WARNING LIGHTS
The warning lights shall be provided and installed before the cab chassis arrives at the manufacturing facility. They shall
be Code 3 lights to complete an NFPA compliant lower level warning light system.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - CAB INTERSECTOR LIGHT (CAB FRONT CORNERS)
The warning lights shall be provided and installed before the cab chassis arrives at the manufacturing facility. They shall
be Code 3 lights to complete an NFPA compliant lower level warning light system.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY WHEELWELL AREA)
There shall be two (2) Code 3 model LXEX1F-R (5" x 2") surface mount LED lights provided, one (1) each side. Each
light shall have a red lens and a chrome finished flange.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY REAR CORNERS)
There shall be two (2) Code 3 model 65BZR (6" x 4") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and a chrome finished flange.
The lights shall be switched at the Vista display in the cab.
ZONE C - REAR WARNING LIGHTS (LOWER REAR CORNERS)
There shall be two (2) Code 3 model 65BZR (6" x 4") surface mount LED lights provided, one (1) each side. Each light
shall have a red lens and a chrome finished flange.
The lights shall be switched at the Vista display in the cab.
SVI #769
Page 99 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PUMP MODULE / PLUMBING SPECIFICATIONS
PUMP MODULE COMPARTMENT
There shall be an enclosed compartment located above the pump module. The compartment shall be transverse to the
pump module and include hinged doors with access from both sides to store long handled tools and equipment. The
compartment sides shall be fabricated from smooth plate aluminum painted body color. The compartment top shall be
fabricated from NFPA tread plate material to form a walking surface on the top exterior of the compartment.
PUMP MODULE DUNNAGE AREA
There shall be an open dunnage area located directly above the pump panel compartment. The Dunnage area shall
extend upward from the pump panel compartment approximately 10.50” and be used to store miscellaneous Loveland
Fire & Rescue supplied equipment. The dunnage area sides shall be constructed of smooth plate aluminum painted body
color.
PUMP OPERATORS PANEL
Pump operators panel shall consist of all gauges, valve controls and switches needed for the efficient operations of the
pumping and auxiliary operations. Adequate LED lighting for night operations shall be provided. Final design of the pump
operator's panel shall be approved by the owner prior to construction. The pump operators panel shall be painted with a
black powder coat finish.
All outlets are to be controlled from operator’s panel. Each discharge outlet shall have a screw type drain valve of 3/4"
diameter, or quarter-turn ball type valves, to permit draining hose lines. Pump to have one central drain to completely
drain pump and all water lines. Pump shift to be a remote control type from inside cab and shall have manual override at
pump operator's panel. All connections must have proper clearance for the use of spanner wrenches. All inlets and outlets
to be capped with chrome plated caps and chains provided. The protective one-piece panel around all inlets and outlets
shall be smooth plate aluminum, bolted in place and removable with easy access for drain valves.
An air horn activation button shall be provided on the pump panel near the pressure governor. Below the button provide a
label with the wording “Evacuation Signal”
NOTE: The speedometer and odometer shall be deactivated while in pumping mode.
FIRE PUMP SPECIFICATIONS
1500 GPM FIRE PUMP
A Waterous Model CMUC20C fire pump shall be midship mounted with rating of 1,500 GPM @ 150 PSI. The pump must
be tested by the pump manufacturer for 10 minutes hydrostatically at a pressure of 500 psig. Certification by the pump
manufacturer must be provided.
TWO STAGE FIRE PUMP
The pump shall be a two stage centrifugal class "A" rated fire pump, designed specifically for the fire service
SVI #769
Page 100 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TWO STAGE TRANSFER VALVE
The transfer valve shall be of the latest ball type design. The valve shall be all bronze construction and incorporate a
hydraulically balanced seal to minimize leakage around the ball and assure maximum pump efficiency. The transfer valve
shall operate smoothly without sticking, even when it is exposed to sandy or dirty water.
The transfer valve shall be operated by an electric actuator that will be controlled by a switch on the pump operator's
panel. There shall be two (2) indicator lights to show when the pump is operating in pressure or volume mode.
UNDERWRITERS LABORATORIES FIRE PUMP TEST
The pump shall undergo an Underwriters Laboratories Incorporated test per applicable sections of NFPA standards, prior
to delivery of the completed apparatus.
The UL acceptance certificate shall be furnished with the apparatus on delivery.
FIRE PUMP TEST LABEL
A fire pump performance and rating label shall be installed on the fire apparatus pump panel. The label shall denote levels
of pump performance and testing completed at factory. These shall include GPM at net pump pressure, RPM at such
level, and other pertinent data as required by applicable NFPA standards. In addition, the pressure control device, tank to
pump flow tests, and other required testing shall be completed.
In addition, the entire pump, suction and discharge passages shall be hydrostatically tested to a pressure as required by
applicable NFPA standards. The pump shall be fully tested at the pump manufacturer's factory to the performance
specifications as outlined by applicable NFPA standards.
UL PUMP CERTIFICATION
The fire pump shall be tested and certified by Underwriters Laboratories, to perform as listed below:



100% of rated capacity at 150 psi, 1000 kPa net pressure.
70% of rated capacity at 200 psi, 1350 kPa net pressure.
50% of rated capacity at 250 psi, 1700 kPa net pressure.
The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 500 PSI.
The pump shall be free from objectionable pulsation under all normal operating conditions.
ALTITUDE REQUIREMENT
The apparatus shall be designed to meet the specified rating at 7,000 feet altitude.
WATEROUS PUMP ANODES
There shall be two (2) Anodes provided with the Fire Pump. One (1) anode shall be installed in the left steamer and one
(1) shall be installed in the right.
SVI #769
Page 101 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
IMPELLERS
The pump impellers shall be bronze, specifically designed for the fire service and accurately balanced for vibration free
running. The stripping edges shall be located on opposite sides of the impellers to reduce shaft deflection.
The impeller shaft shall be stainless steel, accurately ground to size and supported at each end by oil or grease lubricated
anti-friction ball bearings for rigid, precise support. The bearings used on the impeller shaft shall be automotive type
bearings, easily cross-referenced and readily available at normal parts or bearing stores.
FLAME PLATED IMPELLER HUBS
The impeller hubs shall be flame plated with tungsten carbide to a hardness approximately twice that of tool steel to
assure maximum pump life and efficiency. During the flame plating process the base metal shall not be allowed to
exceed a temperature of 300 degrees Fahrenheit to prevent altering the metallurgical properties of the impeller material
MECHANICAL SEALS
The pump shall be equipped with self-adjusting, maintenance free mechanical shaft seals that shall not require manual
adjustment. These seals shall be designed in a manner such that they shall remain functional enough to permit continued
use of the pump in the unlikely event of a seal failure.
IMPELLER WEAR RINGS
The pump shall be equipped with replaceable bronze wear rings for increased pump life and minimum maintenance cost.
The wear rings shall be designed to fit into a groove in the face of the impeller hubs forming a labyrinth that, as the
clearance increases with age, directs water from the discharge side in several directions eventually exiting outward, away
from the eye of the impeller hub.
PUMP CASING
The pump casing shall be cast as two (2) horizontally split pieces. The casing shall be made of high tensile, close-grained
gray iron with a minimum tensile strength of 40,000 PSI.
PUMP TRANSMISSION
The pump transmission shall be of the latest design, incorporating a high strength involute tooth-form Morse Hy-Vo chain
capable of operating at high speeds while providing smooth and quiet transmission of power. Drive and driven sprockets
shall be made of alloy steel with teeth of an involute form. Driveline shafts shall be made from alloy steel forgings,
hardened and ground to size. Deep groove, anti-friction ball bearings shall be used throughout the pump transmission.
The pump shift engagement shall be accomplished by a free sliding collar that uses an internal locking mechanism to
insure that the collar will stay in road or pump position.
Primary lubrication for the pump transmission bearings, sprockets and chain shall be provided by a splash system. A
supplementary pressure system shall also be employed which shall include a strainer, an oil circulation pump driven by
the impeller shaft, and a spray bar inside the case to apply oil to the inside of the chain just before it engages the driven
sprocket.
The pump and transmission shall be easily separable. A two-piece shaft shall be splined allowing for individual repair of
either the pump or transmission, to keep down time to a minimum.
All driveline components shall have a torque rating equal to or greater than the final net engine torque.
SVI #769
Page 102 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AIR OPERATED PUMP SHIFT
The pump shift actuating mechanism shall be air operated from a valve in the cab identified as "PUMP SHIFT". Full
instructions for shifting the pump shall be inscribed on the valve plate.
MANUAL OVERRIDE PUMP SHIFT
A manual override system shall be supplied for the pump shift should a problem develop in the chassis air brake system.
Controls for the override shall be located at the lower right hand corner of the left side pump panel. Full instructions shall
be inscribed on a plate near the pump shift controls.
PUMP SHIFT INDICATING LIGHTS
There shall be two (2) green pump system shift indicator lights in the chassis cab. The first light shall become energized
when the chassis parking brake has been set and the pump has completed its shift into pump gear and shall be labeled
"Pump Engaged". The second light shall become energized and when the pump and the chassis transmissions have
been shifted completely into the correct gears for pumping, this light shall be labeled "OK to Pump".
There shall be one (1) green pump system shift indicator light located on the operator's panel. This light shall only
become engaged when the chassis parking brake has been set, and when the pump and the chassis transmissions have
been completely shifted into the correct gears. The light shall be located adjacent to the throttle control and shall be
labeled "Warning: Do Not Open Throttle Unless Light Is On".
PRIMING SYSTEM
A high capacity, electrically driven Waterous model VPO oil less rotary vane priming pump shall be provided which is
rigidly attached to the pump transmission.
The pump shall be capable of taking suction and discharging water with a lift of 10 feet in not more than 45 seconds with
the pump dry, through 20 feet of suction hose of appropriate size. It shall be capable of developing a vacuum of 22" at an
altitude of up to 1000 feet.
A vacuum test with a capped suction of at least 20' long shall develop 22" of vacuum and hold a vacuum with a drop not in
excess of 10" in 10 minutes.
ELECTRIC PRIMING PUMP CONTROL AT PUMP PANEL
The Priming Pump shall be controlled at the pump operator's panel. The control shall be provided in the form of a
momentary push button that is easily actuated with a gloved hand.
When the button is in the depressed position, the indicator light at the pump panel shall illuminate to notify the operator.
MASTER PUMP DRAIN
To Drains all points of the pump simultaneously with the operation of a single control. The master drain valve assembly
shall consist of a stainless steel plunger in a bronze body with multiple ports. The valve shall be designed so that the
pump discharge pressure prevents it from opening accidentally. The drain valve control shall be panel mounted and
identified PUMP DRAIN.
SVI #769
Page 103 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
PUMP LUBRICATION
Grease zerk(s) shall be installed in a convenient location and connected to the pump lubrication points by copper tubing.
HEAT EXCHANGER
The engine; (chassis), providing power to drive the fire pump, shall have a supplementary cooling system that uses water
from the discharge side of the pump to cool the engine coolant through the use of a closed heat exchanger. The water
from the pump and the engine coolant shall not be intermixed. This cooling system shall be controlled by a valve on the
pump operator's station.
1/2" PUMP COOLER LINE
There shall be one (1) 1/2" pump cooling/recirculation line from the pump that is connected directly into the booster tank.
The cooler line shall be controlled with a quarter-turn ball valve on operator’s panel, and it shall be labeled "Pump Cooler
On/Off".
PUMP COOLER CHECK VALVE
There shall be a check valve installed in the pump cooler line to prevent tank water from back flowing into the pump when
it is not in use.
INTAKE RELIEF VALVE
There shall be an Elkhart intake relief valve system installed on the suction side of the pump. The system shall be
controlled by an adjustable pilot valve, and shall be designed to prevent vibration from altering the setting of the pilot
valve. Provisions for servicing the strainer and needle valve shall be provided at the control panel.
Such dumping shall be through a system of piping terminating in an area away from the operator’s position. The discharge
end of the piping shall not have a threaded connection.
PUMP MANUAL
Two (2) Pump Operation & Maintenance manual(s) shall be supplied at the time of delivery.
FIRE PUMP WARRANTY
The Waterous fire pump shall carry the manufacture's five (5) year warranty covering defective parts and workmanship. A
copy of the pump manufacturer’s warranty policy shall be provided with the completed apparatus.
FIRE PUMP PAINTING
The fire pump shall be painted red.
6" STEAMER SUCTION INLETS
There shall be two (2) 6" male steamer inlets, one (1) on each side of the apparatus. The suction fittings shall include a
removable die cast screen to provide cathodic protection for the pump thus reducing corrosion.
SVI #769
Page 104 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
SUCTION STREETSIDE
The streetside suction inlet shall be equipped with a 6" mechanically actuated valve installed on the pump inlets. The
valves shall be mounted behind the side panels and shall be controlled by a hand crank adjacent to the inlets. The valves
shall have open and closed indicators. The suction shall terminate with a 6" NSTM. One (1) 6" NSTF x 5" Storz elbow and
5" Storz cap shall be provided.
SUCTION CURBSIDE
The curbside suction inlet shall be equipped with a 6" mechanically actuated valve installed on the pump inlets. The
valves shall be mounted behind the side panels and shall be controlled by a hand crank adjacent to the inlets. The valves
shall have open and closed indicators. The suction shall terminate with a 6" NSTM. One (1) 6" NSTF x 5" Storz elbow and
5" Storz cap shall be provided.
ADVANTUS 3 FOAM SYSTEM DETAILED SPECIFICATIONS
The apparatus shall be equipped with an automatic microprocessor controlled, conductivity based, direct injection,
discharge side foam management system. The installed system shall be capable of accurately injecting all commercially
available Class A foam concentrates and most Class B foam concentrates. The foam injection and mixing operation shall
utilize electrical conductivity and temperature measurements of the clear water and foam solution as well as measured
water flow to provide highly accurate and consistent mix ratios within the specified flows and pressures. The system must
be accurate over the specified operational range when installed according to the instructions contained in the factory
supplied installation manual.
Microprocessor Controller
A 16-bit mixed signal microcontroller with 60 kB flash memory, 2 kB RAM and 12-bit analog to digital converter shall be
utilized to receive input from the incoming water conductivity probe, temperature sensor, flowmeter and foam solution
conductivity probe, compare values and control the foam pump motor, providing accurate injection into the foam process
manifold per the operator selected mix ratio. The controller and related electronics shall be located inside a sealed
aluminum housing which is mounted to the motor/pump mounting base plate. All electrical components of the foam
system shall be sealed to NEMA 4X standard or equivalent, suitable for mounting inside the apparatus pump
compartment.
Operator Interface Terminal
The system shall be equipped with an operator interface terminal (OIT) which shall be mounted on the pump operator’s
panel. The OIT housing shall be constructed of aluminum with a chrome plated finish. A UV stable polycarbonate overlay
with integral labeling shall be provided on the face of the OIT. The OIT shall be fastened to the pump panel with four
stainless steel, swing-out, self adjusting compression latches which eliminate the use of screws, nuts or bolts in the
attachment. The digital display shall consist of four .56” high digits, each with seven segment ultra-bright LED’s and
seven ultra-bright status LED’s. Four flush mounted pushbutton controls shall be provided on the control face which are
constructed of stainless steel and designed for millions of cycles in severe duty applications. The OIT shall enable the
pump operator to perform the following functions for the foam system:
Provide push-button control of foam ratios from 0.1% to 1%, in 0.1% increments; 3% and 6%
Show current flow-per-minute of water
Show total volume of water discharged during and after foam operations are completed
Show total amount of foam concentrate used
Show which foam supply tank is in use
Perform setup and calibrate functions for the microcontroller
Flash a “low concentrate” warning when the foam concentrate tank(s) run(s) low
Flash an “error” warning with associated code in the event of an electronic malfunction
Provide a manual back-up mode, controlled by the operator
SVI #769
Page 105 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
Means shall be provided for pre-selection of measurement units: U.S. Gallons, Imperial Gallons or Liters
Remote Activation
The system can be activated from an external 12 or 24-volt electrical source, such as a pump-in-gear circuit or engine
ignition power which can eliminate one step in the operational sequence.
Flowmeter
A paddlewheel-type flowmeter shall be installed in the process manifold upstream of the foam injection point and shall be
connected to the microcontroller. A stainless steel paddlewheel with jewel bearings and carbide axle shall be utilized for
improved accuracy and long life. The flowmeter shall have a 600 PSI (34 BAR) pressure rating per NFPA requirements.
The flowmeter function on the OIT shall display the water rate of flow in real time as well as the total water used during
and after foam operations.
Foam Pump
A 12 or 24-volt electric motor driven Hydra-Cell positive displacement foam concentrate pump, rated at 3 gpm (11.3 lpm)
at 150 psi (10 BAR) and with operating pressures up to 450 psi (32 BAR), shall be installed in a suitable, serviceable
location. The system shall draw a maximum electrical load of 40 amps @ 12 VDC or 21 amps @ 24 VDC. A pump motor
electronic driver, located inside the controller housing shall receive signals from the microcontroller and power the 1/2 hp
(.4 Kw) electric motor in a variable speed duty cycle to ensure that the correct amount of foam concentrate as set by the
pump operator is injected into the water stream. The highly efficient Hydra-Cell Industrial diaphragm pump is a
hydraulically balanced diaphragm pump offering many inherent advantages over other types of pumps for pumping foam
concentrates.
The Hydra-Cell pump converts rotating motion into linear motion by means of a drive shaft assembly, sequentially moving
hydraulic pistons which are filled with oil in a rearward and forward stroke. The oil held in the piston balances the back
side of the diaphragm and causes them to flex forward and back providing the pumping action.
To provide long lasting, trouble-free diaphragm life, the Hydra-Cell hydraulically balances the diaphragm over the pump’s
entire pressure range, even at peak pump pressures. Each diaphragm has its own pumping chamber with its own suction
and discharge valve assembly, so as each diaphragm strokes back, fluid enters the pump through the inlet and on the
forward stroke the diaphragm forces the fluid through the discharge valve assembly into the outlet manifold and out of the
pump. All of the diaphragms in the pump are equally spaced from one another while overlapping pumping strokes result in
low discharge pulsation. Pump output flow shall be proportional to pump shaft speed (RPM) regardless of pressure, thus
a linear flow relationship shall exist with increasing or decreasing pump RPM.
The pump shall be self priming and capable of drawing foam concentrate from reservoirs or containers which are located
below the pump inlet. Lift time and distance will depend on product viscosity. Overboard foam sources may be utilized
when the apparatus is equipped with the proper piping, connections and selector valve(s).
For reduced maintenance, the pump shall utilize no packing, cups or seals. All metal pump components which may come
in contact with foam concentrate shall be brass or stainless steel, making the pump resistant to chemical and corrosive
attack. It shall be capable of handling suspended abrasives without sustaining any damage. The pump shall also be
capable of running dry for extended periods without sustaining damage.
Control Cables and Connectors
The cables for interconnection of the control unit, OIT, conductivity sensors and flowmeter shall be electrically shielded to
prevent radio frequency or electro-mechanical interference.
Low Tank Level Switch
A low tank level float switch shall be installed in each foam concentrate tank and connected to the control unit to alert the
operator to low foam supply conditions
SVI #769
Page 106 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
Process Manifold – 2”, 2.5” or 3” ID
The foam system process manifold shall be constructed of Schedule 10 316 stainless steel. Victaulic groove connections
shall be provided at each end of the manifold for connection to the apparatus plumbing.
The process manifold shall include an incoming water conductivity probe with temperature sensor, paddlewheel
flowmeter, foam injection check valve, Akron Brass waterway check valve and foam solution conductivity probe.
An Akron full-flow brass body check valve shall be provided in the foam process manifold waterway to prevent foam
contamination of fire pump and water supply.
A check valve constructed of brass and stainless steel shall be provided in the foam concentrate line at the foam injection
point to prevent water backflow into the foam supply reservoir(s).
Conductivity probes shall be constructed of 316 stainless steel and include gap spacers and a reverse polarity feature to
prevent build-up of deposits on the probe surfaces.
The process manifolds, with all associated components installed, shall have the following flow ratings at 150 PSI:
2” – 400 GPM
2.5” – 750 GPM
3” – 1250 GPM
System Components
Components of the complete foam system supplied by Waterous shall include:
Operator interface terminal
Pump module with electric motor/motor driver and microcontroller unit
Foam concentrate strainer
Shielded electrical cables for connection of all electronic components
Process manifold - 2” ID (standard) 2.5” or 3” ID (optional) - with flowmeter and associated components as specified
Low level tank switch (optional)
Electrically actuated dual tank valve (if more than one tank) with flush system and panel mounted control switch (optional)
System diagram and rating placards (per NFPA 1901) for pump panel mounting (optional)
Installation, operation and service manuals
An installation and operation manual shall be provided for the unit along with a copy of the warranty policy. The system
must be installed and serviced by an authorized Waterous OEM or service center.
SVI #769
Page 107 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
Installer Supplied Items
The Advantus 3 system includes the major components required for installation with the exception of the following which
are to be supplied by the installer:
1. Foam Concentrate Supply Line(s)
Hose(s) and fittings that run from the foam tank to the foam pump inlet should be a minimum of ¾” inside diameter,
depending upon the viscosity of the foam concentrate(s) to be used. Hose and fittings must be rated for a minimum of
23 inches (584.2 mm) Hg of vacuum and 50 PSI (3 BAR) of pressure. The hose and fittings must made of corrosion
resistant material and be compatible with the foam concentrates to be used. Foam supply hose shall have a clear
wall as required by NFPA to allow viewing of foam priming operations.
2. Foam Concentrate Discharge Line
Hose(s) and fittings that are routed from the foam pump to the foam injection check valve should be a minimum of ½”
inside diameter and have a rated working pressure of at least 450 PSI (32 BAR). If the high pressure option is
selected, the rated working pressure of the hose and fittings shall be at least 600 PSI (41 BAR). The foam discharge
hose and fittings must made of corrosion resistant material and be compatible with the foam concentrates to be used.
3. Foam Concentrate Tank(s)
Foam concentrate tank(s) shall be supplied that suit the application and needs of the end user. The foam concentrate
tank(s) should meet the minimum requirements as published in the applicable NFPA apparatus standards.
4. Electrical Supply
Electrical wiring and circuit protection must be supplied and connected to the apparatus master electrical system as
described in the installation manual.
Warranty
The system shall have a two-year limited manufacturer’s warranty.
Discharges
Foam shall be provided to the following discharges:




Two (2) 1¾” Rear Hose Bed Pre-Connected Discharges
One (1) Booster Reel Discharge
One (1) Front Bumper 1¾” Discharge
One (1) Rear Hose Bed 2½” Alley Pre-Connected Discharge
PLUMBING SPECIFICATIONS
The fire pump plumbing system shall be of rigid or flexible piping with stainless steel fittings. Victaulic couplings shall be
installed to permit flexing of the plumbing system and allow for quick removal of piping or valves for service. Flexible hose
couplings shall be threaded stainless steel or Victaulic connections.
The fire pump and plumbing shall be hydrostatically tested in compliance to applicable sections of NFPA standards, with
test results submit with the delivery documentation.
SVI #769
Page 108 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STAINLESS STEEL INTAKE MANIFOLD
The suction manifold assembly shall be fabricated with Schedule #10 type 304 stainless steel. All threaded fittings shall
be a minimum of Schedule 10 stainless steel. The suction manifold assembly shall have radiused sweep elbows to
minimize water turbulence into the suction volute.
The suction manifold shall be welded and pressure tested prior to installation. The stainless steel manifold assembly shall
be attached to the pump intake volute with a heavy-duty, flexible Victaulic coupling.
The stainless steel manifold assembly shall have a ten (10) year warranty.
STAINLESS STEEL DISCHARGE MANIFOLD
The discharge manifold assembly shall be fabricated with Schedule #10 type 304 stainless steel. All threaded fittings shall
be a minimum of Schedule 10 stainless steel. The discharge manifold assembly shall have radiused sweep elbows to
minimize water turbulence into the discharge header.
The manifold shall be welded and pressure tested prior to installation. The stainless steel manifold assembly shall be
attached to the pump intake volute with a heavy-duty, flexible Victaulic coupling.
The stainless steel manifold assembly shall have a ten (10) year warranty.
INTAKES
The pump shall have a sufficient number and size of intakes to perform the apparatus pump system certification test. The
intakes shall have male National Hose Threads (NST) if the apparatus is to be used in the United States.
If the couplings on the suction hose carried on the apparatus are of a different size from that of the pump intake(s) or have
means of hose attachment other than that provided on the intake(s), an adapter(s) shall be provided to allow connection
of the suction hose to the pump intake(s).
A sign shall be provided on the pump operator’s panel that states the following:
WARNING: Death or serious injury might occur if proper operating
procedures are not followed. The pump operator as well as individuals
connecting supply or discharge hoses to the apparatus must be
familiar with water hydraulics hazards and component limitations.
Each intake shall have a removable or accessible strainer inside the connection. The strainer(s) shall restrict spherical
debris that is too large to pass through the pump.
At least one valved intake shall be provided that can be controlled from the pump operator’s position. The valve and
piping shall be a minimum 2-1/2 in. (65 mm) nominal size.
If the intake is 2-1/2 in. (65 mm) nominal size, the intake shall be equipped with a female swivel coupling with NH threads.
Any 3 in. (75 mm) or larger intake valve except the tank-to-pump intake valve shall be a slow-operating valve.
SVI #769
Page 109 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
Each valved intake shall be equipped with a bleeder valve having a minimum 3/4 in. (19 mm) pipe thread connection to
bleed off air or water. The bleeder valve shall be operational without the operator having to get under the apparatus. If a
valved appliance is attached to an intake, it shall be equipped with a 3/4 in. (19 mm) bleeder valve on each intake.
Bleeder valves for valved intakes 4 in. (100 mm) and larger not located at the pump operator’s panel shall be located
where the bleeder valve controls are visible and operationally functional while the operator remains stationary at the
valved intake position.
Each valved intake having a connection size larger than 3 in. (75 mm) shall be equipped with an adjustable automatic
pressure relief device installed on the supply side of the valve to bleed off pressure from a hose connected to the valved
intake.
All intakes shall be provided with caps or closures capable of withstanding a hydrostatic gauge pressure of 500 psi (3400
kPa). Intakes having male threads shall be equipped with caps; intakes having female threads shall be equipped with
plugs. Where adapters for special threads or other means for hose attachment are provided on the intakes, closures shall
be provided for the adapters in lieu of caps or plugs. Caps or closures for intake connections smaller than 4 in. (100 mm)
shall remain secured to the apparatus when removed from the connection.
If the suction inlets are to be equipped with a valve, siamese, or adapter that will remain in place while the apparatus is in
motion, that valve, siamese, or adapter shall not project beyond the apparatus running board. The purchaser shall specify
if any valve, siamese, or adapter is to be permanently installed on an intake and identify the brand and model of such
item.
The completed apparatus shall have the following intake(s);
SVI #769
Page 110 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
STREETSIDE INTAKE
There shall be one (1) 2½” gated intake(s) located on the streetside of the apparatus. Each 2½” intake shall terminate
with a 2½” NSTF chrome plated swivel adapter. There shall be one (1) 2½” NSTM chrome plated plug and chain for each
intake.
Each intake shall include:

One (1) Akron Brass 8000 series, 2½” valve(s)
-

Valve(s) shall be controlled with a swing type handle for direct valve operation through the pump operators
panel.
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.
CURBSIDE INTAKE
There shall be one (1) 2½” gated intake(s) located on the curbside of the apparatus. Each 2½” intake shall terminate with
a 2½” NSTF chrome plated swivel adapter. There shall be one (1) 2½” NSTM chrome plated plug and chain for each
intake.
Each intake shall include:

One (1) Akron Brass 8000 series, 2½” valve(s)
-

Valve(s) shall be controlled with a swing type handle for direct valve operation through the pump operators
panel.
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.
TANK TO PUMP CHECK VALVE
There shall be a check valve between the pump suction and the booster tank valve. The check valve shall eliminate back
flow into the water tank when the pump is connected to a pressurized source.
SVI #769
Page 111 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TANK TO PUMP VALVE
A 3" full flow ball valve shall be installed between the fire pump and the water tank. The connection between the tank and
the pump shall be capable of the flow recommendations as set forth in the latest edition of NFPA 1901. The valve shall be
flanged to bolt directly to the pump and shall incorporate a chromium plated bronze ball. The remaining internal moving
parts shall be stainless steel for years of dependable service. A non collapsible flexible hose shall be incorporated into
the tank to pump plumbing to allow movement in the line as the chassis flexes to avoid damage during normal road
operation.
The tank to pump valve shall be controlled from the pump operator's panel.
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.
DISCHARGES
A minimum of two 2-1/2 in. (65 mm) outlets shall be provided on any pump rated at 750 gpm (3000 L/min) or greater, and
a minimum of one 2-1/2 in. (65 mm) outlet shall be provided on any pump rated at less than 750 gpm (3000 L/min).
All 1-1/2" (65 mm) or larger discharge outlet connections shall be equipped with male National Hose Threads (NST).
Adapters with special threads or other means for hose attachment shall be permitted to be attached to any outlets.
The piping and valves supplying any pre-connected 1-1/2 in. (38 mm), 1-3/4 in. (45 mm), or 2 in. (52 mm) hose line,
including the piping to the pre-connected hose storage areas shall be at least 2 in. (52 mm) in size.
All discharge outlet connections, except connections to which a hose will be pre-connected, shall be equipped with caps
or closures capable of withstanding a hydrostatic gauge pressure of 100 psi (700 kPa) over the maximum pump close-off
pressure or 500 psi (3400 kPa), whichever is greater.
Where adapters are provided on the discharge outlet connections, the closures shall fit on the adapters.
Caps or closures for outlet connections smaller than 4 in. (100 mm) shall remain secured to the apparatus when removed
from the connection.
Each discharge outlet shall be equipped with a valve that can be opened and closed smoothly at pump discharge gauge
pressures of 250 psi (1700 kPa).
The flow-regulating element of each valve shall not change its position under any condition of operation that involves
discharge pressures to the maximum pressure of the pump; the means to prevent a change in position shall be
incorporated in the operating mechanism and shall be permitted to be manually or automatically controlled.
Any 3 in. (75 mm) or larger discharge valve shall be a slow-operating valve.
All 1-1/2 in. (38 mm) or larger discharge outlets shall be equipped with a drain or bleeder valve having a minimum 3.4 in.
(19 mm) pipe thread connection for draining or bleeding off pressure from a hose connected to the outlet.
Any 2 in. (52 mm) or larger discharge outlet that is located more than 42 in. (1070 mm) off the ground to which hose is to
be connected and that is not in a hose storage area shall be supplied with a sweep elbow of at least 30degrees
downward.
The completed apparatus shall have the following discharge(s);
SVI #769
Page 112 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
TANK FILL
There shall be one (1) tank fill discharge.
The discharge shall include:

One (1) Akron Brass 8000 series, 2" valve(s)
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.
CURBSIDE PUMP MODULE DISCHARGE(S)
There shall be two (2) 2½” gated discharge(s) located in this area. Each discharge shall terminate with a 2½” NSTF x 2½”
NSTM chrome 30 degree down sweep elbow with a 2½” NSTF x 1½” NSTM chrome reducer and cap.
Each discharge shall include:

Two (2) Akron Brass 8000 series, 2½” valve(s)
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

Two (2) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

Two (2) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
SVI #769
Page 113 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
There shall be one (1) 3½” gated discharge(s) located in this area. Each discharge shall terminate with a 3½” NSTF X
3½” NSTM chrome 30 degree elbow and 3½” NSTF x 5” Storz adapter and cap.
Each discharge shall include:

One (1) Akron Brass 8000 series, 3½” valve(s)
-
Valve(s) shall be controlled with a hand wheel connected to the gear actuated valve. The hand wheel actuator
with position indicator shall be located on the pump operator's panel.

One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

One (1) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
REAR DISCHARGE(S)
There shall be two (2) 1½” gated discharge(s) located on the streetside rear of the apparatus. Each discharge shall
terminate with a 1½” NSTF x 1½” NSTM chrome 30 degree down sweep elbow and cap.
Each discharge shall include:

Two (2) Akron Brass 8000 series, 2" valve(s)
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

Two (2) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

Two (2) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
SVI #769
Page 114 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
There shall be two (2) 3" gated discharge(s) located on the curbside rear of the apparatus. Each discharge will terminate
with a 3” NSTF x 3” NSTM chrome 30 degree down sweep elbow and cap.
Each discharge shall include:

Two (2) Akron Brass 8000 series, 3" valve(s).
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

Two (2) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

Two (2) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
FRONT DISCHARGE
There shall be one (1) 1½” gated discharge located on the front of the apparatus. The discharge shall terminate on the
officer side of the front bumper with a chrome 2” NPT Free Swivel x 1½” NSTM elbow.
The discharge shall include:

One (1) Akron Brass 8000 series, 2" valve
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

One (1) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
SVI #769
Page 115 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
MISCELLANEOUS DISCHARGE(S)
DECK GUN
One (1) Akron #3433 1,200 GPM manual deck gun with #5160 automatic nozzle, and #2499 stack tips shall be provided
and mounted on the deck gun discharge pipe. The discharge shall terminate with a 6-bolt flange with NSTM threads.
The discharge shall include:

One (1) Akron Brass 8000 series, 3" valve(s)
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

One (1) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
BOOSTER REEL
There shall be one (1) Hannay aluminum booster hose reel discharge with electric rewind motor located above the pump
module on the streetside of the apparatus. The booster reel shall have a capacity of 200' of 1" booster hose.
The booster reel discharge shall include:

One (1) Akron Brass 8000 series, 1" valve(s)
-
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to the
valve. The control handle shall be located adjacent to the plumbing connection.

One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting and
color coded labels shall be provided for the above plumbing item. The valve shall be able to manually open the
drain valve when the line is under pressure and will be located on pump panel and plumbed to drain the lowest
point in the plumbing.

One (1) Class 1 2½” liquid filled gauge(s)
-
This gauge(s) shall have a white background with black text.
-
The above gauge shall have a range from 0 to 400 psi.
SVI #769
Page 116 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
BOOSTER REEL HOSE GUIDE ROLLERS
The Hannay booster reel shall be equipped with one (1) set(s) of FH-3 hose guide rollers.
A clip type mounting bracket shall be provided in the reel compartment to hold a booster nozzle.
At the corners of the compartment near the booster hose reel provide vertically installed heavy duty, stainless steel rollers
to provide easy hose movement around the apparatus. (4 total)
BOOSTER REEL HOSE
Two (2) 100' x 1" section(s) of Neidner "ReelTex" booster hose coupled with 1" NST Pyrolite coupling shall be provided on
the specified booster reel.
SIDE MOUNT PUMP ENCLOSURE
The side mount pump enclosure shall be removable and supported from the chassis frame rails. This enclosure will allow
independent flexing of the pump enclosure from the body and allow for quick removal. The support structure shall be
constructed of extruded aluminum tubing and angle.
All pump suction and discharge controls are to be mounted on the driver side pump operator's panel so as to permit
operation of the pump from a central location. The fire pump, valves and controls shall be accessible for service and
maintenance as required by applicable sections of NFPA standards.
The "master" gauges shall be suitably enclosed and mounted on a full pump compartment width "hinged" gauge panel
constructed of the same material as the pump operators control panel, allowing access to the backside of all gauges and
gauge lines. The individual gauges shall be mounted inline with the control handle or adjacent to the control handle. Panel
is to include a stainless steel piano hinge, flush mounted chrome plated trigger latch, and stainless steel cable end stops.
Electrical wiring and all gauge lines shall be properly tie wrapped to prevent kinking or cutting of the lines when the panel
is opened.
The following controls and equipment shall be provided on the pump panel or within the pump enclosure:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Electric primer.
Pump and plumbing area service lights.
Pressure control device and throttle control.
Fire pump and engine instruments.
Pump intakes and discharge controls.
Master intake and discharge gauges.
Tank fill control.
Tank suction control.
Water tank level gauge.
Pump panel lights.
LEFT SIDE RUNNING BOARD - SIDE MOUNT PANEL
The left side mount pump panel shall be equipped with side running board. The running board will extend along the width
of the pump enclosure from the forward end of the body module to behind the chassis cab.
The running board shall be constructed of aluminum tread plate, bolted in place with stainless steel fasteners. The step
surfaces shall be in compliance to applicable sections of NFPA requirements.
SVI #769
Page 117 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
RIGHT SIDE RUNNING BOARD - SIDE MOUNT PANEL
The right side mount pump panel shall be equipped with side running board. The running board will extend along the
width of the pump enclosure from the forward end of the body module to behind the chassis cab.
The running board shall be constructed of aluminum tread plate, bolted in place with stainless steel fasteners. The step
surfaces shall be in compliance to applicable sections of NFPA requirements.
RIGHT SIDE RUNNING BOARD – HOSE WELL
The running board shall contain a hose well designed to carry a minimum of 50’ of 5” soft suction hose with hold down
provisions.
PUMP ENCLOSURE ACCESS DOOR - LEFT SIDE UPPER
A vertically hinged pump panel access door shall be provided on the upper left side of the side mount pump enclosure.
The access door shall be hinged toward the front of the module and be approximately 18" high and as wide as possible.
The door shall be constructed of smooth plate aluminum powder coated black with push button type latches.
PUMP ENCLOSURE ACCESS DOOR - RIGHT SIDE UPPER
A vertically hinged pump panel access door shall be provided on the upper right side of the side mount pump enclosure.
The access door shall be hinged toward the front of the module and be approximately 18" high and as wide as possible.
The door shall be constructed of smooth plate aluminum powder coated black with thumb screw type fasteners.
PUMP PANEL - SIDE MOUNT
The pump operator's panel, along with the lower left hand and right hand pump panels shall be constructed of smooth
plate aluminum powder coated black and be fastened to the pump enclosure with 1/4" stainless steel bolts.
The instrument area shall have a stainless steel continuous hinge that shall swing towards the front of the module for easy
access to gauges.
LEFT SIDE PUMP PANEL - BOLTED
The pump panel installed on the left hand side of the pump enclosure shall be fastened to the pump enclosure with 1/4"
stainless steel bolts and nutserts.
RIGHT SIDE PUMP PANEL - BOLTED
The pump panel installed on the right hand side of the pump enclosure shall be fastened to the pump enclosure with 1/4"
stainless steel bolts and nutserts.
LABELS
Safety, information, data, and instruction labels for apparatus shall be provided and installed at the operator's instrument
panel.
The labels shall include rated capacities, pressure ratings, and engine speeds as determined by the certification tests.
The no-load governed speed of the engine, as stated by the engine manufacturer, shall also be included.
The labels shall be provided with all information and be attached to the apparatus prior to delivery.
SVI #769
Page 118 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
COLOR CODED PUMP PANEL LABELING AND NAMEPLATES
Discharge and intake valve controls shall be color coded in compliance to guidelines of applicable sections of NFPA
standards Permanent type nameplates and instruction panels shall be installed on the pump panel for safe operation of
the pumping equipment and controls.
PRESSURE GOVERNOR and MONITORING DISPLAY
Fire Research PumpBoss model PBA100-A00 pressure governor and monitoring display kit shall be installed. The kit shall
include a control module, pressure sensor, and cables. The control module case shall be waterproof and have dimensions
not to exceed 6 3/4" high by 4 5/8" wide by 1 3/4" deep. Inputs for monitored information shall be from a J1939 databus or
independent sensors. Outputs for engine control shall be on the J1939 databus or engine specific wiring.
The following continuous displays shall be provided:
 CHECK ENGINE and STOP ENGINE warning LEDs
 Engine RPM; shown with four daylight bright LED digits more than 1/2" high
 Engine OIL PRESSURE; shown on an LED bar graph display in 10 psi increments
 Engine TEMPERTURE; shown on an LED bar graph display in 10 degree increments
 BATTERY VOLTAGE; shown on an LED bar graph display in 0.5 volt increments
 PSI / RPM setting; shown on a dot matrix message display
 PSI and RPM mode LEDs
 THROTTLE READY LED
A dot-matrix message display shall show diagnostic and warning messages as they occur. It shall show monitored
apparatus information, stored data, and program options when selected by the operator.
The program shall store the accumulated operating hours for the pump and engine, previous incident hours, and current
incident hours in a non-volatile memory. Stored elapsed hours shall be displayed at the push of a button. It shall monitor
inputs and support audible and visual warning alarms for the following conditions:
 High Engine RPM
 High Transmission Temperature
 Low Battery Voltage (Engine Off)
 Low Battery Voltage (Engine Running)
 High Battery Voltage
 Low Engine Oil Pressure
 High Engine Coolant Temperature
The governor shall operate in two control modes, pressure and RPM. No discharge pressure or engine RPM variation
shall occur when switching between modes. A control knob that uses optical technology shall adjust pressure or RPM
settings. It shall be 2" in diameter with no mechanical stops, a serrated grip, and have a red idle push button in the center.
A throttle ready LED shall light when the interlock signal is recognized. The governor shall start in pressure mode and set
the engine RPM to idle. In pressure mode the governor shall automatically regulate the discharge pressure at the level set
by the operator. In RPM mode the governor shall maintain the engine RPM at the level set by the operator except in the
event of a discharge pressure increase. The governor shall limit a discharge pressure increase in RPM mode to a
maximum of 30 psi. Other safety features shall include recognition of no water conditions with an automatic programmed
response and a push button to return the engine to idle.
The pressure governor and monitoring display shall be programmed to interface with a specific engine.
SVI #769
Page 119 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
AUXILIARY FUEL LEVEL GAUGE
There shall be one (1) auxiliary fuel gauge mounted to the left side pump operators panel to display the chassis fuel level.
TEST TAPS
Test taps for pump intake and pump pressure shall be provided on the pump instrument panel and be properly labeled.
UPF "L" POLY WATER TANK
The water tank capacity shall be approximately 750 U.S. gallons. Certification of the tank capacity shall be recorded on
the manufacturer's record of construction and shall be provided to the purchaser upon delivery of the apparatus.
The UPF Poly-Tank ® IIE shall be constructed of 1/2" thick PT2E™ polypropylene sheet stock. This material shall be a
noncorrosive stress relieved thermoplastic, natural in color, and U.V. stabilized for maximum protection.
The booster tank shall be of a specific configuration and shall be so designed to be completely independent of the body
and compartments. All joints and seams shall be nitrogen welded and tested for maximum strength and integrity. The top
of the booster tank shall be fitted with removable lifting eyes designed with a 3 to 1 safety factor to facilitate easy removal.
The transverse swash partitions shall be manufactured of 3/8" PT2E™ polypropylene (natural in color) and extend from
approximately 4" off the floor to just under the cover. The longitudinal swash partitions shall be constructed of 3/8" PT2E
polypropylene (natural in color) and extend to the floor of the tank through the cover to allow for positive welding and
maximum integrity. All partitions shall be equipped with vent and air holes to permit movement of air and water between
compartments. The partitions shall be designed to provide maximum water flow. All swash partitions shall interlock with
one another and be welded to each other as well as to the walls of the tank.
There shall be one (1) sump in the bottom of the water tank. The sump shall be constructed of 1/2" polypropylene and
shall be located in the left front quarter of the tank. On all tanks that require a front suction, a 4" schedule 40
polypropylene pipe shall be installed that will incorporate a dip tube from the front of the tank to the sump location. The
sump shall be used as a combination clean-out and drain. All tanks shall have an anti-swirl plate located approximately 2"
above the sump to pre-vent air from being entrained in the water while pumping.
All tank fill couplings shall be backed with flow deflectors to break up the stream of water entering the tank, and shall be
capable of withstanding sustained fill rates of up to 1,000 GPM.
The tank lid shall be constructed of 1/2" thick PT2E™ polypropylene to incorporate a multi three-piece locking design that
allows for individual removal and inspection if necessary. The tank lid shall be recessed 3/8" from the top of the tank and
shall be welded to both sides and longitudinal partitions for maximum integrity. Each one of the lids shall have hold
downs consisting of 2" polypropylene dowels spaced a maximum of 30" apart. These dowels shall extend through the
covers and shall assist in keeping the covers rigid under fast filling conditions. A minimum of two lifting dowels shall be
drilled and tapped 1/2" x 13" to accommodate the lifting eyes.
The tank shall be isolated from the cross members through the use of hard rubber strips with, a minimum Rockwell
Hardness of 60 durometer. Additionally, the tank shall be supported around the entire perimeter and captured both front
and rear as well as side to side to prevent the tank from shifting during vehicle operation.
Although the tank shall be designed on a free floating suspension principle, it shall be required that the tank have
adequate hold down restraints to minimize movement during vehicle operation.
The tank shall be completely removable without disturbing or dismantling the apparatus structure.
SVI #769
Page 120 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
The tank shall have a lifetime warranty from UPF.
TANK FILL / VENT
The tank shall have a combination vent and manual fill tower marked "Water Fill." The fill tower shall be constructed of
1/2" PT2E polypropylene and shall be a minimum dimension of 8" x 8" at the outer perimeter.
The tower shall be located in the left front corner of the tank. The tower shall have a 1/4" thick removable polypropylene
screen and a PT2E polypropylene hinged-type cover. Inside the fill tower, approximately 4" down from the top, shall be
fastened a combination vent overflow pipe. The vent overflow shall be a minimum of schedule 40 polypropylene pipe that
is designed to run through the tank, and shall be piped behind the rear wheels so as to obtain maximum traction.
There shall be an auxiliary tank vent piped to the rear of the tank to void trapped air and allow filling the tank to the
maximum when filling on un level surfaces.
UPF TANK OVERFLOW
The tank shall be equipped with a minimum of a 6" schedule 40 polypropylene overflow / air vent pipe. The pipe shall be
installed in the fill tower and extend through the tank and dump to the rear of the rear axle.
WATER TANK LEVEL GAUGE
One (1) Fire Research TankVision model WLA200-A00 tank indicator kit shall be installed. The kit shall include an
electronic indicator module, a pressure sensor, and a 10' sensor cable. The indicator shall show the volume of water in
the tank on nine (9) easy to see super bright LEDs. A wide view lens over the LEDs shall provide for a viewing angle of
180 degrees. The indicator case shall be waterproof, manufactured of aluminum, and have a distinctive blue label.
The program features shall be accessed from the front of the indicator module. The program shall support self-diagnostics
capabilities, self-calibration, and a datalink to connect remote indicators. Low water warnings shall include flashing LEDs
at 1/4 tank, down chasing LEDs when the tank is almost empty, and an output for an audio alarm.
The indicator shall receive an input signal from an electronic pressure sensor. The sensor shall be mounted from the
outside of the water tank near the bottom. No probe shall place on the interior of the tank. Wiring shall be weather
resistant and have automotive type plug-in connectors.
CLASS A POLYPROPYLENE FOAM CELL
There shall be one (1) 20 U.S. gallon polypropylene foam cell(s) incorporated into the polypropylene water tank.
There shall be one (1) pressure/vacuum vent installed on the foam tank.
There shall be one (1) drain hose connected to the foam cell. The drain shall have a 1/4 turn valve installed inside the
pump house and it shall drain below the frame rail of the chassis.
SVI #769
Page 121 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
FOAM TANK LEVEL GAUGE
One (1) Fire Research TankVision model WLA260-B00 tank remote indicator shall be installed. The indicator shall show
the volume of Class A foam concentrate in the tank on nine (9) easy to see super bright LEDs. A wide view lens over the
LEDs shall provide for a viewing angle of 180 degrees. The indicator case shall be waterproof, manufactured of
aluminum, and have a distinctive green label.
The remote indicator shall receive input information over a datalink from a Fire Research TankVision model WLA260-A00
tank primary indicator. It shall mirror the primary indicator. A 10' cable shall be provided to connect the datalink. The
remote indicator shall have the same program as the primary so that the two indicators are interchangeable.
HOSE BED STORAGE AREA
Hose bed storage area shall be located over water tank and body, and shall exit at the rear of the apparatus. The interior
of storage area shall be free from all projections such as nuts, sharp angles, or brackets that may damage equipment.
Length of hose bed shall be approximately 96” deep. The bottom of hose bed shall be no more than 68" above road
surface. All pre-connected hose line discharges shall be accessible just below the hose bed on the rear of the apparatus.
Hose bed shall be laid out as follows;







Far Left Side:
Left Side:
Left Center/Center:
Right Center:
Right Side:
Right Side:
Far Right:
200” of 1 ¾” Pre-Connect
300’ of 2” Pre-Connect
1000’ of 5” LDH Dead Load
400’ of 2 ½” Dead loaded
250’ of 3” Pre-Connect with 100’ of 2” to lay on top for alley line.
Backboard storage
300’ of 3” Pre-connect, with space available for mounting a Blitz Fire Monitor
Additional hose storage will be as follows:



Front Bumper:
Booster line reel:
Right Side Pump:
200’ of 1 ¾” in a flat or triple flat load
200’ of 1” hose will be mounted above the pump panel on the driver’s side
50’ of 5” soft suction hose
ALUMINUM HOSE BED DECKING
The hose bed deck shall be constructed from 3" x 3/4" hollow aluminum extrusions welded into a one-piece grid to allow
ventilation and water drainage. The extrusions shall have an anodized radiused ribbed top surface. The deck will be
completely removable for easy access to the booster tank. The booster tank fill tower shall be protected as necessary to
prevent damage from equipment located in the storage area.
HOSE BED LIGHTS
Four (4) OnScene Solutions 9" LED Night Stik lights provided to illuminate the upper body walkway area. The lights shall
be activated when the hose bed doors are opened.
Each light shall be mounted in a polished cast aluminum housing to protect against damage from personnel or equipment.
SVI #769
Page 122 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
HOSE BED DIVIDER(S)
Five (5) adjustable aluminum hose bed partition(s) shall be provided in the hose storage area. The partition(s) shall be
constructed from 3/16” smooth plate aluminum with split aluminum tubing welded to the top and rear edges. Hand holes
shall be provided along the outer edge to assist with movement in the hose bed area.
ALUMINUM HOSE BED COVER
A two-section hose bed cover shall be provided. Each door shall be fabricated from 1/8" NFPA aluminum treadplate with
formed hat sections for bracing. Doors shall be hinged along each side of the hose body using stainless steel piano hinge.
The top surface of each section shall slant down with the highest point in the center of the hose bed area and shall be
supported from underneath by at least one (1) adjustable hose bed divider.
Each section shall be constructed to support the weight of a person (300 lbs).
Each section shall utilize pneumatic cylinders to assist with opening and closing. There shall be a chrome grab handle on
each section at the rear of the hose body.
Each compartment shall have a horizontally mounted LED light stick on the underside of the door that will be
automatically activated when the door is opened and wired to the compartment door ajar warning light provided in cab.
SVI #769
Page 123 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE
In compliance with NFPA 1901 standards, the pumper shall be designed for an equipment loading allowance of 2,500 lbs.
of Loveland Fire & Rescue provided loose equipment based on the pumper body having more than 250 cu. ft. of storage
space.
Loveland Fire & Rescue has specified equipment weight of 4,500 pounds not inc. hose and ladders.
EQUIPMENT
The following equipment shall be furnished with the completed pumper vehicle;

One (1) container of assorted stainless steel nuts, bolts, screws and washers used in the construction of the
apparatus shall be provided with the completed apparatus.

There shall be two (2) NFPA approved folding aluminum wheel chocks provided for 44" diameter tires that
together will hold the vehicle when loaded to its GVWR or GCWR, on a hard surface with a 20 % grade, with the
transmission in neutral, and the parking brake released.
−

One (1) Duo-Safety 900-A series 24' 2-section extension ladder(s) shall be provided with the completed unit.
−

−
The above specified pike pole will have a D handle attached
The pike pole(s) shall be mounted on the specified ladder rack.
One (1) Akron UT-10 10' fiberglass pike pole(s) shall be provided with the completed unit.
−
−

The ladder(s) shall be mounted on the specified ladder rack.
One (1) Nupla 8' Trash/Arson hook with fiberglass handle shall be provided with the completed unit.
−

The ladder(s) shall be mounted on the specified ladder rack.
One (1) Duo-Safety 585-A 10' aluminum folding ladder(s) shall be provided with the completed unit.
−

The ladder(s) shall be mounted on the specified ladder rack.
One (1) Duo-Safety 775A series 14' aluminum roof ladder(s) shall be provided with the completed unit.
−

The wheel chock(s) shall be mounted behind rear wheels, below body on streetside.
The above specified pike pole will not have a D handle attached
The pike pole(s) shall be mounted on the specified ladder rack.
Four (4) Bright Star Lighthawk flashlight(s) shall be provided. Each flashlight shall be orange in color. Each
flashlight shall have a 12 volt DC charger and vehicle mount kit. Each flashlight shall have a 12 watt xenon style
bulb and reflector. The flashlights shall be wired to battery direct unless otherwise specified by the customer.
−
SVI #769
The flashlight(s) shall be mounted on the completed unit, locations as per the Loveland Fire & Rescue.
Page 124 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
Loveland Fire/Rescue
Pumper
Production Specification

Two (2) 5" x 10' clear PVC suction hose with Storz fittings shall be provided with completed unit.

One (1) 5" NST barrel strainers with foot valve to match hard suction hose provided shall be provided with
completed unit.
−

The suction hose(s) shall be mounted on streetside above wheels in formed aluminum hard suction tray(s).
Loveland Fire & Rescue supplied NFPA required fire hose and nozzles shall be provided on completed unit
before placing vehicle in service.
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER
All other minor equipment not specified above, but required by NFPA 1901 before the unit is placed in service shall be
supplied and mounted by Loveland Fire & Rescue.
SVI #769
Page 125 of 125
..\4) Pricing & Change Orders\Production Change Order.pdf
June 17, 2010
