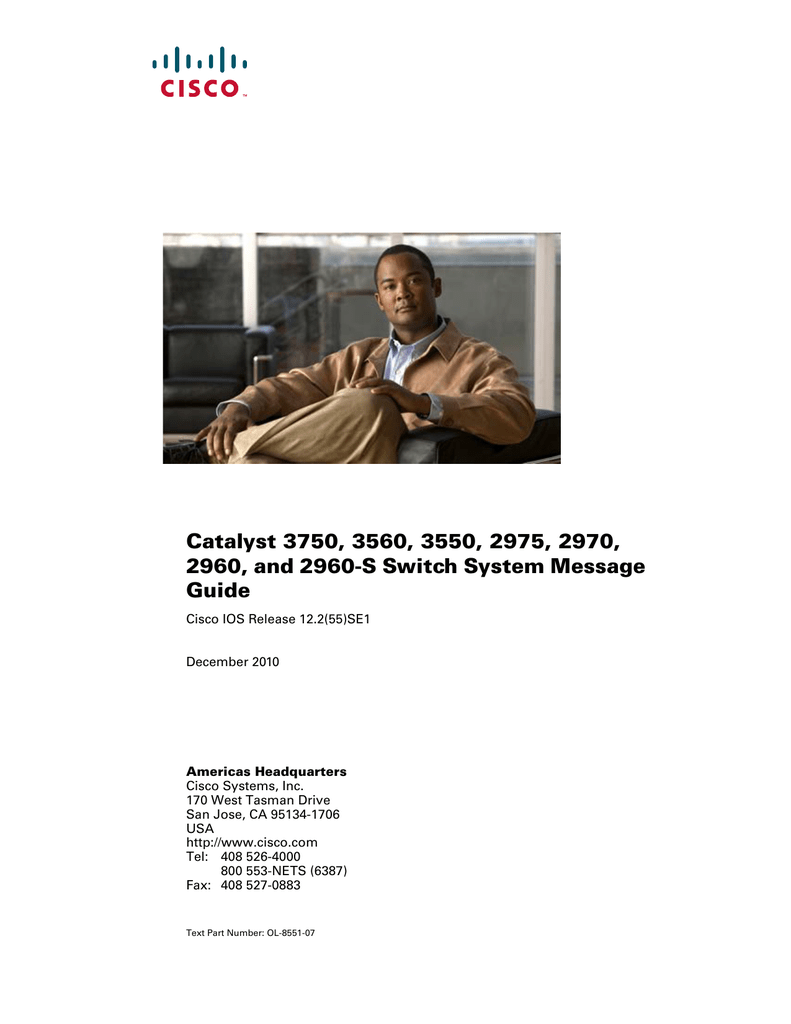

Cisco Catalyst 3750 Series Switches Guide

Catalyst 3750, 3560, 3550, 2975, 2970,

2960, and 2960-S Switch System Message

Guide

Cisco IOS Release 12.2(55)SE1

December 2010

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA http://www.cisco.com

800 553-NETS (6387)

Text Part Number: OL-8551-07

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks . Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

C H A P T E R

1

C H A P T E R

2

OL-8551-07

C O N T E N T S

Preface

vii

Purpose

vii

Conventions

vii

Related Publications

viii

Obtaining Documentation and Submitting a Service Request

System Message Overview

1-1

How to Read System Messages

1-1

Error Message Traceback Reports

1-9

Output Interpreter

1-9

Bug Toolkit

1-9

Contacting TAC

1-9

Message and Recovery Procedures

2-1

ACLMGR Messages

2-3

AUTHMGR Messages

2-8

AUTOQOS Messages

2-9

BACKUP_INTERFACE Messages

2-9

BADTRANSCEIVER Messages

2-10

BSPATCH Messages

2-10

CFGMGR Messages

2-11

CMP Messages

2-14

DHCP_SNOOPING Messages

2-15

DHCP_SNOOPING_CAT3550 Messages

2-18

DOT1Q_TUNNELLING Messages

2-19

DOT1X Messages

2-19

DOT1X_SWITCH Messages

2-21

DTP Messages

2-25

DWL Messages

2-26

EC Messages

2-27

ENVIRONMENT Messages

2-32

EPM Messages

2-32

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide iii

Contents

ETHCNTR Messages

2-32

EXPRESS_SETUP Messages

2-37

FM Messages

2-37

FRNTEND_CTRLR Messages

2-47

GBIC Messages

2-48

GBIC_SECURITY Messages

2-52

GBIC_SECURITY_CRYPT Messages

2-54

GBIC_SECURITY_UNIQUE Messages

2-55

GIGASTACK Messages

2-57

HARDWARE Messages

2-58

HLFM Messages

2-60

HPSECURE Messages

2-61

HULC Messages

2-62

IDBMAN Messages

2-62

IFMGR Messages

2-65

IGMP_QUERIER Messages

2-66

ILET Messages

2-67

ILPOWER Messages

2-68

IMAGEMGR Messages

2-74

IP_DEVICE_TRACKING_HA Messages

2-75

L2TM Messages

2-76

L3TCAM Messages

2-77

MAC_LIMIT Messages

2-77

MAC_MOVE Messages

2-78

NETWORK_PORT_SATELLITE Messages

2-79

PAGP_DUAL_ACTIVE Messages

2-79

PBR Messages

2-80

PHY Messages

2-83

PIMSN Messages

2-85

PLATFORM Messages

2-86

PLATFORM_FBM Messages

2-88

PLATFORM_HCEF Messages

2-88

PLATFORM_HPLM Messages

2-90

PLATFORM _IPC Messages

2-91

PLATFORM_IPv6 Message

2-92

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide iv OL-8551-07

OL-8551-07

PLATFORM_PBR Messages

2-93

PLATFORM_PM Messages

2-95

PLATFORM_RPC Messages

2-96

PLATFORM_SPAN Messages

2-98

PLATFORM_UCAST Messages

2-99

PLATFORM_VLAN Messages

2-102

PLATFORM_WCCP Messages

2-103

PM Messages

2-104

PORT_SECURITY Messages

2-112

POWERNET Messages

2-113

QATM Messages

2-114

QM Messages

2-115

QOSMGR Messages

2-118

RMON Messages

2-125

SCHED Messages

2-125

SDM Messages

2-126

SPAN Messages

2-126

SPANTREE Messages

2-127

SPANTREE_FAST Messages

2-136

SPANTREE_VLAN_SW Messages

2-136

STACKMGR Messages

2-137

STORM_CONTROL Messages

2-140

SUPERVISOR Messages

2-140

SUPQ Messages

2-141

SW_DAI Messages

2-143

SW_MACAUTH Messages

2-146

SW_MATM Messages

2-146

SW_VLAN Messages

2-147

SWITCH_QOS_TB Messages

2-154

TCAMMGR Messages

2-155

UDLD Messages

2-157

UFAST_MCAST_SW Messages

2-159

VQPCLIENT Messages

2-159

WCCP Messages

2-161

WRLSCNTR Messages

2-161

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

Contents v

Contents

N D E X

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Preface

Purpose

This guide describes the Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S switch-specific system messages that you might encounter. For a complete list of Cisco IOS system error messages, see the Cisco IOS Software System Error Messages, Cisco IOS Release 12.2.

This guide does not describe how to install your switch or how to configure software features on your switch. It also does not provide detailed information about commands that have been created or changed for use by the switch. For hardware installation information, see the hardware installation guide that shipped with your switch. For software information, see the software configuration guide and the command reference for this release.

For documentation updates, see the release notes for this release.

Conventions

This publication uses these conventions to convey instructions and information:

Command descriptions use these conventions:

•

Commands and keywords are in boldface text.

•

Arguments for which you supply values are in italic.

Square brackets ([ ]) mean optional elements.

•

Braces ({ }) group required choices, and vertical bars ( | ) separate the alternative elements.

Braces and vertical bars within square brackets ([{ | }]) mean a required choice within an optional element.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide vii

Preface

Interactive examples use these conventions:

•

Terminal sessions and system displays are in screen

Information you enter is in

boldface screen

font.

•

Nonprinting characters, such as passwords or tabs, are in angle brackets (< >).

Notes use this convention and symbol:

Note

Means reader take note. Notes contain helpful suggestions or references to materials not in this manual.

Related Publications

These documents provide complete information about the switch and are available from this Cisco.com site:

Catalyst 3750 switch http://www.cisco.com/en/US/products/hw/switches/ps5023/tsd_products_support_series_home.html

Catalyst 3560 switch http://www.cisco.com/en/US/products/hw/switches/ps5528/tsd_products_support_series_home.html

Catalyst 3550 switch http://www.cisco.com/en/US/products/hw/switches/ps646/tsd_products_support_series_home.html

Catalyst 2975 switch http://www.cisco.com/en/US/products/ps10081/tsd_products_support_series_home.html

Catalyst 2970 switch http://www.cisco.com/en/US/products/hw/switches/ps5206/tsd_products_support_eol_series_home.ht

Catalyst 2960 and 2960-S switches http://www.cisco.com/en/US/products/ps6406/tsd_products_support_series_home.html

Note

Before installing, configuring, or upgrading the switch, see these documents:

•

For initial configuration information, see the “Using Express Setup” chapter in the getting started guide or the “Configuring the Switch with the CLI-Based Setup Program” appendix in the hardware installation guide.

•

For device manager requirements, see the “System Requirements” section in the release notes.

For Network Assistant requirements, see the Getting Started with Cisco Network Assistant.

For cluster requirements, see the Release Notes for Cisco Network Assistant.

For upgrade information, see the “Downloading Software” section in the release notes.

viii

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Preface

OL-8551-07

This is a combined document for the switches:

•

Release Notes for the Catalyst 3750, 3560, 3550, 2970, 2960, and 2960-S Switches

These documents are available for the Catalyst 3750 switch:

•

Catalyst 3750 Switch Software Configuration Guide

Catalyst 3750 Switch Command Reference

Catalyst 3750 Switch Hardware Installation Guide

Catalyst 3750 Switch Getting Started Guide

•

Regulatory Compliance and Safety Information for the Catalyst 3750 Switch

These documents are available for the Catalyst 3560 switch:

•

Catalyst 3560 Switch Software Configuration Guide

Catalyst 3560 Switch Command Reference

Catalyst 3560 Switch Hardware Installation Guide

Catalyst 3560 Switch Getting Started Guide

•

Regulatory Compliance and Safety Information for the Catalyst 3560 Switch

These documents are available for the Catalyst 3550 switch:

•

Catalyst 3550 Multilayer Switch Software Configuration Guide

Catalyst 3550 Multilayer Switch Command Reference

Catalyst 3550 Multilayer Switch Hardware Installation Guide

Catalyst 3550 Multilayer Switch Getting Started Guide

•

Regulatory Compliance and Safety Information for the Catalyst 3550 Multilayer Switch

These documents are available for the Catalyst 2975 switch:

•

Catalyst 2975 Switch Software Configuration Guide

Catalyst 2975 Switch Command Reference

Catalyst 2975 Switch Hardware Installation Guide

Catalyst 2975 Switch Getting Started Guide

Regulatory Compliance and Safety Information for the Catalyst 2975 Switch

Release Notes for the Catalyst 2975 Switches

These documents are available for the Catalyst 2970 switch:

•

Catalyst 2970 Switch Software Configuration Guide

•

Catalyst 2970 Switch Command Reference

Catalyst 2970 Switch Hardware Installation Guide

Catalyst 2970 Switch Getting Started Guide

Regulatory Compliance and Safety Information for the Catalyst 2970 Switch

These documents are available for the Catalyst 2960 and 2960-S switch:

•

Release Notes for the Catalyst 2960-S Switches

•

Catalyst 2960 Switch Getting Started Guide

Catalyst 2960-S Switch Getting Started Guide

Catalyst 2960 and 2960-S Switch Software Configuration Guide

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide ix

Preface

•

Catalyst 2960 and 2960-S Switch Command Reference

Catalyst 2960 Switch Hardware Installation Guide

Catalyst 2960-S Switch Hardware Installation Guide

•

Regulatory Compliance and Safety Information for the Catalyst 2960 and 2960-S Switch

See these documents for other information about the switches:

•

Release Notes for Cisco Network Assistant

Getting Started with Cisco Network Assistant

Cisco RPS 300 Redundant Power System Hardware Installation Guide

Cisco RPS 675 Redundant Power System Hardware Installation Guide

For information about the Network Admission Control (NAC) features, see the Network Admission

Control Software Configuration Guide

Information about Cisco SFP, SFP+, and GBIC modules is available from this Cisco.com site: http://www.cisco.com/en/US/products/hw/modules/ps5455/prod_installation_guides_list.html

SFP compatibility matrix documents are available from this Cisco.com site: http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.ht

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

C H A P T E R

System Message Overview

This guide describes the Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S-specific system messages. During operation, the system software sends these messages to the console (and, optionally, to a logging server on another system). Not all system messages mean problems with your system. Some messages are informational, and others can help diagnose problems with communications lines, internal hardware, or the system software.

Note

For information about system messages that are not Catalyst 3750, 3560, 3550, 2975, 2970, 2960, or

2960-S platform-specific, see the Cisco IOS Software System Messages for Cisco IOS Release 12.2S on www.cisco.com.

•

How to Read System Messages, page 1-1

Error Message Traceback Reports, page 1-9

How to Read System Messages

System log messages can contain up to 80 characters and a percent sign (%), which follows the optional sequence number or time-stamp information, if configured. Messages appear in this format:

seq no:timestamp: %facility-severity-MNEMONIC:description (hostname-n) (only Catalyst 3750, 2975, and 2960-S switches)

seq no:timestamp: %facility-severity-MNEMONIC:description (switches other than Catalyst 3750,

2975, and 2960-S switches)

By default, a switch sends the output from system messages to a logging process. In a switch stack, stack members append their hostnames to the output from system messages and redirect the output to the logging process on the stack master.

Each system message begins with a percent sign (%) and is structured as follows:

%FACILITY-SEVERITY-MNEMONIC: Message-text

•

FACILITY is two or more uppercase letters that show the facility to which the message refers. A

facility can be a hardware device, a protocol, or a module of the system software. Table 1-1 lists

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S-specific facility codes.

These messages are described in

Chapter 2, “Message and Recovery Procedures,” in alphabetical

order by facility code, with the most severe (lowest number) errors described first.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-1 OL-8551-07

Chapter 1 System Message Overview

How to Read System Messages

Table 1-1 Facility Codes

Facility Code

ACLMGRR

AUTHMGR

DOT1X_SWITCH

DTP

DWL

Description

ACL manager

Authorization manager

802.1x for switches

Dynamic Trunking Protocol

Down-when-looped

Location

“ACLMGR Messages” section on page 2-3

“AUTHMGR Messages” section on page 2-8

“AUTOQOS Messages” section on page 2-9

AUTOQOS

BACKUP_INTERFACE

BADTRANSCEIVER

BSPATCH

CFGMGR

CMP

DHCP_SNOOPING

Defective transceiver messages

(only 3750, 2975, 2960-S switches)

Boot loader patch

DHCP_SNOOPING_CAT3550 DHCP snooping (only Catalyst

3550 switches)

DOT1Q_TUNNELLING

DOT1X

Automatic quality of service

(auto-QoS) (only Catalyst 3550 switches)

Flex Links

802.1Q tunneling (only Catalyst

3550 switches)

802.1x

“BACKUP_INTERFACE

Messages” section on page 2-9

“BADTRANSCEIVER

Messages” section on page 2-10

Configuration manager (only

Catalyst 3750, 2975, and 2960-S switches)

Cluster Membership Protocol

“BSPATCH Messages” section on page 2-10

“CFGMGR Messages” section on page 2-11

DHCP snooping

“CMP Messages” section on page 2-14

“DHCP_SNOOPING Messages” section on page 2-15

“DHCP_SNOOPING_CAT3550

Messages” section on page 2-18

“DOT1Q_TUNNELLING

Messages” section on page 2-19

“DOT1X Messages” section on page 2-19

“DOT1X_SWITCH Messages” section on page 2-21

“DTP Messages” section on page 2-25

“DWL Messages” section on page 2-26

ENVIRONMENT

EPM

ETHCNTR

EtherChannel

Environment (only Catalyst 3550 switches)

Enforcement Policy Module

Ethernet Controller

“EC Messages” section on page 2-27

“ENVIRONMENT Messages” section on page 2-32

“EPM Messages” section on page 2-32

“ETHCNTR Messages” section on page 2-32

1-2

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 1 System Message Overview

How to Read System Messages

Table 1-1 Facility Codes (continued)

Facility Code

EXPRESS_SETUP

FRNTEND_CTRLR

GBIC

GBIC_SECURITY

GBIC_SECURITY_CRYPT

GBIC_SECURITY_UNIQUE

GIGASTACK

HARDWARE

Description

Express Setup

Feature manager (only Catalyst

3550 switches)

Front-end controller (only

Catalyst 3750, 2975, 2960-S switches)

Location

“EXPRESS_SETUP Messages” section on page 2-37

“FM Messages” section on page 2-37

“FRNTEND_CTRLR

Messages” section on page 2-47

Gigabit Interface Converter

(GBIC) module identification and validation (only Catalyst

3550 switches)

GBIC module and small form-factor pluggable (SFP) module security

“GBIC Messages” section on page 2-48

“GBIC_SECURITY Messages” section on page 2-52

GBIC and SFP module security

“GBIC_SECURITY_CRYPT

Messages” section on page 2-54

GBIC and SFP module security

“GBIC_SECURITY_UNIQUE

Messages” section on page 2-55

GigaStack GBIC module (only

Catalyst 3550 switch)

Hardware

“GIGASTACK Messages” section on page 2-57

“HARDWARE Messages” section on page 2-58

HLFM

HPSECURE

HULC

IDBMAN

IFMGR

ILET

IGMP_QUERIER

ILPOWER

IMAGEMGR

Local forwarding manager

HP secure

HULC

Interface description block manager

Interface manager

“HULC Messages” section on page 2-62

“IDBMAN Messages” section on page 2-62

“IFMGR Messages” section on page 2-65

IOS License Enforcement Test

“ILET Messages” section on page 2-67

Internet Group Management

Protocol (IGMP) querier

Power over Ethernet (PoE)

Image manager (only Catalyst

3750, 2975, and 2960-S switches)

IP_DEVICE_TRACKING_HA IP device tracking for high availability

“HLFM Messages” section on page 2-60

“HPSECURE Messages” section on page 2-61

“IGMP_QUERIER Messages” section on page 2-66

“ILPOWER Messages” section on page 2-68

“IMAGEMGR Messages” section on page 2-74

“IP_DEVICE_TRACKING_HA

Messages” section on page 2-75

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07 1-3

Chapter 1 System Message Overview

How to Read System Messages

Table 1-1

Facility Code

L2TM

L3TCAM

MAC_LIMIT

MAC_MOVE

Facility Codes (continued)

NETWORK_PORT_

SATELLITE

PBR

PHY

PIMSN

PLATFORM

PAGP_DUAL_ACTIVE

PLATFORM_FBM

PLATFORM_HCEF

PLATFORM_HPLM

PLATFORM_IPC

PLATFORM_IPv6

PLATFORM_PBR

PLATFORM_PM

PLATFORM_RPC

PLATFORM_SPAN

Description

Layer 2 forwarding manager

(only Catalyst 3550 switches)

Layer 3 unicast routing manager

(only Catalyst 3550 switches)

MAC address table entries

Host activity

Network port satellite (only

Catalyst 3550 switches)

Location

“L2TM Messages” section on page 2-76

“L3TCAM Messages” section on page 2-77

“MAC_LIMIT Messages” section on page 2-77

“MAC_MOVE Messages” section on page 2-78

“NETWORK_PORT_SATELLI

TE Messages” section on page 2-79

Port Aggregation Protocol

(PAgP) dual-active detection

Policy-based routing (PBR)

(only Catalyst 3550 switches)

PHY

“PAGP_DUAL_ACTIVE

Messages” section on page 2-79

“PBR Messages” section on page 2-80

“PHY Messages” section on page 2-83

“PIMSN Messages” section on page 2-85

Protocol Independent Multicast

(PIM) snooping

Low-level platform-specific

Fallback bridging manager

“PLATFORM Messages” section on page 2-86

“PLATFORM_FBM Messages” section on page 2-88

Cisco Express Forwarding (CEF)

(only Catalyst 3750 and 3560 switches)

“PLATFORM_HCEF

Messages” section on page 2-88

Platform pseudo label manager

“PLATFORM_HPLM

Messages” section on page 2-90

Platform inter-process communication protocol (only

Catalyst 3750, 2975, 2960-S switches)

IP Version 6

“PLATFORM _IPC Messages” section on page 2-91

Platform policy-based routing

Platform port manager

“PLATFORM_IPv6 Message” section on page 2-92

“PLATFORM_PBR Messages” section on page 2-93

“PLATFORM_PM Messages” section on page 2-95

Platform remote procedure call

(only Catalyst 3750, 2975,

2960-S switches)

“PLATFORM_RPC Messages” section on page 2-96

Platform Switched Port Analyzer

“PLATFORM_SPAN Messages” section on page 2-98

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-4 OL-8551-07

Chapter 1 System Message Overview

How to Read System Messages

Table 1-1

Facility Code

PLATFORM_UCAST

PLATFORM_VLAN

PLATFORM_WCCP

PORT SECURITY

POWERNET

QATM

QOSMGR

RMON

SCHED

SDM

SPAN

SPANTREE

SPANTREE_FAST

SPANTREE_VLAN_SW

STACKMGR

SUPERVISOR

Facility Codes (continued)

STORM_CONTROL

Description

Platform unicast routing

Platform VLAN

Platform WCCP

Port manager

Port security

Powernet

QoS and ACL TCAM manager

(only Catalyst 3550 switches)

QoS manager (only Catalyst

3550 switches)

QoS manager

Remote network monitoring

Schedule

Switch Database Manager (only

Catalyst 3750 switches)

Switched Port Analyzer

Location

“PLATFORM_UCAST

Messages” section on page 2-99

“PLATFORM_VLAN

Messages” section on page 2-102

“PLATFORM_WCCP

Messages” section on page 2-103

“PM Messages” section on page 2-104

“PORT_SECURITY Messages” section on page 2-112

“POWERNET Messages” section on page 2-113

“QATM Messages” section on page 2-114

“QM Messages” section on page 2-115

“QOSMGR Messages” section on page 2-118

“RMON Messages” section on page 2-125

“SCHED Messages” section on page 2-125

“SDM Messages” section on page 2-126

“SPAN Messages” section on page 2-126

Spanning tree

Spanning-tree fast convergence

“SPANTREE_FAST Messages” section on page 2-136

Spanning-tree VLAN switch

“SPANTREE Messages” section on page 2-127

Stack manager (only Catalyst

3750, 2975, 2960-S switches)

“SPANTREE_VLAN_SW

Messages” section on page 2-136

“STACKMGR Messages” section on page 2-137

Storm control

Supervisor ASIC

“STORM_CONTROL

Messages” section on page 2-140

“SUPERVISOR Messages” section on page 2-140

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-5

Chapter 1 System Message Overview

How to Read System Messages

Table 1-1

Facility Code

SUPQ

SW_DAI

VQPCLIENT

WCCP

WRLSCNTR

Facility Codes (continued)

SW_MACAUTH

SW_MATM

SW_VLAN

SWITCH_QOS_TB

TCAMMGR

UDLD

UFAST_MCAST_SW

Description

Supervisor queue

Dynamic ARP inspection

MAC address authentication

(only Catalyst 3750 and 3560 switches)

MAC address table manager

(only Catalyst 3750 and 3560 switches)

VLAN manager

“SW_MATM Messages” section on page 2-146

QoS trusted boundary

“SW_VLAN Messages” section on page 2-147

“SWITCH_QOS_TB Messages” section on page 2-154

Ternary content addressable memory manager

“TCAMMGR Messages” section on page 2-155

UniDirectional Link Detection

“UDLD Messages” section on page 2-157

UplinkFast packet transmission

“UFAST_MCAST_SW

Messages” section on page 2-159

VLAN Query Protocol (VQP) client

Web Cache Communication

Protocol (WCCP)

Catalyst 3750 Integrated

Wireless LAN Controller switch

Location

“SUPQ Messages” section on page 2-141

“SW_DAI Messages” section on page 2-143

“SW_MACAUTH Messages” section on page 2-146

“VQPCLIENT Messages” section on page 2-159

“WCCP Messages” section on page 2-161

“WRLSCNTR Messages” section on page 2-161

•

SEVERITY is a single-digit code from 0 to 7 that reflects the severity of the condition. The lower the number, the more serious the situation.

Table 1-2 lists the message severity levels.

Table 1-2 Message Severity Levels

Severity Level

0 – emergency

1 – alert

2 – critical

3 – error

4 – warning

5 – notification

6 – informational

7 – debugging

Description

System is unusable.

Immediate action required.

Critical condition.

Error condition.

Warning condition.

Normal but significant condition.

Informational message only.

Message that appears during debugging only.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-6 OL-8551-07

Chapter 1 System Message Overview

How to Read System Messages

•

MNEMONIC is a code that uniquely identifies the message.

Message-text is a text string describing the condition. This portion of the message sometimes contains detailed information about the event, including terminal port numbers, network addresses, or addresses that correspond to locations in the system memory address space. Because the information in these variable fields changes from message to message, it is represented here by short strings enclosed in square brackets ([ ]). A decimal number, for example, is represented as [dec].

Table 1-3

lists the variable fields in messages.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-7

Chapter 1 System Message Overview

How to Read System Messages

Table 1-3

Representation

[dec]

[char]

[chars]

[enet]

[hex]

[inet]

Variable Fields

Type of Information

Decimal integer

Single character

Character string

Ethernet address (for example, 0000.FEED.00C0)

Hexadecimal integer

Internet address

All syslog messages generated by a Catalyst 3750, 2975, and 2960-S switch other than the master switch are displayed ending with (Switch-x) where Switch-x is the number of the stack member generating the message. Syslog messages generated by the master switch are displayed with no hostname string.

This example shows a partial switch system message on a switch other than a Catalyst 3750, 2975, and

2960-S switch:

00:00:46: %LINK-3-UPDOWN: Interface Port-channel1, changed state to up

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet0/1, changed state to up

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet0/2, changed state to up

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to down 2 *Mar 1 18:46:11: %SYS-5-CONFIG_I: Configured from console by vty2

(10.34.195.36)

18:47:02: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)

*Mar 1 18:48:50.483 UTC: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)

This example shows a partial switch system message for a stack master and a stack member switch

(hostname Switch-2) in a Catalyst 3750 switch stack, a Catalyst 2975 switch stack, or a Catalyst 2960-S switch stack:

00:00:46: %LINK-3-UPDOWN: Interface Port-channel1, changed state to up

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/0/1, changed state to up

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/0/2, changed state to up

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet1/0/1, changed state to down 2

*Mar 1 18:46:11: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)

18:47:02: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)

*Mar 1 18:48:50.483 UTC: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)

00:00:46: %LINK-3-UPDOWN: Interface Port-channel1, changed state to up (Switch-2)

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/0/1, changed state to up (Switch-2)

00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/0/2, changed state to up (Switch-2)

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down

(Switch-2)

00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet1/0/1, changed state to down 2 (Switch-2)

1-8

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 1 System Message Overview

Error Message Traceback Reports

Error Message Traceback Reports

Some messages describe internal errors and contain traceback information. Include this information when you report a problem to your technical support representative.

This message example includes traceback information:

-Process= "Exec", level= 0, pid= 17

-Traceback= 1A82 1AB4 6378 A072 1054 1860

Some system messages ask you to copy the error messages and take further action. These online tools also provide more information about system error messages.

Output Interpreter

The Output Interpreter provides additional information and suggested resolutions based on the output of many CLI commands, such as the show tech-support privileged EXEC command.

https://www.cisco.com/pcgi-bin/Support/OutputInterpreter/home.pl

Bug Toolkit

The Bug Toolkit provides information on open and closed caveats and allows you to search for all known bugs in a specific Cisco IOS Release.

http://tools.cisco.com/Support/BugToolKit/

Contacting TAC

If you cannot determine the nature of the error, see the

“Obtaining Documentation and Submitting a

Service Request” section on page x for further information.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

1-9

Error Message Traceback Reports

Chapter 1 System Message Overview

1-10

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

C H A P T E R

Message and Recovery Procedures

OL-8551-07

This chapter describes the Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S switch system messages in alphabetical order by facility. Within each facility, the messages are listed by severity levels

0 to 7: 0 is the highest severity level, and 7 is the lowest severity level. Each message is followed by an explanation and a recommended action.

Note

The messages listed in this chapter do not include the hostname or the date/time-stamp designation that appears only if the software is configured for system log messaging.

•

ACLMGR Messages, page 2-3

AUTHMGR Messages, page 2-8

AUTOQOS Messages, page 2-9 (only Catalyst 3550 switches)

BACKUP_INTERFACE Messages, page 2-9

BADTRANSCEIVER Messages, page 2-10 (only Catalyst 3750, 2975, and 2960-S switches)

BSPATCH Messages, page 2-10

CFGMGR Messages, page 2-11

(only Catalyst 3750, 2975, and 2960-S switches)

CMP Messages, page 2-14

DHCP_SNOOPING Messages, page 2-15

DHCP_SNOOPING_CAT3550 Messages, page 2-18

(only Catalyst 3550 switches)

DOT1Q_TUNNELLING Messages, page 2-19 (only Catalyst 3550 switches)

DOT1X Messages, page 2-19

DOT1X_SWITCH Messages, page 2-21

DTP Messages, page 2-25

DWL Messages, page 2-26

EC Messages, page 2-27

ENVIRONMENT Messages, page 2-32 (only Catalyst 3550 switches)

EPM Messages, page 2-32

ETHCNTR Messages, page 2-32

EXPRESS_SETUP Messages, page 2-37

FM Messages, page 2-37

(only Catalyst 3550 switches)

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-1

2-2

Chapter 2 Message and Recovery Procedures

•

FRNTEND_CTRLR Messages, page 2-47

(only Catalyst 3750, 2975, and 2960-S switches)

GBIC Messages, page 2-48

(only Catalyst 3550 switches)

GBIC_SECURITY Messages, page 2-52

GBIC_SECURITY_CRYPT Messages, page 2-54

GBIC_SECURITY_UNIQUE Messages, page 2-55

GIGASTACK Messages, page 2-57 (only Catalyst 3550 switches)

HARDWARE Messages, page 2-58

HLFM Messages, page 2-60

HPSECURE Messages, page 2-61 (only Catalyst 3750, 2975, and 2960-S switches)

HULC Messages, page 2-62

IDBMAN Messages, page 2-62

IFMGR Messages, page 2-65

IGMP_QUERIER Messages, page 2-66

ILET Messages, page 2-67

ILPOWER Messages, page 2-68

IMAGEMGR Messages, page 2-74 (only Catalyst 3750, 2975, and 2960-S switches)

IP_DEVICE_TRACKING_HA Messages, page 2-75

L2TM Messages, page 2-76 (only Catalyst 3550 switches)

L3TCAM Messages, page 2-77

(only Catalyst 3550 switches)

MAC_LIMIT Messages, page 2-77

MAC_MOVE Messages, page 2-78

NETWORK_PORT_SATELLITE Messages, page 2-79 (only Catalyst 3550 switches)

PAGP_DUAL_ACTIVE Messages, page 2-79

PBR Messages, page 2-80 (only Catalyst 3550 switches)

PHY Messages, page 2-83

PIMSN Messages, page 2-85 (only Catalyst 3750 and 3560 switches)

PLATFORM Messages, page 2-86

PLATFORM_HCEF Messages, page 2-88

(only Catalyst 3750 and 3560 switches)

PLATFORM_HPLM Messages, page 2-90 (only Catalyst 3750 and 3560 switches)

PLATFORM _IPC Messages, page 2-91

(only Catalyst 3750, 2975, and 2960-S switches)

PLATFORM_IPv6 Message, page 2-92

PLATFORM_PBR Messages, page 2-93

(only Catalyst 3750 and 3560 switches)

PLATFORM_PM Messages, page 2-95

PLATFORM_RPC Messages, page 2-96

(only Catalyst 3750, 2975, and 2960-S switches)

PLATFORM_SPAN Messages, page 2-98

(only Catalyst 3750 and 3560 switches)

PLATFORM_UCAST Messages, page 2-99 (only Catalyst 3750 and 3560 switches)

PLATFORM_VLAN Messages, page 2-102

PLATFORM_WCCP Messages, page 2-103

(only Catalyst 3750 and 3560 switches)

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ACLMGR Messages

•

PM Messages, page 2-104

PORT_SECURITY Messages, page 2-112

POWERNET Messages, page 2-113

QATM Messages, page 2-114 (only Catalyst 3550 switches)

QM Messages, page 2-115 (only Catalyst 3550 switches)

QOSMGR Messages, page 2-118

RMON Messages, page 2-125

SCHED Messages, page 2-125

SDM Messages, page 2-126

(only Catalyst 3750, 2975, and 2960-S switches)

SPAN Messages, page 2-126

SPANTREE Messages, page 2-127

SPANTREE_FAST Messages, page 2-136

SPANTREE_VLAN_SW Messages, page 2-136

STACKMGR Messages, page 2-137 (only Catalyst 3750, 2975, and 2960-S switches)

STORM_CONTROL Messages, page 2-140

SUPERVISOR Messages, page 2-140

SUPQ Messages, page 2-141

SW_DAI Messages, page 2-143 (only Catalyst 3750 and 3560 switches)

SW_MACAUTH Messages, page 2-146

SW_MATM Messages, page 2-146 (only Catalyst 3750 and 3560 switches)

SW_VLAN Messages, page 2-147

SWITCH_QOS_TB Messages, page 2-154

TCAMMGR Messages, page 2-155

UDLD Messages, page 2-157

UFAST_MCAST_SW Messages, page 2-159

WCCP Messages, page 2-161 (only Catalyst 3750 and 3560 switches)

WRLSCNTR Messages, page 2-161 (only Catalyst 3750 switches)

ACLMGR Messages

Error Message ACLMGR-2-NOMAP: Cannot create ACL Manager data structures for VLAN Map

[chars].

Explanation

The ACL manager could not allocate the data structures needed to describe a VLAN map into a form that can be loaded into hardware. This error is most likely caused by lack of free memory. [chars] is the VLAN map name.

Recommended Action

Reduce other system activity to ease memory demands.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-3

ACLMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message ACLMGR-2-NOVLB: Cannot create memory block for VLAN [dec].

Explanation

The ACL manager could not save per-VLAN information needed for its correct operation. Some per-interface features, such as access groups or VLAN maps, will not be configured correctly. [dec] is the VLAN ID.

Recommended Action

Use a less complicated configuration that requires less memory.

Error Message ACLMGR-2-NOVMR: Cannot generate hardware representation of access list

[chars]

Explanation

Available resources are not sufficient to create a hardware representation of the ACL. A lack of available logical operation units or specialized hardware resources can cause this problem.

Logical operation units are needed for a TCP flag match or a test other than eq (ne, gt, lt, or range) on TCP, UDP, or SCTP port numbers.

Recommended Action

Modify the ACL configuration to use fewer resources, or rename the ACL with a name or number that alphanumerically precedes the other ACL names or numbers.

Error Message ACLMGR-3-ACLTCAMFULL: Acl Tcam Full. Drop packets on Output Acl label

[dec] on [chars] [chars].

Note

This message applies only to the Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The platform-specific ACL TCAM cannot support the number of configured ACLs.

[dec] is the label number, and [chars] represents the layer. The first [chars] is for Layer 3, and the second for Layer 2. If only one layer of TCAM is full, only one string is displayed, and the other string is NULL.

Recommended Action

Reduce the number of IP or MAC access lists to be applied to interfaces.

Error Message ACLMGR-3-AUGMENTFAIL: Augmenting of access-map [chars] on [chars] label [dec] failed.

Explanation

The system ran out of CPU DRAM when trying to merge internally required elements with the configured access maps. The first [chars] is the access-map name, the second [chars] is the direction in which the map was applied (input or output), and [dec] is the label number.

Recommended Action

Reduce other system activity to ease memory demands.

Error Message ACLMGR-3-IECPORTLABELERROR: ACL labels are out-of-sync on interface

[chars], label [dec] is not available on asic [dec].

Explanation

An internal software error has occurred. [chars] is the interface name. The first [dec] is the label associated with the ACL, and the second [dec] is the ASIC number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or

2-4

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ACLMGR Messages

contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting Cisco, see the

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ACLMGR-3-INSERTFAIL: Insert of access-map [chars] #[dec] into [chars] label [dec] failed.

Explanation

The system ran out of CPU memory when trying to merge sections of an access map.

The first [chars] is the map name, and the second [chars] is the direction in which the map was applied. The first [dec] is the entry number, and the second [dec] is the label number.

Recommended Action

Reduce other system activity to ease memory demands. For example, remove any ACLs that have been defined but not used. Use simpler ACLs with fewer access control entries

(ACEs). Use fewer VLANs, and remove any unneeded VLANs from the VLAN database.

Error Message ACLMGR-3-INTTABLE: Not in truth table: VLMAP [dec] RACL [dec] Mcb [dec]

Feat [dec].

Explanation

AnAn unrecoverable software error occurred while trying to merge the configured input features. [dec] are internal action codes.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting Cisco, see the

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ACLMGR-3-INVALIDPARAM: Invalid [chars] [int] encountered

Explanation

The access control list (ACL) manager has encountered an invalid parameter value.

[chars] is the parameter name, and [int] is the parameter value.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

the “Error Message Traceback Reports” section on page 1-9 .

Error Message ACLMGR-3-MAXRECURSION: Too many ([dec]) levels of recursion while merging ACLs (code [dec]).

Explanation

The configuration is too complicated for the platform-specific ACL merge code to support. The most likely cause is too many separate access lists in a single VLAN map or policy map. The first [dec] is the number of levels of recursion. The second [dec] is an internal code number of the merge stage that encountered the problem.

Recommended Action

Reduce the number of IP or MAC access lists (considered separately) in any one VLAN or policy map to fewer than the number of levels reported by this log message.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-5

ACLMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message ACLMGR-3-MERGEFAIL: [chars] ACL merge error [dec] ([chars]) on [chars] label [dec].

Explanation

The ACL manager could not complete the merge of the configured features into a form suitable for loading into the hardware. Packets potentially affected by this feature will be sent to the

CPU for processing. The most likely cause is specifying an ACL that is too large or too complex for the system. The first [chars] is the ACL-type error (ip or mac), the first [dec] is the error code, the second [chars] is the message string for the preceding error code, the second [dec] is the label number, and the third [chars] is either input or output.

Recommended Action

Specify a smaller and less complicated configuration.

Error Message ACLMGR-3-NOLABEL: Cannot allocate [chars] label for interface [chars].

Explanation

The ACL manager could not allocate a label for the features on this interface. This means that the hardware cannot be programmed to implement the features, and packets for this interface will be filtered in software. There is a limit of 256 labels per direction. The first [chars] is the direction (input or output), and the second [chars] is the interface name.

Recommended Action

Use a simpler configuration. Use the same ACLs on multiple interfaces, if possible.

Error Message ACLMGR-3-OUTTTABLE: Not in truth table: RACL [dec] VLMAP [dec].

Explanation

An unrecoverable software error occurred while trying to merge the configured output features. [dec] are internal action codes.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message ACLMGR-3-PACLTTABLE: Not in truth table: IPSrcGrd [dec] PACL [dec].

Note

This message applies only to the Catalyst 3750 and 3560 switches.

Explanation

An unrecoverable software error occurred while trying to merge the configured port

ACL features. The first [dec] is the action specified by IP source guard, and the second [dec] is the action specified by the port ACL.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-6

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ACLMGR Messages

Error Message ACLMGR-3-QOSTTABLE: Not in truth table: ACL [dec] in map, action [dec].

Explanation

A software error occurred while trying to merge a quality of service (QoS) policy map.

The first [dec] is the ACL number, and the second [dec] is the action corresponding to the specified

ACL number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ACLMGR-3-RELOADED: Reloading [chars] label [dec] feature.

Explanation

The ACL manager can now load more of the configured features on this label into the hardware. One or more features had previously been unloaded because of lack of space. [chars] is the direction (input or output), and [dec] is the label number.

Recommended Action

No action is required.

Error Message ACLMGR-3-UNKNOWNACTION: Unknown VMR access group action [hex].

Explanation

An internal software error has occurred. [hex] is an internal action code.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ACLMGR-3-UNLOADING: Unloading [chars] label [dec] feature.

Explanation

The ACL manager could not load the complete configuration into the hardware, so some features will be applied in the software. Some or all of the packets in a VLAN are forwarded by the

CPU. Multicast packets might be dropped entirely instead of being forwarded. [chars] is the direction (input or output), and [dec] is the label number.

Recommended Action

Use a simpler configuration. Use the same ACLs on multiple interfaces, if possible.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-7

Chapter 2 Message and Recovery Procedures

AUTHMGR Messages

AUTHMGR Messages

Error Message AUTHMGR-5-SECURITY_VIOLATION: Security violation on the interface

[chars], new MAC address ([enet) is seen. AuditSessionID [chars]

Explanation

Interface host mode limits the number of hosts that can be attached to an interface. The limit was exceeded and caused a security violation. The interface is error disabled. The first [chars] is the interface, [enet] is the host MAC address, and the second [chars] is the session ID.

Recommended Action

Reconfigure the interface to support the number of attached hosts. Enter the

shutdown interface configuration command and then the no shutdown interface configuration

command to re-enable the interface.

Error Message AUTHMGR-5-VLANASSIGN: VLAN [dec] assigned to Interface [chars]

AuditSessionID [chars]

Explanation

A VLAN is assigned. [dec] is the VLAN ID, the first [chars] is the interface, and the second [chars] is the session ID.

Recommended Action

No action is required.

Error Message AUTHMGR-7-FAILOVER: Failing over from [chars] for client ([chars]) on

Interface [chars] AuditSessionID [chars]

Explanation

The authorization manager is failing over from the current authentication method to another method. The first [chars] is the current authentication method, the second [chars] is the client ID, the third [chars] is the interface, and the fourth [chars] is the session ID.

Recommended Action

No action is required.

Error Message AUTHMGR-7-NOMOREMETHODS: Exhausted all authentication methods for client ([chars]) on Interface [chars] AuditSessionID [chars]

Explanation

All available authentication methods have been tried for the client, but authentication failed. The first [chars] is the client ID, the second [chars] is the interface, and the third [chars] is the session ID.

Recommended Action

No action is required. If local authorization is configured, the interface is authorized based on that. Otherwise, authentication restarts according to the configured reauthentication period.

Error Message AUTHMGR-7-RESULT: Authentication result [chars] from [chars] for client [chars] on Interface [chars] AuditSessionID [chars]

Explanation

Authentication results: the first [chars] is the authentication status, the second [chars] is the authentication method, the third [chars] is the client ID, the fourth [chars] is the interface, and the fifth [chars] is the session ID.

Recommended Action

No action is required.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-8 OL-8551-07

Chapter 2 Message and Recovery Procedures

AUTOQOS Messages

AUTOQOS Messages

Error Message AUTOQOS-3-FEATURE_UNINITIALIZED: Feature not initialized in the platform, [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature did not initialize and is not enabled on any interface. [chars] is the feature name, which is auto-QoS.

Recommended Action

If this feature does not operate, reboot the system by using the reload privileged EXEC command. Verify that this feature is supported on your switch by checking the software configuration guide for this software release.

BACKUP_INTERFACE Messages

Error Message BACKUP_INTERFACE-5-PREEMPT: Preempting interface [chars] in backup pair ([chars], [chars]), preemption mode is [chars]

Explanation

The switch is pre-empting the current forwarding interface in the backup interface pair.

The first [chars] is the number of the current forwarding interface. The second and third [chars] are the names of the interfaces in the backup pair, and the fourth [chars] is the pre-emption mode.

Recommended Action

No action is required.

Error Message BACKUP_INTERFACE-5-VLB_NON_TRUNK: Warning: Flexlink VLB is not allowed on non-trunk ports. Please configure [chars] to be a trunk port.

Explanation

Flex Link VLAN load-balancing (VLB) detected a nontrunk port. [chars] is the interface name.

Recommended Action

Change the interface to trunking mode.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-9

Chapter 2 Message and Recovery Procedures

BADTRANSCEIVER Messages

BADTRANSCEIVER Messages

Error Message BADTRANSCEIVER, PHY, LOG_WARNING: An innapropriate transceiver has been inserted in interface [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A defective module is installed in the specified interface. [chars] is the interface.

Recommended Action

Remove the transceiver. If it was purchased from Cisco, contact your Cisco representative to have the transceiver replaced.

BSPATCH Messages

Error Message BSPATCH-1-RELOAD: System will reboot to activate newly patched Boot

Loader.

Note

This message apply only to Catalyst 3750, 3560, and 2970 switches.

Explanation

The switch automatically reboots after the boot loader is patched.

Recommended Action

If this message recurs, copy it exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug

Toolkit to look for similar reported problems. If you still require assistance, open a case with the

TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting Cisco, see the

“Error Message Traceback Reports” section on page 1-9

Error Message BSPATCH-1-PATCHED: Boot Loader patch ([chars]) installed.

Note

This message apply only to Catalyst 3750, 3560, and 2970 switches.

Explanation

A boot loader patch installed successfully. [chars] is the SDRAM refresh timer register setting.

Recommended Action

If this message recurs, copy it exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug

Toolkit to look for similar reported problems. If you still require assistance, open a case with the

“Error Message Traceback Reports” section on page 1-9

2-10

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

CFGMGR Messages

Error Message BSPATCH-3-FAILED: Failed to install Boot Loader patch ([chars]).

Note

This message apply only to Catalyst 3750, 3560, and 2970 switches.

Explanation

The switch did not apply a boot loader patch. [chars] is the SDRAM refresh timer register setting.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

CFGMGR Messages

Error Message CFGMGR-1-UNABLE_TO_SEND_RUN_CFG: unable to send running-cfg, bits:

[hex], retrying...

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system is unsuccessfully trying to distribute the running configuration to the stack member switches. [hex] is the bit representation of the switch number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-11

CFGMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message CFGMGR-1-UNABLE_TO_SEND_STARTUP_CFG: unable to send startup-cfg, bits:

[hex], retrying...

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system is unsuccessfully trying to distribute the startup configuration file to the stack member switches. [hex] is the bit representation of the switch number.

Recommended Action

Find out more about the error by using the show tech-support privileged EXEC command. Copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting Cisco, see the

“Error Message

Traceback Reports” section on page 1-9 .

Error Message CFGMGR-3-ERROR_APPLYING_STARTUP_CFG: Error Applying Startup Config to

Running Config.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system encountered an error when it was automatically applying the startup configuration to the running configuration.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message CFGMGR-4-MEMBER_WRITING_STARTUP_CFG: only master can do that.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A stack member switch attempted to write to the startup configuration file. Only the stack master can write to the startup configuration file.

Recommended Action

No action is required.

2-12

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

CFGMGR Messages

Error Message CFGMGR-5-UNABLE_TO_USE_PROVISIONED_CFG: Switch [dec] will receive the default configuration.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The switch type of the specified switch does not match the provisioned configuration for its switch number. The default configuration is applied to this switch. [dec] is the stack member number.

Recommended Action

No action is required.

Error Message CFGMGR-6-APPLYING_RUNNING_CFG: as new master.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A new stack master is applying the backed-up running configuration.

Recommended Action

No action is required.

Error Message CFGMGR-6-SPURIOUS_MEMBER_ADD: CFG MGR Recvd Spurious New Member

Notification: [int].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The configuration manager received a notification about adding a stack member switch that already exists in the stack. [int] is the switch number.

Recommended Action

If this message recurs, copy it exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug

Toolkit to look for similar reported problems. If you still require assistance, open a case with the

“Error Message Traceback Reports” section on page 1-9 .

Error Message CFGMGR-6-UNABLE_TO_NVGEN_BUSY_RUNNING_CFG: config file busy, retrying...

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The stack master is temporarily unable to generate the stack running configuration because another process is generating the configuration file.

Recommended Action

No action is required. The action will be tried again.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-13

CMP Messages

Chapter 2 Message and Recovery Procedures

Error Message CFGMGR-6-UNABLE_TO_NVGEN_RUNNING_CFG: config file too large...

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The stack master cannot generate the stack running configuration because the configuration file is too large.

Recommended Action

Remove some configuration commands.

CMP Messages

Error Message CMP-4-MEM_CMPIP_ADDR_CONFLICT: Conflict with CMP IP address

[IP_address], Reissuing a new CMP IP address to member [dec]

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The cluster commander found a conflict with the assigned CMP IP address of the member. A new unique CMP IP address is assigned to the member. [dec] is the member number.

Recommended Action

This is only a warning message. The commander has already assigned the cluster member a new unique address. Clear any open TCP connections on the member by using

clear tcp privileged EXEC command.

Error Message CMP-5-ADD: The Device is added to the cluster (Cluster Name: [chars],

CMDR IP Address [IP_address]).

Explanation

The device is added to the cluster. [chars] is the cluster name, and [

IP_address

] is the

Internet address of the command switch.

Recommended Action

No action is required.

Error Message CMP-5-MEMBER_CONFIG_UPDATE: Received member configuration from member

[dec].

Explanation

The active or standby command switch received a member configuration. [dec] is the member number of the sender.

Recommended Action

No action is required.

2-14

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DHCP_SNOOPING Messages

Error Message CMP-5-MGMT_VLAN_CHNG: The management vlan has been changed to [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The management VLAN has changed. [dec] is the new management VLAN ID.

Recommended Action

No action is required.

Error Message CMP-5-NBR_UPD_SIZE_TOO_BIG: Number of neighbors in neighbor update is

[int], maximum number of neighbors allowed in neighbor update is [int].

Explanation

The number of cluster neighbors in the clustering neighbor update packet exceeds the number of neighbors supported by the clustering module. The first [int] is the new number of neighbors, and the second [int] the maximum number of neighbors.

Recommended Action

No action is required.

Error Message CMP-5-REMOVE: The Device is removed from the cluster (Cluster Name:

[chars]).

Explanation

The device was removed from the cluster. [chars] is the cluster name.

Recommended Action

No action is required.

DHCP_SNOOPING Messages

Error Message DHCP_SNOOPING-3-DHCP_SNOOPING_INTERNAL_ERROR: DHCP Snooping internal error, [chars].

Explanation

A software sanity check failed in the DHCP snooping process. [chars] is the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

Error Message DHCP_SNOOPING-4-AGENT_OPERATION_FAILED: DHCP snooping binding transfer failed. [chars].

Explanation

The DHCP snooping binding transfer process failed. [chars] is the reason the process failed.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-15

Chapter 2 Message and Recovery Procedures

DHCP_SNOOPING Messages

Error Message DHCP_SNOOPING-4-AGENT_OPERATION_FAILED_N: DHCP snooping binding transfer failed ([dec]). [chars].

Explanation

The DHCP snooping binding transfer process failed. [dec] is the number of times the process failed, and [chars] is the reason the process failed. This message is rate-limited.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-4-DHCP_SNOOPING_ERRDISABLE_WARNING: DHCP Snooping received [dec] DHCP packets on interface [chars].

Explanation

The switch detected a DHCP packet rate-limit violation on the specified interface and put the interface in the error-disabled state. [dec] is the number of DCHP packets, and [chars] is the interface.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-4-DHCP_SNOOPING_PVLAN_WARNING: DHCP Snooping configuration may not take effect on secondary vlan [dec]. [chars]

Explanation

If the private VLAN feature is configured, the DHCP snooping configuration on the primary VLAN automatically propagates to all the secondary VLANs. [dec] is the VLAN ID of the secondary VLAN, and [chars] is the warning.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-4-IP_SOURCE_BINDING_NON_EXISTING_VLAN_WARNING: IP source binding is configured on non existing vlan [dec].

Explanation

An IP source binding was configured on a VLAN that has not been configured yet. [dec] is the VLAN.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-4-IP_SOURCE_BINDING_PVLAN_WARNING: IP source filter may not take effect on secondary vlan [dec] where IP source binding is configured.

[chars].

Explanation

If private VLANs are configured, the IP-source-guard filter on the primary VLAN automatically propagates to all secondary VLANs. [dec] is the secondary VLAN, and [chars] is the warning.

Recommended Action

No action is required.

2-16

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DHCP_SNOOPING Messages

Error Message DHCP_SNOOPING-4-NTP_NOT_RUNNING: NTP is not running; reloaded binding lease expiration times are incorrect.

Explanation

If the DHCP snooping database agent loads the DHCP snooping bindings and Network

Time Protocol (NTP) is not running, the calculated lease duration for the bindings is incorrect.

Recommended Action

Configure NTP on the switch to provide an accurate time and date for the system clock. Then disable and re-enable DHCP snooping to clear the DHCP snooping binding database.

OL-8551-07

Error Message DHCP_SNOOPING-4-QUEUE_FULL: Fail to enqueue DHCP packet into processing queue: [chars], the queue is most likely full and the packet will be dropped.

Explanation

The CPU is receiving DHCP at a higher rate than the DHCP snooping can process.

These DHCP packets are dropped to prevent a denial of service attack. [chars] is the warning.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-4-STANDBY_AGENT_OPERATION_FAILED: DHCP snooping binding transfer failed on the Standby Supervisor. [chars].

Explanation

The DHCP snooping binding transfer process failed on a standby supervisor engine.

[chars] is the standby supervisor engine.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-5-DHCP_SNOOPING_UNTRUSTED_PORT: DHCP_SNOOPING drop message on untrusted port, message type: [chars], MAC sa: [enet]

Explanation

An untrusted port dropped a DHCP message. A host might be acting as a DHCP server.

[chars] is the message type (DHCPOFFER, DHCPACK, DHCPNAK, or DHCPLEASEQUERY), and [enet] is the MAC address of the sending host.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-6-AGENT_OPERATION_SUCCEEDED: DHCP snooping database

[chars] succeeded.

Explanation

The DHCP binding transfer process succeeded. [chars] is the DCHP snooping database.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-6-BINDING_COLLISION: Binding collision. [dec] bindings ignored.

Explanation

The specified number of bindings were ignored when the switch read the database file.

The bindings from the database file have MAC address and VLAN information that a configured

DHCP snooping binding already uses.

Recommended Action

No action is required.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-17

Chapter 2 Message and Recovery Procedures

DHCP_SNOOPING_CAT3550 Messages

Error Message DHCP_SNOOPING-6-INTERFACE_NOT_VALID: Interface not valid. [dec] bindings ignored.

Explanation

The specified number of bindings were ignored when the switch read the database file because the interface in binding database is not available, the interface is a routed port, or the interface is a DHCP snooping-trusted Layer 2 interface. [dec] is the number of bindings that the switch ignores.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-6-LEASE_EXPIRED: Lease Expired. [dec] bindings ignored.

Explanation

The specified number of bindings were ignored when the switch read the database file because the DHCP lease expired. [dec] is the number of bindings.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-6-PARSE_FAILURE: Parsing failed for [dec] bindings.

Explanation

The specified number of bindings were ignored when the switch read the database file because the database read operation failed. [dec] is the number of bindings.

Recommended Action

No action is required.

Error Message DHCP_SNOOPING-6-VLAN_NOT_SUPPORTED: Vlan not supported. [dec] bindings ignored.

Explanation

The specified number of bindings were ignored when the switch read the database file because the VLAN is no longer configured on the switch. [dec] is the number of bindings that the switch ignores.

Recommended Action

No action required.

DHCP_SNOOPING_CAT3550 Messages

Error Message DHCP_SNOOPING_CAT3550-3-MVR_INSTALL: Cannot install [chars] ACLs for

DHCP Snooping, probably no TCAM space.

Note

This message applies only to Catalyst 3550 switches.

Explanation

When DHCP snooping is enabled, access control lists (ACLs) need to be installed in the

TCAM. DHCP snooping fails if there is insufficient space in the TCAM.

Recommended Action

Reduce the number of input or output port ACLs (PACLs) and VLAN maps to make space in the TCAM.

2-18

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DOT1Q_TUNNELLING Messages

Error Message DHCP_SNOOPING_CAT3550-3-UNEXPECTED_EVENT: Process received unknown event (major [hex], minor [hex]).

Note

This message applies only to Catalyst 3550 switches.

Explanation

A process received an event it could not handle.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

DOT1Q_TUNNELLING Messages

Error Message DOT1Q_TUNNELLING-4-MTU_WARNING: System MTU of [dec] might be insufficient for 802.1Q tunnelling. 802.1Q tunnelling requires system MTU size of

[dec] to handle maximum size ethernet frames.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The switch MTU setting might not be sufficient for 802.1Q tunneling. The MTU needs to include the 4-byte overhead associated with the additional 802.1Q tag. The first [dec] is the current system MTU setting in bytes, and the second [dec] is the required MTU size in bytes.

Recommended Action

Adjust the system MTU for the additional 802.1Q tag by using the system mtu global configuration command, and reload the switch by using the reload privileged EXEC command.

DOT1X Messages

Error Message DOT1X-4-MEM_UNAVAIL: Memory was not available to perform the 802.1X action. AuditSessionID [chars]

Explanation

The switch does not have enough memory to perform 802.1x authentication. [chars] is the session ID.

Recommended Action

Reconfigure the switch to reduce memory usage.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-19

DOT1X Messages

Chapter 2 Message and Recovery Procedures

Error Message DOT1X-4-PROC_START_ERR: Dot1x unable to start.

Explanation

The system did not start the 802.1x process.

Recommended Action

Enter the global configuration command dot1x system-auth-control to restart the 802.1x process. If this message recurs, reload the device.

Error Message DOT1X-4-UNKN_ERR: An unknown operational error occurred.

Explanation

The 802.1x process cannot operate because of an internal system error.

Recommended Action

Reload the device.

Error Message DOT1X-5-RESULT_OVERRIDE: Authentication result overridden for client

([chars]) on Interface [chars] AuditSessionID [chars]

Explanation

The authentication result is overridden. The first [chars] is the client ID, the second

[chars] is the interface, and the third [chars] is the session ID.

Recommended Action

No action is required.

Error Message DOT1X-5-FAIL: Authentication failed for client ([chars]) on Interface

[chars] AuditSessionID [chars]

Explanation

The authentication was unsuccessful. The first [chars] is the client ID, the second

[chars] is the interface, and the third [chars] is the session ID.

Recommended Action

No action is required.

Error Message DOT1X-5-INVALID_INPUT: Dot1x Interface parameter is Invalid on interface [chars].

Explanation

The 802.1x interface parameter is out of the specified range or is invalid. [chars] is the interface.

Recommended Action

Refer to the CLI help documentation to determine the valid 802.1x parameters.

Error Message DOT1X-5-SECURITY_VIOLATION: Security violation on interface [chars],

New MAC address [enet] is seen.

Explanation

A host on the specified interface is trying to access the network or to authenticate in a host mode that does not support the number of hosts attached to the interface. This is a security violation, and the port is error disabled.

Recommended Action

Ensure that the interface is configured to support the number of attached hosts.

Enter the shutdown interface configuration command and then the no shutdown interface configuration command to restart the port.

2-20

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DOT1X_SWITCH Messages

Error Message DOT1X-5-SUCCESS: Authentication successful for client ([chars]) on

Interface [chars] AuditSessionID [chars]

Explanation

Authentication was successful. The first [chars] is the client ID, the second [chars] is the interface, and the third [chars] is the session ID.

Recommended Action

No action is required.

DOT1X_SWITCH Messages

Error Message DOT1X_SWITCH-5-ERR_ADDING_ADDRESS: Unable to add address [enet] on

[chars] AuditSessionID [chars]

Explanation

The client MAC address could not be added to the MAC address table because the hardware memory is full or the address is a secure address on another port. This message might appear if 802.1x is enabled. [enet] is the client MAC address, the first [chars] is the interface, and the second [chars] is the session ID.

Recommended Action

If hardware memory is full, remove some of the dynamic MAC addresses. If the client address is on another port, remove it from that port.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-21

Chapter 2 Message and Recovery Procedures

DOT1X_SWITCH Messages

Error Message DOT1X_SWITCH-5-ERR_INVALID_PRIMARY_VLAN: Attempt to assign primary

VLAN [dec] to 802.1x port [chars] AuditSessionID [chars]

Note

This message applies to switches running the IP base image.

Explanation

An attempt was made to assign a primary VLAN to an 802.1x port. This is not allowed.

[dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Assign a different VLAN.

Error Message DOT1X_SWITCH-5-ERR_INVALID_SEC_VLAN: Attempt to assign invalid secondary VLAN [dec] to PVLAN host 802.1x port [chars] AuditSessionID [chars]

Note

This message applies to switches running the IP base image.

Explanation

An attempt was made to assign a nonsecondary VLAN to a private VLAN host 802.1x port. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Change the port mode so that it is no longer a private VLAN host port, or use a valid secondary VLAN.

Error Message DOT1X_SWITCH-5-ERR_PRIMARY_VLAN_NOT_FOUND: Attempt to assign VLAN

[dec], whose primary VLAN does not exist or is shutdown, to 802.1x port [chars]

AuditSessionID [chars]

Note

This message applies to switches running the IP base image.

Explanation

An attempt was made to assign a private VLAN whose primary VLAN does not exist or is shut down. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Check that the primary VLAN exists and is not shut down. Check that the private VLAN is associated with a primary VLAN.

Error Message DOT1X_SWITCH-5-ERR_RADIUS_VLAN_NOT_FOUND: Attempt to assign non-existent VLAN [chars] to dot1x port [chars]

Explanation

RADIUS attempted to assign a VLAN with a particular name or ID to a supplicant on a port, but the name or ID could not be found on the switch. [dec] is the VLAN, and [chars] is the port.

Recommended Action

Make sure a VLAN with the specified name or ID exists on the switch.

Error Message DOT1X_SWITCH-5-ERR_SEC_VLAN_INVALID: Attempt to assign secondary VLAN

[dec] to non-PVLAN host 802.1x port [chars] AuditSessionID [chars]

Note

This message applies to switches running the IP base image.

2-22

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DOT1X_SWITCH Messages

Explanation

An attempt was made to assign a secondary VLAN to a port that is not a private VLAN host port. This is not allowed. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Change the port mode so that it is configured as a private VLAN host port or use a different VLAN that is not configured as a secondary VLAN.

Error Message DOT1X_SWITCH-5-ERR_SPAN_DST_PORT: Attempt to assign VLAN [dec] to

802.1x port [chars], which is configured as a SPAN destination AuditSessionID

[chars]

Explanation

An attempt was made to assign a VLAN to an 802.1x port that is configured as a

Switched Port Analyzer (SPAN) destination port. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Change the SPAN configuration so that the port is no longer a SPAN destination port, or change the configuration so that no VLAN is assigned.

Error Message DOT1X_SWITCH-5-ERR_VLAN_EQ_MDA_INACTIVE: Multi-Domain Authentication cannot activate because Data and Voice VLANs are the same on port AuditSessionID

[chars]

Explanation

Multi-Domain Authentication (MDA) host mode cannot start when the configured data

VLAN on a port is the same as the voice VLAN. [chars] is the port session ID.

Recommended Action

Change either the voice VLAN or the access VLAN on the interface so that they are not the same. MDA then starts.

Error Message DOT1X_SWITCH-5-ERR_VLAN_EQ_VVLAN: Data VLAN [dec] on port [chars] cannot be equivalent to the Voice VLAN AuditSessionID [chars]

Explanation

An attempt was made to assign a data VLAN to an 802.1x port that is the same as the voice VLAN. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Change either the voice VLAN or the 802.1x-assigned VLAN on the interface so that they are not the same.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-23

Chapter 2 Message and Recovery Procedures

DOT1X_SWITCH Messages

Error Message DOT1X_SWITCH-5-ERR_VLAN_INTERNAL: Attempt to assign internal VLAN

[dec] to 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign an invalid VLAN to an 802.1x port. The VLAN specified is used internally and cannot be assigned to this port. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Explanation

Assign a different VLAN.

Error Message DOT1X_SWITCH-5-ERR_VLAN_INVALID: Attempt to assign invalid VLAN [dec] to 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign an invalid VLAN to an 802.1x port. The VLAN specified is out of range. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session

ID.

Recommended Action

Change the configuration to use a valid VLAN.

Error Message DOT1X_SWITCH-5-ERR_VLAN_NOT_FOUND: Attempt to assign non-existent or shutdown VLAN [chars] to 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign a VLAN to an 802.1x port, but the VLAN was not found in the VLAN Trunking Protocol (VTP) database. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Make sure the VLAN exists and is not shut down, or use another VLAN.

Error Message DOT1X_SWITCH-5-ERR_VLAN_ON_ROUTED_PORT: Attempt to assign VLAN [dec] to routed 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign a VLAN to a supplicant on a routed port, which is not allowed. [dec] is the VLAN ID, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Either disable the VLAN assignment, or change the port type to a nonrouted port.

Error Message DOT1X_SWITCH-5-ERR_VLAN_PROMISC_PORT: Attempt to assign VLAN [dec] to promiscuous 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign a VLAN to a promiscuous 802.1x port, which is not allowed. [dec] is the VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Change the port mode so that it is no longer a promiscuous port, or change the configuration so that no VLAN is assigned.

2-24

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

DTP Messages

Error Message DOT1X_SWITCH-5-ERR_VLAN_RESERVED: Attempt to assign reserved VLAN

[dec] to 802.1x port [chars] AuditSessionID [chars]

Explanation

An attempt was made to assign an invalid VLAN to an 802.1x port. The VLAN specified is a reserved VLAN and cannot be assigned to this port. [dec] is the VLAN, the first [chars] is the port, and the seconds [chars] is the session ID.

Recommended Action

Assign a different VLAN.

Error Message DOT1X_SWITCH-5-ERR_VLAN_RSPAN: Attempt to assign RSPAN VLAN [dec] to

802.1x port [chars]. 802.1x is incompatible with RSPAN AuditSessionID [chars]

Explanation

Remote SPAN should not be enabled on a VLAN with 802.1x-enabled. [dec] is the

VLAN, the first [chars] is the port, and the second [chars] is the session ID.

Recommended Action

Either disable remote SPAN configuration on the VLAN, or disable 802.1x on all the ports in this VLAN.

DTP Messages

Error Message DTP-4-MEM_UNAVAIL: Memory was not available to perform the trunk negotiation action.

Explanation

The system cannot negotiate trunks because of a lack of memory.

Recommended Action

Reduce other system activity to ease memory demands.

Error Message DTP-4-TMRERR: An internal timer error occurred when trunking on interface [chars].

Explanation

A timer used by the trunking protocol unexpectedly expired. [chars] is the trunked interface.

Recommended Action

This problem is corrected internally and has no long-term ramifications.

However, if more problems with trunking occur, reload the switch by using the reload privileged

EXEC command.

Error Message DTP-4-UNKN_ERR: An unknown operational error occurred.

Explanation

The system cannot negotiate trunks because an internal operation generated an unexpected error.

Recommended Action

Reload the switch by using the reload privileged EXEC command.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-25

DWL Messages

Chapter 2 Message and Recovery Procedures

Error Message DTP-5-DOMAINMISMATCH: Unable to perform trunk negotiation on port

[chars] because of VTP domain mismatch.

Explanation

The two ports in the trunk negotiation belong to different VTP domains. Trunking can be configured only when the ports belong to the same VTP domain. [chars] is the port number.

Recommended Action

Ensure that the ports in the trunk negotiation belong to the same VTP domain.

Error Message DTP-5-ILGLCFG: Illegal config (on, isl--on,dot1q) on [chars].

Explanation

One end of the trunk link is configured as on with ISL encapsulation and the other end is configured as on with 802.1Q encapsulation. [chars] is the interface.

Recommended Action

This configuration is illegal and will not establish a trunk between two switches. You must change the encapsulation type so that both ends of the trunk match.

Error Message DTP-5-NONTRUNKPORTON: Port [chars] has become non-trunk.

Explanation

The interface changed from a trunk port to an access port. [chars] is the interface that changed.

Recommended Action

This message is provided only for information.

Error Message DTP-5-TRUNKPORTCHG: Port [chars] has changed from [chars] trunk to

[chars] trunk.

Explanation

The encapsulation type of the trunk port has changed. The first [chars] is the interface, the second is the original encapsulation type, and the third [chars] is the new encapsulation type.

Recommended Action

This message is provided only for information.

Error Message DTP-5-TRUNKPORTON: Port [chars] has become [chars] trunk.

Explanation

The interface has changed from an access port to a trunk port. The first [chars] is the interface, and the second [chars] is the encapsulation type.

Recommended Action

This message is provided only for information.

DWL Messages

Error Message DWL-3-LOOP_BACK_DETECTED: Loop-back detected on [chars].

Explanation

The specified port has a loopback. The cause might be a Token-Ring Type-1 cable connected to the port or a misconfiguration in the network. [chars] is the port.

Recommended Action

Correct the problem that is causing the loopback condition. Then enter the

shutdown and the no shutdown interface configuration commands.

2-26

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

EC Messages

EC Messages

Error Message EC-4-NOMEM: Not enough memory available for [chars].

Explanation

Either the LACP or the PAgP EtherChannel could not obtain the memory it needed to initialize the required data structures. [chars] is the data structure name.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

Error Message EC-5-BUNDLE: Interface [chars] joined port-channel [chars].

Explanation

The listed interface joined the specified EtherChannel. The first [chars] is the physical interface, and the second [chars] is the EtherChannel interface.

Recommended Action

No action is required.

Error Message EC-5-CANNOT_ALLOCATE_AGGREGATOR: Aggregator limit reached, cannot allocate aggregator for group [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

A new aggregator cannot be allocated in the group. [dec] is the affected group.

Recommended Action

Change the port attributes of the ports in the group so that they match and join the same aggregator.

Error Message EC-5-CANNOT_BUNDLE1: Port-channel [chars] is down, port [chars] will remain stand-alone.

Explanation

The aggregation port is down. The port remains standalone until the aggregation port is up. The first [chars] is the EtherChannel, and the second [chars] is the port number.

Recommended Action

Ensure that the other ports in the bundle have the same configuration.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-27

EC Messages

Chapter 2 Message and Recovery Procedures

Error Message EC-5-CANNOT_BUNDLE2: [chars] is not compatible with [chars] and will be suspended ([chars]).

Explanation

The interface has different interface attributes than the other ports in the EtherChannel.

For the interface to join the bundle (EtherChannel), change the interface attributes to match the

EtherChannel attributes. The first [chars] is the interface to be bundled, the second [chars] is the physical interface (a switch port or a routed port) that is already in the bundle, and the third [chars] is the reason for the incompatibility.

Recommended Action

Change the interface attributes to match the EtherChannel attributes.

Error Message EC-5-CANNOT_BUNDLE_LACP: [chars] is not compatible with aggregators in channel [dec] and cannot attach to them ([chars]).

Explanation

The port has different port attributes than the port channel or ports within the port channel. [chars] is the incompatible port, [dec] is the channel group number, and the last [chars] is the reason.

Recommended Action

For the port to join the bundle, change the port attributes so that they match the port.

Error Message EC-5-COMPATIBLE: [chars] is compatible with port-channel members.

Explanation

A port was not operational because its attributes were different from those of the port channel or ports within the port channel. The system has detected that the attributes of the port now match the port-channel attributes. [chars] is the affected port.

Recommended Action

No action is required.

Error Message EC-5-DONTBNDL: [chars] suspended: incompatible remote port with

[chars]

Explanation

The configuration of the remote port is different from the configuration of other remote ports in the bundle. A port can only join the bundle when the configuration of the local port and the configuration of the remote port are the same as other ports already in the bundle. The first [chars] is the name of the local interface that is being suspended, and the second [chars] is the name of the local interface that is already bundled.

Recommended Action

Make sure that the configuration of the remote ports is the same for all ports in the bundle.

Error Message EC-5-ERRPROT: Channel protocol mismatch for interface [chars] in group

[dec]: the interface can not be added to the channel group.

Explanation

The interface cannot be added to the channel group with the specified mode. [chars] is the interface, and [dec] is the channel group.

Recommended Action

Change the channel group or the mode for the interface.

2-28

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

EC Messages

Error Message EC-5-ERRPROT2: Command rejected: the interface [chars] is already part of a channel with a different type of protocol enabled.

Explanation

The interface cannot be selected for the specified protocol because it is already part of a channel with a different protocol. [chars] is the interface.

Recommended Action

Remove the interface from the channel group.

Error Message EC-5-ERRPROT3: Command rejected: the interface [chars] is already part of a channel.

Explanation

The interface cannot be unselected for the specified protocol because it is already part of a channel group. [chars] is the interface.

Recommended Action

Remove the interface from the channel group.

Error Message EC-5-L3DONTBNDL1: [chars] suspended: PAgP not enabled on the remote port.

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

PAgP is enabled on the Layer 3 interface but the partner port is not enabled for PAgP.

In this mode, the port is placed in a suspended state. [chars] is the Layer 3 interface.

Recommended Action

Enable PAgP on the remote side by using the channel-group interface configuration command.

Error Message EC-5-L3DONTBNDL2: [chars] suspended: LACP currently not enabled on the remote port.

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

LACP is enabled on a Layer 3 interface but is not enabled on the partner port. In this mode, the port is put in a suspended state. [chars] is the interface name.

Recommended Action

Enable LACP on the remote side.

Error Message EC-5-L3DONTBNDL3: [chars] suspended: LACP not enabled on the remote port.

Note

This message applies only to Catalyst 3550 switches.

Explanation

LACP is enabled on a Layer 3 interface but the remote port does not have LACP enabled. In this mode, the local port is put in a suspended state. [chars] is the interface name.

Recommended Action

Enable LACP on the remote port.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-29

EC Messages

Chapter 2 Message and Recovery Procedures

Error Message EC-5-L3STAYDOWN: [chars] will remain down as its port-channel [chars] is admin-down.

Note

This message applies only to Catalyst 3550 switches.

Explanation

On Layer 3 interfaces and aggregation interfaces, the administrative state of the aggregation interface overrides the administrative status of the Layer 3 interface. If the aggregation interface is administratively down, all interfaces in the aggregation interface are forced to be down.

[chars] is the Layer 3 interface.

Recommended Action

Enter the no shutdown interface configuration command on the aggregation interface.

Error Message EC-5-NOLACP: Invalid EC mode, LACP not enabled.

Explanation

The EtherChannel mode cannot be set because LACP is not included in the software image.

Recommended Action

Install a software image that includes LACP, and set the EC mode to on.

Error Message EC-5-NOPAGP: Invalid EC mode, PAgP not enabled.

Explanation

PAgP is not included in the Cisco IOS image and the EtherChannel mode cannot be set to desirable or auto.

Recommended Action

Obtain an image with PAgP included, or set the mode to on by using the

channel-group channel-group-number mode on interface configuration command.

Error Message EC-5-PORTDOWN: Shutting down [chars] as its port-channel is admin-down.

Explanation

The administrative state of the port is controlled by the administrative state of its aggregate port. If the administrative state of the aggregate port is down, the administrative state of the port is also forced to be down. [chars] is the physical interface.

Recommended Action

Enter the no shutdown interface configuration command on the aggregate port to activate the aggregation port.

Error Message EC-5-STAYDOWN: [chars] will remain down as its port-channel [chars] is admin-down.

Explanation

The administrative state of the aggregation port overrides that of the affected port. If the aggregation port is administratively down, all ports in the aggregation port are forced to be administratively down. The first [chars] is the physical interface, and the second [chars] is the

EtherChannel.

Recommended Action

Enter the no shutdown interface configuration command on the aggregation port to activate (unshut) the aggregation port.

2-30

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

EC Messages

Error Message EC-5-STAYDOWN: no-shut not allowed on [chars]. Module [dec] not online.

Explanation

An interface with an EtherChannel configuration cannot be enabled by using the no

shutdown interface configuration command because it is a member of an EtherChannel group and

that EtherChannel group has been administratively shut down. The interface has an EtherChannel configuration, but no information is available yet about its port channel. [chars] is the interface, and

[dec] is the module.

Recommended Action

No action is required. Wait until the module is online to find out the port-channel setting of the EtherChannel.

Error Message EC-5-UNBUNDLE: Interface [chars] left the port-channel [chars].

Explanation

The listed interface left the specified EtherChannel. The first [chars] is the physical interface, which can be a switch port or a routed port, and the second [chars] is the EtherChannel.

Recommended Action

No action is required.

Error Message EC-5-UNSUITABLE: [chars] will not join any port-channel, [chars].

Explanation

One of the interfaces cannot join the EtherChannel because it is configured for PortFast, as a VLAN Membership Policy Server (VMPS), for 802.1x, as a voice VLAN, or as a SPAN destination port. All of these are illegal configurations for EtherChannels. The first [chars] is the interface name, and the second [chars] describes the details of the illegal configuration.

Recommended Action

Reconfigure the port, removing the illegal configuration.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-31

Chapter 2 Message and Recovery Procedures

ENVIRONMENT Messages

ENVIRONMENT Messages

Error Message ENVIRONMENT-2-FAN_FAULT:System Fault:FAN FAULT is detected.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal fan fault was detected.

Recommended Action

Check if the fan on the switch failed, or use the show env privileged EXEC command to check if one or more fans on the switch have failed. Replace the switch at your convenience.

Error Message ENVIRONMENT-2-OVER_TEMP:System Fault:OVER TEMPERATURE condition is detected.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An overtemperature condition was detected.

Recommended Action

Use the show env privileged EXEC command to check if an overtemperature condition exists. If an overtemperature condition does exist, place the switch in an environment that is within 32 to 113°F (0 to 45°C), and m

ake sure that the fan intake and exhaust areas are clear.

Note

If multiple fans on the switch fails and causes the switch to overheat, replace the switch.

EPM Messages

Error Message EPM-6-AUTH_ACL: POLICY [chars]| EVENT [chars]

Explanation

The switch has sent or received a download request for a downloadable ACL (dACL).

The first [chars] is the dACL policy. The second [chars] is the event.

Recommended Action

No action is required.

ETHCNTR Messages

Error Message ETHCNTR-2-MOLSENDTIMEOUT: Molecule send timeout, queue [dec], molecule

[hex] [hex].

Note

This message applies only to Catalyst 3550 switches.

2-32

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ETHCNTR Messages

Explanation

An attempt to read or write one or more of the hardware settings failed.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message ETHCNTR-3-FLOWCONTROL_DUPLEX_ERROR: Flowcontrol will not take effect until duplex is set to auto.

Note

This message applies only to Catalyst 3550 switches.

Explanation

Flow control cannot be set on the switch in this configuration.

Recommended Action

Configure the duplex mode to auto.

Error Message ETHCNTR-3-HALF_DUX_COLLISION_EXCEED_THRESHOLD: Collision at [chars] exceed threshold. Consider as loop-back.

Explanation

The collisions at a half-duplex port exceeded the threshold, and the port is treated as a loopback. On switches that support Power over Ethernet (PoE), this message might be displayed when a device that can be powered by either a PoE switch port or by AC power is not being powered by an external AC power source and is connected to a port that has been configured with the power

inline never interface configuration command. [chars] is the port where the threshold was exceeded.

Recommended Action

On switches that support PoE, remove the device or configure the port by entering the power inline auto, shutdown, and no shutdown interface configuration commands.

No action is required on non-PoE switches. The port goes into error-disabled mode until the problem is resolved.

Error Message ETHCNTR-3-INTERNAL_ERROR: Internal Error [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal error occurred when the software was trying to program the hardware. As a result, the switch is in an inconsistent state and might not provide the expected functions. [chars] describes the internal operation that failed.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-33

ETHCNTR Messages

Chapter 2 Message and Recovery Procedures

Error Message ETHCNTR-3-INVALIDMAP: Invalid map [dec] for address [enet].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An attempt to bridge a packet in software obtained an invalid result. [dec] is the map number, and [enet] is the Ethernet address.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message ETHCNTR-3-LOOP_BACK_DETECTED:, Loop-back detected on [chars]. The port is forced to linkdown.

Explanation

A keepalive packet is looped back to the port that sent the keepalive. The loopback condition might be caused by a balun cable being accidentally connected to the port, or there might be a loop in the network. [chars] is the port.

Recommended Action

Examine the cables. If a balun cable is connected, and the loopback condition is desired, no action is required. Otherwise, connect the correct cable, and restart the port by entering the no shutdown interface configuration command. We do not recommend using the no keepalive interface command to disable keepalives. The cause of this network loop must be found and corrected. Although disabling keepalives prevents the port from being error-disabled, it does not resolve the cause of the problem and can affect network stability. See CSCea46385 for more information.

Error Message ETHCNTR-3-MOLSENDINT: Molecule send from interrupt handler

Note

This message applies only to Catalyst 3550 switches.

Explanation

An interrupt handler is accessing the hardware in an impermissible manner.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message ETHCNTR-3-NETWORK_ERROR: Frame received on queue [dec] contained network error. Source thread [dec], source interface [chars].

Note

This message applies only to Catalyst 3550 switches.

2-34

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ETHCNTR Messages

Explanation

The frame that is stored on the switch has an error. The first [dec] is the ingress queue, the second [dec] is the source thread, and [chars] is the ingress interface.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ETHCNTR-3-NO_HARDWARE_RESOURCES: Not enough hardware resources.

Shutting down [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There are too many VLANs and routed ports (if the switch supports routed ports) configured. [chars] is the short interface name, such as Gi1/0/1 on a Catalyst 3750 switch, or the

VLAN name, such as VLAN0002.

Recommended Action

Reduce the total number of VLANs and routed ports to less than 1023. To preserve configuration and connections across reboots, save the configuration.

Error Message ETHCNTR-3-RA_ALLOC_ERROR:RAM Access [chars] [chars] memory allocation failure.

Note

This message applies only to Catalyst 3550 switches.

Explanation

A request to read from or write to the RAM access failed its memory allocation. The first [chars] is the RAM access command that failed, and the second [chars] describes whether processor memory allocation or I/O memory allocation failed.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message ETHCNTR-3-RA_REPLY_ERROR: Invalid reply to RAM Access [chars] request

([hex]) from satellite [dec].

Note

This message applies only to Catalyst 3550 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-35

ETHCNTR Messages

Chapter 2 Message and Recovery Procedures

Explanation

A request to read from or write to the satellite RAM produced an unexpected reply.

[chars] is the request type (read or write), [hex] is the address, and [dec] is the satellite number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message ETHCNTR-3-SNAP_FORWARDING_UNSUPPORTED: IPv4/IPv6 SNAP forwarding will be disabled because switch [dec] does not support this feature.

Note

This message applies only to Catalyst 3750 switches.

Explanation

A switch that is being added to the stack does not support the forwarding of IP Version

4 (IPv4) and IP Version 6 (IPv6) frames with Subnetwork Access Protocol (SNAP) encapsulation.

If this occurs, forwarding of IPv4 and IPv6 frames is disabled in the switch stack. [dec] is the stack member number.

Recommended Action

Replace the stack member with a switch that supports forwarding of IPv4 and

IPv6 frames with SNAP encapsulation.

Error Message ETHCNTR-3-UNEXPECTED_EVENT: Request [hex] encountered event [dec] in state [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An unexpected event occurred during a RAM-access request. [hex] is a request identifier. The first [dec] is an event number, and the second [dec] is a state number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

2-36

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

EXPRESS_SETUP Messages

EXPRESS_SETUP Messages

Error Message EXPRESS_SETUP-3-UNABLE_TO_RESET_CONFIG: [chars].

Explanation

The system cannot reset the configuration. [chars] is a text string that explains why the reset failed. For example, error renaming config file

, error removing config file

, or error removing private config file

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message EXPRESS_SETUP-6-CONFIG_IS_RESET: [chars].

Explanation

The configuration is reset. [chars] is a text message that clarifies the reset event, such as

The configuration is reset and the system will now reboot

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message EXPRESS_SETUP-6-MODE_ENTERED.

Explanation

The Express Setup mode is active.

Recommended Action

No action is required.

Error Message EXPRESS_SETUP-6-MODE_EXITED.

Explanation

The Express Setup mode is no longer active.

Recommended Action

No action is required.

FM Messages

Error Message FM-1-INIT: Feature Manager subsystem initialization failure.

Note

This message applies only to Catalyst 3550 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-37

FM Messages

Chapter 2 Message and Recovery Procedures

Explanation

The feature manager subsystem did not initialize because of insufficient memory. Either the hardware has failed, or the wrong Cisco IOS image is installed.

Recommended Action

Replace the failing hardware, or obtain the correct Cisco IOS image for this platform.

Error Message FM-2-NOMAP: Cannot create Feature Manager data structures for VLAN Map

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not allocate the data structures needed to describe a VLAN map into a form that can be loaded into hardware. This error is probably caused by a lack of free memory. [chars] is the VLAN map name.

Recommended Action

Reduce other system activity to ease the memory demands.

Error Message FM-2-NOSB: Cannot create subblock for interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not save per-interface information needed for its correct operation. Some per-interface features, such as access groups or VLAN maps, will not be correctly configured. [chars] is the interface name.

Recommended Action

Use a less complicated configuration that requires less memory.

2-38

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

Error Message FM-2-NOVLB: Cannot create memory block for VLAN [dec].

FM Messages

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not save per-VLAN information needed for its correct operation. Some per-interface features, such as access groups or VLAN maps, will not be correctly configured. [dec] is the VLAN ID.

Recommended Action

Use a less complicated configuration that requires less memory.

Error Message FM-2-NOVMR: Cannot create VMR data structures for access list [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not allocate the data structures needed to describe an ACL in a form that can be loaded into hardware. This error is probably caused by a lack of available CPU

DRAM. [chars] is the access-list name.

Recommended Action

Use a less complicated configuration that requires less memory.

Error Message FM-3-AUGMENTFAIL: Augmenting of access-map [chars] on [chars] label

[dec] failed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The system ran out of CPU memory when trying to merge internally required elements with the configured access maps. The first [chars] is the access-map name, the second [chars] is the direction in which the map was applied (input or output), and [dec] is the label number.

Recommended Action

Reduce other system activity to ease the memory demands.

Error Message FM-3-CONFLICT: [chars] [chars] conflicts with [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

Port access lists (PACLs) cannot be applied when input router access lists, VLAN maps, or IP multicast boundaries have been applied, and the reverse. [chars] are the names of the conflicting features.

Recommended Action

Remove the conflicting feature or features, and apply the configuration again.

Error Message FM-3-GOTLABEL: Got label for [chars].

Note

This message applies only to Catalyst 3550 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-39

FM Messages

Chapter 2 Message and Recovery Procedures

Explanation

The feature manager can allocate a hardware label for the interface. The interface needed a label before, but no label was available. [chars] is the label.

Recommended Action

No action is required. (This message pairs with the FM-3-NOLABEL message and means that the previous error condition has rectified itself.)

Error Message FM-3-GOTVLABEL: Got label for VLAN [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager can allocate a hardware label for the VLAN. The VLAN needed a label before, but no label was available. [dec] is the VLAN ID.

Recommended Action

No action is required. (This message pairs with the FM-3-NOLABELVL message and means that the previous error condition has rectified itself.)

Error Message FM-3-ILLEGALCOPY: Illegal copy of [chars] access group [chars] from

[chars] label [dec] to [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal software error occurred. The first [chars] is either ip or mac, the second

[chars] is an access list name, the third [chars] is either port or vlan, and the two [dec] values are label numbers.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

Error Message FM-3-INITLABEL: Special initialization of label [dec] failed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The access list hardware initialization failed. Prioritization of routing protocol packets above other kinds of packets might not occur on some VLANs or routed ports. [dec] is the label number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

2-40

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

FM Messages

Error Message FM-3-INSERTFAIL: Insert of access-map [chars] [dec] into [chars] label

[dec] failed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The system ran out of CPU memory when trying to merge sections of an access map.

The first [chars] is the map name, and the second [chars] is the direction in which the map was applied. The first [dec] is the entry number, and the second [dec] is the label number.

Recommended Action

Reduce other system activity to ease the memory demands. For example, remove any ACLs that have been defined but are not now used. Use simpler ACLs with fewer access control entries (ACEs). Use fewer VLANs, and remove any unneeded VLANs from the VLAN database.

Error Message FM-3-INTTABLE: Not in truth table: VLMAP [dec] RACL [dec] Rtprot [dec]

Redir [dec] Mcb [dec] Feat [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An unrecoverable software error occurred while the software was trying to merge the configured input features. The first five [dec] values are internal code numbers for the results of the

VLAN map, router ACL, routing protocol selector, IP redirect settings, and the multicast boundary configured on a Layer 3 interface. The sixth [dec] value is the feature that was being examined when the problem was detected.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-41

FM Messages

Chapter 2 Message and Recovery Procedures

Error Message FM-3-LABELERROR: Incorrect label to [chars] vlan label attribute copy callback srclabel [dec], dstlabel [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager copy callback attribute was called with an incorrect source or destination label. [chars] is the direction (input or output), the first [dec] is the source label value, and the second [dec] is the destination label value.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

Error Message FM-3-MAXRECURSION: Too many ([dec]) levels of recursion while merging

[chars] (code [dec]).

Note

This message applies only to Catalyst 3550 switches.

Explanation

The configuration is too complicated for the platform-specific ACL merge code to support. The most likely cause is too many separate access lists in a single VLAN map or policy map. The first [dec] is the number of levels of recursion. [chars] describes the merge stage that encountered the problem, such as VLAN map, Global Input, Global Output, or QoS Map. The second [dec] is an internal code number of the merge stage that encountered the problem.

Recommended Action

Reduce the number IP or MAC access lists (counted separately) in any one

VLAN or policy map to fewer than the number of levels reported by this log message.

Error Message FM-3-MERGEFAIL: [chars] ACL merge error [dec] ([chars]) on [chars] label [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not merge the configured features into a form suitable for loading into the hardware. Packets potentially affected by this feature are sent to the CPU for processing. The CPU processing needed to uphold the overflowed ACL severely degrades performance. The first [chars] is the ACL-type error (ip or mac), the first [dec] is the error code, the second [chars] is the message string for the preceding error code, the second [dec] is the label number, and the third [chars] is either input or output.

Recommended Action

Reorganize the ACLs so that all entries fit into hardware. Use less complicated and fewer ACLs.

2-42

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

FM Messages

Error Message FM-3-NOLABEL: Cannot allocate [chars] label for interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not allocate a label for the features on this interface. This means that the hardware cannot be programmed to implement the features, and packets for this interface will be filtered in software. There is a limit of 256 labels per direction. The first [chars] is the direction (input or output), and the second [chars] is the interface name.

Recommended Action

Allocate more space to the relevant section of the TCAM by using the sdm

prefer global configuration command and reboot the switch, or use a simpler configuration. Use the

same ACLs on multiple interfaces, if possible.

Error Message FM-3-NOLABELVL: Cannot allocate [chars] label for VLAN [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not allocate a label for the features on this VLAN. This means that the hardware cannot be programmed to implement the features, and packets on this

VLAN will be filtered in software. There is a limit of 256 labels per direction. [chars] is the direction

(input or output), and [dec] is the VLAN ID.

Recommended Action

Allocate more space to the relevant section of the TCAM by using the sdm

prefer global configuration command and reboot the switch, or use a simpler configuration. Use the

same VLAN map on multiple VLANs, if possible.

Error Message FM-3-NOTEMPTY: Illegal copy of attribute to non empty [chars] vlan label [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager copy callback attribute was called with a destination label already being used by a VLAN or routed port. [chars] is the direction (input or output), and [dec] is the label value.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-43

FM Messages

Chapter 2 Message and Recovery Procedures

Error Message FM-3-NOTOBJECT: Invalid object (VLAN [dec], IDB [hex]) used in Feature

Manager operation.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal software error has occurred. An invalid combination of VLAN and interface descriptor block (IDB) values was passed to a software routine. [dec] is the VLAN ID, and [hex] is the IDB value.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

Error Message FM-3-NULLCPU: Sending traffic on empty [chars] label [dec] to CPU.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal software error occurred. [chars] is the direction (input or output), and [dec] is the label number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message FM-3-OUTTTABLE: Not in truth table: RACL [dec] VLMAP [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An unrecoverable software error occurred while trying to merge the configured output features. The two [dec] values are internal code numbers for the results of the router ACL and VLAN map configured on a particular Layer 3 interface.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

2-44

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

FM Messages

Error Message FM-3-QOSTTABLE: Not in truth table: ACL [dec] in map, action [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

A software error occurred while trying to merge a quality of service (QoS) policy map.

The first [dec] is the number in the policy map (counting from zero) of the particular ACL where the problem was discovered, and the second [dec] is an internal code number for the result of matching that ACL in the policy map.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

Error Message FM-3-RELOADED: Reloading [chars] label [dec] feature in [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager can now load more of the configured features on this label into the hardware. One or more features had been previously unloaded because of a lack of space. The first

[chars] is the direction (input or output), [dec] is the label number, and the second [chars] is the

TCAM ID.

Recommended Action

No action is required.

Error Message FM-3-TOSCOST: Minimize monetary cost TOS bit unsupported in hardware, ignored.

Note

This message applies only to Catalyst 3550 switches.

Explanation

This hardware platform does not support filtering based on the type of service (ToS) and precedence. It supports filtering based on Differentiated Services Code Points (DSCPs). The DSCP field does not include the minimize monetary cost bit from the ToS field. The hardware ignores this bit when checking for a match to an ACE, which can lead to unintended filtering actions.

Recommended Action

Design filters that do not test for the minimum monetary cost ToS.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-45

FM Messages

Chapter 2 Message and Recovery Procedures

Error Message FM-3-UNKNOWNACTION: Unknown VMR access group action [hex].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal software error has occurred.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message FM-3-UNLOADING: Unloading [chars] label [dec] feature from [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The feature manager could not load the complete configuration into the hardware, so some features will be applied in the software. Some or all the packets are forwarded by the CPU.

Multicast packets might be dropped instead of being forwarded. The first [chars] is the direction

(input or output), [dec] is the label number, and the second [chars] is the TCAM ID.

Recommended Action

Allocate more space to the relevant section of the TCAM by using the sdm

prefer global configuration command and then reboot the switch, or use a simpler configuration.

Use the same ACLs on multiple interfaces, if possible.

Error Message FM-3-WRONGLABEL: Inconsistent records of label for [chars]: FM has

[dec], LM has [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal software error has occurred. [chars] is an interface name. The rest of the message

FM has [dec], LM has [dec]

means that the feature manager has a record that the interface belongs to the first [dec] and that the label manager has a record that the interface belongs to the second [dec]. Therefore, the software is in an inconsistent state.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

2-46

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

FRNTEND_CTRLR Messages

Error Message FM-4-EXCESSSECONDARY: More than [dec] secondary IP addresses configured on interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

When secondary IP addresses are configured on an interface and you enable Internet

Control Message Protocol (ICMP) redirects for packets received on that interface, the ICMP redirect function on the CPU is not usually notified of packets sent between two different subnets on the same interface. If too many secondary IP addresses are configured on the interface this message is logged, and in addition to being notified about packets that cause the generation of an ICMP redirect, the CPU is also notified about every packet routed between two different subnets that are both on the interface. No ICMP redirects will be sent in error, but the CPU usage might increase because of the additional notifications. [dec] is the limit of secondary IP addresses, and [chars] is the specified interface.

Recommended Action

You can use the no ip redirects interface configuration command on the interface named in the message to reduce the CPU load on the system.

Error Message FM-7-TRANSDEF: No augmentation function found for VMR.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal error occurred. An ACL was not correctly interpreted. The value-mask result (VMR) is incorrect.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

FRNTEND_CTRLR Messages

Error Message FRNTEND_CTRLR-1-MGR_TXQ_FULL: The front end controller Tx queue reached watermark level

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

There are too many messages in the queue between the front-end controller and the switch software.

Recommended Action

Try reloading the switch. If this does not resolve the issue, this might be a hardware problem. Contact the Cisco technical support representative.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-47

GBIC Messages

Chapter 2 Message and Recovery Procedures

Error Message FRNTEND_CTRLR-2-SUB_INACTIVE: The front end controller [dec] is inactive.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The front-end controller that controls the LEDs, the PoE features, and the fan-control features is now inactive on the port controlled by the front-end controller. This does not affect the traffic on the port. [dec] is the controller number.

Recommended Action

Reset the switch. If the problem is not resolved by resetting the switch, contact your Cisco technical support representative because there might be a problem with the switch.

GBIC Messages

Error Message GBIC_1000BASET-6-GBIC_1000BASET_DEFAULT_CONFIG: 1000BASE-T GBIC module is detected in [chars]. Speed and duplex will be autonegotiated.

Note

This message applies only to Catalyst 3550 switches.

Explanation

A 1000BASE-T GBIC module is detected in the slot, and its speed and duplex are automatically negotiated. [chars] is the slot in which the module is installed.

Recommended Action

No action is required.

Error Message GBIC_1000BASET-6-GBIC_1000BASET_NO_CONFIG_DUPLEX: Configuration ignored. 1000-BaseT GBIC modules only support autonegotiation on duplex.

Note

This message applies only to Catalyst 3550 switches.

Explanation

Autonegotiation was not used. The 1000BASE-T GBIC modules only support autonegotiation on duplex.

Recommended Action

No action is required.

2-48

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

GBIC Messages

Error Message GBIC_1000BASET-6-GBIC_1000BASET_NO_CONFIG_NEGOTIATE: Configuration ignored. 1000BASE-T GBIC modules only support autonegotiation.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The disabling of autonegotiation was not used. The 1000BASE-T GBIC modules support autonegotiation.

Recommended Action

No action is required.

Error Message GBIC_1000BASET-6-GBIC_1000BASET_NO_CONFIG_SPEED: Configuration ignored. 1000-BaseT GBIC modules only support autonegotiation on speed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

Autonegotiation was ignored. The 1000BASE-T GBIC modules only support autonegotiated speed.

Recommended Action

No action is required.

Error Message GBIC-4-CHECK_SUM_FAILED: GBIC EEPROM data check sum failed for GBIC interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not read vendor-data information to verify its accuracy. [chars] is the interface in which the module is installed.

Recommended Action

Remove and re-insert the GBIC module. If it continues to fail after re-insertion, it might be defective.

Error Message GBIC-4-NOREAD_VNAME: Unable to read vendor name for GBIC interface

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not read the GBIC vendor name. [chars] is the interface in which the module is installed.

Recommended Action

Remove and re-insert the GBIC module. If it continues to fail after re-insertion, it might be defective.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-49

GBIC Messages

Chapter 2 Message and Recovery Procedures

Error Message GBIC-4-NOREAD_VSDATA: Unable to read vendor-specific data for GBIC interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not read the identifying vendor-specific information to verify its authenticity. [chars] is the interface in which the module is installed.

Recommended Action

Remove and re-insert the GBIC module. If it continues to fail after re-insertion, it might be defective.

Error Message GBIC-4-NOREAD_VSERNUM: Unable to read serial number for GBIC interface

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not read the serial number of the GBIC module. [chars] is the interface in which the module is installed.

Recommended Action

Remove and re-insert the GBIC module. If it continues to fail after re-insertion, it might be defective.

Error Message GBIC-4-UNRECOGNIZED_EXTTYPE: GBIC interface [chars] has unrecognized extended type.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module, but the system does not recognize its reported extended type code. [chars] is the interface in which the module is installed.

Recommended Action

Check the list of supported GBIC modules for this version of the system software. An upgrade might be required for newer GBIC modules. Even if the module is unrecognized, it might still operate properly, but perhaps with limited functionality.

2-50

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

GBIC Messages

Error Message GBIC-4-XCVR_INTERR: Internal error occurred in setup for GBIC interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The system could not allocate resources or had some other problem during the setup for the specified GBIC interface. [chars] is the interface in which the GBIC module is installed.

Recommended Action

Reload the switch by using the reload privileged EXEC command. If the problem persists, call your Cisco technical support representative.

Error Message GBIC-6-SERDES_MODULE_UNKNOWN: Unrecognizable GBIC found in [chars]

(module mask [hex]).

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module presented data to the system that did not correctly identify the type of the GBIC module. The switch will treat it as a generic GBIC module. [chars] is the name of the interface in which the unknown module is installed, and [hex] is the module type value returned by the module.

Recommended Action

If the GBIC module fails to become operational, carefully remove and re-insert it in the slot. If it continues to fail after re-insertion, it might be defective or incompatible with the switch.

Error Message GBIC-6-SERDES_SERIAL_INV_DATA: Unrecognizable GBIC found in [chars]

(serial data [hex]).

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module presented data to the system that did not correctly identify the type of the GBIC module. The switch will treat it as a generic GBIC module. [chars] is the name of the interface where the unrecognizable module is found, and [hex] is the data value returned by the module.

Recommended Action

If the GBIC module fails to become operational, carefully remove and re-insert it in the slot. If it continues to fail after re-insertion, it might be defective or incompatible with the switch.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-51

Chapter 2 Message and Recovery Procedures

GBIC_SECURITY Messages

GBIC_SECURITY Messages

Note

The Catalyst 3750, 3560, 2975, 2970, and 2960 switch supports SFP modules and does not support GBIC modules. Although the error message text refers to GBIC interfaces and modules, the messages from the switch actually refer to the SFP module interfaces and modules.

Error Message GBIC_SECURITY-4-DUPLICATE_SN: GBIC interface [dec] has the same serial number as another GBIC interface.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module, but its serial number matches that of another interface on the system. [chars] is the interface in which the module is installed.

Recommended Action

Cisco GBIC modules are assigned unique serial numbers. Verify that the module was obtained from Cisco or a supported vendor.

Error Message GBIC_SECURITY-4-EEPROM_CRC_ERR: EEPROM checksum error for GBIC in

[chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The GBIC in the specified port has invalid EEPROM data. [chars] is the port in which the GBIC is inserted.

Recommended Action

Remove the GBIC from the port.

Error Message GBIC_SECURITY-4-EEPROM_READ_ERR: Error in reading GBIC serial ID in

[chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An error occurred while the switch was reading the GBIC type from the EEPROM.

[chars] is the port in which the GBIC is inserted.

Recommended Action

Remove the GBIC from the port.

Error Message GBIC_SECURITY-4-EEPROM_SECURITY_ERR: GBIC in [chars] failed security check.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

2-52

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

GBIC_SECURITY Messages

Explanation

The GBIC in the specified port has invalid EEPROM data. [chars] is the port in which the GBIC is inserted.

Recommended Action

Remove the GBIC from the port.

Error Message GBIC_SECURITY-4-GBIC_INTERR: Internal error occurred in setup for GBIC interface [chars].

Explanation

The system could not allocate resources or had some other problem during the setup for the specified SFP module interface. [chars] is the interface in which the SFP module is installed.

Recommended Action

Reload the switch by using the reload privileged EXEC command. If the problem persists, find out more about the error by using the show tech-support privileged EXEC command. Copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For

more information about these online tools and about contacting Cisco, see the “Error Message

Traceback Reports” section on page 1-9

Error Message GBIC_SECURITY-4-ID_MISMATCH: Identification check failed for GBIC interface [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not verify its identity. [chars] is the interface in which the module is installed.

Recommended Action

Check the list of supported GBIC modules for this version of the system software. An upgrade might be required for newer modules. Otherwise, verify that the module was obtained from Cisco or a supported vendor.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-53

Chapter 2 Message and Recovery Procedures

GBIC_SECURITY_CRYPT Messages

Error Message GBIC_SECURITY-4-UNRECOGNIZED_VENDOR: GBIC interface [chars] manufactured by an unrecognized vendor.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module but the system could not match its manufacturer with one of the known list of Cisco GBIC vendors. [chars] is the interface in which the module is installed.

Recommended Action

Check the list of supported GBIC modules for this version of the system software. An upgrade might be required for newer modules.

Error Message GBIC_SECURITY-4-VN_DATA_CRC_ERROR: GBIC interface [chars] has bad crc.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GBIC module was identified as a Cisco GBIC module, but it does not have a valid

CRC in the EEPROM data. [chars] is the interface in which the module is installed.

Recommended Action

Check the list of supported GBIC modules for this version of the system software. An upgrade might be required for newer modules. Even if unrecognized, the module might still operate properly, perhaps with limited functionality.

Error Message GBIC_SECURITY-6-SFP_INSERTED: Transceiver SFP [chars] module inserted in [chars]

Explanation

The online insertion and removal (OIR) facility detected a newly inserted transceiver module for the interface specified in the message. The first [chars] is the module, and the second

[chars] is the interface.

Recommended Action

No action is required.

Error Message GBIC_SECURITY-6-SFP_REMOVED: Transceiver SFP [chars] module removed from [chars]

Explanation

The OIR facility detected the removal of a transceiver module from the interface specified in the message. The first [chars] is the module, and the second [chars] is the interface.

Recommended Action

No action is required.

GBIC_SECURITY_CRYPT Messages

Note

2-54

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

GBIC_SECURITY_UNIQUE Messages

Error Message GBIC_SECURITY_CRYPT-4-ID_MISMATCH: Identification check failed for

GBIC interface [chars].

Explanation

The SFP module was identified as a Cisco SFP module, but the system could not verify its identity. [chars] is the port.

Recommended Action

Ensure that the Cisco IOS software running on the switch supports the SFP module. You might need to upgrade your software. Otherwise, verify that the SFP module was obtained from Cisco or from a supported vendor.

Error Message GBIC_SECURITY_CRYPT-4-UNRECOGNIZED_VENDOR: GBIC interface [chars] manufactured by an unrecognized vendor.

Explanation

The SFP module was identified as a Cisco SFP module, but the switch could not match its manufacturer with one on the known list of Cisco SFP module vendors. [chars] is the port.

Recommended Action

Ensure that the Cisco IOS software running on the switch supports the SFP module. You might need to upgrade your software.

Error Message GBIC_SECURITY_CRYPT-4-VN_DATA_CRC_ERROR: GBIC interface [chars] has bad crc.

Explanation

The SFP module was identified as a Cisco SFP module, but it does not have a valid cyclic redundancy check (CRC) in the EEPROM data. [chars] is the port.

Recommended Action

Ensure that the Cisco IOS software running on the switch supports the SFP module. You might need to upgrade your software. Even if the switch does not recognize the SFP module, it might still operate properly but have limited functionality.

GBIC_SECURITY_UNIQUE Messages

Note

The Catalyst 3750, 3560, and 2970 switch supports SFP modules and does not support GBIC modules.

Although the error message text refers to GBIC interfaces and modules, the messages from the switch actually refer to the SFP module interfaces and modules.

OL-8551-07

Error Message GBIC_SECURITY_UNIQUE-3-DUPLICATE_GBIC: GBIC interface [dec]/[dec] is a duplicate of GBIC interface [dec]/[dec].

Note

This message applies only to Catalyst 3750, 3560, and 2970 switches.

Explanation

The SFP module was identified as a Cisco GBIC or SFP module, but its vendor ID and serial number match that of another interface on the system. The first [dec]/[dec] is the interface of the duplicate GBIC or SPF module, and the second [dec]/[dec] is the interface of the existing module.

Recommended Action

Cisco GBIC or SFP modules are assigned unique serial numbers. Verify that the module was obtained from Cisco or from a supported vendor.

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-55

Chapter 2 Message and Recovery Procedures

GBIC_SECURITY_UNIQUE Messages

Error Message GBIC_SECURITY_UNIQUE-4-DUPLICATE_SN: GBIC interface [dec]/[dec] has the same serial number as another GBIC interface.

Note

This message applies only to Catalyst 3750, 3560, and 2970 switches.

Explanation

The SFP module was identified as a Cisco SFP module, but its serial number matches that of another interface on the system. [dec]/[dec] is the interface in which the duplicate module is installed.

Recommended Action

Cisco SFP modules are assigned unique serial numbers. Verify that the module was obtained from Cisco or from a supported vendor.

2-56

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

GIGASTACK Messages

GIGASTACK Messages

Error Message GIGASTACK-1-NO_LOOP_DETECT: The link neighbor of link [dec] of

GigaStack GBIC in [chars] did not respond to the loop detection request. If loop topology is deployed, make sure all switches in the stack are running the latest software.

Note

This message applies only to Catalyst 3550 switches.

Explanation

No acknowledgement for the loop-detection request is received from one of the links on a GigaStack GBIC module. Either the neighboring switch does not support the GigaStack GBIC loop-breaking algorithm, or the link between the two GigaStack GBIC modules is broken. Under this condition, a GigaStack loop topology is not automatically detected, and the connectivity between switches in the stack can be lost. [dec] is the link number, and [chars] is the slot number.

Recommended Action

If a loop topology is used with the GigaStack GBIC module, ensure that the latest software is running on all switches in the stack. Check the GigaStack GBIC modules involved to ensure that they are functioning.

Error Message GIGASTACK-3-INIT_FAILURE: GigaStack GBIC in [chars] initialization failed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The GigaStack GBIC module failed power-on self-test (POST). [chars] is the interface name.

Recommended Action

Remove the GigaStack GBIC module, and re-insert it into the GBIC module slot.

Error Message GIGASTACK-6-LOOP_BROKEN: Link loss is detected in the GigaStack loop.

Link 2 of the GigaStack GBIC in [chars] is re-enabled.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The loop formed by GigaStack GBIC modules is broken because of a link loss. Link 2 of the master loop breaker is re-enabled to replace the broken link. [chars] is the interface name.

Recommended Action

No action is required.

Error Message GIGASTACK-6-LOOP_DETECTED: GigaStack GBIC in [chars] is selected as

Master Loop Breaker. Link 2 of the GigaStack GBIC is disabled to break the loop.

Note

This message applies only to Catalyst 3550 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-57

HARDWARE Messages

Chapter 2 Message and Recovery Procedures

Explanation

A loop is detected in the stack, and this GigaStack GBIC module is selected as the master loop breaker. Link 2 of this GigaStack GBIC module is disabled to break the loop. [chars] is the interface name.

Recommended Action

No action is required.

HARDWARE Messages

Error Message HARDWARE-1-TCAM_ERROR: [traceback] Found error in [chars] TCAM Space and not able to recover the error

Note

This message is not applicable on Catalyst 2960-S switches.

Explanation

The switch cannot fix a ternary content addressable memory (TCAM) integrity error.

[chars] is the memory location with the error: Unassigned TCAM Space, HFTM TCAM Space (the

ASIC forwarding TCAM manager space), or HQATM TCAM Space (the TCAM ASIC quality of service [QoS] and access control list [ACL] TCAM manager space).

Recommended Action

Restart the switch.

Error Message HARDWARE-2-FAN_ERROR: Fan [chars] Failure

Explanation

The switch fan is not working. [chars] is the fan name.

Recommended Action

This occurs when the hardware fails. The fan might recover automatically. If the fan on the switch continues to fail, copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the

Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about the online tools and about contacting Cisco, see the

“Error Message Traceback Reports” section on page 1-9 .

Error Message HARDWARE-2-THERMAL_WARNING: Temperature has reached warning threshold.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The temperature sensor valve inside the switch reached the warning threshold. The switch can function normally until the temperature reaches the critical threshold.

Recommended Action

The external temperature is high. Reduce the temperature in the room.

2-58

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

HARDWARE Messages

Error Message HARDWARE-3-ASICNUM_ERROR: [traceback] Port-ASIC number [dec] is invalid

Explanation

The port ASIC number is invalid. [dec] is the port ASIC number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still need assistance, open a case with the TAC, or provide your Cisco technical support representative with your information.

Error Message HARDWARE-3-INDEX_ERROR: Index value [dec] is invalid.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The index into the hardware table is out-of-range. [dec] is the index value.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message HARDWARE-3-INTRNUM_ERROR: Port-ASIC Interrupt number [dec] is invalid.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The interrupt ID used in a port ASIC is invalid. [dec] is the interrupt number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message HARDWARE-3-PORTNUM_ERROR: [traceback] port number [dec] is invalid

Explanation

The port number is out of range. [dec] is the port number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-59

HLFM Messages

Chapter 2 Message and Recovery Procedures

Error Message HARDWARE-3-STATS_ERROR: Statistics ID [dec] is invalid.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The statistics ID used is out of range. The statistics supported by the port ASIC are identified by an ID. [dec] is the statistics ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

HLFM Messages

Error Message HLFM-3-MACFREE_ERROR: MAC address [enet], vlan [dec] is still referenced; cannot free.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An attempt was made to free a MAC address before releasing all references to it. [enet] is the MAC address, and [dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message HLFM-3-MAP_ERROR: IP address [IP_address] not in mac tables, mac-address [enet], vlan [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The IP address and MAC address tables are out of sync. [IP_address] is the IP address,

[enet] is the MAC address, and [dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-60

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

HPSECURE Messages

Error Message HLFM-3-MOD_SD: Failed to modify Station Descriptor with index [dec], vlan [dec], di [dec], error [dec], mad [dec], ref-count [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The forwarding manager attempted to modify a station descriptor that is no longer in use or is invalid. The first [dec] is the station index, the second [dec] is the VLAN ID, the third [dec] is the destination index, the fourth [dec] is the error code, the fifth [dec] is the MAC address descriptor, and the sixth [dec] is the ref-count for this MAC address descriptor.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message HLFM-3-SEND_FAIL: Failed to send RPC message, req [dec], [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

There is a local resource error or that too many outgoing messages are queued for the message class. [dec] is the RPC request number, and [chars] is an optional comment.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

HPSECURE Messages

Error Message HPSECURE-6-ADDR_REMOVED: Address [enet]:[dec] on port [chars] cannot be added on switch [dec] and has been removed.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

At least one switch in the stack could not add the MAC address because a resource failed, and the MAC address has been deleted from all the switches in the stack. [enet] is the MAC address, the first [dec] is the VLAN to which the MAC address is assigned, [chars] is the interface, and the second [dec] is the stack member number.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-61

Chapter 2 Message and Recovery Procedures

HULC Messages

HULC Messages

Error Message HULC_LICENSE-1-LICENSE_REGISTER_FAILED: [chars] - rc = [dec]

Note

This message applies only to Catalyst 2960-S switches.

Explanation

The licensing initialization failed. [chars] explains what part of the license registration failed, and [dec] is the type of license initialization error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

IDBMAN Messages

Error Message IDBMAN-3-AGGPORTMISMATCH: [chars]: [chars]([dec] / [dec]) does not match internal slot/port state [chars]([dec] / [dec]).

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an invalid aggregate port to be used by the software. The first [chars] is the name of the function where the error occurred. The second and third

[chars] are the port-channel names, and the ([dec] / [dec]) are the slot and port numbers (slot/port).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-62

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

IDBMAN Messages

Error Message IDBMAN-3-DELETEDAGGPORT: [chars]([dec] / [dec]) Group [dec] has been deleted, but is being reused.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an interface that has been deleted to be reused for a new aggregate port. [chars] is the port-channel name, and the ([dec] / [dec]) are the slot and port numbers (slot/port). The last [dec] is the channel-group number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message IDBMAN-3-INVALIDAGGPORTBANDWIDTH: [chars]([dec] / [dec]) has an invalid bandwidth value of [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an invalid bandwidth to be used for an aggregate port. [chars] is the port-channel name. The ([dec] / [dec]) are the slot and port numbers (slot/port).

The last [dec] is the bandwidth.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message IDBMAN-3-INVALIDPORT: [chars]: trying to use invalid port number [dec]

( Max [dec] ).

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an invalid port number to be used by the software.

[chars] is the interface name. The first [dec] is the port number that is invalid, and the second [dec] is the maximum allowed value for a port number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-63

IDBMAN Messages

Chapter 2 Message and Recovery Procedures

Error Message IDBMAN-3-INVALIDVLAN: [chars]: trying to use invalid Vlan [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an invalid VLAN to be used by the software.

[chars] is the interface name, and [dec] is the VLAN ID that is invalid.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message IDBMAN-3-NOTANAGGPORT: [chars]( [dec] / [dec] ) is not an aggregate port.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

There is an internal error that caused an interface that is not an aggregate port to be used for aggregate port operations. [chars] is the interface name, and ([dec] / [dec]) are the slot and port number (slot/port).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message IDBMAN-3-PORTNOTINAGGPORT: [chars]([dec] / [dec]) is not present in

Aggport [chars [([dec] / [dec]).

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal error has been detected. A port that was supposed to be in an aggregate port was found not to be. The first [chars] is the interface name, and the second [chars] is the port-channel name. The ([dec] / [dec]) are the slot and port numbers (slot/port).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-64

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

IFMGR Messages

Error Message IDBMAN-3-VLANNOTSET: [chars]: Vlan [dec] not set since it already has

Vlan [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An interface VLAN was not set to the requested value because of an internal error.

[chars] is the interface name. The first [dec] is the recently configured VLAN ID, and the second

[dec] is the currently assigned VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message IDBMAN-4-ACTIVEPORTSINAGGPORT: [chars]( [dec] / [dec] ) has [dec] active ports, but is being removed.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal error removed an aggregate port that has active ports. [chars] is the port-channel name, and the ([dec] / [dec]) are the slot and port number (slot/port). The last [dec] is the number of currently active ports.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

IFMGR Messages

Error Message IFMGR-3-IFINDEX_PERSIST_ENTRY_CORRUPT: [chars] seems to be corrupted.

Trying to read [dec] size

Explanation

The ifIndex table is corrupted. [chars] is the path to the IfIndex file, and [dec] is the number of bytes that was being read from the ifIndex table when the corruption was detected.

Recommended Action

Delete the ifindex table.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-65

Chapter 2 Message and Recovery Procedures

IGMP_QUERIER Messages

Error Message IFMGR-3-INVALID_PERSISTENT_DATA: Invalid persistent data

Explanation

The interface manager attempts to write invalid persistent data.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

Cisco technical support representative with your information.

IGMP_QUERIER Messages

Error Message IGMP_QUERIER-4-NO_IP_ADDR_CFG: The IGMP querier cannot send out

General Query messages in VLAN [dec] because there is no IP address configured on the system.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An IP address for the IGMP querier was not configured at either the global or per-VLAN level. [dec] is the VLAN ID.

Recommended Action

Configure a source IP address for the IGMP querier.

Error Message IGMP_QUERIER-4-PIM_ENABLED: The IGMP querier is operationally disabled in VLAN [dec] because PIM has been enabled on the SVI.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

Protocol-Independent Multicast (PIM) was detected on the switch virtual interface

(SVI). Do not enable the IGMP querier when PIM is enabled on the SVI. [dec] is the VLAN ID.

Recommended Action

Ensure that PIM is disabled on the SVI.

Error Message IGMP_QUERIER-4-SNOOPING_DISABLED: The IGMP querier is operationally disabled in VLAN [dec] because IGMP snooping has been disabled in this VLAN.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

IGMP snooping is disabled on this VLAN. Do not enable the IGMP querier when IGMP snooping is disabled. [dec] is the VLAN IDs.

Recommended Action

Confirm that IGMP snooping is enabled both globally and on the VLAN.

2-66

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ILET Messages

Error Message IGMP_QUERIER-6-PIM_DISABLED: The IGMP querier is now operationally enabled in VLAN [dec] because PIM is no longer enabled on the SVI.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

PIM is disabled on the SVI, and the IGMP querier function is now enabled. [dec] is the

VLAN ID.

Recommended Action

No action is required.

Error Message IGMP_QUERIER-6-SNOOPING_ENABLED: The IGMP querier is now operationally enabled in VLAN [dec] because IGMP snooping is no longer disabled.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

IGMP snooping was enabled. As a result, the IGMP querier function is now enabled.

[dec] is the VLAN ID.

Recommended Action

No action is required.

ILET Messages

Error Message ILET-1-AUTHENTICATION_FAIL: This Switch may not have been manufactured by Cisco or with Cisco’s authorization. This product may contain software that was copied in violation of Cisco’s license terms. If your use of this product is the cause of a support issue, Cisco may deny operation of the product, support under your warranty or under a Cisco technical support program such as Smartnet.

Please contact Cisco’s Technical Assistance Center for more information.

Explanation

A license authentication failure occurred for the switch.

Recommended Action

Contact your Cisco sales representative for assistance.

Error Message ILET-1-DEVICE_AUTHENTICATION_FAIL: The [chars] inserted in this switch may not have been manufactured by Cisco or with Cisco's authorization. If your use of this product is the cause of a support issue, Cisco may deny operation of the product, support under your warranty or under a Cisco technical support program such as Smartnet. Please contact Cisco's Technical Assistance Center for more information.

Explanation

A license authentication failure occurred for a component that was inserted in the switch.

[chars] is the component.

Recommended Action

Contact your Cisco sales representative for assistance.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-67

Chapter 2 Message and Recovery Procedures

ILPOWER Messages

ILPOWER Messages

Error Message ILPOWER-3-CONTROLLER_ERR: Controller error, Controller number [dec]:

[chars].

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

An error reported or caused by the PoE controller is detected. [dec] is the controller instance, which is 0 to 5 on a 24-port PoE switch and 0 to 11 on a 48-port PoE switch. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message ILPOWER-3-CONTROLLER_ERR:Controller error, Controller number [chars]: accessing failed

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

An error reported or caused by the PoE controller was detected. [chars] is the controller number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message ILPOWER-3-CONTROLLER_ERR:Controller error, Controller number

[chars]:Reset failed

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

An error reported or caused by the PoE controller was detected. [chars] is the controller number.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or

2-68

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ILPOWER Messages

contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting Cisco, see the

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message ILPOWER-3-CONTROLLER_IF_ERR: Controller interface error, [chars]:

[chars].

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

An interface error is detected between the PoE controller and the system. The first

[chars] is the interface. The second [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message ILPOWER-3-CONTROLLER_IF_ERR:Controller interface error, S2W bus:Initialization failed.

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

An interface error was detected between the PoE controller and the system.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message ILPOWER-3-CONTROLLER_PORT_ERR:Controller port error, Interface

Fa0/7:Power given, but link is not up.

Note

This message applies only to the Catalyst 3750 and 3560 switches.

Explanation

The inline-power-controller reported an error on an interface.

Recommended Action

Enter the shutdown and no shutdown interface configuration commands on the affected interfaces. Upgrade to Cisco IOS Release12.1(14)EA1 or later, which provides an electrostatic discharge (ESD) recovery mechanism.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-69

ILPOWER Messages

Chapter 2 Message and Recovery Procedures

Error Message ILPOWER-3-CONTROLLER_POST_ERR: Inline Power Feature is disabled on this switch because Power On Self Test (POST) failed on this switch. Please consult

TECH support for further assistance

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

An error reported or caused by the Power over Ethernet (PoE) controller is detected during power-on self-test (POST).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message ILPOWER-3-ILPOWER_INTERNAL_IF_ERROR: Inline Power internal error, interface [chars]: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

A software check failed during PoE processing. The first [chars] is the interface. The second [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message ILPOWER-3-ILPOWER_INTERNAL_IF_ERROR:Inline Power internal error.

Interface cannot obtain asic-cnfg information.

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

The PoE feature code failed for unknown reasons. A software error has probably occurred.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

2-70

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ILPOWER Messages

Error Message ILPOWER-4-LOG_OVERDRAWN: Interface [chars] is overdrawing power. it is consuming [dec] milliwatts where as maximum configured power is ([dec]) milliwatts.

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

The powered device is drawing more power than the maximum powered configured on the interface. [chars] is the interface, and [dec] is the maximum configured power.

Recommended Action

Ensure that the correct power is budgeted for this interface based on the powered-device electrical specifications or ratings. Otherwise, you might risk overloading the switch. We recommend that you change the cutoff power value if needed.

Error Message ILPOWER-5-CLR_OVERDRAWN: Interface [chars] is NOT overdrawing power. it is consuming [dec] milliwatts where as maximum configured value is ([dec]) milliwatts.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The device connected to the Power over Ethernet (PoE) interface is consuming more power than the maximum power allocation. [chars] is the interface. The first [dec] is the power being consumed, and the second [dec] is the maximum allocated power value.

Recommended Action

No action is required.

Error Message ILPOWER-5-CONTROLLER_OVERDRAWN: Interface [chars] is NOT overdrawing power. it is consuming [dec] milliwatts where as maximum configured value is

([dec]) milliwatts.

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

Recommended Action

No action is required.

Error Message ILPOWER-5-DC_DISCONNECT: Interface [chars]: DC disconnect.

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

The DC power has been disconnected.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-71

ILPOWER Messages

Chapter 2 Message and Recovery Procedures

Error Message ILPOWER-5-IEEE-DISCONNECT: Interface [chars]: PD removed.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The powered device is no longer connected to the switch or that the connected powered device is being powered by an external AC power source. The switch is no longer providing power to the port. [chars] is the interface.

Recommended Action

No action is required.

Error Message ILPOWER-5-ILPOWER_POWER_CDP_SHUT: Interface [chars]: inline power shut

Note

This message applies only to Catalyst 3750, 3560, and 3550 switches.

Explanation

Inline power is shut down because CDP consumption power on this Power over Ethernet

(PoE) port is greater than the allocation power, the hardware interface limit, the user-configured maximum power, or the available power on this switch. [chars] is the interface.

Recommended Action

No action is required.

Error Message ILPOWER-5-ILPOWER_POWER_DENY: Interface [chars]: inline power denied.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

There is not enough power remaining in the switch to supply to the PoE port. [chars] is the interface.

Recommended Action

Connect the powered device to an external AC power source.

Error Message ILPOWER-5-ILPOWER_POWER_DENY:Interface [chars]:inline power denied

Note

This message applies only to Catalyst 3550-24PWR switches.

Explanation

The PoE request was denied because the switch does not have enough power left to support the request. [chars] is the interface number.

Recommended Action

No action is required.

2-72

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

ILPOWER Messages

Error Message ILPOWER-5-INVALID_IEEE_CLASS: Interface [chars]: has detected invalid

IEEE class: [dec] device. Power denied

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The power device has an invalid class so that the switch is not supplying power to the device. [chars] is the interface name. [dec] is the class number of the device.

Recommended Action

No action is required.

Error Message ILPOWER-5-LINKDOWN_DISCONNECT: Interface [chars]: Link down disconnect.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

Recommended Action

No action is required.

Error Message ILPOWER-5-POWER_GRANTED: Interface [chars]: Power granted.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

There is enough power available in the switch and that the switch is providing power to the interface. [chars] is the interface.

Recommended Action

No action is required.

Error Message ILPOWER-7-DETECT: Interface [chars]: Power Device detected:[chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The switch has detected the attached powered device. The first [chars] is the interface.

The second [chars] is the Cisco pre-standard powered device or the IEEE-compliant powered device.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-73

Chapter 2 Message and Recovery Procedures

IMAGEMGR Messages

IMAGEMGR Messages

Error Message IMAGEMGR-6-AUTO_ADVISE_SW_INITIATED: Auto-advise-software process initiated for systems [bits: [hex]].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

Systems with incompatible software have been detected in the switch stack.

Auto-advise software informs you when not all switches in the stack are running the same software version. The stack master then attempts to upgrade all switches running different versions to the version that the master is running. The stack finds out whether or not software is available to be copied to the incompatible systems and if so, advises you how to copy it. Otherwise, the system informs you that the software on the switch stack needs to be updated. [bits [hex]] is the bit representation of the switch number.

Recommended Action

No action is required.

Error Message IMAGEMGR-6-AUTO_ADVISE_SW: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A line of output from the auto-advise-software process is being displayed. [chars] is a text message reporting status of the upgrade process.

Recommended Action

No action is required.

Error Message IMAGEMGR-6-AUTO_COPY_SW_INITIATED: Auto-copy-software process initiated for systems [bits: [hex]].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

Systems with incompatible software have been detected in the switch stack. The stack now finds out whether or not software is available to be copied to the incompatible systems and whether or not it is appropriate to automatically copy the software. [bits [hex]] is the bit representation of the switch number.

Recommended Action

No action is required.

2-74

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

Error Message IMAGEMGR-6-AUTO_COPY_SW: [chars].

IP_DEVICE_TRACKING_HA Messages

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A line of output from the auto-copy-software process is being displayed. [chars] is a text message reporting status of the upgrade process.

Recommended Action

No action is required.

Error Message IMAGEMGR-6-AUTO_DOWNLOAD_SW_INITIATED: Auto-download-software process initiated for systems [bits: [hex]].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

Systems with incompatible software have been detected in the switch stack. The stack now attempts to download software from a previously configured location and to install it to make the systems compatible. [bits [hex]] is the bit representation of the switch number.

Recommended Action

No action is required.

Error Message IMAGEMGR-6-AUTO_DOWNLOAD_SW: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A line of output from the auto-download-software process is being displayed. [chars] is a text message reporting the status of the upgrade process.

Recommended Action

No action is required.

IP_DEVICE_TRACKING_HA Messages

Error Message IP_DEVICE_TRACKING_HA-4-ENTRY_OUT_OF_SYNC: Host mac-address [enet] ip-address [IP_address] interface [chars]

Explanation

The IP device tracking table has detected an inconsistency between active and standby for this host. [enet] is the host MAC address, [IP_address] is the host IP address, and [chars] is the interface.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-75

Chapter 2 Message and Recovery Procedures

L2TM Messages

L2TM Messages

Error Message L2TM-3-ACCESS_ERR: TCAM access failed while [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The software did not read from or write to the TCAM. [chars] describes the part of the

TCAM and the operation that failed.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message L2TM-7-INTERNAL_ERR: Internal error:[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An internal error occurred. [chars] describes the internal operation that failed.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

2-76

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

L3TCAM Messages

L3TCAM Messages

Error Message L3TCAM-3-SIZE_CONFLICT: [chars] requires enabling extended routing.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The size of the Layer 3 unicast TCAM entry is not sufficient to implement a feature.

[chars] is the feature name (either Web Cache Communication Protocol [WCCP] or multiple VPN routing/forwarding [multi-VRF]) that requires the 144-bit TCAM size.

Recommended Action

Modify the Switch Database Management (SDM) template to enable the switch to support the 144-bit Layer 3 TCAM. Use the sdm prefer extended-match, sdm prefer access

extended-match, or sdm prefer routing extended-match global configuration command, and then

reload the switch by using the reload privileged EXEC command.

Error Message L3TCAM-3-TOO_MANY_VRF: Exceed the maximum number of VRF allowed.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The number of virtual private networks (VPNs) exceeds the number allowed by the VPN routing/forwarding table on this hardware platform.

Recommended Action

Reconfigure your switch to limit the number of VRFs. Do not define (name) more than seven VRFs with the ip vrf vrf-name global configuration command.

Error Message L3TCAM-4-WCCP_ENABLE: Both VRF and WCCP are enabled, please remove either WCCP or VRF configuration.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The switch does not support enabling of both VRF and WCCP.

Recommended Action

Reconfigure your switch to use either VRF or WCCP.

MAC_LIMIT Messages

Error Message MAC_LIMIT-4-DROP: Vlan [dec] with Configured limit = [dec] has currently [dec] Entries.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-77

MAC_MOVE Messages

Chapter 2 Message and Recovery Procedures

Explanation

The number of MAC address table entries for a VLAN is less than or equal to the maximum number allowed. The first [dec] is the VLAN ID, the second [dec] is the maximum number of MAC address entries, and the third [dec] is the number of entries in the MAC address table.

Recommended Action

Your system administrator configures an action.

Error Message MAC_LIMIT-4-ENFORCE: Enforcing limit on Vlan [dec] with Configured limit = [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The number of MAC address entries for the VLAN exceeds the maximum number allowed. The configured action is to limit the number of entries to the maximum allowed. The first

[dec] is the VLAN ID, and the second [dec] is the maximum number of MAC address entries.

Recommended Action

Your system administrator configures an action.

Error Message MAC_LIMIT-4-EXCEED: Vlan [dec] with Configured limit = [dec] has currently [dec] Entries.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The number of MAC address entries for a VLAN exceeds the maximum number allowed. The first [dec] is the VLAN ID, the second [dec] is the maximum number of MAC address entries, and the third [dec] is the number of entries in the MAC address table.

Recommended Action

Your system administrator configures an action.

MAC_MOVE Messages

Error Message MAC_MOVE-4-NOTIF: Host [enet] in vlan [dec] is flapping between port

[chars] and port [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The host is moving between the specified ports. [enet] is the Ethernet address of the host, [dec] is the VLAN ID, the first [chars] is the first port, and the second [chars] is the second port.

Recommended Action

Check your network for loops.

2-78

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

NETWORK_PORT_SATELLITE Messages

NETWORK_PORT_SATELLITE Messages

The section contains the network port satellite messages on Catalyst 3550 switches. A network port satellite is a Cisco ASIC within the switch that provides Layer 2 and Layer 3 functionality and the interface between a Gigabit link or multiple 10/100 Ethernet links and the switch.

Error Message NETWORK_PORT_SATELLITE-3-PHY_LOCKUP: Repeated phy lockup seen on

[chars]. Interface will be shut down.

Note

This message applies only to Catalyst 3550 switches.

Explanation

PHY lockup was detected too many times in a row. The interface is shut down to avoid continuous link flapping.

Recommended Action

To re-enable the interface, use the shutdown interface configuration command, followed by the no shutdown interface configuration command.

Error Message NETWORK_PORT_SATELLITE-6-MAC_LOCKUP: Transmit lock up is detected in

[chars]. This port is administratively down.

Note

This message applies only to Catalyst 3550 switches.

Explanation

When the PHY is powered on and off, the MAC cycles from 1000 to 100 Mb/s, and the port might lock up and stop sending packets. The PHY refers to the physical layer device on the switch, which sends and receives optical signals and provides framing and line integrity. [chars] is the interface name.

Recommended Action

Shut down the port by using the shutdown interface configuration command, and bring it back up by using the no shutdown interface configuration command.

PAGP_DUAL_ACTIVE Messages

Error Message PAGP_DUAL_ACTIVE-3-OBJECT_CREATE_FAILED: Unable to create [chars]

Explanation

The switch cannot create the specified managed object. [chars] is the object name.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-79

PBR Messages

Chapter 2 Message and Recovery Procedures

Error Message PAGP_DUAL_ACTIVE-3-RECOVERY_TRIGGER: PAgP running on [chars] informing virtual switches of dual-active: new active id [enet], old id [enet]

Explanation

PAgP received a new active ID on the specified interface, which means that all virtual switches are in a dual-active scenario. The interface is informing virtual switches of this, which causes one switch to go into recovery mode. [chars] is the interface, the first [enet] is the new active

ID, and the second [enet] is the ID that it replaces.

Recommended Action

No action is required.

Error Message PAGP_DUAL_ACTIVE-3-REGISTRY_ADD_ERR: Failure in adding to [chars] registry

Explanation

The switch could not add a function to the registry. [chars] is the registry name.

Recommended Action

No action is required.

PBR Messages

Error Message PBR-2-NO_RMAP: Cannot create PBR data structures for route-map [chars]

Note

This message applies only to Catalyst 3550 switches.

Explanation

The PBR manager could not allocate the data structures needed to describe a route map being used for policy routing. This was probably caused by lack of available memory. [chars] is a value that is applied by using the route-map interface configuration command.

Recommended Action

Use a less-complicated configuration that requires less memory.

Error Message PBR-3-NO_LABEL: Cannot allocate label for route-map [chars]

Note

This message applies only to Catalyst 3550 switches.

Explanation

The PBR manager could not allocate a label for this route map. This means that the hardware cannot be programmed to implement policy routing. There is a limit of 247 labels for policy routing. [chars] is a value that is applied by using applied the route-map interface configuration command.

Recommended Action

Use a less complicated configuration that allows label sharing. If possible, use the same route maps on multiple interfaces.

Error Message PBR-3-MERGE_FAIL: [chars] ACL merge error [dec] on route-map [chars]

Note

This message applies only to Catalyst 3550 switches.

2-80

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PBR Messages

Explanation

The PBR manager could not complete the merge of the configured route map into a form suitable for loading into the hardware. The most likely cause is specifying an access control list

(ACL) that is too large or too complex for the system to handle. The first [chars] is the module or feature name, and the second [chars] is a value that is applied by using the route-map interface configuration command. [dec] is an internal error code.

Recommended Action

Specify a smaller and less-complicated configuration.

Error Message PBR-3-UNSUPPORTED_RMAP: Route-map [chars] not supported for

Policy-Based Routing

Note

This message applies only to Catalyst 3550 switches.

Explanation

The route map attached to an interface for policy routing contains an action that is not supported on this platform. This is a hardware limitation. [chars] is a value that is applied by using the route-map interface configuration command.

Recommended Action

Reconfigure the route map. Use only permit entries and set ip next-hop action in the route map.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-81

PBR Messages

Chapter 2 Message and Recovery Procedures

Error Message PBR-4-CPU_SUPPORTED_ACTION: Set action in sequence [dec] of route-map

[chars] supported by forwarding to CPU.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The route map attached to an interface for policy routing contains an action that is not supported in hardware because it contains set interface, set ip default next-hop, set default interface or set ip df actions. The packets must be forwarded by the CPU. [dec] and [chars] are values that are applied by using the route-map interface configuration command.

Recommended Action

Reconfigure the route map. If possible, use only set ip next-hop in the route map.

Error Message PBR-3-INSTALL_FAIL: Policy route-map [chars] not installed in hardware

Note

This message applies only to Catalyst 3550 switches.

Explanation

The PBR manager could not install the complete route map in the hardware, so this will have to be applied in software. The packets must be forwarded by the CPU. [chars] is a value that is applied by using the route-map interface configuration command.

Recommended Action

Reconfigure the route map to use a simpler configuration. If possible, use the same route map on multiple interfaces.

Error Message PBR-4-RETRY_INSTALL: Route-map [chars] installed in hardware upon retry

Note

This message applies only to Catalyst 3550 switches.

Explanation

The PBR manager was able to fit the complete configuration into the hardware. One or more route maps had previously not been loaded because of lack of space. [chars] is a value that is applied by using the route-map interface configuration command.

Recommended Action

No action is required.

2-82

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PHY Messages

PHY Messages

Error Message PHY-4-BADTRANSCEIVER: An inappropriate transceiver has been inserted in interface [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

A transceiver that should not be used is in the specified interface.

Recommended Action

Remove the transceiver. If the transceiver is a Cisco device, contact your Cisco technical support representative.

Error Message PHY-4-CHECK_SUM_FAILED: SFP EEPROM data check sum failed for SFP interface [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The SFP module was identified as a Cisco SFP module, but the system cannot read the vendor data information to verify whether it is correct. [chars] is the interface in which the SFP module is installed.

Recommended Action

Remove and then reinsert the SFP module. If it fails again with the same error message, the SFP module might be defective.

Error Message PHY-4-EXCESSIVE_ERRORS: Excessive FCS, data, or idle word errors found on interface [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The system detected excessive frame check sequence (FCS), data word, or idle word errors on the specified interface. [chars] is the interface.

Recommended Action

Enter the show interface privileged EXEC command on the specified interface, and check for cyclic redundancy check (CRC) and other input errors. If errors are excessive, enter the shutdown interface configuration command and then the no shutdown interface configuration command to reset the interface.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-83

PHY Messages

Chapter 2 Message and Recovery Procedures

Error Message PHY-4-MODULE_DUP: SFPs in [chars] and in [chars] have duplicate vendor-id and serial numbers.

Explanation

The SFP module was identified as a Cisco SFP module, but its vendor ID and serial number match that of another SFP module in the system. The first [chars] is the interface in which the SFP module is installed, the second [chars] is the interface where the duplicate SFP module is installed.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PHY-4-SFP_NOT_SUPPORTED: The SFP in [chars] is not supported

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

This SFP module is not supported on this switch. [chars] is the interface.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PHY-4-UNSUPPORTED_SFP_CARRIER: Unsupported SFP carrier module found in

[chars]

Explanation

The SFP carrier module was identified as an unsupported, non-Cisco SFP carrier module. [chars] is the unsupported module.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-84

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PIMSN Messages

Error Message PHY-4-UNSUPPORTED_TRANSCEIVER:Unsupported transceiver found in

[chars]

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The SFP module was identified as an unsupported, non-Cisco SFP module. [chars] is the unsupported module.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“ Error Message Traceback Reports” section on page 1-5.

PIMSN Messages

Error Message PIMSN-6-IGMPSN_GLOBAL: PIM Snooping global runtime mode [chars] due to

IGMP Snooping [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

When IGMP snooping is disabled, PIM snooping is disabled. When IGMP snooping is re-enabled, PIM snooping is re-enabled. The first [chars] is the PIM snooping mode, and the second

[chars] is the IGMP snooping mode.

Recommended Action

No action is required.

Error Message PIMSN-6-IGMPSN_VLAN: PIM Snooping runtime mode on vlan [dec] [chars] due to IGMP Snooping [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

When IGMP snooping is disabled, PIM snooping is disabled. When IGMP snooping is re-enabled, PIM snooping is re-enabled. [dec] is the VLAN ID, the first [chars] is the PIM snooping mode, and the second [chars] is the IGMP snooping mode.

Recommended Action

No action is required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-85

Chapter 2 Message and Recovery Procedures

PLATFORM Messages

PLATFORM Messages

Error Message PLATFORM-6-FLEXSTACK_INSERTED: FlexStack module inserted [chars]

Note

This message applies only to Catalyst 2960-S switches.

Explanation

The switch has detected a FlexStack module. [chars] is the slot.

Recommended Action

No action is required.

Error Message PLATFORM-6-FLEXSTACK_REMOVED: FlexStack module removed [chars]

Note

This message applies only to Catalyst 2960-S switches.

Explanation

The switch has detected that a FlexStack module has been removed. [chars] is the slot.

Recommended Action

No action is required.

Error Message PLATFORM-1-CRASHED: [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The system is trying to display the error message that appeared when the switch failed in a previous instance. [chars] is the description of the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM-3-NO_HARDWARE_RESOURCES: Not enough hardware resources.

Shutting down [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

There are too many VLANs and routed ports. [chars] is the short interface name, such as Gi1/0/1, or the VLAN name, such as VLAN0002.

Recommended Action

Reduce the total number of VLANs and routed ports to less than 1023. To preserve configurations and connections across reboots, save the configuration.

2-86

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM Messages

Error Message PLATFORM-3-PW_REC_HRPC_BAD_LENGTH: Received incompatible length

(=[dec]) in set-password-recovery HRPC message from box [dec].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system received an incompatible length parameter in the set-password-recovery

HRPC message. This can be caused by a stack operating with incompatible software versions on different stack members. The first [dec] is the length and the second [dec] is the switch.

Recommended Action

Make sure that all stack members are running compatible software images. If the problem persists, find out more about the error by using the show tech-support privileged EXEC command. Copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For

more information about these online tools and about contacting Cisco, see the “Error Message

Traceback Reports” section on page 1-9

Error Message PLATFORM-3-PW_REC_HRPC_NOT_ON_MASTER: Set-password-recovery HRPC msg from box [dec] received on master.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The stack master received a set-password-recovery HRPC message. These messages should be received only on stack member switches. [dec] is the switch.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM-3-PW_REC_HRPC_ONLY_ON_MASTER: Get-password-recovery HRPC msg from box [dec] received on member.

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A stack member switch received a get-password-recovery HRPC message. These messages should only be received by the stack master. [dec] is the switch.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-87

Chapter 2 Message and Recovery Procedures

PLATFORM_FBM Messages

PLATFORM_FBM Messages

Error Message PLATFORM_FBM-4-RECOVERED: Fallback bridging recovered from resource crunch.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

Fallback bridging has recovered from an earlier lack of resources.

Recommended Action

No action is required.

Error Message PLATFORM_FBM-4-RESOURCE_CRUNCH: Fallback bridging on bridge-group

[dec] is experiencing a resource crunch. One or more bridge-groups may not be functional. It will recover automatically when system recovers from resource crunch. Delete the bridge-group to immediately recover.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

Fallback bridging could not be properly configured. The most likely cause is a

TCAM-full condition on at least one stack member. [dec] is the bridge-group.

Recommended Action

The switch automatically recovers, but this could take some time. For an immediate recovery, use the shutdown interface configuration command to disable the port and stop the traffic flow to the switch. Use the clear mac-address-table dynamic privileged EXEC command to remove all MAC addresses from the TCAM. Use the no shutdown interface configuration command to re-enable the port.

PLATFORM_HCEF Messages

Error Message PLATFORM_HCEF-3-ADJ: [chars]

Note

This message applies only to the Catalyst 3750 and 3560 switches.

Explanation

An unsupported feature was configured on a switch running Cisco IOS Release

12.2(25)SE. [chars] is the error message.

Recommended Action

Determine if a generic routing encapsulation (GRE) tunnel or the ip cef

accounting global configuration command are configured. Only Distance Vector Multicast Routing

Protocol (DVMRP) tunnels are supported. If the GRE tunnel is configured, remove the tunnel, or upgrade the switch software to a Cisco IOS release when the GRE feature is needed. If the ip cef

accounting command is configured, remove it by using the no ip cef accounting global

configuration command.

2-88

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_HCEF Messages

Note

Cisco IOS Release12.2(25)SEB2 does not support the ip cef accounting command.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-89

Chapter 2 Message and Recovery Procedures

PLATFORM_HPLM Messages

PLATFORM_HPLM Messages

Error Message PLATFORM_HPLM-3-ERROR: Failed Alloc for action record label move from

[dec] to [dec].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

An internal resource allocation error occurred during the label compaction process. The first [dec] is the previous label, and the second [dec] is the new label.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

Error Message PLATFORM_HPLM-6-LABEL_COMPLETE: VRF Label compaction complete.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The VRF label compaction process has successfully completed.

Recommended Action

No action is required.

Error Message PLATFORM_HPLM-6-LABEL_FAILED: VRF Label compaction failed.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The VRF label compaction process has failed.

Recommended Action

No action is required.

Error Message PLATFORM_HPLM-6-LABEL_START: VRF Label compaction started.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The VRF label compaction process has started.

Recommended Action

No action is required.

2-90

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM _IPC Messages

PLATFORM _IPC Messages

Error Message PLATFORM_IPC-3-COMMON: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The IPC has failed. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_IPC-3-MASTER: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The IPC has failed on the stack master. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_IPC-3-MAX_LENGTH_EXCEEDED: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

An internal IPC application error occurred when an IPC message was sent that exceeded the maximum length. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-91

Chapter 2 Message and Recovery Procedures

PLATFORM_IPv6 Message

Error Message PLATFORM_IPC-3-MEMBER: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The IPC has failed on a stack member switch. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_IPC-3-STACK_EVENT: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The IPC has failed in the stack. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

PLATFORM_IPv6 Message

Error Message PLATFORM_IPv6_UCAST-6-PREFIX: One or more, more specific prefixes could not be programmed into TCAM and are being covered by a less specific prefix

Note

This message applies only to Catalyst 3750, 3560, 2975, and 2960 switches.

Explanation

A more specific prefix could not be programmed into TCAM and is covered by a less specific prefix. This could be a temporary condition. The output of the show platform ipv6 unicast

retry route privileged EXEC command lists the failed prefixes.

Recommended Action

No action is required.

2-92

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_PBR Messages

PLATFORM_PBR Messages

Error Message PLATFORM_PBR-2-NO_RMAP: Cannot create PBR data structures for route-map [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The PBR manager could not allocate the internal data structures for this route-map. A likely cause is lack of available memory. [chars] is the route-map.

Recommended Action

Simplify the configuration so that it requires less memory.

Error Message PLATFORM_PBR-3-INSTALL_FAIL: Policy route-map [chars] not installed in hardware.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The PBR manager could not install the complete route-map in hardware, so the packets are forwarded to the CPU for processing. [chars] is the route-map.

Recommended Action

Simplify route-map configurations. For example, use the same route-map on multiple interfaces.

Error Message PLATFORM_PBR-3-NO_LABEL: Cannot allocate label for route-map [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The PBR manager could not allocate a label for this route-map. As a result, the hardware cannot be programmed to implement policy routing. There is a limit of 247 labels for policy routing.

[chars] is the route-map.

Recommended Action

Simplify the configuration with label sharing. Use the same route-maps on multiple interfaces, if possible.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-93

Chapter 2 Message and Recovery Procedures

PLATFORM_PBR Messages

Error Message PLATFORM_PBR-3-UNSUPPORTED_RMAP: Route-map [chars] not supported for

Policy-Based Routing.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The route-map attached to an interface for policy routing contains an action that is not supported on this platform. This is a hardware limitation. [chars] is the route-map.

Recommended Action

Use the route-map map-tag permit global configuration command and the set

ip next-hop ip-address route-map configuration command to reconfigure the route map to use only

these supported actions.

Error Message PLATFORM_PBR-4-CPU_SUPPORTED_ACTION: Set action in sequence [dec] of route-map [chars] supported by forwarding to CPU.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The route-map attached to an interface for policy-based routing contains an action that is not supported in hardware, so the packets are forwarded to the CPU for processing. The route-map actions that invoke this forwarding are set interface, set ip default next-hop, set default interface, or set ip df. [dec] is the action number, and [chars] is the route-map.

Recommended Action

Use the set ip next-hop ip-address route-map configuration command to reconfigure the route map action to route the packet to the specified next hop.

Error Message PLATFORM_PBR-4-RETRY_INSTALL: Route-map [chars] installed in hardware upon retry.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The PBR manager was able to fit the complete configuration into the hardware. One or more route-maps previously did not load because of lack of resources. [chars] is the route-map.

Recommended Action

No action is required.

2-94

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_PM Messages

Error Message PLATFORM_PBR-4-SDM_MISMATCH: [chars] requires sdm template routing.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The routing template is not enabled. [chars] is the text string PBR.

Recommended Action

Modify the SDM template to enable the routing template. Use the sdm prefer routing configuration command, and then reload the switch by using the reload privileged EXEC command.

PLATFORM_PM Messages

Error Message PLATFORM_PM-3-IFCOUNTERROR: Unit number [dec] of interface [chars] is more than max allowed value of [dec].

Explanation

There are too many interfaces configured for the interface type. [dec] is the interface count, [chars] is the interface, and [dec] is the maximum number of interfaces.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_PM-3-INTVLANINUSE: internal vlan-id [dec] allocated for interface [chars] is still in use.

Explanation

An internal VLAN ID allocated for an interface is still in use. [dec] is the VLAN ID, and [chars] is the interface.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_PM-3-NOINTVLAN: internal vlan of interface [chars] is not active for vlan-id [dec].

Explanation

The internal vlan_data is not active for the given VLAN ID. [chars] is the interface, and

[dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-95

Chapter 2 Message and Recovery Procedures

PLATFORM_RPC Messages

contact your Cisco technical support representative, and provide the representative with the gathered

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

PLATFORM_RPC Messages

Error Message PLATFORM_RPC-0-RESOURCE_CRASH: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system cannot allocate memory for RPC. [chars] describes the error message.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_RPC-3-BAD_CLASS: Bad Class in RPC message: [int].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

There is a missing entry in the class table for a message class. [int] is the number of the missing message class.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_RPC-3-MSG_THROTTLED: RPC Msg Dropped by throttle mechanism: type [int], class [int], max_msg [int], total throttled [int].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

2-96

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_RPC Messages

Explanation

There are too many outgoing messages queued for a message class. An RSP message was dropped. The first [int] is the message type, the second [int] is the message class, the third [int] is the maximum number of messages that can be queued before throttling occurs, and the last [int] is the total number of messages that have been throttled.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_RPC-3-PERSISTENT_UNABLE_TO_SEND: System is consistently unable to send RPC message: [chars], paks_outstanding: [int].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system is experiencing a persistent low-level transport failure in sending RPC messages. [chars] is a description of the error returned by the low-level packet-sending driver that triggered the error (usually one of these: fifo full, fifo empty, out of buf, out of mem, null pointer,

misc failure), and [int] is the number of packets outstanding (packets from the RPC code to the driver that have not yet been sent).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_RPC-3-RESP_FAIL: Unexpected response or failure, class [dec], req [dec], switch [dec], error [dec], [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The platform received an unexpected response. The first [dec] is RPC request class, the second [dec] is the RPC request number, the third [dec] is the destination switch number, the fourth

[dec] is the returned error number, and [chars] is an optional comment.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-97

Chapter 2 Message and Recovery Procedures

PLATFORM_SPAN Messages

Error Message PLATFORM_RPC-3-SEND_FAIL: Failed to send RPC message in class [dec], req [dec], [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

There is a local resource error or that too many outgoing messages are queued for the message class. The first [dec] is RPC request class, the second [dec] is the RPC request number, and

[chars] is an optional comment.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_RPC-3-UNABLE_TO_SEND: System is unable to send RPC message:

[chars], paks_outstanding: [int].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

The system had a low-level transport failure when trying to send an RPC message.

[chars] is a description of the error returned by the low-level packet sending driver that triggered the error (usually one of these: fifo full, fifo empty, out of buf, out of mem, null pointer, misc failure), and [int] is the number of packets outstanding (packets from the RPC code to the driver that have not yet been sent).

Recommended Action

“Error Message

Traceback Reports” section on page 1-9 .

PLATFORM_SPAN Messages

2-98

Error Message PLATFORM_SPAN-3-PACKET_DROP: Decreases egress SPAN rate.

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

Egress SPAN rates are falling because SPAN is enabled with multicast routing or fallback bridging.

Recommended Action

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_UCAST Messages

reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For

more information about these online tools and about contacting Cisco, see the “Error Message

Traceback Reports” section on page 1-9

PLATFORM_UCAST Messages

Error Message PLATFORM_UCAST-3-ADJ: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The adjacency module for unicast routing encountered an error. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-99

Chapter 2 Message and Recovery Procedures

PLATFORM_UCAST Messages

Error Message PLATFORM_UCAST-3-ARP: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The ARP module for unicast routing encountered an error. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_UCAST-3-CEF: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The Cisco Express Forwarding (CEF) module for unicast routing encountered an error.

[chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_UCAST-3-DYNAMIC: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The dynamic address tracking mechanism for unicast routing encountered an error.

[chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-100

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

Error Message PLATFORM_UCAST-3-ERROR: [chars].

PLATFORM_UCAST Messages

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

An internal unicast routing error occurred. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_UCAST-3-HSRP: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The Hot Standby Router Protocol (HSRP) module for unicast routing encountered an error. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_UCAST-3-INTERFACE: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

A unicast routing interface error occurred. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-101

Chapter 2 Message and Recovery Procedures

PLATFORM_VLAN Messages

Error Message PLATFORM_UCAST-3-RPC: [chars].

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The RPC module for unicast routing encountered an error. [chars] describes the error.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PLATFORM_UCAST-6-PREFIX: One or more, more specific prefixes could not be programmed into TCAM and are being covered by a less specific prefix

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

A more specific prefix could not be programmed into TCAM and is covered by a less specific prefix. This could be a temporary condition. The output of the show platform ip unicast

failed route privileged EXEC command lists the failed prefixes.

Recommended Action

No action is required.

PLATFORM_VLAN Messages

Error Message PLATFORM_VLAN-3-LOCK_FAIL: Failed to lock vlan-id [dec], associated mapped vlan id value [dec].

Explanation

The VLAN lock operation failed. This can occur if the VLAN is already active in the system or if the VLAN ID is not active. The first [dec] is the VLAN ID, and the second [dec] is the mapped-vlan-id (MVID).

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-102

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PLATFORM_WCCP Messages

Error Message PLATFORM_VLAN-3-MVID_ERROR: Mapped Vlan ID value [dec] associated with vlan-id [dec] is invalid.

Explanation

An active VLAN is not correctly associated with a MVID. The first [dec] is the VLAN

ID, and the second [dec] is the MVID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PLATFORM_VLAN-3-UNLOCK_FAIL: Failed to unlock vlan-id [dec], associated mapped vlan id value [dec].

Explanation

The switch did not unlock a VLAN ID. The most likely cause is that the VLAN is already unlocked. The first [dec] is the VLAN ID, and the second [dec] is the MVID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

PLATFORM_WCCP Messages

Error Message PLATFORM-WCCP-3-NO_LABEL: Cannot allocate WCCP Label

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The WCCP label could not be allocated. This means that the hardware cannot be programmed to implement WCCP redirection.

Recommended Action

Reduce the number of interfaces configured for WCCP redirection or policy based routing.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-103

PM Messages

Chapter 2 Message and Recovery Procedures

Error Message PLATFORM_WCCP-4-SDM_MISMATCH: WCCP requires sdm template routing

Note

This message applies only to Catalyst 3750 and 3560 switches.

Explanation

The SDM routing template is not specified on the switch.

Recommended Action

Specify the SDM routing template to be used. Enter the sdm prefer routing global configuration command, and then enter the reload privileged EXEC command to reload the switch.

PM Messages

Error Message PM-2-LOW_SP_MEM: Switch process available memory is less than [dec] bytes.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The available memory for the switch processor is low. This can occur when too many

Layer 2 VLANs are configured. [dec] is the available memory.

Recommended Action

Remove VLANs from the system to reduce memory usage.

Error Message PM-2-NOMEM: Not enough memory available for [chars].

Explanation

The port manager subsystem could not obtain the memory it needed to initialize the specified operation. [chars] is the port manager operation.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-2-VLAN_ADD: Failed to add VLAN [dec] - [chars].

Explanation

The software did not add the VLAN to the VLAN Trunking Protocol (VTP) database.

[dec] is the VLAN ID, and [chars] specifies the reason the software did not add the VLAN.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-104

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PM Messages

Error Message PM-3-INTERNALERROR: Port Manager Internal Software Error ([chars]:

[chars]: [dec]: [chars]).

Explanation

An internal software error occurred in the port manager. The parameters identify the problem for technical support. The first [chars] is the error message, and the second [chars] is the filename. [dec] is the line number, and the last [chars] is the function name.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-BAD_APP_ID: an invalid application id ([dec]) was detected.

Explanation

The port manager detected an invalid request. [dec] is the application ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-BAD_APP_REQ: an invalid [chars] request by the ’[chars]’ application was detected.

Explanation

The port manager detected an invalid request. The first [chars] is the invalid request, and the second [chars] is the application making the request.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-BAD_CARD_COOKIE: an invalid card cookie was detected.

Explanation

The port manager detected an invalid request.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-105

PM Messages

Chapter 2 Message and Recovery Procedures

Error Message PM-4-BAD_CARD_SLOT: an invalid card slot ([dec]) was detected.

Explanation

The port manager detected an invalid request. [dec] is the slot number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-BAD_COOKIE: [chars] was detected.

Explanation

The port manager detected an invalid request. [chars] is the invalid request.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-BAD_HA_ENTRY_EVENT: Invalid Host access entry event ([dec]) is received.

Explanation

An invalid host access entry event was received. The host access table entry event should be an add, delete, or update event. [dec] is the event that is received.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-BAD_PORT_COOKIE: an invalid port cookie was detected.

Explanation

The port manager detected an invalid request.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-106

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PM Messages

Error Message PM-4-BAD_PORT_NUMBER: an invalid port number ([dec]) was detected.

Explanation

The port manager detected an invalid request. [dec] is the port number.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-BAD_VLAN_COOKIE: an invalid vlan cookie was detected.

Explanation

The port manager detected an invalid request.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-BAD_VLAN_ID: an invalid vlan id ([dec]) was detected.

Explanation

The port manager detected an invalid request. [dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-ERR_DISABLE: [chars] error detected on [chars], putting [chars] in err-disable state.

Explanation

The port manager detected a misconfiguration or misbehavior and error-disabled the interface. A recovery is attempted after the configured retry time (the default is 5 minutes). On PoE switches, this message might appear when a device that can be powered by either a PoE switch port or by AC power is not being powered by an external AC power source and is connected to a port that has been configured with the power inline never interface configuration command. [chars] is the port where the threshold was exceeded. The first [chars] is the error, and both the second and third

[chars] are the affected interface.

Recommended Action

On non-PoE switches, copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Enter the show tech-support user EXEC command to gather data that might help identify the nature of the error. Use the Bug Toolkit to look for similar reported problems. On PoE switches, remove the device or configure the port by entering the power inline auto, shutdown, and no shutdown interface configuration commands. If you still require assistance, open a case with the TAC, or

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-107

PM Messages

Chapter 2 Message and Recovery Procedures

contact your Cisco technical support representative, and provide the representative with the gathered

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-ERR_DISABLE_VP: [chars] error detected on [chars], vlan [dec].

Putting in err-disable state.

Explanation

The virtual port (the port-VLAN pair) is error-disabled when it detects a misconfiguration or misbehavior. If configured, a recovery will be attempted after the configured retry time (default time is 5 minutes). The first [chars] is the error, and the second [chars] is the port.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-ERR_RECOVER: Attempting to recover from [chars] err-disable state on [chars].

Explanation

The port manager is trying to restart an error-disabled interface. The first [chars] is the error, and the second [chars] is the interface.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-ERR_RECOVER_VP: Attempting to recover from [chars] err-disable state on [chars], vlan [dec].

Explanation

The port manager is trying to restart an error-disabled virtual port. The first [chars] is the error, the second [chars] is the virtual port, and [dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-108

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PM Messages

Error Message PM-4-EXT_VLAN_INUSE: VLAN [dec] currently in use by [chars].

Explanation

The port manager did not allocate the VLAN for external use because the VLAN is being used by another feature. [dec] is the VLAN that is being used, and [chars] is the feature that is using it.

Recommended Action

Reconfigure the feature (for example, the routed port) to use another internal

VLAN or to request another available VLAN.

Error Message PM-4-EXT_VLAN_NOTAVAIL: VLAN [dec] not available in Port Manager.

Explanation

The port manager did not allocate the requested VLAN. The VLAN is probably being used as an internal VLAN by other features. [dec] is the requested VLAN.

Recommended Action

Configure a different VLAN on the device.

Error Message PM-4-INACTIVE: putting [chars] in inactive state because [chars].

Explanation

The port is inactive because the port manager could not create a virtual port for the switch port and VLAN. The reason for this condition is specified in the error message. The first

[chars] is the interface name, and the second [chars] is the reason.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-INT_FAILUP: [chars] failed to come up. No internal VLAN available.

Explanation

The port manager did not allocate an internal VLAN. The interface cannot be enabled.

[chars] is the interface name.

Recommended Action

Remove the extended-range VLAN by using the no vlan vlan-id global configuration command to free up resources.

Error Message PM-4-INT_VLAN_NOTAVAIL: Failed to allocate internal VLAN in Port

Manager.

Explanation

The port manager did not find any available internal VLAN.

Recommended Action

Delete some extended-range VLANs created by users, or remove some features

(such as routed ports) that require internal VLAN allocation. To delete extended-range VLANs, use the no vlan vlan-id global configuration command. To delete a routed port, use the no switchport interface configuration command.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-109

PM Messages

Chapter 2 Message and Recovery Procedures

Error Message PM-4-INVALID_HOST_ACCESS_ENTRY: Invalid Host access entry type ([dec]) is received.

Explanation

An invalid host access entry type was received. The host access entry should be a configured or a dynamic type. [dec] is the entry type that is received.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-LIMITS: The number of vlan-port instances on [chars] exceeded the recommended limit of [dec].

Explanation

The total number of individual VLAN ports on the module or the switch has exceeded the recommended limit. VLANs can be counted more than once. If VLAN 1 is carried on ten interfaces, it counts as ten VLAN ports. On some platforms, bundling is also ignored for purposes of this count. If eight interfaces on the same module are in one bundle, and the port channel is carrying VLAN 1, it counts as eight VLAN ports. [chars] is the module name (for example, switch or the module number), and [dec] is the recommended limit.

Recommended Action

Reduce the number of trunks and VLANs configured in the module or switch as recommended in [dec]. Enter the show interfaces trunk privileged EXEC command to see the total number of trunks and VLANs.

Error Message PM-4-NO_SUBBLOCK: No PM subblock found for [chars].

Explanation

The port manager did not find the subblock for this interface. [chars] is the interface name.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message PM-4-PORT_BOUNCED: Port [chars] was bounced by [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

During a change-over when the port was in the link-down state, the port manager restarted the port. A port can be restarted only when the port data structures are not consistent in the active and standby supervisors. Active ports in the link-down state return to the link-up state when the port is restarted. The first [chars] is the port number, and the second [chars] is the re-activation event.

Recommended Action

No action is required.

2-110

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

PM Messages

Error Message PM-4-PVLAN_TYPE_CFG_ERR: Failed to set VLAN [dec] to a [chars] VLAN.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The platform did not set a private VLAN type. [dec] is the VLAN ID.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-TOO_MANY_APP: application ’[chars]’ exceeded registration limit.

Explanation

The port manager detected an invalid request. [chars] is the application.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-UNKNOWN_HOST_ACCESS: Invalid Host access value ([dec]) is received.

Explanation

The host access table is being accessed with an invalid host access value. [dec] is the value that is received.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message PM-4-VMPS_CFG: Dynamic access VLAN [dec] same as voice vlan on [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The access VLAN ID on the VMPS server is the same as the voice VLAN ID on the interface. [dec] is the access VLAN ID, and [chars] is the physical interface.

Recommended Action

Assign the access VLAN on the VMPS server to a VLAN ID that is different from the voice VLAN ID.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-111

Chapter 2 Message and Recovery Procedures

PORT_SECURITY Messages

Error Message PM-6-EXT_VLAN_ADDITION: Extended VLAN is not allowed to be configured in VTP CLIENT mode.

Explanation

The switch did not add a VLAN in VTP client mode.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 .

PORT_SECURITY Messages

Error Message PORT_SECURITY-2-PSECURE_VIOLATION:Security violation occurred caused by MAC [enet] on port [chars].

Explanation

An unauthorized device attempted to connect on a secure port. [enet] is the MAC address of the unauthorized device, and [chars] is the secure port.

Recommended Action

Identify the device that attempted to connect on the secure port. Notify your network system administrator of this condition.

Error Message PORT_SECURITY-2-PSECURE_VIOLATION_VLAN: Security violation on port

[chars] due to MAC address [enet] on VLAN [dec]

Explanation

An unauthorized device attempted to connect on a secure trunk port. [chars] is the secure port, [enet] is the MAC address of the unauthorized device, and [dec] is the VLAN ID.

Recommended Action

Identify the device that attempted to connect through the secure trunk port.

Notify your network system administrator of this condition.

Error Message PORT_SECURITY-6-ADDR_REMOVED: Address [dec]:[enet] exists on port

[chars]. It has been removed from port [chars].

Explanation

A routed port is reconfigured as a switch port. The address in the previous switch configuration conflicts with the running configuration and has been deleted. [dec]:[enet] is the MAC address of the port, and [chars] is the reconfigured port.

Recommended Action

No action is required.

2-112

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

POWERNET Messages

Error Message PORT_SECURITY-6-ADDRESSES_REMOVED: Maximum system secure address count reached. Some secure addresses configured on port [chars] removed.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

Some configured and sticky MAC addresses on the specified port were removed from the configuration. The number of secure addresses that the system supports was exceeded. This condition occurs only during hot swapping or port-mode changes (for example, when the port is converted from a Layer 3 to a Layer 2 port). [chars] is the port.

Recommended Action

No action is required.

Error Message PORT_SECURITY-6-VLAN_FULL: Vlan [dec] on port [chars] has reached its limit. Address [enet] has been removed.

Explanation

The voice VLAN is the same as the access VLAN. Because the maximum number of

MAC addresses allowed on the access VLAN has been reached, the specified Ethernet address has been deleted. [dec] is the VLAN ID, [chars] is the port assigned to the voice VLAN and the access

VLAN, and [enet] is the Ethernet address.

Recommended Action

No action is required.

Error Message PORT_SECURITY-6-VLAN_REMOVED: VLAN [dec] is no longer allowed on port

[chars]. Its port security configuration has been removed.

Explanation

A configured VLAN has been excluded either due to a port-mode change or an allowed

VLAN list change and is removed from the configuration. [int] is the VLAN ID, and [chars] is the switch port assigned to the VLAN.

Recommended Action

No action is required.

POWERNET Messages

Error Message POWERNET_ISSU-4-SM_EW_DOMAIN_MISMATCH: Energywise domain of

EtherSwitch is [chars], recommended to have [chars].

Note

This message applies only to Cisco EtherSwitch service modules.

Explanation

The EnergyWise domain of the service module does not match that of the switch. The first [chars] is the EnergyWise domain of the service module. The second [chars] is the EnergyWise domain of the router.

Recommended Action

Configure the EnergyWise domain of the service module to match that of the switch. If the message recurs, copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still need assistance, open a case with the TAC, or provide your Cisco technical support representative with your information.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-113

Chapter 2 Message and Recovery Procedures

QATM Messages

QATM Messages

Error Message QATM-2-ASDATA_READ: Cannot read TCAM associated data.

Note

This message applies only to Catalyst 3550 switches.

Explanation

Associated data could not be read from the TCAM. This error might mean a hardware failure.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message QATM-2-ASDATA_WRITE: Cannot write TCAM associated data.

Note

This message applies only to Catalyst 3550 switches.

Explanation

Associated data could not be written to the TCAM. This error might mean a hardware failure.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

Error Message QATM-2-TCAM_READ: Cannot read TCAM.

Note

This message applies only to Catalyst 3550 switches.

Explanation

The TCAM could not be read from. This error might mean a hardware failure.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9

for more information.

2-114

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

Error Message QATM-2-TCAM_WRITE: Cannot write the TCAM.

QM Messages

Note

This message applies only to Catalyst 3550 switches.

Explanation

The TCAM could not be written to. This error might mean a hardware failure.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

Error Message QATM-4-TCAM_LOW: TCAM resource running low for table [chars], resource type [chars], on TCAM number [dec].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The TCAM resource is running low and might cause system instability. The first [chars] is the TCAM table, the second [chars] is the resource type, and [dec] is the TCAM number.

Recommended Action

Avoid further configurations that might deplete the indicated TCAM resource type that is running low. Use the show tcam user EXEC command to display information about the input security access control list (ACL), the output security ACL, the QoS, or other regions of the

TCAM, as shown in the message TCAM table. If possible, change to a different TCAM allocation by using the sdm prefer global configuration command to configure the template used in the SDM resource allocation.

QM Messages

Error Message QM-4-ACTION_NOT_SUPPORTED: Action is not supported in policy map

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An action other than the set, trust, and police policy-map class configuration commands was configured in a policy map. This is a hardware limitation. [chars] is the name of the policy map.

Recommended Action

Configure only the supported actions of set, trust, and police when in policy-map class configuration mode.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-115

QM Messages

Chapter 2 Message and Recovery Procedures

Error Message QM-4-CLASS_NOT_SUPPORTED: Classification is not supported in class map

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

An unsupported match class-map configuration command was configured in a policy map and attached to an egress interface or that more than one match command was configured. This is a hardware limitation. [chars] is the class-map name.

Recommended Action

Reconfigure the class map or the policy map. Use only the match ip dscp

dscp-list class-map configuration command in a policy map that is attached to an egress interface.

Only one match per class map is supported.

Error Message QM-4-HARDWARE_NOT_SUPPORTED: Hardware limitation has been reached for policy map [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The policy-map configuration has exceeded the limitation of the hardware. You either configured more QoS ACL entries than the number specified in the Switch Database Management

(sdm) template, or you configured more policers in a policy map (by using the police or police

aggregate policy-map class configuration command) than supported. [chars] is the policy-map

name.

Recommended Action

Reconfigure the class map or the policy map, and reduce the number of QoS

ACLs.

Error Message QM-4-MATCH_NOT_SUPPORTED: Match type is not supported in class map

[chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

Only the access-group acl-index-or-name, ip dscp dscp-list, and ip precedence

ip-precedence-list match types are supported with the match class-map configuration command.

[chars] is the name of the class map.

Recommended Action

Reconfigure the class map using only the match access-group, match ip dscp, and match ip precedence class-map configuration commands within the class map.

2-116

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

QM Messages

Error Message QM-4-NOT_SUPPORTED: Action [chars] is not supported for a policy map attached to output side.

Note

This message applies only to Catalyst 3550 switches.

Explanation

A set or trust policy-map class configuration command was configured in a policy map and attached to an egress interface. A warning message is logged, and the actions do not take affect.

This is a hardware limitation. [chars] is either the set or trust action.

Recommended Action

Do not configure a set or trust policy-map class configuration command in a policy map and attach it to an egress interface. These policy-map actions are supported only on ingress interfaces.

Error Message QM-4-POLICER_NOT_SUPPORTED: Number of policers has exceeded hardware limitation for policy map [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The policy-map configuration has exceeded the limitation of the hardware. You configured more policers in a policy map (by using the police or police aggregate policy-map class configuration command) than supported. [chars] is the policy-map name.

Recommended Action

Reconfigure the class map or the policy map, and reduce the number of policers.

Error Message QM-4-POLICING_RATE_NOT_SUPPORTED: Policer configuration has exceeded hardware limitation for policy map [chars].

Note

This message applies only to Catalyst 3550 switches.

Explanation

The policy-map configuration has exceeded the limitation of the hardware. You configured a larger policing rate or burst size in a policy map (by using the police or police

aggregate policy-map class configuration command) than supported. [chars] is the policy-map

name.

Recommended Action

Reconfigure the class map or the policy map, and reduce the policing rate or burst size.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-117

QOSMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message QM-4-UNEXPECTED_INTERNAL_QOS_CONDITION: Unexpected internal QoS condition.

Note

This message applies only to Catalyst 3550 switches.

Explanation

An unexpected internal quality of service (QoS) condition has occurred. QoS debug can be enabled to obtain more information in case the condition recurs.

Recommended Action

Find out more about the error by using the show tech-support privileged

EXEC command. Copy the message exactly as it appears on the console or in the system log.

“Error Message Traceback Reports” section on page 1-9 for more information.

QOSMGR Messages

Error Message QOSMGR-3-FEATURE_NOT_FOUND: Cannot find feature for [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred. [chars] is the description of the feature that the software cannot find.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message QOSMGR-3-FILTERTYPE_INVALID: Internal Error Invalid Policy filtertype

[dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred. [dec] is the invalid filter type identification.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-118

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

QOSMGR Messages

Error Message QOSMGR-3-MERGE_RES_COUNT: Internal Error Invalid count.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-3-NO_POLICER_QOSLABEL: Creating port Class Label Failed.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-3-NO_VMR_QOSLABEL: qm_generate_vmrs have no qos label.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-3-NULL_POLICER: Internal Error Invalid Policer.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-119

QOSMGR Messages

Chapter 2 Message and Recovery Procedures

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message QOSMGR-3-POLICER_RES_COUNT: Internal Error Invalid Policer count.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message QOSMGR-3-POLICYMAP_NOT_FOUND: Cannot find policymap for [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred. [chars] is the policy-map name.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

2-120

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

QOSMGR Messages

Error Message QOSMGR-3-QUEUE_PTR_ERROR: queue pointers out of order [hex] [hex]

[hex] [hex].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred. [hex] [hex] [hex] [hex] are the software-computed queue pointer values. The parameters provide error details for technical support.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-3-RESERVE_COUNT_ERROR: Reserved Count Exceeding total [dec].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred in the allocated reserved buffers. [dec] is the reserved count computed by the software.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-3-RESOURCE_INTERNAL: Internal Error in resource allocation.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

“Error

Message Traceback Reports” section on page 1-9 .

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-121

QOSMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message QOSMGR-3-VMRSEQ_INVALID: Internal Error Invalid VMR sequence.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An internal software error has occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

information. For more information about these online tools and about contacting Cisco, see the “Error

Message Traceback Reports” section on page 1-9

Error Message QOSMGR-4-ACTION_NOT_SUPPORTED: Action is not supported in policymap

[chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An action other than the set, trust, and police policy-map class configuration commands was configured in a policy map. This is a hardware limitation. [chars] is the policy-map name.

Recommended Action

Configure only the supported actions of set, trust, and police when in policy-map class configuration mode.

Error Message QOSMGR-4-CLASS_NOT_SUPPORTED: Classification is not supported in classmap [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An unsupported match class-map configuration command was configured in a policy map and attached to an egress interface, or more than one match class-map command was configured. This is a hardware limitation. [chars] is the class-map name.

Recommended Action

Reconfigure the class map or the policy map. Use only the match ip dscp

dscp-list class-map configuration command in a policy map that is attached to an egress interface.

Only one match per class map is supported.

2-122

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

QOSMGR Messages

Error Message QOSMGR-4-COMMAND_FAILURE: Execution of [chars] command failed.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The command to configure a QoS setting failed. This is possibly due to lack of hardware resources. [chars] is the description of the command.

Recommended Action

Look for any other messages that indicate resource failure. If other messages indicate that the hardware resources are exceeded, retry the command with a smaller configuration.

If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information

about these online tools and about contacting Cisco, see the “Error Message Traceback Reports” section on page 1-9 .

Error Message QOSMGR-4-HARDWARE_NOT_SUPPORTED: Hardware limitation has reached for policymap [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The policy-map configuration has exceeded the limitation of the hardware. You configured more QoS ACL entries than the number specified in the SDM template. [chars] is the policy-map name.

Recommended Action

Reconfigure the class map or the policy map, and reduce the number of QoS

ACLs.

Error Message QOSMGR-4-MATCH_NOT_SUPPORTED: Match type is not supported in classmap

[chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

An unsupported match type was entered. Only the access-group acl-index-or-name, ip

dscp dscp-list, and ip precedence ip-precedence-list match types are supported with the match

class-map configuration command. [chars] is the class-map name.

Recommended Action

Reconfigure the class map using only the match access-group, match ip dscp, and match ip precedence class-map configuration commands within the class map.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-123

QOSMGR Messages

Chapter 2 Message and Recovery Procedures

Error Message QOSMGR-4-NOT_SUPPORTED: Action ’[chars]’ is not supported for a policymap attached to output side.

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

A set or trust policy-map class configuration command was configured in a policy map and attached to an egress interface. A warning message is logged, and the actions do not take effect.

This is a hardware limitation. [chars] is either the set or trust action.

Recommended Action

Do not configure a set or trust policy-map class configuration command in a policy map and attach it to an egress interface. These policy-map actions are supported only on ingress interfaces.

Error Message QOSMGR-4-POLICER_PLATFORM_NOT_SUPPORTED: Policer configuration has exceeded hardware limitation for policymap [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The policy-map configuration has exceeded the hardware limitation. An attempt to configure more policers in all policy maps (by using the police or police aggregate policy-map class configuration command) than supported by the hardware, which is not allowed, caused this condition. [chars] is the policy-map name.

Recommended Action

Reconfigure the class maps or the policy maps, or delete the policy map from some interfaces.

Error Message QOSMGR-4-POLICER_POLICY_NOT_SUPPORTED: Number of policers has exceeded per policy hardware limitation for policymap [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

The policy-map configuration has exceeded the hardware limitation. An attempt to configure more policers in a policy map (by using the police or police aggregate policy-map class configuration command) than supported by the hardware, which is not allowed, caused this condition. [chars] is the policy-map name.

Recommended Action

Reconfigure the class map or the policy map, and reduce the number of policers.

2-124

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

RMON Messages

RMON Messages

Error Message RMON-5-FALLINGTRAP: Falling trap is generated because the value of

[chars] has fallen below the falling-threshold value [dec].

Explanation

A falling trap has been generated. The value of the specified MIB object is below the falling threshold value. [chars] is the MIB object, and [dec] is the threshold value.

Recommended Action

Take appropriate action on the specified MIB object.

Error Message RMON-5-RISINGTRAP: Rising trap is generated because the value of

[chars] exceeded the rising-threshold value [dec].

Explanation

A rising trap has been generated. The value of the specified MIB object is above the rising threshold value. [chars] is the MIB object, and [dec] is the threshold value.

Recommended Action

Take appropriate action on the specified object.

SCHED Messages

Error Message SCHED-3-UNEXPECTEDEVENT: [traceback] [process information] Process received unknown event (maj [hex], min [hex])

Explanation

A process did not handle an event. The first [hex] is the major event number, and the second [hex] is the minor event number, both of which allow you to identify the event that occurred.

Recommended Action

Copy the message exactly as it appears on the console or in the system log.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-125

Chapter 2 Message and Recovery Procedures

SDM Messages

SDM Messages

Error Message SDM-6-MISMATCH_ADVISE: [chars].

Note

This message applies only to Catalyst 3750, 2975, and 2960-S switches.

Explanation

A stack member cannot support the SDM template that the stack master is using.

Switches in the SDM mismatch state are not functional stack members. This error follows the

STACKMGR-6-SWITCH_ADDED_SDM error message if it reports SDM_MISMATCH. [chars] displays mismatch information and recommended corrective actions.

Recommended Action

Downgrade the SDM template of the stack master to make it compatible with the stack member switches. For example, if the stack master uses the aggregator routing template, the message recommends downgrading the stack master to the desktop routing template by using the

sdm prefer vlan desktop global configuration command.

SPAN Messages

Error Message SPAN-3-MEM_UNAVAIL: Memory was not available to perform the SPAN operation.

Explanation

The system could not perform a SPAN operation because of a lack of memory.

Recommended Action

Reduce other system activity to ease the memory demands.

Error Message SPAN-3-UNKN_ERR: An internal error occurred during a SPAN operation.

Explanation

SPAN detected an error in its internal operation.

Recommended Action

The error might be transient. Try the SPAN operation again. If a second attempt also fails, reload the switch by using the reload privileged EXEC command to complete the operation.

Error Message SPAN-3-UNKN_ERR_PORT: An internal error occurred when configuring SPAN on port [chars].

Explanation

SPAN detected an error in its internal operation. [chars] is the interface.

Recommended Action

The error might be transient. Try the SPAN operation again. If the second attempt also fails, reload the switch by using the reload privileged EXEC command to complete the operation.

2-126

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

SPANTREE Messages

SPANTREE Messages

Error Message SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port [chars] with BPDU

Guard enabled. Disabling port.

Explanation

A bridge protocol data unit (BPDU) was received on an interface that has the spanning tree BPDU guard feature enabled. The interface was administratively shut down. [chars] is the interface name.

Recommended Action

Either remove the device sending BPDUs, or disable the BPDU guard feature.

The BPDU guard feature can be locally configured on the interface or globally configured on all ports that have Port Fast enabled. To disable BPDU guard on an interface, use the no spanning-tree

bpduguard enable interface configuration command. To disable BPDU guard globally, use the no

spanning-tree portfast bpduguard default global configuration command. After you have

removed the device or disabled BPDU guard, re-enable the interface by entering the no shutdown interface configuration command.

Error Message SPANTREE-2-BLOCK_BPDUGUARD_VP: Received BPDU on port [chars], vlan

[dec] with BPDU Guard enabled. Disabling vlan.

Explanation

A BPDU was received on the interface and the VLAN. The spanning tree BPDU guard feature is enabled and configured to shut down the VLAN. The VLAN is error disabled. [chars] is the interface, and [dec] is the VLAN.

Recommended Action

Either remove the device sending BPDUs, or disable the BPDU guard feature.

You can configure the BPDU guard feature locally on the interface or globally on all Port Fast enabled ports. Enter the clear errdisable privileged EXEC command to re-enable the interface and

VLAN.

Error Message SPANTREE-2-BLOCK_PVID_LOCAL: Blocking [chars] on [chars]. Inconsistent local vlan.

Explanation

The spanning-tree port associated with the listed spanning-tree instance and interface will be held in the spanning-tree blocking state until the port VLAN ID (PVID) inconsistency is resolved. The listed spanning-tree instance is that of the native VLAN ID of the listed interface. The first [chars] is the interface, and the second [chars] is the spanning-tree instance.

Recommended Action

Verify that the configuration of the native VLAN ID is consistent on the interfaces on each end of the 802.1Q trunk connection. When corrected, spanning tree automatically unblocks the interfaces, as required.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-127

Chapter 2 Message and Recovery Procedures

SPANTREE Messages

Error Message SPANTREE-2-BLOCK_PVID_PEER: Blocking [chars] on [chars]. Inconsistent peer vlan.

Explanation

The spanning-tree port associated with the listed spanning-tree instance and interface will be held in the spanning-tree blocking state until the port VLAN ID (PVID) inconsistency is resolved. The listed spanning-tree instance is that of the native VLAN ID of the interface on the peer switch to which the listed interface is connected. The first [chars] is the interface, and the second

[chars] is the spanning-tree instance.

Recommended Action

Verify that the configuration of the native VLAN ID is consistent on the interfaces on each end of the 802.1Q trunk connection. When interface inconsistencies are corrected, spanning tree automatically unblocks the interfaces.

2-128

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

SPANTREE Messages

Error Message SPANTREE-2-CHNL_MISCFG: Detected loop due to etherchannel misconfiguration of [chars] [chars].

Note

This message applies only to Catalyst 3750, 3560, 2975, 2970, and 2960 switches.

Explanation

A misconfiguration of a channel group has been detected. For example, the ports on one side of the EtherChannel either are not configured to be in the channel or did not bundle into the channel, and the other side has successfully bundled the ports into the EtherChannel. The first

[chars] is the port, and the second [chars] is the VLAN.

Recommended Action

Use the show interfaces status err-disabled privileged EXEC command to identify the local ports, and use the show etherchannel summary privileged EXEC command on the remote device to check the EtherChannel configuration. After the configuration is correct, enter the shutdown and then no shutdown interface configuration commands on the associated port-channel interfaces.

Error Message SPANTREE-2-LOOPGUARD_BLOCK: Loop guard blocking port [chars] on

[chars].

Explanation

The spanning-tree message age timer has expired because no BPDUs were received from the designated bridge. Because this condition could be caused by a unidirectional-link failure, the interface is put into the blocking state and marked as loopguard-inconsistent to prevent possible loops from being created. The first [chars] is the port name, and the second [chars] is the spanning-tree mode displayed in the show spanning-tree privileged EXEC command.

Recommended Action

Enter the show spanning-tree inconsistentports privileged EXEC command to review the list of interfaces with loopguard inconsistencies. Find out why devices connected to the listed ports are not sending BPDUs. One reason might be that they are not running the STP. If so, you should disable loop guard on the inconsistent interfaces by using the spanning-tree guard

none interface configuration command or by starting the STP on the remote side of the links.

Error Message SPANTREE-2-LOOPGUARD_CONFIG_CHANGE: Loop guard [chars] on port [chars] on [chars].

Explanation

The spanning-tree loopguard configuration for the listed interface has been changed. If enabled, the interface is placed into the blocking state. It is marked as loopguard-inconsistent when the message-age timer expires because no BPDUs were received from the designated bridge. This feature is mainly used to detect unidirectional links. The first [chars] is the loopguard state (enable or disable), the second [chars] is the interface name, and the third [chars] is the spanning-tree instance.

Recommended Action

Verify that this is the desired configuration for the listed interface. Correct it if this is not the desired configuration.

OL-8551-07

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

2-129

Chapter 2 Message and Recovery Procedures

SPANTREE Messages

Error Message SPANTREE-2-LOOPGUARD_UNBLOCK: Loop guard unblocking port [chars] on

[chars].

Explanation

The listed interface has received a BPDU. If the inconsistency was caused by a unidirectional link failure, the problem no longer exists. The loopguard-inconsistency is cleared for the interface, which is taken out of the blocking state, if appropriate. The first [chars] is the port name, and the second [chars] is the spanning-tree mode displayed in the show spanning-tree privileged EXEC command.

Recommended Action

No action is required.

Error Message SPANTREE-2-PVSTSIM_FAIL: Blocking [chars] port [chars]: Inconsistent

[chars] PVST BPDU received on VLAN [dec], claiming root [dec]:[enet]

Explanation

The specified port on the multiple spanning-tree (MST) switch is blocked. When a designated port on an MST switch is connected to a PVST+ switch, the CIST (MST00) information on the port of the MST switch must be consistently superior (lower bridge ID, lower path cost, and so forth) to the information in all the PVST+ messages. If the port is the root, the CIST (MST00) information on the MST switch must be consistently inferior to all the PVST+ messages. If this constraint is violated, the port on the MST switch is blocked to prevent a potential bridging loop.

The first [chars] is the MST switch, the second [chars] is the port, and the third [chars] is the PVST+ switch. The first [dec] is the VLAN ID, the second [dec] is the MST switch, and [enet] is the

MST-switch MAC address.

Recommended Action

When STP converges after a new switch or switch port is added to the topology, this condition might happen briefly. In such cases, the port unblocks automatically. If the port remains blocked, identify the root bridge as reported in the message, and configure the appropriate priority for the VLAN spanning tree, consistent with the CIST role on the port of the MST switch.

There could be additional inconsistencies not shown in the message, and the port does not recover until all these are cleared. To determine which other VLANs have inconsistencies, disable and re-enable the port. This message appears again and specifies another VLAN with inconsistencies to be fixed. Repeat this process until all inconsistencies on all VLANs are cleared.

Error Message SPANTREE-2-PVSTSIM_OK: PVST Simulation inconsistency cleared on port

[chars].

Explanation

The specified interface is no longer receiving PVST BPDUs advertising information that is inconsistent with the CIST port information. The PVST simulation inconsistency is cleared, and the interface returns to normal operation. [chars] is the port.

Recommended Action

No action is required.

2-130

Catalyst 3750, 3560, 3550, 2975, 2970, 2960, and 2960-S Switch System Message Guide

OL-8551-07

Chapter 2 Message and Recovery Procedures

SPANTREE Messages

Error Message SPANTREE-2-RECV_1Q_NON_1QTRUNK: Received 802.1Q BPDU on non 802.1Q trunk [chars] [chars].

Explanation

The interface that received a Shared Spanning Tree Protocol (SSTP) BPDU was in trunk mode but was not using 802.1Q encapsulation. The first [chars] is the interface, and the second

[chars] is the VLAN.

Recommended Action

Verify that the configuration and operational state of the listed interface and that of the interface to which it is connected are in the same mode (access or trunk). If the mode is trunk, verify that both interfaces have the same encapsulation (ISL or 802.1Q). If the encapsulation types are different, use the switchport trunk encapsulation interface configuration command to make them consistent. When the encapsulation is consistent, spanning tree automatically unblocks the interface.

Error Message SPANTREE-2-RECV_BAD_TLV: Received SSTP BPDU with bad TLV on [chars]

[chars].

Explanation

The listed interface received an SSTP BPDU without the VLAN ID tag. The BPDU is discarded. The first [chars] is the interface, and the second [chars] is the VLAN that received the

SSTP BPDU.

Recommended Action

If this message recurs, copy the message exactly as it appears on the console or in the system log. Research and attempt to resolve the error by using the Output Interpreter. Use the Bug Toolkit to look for similar reported problems. If you still require assistance, open a case with the TAC, or contact your Cisco technical support representative, and provide the representative with the gathered information. For more information about these online tools and about contacting

Cisco, see the

“Error Message Traceback Reports” section on page 1-9

Error Message SPANTREE-2-RECV_PVID_ERR: Received BPDU with inconsistent peer vlan id

[dec] on [chars] [chars].

Explanation

The listed interface received an SSTP BPDU that is tagged with a VLAN ID that does not match the VLAN ID that received the BPDU. This occurs when the native VLAN is not consistently configured on both ends of an 802.1Q trunk. [dec] is the VLAN ID, the first [chars] is the port, and the second [chars] is the VLAN.
