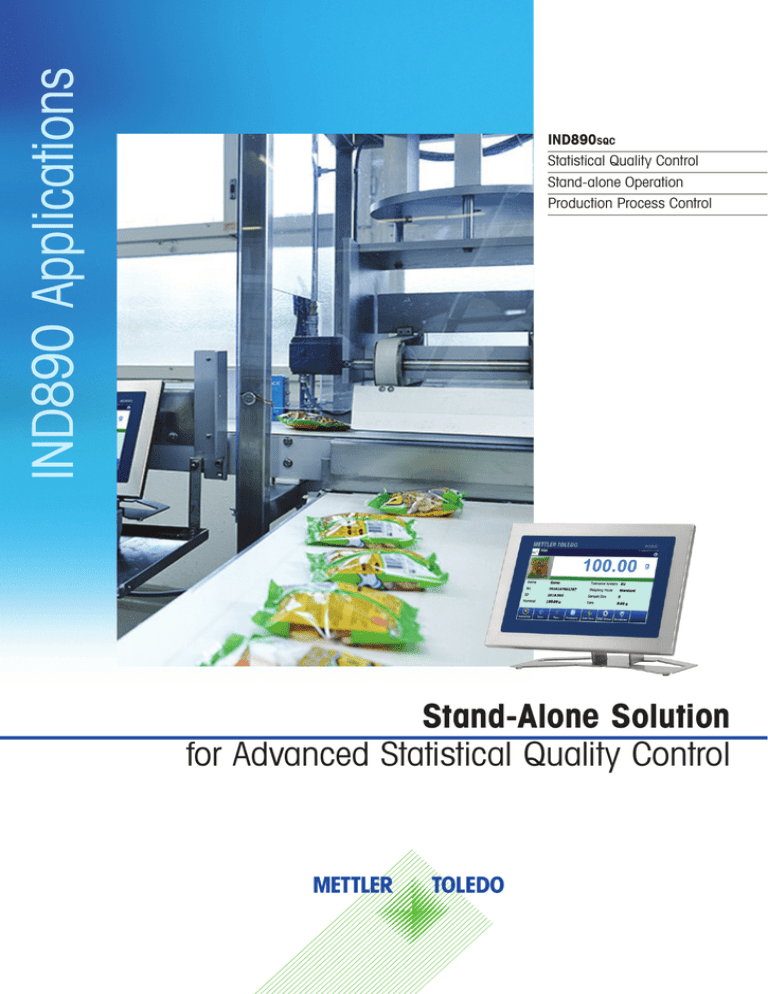

IND890 Applications
IND890SQC
Statistical Quality Control
Stand-alone Operation
Production Process Control
Stand-Alone Solution
for Advanced Statistical Quality Control
IND890 Applications
Statistical Quality Control
With a Flexible, Touch-Screen Terminal
• Full control of filling process
• Advanced quality management system
• Save costs by reducing overfilling
• Easy product management
• Touch-screen data entry
• USB stick for data transfer
• Statistic reports for documentation
IND890SQC weighing solutions from METTLER
TOLEDO is integrated with the SQC-890 application to
optimize the production process. It is cost-effective, as
it eliminates expensive product giveaway from overfilling. With SQC-890, production quality increases
and the filling process can be fully controlled.
IP69K for difficult environments
The IND890’s robust stainless-steel housing allows it
to survive in the harshest industrial environments. All
components are specified to ensure long service life.
Cost-effective accuracy
Control systems must be simple to operate, fast, reliable and objective. Statistical Quality Control (SQC)
helps in the production to ensure consistently high
quality.
Align with legal requirements
The SQC-890 application enables the control of illegal
under-fillings, which can be monitored, documented
and then eliminated.
2
­METTLER ­TOLEDO
IND890SQC
IND890SQC produces clear text printed out on
strip printers, A4 paper or as PDFs.
Benefits
Easy Compliance
A large number of products can be defined in the
product catalogue. For each product, one of four
different tolerance systems can be selected. These
tolerance systems support customers in complying
with national and international net content legislations
as well as global guidelines, such as British Retail
Consortium (BRC), International Featured Standards
for Food (IFS) and International Organization of Legal
Metrology (OIML R 87).
Informed Decision-Making
Two statistical reports can be created per product.
They are provided to evaluate different production periods. Armed with this valuable information, leaders can
make better decisions to better control their processes.
Flexible Data Access
Reports and statistics can be stored on a USB stick
for easy data transportation. It can also be stored on
a server location and accessed from anywhere within
the company network.
Also, the operator will directly be notified if a change
in the filling process is needed to take immediate action.
Security Assurance
Different user profiles are defined for enhanced security, which regulates each user’s responsibilities. The
different profiles have allocated functions such as access to different features, language and SQC settings.
This ensures operators can access only areas of the
system they need.
Simple Connectivity
The system supports connection of peripheral interface
devices, such as bar code scanners, USB sticks and
tablet feeder LV11.
­METTLER ­TOLEDO
IND890SQC
3
Technical Data
Touchscreen interface
Standard on all models at 10” size, measured diagonally.
Environmental protection IP69K, suitable for harsh industrial environ- ments. Rustfree housing with Ra<0.8µm surface finish.
Display
Easy to read with intuitive interface and icons.
DeltaTrac display for easy weighing-to-target
Data storage
Compact flash-card storage standard in all models.
Scale interface
Scale interfaces include analog, IDNet, SICS and SICSpro.
Connectivity
Ethernet connectivity is standard for integration into
industrial networks. In addition, select and install up to
six interfaces including scales, USB, and serial (RS-232)
for connection to PCs, printers and bar-code scanners.
HMI display options
Available in panel-mount and harsh enclosure designs.
Harsh includes ergonomic and swivel mount for wall or
desk mounting.
www.mt.com/IND890SQC
For more information
Mettler-Toledo AG
Industrial
CH-8606 Greifensee
Switzerland
Tel +41 44 944 22 11
Fax +41 44 944 30 60
Subject to technical changes
© 10/2013 Mettler-Toledo AG
Printed in Switzerland 44098577
