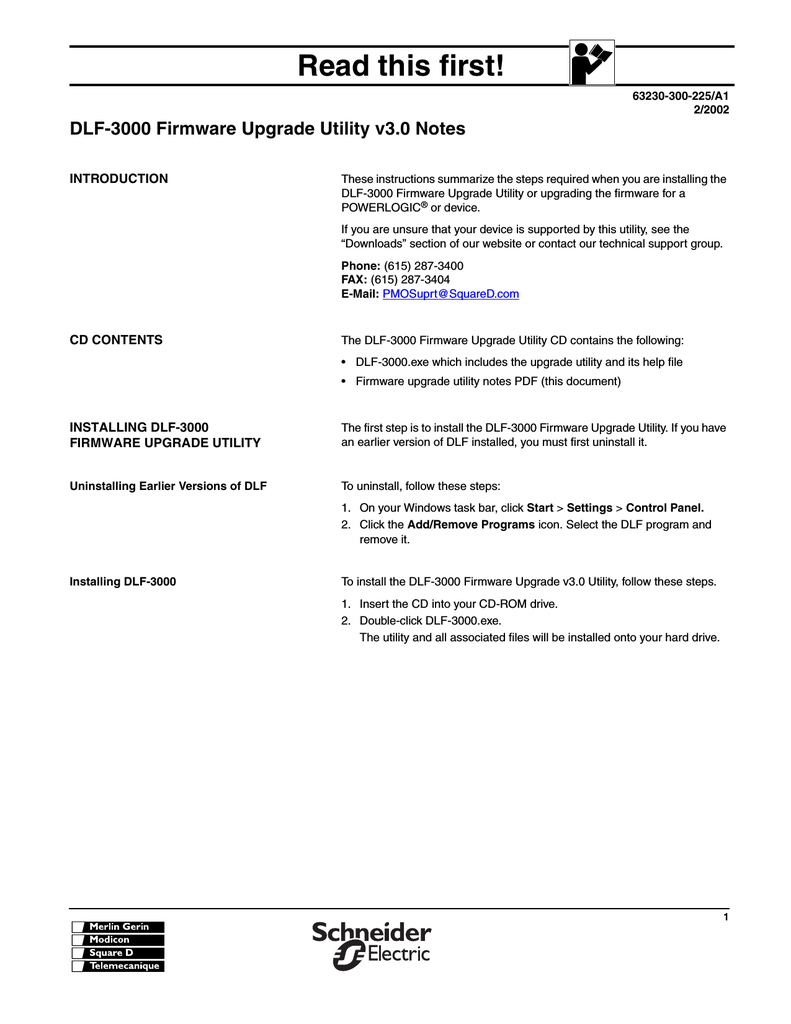

Read this first! 63230-300-225/A1 2/2002 DLF-3000 Firmware Upgrade Utility v3.0 Notes INTRODUCTION These instructions summarize the steps required when you are installing the DLF-3000 Firmware Upgrade Utility or upgrading the firmware for a POWERLOGIC® or device. If you are unsure that your device is supported by this utility, see the “Downloads” section of our website or contact our technical support group. Phone: (615) 287-3400 FAX: (615) 287-3404 E-Mail: [email protected] CD CONTENTS The DLF-3000 Firmware Upgrade Utility CD contains the following: • DLF-3000.exe which includes the upgrade utility and its help file • Firmware upgrade utility notes PDF (this document) INSTALLING DLF-3000 FIRMWARE UPGRADE UTILITY The first step is to install the DLF-3000 Firmware Upgrade Utility. If you have an earlier version of DLF installed, you must first uninstall it. Uninstalling Earlier Versions of DLF To uninstall, follow these steps: 1. On your Windows task bar, click Start > Settings > Control Panel. 2. Click the Add/Remove Programs icon. Select the DLF program and remove it. Installing DLF-3000 To install the DLF-3000 Firmware Upgrade v3.0 Utility, follow these steps. 1. Insert the CD into your CD-ROM drive. 2. Double-click DLF-3000.exe. The utility and all associated files will be installed onto your hard drive. 1 Firmware Upgrade Utility ver 3.0 Notes Downloading the Firmware DOWNLOADING THE FIRMWARE 63230-300-225/A1 2 / 2002 The next step is to download the firmware from the Square D website as described in this section. 1. Open your web browser and access the Square D website at: http://www.powerlogic.com 2. Select Tech Support at the top of the web page. 3. From the Technical Support page, select Downloads to display the login page. 4. To log in, enter your email address and password. NOTE: If you are a first-time user, you’ll need to register as a new user. The download selections display. 5. Select the appropriate device and follow the instructions provided to download the firmware to your hard drive.You may be required to download more than one file. 2 © 2002 Schneider Electric All Rights Reserved 63230-300-225/A1 2 / 2002 UPGRADING THE FIRMWARE Firmware Upgrade Utility ver 3.0 Notes Upgrading the Firmware After you have installed the DLF-3000 Firmware Upgrade Utility v3.0, it creates a folder called DLF-3000 on the drive that you selected during the installation (the default location is C:\DLF-3000). The DLF-3000 help contains all the instructions needed for downloading the firmware into your device. NOTE: While you are downloading firmware to any POWERLOGIC device, the device relays will de-energize and the device will not communicate. When the download is complete, the device will reset. The order of upgrading is: a. Download the firmware for all circuit monitors with an Ethernet Communications Card (ECC21) first. b. After all circuit monitors with ECCs are upgraded, download the firmware for all circuit monitors connected by serial port or any other MODBUS/TCP interface. Follow these steps to download the firmware into your device: 1. Copy all of the new firmware files that you downloaded from our website into the DLF-3000 folder. 2. From the Windows task bar, click Start > Programs > DLF-3000. Select DLF-3000 to launch the utility. 3. From DLF-3000, click the Help button to open the DLF-3000 help file. 4. Open the Tutorial in the Help contents on the left and follow the tutorial instructions for downloading. © 2002 Schneider Electric All Rights Reserved 3 63230-300-225/A1 2 / 2002 Firmware Upgrade Utility ver 3.0 Notes Electrical equipment should be serviced only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material. This document is not intended as an instruction manual for untrained persons. Class 3000 © 2002 Schneider Electric All Rights Reserved ">
