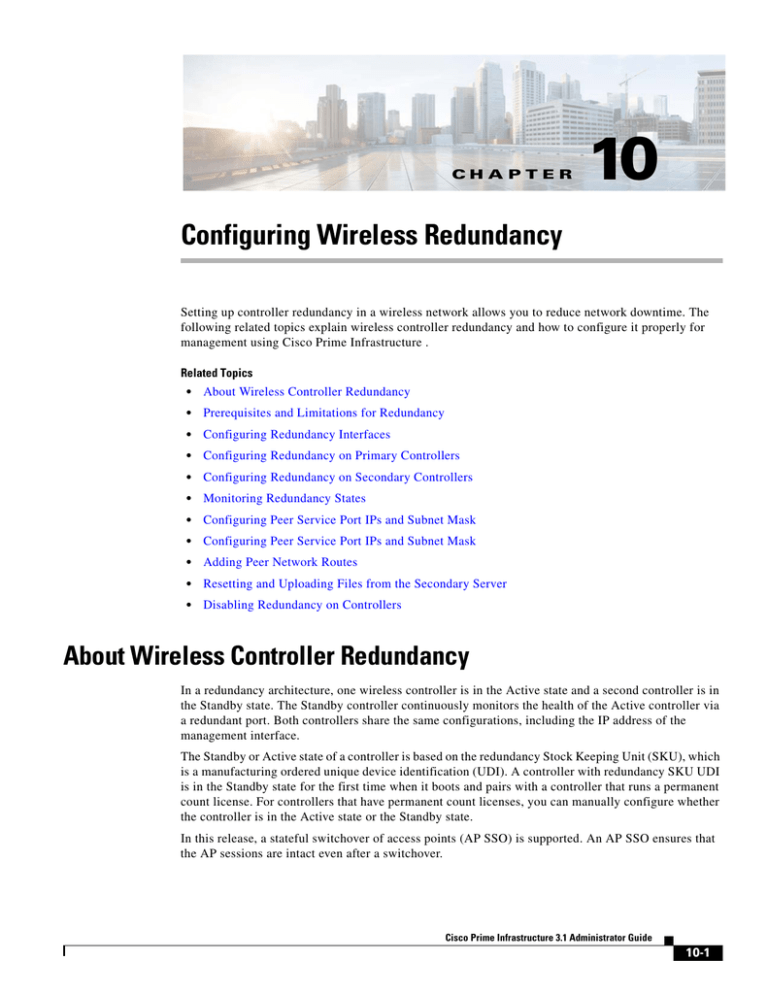

10 Configuring Wireless Redundancy

10 Configuring Wireless Redundancy
CH A P T E R
10
Configuring Wireless Redundancy
Setting up controller redundancy in a wireless network allows you to reduce network downtime. The
following related topics explain wireless controller redundancy and how to configure it properly for
management using Cisco Prime Infrastructure .
Related Topics
•
About Wireless Controller Redundancy
•
Prerequisites and Limitations for Redundancy
•
Configuring Redundancy Interfaces
•
Configuring Redundancy on Primary Controllers
•
Configuring Redundancy on Secondary Controllers
•
Monitoring Redundancy States
•
Configuring Peer Service Port IPs and Subnet Mask
•
Configuring Peer Service Port IPs and Subnet Mask
•
Adding Peer Network Routes
•
Resetting and Uploading Files from the Secondary Server
•
Disabling Redundancy on Controllers
About Wireless Controller Redundancy
In a redundancy architecture, one wireless controller is in the Active state and a second controller is in
the Standby state. The Standby controller continuously monitors the health of the Active controller via
a redundant port. Both controllers share the same configurations, including the IP address of the
management interface.
The Standby or Active state of a controller is based on the redundancy Stock Keeping Unit (SKU), which
is a manufacturing ordered unique device identification (UDI). A controller with redundancy SKU UDI
is in the Standby state for the first time when it boots and pairs with a controller that runs a permanent
count license. For controllers that have permanent count licenses, you can manually configure whether
the controller is in the Active state or the Standby state.
In this release, a stateful switchover of access points (AP SSO) is supported. An AP SSO ensures that
the AP sessions are intact even after a switchover.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-1
Chapter 10
Configuring Wireless Redundancy
Prerequisites and Limitations for Redundancy
Stateful switchover of clients is not supported. This means that nearly all clients are deauthenticated and
forced to re-associate with the new controller in the Active state. The only exceptions to this rule are
clients on locally switched WLANs on access points in FlexConnect mode.
Prerequisites and Limitations for Redundancy
Before configuring wireless controller redundancy, you must consider the following prerequisites and
limitations:
•
Wireless controller redundancy is supported only on the 5500, 7500, 8500, and Wism2 controllers.
•
The primary and secondary controllers must be of the same hardware model.
•
The primary and secondary controllers must be running the same Controller software release.
•
The IP addresses of the management, redundancy management, and peer redundancy management
interfaces must be in the same subnet.
•
The service port IP address and route information is maintained for each device.
•
If the redundancy is enabled on a controller, the Prime Infrastructure or any other device cannot
manage the standby controller.
•
You cannot enable the redundancy on a controller if the controller is added to the Prime
Infrastructure through the service port. You must delete the controller and add it through the
management interface to enable the redundancy on that controller.
•
When there is an audit mismatch between a controller and the Prime Infrastructure, you must not
restore the redundancy parameters from the Prime Infrastructure on to the controller. However, you
can refresh the redundancy parameters in the Prime Infrastructure.
•
Before you enable the redundancy, you must download the certificates for each device.
•
Configuration is downloaded from the network to the active controller, and then the details are
transferred to the standby controller through the redundancy interface.
•
When an old active controller pairs up with the new active controller, the control is not transferred
back to the old active controller and it becomes the standby controller for the new active controller.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-2
Chapter 10
Configuring Wireless Redundancy
Configuring Redundancy Interfaces
Configuring Redundancy Interfaces
There are two redundancy interfaces: redundancy-management interface and redundancy-port interface.
The redundancy-management interface is a local physical management interface that shares the subnet
mask, gateway, and VLAN ID from the management interface. You must configure only the IP address
for the redundancy-management interface to enable redundancy on the primary and secondary
controllers. The IP address for the redundancy-port interface is auto-generated and it is used internally.
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that match the device you have chosen as the primary controller
(for example: Cisco 5500 Series Wireless LAN Controllers). Members of this device group are displayed
on the right.
Step 4
Click on the Device Name of the primary controller.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Global Configuration. The Global Configuration
page appears.
Step 7
In the Redundancy-Management IP text box, enter an IP address that belongs to the management
interface subnet.
Step 8
Click Save.
Configuring Redundancy on Primary Controllers
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that match the device for which you have configured the
redundancy-management interface IP address (for example: Cisco 5500 Series Wireless LAN
Controllers). Members of this device group are displayed on the right.
Step 4
Click on the Device Name of the controller for which you have configured the redundancy-management
interface IP address.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Global Configuration. The Global Configuration
page appears.
Step 7
You must configure the following parameters before you enable the redundancy mode for the primary
controller:
•
Redundancy-Management IP—The IP address of the local physical management interface, which
you had configured in the redundancy-management interface details page is displayed. You can also
modify the IP address.
•
Peer Redundancy-Management IP—Enter the IP address of the peer redundancy-management
interface.
•
Redundant Unit—Choose Primary.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-3
Chapter 10
Configuring Wireless Redundancy
Configuring Redundancy on Secondary Controllers
•
Mobility MAC Address—Enter the virtual MAC address for the redundancy pair. Ensure that the
mobility MAC address that you enter is the same for both primary and secondary controllers.
Step 8
Click Save. The Enabled check box for the redundancy mode becomes available.
Step 9
Select the Enabled check box for the redundancy mode to enable the redundancy on the primary
controller.
After you enable the redundancy, you cannot modify the Redundancy-Management IP, Peer
Redundancy-Management IP, Redundant Unit, and Mobility MAC Address parameters.
You cannot configure this controller during the redundancy pair-up process.
Step 10
Click Save. The configuration is saved and the system reboots.
Configuring Redundancy on Secondary Controllers
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that match the device you have selected to act as the secondary
controller (for example: Cisco 5500 Series Wireless LAN Controllers). Members of this device group
are displayed on the right.
Step 4
Click on the Device Name of the secondary controller.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Global Configuration. The Global Configuration
page appears.
Step 7
You must configure the following parameters before you enable the redundancy mode for the secondary
controller:
•
Redundancy-Management IP—Enter the IP address of the local physical management interface.
This IP address must be the same as the IP address of the peer redundancy-management interface of
the primary controller.
•
Peer Redundancy-Management IP—Enter the IP address of the peer physical management interface.
This IP address must be the same as the IP address of the local physical management interface of
the primary controller.
•
Redundant Unit—Choose Secondary.
•
Mobility MAC Address—Enter the virtual MAC address of the redundancy pair. Ensure that the
mobility MAC address that you enter is the same for both primary and secondary controllers.
Step 8
Click Save. The Enabled check box for the redundancy mode becomes available for editing.
Step 9
Select the Enabled check box for the redundancy mode to enable the redundancy on the secondary
controller.
After you enable the redundancy, you cannot modify the Redundancy-Management IP, Peer
Redundancy-Management IP, Redundant Unit, and Mobility MAC Address parameters.
You cannot configure the primary controller during the redundancy pair-up process.
Step 10
Click Save. The configuration is saved and the system reboots.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-4
Chapter 10
Configuring Wireless Redundancy
Monitoring Redundancy States
Monitoring Redundancy States
After redundancy mode is enabled on the primary and secondary controllers, the system reboots. The
redundancy state for both the controllers becomes Enabled in the Wireless Controller Members list page.
The following traps are triggered:
•
RF_SWITCHOVER_ACTIVITY—This trap is triggered when the standby controller becomes the
new active controller.
•
RF_PROGRESSION_NOTIFY—This trap is triggered by the primary or active controller when the
peer state changes from Disabled to StandbyCold, and then to StandbyHot.
•
RF_HA_SUP_FAILURE_EVENT—This trap is triggered when the redundancy fails because of a
discrepancy between the active and the standby controllers.
For more information about these traps, see “Cisco Prime Infrastructure Alarms and Events” in Related
Topics.
You can view the redundancy state details, including the local and peer state, unit, IP addresses of the
redundancy management, peer redundancy management, redundancy port, peer redundancy port, and
peer service port of the paired controller.
To view these details, choose Monitor > Managed Elements > Network Devices > Device Type >
Wireless Controller > Controller Group > Controller > Device Details > Redundancy > Redundancy
States.
Related Topics
•
Cisco Prime Infrastructure Alarms and Events
Configuring Peer Service Port IPs and Subnet Mask
You can configure a peer service port IP address and a subnet mask only when the state of the peer
controller is in StandbyHot. Ensure that DHCP is disabled on the local service port before you configure
the peer service port IP address.
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that contains the primary or active controller. Members of this
device group are displayed on the right.
Step 4
Click on the Device Name of the primary or active controller.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Global Configuration. The Global Configuration
page appears.
Step 7
Complete the following fields:
Step 8
•
Peer Service Port IP—Enter the IP address of the peer service port.
•
Peer Service Netmask IP—Enter the IP address of the peer service subnet mask.
Click Save.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-5
Chapter 10
Configuring Wireless Redundancy
Adding Peer Network Routes
Adding Peer Network Routes
You can add a peer network route on an active controller only when the state of the peer controller is in
StandbyHot. A new network route table is maintained. When the standby controller becomes active, the
entries of the network route table swaps with the entries of the peer network route table.
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that contains the controller for which you have configured the
redundancy-management interface IP address. Members of this device group are displayed on the right.
Step 4
Click on the Device Name of the controller for which you have configured the redundancy-management
interface IP address.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Peer Network Route.
Step 7
Choose Select a command > Add Peer Network Route > Go. The Peer Network Route Details page
appears.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-6
Chapter 10
Configuring Wireless Redundancy
Resetting and Uploading Files from the Secondary Server
Step 8
Step 9
Complete the following fields:
•
IP Address—Enter the IP address of the peer network route.
•
IP Netmask—Enter the subnet mask of the peer network route.
•
Gateway IP Address—Enter the IP address of the peer network route gateway.
Click Save. The peer network route is added.
Resetting and Uploading Files from the Secondary Server
You can reset the secondary server when the secondary server is in the StandbyHot state and the
high-availability pairing process is complete. You can also upload the files from the secondary server to
the primary server.
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that contains the controller for which you have configured the
redundancy-management interface IP address. Members of this device group are displayed on the right.
Step 4
Click on the Device Name of the controller for which you have configured the redundancy-management
interface IP address.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Redundancy Commands.
Step 7
Under Administrative Commands, choose Select a command > Reset Standby > Go to reset the
secondary server.
Step 8
Under Upload/Download Commands:
a.
Choose the transport protocol you want to use when uploading files from the secondary to the
primary server (TFTP is the default).
b.
Choose Select a command > Upload File from Standby Controller > Go to upload files from the
secondary to the primary server.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-7
Chapter 10
Configuring Wireless Redundancy
Disabling Redundancy on Controllers
Disabling Redundancy on Controllers
When you disable redundancy on the controller, both active and standby controllers reboot. You must
refresh the configuration from the device to remove any audit mismatches in the redundancy parameters.
The active controller becomes a standalone controller and the standby controller reboots with all the
ports disabled.
Step 1
Choose Configuration > Network > Network Devices.
Step 2
In the Device Groups area, expand Device Type, then expand Wireless Controller.
Step 3
Select the group of wireless controllers that contains the controller on which you want to disable
redundancy. Members of this device group are displayed on the right.
Step 4
Click on the Device Name of the controller on which you want to disable redundancy.
Step 5
Click the Configuration tab.
Step 6
From the left sidebar menu, choose Redundancy > Global Configuration. The Global Configuration
details page appears.
Step 7
Unselect the Enabled check box for the Redundancy Mode on the selected controller.
Step 8
Click Save. The configuration is saved and the system reboots.
Cisco Prime Infrastructure 3.1 Administrator Guide
10-8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
