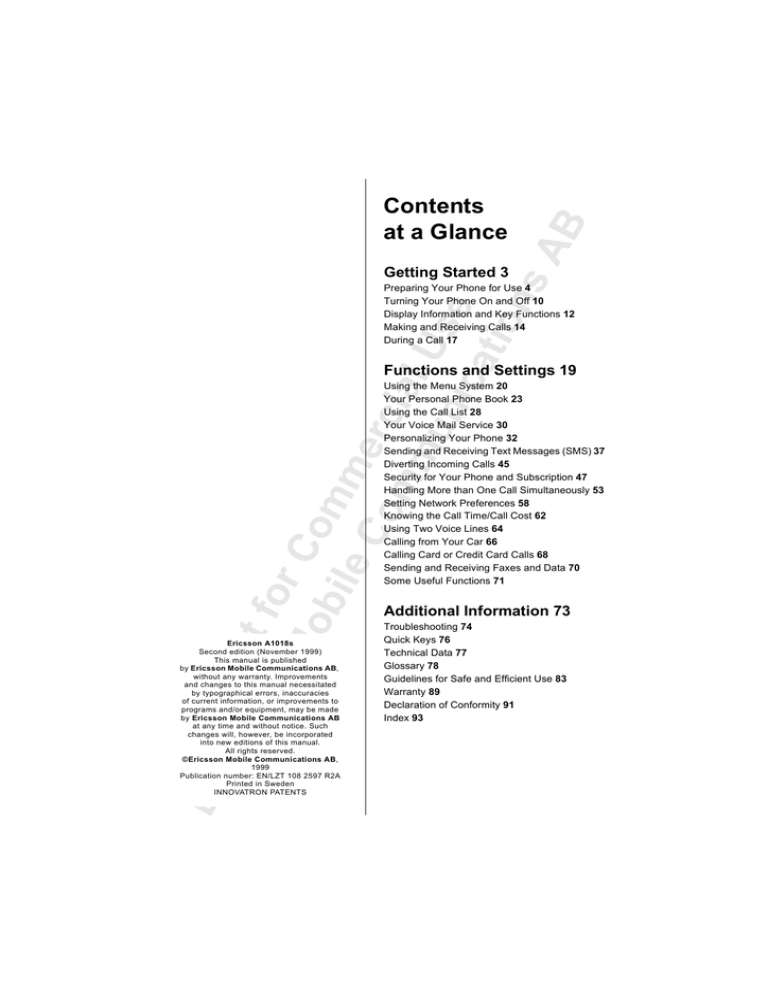

Contents
at a Glance
Getting Started 3
Preparing Your Phone for Use 4
Turning Your Phone On and Off 10
Display Information and Key Functions 12
Making and Receiving Calls 14
During a Call 17
Functions and Settings 19
Using the Menu System 20
Your Personal Phone Book 23
Using the Call List 28
Your Voice Mail Service 30
Personalizing Your Phone 32
Sending and Receiving Text Messages (SMS) 37
Diverting Incoming Calls 45
Security for Your Phone and Subscription 47
Handling More than One Call Simultaneously 53
Setting Network Preferences 58
Knowing the Call Time/Call Cost 62
Using Two Voice Lines 64
Calling from Your Car 66
Calling Card or Credit Card Calls 68
Sending and Receiving Faxes and Data 70
Some Useful Functions 71
Additional Information 73
Ericsson A1018s
Ericsson A1018s
Second edition (November 1999)
This manual is published
by Ericsson Mobile Communications AB,
without any warranty. Improvements
and changes to this manual necessitated
by typographical errors, inaccuracies
of current information, or improvements to
programs and/or equipment, may be made
by Ericsson Mobile Communications AB
at any time and without notice. Such
changes will, however, be incorporated
into new editions of this manual.
All rights reserved.
©Ericsson Mobile Communications AB,
1999
Publication number: EN/LZT 108 2597 R2A
Printed in Sweden
INNOVATRON PATENTS
Troubleshooting 74
Quick Keys 76
Technical Data 77
Glossary 78
Guidelines for Safe and Efficient Use 83
Warranty 89
Declaration of Conformity 91
Index 93
Please note!
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Some of the services in this manual are not supported by all networks. This also applies to the GSM International Emergency
Number 112.
Please contact your network operator or service provider if you are
in doubt whether you can use a particular service or not.
The
symbol on our products signifies that they have been certified according to the EMC directive 89/336/EEC, the Telecommunications directive 91/263/EEC, and the Low Voltage directive
73/23/EEC when applicable. The products fulfil the requirements
according to the following standards:
Cellular Phones and Accessories in Combination:
ETS 300 342-1 EMC for European digital cellular telecommunications.
Accessories Without Direct Connection to a Cellular Phone:
EN 50081 Electromagnetic compatibility, Generic Emission Standard, and EN 50082 Electromagnetic compatibility, Generic
Immunity Standard.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
GETTING STARTED
Preparing Your Phone for Use
4
Turning Your Phone On and Off
10
Display Information and Key Functions
12
Making and Receiving Calls
14
During a Call
17
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Preparing Your Phone
for Use
Overview
Front
Antenna
Indicator light
Earpiece
Display
Keypad
Microphone
Back
Battery
Battery
release catch
4
Preparing Your Phone for Use
Assembly
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
You need to do the following to use your phone:
• insert the SIM card
• attach the battery to the phone
• charge the battery
The SIM Card
When you register as a subscriber with a network operator, you get a
SIM (Subscriber Identity Module) card. The SIM card contains a
computer chip that keeps track of your phone number, the services
included in your subscription, and your Phone Book information,
among other things.
SIM cards come in two sizes. One is the size of a credit card, and the
other is smaller. Your phone uses the smaller card. Many credit cardsized SIM cards have a perforated smaller card that you can take out
easily. Before you can use your phone, you must insert the SIM card
as shown below.
Inserting the SIM Card
1. Remove the battery
(if attached).
2. Slide the SIM card down into
the SIM card slot with the
golden connectors facing
down and the cut corner
turned to the left.
Preparing Your Phone for Use
5
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Removing the SIM Card
1. Remove the battery
(if attached).
2. Lift the top of the SIM card
and push the card out of the
slot.
The PIN
Most SIM cards are supplied with a security code or PIN (Personal
Identity Number), which you need to access the network. Every time
you turn on your phone, it prompts you to enter your PIN. You will
find your PIN in the information from your operator.
Some operators may have services that require a second PIN, your
PIN2.
You should be careful with your PIN, since it is your protection
against unauthorized use of your subscription.
If your PIN is entered incorrectly three times in a row, the SIM card is
blocked. If this happens, you can unlock it by using your PUK (Personal Unblocking Key code), which you also get from your operator.
6
Preparing Your Phone for Use
The Battery
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Your phone comes with a nickel metal hydride (NiMH) battery.
The battery is not charged when you buy your phone, but there may
be enough power to turn the phone on. We recommend that you
charge the battery before you use the phone for the first time.
Attaching the Battery to your Phone
• Place the battery on the back of the phone and push until you hear
a click.
When to Charge the Battery
The nickel metal hydride battery that comes with your phone can be
charged whenever you wish, without affecting its performance. This
is not the case with the cheaper nickel cadmium type batteries, often
sold as accessories by other suppliers. For the best talk and standby
time in the long run, we recommend that you use only Ericsson original batteries with your phone.
To remind you that you will soon need to charge the battery or
replace it with a charged one:
• an alarm signal (a long beep) sounds and the message Battery low
appears for ten seconds in the display – the signal is repeated several times,
• the indicator light on the top of the phone starts flashing red.
Note! The phone turns itself off when the battery can no longer power
it satisfactorily.
Preparing Your Phone for Use
7
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Charging the Battery
1. Make sure that the battery is
attached to the phone.
2. Connect the charger to the
mains.
3. Connect the charger to the
phone as shown in the picture. The flash symbol on the
plug must face upwards.
To indicate charging:
• the battery meter in the display pulses continuously,
• the indicator on the top of the phone shows a steady red light
(or green, if the phone is turned on).
When the battery is fully charged, the battery meter in the display is
full and the indicator on the top of the phone shows a steady green
light.
Tip! You can use the phone while the battery is being charged.
However, this increases the charging time.
Disconnecting the Charger
• Bend the plug connected to the phone upwards and pull it out.
8
Preparing Your Phone for Use
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Removing the Battery
1. Turn off the phone.
2. Press the catch on the bottom
of the battery.
3. Lift the battery up and away
from the phone.
Changing the Front Panel
1.
3.
2.
4.
1. Lift the bottom end of the
front panel.
2. Remove the panel.
3. Fit the top of the new front
panel to the phone.
4. Press the panel into place.
Preparing Your Phone for Use
9
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Turning Your Phone On
and Off
Turning Your Phone On
• Press and hold the N O (ON/OFF) key until you hear a click.
Enter
PIN
Enter
PIN
****
If “Enter PIN” Appears in the Display
Some SIM cards are protected with a PIN code. If Enter PIN appears in
the display after you have turned on the phone, do this:
1. Enter your PIN. If you make a mistake while entering your PIN,
erase the wrong digit by pressing the C L R key.
2. Press YE S .
Note! If your PIN is entered incorrectly three times in a row, the SIM
card is blocked. You can unblock it by using your PUK, see “Security
for Your Phone and Subscription” on page 47.
Network Search
After you have turned on the phone (and entered your PIN), the
Ericsson logo appears in the display and the phone searches for a network.
NETWORK
00:00
When a network is found, the phone beeps three times. The indicator
light on the top of the phone flashes green once every second and
your network operator’s name (in most cases abbreviated) appears in
the display.
This is called standby mode. You can now make and receive calls.
Initial Settings
The first time you turn on your phone, you may want to change the
language in the display, choose the ring signal type and set the clock.
For more information about these settings, see “Personalizing
Your Phone” on page 32.
Display Language
Most modern SIM cards automatically set the display language to the
language of the country where you bought your SIM card. If this is
10
Turning Your Phone On and Off
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
not the case, the default language is English. To change the display
language, see “Display Language” on page 34.
If your phone displays a language you do not understand, you can
change it to English.
1.
2.
3.
4.
To change the display language to English
Press the C L R key.
Press the L E F T arrow key.
Enter 0000.
Press the R I G H T arrow key.
Network
NETWORK
16:21
112 only
16:21
No network
06:01
Normally, the name of a network appears in the display after you
have turned your phone on, but sometimes there is no network that
you can use. The display then shows one of the following:
112 only
If the message 112 only is displayed, you are within range of a network, but you are not allowed to use it. However, in an emergency,
some operators allow you to call the international emergency number
112. See “Making Emergency Calls” on page 15.
No network
If the message No network is displayed, there is no network within
range or the received signal is too weak. You have to move to get a
stronger signal.
Turning Your Phone Off
• In standby mode, press and hold the N O (ON/OFF) key until you
hear a click.
Turning Your Phone On and Off
11
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Display Information
and Key Functions
Display Information
Your phone display will help you to:
• verify that you are dialling correctly,
• check your signal strength and service availability,
• find out if you have received messages,
• check which line is in use if you have the Alternate Line Service
(ALS),
• check the battery level.
Icons in the Display
Icons are displayed when specific functions are active or if you have
received a message. The figure in the margin shows an overview of
all the possible icons and where they appear.
The table below shows every icon separately and also gives you an
explanation.
Icon/Indicator:
Name:
Description:
Signal strength
meter
The strength of the received signal is
indicated in steps. Six steps indicate
the strongest signal.
Battery meter
Indicates the current state of the battery.
Keypad lock
indicator
The keypad is locked.
Divert indicator
An arrow means that the Divert All
function is active.
Silent ring signal
A crossed note means that no sound
can be heard when you receive a call.
SMS indicator
The envelope icon means that you
have received a text message.
Voice mail indicator The tape loops mean that you have
received a voice message. Will not
appear on all networks.
12
Display Information and Key Functions
Name:
Description:
Line indicator
Tells you which line is in use if you
have the Alternate Line Service.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Icon/Indicator:
Home zone indica- The house icon indicates that the
tor
phone is within the home zone. Will not
appear on all networks.
Key Functions
The keys have other functions when you access the menu system.
See “Using the Menu System” on page 20.
Key:
Use:
YE S
To make calls and answer calls.
NO
To turn the phone on or off. Press and hold the key.
To end a call.
To reject an incoming call.
To display the date in standby mode.
L E F T and
R I G H T arrow
keys
To access and navigate the menu system. To adjust the
volume during a call.
C L R (Clear)
To erase digits from the display. Press and hold the key to
erase all digits.
To mute the microphone during a call. Press and hold the
key.
To turn the ring signal on/off in standby mode. Erase all digits from the display. Then press and hold the key. The symbol for silent ring signal is shown in the display when the
ring signal is turned off.
To silence the ring signal when you receive a call, press the
key briefly.
Number keys
To enter the digits 0-9.
The 0 key enters the international prefix (+) if held down.
Star
To enter a star (*) character.
If held down it enters a p (a pause).
Hash
To enter #.
To terminate the input of PIN and security codes.
If held down it enters the phone icon.
Display Information and Key Functions
13
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Making and Receiving
Calls
In this chapter, we assume that you have turned on your phone and
that you are within range of a network. If you are abroad, you may
use other networks, provided your home network has an agreement
that allows you to do this (see also “Setting Network Preferences” on
page 58).
Making a Call
NETWORK
0123456789
1. Enter the area code and phone number.
2. Press YE S .
While a call is in progress, a time counter automatically starts and
you can see how long you have been on the phone. If you have activated the Call Cost option (see “Knowing the Call Time/Call Cost”
on page 62) and your network and SIM card support it, you see the
price of the call in the display.
Ending a Call
• Press N O to end the call.
Re-dialling a Previously Called Number
<
01:06
Julia
>
+3456789012
1. Clear the display using C L R .
2. Press YE S .
3. Press an arrow key until the number (and name) you want to call
appears.
4. Press YE S to make the call.
Automatic Re-dialling
If the display shows Retry? you can re-dial the number by pressing
Y E S . Your phone automatically re-dials (up to 10 times):
• until the call is answered. When the call is answered, you hear a
beep followed by a ring signal.
• until you press a key or receive a call.
14
Making and Receiving Calls
Making International Calls
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
1. Press and hold the 0 key until a + sign appears.
2. Enter the country code, area code (without any leading zero) and
phone number.
3. Press YE S .
Making Emergency Calls
1. Enter 112 (the international emergency number).
2. Press YE S .
The international emergency number 112 can be used in most countries, with or without a SIM card inserted, if a GSM network is within
range.
Note! Some network operators may require that a SIM card is
inserted, and in some cases that the PIN code has been entered, as
well. Some networks may not use the international emergency number, 112. In a number of countries, the emergency number is 999
instead. If you are unsure of what emergency number is used in your
country, please contact your network operator or service provider.
What Happens when I Receive a Call?
Answer?
The phone rings and the indicator light on top of the phone blinks
green rapidly. The display shows Answer?
Answering a Call
• Press YE S .
Busy tone
Rejecting a Call
• Press N O .
The caller hears a busy tone if the function is supported by the
caller’s network. If Divert On busy is activated, the call is
diverted to the number you have specified. See “Diverting Incoming Calls” on page 45.
Calling Line Identification (CLI)
Answer?
Janina
+234343556
If your subscription includes the Calling Line Identification service
and the caller’s network sends the number, you see the caller’s
number at the bottom of the display when you receive a call. If the
number is stored with a name in the phone book, the name is also
shown in the display.
Making and Receiving Calls
15
Ciphering
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Ciphering is a built-in feature that scrambles your calls and messages
to provide additional privacy.
An exclamation (!) mark, shown next to the handset icon in the display during a call, indicates that ciphering is currently not being provided by the network.
16
Making and Receiving Calls
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
During a Call
Your phone has several functions which you might find helpful while
a call is in progress.
Changing the Earpiece Volume
To change the earpiece volume during a call
• Press the arrow keys (L EF T or R I G H T ).
Pressing R I G H T increases the volume.
Pressing L E F T decreases the volume.
Muting the Microphone
To turn the microphone off temporarily during a call
1. Press and hold the C L R key.
Mute appears in the display.
2. To continue your conversation, release the C L R key.
Tip! Instead of pressing and holding the C L R key, you can put the
call on hold.
To put the call on hold
1. Press YE S .
1 on hold appears in the display.
2. To continue your conversation, press Y E S again.
Accessing the Menus
If you need to access the menus during a call, press and hold the
L E F T or R I G H T key until the menus appear.
Scratch Pad Function
If you need to make a note of a phone number during a call, you can
use the Scratch Pad.
To use the scratch pad
• Use the number keys to enter the number.
When you end the call, the number remains in the display. You can
now call the number by pressing Y ES , or store it in the Phone Book
(see “Your Personal Phone Book” on page 23).
During a Call
17
Sending Tone Signals
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
To use telephone banking services or to control an answering
machine, you need to use codes. These codes are sent as tone signals
(also known as DTMF tones or touch tones).
• Press the appropriate keys (0-9, * and #).
Tip! You can also save a code together with a phone number in the
Phone Book. See “Storing a Number Together with a Name” on
page 24.
Checking Duration/Cost of Call
During a call, the display shows the duration in minutes and seconds.
If you prefer, you can have the call cost displayed, provided your network and your SIM card support this feature. See “Knowing the Call
Time/Call Cost” on page 62 on how to use this feature.
More than One Call Simultaneously
Your phone is capable of handling more than one call simultaneously.
You can put the current call on hold, and then make or answer a second call. You can also set up a conference call with up to five people.
See “Handling More than One Call Simultaneously” on page 53 on
how to use this feature.
18
During a Call
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
FUNCTIONS AND SETTINGS
Using the Menu System
20
Your Personal Phone Book
23
Using the Call List
28
Your Voice Mail Service
30
Personalizing Your Phone
32
Sending and Receiving Text Messages (SMS)
37
Diverting Incoming Calls
45
Security for Your Phone and Subscription
47
Handling More than One Call Simultaneously
53
Setting Network Preferences
58
Knowing the Call Time/Call Cost
62
Using Two Voice Lines
64
Calling from Your Car
66
Calling Card or Credit Card Calls
68
Sending and Receiving Faxes and Data
70
Some Useful Functions
71
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Using the Menu System
You can find all your phone functions in the menu system. You use
the menu system every time you want to change a setting in your
phone, such as the ring signal. You also use the menus to get the most
out of your phone: to set the alarm clock, send text messages, store
important phone numbers, etc.
The menus are arranged in a continuous loop, which you move
(scroll) through with the R I G H T and L E F T arrow keys. Each menu
contains a list of options. Some menus have submenus with additional options.
Moving Through the Menu System
Press...
to...
RIGHT
scroll clockwise through menus or functions.
LEFT
scroll anti-clockwise through menus or functions.
YE S
select a menu or function, enter a submenu.
NO
go back one level in the menu system and/or leave a
setting unchanged.
CLR
go back to the standby display.
Instead of pressing the R I G H T or L E F T key repeatedly, you can press
and hold it until you reach the menu or submenu you want.
Note! If you need to access the menus during a call, press and hold
the L E F T or R I G H T key until the menus appear.
Note! If you enter the menu system, but do not press a key within 60
seconds, the phone returns to standby mode.
Scrolling and Selecting
• Use the arrow keys to scroll from menu to menu. Press the L EF T
or R I G H T arrow keys until you reach the menu or function that
you need.
• Press the Y ES key to select a menu or function.
20
Using the Menu System
Interpreting the Instructions in the Manual
<
<
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Example:
• Scroll to Mail, YE S , Send message, YE S .
Menu
Mail
>
Mail
Read
messages
>
Mail
Send
message
>
Interpret this instruction as follows:
1. From the standby mode, use the L E F T or R I G H T arrow key to
scroll to the Mail menu.
The arrows on either side of the word Mail mean that you can scroll
to another menu.
2. Press YE S to select the menu.
Now you are in the Mail menu.
The name of the menu that you have chosen is shown at the top of
the display (Mail).
Use the L EF T or R I G H T arrow key to scroll to the Send Message
function.
3. Press YE S to select the function.
Display Text and Symbols
<
Settings
Key sound
(Click)
>
When you move through the menu system, the display changes. The
following hints can help you:
• When arrows are displayed next to the name of a menu or function, there are more options you can scroll through with the
R I G H T /L E F T (arrow) keys.
• Text in brackets shows the current setting of the function shown in
the display.
In this manual, we have chosen to exclude some of the details above
in the pictures of the displays. This is so that it will be easier for you
to understand the display texts in the margins.
Below is an overview of the default menus.
Using the Menu System
21
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Network
06:01
<
Menu
Phone book >
<
>
<
Menu
Mail
>
<
Menu
Info
>
<
Menu
Set alarm
>
<
Menu
Divert
>
<
Menu
Settings
>
<
22
Menu
Ring level
Using the Menu System
Menu
Access
<
>
Menu
Networks
>
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Your Personal
Phone Book
You can create a personal phone book by storing phone numbers and
accompanying names on the SIM card. You use the phone book menu
for storing and recalling all the phone numbers in your personal
phone book.
If you intend to use your phone both at home and abroad, you should
store all phone numbers as international numbers, that is with the (+)
sign – which automatically will be replaced by the international dialling prefix for the country you are calling from – followed by the
country code, then the area code and the phone number.
Jenny Andersson
(4)
+461234567890
Every phone number that you store includes a position number,
shown in brackets.
You can store the phone numbers together with a name tag to make it
easier for you to keep track of your phone numbers.
Your Personal Phone Book
23
Entering Letters
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
You can only enter letters when you are using the phone book and
when you are composing a short message (SMS), see “Sending and
Receiving Text Messages (SMS)” on page 37.
Press the appropriate key, 1–9, 0 or #, repeatedly until the character
you want appears in the display.
Press…
to get…
1
Space - ? ! , . : ; “ ' < = > ( ) 1
2
ABCÅÄÆàÇ2Γ
3
DEFèÉ3∆Φ
4
GHIì4
5
JKL5Λ
6
MNOÑÖØò6
7
PQRSß7ΠΣ
8
TUVÜù8
9
WXYZ9
0
+&@/¤%$£¥§¿¡0Θ Ξ Ψ Ω
#
#*
For example
• To enter an A, press 2 once.
• To enter a B, press 2 twice.
To enter small letters
• Enter the letter, for example an A, and then press *. An a appears.
Small letters now appear until you press * again.
To enter digits
• Press and hold the number key.
Storing a Number Together with a Name
Store
12
Name:Jenny
+1234567_
1. Enter the area code and phone number you wish to store.
2. Scroll to Phone book, Y ES , Store, YE S .
The first free memory position is suggested.
3. Enter the name tag that you want to associate with the number.
4. Press YE S to store.
Tip! You can store the phone number of an incoming, rejected or
missed call: retrieve it from the call list (see “Using the Call List” on
page 28) and store it in the phone book as described above.
24
Your Personal Phone Book
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Storing in a Different Position than Suggested
After you have entered a name and phone number to be stored, you
can choose what position to store the number in.
To store in a position of your choice
• Press R I G H T (repeatedly) until the suggested position number disappears. Then enter a position number of your choice. Press YE S
to store.
Telephone Banking Services
If you use telephone banking services, you can store the phone
number of your banking service together with your personal code(s).
You must insert a p (pause) between the phone number and the
code(s). You insert a p by pressing and holding the * key.
Usually, a # (hash) is required after each code. Talk to your bank if
you are in doubt about how to use # and p.
Note! It may be a risk to store your codes in case the phone is stolen.
Store
15
Name:Bank
+123467890p2345
Store
Used
Overwrite?
15
To store a phone number together with code(s)
1. Scroll to Phone book, Y ES , Store, YE S .
2. Enter the name that you want associated with the phone number
and code(s).
3. Press YE S .
4. Enter the phone number, followed by p and the code(s).
5. Press YE S to store.
Overwrite Protection
If you try to store a phone number in a position which already contains a phone number, the message Used Overwrite? appears in the display.
Then do one of the following:
To store in the selected position
• Press YE S to replace the number with the new one.
To store in a different position
1. Press N O .
2. Enter the new position number.
3. Press YE S .
Your Personal Phone Book
25
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
When the Phone Book is Full
When phone book is full, the phone does not suggest a storage position.
If you still want to store the number, you have to erase an old number
by entering a position that is already occupied and press Y ES .
Erasing a Storage Position from the Phone Book
1. Scroll to Phone book, Y ES , Erase, Y E S .
2. Enter, or scroll to, the position number you want to erase.
3. Press YE S .
Using the Phone Book
There are two ways of using the phone book: you can either call a
number by using the name tag stored with it; or you can call the
number by using the memory position that the number is stored in.
Calling Using the Name
1. Clear the display.
2. Scroll to Phone book, Y ES , Name recall, Y E S .
3. Enter the name of the person you want to call, or scroll with the
arrow keys until you find it.
4. Press YE S to call the number.
Name
recall
Name:Embla
Shortcut to Name Recall
The digit keys 2–9 correspond to the first names that start with A, D,
G, J, M, P, T and W respectively. For example, press and hold down
the 4 key to find the first name that starts with a G. Then you can
scroll with the arrow keys to find the name you are looking for.
If there is no name stored under G, the first name under H is displayed, and so on.
Position
recall
Position:
10
Calling Using the Position
1. Clear the display.
2. Scroll to Phone book, Y ES , Position recall, Y E S .
3. Enter the position number you want to call, or scroll with the
arrow keys until you find it.
4. Press Y E S to call the number.
Speed Dialling (Memory Positions 1–9)
Note! Speed dialling can only be used when the phone is in standby.
1. Clear the display.
2. Enter the position number, 1–9, and press YE S .
26
Your Personal Phone Book
Keeping the Phone Book Up to Date
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Sometimes people change their names, their phone number or even
both. To get the best use out of your phone book, you want the names
and numbers to be correct. They are easily changed with the Edit
Phone Book feature. If someone has changed both name and number,
it might be easier to overwrite the old storage position with the new
one, instead of changing both name and number separately.
Edit
12
Name:Alfrd
+1234567_
Edit
12
Name:Alfre_d
+1234567
Changing a Phone Number in Your Phone Book
1. Clear the display.
2. Scroll to Phone book, Y ES , Edit, YE S , Find name.
3. Enter the name and press YE S .
4. Press R I G H T once to move the cursor to the row with the phone
number.
5. Move the cursor with the arrow keys to where you want to change
the number.
6. Enter the new number or clear the display with C L R .
7. Press YE S .
Changing a Name in Your Phone Book
1. Clear the display.
2. Scroll to Phone book, Y ES , Edit, YE S , Find name.
3. Enter the name and press YE S .
4. Press L E F T to move the cursor between the rows.
5. Change the name by entering or erasing letters.
6. Press YE S .
Your Personal Phone Book
27
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Using the Call List
The Call List
This chapter describes the Call List function, which is a type of telephone number log or a memory that stores information (time, date,
phone number and name) about the last 30 incoming and outgoing
calls. Once your list exceeds 30 calls, the oldest one is deleted.
The numbers that you have dialled are always stored.
<
26-dec-93
Janina
>
+234343554
If your subscription includes the Calling Line Identification (CLI)
service and the caller’s network sends the number, you will find the
number (together with a name if stored in your phone book) of an
incoming call in the Call List.
You can call any of the stored numbers. The following icons appear
in the display together with the name and number.
The Call List stores:
Answered calls icon
appears next to the date or time of
answered calls
Missed calls icon
appears next to the date or time of
missed calls
Dialled numbers icon
appears next to the date or time of a
dialled number
All calls are stored together in chronological order. If the same
number is called more than once, the latest call replaces earlier ones.
If you check a call within 24 hours, the time of the call is displayed.
Otherwise, the time is replaced by the date. You can toggle between
date and time by pressing *.
<Unknown: 1
28
>
If no information about the caller’s number was received, the display
shows Unknown, which means that no information was available, your
subscription does not support CLI, or the caller does not allow the
number to be shown.
Using the Call List
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Note! If you change SIM cards, the Call List is cleared. Dialled numbers remain in SIM card memory though.
Turning On the Call List Function
• Scroll to Settings, Y E S , Call List, Y E S , On, Y ES .
Calling a Number from the Call List
1. Scroll to Info, Y ES , Call list, YE S .
2. Scroll to the number that you want to call.
3. Press YE S to make the call.
NETWORK
Calls:1
Missed Calls
If you have missed a call, the phone shows Calls: 1, where the
number 1 indicates the number of unanswered/missed calls.
• Press YE S to go directly to the Missed Calls list.
Erasing a Number from the Call List
1. When information about a call appears, press C L R . Erase? appears.
2. Press YE S .
Shortcut to the Call List
• Press YE S when the phone is in standby mode. You can now
scroll within the list and make a call by pressing Y E S .
Turning Off the Call List Function
• Scroll to Settings, Y E S , Call List, Y E S , Off, Y ES .
Using the Call List
29
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Your Voice Mail Service
Note! Not all operators have this service. The service also depends
on your subscription.
NETWORK
Check?
The answering service of your network allows callers to leave a voice
message when you cannot answer your calls. When you receive a
voice message, you hear a signal and the message Check? appears in
the display, together with the voice mail indicator. The indicator light
on the top of the phone flashes green. If you have entered the number
of your voice mail service, see below, or the SIM card contains the
number, you can press Y E S to listen to the voice message. To read the
message later, Press N O .
Note! All networks do not inform you of a voice mail in the way
described above. Instead, they send a text message (SMS) asking you
to call their answering service.
Entering the Number of Your Voice Mail
Service
1. Scroll to Mail, YE S , Options, Y ES , Set voice M, YE S , New number,
Y ES .
2. Enter the number of your voice mail service and press Y ES to
store it.
Note! If the SIM card already contains the number of the operator’s
voice mail service, you do not have to enter it.
Activating Your Voice Mail Function
• Scroll to Mail, YE S , Options, Y ES , Set voice M, YE S , On, Y E S .
Calling Your Voice Mail
• Scroll to Mail, YE S , Voice mail, Y E S .
• or press and hold down the 1 key when the phone is in standby.
30
Your Voice Mail Service
Changing Your Voice Mail Number
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
1. Scroll to Mail, YE S , Options, Y ES , Set voice M, YE S , New Number,
Y ES .
2. Enter your new voice mail number and press Y E S .
Cancelling Your Voice Mail Function
• Scroll to Mail, YE S , Options, Y ES , Set voice M, YE S , Off, Y ES .
Your Voice Mail Service
31
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Personalizing
Your Phone
Your phone includes a number of functions which let you adapt your
phone to your own personal needs in different situations. Note that
some of the functions allow you to have one setting when the phone
is handheld and another when it is connected to handsfree equipment.
See “Calling from Your Car” on page 66.
Earpiece Volume
You can set the earpiece volume in eight steps.
Settings
< Ear volume >
(nnnnnnnn
nnnnnnnn)
nnnnnnnn
To set the earpiece volume
1. Scroll to Settings, YE S , Ear volume, Y ES .
The earpiece volume appears in the display.
2. Use R I G H T to increase the volume, L E F T to decrease it.
3. Press YE S to save the setting.
Tip! You can use the left and right arrow keys to adjust the earpiece
volume during a call. See “Changing the Earpiece Volume” on
page 17.
Ring Signal Volume
You can set the volume in six steps. The first step means that two
clicks will be heard when you receive a call. You can also turn the
ring signal off (0), or choose a ring signal that rises in steps from the
softest volume to the loudest.
Menu
< Ring level >
(nnnnnn
nnnnnn)
nnnnnn
Ring level
< 0nnnnnn
nnnnnn^
nnnnnn >
32
To set the ring signal volume
1. Scroll to Ring level, Y ES .
The ring signal volume appears in the display.
2. Use R I G H T to increase the volume, L E F T to decrease it.
The phone rings once with the actual setting as you increase the
volume, except for the Step (^) setting.
3. Press YE S to save the setting.
Personalizing Your Phone
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Tip! Press 0, followed by L E F T or R I G H T to change the volume of
the ring signal silently.
Ring Signal Type
You can choose the type of ring signal from a list of different sounds
and melodies. You can also compose a melody of your own by entering notes with the keypad (see “Your Own Ring Signal” on page 33).
<
<
Settings
Ring type
(Mix)
Ring type
Mix
>
>
To choose one of the ring signal types
1. Scroll to Settings, Y E S , Ring type, Y E S .
2. Scroll until you find the ring signal type that you want.
3. When you reach the ring type you want, select it by pressing Y E S .
Different Ring Signals for Line 1 and Line 2
If you subscribe to the Alternate Line Service (ALS), L1 and L2, you
can set different ring signals for the two lines.
Different Ring Signals for Speech, Data and Fax Calls
If you have turned the Data menus on (see “Sending and Receiving
Faxes and Data” on page 70), you can set different ring signals for
speech, fax and data calls respectively.
Your Own Ring Signal
You can compose your own ring signal.
B
To compose a ring signal
1. Scroll to Settings, Y E S , EditMelody, Y ES .
2. Press C L R to clear the display.
3. Use the keypad to enter notes.
The keypad now works as a keyboard (see figure in margin):
• Press and hold a key to enter a long note.
• Press 0 to raise the note one octave.
4. To listen to your melody, press YE S .
Press Y E S again to save it or press N O to continue editing.
Reset
You can reset some settings to their default values. If you do so, the
following settings are affected:
• all settings in the Settings menu, except your own ring signal
melody,
• the ring signal volume,
Personalizing Your Phone
33
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
• the alarm function in the Set alarm menu is turned off,
• the Area Info in the Mail menu is turned off.
Settings
Master
reset
>
To reset the phone
1. Scroll to Settings, Y E S , Master reset, Y ES .
2. Enter the phone lock code (the default is 0000) and press YE S .
Display Language
Most modern SIM cards automatically set the display language to the
language of the country where you bought your SIM card. If this is
not the case, the default language is English.
<
Settings
Language
(Auto)
>
To change the display language
1. Scroll to Settings, Y E S , Language, Y ES .
2. Select the language you want.
Note! If by accident you end up with your phone displaying a language you do not understand, you can return to English by pressing
C L R, L E F T , 0000 , R I G H T .
Phone Number Display
You can have your phone number displayed when you turn the phone
on. This requires that you have replaced the original greeting with a
greeting text of your own. If your phone number cannot be retrieved
from your SIM card, you have to enter it yourself.
<
Settings
Phone no
()
>
To enter your phone number
1. Scroll to Settings, Y E S , Phone no, Y E S , Phone no, Y E S .
2. Enter the number and then press Y ES .
Tip! If your SIM card allows it, you can also enter your fax and/or
data number. Scroll to Settings, Y ES , Phone no, Y E S , scroll to Fax no or
Data no, Y E S , enter the number and then press Y E S .
Greeting Text
When you turn on your phone, the Ericsson logotype or your service
provider’s name appears in the display. Instead of this, you can write
your own greeting. The greeting will be stored on your SIM-card.
<
Settings
Greeting
(Off)
34
>
To write your own greeting
1. Scroll to Settings, Y E S , Greeting, Y ES , New text, Y ES .
2. Write your new greeting, using the number keys. For information
on how to enter letters and other characters, see “Your Personal
Personalizing Your Phone
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Phone Book” on page 23.
The maximum number of characters is SIM-dependent. However,
different characters occupy different space, so the number of characters that the phone can display varies. For example, an M occupies more space than an I.
3. Press YE S to confirm your setting.
To turn your own greeting on/off
1. Scroll to Settings, Y E S , Greeting, Y ES .
2. Select On or Off.
If you turn your own greeting off, the original greeting reappears.
Auto Store
You can choose to let the phone ask if you want to store a called or
incoming phone number that is not found in the phone book. The
phone then asks Store? when a call to or from a new number is ended.
To turn the function on/off
1. Scroll to Settings, Y E S , Auto Store, Y E S .
2. Select On or Off.
Minute Minder
If you turn on the minute minder, you hear a beep once every minute
during a call.
Settings
< Min minder
(Off)
>
To turn the minute minder on/off
1. Scroll to Settings, Y E S , Min minder, Y ES .
2. Select On or Off.
Display Light
You can set the display light to automatic, off or on. In automatic
mode, the display light is turned off automatically 10 seconds after
you pressed the last key. It comes on again when you press a key or
when you receive a call or message.
<
Settings
Light
(Auto)
>
To set the display light
1. Scroll to Settings, Y E S , Light, Y ES .
2. Select the display light setting you want.
Key Sound
You can choose whether to hear clicks, tones or nothing (silent) when
you press the keys.
Personalizing Your Phone
35
To set the key sound
1. Scroll to Settings, Y E S , Key sound, Y E S .
2. Select the key sound you want.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
<
Settings
Key sound
(Click)
>
Message Signal
You can choose whether to hear clicks, tones or nothing (silent) when
you receive a text (SMS) or voice message.
<
Settings
Mail alert
(Tone)
>
To set the message signal
1. Scroll to Settings, Y E S , Mail alert, YE S .
2. Select the sound you wish to hear.
Time
The time is always displayed when the phone is in standby mode.
<
Settings
Clock/Date
>
To set the time format
1. Scroll to Settings, Y E S , Clock/Date, Y E S , Set clock, YE S .
2. Select the 24-hour or 12-hour (am/pm) clock.
To set the clock
3. Enter the time in hours and minutes.
If you selected the 12-hour clock, you can alternate between am
and pm by pressing #.
4. Press YE S .
Date
When the phone is in standby mode, you can press N O to see today’s
date.
<
Settings
Clock/Date
>
To set the date format
1. Scroll to Settings, Y E S , Clock/Date, Y E S , Set date, Y E S .
2. Select the date format you want.
To set the date
3. Enter the year (two digits) and then press Y E S .
4. Enter the month and day in the same way.
36
Personalizing Your Phone
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Sending and Receiving
Text Messages (SMS)
The Short Message Service (SMS) allows you to send and receive
text messages consisting of up to 160 characters.
You can receive text messages when the phone is in standby mode,
during a call or when incoming calls are diverted to another phone
number.
If your SIM card does not contain the phone number to your network
service centre, you must specify the number yourself. Otherwise you
cannot reply to messages received or send your own messages. See
“Enabling the Phone to Send SMS” on page 38.
Note! The Short Message Service may not be available in all networks. Some network operators may only allow SMS to be sent within
their own network.
Receiving a Message
NewMessage
Read now?
When you receive a message, you hear a signal and the display indicates that you have a new message. The indicator light on the top of
the phone rapidly flashes green.
Note! All networks do not send an audible signal.
New
12:15
From: 123456
To read the message now
1. Press YE S when you see the Read now? prompt.
The display shows the status of the message and when it was
received. If your network supports Calling Line Identification, the
display shows the sender’s number or, if his or her name is stored
in the phone book, the sender’s name.
2. Press YE S and scroll through the message using the arrow keys.
R I G H T takes you forwards and L EF T takes you backwards
through the message. To go to the end of the message, press and
hold R I G H T .
The prompt Reply? appears after the last line of the message. If the
sender wants you to reply, the displayed message will read
Sending and Receiving Text Messages (SMS)
37
Requested reply Reply? provided that your network supports this. See
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
“Replying to a Message” on page 38.
To read the message later
• Press NO when you see the Read now? prompt.
The message is stored in the message memory as New and the
envelope icon appears at the bottom of the standby display.
NETWORK
12:15
Reading a Stored Message
1. Scroll to Mail, YE S , Read messages, YE S .
2. Scroll to the message you are looking for.
New means an unread message.
Old means a read message.
Sent means a sent message.
To Send means a message you have written, but not sent.
If a message is stored on the SIM card, it is identified by a SIM
Card icon.
3. Press YE S .
4. Read the message as described in “Receiving a Message” on
page 37.
New
12:15
From: 123456
To call a phone number found in a message
• Press YE S when the number is displayed.
Enabling the Phone to Send SMS
If you want to send or reply to a message, you need to make sure that
the service centre number is set. Most modern SIM cards already
contain this information at the time of purchase. You can obtain the
service centre number from your network operator.
<
Options
Serv cent
(1234567)
>
To set the service centre address
1. Scroll to Mail, YE S , Options, Y ES , Serv cent, Y E S .
2. If no number appears in the display, enter the number of the service centre, including the international prefix, and press YE S .
3. Press C L R to return to standby mode.
Your phone is now ready to send text messages.
Replying to a Message
1. Scroll to the end of the message.
The Reply? prompt appears.
2. Press YE S .
38
Sending and Receiving Text Messages (SMS)
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
3. Press YE S and proceed as described in “Composing a Text Message” on page 41.
If you do not want to reply
• Press N O at the Reply? prompt.
Erasing a Message
1. Scroll to the end of the message.
The Reply? prompt appears.
2. Press N O .
The message Erase? appears.
3. To erase the message from the message memory, press Y ES .
The next message automatically appears in the message list.
Tip! You can press and hold C L R anywhere within the menu that
handles your message to erase it. When Erase? appears, press YE S .
Storing Incoming Messages
NETWORK
12:15
If you do not want to read an incoming message at once, it is automatically stored in the message memory in the phone. This allows
you to read it later. If there are any unread messages in the message
memory, the envelope icon appears at the bottom of the standby display. The message is stored in the message memory as New.
The message memory can hold up to 10 messages. When all memory
positions are full, the oldest read message is overwritten when a new
message is received.
If the message memory becomes full with unread messages, new
messages are automatically stored in the SIM card memory.
Messages remain in the message memory until you erase them (see
“Erasing a Message” on page 39), until you insert a different SIM
card, or until the telephone needs the memory space to store new
messages.
The SIM Card Memory
You can store important messages in a memory on your SIM card.
This means that you can find them no matter which phone you use.
Messages that are saved in the SIM card memory remain there until
you erase them. The maximum number that you can store depends on
your SIM card.
Sending and Receiving Text Messages (SMS)
39
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
If SIM card memory becomes full, the envelope icon starts flashing.
The text Not stored Mem full appears. You will have to erase one or more
messages, before you can store any new messages in the SIM card
memory.
Stored
on card
3(10)
Storing a received message in the SIM card memory
1. Scroll to the end of the message.
The Reply? prompt appears.
2. Press N O .
The Erase? prompt appears.
3. Press N O .
The Store? prompt appears.
4. Press YE S .
The message automatically moves from the message memory to
the SIM card memory.
The display now shows the position of the message. For example,
if it is the third of the ten that the phone can store.
Tip! You can also store messages you have composed yourself on the
SIM card. See “Own Messages” on page 42.
Enhancing Your Text Messages
Before you send your message, you can set the type of message, the
duration of repetitions, and if you want to have a reply to your messages.
Messages Type
Your phone can send other types of messages. Your network operator’s service centre may offer the facility to convert a text message
into a format (e-mail, fax, telex, etc.) that suits the equipment that is
going to receive the message. Check with your network operator to
find out which message types you can use and how.
To change message types
1. Scroll to Mail, YE S , Options, Y ES , Msg type, YE S .
2. Scroll to the format that you want and press Y E S .
Repetition of Message
If your message cannot be delivered because the receiver is not
within reach of a network, you can instruct your Service Centre to
repeat the message for a certain length of time.
40
Sending and Receiving Text Messages (SMS)
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
To set repetition of a message
1. Scroll to Mail, YE S , Options, Y ES , Valid per, Y ES .
2. Scroll to the time span that you want and press YE S .
Reply to Messages
Sometimes you may want the receiver of your message to reply. If so,
you need to set Reply Requested.
<
Options
Reply Req
(Off)
>
To set Reply Requested
• Scroll to Mail, YE S , Options, Y ES , Reply Req, YE S .
Composing a Text Message
For more information on how to enter text, see “Your Personal
Phone Book” on page 23.
Entering Small Letters
• Enter the letter, for example an A, and then press *. An a appears.
Small letters will now appear until you press * again.
Checking the First Characters You Have Entered
• Press L E F T until you reach the characters you want to view.
Editing the Written Text
• Scroll through the message text with the arrow keys and erase
characters to the left of the cursor using C L R , or insert characters
above the cursor.
• Press 1 to insert a space.
• To go to the end of the message, press and hold R I G H T .
Note! If there is a pause of more than 120 seconds between entering
characters, the message is stored and the phone returns to the
standby menu.
Sending a New Text Message
_
1. Scroll to Mail, YE S , Send message, Y ES , New, Y E S .
An empty display appears.
2. Enter your message. (See Composing a Text Message).
3. When you have completed your message, press Y E S .
You are now prompted to enter the receiver’s phone number.
To send the message immediately
4. Enter the receiver’s phone number or recall it from the phone
book. To access the Phone book menu, press L EF T . Scroll through
the phone book using the R I G H T and L E F T keys.
Sending and Receiving Text Messages (SMS)
41
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
5. Press YE S .
To store the message for later use
• Instead of entering a phone number, press N O . The message is
now stored in the message memory. The message is labelled
To send instead of Sent.
Note! The same procedure is used with all types of messages, for
example e-mail or fax. Check with your network operator to find out
which message types you can use. You have to change the message
type first.
Sending a Stored Message
1. Scroll to Mail, YE S , Send message, YE S .
2. Scroll to the stored message you wish to send and press Y ES .
3. Now you can edit your stored message. When you are finished,
press YE S .
4. Enter the receiver’s phone number (or recall it from the phone
book).
5. Press YE S .
Own Messages
You can store up to five standard messages, to be re-used whenever
you want. The messages must not exceed 30 characters.
Send message
Own
<
Messages >
Creating an Own Message
1. Scroll to Mail, YE S , Send message, YE S , Own messages, Y ES .
2. Scroll to the end of the message list. The phone prompts: New?
3. Press YE S .
4. Enter the message, see “Composing a Text Message” on page 41,
and press Y E S . The phone prompts Store?
5. Press YE S .
Sending an Own Message
1. Scroll to Mail, YE S , Send message, YE S , Own messages, Y ES .
2. Scroll to the message you wish to send and press Y E S .
3. Press YE S and send the message, see “Sending a New Text Message” on page 41.
Deleting an Own Message
1. Scroll to the message you wish to delete, then press and hold C L R .
The telephone asks Delete Own 1?
2. Press YE S .
42
Sending and Receiving Text Messages (SMS)
Area Information
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
The ordinary Short Message Service is a personal service that carries
your private messages. Area Information (AI) is a text message
which is broadcast to all subscribers in a certain network cell at the
same time. For example, the information may be a local road report
or a local taxi phone number.
Note! This feature may not be available in all networks.
Turning Area Information On
• Scroll to Mail, YE S , Options, Y ES , Area info, YE S , On, Y E S .
Turning Area Information Off
• Scroll to Mail, YE S , Options, Y ES , Area info, YE S , Off, Y ES .
Area Information Message Types
Each type of Area Information message is identified by a three-digit
code. At present, the following message types exist:
Code:
AI Message Type:
000
Index
010
Newsflashes
020
Hospitals
022
Doctors
024
Pharmacy
030
Long-distance road reports
032
Local road reports
034
Taxis
040
Weather
050
District (base station identity)
052
Network information
054
Operator services
056
Directory enquiries (national)
057
Directory enquiries (international)
058
Customer care (national)
059
Customer care (international)
Note! These codes are operator dependent. For information about
the AI services you can use, please refer to the information supplied
by your network operator.
Sending and Receiving Text Messages (SMS)
43
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Area Information Message List
You can decide which types of area information messages you wish
to receive. The number of area codes that can be stored depends on
the size of the SIM card’s Area Info list. If the SIM card does not
have an area info list, the phone itself will store up to 32 codes.
To insert an area information code
1. Scroll to Mail, YE S , Options, Y ES , Area info, YE S , Edit list, Y E S .
The number to the left indicates the position in the list. You can
scroll forwards and backwards through the list with the arrow
keys.
2. To insert a code, scroll to the first empty position, using the arrow
keys and press Y E S .
3. Enter the new code. (You only need to enter 40 for 040, since the
phone adds the leading zero automatically.)
To erase or replace a code
1. Scroll to Mail, YE S , Options, Y ES , Area info, Y ES , Edit list, YE S .
2. Scroll to the code you wish to erase and press Y E S .
To erase, scroll to Erase? and press Y ES .
To replace, scroll to Chg code? and press Y E S . Enter the new code
and press Y E S .
Receiving an Area Message
When you receive Area information, the message is stored in the
phone memory. Provided Area Info is turned on, you can read the
messages via the Area messages function in the mail menu.
To read an area message
1. Scroll to Mail, YE S , Area messages, Y ES .
2. Scroll from one message to another.
3. To select a message, press YE S .
Note! The phone only stores one message per code. This means that
the message stored previously in a specific code will be overwritten.
44
Sending and Receiving Text Messages (SMS)
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Diverting Incoming Calls
If you want to make certain that your incoming calls are correctly
handled when you are unable to answer them, you can use the Call
Divert service to divert them to another phone number.
Note! The Call Divert service may not be available on all networks.
The Call Divert service lets you:
• divert calls if you are already on the phone, On busy.
• divert calls that you do not answer within a specified time limit
(operator dependent), No reply.
• divert calls if your phone is turned off or if you are unreachable,
Unreachable.
You may use any combination of the above.
You may also:
• divert all incoming calls, All calls. A divert indicator in the shape of
an arrow is shown in the display. If you activate the All calls
divert, all other diverts become temporarily inactive. They are
activated again when you cancel the All calls divert.
Tip! If you subscribe to the Alternate Line Service (ALS), you can set
different Call Diverts for the two lines, i.e. Line 1 and Line 2.
Activating Call Diverts
<
All calls
Activate
>
1.
2.
3.
4.
Scroll to Divert, Y E S .
Select the divert you want (All calls, On busy, No reply or Unreachable).
Select Activate.
Enter the phone number, including the area code, to which you
want your calls to be diverted and then press Y E S .
Tip! If the phone number is stored in the phone book, you do not need
to enter it. Press L EF T and then recall the number.
Checking the Divert Status
<
All calls
Get status >
To check the status of a certain call divert
1. Scroll to Divert, Y E S .
2. Select the divert you want.
Diverting Incoming Calls
45
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
3. Select Get status.
The message Please wait appears, followed by a message which
informs you whether the call divert is activated or not.
Divert
Check all
>
To check the status of all call diverts
• Scroll to Divert, Y E S , Check all, YE S .
The message Please wait appears, followed by information about all
call diverts, i.e. whether they are activated or not.
Cancelling Call Diverts
<
<
No reply
Cancel
Divert
Cancel all
>
To cancel a certain call divert
1. Scroll to Divert, Y E S .
2. Select the divert you want.
3. Select Cancel.
The message Please wait appears, followed by a message which
informs you that the call divert has been cancelled.
To cancel all call diverts
• Scroll to Divert, Y E S , Cancel all, Y E S .
>
The message Please wait appears, followed by a message which
informs you that all call diverts have been cancelled.
Diverting Fax Calls
If you have turned the Data menus on (see “Activating the Data
Menus” on page 70), you can set call diverts for your phone calls and
fax calls individually.
For fax numbers, there are only two divert alternatives:
• All calls
• Unanswered (includes On busy, No reply and Unreachable).
46
Diverting Incoming Calls
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Security for Your Phone
and Subscription
There are several ways to protect your phone and subscription from
unauthorized use. Anything from a simple keypad lock to full phone
number control.
Keypad Lock
The Keypad Lock helps you to avoid accidental dialling, which can
happen if you keep your phone in your pocket. An icon in the shape
of a key in the display informs you that the keypad is locked.
NETWORK
11:33
The keypad lock is automatic. This means that if you do not press a
key within 25 seconds, the keypad is locked.
Note! Calls to the international emergency number 112 can be made
when the keypad is locked. If the phone alarm rings, you can turn it
off by pressing any key.
The keypad remains locked until you:
• answer an incoming call,
• replace the battery,
• unlock the keypad.
Note! The keylock is always disabled if the phone is connected to
vehicle handsfree equipment.
<
Settings
Keylock
(Off)
>
To activate the automatic keylock
• Scroll to Settings, Y E S , Keylock, YE S , Auto, YE S .
To cancel the automatic keylock
• Scroll to Settings, Y E S , Keylock, YE S , Off, Y ES .
To unlock a locked keypad
• Press L E F T followed by Y ES .
Security for Your Phone and Subscription
47
SIM Card Lock
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
The SIM card lock only protects your subscription and not your
phone itself from unauthorized use. If you change SIM cards, the
phone still works with the new SIM card.
PIN
Blocked
Unblock?
Some SIM cards are protected with a PIN (Personal Identity Number)
at the time of purchase. If the SIM card lock is activated, you have to
enter the PIN every time you turn on your phone. If you enter your
PIN incorrectly three times in a row, the SIM card is blocked. This is
indicated by the message PIN Blocked Unblock? If this happens you need
to unlock it to access your subscription.
To unblock your SIM card
1. Press YE S .
2. Enter your PUK (or PUK2) which you will find in the information
from your network operator.
3. Enter a new four- to eight-digit PIN (or PIN2).
4. Press YE S .
5. Re-enter the new PIN (or PIN2) to confirm.
6. Press YE S .
Note! If you enter the wrong PUK ten times in a row, your card is
permanently blocked. If this happens, you should contact your network operator or service provider.
Enter
old PIN
To change PIN
1. Scroll to Access, Y ES , Card Lock, YE S , Change PIN code, Y E S .
2. Enter your old (current) PIN and press Y ES .
3. Enter your new PIN and press Y E S .
The phone asks you to repeat the PIN.
4. Enter your new PIN a second time and press Y ES .
The PIN is now changed.
Note! If the message Matching error appears, this means you entered
the new PIN incorrectly. If the message Wrong PIN appears, followed
by Enter Old PIN, you entered your old PIN incorrectly.
To change PIN 2
1. Scroll to Access, Y ES , Card Lock, YE S , Change PIN2 code, Y E S .
2. Follow the same procedure as described in “To change PIN” on
page 48.
48
Security for Your Phone and Subscription
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
To activate the SIM Card Lock
1. Scroll to Access, Y ES , Card Lock, YE S , Lock card, Y E S .
2. Enter your PIN and press Y ES .
The message Locked confirms that the card lock is now activated.
To cancel the SIM Card Lock
1. Scroll to Access, Y ES , Card Lock, YE S , Unlock card, YE S .
2. Enter your PIN and press Y ES .
The message Unlocked confirms that the card lock is now cancelled.
Note! This only works if your SIM card allows you to cancel the card
lock.
Phone Lock
The phone lock protects the phone against unauthorized use if it is
stolen. It is not activated when you buy the phone. You can change
the default security code 0000 to any three- to eight-digit personalized code.
Warning! Do not use the emergency numbers 112 or 999 as your
security code. If you do, you will not be able to unlock the phone.
Instead, a call will be made to the emergency number.
The phone lock security code is also used to reset the phone (master
reset). See “Reset” on page 33.
The phone lock has two levels: Full Lock and Autolock.
Full Lock
If the Full Lock is activated, you briefly see the message Phone locked,
each time you turn on the phone. The message is followed by the
prompt Enter lock code. You then have to enter your security code followed by Y ES to unlock the phone.
Autolock
If the Autolock is activated, the message Phone locked and the prompt
Enter lock code do not appear until a different SIM card is inserted in
the phone. After the security code has been entered correctly, the
phone can be used with the new SIM card. You are not asked to enter
the security code until the original SIM card or a different SIM card is
inserted.
Security for Your Phone and Subscription
49
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
To change the security code
1. Scroll to Access, Y ES , Phone Lock, Y E S , Change Code, Y ES .
2. Follow the steps described in “To change PIN” on page 48.
Access
Phone lock >
(Unlocked)
Auto locked
To activate/cancel the phone lock
1. Scroll to Access, Y ES , Phone Lock, Y E S .
The current setting is shown in brackets.
2. Select the setting you want.
3. Enter the security code and press YE S .
The new lock status is displayed.
Call Barring
The Call Barring service allows you to bar different types of outgoing and incoming calls.
Note! This service may not be available on all networks or may
require a separate subscription.
The following calls can be barred:
• all outgoing calls,
• all outgoing international calls,
• all outgoing international calls, except to your home country,
• all incoming calls,
• all incoming calls when you are abroad (when roaming).
To make sure that a call bar is not changed by someone else, you need
a password, which comes with your subscription, to activate or cancel a call bar. You can change the password as often as you like
<
Barring
All outgoing >
calls
50
To change the call barring status
1. Scroll to Access, Y ES , Barring, Y ES .
2. Scroll to the option you want and press Y ES .
You have three options:
• Activate sets a call bar,
• Get status lets you check the status of a call bar,
• Cancel cancels the call bar.
3. Confirm your selection by pressing Y E S .
4. Enter your password and press Y ES .
The message Please wait appears, followed by a message which
informs you whether the call bar is activated or not.
Security for Your Phone and Subscription
<
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Note! If you divert incoming calls (see “Diverting Incoming Calls”
on page 45), you cannot activate some barring options. Likewise, if
you bar calls, you cannot activate some call divert options.
Barring
Cancel all
Barring
Change
password
>
>
To cancel all call bars
1. Scroll to Access, Y ES , Barring, Y ES , Cancel all, Y ES .
2. Enter your password and press Y ES .
The message Please wait appears, followed by a message confirming that all call bars are cancelled.
1.
2.
3.
4.
To change the password
Scroll to Access, Y ES , Barring, Y ES , Change password, Y ES .
Enter the old (current) password and press Y E S .
Enter the new password and press YE S .
Enter the new password a second time and press Y E S .
The message Please wait appears, followed by a message confirming that the password has been changed.
Fixed Dialling
Fixed Dialling is a way of restricting outgoing calls. It requires a SIM
card that allows fixed numbers to be stored. The fixed numbers are
protected by your PIN2. How many numbers you can store depends
on your SIM card.
The Fixed Dialling function allows calls to be made only to fixed
numbers stored on the SIM card. If an attempt is made to call other
numbers, the message Number not permitted appears in the display.
It is possible to store partial numbers, for example an area code, or
an area code followed by the first digits common to several numbers.
Storing 0123456 allows calls to be made to numbers from 012345600
to 012345699.
Numbers beginning with the international prefix (+) and country code
can also be stored, allowing you to make calls abroad.
Numbers which include question marks can be stored. For example,
storing 0123456?0 allows calls to be made to numbers ending with a
zero, from 012345600 to 012345690. To enter a question mark, press
and hold #.
Security for Your Phone and Subscription
51
<
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
The Fixed Dialling function does not prohibit calls to the international emergency number 112 and the Service Centre of your network
operator. Network services such as Call Divert and Call Barring cannot be used.
Access
Fixed dial
>
Activating Fixed Dialling
1. Scroll to Access, YE S , Fixed dial, Y ES .
2. Enter your PIN2 and press Y E S .
3. Select On.
Cancelling Fixed Dialling
1. Scroll to Access, YE S , Fixed dial, Y ES .
2. Enter your PIN2 and press Y E S .
3. Select Off.
Storing Fixed Numbers
1. Scroll to Phone book, YE S , Fixed numbers, Y E S , Store, Y E S .
2. Enter your PIN2 and press Y E S .
3. Enter the name (optional) and the fixed number in the same way
as when storing an ordinary phone number.
Editing a Stored Fixed Number
1. Scroll to Phone book, YE S , Fixed numbers, Y E S , Edit, Y E S .
2. After you enter your PIN2, you can change the position number,
the name or the fixed number in the same way as with an ordinary
phone number.
Deleting a Stored Fixed Number
1. Scroll to Phone book, YE S , Fixed numbers, Y E S , Edit, Y E S .
2. Scroll to the fixed number you want to delete.
3. Press and hold C L R
4. Enter your PIN2 and press Y E S . Erase? appears.
5. Press YE S .
52
Security for Your Phone and Subscription
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Handling More than One
Call Simultaneously
Your phone allows you to handle more than one call simultaneously.
This means that you can put a call that is in progress on hold, while
you make or answer a second call, and then switch between the two
calls.
You may also set up a Conference Call to have a joint conversation
with up to five people. You may put an individual or a group of conference members on hold while you add other people to the conference call. You may also put conference members on hold while you
talk to someone privately. See “Conference Calls” on page 56.
Call Waiting Service
If you wish to be able to receive a second call, while another call is in
progress, you must activate the Call Waiting service.
Note! The Call Waiting service may not be available in all networks.
To activate the Call Waiting service
• Scroll to Access, Y ES , Call Waiting, Y ES , Activate, Y E S .
There may be a short delay before the network responds. In the
meantime, the message Please wait is displayed. This is followed by
the message Call Waiting ON.
<
Call Waiting
Activate >
<
Call Waiting
Cancel
>
To cancel the Call Waiting service
• Scroll to Access, Y ES , Call Waiting, Y ES , Cancel, Y E S .
<
Call Waiting
Get status >
To check whether the Call Waiting service is activated or not
• Scroll to Access, Y ES , Call Waiting, Y ES , Get status, Y E S .
Making a Second Call While a Call is
in Progress
1 on hold
1. Put the current call on hold by pressing Y ES .
2. Enter the number you wish to call and press Y E S
Handling More than One Call Simultaneously
53
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Tip! If the phone number is stored in the phone book, you do not
need to enter it. Press L E F T twice and then recall the number.
Receiving a Second Call While a Call is
in Progress
<
Answer?
>
If the Call Waiting service is activated, you will hear a tone in the
earpiece if you receive a second call. The question Answer? appears in
the display.
You can do one of the following:
Put the current call on hold and answer the waiting call
• Press YE S .
The message 1 on hold appears.
1 on hold
Continue the current call and reject the waiting call
• Press N O .
<
Busy?
>
You can also:
1. Press L E F T .
The question Busy? appears.
2. Press YE S .
The waiting call is rejected. If the caller’s network supports it, the
caller will hear a busy tone.
Note! If Divert On busy is activated, the waiting call is diverted to
the number you have specified.
<
Release &
answer?
>
End the current call and answer the waiting call
1. Press L E F T repeatedly until the question Release & answer? appears.
2. Press YE S .
When One Call is Active and One Call Is
On Hold
When you have one active call and one on hold, you can do one of the
following:
Switch between the Two Calls
• Press YE S .
Handle calls
Release
<
active?
>
54
End the Active Call and Return to the Call On hold
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Release active? and then press YE S .
Handling More than One Call Simultaneously
End both calls
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Release all calls? and then press Y E S .
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Handle calls
Release
<
all calls? >
Connect the two calls (Call Transfer)
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Transfer call? and then press Y E S .
The two calls are now connected to each other, and you are disconnected from both calls.
Handle calls
Transfer
<
call?
>
Note! The Call Transfer service may not be available on all networks.
<
Handle calls
Join
>
calls?
Join the two calls into a conference call
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Join calls? and then press YE S .
See Conference Calls below.
Receiving a Third Call
<
Release &
answer?
>
If the Call Waiting service is activated, you may receive a third call
when you have one active call and a second call on hold. You hear a
tone in the earpiece and the question Release and answer? appears in the
display.
To end the current call and accept the waiting call
• Press YE S .
The waiting call becomes active and the call on hold remains on
hold.
<
Busy?
>
To reject the waiting call
• Scroll to Busy? using L E F T and then press YE S .
The third call is rejected. Provided the caller’s network supports
this function, the caller will hear a busy tone.
Note! If Divert On busy is activated, the waiting call is diverted to
the number you have specified.
Handling More than One Call Simultaneously
55
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Conference Calls
Note! The Conference Call service may not be available on all networks.
Creating a Conference Call
To create a conference call, you must have one active call and one
call on hold.
<
Handle calls
Join
>
calls?
To join the two calls into a conference call
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Join calls? and then press YE S .
12 Conf
Adding New Participants to the Conference Group
You can put the conference group on hold and then add new participants.
Conf held
<
Handle calls
Join
>
calls?
Handle calls
< Conference >
participants
Conf parts
<1:
>
Anderson
To add a new participant
1. Press YE S to put the conference group on hold.
2. Call the third person you wish to include in the conference group.
3. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
4. Scroll to Join calls? and then press YE S .
You can include up to five participants in the conference group by
repeating steps 1 to 4 above.
To review the participants in the conference group
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Conference participants and then press YE S .
3. The first participant’s phone number is displayed. If the participant’s number and name is stored in the phone book, the name is
displayed instead.
4. Scroll with R I G H T to see the other participants’ numbers (names).
Having a Private Conversation with One of the Participants
If you wish to have a private conversation with one of the participants, you can extract that participant from the conference and put the
other participants on hold.
56
Handling More than One Call Simultaneously
To extract a participant
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to the participant you wish to extract and then press Y E S .
Handle calls
<
Join
>
calls?
To rejoin the participant to the conference group
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to Join calls? and then press YE S .
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Handle calls
<
Extract? >
01234567890
Releasing Participants from the Conference Group
You can release participants from the conference group, one by one.
Handle calls
<
Release? >
01234567890
To release a participant
1. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
2. Scroll to the participant you wish to release and then press Y E S .
Making a Call while a Conference Call is in Progress
You can put the conference group on hold and make another call.
You can then switch between the new call and the conference call.
Conf held
To make the call
1. To put the conference group on hold, press Y ES .
2. Enter the number you wish to call and press Y E S .
To switch between the new call and the conference group
• Press YE S .
<
Handle calls
Release
>
active?
To end the new call and return to the conference group
1. Put the conference call on hold.
2. Press and hold L E F T until the Handle calls menu appears.
Press YE S to select it.
3. Scroll to Release active? and then press YE S .
Ending the Conference Call
• Press N O .
Handling More than One Call Simultaneously
57
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Setting Network
Preferences
Searching for Networks
When you turn on the phone, it searches for the last accessed network. If this is not within range, you may use another network, provided your home network has an agreement that allows you to do so.
This is called roaming.
The order of preference in which the phone selects a network is determined by a list of preferred networks on your SIM card. The Networks menu includes a number of functions that let you determine
how the phone searches for a network. You may also select a network
yourself from those within range.
Selecting a Network
<
Menu
Networks
58
>
1. Scroll to Networks, Y E S , Select net, Y ES .
2. The message Please wait is displayed briefly. The display then
shows either:
• the name of a network, followed by the message Current, Home
Preferred, Forbidden or Available. For an explanation of the message, see the table below. Instead of the full name of a network,
an abbreviation is displayed. To see the full name, press *.
• the message No network. There is no network within range.
3. If there is more than one network within range, you can scroll
through the network names and choose the network you want by
pressing Y E S .
Message
Meaning
Current
The network is currently being used.
Home
Your home network is within range. You can
select it.
Preferred
The name of the network is included in a list of preferred networks on your SIM card. You can select
this network.
Setting Network Preferences
Meaning
Forbidden
The name of the network is included in a list of forbidden networks on your SIM card. You can normally not select this network. See List of Forbidden
Networks below.
Available
The name of the network is not included in the preferred or forbidden list on your card. You can select
this network, but you might not be able to use it.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Message
Starting an Automatic Network Search
Networks
< New search >
• Scroll to Networks, Y ES , New search, YE S .
The phone automatically starts searching for a network according
to the list of preferred networks stored on your SIM card.
List of Forbidden Networks
The names of the forbidden networks are stored on your SIM card. If
such a forbidden network is within range, it is left out when the phone
searches for a network (automatic search mode).
If your home network and a forbidden network come to an agreement
that allows you to use the forbidden network, you can select this network even though the message Forbidden is displayed.
List of Preferred Networks
You can create a list that defines in which order your phone will
select a network during automatic network selection, when your
home network is not within range.
The number of networks that can be stored in the list depends on your
SIM card.
The Edit list function lets you review the networks in the list. Apart
from rearranging the order of the networks, you can add new networks to the list and delete networks from it.
Reviewing the List of Networks
1. Scroll to Networks, Y E S , Edit list, Y ES .
2. The name of the first network is displayed.
3. Scroll through the networks in the list.
Tip! To see a network’s full name, press *.
Setting Network Preferences
59
>
Edit list
Add net
<
Adding a Network to the List
1. Scroll to Networks, Y E S , Edit list, Y ES .
2. Scroll to the first free position in the list and press YE S .
The Add net prompt appears.
If you scroll to a position that is already occupied, press Y E S and
then scroll with the arrow keys until Add net appears.
3. Press YE S and scroll with the arrow keys until you find the network that you want. If the desired network does not appear, press
Y ES when the question Other? appears.
4. Enter the three-digit country number and the two-digit network
number.
5. Press YE S to add the network to the list.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
<
Edit list
Network
1
Edit list
Network
1
Edit list
Network
New pos:
>
_
Erasing a Network from the List
1. Scroll to Networks, Y E S , Edit list, Y ES .
2. Scroll to the network you wish to erase and press Y E S .
3. Scroll to Erase, Y E S .
Re-arranging the List
1. Scroll to Networks, Y E S , Edit list, Y ES .
2. Scroll to the network you wish to move and press Y ES .
Move is displayed.
3. Press YE S and enter the new position within the list.
Search Modes
When you turn on your phone, it searches for a network. This can be
done in two different ways, depending on the search mode that is
activated. Automatic search mode is usually the default.
Automatic search mode means that your phone searches for the last
accessed network first. If this is not available, it automatically
searches for another available network within range.
Manual search mode means that your phone searches for the last
accessed network first. If this is not available, the question Select network? appears.
• Select a network as described in “Selecting a Network” on
page 58.
Networks
< Search mode >
(Manual)
60
Activating Automatic Search Mode
• Scroll to Networks, Y ES , Search mode, Y E S , Auto, Y E S .
Setting Network Preferences
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Activating Manual Search Mode
• Scroll to Networks, Y E S , Search mode, Y E S , Manual, Y E S .
Setting Network Preferences
61
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Knowing the Call Time/
Call Cost
Call Information
The display shows the duration of a call in progress. When you end
the call, the call duration information is shown for another five seconds. If your network and SIM card support this feature, you can
have the call cost (or the number of call units) displayed.
Settings
<
Call info
>
(Time:Outg.)
To select the call information you want
1. Scroll to Settings, Y E S , Call info, Y E S .
2. Select Time: Outg, Time: All or Cost.
Time or Cost of the Last Call
<
Info
Last call
3:40
>
To check the time/cost of the last call
1. Scroll to Info, Y ES , Last call.
2. Depending on the setting in the Call info function in the Settings
menu, you can now check:
• how long your last call was (Time: Outg or Time: All),
• the cost (or the number of call units) of the last call (Cost).
Total Call Time or Call Cost
<
Info
Tot calls
48:16
>
To check the total call time or call cost
1. Scroll to Info, Y ES , Tot calls.
2. Depending on the setting in the Call info function in the Settings
menu, you can check:
• the total time of all outgoing calls (Time: Outg)
• the total time of all calls (Time: All)
• the cost (or the number of call units) of all calls (Cost)
To reset the total call time/cost counter
• Scroll to Info, Y ES , Tot calls, Y ES , Reset?, YE S .
Note! If you have chosen the call cost option, you must enter your
PIN2 to reset the counter.
62
Knowing the Call Time/Call Cost
Determining the Call Cost
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
If you select the Cost option in the Call info function in the Settings
menu, the Price function appears in the Info menu. However, to be
able to use the Price function, both your network and your SIM card
must support it.
The Price function lets you enter and vary the price per call unit. The
price entered is stored on your SIM card.
Note! If you do not specify a price per call unit, the number of call
units will be displayed during a call, and in the Last call and Tot
calls functions.
<
Info
Price
Units
>
To enter the price per call unit
1. Scroll to Info, Y ES , Price, YE S , New price, Y E S .
2. Enter the code for the currency you want, for example GBP or £
for pound sterling, and then press Y E S .
3. Enter the price per call unit, for example 0.75, and press Y E S . To
enter the decimal point, press #.
4. Enter your PIN2 and then press Y ES . (The PIN2 prompt may not
appear in some networks.)
To revert to call units
1. Scroll to Info, Y ES , Price, YE S , Units, Y E S .
2. Enter your PIN2 and then press Y ES .
Credit Limit for Calls
If your network and SIM card both support this feature, you can enter
a total amount of money that can be used for making calls. This could
be useful when you lend your phone to someone, for example, and do
not want their call costs to exceed an amount specified by you. After
a call is made, the cost is deducted from this amount. When the
amount reaches zero, no more calls can be made.
<
Info
Credit
Unlimited
>
To set the credit limit
1. Scroll to Info, Y ES , Credit, YE S , New credit, Y ES .
2. Enter the amount, for example 30 pounds, and then press Y E S .
3. Enter your PIN2 and then press Y ES .
Knowing the Call Time/Call Cost
63
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Using Two Voice Lines
Note! The Alternate Line Service may not be available in all networks and may require a separate subscription.
Your phone supports two voice lines (Alternate Line Service, ALS)
with different phone numbers, Line 1 and Line 2. This is useful if you
want to keep business calls and private calls on separate lines. You
can only send and receive text messages (SMS) on Line 1.
NETWORK
11:33
The line currently selected is indicated in the display with a line indicator and the digit 1 or 2.
Changing to the Other Line
• Scroll to Change to Line 1, Y ES , or
• scroll to Change to Line 2, Y E S .
From now on, all outgoing calls are made on the line you just
selected.
Receiving a Call on One of the Lines
When someone calls you, the question Answer? is replaced by Line1 or
Line2 depending on which line the person is calling.
Different Settings for Each Line
You can personalize the names of the two lines. You can also have
different settings for each line, for example: the tone of the ring signal and call diverts. You set these functions separately when the line
is activated. The call meters in the Info menu show the call times (call
costs) for the line currently selected.
Changing the Name of a Line
1. Scroll to Settings, Y E S , Line 1 Tag (or Line 2 Tag), YE S .
2. Enter a new name, using the number keys. For information on
how to enter letters and other characters, see “Your Personal
Phone Book” on page 23. The maximum number of characters is
SIM-dependent. However, different characters occupy different
64
Using Two Voice Lines
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
space, so the number of characters that the phone can display varies.
3. Press YE S .
Using Two Voice Lines
65
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Calling from Your Car
By using the Ericsson portable or vehicle handsfree solutions, you
can be on the phone without using your hands to hold it.
Handsfree Types
If you use a Vehicle Handsfree Solution, you can choose between two
different ways in which your phone can handle the speech. This is
done in the Handsfree sub-menu.
Handsfree Type 1
Handsfree Type 1 means that the phone handles the call in semiduplex mode. This means that you cannot speak at the same time as
the person at the other end of the line. Use this alternative only if
Type 2 does not work properly.
Handsfree Type 2
Handsfree Type 2 means that the phone handles the call in full duplex
mode. This considerably increases the quality of speech, since you do
not have to wait until it is your turn to speak and the speech becomes
clearer.
For Handsfree Type 2 to work properly, your phone adapts to the
sound environment around the handsfree equipment. This adaptation
might take a few calls. During this learning phase, the person you are
talking to might hear an echo of his or her own voice (because the
sound goes from the speaker into the microphone again). However,
this disappears as the other person speaks. If the echo lasts longer
than the first few calls, try Handsfree Type 1 instead.
Setting the Handsfree Type
1. Scroll to Settings, Y E S , Handsfree, YE S .
2. Select the type you want.
Note! More sophisticated Vehicle Handsfree solutions automatically
provide full duplex. They also disable the choice between Handsfree
Type 1 and 2, since the choice becomes superfluous when using this
kind of equipment; you always get the best quality of speech possible.
66
Calling from Your Car
Answering Mode
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
The sub-menu Answering mode includes two functions: Any key and
Auto, which are useful when you use the phone with handsfree
equipment.
• Any key: You can answer an incoming call by pressing any key,
except the N O key.
• Auto: If you choose the automatic answering mode, an incoming
call is answered automatically after one ring signal.
Selecting Answering Mode
1. Scroll to Settings, Y E S , Answering mode, Y E S .
2. Select a mode.
Other Handsfree-related Settings
Apart from the settings mentioned above, you can change the following settings when using handsfree equipment:
• Ring level,
• Earpiece volume,
• Ring type (only with car kit),
• Light.
Each of these settings can be specified separately when you have
your phone connected to handsfree equipment. This means that if you
make one of these settings when the phone is connected to handsfree
equipment, the settings when it is handheld are not affected and vice
versa.
Changing a Setting
1. Connect the phone to the handsfree equipment.
2. Change the setting according to the instructions in “Personalizing
Your Phone” on page 32.
Calling from Your Car
67
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Calling Card or Credit
Card Calls
When making international or long distance calls, you may not want
your operator to charge you for these calls on your normal account.
If you have a credit card or a calling card, you may want to re-direct
the charges to one of those accounts instead. Your phone is all set for
making this procedure as easy as possible for you.
Activating the Calling Card Feature
Access
< Call cards
security
>
1. Scroll to Access, Y ES , Call cards security, Y ES .
2. Enter your security code and press Y E S .
The default code is 0000.
3. Scroll to Call cards, YE S , On, Y E S .
The Call card function is now activated and the sub-menu Call card
numbers is visible in the Phone book menu.
Changing Security Codes
<
Security
Change
code
>
1.
2.
3.
4.
Scroll to Access, Y ES , Call cards security, Y ES .
Enter the old security code and press Y E S .
Scroll to Change code, Y ES .
Enter your new code and press Y ES .
The code can consist of four to eight digits.
5. When Repeat new code appears in the display, confirm your new code.
6. Press YE S .
Your security code is now changed.
Storing Credit or Calling Card Numbers
Your phone allows you to store two calling card numbers in the
phone book menu. This sub-menu is only visible if the Call card
function is activated in the Access menu.
Storing a Calling Card number
1. Scroll to Phone book, Y ES , Call card numbers, Y ES .
2. Enter your security code and press Y E S .
To change security codes, see above.
68
Calling Card or Credit Card Calls
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
3. Select card position (Card 1 or Card 2).
4. Enter the access number (the phone number) to the calling card
server. The numbers are entered in the same way as in the ordinary
Phone book.
5. Press L E F T or R I G H T .
6. Enter the verification code to your calling card server.
7. To store the calling card number, press Y E S .
Changing the Dialling Order
Since the dialling order (whether you have to dial your verification
code before or after the number you want to dial) may vary between
calling card servers, you can change the order yourself.
• Use the L EF T and R I G H T key, when the Called no. row flashes.
Selecting a Card
If you have stored two card numbers, you must select which card you
wish to use before making a Calling/Credit card call.
To select the card
1. Scroll to Phone book, Y ES , Call card numbers, Y ES .
2. Enter your security code and press Y E S .
3. Scroll to the card you wish to use.
Your settings for the card appear. Press Y E S to confirm each setting.
Note! Once you have selected a card, it remains selected until you
select the other card.
Making a Credit or Calling Card Call
1. Enter the phone number of the person you want to call.
2. Press and hold YE S .
The access number to the calling card server is called and during
the connecting phase, you are prompted to send the called number
(the number of the person you want to call) and the verification
code, in the order chosen by you (see above).
3. To send the called number and the verification code during the
connecting phase, press Y E S when the display shows Send, or wait
a few seconds and your phone will send them automatically.
Tip! You can retrieve the number of the person you want to call from
the phone book. When you have found the number, press and hold
Y E S to make the call.
Calling Card or Credit Card Calls
69
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Sending and Receiving
Faxes and Data
Note! To be able to use various communications services you need
the appropriate accessories and programs.
If you have a SIM card that does not support separate fax and data
numbers, you need to activate the data menus. When the Data Menus
are activated, a new menu appears in your phone: Next call type.
Settings
< Data menus >
(Off)
Activating the Data Menus
• Scroll to Settings, Y E S , Data menus, Y E S , On, Y ES .
Next Call Type
This function allows you to decide which type the next incoming call
will be, i.e. fax, data, or fax then speech. You will only see this menu
if your phone detects that you do not have separate numbers for data,
fax and speech. Once you have set your phone for a specific incoming call, it will stay so until you change it back. The normal setting is
Speech.
Defining the Next Incoming Call
1. Scroll to Next call type, Y ES .
2. Select which type the next incoming call will be.
70
Sending and Receiving Faxes and Data
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Some Useful Functions
Special Functions Menu
If a phone number is present in the display, you can press R I G H T , followed by Y ES , to select the Special functions menu. This menu lets you:
• edit the phone number
• insert a p (pause) when sending DTMF tones
• show or hide your phone number when calling somebody
Edit number
01234567890_
To edit the number in the display
1. Scroll to Special functions, YE S , Edit number, Y E S .
2. Now you can move the cursor with L EF T / R I G H T and insert and
delete digits and other characters (*, #, + and p).
3. When you are finished with the corrections, press Y ES to call the
number.
If you change your mind and do not wish to call the number, press
N O instead.
Tip! You can edit a phone number that you have stored in your phone
book. When you have found the number using Name recall or Position
recall, press N O . Then select Edit number. Make the necessary corrections and then press YE S to call the number.
To insert a pause
• Scroll to Special functions, YE S , Pause, Y E S .
Hiding or Showing Your Phone Number when Making
a Call
With most subscriptions, the receiver can see your phone number
when you make a call. However, some operators offer subscriptions
where your phone number is normally hidden. If you want to change
the setting for a particular call, this is possible, provided the network
you use supports it.
To hide your phone number when calling somebody
1. Enter the phone number you wish to call.
2. Scroll to Special functions, YE S , Hide Id, Y E S .
Some Useful Functions
71
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
To show your phone number when calling somebody
1. Enter the phone number you wish to call.
2. Scroll to Special functions, YE S , Send Id, Y E S .
CHECK Menu
If you enter more than 20 characters (0–9, *, #, + and p), the first characters disappear from the display. Instead, a left arrow is shown in
front of the characters.
To check the first characters
1. Press R I G H T .
2. When you are finished, press L EF T .
If you wish to use any of the Special functions, press R I G H T
instead.
Alarm Clock
The phone has an alarm function. When it is activated, an icon in the
shape of a bell is shown next to the current time in the display.
NETWORK
11:33
The alarm sounds at the time set, even if the phone is turned off. The
illumination of the keys and the display flashes. The volume of the
alarm signal depends on the setting of the ring signal.
The alarm will sound for 60 seconds and will be repeated every nine
minutes, if you do not turn it off. After 60 minutes, the repeat function will be turned off automatically.
<
Menu
Set alarm
(Off)
Alarm
07:30
>
To set the time of the alarm
1. Scroll to Set alarm, Y E S .
2. Enter the time in hours and minutes.
If you have selected the 12-hour (am/pm) format in the Clock/Date
function in the Settings menu, you can alternate between am and pm
by pressing #.
3. Press YE S .
To turn the alarm signal off
1. Press any key to turn the alarm off when it sounds.
2. If you do not want the alarm to be repeated, press YE S .
To turn the alarm function off
• Scroll to Set alarm, Y E S , Off, Y E S .
72
Some Useful Functions
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
ADDITIONAL INFORMATION
Troubleshooting
74
Quick Keys
76
Technical Data
77
Glossary
78
Guidelines for Safe and Efficient Use
83
Warranty
89
Declaration of Conformity
91
Index
93
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Troubleshooting
This chapter lists some problems that you might encounter while
using your phone. Some problems require that you call your service
provider, but most of the problems you encounter are easy to correct
yourself.
Error Messages
Insert
card
112 only
16:21
No network
Wrong
PIN
Matching
error
PIN
Blocked
Unblock?
Blocked
Contact card
provider
74
Insert card
There is no SIM card in the phone. Insert a SIM card. See “The SIM
Card” on page 5.
112 only
If the message 112 only is displayed, you are within range of a network
but you are not allowed to use it. However, in an emergency, some
operators allow you to call the international emergency number 112.
See “Making Emergency Calls” on page 15.
No network
There is no network within range or the received signal is too weak.
You have to move to get a signal that is strong enough.
Wrong PIN, Wrong PIN2
You entered your PIN incorrectly.
• Enter the correct PIN or PIN2, and press Y E S .
Matching Error
When you want to change a security code (for example PIN) you
have to confirm the new code by entering it again. The two codes that
you have entered do not match. See “SIM Card Lock” on page 48.
PIN Blocked Unblock?
You entered your PIN incorrectly three times in a row. To unblock see
“SIM Card Lock” on page 48.
Blocked Contact card provider
You entered your personal unblocking key (PUK) incorrectly 10
times in a row. Contact your network operator or service provider.
Troubleshooting
Phone locked
The phone is locked. To unlock the phone, see “Phone Lock” on
page 49.
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Phone
locked
Enter
lock code
Enter lock code
Your phone comes with the default security code, 0000 . You can
change it to any three- to eight-digit personalized code. See “Phone
Lock” on page 49.
Phone Does Not Come On
Handheld Phone
• Recharge or replace the battery.
Handsfree Phone in Vehicle
• Make sure that the phone is properly inserted into its holder.
No Indication of Battery Charging
If you attach a new battery that is empty, or an old battery that has not
been used for a long time, and connect the charger to the phone, it
may take a while until the indicator on the top of the phone shows a
red light and the battery meter appears.
Poor Sound Quality in Vehicle Handsfree
Equipment
• Check that the handsfree equipment is Ericsson original equipment and that it has been properly installed.
• Change the Handsfree Type from Type 1 to Type 2. See “Handsfree Types” on page 66.
Troubleshooting
75
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Quick Keys
Several keys on your phone can be used to optimize the phone’s functionality and decrease the number of times you need to press a key.
Some of the key combinations demand that your phone is in a certain
mode and some can be made from the standby mode.
The table below describes some of the most useful key combinations.
To…
Do this:
Mode:
mute the microphone
press and hold C L R
when on the phone
turn the ring signal on/
off
press and hold C L R when the
display is empty
when in standby
find the first name in the press and hold the correspond- when in standby
phone book that starts ing key, for example the 2 key to
with a certain letter
find the first name that starts
with an A
76
quickly access voice
mail
press and hold the 1 key
when in standby
reset the language to
English
press C L R, L E F T , 0000, and
R IG H T
when in standby
speed dial
press 1–9 and Y E S
when in standby
move three lines forward press 3
when reading a
message
return to beginning of
message
when reading a
message
Quick Keys
press and hold L E F T
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Technical Data
General
System
GSM 900/GSM1800
SIM card
Small plug-in card, 3 V or 5 V type
Dimensions
Size
130 x 49 x 19 mm / 5.1 x 1.9 x 0.75 in
Weight with battery
150 g / 5.3 oz.
Weight without battery
83 g / 2.9 oz.
Ambient temperatures
Max
+55°C / 131°F
Min
-10°C / 14°F
Technical Data
77
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Glossary
Advice of Charge
(or AoC) enables you to monitor the cost of calls made from your
mobile phone. Details of the last call and total calls made are shown
in the phone display.
Alternate Line Service
(or ALS) enables you to have two lines and two different phone numbers on one subscription for your mobile phone. This makes it possible to have separate numbers for business and personal calls. To use
this service, it must be supported by your network.
Area Information
(or AI) is a service that allows you to receive messages about pre-set
topics i.e. weather forecasts, road reports, etc. To use this service, it
must be supported by your network.
Call Barring
enables you to restrict or bar certain or all types of calls to and from
your mobile phone, i.e. outgoing calls, outgoing international calls,
incoming calls. Barring is activated with a personal code. To use this
service, it must be supported by your network.
Calling Line Identification
(or CLI) shows the number of the person calling you in your mobile
phone display. You can then make an informed choice as to whether
or not to take the call. Bear in mind that not all numbers can be displayed. To use this service, it must be supported by your network.
Divert
enables you to forward calls to another number, for example your
voice mail or home phone.
DTMF or Touch Tone
Dual Tone Multi Frequency signal – codes sent as tone signals. Used
for telephone banking, for accessing an answering machine, etc.
78
Glossary
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Dual Band GSM 900/1800
A dual band phone allows you to use your phone on two different
kinds of networks – the GSM 900 and the GSM 1800 (also called
PCN or DCS 1800) systems.
A dual band phone that combines the two standards can use both frequencies. This increases capacity in densely populated urban areas,
and consequently improves the coverage offered by your network
operator. It also offers you enhanced international roaming, thanks to
the additional networks now available when you are travelling.
The switching between the two systems is done automatically and
seamlessly, which means that you can use your phone without ever
having to consider which system is best at the time. This is taken care
of by the networks. However, you should note that the functions
offered and the network coverage differ depending on your choice of
operator and/or subscription.
Enter
The word “enter” in this manual is used for keying in letters or numbers from the keypad.
Fax Class
Standards for fax transmission are set as classes. Class I and II allow
data transfer speeds of between 2400 up to 9600 bps.
Full Duplex
in handsfree equipment, means that both parties on the phone can talk
at the same time.
GSM 900
The Global System for Mobile Communications (GSM) is the
world's most widely used digital network, now operating in over 100
countries around the world, particularly in Europe and Asia-Pacific.
The GSM systems family also includes GSM 1800 and GSM 1900.
There are different phases of roll-out for the GSM system and GSM
phones are either phase 1 or phase 2 compliant.
GSM 1800
also known as DCS 1800 or PCN, is a digital network working on a
frequency of 1800 MHz. It is used in Europe and Asia-Pacific.
Glossary
79
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
International Prefix (+)
Mobile phone (+) prefix that automatically adds the correct international prefix when dialling out of a country. You then have to add
the country code, area code and phone number.
International Roaming
A mobile phone feature that allows you to switch between networks
offering coverage abroad. Your mobile phone automatically selects a
network or system (your home network), but if it is not in range or
unavailable, it will select another system. International roaming is
based on agreements between network operators in different countries.
Line 1/Line 2
See “Alternate Line Service”.
Menu System
is the easiest way to access all the phone’s functions. The menus are
arranged to be accessed and viewed when scrolling with the arrow
keys.
Network
A mobile phone network or system consists of a network of cells. A
radio base station serves each cell from where calls are forwarded to
and received from your mobile phone by wireless radio signals.
Operator
To be able to use your phone, you need a subscription to a network.
You get this subscription from a network operator, together with a
SIM card that you need to use with your phone.
Phone Book
A memory on your SIM-card where phone numbers can be stored and
accessed by name (alpha memory search) or position.
PIN
Personal Identification Number – a code used for all GSM-based
phones to establish authorization for access to certain functions or
information. The PIN code comes with your subscription.
PIN2
Personal Identification Number 2 – an authorization code which is
used only for special services.
80
Glossary
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
PUK
Personal Unblocking Key – used to unlock a blocked SIM card. Most
operators will give you a PUK when you subscribe.
Roaming
Within your home network, this means that your mobile phone automatically sets up communication procedures with different radio base
stations when on the move.
Scroll
The word “scroll” in this manual means pressing the left or right
arrow key to move between the menus or functions.
Select
The word “select” in this manual means scrolling to a menu or function, then pressing the YE S key.
Semi-Duplex
In handsfree equipment, full duplex means that the connection is
open for both parties to talk simultaneously. Semi-duplex gives close
to, but not complete, duplex functionality.
Service Provider
A company that provides services and subscriptions to mobile phone
users.
Short Message Service
(or SMS) allows messages of up to 160 characters to be sent and
received via the network operator's message centre to your mobile
phone. Messages are stored if the phone is off or out of reach ensuring that they reach you. To use this service, it must be supported by
your network.
SIM card
Subscriber Identity Module card – a card that must be inserted in any
GSM-based mobile phone. It contains subscriber details, security
information and memory for a personal directory of numbers. The
card can be a small plug-in type or credit card sized but both types
have the same functionality.
SMS
See “Short Message Service”.
Glossary
81
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Subscription
is the contract that you have with the service/network provider. To
use your phone, you need to have a subscription to a network. You
get a SIM (Subscriber Identity Module) card with your subscription.
The services included in your subscription depend on your choice of
operator and/or subscription. So some of the services and functions
described in this manual may not be accessible to you. If you want a
complete list of the services included in your subscription, please
contact your network operator.
82
Glossary
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Guidelines for Safe
and Efficient Use
Note! Read this information before using your mobile phone.
Product Care and Maintenance
Your mobile phone is a highly sophisticated electronic device. To get
the most out of your mobile phone read this text about product care,
safe and efficient use.
Product Care
• Keep your mobile phone dry.
• Avoid exposing your mobile phone to extreme hot or cold temperatures.
• Avoid placing your mobile phone close to lit candles, cigarettes,
naked flames or any heat source.
• As with all sophisticated electronic devices rough treatment could
damage your mobile phone.
• Only use a soft damp cloth to clean your mobile phone.
• Do not paint your mobile phone as the paint could obstruct the
earphone, microphone or any moveable parts and prevent normal
use.
• Do not attempt to disassemble your mobile phone, a broken warranty seal will void the warranty. The phone does not contain consumer serviceable components. Service should only be performed
by Certified Service Partners.
• Only use Ericsson original accessories. Failure to do so may result
in loss of performance, damage to the phone, fire, electric shock
or injury. The warranty does not cover product failures which have
been caused by use of non-Ericsson original accessories.
• Treat your mobile phone with care, keep it in a clean and dust free
place.
Antenna Care and Replacement
• To avoid impaired performance please ensure your mobile phone's
antenna is not bent or damaged.
Guidelines for Safe and Efficient Use
83
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
• Do not remove the antenna yourself. If your phone's antenna is
damaged please take it to a Certified Service Partner.
• Only use an antenna that has been specifically designed for your
phone. Unauthorized antennas, modifications, or attachments
could damage the phone and may violate the appropriate regulations causing loss of performance and radio frequency (RF)
energy above the recommended limits.
Efficient Phone Operation
To enjoy optimum performance with minimum power consumption
please:
• Hold the phone as you would any other telephone. While speaking
directly into the mouthpiece, angle the antenna in a direction up
and over your shoulder. If the antenna is extendable/retractable,
it should be extended during a call.
• Do not hold the antenna when the phone is in use. Holding the
antenna affects call quality, may cause the phone to operate at a
higher power level than needed and shorten talk and standby
times. If your mobile phone is equipped with an infrared eye,
never direct the infrared ray at anyone's eye and make sure that it
does not disturb any other infrared units.
Radio Frequency Energy
Your mobile phone is a radio transmitter and receiver. When the
phone is turned on, it receives and transmits radio frequency (RF)
energy. Depending on the type of mobile phone you possess, it operates on different frequency ranges and employs commonly used modulation techniques. The system that handles your call when you are
using your phone controls the power level at which your phone transmits.
Exposure to Radio Frequency Energy
The International Commission on Non-Ionising Radiation Protection
(ICNIRP), supported by the World Health Organisation (WHO),
published during1996 a statement and in 1998 guidelines which set
recommended limits for exposure to RF fields from handheld mobile
telephones. According to ICNIRP statement, which is based on the
available body of research, there is no evidence that mobile terminals
meeting the recommended limits can cause any adverse health
84
Guidelines for Safe and Efficient Use
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
effects. All Ericsson telephones conform to the ICNIRP guidelines
and other international exposure standards, such as:
• CENELEC European Pre-standard ENV50166-2:1995 (Europe)
• ANSI/IEEE C95.1-1992 (USA, Asia-Pacific)
• AS/NZS 2772.1 (Int):1998 (Australia, New Zealand)
Driving
Check the laws and regulations on the use of mobile phones in the
areas where you drive. If you are going to use your phone while driving, please:
• Give full attention to driving.
• Use an Ericsson Vehicle Handsfree Solution, if available. Law in
many countries requires vehicle Handsfree Solution. Read the
installation instructions carefully before installing a vehicle
Handsfree Solution.
• Pull off the road and park before making or answering a call if
driving conditions so require.
RF energy may affect some electronic systems in motor vehicles such
as car stereo, safety equipment etc. In addition, some vehicle manufacturers do not allow use of mobile phones, unless the installation is
supported by a handsfree kit with an external antenna, in their vehicles. Check with your vehicle manufacturer's representative to be
sure that your mobile phone will not affect the electronic systems in
your vehicle.
Vehicles Equipped with an Air Bag
An air bag inflates with great force. Do not place objects, including
either installed or portable wireless equipment, in the area over the air
bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury
could result.
Electronic Devices
Most modern electronic equipment, for example equipment in hospitals and cars, is shielded from RF energy. However, certain electronic
equipment is not, therefore:
• Do not use your mobile phone near medical equipment without
requesting permission.
Mobile phones may affect the operation of some implanted cardiac
pacemakers and other medically implanted equipment. Pacemaker
Guidelines for Safe and Efficient Use
85
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
patients should be aware that the use of a mobile phone very close to
a pacemaker might cause the device to malfunction. Avoid placing
the phone over the pacemaker, i.e. in your breast pocket. When using
the phone, place it at your ear opposite the pacemaker. If a minimum
distance of 15 cm is kept between the phone and the pacemaker, the
risk of interference is limited. If you have any reason to suspect that
interference is taking place, immediately turn off your phone. Contact
your cardiologist for more information.
Some hearing aids might be disturbed by mobile phones. In the event
of such disturbance, you may want to consult your service provider,
or call the customer services line to discuss alternatives.
Aircraft
• Turn off your mobile phone before boarding any aircraft.
• Do not use it on the ground without crew permission.
To prevent interference with communication systems, you must not
use your mobile phone while the plane is in the air.
Blasting Areas
Turn off your mobile phone when in a blasting area or in areas posted
“turn off two-way radio” to avoid interfering with blasting operations. Construction crews often use remote control RF devices to set
off explosives.
Potentially Explosive Atmospheres
Turn off your mobile phone when in any area with a potentially
explosive atmosphere. It is rare, but your phone or its accessories
could generate sparks. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include fuelling areas, such as petrol
stations, below deck on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Do not transport or store flammable gas, liquid, or explosives in the
compartment of your vehicle, which contains your mobile phone and
accessories.
86
Guidelines for Safe and Efficient Use
Power Supply
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
• Connect AC (Power supply) only to designated power sources as
marked on the product.
• To reduce risk of damage to the electric cord, remove it from the
outlet by holding onto the AC adapter rather than the cord.
• Make sure the cord is positioned so that it will not be stepped on,
tripped over or otherwise subjected to damage or stress.
• To reduce risk of electric shock, unplug the unit from any power
source before attempting to clean it.
• The charger must not be used outdoors or in damp areas.
Children
Do not allow children to play with your mobile phone since it contains small parts that could become detached and create a choking
hazard.
Emergency Calls
IMPORTANT!
This phone, like any mobile phone, operates using radio signals, cellular and landline networks as well as user-programmed functions,
which cannot guarantee connection under all conditions. Therefore
you should never rely solely upon any mobile phone for essential
communications (for example medical emergencies).
Remember, in order to make or receive calls the phone must be
switched on and in a service area with adequate cellular signal
strength. Emergency calls may not be possible on all cellular phone
networks or when certain network services and/or phone features are
in use. Check with your local service provider.
Battery Information
New Batteries
The battery delivered with your phone is not fully charged.
Battery Use and Care
A rechargeable battery has a long service life if treated properly.
A new battery, or one that has not been used for a long period of time
could have reduced capacity the first few times it is being used.
• The talk and standby times depend on the actual transmission conditions when using the phone. If the phone is used nearby a base
Guidelines for Safe and Efficient Use
87
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
station less power is required and talk and standby times are prolonged.
Use only Ericsson original batteries and the AC/DC adapter
supplied with your battery charger. Using non original Ericsson
accessories could be dangerous and the warranty does not cover
product failures which have been caused by use of non-Ericsson
original accessories.
Do not expose your battery to extreme temperatures, never above
+60°C (+140°F). For maximum battery capacity use your battery
in room temperature. If the battery is used in cold temperatures the
battery capacity will be reduced.
The battery can only be charged when the temperature is between
+5°C (+41°F) and +45°C (+113°F).
Turn off your phone before removing the battery.
Use only the battery for the intended purpose.
Do not attempt to take a battery apart.
Do not let the metal contacts on the battery touch another metal
object. This could short-circuit and damage the battery.
Do not expose a battery to open flames. This could cause the battery to explode.
Do not expose a battery to liquid.
Do not allow the battery to be placed into the mouth. Battery electrolytes may be toxic if swallowed.
•
•
•
•
•
•
•
•
•
•
Recycling Your Battery
The battery must be disposed of properly and should never be placed
in municipal waste. Check local regulations for proper disposal
instructions.
88
Guidelines for Safe and Efficient Use
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Warranty
Thank you for purchasing this Ericsson Product. To get maximum
use of the features of your new product we recommend that you
follow a few simple steps:
• Read the Guidelines for safe and efficient use.
• Read all the terms and conditions of your Ericsson Warranty.
• Save your original receipt. You will need it for warranty repair
claims. Should your Ericsson Product need warranty service, you
should return it to the dealer from whom it was purchased or contact your local Ericsson helpdesk to get further information.
Our Warranty
Ericsson warrants this Product to be free from defects in material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year.
All accessories for the Product are covered by a warranty for a period
of one (1) year from the date of its original purchase by a consumer.
What We Will Do
If, during the warranty period, this Product fails to operate under
normal use and service, due to improper materials or workmanship,
Ericsson subsidiaries, authorized distributors or authorized service
partners will, at its option, either repair or replace the Product in
accordance with the terms and conditions stipulated herein.
Conditions
1. The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and
serial number, is presented with the product to be repaired or
replaced. Ericsson reserves the right to refuse warranty service if
this information has been removed or changed after the original
purchase of the product from the dealer.
2. If Ericsson repairs or replaces the Product, the repaired or replaced
Product shall be warranted for the remaining time of the original
warranty period or for ninety (90) days from the date of repair,
Warranty
89
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
whichever is longer. Repair or replacement may be via functionally equivalent reconditioned units. Replaced faulty parts or components will become the property of Ericsson.
This warranty does not cover any failure of the Product due to normal wear and tear, misuse, including but not limited to use in other
than the normal and customary manner, in accordance with
Ericsson´s instructions for use and maintenance of the Product,
accident, modification or adjustment, acts of God, improper ventilation and damages resulting from liquid.
This warranty does not cover product failures due to repair installations, modifications or improper service performed by a nonEricsson authorized service workshop or opening of the product
by non-Ericsson authorized persons.
The warranty does not cover product failures which have been
caused by use of non-Ericsson original accessories.
Tampering with any of the seals on the products will void the
warranty.
THERE ARE NO OTHER EXPRESS WARRANTIES,
WHETHER WRITTEN OR ORAL, OTHER THAN THIS
PRINTED LIMITED WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OR MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL ERICSSON BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS. TO THE FULL EXTENT THOSE
DAMAGES CAN BE DISCLAIMED BY LAW.
3.
4.
5.
6.
7.
Some countries do not allow the exclusion or limitation of incidental
or consequential damage, or limitation of the duration of implied
warranties, so the preceding limitations or exclusions may not apply
to you. This warranty gives you specific legal rights, and you may
also have other rights which may vary from country to country.
90
Warranty
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Declaration
of Conformity
We, Ericsson Mobile Communications AB of
Nya Vattentornet
221 83 Lund, Sweden
declare under our sole responsibility that our product
Ericsson type 110 0901-BV
to which this declaration relates, conforms to the appropriate standards TBR 19, TBR 20, TBR31, TBR32, ETS 300 342-1 and
EN 60950, following the provisions of Teleterminals directive
91/263/EEC, EMC directive 89/336/EEC, and Low voltage directive
73/23/EEC.
Stockholm, 1st October, 1999
(Place & date of issue)
Johan Siberg, President
Declaration of Conformity
91
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
92
Declaration of Conformity
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Index
A
Alarm clock 72
Alternate Line Service (ALS) 64
Answered calls indicator 28
Answering calls 15
Answering service. See Voice
Mail
Area information 43
message types 43
receiving area messages 44
Auto store 35
B
Banking by phone 25
Barring calls. See Call barring
Battery 7
attaching 7
charging 7, 8, 75
removing 9
Battery charger 8
Battery meter 12
C
Call barring 50
cancelling all 51
changing password 51
changing status 50
Call cost 62
checking 62
setting a credit limit 63
specifying price per unit 63
Call divert 45
activating 45
cancelling 46
checking status 45
divert indicator 12, 45
Call forwarding. See Call divert
Call list 28
calling from call list 29
Call restrictions. See Call
barring
Call time 62
checking 62
Call waiting 53
Call waiting service
activating 53
cancelling 53
Calling
from call list 29
from phone book 26
Calling cards 68
Calling Line Identification (CLI)
15
Calls
answering 15
ending 14
putting on hold 17, 53, 54, 56,
57
receiving 15
redialling 14
rejecting 15
switching between calls 54
CB. See Area information
Cell broadcast. See Area
information
Check menu 72
Ciphering 16
CLI. See Calling Line
Identification
Clock. See Time
Index
93
H
Handsfree 67
Handsfree usage 66
Hiding your number 71
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Conference calls 56
adding new participants 56
creating 56
extracting a participant 57
releasing a participant 57
reviewing participants 56
Credit 63
Credit cards 68
D
Date 36
format 36
setting 36
Dialled numbers indicator 28
Display
greeting text 34
indicators 12
language 10, 34
light 35
Divert indicator 12, 45
Diverting calls. See Call divert
DTMF pauses 71
DTMF tones 18
E
Earpiece
volume 17, 32
Emergency calls 15
Ending calls 14
Error messages 74
F
Fax, sending and receiving 70
Fixed dialling 51
activating 52
cancelling 52
Fixed numbers 52
editing 52
storing 52
Forwarding calls. See Call divert
Front panel 9
G
Greeting text in the display 34
94
Index
I
Icons in display. See Indicators
in display
Indicators in display 12, 28
answered calls 28
battery meter 12
dialled numbers 28
keypad lock 12
line 13
missed calls 28
signal strength 12
silent ring 12
SMS 12
voice mail 12
International calls 15
International emergency number
15
K
Key functions 13
Key sound 35
Keypad
unlocking 47
Keypad lock 47
activating 47
cancelling 47
Keypad lock indicator 12
L
Language in the display 10, 34
Letters, entering 24
Line indicator 13
M
Menu system 20
Message signal 36
Message types (SMS) 40
Microphone
muting 17
Minute minder 35
Missed calls 29
Receive calls 15
Receiving messages (SMS) 37
Redialling numbers 14
Rejecting calls 15
Request reply (SMS) 41
Resetting phone 33
Restricting calls. See Call
barring
Ring signal
choosing 33
composing own 33
level 32
type 33
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
Missed calls indicator 28
Muting microphone 17
N
Name recall 26
Name tag 23
Network 11, 58
search modes 60
selection 58
Network name 11
P
Pause (DTMF) 25, 71
Phone book 23
calling from 26
changing a name 27
changing phone number 27
erasing phone number 26
keeping up to date 27
storing names 24
storing numbers 24
Phone lock 49
activating/cancelling 50
auto lock 49
changing the security code 50
full lock 49
Phone number
displaying own 34
Phone number in SMS
replying to 38
PIN 6, 10
changing 48
PIN2 6
changing 48
Plus sign (+) 15, 23
Position recall 26
PUK 6, 48
Q
Quick dialling. See Speed
dialling
Quick keys 76
Quick store. See Auto store
R
Reading messages (SMS) 37
S
Scratch pad 17
Scroll 13
Scrolling 20
Sending messages (SMS) 41
Shortcuts. See Quick keys
Showing your number 71
Signal strength meter 12
Silent ring signal 12
SIM card 5
inserting 5
removing 6
unblocking 48
SIM card lock
activating 49
cancelling 49
SMS 37
composing 41
editing 41
enabling phone for sending 38
erasing 39
message types 40
reading 37
receiving 37
repeating message 40
reply requested 41
replying to 38
sending 41
storing 39
types 40
Index
95
Er
ics No
so t fo
nM r
ob Com
ile
me
Co
r
mm cial
un Use
ica
tio
ns
AB
SMS indicator 12
Special functions menu 71
Speed dialling 26
Stored messages (SMS)
reading 38
Storing
names 24
numbers 24, 35
T
Tape loops. See Voice mail
indicator
Telephone banking 25
Text messages (SMS) 37
Time 36
format 36
setting 36
Tone signals 18
Touch tones 18
Turning the phone off 11
Turning the phone on 10
V
Voice mail 30
activating 30
calling 30
entering service number 30
Voice mail indicator 12
Volume
earpiece 17, 32
ring signal 32
96
Index

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
