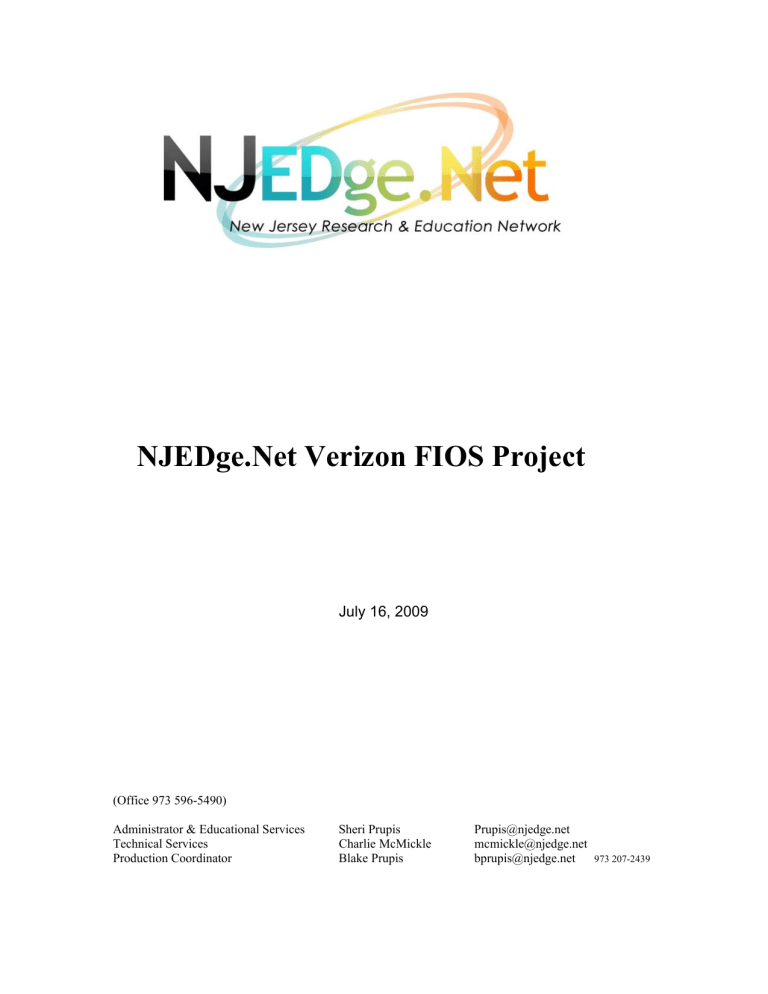

NJEDge.Net Verizon FIOS Project
July 16, 2009
(Office 973 596-5490)
Administrator & Educational Services
Technical Services
Production Coordinator
Sheri Prupis
Charlie McMickle
Blake Prupis
[email protected]
[email protected]
[email protected]
973 207-2439
NJEDge.Net Verizon FIOS Project
NJEDge.Net New Jersey’s Higher Education Network, is a non-profit
consortium that was developed as part of the state plan for higher education.
The consortium was designed to support New Jersey’s institutions of higher
education in their pursuit of excellence. The mission of NJEDge.Net is to provide
collaborative resources and networked information services to its members and
affiliates in support of education; research and development; outreach and public
service; as well as economic development throughout the state of New Jersey.
In providing a statewide network infrastructure, NJEDge.Net establishes
standards for interoperability, achieves economies of scale and supports new
and emerging technology-enabled forms of collaboration among its members and
affiliates.
NJEDge.Net agrees to provide a "coordinating role" between the NJ colleges and
universities as well as other entities participating in the program and Verizon, in
order to meet its state requirement to provide video production equipment and
training to individuals providing programming for the Verizon PEG channels
available over FIOS. As part of this coordinating role, NJEDge will develop,
maintain and support an inventory management program to track usage data of
equipment and maintenance. NJEDge will be responsible for the purchase of all
equipment. Additionally, NJEDge will develop and support a registration program
to track individuals participating in the training programs offered at the individual
colleges. Verizon will have direct web access to this data so that reports can be
generated as needed. NJEDge.Net will coordinate training materials and have
them available online for the colleges to share and make appropriate materials
available online directly to participants of the training program through an open
source learning management system.
NJEDge.Net Verizon FIOS Project (Office 973 596-5490)
Administrator & Educational Services
Technical Services
Production Coordinator
Sheri Prupis
Charlie McMickle
Blake Prupis
Page 2 of 36
[email protected]
[email protected]
[email protected]
973 207-2439
NJEDge.Net Verizon FIOS Project
Field Equipment List
Line
No
Page
No
1
5
SONY
HVRV1U
1
3CMOS 1080p HDV Camcorder
2
7
SONY
DVM63HD
10
63 Min Mini DV HD Video Cassette
3
8
SONY
HVRDR60
1
HDV HARD DISK RECORDER
4
9
SONY
HVLLBP
1
LED Battery Video Light
5
10
SONY
VCT1BP
1
Bracket
Mfr
Part No
Qty
Description
6
11
SONY
VCLHG0862K
1
Wide conversion Lens for HVR-V1U
7
12
SONY
SHL35WBP
1
LCD Hood For 3.5in LCD Panel of HVR-V1U
8
13
PORTA
RS-V1
1
Mini DV Rain Slicker
9
14
PORTA
CS-DV2U
1
Mini-DV Camera Case
10
15
SONY
VCTPG11RMB
1
Tripod with the RM-1BP LANC Remote Controller
11
16
SONY
RM1BP
1
Remote Commander
12
17
SONY
ACVQ1050D
1
Dual AC/DC Charger with Car Cord
13
18
SONY
2NPF970/B
3
InfoLithium L Series Rechargeable (2) Battery Package
14
19
SONY
ECM55B
1
Omni Lav Microphone
15
20
AT
AT897
1
Line + gradient Mic, 11.0in long
16
21
RYCOT
033042
1
14cm Medium Hole Softie for Audio Technica and Sony
17
22
TENEC
SC25XXJ
1
Quadstar Mic Cable, 25 Ft
18
22
TENEC
SC10XXJ
1
Audio Cable, 10 Ft
19
23
KTEK
K-56
1
Compact 5 section telescoping boom pole, 1'4" - 4'11"
20
24
RYCOT
033702
1
Medium Hole Softie Mount & Pistol Grip
21
25
AT
AT8410A
1
Mic shock mount
22
26
AT
37400210
1
Screw Adapter
23
27
SONY
UWPV1-4244
1
Lav Mic, Bodypack TX and Portable RX Wireless System Chs 62
24
29
LOWEL
DVC-91
1
DV Core 250 Kit
25
30
LOWEL
GO-85
1
GO 85 Case
26
31
SONY
LCZ1TH
1
Hard Transit Case for HDV Camcorder
Page 3 of 36
NJEDge.Net Verizon FIOS Project
Field
Equipment
Page 4 of 36
NJEDge.Net Verizon FIOS Project
HVR-V1U
Digital HD Video Camera Recorder
The compact professional camcorders manufactured by Sony have
introduced a new level of mobility for ENG and documentarymaking worldwide with their superior quality and compact
dimensions. These camcorders have dramatically revolutionized
the traditional methods of capturing video footage. With the new
Sony HVR-V1U camcorder, now you can enjoy the same mobility
with the breathtaking beauty of HD picture quality. Have the
freedom to create video material with much greater creativity and
visual impact. The HVR-V1U will pave the way into a new world of
HD video productions.
Page 5 of 36
NJEDge.Net Verizon FIOS Project
Page 6 of 36
NJEDge.Net Verizon FIOS Project
DVM63HD
63 Minute Mini DV HD Video Cassette
Product Description
A single MiniDV tape that is designed for High Definition (HD)
digital video recording / Perfect for the Sony HDRFX1 camcorder
Designed for 1080i or 720p HDV recording and playback Improved
stability during long storage periods, leading to lower instances of
track shifting on playback
Technical Details
•
63 minutes of length
•
Utilizes new, 2nd generation Advanced Metal
Evaporated (AME II) technology and improved quality
control processes
•
90% fewer errors and 50% fewer dropouts for
improved reliability and audio/video stability
•
New lubricant for improved tape stability running
under a wide range of operating conditions
•
3db higher carrier-to-noise ratio vs. Premium MiniDV
tape for greater output and less noise during
recording
Page 7 of 36
NJEDge.Net Verizon FIOS Project
HVRDR60
HDV Hard Disk Recorder
The Sony HVR-DR60 is a
hard disk recording unit
designed to work with both
DVCAM/DV
and
HDV
camcorders and is specifically
designed to interface with the
HVR-V1U.
The
recorder
connects easily through the
camera's i.LINK (FireWire)
interface and can record up to
4.5 hours of footage.
Featuring
HDD
Smart
Protection technology insures
the HVR-DR60 is durable
enough to provide the type of
reliability
professionals
require.
Note! This item will not record video unless connected to a compatible Sony camcorder.
This version works for Windows-based computers. To format for Mac follow
http://pro.sony.com/bbsccms/ext/hdv/z7u_s270u_m35u/HVR-Z7U/index.html url link.
• HDD Smart Protection Technology
The HDD Smart Protection is a series of built-in technologies consisting of shock
absorbers, the 3G Sensor, and buffered memory. The shock absorbers insulate
the recording device, displacing any impact the chassis might experience during
operation. The 3G sensor detects differences in acceleration and orientation and
will momentarily shut off the recording platters if conditions are too turbulent.
When the 3G sensor is in use, footage is momentarily recorded to buffered
memory until conditions are safe. This buffered memory can be recorded for up
to 14 seconds at one time.
• Extended Recording Capability
The HVR-DR60 can record up to 4.5 hours of footage for extended acquisition.
This level of continuous recording is perfect for documentary filmmakers and
event videographers. The unit also gives users instant access to their footage
when connected to a computer. This makes the DR60 ideal for electronic news
gathering, especially when time critical editing is necessary.
• Universal File Types
When in HDV mode the HVR-DR60 records directly to native M2T files, while in
DVCAM/DV mode the recorder will write directly to AVI. When the device is
connected to a computer it mounts as an external hard drive. Files are ready to
edit without any capturing necessary. This allows users to focus more time on the
creative process and less on the often tedious capture process.
• Hybrid Recording
One unique feature when using the HVR-DR60 is the ability to record two
separate copies of the same footage simultaneously to the hard drive and also
onto tape. It not only adds a "safety net" when shooting critical footage, it also
provides an instantaneous archiving method.
• Power Made Easy
Powering the unit couldn't be easier. Simply use the same Lithium Ion batteries
that are normally attached to the camera and you are good to go!
Page 8 of 36
NJEDge.Net Verizon FIOS Project
Sony HVL-LBP
Sony LED Battery Video Light
Using LED as a light source has the advantages of high intensity
(600lx, 1m), extended life (10,000 hours), and low power
consumption (16w).
The HVL-LBP is designed to provide the optimum spread for wideangle shooting with the HVR-V1U: it illuminates with uniform
intensity right across the field of view. Using the attached
condensing lens, you can concentrate light in the center of the
picture. The attached diffuser makes it possible to soften shadows
and reduce contrast.
To power the LED light you can use the same L Series
batteries(NP-F970/770) that are used for HVR-V1E, making this
accessory as cost-effective as it is useful. It can be operated for
about 3 hours with the NP-F970 battery. When the HVL-LBP is
attached to the cold shoe of the camcorder it is possible to use the
battery adapter to achieve a good weight balance for the
camcorder.
Page 9 of 36
NJEDge.Net Verizon FIOS Project
VCT1BP
Bracket for the HVR-V1U
The VCT-1BP bracket is a rear mount adaptor for the HVR-V1U,
HVR-Z1U, HVR-A1U, and DSR-PD170 camcorders. This adaptor
allows the user to mount various products such as the new HVRDR60 HDV™ Hard Disk Recording Unit, the battery adaptor of the
HVL-LBP, or a receiver unit of wireless mics. The VCT-1BP also
features a rotary structure so that the position of the adaptor can be
adjusted for different shooting environments.
•
Rear mount adaptor for the HVR-V1U, HVR-Z1U,
HVR-A1U, and DSR-PD170 camcorders.
•
Unit allows the user to mount various products such
as the new HVR-DR60 HDV™ Hard Disk Recording
Unit, the battery adaptor of the HVL-LBP, or a
receiver unit of wireless mics.
•
Features a rotary structure so that the position of the
adaptor can be adjusted for different shooting
environments.
Page 10 of 36
NJEDge.Net Verizon FIOS Project
VCLHG0862K
Wide Conversion Lens for HVR-V1U
Designed for use with the HVR-V1U HDV camcorder, the VCLHG0862K wide conversion lens features a 0.8x magnification for
incredible wide angle shots! This lens features a bayonet joint
which allows the lens to easily attach to the main unit and includes
a lens hood, front lens cap, and back lens cap to help protect it
from any damage. It even includes a convenient carrying pouch to
keep it safe while on the move!
•
Can attach a filter in front of the lens and can control the
color by filter even after attaching the lens
•
Focal length at the wide end position with conversion
lens is 29.9mm.
•
0.8x Wide Conversion Lens
•
Bayonet mount for easy attachment and detachment
•
Lens hood supplied
•
A lens filter with a filter diameter of 86 mm can be
attached
Page 11 of 36
NJEDge.Net Verizon FIOS Project
LCD Hood
For 3.5" LCD Panel of HVR-V1U
The SH-L35WBP LCD foldable hood is custom made for the HVRV1U HDV camcorder's 3.5" LCD monitor to help protect from sun
and glare. This LCD hood is not only durable and lightweight, but
with its foldable body, the user can still carry the camcorder without
removing the hood after shooting!
Page 12 of 36
NJEDge.Net Verizon FIOS Project
RS-V1
Porta Brace RS-V1 Mini-DV Rain Slicker
The Porta Brace RS-V1 Mini-DV Rain Slicker is custom fitted for the Sony HVDV1 HDV camcorder. Flaps, vinyl windows and zippered openings provide
optimum ease of operation. Cameras with fold-out video screens are shrouded
with a black fabric hood that makes viewing LCD monitors easier on bright sunny
days. The LCD screen can be viewed from 3 positions; hip, eye-level and
overhead.
The Mini-DV Rain Slicker works with a tripod or in handheld mode. It is made
from a 3-ply nylon Fabuthane fabric with soft tricot-backed protection that
withstands extremes in temperatures and provides excellent rain protection. Roll
back flaps to expose vinyl windows. The top opens to reach handle and attach
optional shoulder strap.
Features
•
Fabuthane fabric with tricot back, that withstands extremes in
temperatures and has a water proof film layer
•
Detachable front visor
•
Triple-zip bottom
•
Quick-change battery back
•
Rain Fly for extra coverage
•
Flaps, vinyl windows and zippered openings provide optimum ease of
operation
•
Works with a tripod, or in handheld mode
•
The top opens to reach handle and attach optional shoulder strap
•
Compatible with Sony HVR-V1 HDV camcorder
•
1-Year Warranty
Specifications
•
•
•
•
•
•
Material Exterior: 3-ply nylon Fabuthane fabric
Material Interior: Soft tricot-backed protection
Type of Closure: Touch fastener
Accommodates: Sony HVR-V1 HDV camcorder
Carrying/Transport Options: Camcorder handle; Optional HB-15DVCam
light-duty black flex Mini-DV camcorder shoulder strap
Weight: 1.0 lb (454g)
Page 13 of 36
NJEDge.Net Verizon FIOS Project
CS-DV2U
MINI-DV CAMERA CASE
The PortaBrace Mini-DV Camera Case is The MINI-DV CAMERA
CASE protects and organizes the camera and the essential spare
battery, tape, microphones and rain cover. The bottom panel is
reinforced with hollow core plastic, foam layers and a NEW layer of
Slip Not fabric, which adds an extra layer of protection against
water, dirt and grime with an easy wipe-off surface. 1” thick foam,
1000 denier Cordura Nylon with a generous coating of
polyurethane waterproofing provides long lasting protection. The
cradle inside is adjustable and stays where YOU put it to keep the
camera from shifting. Also included: One small, padded pouch, a
suede shoulder strap and a white balance card. One large exterior
pocket holds, Rain Cover, Cables, and a wide slip pocket for white
balance card, owner’s manual, maps airline tickets, etc. (Video)
o DIMENSIONS
o Weight:
ƒ
3.1 lb / 1.41 kg
o Interior:
ƒ
ƒ
ƒ
L - 14" / 35.56cm
W - 7" / 17.78cm
H - 7" / 17.78cm
o Exterior:
ƒ
ƒ
ƒ
L - 15" / 38.1cm
W - 8" / 20.32cm
H - 9" / 22.86cm
Page 14 of 36
NJEDge.Net Verizon FIOS Project
VCTPG11RMB
Tripod with the RM-1BP LANC Remote Commander
Designed to embody easy operation, the new VCT-PG11RMB Remote
Control Tripod is perfect for Sony HDV Camcorders and DSR-PD170
DVCAM™ camcorder. The VCT-PG11RMB features a large sliding
camera plate and supports up to 11 lbs (5 kg). Supplied accessories
include the RM-1BP Remote Commander and a carrying case.
Head Suited for
Sony HDV
Camcorders:
Large sliding camera plate Easy to correspond
to camcorder's weight balance in case of using
conversion lens, wireless microphone, cam
light, etc D75mm Ball leveler Oil fluid function
with 2 torque modes Counter balance just fit to
2kg camcorder Max Load: 5kg (11 lb)
camcorder
Pan Handle:
Can control camcorder with RM-1BP remote
commander The detachable handle can be
attached on both left and right side of the head.
Mid Spreader:
Correspond to various situation to set Firmly
stable even when legs are expanded
Spike:
Corespond to various conditions of the ground:
Indoor (ie: wooden floor): with supplied rubber
cap. Outdoor (ie: gravel, dirt road): with metal
spike
Page 15 of 36
NJEDge.Net Verizon FIOS Project
RM1BP
Sony Remote Commander
The RM-1BP Remote Commander controller is a small hard-wired
controller designed to work with the HVR-Z1U HDV Camcorder, the
HVR-A1U HDV Camcorder, and other Sony camcorders that have
a LANC port. The RM-1BP Remote Commander unit attaches to
the handle of most standard tripods and enables the user to
remotely control focus and zoom of the camcorder, as well as
offering start-stop record and record/review control. The RM-1BP
Remote Commander unit offers three different zoom speed ranges,
for enhanced creativity and precise control.
Features
• Remote control
• Cable
Page 16 of 36
NJEDge.Net Verizon FIOS Project
AC-VQ1050D
Sony Dual AC/DC Quick Charger with Display
The Sony AC-VQ1050D AC Power/Battery Charger, provides quick
recharging to the InfoLithium L series camcorder batteries.
It features an AC adapter, LCD readout panel, and the capacity to charge
two batteries.
Compatible with the following InfoLITHIUM L Series batteries: NPF970,
NPF960, NPF950, NPF930, NPF770, NPF750, NPF730, NPF73H,
NPF570, NPF550, NPF530 or NPF330.
• Allows you to charge two batteries at the same time.
• Provides ultra-fast recharge rates.
• Built-in LCD shows battery charge status.
Page 17 of 36
NJEDge.Net Verizon FIOS Project
V2NP-F970/B
B2 Batteries per pack
The 2NP-F970/B is a
rechargeable battery pack,
which includes two units of
NP-F970 and allows a
compatible device to display
battery information on its
LCD monitor.
•
includes two units of NP-F970
•
allows a compatible device to display battery
information on its LCD monitor.
Sony NP-F570
Infolithium Rechargeable Battery
This is the battery that the HVRV1U Recorder is delivered with.
This battery provides a storage
capacity of 2200 mAh. Featuring a
built-in
microprocessor
that
accurately calculates the remaining
power within minutes, you can
conveniently know when to charge
your battery. The NP-F570 is
compatible with Sony DCRVX2100 / HDR-FX1 / HVR-Z1U
Camcorders and the MVC-FD200
Mavica FD digital camera.
Page 18 of 36
NJEDge.Net Verizon FIOS Project
Sony ECM55B
Electret Condenser Lavalier Microphone
With a black anodized finish and a frequency response tailored for
enhanced presence and improved voice quality, Sony's ECM55B
Omni-Directional Electret Condenser Lavalier Microphone is well
suited for a wide range of applications. The microphone features a
two-way powering system, meaning it will operate on a AA-size
battery or an external power supply. And the head of the mic
weighs only 0.23 ounces.
•
•
Omni-directional lavallier condenser microphone with AA battery
power supply and XLR connector
Supplied Accessories
o Wind screen
o Microphone holders
ƒ Double-clip microphone holder
ƒ Horizontal microphone holder
ƒ Vertical microphone holder
Page 19 of 36
NJEDge.Net Verizon FIOS Project
AT897
Line + Gradient Condenser Microphone
Audio-Technica’s AT897 is
designed
for
field
audio
acquisition in film/TV/video production, professional recording,
wildlife recording and broadcast applications. It mounts
conveniently on a DV camcorder without adding noticeable heft,
and remains out of the frame even with compact digital cameras.
This high-performance short shotgun offers outstanding longdistance audio pickup due to narrow acceptance angle of line +
gradient design. It also features smooth, natural-sounding on-axis
audio quality and excellent off-axis rejection of sound arriving from
the sides and rear of mic.
•
Designed for video production and broadcast (ENG/EFP) audio
acquisition
•
Short length (11") ensures mic stays out of the shot -- even when
used with compact digital cameras
•
Smooth, natural-sounding on-axis audio quality
•
Provides the narrow acceptance angle desirable for long-distance
sound pickup
•
Excellent sound rejection from the sides and rear of mic
•
Switchable low-frequency roll-off
•
Operates on battery or phantom power
•
RoHS compliant—free from all substances specified in the EU
directive on hazardous substances
Page 20 of 36
NJEDge.Net Verizon FIOS Project
Rycote 033042
Rycote Softie, 14cm
Softie slip on open cell foam windshield. It has a fitted synthetic fur
cover. It reduces wind noise and protects your microphone. It is an
effective solution for ENG on-camera microphones. Up to 25dB
wind noise reduction.
Page 21 of 36
NJEDge.Net Verizon FIOS Project
SC25XXJ
Audio Cable XLRP-XLRJ 25ft SC25XXJ
Product Description
Exclusive TecNec SC Audio Cables are designed for use with
microphones but are also excellent for line-level signals (i.e. mixer to
power amps). These cables are built with Canare L-4E6S Star Quad 4
conductor mic cable and Neutrik XLR connectors. This cable has a
special 4 conductor configuration plus high shield density to reduce hum
and noise to less than 10% of conventional 2-conductor mic cables.
Special construction also reduces handling noise while maintaining
excellent flexibility. High density braided shield blocks electrostatic noise
to eliminate annoying hum, buzz and radio interference. 4-conductor
design cancels electro-magnetically induced noise from SCR dimmers
and fluorescent lights. Excellent frequency response is preserved due to
low capacitance provided by dielectric qualities of Polyethylene insulation.
Handling noise is prevented by use of cotton filter material. Super
flexibility results from using large numbers of thin wire strands, plus PVC
jacket that remains pliant at extremely low temperatures (brittle point is 56 deg F); no wall between cold shipping and installation.
SC10XXJ
Audio Cable XLRP-XLRJ 10ft SC10XXJ
Same Product Description as above.
Page 22 of 36
NJEDge.Net Verizon FIOS Project
K-56
Compact 5 section telescoping boom pole, 1’ 4” – 4’ 11”
The K-TEK K-56 is a very lightweight, superbly engineered, and
meticulously crafted 5 section boompole made from a graphite fiber
derivitive in a black matte finish. This is the most compact
boompole in the K-Tek series, intended for ENG use and for the
solo videographer/location sound recordist.
The dimpled graphite section collar locks are highly durable and
jam resistant, twist adjusting easily and precisely. A unique
mushroom shaped polyurethane base provides additional shock
absorption. The Quick Connect poletop option, featuring stainless
steel threading and cable retention slots, is standard with this
model, adapting a variety of mounting and wiring solutions. All
appropriate K-Tek cable kit and mounting accessories are
compatible as well.
Page 23 of 36
NJEDge.Net Verizon FIOS Project
Rycote 033702
Medium Hole Mount w/ Pistol Grip
The Rycote Softie mount isolates shotgun mics and will allow the
user to either hold the mount with the pistol grip handle or attach it
to a boom pole using the 3/8" Whitworth threaded insert in the base
of the handle. This gives a very robust mounting system, which will
be suitable for most situations. The main component of the Softie
mount is a one piece rubber (actual material: EPDM) diaphragm
shockmount. This unit is extremely robust, and has been tested in
all environment conditions to ensure it performs. Mount shown with
shotgun mic (not included).
The Softie Mount comes in different sizes, depending on which
microphone being used:
• Medium Hole 21-22mm diameter (item #033702)
• Large Hole 24-25mm diameter (item #033703)
Page 24 of 36
NJEDge.Net Verizon FIOS Project
AT8410a
audio-technica Microphone Shock Mount
These Audio-Technica shock mounts provide excellent mechanical
isolation while offering unusual versatility and ease of use. Equally
adapted to cylindrical and tapered microphones, they attenuate
noise, shock and vibration transmitted through microphone stands,
booms and fixed microphone mounts.
The AT8410a permits easy microphone insertion and removal
without detaching the mic cable; its spring-loaded clamp holds even
heavy tapered microphones securely.
The AT8410a mounts directly to any stand with standard 5/8” – 27
threads, and includes a constant-tension clutch and 180 degree
swivel for easy, positive microphone adjustment. Isolation is
accomplished with elastic shock cord.
Page 25 of 36
NJEDge.Net Verizon FIOS Project
37400210
Audio Technica Screw Adapter
Product Description
This is a plastic screw adapter that allows the Shock Mount to be
threaded into the Boom Pole. It comes with the AT897 Line +
Gradient Condenser Microphone, but if its currently being used the
extra one will do the job.
Page 26 of 36
NJEDge.Net Verizon FIOS Project
UWPV1-4244
Lav Mic, Bodypack TX and Portable RX Wireless System
Professional Wireless Camcorder Microphone / Channels 42 and 44 Frequencies /
Consists of an omni lavalier microphone, bodypack transmitter and tuner
UWP Series UHF synthesized wireless Microphone system. Package includes a lavalier
microphone, bodypack transmitter and portable diversity tuner. Mounting Adapter for
camcorder included. Channels 42 to 44. The UWP-V1 includes extremely robust metal
construction, mic/line Input selection on the bodypack transmitter, a miniature metal body
omni-directional microphone and plus the Receiver includes a convenient auto channel
scanning function allowing automatic search for unoccupied channels. UWP Series
transmitters and receivers can also be purchased separately.
•
Consists of an omni lavalier microphone, bodypack transmitter and portable
tuner
•
Suitable for a wide range of applications, from news gathering and
interviews to talk shows and conferences
•
The lavalier microphone is supplied with microphone windscreens and a
microphone-holder clip
•
The bodypack transmitter is supplied with a belt clip
•
The tuner is supplied with a shoe-mount adaptor (for camcorder mounting)
and 2 cables (3-pole mini-plug/XLR and 3-pole mini-plug/stereo mini-plug)
•
Achieves stable transmission and reception by using a UHF PLL (Phase
Locked Loop) frequency synthesized system, which provides accurate
carrier signal frequencies. This system is used in both the transmitters and
tuners, so that a stable carrier is generated at the transmitter, and accurately
tuned in at the tuner. This PLL-controlled system provides highly stable,
user-selectable frequencies in increments of 125 kHz
•
Simultaneous operation of up to 16 wireless microphones. Optimum
combinations of practically tested, interference-free frequencies are stored in
the tuner. By using the pre-programmed frequency groups, users can easily
choose interference-free frequencies for the transmitters and tuners,
simplifying the Task of system setup
•
Space-diversity reception system, it achieves stable reception by using dualantenna inputs/reception circuits. These receive signals over two different
paths and automatically select the stronger RF signal for Output
Page 27 of 36
NJEDge.Net Verizon FIOS Project
Page 28 of 36
NJEDge.Net Verizon FIOS Project
Lowel DVC-91
Lowel DV Core 250 Kit
Big versatility in a small kit. 1 each, 250w Pro-light, 250w Rifa 44, & 500w V-light, plus umbrella, gel frames &
gels. Perfect for interviews, go soft key with the rifa & hard or soft fill with the Pro & umbrella. V-light seperately
illuminates the background for full control. Want a little room to grow? Choose the TO-83 hard case option.
Supplied with lamps.
With its high intensity #2 Reflector & Prismatic Glass, the tiny focusable Pro-light is more efficient than a minifresnel of equal wattage, yet it gives an exquisite even light, with fresnel like shadow quality. It can be used as a
low-level key or accent light, fill light (with diffusion), or back-light. In addition to a wide variety of customizing
accessories, its versatility can be increased by adding a DC adaptor cable & swapping its bulb for use as a
camera-top fixture.
Lowel Rifa-lite 44, the "Baby Rifa". An impressively compact, self-contained, 250 Watt AC/DC, collapsible soft
light that sets up in a minute or less. Bathe almost anything, from talking heads to table-top stills, in luxurious
almost fool-proof soft light. It's the perfect complement to today's compact, light-sensitive, digital cameras &
filmstocks.
Powerful enough to light a small room yet small enough to fit in a large pocket, the versatile V-light can be used
as a broad, key, fill (with umbrella or diffusion gel), back-light, or background light. It's also excellent for copy
work.
What's Included:
• 1 Pro-light (P1-10)
• 1 250w, 120v lamp (GCA)
• 1 Pro-light 4-way barndoors (iP-20)
• 1 V-light (V1-10) - 1 500w, 120v lamp (GDA)
• 1 Rifa-lite 44 (LC-44) - 1 250w, 120v lamp (GCA)
• 2 Uni-stands (UN-33)
• 1 Uni TO Stand (UN-55)
• 1 Tota Frame (T1-20)
• 1 Tota-brella ( T1-25)
• 1 Pro & i Gel Frame (iP-40)
• 1 Assorted Gels (T1-78)
• 1 Clear Glass (iP-49)
• 1 iP Swing-in Diffuser (iP-50H)
• 1 ViP-Lampak (ViP-61)
• 1 GO-85 Case
Page 29 of 36
NJEDge.Net Verizon FIOS Project
GO-85
Lowel GO 85 Case
Product Description
The addition of movable velcro partitions to these Lowel Hard
Cases brings a greater degree of packing flexibility to kit
arrangement. All have ribbed exteriors for extra strength & stacking
ability, andhinged lids. A permanent length-wise partition separates
lights from stands and movable velcro partitions allow custom
placement options.
Some larger cases have been updated with heavy-duty recessed
wheels & spring-loaded pulling handles. Most smaller cases come
with air-cushion padded adjustable shoulder straps. GO-85, TO-83
& TO-84Z cases all offer maximum versatility when combining ViP,
Tota/Omni & smaller Rifa systems. Consult individual cases for
number of lights, stands & accessories they can hold.
GO 85 Case
Code: GO-85
Weight: 10.3 lbs (4.7 kg).
Size: 23.75 x 13.5 x 7" (60.3 x 34.3 x 17.8 cm)
• High impact molded polyethylene case, hinged lid, with padded shoulder strap (SS-10).
• Holds 4 Omni-lights or 4 Tota-lights, or combinations which can also include Rifa 44, Pro &
V-lights, plus 4 Uni or Uni TO stands (one possible partition arrangement shown).
• Includes the following partitions: 2 GO-02 (7.75 x 4"), 3 GO-03 (4.5 x 4"), 1 GO-04 (3 x 4"), 1
GO-05 (22.75 x 4"), 1 LB-07 (11.5 x 3.5")
US List Price: $245.00
GO-85X Case (For Rifa eX Accessories)
Code: GO-85X
• With velcro partitions
• Holds contents of Brief eXchange Accessory Kit
US List Price: $245.00
Page 30 of 36
NJEDge.Net Verizon FIOS Project
LCZ1TH
Hard Transit Case for HDV Camcorder
The Sony LC-Z1TH Hard Transit Case is made by Thermodyne
for the Sony HVRZ1U 3CCD 1080i HDV camcorder is a heavy-duty
ATA type hard transit case suitable for airline or freight shipping.
This case has cutouts for holding the HVR-Z1U, its power supply
and all of its optional accessories. To facilitate carrying it, the LCZ1TH is equipped with wheels and long D shaped handles.
• Hard ATA type transit case made to transport an HDV camcorder.
• Suitable for airline or freight shipping
• Made by Thermodyne for Sony
• Carrying options
•
•
D shaped handles
Built-in wheels
Page 31 of 36
NJEDge.Net Verizon FIOS Project
Storage,
Bar Coding,
and Editing
Page 32 of 36
NJEDge.Net Verizon FIOS Project
DA42361872-05
Sandusky 72” Steel Storage Cabinet with 4 Adjustable
Shelves, Dove Gray
Note: Given to the College for storage of the Field Equipment.
Not to be lent out as Field Equipment.
•
•
•
•
•
Welded steel construction stands up to constant use.
4 adjustable shelves hold up to 180 lb each.
3-point locking system locks the doors on top, side and bottom.
Durable baked enamel finish resists dents and scratches.
Comes with handles, locking system and shelves.
Product Details
• Height – 72”
• Width – 36”
• Depth – 18”
• Color – Dove Gray
Page 33 of 36
NJEDge.Net Verizon FIOS Project
Dell Inspiron 1210
Model No: PP40S
Note: Given to the College as the computer used with
the Bar Code Scanner,
for the “Check Out” and “Check In” procedure.
Not to be lent out as Field Equipment.
Model No: PP40S
Processor:
Type: Intel Silverthorne
CPU: Intel Atom Z520 or Z530
L2 Cache: 512 KB
External bus frequency: 533 MHz
Memory
Capacities: 1 GB
Memory type: 533 MHz DDR2
Display
Height: 6.42 in
Width: 10.28 in
Diagonal: 12.1
Ports and Connectors
Audio
Integrated analog microphone
Integrated analog speaker
Microphone connector
One stereo headphone/speakers connector
Mini-Card
Two full size Mini Card slots
Network adapter
RJ-45 port
USB
Three 4-pin USB 2.0 connectors
Video
15-hole connector
Page 34 of 36
NJEDge.Net Verizon FIOS Project
Symbol LS2208
General Purpose Bar Code Scanner
Note: Given to the College as the Bar Code Scanner that is used with the
Dell Inspiron 1210, for the “Check Out” and “Check In” procedure.
Not to be lent out as Field Equipment.
LS2208-SR20007R-UR - Symbol LS 2208 Reader
The innovative LS 2208 of handheld scanners from Symbol Technologies
delivers performance features at an affordable price to make your buying
decision easier than ever.
The innovative LS 2208 handheld scanner from Symbol Technologies
delivers performance features at an affordable price to make your buying
decision easier than ever. If you're seeking investment protection in a
scanner that's small and light enough for maximum productivity, then the
LS 2208 Series is the ideal scanner for you.
Comes with Goosneck Stand, USB Cable, Seat.
Page 35 of 36
NJEDge.Net Verizon FIOS Project
iMac 24-inch widescreen computer
with Final Cut Express
Note: This is the Compute the “Lender” may use on the premises,
for editing the videos taken with the field equipment.
Not to be lent out as Field Equipment.
One iMac 24-inch widescreen computer with Final Cut Express is
given with each Field Equipment set.
Final Cut Express
Moviemaking package
This is the software used for editing the videos taken by the lender.
It comes installed on the iMac 24-inch widescreen computer.
Apple’s powerful moviemaking package now supports the latest
AVCHD cameras, features an open format Timeline, provides
iMovie ’09 compatibility, and offers sophisticated effects and filters.
Page 36 of 36
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
