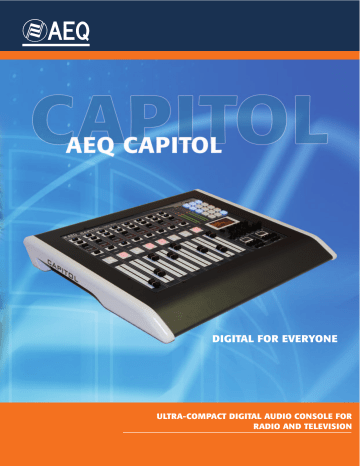

DIGITAL FOR EVERYONE
ULTRA-COMPACT DIGITAL AUDIO CONSOLE FOR
RADIO AND TELEVISION
Product Overview
The AEQ CAPITOL makes digital technology available to radio and
TV stations where digitalization has still not been feasible. AEQ CAPITOL was conceived taking into account our customers needs for a
versatile, powerful, easy to use and not less importantly, very cost
efficient digital mixer. Based upon the AEQ ARENA y FORUM digital
mixing consoles that are currently in service at thousands of studios
of both medium and high level, AEQ CAPITOL offers the same performance as the FORUM but in a “fixed” format; perfectly adapted
to the real needs of the majority of stations but with a limited number of options.
Main Features
Just as the FORUM, the AEQ CAPITOL is a digital audio mixing console specifically designed to meet the most rigorous demands of the
radio and television broadcast industry. Its flexible design allows it to
be readily adapted to any ON-AIR application.
The AEQ CAPITOL incorporates all of the features necessary at the
majority of stations: automatic monitor speaker cut-off, cough
muting, fader-start, control signalling, interface signalling for automation of external equipment, external communications management,
intercom, etc.
This compact console solution consists in a control surface and a
2RU mixer engine. There are two versions of the CAPITOL control
surface; a counter-sunk control surface that measures only 48,26 x
35,6 cm - 19"x14” (8RU) and a Desktop version with wooden side
panels - 56x46 cm - 22x18”. Thanks to its design and reduced footprint, AEQ CAPITOL adapts perfectly to any environment: auto-control, studio control, television production, sound production, mixed
configurations, integration in large installations, etc.
The CAPITOL’s control surface with its 8 faders and complete control sections can be substituted or supplemented with “VIRTUAL
CAPITOL”, a Windows based software application. The application
faithfully reproduces every detail of the control surface and all the
operational features of switches, rotary encoders and faders. It also
shows all information and internal menus that are visible in every
display of the physical control surface. This application opens new
possibilities to install fully remote controlled equipment at more
than affordable prices. Used as a remote control, the application provides the user with total control of all the features and functions of
the mixing console - including the remote representation of the Vumeters. Truly, the CAPITOL can be used in a completely unattended
broadcast station!
One of the primary features which sets the CAPITOL apart is its internal routing capability in combination with the available number of
inputs: 4 selectable Mic/Line Inputs, 12 Analogue Inputs, 4
AES/EBU Digital Stereo Inputs, 2 USB Digital Stereo Inputs for broadcast automation, 2 optional Inputs through Digital telephone
Hybrids and an additional 64 input signals via an optional MADI
multi-channel fiber-optic link.
2
The Output section of the CAPITOL is not less impressive; 8 analog
Outputs, 4 AES/EBU Digital Stereo Outputs, 2 USB Digital Stereo
Outputs for broadcast automation, 2 optional Outputs through
Digital Telephone Hybrids and optionally an additional 64 Outputs
signals via a MADI multi-channel fiber-optic link. Further, the console counts on Outputs for Control room headphone, Studio primary
and secondary Headphones, Control, Studio and CUE monitors.
Each of CAPITOL’s basic functions such as setup, level adjustment,
and signal routing have their own specific control for each channel.
Less used settings are grouped into contextual controls common for
all channels and are accessible by just one or two button pushes:
simplicity and ease of use provides for very dynamic system control
and greatly reduces operator error.
CAPITOL’s configuration allows any signal present within the system
to freely be assigned to any control channel and signal distribution
and routing configuration is done on the control surface itself.
Signals that are not assigned to any specific channel can even so be
routed with total flexibility. Input and Output levels can also be easily
adjusted.
CAPITOL has a built-in memory bank where each signal’s settings
are stored: signal distribution via the control surface, output bus
routing, setup parameters, effects, etc. This allows the console to
easily be adapted to different programming needs and unique technical requirements.
The Ethernet connector enables external connectivity for the optional software applications "AEQ CAPITOL Configuration" and "VIRTUAL CAPITOL" that provides the mixer with a powerful remote control.
INTRODUCCIÓN
Connectivity & Flexibility
Control surface connection
Optional redundant
Power supply
USB digital
LAN
audio
Inputs/Outputs
Optional MADI Digital audio
multi-channel connection
Relay GPO
Monitor Output
Opto-coupled
GPI-GPO
Optional dual line digital
telephone hybrid
AES/EBU Inputs/Outputs
Analog Outputs
Mic./Line Inputs
Analog Inputs
As with the rest of AEQ’s audio mixing consoles, a major design consideration of the CAPITOL was its ease of installation and configuration. Therefore its 2RU auto-ventilated audio engine can be installed wherever required. The only communication link required between the engine and the control surface is a CAT-5 cable.
CAPITOL’s flexible I/O capabilities allows it to be interfaced with
external devices for cough muting, device remote control, ON-AIR
lights, etc. by using its General Purpose Inputs and Outputs. CAPITOL is well prepared with a total of 8 opto-coupled GPI’s, 8 optocoupled GPO’s and 4 GPO’s with relays.
CAPITOL also has a built-in Ethernet port for configuration and control through Software applications for Windows based PC’s.
For monitoring and control, the CAPITOL audio engine has a set of
pre-defined I/O´s for Control room Headphones, Studio primary and
secondary Headphones, Control, Studio and CUE monitors. It is possible to configure an additional bus to be used for secondary headphones monitoring and that will provide for independent talkback
and control intercom.
The Basic audio Inputs and Outputs are:
Inputs:
• 4 mic./line mono inputs, configurable with phantom power.
• 2 USB (I/O) digital stereo inputs
• 4 AES/EBU digital stereo inputs that can be configured as SPDIF
• 12 analog inputs (can be configured as mono inputs or as 6 stereo inputs)
Output:
• 2 USB (I/O) digital stereo outputs
• 4 AES/EBU digital stereo outputs that can be configured as SPDIF
• 8 analog outputs (can be configured as mono inputs or as 4 stereo outputs alternatively 3 stereo outputs and one secondary headphone output)
Dedicated control and monitoring outputs:
Analog stereo outputs for Control , Studio , CUE and Studio primary
Headphone monitoring.
Analog stereo outputs for amplified Control Headphones, jack ¼”.
Options:
Dual line Digital Telephone Hybrid with two RJ-11 Line connectors
and two RJ-11 connectors for Telephone SET. Telephone Hybrid
remote control is accomplished through the programmable keys in
the control section of the CAPITOL.
For general purpose audio inputs and outputs, CAPITOL can be fitted with a bi-directional MADI fiber-optic interface capable of handling up to 64 digital inputs and outputs.
A second AC power supply can be installed in the 2RU Engine of the
CAPITOL, providing the system with redundant power supply.
Control Headphones
Protected mains power switch
To facilitate cabling, optional audio and data cables with pre-installed
DB connectors are available from AEQ upon request.
3
Control Surface (Channels)
CAPITOL’s control surface provides 8 channel faders and an area
dedicated to signal adjustments, programming, monitoring and talkback.
The surface consists in an 8RU panel with normalized 19" width.
The CAPITOL control surface comes, as previously mentioned in two
versions; either integrated in a desktop chassis with white wooden
side-trims , providing the control surface with an ergonomic inclination for the operator or; without desktop chassis, as an 8RU 19” control surface to be counter-sunk, horizontally integrated with the the
studio furniture desktop.
All of CAPITOL’s signal channels are completely user-definable.
System signals can easily be assigned and re-assigned to the channel faders; a particular channel can control any given signal at one
moment and a different one in another. This facilitates unique signal
to channel distribution, and allows CAPITOL to be easily adapted to
distinct programming requirements and to suit different operational
needs.
CAPITOL packs a tremendous amount of power and flexibility into its
small footprint. In addition to signals present on the control surface
which can be mixed, processed, and sent to any output channel,
CAPITOL can adjust the level and routing of all its available physical
channels, including those that are not “visible”, i.e. not assigned to
any specific channel.
At the top of each channel section there are 2 routing buttons and
1 channel selection button that is used to assign the channel to the
common controls for the advanced configuration parameters: (gain,
dynamics, equalization, balance, and send to Auxiliar channels or
Telephones).
Next is an OLED display screen which shows the channel’s name
and status as well as the balance level. Beneath, a CUE button along
with a LED that indicates activity or applied process, i.e. equalization,
filters, dynamics and gain. Finally, the last two elements are the
channels on/off button that at the same time serves as the channel
ON-AIR status indicator and the 100 mm (4”) fader.
2 main routing switches
Channel selection switch for
advanced configurations
OLED Display: shows channel name,
status, and balance/panoramic level
CUE switch
Active process Indicator
CAPITOL Standard control surface without the desktop chassis
mounted, ready to be counter-sunk.
Channel On/Off switch and
ON-AIR status indicator
100 mm (4”) fader
CAPITOL Standard control surface with the desktop chassis.
4
INTRODUCCIÓN
Control Surface (Settings,
Programming, Monitoring and Talk-Back)
ADDITIONAL FUNCTIONALITY
AEQ CAPITOL allows the user to program pre-defined special functions such as: GPI’s and GPO’s, controls for hybrids and codecs, sending signals to the VU meters, or setting up additional intercom routing.
General functionality includes adjustment and instantaneous activation of audio effects: equalization, filters, limiters, etc., memory
management and configuration, general effects disconnect, timer,
stopwatch, phase change, test signal insertion, etc.
15 programmable keys are also provided to assign programmed functions and to enable/disable such functions during operations.
ADVANCED CONFIGURATION DISPLAY AND CONTROLS
Each of CAPITOL´s fader channels has an advanced settings button.
Configuration is carried out by using the multi-function integrated
OLED display in the monitor and control section on the right side of
the console. The rotary encoders and switches associated with the display are used to scroll through the contextual graphic menus.
Dual assignable
precision VU-meters
Programmable
function keys
Multi-function display
Selection buttons and
rotary encoders
associated to the
Multi-function display
MONITORING
The control surface also has two integrated high precision digital
stereo VU meters, each of which can be assigned to display either
Master or CUE outputs.
CAPITOL has two sections for the independent monitoring of the
control room and the studio. There are separate level controls for
control room speakers(monitors), studio speakers(monitors), and
headphones, as well as CAPITOLS additional CUE monitoring output that is available on the CAPITOL 2RU engine. The studio and
control room monitor sections have an OLED display each where
selections can be visualized.
CAPITOL also includes independent and centralized control of ONAIR signalling for the signals assigned to speakers and headphones
and their levels, cough muting, CUE mute, etc.
TALK-BACK
There are two independent pre-set intercom paths between the
console and the studio for speakers and headphones. Additional
intercom lines can be established to facilitate management of
communication within the system. For example, a talk-back microphone signal can be sent to individual hybrid and audio codec
returns.
Control room, studio,
and talk-back
monitoring
4 PTT buttons for
direct intercom
5
System Components
BASIC COMPONENT
AUDIO ENGINE or CORE UNIT : CA 01
Ina 2RU 19” frame all the processing power and the audio I/O connectivity is concentrated. It also houses the GPI’s and GPO’s , LAN Ethernet and
the bus connection for the physical control surface.
CONTROL SURFACE
PHYSICAL CONTROL SURFACE: CA RK
Consists in an 8RU 19” panel that can be mounted in a
desktop chassis- CA DT. It holds 8 channel fader controls.
PHYSICAL CONTROL SURFACE: CA DT
Control surface integrated in a desktop chassis
with white, wooden side-trims with the name
CAPITOL.
In both are included 8 channel fader controls with:
• 100 mm (4”) Fader.
• Channel On/Off switch and ON-AIR status indicator.
• Active process Indicator.
• CUE switch.
• 2 main routing switches.
• Channel selection switch for advanced configurations.
• OLED Display: shows channel name, status, and balance/panorama
level.
An area for settings, programming, monitoring and Talk-back with:
• Dual assignable precision VU-meters.
• 15 Programmable function keys.
• Multi-function display.
• Selection buttons and rotary encoders associated to the Multi-function
display.
• Control room, studio, and talk-back monitoring.
• 4 PTT buttons for direct intercom with Studio or external lines.
VIRTUAL CAPITOL: CA VI – Virtual control surface
VIRTUAL CAPITOL is a Windows based software application. The application faithfully reproduces every detail of the control surface and all the
operational features of switches, rotary encoders and faders. The complete functionality of the physical control surface CA CH available on a SW
application and can run in parallel with or substitute the control surface,
temporarily or permanently, locally or remotely.
6
OPTIONS
REDUNDANT POWER SUPPLY: CA PS
Optional redundant power
supply module, auto-range
100-240 V. 50/60 Hz.
Easily installed in the audio
engine or “Core Unit”. The
audio engine or “Core Unit” is fitted with the necessary external connectors from factory.
DUAL LINE DIGITAL TELEPHONE HYBRID
MÓDULE: CA 33
Internal board with dual
line digital telephone
hybrids. Electrical echo
cancellation by DSP.
Easily installed in the
audio engine or “Core Unit”. The audio engine or
“Core Unit” is fitted with the necessary external
connectors for LINEs and SETs from factory.
MADI MODULE: CA 11
Handles up to 64 audio channels in each direction allowing
CAPITOL to communicate with
another console or a router up to 2000 meters
away using a simple pair of fiber-optic links. The
audio engine or “Core Unit” is fitted from factory
with the necessary external connector for the bidirectional fiber-optic ports (input and output).
SOFTWARE MONITORING APPLICATION
CAPITOL SCREEN: CA SC
This PC Windows based SW application multiplies
in quantity and size the different meters and
indicators for monitoring that the control surface of
the mixer incorporates. Indicative levels corresponding to the Vu-/peak-meters for the most important signals on the console are transmitted through
TCP/IP. Further, indications with regards to the routing of the different signals to the phone and mixminus buses, the status of each phone line, system
date and time plus On-air signalling are also part of
the informative monitoring available through this
application.
INTRODUCCIÓN
CABLES
Our pre-fabricated data and audio cables allow quick and easy connection of the CAPITOL console in nearly any standard installation, and
are provided upon request. The cables come with DB type connectors on the console side and open-end on the other. Their ample length
allows them to be cut-to-length to fit your particular application. The open-end can be soldered into your patch panel, have terminals lugs
installed, or used in a punch-down block.
FR CAB INP
Male DB15 connector installed on a four
pair, balanced and shielded 4 meter
open-end cable, for 4 inputs or outputs.
FR CAB GPIO
Male DB15 connector installed on a
balanced and shielded 4 meter openend cable, for Opto-coupled GPI’s and
GPO’s and the relay fitted GPO.
Cables terminated with connectors on both ends and of other lengths can be supplied upon request.
CAPITOL DIGITAL MIXING CONSOLE SPECIFICATIONS
Analog stereo outputs for amplified Control Headphones, jack ¼”
of 8 opto-coupled GPI’s, 8 opto-coupled GPO’s and 4 GPO’s with
relays.
Functionality
Cough mute, studio and control room ON-AIR signalling, faderstart, remote PFL, talk-back, automatic speaker mute.
N-1 output configuration.
Integrated external equipment control (AEQ hybrids and codecs)
via programmable key section.
Optional pre-fader / post-fader for all routing.
Control communication via 10/100 Ethernet connection using
TCP/IP protocol.
Selectable boot-up – using last used settings or default settings.
System signals can be assigned to any control channel.
System settings are stored in the on-board memory: 1 default
basic factory configuration and 6 user defined configurations.
Optional Inputs and Outputs
Dual line Digital Telephone Hybrid with two RJ-11 Line connectors
and two RJ-11 connectors for Telephone SET.
Bi-directional MADI fiber-optic interface handling up to 64 digital
inputs and outputs.
General Features
All system signals configurable for monitoring in Control, Studio,
CUE Headphones and VU-meters.
2 direct-routing buttons on each channel.
Silent operation by convection cooling. CAPITOL is ideally suited
for self-operated applications.
Talk-back function can be assigned to any Microphone- 4 PTT
buttons for direct intercom.
Built-in headphone outputs.
2 precision stereo VU meters.
Test tone generator.
Clock, timer and stopwatch.
Phase meter.
Redundant power supply (optional).
Phantom power and electronic balancing on microphone inputs.
Electronically balanced analog line inputs and outputs.
Transformer balanced digital inputs and outputs.
Sampling rate converters for the digital inputs.
Optional redundant power supply.
Dimensions and weights
Standard Inputs and Outputs
4 mic./line mono inputs, configurable with phantom power.
2 USB (I/O) digital stereo inputs/outputs.
4 AES/EBU digital stereo inputs/4 AES/EBU digital stereo outputs
that can be configured as SPDIF.
12 analog inputs/8 analog outputs (can be configured as individual stereo pairs).
Analog stereo outputs for Control, Studio, CUE and Studio primary
Headphone monitoring.
System Processing Capacity
48 kHz, 24 bit internal sampling frequency.
± 12 DB gain control (analog and digital signals – including signals
not visible on control surface).
Gain control - microphone inputs: from 19 to 74dB
Selectable balance/panoramic control on all channels.
Selective phase reverse.
Audio processing for 16 stereo signals (up to 8 in fader and 8 signals not visible on control surface).
Pre-defined audio processing that allows manual adjustment.
Available audio effects: 3 band equalizer, high pass and low pass
filters, compressor/limiter, and noise gate.
AUDIO ENGINE or CORE UNIT: CA 01
Weight: 5,2 - 6 Kg (11.5 - 13.2 lbs) depending on options.
Width: 482 mm ( 19 “) Height: 2 RU. 89 mm. (3 1/2 ”).
Depth: 330 mm (13 ”).
CONTROL SURFACE: CA RK
Weight: 4 Kg (9 lbs).
Front: Width 482 mm ( 19 “) “) Height 8RU. 355 mm. (14 ”).
Depth: 40 mm ( 1.58 “).
Cut-out for counter sinking.
Width: 445 mm ( 17,52 “) Height: 335 mm. (13,20 ”).
CONTROL SURFACE : CA DT
Weight: 6,3 Kg (14 lbs).
Width: 560 mm ( 22.04 “). Height 455 mm. (17,92 ”).
Depth: 75 mm (2.95 “).
7
International Sales
Margarita Salas, 24 · 28919 · Leganés · Madrid · Spain
Phone: +34 91 686 13 00 · Fax: +34 91 686 44 92
e-mail: [email protected] · website: www.aeq.eu
AEQ USA
4121 SW 47 Avenue, Suite 1303 · Fort Lauderdale · FL 33314
Phone: +1 954 581 7999 Toll Free: 1-800-728-0536 (US only)
Fax: +1 954-581-7733
e-mail: [email protected] · website: www.aeqbroadcast.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
