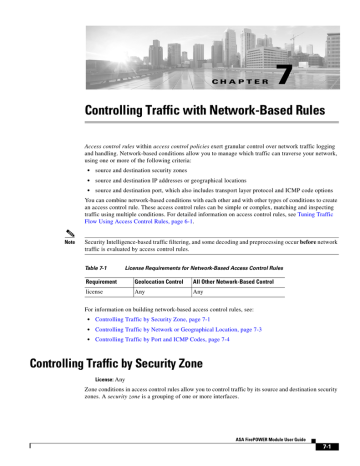

CH A P T E R
7
Controlling Traffic with Network-Based Rules
Access control rules within access control policies exert granular control over network traffic logging
and handling. Network-based conditions allow you to manage which traffic can traverse your network,
using one or more of the following criteria:
•
source and destination security zones
•
source and destination IP addresses or geographical locations
•
source and destination port, which also includes transport layer protocol and ICMP code options
You can combine network-based conditions with each other and with other types of conditions to create
an access control rule. These access control rules can be simple or complex, matching and inspecting
traffic using multiple conditions. For detailed information on access control rules, see Tuning Traffic
Flow Using Access Control Rules, page 6-1.
Note
Security Intelligence-based traffic filtering, and some decoding and preprocessing occur before network
traffic is evaluated by access control rules.
Table 7-1
License Requirements for Network-Based Access Control Rules
Requirement
Geolocation Control
All Other Network-Based Control
license
Any
Any
For information on building network-based access control rules, see:
•
Controlling Traffic by Security Zone, page 7-1
•
Controlling Traffic by Network or Geographical Location, page 7-3
•
Controlling Traffic by Port and ICMP Codes, page 7-4
Controlling Traffic by Security Zone
License: Any
Zone conditions in access control rules allow you to control traffic by its source and destination security
zones. A security zone is a grouping of one or more interfaces.
ASA FirePOWER Module User Guide
7-1
Chapter 7
Controlling Traffic with Network-Based Rules
Controlling Traffic by Security Zone
As a simple example, you could create two zones: Internal and External, and assign the first pair of
interfaces on the device to those zones. Hosts connected to the network on the Internal side represent
your protected assets.
To extend this scenario, you could deploy additional identically configured devices to protect similar
resources in several different locations. Each of these devices protects the assets in its Internal security
zone.
Tip
You are not required to group all internal (or external) interfaces into a single zone. Choose the grouping
that makes sense for your deployment and security policies. For more information on creating zones, see
Working with Security Zones, page 2-32.
In this deployment, you may decide that although you want these hosts to have unrestricted access to the
Internet, you nevertheless want to protect them by inspecting incoming traffic for intrusions and
malware.
To accomplish this using access control, configure an access control rule with a zone condition where
the Destination Zone is set to Internal. This simple access control rule matches traffic that leaves the device
from any interface in the Internal zone.
To ensure that the system inspects matching traffic for intrusions and malware, choose a rule action of
Allow, then associate this rule with an intrusion and a file policy. For more information, see Using Rule
Actions to Determine Traffic Handling and Inspection, page 6-6 and Controlling Traffic Using Intrusion
and File Policies, page 10-1.
If you want to build a more complex rule, you can add a maximum of 50 zones to each of the Source Zones
and Destination Zones in a single zone condition:
•
To match traffic leaving the device from an interface in the zone, add that zone to the Destination
Zones.
Because devices deployed passively do not transmit traffic, you cannot use a zone comprised of
passive interfaces in a Destination Zone condition.
•
To match traffic entering the device from an interface in the zone, add that zone to the Source Zones.
•
If you add both source and destination zone conditions to a rule, matching traffic must originate
from one of the specified source zones and egress through one of the destination zones.
When building a zone condition, warning icons indicate invalid configurations. For details,
Troubleshooting Access Control Policies and Rules, page 4-14.
To control traffic by zone:
Step 1
In the access control policy where you want to control traffic by zone, create a new access control rule
or edit an existing rule.
For detailed instructions, see Creating and Editing Access Control Rules, page 6-2.
Step 2
In the rule editor, select the Zones tab.
The Zones tab appears.
Step 3
Find and select the zones you want to add from the Available Zones.
To search for zones to add, click the Search by name prompt above the Available Zones list, then type a zone
name. The list updates as you type to display matching zones.
Click to select a zone. To select multiple zones, use the Shift and Ctrl keys, or right-click and then select
Select All.
ASA FirePOWER Module User Guide
7-2
Chapter 7
Controlling Traffic with Network-Based Rules
Controlling Traffic by Network or Geographical Location
Step 4
Click Add to Source or Add to Destination to add the selected zones to the appropriate list.
You can also drag and drop selected zones.
Step 5
Save or continue editing the rule.
You must apply the access control policy for your changes to take effect; see Applying an Access Control
Policy, page 4-10.
Controlling Traffic by Network or Geographical Location
License: feature dependent
Network conditions in access control rules allow you to control traffic by its source and destination IP
address. You can either:
•
explicitly specify the source and destination IP addresses for the traffic you want to control, or
•
use the geolocation feature, which associates IP addresses with geographical locations, to control
traffic based on its source or destination country or continent
When you build a network-based access control rule condition, you can manually specify IP address and
geographical locations. Alternately, you can configure network conditions with network and geolocation
objects, which are reusable and associate a name with one or more IP addresses, address blocks,
countries, continents, and so on.
Tip
After you create a network or geolocation object, you can use it not only to build access control rules,
but also to represent IP addresses in various other places in the system’s module interface. You can create
these objects using the object manager; you can also create network objects on-the-fly while you are
configuring access control rules. For more information, see Managing Reusable Objects, page 2-1.
Note that if you want to write rules to control traffic by geographical location, to ensure you are using
up-to-date geolocation data to filter your traffic, Cisco strongly recommends you regularly update the
geolocation database (GeoDB) on your ASA FirePOWER module; see Updating the Geolocation
Database, page 35-19.
Table 7-2
License Requirements for Network Conditions
Requirement
Geolocation Control
IP Address Control
license
Any
Any
You can add a maximum of 50 items to each of the Source Networks and Destination Networks in a single
network condition, and you can mix network and geolocation-based configurations:
•
To match traffic from an IP address or geographical location, configure the Source Networks.
•
To match traffic to an IP address or geographical location, configure the Destination Networks.
If you add both source and destination network conditions to a rule, matching traffic must originate from
one of the specified IP addresses and be destined for one of the destination IP addresses.
When building a network condition, warning icons indicate invalid configurations. For details, see
Troubleshooting Access Control Policies and Rules, page 4-14.
ASA FirePOWER Module User Guide
7-3
Chapter 7
Controlling Traffic with Network-Based Rules
Controlling Traffic by Port and ICMP Codes
To control traffic by network or geographical location:
Step 1
In the access control policy where you want to control traffic by network, create a new access control
rule or edit an existing rule.
For detailed instructions, see Creating and Editing Access Control Rules, page 6-2.
Step 2
In the rule editor, select the Networks tab.
The Networks tab appears.
Step 3
Find and select the networks you want to add from the Available Networks, as follows:
•
Click the Networks tab to display network objects and groups to add; click the Geolocation tab to
display geolocation objects.
•
To add a network object on the fly, which you can then add to the condition, click the add icon (
above the Available Networks list; see Working with Network Objects, page 2-3.
•
To search for network or geolocation objects to add, select the appropriate tab, click the Search by
name or value prompt above the Available Networks list, then type an object name or the value of one
of the object’s components. The list updates as you type to display matching objects.
)
To select an object, click it. To select multiple objects, use the Shift and Ctrl keys, or right-click and then
select Select All.
Step 4
Click Add to Source or Add to Destination to add the selected objects to the appropriate list.
You can also drag and drop selected objects.
Step 5
Add any source or destination IP addresses or address blocks that you want to specify manually.
Click the Enter an IP address prompt below the Source Networks or Destination Networks list; then type an IP
address or address block and click Add.
Step 6
Save or continue editing the rule.
You must apply the access control policy for your changes to take effect; see Applying an Access Control
Policy, page 4-10.
Controlling Traffic by Port and ICMP Codes
License: Any
Network conditions in access control rules allow you to control traffic by its source and destination port.
In this context, “port” refers to one of the following:
•
For TCP and UDP, you can control traffic based on the transport layer protocol. The system
represents this configuration using the protocol number in parentheses, plus an optional associated
port or port range. For example: TCP(6)/22.
•
For ICMP and ICMPv6 (IPv6-ICMP), you can control traffic based on its Internet layer protocol
plus an optional type and code. For example: ICMP(1):3:3.
•
You can control traffic using other protocols that do not use ports.
ASA FirePOWER Module User Guide
7-4
Chapter 7
Controlling Traffic with Network-Based Rules
Controlling Traffic by Port and ICMP Codes
When you build a port-based access control rule condition, you can manually specify ports. Alternately,
you can configure port conditions with port objects, which are reusable and associate a name with one
or more ports.
Tip
After you create a port object, you can use it not only to build access control rules, but also to represent
ports in various other places in the system’s module interface. You can create port objects either using
the object manager or on-the-fly while you are configuring access control rules. For more information,
see Working with Port Objects, page 2-9.
You can add a maximum of 50 items to each of the Selected Source Ports and Selected Destination Ports lists
in a single network condition:
•
To match traffic from a port, configure the Selected Source Ports.
If you add only source ports to a condition, you can add ports that use different transport protocols.
For example, you can add both DNS over TCP and DNS over UDP as source port conditions in a
single access control rule.
•
To match traffic to a port, configure the Selected Destination Ports.
If you add only destination ports to a condition, you can add ports that use different transport
protocols.
•
To match traffic both originating from specific Selected Source Ports and destined for specific Selected
Destination Ports, configure both.
If you add both source and destination ports to a condition, you can only add ports that share a single
transport protocol (TCP or UDP). For example, if you add DNS over TCP as a source port, you can
add Yahoo Messenger Voice Chat (TCP) as a destination port but not Yahoo Messenger Voice Chat
(UDP).
Keep the following points in mind when building a port condition:
•
When you add a destination ICMP port with the type set to 0 or a destination ICMPv6 port with the
type set to 129, the access control rule only matches unsolicited echo replies. ICMP echo replies
sent in response to ICMP echo requests are ignored. For a rule to match on any ICMP echo, use
ICMP type 8 or ICMPv6 type 128.
•
When you use the GRE (47) protocol as a destination port condition, you can only add other
network-based conditions to the access control rule, that is, zone, and network conditions. You
cannot save the rule if you add reputation or user-based conditions.
When building a port condition, warning icons indicate invalid configurations. For example, you can use
the object manager to edit in-use port objects so that the rules that use those object groups become
invalid. For details, see Troubleshooting Access Control Policies and Rules, page 4-14.
To control traffic by port:
Step 1
In the access control policy where you want to control traffic by port, create a new access control rule
or edit an existing rule.
For detailed instructions, see Creating and Editing Access Control Rules, page 6-2.
Step 2
In the rule editor, select the Ports tab.
The Ports tab appears.
Step 3
Find and select the ports you want to add from the Available Ports, as follows:
ASA FirePOWER Module User Guide
7-5
Chapter 7
Controlling Traffic with Network-Based Rules
Controlling Traffic by Port and ICMP Codes
•
To add a port object on the fly, which you can then add to the condition, click the add icon (
above the Available Ports list; see Working with Port Objects, page 2-9.
)
•
To search for port objects and groups to add, click the Search by name or value prompt above the
Available Ports list, then type either the name of the object, or the value of a port in the object. The
list updates as you type to display matching objects. For example, if you type 80, the ASA
FirePOWER module displays the Cisco-provided HTTP port object.
To select an object, click it. To select multiple objects, use the Shift and Ctrl keys, or right-click and
then select Select All.
Step 4
Click Add to Source or Add to Destination to add the selected objects to the appropriate list.
You can also drag and drop selected objects.
Step 5
Add any source or destination ports that you want to specify manually.
•
For source ports, select either TCP or UDP from the Protocol drop-down list under the Selected Source
Ports list. Then, enter a Port. You can specify a single port with a value from 0 to 65535.
•
For destination ports, select a protocol (including All for all protocols) from the Protocol drop down
list under the Selected Destination Ports list. You can also type the number of an unassigned protocol
that does not appear in the list.
If you select ICMP or IPv6-ICMP, a pop-up window appears where you can select a type and a related
code. For more information on ICMP types and codes, see
http://www.iana.org/assignments/icmp-parameters/icmp-parameters.xml and
http://www.iana.org/assignments/icmpv6-parameters/icmpv6-parameters.xml.
If you do not want to specify a protocol, or optionally if you specified TCP or UDP, enter a Port. You
can specify a single port with a value from 0 to 65535.
Click Add. Note that the ASA FirePOWER module will not add a port to a rule condition that results in
an invalid configuration.
Step 6
Save or continue editing the rule.
You must apply the access control policy for your changes to take effect; see Applying an Access Control
Policy, page 4-10.
ASA FirePOWER Module User Guide
7-6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
