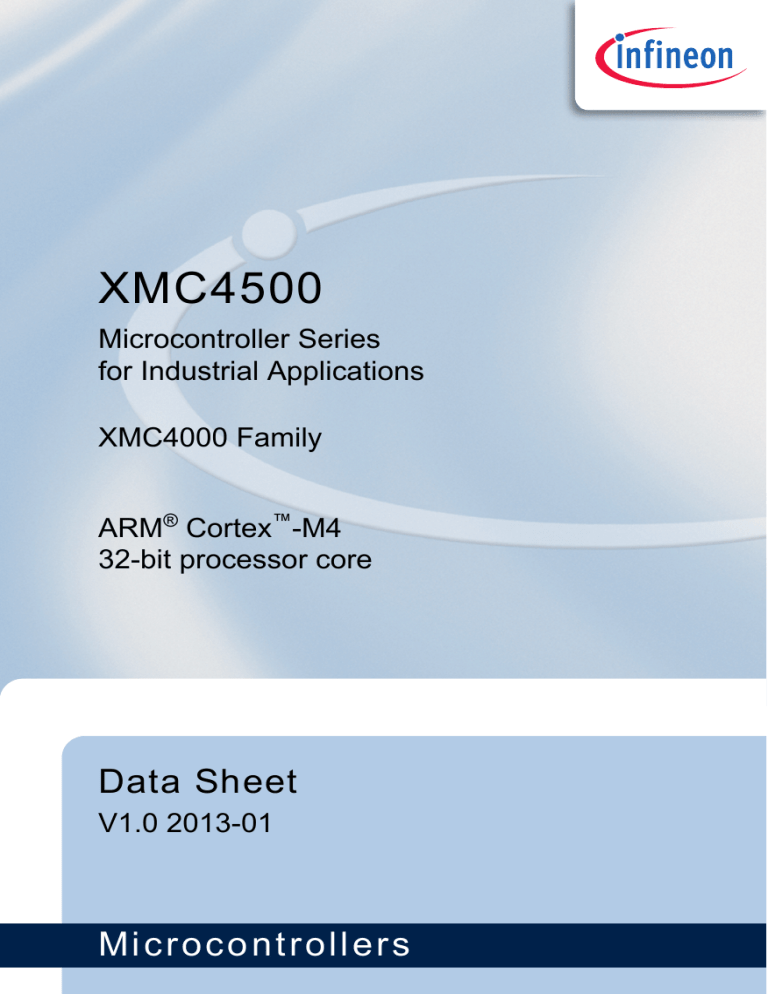

XMC4500
Microcontroller Series
for Industrial Applications
XMC4000 Family
ARM® Cortex™-M4
32-bit processor core
Data Sheet
V1.0 2013-01
Microcontrollers
Edition 2013-01
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2013 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties
and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights
of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in
question, please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
XMC4500
Microcontroller Series
for Industrial Applications
XMC4000 Family
ARM® Cortex™-M4
32-bit processor core
Data Sheet
V1.0 2013-01
Microcontrollers
XMC4500
XMC4000 Family
XMC4500 Data Sheet
Revision History: V1.0 2013-01
Previous Versions:
V0.9, 2012-12
V0.8, 2012-11
Page
Subjects
11
Reflect the supported Ethernet interface depending on the package (MII,
RMII).
33
Characterization and qualification completed for PG-LQFP-144 and PGLQFP-100.
56
Changed frequency dependency of the IDDP current from 5 mA per 10 MHz
to 6 mA per 10 MHz (see footnote 10).
66
Improved Fast Internal Clock Source parameters.
72
DSD timing parameters will be added in a future revision of the Data Sheet.
Trademarks
C166™, TriCore™ and DAVE™ are trademarks of Infineon Technologies AG.
ARM®, ARM Powered® and AMBA® are registered trademarks of ARM, Limited.
Cortex™, CoreSight™, ETM™, Embedded Trace Macrocell™ and Embedded Trace
Buffer™ are trademarks of ARM, Limited.
Synopsys™ is a trademark of Synopsys, Inc.
We Listen to Your Comments
Is there any information in this document that you feel is wrong, unclear or missing?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to:
[email protected]
Data Sheet
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Table of Contents
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1
1.1
1.2
1.3
1.4
1.5
Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Device Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Device Type Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Definition of Feature Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Identification Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2
2.1
2.2
2.2.1
2.2.2
2.2.2.1
General Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Logic Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Configuration and Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Pin Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port I/O Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Port I/O Function Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
14
17
20
26
27
3
3.1
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
3.2
3.2.1
3.2.2
3.2.3
3.2.4
3.2.5
3.2.6
3.2.7
3.2.8
3.2.9
3.3
3.3.1
3.3.2
3.3.3
3.3.4
3.3.5
3.3.6
Electrical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parameter Interpretation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Reliability in Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pad Driver and Pad Classes Summary . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input/Output Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog to Digital Converters (VADC) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital to Analog Converters (DAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Out-of-Range Comparator (ORC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Die Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB OTG Interface DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . .
Oscillator Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Memory Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power-Up and Supply Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phase Locked Loop (PLL) Characteristics . . . . . . . . . . . . . . . . . . . . . .
Internal Clock Source Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . .
JTAG Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
33
33
34
35
36
37
38
38
43
47
49
51
52
54
56
59
61
61
62
63
65
66
68
Data Sheet
5
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Table of Contents
3.3.7
3.3.8
3.3.9
3.3.9.1
3.3.9.2
3.3.9.3
3.3.9.4
3.3.9.5
3.3.10
3.3.10.1
3.3.10.2
3.3.10.3
3.3.10.4
3.3.11
3.3.12
3.3.12.1
3.3.12.2
3.3.12.3
3.3.12.4
4
4.1
4.1.1
4.2
4.3
Data Sheet
Serial Wire Debug Port (SW-DP) Timing . . . . . . . . . . . . . . . . . . . . . . . . 70
Embedded Trace Macro Cell (ETM) Timing . . . . . . . . . . . . . . . . . . . . . 71
Peripheral Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Delta-Sigma Demodulator Digital Interface Timing . . . . . . . . . . . . . . 72
Synchronous Serial Interface (USIC SSC) Timing . . . . . . . . . . . . . . 72
Inter-IC (IIC) Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Inter-IC Sound (IIS) Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . 77
SDMMC Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
EBU Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
EBU Asynchronous Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
EBU Burst Mode Access Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
EBU Arbitration Signal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
EBU SDRAM Access Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
USB Interface Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Ethernet Interface (ETH) Characteristics . . . . . . . . . . . . . . . . . . . . . . . 103
ETH Measurement Reference Points . . . . . . . . . . . . . . . . . . . . . . . 103
ETH Management Signal Parameters (ETH_MDC, ETH_MDIO) . . 104
ETH MII Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
ETH RMII Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Package and Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quality Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
107
107
107
108
111
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
About this Document
About this Document
This Data Sheet is addressed to embedded hardware and software developers. It
provides the reader with detailed descriptions about the ordering designations, available
features, electrical and physical characteristics of the XMC4500 series devices.
The document describes the characteristics of a superset of the XMC4500 series
devices. For simplicity, the various device types are referred to by the collective term
XMC4500 throughout this manual.
XMC4000 Family User Documentation
The set of user documentation includes:
•
•
•
Reference Manual
– decribes the functionality of the superset of devices.
Data Sheets
– list the complete ordering designations, available features and electrical
characteristics of derivative devices.
Errata Sheets
– list deviations from the specifications given in the related Reference Manual or
Data Sheets. Errata Sheets are provided for the superset of devices.
Attention: Please consult all parts of the documentation set to attain consolidated
knowledge about your device.
Application related guidance is provided by Users Guides and Application Notes.
Please refer to http://www.infineon.com/xmc4000 to get access to the latest versions
of those documents.
Data Sheet
7
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
1
Summary of Features
The XMC4500 devices are members of the XMC4000 Family of microcontrollers based
on the ARM Cortex-M4 processor core. The XMC4000 is a family of high performance
and energy efficient microcontrollers optimized for Industrial Connectivity, Industrial
Control, Power Conversion, Sense & Control.
System
Masters
System
Slaves
SCU
RTC
CPU
TM
®
ERU0
ARM Cortex -M4
GPDMA0
System
DCode
GPDMA1
Ethernet
WDT
USB
OTG
ICode
FCE
Bus Matrix
Data
Code
PSRAM
PMU
ROM & Flash
USIC0
DSD
PBA0
CCU80
CCU81
DSRAM2
LEDTS0
CCU43
Peripherals 0
ERU1
Figure 1
POSIF1
DSRAM1
VADC
POSIF0
EBU
PORTS
DAC
PBA1
Peripherals 1
CCU40
CCU41
CCU42
SDMMC
USIC2
USIC1
CAN
System Block Diagram
CPU Subsystem
•
•
•
•
•
•
CPU Core
– High Performance 32-bit ARM Cortex-M4 CPU
– 16-bit and 32-bit Thumb2 instruction set
– DSP/MAC instructions
– System timer (SysTick) for Operating System support
Floating Point Unit
Memory Protection Unit
Nested Vectored Interrupt Controller
Two General Purpose DMA with up-to 12 channels
Event Request Unit (ERU) for programmable processing of external and internal
service requests
Data Sheet
8
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
•
Flexible CRC Engine (FCE) for multiple bit error detection
On-Chip Memories
•
•
•
•
•
16 KB on-chip boot ROM
64 KB on-chip high-speed program memory
64 KB on-chip high speed data memory
32 KB on-chip high-speed communication
1024 KB on-chip Flash Memory with 4 KB instruction cache
Communication Peripherals
•
•
•
•
•
•
•
Ethernet MAC module capable of 10/100 Mbit/s transfer rates
Universal Serial Bus, USB 2.0 host, Full-Speed OTG, with integrated PHY
Controller Area Network interface (MultiCAN), Full-CAN/Basic-CAN with 3 nodes, 64
message objects, data rate up to 1MBit/s
Six Universal Serial Interface Channels (USIC),providing 6 serial channels, usable as
UART, double-SPI, quad-SPI, IIC, IIS and LIN interfaces
LED and Touch-Sense Controller (LEDTS) for Human-Machine interface
SD and Multi-Media Card interface (SDMMC) for data storage memory cards
External Bus Interface Unit (EBU) enabling communication with external memories
and off-chip peripherals
Analog Frontend Peripherals
•
•
•
Four Analog-Digital Converters (VADC) of 12-bit resolution, 8 channels each, with
input out-of-range comparators
Delta Sigma Demodulator with four channels, digital input stage for A/D signal
conversion
Digital-Analogue Converter (DAC) with two channels of 12-bit resolution
Industrial Control Peripherals
•
•
•
•
•
•
•
Two Capture/Compare Units 8 (CCU8) for motor control and power conversion
Four Capture/Compare Units 4 (CCU4) for use as general purpose timers
Two Position Interfaces (POSIF) for servo motor positioning
Window Watchdog Timer (WDT) for safety sensitive applications
Die Temperature Sensor (DTS)
Real Time Clock module with alarm support
System Control Unit (SCU) for system configuration and control
Input/Output Lines
•
•
Programmable port driver control module (PORTS)
Individual bit addressability
Data Sheet
9
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
•
•
•
Tri-stated in input mode
Push/pull or open drain output mode
Boundary scan test support over JTAG interface
On-Chip Debug Support
•
•
Full support for debug features: 8 breakpoints, CoreSight, trace
Various interfaces: ARM-JTAG, SWD, single wire trace
1.1
Ordering Information
The ordering code for an Infineon microcontroller provides an exact reference to a
specific product. The code “XMC4<DDD>-<Z><PPP><T><FFFF>” identifies:
•
•
•
•
•
<DDD> the derivatives function set
<Z> the package variant
– E: LFBGA
– F: LQFP
– Q: VQFN
<PPP> package pin count
<T> the temperature range:
– F: -40°C to 85°C
– K: -40°C to 125°C
<FFFF> the Flash memory size.
For ordering codes for the XMC4500 please contact your sales representative or local
distributor.
This document describes several derivatives of the XMC4500 series, some descriptions
may not apply to a specific product.
For simplicity the term XMC4500 is used for all derivatives throughout this document.
Data Sheet
10
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
1.2
Device Types
These device types are available and can be ordered through Infineon’s direct and/or
distribution channels.
Table 1
Synopsis of XMC4500 Device Types
1)
Derivative
Package
Flash
Kbytes
SRAM
Kbytes
XMC4500-E144F1024
PG-LFBGA-144
1024
160
XMC4500-F144x1024
PG-LQFP-144
1024
160
XMC4500-F100x1024
PG-LQFP-100
1024
160
XMC4500-F144x768
PG-LQFP-144
768
160
XMC4500-F100x768
PG-LQFP-100
768
160
XMC4502-F100x768
PG-LQFP-100
768
160
XMC4504-F144x512
PG-LQFP-144
512
128
XMC4504-F100x512
PG-LQFP-100
512
128
1) x is a placeholder for the supported temperature range.
1.3
Device Type Features
The following table lists the available features per device type.
Table 2
Features of XMC4500 Device Types
1)
Derivative
LEDTS
Intf.
SDMMC EBU
Intf.
Intf.2)
ETH USB USIC MultiCAN
Intf. Intf. Chan. Nod./Msg.
3)
XMC4500-E144F1024
1
1
SDM
MR
1
3x2
3 / 64
XMC4500-F144x1024
1
1
SDM
MR
1
3x2
3 / 64
XMC4500-F100x1024
1
1
M16
R
1
3x2
3 / 64
XMC4500-F144x768
1
1
SDM
MR
1
3x2
3 / 64
XMC4500-F100x768
1
1
M16
R
1
3x2
3 / 64
XMC4502-F100x768
1
1
M16
-
1
3x2
3 / 64
XMC4504-F144x512
1
1
SDM
-
-
3x2
-
XMC4504-F100x512
1
1
M16
-
-
3x2
-
1) x is a placeholder for the supported temperature range.
2) Memory types supported S=SDRAM, D=DEMUX, M=MUX 16-bit and 32-bit, M16=MUX 16-bit
3) Supported interfaces, M=MII, R=RMII.
Data Sheet
11
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
Table 3
Features of XMC4500 Device Types
1)
Derivative
ADC
Chan.
DSD
Chan.
DAC
Chan.
CCU4
Slice
CCU8
Slice
POSIF
Intf.
XMC4500-E144F1024
32
4
2
4x4
2x4
2
XMC4500-F144x1024
32
4
2
4x4
2x4
2
XMC4500-F100x1024
24
4
2
4x4
2x4
2
XMC4500-F144x768
32
4
2
4x4
2x4
2
XMC4500-F100x768
24
4
2
4x4
2x4
2
XMC4502-F100x768
24
4
2
4x4
2x4
2
XMC4504-F144x512
32
4
2
4x4
2x4
2
XMC4504-F100x512
24
4
2
4x4
2x4
2
1) x is a placeholder for the supported temperature range.
1.4
Definition of Feature Variants
The XMC4500 types are offered with several memory sizes and number of available
VADC channels. Table 4 describes the location of the available Flash memory, Table 5
describes the location of the available SRAMs, Table 6 the available VADC channels.
Table 4
Flash Memory Ranges
Total Flash Size
Cached Range
Uncached Range
512 Kbytes
0800 0000H −
0807 FFFFH
0C00 0000H −
0C07 FFFFH
768 Kbytes
0800 0000H −
080B FFFFH
0C00 0000H −
0C0B FFFFH
1,024 Kbytes
0800 0000H −
080F FFFFH
0C00 0000H −
0C0F FFFFH
Table 5
SRAM Memory Ranges
Total SRAM Size
Program SRAM
System Data SRAM Communication
Data SRAM
128 Kbytes
1000 0000H −
1000 FFFFH
2000 0000H −
2000 FFFFH
−
160 Kbytes
1000 0000H −
1000 FFFFH
2000 0000H −
2000 FFFFH
3000 0000H −
3000 7FFFH
Data Sheet
12
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Summary of Features
AD Converter Channels1)
Table 6
Package
VADC G0
VADC G1
VADC G2
VADC G3
PG-LQFP-144
CH0..CH7
CH0..CH7
CH0..CH7
CH0..CH7
PG-LQFP-100
CH0..CH7
CH0..CH7
CH0..CH3
CH0..CH3
1) Some pins in a package may be connected to more than one channel. For the detailed mapping see the Port
I/O Function table.
1.5
Identification Registers
The identification registers allow software to identify the marking.
Table 7
XMC4500 Identification Registers
Register Name
Value
Marking
SCU_IDCHIP
0004 5002H
EES-AA, ES-AA
SCU_IDCHIP
0004 5003H
ES-AB, AB
JTAG IDCODE
101D B083H
EES-AA, ES-AA
JTAG IDCODE
301D B083H
ES-AB, AB
Data Sheet
13
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
2
General Device Information
This section summarizes the logic symbols and package pin configurations with a
detailed list of the functional I/O mapping.
2.1
Logic Symbols
VAREF VAGND VDDA VSSA
(1)
(1)
(1) (1)
VDDC VDDP VSS
(4) (4) (1)
Exp. Die Pad
(VSS)
VBAT (1)
RTC_XTAL1
(1) VSSO
RTC_XTAL2
Port 0
16 bit
HIB_IO_0
HIB_IO_1
Port 1
16 bit
XTAL1
Port 2
16 bit
XTAL2
USB_DP
Port 3
16 bit
USB_DM
VBUS
Port 4
8 bit
Port 14
14 bit
Port 5
12 bit
Port 15
12 bit
Port 6
7 bit
PORST
TCK
JTAG
3 bit
TMS
Figure 2
Data Sheet
ETM / SWD
5 / 1 bit
via Port Pins
XMC4500 Logic Symbol PG-LQFP-144
14
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
VAREF VAGND VDDA VSSA
(1)
(1)
(1) (1)
VDDC VDDP VSS
(3) (3) (3)
VBAT (1)
RTC_XTAL1
(1) VSSO
RTC_XTAL2
Port 0
16 bit
HIB_IO_0
HIB_IO_1
Port 1
16 bit
XTAL1
Port 2
16 bit
XTAL2
USB_DP
Port 3
16 bit
USB_DM
VBUS
Port 4
8 bit
Port 14
14 bit
Port 5
12 bit
Port 15
12 bit
Port 6
7 bit
PORST
TCK
JTAG
3 bit
TMS
Figure 3
Data Sheet
ETM / SWD
5 / 1 bit
via Port Pins
XMC4500 Logic Symbol PG-LFBGA-144
15
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
VAREF VAGND VDDA VSSA
(1)
(1)
(1) (1)
VDDC VDDP VSS
(4) (4) (1)
Exp. Die Pad
(VSS)
VBAT (1)
RTC_XTAL1
(1) VSSO
RTC_XTAL2
Port 0
13 bit
HIB_IO_0
HIB_IO_1
Port 1
16 bit
XTAL1
Port 2
13 bit
XTAL2
USB_DP
Port 3
7 bit
USB_DM
VBUS
Port 4
2 bit
Port 14
14 bit
Port 5
4 bit
Port 15
4 bit
PORST
TCK
JTAG
3 bit
TMS
Figure 4
Data Sheet
SWD
1 bit
via Port Pins
XMC4500 Logic Symbol PG-LQFP-100
16
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
2.2
Pin Configuration and Definition
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
P0.2
P0.3
P0.4
P0.5
P0.6
P0.11
P0.12
P0.13
P0.14
P0.15
P3.14
P3.15
P3.3
P3.4
P3.5
P3.6
P0.7
P0.8
VDDP
VDDC
P4.0
P4.1
P4.2
P4.3
P4.4
P4.5
P4.6
P4.7
P1.6
P1.7
P1.8
P1.9
P1.0
P1.1
P1.2
P1.3
The following figures summarize all pins, showing their locations on the four sides of the
different packages.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
XMC4500
(Top View)
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
P1.4
P1.5
P1.10
P1.11
P1.12
P1.13
P1.14
P6.0
P6.1
P6.2
P6.3
P6.4
P6.5
P6.6
P1.15
TCK
TMS
PORST
VDDC
VSSO
XTAL2
XTAL1
VDDP
VSS
P5.0
P5.1
P5.2
P5.3
P5.4
P5.5
P5.6
P5.7
P2.6
P2.7
P2.0
P2.1
P14.5
P14.4
P14.3
P14.2
P14.1
P14.0
P15.15
P15.14
VAGND
VAREF
VSSA
VDDA
P15.13
P15.12
P14.9
P14.8
P15.9
P15.8
P5.11
P5.10
P5.9
P5.8
P2.15
P2.14
VDDC
VDDP
P2.13
P2.12
P2.11
P2.10
P2.9
P2.8
P2.5
P2.4
P2.3
P2.2
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
P0.1
P0.0
P0.10
P0.9
P3.2
P3.1
P3.0
P3.13
P3.12
P3.11
P3.10
P3.9
P3.8
P3.7
USB_DM
USB_DP
VBUS
VDDP
VDDC
HIB_IO_1
HIB_IO_0
RTC_XTAL1
RTC_XTAL2
VBAT
P15.7
P15.6
P15.5
P15.4
P15.3
P15.2
P14.15
P14.14
P14.13
P14.12
P14.7
P14.6
Figure 5
Data Sheet
XMC4500 PG-LQFP-144 Pin Configuration (top view)
17
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
1
2
3
4
5
6
7
8
9
10
11
12
A
VSS
VDDC
P0.2
P0.3
P0.5
P0.6
P3.6
P0.8
P4.1
P1.8
VDDP
VSS
A
B
VDDP
P3.1
P3.2
P0.10
P0.4
P3.5
P0.7
P4.0
P1.6
P1.7
P1.9
VDDC
B
C
P3.0
P3.13
P0.1
P0.0
P0.13
P0.15
P4.4
P4.6
P4.7
P1.4
P1.2
P1.3
C
D
USB_D
P3.12
M
P3.11
P0.9
P0.12
P3.14
P3.15
P4.5
P1.0
P1.5
P1.11
P1.10
D
E
USB_D
VBUS
P
P3.8
P3.7
P0.11
P0.14
P3.4
P4.2
P1.1
P1.14
P1.12
P1.13
E
F
RTC_X RTC_X HIB_I
TAL2 TAL1
O_1
HIB_I
O_0
P3.9
P3.10
P3.3
P4.3
P6.1
P6.4
P6.5
P6.6
F
P15.4
G
VBAT
P15.6
P15.7
TMS
TCK
P6.3
P6.0 PORST P1.15
G
H
P15.2 P14.15 P14.14 P14.13 P5.10
P5.8
P5.2
P5.1
P5.0
P6.2
H
J
P14.12 P14.7
P14.6
P5.11
P2.15
P5.7
P5.5
P2.6
P5.3
P2.0
VSSO
J
K
P14.4
P14.5
P14.2 P15.15 P15.12
P5.9
P2.14
P5.6
P2.7
P5.4
P2.2
P2.1
K
L
VDDA
P14.1
P14.0 P15.14 P14.9
P15.9
P2.12
P2.10
P2.8
P2.4
P2.3
VDDP
L
M
VSSA VAGND VAREF P15.13 P14.8
P15.8
P2.13
P2.11
P2.9
P2.5
VDDC
VSS
M
6
7
8
9
10
11
12
1
P15.3
2
P15.5
3
P14.3
4
5
XTAL1 XTAL2
XMC4500 - (top view)
Figure 6
Data Sheet
XMC4500 PG-LFBGA-144 Pin Configuration (top view)
18
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
P0.2
P0.3
P0.4
P0.5
P0.6
P0.11
P0.12
P3.3
P3.4
P3.5
P3.6
P0.7
P0.8
VDDP
VDDC
P4.0
P4.1
P1.6
P1.7
P1.8
P1.9
P1.0
P1.1
P1.2
P1.3
General Device Information
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
XMC4500
(Top View)
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
P1.4
P1.5
P1.10
P1.11
P1.12
P1.13
P1.14
P1.15
TCK
TMS
PORST
VDDC
VSSO
XTAL2
XTAL1
VDDP
VSS
P5.0
P5.1
P5.2
P5.7
P2.6
P2.7
P2.0
P2.1
P14.5
P14.4
P14.3
P14.2
P14.1
P14.0
VAGND
VAREF
VSSA
VDDA
P14.9
P14.8
P15.9
P15.8
P2.15
P2.14
VDDC
VDDP
P2.10
P2.9
P2.8
P2.5
P2.4
P2.3
P2.2
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P0.1
P0.0
P0.10
P0.9
P3.2
P3.1
P3.0
USB_DM
USB_DP
VBUS
VDDP
VDDC
HIB_IO_1
HIB_IO_0
RTC_XTAL1
RTC_XTAL2
VBAT
P15.3
P15.2
P14.15
P14.14
P14.13
P14.12
P14.7
P14.6
Figure 7
Data Sheet
XMC4500 PG-LQFP-100 Pin Configuration (top view)
19
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
2.2.1
Package Pin Summary
The following general scheme is used to describe each pin:
Table 8
Package Pin Mapping Description
Function
Package A
Package B
...
Pad
Type
Name
N
Ax
...
A2
Notes
The table is sorted by the “Function” column, starting with the regular Port pins (Px.y),
followed by the dedicated pins (i.e. PORST) and supply pins.
The following columns, titled with the supported package variants, lists the package pin
number to which the respective function is mapped in that package.
The “Pad Type” indicates the employed pad type (A1, A1+, A2, special=special pad,
In=input pad, AN/DIG_IN=analog and digital input, Power=power supply). Details about
the pad properties are defined in the Electrical Parameters.
In the “Notes”, special information to the respective pin/function is given, i.e. deviations
from the default configuration after reset.
Table 9
Package Pin Mapping
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
P0.0
2
C4
2
A1+
P0.1
1
C3
1
A1+
P0.2
144
A3
100
A2
P0.3
143
A4
99
A2
P0.4
142
B5
98
A2
P0.5
141
A5
97
A2
P0.6
140
A6
96
A2
P0.7
128
B7
89
A2
After a system reset, this
pin selects HW0.
P0.8
127
A8
88
A2
After a system reset, this
pin selects HW0 with a
weak pull-down active.
P0.9
4
D4
4
A2
P0.10
3
B4
3
A1+
P0.11
139
E5
95
A1+
P0.12
138
D5
94
A1+
P0.13
137
C5
-
A1+
Data Sheet
20
Notes
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
Table 9
Package Pin Mapping (cont’d)
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
P0.14
136
E6
-
A1+
P0.15
135
C6
-
A1+
P1.0
112
D9
79
A1+
P1.1
111
E9
78
A1+
P1.2
110
C11
77
A2
P1.3
109
C12
76
A2
P1.4
108
C10
75
A1+
P1.5
107
D10
74
A1+
P1.6
116
B9
83
A2
P1.7
115
B10
82
A2
P1.8
114
A10
81
A2
P1.9
113
B11
80
A2
P1.10
106
D12
73
A1+
P1.11
105
D11
72
A1+
P1.12
104
E11
71
A2
P1.13
103
E12
70
A2
P1.14
102
E10
69
A2
P1.15
94
G12
68
A2
P2.0
74
J11
52
A2
P2.1
73
K12
51
A2
P2.2
72
K11
50
A2
P2.3
71
L11
49
A2
P2.4
70
L10
48
A2
P2.5
69
M10
47
A2
P2.6
76
J9
54
A1+
P2.7
75
K9
53
A1+
P2.8
68
L9
46
A2
P2.9
67
M9
45
A2
P2.10
66
L8
44
A2
P2.11
65
M8
-
A2
P2.12
64
L7
-
A2
P2.13
63
M7
-
A2
Data Sheet
21
Notes
After a system reset, this
pin selects HW0.
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
Table 9
Package Pin Mapping (cont’d)
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
P2.14
60
K7
41
A2
P2.15
59
J6
40
A2
P3.0
7
C1
7
A2
P3.1
6
B2
6
A2
P3.2
5
B3
5
A2
P3.3
132
F7
93
A1+
P3.4
131
E7
92
A1+
P3.5
130
B6
91
A2
P3.6
129
A7
90
A2
P3.7
14
E4
-
A1+
P3.8
13
E3
-
A1+
P3.9
12
F5
-
A1+
P3.10
11
F6
-
A1+
A1+
P3.11
10
D3
-
P3.12
9
D2
-
A2
P3.13
8
C2
-
A2
P3.14
134
D6
-
A1+
P3.15
133
D7
-
A1+
P4.0
124
B8
85
A2
P4.1
123
A9
84
A2
P4.2
122
E8
-
A1+
P4.3
121
F8
-
A1+
P4.4
120
C7
-
A1+
P4.5
119
D8
-
A1+
P4.6
118
C8
-
A1+
P4.7
117
C9
-
A1+
P5.0
84
H9
58
A1+
P5.1
83
H8
57
A1+
P5.2
82
H7
56
A1+
A2
P5.3
81
J10
-
P5.4
80
K10
-
A2
P5.5
79
J8
-
A2
P5.6
78
K8
-
A2
Data Sheet
22
Notes
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
Table 9
Package Pin Mapping (cont’d)
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
P5.7
77
J7
55
P5.8
58
H6
-
A2
P5.9
57
K6
-
A2
A1+
P5.10
56
H5
-
A1+
P5.11
55
J5
-
A1+
A2
P6.0
101
G10
-
P6.1
100
F9
-
A2
P6.2
99
H10
-
A2
P6.3
98
G9
-
A1+
P6.4
97
F10
-
A2
P6.5
96
F11
-
A2
P6.6
95
F12
-
A2
P14.0
42
L3
31
AN/DIG_IN
P14.1
41
L2
30
AN/DIG_IN
P14.2
40
K3
29
AN/DIG_IN
P14.3
39
J4
28
AN/DIG_IN
P14.4
38
K1
27
AN/DIG_IN
P14.5
37
K2
26
AN/DIG_IN
P14.6
36
J3
25
AN/DIG_IN
P14.7
35
J2
24
AN/DIG_IN
P14.8
52
M5
37
AN/DAC/
DIG_IN
P14.9
51
L5
36
AN/DAC/
DIG_IN
P14.12
34
J1
23
AN/DIG_IN
P14.13
33
H4
22
AN/DIG_IN
P14.14
32
H3
21
AN/DIG_IN
P14.15
31
H2
20
AN/DIG_IN
P15.2
30
H1
19
AN/DIG_IN
P15.3
29
G2
18
AN/DIG_IN
P15.4
28
G4
-
AN/DIG_IN
P15.5
27
G3
-
AN/DIG_IN
P15.6
26
G5
-
AN/DIG_IN
Data Sheet
Notes
23
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
Table 9
Package Pin Mapping (cont’d)
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
P15.7
25
G6
-
AN/DIG_IN
P15.8
54
M6
39
AN/DIG_IN
P15.9
53
L6
38
AN/DIG_IN
P15.12
50
K5
-
AN/DIG_IN
P15.13
49
M4
-
AN/DIG_IN
P15.14
44
L4
-
AN/DIG_IN
P15.15
43
K4
-
AN/DIG_IN
USB_DP
16
E1
9
special
Notes
USB_DM
15
D1
8
special
HIB_IO_0
21
F4
14
A1 special
At the first power-up and
with every reset of the
hibernate domain this pin
is configured as opendrain output and drives
"0".
HIB_IO_1
20
F3
13
A1 special
At the first power-up and
with every reset of the
hibernate domain this pin
is configured as input with
no pull device active.
TCK
93
G8
67
A1
Weak pull-down active.
TMS
92
G7
66
A1+
Weak pull-up active.
PORST
91
G11
65
special
Weak pull-up permanently
active, strong pull-down
controlled by EVR.
XTAL1
87
H11
61
clock_IN
XTAL2
88
H12
62
clock_O
RTC_XTAL1
22
F2
15
clock_IN
RTC_XTAL2
23
F1
16
clock_O
VBAT
24
G1
17
Power
VBUS
17
E2
10
special
VAREF
46
M3
33
AN_Ref
VAGND
45
M2
32
AN_Ref
VDDA
48
L1
35
AN_Power
Data Sheet
24
When VDDP is supplied
VBAT has to be supplied as
well.
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
Table 9
Package Pin Mapping (cont’d)
Function
LQFP-144 LFBGA-144 LQFP-100 Pad Type
VSSA
47
M1
34
AN_Power
VDDC
19
-
12
Power
VDDC
61
-
42
Power
VDDC
90
-
64
Power
VDDC
125
-
86
Power
VDDC
-
A2
-
Power
VDDC
-
B12
-
Power
VDDC
-
M11
-
Power
VDDP
18
-
11
Power
VDDP
62
-
43
Power
VDDP
86
-
60
Power
VDDP
126
-
87
Power
VDDP
-
A11
-
Power
VDDP
-
B1
-
Power
VDDP
-
L12
-
Power
VSS
85
-
59
Power
VSS
-
A1
-
Power
VSS
-
A12
-
Power
VSS
-
M12
-
Power
VSSO
89
J12
63
Power
VSS
Exp. Pad
-
Exp. Pad
Power
Data Sheet
25
Notes
Exposed Die Pad
The exposed die pad is
connected internally to
VSS. For proper operation,
it is mandatory to connect
the exposed pad to the
board ground.
For thermal aspects,
please refer to the
Package and Reliability
parameters in the Data
Sheet. Board layout
examples are given in an
application note.
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
General Device Information
2.2.2
Port I/O Functions
The following general scheme is used to describe each PORT pin:
Table 10
Port I/O Function Description
Function
Outputs
ALT1
P0.0
Pn.y
ALTn
Inputs
HWO0
HWI0
MODA.OUT MODB.OUT MODB.INA
MODA.OUT
Input
Input
MODC.INA
MODA.INA
MODC.INB
Pn.y is the port pin name, defining the control and data bits/registers associated with it.
As GPIO, the port is under software control. Its input value is read via Pn_IN.y, Pn_OUT
defines the output value.
Up to four alternate output functions (ALT1/2/3/4) can be mapped to a single port pin,
selected by Pn_IOCR.PC. The output value is directly driven by the respective module,
with the pin characteristics controlled by the port registers (within the limits of the
connected pad).
The port pin input can be connected to multiple peripherals. Most peripherals have an
input multiplexer to select between different possible input sources.
The input path is also active while the pin is configured as output. This allows to feedback
an output to on-chip resources without wasting an additional external pin.
By Pn_HWSEL it is possible to select between different hardware “masters”
(HWO0/HWI0, HWO1/HWI1). The selected peripheral can take control of the pin(s).
Hardware control overrules settings in the respective port pin registers.
Data Sheet
26
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
Data Sheet
2.2.2.1
Port I/O Function Table
Table 11
Port I/O Functions
Function
Outputs
ALT1
P0.0
P0.1
USB.
DRIVEVBUS
P0.2
ALT3
ALT4
CAN.
N0_TXD
CCU80.
OUT21
LEDTS0.
COL2
U1C1.
DOUT0
CCU80.
OUT11
LEDTS0.
COL3
U1C1.
SELO1
CCU80.
OUT01
U1C0.
DOUT3
EBU.
AD0
U1C0.
HWIN3
EBU.
D0
ETH0.
RXD0B
CCU80.
OUT20
U1C0.
DOUT2
EBU.
AD1
U1C0.
HWIN2
EBU.
D1
ETH0.
RXD1B
CCU80.
OUT10
U1C0.
DOUT1
EBU.
AD2
U1C0.
HWIN1
EBU.
D2
U1C0.
DOUT0
EBU.
AD3
U1C0.
HWIN0
EBU.
D3
P0.3
P0.4
Inputs
ALT2
ETH0.
TX_EN
HWO0
HWO1
HWI0
HWI1
27
ETH0.
TXD0
U1C0.
DOUT0
CCU80.
OUT00
ETH0.
TXD1
U1C0.
SELO0
CCU80.
OUT30
P0.7
WWDT.
SERVICE_OUT
U0C0.
SELO0
EBU.
AD6
DB.
TDI
EBU.
D6
P0.8
SCU.
EXTCLK
U0C0.
SCLKOUT
EBU.
AD7
DB.
TRST
EBU.
D7
EBU.
CS1
ETH0.
MDIA
P0.9
LEDTS0.
COL0
CCU80.
OUT02
LEDTS0.
COL1
P0.11
U1C0.
SCLKOUT
CCU80.
OUT31
P0.12
U1C1.
SELO0
CCU40.
OUT3
P0.13
U1C1.
SCLKOUT
CCU40.
OUT2
P0.14
U1C0.
SELO1
CCU40.
OUT1
U1C1.
DOUT3
U1C1.
HWIN3
P0.15
U1C0.
SELO2
CCU40.
OUT0
U1C1.
DOUT2
U1C1.
HWIN2
CCU40.
OUT3
ERU1.
PDOUT3
P1.0
DSD.
CGPWMN
U0C0.
SELO0
P1.1
DSD.
CGPWMP
U0C0.
SCLKOUT
U1C1.
DX0D
ETH0.
CLK_RMIIB
ERU0.
0B0
ETH0.
MDO
ETH0.
CLKRXB
ETH0.
CRS_DVB
ERU0.
0A0
EBU.
BREQ
ETH0.
RXDVB
Input
Input
ERU0.
2B3
U1C0.
DX0B
ERU1.
3A0
U1C0.
DX2A
ERU0.
3B2
CCU80.
IN2B
U0C0.
DX2B
DSD.
DIN1A
ERU0.
2B1
CCU80.
IN0A
U0C0.
DX1B
DSD.
DIN0A
ERU0.
2A1
CCU80.
IN1B
U1C1.
DX2A
USB.
ID
ERU0.
1B0
EBU.
HLDA
Input
ERU1.
3B0
U1C0.
DX0A
ETH0.
RXERB
EBU.
HLDA
Input
ERU0.
3B3
U1C1.
DX1A
SDMMC.
RST
Input
CCU80.
IN1A
CCU80.
IN2A
CCU80.
IN3A
ERU0.
1A0
U1C0.
DX1A
ERU0.
3A2
U1C1.
DX2B
ERU0.
2B2
U1C1.
DX1B
ERU0.
2A2
CCU42.
IN3C
CCU42.
IN2C
U0C0.
DX2A
SDMMC.
SDWC
U0C0.
DX1A
ERU0.
3B0
POSIF0.
IN2A
CCU40.
IN3A
CCU40.
OUT2
ERU1.
PDOUT2
CCU40.
OUT1
ERU1.
PDOUT1
U0C0.
DOUT3
EBU.
AD14
U0C0.
HWIN3
EBU.
D14
POSIF0.
IN1A
ERU1.
2B0
U0C0.
MCLKOUT
CCU40.
OUT0
ERU1.
PDOUT0
U0C0.
DOUT2
EBU.
AD15
U0C0.
HWIN2
EBU.
D15
POSIF0.
IN0A
ERU1.
2A0
P1.2
P1.3
Input
ERU0.
3A0
P1.4
WWDT.
SERVICE_OUT
CAN.
N0_TXD
CCU80.
OUT33
CCU81.
OUT20
U0C0.
DOUT1
U0C0.
HWIN1
U0C0.
DX0B
CAN.
N1_RXDD
ERU0.
2B0
P1.5
CAN.
N1_TXD
U0C0.
DOUT0
CCU80.
OUT23
CCU81.
OUT10
U0C0.
DOUT0
U0C0.
HWIN0
U0C0.
DX0A
CAN.
N0_RXDA
ERU0.
2A0
CCU40.
IN2A
CCU40.
IN1A
CCU40.
IN0A
CCU41.
IN0C
ERU1.
0A0
CCU41.
IN1C
DSD.
DIN2B
XMC4500
XMC4000 Family
CCU80.
OUT12
U1C1.
SCLKOUT
ETH0.
MDC
Input
EBU.
ADV
U1C1.
SELO0
P0.10
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
P0.5
P0.6
Input
Data Sheet
Table 11
Port I/O Functions
Function
(cont’d)
Outputs
ALT1
ALT2
ALT3
ALT4
Inputs
HWO0
HWO1
HWI0
HWI1
Input
SDMMC.
DATA1_OUT
EBU.
AD10
SDMMC.
DATA1_IN
EBU.
D10
DSD.
DIN2A
P1.6
U0C0.
SCLKOUT
P1.7
U0C0.
DOUT0
DSD.
MCLK2
SDMMC.
DATA2_OUT
EBU.
AD11
SDMMC.
DATA2_IN
EBU.
D11
P1.8
U0C0.
SELO1
DSD.
MCLK1
SDMMC.
DATA4_OUT
EBU.
AD12
SDMMC.
DATA4_IN
EBU.
D12
P1.9
CAN.
N2_TXD
SDMMC.
DATA5_OUT
EBU.
AD13
SDMMC.
DATA5_IN
EBU.
D13
P1.10
ETH0.
MDC
P1.11
U0C0.
SCLKOUT
CCU81.
OUT21
U0C0.
SELO0
CCU81.
OUT11
ETH0.
MDO
Input
Input
Input
DSD.
MCLK0A
CCU41.
IN3C
ETH0.
TX_EN
CAN.
N1_TXD
CCU81.
OUT01
SDMMC.
DATA6_OUT
EBU.
AD16
SDMMC.
DATA6_IN
EBU.
D16
P1.13
ETH0.
TXD0
U0C1.
SELO3
CCU81.
OUT20
SDMMC.
DATA7_OUT
EBU.
AD17
SDMMC.
DATA7_IN
EBU.
D17
P1.14
ETH0.
TXD1
U0C1.
SELO2
CCU81.
OUT10
P1.15
SCU.
EXTCLK
28
DSD.
MCLK2
CCU81.
OUT00
DSD.
CGPWMN
LEDTS0.
COL1
ETH0.
MDO
EBU.
AD20
P2.1
CCU81.
OUT11
DSD.
CGPWMP
LEDTS0.
COL0
DB.TDO/
TRACESWO
EBU.
AD21
CAN.
N1_RXDC
EBU.
D18
EBU.
AD19
EBU.
D19
ETH0.
MDIB
DSD.
MCLK2B
EBU.
D20
ERU1.
1A0
ERU0.
0B3
EBU.
D21
ETH0.
CLK_RMIIA
CCU40.
IN1C
ERU1.
0B0
CCU40.
IN0C
VADC.
EMUX00
CCU81.
OUT01
CCU41.
OUT3
LEDTS0.
LINE0
LEDTS0.
EXTENDED0
EBU.
AD22
LEDTS0.
TSIN0A
EBU.
D22
ETH0.
RXD0A
U0C1.
DX0A
ERU0.
1B2
P2.3
VADC.
EMUX01
U0C1.
SELO0
CCU41.
OUT2
LEDTS0.
LINE1
LEDTS0.
EXTENDED1
EBU.
AD23
LEDTS0.
TSIN1A
EBU.
D23
ETH0.
RXD1A
U0C1.
DX2A
ERU0.
1A2
POSIF1.
IN2A
CCU41.
IN2A
P2.4
VADC.
EMUX02
U0C1.
SCLKOUT
CCU41.
OUT1
LEDTS0.
LINE2
LEDTS0.
EXTENDED2
EBU.
AD24
LEDTS0.
TSIN2A
EBU.
D24
ETH0.
RXERA
U0C1.
DX1A
ERU0.
0B2
POSIF1.
IN1A
CCU41.
IN1A
U0C1.
DOUT0
EBU.
AD25
LEDTS0.
TSIN3A
EBU.
D25
POSIF1.
IN0A
CCU41.
IN0A
P2.5
ETH0.
TX_EN
U2C0.
SELO4
P2.7
ETH0.
MDC
P2.8
ETH0.
TXD0
P2.9
ETH0.
TXD1
P2.10
VADC.
EMUX10
P2.11
ETH0.
TXER
CCU80.
OUT22
P2.12
ETH0.
TXD2
CCU81.
OUT33
CAN.
N1_TXD
CCU41.
OUT0
LEDTS0.
LINE3
LEDTS0.
EXTENDED3
CCU80.
OUT13
LEDTS0.
COL3
U2C0.
DOUT3
CCU80.
OUT03
LEDTS0.
COL2
CCU80.
OUT32
LEDTS0.
LINE4
LEDTS0.
EXTENDED4
EBU.
AD26
LEDTS0.
TSIN4A
EBU.
D26
DAC.
TRIGGER5
CCU40.
IN0B
CCU40.
IN1B
CCU40.
IN2B
CCU40.
IN3B
CCU80.
OUT22
LEDTS0.
LINE5
LEDTS0.
EXTENDED5
EBU.
AD27
LEDTS0.
TSIN5A
EBU.
D27
DAC.
TRIGGER4
CCU41.
IN0B
CCU41.
IN1B
CCU41.
IN2B
CCU41.
IN3B
ETH0.
TXD0
U2C0.
HWIN3
ETH0.
CRS_DVA
U0C1.
DX0B
ERU0.
0A2
DSD.
DIN1B
CAN.
N1_RXDA
ERU0.
1B3
ETH0.
CLKRXA
CCU41.
IN3A
DSD.
DIN0B
DB.
EBU.
ETM_TRACEDATA AD28
3
EBU.
D28
DB.
EBU.
ETM_TRACEDATA AD29
2
EBU.
D29
DB.
EBU.
ETM_TRACEDATA AD30
1
EBU.
D30
ETH0.
CRS_DVA
CCU40.
IN3C
ERU1.
1B0
CCU40.
IN2C
CCU43.
IN3C
XMC4500
XMC4000 Family
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
P2.2
P2.6
Input
CCU41.
IN2C
P1.12
CCU81.
OUT21
Input
DSD.
MCLK1A
ETH0.
MDIC
P2.0
Input
DSD.
MCLK2A
CAN.
N2_RXDA
SDMMC.
SDCD
EBU.
AD18
Input
Data Sheet
Table 11
Port I/O Functions
Function
ALT1
P2.13
ALT2
ALT3
ETH0.
TXD3
P2.14
VADC.
EMUX11
P2.15
VADC.
EMUX12
P3.0
U2C1.
SELO0
P3.1
P3.2
(cont’d)
Outputs
U1C0.
DOUT0
U0C1.
SCLKOUT
HWO0
ETH0.
TXD1
DB.
EBU.
ETM_TRACEDATA AD31
0
CCU80.
OUT21
CCU80.
OUT11
Inputs
ALT4
LEDTS0.
LINE6
DB.
ETM_TRACECLK
EBU.
BC0
LEDTS0.
EXTENDED6
EBU.
BC1
CCU42.
OUT0
U0C1.
SELO0
USB.
DRIVEVBUS
P3.3
CAN.
N0_TXD
LEDTS0.
COLA
U1C1.
SELO1
CCU42.
OUT3
HWO1
HWI0
HWI1
Input
Input
Input
Input
EBU.
D31
LEDTS0.
TSIN6A
ETH0.
COLA
EBU.
RD
U0C1.
DX1B
EBU.RD/
EBU.WR
U0C1.
DX2B
CCU43.
IN1B
CCU43.
IN2B
CCU43.
IN3B
CCU42.
IN0B
CCU42.
IN1B
CCU42.
IN2B
CCU42.
IN3B
CCU80.
IN2C
CCU81.
IN0C
EBU.
WAIT
ERU0.
0B1
CCU80.
IN1C
ERU0.
0A1
CCU80.
IN0C
DSD.
DIN3B
CCU80.
IN3B
CCU42.
IN2A
CCU80.
IN0B
U1C1.
SELO2
CCU42.
OUT2
DSD.
MCLK3
SDMMC.
BUS_POWER
EBU.
HOLD
U2C1.
DX0B
U2C1.
DOUT0
U1C1.
SELO3
CCU42.
OUT1
U0C1.
DOUT0
SDMMC.
CMD_OUT
EBU.
AD4
SDMMC.
CMD_IN
EBU.
D4
U2C1.
DX0A
ERU0.
3B1
CCU42.
IN1A
P3.6
U2C1.
SCLKOUT
SDMMC.
CLK_OUT
EBU.
AD5
SDMMC.
CLK_IN
EBU.
D5
U2C1.
DX1B
ERU0.
3A1
CCU42.
IN0A
29
U1C1.
SELO4
CCU42.
OUT0
U0C1.
SCLKOUT
CAN.
N2_TXD
CCU41.
OUT3
LEDTS0.
LINE0
U2C0.
DX0C
CAN.
N2_RXDB
U2C0.
DOUT0
U0C1.
SELO3
CCU41.
OUT2
LEDTS0.
LINE1
P3.9
U2C0.
SCLKOUT
CAN.
N1_TXD
CCU41.
OUT1
LEDTS0.
LINE2
P3.10
U2C0.
SELO0
CAN.
N0_TXD
CCU41.
OUT0
LEDTS0.
LINE3
U0C1.
DOUT3
U0C1.
HWIN3
P3.11
U2C1.
DOUT0
U0C1.
SELO2
CCU42.
OUT3
LEDTS0.
LINE4
U0C1.
DOUT2
U0C1.
HWIN2
CAN.
N1_RXDB
U0C1.
SELO1
CCU42.
OUT2
LEDTS0.
LINE5
U0C1.
DOUT1
U0C1.
HWIN1
CAN.
N0_RXDC
U0C1.
DOUT0
CCU42.
OUT1
LEDTS0.
LINE6
U0C1.
DOUT0
U0C1.
HWIN0
U0C1.
DX0D
U1C1.
DOUT1
U1C1.
HWIN1
U2C1.
SCLKOUT
U1C0.
SELO3
P3.15
U1C1.
DOUT0
P4.1
U2C1.
SELO0
U1C1.
MCLKOUT
P4.2
U2C1.
SELO1
U1C1.
DOUT0
P4.3
U2C1.
SELO2
U0C0.
SELO5
CCU43OUT3
U0C0.
SELO4
CCU43OUT2
P4.4
POSIF1.
IN1B
U1C1.
DOUT0
DSD.
MCLK1
DSD.
MCLK0
U0C1.
SELO0
POSIF1.
IN2B
POSIF1.
IN0B
CCU81.
IN3C
U2C1.
DX0D
U1C1.
DX0B
U1C1.
HWIN0
EBU.
AD8
SDMMC.
DATA0_IN
EBU.
D8
U1C1.
DX1C
DSD.
MCLK1B
SDMMC.
DATA3_OUT
EBU.
AD9
SDMMC.
DATA3_IN
EBU.
D9
U2C1.
DX2B
DSD.
MCLK0B
U1C1.
DX0C
CCU42.
IN0C
U0C1.
DX0E
U2C1.
DX0C
U2C1.
DX2A
U2C1.
DX1A
CCU43.
IN1C
CCU43.
IN3A
U2C1.
DOUT3
U2C1.
HWIN3
CCU81.
IN1C
CCU42.
IN1C
U1C1.
DX0A
SDMMC.
DATA0_OUT
U2C1.
SCLKOUT
CCU81.
IN2C
CCU80.
IN3C
CCU43.
IN2A
XMC4500
XMC4000 Family
P3.14
P4.0
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
P3.8
DSD.
MCLK3B
CCU42.
IN3A
U2C1.
MCLKOUT
P3.13
Input
CCU43.
IN0B
P3.5
P3.12
Input
U1C0.
DX0C
P3.4
P3.7
Input
U1C0.
DX0D
EBU.
CS0
SDMMC.
LED
Input
CCU43.
IN2C
Data Sheet
Table 11
Port I/O Functions
Function
(cont’d)
Outputs
ALT1
ALT3
U0C0.
SELO3
CCU43OUT1
U2C1.
DOUT2
P4.6
U0C0.
SELO2
CCU43OUT0
U2C1.
DOUT1
U2C1.
HWIN1
CAN.
N2_RXDC
P4.7
CAN.
N2_TXD
U2C1.
DOUT0
U2C1.
HWIN0
U0C0.
DX0C
P4.5
ALT4
Inputs
ALT2
HWO0
HWO1
HWI0
HWI1
Input
Input
Input
U2C1.
HWIN2
Input
Input
DSD.
CGPWMN
CCU81.
OUT33
U2C0.
DOUT0
U2C0.
HWIN0
U2C0.
DX0B
ETH0.
RXD0D
P5.1
U0C0.
DOUT0
DSD.
CGPWMP
CCU81.
OUT32
U2C0.
DOUT1
U2C0.
HWIN1
U2C0.
DX0A
ETH0.
RXD1D
CCU81.
IN0B
P5.2
U2C0.
SCLKOUT
CCU81.
OUT23
U2C0.
DX1A
ETH0.
CRS_DVD
CCU81.
IN1B
P5.3
U2C0.
SELO0
CCU81.
OUT22
EBU.
CKE
EBU.
A20
U2C0.
DX2A
ETH0.
RXERD
CCU81.
IN2B
CCU81.
IN3B
P5.4
U2C0.
SELO1
CCU81.
OUT13
EBU.
RAS
EBU.
A21
ETH0.
CRSD
P5.5
U2C0.
SELO2
CCU81.
OUT12
EBU.
CAS
EBU.
A22
ETH0.
COLD
P5.6
U2C0.
SELO3
EBU.
BFCLKO
EBU.
A23
CCU81.
OUT03
LEDTS0.
COLA
U2C0.
DOUT2
30
CCU81.
IN1A
CCU81.
IN2A
CCU81.
IN3A
ETH0.
RXDVD
CCU80.
OUT01
EBU.
SDCLKO
EBU.
CS2
ETH0.
RXD2A
U1C0.
DX1B
U1C0.
SELO0
CCU80.
OUT20
ETH0.
TX_EN
EBU.
BFCLKO
EBU.
CS3
ETH0.
RXD3A
U1C0.
DX2B
P5.10
U1C0.
MCLKOUT
CCU80.
OUT10
LEDTS0.
LINE7
LEDTS0.
EXTENDED7
P5.11
U1C0.
SELO1
CCU80.
OUT00
LEDTS0.
TSIN7A
ETH0.
CLK_TXA
ETH0.
CRSA
P6.0
ETH0.
TXD2
U0C1.
SELO1
CCU81.
OUT31
DB.
ETM_TRACECLK
P6.1
ETH0.
TXD3
U0C1.
SELO0
CCU81.
OUT30
DB.
EBU.
ETM_TRACEDATA A17
3
EBU.
A16
U0C1.
DX2C
P6.2
ETH0.
TXER
U0C1.
SCLKOUT
CCU43OUT3
DB.
EBU.
ETM_TRACEDATA A18
2
U0C1.
DX1C
CCU43OUT2
U0C1.
DX0C
ETH0.
RXD3B
EBU.
SDCLKI
ETH0.
RXD2B
DB.
EBU.
ETM_TRACEDATA BC2
1
DSD.
DIN3A
ETH0.
CLK_RMIID
DB.
EBU.
ETM_TRACEDATA BC3
0
DSD.
MCLK3A
ETH0.
CLK_TXB
P6.4
U0C1.
DOUT0
CCU43OUT1
EBU.
SDCLKO
P6.5
U0C1.
MCLKOUT
CCU43OUT0
DSD.
MCLK3
EBU.
A19
VADC.
G0CH0
ETH0.
CLKRXD
XMC4500
XMC4000 Family
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
U1C0.
SCLKOUT
P14.0
CCU81.
IN0A
EBU.
BFCLKI
P5.9
P6.6
U0C0.
DX0D
U2C0.
HWIN2
P5.8
P6.3
Input
CCU43.
IN0C
U2C0.
DOUT0
CCU81.
OUT02
Input
CCU43.
IN0A
P5.0
P5.7
Input
CCU43.
IN1A
Data Sheet
Table 11
Port I/O Functions
Function
(cont’d)
Outputs
ALT1
ALT2
ALT3
ALT4
Inputs
HWO0
HWO1
HWI0
HWI1
Input
Input
Input
Input
Input
Input
Input
P14.1
VADC.
G0CH1
P14.2
VADC.
G0CH2
VADC.
G1CH2
P14.3
VADC.
G0CH3
VADC.
G1CH3
P14.4
VADC.
G0CH4
VADC.
G2CH0
P14.5
VADC.
G0CH5
VADC.
G2CH1
P14.6
VADC.
G0CH6
POSIF0.
IN1B
G0ORC6
P14.7
VADC.
G0CH7
POSIF0.
IN0B
G0ORC7
CAN.
N0_RXDB
POSIF0.
IN2B
P14.8
DAC.
OUT_0
VADC.
G1CH0
VADC.
G3CH2
ETH0.
RXD0C
P14.9
DAC.
OUT_1
VADC.
G1CH1
VADC.
G3CH3
ETH0.
RXD1C
31
VADC.
G1CH4
P14.13
VADC.
G1CH5
P14.14
VADC.
G1CH6
P14.15
VADC.
G1CH7
G1ORC6
G1ORC7
P15.2
VADC.
G2CH2
P15.3
VADC.
G2CH3
P15.4
VADC.
G2CH4
P15.5
VADC.
G2CH5
P15.6
VADC.
G2CH6
P15.7
VADC.
G2CH7
P15.8
VADC.
G3CH0
ETH0.
CLK_RMIIC
ETH0.
CLKRXC
P15.9
VADC.
G3CH1
ETH0.
CRS_DVC
ETH0.
RXDVC
P15.12
VADC.
G3CH4
P15.13
VADC.
G3CH5
P15.14
VADC.
G3CH6
P15.15
VADC.
G3CH7
XMC4500
XMC4000 Family
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
P14.12
Input
Data Sheet
Table 11
Port I/O Functions
Function
(cont’d)
Outputs
ALT3
ALT4
Inputs
ALT1
ALT2
HWO0
HWO1
HWI0
HWI1
Input
HIB_IO_0
HIBOUT
WWDT.
SERVICE_OUT
WAKEUPA
HIB_IO_1
HIBOUT
WWDT.
SERVICE_OUT
WAKEUPB
Input
Input
Input
Input
Input
U0C1.
DX0F
U1C0.
DX0F
U1C1.
DX0F
U2C0.
DX0F
U2C1.
DX0F
Input
Input
USB_DP
USB_DM
TCK
TMS
DB.TCK/
SWCLK
DB.TMS/
SWDIO
PORST
XTAL1
U0C0.
DX0F
XTAL2
RTC_XTAL1
ERU0.
1B1
RTC_XTAL2
32
XMC4500
XMC4000 Family
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3
Electrical Parameters
Attention: All parameters in this chapter are valid for the XMC4500 in the PGLQFP-144 and PG-LQFP-100 package. For other packages of the
XMC4500 the values are still preliminary and may change based on
characterization results.
3.1
General Parameters
3.1.1
Parameter Interpretation
The parameters listed in this section partly represent the characteristics of the XMC4500
and partly its requirements on the system. To aid interpreting the parameters easily
when evaluating them for a design, they are marked with a two-letter abbreviation in
column “Symbol”:
•
•
CC
Such parameters indicate Controller Characteristics, which are a distinctive feature
of the XMC4500 and must be regarded for system design.
SR
Such parameters indicate System Requirements, which must be provided by the
application system in which the XMC4500 is designed in.
Data Sheet
33
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.1.2
Absolute Maximum Ratings
Stresses above the values listed under “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress rating only and functional operation of
the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions may affect device reliability.
Table 12
Absolute Maximum Rating Parameters
Parameter
Symbol
Values
Min. Typ. Max.
–
150
°C
–
−
150
°C
–
–
4.3
V
–
–
VDDP + 0.5
or max. 4.3
V
whichever
is lower
VAIN
-0.5 –
VAREF SR
IIN
SR -10 –
VDDP + 0.5
or max. 4.3
V
whichever
is lower
+10
mA
+25
mA
+100
mA
TST SR -65
Junction temperature
TJ
SR -40
Voltage at 3.3 V power supply VDDP SR –
pins with respect to VSS
Voltage on any Class A and VIN
SR -0.5
Storage temperature
dedicated input pin with
respect to VSS
Voltage on any analog input
pin with respect to VAGND
Input current on any pin
during overload condition
Unit Note /
Test Con
dition
Absolute maximum sum of all ΣIIN
input circuit currents for one
port group during overload
condition1)
SR -25
Absolute maximum sum of all ΣIIN
input circuit currents during
overload condition
SR -100 –
–
1) The port groups are defined in Table 14.
Data Sheet
34
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.1.3
Pin Reliability in Overload
When receiving signals from higher voltage devices, low-voltage devices experience
overload currents and voltages that go beyond their own IO power supplies specification.
Table 13 defines overload conditions that will not cause any negative reliability impact if
all the following conditions are met:
•
•
full operation life-time is not exceeded
Operating Conditions are met for
– pad supply levels (VDDP or VDDA)
– temperature
If a pin current is outside of the Operating Conditions but within the overload
conditions, then the parameters of this pin as stated in the Operating Conditions can no
longer be guaranteed. Operation is still possible in most cases but with relaxed
parameters.
Note: An overload condition on one or more pins does not require a reset.
Table 13
Overload Parameters
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit Note /
Test Condition
Input current on analog port
pins (P14, P15) during
overload condition
IOVA SR -3
–
3
mA
Input current on any digital
port pin during overload
condition
IOVD SR -5
–
5
mA
Absolute sum of all input
circuit currents for one port
group during overload
condition1)
IOVG SR –
–
20
mA
–
–
20
mA
Absolute sum of all input
circuit currents during
overload condition
IOVS SR –
–
80
mA
Σ|IOVx|, for all
IOVx < 0 mA
Σ|IOVx|, for all
IOVx > 0 mA
ΣIOVG
1) The port groups are defined in Table 14.
Note: A series resistor at the pin to limit the current to the maximum permitted overload
current is sufficient to handle failure situations like short to battery.
Data Sheet
35
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 14
Port Groups for Overload and Short-Circuit Current Sum
Parameters
Group
Pins
1
P0.[15:0], P3.[15:0]
2
P14.[15:0], P15.[15:0]
3
P2.[15:0], P5.[11:0]
4
P1.[15:0], P4.[7:0], P6.[6:0]
3.1.4
Pad Driver and Pad Classes Summary
This section gives an overview on the different pad driver classes and its basic
characteristics. More details (mainly DC parameters) are defined in the Section 3.2.1.
Table 15
Pad Driver and Pad Classes Overview
Class Power Type
Supply
Sub-Class
Speed
Grade
Load
A
A1
(e.g. GPIO)
6 MHz
100 pF No
A1+
(e.g. serial I/Os)
25 MHz
50 pF
Series termination
recommended
A2
(e.g. ext. Bus)
80 MHz
15 pF
Series termination
recommended
3.3 V
Data Sheet
LVTTL
I/O
36
Termination
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.1.5
Operating Conditions
The following operating conditions must not be exceeded in order to ensure correct
operation and reliability of the XMC4500. All parameters specified in the following
sections refer to these operating conditions, unless noted otherwise.
Table 16
Operating Conditions Parameters
Parameter
Symbol
Values
Min.
Note /
Test Condition
85
°C
Temp. Range F
−
125
°C
Temp. Range K
3.3
3.63 2) V
1.3
−
−
−
Max.
SR -40
−
-40
Ambient Temperature
TA
Digital supply voltage
VDDP SR 3.131)
VDDC
−1)
Core Supply Voltage
Unit
Typ.
V
CC
Digital ground voltage
ADC analog supply
voltage
VSS SR 0
VDDA SR 3.0
Analog ground voltage for VSSA SR -0.1
Generated
internally
V
2)
3.3
3.6
V
0
0.1
V
−
3.63
V
−
120
MHz
−
5
mA
VDDA
Battery Supply Voltage for VBAT SR 1.95
Hibernate Domain
System Frequency
Short circuit current of
digital outputs
fSYS SR −
ISC SR -5
Absolute sum of short
circuit currents per pin
group3)
ΣISC_PG
SR
−
−
20
mA
Absolute sum of short
circuit currents of the
device
ΣISC_D
SR
−
−
100
mA
When VDDP is
supplied VBAT
has to be
supplied as
well.
1) See also the Supply Monitoring thresholds, Section 3.3.2.
2) Voltage overshoot to 4.0 V is permissible at Power-Up and PORST low, provided the pulse duration is less
than 100 μs and the cumulated sum of the pulses does not exceed 1 h over lifetime.
3) The port groups are defined in Table 14.
Data Sheet
37
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2
DC Parameters
3.2.1
Input/Output Pins
The digital input stage of the shared analog/digital input pins is identical to the input
stage of the standard digital input/output pins.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 17
Standard Pad Parameters
Parameter
Symbol
Values
Unit
Note / Test Condition
Min.
Max.
−
10
pF
|IPDL|
CC
150
−
μA
1)
−
10
μA
2)
Pull-Up current
|IPUH|
CC
−
10
μA
100
−
μA
Input Hysteresis for
pads of all A classes3)
HYSA
0.1 ×
−
V
CC
VDDP
PORST spike filter
always blocked pulse
duration
tSF1 CC
−
10
ns
PORST spike filter
pass-through pulse
duration
tSF2 CC
100
−
ns
PORST pull-down
current
tSF2 CC
13
−
mA
Pin capacitance (digital CIO CC
inputs/outputs)
Pull-down current
Vi ≥ 0.6 × VDDP
Vi ≤ 0.36 × VDDP
2)
Vi ≥ 0.6 × VDDP
1)
Vi ≤ 0.36 × VDDP
Vi = 1 V
1) Current required to override the pull device with the opposite logic level (“force current”).
With active pull device, at load currents between force and keep current the input state is undefined.
2) Load current at which the pull device still maintains the valid logic level (“keep current”).
With active pull device, at load currents between force and keep current the input state is undefined.
3) Hysteresis is implemented to avoid metastable states and switching due to internal ground bounce. It can not
be guaranteed that it suppresses switching due to external system noise.
Data Sheet
38
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 18
Standard_Pads Class_A1
Parameter
Symbol
Values
Min.
Input leakage current
Input high voltage
Input low voltage
Output high voltage,
POD1) = weak
IOZA1 CC
VIHA1 SR
VILA1 SR
VOHA1
CC
Output high voltage,
POD1) = medium
Output low voltage
VOLA1
Unit
Max.
nA
Note /
Test Condition
0 V ≤ Vi ≤ VDDP
-500
500
0.6 × VDDP
max. 3.6 V
-0.3
VDDP + 0.3 V
0.36 × VDDP V
VDDP - 0.4
−
V
2.4
−
V
VDDP - 0.4
−
V
IOH ≥ -400 μA
IOH ≥ -500 μA
IOH ≥ -1.4 mA
IOH ≥ -2 mA
IOL ≤ 500 μA;
2.4
−
V
−
0.4
V
POD1) = weak
CC
−
0.4
V
IOL ≤ 2 mA;
POD1) = medium
tFA1 CC
Fall time
tRA1 CC
Rise time
−
150
ns
CL = 20 pF;
POD1) = weak
−
50
ns
CL = 50 pF;
POD1) = medium
−
150
ns
CL = 20 pF;
POD1) = weak
−
50
ns
CL = 50 pF;
POD1) = medium
Unit
Note /
Test Condition
μA
0 V ≤ Vi ≤ VDDP
1) POD = Pin Out Driver
Table 19
Standard_Pads Class_A1+
Parameter
Symbol
Values
Input leakage current
IOZA1+ CC -1
VIHA1+ SR 0.6 × VDDP
VILA1+ SR -0.3
Min.
Input high voltage
Input low voltage
Data Sheet
Max.
39
1
VDDP + 0.3 V
0.36 × VDDP V
max. 3.6 V
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 19
Standard_Pads Class_A1+ (cont’d)
Parameter
Symbol
Values
Min.
Unit
Note /
Test Condition
IOH ≥ -400 μA
IOH ≥ -500 μA
IOH ≥ -1.4 mA
IOH ≥ -2 mA
IOH ≥ -1.4 mA
IOH ≥ -2 mA
IOL ≤ 500 μA;
Max.
VOHA1+
VDDP - 0.4
−
V
CC
2.4
−
V
Output high voltage,
POD1) = medium
VDDP - 0.4
−
V
2.4
−
V
Output high voltage,
POD1) = strong
VDDP - 0.4
−
V
2.4
−
V
−
0.4
V
Output high voltage,
POD1) = weak
Output low voltage
VOLA1+
POD1) = weak
CC
−
0.4
V
IOL ≤ 2 mA;
POD1) = medium
−
0.4
V
IOL ≤ 2 mA;
POD1) = strong
Fall time
tFA1+ CC
−
150
ns
CL = 20 pF;
POD1) = weak
−
50
ns
CL = 50 pF;
POD1) = medium
−
28
ns
CL = 50 pF;
POD1) = strong;
edge = slow
−
16
ns
CL = 50 pF;
POD1) = strong;
edge = soft;
Rise time
tRA1+ CC
−
150
ns
CL = 20 pF;
POD1) = weak
−
50
ns
CL = 50 pF;
POD1) = medium
−
28
ns
CL = 50 pF;
POD1) = strong;
edge = slow
−
16
ns
CL = 50 pF;
POD1) = strong;
edge = soft
1) POD = Pin Out Driver
Data Sheet
40
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 20
Standard_Pads Class_A2
Parameter
Symbol
Input Leakage current IOZA2
CC
Input high voltage
VIHA2
Values
Unit
Note /
Test Condition
Min.
Max.
-6
6
μA
0 V ≤ Vi <
0.5*VDDP - 1 V;
0.5*VDDP + 1 V
<Vi ≤ VDDP
-3
3
μA
0.5*VDDP - 1 V <
Vi < 0.5*VDDP
+1V
0.6 × VDDP
VDDP + 0.3 V
max. 3.6 V
SR
Input low voltage
0.36 ×
VILA2 SR -0.3
V
VDDP
VOHA2
VDDP - 0.4
−
V
CC
2.4
−
V
Output high voltage,
POD = medium
VDDP - 0.4
−
V
2.4
−
V
Output high voltage,
POD = strong
VDDP - 0.4
−
V
2.4
−
V
−
0.4
V
IOH ≥ -400 μA
IOH ≥ -500 μA
IOH ≥ -1.4 mA
IOH ≥ -2 mA
IOH ≥ -1.4 mA
IOH ≥ -2 mA
IOL ≤ 500 μA
Output low voltage,
POD = medium
−
0.4
V
IOL ≤ 2 mA
Output low voltage,
POD = strong
−
0.4
V
IOL ≤ 2 mA
Output high voltage,
POD = weak
Output low voltage,
POD = weak
Data Sheet
VOLA2
CC
41
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 20
Parameter
Fall time
Rise time
Data Sheet
Standard_Pads Class_A2 (cont’d)
Symbol
tFA2 CC
Values
Unit
Note /
Test Condition
150
ns
CL = 20 pF;
POD = weak
−
50
ns
CL = 50 pF;
POD = medium
−
3.7
ns
CL = 50 pF;
POD = strong;
edge = sharp
−
7
ns
CL = 50 pF;
POD = strong;
edge = medium
−
16
ns
CL = 50 pF;
POD = strong;
edge = soft
150
ns
CL = 20 pF;
POD = weak
−
50
ns
CL = 50 pF;
POD = medium
−
3.7
ns
CL = 50 pF;
POD = strong;
edge = sharp
−
7.0
ns
CL = 50 pF;
POD = strong;
edge = medium
−
16
ns
CL = 50 pF;
POD = strong;
edge = soft
Min.
Max.
−
tRA2 CC −
42
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.2
Analog to Digital Converters (VADC)
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 21
VADC Parameters (Operating Conditions apply)
Parameter
Symbol
Analog reference voltage5) VAREF
SR
Analog reference ground5) VAGND
SR
Analog reference voltage
range2)5)
VAREF VAGND
Values
Unit
Min.
Typ. Max.
VAGND
−
+1
VDDA + V
0.051)
VSSM - −
VAREF - V
0.05
1
−
1
Note /
Test Condition
VDDA + V
0.1
SR
Analog input voltage
Input leakage at analog
inputs3)
VAIN SR
IOZ1 CC
VAGND
−
VDDA
V
-100
−
200
nA
0.03 × VDDA <
Vi < 0.97 × VDDA
-500
−
100
nA
0 V ≤ Vi ≤ 0.03 ×
-100
−
500
nA
0.97 × VDDA
≤ Vi ≤ VDDA
VDDA
Input leakage current at
VAREF
IOZ2 CC
-1
−
1
μA
0 V ≤ VAREF
≤ VDDA
Input leakage current at
VAGND
IOZ3 CC
-1
−
1
μA
0 V ≤ VAGND
≤ VDDA
Internal ADC clock
fADCI CC 2
CAINSW −
−
30
MHz VDDA = 3.3 V
7
20
pF
−
25
30
pF
CAREFSW −
15
30
pF
20
40
pF
Switched capacitance at
the analog voltage inputs4) CC
Total capacitance of an
analog input
Switched capacitance at
the positive reference
voltage input5)6)
CAINTOT
CC
CC
Total capacitance of the
CAREFTOT −
voltage reference inputs5) CC
Data Sheet
43
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 21
VADC Parameters (Operating Conditions apply) (cont’d)
Parameter
Symbol
Values
Min.
Total Unadjusted Error
Differential Non-Linearity
Error8)
8)
Gain Error
Unit
Note /
Test Condition
12-bit resolution;
VDDA = 3.3 V;
VAREF = VDDA7)
Typ. Max.
−
4
LSB
−
3
LSB
-4
−
4
LSB
EAINLCC -3
EAOFF
-4
−
3
LSB
−
4
LSB
−
1.5
2
mA
during conversion
VDDP = 3.6 V,
TJ = 150 oC
−
30
−
pC
0 V ≤ VAREF
≤ VDDA9)
700
1 700
Ohm
180
550
900
Ohm
−
700
1 700
Ohm
TUE CC -4
EADNL
-3
CC
EAGAIN
CC
Integral Non-Linearity8)
Offset Error
8)
CC
Worst case ADC VDDA
power supply current per
active converter
IDDAA
Charge consumption on
VAREF per conversion5)
QCONV
ON resistance of the
analog input path
RAIN CC −
CC
CC
ON resistance for the ADC RAIN7T
test (pull down for AIN7)
CC
Resistance of the
reference voltage input
path
RAREF
CC
1) A running conversion may become imprecise in case the normal conditions are violated (voltage overshoot).
2) If the analog reference voltage is below VDDA, then the ADC converter errors increase. If the reference voltage
is reduced by the factor k (k<1), TUE, DNL, INL, Gain, and Offset errors increase also by the factor 1/k.
3) The leakage current definition is a continuous function, as shown in figure ADCx Analog Inputs Leakage. The
numerical values defined determine the characteristic points of the given continuous linear approximation they do not define step function (see Figure 9).
4) The sampling capacity of the conversion C-network is pre-charged to VAREF/2 before the sampling moment.
Because of the parasitic elements, the voltage measured at AINx can deviate from VAREF/2.
5) Applies to AINx, when used as alternate reference input.
6) This represents an equivalent switched capacitance. This capacitance is not switched to the reference voltage
at once. Instead, smaller capacitances are successively switched to the reference voltage.
7) For 10-bit conversions, the errors are reduced to 1/4; for 8-bit conversions, the errors are reduced to 1/16.
Never less than ±1 LSB.
8) The sum of DNL/INL/GAIN/OFF errors does not exceed the related total unadjusted error TUE.
9) The resulting current for a conversion can be calculated with IAREF = QCONV / tc.
The fastest 12-bit post-calibrated conversion of tc = 550 ns results in a typical average current of
IAREF = 54.5 µA.
Data Sheet
44
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
The power-up calibration of the VADC requires a maximum number of 4 352 fADCI cycles.
REXT
VAIN =
Analog Input Circuitry
RAIN, On
ANx
CEXT
CAINSW
CAINTOT - CAINSW
VAGNDx
RAIN7T
Reference Voltage Input Circuitry
RAREF, On
VAREFx
VAREF
CAREFTOT - CAREFSW
CAREFSW
VAGNDx
Analog_InpRefDiag
Figure 8
VADC Input Circuits
IOZ1
Single ADC Input
500 nA
200 nA
100 nA
V IN [% VD D A]
-100 nA
3%
97%
100%
-500 nA
ADC-Leakage.vsd
Figure 9
Data Sheet
VADC Analog Input Leakage Current
45
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Conversion Time
Table 22
Conversion Time (Operating Conditions apply)
Parameter
Symbol Values
Conversion
time
tC
•
•
•
Unit Note
CC 2 × TADC +
(2 + N + STC + PC +DM) × TADCI
μs
N = 8, 10, 12 for
N-bit conversion
TADC = 1 / fPERIPH
TADCI = 1 / fADCI
STC defines additional clock cycles to extend the sample time
PC adds two cycles if post-calibration is enabled
DM adds one cycle for an extended conversion time of the MSB
Conversion Time Examples
System assumptions:
fADC = 120 MHz i.e. tADC = 8.33 ns, DIVA = 3, fADCI = 30 MHz i.e. tADCI = 33.3 ns
According to the given formulas the following minimum conversion times can be
achieved (STC = 0, DM = 0):
12-bit post-calibrated conversion (PC = 2):
tCN12C = (2 + 12 + 2) × tADCI + 2 × tADC = 16 × 33.3 ns + 2 × 8.33 ns = 550 ns
12-bit uncalibrated conversion:
tCN12 = (2 + 12) × tADCI + 2 × tADC = 14 × 33.3 ns + 2 × 8.33 ns = 483 ns
10-bit uncalibrated conversion:
tCN10 = (2 + 10) × tADCI + 2 × tADC = 12 × 33.3 ns + 2 × 8.33 ns = 417 ns
8-bit uncalibrated:
tCN8 = (2 + 8) × tADCI + 2 × tADC = 10 × 33.3 ns + 2 × 8.33 ns = 350 ns
Data Sheet
46
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.3
Digital to Analog Converters (DAC)
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 23
DAC Parameters (Operating Conditions apply)
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note /
Test Condition
per active DAC
channel,
without load
currents of DAC
outputs
RMS supply current
IDD
−
2.5
4
mA
Resolution
RES
CC −
fURATE_ACC −
12
−
Bit
Update rate
2
Msam data rate, where
ple/s DAC can follow
64 LSB code jumps
to ± 1LSB accuracy
Update rate
fURATE_F CC −
5
Msam data rate, where
ple/s DAC can follow
64 LSB code jumps
to ± 4 LSB accuracy
Settling time
tSETTLE CC −
1
2
μs
Slew rate
SR
CC
VOUT_MIN
2
5
−
V/μs
−
0.3
−
V
code value
unsigned: 000H;
signed: 800H
−
2.5
−
V
code value
unsigned: FFFH;
signed: 7FFH
CC -4
±2.5
4
LSB
RL ≥ 5 kOhm,
CL ≤ 50 pF
CC -2
±1
2
LSB
RL ≥ 5 kOhm,
CL ≤ 50 pF
Minimum output
voltage
Maximum output
voltage
CC
VOUT_MAX
CC
Integral non-linearity INL
Differential nonlinearity
Data Sheet
CC
DNL
47
at full scale jump,
output voltage
reaches target
value ± 20 LSB
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 23
DAC Parameters (Operating Conditions apply) (cont’d)
Parameter
Symbol
Values
Min.
Offset error
Gain error
Startup time
3dB Bandwidth of
Output Buffer
Output sourcing
current
Typ.
Unit
Max.
Note /
Test Condition
EDOFF CC
EDG_IN CC -6.5
tSTARTUP CC −
-1.5
3
%
15
30
μs
time from output
enabling till code
valid ±16 LSB
fC1
5
−
MHz
verified by design
-30
−
mA
−
0.6
−
mA
CC 2.5
IOUT_SOURCE −
±20
mV
CC
Output sinking
current
IOUT_SINK
Output resistance
ROUT
RL
CL
CC −
50
−
Ohm
SR 5
−
−
kOhm
SR −
−
50
pF
Signal-to-Noise
Ratio
SNR
CC
−
70
−
dB
examination
bandwidth < 25 kHz
Total Harmonic
Distortion
THD
CC
−
70
−
dB
examination
bandwidth < 25 kHz
Power Supply
Rejection Ratio
PSRR CC
−
56
−
dB
to VDDA
verified by design
Load resistance
Load capacitance
CC
Conversion Calculation
Unsigned:
DACxDATA = 4095 × (VOUT - VOUT_MIN) / (VOUT_MAX - VOUT_MIN)
Signed:
DACxDATA = 4095 × (VOUT - VOUT_MIN) / (VOUT_MAX - VOUT_MIN) - 2048
Data Sheet
48
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.4
Out-of-Range Comparator (ORC)
The Out-of-Range Comparator (ORC) triggers on analog input voltages (VAIN) above the
analog reference1) (VAREF) on selected input pins (GxORCy) and generates a service
request trigger (GxORCOUTy).
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
The
parameters
in
Table 24
apply
for
the
maximum
reference
voltage
VAREF = VDDA + 50 mV.
Table 24
ORC Parameters (Operating Conditions apply)
Parameter
Symbol
Values
Min.
DC Switching Level VODC
Hysteresis
CC 100
Max.
125
200
mV
−
VODC
mV
CC 55
−
450
ns
45
−
105
ns
−
−
ns
−
−
ns
VOHYS CC 50
Detection Delay of a tODD
persistent
Overvoltage
Unit Note / Test Condition
Typ.
Always detected
Overvoltage Pulse
tOPDD CC 440
Never detected
Overvoltage Pulse
tOPDN CC −
−
49
ns
−
−
30
ns
Release Delay
tORD
tOED
CC 65
−
105
ns
CC −
100
200
ns
Enable Delay
90
VAIN ≥ VAREF + VODC
VAIN ≥ VAREF + 200 mV
VAIN ≥ VAREF + 400 mV
VAIN ≥ VAREF + 200 mV
VAIN ≥ VAREF + 400 mV
VAIN ≥ VAREF + 200 mV
VAIN ≥ VAREF + 400 mV
VAIN ≤ VAREF
1) Always the standard VADC reference, alternate references do not apply to the ORC.
Data Sheet
49
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
VODC
VOHYS
Electrical Parameters
VAREF
VSS
GxORCy
GxORCOUTy
tODD
Figure 10
Data Sheet
tORD
GxORCOUTy Trigger Generation
50
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.5
Die Temperature Sensor
The Die Temperature Sensor (DTS) measures the junction temperature TJ.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 25
Die Temperature Sensor Parameters
Parameter
Symbol
Values
Min.
Typ. Max.
Unit Note /
Test Condition
−
150
°C
Linearity Error
ΔTLE CC −
(to the below defined formula)
±1
−
°C
per ΔTJ ≤ 30 °C
Offset Error
ΔTOE CC −
±6
−
°C
ΔTOE = TJ - TDTS
Measurement time
tM
CC −
tTSST SR −
−
100
μs
−
10
μs
Temperature sensor range
Start-up time after reset
inactive
TSR
SR -40
The following formula calculates the temperature measured by the DTS in [oC] from the
RESULT bit field of the DTSSTAT register.
Temperature TDTS = (RESULT - 596) / 2.03 [°C]
(PRELIMINARY)
This formula and the values defined in Table 25 apply with the following calibration
values:
•
•
DTSCON.BGTRIM = 8H
DTSCON.REFTRIM = 4H
Data Sheet
(PRELIMINARY)
(PRELIMINARY)
51
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.6
USB OTG Interface DC Characteristics
The Universal Serial Bus (USB) Interface is compliant to the USB Rev. 2.0 Specification
and the OTG Specification Rev. 1.3. High-Speed Mode is not supported.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 26
USB OTG VBUS and ID Parameters (Operating Conditions apply)
Parameter
Symbol
Values
Min.
Unit
Typ. Max.
VBUS input voltage
range
VIN
CC 0.0
−
5.25
V
A-device VBUS valid
threshold
VB1
CC 4.4
−
−
V
A-device session valid VB2
threshold
CC 0.8
−
2.0
V
B-device session valid VB3
threshold
CC 0.8
−
4.0
V
B-device session end
threshold
VB4
CC 0.2
−
0.8
V
VBUS input
resistance to ground
RVBUS_IN
−
100
kOhm
−
−
Ohm
−
−
Ohm
14
−
25
kOhm
−
−
150
μA
40
CC
RVBUS_PU 281
B-device VBUS pullup resistor
CC
B-device VBUS pulldown resistor
CC
USB.ID pull-up
resistor
CC
VBUS input current
IVBUS_IN
RVBUS_PD 656
RUID_PU
CC
Data Sheet
Note /
Test Condition
52
Pull-up voltage =
3.0 V
0 V ≤ VIN ≤ 5.25 V:
TAVG = 1 ms
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 27
USB OTG Data Line (USB_DP, USB_DN) Parameters (Operating
Conditions apply)
Parameter
Symbol
Values
Min.
Unit
Typ. Max.
Note /
Test Condition
SR −
−
0.8
V
SR 2.0
−
−
V
Input high voltage
(floating) 1)
VIHZ SR 2.7
−
3.6
V
Differential input
sensitivity
VDIS CC 0.2
−
−
V
Differential common
mode range
VCM CC 0.8
−
2.5
V
Output low voltage
VOL
CC 0.0
−
0.3
V
1.5 kOhm pullup to 3.6 V
Output high voltage
VOH CC 2.8
−
3.6
V
15 kOhm pulldown to 0 V
DP pull-up resistor (idle RPUI CC 900
bus)
−
1 575
Ohm
Input low voltage
Input high voltage
(driven)
VIL
VIH
DN pull-up resistor
(upstream port
receiving)
RPUA CC 1 425
−
3 090
Ohm
DP, DN pull-down
resistor
RPD CC 14.25
−
24.8
kOhm
Input impedance DP,
DN
ZINP CC 300
−
−
kOhm 0 V ≤ VIN ≤ VDDP
−
44
Ohm
Driver output resistance ZDRV CC 28
DP, DN
1) Measured at A-connector with 1.5 kOhm ± 5% to 3.3 V ± 0.3 V connected to USB_DP or USB_DN and at Bconnector with 15 kOhm ± 5% to ground connected to USB_DP and USB_DN.
Data Sheet
53
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.7
Oscillator Pins
Note: It is strongly recommended to measure the oscillation allowance (negative
resistance) in the final target system (layout) to determine the optimal parameters
for the oscillator operation. Please refer to the limits specified by the crystal or
ceramic resonator supplier.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 28
OSC_XTAL Parameters
Parameter
Symbol
Values
Min.
Input frequency
Unit
Note /
Test Condition
Typ.
Max.
fOSC SR 4
−
40
MHz Direct Input Mode
selected
4
−
25
MHz External Crystal
Mode selected
−
−
10
ms
Oscillator start-up
time1)2)
tOSCS
Input voltage at XTAL1
VIX SR -0.5
CC
−
VDDP + V
0.5
Input amplitude (peakto-peak) at XTAL12)3)
Input high voltage at
XTAL14)
VPPX SR 0.4 ×
VDDP
VIHBXSR 1.0
−
VDDP + V
1.0
−
VDDP + V
0.5
VILBX SR -0.5
−
0.4
V
Input leakage current at IILX1 CC -100
XTAL1
−
100
nA
Input low voltage at
XTAL14)
Oscillator power
down
0 V ≤ VIX ≤ VDDP
1) tOSCS is defined from the moment the oscillator is enabled wih SCU_OSCHPCTRL.MODE until the oscillations
reach an amplitude at XTAL1 of 0.4 * VDDP.
2) The external oscillator circuitry must be optimized by the customer and checked for negative resistance and
amplitude as recommended and specified by crystal suppliers.
3) If the shaper unit is enabled and not bypassed.
4) If the shaper unit is bypassed, dedicated DC-thresholds have to be met.
Data Sheet
54
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 29
RTC_XTAL Parameters
Parameter
Symbol
Values
Min.
Input frequency
Oscillator start-up
time1)2)3)
fOSC SR −
tOSCS
−
Typ.
Unit
Max.
32.768 −
kHz
−
5
s
CC
Input voltage at
RTC_XTAL1
VIX SR -0.3
−
VBAT + V
Input amplitude (peakto-peak) at
RTC_XTAL12)4)
VPPX CC 0.2 ×
VBAT
−
VBAT + V
Input high voltage at
RTC_XTAL15)
VIHBXSR 0.6 ×
VBAT
VILBX SR -0.3
−
Input low voltage at
RTC_XTAL15)
Input Hysteresis for
RTC_XTAL15)6)
Note /
Test Condition
0.3
0.6
VBAT + V
0.3
−
0.36 ×
V
VBAT
VHYSX
0.1 ×
CC
VBAT
−
0.03 ×
V
3.0 V ≤
−
V
VBAT < 3.6 V
VBAT < 3.0 V
100
nA
VBAT
Input leakage current at IILX1 CC -100
RTC_XTAL1
−
Oscillator power
down
0 V ≤ VIX ≤ VBAT
1) tOSCS is defined from the moment the oscillator is enabled by the user with SCU_OSCULCTRL.MODE until the
oscillations reach an amplitude at RTC_XTAL1 of 0.2 * VBAT.
2) The external oscillator circuitry must be optimized by the customer and checked for negative resistance and
amplitude as recommended and specified by crystal suppliers.
3) For a reliable start of the oscillation in crystal mode it is required that VBAT ≥ 3.0 V. A running oscillation is
maintained across the full VBAT voltage range.
4) If the shaper unit is enabled and not bypassed.
5) If the shaper unit is bypassed, dedicated DC-thresholds have to be met.
6) Hysteresis is implemented to avoid metastable states and switching due to internal ground bounce. It can not
be guaranteed that it suppresses switching due to external system noise.
Data Sheet
55
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.8
Power Supply Current
The total power supply current defined below consists of a leakage and a switching
component.
Application relevant values are typically lower than those given in the following tables,
and depend on the customer's system operating conditions (e.g. thermal connection or
used application configurations).
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
If not stated otherwise, the operating conditions for the parameters in the following table
are:
VDDP = 3.3 V, TA = 25 oC
Table 30
Power Supply Parameters
Parameter
Symbol
Values
Min.
Unit
Note /
Test Condition
Typ.
Max.
IDDPA CC −
122
−
−
110
−
120 / 60 / 60
−
85
−
60 / 60 / 120
−
65
−
24 / 24 / 24
−
52
−
1/1/1
Active supply current
Code execution from RAM
Flash in Sleep mode
IDDPA CC −
98
−
−
80
−
Active supply current2)
Peripherals disabled
Frequency:
fCPU / fPERIPH / fCCU in MHz
IDDPA CC −
115
−
−
105
−
120 / 60 / 60
−
80
−
60 / 60 / 120
−
63
−
24 / 24 / 24
−
50
−
1/1/1
IDDPS CC −
115
−
−
105
−
120 / 60 / 60
−
83
−
60 / 60 / 120
−
60
−
24 / 24 / 24
−
48
−
1/1/1
−
46
−
100 / 100 / 100
1)10)
Active supply current
Peripherals enabled
Frequency:
fCPU / fPERIPH / fCCU in MHz
3)
Sleep supply current
Peripherals enabled
Frequency:
fCPU / fPERIPH / fCCU in MHz
fCPU / fPERIPH / fCCU in kHz
Data Sheet
56
mA
mA
120 / 120 / 120
120 / 120 / 120
120 / 60 / 60
mA
mA
120 / 120 / 120
120 / 120 / 120
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 30
Power Supply Parameters (cont’d)
Parameter
Symbol
Values
Min.
Unit
Note /
Test Condition
Typ.
Max.
IDDPS CC −
110
−
−
100
−
120 / 60 / 60
−
77
−
60 / 60 / 120
−
59
−
24 / 24 / 24
−
48
−
1/1/1
−
46
−
100 / 100 / 100
IDDPD CC −
20
−
−
12
−
4/4/4
−
10
−
1/1/1
fCPU / fPERIPH / fCCU in kHz
−
6
−
100 / 100 / 100
Hibernate supply current
RTC on7)
IDDPH CC −
10
−
−
7.5
−
−
6.2
−
Hibernate supply current
RTC off8)
IDDPH CC −
9.2
−
−
6.7
−
−
5.6
−
Worst case active supply
current9)
IDDPA CC −
−
VDDA power supply current IDDA CC −
IDDP current at PORST Low IDDP_PORST −
−
−11)
mA
−
16
mA
VDDP = 3.6 V,
TJ = 150 oC
PDISS CC −
−
1
W
VDDP = 3.6 V,
TJ = 150 oC
CC −
6
−
cycles
Sleep supply current4)
Peripherals disabled
Frequency:
fCPU / fPERIPH / fCCU in MHz
fCPU / fPERIPH / fCCU in kHz
Deep Sleep supply
current5)
Flash in Sleep mode
Frequency:
fCPU / fPERIPH / fCCU in MHz
mA
mA
Wake-up time from Sleep to tSSA
Active mode
Data Sheet
24 / 24 / 24
6)
180
μA
μA
mA
10)
CC
Power Dissipation
120 / 120 / 120
57
VBAT = 3.3 V
VBAT = 2.4 V
VBAT = 2.0 V
VBAT = 3.3 V
VBAT = 2.4 V
VBAT = 2.0 V
VDDP = 3.6 V,
TJ = 150 oC
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 30
Power Supply Parameters (cont’d)
Parameter
Symbol
Values
Unit
Note /
Test Condition
−
ms
Defined by the
wake-up of the
Flash module,
see
Section 3.2.9
−
ms
Wake-up via
power-on reset
event, see
Section 3.3.2
Min.
Typ.
Max.
Wake-up time from Deep
Sleep to Active mode
−
−
Wake-up time from
Hibernate mode
−
−
1) CPU executing code from Flash, all peripherals idle.
2) CPU executing code from Flash.
3) CPU in sleep, all peripherals idle, Flash in Active mode.
4) CPU in sleep, Flash in Active mode.
5) CPU in sleep, peripherals disabled, after wake-up code execution from RAM.
6) To wake-up the Flash from its Sleep mode, fCPU ≥ 1 MHz is required.
7) OSC_ULP operating with external crystal on RTC_XTAL
8) OSC_ULP off, Hibernate domain operating with OSC_SI clock
9) Test Power Loop: fSYS = 120 MHz, CPU executing benchmark code from Flash, all CCUs in 100kHz timer
mode, all ADC groups in continuous conversion mode, USICs as SPI in internal loop-back mode, CAN in
500kHz internal loop-back mode, interrupt triggered DMA block transfers to parity protected RAMs and FCE,
DTS measurements and FPU calculations.
The power consumption of each customer application will most probably be lower than this value, but must be
evaluated separately.
10) IDDP decreases typically by approximately 6 mA when fSYS decreases by 10 MHz, at constant TJ
11) Sum of currents of all active converters (ADC and DAC)
Data Sheet
58
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.2.9
Flash Memory Parameters
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 31
Flash Memory Parameters
Parameter
Symbol
Values
Min.
Unit
Typ.
Max.
5
5.5
s
Erase Time per 64 Kbyte tERP CC −
Sector
1.2
1.4
s
Erase Time per 16 Kbyte tERP CC −
Logical Sector
0.3
0.4
s
Program time per page1) tPRP CC −
5.5
11
ms
−
15
ms
−
−
μs
Erase Time per 256
Kbyte Sector
Erase suspend delay
tERP CC −
tFL_ErSusp −
Note /
Test Condition
CC
Wait time after margin
change
tFL_Margin 10
Del
CC
−
−
270
μs
22
−
−
ns
For operation
with 1 / fCPU < ta
wait states must
be configured2)
Data Retention Time,
Physical Sector3)4)
tRET CC 20
−
−
years
Max. 1000
erase/program
cycles
Data Retention Time,
Logical Sector3)4)
tRETL CC 20
−
−
years
Max. 100
erase/program
cycles
Data Retention Time,
tRTU CC 20
User Configuration Block
(UCB)3)4)
−
−
years
Max. 4
erase/program
cycles per UCB
Wake-up time
Read access time
tWU CC
ta CC
1) In case the Program Verify feature detects weak bits, these bits will be programmed once more. The
reprogramming takes an additional time of 5.5 ms.
2) The following formula applies to the wait state configuration: FCON.WSPFLASH × (1 / fCPU) ≥ ta.
3) Storage and inactive time included.
Data Sheet
59
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
4) Values given are valid for an average weighted junction temperature of TJ = 110°C. Further lifetime
dependency values are give in the Quality Declarations.
Data Sheet
60
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3
AC Parameters
3.3.1
Testing Waveforms
VD D P
VSS
90%
90%
10%
10%
tR
tF
AC_Rise-Fall-Times.vsd
Figure 11
Rise/Fall Time Parameters
VD D P
VD D P / 2
Test Points
VD D P / 2
VSS
AC_TestPoints.vsd
Figure 12
Testing Waveform, Output Delay
VL OAD + 0.1V
VL OAD - 0.1V
Timing
Reference
Points
VOH - 0.1V
VOL + 0.1V
AC_HighImp.vsd
Figure 13
Data Sheet
Testing Waveform, Output High Impedance
61
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.2
Power-Up and Supply Monitoring
PORST is always asserted when VDDP and/or VDDC violate the respective thresholds.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 32
Supply Monitoring Parameters
Parameter
Symbol
Values
Min.
Digital supply voltage reset VPOR CC
threshold
Unit
Note /
Test Condition
3)
Typ. Max.
2.791) −
3.052)
V
Core supply voltage reset
threshold
VPV CC
−
−
1.17
V
VDDP voltage to ensure
defined pad states
VDDPPA
−
1.0
−
V
−
−
2
μs
−
2.5
3.5
ms
Time to the first
user code
instruction
−
550
−
μs
Ramp up after
power-on or
after a reset
triggered by a
violation of
VPOR or VPV
CC
tPR SR
Startup time from power-on tSSW CC
PORST rise time
reset with code execution
from Flash
VDDC ramp up time
tVCR CC
1) Minimum threshold for reset assertion.
2) Maximum threshold for reset deassertion.
3) The VDDP monitoring has a typical hysteresis of VPORHYS = 180 mV.
Data Sheet
62
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3 V
VPOR
VD D P
VD D PPA
1.3 V
VDDC
VPV
tVCR
PORST
tPR
t SSW
Pads
as programmed
High-impedance or pull -device active
Undefined
Figure 14
3.3.3
Power-Up Behavior
Power Sequencing
While starting up and shutting down as well as when switching power modes of the
system it is important to limit the current load steps. A typical cause for such load steps
is changing the CPU frequency fCPU. Load steps exceeding the below defined values
may cause a power on reset triggered by the supply monitor.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Data Sheet
63
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 33
Power Sequencing Parameters
Parameter
Symbol
Values
Unit
Note /
Test Condition
50
mA
Load increase
on VDDP
Δt ≤ 10 ns
−
150
mA
Load decrease
on VDDP
Δt ≤ 10 ns
−
±100
mV
For maximum
positive or
negative load
step
−
-
μs
Min.
Typ. Max.
Positive Load Step Current ΔIPLS SR
-
−
Negative Load Step
Current
ΔINLS SR
-
VDDC Voltage Over-
ΔVLS CC
-
/ Undershoot from Load
Step
Positive Load Step Settling tPLSS SR 50
Time
Negative Load Step
Settling Time
tNLSS SR 100
−
-
μs
External Buffer Capacitor
on VDDC
CEXT SR -
10
-
μF
In addition
C = 100 nF
capacitor on
each VDDC pin
Positive Load Step Examples
System assumptions:
fCPU = fSYS, target frequency fCPU = 120 MHz, main PLL fVCO = 480 MHz, stepping done
by K2 divider, tPLSS between individual steps:
24 MHz - 48 MHz - 68 MHz - 96 MHz - 120 MHz (K2 steps 20 - 10 - 7 - 5 - 4)
24 MHz - 68 MHz - 96 MHz - 120 MHz (K2 steps 20 - 7 - 5 - 4)
24 MHz - 68 MHz - 120 MHz (K2 steps 20 - 7 - 4)
Data Sheet
64
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.4
Phase Locked Loop (PLL) Characteristics
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Main and USB PLL
Table 34
PLL Parameters
Parameter
Symbol
Accumulated Jitter
DP CC
Duty Cycle1)
PLL base frequency
Values
Unit
Note /
Test Condition
Min.
Typ.
Max.
−
−
±5
ns
accumulated
over 300 cycles
fSYS = 120 MHz
DDC CC 46
50
54
%
Low pulse to
total period,
assuming an
ideal input clock
source
fPLLBASE 30
−
140
MHz
−
16
MHz
−
520
MHz
−
400
μs
CC
VCO input frequency
VCO frequency range
PLL lock-in time
fREF CC 4
fVCO CC 260
tL CC
−
1) 50% for even K2 divider values, 50±(10/K2) for odd K2 divider values.
Data Sheet
65
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.5
Internal Clock Source Characteristics
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Fast Internal Clock Source
Table 35
Fast Internal Clock Parameters
Parameter
Nominal frequency
Accuracy
Symbol
Values
Unit
Min.
Typ.
Max.
fOFINC
−
36.5
−
MHz not calibrated
CC
−
24
−
MHz calibrated
ΔfOFI
-0.5
−
0.5
%
automatic
calibration1)2)
-15
−
15
%
factory
calibration,
VDDP = 3.3 V
-25
−
25
%
no calibration,
VDDP = 3.3 V
-7
−
7
%
Variation over
voltage range3)
3.13 V ≤ VDDP ≤
3.63 V
50
−
μs
CC
Start-up time
Note /
Test Condition
tOFIS CC −
1) Error in addition to the accuracy of the reference clock.
2) Automatic calibration compensates variations of the temperature and in the VDDP supply voltage.
3) Deviations from the nominal VDDP voltage induce an additional error to the uncalibrated and/or factory
calibrated oscillator frequency.
Data Sheet
66
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Slow Internal Clock Source
Table 36
Slow Internal Clock Parameters
Parameter
Symbol
Nominal frequency
fOSI CC
ΔfOSI
Accuracy
Values
Unit
Min.
Typ.
−
32.768 −
Max.
kHz
-4
−
%
4
CC
Note /
Test Condition
VBAT = const.
0 °C ≤ TA ≤
85 °C
Start-up time
Data Sheet
-5
−
5
%
-5
−
5
%
-10
−
10
%
50
−
μs
tOSIS CC −
67
VBAT = const.
TA < 0 °C or
TA > 85 °C
2.4 V ≤ VBAT,
TA = 25 °C
1.95 V ≤
VBAT < 2.4 V,
TA = 25 °C
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.6
JTAG Interface Timing
The following parameters are applicable for communication through the JTAG debug
interface. The JTAG module is fully compliant with IEEE1149.1-2000.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating conditions apply.
Table 37
JTAG Interface Timing Parameters
Parameter
Symbol
Min.
Values
Typ.
Max.
Unit Note /
Test Condition
t1
t2
t3
t4
t5
t6
SR
25
–
–
ns
SR
10
–
–
ns
SR
10
–
–
ns
SR
–
–
4
ns
SR
–
–
4
ns
SR
6
–
–
ns
t7
SR
6
–
–
ns
TDO valid after TCK falling t8
edge1) (propagation delay)
CC
–
–
13
ns
CL = 50 pF
3
–
–
ns
CL = 20 pF
2
–
–
ns
TCK clock period
TCK high time
TCK low time
TCK clock rise time
TCK clock fall time
TDI/TMS setup
to TCK rising edge
TDI/TMS hold
after TCK rising edge
TDO hold after TCK falling t18 CC
edge1)
TDO high imped. to valid
from TCK falling edge1)2)
t9
–
–
14
ns
CL = 50 pF
TDO valid to high imped.
from TCK falling edge1)
t10 CC –
–
13.5
ns
CL = 50 pF
CC
1) The falling edge on TCK is used to generate the TDO timing.
2) The setup time for TDO is given implicitly by the TCK cycle time.
Data Sheet
68
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
t1
TCK
0.9 VD D P
0.1 VD D P
0.5 VD D P
t2
t3
t4
t5
JTAG_TCK .vsd
Figure 15
Test Clock Timing (TCK)
TCK
t6
t7
t6
t7
TMS
TDI
t9
t8
t10
TDO
t18
JTAG_IO.vsd
Figure 16
Data Sheet
JTAG Timing
69
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.7
Serial Wire Debug Port (SW-DP) Timing
The following parameters are applicable for communication through the SW-DP
interface.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating conditions apply.
Table 38
SWD Interface Timing Parameters (Operating Conditions apply)
Parameter
Symbol
Values
Typ.
Max.
Unit Note /
Test Condition
tSC SR 25
–
–
ns
CL = 30 pF
40
–
–
ns
CL = 50 pF
SR 10
–
500000 ns
SR 10
–
500000 ns
SR 6
–
–
ns
SWDIO input hold
t4
after SWDCLK rising edge
SR 6
–
–
ns
SWDIO output valid time t5
after SWDCLK rising edge
CC –
–
17
ns
CL = 50 pF
–
–
13
ns
CL = 30 pF
t6
SWDIO output hold time
from SWDCLK rising edge
CC 3
–
–
ns
Min.
SWDCLK clock period
t1
t2
t3
SWDCLK high time
SWDCLK low time
SWDIO input setup
to SWDCLK rising edge
tSC
t1
t2
SWDCLK
t6
SWDIO
(Output)
t5
t3
t4
SWDIO
(Input)
Figure 17
Data Sheet
SWD Timing
70
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.8
Embedded Trace Macro Cell (ETM) Timing
The data timing refers to the active clock edge. The XMC4500 ETM uses the half-rate
clocking mode. In this mode both, the rising and falling clock edges are active clock
edges.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating conditions apply, with CL ≤ 15 pF.
Table 39
ETM Interface Timing Parameters
Parameter
Symbol
Values
Min.
TRACECLK period
TRACECLK high time
TRACECLK low time
TRACECLK and
TRACEDATA rise time
TRACECLK and
TRACEDATA fall time
Typ.
Max.
Unit Note /
Test Condition
t1
t2
t3
t4
CC 16.7
–
–
ns
–
CC 2
–
–
ns
–
CC 2
–
–
ns
–
CC –
–
3
ns
–
t5
CC –
–
3
ns
–
CC -2
–
3
ns
–
TRACEDATA output valid t6
time
t1
TRACECLK
t2
Figure 18
t5
t3
t4
ETM Clock Timing
TRACECLK
t6
t6
TRACEDATA
Figure 19
Data Sheet
ETM Data Timing
71
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.9
Peripheral Timing
3.3.9.1
Delta-Sigma Demodulator Digital Interface Timing
The data timing is relative to the active clock edge. Depending on the operation mode of
the connected modulator that can be the rising and falling clock edge.
Note: The timing parameters for this interface will be added in a future revision of the
Data Sheet.
3.3.9.2
Synchronous Serial Interface (USIC SSC) Timing
The following parameters are applicable for a USIC channel operated in SSC mode.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 40
USIC SSC Master Mode Timing
Parameter
Symbol
Values
Min.
SCLKOUT master clock
period
Unit
Typ. Max.
tCLK CC 33.3
−
−
ns
Slave select output SELO t1
active to first SCLKOUT
transmit edge
CC tPB 6.51)
−
−
ns
Slave select output SELO t2
inactive after last
SCLKOUT receive edge
CC tPB 8.51)
−
−
ns
t3
CC -6
−
8
ns
Receive data input
t4
DX0/DX[5:3] setup time to
SCLKOUT receive edge
SR 23
−
−
ns
Data input DX0/DX[5:3]
t5
hold time from SCLKOUT
receive edge
SR 1
−
−
ns
Data output DOUT[3:0]
valid time
Note /
Test Condition
1) tPB = 1 / fPB
Data Sheet
72
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 41
USIC SSC Slave Mode Timing
Parameter
Symbol
Values
Min.
Unit
Typ. Max.
−
−
ns
Select input DX2 setup to
t10
first clock input DX1 transmit
edge1)
SR 3
−
−
ns
Select input DX2 hold after
last clock input DX1 receive
edge1)
t11
SR 4
−
−
ns
Receive data input
DX0/DX[5:3] setup time to
shift clock receive edge1)
t12
SR 6
−
−
ns
Data input DX0/DX[5:3] hold t13
time from clock input DX1
receive edge1)
SR 4
−
−
ns
Data output DOUT[3:0] valid t14
time
CC 0
−
24
ns
DX1 slave clock period
tCLK SR 66.6
Note /
Test Condition
1) This input timing is valid for asynchronous input signal handling of slave select input, shift clock input, and
receive data input (bits DXnCR.DSEN = 0).
Data Sheet
73
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Master Mode Timing
t1
Select Output
SELOx
t2
Inactive
Inactive
Active
Clock Output
SCLKOUT
Receive
Edge
First Transmit
Edge
t3
Last Receive
Edge
Transmit
Edge
t3
Data Output
DOUT[3:0]
t4
Data Input
DX0/DX[5:3]
t4
t5
Data
valid
t5
Data
valid
Slave Mode Timing
t1 0
Select Input
DX2
Clock Input
DX1
t1 1
Active
Inactive
Receive
Edge
First Transmit
Edge
t1 2
Data Input
DX0/DX[5:3]
Inactive
Last Receive
Edge
Transmit
Edge
t1 2
t1 3
Data
valid
t13
Data
valid
t14
t1 4
Data Output
DOUT[3:0]
Transmit Edge: with this clock edge, transmit data is shifted to transmit data output.
Receive Edge: with this clock edge, receive data at receive data input is latched
.
Drawn for BRGH .SCLKCFG = 00B. Also valid for for SCLKCFG = 01B with inverted SCLKOUT signal.
USIC_SSC_TMGX.VSD
Figure 20
USIC - SSC Master/Slave Mode Timing
Note: This timing diagram shows a standard configuration, for which the slave select
signal is low-active, and the serial clock signal is not shifted and not inverted.
Data Sheet
74
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.9.3
Inter-IC (IIC) Interface Timing
The following parameters are applicable for a USIC channel operated in IIC mode.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 42
USIC IIC Standard Mode Timing1)
Parameter
Symbol
Values
Unit
Min.
Typ.
Max.
Fall time of both SDA and t1
SCL
CC/SR
-
-
300
ns
Rise time of both SDA and t2
SCL
CC/SR
-
-
1000
ns
0
-
-
µs
250
-
-
ns
4.7
-
-
µs
4.0
-
-
µs
4.0
-
-
µs
4.7
-
-
µs
4.0
-
-
µs
4.7
-
-
µs
-
-
400
pF
Data hold time
t3
Note /
Test Condition
CC/SR
Data set-up time
t4
CC/SR
LOW period of SCL clock
t5
CC/SR
HIGH period of SCL clock t6
CC/SR
t7
Hold time for (repeated)
START condition
CC/SR
Set-up time for repeated
START condition
CC/SR
Set-up time for STOP
condition
CC/SR
t8
t9
Bus free time between a
STOP and START
condition
t10
Capacitive load for each
bus line
Cb SR
CC/SR
1) Due to the wired-AND configuration of an IIC bus system, the port drivers of the SCL and SDA signal lines
need to operate in open-drain mode. The high level on these lines must be held by an external pull-up device,
approximalely 10 kOhm for operation at 100 kbit/s, approximately 2 kOhm for operation at 400 kbit/s.
Data Sheet
75
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 43
USIC IIC Fast Mode Timing1)
Parameter
Symbol
Values
Min.
Fall time of both SDA and t1
SCL
CC/SR
Typ.
Unit
Max.
20 +
0.1*Cb
300
ns
20 +
0.1*Cb
300
ns
0
-
-
µs
100
-
-
ns
1.3
-
-
µs
0.6
-
-
µs
0.6
-
-
µs
0.6
-
-
µs
0.6
-
-
µs
1.3
-
-
µs
-
-
400
pF
Note /
Test Condition
2)
Rise time of both SDA and t2
SCL
CC/SR
2)
Data hold time
t3
CC/SR
Data set-up time
t4
CC/SR
LOW period of SCL clock
t5
CC/SR
HIGH period of SCL clock t6
CC/SR
t7
Hold time for (repeated)
START condition
CC/SR
Set-up time for repeated
START condition
CC/SR
Set-up time for STOP
condition
CC/SR
t8
t9
Bus free time between a
STOP and START
condition
t10
Capacitive load for each
bus line
Cb SR
CC/SR
1) Due to the wired-AND configuration of an IIC bus system, the port drivers of the SCL and SDA signal lines
need to operate in open-drain mode. The high level on these lines must be held by an external pull-up device,
approximalely 10 kOhm for operation at 100 kbit/s, approximately 2 kOhm for operation at 400 kbit/s.
2) Cb refers to the total capacitance of one bus line in pF.
Data Sheet
76
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
t1
SDA
t2
t4
70%
30%
t1
t3
t2
t6
SCL
th
t7
9
clock
t5
t10
S
SDA
t8
t7
t9
SCL
th
9
clock
Sr
Figure 21
3.3.9.4
P
S
USIC IIC Stand and Fast Mode Timing
Inter-IC Sound (IIS) Interface Timing
The following parameters are applicable for a USIC channel operated in IIS mode.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 44
USIC IIS Master Transmitter Timing
Parameter
Symbol
Clock period
t1 CC
t2 CC
Clock HIGH
Values
Unit
Min.
Typ.
Max.
33.3
−
−
ns
0.35 x
−
−
ns
−
−
ns
Note /
Test Condition
t1min
Clock Low
t3 CC
0.35 x
t1min
Hold time
Clock rise time
t4 CC
t5 CC
0
−
−
ns
−
−
0.15 x
ns
t1min
Data Sheet
77
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
t1
t2
t5
t3
SCK
t4
WA/
DOUT
Figure 22
USIC IIS Master Transmitter Timing
Table 45
USIC IIS Slave Receiver Timing
Parameter
Symbol
t6 SR
t7 SR
Clock period
Clock HIGH
Values
Unit
Min.
Typ.
Max.
66.6
−
−
ns
0.35 x
−
−
ns
−
−
ns
−
−
ns
−
−
ns
Note /
Test Condition
t6min
t8 SR
Clock Low
0.35 x
t6min
t9 SR
Set-up time
0.2 x
t6min
t10 SR
Hold time
0
t6
t7
t8
SCK
t9
t10
WA/
DIN
Figure 23
Data Sheet
USIC IIS Slave Receiver Timing
78
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.9.5
SDMMC Interface Timing
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating Conditions apply, total external capacitive load CL = 40 pF.
AC Timing Specifications (Full-Speed Mode)
Table 46
SDMMC Timing for Full-Speed Mode
Parameter
Symbol
Values
Clock frequency in full speed
transfer mode (1/tpp)
fpp
CC 0
24
MHz
Clock cycle in full speed
transfer mode
tpp
CC 40
−
ns
Clock low time
tWL
CC 10
tWH
CC 10
tTLH
CC −
tTHL
CC −
tISU_F SR 2
−
ns
Min.
Unit
Max.
−
ns
10
ns
10
ns
−
ns
−
ns
Outputs valid time in full speed tODLY_F CC −
mode
10
ns
Outputs hold time in full speed tOH_F
mode
−
ns
Clock high time
Clock rise time
Clock fall time
Inputs setup to clock rising
edge
Inputs hold after clock rising
edge
Table 47
tIH_F
SR 2
CC 0
SD Card Bus Timing for Full-Speed Mode1)
Parameter
Symbol
SD card input setup time
tISU
tIH
Values
Min.
SD card input hold time
Data Sheet
Note/ Test
Condition
79
Unit
Max.
5
−
ns
5
−
ns
Note/ Test
Condition
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
SD Card Bus Timing for Full-Speed Mode1) (cont’d)
Table 47
Parameter
Symbol
Values
Min.
tODLY
tOH
SD card output valid time
SD card output hold time
Unit
Max.
−
14
ns
0
−
ns
Note/ Test
Condition
1) Reference card timing values for calculation examples. Not subject to production test and not characterized.
Full-Speed Output Path (Write)
t pp (Clock Cycle)
SD Clock at
Host Pin
Driving
Edge
tCLK_DELAY
SD Clock at
Card Pin
Sampling
Edge
Output Valid Time: t ODLY_H
Output Hold Time: tOH_H
tWL
Output at
Host Pins
Output at
Card Pins
tDATA _DELAY
+ tTAP_DELAY
t IH
t ISU
Figure 24
Full-Speed Output Path
Full-Speed Write Meeting Setup (Maximum Delay)
The following equations show how to calculate the allowed skew range between the
SD_CLK and SD_DAT/CMD signals on the PCB.
No clock delay:
(1)
t ODLY_F + t DATA_DELAY + t TAP_DELAY + t ISU < t WL
Data Sheet
80
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
With clock delay:
(2)
t ODLY_F + t DATA_DELAY + t TAP_DELAY + t ISU < t WL + t CLK_DELAY
(3)
t DATA_DELAY + t TAP_DELAY + t WL < t PP + t CLK_DELAY – t ISU – t ODLY_F
t DATA_DELAY + t TAP_DELAY + 20 < 40 + t CLK_DELAY – 5 – 10
t DATA_DELAY < 5 + t CLK_DELAY – t TAP_DELAY
The data can be delayed versus clock up to 5 ns in ideal case of tWL= 20 ns.
Full-Speed Write Meeting Hold (Minimum Delay)
The following equations show how to calculate the allowed skew range between the
SD_CLK and SD_DAT/CMD signals on the PCB.
(4)
t CLK_DELAY < t WL + t OH_F + t DATA_DELAY + t TAP_DELAY – t IH
t CLK_DELAY < 20 + t DATA_DELAY + t TAP_DELAY – 5
t DATA_DELAY < 15 + t CLK_DELAY + t TAP_DELAY
The clock can be delayed versus data up to 18.2 ns (external delay line) in ideal case of
tWL= 20 ns, with maximum tTAP_DELAY = 3.2 ns programmed.
Data Sheet
81
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Full-Speed Input Path (Read)
tpp (Clock Cycle)
SD Clock at
Host Pin
Sampling
Edge
tCLK_DELAY
SD Clock at
Card Pin
Driving
Edge
tODLY
tOH
tDATA_DELAY + t TAP_DELAY
Output at
Host Pins
Output at
Card Pins
tISU_H
Figure 25
tIH_H
Full-Speed Input Path
Full-Speed Read Meeting Setup (Maximum Delay)
The following equations show how to calculate the allowed combined propagation delay
range of the SD_CLK and SD_DAT/CMD signals on the PCB.
(5)
t CLK_DELAY + t DATA_DELAY + t TAP_DELAY + t ODLY + t ISU_F < 0,5 × t pp
t CLK_DELAY + t DATA_DELAY < 0,5 × t pp – t ODLY – t ISU_F – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY < 20 – 14 – 2 – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY < 4 – t TAP_DELAY
The data + clock delay can be up to 4 ns for a 40 ns clock cycle.
Data Sheet
82
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Full-Speed Read Meeting Hold (Minimum Delay)
The following equations show how to calculate the allowed combined propagation delay
range of the SD_CLK and SD_DAT/CMD signals on the PCB.
(6)
t CLK_DELAY + t OH + t DATA_DELAY + t TAP_DELAY > t IH_F
t CLK_DELAY + t DATA_DELAY > t IH_F – t OH – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY > 2 – t TAP_DELAY
The data + clock delay must be greater than 2 ns if tTAP_DELAY is not used.
If the tTAP_DELAY is programmed to at least 2 ns, the data + clock delay must be greater
than 0 ns (or less). This is always fulfilled.
AC Timing Specifications (High-Speed Mode)
Table 48
SDMMC Timing for High-Speed Mode
Parameter
Symbol
Values
Min.
Clock frequency in high speed fpp
transfer mode (1/tpp)
Unit
Max.
CC 0
48
MHz
−
ns
Clock cycle in high speed
transfer mode
tpp
CC 20
Clock low time
tWL
tWH
tTLH
tTHL
tISU_H
CC 7
−
ns
CC 7
−
ns
CC −
3
ns
CC −
3
ns
SR 2
−
ns
Inputs hold after clock rising
edge
tIH_H
SR 2
−
ns
Outputs valid time in high
speed mode
tODLY_H CC −
14
ns
Outputs hold time in high
speed mode
tOH_H
−
ns
Clock high time
Clock rise time
Clock fall time
Inputs setup to clock rising
edge
Data Sheet
CC 2
83
Note/ Test
Condition
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
SD Card Bus Timing for High-Speed Mode1)
Table 49
Parameter
Symbol
Values
Unit
Min.
SD card input setup time
SD card input hold time
SD card output valid time
SD card output hold time
tISU
tIH
tODLY
tOH
Max.
6
−
ns
2
−
ns
−
14
ns
2.5
−
ns
Note/ Test
Condition
1) Reference card timing values for calculation examples. Not subject to production test and not characterized.
High-Speed Output Path (Write)
tpp (Clock Cycle)
SD Clock at
Host Pin
Driving
Edge
t CLK_DELAY
SD Clock at
Card Pin
Sampling
Edge
Output Valid Time: t ODLY_H
Output Hold Time: tOH_H
tWL
Output at
Host Pins
Output at
Card Pins
tDATA _DELAY
+ tTAP_DELAY
tIH
tISU
Figure 26
High-Speed Output Path
High-Speed Write Meeting Setup (Maximum Delay)
The following equations show how to calculate the allowed skew range between the
SD_CLK and SD_DAT/CMD signals on the PCB.
Data Sheet
84
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
No clock delay:
(7)
t ODLY_H + t DATA_DELAY + t TAP_DELAY + t ISU < t WL
With clock delay:
(8)
t ODLY_H + t DATA_DELAY + t TAP_DELAY + t ISU < t WL + t CLK_DELAY
(9)
t DATA_DELAY + t TAP_DELAY – t CLK_DELAY < t WL – t ISU – t ODLY_H
t DATA_DELAY – t CLK_DELAY < t WL – t ISU – t ODLY_H – t TAP_DELAY
t DATA_DELAY – t CLK_DELAY < 10 – 6 – 14 – t TAP_DELAY
t DATA_DELAY – t CLK_DELAY < – 10 – t TAP_DELAY
The data delay is less than the clock delay by at least 10 ns in the ideal case where tWL=
10 ns.
High-Speed Write Meeting Hold (Minimum Delay)
The following equations show how to calculate the allowed skew range between the
SD_CLK and SD_DAT/CMD signals on the PCB.
(10)
t CLK_DELAY < t WL + t OH_H + t DATA_DELAY + t TAP_DELAY – t IH
t CLK_DELAY – t DATA_DELAY < t WL + t OH_H + t TAP_DELAY – t IH
t CLK_DELAY – t DATA_DELAY < 10 + 2 + t TAP_DELAY – 2
t CLK_DELAY – t DATA_DELAY < 10 + t TAP_DELAY
The clock can be delayed versus data up to 13.2 ns (external delay line) in ideal case of
tWL= 10 ns, with maximum tTAP_DELAY = 3.2 ns programmed.
Data Sheet
85
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
High-Speed Input Path (Read)
tpp (Clock Cycle)
SD Clock at
Host Pin
Sampling
Edge
t CLK_DELAY
SD Clock at
Card Pin
Driving
Edge
tODLY
t OH
t DATA_DELAY + tTAP_DELAY
Output at
Host Pins
Output at
Card Pins
t ISU_H
Figure 27
tIH_H
High-Speed Input Path
High-Speed Read Meeting Setup (Maximum Delay)
The following equations show how to calculate the allowed combined propagation delay
range of the SD_CLK and SD_DAT/CMD signals on the PCB.
(11)
t CLK_DELAY + t DATA_DELAY + t TAP_DELAY + t ODLY + t ISU_H < t pp
t CLK_DELAY + t DATA_DELAY < t pp – t ODLY – t ISU_H – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY < 20 – 14 – 2 – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY < 4 – t TAP_DELAY
The data + clock delay can be up to 4 ns for a 20 ns clock cycle.
Data Sheet
86
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
High-Speed Read Meeting Hold (Minimum Delay)
The following equations show how to calculate the allowed combined propagation delay
range of the SD_CLK and SD_DAT/CMD signals on the PCB.
(12)
t CLK_DELAY + t OH + t DATA_DELAY + t TAP_DELAY > t IH_H
t CLK_DELAY + t DATA_DELAY > t IH_H – t OH – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY > 2 – 2,5 – t TAP_DELAY
t CLK_DELAY + t DATA_DELAY > – 0,5 – t TAP_DELAY
The data + clock delay must be greater than -0.5 ns for a 20 ns clock cycle. This is always
fulfilled.
Data Sheet
87
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.10
EBU Timing
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating Conditions apply, with Class A2 pins and CL = 16 pF.
3.3.10.1 EBU Asynchronous Timing
Note: For each timing, the accumulated PLL jitter must be added separately.
Table 50
Common Timing Parameters for all Asynchronous Timings
Parameter
Sym Limit Values Unit Edge
bol Min. Max.
Setting
Pulse width deviation from the ideal
programmed width due to the A2 pad
asymmetry, strong driver mode,
rise delay - fall delay. CL = 16 pF.
CC ta
AD(24:16) output delay to ADV rising
AD(24:16) output delay edge, multiplexed
read / write
Data Sheet
88
-1
1.5
-2
1
ns
sharp
medium
CC t13
-5.5
2
–
CC t14
-5.5
2
–
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Read Timing
Table 51
Asynchronous Read Timing, Multiplexed and Demultiplexed
Parameter
Symbol
A(24:16) output delay to RD rising edge,
A(24:16) output delay deviation from the
ideal programmed
CS rising edge
value.
ADV rising edge
CC
CC
CC
CC
BC rising edge
CC
WAIT input setup
SR
WAIT input hold
SR
Data input setup
SR
Data input hold
SR
RD / WR output delay
CC
Data Sheet
89
t0
t1
t2
t3
t4
t5
t6
t7
t8
t9
Limit Values
Min.
Max.
-2.5
2.5
-2.5
2.5
-2
2.5
-1.5
4.5
-2.5
2.5
12
–
0
–
12
–
0
–
-2.5
1.5
Unit
ns
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Multiplexed Read Timing
EBU
STATE
Address
Phase
Address Hold
Phase (opt.)
Command
Delay Phase
Command
Phase
Recovery
Phase (opt.)
New Addr.
Phase
Duration Limits in
EBU_CLK Cycles
1...15
0...15
0...7
1...31
0...15
1...15
A[max:16]1)
Next
Addr.
Valid Address
pv +
t0
pv +
pv +
CS[3:0]
t1
t2
ta
CSCOMB
pv +
pv + ta
t3
ADV
pv +
ta
RD
pv +
t9
pv +
ta
RD/WR
pv +
ta
t4
BC[3:0]
pv +
t5
t6
WAIT
pv +
pv +
AD[31:0]
2)
t14
t7
t13
Address Out
t8
Data In
1)
For 16-bit MUX and Twin 16-bit MUX only
* 16-bit MUX:
- Address A[15:0], Data D[15:0] on pins AD[15:0] only
* Twin 16-Bit MUX: - Address A[15:0] on pins AD[15:0] and AD[31:16] in parallel
- Data D[31:0] on pins AD[31:0]
* 32-bit MUX:
- Address A[24:0] on pins AD[24:0]
- Data D[31:0] on pins AD[31:0]
2)
pv = programmed value,
TEBU_CLK * sum (corresponding bitfield values)
Figure 28
Data Sheet
EBU_MuxRD_Async.vsd
Multiplexed Read Access
90
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Demultiplexed Read Timing
EBU
STATE
Address
Phase
Address Hold
Phase (opt.)
Command
Phase
Recovery
Phase (opt.)
New Addr.
Phase
Duration Limits in
EBU_CLK Cycles
1...15
0...15
1...31
0...15
1...15
A[max:0]1)
Next
Addr.
Valid Address
pv + t1
pv + t0
pv + ta
t2
CS[3:0]
CSCOMB
t3
pv +
pv + ta
ADV
pv +
ta
RD
pv +
t9
pv +
ta
RD/WR
pv +
ta
t4
BC[3:0]
pv +
t5
t6
WAIT
t7
D[15:0]2)
t8
Data In
1)
2)
Address A[max:16] on pins A[max:16], Address A[15:0] on pins AD[31:16]
Data D[15:0] on pins AD[15:0]
pv = programmed value,
TEBU_CLK * sum (corresponding bitfield values)
Figure 29
Demultiplexed Read Access
Data Sheet
91
EBU_DeMuxRD_Async.vsd
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Write Timing
Table 52
Asynchronous Write Timing, Multiplexed and Demultiplexed
Parameter
A(24:0) output delay
A(24:0) output delay
CS rising edge
ADV rising edge
Symbol Limit Values
CC
to RD/WR rising
edge, deviation from CC
the ideal programmed
CC
value.
CC
BC rising edge
CC
WAIT input setup
SR
WAIT input hold
SR
Data output delay
CC
Data output delay
CC
RD / WR output delay
CC
Data Sheet
92
t30
t31
t32
t33
t34
t35
t36
t37
t38
t39
Min.
Max.
-2.5
2.5
-2.5
2.5
-2
2
-2
4.5
-2.5
2
12
–
0
–
-5.5
2
-5.5
2
-2.5
1.5
Unit
ns
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Multiplexed Write Timing
EBU
STATE
Address
Phase
Address Hold
Phase (opt.)
Command
Phase
Data Hold
Phase
Recovery
Phase (opt.)
New Addr.
Phase
Duration Limits in
EBU_CLK Cycles
1...15
0...15
1...31
0...15
0...15
1...15
A[max:16]1)
Next
Addr.
Valid Address
t30
pv +
pv +
CS[3:0]
pv + t31
ta
pv + t32
CSCOMB
pv + t33
pv + ta
ADV
pv +
ta
RD
pv + t39
RD/WR
pv +
t34
ta
pv + ta
BC[3:0]
t36
t35
WAIT
pv +
pv +
AD[31:0]2)
t14
t37
t13
pv +
t38
Data Out
Address Out
1)
For 16-bit MUX and Twin 16-bit MUX only
* 16-bit MUX:
- Address A[15:0], Data D[15:0] on pins AD[15:0] only
* Twin 16-Bit MUX: - Address A[15:0] on pins AD[15:0] and AD[31:16] in parallel
- Data D[31:0] on pins AD[31:0]
* 32-bit MUX:
- Address A[24:0] on pins AD[24:0]
- Data D[31:0] on pins AD[31:0]
2)
pv = programmed value,
TEBU_CLK * sum (corresponding bitfield values)
Figure 30
Data Sheet
EBU_MuxWR_Async.vsd
Multiplexed Write Access
93
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Demultiplexed Write Timing
EBU
STATE
Address
Phase
Address Hold
Phase (opt.)
Command
Phase
Data Hold
Phase
Recovery
Phase (opt.)
New Addr.
Phase
Duration Limits in
EBU_CLK Cycles
1...15
0...15
1...31
0...15
0...15
1...15
A[max:0]1)
Next
Addr.
Valid Address
pv +
t30
pv +
pv +
CS[3:0]
CSCOMB
ta
pv +
pv +
pv +
ta
t31
t32
t33
ADV
pv + t39
RD
pv +
ta
RD/WR
pv +
ta
t34
pv + ta
BC[3:0]
t36
t35
WAIT
t37
pv +
D[15:0]2)
1)
2)
t38
Data Out
Address A[max:16] on pins A[max:16], Address A[15:0] on pins AD[31:16]
Data D[15:0] on pins AD[15:0]
pv = programmed value,
TEBU_CLK * sum (corresponding bitfield values)
Figure 31
Demultiplexed Write Access
Data Sheet
94
EBU_DeMuxWR_Async.vsd
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.10.2 EBU Burst Mode Access Timing
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating Conditions apply, with Class A2 pins and CL = 16 pF.
Table 53
EBU Burst Mode Read / Write Access Timing Parameters
Parameter
Symbol
Values
Min.
Typ. Max.
Unit
Note /
Test Condition
Output delay from BFCLKO
rising edge
t10
CC
-2
–
2
ns
–
RD and RD/WR
active/inactive after
BFCLKO active edge1)
t12
CC
-2
–
2
ns
–
CSx output delay from
BFCLKO active edge1)
t21
CC -2.5
–
1.5
ns
–
ADV active/inactive after
BFCLKO active edge2)
t22
CC -2
–
2
ns
–
BAA active/inactive after
BFCLKO active edge2)
t22a
CC -2.5
–
1.5
ns
–
Data setup to BFCLKI rising t23
edge3)
SR 3
–
–
ns
–
Data hold from BFCLKI
rising edge3)
t24
SR 0
–
–
ns
–
WAIT setup (low or high) to
BFCLKI rising edge3)
t25
SR 3
–
–
ns
–
WAIT hold (low or high) from t26
BFCLKI rising edge3)
SR 0
–
–
ns
–
1) An active edge can be a rising or falling edge, depending on the settings of bits BFCON.EBSE / ECSE and
the clock divider ratio.
Negative minimum values for these parameters mean that the last data read during a burst may be corrupted.
However, with clock feedback enabled, this value is an oversampling not required for the internal bus
transaction, and will be discarded.
2) This parameter is valid for BUSCONx.EBSE = 1 and BUSAPx.EXTCLK = 00B.
For BUSCONx.EBSE = 1 and other values of BUSAPx.EXTCLK, ADV and BAA will be delayed by 1/2 of the
internal bus clock period TCPU = 1 / fCPU.
For BUSCONx. EBSE = 0 and BUSAPx.EXTCLK = 11B, add 2 internal bus clock periods.
For BUSCONx. EBSE = 0 and other values of BUSAPx.EXTCLK, add 1 internal bus clock period.
Data Sheet
95
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3) If the clock feedback is not enabled, the input signals are latched using the internal clock in the same way as
for asynchronous access. Thus, t5, t6, t7 and t8 from the asynchronous timing apply.
Address
Phase(s)
Command
Phase(s)
Burst
Phase(s)
Burst
Phase(s)
Recovery
Phase(s)
Next Addr.
Phase(s)
BFCLKI
BFCLKO1)
t10
t10
A[max :0]
Next
Addr.
Burst Start Address
t22
t2 2
t22
ADV
t21
t21
t21
CS[3:0]
CSCOMB
t1 2
t12
RD
RD/WR
t2 2 a
t2 2a
BAA
t23
D[31:0]
(32-Bit)
D[15:0]
(16-Bit)
t25
t2 4
t23
t2 4
Data (Addr+0)
Data (Addr+4)
Data (Addr+0)
Data (Addr+2)
t2 6
WAIT
1)
Figure 32
Data Sheet
Output delays are always referenced to BCLKO . The reference clock for input
characteristics depends on bit EBU _BFCON.FDBKEN.
EBU_BFCON.FDBKEN = 0: BFCLKO is the input reference clock .
EBU_BFCON.FDBKEN = 1: BFCLKI is the input reference clock (EBU clock
feedback enabled ).
EBU_BurstRDWR.vsd
EBU Burst Mode Read / Write Access Timing
96
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.10.3 EBU Arbitration Signal Timing
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating Conditions apply.
Table 54
EBU Arbitration Signal Timing Parameters
Parameter
Symbol
Min.
Values
Typ.
Max.
Unit Note /
Test Cond
ition
Output delay from BFCLKO
rising edge
t1
CC
–
–
16
ns
CL = 50 pF
Data setup to BFCLKO
falling edge
t2
SR
11
–
–
ns
–
Data hold from BFCLKO
falling edge
t3
SR
2
–
–
ns
–
BFCLKO
t1
t1
HLDA Output
t1
t1
BREQ Output
BFCLKO
t2
t3
t2
t3
HOLD Input
HLDA Input
EBU_Arb .vsd
Figure 33
Data Sheet
EBU Arbitration Signal Timing
97
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.10.4 EBU SDRAM Access Timing
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Note: Operating Conditions apply, with Class A2 pins and CL = 16 pF.
Table 55
EBU SDRAM Access SDCLKO Signal Timing Parameters
Parameter
Symbol
t1
t2
t3
t4
t5
SDCLKO period
SDCLKO high time
SDCLKO low time
SDCLKO rise time
SDCLKO fall time
Values
CC
Min.
Typ.
Max.
Unit Note /
Test Con
dition
12.5
–
–
ns
–
SR
5.5
–
–
ns
–
SR
3.75
–
–
ns
–
SR
–
–
3.0
ns
–
SR
–
–
3.0
ns
–
t1
SDCLKO
0.9 VD D P
0.1 VD D P
0.5 VD D P
t2
t3
t5
t4
EBU_SDCLKO.vsd
Figure 34
Data Sheet
EBU SDRAM Access CLKOUT Timing
98
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
Table 56
EBU SDRAM Access Signal Timing Parameters
Parameter
Symbol Limit Values
A(15:0) output valid
A(15:0) output hold
CS(3:0) low
from SDCLKO
low-to-high
transition
CC
CC
CC
CS(3:0) high
CC
RAS low
CC
RAS high
SR
CAS low
SR
CAS high
CC
RD/WR low
CC
RD/WR high
CC
BC(3:0) low
CC
BC(3:0) high
CC
D(15:0) output valid
CC
D(15:0) output hold
CC
1)
CC
CKE output hold1)
CC
D(15:0) input hold
SR
D(15:0) input setup to SDCLKO low-to-high
transition
SR
CKE output valid
t6
t7
t8
t9
t10
t11
t12
t13
t14
t15
t16
t17
t18
t19
t22
t23
t21
t20
Min.
Max.
–
9
3
–
–
9
3
–
–
9
3
–
–
9
3
–
–
9
3
–
–
9
3
–
–
9
3
–
–
7
2
–
3
–
4
–
Unit
ns
1) Not depicted in the read and write access timing figures below.
Data Sheet
99
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
SDCLKO
t6
A[15:0]
1)
Row
t7
Column
t9
CS[3:0]
CSCOMB
RAS
t1 2
t1 3
CAS
RD/WR
t1 6
t1 7
BC[1:0]
t2 0
D[15:0]
2)
t21
Data (0)
1)
2)
Data (n- 1)
Address A[15:0] on pins AD[31:16]
Data D[15:0] on pins AD[15:0]
EBU_SDRAM-RD.vsd
Figure 35
Data Sheet
EBU SDRAM Read Access Timing
100
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
SDCLKO
t6
A[15:0]
t7
1)
Row
Column
t8
t9
CS[3:0]
CSCOMB
t1 0
t1 1
RAS
t1 2
t1 3
t1 4
t1 5
CAS
RD/WR
t1 6
t1 7
BC[1:0]
t1 8
D[15:0]
t19
Data
(0)
2)
1)
2)
Data
(n-1 )
Address A[15:0] on pins AD[31:16]
Data D[15:0] on pins AD[15:0]
EBU_SDRAM-WR.vsd
Figure 36
Data Sheet
EBU SDRAM Write Access Timing
101
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.11
USB Interface Characteristics
The Universal Serial Bus (USB) Interface is compliant to the USB Rev. 2.0 Specification
and the OTG Specification Rev. 1.3. High-Speed Mode is not supported.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
Table 57
USB Timing Parameters (operating conditions apply)
Parameter
Symbol
Values
Min.
Typ. Max.
Unit Note /
Test Condition
–
20
ns
CL = 50 pF
–
20
ns
CL = 50 pF
Rise/Fall time matching
tR
CC
4
tF
CC
4
tR/tF
CC 90
–
111.11 %
CL = 50 pF
Crossover voltage
VCRS
–
2.0
CL = 50 pF
Rise time
Fall time
CC 1.3
D+
90%
V
90%
VC R S
DVSS
10%
10%
tF
tR
USB_Rise-Fall-Times.vsd
Figure 37
Data Sheet
USB Signal Timing
102
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.12
Ethernet Interface (ETH) Characteristics
For proper operation of the Ethernet Interface it is required that fSYS ≥ 100 MHz.
Note: These parameters are not subject to production test, but verified by design and/or
characterization.
3.3.12.1 ETH Measurement Reference Points
ETH Clock
ETH I/O
1.4 V
1.4 V
2.0 V
0.8 V
2.0 V
0.8 V
tR
tF
ETH_Testpoints.vsd
Figure 38
Data Sheet
ETH Measurement Reference Points
103
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.12.2 ETH Management Signal Parameters (ETH_MDC, ETH_MDIO)
Table 58
ETH Management Signal Timing Parameters
Parameter
Symbol
Values
Typ. Max.
Unit Note /
Test Conditi
on
CC 400
–
–
ns
CC 160
–
–
ns
CC 160
–
–
ns
CC 10
–
–
ns
CC 10
–
–
ns
SR 0
–
300
ns
Min.
t1
ETH_MDC high time
t2
t3
ETH_MDC low time
ETH_MDIO setup time (output) t4
ETH_MDIO hold time (output) t5
t6
ETH_MDIO data valid (input)
ETH_MDC period
CL = 25 pF
t1
t3
t2
ETH_MDC
ETH_MDIO sourced by STA:
ETH_MDC
t4
ETH_MDIO
(output)
t5
Valid Data
ETH_MDIO sourced by PHY:
ETH_MDC
t6
ETH_MDIO
(input)
Valid Data
ETH_Timing-Mgmt.vsd
Figure 39
Data Sheet
ETH Management Signal Timing
104
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.12.3 ETH MII Parameters
In the following, the parameters of the MII (Media Independent Interface) are described.
Table 59
ETH MII Signal Timing Parameters
Parameter
Symbol
Values
Min.
Clock period, 10 Mbps
Clock high time, 10 Mbps
Clock low time, 10 Mbps
Clock period, 100 Mbps
Clock high time, 100 Mbps
Clock low time, 100 Mbps
Input setup time
Input hold time
Output valid time
t7
t8
t9
t7
t8
t9
t10
t11
t12
Typ. Max.
Unit Note /
Test Condition
SR
400
–
–
ns
SR
140
–
260
ns
SR
140
–
260
ns
SR
40
–
–
ns
SR
14
–
26
ns
SR
14
–
26
ns
SR 10
–
–
ns
SR 10
–
–
ns
CC 0
–
25
ns
CL = 25 pF
t7
t9
t8
ETH_MII_RX_CLK
ETH_MII_TX_CLK
ETH_MII_RX_CLK
t1 0
ETH_MII_RXD[3:0]
ETH_MII_RX_DV
ETH_MII _RX_ER
(sourced by PHY )
t1 1
Valid Data
ETH_MII_TX_CLK
t1 2
ETH_MII _TXD[3:0]
ETH_MII_TXEN
(sourced by STA )
Valid Data
ETH_Timing-MII.vsd
Figure 40
Data Sheet
ETH MII Signal Timing
105
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Electrical Parameters
3.3.12.4 ETH RMII Parameters
In the following, the parameters of the RMII (Reduced Media Independent Interface) are
described.
Table 60
ETH RMII Signal Timing Parameters
Parameter
Symbol
ETH_RMII_REF_CL clock period
t13
Values
Unit Note /
Test Condit
Min. Typ. Max.
ion
SR 20
–
–
ns
CL = 25 pF;
50 ppm
ETH_RMII_REF_CL clock high time t14
SR 7
–
13
ns
CL = 25 pF
ETH_RMII_REF_CL clock low time t15
SR 7
–
13
ns
ETH_RMII_RXD[1:0],
ETH_RMII_CRS setup time
t16
SR 4
–
–
ns
ETH_RMII_RXD[1:0],
ETH_RMII_CRS hold time
t17
SR 2
–
–
ns
ETH_RMII_TXD[1:0],
ETH_RMII_TXEN data valid
t18
CC 4
–
15
ns
t1 3
t1 5
t14
ETH_RMII_REF_CL
ETH_RMII_REF_CL
t1 6
ETH_RMII _RXD[1:0]
ETH_RMII _CRS
(sourced by PHY )
t17
Valid Data
ETH_RMII_REF_CL
t18
ETH_RMII _TXD[1:0]
ETH_RMII _TXEN
(sourced by STA )
Figure 41
Data Sheet
Valid Data
Valid Data
ETH_Timing-RMII .vsd
ETH RMII Signal Timing
106
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Package and Reliability
4
Package and Reliability
The XMC4500 is a member of the XMC4000 Family of microcontrollers. It is also
compatible to a certain extent with members of similar families or subfamilies.
Each package is optimized for the device it houses. Therefore, there may be slight
differences between packages of the same pin-count but for different device types. In
particular, the size of the Exposed Die Pad may vary.
If different device types are considered or planned for an application, it must be ensured
that the board layout fits all packages under consideration.
4.1
Package Parameters
Table 61 provides the thermal characteristics of the packages used in XMC4500.
Table 61
Thermal Characteristics of the Packages
Parameter
Symbol
Limit Values
Unit
Package Types
Exposed Die Pad
Dimensions
Ex × Ey CC
-
6.5 × 6.5
mm
PG-LQFP-144-18
7.0 × 7.0
mm
PG-LQFP-100-11
Thermal resistance
Junction-Ambient
RΘJA
CC
-
40.5
K/W
PG-LFBGA-144-10
-
22.4
K/W
PG-LQFP-144-181)
-
23.0
K/W
PG-LQFP-100-111)
Min.
Max.
1) Device mounted on a 4-layer JEDEC board (JESD 51-7) with thermal vias; exposed pad soldered.
Note: For electrical reasons, it is required to connect the exposed pad to the board
ground VSS, independent of EMC and thermal requirements.
4.1.1
Thermal Considerations
When operating the XMC4500 in a system, the total heat generated in the chip must be
dissipated to the ambient environment to prevent overheating and the resulting thermal
damage.
The maximum heat that can be dissipated depends on the package and its integration
into the target board. The “Thermal resistance RΘJA” quantifies these parameters. The
power dissipation must be limited so that the average junction temperature does not
exceed 150 °C.
The difference between junction temperature and ambient temperature is determined by
ΔT = (PINT + PIOSTAT + PIODYN) × RΘJA
The internal power consumption is defined as
PINT = VDDP × IDDP (switching current and leakage current).
Data Sheet
107
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Package and Reliability
The static external power consumption caused by the output drivers is defined as
PIOSTAT = Σ((VDDP-VOH) × IOH) + Σ(VOL × IOL)
The dynamic external power consumption caused by the output drivers (PIODYN) depends
on the capacitive load connected to the respective pins and their switching frequencies.
If the total power dissipation for a given system configuration exceeds the defined limit,
countermeasures must be taken to ensure proper system operation:
•
•
•
•
Reduce VDDP, if possible in the system
Reduce the system frequency
Reduce the number of output pins
Reduce the load on active output drivers
4.2
Figure 42
Data Sheet
Package Outlines
PG-LQFP-144-18 (Plastic Green Low Profile Quad Flat Package)
108
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
H
0.5
7˚ MAX.
+0.05
0.15 -0.06
1.6 MAX.
1.4 ±0.05
0.1±0.05
Package and Reliability
0.6 ±0.15
0.08 C 100x
C
12
0.22 ±0.05
0.08 M A-B D C 100x
16
14
1)
0.2 A-B D 100x
Bottom View
0.2 A-B D H 4x
Ex
Ey
16
B
14
A
1)
D
100
100
1
1
Index Marking
Exposed Diepad
1) Does not include plastic or metal protrusion of 0.25 max. per side
PG-LQFP-100-3, -4, -8-PO V11
Figure 43
Data Sheet
PG-LQFP-100-11 (Plastic Green Low Profile Quad Flat Package)
109
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Package and Reliability
Figure 44
PG-LFBGA-144-10 (Plastic Green Low Profile Fine Pitch Ball Grid Array)
All dimensions in mm.
You can find complete information about Infineon packages, packing and marking in our
Infineon Internet Page “Packages”: http://www.infineon.com/packages
Data Sheet
110
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
XMC4500
XMC4000 Family
Package and Reliability
4.3
Quality Declarations
The qualification of the XMC4500 is executed according to the JEDEC standard
JESD47H.
Note: For automotive applications refer to the Infineon automotive microcontrollers.
Table 62
Quality Parameters
Parameter
Symbol
Values
Min.
Operation lifetime
tOP CC 20
Typ.
Max.
−
−
Unit
Note /
Test Condition
a
TJ ≤ 109°C,
device permanent
on
VHBM
ESD susceptibility
according to Human Body SR
Model (HBM)
−
−
2 000
V
EIA/JESD22A114-B
ESD susceptibility
according to Charged
Device Model (CDM)
VCDM
−
−
500
V
Conforming to
JESD22-C101-C
Moisture sensitivity level
MSL
−
−
3
−
JEDEC
J-STD-020C
SR
CC
Data Sheet
111
V1.0, 2013-01
Subject to Agreement on the Use of Product Information
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
