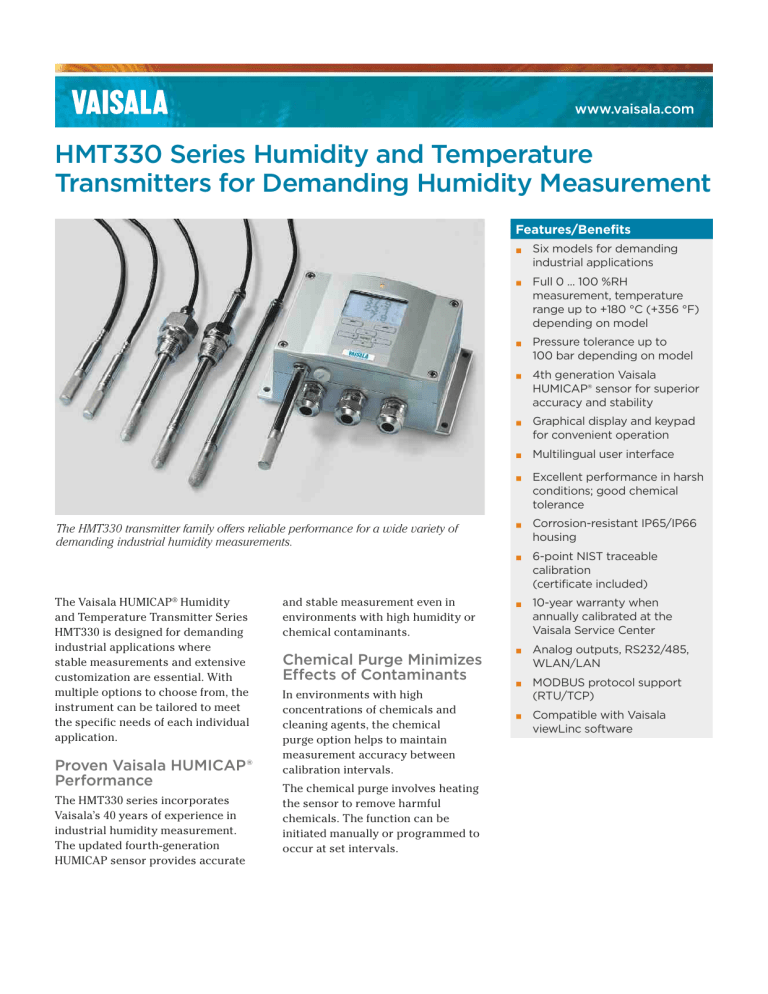

HMT330 Series Humidity and Temperature
Transmitters for Demanding Humidity Measurement
Features/Benefits
The HMT330 transmitter family offers reliable performance for a wide variety of
demanding industrial humidity measurements.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter Series
HMT330 is designed for demanding
industrial applications where
stable measurements and extensive
customization are essential. With
multiple options to choose from, the
instrument can be tailored to meet
the specific needs of each individual
application.
Proven Vaisala HUMICAP®
Performance
The HMT330 series incorporates
Vaisala’s 40 years of experience in
industrial humidity measurement.
The updated fourth-generation
HUMICAP sensor provides accurate
and stable measurement even in
environments with high humidity or
chemical contaminants.
Chemical Purge Minimizes
Effects of Contaminants
In environments with high
concentrations of chemicals and
cleaning agents, the chemical
purge option helps to maintain
measurement accuracy between
calibration intervals.
The chemical purge involves heating
the sensor to remove harmful
chemicals. The function can be
initiated manually or programmed to
occur at set intervals.
▪
Six models for demanding
industrial applications
▪
Full 0 ... 100 %RH
measurement, temperature
range up to +180 °C (+356 °F)
depending on model
▪
Pressure tolerance up to
100 bar depending on model
▪
4th generation Vaisala
HUMICAP® sensor for superior
accuracy and stability
▪
Graphical display and keypad
for convenient operation
▪
▪
Multilingual user interface
▪
Corrosion-resistant IP65/IP66
housing
▪
6-point NIST traceable
calibration
(certificate included)
▪
10-year warranty when
annually calibrated at the
Vaisala Service Center
▪
Analog outputs, RS232/485,
WLAN/LAN
▪
MODBUS protocol support
(RTU/TCP)
▪
Compatible with Vaisala
viewLinc software
Excellent performance in harsh
conditions; good chemical
tolerance
Wide Range of Installation
Options
The wide variety of measurement
probes, several installation
accessories, and universal mains
and DC power options make the
instruments easy to install in various
locations and kinds of environment;
walls, poles, pipelines, and ducts,
for example. The input/output cable
can be fed through the back of
the transmitter, which is a useful
feature, especially for cleanroom
installations.
The HMT330 series includes six
models:
•
HMT331 for wall-mounted
applications
•
HMT333 for ducts and tight
spaces
•
HMT334 for high-pressure and
vacuum applications
•
HMT335 for high-temperature
applications
•
HMT337 for high-humidity
applications
•
HMT338 for pressurized pipelines
This device is designed to integrate
seamlessly with the Vaisala viewLinc
CMS, which is a Part 11/Annex 11
compliant software that can be easily
implemented following the GAMP5
guidelines.
Graphical Display of
Measurement Data and
Trends for Convenient
Operation
The HMT330 series features a large
numerical and graphical display with
a multilingual menu and keypad.
It allows users to easily monitor
operational data, measurement
trends, and access measurement
history for the past 12 months.
The optional data logger, with
real-time clock, makes it possible
to generate over four years of
measurement history, and zoom in on
any desired time or time frame.
The display alarm allows any
measured parameter to be tracked,
with freely configurable low and
high limits.
Versatile Outputs and
Data Collection
The HMT330 can support up to three
analog outputs; an isolated galvanic
power supply and relay outputs are
also available.
For serial interface the USB
connection, RS232, and RS485 can
be used.
HMT330 is also capable of applying
the MODBUS communication protocol
and, together with an appropriate
connection option, provides either
MODBUS RTU (RS485) or MODBUS
TCP/IP (Ethernet) communication.
The data logger, with real-time clock
and battery backup, guarantees
reliable logging of measurement data
for over four years. The recorded
The display shows measurement
trends and over four years of real-time
measurement history.
data can be viewed on the local
display or transferred to a PC with
Microsoft Windows® software. The
transmitter can also be connected to
a network with an optional (W)LAN
interface, which enables a (wireless)
Ethernet connection. A USB service
cable makes it easy to connect the
HMT330 to a PC via the service port.
Flexible Calibration
The HMT330 instruments are
calibrated at six humidity points
at the factory and come with a
calibration certificate that meets
all the relevant traceability and
compliance requirements.
A quick, one-point field calibration
can be performed with the handheld HM70 meter. A two-point field
calibration can be performed,
for example, with the HMK15 salt
bath calibrator in a controlled
environment. The transmitter
can also be sent to Vaisala for
recalibration, and accredited
calibrations are available.
Technical Data
Performance
Inputs and Outputs
RELATIVE HUMIDITY
Operating voltage
10 ... 35 VDC, 24 VAC ±20%
with optional power supply module
100 ... 240 VAC, 50/60 HZ
Power consumption at +20 °C (Uin 24 VDC)
RS232
max. 25 mA
max. 25 mA
Uout 2 x 0 ... 1 V/0 ... 5 V/0 ... 10 V
max. 60 mA
Iout 2 x 0 ... 20 mA
display and backlight
+ 20 mA
during chemical purge
max. 110 mA
during probe heating (HMT337)
+ 120 mA
Analog outputs (2 standard, 3rd optional)
current output
0 ... 20 mA, 4 ... 20 mA
voltage output
0... 1 V, 0... 5 V, 0... 10 V
Accuracy of analog outputs at +20 °C
±0.05% full scale
Temperature dependence of the
analog outputs
±0.005%/°C full scale
External loads
current outputs
RL < 500 ohm
0 ... 1 V output
RL > 2 kohm
0 ... 5 V and 0 ... 10 V outputs
RL > 10 kohm
Max. wire size
0.5 mm2 (AWG 20)
stranded wires recommended
Digital outputs
RS232, RS485 (optional)
Protocols
ASCII commands, MODBUS RTU
Service connection
RS232, USB
Relay outputs (optional)
0.5 A, 250 VAC
Ethernet interface (optional)
Supported standards
10BASE-T, 100BASE-TX
Connector
8P8C (RJ45)
IPv4 address assignment
DHCP (automatic), static
Protocols
Telnet, MODBUS TCP/IP
WLAN interface (optional)
Supported standards
802.11b
Antenna connector type
RP-SMA
IPv4 address assignment
DHCP (automatic), static
Protocols
Telnet, MODBUS TCP/IP
Security
WEP 64/128, WPA2/802.11i
Authentication / Encryption (WLAN)
Open / no encryption
Open / WEP
WPA Pre-shared key / TKIP
WPA Pre-shared key / CCMP (a.k.a. WPA2)
Optional data logger with real-time clock
Logged parameters
max. four with trend/min/max values
Logging interval
10 sec. (fixed)
Max. logging period
4 years, 5 months
Logged points
13.7 million points per parameter
Battery lifetime
min. 5 years
Display
LCD with backlight, graphical trend display
of any parameter
Menu languages
English, Chinese, Finnish, French, German,
Japanese, Russian, Spanish, Swedish
Measurement range
0 ... 100 %RH
Accuracy (including non-linearity, hysteresis, and repeatability)
for typical applications
with Vaisala HUMICAP® 180 or 180R*
for applications with
with Vaisala HUMICAP® 180C or 180RC*
chemical purge/warmed probe
catalytic sensor
with Vaisala HUMICAP® 180VC
with chemical purge for
H2O2 environments
at +15 ... +25 °C (59 ... +77 °F)
±1 %RH (0 ... 90 %)
±1.7 %RH (90 ... 100 %RH)
at -20 ... +40 °C (-4 ... +104 °F)
±(1.0 + 0.008 x reading) %RH
at -40 ... +180 °C (-40 ... +356 °F)
±(1.5 + 0.015 x reading) %RH
Factory calibration uncertainty (+20 °C)
±0.6 %RH (0 ... 40 %RH)
±1.0 %RH (40 ... 97 %RH)
(Defined as ±2 standard deviation limits. Small
variations possible; see also calibration certificate.)
Response time (90%) at +20 °C (+68 °F) 8 s/17 s** with grid filter
in still air
20 s/50 s** with grid + steel netting filter
40 s/60 s** with sintered filter
*HUMICAP 180R or 180RC recommended
** with HUMICAP 180R or 180RC or 180VC sensor
TEMPERATURE
Accuracy at +20 °C (+68 °F)
± 0.2 °C (± 0.36 °F)
Accuracy over temperature range (measurement range
depends on model)
°C
0.7
0.6
0.5
0.4
0.3
0.2
0.1
°C
0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Temperature sensor
Pt100 RTD Class F0.1 IEC 60751
Other available variables (model-dependent)
dew point temperature, mixing ratio, absolute humidity, wet bulb
temperature, enthalpy, water vapor pressure
Mechanics
Dimensions
Cable bushing
Dimensions in mm (inches)
183 (7.20)
ø 7 (0.28)
96 (3.78)
116 (4.57)
169 (6.65)
Transmitter with WLAN antenna
Operating temperature
for probe
for transmitter body
with display
Electromagnetic compatibility
same as measurement range
-40 ... +60 °C (-40 ... 140 °F)
0 ... +60 °C (32 ... 140 °F)
Complies with EMC standard
EN61326-1, Industrial Environment
Note: Transmitter with display test impedance of
40 ohm is used in IEC61000-4-5 (Surge immunity)
116 (4.57)
Operating Environment
183 (7.20)
92 (3.62)
M20 x 1.5 for cable diameter
8 ... 11 mm/0.31 ... 0.43"
Conduit fitting
1/2" NPT
User cable connector (optional)
M12 series 8-pin (male)
option 1
female plug with 5 m (16.4 ft.) black cable
option 2
female plug with screw terminals
Probe cable diameter
HMT333 (+80 °C)
6.0 mm
other probes
5.5 mm
Standard probe cable lengths
2 m, 5 m or 10 m
(Additional lengths available,
please see order forms for details)
Housing material
G-AlSi 10 Mg (DIN1725)
Housing classification
IP 66
IP65 (NEMA4X) with local display
Weight
depending on selected probe, cable and modules
1.0 - 3.0 kgs
Mounting Options
Mounting with Wall
Mounting Kit*
Mounting with DIN Rail
Installation Kit
Pole Installation with Installation
Kit for Pole or Pipeline
Mounting Rain Shield with
Installation Kit
TYPE APPROVED PRODUCT
CERTIFICATE NO.: A-13529
*not mandatory for wall installations
Please contact us at
www.vaisala.com/requestinfo
www.vaisala.com
Ref. B210951EN-H ©Vaisala 2015
Scan the code for
more information
This material is subject to copyright protection, with all
copyrights retained by Vaisala and its individual partners. All
rights reserved. Any logos and/or product names are trademarks
of Vaisala or its individual partners. The reproduction, transfer,
distribution or storage of information contained in this brochure
in any form without the prior written consent of Vaisala is strictly
prohibited. All specifications — technical included — are subject
to change without notice.
HMT331 Humidity and Temperature Transmitter for Demanding
Wall-Mounted Applications
Typical Applications
The HMT331 is a state-of-the-art wall-mounted humidity
measurement instrument.
The Vaisala HUMICAP® Humidity and Temperature
Transmitter HMT331 is a high-quality wall-mounted
transmitter for demanding HVAC and condition-monitoring
applications.
▪
▪
cleanrooms
▪
▪
swimming halls
pharmaceutical
processes
museums and archives
HMT331 Humidity and
Temperature Transmitter
with short flexible probe and
optional WLAN.
Technical Data
Temperature measurement range
-40 ... +60 °C (-40 ... +140 °F)
Accessories
USB service port cable with PC software
Connection cable for HM70
Wall-mounting plate (plastic)
Pole installation kit with rain shield
DIN rail installation set
PPS plastic grid filter with stainless steel net
Stainless steel sintered filter
219916
211339
214829
215109
215094
DRW010281SP
HM47280SP
HMT333 Humidity and Temperature Transmitter for Ducts and Tight Spaces
The Vaisala HUMICAP®
Humidity and Temperature
Transmitter HMT333 is a
versatile instrument for
applications where a small
remote probe is needed,
for example in demanding
HVAC applications. Its small
thermal mass enables rapid
response to temperature
changes.
Flexible Installation
Typical Applications
The HMT333 transmitter’s
compact probe is designed for
remote applications.
To install the probe in
ducts, channels, and
through walls, an installation kit is available with a stainless
steel flange, lead-through piece, and steel support bar.
The HMT333 has two probe cable options – a flexible
rubber cable that withstands temperatures of up to +80 °C,
and a durable cable that withstands temperatures of up to
+120 °C. Both cable options are available in lengths of 2, 5,
and 10 meters. Additionally, flexible rubber cable (+80 °C) is
available in 20-meter lengths.
For outdoor environments, the DTR502B solar radiation
shield provides protection for the probe. The shield can be
installed on a pole, beam, or flat surface.
▪
▪
cleanrooms
▪
▪
environmental chambers
pharmaceutical
processes
processes with
moderate temperature
and humidity
Duct installation kit for
HMT333 and HMT337.
Technical Data
Temperature measurement range
-40 ... +80 °C (-40 ... +176 °F) or
-40 ... +120 °C (-40 ... +248 °F)
Accessories
Duct installation kit
Cable gland with split seal
USB service port cable with PC software
Connection cable for HM70
Wall-mounting plate (plastic)
Pole installation kit with rain shield
Solar radiation shield
DIN rail installation set
PPS plastic grid filter with stainless steel net
PPS plastic grid filter
Stainless steel sintered filter
210697
HMP247CG
219916
211339
214829
215109
DTR502B
215094
DRW010281SP
DRW010276SP
HM47280SP
HMT334 Humidity and Temperature Transmitter for High Pressure
and Vacuum Applications
Typical Applications
▪
▪
test chambers
high-pressure and vacuum processes
Technical Data
Temperature measurement range
Operating pressure
-70 ... +180 °C (-94 ... +356 °F)
0 ... 10 MPa (0 ... 100 bar)
Accessories
The HMT334 is ideal for permanent installations in pressurized or
vacuum processes.
The Vaisala HUMICAP® Humidity and Temperature
Transmitter HMT334 is designed for humidity measurement
in pressurized spaces or vacuum chambers. Every probe is
tested for gas and vacuum-tight installation.
Fitting body ISO M22 x 1.5
Fitting body NPT 1/2"
USB service port cable with PC software
Connection cable for HM70
Wall-mounting plate (plastic)
Pole installation kit with rain shield
DIN rail installation set
PPS plastic grid filter with stainless steel net
PPS plastic grid filter
Stainless steel sintered filter
Stainless steel grid filter
17223SP
17225SP
219916
211339
214829
215109
215094
DRW010281SP
DRW010276SP
HM47280SP
HM47453SP
HMT335 Humidity and Temperature Transmitter for High Temperatures
Typical Applications
▪
▪
hot drying processes
food processes, e.g.
baking ovens
The installation flange allows
easy adjustment of the probe
installation depth.
The HMT335 has a robust stainless steel probe, ideal for hot
processes with high flow rates.
Technical Data
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Accessories
The Vaisala HUMICAP® Humidity and Temperature
Transmitter HMT335 has a long stainless steel probe
designed for high temperatures.
Robust Probe Ideal for High Flow Rates
With high tolerance for mechanical stress and high flow
rates, the HMT335 is ideal for duct measurements. The
stainless steel installation flange allows easy adjustment of
the probe’s installation depth.
Mounting flange
USB service port cable with PC software
Connection cable for HM70
Wall-mounting plate (plastic)
Pole installation kit with rain shield
DIN rail installation set
PPS plastic grid filter with stainless steel net
PPS plastic grid filter
Stainless steel sintered filter
Stainless steel grid filter
210696
219916
211339
214829
215109
215094
DRW010281SP
DRW010276SP
HM47280SP
HM47453SP
HMT337 Humidity and Temperature Transmitter for High Humidity
Applications
Typical Applications
▪
professional
meteorology
▪
intake air monitoring of
engines and gas turbines
▪
timber drying kilns
Duct installation kit for
HMT333 and HMT337.
The HMT337 is ideal for the most demanding process and
meteorological measurements in high-humidity condensing
environments.
The Vaisala HUMICAP® Humidity and Temperature
Transmitter HMT337 is delivered in one of three
configurations:
Technical Data
•
Basic, with a non-warmed probe for moderate humidity
•
With a warmed probe, for near-condensing conditions
and dew point measurement
•
With a warmed probe and an additional temperature
sensor, for near-condensing conditions and relative
humidity measurement
Cable gland and AGRO
HMP247CG
Duct installation kit (RH probe)
210697
Duct installation kit (T probe)
215003
Swagelok fittings (NPT and ISO) for both RH and T probes
(up to 10 bar)
Solar radiation shield
DTR502B
Meteorological installation kit
HMT330MIK
USB service port cable with PC software
219916
Connection cable for HM70
211339
Wall-mounting plate (plastic)
214829
Pole installation kit with rain shield
215109
DIN rail installation set
215094
Warmed probe accessory
HMT330WPA
PPS plastic grid filter with stainless steel net
DRW010281SP
PPS plastic grid filter
DRW010276SP
Stainless steel sintered filter
HM47280SP
Stainless steel grid filter
HM47453SP
*for more installation accessories, check the order form
True Humidity Readings in Condensation
Conditions
Vaisala’s unique warmed probe provides fast and reliable
measurement in environments where humidity is near
saturation. The heating prevents condensation from
forming on the sensor.
As the probe is heated, the humidity level inside it stays
below the ambient level. With accurate temperature
measurement, the ambient dew point can be calculated
precisely.
If the relative humidity value is needed, an additional
temperature sensor is used. The measured ambient
temperature provides the compensation for calculating
relative humidity and other humidity parameters.
Installation Options
Tight installation through a process wall can be achieved
with Swagelok ® fittings. The optional HMT330MIK
Installation Kit is available for outdoor installations; duct
installation kits are also available.
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Accessories*
HMT338 Humidity and Temperature Transmitter for Pressurized Pipelines
Typical Applications
▪
▪
▪
▪
process lines
environmental chambers
vacuum-drying processes
compressed air lines with refrigerant dryers
The HMT338 is ideal for installations in pressurized processes
where the probe needs to be removed while the process is
running.
The Vaisala HUMICAP® Humidity and Temperature
Transmitter HMT338 is designed for pressurized processes.
Technical Data
Insert or Remove the Probe while the
Process is Running
Accessories
With “hot tapping”, the probe is inserted directly into the
process while it is running, without the need for venting or
lowering the process pressure.
The probe is tightened to a ball-valve assembly fixed to
the process pipe or wall. The adjustable hex nut is handtightened to temporarily hold the probe in place. The probe
is then pushed down to the appropriate depth. The hex nut
is then tightened with a wrench to lock the probe in place.
Hot tapping is possible in pressures up to 10 bar.
Temperature measurement range
Operating pressure
-70 ... +180 °C (-94 ... +356 °F)
0 ... 4MPa (0 ... 40 bar)
Ball-valve set
Pressure fitting ISO 1/2 to NPT 1/2
USB service port cable with PC software
Connection cable for HM70
Wall-mounting plate (plastic)
Pole installation kit with rain shield
DIN rail installation set
PPS plastic grid filter with stainless steel net
PPS plastic grid filter
Stainless steel sintered filter
Stainless steel grid filter
BALLVALVE-1
210662
219916
211339
214829
215109
215094
DRW010281SP
DRW010276SP
HM47280SP
HM47453SP
Dimensions of the Probes for the HMT330 Series
Dimensions in mm (inches)
HMT331 probe
HMT335 probe
ø13.5 (0.53)
41 (1.6)
HMT338 probe
51 (2.0)
192 (7.56)
253 (9.96)
37.5 (1.48)
78.5 (3.09)
M9×1
ø 12 (0.47)
HMT337 RH probe
M9x1
Ø 12 (0.47)
HMT333 probe
37.5 (1.48)
79.5 (3.13)
98.5 (3.88)
99.5 (3.92)
Installation flange
50 (1.97)
5)
.9
5
2 (0.08)
ø7
ø12 (0.47)
M26x1.5
(2
HMT337 T probe
M22×1.5 or
NPT 1/2"
HMT334 probe
41 (1.61)
120 (4.72)
170 (6.69)
ø9
7)
0.3
(
.5
°
90
14 (0.55)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
