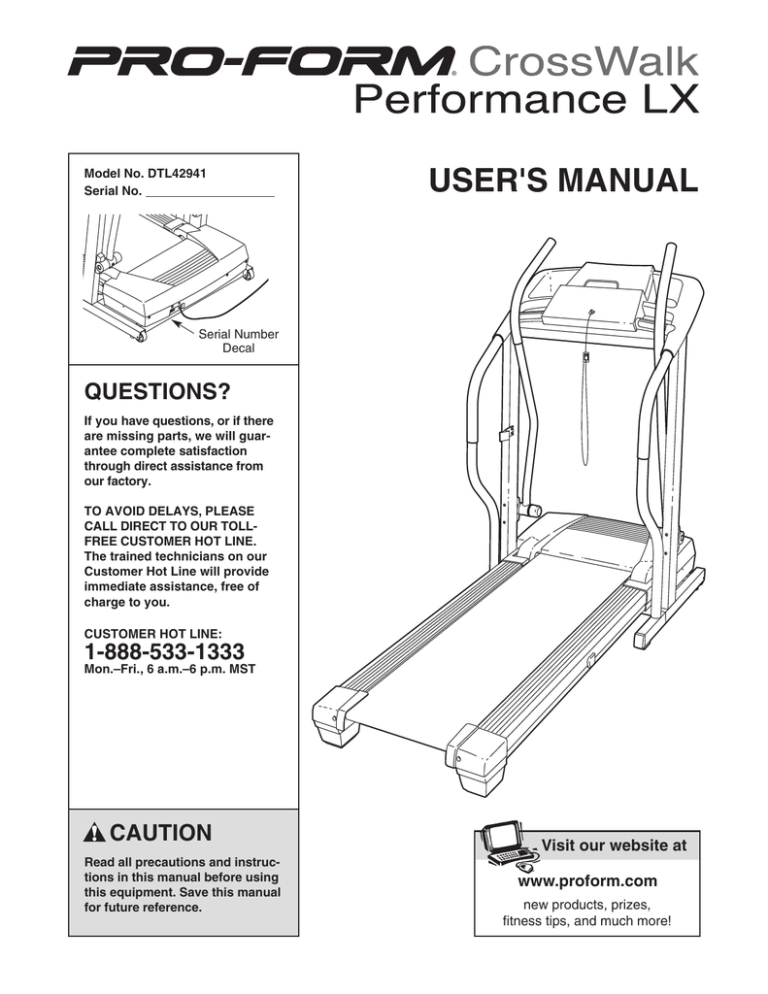

ProForm DTL42941 User`s manual

ProForm DTL42941 User`s manual
Model No. DTL42941
Serial No.
USER'S MANUAL
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is
not working properly.)
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails or the upper body arms while you
are using the treadmill.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
17. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the reset/off circuit
breaker to the off position when the treadmill
is not in use. (See the drawing on page 5 for
the location of the circuit breaker.)
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-5331333 and order part number 146148.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Inspect and properly tighten all parts of the
treadmill regularly.
3
22. When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed of the treadmill is about to
change. Always listen for the “chirp” and be
prepared for speed changes. In some instances, the speed may change before the
personal trainer describes the change.
23. When using iFIT.com CDs and videos, you
can manually override the speed setting at
any time by pressing the speed buttons.
However, when the next “chirp” is heard, the
speed will change to the next setting of the CD
or video program.
24. Always remove iFIT.com CDs and videos
from your CD player or VCR when you are not
using them.
25. Never insert any object into any opening.
26.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
27. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. If a decal is missing,
or if it is not legible, please call our Customer Service Department toll-free at
1-888-533-1333 and order a free replacement decal. Apply the decal in the location
shown. Note: The decals are not shown at actual size.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
CROSSWALK PERFORMANCE LX treadmill. The
CROSSWALK PERFORMANCE LX treadmill combines advanced technology with innovative design to
help you get the most from your exercise program in
the convenience and privacy of your home. And when
you’re not exercising, the unique CROSSWALK PERFORMANCE LX treadmill can be folded up, requiring
less than half the floor space of other treadmills.
ing this manual, call our Customer Service Department
toll-free at 1-888-533-1333, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is DTL42941. The serial number can be found
on a decal attached to the treadmill (see the front
cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Bookrack
Accessory Tray
Console
Upper Body Arms
Key/Clip
Handrail
Upright
Storage Latch
Reset/Off
Circuit Breaker
Power Cord
Walking Belt
Foot Rail
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
BACK
Rear Roller
Adjustment Bolts
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches
rubber mallet
and adjustable wrench
and your own phillips screwdriver
.
,
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first
check to see if it has been pre-assembled.
1” Tek Screw (39)–6
3/4” Screw (2)–12
1/2” Ground Screw
(26)–1
Wheel Nut (32)–2
2” Bolt (64)–2
1/4” Washer
(38)–4
Star Washer
(106)–4
3” Bolt (37)–4
3 1/2” Bolt (45)–4
1. Make sure that the power cord is unplugged.
1
69
With the help of another person, carefully raise the
Uprights (69) to the vertical position. Insert one of the
Extension Legs (63) into the treadmill as shown. (Note: It
may be helpful to tip the Uprights as you insert the
Extension Leg.) Make sure that the Base Pad (61) is
under the Extension Leg.
63
Insert the other Extension Leg (63) in the same way.
61
6
2. With the help of another person, carefully lower the
Uprights (69) as shown. (Note: It may be helpful to place
your foot on one of the Extension Legs [63] as you tip
the Uprights.) Make sure that the Extension Legs remain in the Uprights.
66
69
2
64
39
32
Attach each Extension Leg (63) with two 1” Tek Screws
(39) and a Round Base Pad (57) as shown. Note: Attach
the lower Tek Screw, without the Round Base Pad, first.
Attach the other two Round Base Pads to the Frame
with two 1” Tek Screws as shown. One replacement
Round Base Pad may be included. If a Base Pad becomes worn and needs to be replaced, use the replacement Base Pad.
66
57
32
64
57
39
39
63
57
Attach the two Wheels (66) with two 2” Bolts (64) and
two Wheel Nuts (32) as shown. Do not overtighten the
2” Bolts. The Wheels should be able to spin freely.
69
39
63
With the help of another person, carefully raise the
Uprights (69) to the vertical position.
3. Attach the Left Upper Body Arm (24) to the left Upright
(69) with two 3 1/2” Bolts (45), two 1/4” Washers (38),
and two Star Washers (106) as shown.
3
69
106
Attach the Right Upper Body Arm (not shown) to the
other Upright (not shown) in the same way.
24
38
106
45
4. Identify the Right Handrail (72), which has a large round
hole in the location shown. Route the Upright Wire (42)
through the hole in the Right Handrail. Attach the Right
Handrail to the right Upright (69) with a 3” Bolt (37). Be
careful not to pinch the Upright Wire. Firmly tighten
the Bolt.
Attach the Left Handrail (71) in the same way. Note:
There is not a wire on the left side.
4
37
71
42
Large
Hole
72
37
69
7
5. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire in the Console Base to
the small hole in the side of the Left Handrail with the
1/2” Ground Screw (26).
5
47
Small
Hole
26
71
6. Set the Console Base (47) on the Right Handrail (72) and
the Left Handrail (71).
6
47
72
71
Attach the Console Base (47) with four 3/4” Screws (2).
Start all four Screws before tightening them; do not
overtighten the Screws.
2
2
7. Next, touch the Right Handrail (72) to discharge any
static. Press the end of the Upright Wire (42) into the
socket in the bottom of the Console Base (47). The connector should slide easily into the socket and snap
into place. If the connector does not slide easily and snap
into place, turn the connector and then insert it.
7
47
72
42
8
8. Press the Upright Wire (42) into the slot in the underside
of the Console Base (47) in the indicated area. Cover the
Upright Wire with the Right Grip Plate (36). Be careful
not to pinch the Upright Wire. Tighten three 3/4”
Screws (2) into the Right Grip Plate and the Console
Base.
47
8
Slot
Ground
Wire
42
Attach the Left Grip Plate (32) over the ground wire and
the other wires with three 3/4” Screws (2). Be careful
not to pinch any of the Wires.
36
32
2
9. With the help of a second person, lower the Uprights
(69) to the floor.
2
9
Align the lower ends of the Handrails (71, 72) with the indicated holes in the Extension Legs (63). Attach each
Handrail with a 3” Bolt (37) as shown. Note: The Bolts
must be at an angle that matches the angle of the
Handrails, as shown in the inset drawing. Firmly
tighten the Bolts.
37
71
63
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
37
69
37
72
72
63
10.Attach the Storage Latch (29), with the Latch Spacer
(49), to the left Upright (69) with two 3/4” Screws (2) as
shown. Do not overtighten the Screws.
63
10
69
49
29
2
11.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 24). To protect the floor or carpet, place a mat under the treadmill.
9
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-533-1333
and order part number 146148.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
Surge Suppressor
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
10
CONSOLE DIAGRAM
Note: If there is a sheet of clear plastic
on the face of the console, remove it.
Key
Clip
Two speed programs are also offered. Each program
automatically controls the speed of the treadmill as it
guides you through an effective workout.
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
The console also features iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (iFIT.com
CDs and videocassettes are available separately).
iFIT.com CD and video programs automatically control
the speed of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. To purchase
iFIT.com CDs and videocassettes, call toll-free
1-888-533-1333.
• Always wear the clip (see the drawing
above) while operating the treadmill.
• Adjust the speed in small increments in
order to avoid sudden jumps in speed.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed water
bottle in the water bottle holder.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and access programs directly from the internet. See
www.iFIT.com for more information.
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to help you get the most from your workouts.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the matrix and
the four displays will provide continuous exercise feedback. You can even measure your heart rate using the
built-in pulse sensor.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a speed program,
see page 14. To use an iFIT.com CD or video program, see page 17. To use an iFIT.com program directly from our Web site, see page 19.
11
HOW TO TURN ON THE POWER
1
Plug in the power cord (see page 10).
2
Locate the reset/off
circuit breaker on the
treadmill frame near
the power cord. Make
sure that the circuit
breaker is in the reset
position.
3
Speed + and – buttons.
Each time a button is
pressed, the speed will
change by 0.1 mph. If a
button is held down, the
speed will change in increments of 0.5 mph.
Reset
Position
To stop the walking belt, press the Stop button.
The Time display will begin to flash. To restart the
walking belt, press the Start button or the Speed +
button.
Note: During the first few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align the walking belt if necessary (see page
24).
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing on page 11),
and slide the clip onto the waistband of your
clothes. Next, insert the key into the console. After
a moment, the displays and the matrix will light.
Test the clip by carefully taking a few steps
backward until the key is pulled from the console. If the key is not pulled from the console,
adjust the position of the clip as needed.
4
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline + or – button until the desired incline level
is reached.
5
Follow your progress with the matrix and the
four displays.
HOW TO USE THE MANUAL MODE
1
The matrix—When the
manual mode or the
iFIT.com mode is selected, a 1/4-mile track
will appear in the matrix.
As you walk or run on
the treadmill, the indicators around the track will light in succession until
the entire track is lit. The track will then darken
and the indicators will again begin to light in succession.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
2
Select the manual mode.
When the key is inserted, the manual
mode will be selected
and the Manual Control
indicator will light. If you
have selected a program or the iFIT.com mode, press the Program
button repeatedly to reselect the manual mode.
3
Fat Calories/Calories/
Pulse display—This display shows the approximate numbers of fat calories and calories you
have burned (see FAT
Indicator
BURNING on page 25).
The display will alternate
between one number and the other every few seconds, as shown by the indicators in the display.
The display will also show your heart rate when
you use the pulse sensor (see step 6 on page 13).
Press the Start button or the Speed + button to
start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking. As you exercise, change the speed
of the walking belt as desired by pressing the
12
Time display—When
the manual mode or the
iFIT.com mode is selected, this display will
show the elapsed time.
When a speed program
is selected, the display will show the time remaining in the program.
6
Measure your heart rate if desired.
To use the handgrip pulse sensor, first make
sure that your
hands are clean.
Next, stand on
the foot rails
Contacts
and hold the
handgrip pulse
sensor with your
palms on the metal contacts. Avoid moving your
hands. When your pulse is detected, two dashes
(– –) will appear in the Fat Calories/Calories/Pulse
display, and then your heart rate will be shown.
For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds.
Distance display—This
display shows the distance that you have
walked or run on the
treadmill.
Speed display—This
display shows the speed
of the walking belt.
7
Note: The console can
display speed and distance in either miles or
kilometers. The letters
“MPH” or “Km/H” will appear in the Speed display to show which unit of measurement is selected. To change the unit of measurement, press
the Stop button while inserting the key into the
console. An “E” for English miles or an “M” for
metric kilometers will appear in the Speed display.
Press the Speed + button to change the unit of
measurement. When the desired unit of measurement is selected, remove the key and then reinsert it.
When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
level. The incline must be at the lowest level
when the treadmill is raised to the storage position or the treadmill will be damaged. Next,
remove the key from the console and put the key
in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the reset position.
13
treadmill is about to change, the Speed display
will flash to alert you. The speed setting for the
second segment will then appear in the left column
of the matrix and the treadmill will automatically
adjust to the speed setting for the second segment.
HOW TO USE A SPEED PROGRAM
1
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.
2
The program will continue until the speed setting
for the last segment appears in the left column of
the matrix and the last segment ends. The walking
belt will then slow to a stop.
Select one of the speed programs.
When the key is inProgram Indicator
serted, the manual
mode will be selected.
To select a speed program, press the
Program button repeatedly until one of the two
program indicators lights. Note: The graphs beside the program indicators show how the speed
of the treadmill will change during the programs.
If the speed setting is too high or too low at any
time during the program, you can manually override the setting by pressing the Speed buttons.
However, when the next segment begins, the
treadmill will automatically adjust to the speed
setting for the next segment. The incline of the
treadmill can be changed during the program with
the Incline buttons.
To stop the program, press the Stop button. The
Time display will begin to flash. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph.
When the next segment begins, the treadmill will
automatically adjust to the speed setting for the
next segment.
Each program consists
Current Period
of 30 one-minute segments. One speed setting is programmed for
each segment. The
speed setting for the
first segment appears in
the left column of the matrix. The speed settings
for the next five segments appear in the five
columns to the right. Note: One bar in a column
represents a speed setting of either 1 mph or 1.5
mph, two bars represent a speed setting of 2 mph
or 2.5 mph, three bars represent a speed setting
of 3 mph or 3.5 mph, and so forth. Important:
Even if the same number of bars appear in two
consecutive columns, a different speed setting
may be programmed for each segment.
3
4
Follow your progress with the four displays.
See step 5 on page 12.
5
Measure your heart rate if desired.
See step 6 on page 13.
6
Press the Start button or the Speed + button to
start the program.
When you are finished exercising, remove the
key.
When the program ends, make sure that the
treadmill is at the lowest incline level. Next, remove the key from the console and put it in a
secure place.
When the button is pressed, the left column of the
matrix will begin to flash and the treadmill will automatically adjust to the speed setting for the first
segment. Hold the handrails and begin walking.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the reset position.
When the first segment of the program ends, a series of tones will sound and all speed settings will
move one column to the left. If the speed of the
14
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home
stereo, or computer with CD player. See pages 15 and
16 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be connected to your
VCR. See page 17 for connecting instructions. To use
iFIT.com programs directly from our internet site,
the treadmill must be connected to your home computer. See page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
A
HOW TO CONNECT YOUR PORTABLE CD PLAYER
AUDIO OUT
RIGHT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
PHONES LINE OUT
LINE OUT
LEFT
Audio
Cable
Adapter
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
PHONES
B
Headphones
Audio
Cable
LINE OUT
Audio
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into
the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
B
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
PHONES
C
PHONES
Audio
Cable
3.5mm
Y-adapter
PHONES
Audio
Cable
Headphones
3.5mm
Y-adapter
Headphones
15
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
A
A
CD
LINE OUT
VCR
Amp
LINE OUT
Audio
Cable
LINE OUT
Audio
Cable
Adapter
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
B
B
PHONES
CD
Audio
Cable
VCR
Amp
3.5mm
Y-adapter
LINE OUT
Headphones/Speakers
Audio
Cable
RCA
Y-adapter
Adapter
Wire removed from
LINE OUT jack
16
HOW TO CONNECT YOUR VCR
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
To use iFIT.com CDs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
15. Note: To purchase iFIT.com CDs and videocassettes, call toll-free 1-888-533-1333.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
Follow the steps below to use an iFIT.com CD or video
program.
A
1
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 12.
AUDIO OUT
RIGHT
LEFT
Audio
Cable
2
Adapter
When the key is inserted, the manual
mode will be selected.
To use an iFIT.com CD
or video program, press
the Program button repeatedly until the iFIT.com indicator lights.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
3
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into
your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
4
B
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the Time display is flashing,
press the Start button or the Speed + button on the
console. The treadmill will not respond to a CD or
video program while the Time display is flashing.
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
RCA Y-adapter
Audio
Cable
Select the iFIT.com mode.
Adapter
During the CD or video program, an electronic
“chirping” sound will alert you when the speed of
the treadmill is about to change. CAUTION:
Always listen for the “chirp” and be prepared
for speed changes. In some instances, the
speed may change before the personal trainer
describes the change.
Wire removed from
AUDIO OUT jack
17
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
If the speed setting is too high or too low, you can
manually override the setting at any time by
pressing the Speed buttons on the console.
However, when the next “chirp” is heard, the
speed will change to the next setting of the CD
or video program. The incline of the treadmill can
be changed during the program with the Incline
buttons.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
To stop the walking belt, press the Stop button on
the console. The Time display will begin to flash.
To restart the program, press the Start button or
the Speed + button. After a moment, the walking
belt will begin to move at 1 mph. When the next
“chirp” is heard, the speed will change to the
next setting of the CD or video program.
5
Follow your progress with the matrix and the
four displays.
See step 5 on page 12.
6
When the CD or video program ends, the walking
belt will stop and the Time display will begin to
flash. Note: To use another CD or video program,
press the Stop button or remove the key and go to
step 1 on page 17.
Measure your heart rate if desired.
See step 6 on page 13.
7
Note: If the speed of the treadmill does not
change when a “chirp” is heard:
When the iFIT.com CD or video program ends,
remove the key.
See step 6 on page 14.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player or VCR
when you are finished using them.
• Make sure that the iFIT.com indicator is lit and
that the Time display is not flashing. If the
Time display is flashing, press the Start button or the Speed + button on the console.
18
During the program, an electronic “chirping” sound
will alert you when the speed of the treadmill is
about to change. CAUTION: Always listen for the
“chirp” and be prepared for speed changes.
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
To use programs from our Web site, the treadmill must
be connected to your computer. See HOW TO CONNECT YOUR COMPUTER on page 16. In addition,
you must have an internet connection and an internet
service provider. A list of specific system requirements
is found on our Web site.
If the speed setting is too high or too low, you can
manually override the setting at any time by
pressing the Speed buttons on the console.
However, when the next “chirp” is heard, the
speed will change to the next setting for the
program. The incline of the treadmill can be
changed during the program with the Incline buttons.
Follow the steps below to use a program from our
Web site.
1
To stop the walking belt at any time, press the
Stop button on the console. The Time display will
begin to flash. To restart the program, press the
Start button or the Speed + button. After a moment, the walking belt will begin to move at 1
mph. When the next “chirp” is heard, the speed
will change to the next setting for the program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
2
Select the iFIT.com mode.
When the key is inserted, the manual
mode will be selected.
To use a program from
our Web site, press the
Program button repeatedly until the iFIT.com indicator lights.
3
Go to your computer and start an internet
connection.
4
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
5
Follow the desired links on our Web site to
select a program.
When the program ends, the walking belt will stop
and the Time display will begin to flash. Note: To
use another program, press the Stop button and
go to step 5.
Note: If the speed of the treadmill does not
change when a “chirp” is heard, make sure that
the iFIT.com indicator is lit and that the Time
display is not flashing. In addition, make sure
that the audio cable is properly connected, that
it is fully plugged in, and that it is not wrapped
around a power cord.
8
Read and follow the on-line instructions for using a
program.
6
Follow your progress with the matrix and the
four displays.
See step 5 on page 12.
9
Follow the on-line instructions to start the
program.
Measure your heart rate if desired.
See step 6 on page 13.
When you start the program, an on-screen countdown will begin.
10 When the program ends, remove the key.
See step 6 on page 14.
7
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key, and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking.
19
HOW TO USE THE UPPER BODY ARMS
As you walk on the treadmill, you can either hold the handrails
or use the upper body arms. To exercise your arms, shoulders,
and back for a total body workout, move the upper body arms
forward and back as you walk on the treadmill.
To vary the intensity of your upper body exercise, the resistance
of the upper body arms can be adjusted. To increase the resistance, turn the resistance knobs clockwise; to decrease the resistance, turn the knobs counterclockwise.
Upper
Body
Arms
Resistance
Knobs
20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION:
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at
the right. To decrease the possibility of injury, bend your
legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your
back. Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left thumb, press the storage latch
to the left. Raise the treadmill until the storage latch closes
over the catch. Make sure that the storage latch is fully
engaged over the catch.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in
temperatures above 85° Fahrenheit.
Engaged
Storage
Latch
Catch
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the frame is securely held by the storage latch.
1. Hold the upper ends of the handrails. Place one foot on the
base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface.
Base
3. Place one foot on the base, and carefully lower the treadmill
until it is resting in the storage position.
21
Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Press the storage latch to the left. Pivot the treadmill down
until the frame and foot rail are past the storage latch.
Storage
Latch
Catch
2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not drop the treadmill frame to the
floor. To decrease the possibility of injury, bend your legs
and keep your back straight.
22
TROUBLESHOOTING
Most treadmill problems can be solved by following the instructions below. If further assistance is
needed, please call our Customer Service Department toll-free at 1-888-533-1333, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
c
Reset
Tripped
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the two 3/4” Tek Screws
(58) from the Hood (1), and carefully pivot the Hood
off.
a
58
1
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8”. If necessary, loosen the
3/4” Tek Screw (58) and move the Reed Switch
slightly. Retighten the Screw. Re-attach the Hood,
and run the treadmill for a few minutes to check for a
correct speed reading.
23
1/8”
10
17
58
18
Top
View
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
2”–3”
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, call our Customer Service Department toll-free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
a
b
PROBLEM: One of the upper body arms squeaks during use
SOLUTION: a. Correcting this problem requires a small amount of
white marine grease, available at most hardware
stores. Turn the Resistance Knob (109) counterclockwise until it can be removed. Remove the Resistance
Cone (108) and the Upper Body Arm (117), along
with the 3/8” Washers (5), Spring Washer (111),
Thrust Washers (112), and Thrust Bearing (113).
(Note: If the Resistance Sleeve [107] or Resistance
Plate [27] comes out of the Resistance Bracket [105]
or Resistance Cone, press it back in.) Apply a thin
layer of white marine grease to the outer surface of
the Resistance Cone (108). Reattach all parts in the
order shown at the right.
24
a
105
24
107
112
111
108
109
27
113
5
CONDITIONING GUIDELINES
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent postexercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
25
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
1
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower
back and groin.
2
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
26
5
NOTES
27
PART LIST—Model No. DTL42941
Key
No. Qty.
1
2
3
4
5
6
7
8
9*
10
11
12
13
1
15
1
1
4
1
1
1
1
1
1
2
5
14
15
2
4
16
17
18
19
20
21
1
1
1
1
2
1
22
23
2
1
24
1
25
1
26
27
28
29
30
31
6
2
1
1
1
1
32
33
34
35
36
37
38
39
40
41
2
2
1
1
1
4
6
6
1
1
Description
Hood
3/4” Screw
Motor Belt
Motor Tension Bolt
3/8” Washer
Motor Star Washer
Flywheel
Motor
Motor Assembly
Reed Switch
Latch Warning Decal
Frame Spacer
Frame Pivot
Nut/Motor Nut
Frame Pivot Bolt
Walking Platform
Screw
Left Foot Rail
Front Roller/Pulley
Magnet
Motor Pivot Bolt
Motor Bracket Bolt
Right Foot Rail
Endcap
Belly Pan Clip
Front Roller
Adjustment Bolt
Left Upper Body Arm
w/Foam Grip
Right Upper Body
Arm w/Foam Grip
1/2” Ground Screw
Resistance Plate
Motor Tension Nut
Storage Latch
Latch Catch
Right Rear
Endcap Pad
Wheel Nut
Static Decal
Left Grip Plate
Electronic Bracket
Right Grip Plate
3” Bolt
1/4” Washer
1” Tek Screw
Audio Wire Nut
5/32” Allen Wrench
Key
No. Qty.
42
43
44
45
46
47
48
49
50
51
52
53
1
1
1
4
1
1
1
1
1
1
1
1
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
2
2
1
4
12
1
1
2
2
2
2
4
2
6
4
1
1
1
1
1
1
2
76
77
78
79
80
81
82
83
84
85
86
87
1
4
1
1
1
1
2
4
2
2
1
4
Description
Upright Wire
Console
Motor Tension Washer
3 1/2” Bolt
Book Holder
Console Base
1/2” Silver Screw
Latch Spacer
Key/Clip
Incline Motor
Incline Bracket
Incline Motor
Bolt (lower)
Incline Pivot Bolt
Incline Pivot Nut
Motor Controller Wire
Round Base Pad
3/4” Tek Screw
Controller
Lift Frame
Base Pad
Warning Decal
Extension Leg
2” Bolt
Base Endcap
Wheel
Endcap Screw
8” Cable Tie
Base
Grommet
Left Handrail
Right Handrail
Left Pulse Grip
Left Foot Rail Endcap
Upper Body
Arm Screw
Isolator Insert
Belly Pan Screw
Adapter
Power Cord
Power Cord Grommet
Belly Pan
Belt Guide
Belt Guide Screw
Plastic Fastener
Isolator Cushion
Frame
Releasable Tie
R0304A
Key
No. Qty.
88
89
90
91
92
1
2
1
1
2
93
94
95
96
97
98
99
100
101
102
1
1
1
1
1
1
1
1
1
1
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
#
#
#
#
#
#
#
#
1
2
2
4
2
2
2
2
2
4
2
2
2
1
1
2
1
1
1
1
1
1
1
1
Description
Warning Decal
Cable Tie Clamp
Ground Wire
Left Rear Endcap Pad
Rear Roller
Adjustable Bolt
Right Rear Endcap
Allen Wrench
Left Rear Endcap
Walking Belt
Walking Platform
Right Foot Rail
Right Pulse Grip
Rear Roller
iFIT.com Wire
Incline Motor
Bolt (upper)
Motor Mount Bracket
Resistance Bolt
Resistance Bracket
Star Washer
Resistance Sleeve
Resistance Cone
Resistance Knob
Front Isolator
Spring Washer
Thrust Washer
Thrust Bearing
Foam Grip
U-Nut
Filter Wire
Audio Wire
Handrail Foam
8” Blue Wire, 2F
4” Blue Wire, 2F
4” Blue Wire, M/F
4” White Wire, M/F
8” White Wire, 2F
8” Green Wire, 2 Ring
4 ” Red Wire, M/F
User’s Manual
*Includes all parts shown in the box
#These parts are not illustrated
91
38
41
92
106
104
95
94
15
38
58
112
16
75
113
27
96
30
58
97
24
93
108
11
92
107
105
114
58
84
76
109
100
85
5
111
31
83
82
26
86
90
26
110
15
74
1
15
14
67
87
89
58
98
13
12
58
77
18
19
85
17
10
76
58
15
68
84 83
13
28
26
58
12
81
23
77
8
22
61
14
60
35
26
26
7
44
110
82 65
67
13
9*
3
4
21
6
58
38
22
37
63
45
62
80
59
103
115
33
79
39
20
EXPLODED DRAWING—Model No. DTL42941
40
57
77
52
53
49
34
57
117
61
65
69
29
63
13
2
102
13
58
62
37
70
26 45
39
54
2
39
42
38
55
51
26
73
101
42
R0304A
57
78
39
115
88
55
2
32
2
2
56
66
54
50
2
46
116
64
36
71
72
43
37
47
27
106
5
111
112
2
104
107
75
2
105
108
37
25
109
114
113
118
2
99
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-533-1333, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information:
• The MODEL NUMBER of the product (DTL42941)
• The NAME of the product (PROFORM® CROSSWALK PERFORMANCE LX treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 208480 R0304A
Printed in USA © 2004 ICON IP, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
