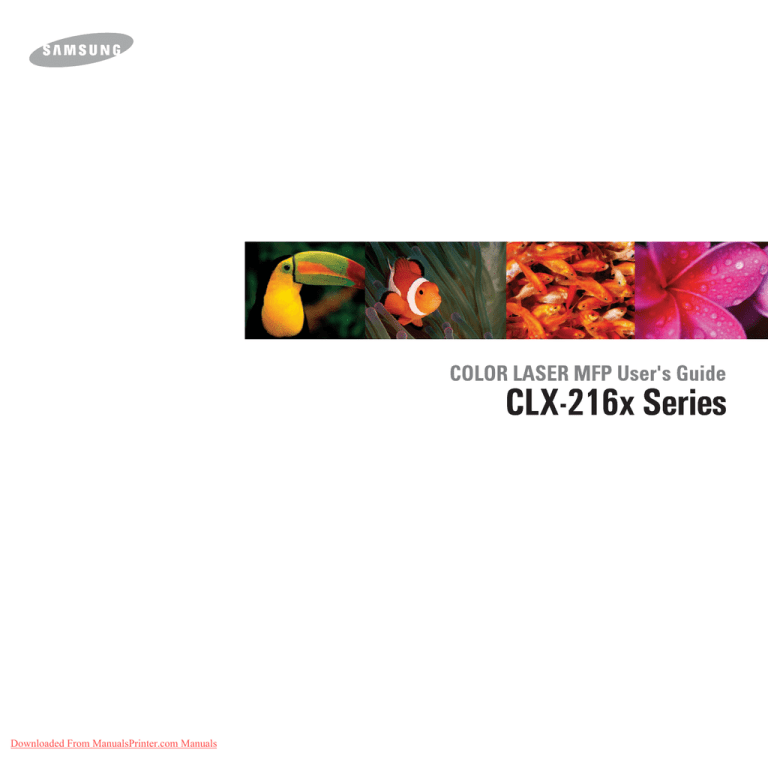

Samsung 726-7864 User`s guide

Samsung 726-7864 User`s guide
Downloaded From ManualsPrinter.com Manuals
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not
responsible for any direct or indirect damages, arising from or related to use of this user’s guide.
• CLX-2160 and CLX-2160N are model names of Samsung Electronics Co., Ltd.
• Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd.
• PCL and PCL 6 are trademarks of Hewlett-Packard company.
• Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows XP, Windows 2003 and Windows Vista are registered trademarks of Microsoft
Corporation.
• TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc.
• All other brand or product names are trademarks of their respective companies or organizations.
Downloaded From ManualsPrinter.com Manuals
contact SAMSUNG worldwide
If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.
COUNTRY
CUSTOMER CARE CENTER
WEB SITE
COUNTRY
CUSTOMER CARE CENTER
WEB SITE
INDONESIA
0800-112-8888
www.samsung.com
ITALIA
800-SAMSUNG (726-7864)
www.samsung.com
JAMAICA
1-800-234-7267
www.samsung.com/latin
JAPAN
0120-327-527
www.samsung.com/jp
LATVIA
800-7267
www.samsung.com/lv
LITHUANIA
8-800-77777
www.samsung.com/lt
www.samsung.com/ca
LUXEMBURG
0035 (0)2 261 03 710
www.samsung.com/be
800-SAMSUNG (726-7864 )
www.samsung.com/cl
MALAYSIA
1800-88-9999
www.samsung.com/my
CHINA
800-810-5858
010- 6475 1880
www.samsung.com.cn
MEXICO
01-800-SAMSUNG (7267864)
www.samsung.com
COLOMBIA
01-8000-112-112
www.samsung.com/co
NETHERLANDS
0900-SAMSUNG (726-7864 €
0,10/Min)
www.samsung.com/nl
COSTA RICA
0-800-507-7267
www.samsung.com/latin
NEW ZEALAND
0800SAMSUNG (726-7864)
www.samsung.com/nz
CZECH
REPUBLIC
844 000 844
www.samsung.com/cz
NICARAGUA
00-1800-5077267
NORWAY
815-56 480
www.samsung.com/no
ARGENTINE
0800-333-3733
www.samsung.com/ar
AUSTRALIA
1300 362 603
www.samsung.com
AUSTRIA
0800-SAMSUNG (726-7864)
www.samsung.com/at
BELGIUM
0032 (0)2 201 24 18
www.samsung.com/be
BRAZIL
0800-124-421
4004-0000
www.samsung.com
CANADA
1-800-SAMSUNG (726-7864)
CHILE
Distributor pro Českou republiku : Samsung Zrt., česka
organizační složka Vyskočilova 4, 14000 Praha 4
DENMARK
70 70 19 70
www.samsung.com/dk
PANAMA
800-7267
www.samsung.com/latin
ECUADOR
1-800-10-7267
www.samsung.com/latin
PHILIPPINES
www.samsung.com/ph
EL SALVADOR
800-6225
www.samsung.com/latin
1800-10-SAMSUNG (7267864)
ESTONIA
800-7267
www.samsung.ee
POLAND
0 801 801 881
022-607-93-33
www.samsung.com/pl
KAZAHSTAN
8-10-800-500-55-500
www.samsung.kz
PORTUGAL
80820-SAMSUNG (726-7864)
www.samsung.com/pt
KYRGYZSTAN
00-800-500-55-500
PUERTO RICO
1-800-682-3180
www.samsung.com/latin
FINLAND
030-6227 515
www.samsung.com/fi
1-800-751-2676
www.samsung.com/latin
FRANCE
3260 SAMSUNG 08 25 08 65
65 (€ 0,15/min)
www.samsung.com
REP.
DOMINICA
EIRE
0818 717 100
www.samsung.com/ie
GERMANY
01805 - SAMSUNG (7267864 (€ 0,14/Min)
www.samsung.com
RUSSIA
8-800-555-55-55
www.samsung.com
GUATEMALA
1-800-299-0013
www.samsung.com/latin
SINGAPORE
1800-SAMSUNG (726-7864)
www.samsung.com/sg
HONDURAS
800-7919267
SLOVAKIA
0800-SAMSUNG (726-7864)
www.samsung.com/sk
HONG KONG
3698-4698
www.samsung.com/hk
SOUTH
AFRICA
0860-SAMSUNG (726-7864 )
www.samsung.com
HUNGARY
06-80-SAMSUNG (726-7864)
www.samsung.com
SPAIN
902 10 11 30
www.samsung.com
INDIA
3030 8282
1800 110011
www.samsung.com
SWEDEN
0771-400 200
www.samsung.com/se
Downloaded From ManualsPrinter.com Manuals
COUNTRY
CUSTOMER CARE CENTER
SWITZERLAND
0800-SAMSUNG (726-7864)
TADJIKISTAN
8-10-800-500-55-500
TAIWAN
0800-329-999
www.samsung.com
THAILAND
1800-29-3232
02-689-3232
www.samsung.com/th
TRINIDAD &
TOBAGO
1-800-SAMSUNG (726-7864)
www.samsung.com/latin
TURKEY
444 77 11
www.samsung.com
U.A.E
800-SAMSUNG (726-7864)
8000-4726
www.samsung.com
U.K
0845 SAMSUNG (726-7864)
www.samsung.com
U.S.A.
1-800-SAMSUNG (726-7864)
www.samsung.com/us
UKRAINE
8-800-502-0000
www.samsung.com
UZBEKISTAN
8-10-800-500-55-500
www.samsung.com.uz
VENEZUELA
0-800-100-5303
www.samsung.com/latin
VIETNAM
1 800 588 889
www.samsung.com
Downloaded From ManualsPrinter.com Manuals
WEB SITE
www.samsung.com/ch
CONTENTS
1. Introduction
Special features ......................................................................................................................................................
Machine overview ...................................................................................................................................................
Front view ...........................................................................................................................................................
Rear view ...........................................................................................................................................................
Control panel overview ...........................................................................................................................................
Understanding the Status LED ...............................................................................................................................
Status LED .........................................................................................................................................................
Status LED with the toner cartridge messages ..................................................................................................
Finding more information ........................................................................................................................................
Selecting a location .................................................................................................................................................
Printing a demo page ..............................................................................................................................................
Altitude adjustment .................................................................................................................................................
1.1
1.2
1.2
1.2
1.3
1.4
1.4
1.4
1.5
1.5
1.6
1.6
2. System setup
Menu overview ........................................................................................................................................................
Changing the display language ..............................................................................................................................
Using the power save mode ...................................................................................................................................
Auto continue ..........................................................................................................................................................
2.1
2.2
2.2
2.2
3. Software overview
Supplied software ................................................................................................................................................... 3.1
Printer driver features ............................................................................................................................................. 3.1
System requirements .............................................................................................................................................. 3.2
4. Network setup
(CLX-2160N only)
Introduction .............................................................................................................................................................
Via network administration programs .................................................................................................................
Via the control panel ..........................................................................................................................................
Supported operating systems .................................................................................................................................
Configuring TCP/IP .................................................................................................................................................
Static addressing ................................................................................................................................................
Dynamic addressing (BOOTP/DHCP) ...............................................................................................................
Setting ethernet speed ............................................................................................................................................
Restoring the network configuration .......................................................................................................................
Printing a network configuration page ....................................................................................................................
Downloaded From ManualsPrinter.com Manuals
4.1
4.1
4.1
4.1
4.1
4.1
4.2
4.2
4.2
4.2
5. Selecting and loading print media
Loading originals ..................................................................................................................................................... 5.1
Selecting print media ............................................................................................................................................... 5.1
Supported print media types and sizes ............................................................................................................... 5.2
Media sizes supported in each mode ................................................................................................................. 5.3
Guidelines for selecting and storing print media ................................................................................................. 5.3
Guidelines for special print media ....................................................................................................................... 5.3
Loading paper ......................................................................................................................................................... 5.5
In the tray ........................................................................................................................................................... 5.5
In the manual feeder ........................................................................................................................................... 5.7
Setting the paper size and type ............................................................................................................................... 5.8
6. Copying
Selecting the paper tray .......................................................................................................................................... 6.1
Copying ................................................................................................................................................................... 6.1
Changing the settings for each copy ....................................................................................................................... 6.1
Reduced/Enlarged copy ..................................................................................................................................... 6.1
Darkness ............................................................................................................................................................. 6.1
Original type ........................................................................................................................................................ 6.2
Changing the default copy settings ......................................................................................................................... 6.2
Setting copy timeout ................................................................................................................................................ 6.2
ID card copying ....................................................................................................................................................... 6.3
Using special copy features .................................................................................................................................... 6.3
2-up or 4-up copying ........................................................................................................................................... 6.3
Poster copying .................................................................................................................................................... 6.4
Clone copying ..................................................................................................................................................... 6.4
Erasing background images ............................................................................................................................... 6.5
7. Basic printing
Printing a document ................................................................................................................................................ 7.1
Canceling a print job ............................................................................................................................................... 7.1
8. Scanning
Scanning basics ...................................................................................................................................................... 8.1
Scanning to an application using a local connection ............................................................................................... 8.1
Scanning using a network connection (CLX-2160N only) ....................................................................................... 8.2
Preparing for network scanning .......................................................................................................................... 8.2
Scanning to a network client ............................................................................................................................... 8.2
Changing the settings for each scan job ................................................................................................................. 8.3
Changing the default scan settings ......................................................................................................................... 8.3
9. Using USB flash memory
About USB memory ................................................................................................................................................ 9.1
Plugging in a USB memory device .......................................................................................................................... 9.1
Scanning to a USB memory device ........................................................................................................................ 9.2
Scanning ............................................................................................................................................................. 9.2
Customizing scan to USB ................................................................................................................................... 9.2
Printing from a USB memory device ....................................................................................................................... 9.3
Managing USB memory .......................................................................................................................................... 9.3
Deleting an image file ......................................................................................................................................... 9.3
Formatting a USB memory device ...................................................................................................................... 9.3
Viewing the USB memory status ........................................................................................................................ 9.4
Printing directly from a digital camera ..................................................................................................................... 9.4
Downloaded From ManualsPrinter.com Manuals
10. Maintenance
Printing reports ...................................................................................................................................................... 10.1
Printing a report ................................................................................................................................................ 10.1
Clearing memory ................................................................................................................................................... 10.1
Cleaning your machine ......................................................................................................................................... 10.2
Cleaning the outside ......................................................................................................................................... 10.2
Cleaning the inside ........................................................................................................................................... 10.2
Cleaning the scan unit ...................................................................................................................................... 10.3
Maintaining the toner cartridge .............................................................................................................................. 10.4
Toner cartridge storage .................................................................................................................................... 10.4
Expected cartridge life ...................................................................................................................................... 10.4
Redistributing toner ............................................................................................................................................... 10.4
Replacing the toner cartridge ................................................................................................................................ 10.5
Replacing the imaging unit .................................................................................................................................... 10.6
Replacing the waste toner container ..................................................................................................................... 10.8
Maintenance parts ................................................................................................................................................. 10.9
Checking replaceables ..................................................................................................................................... 10.9
Managing your machine from the website ............................................................................................................ 10.9
Checking the machine’s serial number ................................................................................................................. 10.9
11. Troubleshooting
Tips for avoiding paper jams ................................................................................................................................. 11.1
Clearing paper jams .............................................................................................................................................. 11.1
In the tray .......................................................................................................................................................... 11.1
In the manual feeder ......................................................................................................................................... 11.2
In the paper exit area ........................................................................................................................................ 11.2
Understanding display messages ......................................................................................................................... 11.3
Solving other problems ......................................................................................................................................... 11.5
Paper feeding problems .................................................................................................................................... 11.5
Printing problems .............................................................................................................................................. 11.6
Printing quality problems .................................................................................................................................. 11.7
Copying problems ........................................................................................................................................... 11.10
Scanning problems ......................................................................................................................................... 11.10
Network Scan problems (CLX-2160N only) .................................................................................................... 11.11
Common Windows problems .......................................................................................................................... 11.11
Common Macintosh problems ........................................................................................................................ 11.11
Common Linux problems ................................................................................................................................ 11.12
12. Ordering supplies
Supplies ................................................................................................................................................................ 12.1
How to purchase ................................................................................................................................................... 12.1
13. Specifications
General specifications ........................................................................................................................................... 13.1
Printer specifications ............................................................................................................................................. 13.1
Scanner and copier specifications ........................................................................................................................ 13.2
Index
Downloaded From ManualsPrinter.com Manuals
16 If you continuously print multiple pages, the surface of the output tray
may become hot. Be careful not to touch the surface, and keep children
away from the surface.
17 The Power cord supplied with your machine should be used for safe
operation. If you are using a cord which is longer than 2 m with 110 V
machine, then it should be 16 AWG* or bigger.
18 SAVE THESE INSTRUCTIONS.
Safety and Regulatory Information
Important Precautions and Safety Information
When using this machine, these basic safety precautions should always be
followed to reduce risk of fire, electric shock, and injury to people:
1 Read and understand all instructions.
2 Use common sense whenever operating electrical appliances.
3 Follow all warnings and instructions marked on the machine and in the
literature accompanying the machine.
4 If an operating instruction appears to conflict with safety information,
heed the safety information. You may have misunderstood the
operating instruction. If you cannot resolve the conflict, contact your
sales or service representative for assistance.
5 Unplug the machine from the AC wall socket before cleaning. Do not
use liquid or aerosol cleaners. Use only a damp cloth for cleaning.
6 Do not place the machine on an unstable cart, stand or table. It may fall,
causing serious damage.
7 Your machine should never be placed on, near or over a radiator,
heater, air conditioner or ventilation duct.
8 Do not allow anything to rest on the power cable. Do not locate your
machine where the cords will be abused by persons walking on them.
9 Do not overload wall outlets and extension cords. This can diminish
performance, and may result in the risk of fire or electric shock.
10 Do not allow pets to chew on the AC power or PC interface cords.
11 Never push objects of any kind into the machine through case or
cabinet openings. They may touch dangerous voltage points, creating a
risk of fire or shock. Never spill liquid of any kind onto or into the
machine.
12 To reduce the risk of electric shock, do not disassemble the machine.
Take it to a qualified service technician when repair work is required.
Opening or removing covers may expose you to dangerous voltages or
other risks. Incorrect reassembly could cause electric shock when the
unit is subsequently used.
13 Unplug the machine from the PC and AC wall outlet, and refer servicing
to qualified service personnel under the following conditions:
• When any part of the power cord, plug, or connecting cable is
damaged or frayed.
• If liquid has been spilled into the machine.
• If the machine has been exposed to rain or water.
• If the machine does not operate properly after instructions have been
followed.
• If the machine has been dropped, or the cabinet appears damaged.
• If the machine exhibits a sudden and distinct change in performance.
14 Adjust only those controls covered by the operating instructions.
Improper adjustment of other controls may result in damage, and may
require extensive work by a qualified service technician to restore the
machine to normal operation.
15 Avoid using this machine during a lightning storm. There may be a
remote risk of electric shock from lightning. If possible, unplug the AC
power for the duration of the lightning storm.
Environmental and Safety Consideration
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS 21
CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is
certified as a Class I laser product conforming to the requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system
and printer are designed so there is never any human access to laser
radiation above a Class I level during normal operation, user maintenance, or
prescribed service condition.
Warning
Never operate or service the printer with the protective cover removed from
Laser/Scanner assembly. The reflected beam, although invisible, can
damage your eyes.
When using this product, these basic safety precautions should always be
followed to reduce risk of fire, electric shock, and injury to persons:
* AWG: American Wire Gauge
i
Downloaded From ManualsPrinter.com Manuals
Ozone Safety
Radio Frequency Emissions
During normal operation, this machine produces ozone.
The ozone produced does not present a hazard to the
operator. However, it is advisable that the machine be
operated in a well ventilated area.
FCC Regulations
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference
that may cause undesired operation.
If you need additional information about ozone, please
contact your nearest Samsung dealer.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Power Saver
This printer contains advanced energy conservation technology that reduces
power consumption when it is not in active use.
When the printer does not receive data for an extended period of time, power
consumption is automatically lowered.
Recycling
Please recycle or dispose of packaging materials for this
product in an environmentally responsible manner.
Correct Disposal of This Product (Waste Electrical
& Electronic Equipment)
Caution:
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry
and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques
applicables aux appareils numériques de Classe B prescrites dans la norme
sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par
l’Industrie et Sciences Canada.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Declaration of Conformity (European Countries)
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Approvals and Certifications
The CE marking applied to this product symbolises
Samsung Electronics Co., Ltd. Declaration of Conformity
with the following applicable 93/68/EEC Directives of the
European Union as of the dates indicated:
January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of
the member states related to low voltage equipment.
January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation
of the laws of the Member States related to electromagnetic compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity.
A full declaration, defining the relevant Directives and referenced standards
can be obtained from your Samsung Electronics Co., Ltd. representative.
ii
Downloaded From ManualsPrinter.com Manuals
Replacing the Fitted Plug (for UK Only)
Important
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp
plug and has a 13 amp fuse. When you change or examine the fuse, you
must re-fit the correct 13 amp fuse. You then need to replace the fuse cover.
If you have lost the fuse cover, do not use the plug until you have another fuse
cover.
Please contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be
suitable. However, some buildings (mainly old ones) do not have normal 13
amp plug sockets. You need to buy a suitable plug adaptor. Do not remove
the moulded plug.
Warning
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric shock if you
plug it into a socket.
Important warning: You must earth this machine.
The wires in the mains lead have the following color code:
• Green and Yellow:
Earth
• Blue:
Neutral
• Brown:
Live
If the wires in the mains lead do not match the colors marked in your plug, do
the following:
You must connect the green and yellow wire to the pin marked by the letter
“E” or by the safety ‘Earth symbol’ or colored green and yellow or green.
You must connect the blue wire to the pin which is marked with the letter “N”
or colored black.
You must connect the brown wire to the pin which is marked with the letter “L”
or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
iii
Downloaded From ManualsPrinter.com Manuals
iv
Downloaded From ManualsPrinter.com Manuals
1 Introduction
Save time and money
• You can print multiple pages on one single sheet
of paper to save paper.
Thank you for purchasing this Samsung multifunctional product. Your
machine provides printing, copying, scanning functions.
• You can use preprinted forms and letterhead with
plain paper. See the Software Section.
This chapter includes:
•
Special features
•
Machine overview
•
Finding more information
•
Selecting a location
•
Printing a demo page
•
Altitude adjustment
• This machine automatically conserves
electricity by substantially reducing power
consumption when not in use.
Print in various environments
• You can print with Windows 98/Me/2000 and
Windows XP/2003/Vista as well as Linux and
Macintosh systems.
• Your machine is equipped with a USB interface
and a network interface (CLX-2160N only).
Special features
Your new machine is equipped with special features.
Copy originals in several formats
• Your machine can print multiple image copies
from the original document on a single page.
• There are special functions to erase catalog and
newspaper background.
Print with excellent quality and speed
• You can print in full range of colors using cyan,
magenta, yellow, and black.
• You can print up to 2400 x 600 dpi (effective
output). For details, see the Software
Section.
• The print quality and image size may be
adjusted and enhance at the same time.
• In Black and White mode, your machine prints
A4-sized paper at up to 16 ppma and letter-sized
paper at up to 17 ppm. In Color mode, your
machine prints A4-sized or letter sized paper at
up to 4 ppm.
Scan the originals and send it right away
• Scan in color and use the precise compressions
of JPEG, TIFF and PDF formats.
• Quickly scan and send files to multiple
destinations using Networks scanning
(CLX-2160N only).
Handle paper flexibly
• The manual feeder supports letterhead,
envelopes, labels, transparencies, custom-sized
media, postcards, and heavy paper. The manual
feeder holds up 1 sheet of paper.
Machine features
• The 150-sheet tray support plain paper in
various sizes.
The table below lists a general overview of features supported by your
machine.
Create professional documents
(I: Installed, O: Option, NA: Not Available)
• Print Watermarks. You can customize your
documents with words, such as “Confidential.”
See the Software Section.
Features
• Print Posters. The text and pictures of each page of
your document are magnified and printed across the
sheet of paper and can then be taped together to
form a poster. See the Software Section.
CLX-2160
CLX-2160N
USB 2.0
I
I
USB Memory
I
I
PictBridge
I
I
NA
I
Network Interface
(Ethernet 10/100 Base TX)
a. pages per minute
1.1
Downloaded From ManualsPrinter.com Manuals
<Introduction>
Machine overview
These are the main components of your machine:
Rear view
Front view
* The figure above shows an CLX-2160N with
all available accessories.
1
power switch
4
power receptacle
2
network port
5
rear cover
3
USB port
* The figure above shows an CLX-2160N
with all available accessories.
1
scanner lid
8
tray
2
scanner glass
9
manual feeder
3
USB memory port
10
manual feeder paper
width guides
4
front cover
11
waste toner container
5
handle
12
toner cartridges
6
control panel
13
imaging unit
7
output support
14
scan unit
Note
The surface of the output tray may become hot if you print a
large number of pages at once. Please make sure that you don’t
touch the surface, and prevent children from approaching it.
1.2
Downloaded From ManualsPrinter.com Manuals
<Introduction>
Control panel overview
1
Display: Shows the current status and prompts during an operation.
8
ID Copy: You can copy both sides of the ID Card like a driver’s
license to a single side of paper. See page 6.3.
2
Toner colors: The toner colors shown below the LCD display coworks with display messages. See Status LED with the toner
cartridge messages on page 1.4.
9
USB Print: Allows you to directly print files stored on a USB flash
drive when it is inserted into the USB port in the front of your
machine. See page 9.1.
3
Status: Shows the status of your machine. See page 1.4.
10
Scan to: Allows you to access a list of the PC software programs that
an image can be scanned to. See page 8.1.
4
Menu: Enters Menu mode and scrolls through the available menus.
11
Black Start: Starts a job in Black and White mode.
5
Scroll buttons: Scroll through the options available in the selected
menu, and increase or decrease values.
12
Color Start: Starts a job in Color mode.
6
OK: Confirms the selection on the screen.
13
Stop/Clear: Stops an operation at any time. In Standby mode,
clears/cancels the copy options, such as the darkness, the
document type setting, the copy size, and the number of copies.
7
Back: Sends you back to the upper menu level.
1.3
Downloaded From ManualsPrinter.com Manuals
<Introduction>
Status LED with the toner cartridge messages
Understanding the Status LED
The status of toner cartridges is indicated by the status LED and the LCD
display. If the toner cartridge is low or needs to be changed, the status
LED turns red and the display shows the message. However the arrow
mark (or marks) shows which color toner is of concern, or may be
installed with a new cartridge.
The Status LED on the control panel shows the status of your machine.
See the table below to know your machine’s status.
Status LED
Status
Off
Green
Red
Example
Description
• The machine is off-line.
• The machine is in Power Save mode. When
data is received, or Black Start or Color Start
button was pressed, it switches to on-line
automatically.
Blinking
• When the backlight slowly blinks, the machine
is receiving data from the computer.
• When the backlight fast blinks, the machine is
printing data.
On
The machine is on-line and can be used.
Blinking
• A minor error occurs and the machine is waiting
an error to be cleared. Check the display
message, and solve the problem referring to
Understanding display messages, see page
11.3.
• The toner cartridge is low. Order a new toner
cartridge, see Ordering supplies on page 12.1.
You can temporarily improve print quality by
redistributing the toner. See page 10.4.
On
• The toner cartridge is totally exhausted.
Remove the old toner cartridge and install a
new one. See page 10.5.
• A problem has occurred such as a paper jam,
opened cover or no paper in the tray, so that the
machine can not continue the job. Check the
message on the display, and refer to
Understanding display messages on page 11.3
to solve the problem.
• The toner cartridge is low, empty, or needs to
be installed a new one. See Understanding the
toner cartridge messages on the display
The above example shows the toner cartridges' status of the color shown
by arrows. Check the message to find out what the problem is and how
to solve it. See page 11.3 to browse the detailed information on error
messages.
Note
Always check the message on the display to solve the problem.
The instruction in Trouble shooting part will guide you to operate
the machine properly. See page 11.1
1.4
Downloaded From ManualsPrinter.com Manuals
<Introduction>
Finding more information
Selecting a location
You can find information for setting up and using your machine from the
following resources, either printed or onscreen.
Select a level, stable place with adequate space for air circulation. Allow
extra space for opening covers and trays.
Quick Install Guide
The area should be well-ventilated and away from direct sunlight or
sources of heat, cold, and humidity. Do not set the machine close to the
edge of your desk or table.
Provides information on setting up your
machine and, therefore, be sure to follow the
instructions in the guide to get the machine
ready.
Clearance space
• Front: 482.6 mm
(enough space so that the paper tray can be removed)
Online
User’s Guide
• Back: 100 mm (enough space for ventilation)
Provides you with step-by-step instructions for
using your machine’s full features, and
contains information for maintaining your
machine, troubleshooting, and installing
accessories.
• Right: 100 mm (enough space for ventilation)
• Left: 100 mm (enough space for ventilation)
This user’s guide also contains the Software
Section providing you with information on how
to print documents with your machine on
various operating systems, and how to use the
supplied software utilities.
Note
You can access the user’s guides in
other languages from the Manual
folder on the Printer software CD.
Network Printer
User’s Guide
Printer Driver
Help
Website
If your machine is not equipped with a
network interface, this CD is not provided.
Contained on the network utilities CD,
provides you with information on setting up
and connecting your machine to a network.
Note
Provides you with help information on printer
driver properties and instructions for setting up
the properties for printing. To access a printer
driver help screen, click Help from the printer
properties dialog box.
When you move the printer, do not tilt or turn it upside down. Or
the inside of the printer may be contaminated by toner, which
can cause damage to the printer or bad printing quality.
Place the machine on a flat and stable surface for not letting it lean
more than 2 mm (0.08 inches). Otherwise, it may affect the printing
quality.
If you have Internet access, you can get help,
support, printer drivers, manuals, and order
information from the Samsung website,
www.samsungprinter.com.
1.5
Downloaded From ManualsPrinter.com Manuals
<Introduction>
Printing a demo page
Print a demo page to make sure that the machine is operating correctly.
To print a demo page:
In ready mode, press and hold the OK button for about 2 seconds.
Altitude adjustment
The print quality is affected by atmospheric pressure, which is
determined by the height of the machine above sea level. The following
information will guide you on how to set your machine to the best print
quality or best quality of print.
Before you set the altitude value, find the altitude where you are using
the machine.
Value
1
High 3
2
High 2
3
High 1
4 Normal
0
1
Ensure that you have installed the printer driver with the provided
Printer Software CD.
2
Double-click the Smart Panel icon on the Windows task bar
(or Notification Area in Linux).
You can also click Smart Panel on the status bar in Mac OS X.
3
Click Printer Setting.
4
Click Settings > Altitude Adjustment. Select the appropriate
value from the dropdown list, and then click Apply.
Note
If your machine is connected to a network, SyncThru Web
Service screen appears automatically. Click Machine Settings
> Setup (or Machine Setup) > Altitude Adj. Select the
appropriate altitude value, and then click Apply.
1.6
Downloaded From ManualsPrinter.com Manuals
<Introduction>
2 System setup
Menu overview
The control panel provides access to various menus to set up the
machine or use the machine’s functions. These menus can be accessed
by pressing Menu. Refer to the following diagram. Menus available in
Copy or Scan mode vary.
This chapter gives you an overview of menus available on your machine
and step-by-step instructions for setting up the machine’s systems.
This chapter includes:
•
Menu overview
•
Changing the display language
•
Using the power save mode
•
Auto continue
Note
Some menus may not appear in the display depending on your
country. If so, it is not applicable to your machine.
Copy Menu
Copy Feature
Copy Setup
( See page 6.3)
( See page 6.1)
Reduce/Enlarge
Darkness
Original Type
2-Up
4-Up
Poster Copy
Clone Copy
Erase Bkgd.
Change Default
Copies
Reduce/Enlarge
Darkness
Original Type
System Setup
Machine Setup ( See page 2.2)
Language
Power Save
Timeout
a
NetScanTimeout
Altitude Adj.
Auto Continue
Paper Setup (See page 5.8)
Paper Size
Paper Type
Paper Source
Report (See page 10.1)
Maintenance (See page 10.9)
Supplies Life
Color
Serial Number
Clear Setting (See page 10.1)
Network a
( See page 4.1)
TCP/IP
Ethernet Speed
Clear Setting
Network Info.
a. CLX-2160N only
a. CLX-2160N only
Scan Menu
Scan Feature
( See page 8.1)
USB Memory
Scan Size
Original Type
Resolution
Scan Color
Scan Format
System Setup
Scan Setup
Change Default
USB Memory
Machine Setup ( See page 2.2)
Language
Power Save
Timeout
a
NetScanTimeout
Altitude Adj.
Auto Continue
Paper Setup (See page 5.8)
Paper Size
Paper Type
Paper Source
Report (See page 10.1)
Maintenance (See page 10.9)
Supplies Life
Color
Serial Number
Clear Setting (See page 10.1)
a. CLX-2160N only
2.1
Downloaded From ManualsPrinter.com Manuals
<System setup>
Network a
( See page 4.1)
TCP/IP
Ethernet Speed
Clear Setting
Network Info.
a. CLX-2160N only
Changing the display language
Auto continue
To change the language that appears on the control panel, follow these
steps:
This is the option to set the machine to continue printing or not, in case
the paper size you have set and the paper within the tray mismatches.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press OK.
2
Press Scroll buttons until System Setup appears and press OK.
3
Press the Scroll buttons until Machine Setup appears and press OK.
3
Press Scroll buttons until Machine Setup appears and press OK.
4
Press the Scroll buttons until Language appears and press OK.
4
Press the Scroll buttons until Auto Continue appears and press OK.
5
Press the Scroll buttons until the language you want appears and
press OK.
5
Press the Scroll buttons until the binding option you want appears.
6
Press Stop/Clear to return to Standby mode.
• On: Automatically prints after set time passes, when the paper size
mismatches the tray paper size.
• Off: Waits until you press Black Start or Color Start on the control
panel, when the paper size mismatches the tray paper size.
Using the power save mode
Power Save mode allows your machine to reduce power consumption when
it is not in actual use. You can turn this mode on and select a length of time
for which the machine waits after a job is printed before it switches to a
reduced power state.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press OK.
3
Press the Scroll buttons until Machine Setup appears and press OK.
4
Press the Scroll buttons until Power Save appears and press OK.
5
Press the Scroll buttons until the time setting you want appears and
press OK.
6
Press Stop/Clear to return to Standby mode.
2.2
Downloaded From ManualsPrinter.com Manuals
6
Press OK to save your selection.
7
Press Stop/Clear to return to Standby mode.
<System setup>
3 Software overview
CD
Printer
software CD
This chapter gives you an overview of the software that comes with your
machine. Further details about installing and using the software are
explained in the Software Section.
Contents
Macintosh
• Printer driver: Use this driver to run
your machine from a Macintosh.
• Scanner driver: TWAIN driver is
available for scanning documents
on your machine.
• Smart Panel: This program allows
you to monitor the machine’s status
and alerts you when an error occurs
during printing.
Windows
• SyncThru™ Web Admin Service:
Use this web-based program to
remotely manage, monitor, and
troubleshoot network printers.
• Set IP: Use this program to set your
machine’s TCP/IP addresses.
• Network Printer User’s Guide in
PDF
(continued)
This chapter includes:
•
Supplied software
•
Printer driver features
•
System requirements
Network
utilities CD
(CLX-2160N
only)
Supplied software
You must install the printer and scanner software using the supplied CDs
after you have set up your machine and connected it to your computer.
Each CD provides you with the following software:
CD
Printer
software CD
Contents
Windows
Linux
a. Allows you to edit a scanned image in many ways using a powerful image editor and to send the image by email. You can also open another image editor
program, like Adobe Photoshop, from SmarThru. For details, please refer to
the onscreen help supplied on the SmarThru program.
• Printer driver: Use this driver to
take full advantage of your printer’s
features.
• Scanner driver: TWAIN and
Windows Image Acquisition (WIA)
drivers are available for scanning
documents on your machine.
• Smart Panel: This program allows
you to monitor the machine’s status
and alerts you when an error occurs
during printing.
• SmarThrua: This is the
accompanying Windows-based
software for your multifunctional
machine.
• Network Scan (CLX-2160N only):
This program allows you to scan a
document on your machine and
save it to a network-connected
computer.
• User’s Guide in PDF
Printer driver features
Your printer drivers support the following standard features:
• Paper orientation, size, source and media type selection
• Number of copies
In addition, you can use various special printing features. The following
table shows a general overview of features supported by your printer
drivers:
Feature
• Printer driver: Use this driver to run
your machine from a Linux
computer and print documents.
• SANE: Use this driver to scan
documents.
• Smart Panel: This program allows
you to monitor the machine’s status
and alerts you when an error occurs
during printing.
3.1
Downloaded From ManualsPrinter.com Manuals
Printer Driver
Windows
Macintosh
Linux
Print quality option
O
O
O
Multiple pages per
sheet (N-up)
O
O
O (2, 4)
Poster printing
O
X
X
Booklet Printing
O
X
X
Fit to page printing
O
O
( Mac 10.4 only)
X
Scale printing
O
O
X
Different source for
first page
O
O
X
Watermark
O
X
X
Overlay
O
X
X
<Software overview>
Linux
System requirements
Item
Before you begin, ensure that your system meets the following
requirements:
Windows
Item
Operating
system
CPU
RAM
Free disk
space
Internet
Explorer
Requirements
Recomme
nded
Windows 98/Me/2000/XP/2003/Vista
Windows 98/Me/2000
Pentium II
400 MHz or higher
Pentium III
933 MHz
Windows XP/2003/
Vista
Pentium III
933 MHz or higher
Pentium IV
1 GHz
Windows 98/Me/2000
64 MB or more
128 MB
Windows XP/2003
128 MB or more
256 MB
Windows Vista
512 MB or more
1 GB
Windows 98/Me/2000
300 MB or more
1 GB
Windows XP/2003
1 GB or more
5 GB
Windows Vista
15 GB or more
15 GB
Windows 98/Me/2000/
XP/2003
5.0 or higher
Windows Vista
7.0 or higher
Operating system
•
•
•
•
CPU
Pentium IV 1 GHz or higher
RAM
256 MB or higher
Free disk page
1 GB or higher
Software
•
•
•
•
RedHat 8.0 ~ 9.0
Fedora Core 1, 2, 3, 4
Mandrake 9.2 ~ 10.1
SuSE 8.2 ~ 9.2
Linux Kernel 2.4 or higher
Glibc 2.2 or higher
CUPS
SANE(for MFP device only)
Note
• It’s necessary to claim swap partition of 300 MB or larger for
working with large scanned images.
• The Linux scanner driver supports the optical resolution at
maximum.
Macintosh
Item
Operating system
CPU
Note
For Windows 2000/2003/XP/Vista, users who have an
administrator right can install the software.
RAM
3.2
Downloaded From ManualsPrinter.com Manuals
Requirements
Requirements
Macintosh 10.3 ~ 10.5
Intel processor
PowerPC G4/G5
512 MB for an Intel-based Mac,
128 MB for a Power-PC based Mac
Free disk space
1 GB
Connection
USB interface,
Network interface (CLX-2160 only)
<Software overview>
4 Network setup
Supported operating systems
The following table shows the network environments supported by the
machine:
(CLX-2160N only)
This chapter gives you step-by-step instructions for setting up your
machine for network connections.
Item
This chapter includes:
•
Introduction
•
Supported operating systems
•
Configuring TCP/IP
•
Setting ethernet speed
•
Restoring the network configuration
•
Printing a network configuration page
Network interface
• Ethernet 10/100 Base-TX
Network operating
system
• Windows 98/Me/2000/XP/2003/Vista
• Various Linux OS
• Macintosh OS 10.3 ~ 10.5
Network protocols
• TCP/IP
• IPP, SNMP
Dynamic addressing
server
• DHCP, BOOTP
• TCP/IP: Transmission Control Protocol/Internet Protocol
• IPP: Internet Printing Protocol
• SNMP: Simple Network Management Protocol
• DHCP: Dynamic Host Configuration Protocol
• BOOTP: Bootstrap Protocol
Introduction
Once you have connected your machine to a network with an RJ-45
Ethernet cable, you can share the machine with other network users.
You need to set up the network protocols on the machine to use it as your
network printer. Protocols can be set up by the following two methods:
Configuring TCP/IP
Via network administration programs
Your machine can be set up with a variety of TCP/IP network information,
such as an IP address, a subnet mask, a gateway, and DNS addresses.
There are several ways in which your machine can be assigned a TCP/
IP address, depending on your network.
You can configure your machine’s print server settings and manage the
machine via the following programs that came with your machine:
• SyncThru™ Web Admin Service: A web-based printer
management solution for network administrators. SyncThru™ Web
Admin Service provides you with an efficient way of managing
network devices and lets you remotely monitor and troubleshoot
network printers from any site with corporate intranet access.
• Static addressing: A TCP/IP address is assigned manually by the
system administrator.
• Dynamic addressing via BOOTP/DHCP: A TCP/IP address is
assigned automatically by the server.
• SyncThru™ Web Service: A web server embedded to your network
print server, which allows you to:
- Configure the network parameters necessary for the machine to
connect to various network environments.
- Customize printer, copy, and fax settings.
Note
Before configuring TCP/IP, you need to set the network protocol
to TCP/IP.
• SetIP: A utility program allowing you to select a network interface and
manually configure the addresses for use with the TCP/IP protocol.
Static addressing
To enter a TCP/IP address from your machine’s control panel, take the
following steps:
For further details, refer to the user’s guide on the network utilities CD
that came with your machine.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Network appears and press OK.
3
Press OK when TCP/IP appears.
4
Press the Scroll buttons until Static appears and press OK.
5
Press OK when IP Address appears.
Via the control panel
You can set up the following basic network parameters through the
machine’s control panel:
• Configure TCP/IP
• Configure Ethernet Speed
4.1
Downloaded From ManualsPrinter.com Manuals
Requirements
<Network setup (CLX-2160N only)>
6
Set the first byte between 0 and 255 using the Scroll buttons and
press OK to move to the next byte.
Restoring the network configuration
Repeat this to complete the address from the 1st byte to the 4th
byte.
7
When you have finished, press OK.
8
Repeat steps 5 and 6 to configure the other TCP/IP parameters:
subnet mask and gateway address.
9
Press the Scroll buttons until Static appears and press OK.
You can return the network configuration to its default settings.
10 Press the Scroll buttons until Primary DNS appears and press
OK.
11 Enter each byte of the address and press OK.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Network appears and press OK.
3
Press the Scroll buttons until Clear Setting appears and press
OK.
4
Press OK when Yes appears to restore the network configuration.
5
Power the machine off and back on.
12 Press the Scroll buttons until Secondary DNS appears and press
OK.
Printing a network configuration page
13 Enter each byte of the address and press OK.
The Network Configuration page shows how the network interface card
on your machine is configured.
14 Press Stop/Clear to return to Standby mode.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Network appears and press OK.
3
Press the Scroll buttons until Network Info. appears and press
OK.
4
Press OK when Yes appears.
Dynamic addressing (BOOTP/DHCP)
To have a TCP/IP address assigned automatically by the server, take the
following steps:
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Network appears and press OK.
3
Press OK when TCP/IP appears.
4
Press the Scroll buttons until DHCP or BOOTP appears and press
OK.
5
Press Stop/Clear to return to Standby mode.
The Network Configuration page prints out.
Setting ethernet speed
You can select the communication speed for Ethernet connections.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Network appears and press OK.
3
Press the Scroll buttons until Ethernet Speed appears and press
OK.
4
Press the Scroll buttons until the speed you want appears and
press OK.
5
Press Stop/Clear to return to Standby mode.
4.2
Downloaded From ManualsPrinter.com Manuals
<Network setup (CLX-2160N only)>
5 Selecting and loading print media
Note
• Leaving the scanner lid open while copying may affect copy
quality and toner consumption.
• Dust on the scanner glass may cause black spots on the
printout. Always keep it clean.
• If you are copying a page from a book or magazine, lift the
scanner lid until its hinges are caught by the stopper and then
close the lid. If the book or magazine is thicker than 30 mm,
start copying with the lid open.
This chapter introduces you to how select and load print media for your
machine.
This chapter includes:
•
Loading originals
•
Selecting print media
•
Loading paper
•
Setting the paper size and type
Selecting print media
Loading originals
You can print on a variety of print media, such as plain paper, envelopes,
labels, and transparencies. Always use print media that meet the
guidelines for use with your machine. Print media that does not meet the
guidelines outlined in this user’s guide may cause the following
problems:
You can use the scanner glass to load an original for copying, scanning.
1
Lift and open the scanner lid.
• Poor print quality
• Increased paper jams
• Premature wear on the machine.
Properties, such as weight, composition, grain, and moisture content,
are important factors that affect the machine’s performance and the
output quality. When you choose print materials, consider the following:
• The type, size and weight of the print media for your machine are
described later in this section.
• Desired outcome: The print media you choose should be appropriate
for your project.
2
• Brightness: Some print media are whiter than others and produce
sharper, more vibrant images.
Place the original face down on the scanner glass and align it with
the registration guide at the top left corner of the glass.
• Surface smoothness: The smoothness of the print media affects how
crisp the printing looks on the paper.
Note
• Some print media may meet all of the guidelines in this section
and still not produce satisfactory results. This may be the
result of improper handling, unacceptable temperature and
humidity levels, or other variables over which Samsung has no
control.
• Before purchasing large quantities of print media, ensure that
it meets the requirements specified in this user’s guide.
Caution
Using print media that does not meet these specifications may
cause problems, requiring repairs. Such repairs are not covered
by Samsung’s warranty or service agreements.
3
Close the scanner lid. Be careful not to move the document.
Caution
When you close the scanner lid after placing the document, be
careful your fingers not to be caught between the scanner glass
and the lid. Your machine may have a heavy lid (or cover) for
optimal pressure on the document for the best scanning.
5.1
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
Supported print media types and sizes
Type
Size
Dimensions
Weight
• 60 to 90 g/m2 (16 to 24 lb
bond) for the paper input
tray.
• 60 to 105 g/m2 (16 to 28 lb
bond) for the tray and
manual feeder
• 1 sheet for the manual
feeder
• 150 sheets of 75 g/m2
(20 lb bond) paper for the
tray
75 to 90 g/m2 (20 to 24 lb
bond)
1 sheet for the manual
feeder or tray
Refer to the Plain paper section
138 to 146 g/m2 (37 to 39 lb
bond)
1 sheet for the manual
feeder or tray
Letter, Legal, Folio,
Oficio, A4, JIS B5,
Executive, A5, A6
Refer to the Plain paper section
120 to 150 g/m2 (32 to 40 lb
bond)
1 sheet for the manual
feeder or tray
Letter, Legal, Folio,
Oficio, A4, JIS B5,
Executive, A5, A6
Refer to the Plain paper section
105 to 163 g/m2 (28 to 43 lb
bond)
1 sheet for the manual
feeder or tray
60 to 163 g/m2
(16 to 43 lb bond)
1 sheet for the manual
feeder or tray
Letter
216 x 279 mm (8.50 x 11.00 inches)
Legal
216 x 356 mm (8.50 x 14.00 inches)
Folio
216 x 330 mm (8.50 x 13.00 inches)
Oficio
215 x 343 mm (8.50 x 13.50 inches)
A4
210 x 297 mm (8.26 x 11.69 inches)
JIS B5
182 x 257 mm (7.16 x 10.11 inches)
A5
148 x 210 mm (5.82 x 8.26 inches)
Executive
184 x 267 mm (7.25 x 10.50 inches)
ISO B5
176 x 250 mm (6.93 x 9.84 inches)
A6
105 x 148 mm (4.13 x 5.82 inches)
ISO/Envelope B5
176 x 250 mm(6.93 x 9.84 inches)
Envelope Monarch
98 x 191 mm (3.80 x 7.50 inches)
Envelope COM-10
105 x 241 mm (4.12 x 9.50 inches)
Envelope No.9
98 x 225 mm (3.87 x 8.87 inches)
Envelope DL
110 x 220 mm (4.33 x 8.66 inches)
Envelope C5
162 x 229 mm (6.37 x 9.01 inches)
Envelope C6
114 x 162 mm (4.48 x 6.38 inches)
Envelope size 6 3/4
92 x 165 mm (3.62 x 6.50 inches)
Transparencyb
Letter, A4
Labels
Card stock
Plain paper
Envelope
Capacitya
Minimum size (custom)
76 x 127 mm (3.00 x 5.00 inches)
Maximum size (custom)
216 x 356 mm (8.50 x 14.00 inches)
a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.
b. Recommended media: Transparency for a Color Laser Printers produced by HP, Xerox and 3M.
It is not recommended to use paperbacked transparencies such as Xerox 3R91334, which can cause a jam or be scratched.
5.2
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
Media sizes supported in each mode
Mode
Size
Guidelines for special print media
Source
Copy mode
Letter, A4, Legal, Oficio, Folio,
Executive, JIS B5, A5, A6
• Tray
• Manual feeder
Print mode
All sizes supported by the
machine
• Tray
• Manual feeder
Media type
Guidelines for selecting and storing print media
When selecting or loading paper, envelopes, or other print materials,
keep these guidelines in mind:
• Always use print media that conform with the specifications listed on
page 5.5.
• Attempting to print on damp, curled, wrinkled, or torn paper can cause
paper jams and poor print quality.
• For the best print quality, use only high quality copier grade paper
specifically recommended for use in laser printers.
• Avoid using the following media types:
- Paper with embossed lettering, perforations, or a texture that is too
smooth or too rough
- Erasable bond paper
- Multi-paged paper
- Synthetic paper and thermally reactive paper
- Carbonless paper and Tracing paper.
Envelopes
Guidelines
• Successful printing on envelopes depends upon
the quality of the envelopes. When selecting
envelopes, consider the following factors:
- Weight: The weight of the envelope paper
should not exceed 90 g/m2 (24 lb) or jamming
may occur.
- Construction: Prior to printing, envelopes
should lie flat with less than 6 mm
(0.25 inches) curl, and should not contain air.
- Condition: Envelopes should not be wrinkled,
nicked, or otherwise damaged.
- Temperature: You should use envelopes that
are compatible with the heat and pressure of
the machine during operation.
• Use only well-constructed envelopes with sharp
and well creased folds.
• Do not use stamped envelopes.
• Do not use envelopes with clasps, snaps,
windows, coated lining, self-adhesive seals, or
other synthetic materials.
• Do not use damaged or poorly made envelopes.
• Be sure the seam at both ends of the envelope
extends all the way to the corner of the
envelope.
Use of these types of paper could result in paper jams, chemical smells,
and damage to your machine.
• Store print media in its ream wrapper until you are ready to use it.
Place cartons on pallets or shelves, not on the floor. Do not place
heavy objects on top of the paper, whether it is packaged or
unpackaged. Keep it away from moisture or other conditions that can
cause it to wrinkle or curl.
Acceptable
• Store unused print media at temperatures between 15o C and 30o C (59o
F to 86o F). The relative humidity should be between 10% and 70%.
Unacceptable
• Envelopes with a peel-off adhesive strip or with
more than one flap that folds over to seal must
use adhesives compatible with the printer’s
fusing temperature for 0.1 second. Check your
machine’s specification to view the fusing
temperature, see page 13.1. The extra flaps and
strips might cause wrinkling, creasing, or jams,
and may even damage the fuser.
• For the best print quality, position margins no
closer than 15 mm (0.6 inches) from the edges
of the envelope.
• Avoid printing over the area where the
envelope’s seams meet.
• Store unused print media in a moisture-proof wrap, such as a plastic
container or bag, to prevent dust and moisture from contaminating
your paper.
• Load special media types one sheet at a time through the manual
feeder to avoid paper jams.
To prevent print media, such as transparencies and label sheets, from
sticking together, remove them as they print out.
5.3
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
Media type
Transparencies
Guidelines
Media type
• To avoid damaging the machine, use only
transparencies designed for use in laser
printers.
• Transparencies used in the printer must be able
to withstand the machine’s fusing temperature.
Check your machine’s specification to view the
fusing temperature, see page 13.1.
• Place them on a flat surface after removing
them from the machine.
• Do not leave them in the paper tray for long
periods of time. Dust and dirt may accumulate
on them, resulting in spotty printing.
• To avoid smudging caused by fingerprints,
handle them carefully.
• To avoid fading, do not expose printed
transparencies to prolonged sunlight.
• Ensure that transparencies are not wrinkled,
curled, or have any torn edges.
Labels
• To avoid damaging the machine, use only labels
designed for use in laser printers.
• When selecting labels, consider the following
factors:
- Adhesives: The adhesive material should be
stable at your machine’s fusing temperature.
Check your machine’s specification to view the
fusing temperature, see page 13.1.
- Arrangement: Only use labels with no exposed
backing between them. Labels can peel off
sheets that have spaces between the labels,
causing serious jams.
- Curl: Prior to printing, labels must lie flat with no
more than 13 mm (5 inches) of curl in any
direction.
- Condition: Do not use labels with wrinkles,
bubbles, or other indications of separation.
• Make sure that there is no exposed adhesive
material between labels. Exposed areas can cause
labels to peel off during printing, which can cause
paper jams. Exposed adhesive can also cause
damage to machine components.
• Do not run a sheet of labels through the machine
more than once. The adhesive backing is designed
for only a single pass through the machine.
• Do not use labels that are separating from the
backing sheet or are wrinkled, bubbled, or
otherwise damaged.
Card stock or
custom-sized
materials
• Do not print on media smaller than 76 mm
(3.00 inches) wide or 127 mm (5.00 inches) long.
• In the software application, set margins at least
6.4 mm (0.25 inches) away from the edges of
the material.
Preprinted
paper
• Letterhead must be printed with heat-resistant
ink that will not melt, vaporize, or release
hazardous emissions when subjected to the
printer’s fusing temperature for 0.1 second.
Check your machine’s specification to view the
fusing temperature, see page 13.1.
• Letterhead ink must be non-flammable and
should not adversely affect printer rollers.
• Forms and letterhead should be sealed in a
moisture-proof wrapping to prevent changes
during storage.
• Before you load preprinted paper, such as forms
and letterhead, verify that the ink on the paper is
dry. During the fusing process, wet ink can come
off preprinted paper, reducing print quality.
Caution
Recommended media: Transparency for a
Color Laser Printers produced by HP,
Xerox and 3M.
It is not recommended to use paperbacked
transparencies such as Xerox 3R91334,
which can cause a jam or be scratched.
5.4
Downloaded From ManualsPrinter.com Manuals
Guidelines
<Selecting and loading print media>
6
Loading paper
Load paper with the print side up.
In the tray
Load the print media you use for the majority of your print jobs in the tray.
The tray can hold a maximum of 150 sheets of 75 g/m2 (20 lb bond)
plain paper.
Loading paper in the tray
1
Pull the tray out of the machine.
2
Open the paper cover.
3
Adjust the size of tray until it sound click.
Make sure not to overfill the tray and that all four corners are flat in
the tray and under the brackets, as shown below. Overfilling the
tray may cause a paper jam.
7
4
Enlarge the tray by adjusting the paper width guide.
5
Flex the paper sheets back and forth to separate pages and then
fan them while holding one edge. Tap the edges of the stack on a
flat surface to even it up.
5.5
Downloaded From ManualsPrinter.com Manuals
Squeeze the paper length guide and slide in it until it lightly touches
the end of the paper stack.
<Selecting and loading print media>
8
Changing the size of the paper in the tray
Close the paper cover.
To load longer sizes of paper, such as Legal-sized paper, you need to
adjust the paper guides to extend the paper tray.
To change the tray size to other size, you must adjust the paper length
guide properly.
9
1
Pull the tray out of the machine. Open the paper cover and remove
paper from the tray if necessary.
2
Pressing and unlatching the guide lock in the top of the tray, pull the
tray out manually.
3
Load paper into the tray.
4
Slide the paper length guide until it lightly touches the end of the
paper stack. Squeeze the paper width guide and slide it to the edge
of the paper stack without causing it to bend.
Slide the tray back into the machine.
You can load letterhead with the design side face up. The top edge
of the sheet with the logo should be go into the machine first.
After loading paper, set the paper type and size for the tray. See
page 5.8 for copying and faxing or the Software Section for PCprinting.
Note
• If there is not enough paper in the tray, load more paper.
• If you experience problems with paper feed, place one sheet
at a time in the manual feeder.
• You can load previously printed paper. The printed side
should be facing down with an uncurled edge into the
machine. If you experience problems with paper feed, turn
the paper around. Note that print quality is not guaranteed.
5.6
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
In the manual feeder
For paper smaller than Letter-sized, return the paper guides to their
original positions and adjust the paper length guide and paper width
guide.
The manual feeder can hold special sizes and types of print material,
such as transparencies, postcards, note cards, labels, and envelopes. It
is useful for single page printing on letterhead or colored paper.
Tips on using the manual feeder
• Load only one size of print media at a time in the manual feeder.
When you print out many pieces of paper at once, tray use is
recommended.
• To prevent paper jams, do not add paper when there is still paper in
the manual feeder. This also applies to other types of print media.
Note
• Do not push the paper width guides far enough to cause the
material to warp.
• If you do not correctly adjust the paper width guides, it may
cause a paper jams.
• Print media should be loaded face up with the top edge going into the
manual feeder first and be placed in the center of the tray.
• Always load only the print media specified in page 5.1 to avoid paper
jams and print quality problems.
• Flatten any curl on postcards, envelopes, and labels before loading
them into the manual feeder.
To load paper in the manual feeder:
Caution
5
When you do the printing job from the manual feeder, clear the
paper in the tray away.
Close the paper cover.
1
6
Load the paper with the side to be printed on facing up.
Slide the tray back into the machine.
Depending on the media type you are using, keep the following
loading guidelines:
• Envelopes: Flap side down and with the stamp area on the top
left side.
• Transparencies: Print side up and the top with the adhesive strip
entering the machine first.
• Labels: Print side up and top short edge entering the machine
first.
• Preprinted paper: Design side up with the top edge toward the
machine.
• Card stock: Print side up and the short edge entering the
machine first.
• Previously printed paper: Previously printed side down with an
uncurled edge toward the machine.
5.7
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
2
3
Squeeze the manual feeder paper width guides and adjust them to
the width of the paper. Do not force too much, or the paper will be
bent, which will result in a paper jam or skew.
Setting the paper size and type
After loading paper in the paper tray, you need to set the paper size and
type using the control panel buttons. These settings will apply to Copy.
For PC-printing, you need to select the paper size and type in the
application program you use on your PC.
After loading paper, set the paper type and size for the manual feeder.
See page 5.8 for copying the Software Section for PC-printing.
Note
The settings made from the printer driver override the
settings on the control panel.
Caution
If you want to print several pages with the manual feeder,
wait the machine complete the printing one page, then
place a paper on the manual feeder. Otherwise it may
cause the paper jam.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press
OK.
3
Press the Scroll buttons until Paper Setup appears and press OK.
4
Press OK when Paper Size appears.
5
Press the Scroll buttons until the paper tray you want appears and
press OK.
6
Press the Scroll buttons until the paper size you are using appears
and press OK.
7
Press Back to return to the upper level.
8
Press the Scroll buttons until Paper Type appears and press OK.
9
Press the Scroll buttons until the paper type you are using appears
and press OK.
10 Press Stop/Clear to return to Standby mode.
5.8
Downloaded From ManualsPrinter.com Manuals
<Selecting and loading print media>
6 Copying
The buttons on the control panel let you select all basic copy options:
darkness, document type and copy size. Set the following options for the
current copy job before pressing Stop/Clear to make copies.
This chapter gives you step-by-step instructions for copying documents.
Note
This chapter includes:
If you press Stop/Clear while setting the copy options, all of the
options you have set for the current copy job will be canceled
and returned to their default status.
•
Selecting the paper tray
•
Copying
•
Changing the settings for each copy
•
Changing the default copy settings
•
Using special copy features
Reduced/Enlarged copy
You can reduce or enlarge the size of a copied image from 50% to 200%
when you copy original documents from the scanner lid.
To select from the predefined copy sizes:
Selecting the paper tray
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
After loading the print media for copy output, you must select the paper
tray you will use for copy jobs.
2
Press Scroll buttons until Copy Feature appears and press OK.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
3
Press Scroll buttons until Reduce/Enlarge appears and press OK.
4
2
Press Scroll buttons until System Setup appears and press OK.
Press the Scroll buttons to select the size setting you want and
press OK.
3
Press the Scroll buttons until Paper Setup appears and press OK.
4
Press the Scroll buttons until Paper Source appears and press
OK.
5
Press the Scroll buttons until the paper tray you want appears and
press OK.
6
To fine-tune the size of copies:
Press Stop/Clear to return to Standby mode.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press Scroll buttons until Copy Feature appears and press OK.
3
Press Scroll buttons until Reduce/Enlarge appears and press OK.
4
Press the Scroll buttons until Custom appears and press OK.
5
Press the Scroll buttons to enter the copy size you want. Pressing
and holding the button allows you to quickly scroll to the number
you want.
6
Press OK to save the selection.
Copying
1
Place an original document on the scanner glass.
Note
Customize the copy settings including copy size, darkness, and
original type, by using the control panel Menu buttons. See 6.1.
When you make a reduced copy, black lines may appear at the
bottom of your copy.
If necessary, you can use special copy features, such as Poster
copying or 2 Up copying. See 6.3.
2
Darkness
Press Color Start to begin color copying.
If you have an original document containing faint markings and dark
images, you can adjust the brightness to make a copy that is easier to
read.
Or, press Black Start to begin black and white copying.
Note
You can cancel the copy job during an operation. Press Stop/
Clear, and the copying will stop.
Changing the settings for each copy
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press Scroll buttons until Copy Feature appears and press OK.
3
Press Scroll buttons until Darkness appears and press OK.
4
Press the Scroll buttons to select the contrast mode you want.
•Light: works well with dark print.
6.1
Downloaded From ManualsPrinter.com Manuals
<Copying>
•Normal: works well with standard typed or printed documents.
Setting copy timeout
•Dark: works well with light print or faint pencil markings.
5
You can set the time the machine waits before it restores the default copy
settings, if you do not start copying after changing them on the control
panel.
Press OK to save the selection.
Original type
The original type setting is used to improve the copy quality by selecting
the document type for the current copy job.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press Scroll buttons until Copy Feature appears and press OK.
3
Press Scroll buttons until Original Type appears and press OK.
4
Press the Scroll buttons to select the image mode you want.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press Scroll buttons until System Setup appears and press OK.
3
Press Scroll buttons until Machine Setup appears and press OK.
4
Press the Scroll buttons until Timeout appears and press OK.
5
Press the Scroll buttons until the time setting you want appears.
Selecting Off means that the machine does not restore the default
settings until you press Black Start or Color Start to begin copying,
or Stop/Clear to cancel.
•Text: Use for documents containing mostly text.
•Text/Photo: Use for documents with mixed text and photographs.
•Photo: Use when the originals are photographs.
5
6
Press OK to save your selection.
7
Press Stop/Clear to return to Standby mode.
Press OK to save the selection.
Changing the default copy settings
The copy options, including darkness, original type, copy size, and
number of copies, can be set to those most frequently used. When you
copy a document, the default settings are used unless they have been
changed by using the corresponding buttons on the control panel.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press Scroll buttons until Copy Setup appears and press OK.
3
Press OK when Change Default appears.
4
Press the Scroll buttons until the setup option you want appears
and press OK.
5
Press the Scroll buttons until the setting you want appears and
press OK.
6
Repeat steps 4 through 5, as needed.
7
Press Stop/Clear to return to Standby mode.
Note
While you are setting copy options, pressing Stop/Clear cancels
the changed settings and restores the defaults.
6.2
Downloaded From ManualsPrinter.com Manuals
<Copying>
ID card copying
Using special copy features
Your machine can print 2-sided originals on one sheet
of A4-, Letter-, Legal-, Folio-, Oficio-, Executive-, B5-,
A5-, or A6-sized paper.
2-up or 4-up copying
Your machine can print 2 or 4 original images reduced
to fit onto one sheet of paper.
Press ID Copy.
2
Place a single original face down on the scanner
glass.
2-up copying
For details about loading an original, see page
5.1.
1
2
3
4
4-up copying
Place the document to be copied on the scanner
glass, and close the scanner lid.
For details about loading an original, see page
5.1.
1
This copy feature is available only when you place
originals on the scanner glass.
1
1
2
When you copy using this feature, the machine prints
one side of the original on the upper half of the paper
and the other side on the lower half without reducing
the size of the original. This feature is helpful for
copying a small-sized item, such as a name card.
2
Press Menu until Copy Menu appears on the
bottom line of the display and press OK.
3
Press Scroll buttons until Copy Feature appears
and press OK.
4
Press the Scroll buttons until 2-Up or 4-Up
appears and press OK.
5
Press the Scroll buttons to select the color mode
you want.
There are two types of mode as following:
3
Place Front Side and Press[Start] appears on
the display.
4
Press Color Start or Black Start.
•Yes-Color: Color copy
Your machine begins scanning the front side and
shows Place Back Side and Press[Start].
•Yes-Mono: Black and White copy
5
Open the scanner lid and turn the original over.
Note
If you press Stop/Clear or if no buttons
are pressed for approximately 30
seconds, the machine cancels the copy
job and returns to Standby mode.
6
6
Press OK to begin copying.
7
Your machine begins scanning the front side and
will then display Another Page?.
If an original is placed on the scanner glass,
select Yes to add another pages.
8
Place the second document to be copied on the
scanner glass.
9
Press OK to begin copying.
Press Color Start to begin color copying.
Or, press Black Start to begin black and white
copying.
Note
2- or 4-up copying reduces your original
document by 50%.
Note
If the original is larger than the printable
area, some portions may not be printed.
6.3
Downloaded From ManualsPrinter.com Manuals
<Copying>
Poster copying
Clone copying
Your machine can print an image onto 9 sheets of
paper (3x3). You can paste the printed pages together
to make one poster-sized document.
Your machine can print multiple image copies from the
original document on a single page. The number of
images is automatically determined by the original
image and paper size.
This copy feature is available only when you place
originals on the scanner glass.
1
This copy feature is available only when you place
originals on the scanner glass.
Place the document to be copied on the scanner
glass, and close the scanner lid.
1
For details about loading an original, see page 5.1.
2
3
4
5
For details about loading an original, see page 5.1.
Press Menu until Copy Menu appears on the
bottom line of the display and press OK.
2
Press Scroll buttons until Copy Feature appears
and press OK.
Press Menu until Copy Menu appears on the
bottom line of the display and press OK.
3
Press the Scroll buttons until Poster Copy
appears and press OK.
Press Scroll buttons until Copy Feature appears
and press OK.
4
Press the Scroll buttons until Clone Copy
appears and press OK.
5
Press the Scroll buttons to select the color mode
you want.
There are two types of mode as following:
Press the Scroll buttons to select the color mode
you want.
There are two types of mode as following:
•Yes-Color: Color copy
•Yes-Color: Color copy
•Yes-Mono: Black and White copy
6
Place the document to be copied on the scanner
glass, and close the scanner lid.
•Yes-Mono: Black and White copy
Press OK to begin copying.
6
Your original is divided into 9
portions. Each portion is scanned
and printed one by one in the
following order:
6.4
Downloaded From ManualsPrinter.com Manuals
<Copying>
Press OK to begin copying.
Erasing background images
You can set the machine to print an image without its background. This
copy feature removes the background color and can be helpful when
copying an original containing color in the background, such as a
newspaper or a catalog. This copy feature is only for mono copying.
1
Place the document to be copied on the scanner glass, and close
the scanner lid.
For details about loading an original, see page 5.1.
2
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
3
Press Scroll buttons until Copy Feature appears and press OK.
4
Press the Scroll buttons until Erase Bkgd. appears and press OK.
5
Press the Scroll buttons to select On and press OK.
6
Press Stop/Clear to return to Standby mode.
7
Press Black Start to begin mono copying.
6.5
Downloaded From ManualsPrinter.com Manuals
<Copying>
7 Basic printing
This chapter explains common printing tasks.
Printing a document
Your machine allows you to print from various Windows, Macintosh, or
Linux applications. The exact steps for printing a document may vary
depending on the application you use.
For details about printing, see the Software Section.
Canceling a print job
If the print job is waiting in a print queue or print spooler, such as the
printer group in Windows, delete the job as follows:
1
Click the Windows Start menu.
2
For Windows 98/2000/Me, select Settings and then Printers.
For Windows XP/2003, select Printers and Faxes.
For Windows Vista, select Control Panel > Hardware and Sound
> Printers.
3
Double-click the Samsung CLX-216x Series icon.
4
From the Document menu, select Cancel Printing (Windows 98/
Me) or Cancel (Windows 2000/XP/2003/Vista).
Note
You can also access this window by simply double-clicking the
printer icon at the bottom right corner of the Windows desktop.
You can also cancel the current job by pressing Stop/Clear on the
control panel.
7.1
Downloaded From ManualsPrinter.com Manuals
<Basic printing>
8 Scanning
Scanning to an application using a local
connection
Scanning with your machine lets you turn pictures and text into digital
files that can be stored on your computer. Then you can email the files,
upload them to your website, or use them to create projects that you can
print.
Note
You can add more TWAIN-compliant software for scanning,
such as Adobe Photoshop Deluxe, Microsoft Paint, Email,
SmarThru, OCR or Adobe Photoshop, from the Printer
Settings Utility. See the Software Section.
This chapter includes:
•
Scanning basics
•
Scanning to an application using a local connection
•
Scanning using a network connection (CLX-2160N only)
•
Changing the settings for each scan job
•
Changing the default scan settings
1
Make sure that your machine and computer are turned on and
properly connected to each other.
2
Place a single original face down on the scanner glass.
For details about loading an original, see page 5.1.
3
Note
The maximum resolution that can be achieved depends upon
various factors, including computer speed, available disk space,
memory, the size of the image being scanned, and bit depth
settings. Thus, depending on your system and what you are
scanning, you may not be able to scan at certain resolutions,
especially using enhanced resolution.
Press Scan to.
Ready to Scan appears on the top line of the display.
Scanning basics
4
Press the Scroll buttons until Scan to Appl. appears on the bottom
line of the display and press OK.
5
Press the Scroll buttons until the application you want to use
appears and press OK.
6
On the selected application, adjust the scan settings and begin
scanning.
For details, please refer to the application user’s guide.
Your machine offers the following ways to scan an image using a local
connection:
• Via one of the preset imaging applications. Scanning an image
launches the selected application, enabling you to control the
scanning process. See the next section.
• Via the SmarThru™ program supplied with your machine. Scanning
an image launches SmarThru™ and enables you to control the
scanning process. See the Software Section.
• Via the Windows Images Acquisition (WIA) driver. See the Software
Section.
• To a portable USB memory device, if inserted into the USB memory
port on your machine. See page 9.2.
Also, you can send scanned images to several destinations using a
network connection:
• To your networked computer via the Network Scan program. You can
scan an image from the machine, if network-connected, to the
computer where the Network Scan program is running. (CLX-2160N
only)
8.1
Downloaded From ManualsPrinter.com Manuals
<Scanning>
Scanning to a network client
Scanning using a network connection (CLX-2160N only)
Network Scan allows you to remotely scan an original from your networkconnected machine to your computer in JPEG, TIFF, or PDF file format.
If you have connected your machine to a network and set up network
parameters correctly, you can scan and send images over the network.
Scanning
Preparing for network scanning
Before using your machine’s network scanning features, you need to
add the machine to the Network Scan program for scanning to a network
client.
Make sure that your machine and the computer are connected to a
network and Network Scan is running on the computer.
2
Place a single original face down on the scanner glass.
For details about loading an original, see page 5.1.
Adding the machine to the Network Scan program
First, install the Network Scan program. See the Software Section.
To scan images from your machine to your computer through the
network, you need to register the machine as an authorized network
scanner in the Network Scan program.
1
1
In Windows, select Start
Programs
Samsung Network
Printer Utilities
Network Scan
Network Scan.
3
Press Scan to.
4
Press the Scroll buttons until Network Scan appears on the
bottom line of the display and press OK.
5
Select the Scroll buttons until the ID you have set in the Samsung
Network Scan Manager window and press OK.
6
Enter the PIN you have set in the Samsung Network Scan
Manager window and press OK.
7
If the scan destination is your computer folders, press the Scroll
buttons until My Documents appears on the bottom line of the
display and press OK.
The Samsung Network Scan Manager window opens.
2
Click the Add Device button or double-click the Add Device icon.
3
Click Next.
4
Select Browse for a scanner. (recommended), or select Connect
to this scanner. and enter the IP address of your machine.
5
Click Next.
Note
If the scan destination is your computer application, press
the Scroll buttons until the application you want appears
and press Color Start or Black Start. Scanning is started.
A list of the scanners on your network appears.
6
8
Select your machine from the list and enter a name, user ID, and
PIN (Personal Identification Number) for the machine.
Press the Scroll buttons until the scan setting option you want
appears and press OK. Or, press Color Start or Black Start to
immediately start scanning using the default settings.
• Resolution: Sets the image resolution.
Note
• Scan Color: Sets the color mode.
• For the scanner name, the model name of your machine
is automatically entered, but can be changed.
• You can enter an ID of up to 8 characters. The first
character must be a letter.
• The PIN must be 4 digits.
7
Click Next.
8
Click Finish.
• Scan Format: Sets the file format in which the image is to be
saved. When you select TIFF or PDF, you can select to scan
multiple pages.
9
Press the Scroll buttons until the desired status appears and press
OK.
10 press Color Start or Black Start to start scanning. Your machine
begins scanning the original to the computer where the program is
running.
Your machine is added to the Network Scan program and you can
now scan images through the network.
Note
You can change the scanner properties of your machine and the
scan settings from the Samsung Network Scan Manager
window. Click Properties and set the options in each tab.
8.2
Downloaded From ManualsPrinter.com Manuals
<Scanning>
Setting network scan timeout
Changing the settings for each scan job
If the Network Scan program on your computer does not send a refresh
request and does not scan a job within a specified timeout period, your
machine cancels the scan job. You can change this timeout setting as
needed.
1
Press Menu until Scan Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press OK.
3
Press OK when Machine Setup appears.
4
Press the Scroll buttons until NetScanTimeout appears and press
OK.
5
Enter the desired timeout value and press OK.
6
Your machine provides you with the following setting options.
• Scan Size: Sets the image size.
• Original Type: Sets the original document’s type.
• Resolution: Sets the image resolution.
• Scan Color: Sets the color mode.
• Scan Format: Sets the file format in which the image is to be saved.
If you select TIFF or PDF, you can select to scan multiple pages.
To customize the settings before starting a scan job:
1
Press Menu until Scan Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Scan Feature appears and press OK.
The change will be broadcast over the network and will apply to all
clients connected to the network.
3
Press OK when USB Memory appears.
Press Stop/Clear to return to Standby mode.
4
Press the Scroll buttons until the scan setting option you want
appears and press OK.
5
Press the Scroll buttons until the desired status appears and press
OK.
6
Repeat steps 4 and 5 to set other setting options.
7
When you have finished, press Stop/Clear to return to Standby
mode.
Changing the default scan settings
To avoid having to customize the scan settings for each job, you can set
up default scan settings.
8.3
Downloaded From ManualsPrinter.com Manuals
1
Press Menu until Scan Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Scan Setup appears and press OK.
3
Press OK when Change Default appears.
4
Press OK when USB Memory appears.
5
Press the Scroll buttons until the scan setting option you want
appears and press OK.
6
Press the Scroll buttons until the desired status appears and press
OK.
7
Repeat steps 5 and 6 to change other settings.
8
Press Stop/Clear to return to Standby mode.
<Scanning>
9 Using USB flash memory
Plugging in a USB memory device
The USB memory port on the front of your machine is designed for USB
V1.1 and USB V2.0 memory devices. Your machine supports USB
memory devices with FAT16/ FAT32 and sector size 512 Byte.
Check your USB memory devices’ file system from your dealer.
This chapter explains how to use a USB memory device with your
machine.
This chapter includes:
•
About USB memory
•
Plugging in a USB memory device
•
Scanning to a USB memory device
•
Printing from a USB memory device
•
Managing USB memory
•
Printing directly from a digital camera
You must use only an authorized USB memory device with an A plug
type connector.
Use only a metal/shielded
USB memory device.
Note
About USB memory
There are two USB plug types.
USB memory devices are available with a variety of memory capacities
to give you more room for storing documents, presentations,
downloaded music and videos, high resolution photographs, or whatever
other files you want to store or move.
You can do the following on your machine using a USB memory device:
Insert a USB memory device into the USB memory port on the front of
your machine.
• Scan documents and save them on a USB memory device.
• Print data stored on a USB memory device.
• Restore backup files to the machine’s memory.
• Format the USB memory device.
• Check the available memory space.
Caution
• Do not remove the USB memory device while the machine is
in operation, or writing to or reading from USB memory. This
may damage your machine.
• If your USB memory device has certain features, such as
security settings and password settings, your machine may
not automatically detect it. For details about these features,
see the device’s User’s Guide.
9.1
Downloaded From ManualsPrinter.com Manuals
<Using USB flash memory>
Customizing scan to USB
Scanning to a USB memory device
You can specify image size, file format, or color mode for each scanning
to USB job.
You can scan a document and save the scanned image onto a USB
memory device. There are two ways of doing this: you can scan to the
device using the default settings, or you can customize your own scan
settings.
Scanning
1
Insert a USB memory device into the USB memory port on your
machine.
2
Place a single original face down on the scanner glass.
1
Press Menu until Scan Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until Scan Feature appears and press OK.
3
Press OK when USB Memory appears.
4
Press the Scroll buttons until the setting option you want appears
and press OK.
You can set the following options:
For details about loading an original, see page 5.1.
• Scan Size: Sets the image size.
3
Press Scan to.
• Original Type: Sets the original document’s type.
4
Press OK when Scan to USB appears on the bottom line of the
display.
5
• Resolution: Sets the image resolution.
• Scan Color: Sets the color mode. If you select Mono in this
option, you can not select JPEG in Scan Format.
Press OK, Color Start or Black Start when USB appears.
Regardless of the button you press, the color mode is decided as
customized. See “Customizing scan to USB” on page 9.2.
• Scan Format: Sets the file format in which the image is to be
saved. When you select TIFF or PDF, you can select to scan
multiple pages. If you select JPEG in this option, you can not
select Mono in Scan Color.
Your machine begins scanning the original, and then asks if you
want to scan another page.
6
Press OK when Yes appears to scan more pages. Load an original
and press Color Start or Black Start.
Regardless of the button you press, the color mode is decided as
customized. See “Customizing scan to USB” on page 9.2.
Otherwise, press the Scroll buttons to select No and press OK.
After scanning is complete, you can remove the USB memory device
from the machine.
5
Press the Scroll buttons until the desired status appears and press
OK.
6
Repeat steps 4 and 5 to set other setting options.
7
When you have finished, press Stop/Clear to return to Standby
mode.
You can change the default scan settings. For details, see page 8.3.
Note
Your machine creates the SCANFILE folder on the USB drive,
and stores scanned data.
9.2
Downloaded From ManualsPrinter.com Manuals
<Using USB flash memory>
Printing from a USB memory device
Managing USB memory
You can directly print files stored on a USB memory device. You can print
TIFF, BMP, JPEG.
Direct Print option supported file types:
• BMP: BMP Uncompressed
• TIFF: TIFF 6.0 Baseline
• JPEG: JPEG Baseline
You can delete image files stored on a USB memory device one by one
or all at once by reformatting the device.
Caution
After deleting files or reformatting a USB memory device, files
cannot be restored. Therefore, confirm that you no longer need
the data before deleting it.
To print a document from a USB memory device:
1
Deleting an image file
Insert a USB memory device into the USB memory port on your
machine. If one has already been inserted, press USB Print.
Your machine automatically detects the device and reads data
stored on it.
2
3
4
5
1
Insert the USB memory device into the USB memory port on your
machine.
2
Press Scan to.
Press the Scroll buttons until the folder or file you want appears
and press OK.
3
Press OK when Scan to USB appears on the bottom line of the
display.
If you see D in the front of a folder name, there are one or more
files or folders in the selected folder.
4
Press the Scroll buttons until File Manage appears and press OK.
If you selected a file, skip to the next step.
5
Press OK when Delete appears.
If you selected a folder, press the Scroll buttons until the file you
want appears.
6
Press the Scroll buttons until the folder or file you want appears
and press OK.
Press the Scroll buttons to select the number of copies to be
printed or enter the number.
Note
If you see D in the front of a folder name, there are one or
more files or folders in the selected folder.
Press OK, Color Start or Black Start to start printing the selected
file.
There are two types of mode as following:
If you selected a file, the display shows the size of the file for about
2 seconds. Go to the next step.
• OK or Color Start: Color print
If you selected a folder, press the Scroll buttons until the file you
want to delete appears and press OK.
• Black Start: Black and White print
6
7
After printing the file, the display asks if you want to print another job.
7
Press OK when Yes appears to confirm your selection.
Press OK when Yes appears to print another job, and repeat from
step 2.
8
Press Stop/Clear to return to Standby mode.
Otherwise, press the Scroll buttons to select No and press OK.
Formatting a USB memory device
Press Stop/Clear to return to Standby mode.
1
Insert the USB memory device into the USB memory port on your
machine.
2
Press Scan to.
3
Press OK when Scan to USB appears on the bottom line of the
display.
4
Press the Scroll buttons until File Manage appears and press OK.
5
Press the Scroll buttons until Format appears and press OK.
6
Press OK when Yes appears to confirm your selection.
7
Press Stop/Clear to return to Standby mode.
9.3
Downloaded From ManualsPrinter.com Manuals
<Using USB flash memory>
Viewing the USB memory status
You can check the amount of memory space available for scanning and
saving documents.
1
Insert the USB memory device into the USB memory port on your
machine.
2
Press Scan to.
3
Press OK when Scan to USB appears on the bottom line of the
display.
4
Press the Scroll buttons until Check Space appears and press
OK.
The available memory space appears on the display.
5
Press Stop/Clear to return to the Standby mode.
Printing directly from a digital camera
This machine supports the PictBridge feature. You can print images
directly from any PictBridge-compatible device, such as a digital camera,
camera phone, and camcorder. You do not need to connect it to a
computer.
1
Turn on the machine.
2
Connect your PictBridge-compatible device to the memory port on
the front of the machine using the USB cable supplied with the
device.
3
Send an order to print images from the PictBridge-compatible
device.
Note
• Detailed information on how to print an image from a camera
with PictBridge feature, refer to the manual provided with your
camera.
• Index print not support.
• Not support date or file name print.
9.4
Downloaded From ManualsPrinter.com Manuals
<Using USB flash memory>
10 Maintenance
Clearing memory
You can selectively clear information stored in your machine’s memory.
This chapter provides information for maintaining your machine and the
toner cartridge.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press
OK.
3
Press the Scroll buttons until Clear Setting appears and press
OK.
4
Press the Scroll buttons until the item you want to clear appears.
This chapter includes:
•
Printing reports
•
Clearing memory
•
Cleaning your machine
•
Maintaining the toner cartridge
•
Redistributing toner
•
Replacing the toner cartridge
•
Replacing the imaging unit
•
Replacing the waste toner container
•
Maintenance parts
The options in the colored cells are available only with CLX-2160N.
Options
All Settings
Clears all of the data stored in memory and
resets all of your settings to the factory default.
Copy Setup
Restores all of the copy options to the factory
default.
Scan Setup
Restores all of the scan options to the factory
default.
System Setup
Restores all of the system options to the
factory default.
Description
Network
Restores all of the network options to the
factory default.
Configuration
This list shows the status of the user-selectable
options. You may print this list to confirm your
changes after changing settings.
NetScan
Report
Clears the information on network scan
sessions in memory.
Supplies Info
This list shows the current status of
consumables in your machine.
Network Info.
This list shows information on your machine’s
network connection and configuration.
NetScan
Report
his report shows information for the Network
Scan records including IP address, time and
date, the number of pages scanned, and results.
•
Managing your machine from the website
•
Checking the machine’s serial number
Printing reports
Your machine can provide various reports with useful information you will
need. The following reports are available:
Reports in the colored cells are only available with CLX-2160N.
Report/List
5
Press OK when Yes appears.
6
Press OK again to confirm clearing.
7
Repeat steps 5 through 7 to clear another item.
8
Press Stop/Clear to return to Standby mode.
Printing a report
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press OK.
3
Press the Scroll buttons until Report appears and press OK.
4
Press the Scroll buttons until the report or list you want to print
appears and press OK.
To print all reports and lists, select All Report.
5
Description
Press OK when Yes appears to confirm printing.
The selected information prints out.
10.1
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
3
Cleaning your machine
Extend the top handle on the imaging unit and then use it to pull the
imaging unit out of the machine completely.
To maintain print and scan quality, follow the cleaning procedures below
each time the toner cartridge is replaced or if print and scan quality
problems occur.
Caution
• Cleaning the cabinet of the machine with cleaning materials
containing large amounts of alcohol, solvent, or other strong
substances can discolor or distort the cabinet.
• If your machine or its around is contaminated with toner, we
recommend you to use cloth or tissue dampened with water
to clean it. If you use a vacuum cleaner, toner blows in the air
and might be harmful for you.
Cleaning the outside
Clean the cabinet of the machine with a soft lint-free cloth. You can
dampen the cloth slightly with water, but be careful not to let any water
drip onto or into the machine.
Caution
• To prevent damage to the imaging unit, do not expose it to
light for more than a few minutes. Cover it with a piece of
paper, if necessary.
• Do not touch the green surface on the imaging unit with your
hands or any other material. Use the handle on it to avoid
touching this area.
• Be careful not to scratch the surface of the imaging unit.
Cleaning the inside
During the printing process, paper, toner, and dust particles can
accumulate inside the machine. This buildup can cause print quality
problems, such as toner specks or smearing. Cleaning the inside of the
machine clears or reduces these problems.
1
Turn the machine off and unplug the power cord. Wait for the
machine to cool down.
2
Open the front cover and pull the imaging unit out of the machine
using the handle on its bottom.
4
With a dry lint-free cloth, wipe away any dust and spilled toner.
Note
After cleaning, let the printer to dry completely.
10.2
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
5
Cleaning the scan unit
Pull the imaging unit about half and push it until it sounds ‘click’.
Repeat this action two or three times.
Keeping the scan unit clean helps ensure the best possible copies. We
suggest that you clean the scan unit at the start of each day and during
the day, as needed.
1
Slightly dampen a soft lint-free cloth or paper towel with water.
2
Open the scanner lid.
3
Wipe the surface of the scanner glass until it is clean and dry.
1
2
6
Push the imaging unit until it sounds ‘click’ in to the machine.
3
1
2
3
7
5
Close the scanner lid.
If the front cover is not completely closed, the machine will not
operate.
Plug in the power cord and turn the machine on.
Caution
If there is a cracking sound, re-install the imaging unit. The
imaging unit is not properly installed.
Downloaded From ManualsPrinter.com Manuals
scanner glass
Wipe the underside of the scanner lid and white sheet until it is
clean and dry.
Close the front cover firmly.
10.3
scanner lid
4
Caution
8
white sheet
<Maintenance>
Maintaining the toner cartridge
2
Pull the corresponding toner cartridge out.
3
Holding the toner cartridge, thoroughly roll it 5 or 6 times to
distribute the toner evenly inside the cartridge.
Toner cartridge storage
To get the most from the toner cartridge, keep the following guidelines in
mind:
• Do not remove the toner cartridge from its package until ready for use.
• Do not refill the toner cartridge. The machine warranty does not cover
damage caused by using a refilled cartridge.
• Store toner cartridges in the same environment as your machine.
• To prevent damage to the toner cartridge, do not expose it to light for
more than a few minutes.
Expected cartridge life
The life of the toner cartridge depends on the amount of toner that print
jobs require. The actual number may also be different depending on the
print density of the pages you print on, and the number of pages may be
affected by operating environment, printing interval, media type, and
media size. If you print a lot of graphics, you may need to change the
cartridge more often.
Redistributing toner
When the toner cartridge is near the end of its life:
Note
• White streaks or light printing occurs.
If toner gets on your clothing, wipe it off with a dry cloth and
wash clothing in cold water. Hot water sets toner into fabric.
• The toner related message telling that the toner is low.
• SmartPanel program window appears on the computer telling you
which color cartridge is low on toner.
4
Grasp the toner cartridge and align it with the corresponding slot
inside the machine. Insert it back into its slot until it clicks into place.
5
Close the front cover. Make sure that the cover is securely closed.
• The Status LED blinks red.
If this happens, you can temporarily reestablish print quality by
redistributing the remaining toner in the cartridge. In some cases, white
streaks or light printing will still occur even after you have redistributed
the toner.
1
Open the front cover.
10.4
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
Replacing the toner cartridge
Note
If toner gets on your clothing, wipe it off with a dry cloth and
wash clothing in cold water. Hot water sets toner into fabric.
The machine uses four colors and has a different toner cartridge for each
one: yellow (Y), magenta (M), cyan (C), and black (K).
When the toner cartridge is completely empty:
7
Grasp the toner cartridge and align it with the corresponding slot
inside the machine. Insert it into its slot until it clicks into place.
8
Close the front cover. Make sure that the cover is securely latched
and then turn the machine on.
• The Status LED and the toner-related message on the display
indicate when each individual toner cartridge should be replaced.
• The machine stops printing.
At this stage, the toner cartridge needs to be replaced. For order
information for toner cartridges, see page 12.1.
1
Turn the machine off, then wait a few minutes for the machine to
cool.
2
Open the front cover.
3
Pull the corresponding toner cartridge out.
Caution
If the front cover is not completely closed, the machine will not
operate.
Note
If the installation is completed properly, a guide report is printed
out automatically. Wait for about 1.5 minutes for the machine to
get ready.
4
Take a new toner cartridge out of its package.
5
Holding the toner cartridge, thoroughly roll it 5 or 6 times to
distribute the toner evenly inside the cartridge.
6
Remove the cartridge cap.
10.5
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
Replacing the imaging unit
5
Extend the top handle on the imaging unit and then use it to pull the
imaging unit out of the machine completely.
6
Take a new imaging unit out of its package. Remove the protective
devices on both sides of the imaging unit and the paper protecting
the surface of the imaging unit.
The life of the imaging unit is approximately 20,000 pages for black or
50,000 image printing whichever comes first. When the life span of the
imaging unit has expired, Replace Imaging Unit appears on the display
of the control panel, indicating the imaging unit needs to be replaced.
Otherwise your printer stops printing.
To replace the imaging unit:
1
Turn the machine off, then wait a few minutes for the machine to
cool.
2
Open the front cover.
3
Remove all of the toner cartridges and waste toner container from
the machine.
4
Pull the imaging unit out of the machine using the handle on its
bottom.
Caution
• Don’t use sharp objects, such as a knife or scissors, to open
the imaging unit package. You could damage the surface of
the imaging unit.
• Be careful not to scratch the surface of the imaging unit.
• To prevent damage, do not expose the imaging unit to light for
more than a few minutes. Cover it with a piece of paper to
protect it if necessary.
10.6
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
7
Holding the handles on the new imaging unit, push the imaging unit
until it sounds ‘click’ into the machine.
9
Insert the toner cartridges and waste toner container into their
corresponding slots until they click into place.
8
Remove four dummy caps which are on the toner cartridge
entrances of the imaging unit. When you remove the dummy cap
from the cartridge, lift the handle up and pull it out.
10 Close the front cover firmly.
Caution
If the front cover is not completely closed, the machine will not
operate.
11 Turn the machine on.
Note
• After rebooting, your machine will automatically reset the
counter for the imaging unit.
• If the installation is completed properly, a guide report is
printed out automatically. Wait for about 1.5 minutes for the
machine to get ready.
Caution
If there is a cracking sound, re-install the imaging unit. The
imaging unit is not properly installed.
Caution
If you force too much to the dummy caps, it may cause problem.
10.7
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
Replacing the waste toner container
6
Insert the new container into position and then push it to make sure
that it is firmly seated in place.
7
Close the front cover firmly.
The life of the waste toner container unit is approximately 1,250 pages
for full color 5% image printing or 5,000 images for black printing. When
the life span of the waste toner container has expired, Replace/Install
Waste Toner Tank appears on the display of the control panel,
indicating the waste toner container needs to be replaced. Otherwise
your printer stops printing.
To replace the waste toner container:
1
Turn the machine off, then wait a few minutes for the machine to
cool.
2
Open the front cover.
3
Pull the waste toner container out of the machine using its handle.
Caution
If the front cover is not completely closed, the machine will not
operate.
8
Turn the machine on.
Note
After rebooting, your machine will automatically reset the
counter for the waste toner container.
Note
Make sure that you lay the waste toner container on a flat
surface so that the toner does not spill.
4
Remove the container’s cap from the container as shown below,
and use it to close the waste toner container opening.
Caution
Do not tilt or turn over the container.
5
Take a new waste toner container out of its package.
10.8
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
Maintenance parts
Managing your machine from the website
To avoid print quality and paper feed problems resulting from worn parts
and to maintain your machine in top working condition the following
items will need to be replaced at the specified number of pages or when
the life span of each item has expired.
If you have connected your machine to a network and set up TCP/IP
network parameters correctly, you can manage the machine via
Samsung’s SyncThru™ Web Service, an embedded web server. Use
SyncThru™ Web Service to:
Items
• View the machine’s device information and check its current status.
Yield (Average)
• Change TCP/IP parameters and set up other network parameters.
Transfer belt
Approx. 60,000 images
• Change the printer properties.
Transfer roller
Approx. 100,000 pages
Fuser unit
Approx. 100,000 black pages or
50,000 color pages
• Set the machine to send email notifications to let you know the
machine’s status.
Tray rubber pad
Approx. 250,000 pages
To access SyncThru™ Web Service:
Pickup roller
Approx. 50,000 pages
1
Start a web browser, such as Internet Explorer, from Windows.
2
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the
address field and press the Enter key or click Go.
• Get support for using the machine.
Samsung highly recommends that an authorized service provider, dealer or
the retailer where you bought printer performs this maintenance activity.
Your machine’s embedded website opens.
Checking replaceables
If you experience frequent paper jams or printing problems, check the
number of pages the machine has printed or scanned. Replace the
corresponding parts, if necessary.
Checking the machine’s serial number
When you call for service or register as a user on the Samsung website,
the machine’s serial number may be required.
The following information are available for checking the replaceable
elements of your machine:
You can check the serial number by taking the following steps:
• Supplies Info: prints the supply information page.
• Total: displays the total number of pages printed.
1
• Platen Scan: displays the number of pages scanned using the
scanner glass.
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
2
Press the Scroll buttons until System Setup appears and press OK.
• Imaging Uint, Transfer Belt, Fuser, TransferRoller, Tray Roller:
displays the number of pages printed each item.
3
Press the Scroll buttons until Maintenance appears and press OK.
To check the replaceables:
4
Press the Scroll buttons until Serial Number appears and press
OK.
1
Press Menu until Copy Menu appears on the bottom line of the
display and press OK.
5
Check your machine’s serial number.
2
Press the Scroll buttons until System Setup appears and press OK.
6
Press Stop/Clear to return to Standby mode.
3
Press the Scroll buttons until Maintenance appears and press OK.
4
Press the Scroll buttons until Supplies Life appears and press OK.
5
Press the Scroll buttons until the item you want appears and press
OK.
6
If you selected to print a supply information page, press OK to
confirm.
7
Press Stop/Clear to return to Standby mode.
10.9
Downloaded From ManualsPrinter.com Manuals
<Maintenance>
11 Troubleshooting
In the tray
1
This chapter gives helpful information for what to do if you encounter an
error.
If the paper does not exit, go to the next step.
This chapter includes:
•
Tips for avoiding paper jams
•
Clearing paper jams
•
Understanding display messages
•
Solving other problems
Open and close the front cover. The jammed paper is automatically
ejected from the machine.
2
Pull the tray out of the machine.
3
Remove the jammed paper by gently pulling it straight out.
Tips for avoiding paper jams
By selecting the correct media types, most paper jams can be avoided.
When a paper jam occurs, follow the steps outlined on page 11.1.
• Follow the procedures on page 5.5. Ensure that the adjustable guides
are positioned correctly.
• Do not overload the tray. Ensure that the paper level is under the
brackets of the tray.
• Do not remove paper from the tray while your machine is printing.
• Flex, fan, and straighten paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix paper types in a tray.
• Use only recommended print media. See page 5.1.
Ensure that the recommended print side of print media is facing up in the
mamual tray and tray.
Clearing paper jams
When a paper jam occurs, paper jam messages appear on the display.
Refer to the table below to locate and clear the paper jam.
Message
Location of jam
If the paper does not move when you pull, or if you do not see the
paper in this area, check the paper exit area. See page 11.2.
Go to
Paper Jam 0
Open/Close Door
In the paper feed area
page 11.1
Paper Jam 1
Open/Close Door
In the fuser area or around
the rear cover
page 11.3
Scan Unit Open
or Paper Jam2
In the paper exit area
Manual Feeder
Paper Jam 0
In the paper feed area
4
Insert the tray into the machine until it snaps into place.
5
Open and close the front cover. Printing automatically resumes.
page 11.2
page 11.2
Caution
To avoid tearing the paper, pull out the jammed paper gently and
slowly. Follow the instructions in the following sections to clear
the jam.
11.1
Downloaded From ManualsPrinter.com Manuals
<Troubleshooting>
In the manual feeder
In the paper exit area
1
Pull the tray out.
1
2
Push the manual feeder tab down.
Open and close the front cover. The jammed paper is automatically
ejected from the machine.
2
Gently pull the paper out of the output tray.
3
If you do not see the jammed paper or if there is any resistance
when you pull, stop and go to the next step.
Pull the jammed paper out of the manual feeder.
4
Insert the tray into the machine until it snaps into place.
5
Open and close the front cover. Printing automatically resumes.
11.2
Downloaded From ManualsPrinter.com Manuals
3
Lift the scan unit.
4
Holding the inner cover open, carefully take the jammed paper out
of the machine.
<Troubleshooting>
5
Lowering down the scan unit gently and slowly until it is completely
closed. The inner cover will be closed automatically by the scan
unit closed.
Understanding display messages
Messages appear on the control panel display to indicate the machine’s
status or errors. Refer to the tables below to understand the messages’
meaning and correct the problem if necessary. Messages and their
meanings are listed in alphabetical order.
Be careful not to pinch your fingers!
Note
When you call for service, it is very convenient to tell the service
representative the display message.
Messages in the colored cells are available only with CLX-2160N.
Message
Open the rear cover.
7
If you see the jammed paper, pull it straight up.
8
Close the rear cover. Printing automatically resumes.
11.3
Downloaded From ManualsPrinter.com Manuals
Suggested solutions
Toner Empty
The color toner
cartridge has run
out. The machine
stops printing. The
arrow indicates
which color toner
cartridge.
Replace the color
toner cartridge with a
new one. See page
10.5
Toner Low
The corresponding
color toner cartridge
is almost empty. The
arrow indicates
which color toner
cartridge.
Take out the toner
cartridge and
thoroughly shake it.
By doing this, you can
temporarily
reestablish printing
operations.
TonerSupply Err.
The machine
received several
papers with many
images, and it can
not supply the toner
properly. The arrow
indicates which color
toner cartridge.
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Data Read Fail
Check USB Mem.
Time expired while
reading data.
Try again.
Data Write Fail
Check USB Mem.
Storing to the USB
memory failed.
Check the available
USB memory space.
Door Open
The front cover or
rear cover is not
securely latched.
Close the cover until it
locks into place.
File Format
Not Supported
The selected file
format is not
supported.
Use the correct file
format.
Fuser Fan
Locked
There is a problem
in the cooling fan of
the machine.
Open and then close
the front cover.
If there is any resistance and the paper does not move when you
pull or if you cannot see the paper under the scan unit, continue to
the next step.
6
Meaning
<Troubleshooting>
Message
Meaning
Suggested solutions
The color toner
cartridge is not
installed. The arrow
indicates which color
toner cartridge.
Install the color toner
cartridge.
Open Heat Error
Install
Imaging Unit
The corresponding
Imaging Unit of the
machine is not
installed.
Install Imaging Unit
into your machine.
Invalid Toner
The color toner
cartridge you have
installed is not for
your machine. The
arrow indicates
which color toner
cartridge.
Install the a
Samsung-genuine
color toner cartridge
designed for your
machine.
Invalid
Imaging Unit
The Imaging Unit of
the machine is not
for your machine.
Install the a
Samsung-genuine
part designed for your
machine.
Low Heat Error
Cycle Power
There is a problem
in the fuser unit.
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Install Toner
Message
A problem has
occurred in the LSU
(Laser Scanning
Unit).
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
LSU Motor Error
Cycle Power
A problem has
occurred in the LSU
(Laser Scanning
Unit).
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Main Motor
Locked
There is a problem
in the main motor.
Open and then close
the front cover.
Manual Feeder
Paper Empty
There is no paper in
the manual feeder.
Load paper in the
manual feeder.
Manual Feeder
Paper Jam 0
Paper has jammed
in the feeding area
of the manual feeder.
Clear the jam. See
page 11.2.
Not Enough Space
In USB Memory
The space for USB
memory device is not
enough, which is for
scanning and saving.
Check the available
USB memory space.
See page 9.4.
Network Error
There is a problem
with the network.
Contact your network
administrator.
Downloaded From ManualsPrinter.com Manuals
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Out-Bin Full
The output tray of
the machine is full of
paper.
Remove paper.
Over Heat Error
There is a problem
in the fuser unit.
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Paper has jammed
in the feeding area
of the tray.
Clear the jam. See
page 11.1, 11.2.
Scan Unit Open
or Paper Jam2
The scan unit is not
securely latched.
Paper has jammed
in the paper exit
area.
Close the scan until it
locks into place.
Clear the jam. See
page 11.2.
Paper Jam 1
Paper has jammed
In the fuser area or
rear cover.
Clear the jam. See
page 11.2.
Tray
Paper Mismatch
The paper size
specified in the
printer properties
does not match the
paper you are
loading.
Load the correct
paper in the tray 1.
Refilled Toner
The toner cartridge
you have installed is
not genuine or
refilled. The arrow
indicates which color
toner cartridge.
The print quality may
get poor if the refilled
toner cartridge is
installed, since its
characteristics may
significantly differ
from the genuine.
We recommend
Samsung-genuine
color toner cartridge.
Replace Toner
This message
appears between
Toner Empty and
Toner Low status.
The arrow indicates
which color toner
cartridge.
Replace the toner
cartridge with a new
one. See page 10.5.
Cycle Power
Paper Jam 0
Open/Close Door
11.4
Suggested solutions
There is a problem
in the fuser unit.
Cycle Power
Open/Close Door
LSU Hsync Error
Cycle Power
Meaning
<Troubleshooting>
Message
Meaning
Solving other problems
Suggested solutions
Replace
[zzz]
* zzz indicates the
part of the machine.
The life of the part
expires totally.
Replace the part with
a new one. Call for
service.
Replace
[zzz] Soon
* xxx indicates the
part of the machine.
The life of the part
expires soon.
See page 10.9 and
call for service.
Replace/Install
Waste Toner Tank
The life span of the
waste toner tank has
expired and the
printer will stop
printing until a new
waste toner tank is
placed into the
printer.
See page 10.8
Transfer Belt
Error
A problem has
occurred in the
transfer belt in the
machine.
Unplug the power
cord and plug it back
in. If the problem
persists, please call
for service.
Tray
Paper Empty
There is no paper in
the tray 1.
Load paper in the tray
1. See page 5.5.
The following chart lists some conditions that may occur and the
recommended solutions. Follow the suggested solutions until the
problem is corrected. If the problem persists, please call for service.
Paper feeding problems
Condition
11.5
Downloaded From ManualsPrinter.com Manuals
Suggested solutions
Paper is jammed
during printing.
Clear the paper jam. See page 11.1.
Paper sticks
together.
• Ensure that there is not too much paper in the
tray. The tray can hold up to 150 sheets of
paper, depending on the thickness of your
paper.
• Make sure that you are using the correct type
of paper. See page 5.3.
• Remove paper from the tray and flex or fan the
paper.
• Humid conditions may cause some paper to
stick together.
Multiple sheets
of paper do not
feed.
• Different types of paper may be stacked in the
tray. Load paper of only one type, size, and
weight.
• If multiple sheets have caused a paper jam,
clear the paper jam. See page 11.1.
Paper does not
feed into the
machine.
• Remove any obstructions from inside the
machine.
• Paper has not been loaded correctly. Remove
paper from the tray and reload it correctly.
• There is too much paper in the tray. Remove
excess paper from the tray.
• The paper is too thick. Use only paper that
meets the specifications required by the
machine. See page 5.1.
The paper keeps
jamming.
• There is too much paper in the tray. Remove
excess paper from the tray. If you are printing
on special materials, use the mamual tray.
• An incorrect type of paper is being used. Use
only paper that meets the specifications
required by the machine. See page 5.1.
• There may be debris inside the machine. Open
the front cover and remove the debris.
Transparencies
stick together in
the paper exit.
Use only transparencies specifically designed for
laser printers. Remove each transparency as it
exits from the machine.
Envelopes skew
or fail to feed
correctly.
Ensure that the paper guides are against both
sides of the envelopes.
<Troubleshooting>
Printing problems
Condition
The
machine
does not
print.
Possible cause
Condition
Suggested solutions
The machine is not
receiving power.
Check the power cord
connections. Check the
power switch and the power
source.
The machine is not
selected as the
default printer.
Select Samsung CLX-216x
Series as your default
printer in your Windows.
Check the machine for the following:
• The front cover is not closed. Close the cover.
• Paper is jammed. Clear the paper jam. See 11.1.
• No paper is loaded. Load paper. See 5.5.
• The toner cartridge is not installed. Install the toner
cartridge.
If a system error occurs, contact your service
representative.
The connection cable
between the
computer and the
machine is not
connected properly.
Disconnect the printer cable
and reconnect it.
The connection cable
between the
computer and the
machine is defective.
If possible, attach the cable
to another computer that is
working properly and print a
job. You can also try using a
different printer cable.
The port setting is
incorrect.
Check the Windows printer
setting to make sure that the
print job is sent to the correct
port. If the computer has
more than one port, make
sure that the machine is
attached to the correct one.
The machine may be
configured
incorrectly.
Check the printer properties
to ensure that all of the print
settings are correct.
The printer driver
may be incorrectly
installed.
Repair the printer software.
See the Software Section.
The machine is
malfunctioning.
Check the display message
on the control panel to see if
the machine is indicating a
system error.
The document size is
so big that the hard
disk space of the
computer is not
enough to access the
print job.
Get more hard disk space
and print the document
again.
Suggested solutions
The
machine
selects print
materials
from the
wrong
paper
source.
The paper source
selection in the
printer properties
may be incorrect.
For many software
applications, the paper
source selection is found
under the Paper tab within
the printer properties. Select
the correct paper source.
See the printer driver help
screen.
A print job
is extremely
slow.
The job may be very
complex.
Reduce the complexity of the
page or try adjusting the print
quality settings.
If you are using
Windows 9x/Me, the
Spool Setting may be
set incorrectly.
From the Start menu,
choose Settings and then
Printers. Right-click the
Samsung CLX-216x Series
machine icon, choose
Properties, click the Details
tab, and then choose the
Spool Settings button.
Select the desired spool
setting.
The page orientation
setting may be
incorrect.
Change the page orientation
in your application. See the
printer driver help screen.
The paper size and
the paper size
settings do not
match.
Ensure that the paper size in
the printer driver settings
matches the paper in the
tray.
Half the
page is
blank.
Or, ensure that the paper
size in the printer driver
settings matches the paper
selection in the software
application settings you use.
11.6
Downloaded From ManualsPrinter.com Manuals
Possible cause
<Troubleshooting>
Condition
Possible cause
The
machine
prints, but
the text is
wrong,
garbled, or
incomplete.
The printer cable is
loose or defective.
Pages print,
but are
blank.
The printer
does not
print PDF
file
correctly.
Some parts
of graphics,
text, or
illustrations
are
missing.
Printing quality problems
Suggested solutions
If the inside of the machine is dirty or paper has been loaded improperly,
you may notice a reduction in print quality. See the table below to clear
the problem.
Disconnect the printer cable
and reconnect. Try a print job
that you have already printed
successfully. If possible,
attach the cable and the
machine to another
computer and try a print job
that you know works. Finally,
try a new printer cable.
The wrong printer
driver was selected.
Check the application’s
printer selection menu to
ensure that your machine is
selected.
The software
application is
malfunctioning.
Try printing a job from
another application.
The operating
system is
malfunctioning.
Exit Windows and reboot the
computer. Turn the machine
off and then back on again.
The toner cartridge is
defective or out of
toner.
Redistribute the toner, if
necessary. See page 10.4.
If necessary, replace the
toner cartridge.
The file may have
blank pages.
Check the file to ensure that
it does not contain blank
pages.
Some parts, such as
the controller or the
board, may be
defective.
Contact a service
representative.
Incompatibility
between the PDF file
and the Acrobat
products
Printing the PDF file as an
image may solve this
problem. Turn on Print As
Image from the Acrobat
printing options.
Condition
If a vertical white streak or faded area appears
on the page:
• The toner supply is low. You may be able to
temporarily extend the toner cartridge life.
See page 10.4. If this does not improve the
print quality, install a new toner cartridge.
• The paper may not meet paper
specifications; for example, the paper is too
moist or too rough. See page 5.1.
• If the entire page is light, the print resolution
setting is too low. Adjust the print resolution.
See the help screen of the printer driver.
• A combination of faded or smeared defects
may indicate that the toner cartridge needs
cleaning.
• The surface of the LSU part inside the
machine may be dirty. Clean the LSU. See
page 10.2.
Toner specks
• The paper may not meet specifications; for
example, the paper is too moist or too
rough. See page 5.1.
• The transfer roller may be dirty. Clean the
inside of your machine. See page 10.2.
• The paper path may need cleaning. See
page 10.2.
Dropouts
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
11.7
Downloaded From ManualsPrinter.com Manuals
Light or faded
print
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Note: It will take longer to
print when you print a PDF
file as an image.
Suggested solutions
<Troubleshooting>
If faded areas, generally rounded, occur
randomly on the page:
• A single sheet of paper may be defective.
Try reprinting the job.
• The moisture content of the paper is uneven
or the paper has moist spots on its surface.
Try a different brand of paper. See page 5.1.
• The paper lot is bad. The manufacturing
processes can cause some areas to reject
toner. Try a different kind or brand of paper.
• Change the printer option and try again. Go
to printer properties, click Paper tab, and
set type to Thick. Refer to the Software
Section for details.
• If these steps do not correct the problem,
contact a service representative.
Condition
White Spots
Vertical lines
Suggested solutions
Condition
Vertical repetitive
defects
White spots appears on the page:
• The paper is too rough and a lot of dirt from
a paper falls to the inner devices within the
machine, so the transfer roller may be dirty.
Clean the inside of your machine. See page
10.2. Contact a service representative.
• The paper path may need cleaning. Contact
a service representative.
A aBb C c
A aBb C c
A aBb C c
A aBb C c
A aBb C c
If black vertical streaks appear on the page:
• The drum inside the toner cartridge has
probably been scratched. Remove the toner
cartridge and install a new one. See page
10.5.
If white vertical streaks appear on the page:
Background
scatter
• The surface of the LSU part inside the
machine may be dirty. Clean the LSU. See
page 10.2.
Color or Black
background
A
If the amount of background shading becomes
unacceptable:
• Change to a lighter weight paper. See page
5.1.
• Check the machine’s environment: very dry
(low humidity) or high humidity (higher than
80% RH) conditions can increase the
amount of background shading.
• Remove the old toner cartridge and install a
new one. See page 10.5.
Toner smear
• Clean the inside of the machine. See page
10.2.
• Check the paper type and quality. See page
5.1.
• Remove the toner cartridge and install a
new one. See page 10.5.
Downloaded From ManualsPrinter.com Manuals
If marks repeatedly appear on the printed side
of the page at even intervals:
• The toner cartridge may be damaged. If a
repetitive mark occurs on the page, print a
cleaning sheet several times to clean the
cartridge; see page 10.4. After the printout,
if you still have the same problems, remove
the toner cartridge and install a new one.
See page 10.5.
• Parts of the machine may have toner on
them. If the defects occur on the back of the
page, the problem will likely correct itself
after a few more pages.
• The fusing assembly may be damaged.
Contact a service representative.
Background scatter results from bits of toner
randomly distributed on the printed page.
• The paper may be too damp. Try printing
with a different batch of paper. Do not open
packages of paper until necessary so that
the paper does not absorb too much
moisture.
• If background scatter occurs on an
envelope, change the printing layout to
avoid printing over areas that have
overlapping seams on the reverse side.
Printing on seams can cause problems.
• If background scatter covers the entire
surface area of a printed page, adjust the
print resolution through your software
application or the printer properties.
Misformed
characters
• If characters are improperly formed and
producing hollow images, the paper stock
may be too slick. Try a different paper. See
page 5.1.
• If characters are improperly formed and
producing a wavy effect, the scanner unit
may need service. For service, contact a
service representative.
Page skew
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See page
5.1.
• Ensure that the paper or other material is
loaded correctly and the guides are not too
tight or too loose against the paper stack.
AaBbC
AaBbCcc
AaBbCc
AaBbCc
AaBbCc
11.8
Suggested solutions
<Troubleshooting>
Condition
Curl or wave
Wrinkles or
creases
Back of printouts
are dirty
Solid Color or
Black pages
A
Loose toner
Suggested solutions
Condition
Character Voids
• Ensure that the paper is loaded properly.
• Check the paper type and quality. Both high
temperature and humidity can cause paper
curl. See page 5.1.
• Turn over the stack of paper in the tray. Also
try rotating the paper 180° in the tray.
A
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See page
5.1.
• Turn over the stack of paper in the tray. Also
try rotating the paper 180° in the tray.
Horizontal stripes
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Check for leaking toner. Clean the inside of
the machine. See page 10.2.
• The toner cartridge may not be installed
properly. Remove the cartridge and reinsert
it.
• The toner cartridge may be defective and
need replacing. Remove the toner cartridge
and install a new one. See page 10.5.
• The machine may require repair. Contact a
service representative.
Downloaded From ManualsPrinter.com Manuals
Character voids are white areas within parts of
characters that should be solid black:
• If you are using transparencies, try another
type of transparency. Because of the
composition of transparencies, some
character voids are normal.
• You may be printing on the wrong surface of
the paper. Remove the paper and turn it
around.
• The paper may not meet paper
specifications. See page 5.1.
If horizontally aligned black streaks or smears
appear:
• The toner cartridge may be installed
improperly. Remove the cartridge and
reinsert it.
• The toner cartridge may be defective.
Remove the toner cartridge and install a
new one. See page 10.5.
• If the problem persists, the machine may
require repair. Contact a service
representative.
Curl
If the printed paper is curled or paper does not
feed into the machine:
• Turn over the stack of paper in the tray. Also
try rotating the paper 180° in the tray.
• Change the printer option and try again. Go
to printer properties, click Paper tab, and
set type to Thin. Refer to the Software
Section for details.
An unknown image
repetitively
appears on a next
few sheets or loose
toner, light print, or
contamination
occurs.
Your printer is probably being used at an
altitude of 2,500 m (8,200 ft) or above.
• Clean the inside of the machine. See page
10.2.
• Check the paper type and quality. See page
5.1.
• Remove the toner cartridge and install a
new one. See page 10.5.
• If the problem persists, the machine may
require repair. Contact a service
representative.
11.9
Suggested solutions
<Troubleshooting>
The high altitude may affect the print quality
such as loose toner or light imaging. You can
set this option through Printer Settings
Utility or Printer tab in printer driver’s
properties. See page 1.6.
Copying problems
Condition
Scanning problems
Suggested solutions
Copies are too light
or too dark.
Use Darkness to darken or lighten the
background of the copies.
Smears, lines,
marks, or spots
appears on copies.
• If defects are on the original, use Darkness
to lighten the background of your copies.
• If no defects are on the original, clean the
scan unit. See page 10.3.
Copy image is
skewed.
• Ensure that the original is face down on the
scanner glass.
• Check that the copy paper is loaded
correctly.
Blank copies print
out.
Ensure that the original is face down on the
scanner glass.
Image rubs off the
copy easily.
• Replace the paper in the tray with paper
from a new package.
• In high humidity areas, do not leave paper
in the machine for extended periods of
time.
Frequent copy
paper jams occur.
Toner cartridge
produces fewer
copies than
expected before
running out of
toner.
• Fan the stack of paper, then turn it over in
the tray. Replace the paper in the tray with
a fresh supply. Check/adjust the paper
guides, if necessary.
• Ensure that the paper is the proper paper
weight. 75 g/m2 (20 lb bond) paper is
recommended.
• Check for copy paper or pieces of copy
paper remaining in the machine after a
paper jam has been cleared.
• Your originals may contain pictures, solids,
or heavy lines. For example, your originals
may be forms, newsletters, books, or other
documents that use more toner.
• The machine may be turned on and off
frequently.
• The scanner lid may be left open while
copies are being made.
Suggested solutions
The scanner does
not work.
• Make sure that you place the original to be
scanned face down on the scanner glass.
• There may not be enough available memory
to hold the document you want to scan. Try
the prescan function to see if that works. Try
lowering the scan resolution rate.
• Check that the USB cable is connected
properly.
• Make sure that the USB cable is not
defective. Switch the cable with a known
good cable. If necessary, replace the cable.
• Check that the scanner is configured
correctly. Check scan setting in the
SmarThru Configuration or the application
you want to use to make certain that the
scanner job is being sent to the correct port.
The unit scans
very slowly.
• Check if the machine is printing received
data. If so, scan the document after the
received data has been printed.
• Graphics are scanned more slowly than text.
• Communication speed slows in scan mode
because of the large amount of memory
required to analyze and reproduce the
scanned image. Set your computer to the
ECP printer mode through BIOS setting. It
will help to increase the speed. For details
about how to set BIOS, refer to your
computer user’s guide.
Message appears
on your computer
screen:
• There may be a copying or printing job in
progress. When that job is complete, try your
job again.
• The Selected port is currently being used.
Restart your computer and try again.
• The printer cable may be improperly
connected or the power may be off.
• The scanner driver is not installed or the
operating environment is not set up properly.
• Ensure that the machine is properly
connected and the power is on, Then restart
your computer.
• The USB cable may be improperly
connected or the power may be off.
• “Device can't be
set to the H/W
mode you want.”
• “Port is being
used by another
program.”
• “Port is
Disabled.
• “Scanner is busy
receiving or
printing data.
When the
current job is
completed, try
again.”
• “Invalid handle.”
• “Scanning has
failed.”
11.10
Downloaded From ManualsPrinter.com Manuals
Condition
<Troubleshooting>
Network Scan problems (CLX-2160N only)
Condition
Common Macintosh problems
Suggested solutions
I cannot find a
scanned image
file.
You can check the scanned file’s destination in
the Advanced page in the Network Scan
program’s Properties screen.
I cannot find the
scanned image
file after
scanning.
• Check if the scanned file’s application is on
your computer.
• Check Send image immediately to the
specified folder using an associated default
application in the Advanced page in the
Network Scan program’s Properties screen to
open the scanned image immediately after
scanning.
I forgot my ID
and PIN.
Check your ID and PIN in the Server page in the
Network Scan program’s Properties screen.
I cannot view
the Help file.
To view the Help file, you need to have Internet
Explorer 4 service pack 2 or above.
I cannot use the
Samsung
Network Scan
Manager.
Check your operating system. Supporting
operating systems are Windows 98/Me/2000/XP/
2003/vista.
Condition
The printer does not print
PDF file correctly. Some
parts of graphics, text, or
illustrations are missing.
Exit all software applications. Remove all
software from the StartUp Group, then restart
Windows. Reinstall the printer driver.
“General
Protection Fault”,
“Exception OE”,
“Spool32”, or
“Illegal Operation”
messages appear.
Close all other applications, reboot Windows
and try printing again.
“Fail To Print”, “A
printer timeout
error occurred.”
messages appear.
These messages may appear during printing.
Just keep waiting until the machine finishes
printing. If the message appears in standby
mode or after printing has been completed,
check the connection and/or whether an error
has occurred.
Update your Mac OS to OS 10.3.3. or
higher.
Some letters are not
displayed normally during
the cover sheet printing.
This problem is caused because Mac
OS cannot find the font during the cover
page printing.
Alphanumeric characters, in the Billing
Info field, are only allowed for printing
on the cover page. Other characters will
be broken on the printout.
Note
Refer to Microsoft Windows 98/Me/2000/XP/2003/Vista User’s
Guide that came with your PC for further information on
Windows error messages.
11.11
Downloaded From ManualsPrinter.com Manuals
Printing the PDF file as an image may
solve this problem. Turn on Print As
Image from the Acrobat printing
options.
The document has
printed, but the print job
has not disappeared from
the spooler in Mac OS
10.3.2.
Suggested solutions
“File in Use”
message appears
during installation.
Incompatibility between the PDF file
and the Acrobat products:
Note: It will take longer to print when
you print a PDF file as an image.
Common Windows problems
Condition
Suggested solutions
<Troubleshooting>
Common Linux problems
Problem
The machine does
not print.
Problem
Possible cause and solutions
• Check if the printer driver is installed in
your system. Open Unified Driver
configurator and switch to the Printers
tab in Printers configuration window to
look at the list of available printers. Make
sure that your machine is displayed on
the list. If not, please, invoke Add new
printer wizard to set up your device.
• Check if the printer has started. Open
Printers configuration and select your
machine on the printers list. Look at the
description in the Selected printer pane.
If its status contains “(stopped)” string,
please, press the Start button. After that
normal operation of the printer should be
restored. The “stopped” status might be
activated when some problems in
printing occurred. For instance, this could
be an attempt to print a document when
a port is claimed by a scanning
application.
• Check if the port is not busy. Since
functional components of MFP (printer
and scanner) share the same I/O
interface (port), the situation of
simultaneous access of different
“consumer” applications to the same port
are possible. To avoid possible conflicts,
only one of them at a time is allowed to
gain control over the device. The other
“consumer” will encounter “device busy”
response. You should open ports
configuration and select the port
assigned to your printer. In the Selected
port pane you can see if the port is
occupied by some other application. If
this is the case, you should wait for
completion of the current job or should
press Release port button, if you are sure
that the present owner is not functioning
properly.
• Check if your application has special
print option such as “-oraw”. If “-oraw” is
specified in the command line parameter
then remove it to print properly. For Gimp
front-end, select “print” -> “Setup printer”
and edit command line parameter in the
command item.
Some color images
come out all black.
This is a known bug in Ghostscript (until
GNU Ghostscript version 7.05) when the
base color space of the document is
indexed color space and it is converted
through CIE color space. Because
Postscript uses CIE color space for Color
Matching System, you should upgrade
Ghostscript on your system to at least GNU
Ghostscript version 7.06 or later. You can
find recent Ghostscript versions at
www.ghostscript.com.
The machine does
not print whole pages
and its output is half
page printed.
It is a known problem that occurs when a
color printer is used on version 8.51 or
earlier of Ghostscript, 64-bit Linux OS, and
reported to bugs.ghostscript.com as
Ghostscript Bug 688252.
The problem is solved in AFPL Ghostscript
v. 8.52 or above. Download the latest
version of AFPL Ghostscript from http://
sourceforge.net/projects/ghostscript/ and
install it to solve this problem.
Some color images
come out in
unexpected color.
11.12
Downloaded From ManualsPrinter.com Manuals
Possible cause and solutions
<Troubleshooting>
This is a known bug in Ghostscript (until
GNU Ghostscript version 7.xx) when the
base color space of the document is
indexed RGB color space and it is
converted through CIE color space.
Because Postscript uses CIE color space
for Color Matching System, you should
upgrade Ghostscript on your system to at
least GNU Ghostscript version 8.xx or later.
You can find recent Ghostscript versions at
www.ghostscript.com.
Problem
The machine does
not appear on the
scanners list.
Possible cause and solutions
Problem
• Check if your machine is attached to your
computer. Make sure that it is connected
properly via the USB port and is turned
on.
• Check if the scanner driver for your
machine is installed in your system.
Open Unified Driver configurator, switch
to Scanners configuration, then press
Drivers. Make sure that driver with a
name corresponding to your machine's
name is listed in the window. Check if the
port is not busy. Since functional
components of MFP (printer and
scanner) share the same I/O interface
(port), the situation of simultaneous
access of different “consumer”
application to the same port is possible.
To avoid possible conflicts, only one of
them at a time is allowed to gain control
over the device. The other “consumer”
will encounter “device busy” response.
This can usually happen while starting
scan procedure, and appropriate
message box appears.
• To identify the source of the problem, you
should open ports configuration and
select the port assigned to your scanner.
port's symbol /dev/mfp0 corresponds to
LP:0 designation displayed in the
scanners’ options, /dev/mfp1 relates to
LP:1 and so on. USB ports start at /dev/
mfp4, so scanner on USB:0 relates to /
dev/mfp4 respectively and so forth
sequentially. In the Selected port pane
you can see if the port is occupied by
some other application. If this is the case,
you should wait for completion of the
current job or you should press Release
port button, if you are sure that the
present port's owner is not functioning
properly.
11.13
Downloaded From ManualsPrinter.com Manuals
Possible cause and solutions
The machine does
not scan.
• Check if a document is loaded into the
machine.
• Check if your machine is connected to
the computer. Make sure if it is
connected properly if an I/O error is
reported while scanning.
• Check if the port is not busy. Since
functional components of MFP (printer
and scanner) share the same I/O
interface (port), the situation of
simultaneous access of different
“consumer” application to the same port
is possible. To avoid possible conflicts,
only one of them at a time is allowed to
gain control over the device. The other
“consumer” will encounter “device busy”
response. This can usually happen while
starting scan procedure, and appropriate
message box will be displayed.
To identify the source of the problem, you
should open ports configuration and
select the port assigned to your scanner.
port’s symbol /dev/mfp0 corresponds to
LP:0 designation displayed in the
scanners’ options, /dev/mfp1 relates to
LP:1 and so on. USB ports start at /dev/
mfp4, so scanner on USB:0 relates to /
dev/mfp4 respectively and so forth
sequentially. In the Selected port pane
you can see if the port is occupied by
some other application. If this is the case,
you should wait for completion of the
current job or should press the Release
port button, if you are sure that the
present port’s owner is not functioning
properly.
I cannot scan via
Gimp Front-end.
• Check if Gimp Front-end has
“Xsane: Device dialog.” on the “Acquire”
menu. If not, you should install Xsane
plug-in for Gimp on the your computer.
You can find Xsane plug-in package for
Gimp on Linux distribution CD or Gimp
home page. For the detail information,
refer to the Help for Linux distribution CD
or Gimp Front-end application.
If you wish to use other kind of scan
application, refer to the Help for
application.
<Troubleshooting>
Problem
Possible cause and solutions
I encounter error
“Cannot open port
device file” when
printing a document.
Please avoid changing the print job
parameters (via LPR GUI, for example)
while a print job is in progress. Known
versions of CUPS server break the print job
whenever print options are changed and
then try to restart the job from the
beginning. Since Unified Linux Driver locks
port while printing, the abrupt termination of
the driver keeps the port locked and
therefore unavailable for subsequent print
jobs. If this situation occurred, please, try to
release the port.
When printing a
document over the
network in SuSE 9.2,
the machine does not
print.
The CUPS (Common Unix Printing
System) version distributed with SuSE
Linux 9.2
(cups-1.1.21) has a problem with ipp
(Internet Printing Protocol) printing. Use the
socket printing instead of ipp or install later
version of CUPS (cups-1.1.22 or higher).
11.14
Downloaded From ManualsPrinter.com Manuals
<Troubleshooting>
12 Ordering supplies
How to purchase
To order Samsung-authorized supplies, contact your local Samsung
dealer or the retailer where you purchased your machine, or visit
www.samsungprinter.com and select your country/region for information
on calling for technical support.
This chapter provides information on purchasing supplies for your
machine.
•
Supplies
•
How to purchase
Supplies
When the toner runs out or, the life span of the supplies expires you can
order the following types of toner cartridges and supplies for your
machine:
Type
Yielda
Part number
Black toner cartridge
Approx. 2,000 pages
CLP-K300A
Cyan toner cartridge
Approx. 1,000 pages
CLP-C300A
Magenta toner cartridge
Approx. 1,000 pages
CLP-M300A
Yellow toner cartridge
Approx. 1,000 pages
CLP-Y300A
Imaging unit
Approx. 20,000
black pages or
50,000 images
CLP-R300A
Waste toner container
Approx. 5,000
imagesb
(1,250 color pages)
CLP-W300A
a. Average A4-/letter sized page count based on 5% coverage of indivisual colors
on each page. Usage conditions and print patterns may cause results to vary.
b. Image counts based on one color on each page. If you print documents in full
color(Cyan, Magenta, Yellow, Black), the life of this item will be reduced by
25%.
Caution
When you purchase a new print cartridge or supplies, you must
purchase them in the same country you have purchased your machine.
Otherwise, the print cartridge or supplies will be incompatible with your
machine since the configuration of the print cartridge or supplies vary
depending on the contries.
12.1
Downloaded From ManualsPrinter.com Manuals
<Ordering supplies>
13 Specifications
Item
This chapter includes:
•
General specifications
•
Printer specifications
•
Scanner and copier specifications
Paper input capacity
Power consumption
Noise level
a
Duty cycle
Monthly print: Up to 24,200 imagesc
Fusing temperature
180° C (356° F)
Printer specifications
• Tray
150 multi-pages for plain paper
75 g/m2 (20 lb bond)
• Manual feeder
1 page for plain paper 75 g/m2 (20 lb bond)
Item
Description
Printing method
Laser Beam Printing
Printing speeda
Black &
White
Up to 16 ppm in A4 (17 ppm in Letter)
Color
Up to 4 ppm in A4 or Letter
Black &
White
From ready: Less than 14 seconds
From coldboot: Less than 45 seconds
Color
From ready: Less than 26 seconds
From coldboot: Less than 57 seconds
Face down: 100 sheets 75 g/m2 (20 lb bond)
AC 110 - 127 V or AC 220 - 240 V
Power rating
Paper: 3 Kg (6.61 lbs), Plastic: 0.6 Kg (1.32 lbs)
Description
For details about paper input capacity,
see 5.5 page
Paper output
capacity
Package weight
a. Sound Pressure Level, ISO 7779
b. The number of pages may be affected by operating environment, printing
interval, media type, and media size.
c. Image counts based on one color on each page. If you print documents in full
color(Cyan, Magenta, Yellow, Black), the life of this item will be reduced by
25%.
General specifications
Item
Description
See the Rating label on the machine for the
correct voltage, frequency (hertz) and type of
current for your machine.
First print out time
Average: 350 W
Print resolution
Up to 2,400 x 600 dpi effective output
Power save mode: Less than 30 W
Printer language
SPL-C (Samsung Printer Language Color)
Standby mode: Less than 35 dBA
Printing: Less than 49 dBA
OS Compatibilityb
Copying mode: Less than 52 dBA
Warm-up time
Less than 35 seconds (from sleep mode)
Operating
environment
Temperature: 10° C to 32.5° C (59° F to 90.5° F)
Humidity: 30% to 80% RH
Display
16 characters x 2 lines
Black
Approx. 2,000 pages at 5% Coverage
(Shipped with 1,500 pages Starter toner
cartridge)
Color
Approx. 1,000 pages at 5% coverage
(Shipped with 700 pages Starter toner
cartridge)
Toner cartridge lifeb
Memory
128 MB (Non extendable)
External dimension
(W x D x H)
413.06 x 353.20 x 333.43 mm
(16.26 x 13.91 x 13.13 inches)
Weight
20.7 Kg (45.64 lbs) (including consumables)
Interface
Various Linux OS (USB only)
Macintosh 10.3 ~ 10.5
High Speed USB 2.0
Ethernet 10/100 Base TX (Embedded type)
a. Print speed will be affected by operating system used, computing performance, application software, connecting method, media type, media size,
and job complexity.
b. Please visit www.samsungprinter.com to download the latest software version.
13.1
Downloaded From ManualsPrinter.com Manuals
Windows 98/Me/2000/XP/2003/Vista
<Specifications>
Scanner and copier specifications
Item
Description
Compatibility
TWAIN standard / WIA standard
Scanning method
Color CIS
Resolution
Optical: Up to 600 x 1200 dpi (mono and color)
Enhanced: 4,800 x 4,800 dpi
Effective
scanning length
Max. 289 mm (11.4 inches)
Effective
scanning width
Max. 208 mm (8.2 inches)
Color bit depth
24 bits
Mono bit depth
1 bit for Black & White mode
8 bits for Gray mode
Copy
speeda
Black &
white
Up to 16 cpm in A4 (17 cpm in Letter)
Color
Up to 4 cpm in A4 or Letter
Copy resolution
• Text: Up to 600 x 300 dpi
• Text/photo: Up to 600 x 300 dpi
• Photo: Up to 600 x 600 dpi for platen
Zoom rate
50 to 200% for platen
Multiple copies
1 to 99 pages
Grayscale
256 levels
a. Copy Speed is based on Single Document Multiple Copy.
13.2
Downloaded From ManualsPrinter.com Manuals
<Specifications>
INDEX
Numerics
ID copy 1.3
2/4-up, special copy 6.3
J
B
Back 1.3
background image, erase 6.5
Black Start 1.3
C
cleaning
inside 10.2
outside 10.2
scan unit 10.3
clone, special copy 6.4
contrast, copy 6.1
copying
2/4-up 6.3
darkness 6.1
default setting, change 6.2
erasing background 6.5
ID card copy 6.3
original type 6.2
poster 6.4
reduce/enlarge 6.1
time out, set 6.2
D
demo page, print 1.6
Display 1.3
display language, change 2.2
E
Erasing background, special copy 6.5
error messages 11.3
I
ID card, special copy 6.3
jam, clear
paper 11.1
L
Linux problems 11.12
loading paper
manual feeder 5.7
tray 1 5.5
M
Macintosh problems 11.11
manual feeder 5.7
memory, clear 10.1
Menu 1.3
N
network scan
scanning 8.2
timeout, set 8.3
Network Scan program
adding scanners 8.2
problems 11.11
network setup
operating systems 4.1
TCP/IP 4.1
n-up (multiple pages per sheet)
copying 6.3
R
replacement parts 10.9
replacing
imaging unit 10.6
toner cartridge 10.5
waste toner container 10.8
reports, print 10.1
P
paper guidelines 5.3
paper jam, clear
manual feeder 11.2
paper exit area 11.2
tray 1 11.1
1
Downloaded From ManualsPrinter.com Manuals
paper load
manual feeder 5.7
tray 1/optional tray 2 5.5
paper size
setting 5.8
specifications 5.2
paper tray, set
copy 6.1
paper type
setting 5.8
specifications 5.2
poster, special copy 6.4
print quality problems, solve 11.7
printing
demo page 1.6
reports 10.1
USB memory 9.3
problem, solve
copying 11.10
error messages 11.3
Linux 11.12
Macintosh 11.11
Network Scan 11.11
paper feeding 11.5
printing 11.6
printing quality 11.7
scanning 11.10
Windows 11.11
S
scan power save mode 2.2
Scan to 1.3
scanner glass
cleaning 10.3
scanning
default setting, change 8.3
scan settings 8.3
to application 8.1
to network computer 8.2
USB flash memory 9.2
special copy features 6.3
special print media, guidelines 5.3
specifications
general 13.1
printer 13.1
scanner and copier 13.2
Status 1.3
Status LED 1.4
Stop/Clear 1.3
supplies
checking life 10.9
order information 12.1
system requirements
Macintosh 3.2
T
toner cartridge
maintaining 10.4
redistributing 10.4
replacing 10.5
toner cartridge messages
Status LED 1.4
Toner colors 1.3
U
USB flash memory
managing 9.3
printing 9.3
scanning 9.2
USB Print 1.3
W
waste toner container
replace 10.8
Windows problems 11.11
2
Downloaded From ManualsPrinter.com Manuals
Samsung Printer
Software section
Downloaded From ManualsPrinter.com Manuals
SOFTWARE SECTION
CONTENTS
Chapter 1:
INSTALLING PRINTER SOFTWARE
IN
WINDOWS
Installing Printer Software ........................................................................................................ 4
Installing Software for Local Printing ................................................................................. 4
Installing Software for Network Printing ............................................................................. 7
Reinstalling Printer Software ................................................................................................... 10
Removing Printer Software ..................................................................................................... 11
Chapter 2:
BASIC PRINTING
Printing a Document .............................................................................................................. 12
Printing to a file (PRN) .......................................................................................................... 12
Printer Settings ..................................................................................................................... 13
Layout Tab .................................................................................................................. 13
Paper Tab .................................................................................................................... 14
Graphics Tab ............................................................................................................... 15
Extras Tab ................................................................................................................... 16
About Tab ................................................................................................................... 16
Printer Tab .................................................................................................................. 16
Using a Favorite Setting ................................................................................................ 17
Using Help ................................................................................................................... 17
Chapter 3:
ADVANCED PRINTING
Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 18
Printing Posters ..................................................................................................................... 19
Printing Booklets .................................................................................................................. 19
Printing on Both Sides of Paper ............................................................................................... 20
Printing a Reduced or Enlarged Document ................................................................................ 20
Fitting Your Document to a Selected Paper Size ......................................................................... 20
Using Watermarks ................................................................................................................. 21
1
Downloaded From ManualsPrinter.com Manuals
Using an Existing Watermark ......................................................................................... 21
Creating a Watermark ................................................................................................... 21
Editing a Watermark ..................................................................................................... 21
Deleting a Watermark ................................................................................................... 21
Using Overlays ...................................................................................................................... 22
What is an Overlay? ...................................................................................................... 22
Creating a New Page Overlay ......................................................................................... 22
Using a Page Overlay .................................................................................................... 22
Deleting a Page Overlay ................................................................................................ 22
Chapter 4:
SHARING
THE
PRINTER LOCALLY
Setting Up a Host Computer ................................................................................................... 23
Setting Up a Client Computer .................................................................................................. 23
Chapter 5:
USING SMART PANEL
Understanding Smart Panel .................................................................................................... 24
Opening the Troubleshooting Guide ......................................................................................... 25
Using Printer Settings Utility ................................................................................................... 25
Using Onscreen Help File ............................................................................................... 25
Changing the Smart Panel Program Settings ............................................................................. 25
Chapter 6:
SCANNING
Scanning Using Samsung SmarThru ......................................................................................... 26
Uninstalling Samsung SmarThru ..................................................................................... 26
Using Samsung SmarThru ............................................................................................. 27
Using Onscreen Help File ............................................................................................... 28
Scanning Process with TWAIN-enabled Software ........................................................................ 28
Scanning Using the WIA Driver ................................................................................................ 28
Windows XP ................................................................................................................. 28
Windows Vista ............................................................................................................. 29
2
Downloaded From ManualsPrinter.com Manuals
Chapter 7:
USING YOUR PRINTER
IN
LINUX
Getting Started ..................................................................................................................... 30
Installing the Unified Linux Driver ............................................................................................ 30
Installing the Unified Linux Driver ................................................................................... 30
Uninstalling the Unified Linux Driver ............................................................................... 31
Using the Unified Driver Configurator ....................................................................................... 32
Opening the Unified Driver Configurator .......................................................................... 32
Printers Configuration ................................................................................................... 32
Scanners Configuration ................................................................................................. 33
Ports Configuration ....................................................................................................... 33
Configuring Printer Properties ................................................................................................. 34
Printing a Document .............................................................................................................. 34
Printing from Applications .............................................................................................. 34
Printing Files ................................................................................................................ 35
Scanning a Document ............................................................................................................ 35
Using the Image Manager .............................................................................................. 36
Chapter 8:
USING YOUR PRINTER
WITH A
MACINTOSH
Installing Software for Macintosh ............................................................................................. 38
Setting Up the Printer ............................................................................................................ 39
For a Network-connected Macintosh ................................................................................ 39
For a USB-connected Macintosh ..................................................................................... 39
Printing ................................................................................................................................ 40
Printing a Document ..................................................................................................... 40
Changing Printer Settings .............................................................................................. 40
Printing Multiple Pages on One Sheet of Paper .................................................................. 41
Scanning .............................................................................................................................. 42
3
Downloaded From ManualsPrinter.com Manuals
1
Typical Installation
Installing Printer
Software in Windows
This is recommended for most users. All components necessary
for printer operations will be installed.
This chapter includes:
• Installing Printer Software
1
Make sure that the printer is connected to your computer
and powered on.
2
Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run, and an installation
window appears.
• Reinstalling Printer Software
• Removing Printer Software
If the installation window does not appear, click Start and
then Run. Type X:\Setup.exe, replacing “X” with the
letter which represents your drive and click OK.
If you use Windows Vista, click Start → All programs →
Accessories → Run, and type RunX:\Setup.exe.
If the AutoPlay window appears in Windows Vista, Click
Run Setup.exe in Install or run program field, and
click Continue in the User Account Control window.
Installing Printer Software
You can install the printer software for local printing or network
printing. To install the printer software on the computer,
perform the appropriate installation procedure depending on
the printer in use.
A printer driver is software that lets your computer
communicate with your printer. The procedure to install drivers
may differ depending on the operating system you are using.
All applications should be closed on your PC before beginning
installation.
Installing Software for Local Printing
A local printer is a printer directly attached to your computer
using the printer cable supplied with your printer, such as a USB
or parallel cable. If your printer is attached to a network, skip
this step and go to “Installing Software for Network Printing” on
page 7.
3
Click Next.
• If necessary, select a language from the drop-down list.
You can install the printer software using the typical or custom
method.
• View User’s Guide: Allows you to view the User’s
Guide. If your computer doesn’t have Adobe Acrobat,
click on this option and it will automatically install Adobe
Acrobat Reader for you.
NOTE: If the “New Hardware Wizard” window appears during
the installation procedure, click
in the upper right corner of
the box to close the window, or click Cancel.
4
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
4
7
Select Typical installation for a local printer. Click
Next.
To register yourself as a user of Samsung Printers in order
to receive information from Samsung, select the checkbox
and click Finish. You are now sent to the Samsung web
site.
Otherwise, just click Finish.
NOTE: If your printer is not already connected to the
computer, the following window will appear.
NOTE: After setup is complete, if your printer driver doesn’t
work properly, reinstall the printer driver. See “Reinstalling
Printer Software” on page 10.
Custom Installation
You can choose individual components to install.
1
Make sure that the printer is connected to your computer
and powered on.
2
Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run, and an installation
window appears.
If the installation window does not appear, click Start and
then Run. Type X:\Setup.exe, replacing “X” with the
letter which represents your drive and click OK.
• After connecting the printer, click Next.
• If you don’t want to connect the printer at this time, click
Next, and No on the following screen. Then the installation
will start and a test page will not be printed at the end of the
installation.
• The installation window that appears in this User’s
Guide may differ depending on the printer and
interface in use.
5
If you use Windows Vista, click Start → All programs →
Accessories → Run, and type RunX:\Setup.exe.
If the AutoPlay window appears in Windows Vista, Click
Run Setup.exe in Install or run program field, and
click Continue in the User Account Control window.
After the installation is finished, a window asking you to
print a test page appears. If you choose to print a test
page, select the checkbox and click Next.
Otherwise, just click Next and skip to step 7.
6
If the test page prints out correctly, click Yes.
If not, click No to reprint it.
5
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
3
Click Next.
• If necessary, select a language from the drop-down list.
NOTE: If your printer is not already connected to the
computer, the following window will appear.
• View User’s Guide: Allows you to view the User’s
Guide. If your computer doesn’t have Adobe Acrobat,
click on this option and it will automatically install Adobe
Acrobat Reader for you.
4
5
Select Custom installation. Click Next.
• After connecting the printer, click Next.
• If you don’t want to connect the printer at this time, click
Next, and No on the following screen. Then the installation
will start and a test page will not be printed at the end of the
installation.
• The installation window that appears in this User’s
Guide may differ depending on the printer and
interface in use.
Select your printer and click Next.
6
Select the components to be installed and click Next.
NOTE: You can change the desired installation folder by
clicking [Browse].
7
After the installation is finished, a window asking you to
print a test page appears. If you choose to print a test
page, select the checkbox and click Next.
Otherwise, just click Next and skip to step 9.
8
If the test page prints out correctly, click Yes.
If not, click No to reprint it.
6
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
9
To register yourself as a user of Samsung Printers in order
to receive information from Samsung, select the checkbox
and click Finish. You are now sent to the Samsung web
site.
Run Setup.exe in Install or run program field, and
click Continue in the User Account Control window.
Otherwise, just click Finish.
3
Click Next.
• If necessary, select a language from the drop-down list.
• View User’s Guide: Allows you to view the User’s
Guide. If your computer doesn’t have Adobe Acrobat,
click on this option and it will automatically install Adobe
Acrobat Reader for you.
Installing Software for Network
Printing
4
When you connect your printer to a network, you must first
configure the TCP/IP settings for the printer. After you have
assigned and verified the TCP/IP settings, you are ready to
install the software on each computer on the network.
Select Typical installation for a network printer. Click
Next.
You can install the printer software using the typical or custom
method.
Typical Installation
This is recommended for most users. All components necessary
for printer operations will be installed.
1
Make sure that the printer is connected to your network
and powered on. For details about connecting to the
network, see the supplied printer’s User’s Guide.
2
Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run, and an installation
window appears.
If the installation window does not appear, click Start and
then Run. Type X:\Setup.exe, replacing “X” with the
letter which represents your drive and click OK.
If you use Windows Vista, click Start → All programs →
Accessories → Run, and type RunX:\Setup.exe.
If the AutoPlay window appears in Windows Vista, Click
7
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
5
Custom Installation
The list of printers available on the network appears.
Select the printer you want to install from the list and then
click Next.
You can choose individual components to install and set a
specific IP address.
1
Make sure that the printer is connected to your network
and powered on. For details about connecting to the
network, see the supplied printer’s User’s Guide.
2
Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run, and an installation
window appears.
If the installation window does not appear, click Start and
then Run. Type X:\Setup.exe, replacing “X” with the
letter which represents your drive and click OK.
If you use Windows Vista, click Start → All programs →
Accessories → Run, and type RunX:\Setup.exe.
If the AutoPlay window appears in Windows Vista, Click
Run Setup.exe in Install or run program field, and
click Continue in the User Account Control window.
• If you do not see your printer on the list, click Update to
refresh the list, or select Add TCP/IP Port to add your
printer to the network. To add the printer to the network,
enter the port name and the IP address for the printer.
To verify your printer’s IP address or the MAC address, print
a Network Configuration page.
• To find a shared network printer (UNC Path), select Shared
Printer [UNC] and enter the shared name manually or find
a shared printer by clicking the Browse button.
NOTE: If you cannot find your machine in network, please turn
off the firewall and click Update.
6
After the installation is finished, a window appears asking
you to print a test page and to register yourself as a user
of Samsung Printers in order to receive information from
Samsung. If you so desire, select the corresponding
checkbox(es) and click Finish.
3
Click Next.
• If necessary, select a language from the drop-down list.
• View User’s Guide: Allows you to view the User’s
Guide. If your computer doesn’t have Adobe Acrobat,
click on this option and it will automatically install Adobe
Acrobat Reader for you.
Otherwise, just click Finish.
NOTE: After setup is complete, if your printer driver doesn’t
work properly, reinstall the printer driver. See “Reinstalling
Printer Software” on page 10.
8
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
4
Select Custom installation. Click Next.
TIP: If you want to set a specific IP address on a specific
network printer, click the Set IP Address button. The Set IP
Address window appears. Do as follows:
5
The list of printers available on the network appears.
Select the printer you want to install from the list and then
click Next.
a. Select a printer to be set with a specific IP address from the
list.
b. Configure an IP address, subnet mask, and gateway for the
printer manually and click Configure to set the specific IP
address for the network printer.
c. Click Next.
6
Select the components to be installed. After selecting the
components, the following window appears. You can also
change the printer name, set the printer to be shared on
the network, set the printer as the default printer, and
change the port name of each printer. Click Next.
• If you do not see your printer on the list, click Update to
refresh the list, or select Add TCP/IP Port to add your
printer to the network. To add the printer to the
network, enter the port name and the IP address for the
printer.
To verify your printer’s IP address or the MAC address,
print a Network Configuration page.
• To find a shared network printer (UNC Path), select
Shared Printer [UNC] and enter the shared name
manually or find a shared printer by clicking the Browse
button.
To install this software on a server, select the Setting up
this printer on a server checkbox.
NOTE: If you cannot find your machine in network, please turn
off the firewall and click Update.
7
After the installation is finished, a window appears asking
you to print a test page and to register yourself as a user
of Samsung Printers in order to receive information from
Samsung. If you so desire, select the corresponding
checkbox(es) and click Finish.
9
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
Otherwise, just click Finish.
network, enter the port name and the IP address for the
printer.
• To find a shared network printer (UNC Path), select
Shared Printer [UNC] and enter the shared name
manually or find a shared printer by clicking the Browse
button.
You will see a component list so that you can reinstall any
item individually.
NOTE: If your printer is not already connected to the
computer, the following window will appear.
NOTE: After setup is complete, if your printer driver doesn’t
work properly, reinstall the printer driver. See “Reinstalling
Printer Software” on page 10.
Reinstalling Printer Software
• After connecting the printer, click Next.
• If you don’t want to connect the printer at this time, click
Next, and No on the following screen. Then the installation
will start and a test page will not be printed at the end of the
installation.
• The reinstallation window that appears in this User’s
Guide may differ depending on the printer and
interface in use.
You can reinstall the software if installation fails.
1 Start Windows.
2
3
4
From the Start menu select Programs or All Programs
→ your printer driver name → Maintenance.
Select Repair and click Next.
The list of printers available on the network appears.
Select the printer you want to install from the list and then
click Next.
5
Select the components you want to reinstall and click
Next.
If you installed the printer software for local printing
and you select your printer driver name, the window
asking you to print a test page appears. Do as follows:
a. To print a test page, select the check box and click
Next.
b. If the test page prints out correctly, click Yes.
6
If it doesn’t, click No to reprint it.
When the reinstallation is done, click Finish.
• If you do not see your printer on the list, click Update to
refresh the list, or select Add TCP/IP Port to add your
printer to the network. To add the printer to the
10
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
Removing Printer Software
1
2
3
4
5
6
Start Windows.
From the Start menu select Programs or All Programs
→ your printer driver name → Maintenance.
Select Remove and click Next.
You will see a component list so that you can remove any
item individually.
Select the components you want to remove and then click
Next.
When your computer asks you to confirm your selection,
click Yes.
The selected driver and all of its components are removed
from your computer.
After the software is removed, click Finish.
11
Downloaded From ManualsPrinter.com Manuals
Installing Printer Software in Windows
2
1
2
Basic Printing
This chapter explains the printing options and common printing
tasks in Windows.
Open the document you want to print.
Select Print from the File menu. The Print window is
displayed. It may look slightly different depending on your
application.
The basic print settings are selected within the Print
window. These settings include the number of copies and
print range.
This chapter includes:
• Printing a Document
• Printing to a file (PRN)
• Printer Settings
- Layout Tab
Make sure that your
printer is selected.
- Paper Tab
- Graphics Tab
- Extras Tab
- About Tab
- Printer Tab
- Using a Favorite Setting
- Using Help
3
Select your printer driver from the Name drop-down
list.
Printing a Document
To take advantage of the printer features provided by your
printer driver, click Properties or Preferences in the
application’s Print window. For details, see “Printer
Settings” on page 13.
NOTES:
• Your printer driver Properties window that appears in this
User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• Check the Operating System(s) that are compatible
with your printer. Please refer to the OS Compatibility
section of Printer Specifications in your Printer User’s
Guide.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
If you see Setup, Printer, or Options in your Print
window, click it instead. Then click Properties on the next
screen.
4
Printing to a file (PRN)
The following procedure describes the general steps required
for printing from various Windows applications. The exact steps
for printing a document may vary depending on the application
program you are using. Refer to the User’s Guide of your
software application for the exact printing procedure.
You will sometimes need to save the print data as a file for your
purpose.
To create a file:
1 Check the Print to file box at the Print window.
2
12
Downloaded From ManualsPrinter.com Manuals
Click OK to close the printer properties window.
To start the print job, click OK or Print in the Print
window.
Basic Printing
Select the folder and assign a name of the file and then
click OK.
Layout Tab
Printer Settings
The Layout tab provides options to adjust how the document
appears on the printed page. The Layout Options includes
Multiple Pages per Side, Poster Printing and Booklet
Printing . See “Printing a Document” on page 12 for more
information on accessing printer properties.
You can use the printer properties window, which allows you to
access all of the printer options you need when using your
printer. When the printer properties are displayed, you can
review and change the settings needed for your print job.
Your printer properties window may differ, depending on your
operating system. This Software User’s Guide shows the
Properties window for Windows XP.
Your printer driver Properties window that appears in this
User’s Guide may differ depending on the printer in use.
If you access printer properties through the Printers folder, you
can view additional Windows-based tabs (refer to your
Windows User’s Guide) and the Printer tab (see “Printer Tab” on
page 16).
NOTES:
• Most Windows applications will override settings you specify
in the printer driver. Change all print settings available in the
software application first, and change any remaining settings
using the printer driver.
• The settings you change remain in effect only while you are
using the current program. To make your changes
permanent, make them in the Printers folder.
• The following procedure is for Windows XP. For other
Windows OS, refer to the corresponding Windows User's
Guide or online help.
1. Click the Windows Start button.
2. Select Printers and Faxes.
3. Select your printer driver icon.
4. Right-click on the printer driver icon and select
Printing Preferences.
5. Change the settings on each tab, click OK.
Paper Orientation
Paper Orientation allows you to select the direction in which
information is printed on a page.
• Portrait prints across the width of the page, letter style.
• Landscape prints across the length of the page, spreadsheet
style.
• Rotate 180 Degrees allows you to rotate the page, 180
degrees.
Portrait
Landscape
Layout Options
Layout Options allows you to select advanced printing options.
You can choose Multiple Pages per Side, Poster Printing and
Booklet Printing.
• For details, see “Printing Multiple Pages on One Sheet of Paper
(N-Up Printing)” on page 18.
• For details, see “Printing Posters” on page 19.
• For details, see “Printing Booklets” on page 19.
Double-sided Printing
Double-sided Printing allows you to print on both sides of
paper. If this option does not appear, your printer does
not have this feature.
• For details, see “Printing on Both Sides of Paper” on page 20.
13
Downloaded From ManualsPrinter.com Manuals
Basic Printing
Paper Tab
Source
Make sure that Source is set to the corresponding paper tray.
Use Manual Feeder when printing on special materials like
envelopes and transparencies. You have to load one sheet at a
time into the Manual Tray or Multi-Purpose Tray.
If the paper source is set to Auto Selection, the printer
automatically picks up print material in the following tray order:
Manual Tray or Multi-Purpose Tray, Tray n.
Use the following options to set the basic paper handling
specifications when you access the printer properties. See
“Printing a Document” on page 12 for more information on
accessing printer properties.
Click the Paper tab to access various paper properties.
Type
Set Type to correspond to the paper loaded in the tray from
which you want to print. This will let you get the best quality
printout. If not, print quality may not be acheived as you want.
Thin: Less than 19 lb (70 g/m2) thin paper.
Thick: 24 lb to 32 ib (90~ 120 g/m2) thick paper.
Cotton: 20 lb to 24 lb (75~90 g/m2) cotton paper such as Gilbert
25 % and Gilbert 100 %.
Plain Paper: Normal plain paper. Select this type if your printer is
monochrome and printing on the 16 lb (60 g/m2) cotton paper.
Recycled Paper: 20 lb to 24 lb (75~90 g/m2) recycled paper.
Color Paper: 20 lb to 24 lb (75~90 g/m2) color-backgrounded
paper.
Scaling Printing
Scaling Printing allows you to automatically or manually scale
your print job on a page. You can choose from None, Reduce/
Enlarge, and Fit to Page.
• For details, see “Printing a Reduced or Enlarged Document” on
page 20.
• For details, see “Fitting Your Document to a Selected Paper
Size” on page 20.
Copies
Copies allows you to choose the number of copies to be printed.
You can select 1 to 999 copies.
Size
Size allows you to set the size of paper you loaded in the tray.
If the required size is not listed in the Size box, click Custom.
When the Custom Paper Setting window appears, set the paper
size and click OK. The setting appears in the list so that you can
select it.
14
Downloaded From ManualsPrinter.com Manuals
Basic Printing
Graphics Tab
Advanced Options
Use the following Graphic options to adjust the print quality for
your specific printing needs. See “Printing a Document” on
page 12 for more information on accessing printer properties.
You can set advanced settings by clicking the Advanced
Options button.
• Raster Compression: This option determines the
compression level of images for transferring data from a
computer to a printer. If you set this option to Maximum, the
printing speed will be up, but the printing quality will be low.
• Print All Text To Black: When the Print All Text To Black
option is checked, all text in your document prints solid black,
regardless of the color it appears on the screen.
• Print All Text To Darken: When the Print All Text To
Darken option is checked, all text in your document is allowed
to print darker than on a normal document. Some printers do
not support this feature.
Click the Graphic tab to display the properties shown below..
Quality
The Resolution options you can select may vary
depending on your printer model. The higher the setting,
the sharper the clarity of printed characters and graphics. The
higher setting also may increase the time it takes to print a
document.
Color Mode
You can choose color options. Setting to Color typically produces
the best possible print quality for color documents. If you want to
print a color document in grayscale, select Grayscale. If you
want to adjust the color options manually, select Manual and
click the Color Adjust or Color Matching button.
• Color Adjust : You can adjust the appearance of images by
changing the settings in the Levels option.
• Color Matching : You can adjust the appearance of images by
changing the settings in the Settings option.
15
Downloaded From ManualsPrinter.com Manuals
Basic Printing
Extras Tab
About Tab
You can select output options for your document. See “Printing
a Document” on page 12 for more information about accessing
the printer properties.
Use the About tab to display the copyright notice and the
version number of the driver. If you have an Internet browser,
you can connect to the Internet by clicking on the web site icon.
See “Printing a Document” on page 12 for more information
about accessing printer properties.
Click the Extras tab to access the following feature:
Printer Tab
If you access printer properties through the Printers folder,
you can view the Printer tab. You can set the printer
configuration.
The following procedure is for Windows XP. For other Windows
OS, refer to the corresponding Windows User's Guide or online
help.
1 Click the Windows Start menu.
2
3
4
5
Watermark
You can create a background text image to be printed on each
page of your document. For details, see “Using Watermarks” on
page 21.
Overlay
Overlays are often used to take the place of preprinted forms and
letterhead paper. For details, see “Using Overlays” on page 22.
Output Options
• Print Subset: You can set the sequence in which the pages
print. Select the print order from the drop-down list.
- Normal (1,2,3): Your printer prints all pages from the first
page to the last page.
- Reverse All Pages (3,2,1): Your printer prints all pages
from the last page to the first page.
- Print Odd Pages: Your printer prints only the odd numbered
pages of the document.
- Print Even Pages: Your printer prints only the even
numbered pages of the document.
16
Downloaded From ManualsPrinter.com Manuals
Basic Printing
Select Printers and Faxes.
Select your printer driver icon.
Right-click on the printer driver icon and select
Properties.
Click the Printer tab and set the options.
Using a Favorite Setting
The Favorites option, which is visible on each properties tab,
allows you to save the current properties settings for future
use.
To save a Favorites item:
1
2
Change the settings as needed on each tab.
3
Click Save.
Enter a name for the item in the Favorites input box.
When you save Favorites, all current driver settings are
saved.
To use a saved setting, select the item from the Favorites drop
down list. The printer is now set to print according to the
Favorites setting you selected.
To delete a Favorites item, select it from the list and click
Delete.
You can also restore the printer driver’s default settings by
selecting Printer Default from the list.
Using Help
Your printer has a help screen that can be activated by clicking
the Help button in the printer properties window. These help
screens give detailed information about the printer features
provided by the printer driver.
You can also click
from the upper right corner of the window,
and then click on any setting.
17
Downloaded From ManualsPrinter.com Manuals
Basic Printing
3
Advanced Printing
Printing Multiple Pages on One
Sheet of Paper (N-Up Printing)
This chapter explains printing options and advanced printing
tasks.
1
2
3
4
NOTE:
• Your printer driver Properties window that appears in this
User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
You can select the number of pages to print on a single sheet
of paper. To print more than one page per sheet, the pages will
be reduced in size and arranged in the order you specify. You
can print up to 16 pages on one sheet.
1
2
3
This chapter includes:
• Printing Multiple Pages on One Sheet of Paper (N-Up
Printing)
4
• Printing Posters
• Printing Booklets
• Printing on Both Sides of Paper
5
• Printing a Reduced or Enlarged Document
6
• Fitting Your Document to a Selected Paper Size
• Using Watermarks
• Using Overlays
18
Downloaded From ManualsPrinter.com Manuals
Advanced Printing
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
From the Layout tab, choose Multiple Pages per Side in
the Layout Type drop-down list.
Select the number of pages you want to print per sheet
(1, 2, 4, 6, 9, or 16) in the Pages per Side drop-down
list.
Select the page order from the Page Order drop-down
list, if necessary.
Check Print Page Border to print a border around each
page on the sheet.
Click the Paper tab, select the paper source, size, and
type.
Click OK and print the document.
Printing Posters
Printing Booklets
This feature allows you to print a single-page document onto 4,
9, or 16 sheets of paper, for the purpose of pasting the sheets
together to form one poster-size document.
1
2
3
8
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
Click the Layout tab, select Poster Printing in the
Layout Type drop-down list.
Configure the poster option:
9
8
9
This printer feature allows you to print your document on both
sides of the paper and arranges the pages so that the paper can
be folded in half after printing to produce a booklet.
1 To change the print settings from your software
application, access the printer properties. See “Printing a
Document” on page 12.
2 From the Layout tab, choose Booklet Printing from the
Type drop-down list.
You can select the page layout from Poster<2x2>,
Poster<3x3>, or Poster<4x4>. If you select
Poster<2x2>, the output will be automatically stretched
to cover 4 physical pages.
NOTE: The Booklet Printing option is not available for all
the paper size. In order to find out the available paper size for
this feature, select the paper size in the Size option on the
Paper tab, then check if the Booklet Printing in a Layout
Type drop-down list on the Layout tab is activated.
3
Specify an overlap in millimeters or inches to make it
easier to pasting the sheets together.
4
5
0.15 inches
0.15 inches
4
5
Click the Paper tab, select the paper source, size, and
type.
Click OK and print the document. You can complete the
poster by pasting the sheets together.
19
Downloaded From ManualsPrinter.com Manuals
Advanced Printing
Click the Paper tab, and select the paper source, size, and
type.
Click OK and print the document.
After printing, fold and staple the pages.
Printing on Both Sides of Paper
Printing a Reduced or Enlarged
Document
You can print on both sides of a sheet of paper. Before printing,
decide how you want your document oriented.
You can change the size of a page’s content to appear larger or
smaller on the printed page.
The options are:
• None
• Long Edge, which is the conventional layout used in
book binding.
• Short Edge, which is the type often used with calendars.
1
2
2
3
2
4
5
3
3
2
5
2
3
5
5
3
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
From the Paper tab, select Reduce/Enlarge in the
Printing Type drop-down list.
Enter the scaling rate in the Percentage input box.
You can also click the
or
button.
Select the paper source, size, and type in Paper Options.
Click OK and print the document.
5
▲ Long Edge
▲ Short Edge
NOTE:
Fitting Your Document to a
Selected Paper Size
• Do not print on both sides of labels, transparencies,
envelopes, or thick paper. Paper jamming and damage to the
printer may result.
• To use double-sided printing, you can use only the following
paper sizes: A4, Letter, Legal, and Folio, with a weight of
20~24 lbs (75~90 g/m²).
1
2
3
4
5
A
To change the print settings from your software
application, access printer properties. “Printing a
Document” on page 12.
From the Layout tab, select the paper orientation.
1
2
From the Double-sided Printing section, select the
binding option you want.
Click the Paper tab and select the paper source, size, and
type.
Click OK and print the document.
3
4
5
NOTE: If your printer does not have a duplex unit, you should
complete the printing job manually. The printer prints every
other page of the document first. After printing the first side of
your job, the Printing Tip window appears. Follow the onscreen instructions to complete the printing job.
20
Downloaded From ManualsPrinter.com Manuals
This printer feature allows you to scale your print job to any
selected paper size regardless of the digital document size. This
can be useful when you want to check fine details on a small
document.
Advanced Printing
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
From the Paper tab, select Fit to Page in the Printing
Type drop-down list.
Select the correct size from the Output size drop-down
list.
Select the paper source, size, and type in Paper Options.
Click OK and print the document.
Editing a Watermark
Using Watermarks
1
The Watermark option allows you to print text over an existing
document. For example, you may want to have large gray
letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally
across the first page or all pages of a document.
2
There are several predefined watermarks that come with the
printer, and they can be modified, or you can add new ones to
the list.
3
4
5
Using an Existing Watermark
1
2
3
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
Click the Extras tab, and select the desired watermark
from the Watermark drop-down list. You will see the
selected watermark in the preview image.
Click OK and start printing.
1
2
3
it is printed.
4
Creating a Watermark
2
3
4
5
6
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
Click the Extras tab, and click the Edit button in the
Watermark section. The Edit Watermarks window
appears.
Enter a text message in the Watermark Message box.
You can enter up to 40 characters. The message displays
in the preview window.
When the First Page Only box is checked, the watermark
prints on the first page only.
Select watermark options.
You can select the font name, style, size, or grayscale level
from the Font Attributes section and set the angle of the
watermark from the Message Angle section.
Click Add to add a new watermark to the list.
When you have finished editing, click OK and start
printing.
To stop printing the watermark, select (No Watermark) from
the Watermark drop-down list.
21
Downloaded From ManualsPrinter.com Manuals
Click OK until you exit the Print window.
Deleting a Watermark
NOTE: The preview image shows how the page will look when
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
Click the Extras tab and click the Edit button in the
Watermark section. The Edit Watermarks window
appears.
Select the watermark you want to edit from the Current
Watermarks list and change the watermark message and
options.
Click Update to save the changes.
Advanced Printing
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
From the Extras tab, click the Edit button in the
Watermark section. The Edit Watermarks window
appears.
Select the watermark you want to delete from the Current
Watermarks list and click Delete.
Click OK until you exit the Print window.
Using a Page Overlay
Using Overlays
After an overlay has been created, it is ready to be printed with
your document. To print an overlay with a document:
1
2
What is an Overlay?
Dear ABC
Regards
WORLD BEST
An overlay is text and/or images stored in the computer hard
disk drive (HDD) as a special file format that can be printed on
any document. Overlays are often used to take the place of
preprinted forms and letterhead paper. Rather than using
preprinted letterhead, you can create an overlay containing the
exact same information that is currently on your letterhead. To
print a letter with your company’s letterhead, you do not need
to load preprinted letterhead paper in the printer. You need only
tell the printer to print the letterhead overlay on your
document.
3
4
5
To use a page overlay, you must create a new page overlay
containing your logo or image.
WORLD BEST
2
3
4
5
6
7
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 12.
Click the Extras tab.
Select the desired overlay from the Overlay drop-down
list box.
If the overlay file you want does not appear in the
Overlay list, click Edit button and Load Overlay, and
select the overlay file.
If you have stored the overlay file you want to use in an
external source, you can also load the file when you access
the Load Overlay window.
Creating a New Page Overlay
1
Create or open the document you want to print.
6
Create or open a document containing text or an image for
use in a new page overlay. Position the items exactly as
you wish them to appear when printed as an overlay.
To save the document as an overlay, access printer
properties. See “Printing a Document” on page 12.
Click the Extras tab, and click Edit button in the Overlay
section.
In the Edit Overlay window, click Create Overlay.
7
After you select the file, click Open. The file appears in the
Overlay List box and is available for printing. Select the
overlay from the Overlay List box.
If necessary, click Confirm Page Overlay When
Printing. If this box is checked, a message window
appears each time you submit a document for printing,
asking you to confirm your wish to print an overlay on your
document.
If this box is not checked and an overlay has been
selected, the overlay automatically prints with your
document.
Click OK or Yes until printing begins.
In the Create Overlay window, type a name of up to eight
characters in the File name box. Select the destination
path, if necessary. (The default is C:\Formover).
Click Save. The name appears on the Overlay List box.
NOTE: The resolution of the overlay document must be the
Click OK or Yes to finish creating.
same as that of the document you will print with the overlay.
The selected overlay downloads with your print job and
prints on your document.
The file is not printed. Instead it is stored on your
computer hard disk drive.
Deleting a Page Overlay
NOTE: The overlay document size must be the same as the
documents you print with the overlay. Do not create an overlay
with a watermark.
You can delete page overlays that you no longer use.
1
2
3
4
5
6
22
Downloaded From ManualsPrinter.com Manuals
Advanced Printing
In the printer properties window, click the Extras tab.
Click the Edit button in the Overlay section.
Select the overlay you want to delete from the Overlay
List box.
Click Delete Overlay.
When a confirming message window appears, click Yes.
Click OK until you exit the Print window.
4
Sharing the Printer
Locally
Setting Up a Host Computer
1
2
3
4
5
6
You can connect the printer directly to a selected computer,
which is called “host computer,” on the network.
The following procedure is for Windows XP. For other Windows
OS, refer to the corresponding Windows User's Guide or online
help.
NOTES:
• Check the Operating System(s) that are compatible with
your printer. Please refer to the OS Compatibility section of
Printer Specifications in your Printer User’s Guide.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
From the Start menu select Printers and Faxes.
Double-click your printer driver icon.
From the Printer menu, select Sharing.
Check the Share this printer box.
Fill in the Shared Name field, and then click OK.
Setting Up a Client Computer
1 Right-click the Windows Start button and select Explorer.
2 Open your network folder in the left column.
3 Click the shared name.
4 From the Start menu select Printers and Faxes.
5 Double-click your printer driver icon.
6 From the Printer menu, select Properties.
7 From the Ports tab, click Add Port.
8 Select Local Port and click New Port.
9 Fill in the Enter a port name field with the shared name.
10 Click OK and click Close.
11 Click Apply and click OK.
23
Downloaded From ManualsPrinter.com Manuals
Start Windows.
Sharing the Printer Locally
5
If you are a Windows user, from the Start menu, select
Programs or All Programs → your printer driver name →
Smart Panel.
Using Smart Panel
Smart Panel is a program that monitors and informs you of the
status of the printer, and allows you to customize the printer’s
settings. Smart Panel is installed automatically when you
install the printer software.
NOTES:
• If you have already installed more than one Samsung
printer, first select the printer model you want in order to
use the corresponding Smart Panel. Right-click (in Windows
or Linux) or click (in Mac OS X) the Smart Panel icon and
select your printer name.
• The Smart Panel window and its contents shown in this
Software User’s Guide may differ depending on the printer or
Operating System in use.
NOTES:
• To use this program, you need:
- Windows 98 or higher To check for Operating System(s)
that are compatible with your printer, refer to Printer
Specifications in your Printer User’s Guide.
- Mac OS X 10.3 or higher
- Linux. To check for Linux systems that are compatible with
your printer, refer to Printer Specifications in your Printer
User’s Guide.
- Internet Explorer version 5.0 or higher for flash animation
in HTML Help.(Only for Windows)
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
The Smart Panel program displays the current status of the
printer, the level of toner remaining in the toner cartridge(s)
and various other information. You can also change settings.
2
3
1
4
5
Understanding Smart Panel
If an error occurs while printing, Smart Panel appears
automatically, showing the error.
1 Toner Level
You can view the level of toner remaining in the toner
cartridge(s). The printer and the number of toner cartridge(s)
shown in the above window may differ depending on the printer in
use. Any printers do not have this feature.
You can also launch Smart Panel manually. Double-click the
Smart Panel icon on the Windows task bar (in Windows), or
Notification Area (in Linux). You can also click it on the status
bar (in Mac OS X).
2 Buy Now
You can order replacement toner cartridge(s) online.
Double-click this icon in Windows.
3 Troubleshooting Guide
You can view Help to solve problems.
4 Printer Setting
You can configure various printer settings in the Printer Settings
Utility window. Any printers do not have this feature.
Click this icon in Mac OS X.
NOTE: If your printer is connected to a network and you are a
Windows user, the SyncThru Web Service window appears
instead of the Printer Settings Utility window.
Click this icon in Linux.
5 Driver Setting (Only for Windows)
You can use the printer properties window, which allows you to
access all of the printer options you need for using your
printer. For details, See “Printer Settings” on page 13.
24
Downloaded From ManualsPrinter.com Manuals
Using Smart Panel
Opening the Troubleshooting
Guide
Changing the Smart Panel
Program Settings
Using the troubleshooting guide, you can view solutions for
error status problems.
Right-click (in Windows or Linux) or click (in Mac OS X) the
Smart Panel icon and select Options.
Right-click (in Windows or Linux) or click (in Mac OS X) the
Smart Panel icon and select Troubleshooting Guide.
The following window opens.
Using Printer Settings Utility
Using the Printer Settings Utility, you can configure and check
print settings.
1
2
3
Right-click (in Windows or Linux) or click (in Mac OS X) the
Smart Panel icon and select Printer Setting.
Change the settings.
To send the changes to the printer, click the Apply button.
NOTES: If your printer is connected to a network, the
SyncThru Web Service window appears instead of the
Printer Settings Utility window.
• Display when job is finished for network printer: The
computer shows the Smart Panel popup window or
balloon when your job is complete in Windows. (Linux do
not support network environments).
• Display when error occurs during printing: The
computer shows the Smart Panel popup window or
balloon when an error occurs during printing.
Using Onscreen Help File
For more information about Printer Settings Utility, click
.
• Display with: You can select how the computer shows
you a message. If you select Popup window (Smart
Panel), the message appears in the Smart Panel popup
window in Windows.
• Launch Job Monitor when the job is saved in the
printer: If you store print jobs on the printer’s hard disk,
the computer opens the Job Monitor window in Windows.
(Only for Windows network-supported printers with
built-in hard disks.)
• Schedule an automatic status checking every: The
computer updates the printer status regularly. Setting the
value close to 1 second causes the computer to check the
printer status more frequently, thereby allowing a faster
response to any printer error.
25
Downloaded From ManualsPrinter.com Manuals
Using Smart Panel
6
Scanning
Scanning Using Samsung
SmarThru
Scanning with your machine lets you turn pictures and text into
digital files on your computer. Then you can fax or e-mail the
files, display them on your web site or use them to create
projects that you can print using Samsung SmarThru software
or the WIA driver.
Samsung SmarThru is the accompanying software for your
machine. With SmarThru, scanning is the proverbial piece of
cake.
This chapter includes:
NOTE: You can use SmarThru 4 in Windows 98 or higher.
• Scanning Using Samsung SmarThru
• Scanning Process with TWAIN-enabled Software
• Scanning Using the WIA Driver
Uninstalling Samsung SmarThru
NOTES:
NOTE: Before beginning uninstallation, ensure that all
• Check the Operating System(s) that are compatible
with your printer. Please refer to the OS Compatibility
section of Printer Specifications in your Printer User’s
Guide.
• You can check your printer name in the supplied CDROM.
• The maximum resolution that can be achieved
depends upon various factors, including computer
speed, available disk space, memory, the size of the
image being scanned, and bit depth settings. Thus,
depending on your system and what you are scanning,
you may not be able to scan at certain resolutions,
especially using enhanced dpi.
applications are closed on your computer.
From the Start menu, select Programs.
2
Select SmarThru 4, and then select Uninstall SmarThru
4.
3
When your computer asks you to confirm, click OK.
4
Click Finish.
You may be prompted to restart your computer. In this
case you must shut the computer down and then restart it
before the changes will be saved.
26
Downloaded From ManualsPrinter.com Manuals
1
Scanning
Using Samsung SmarThru
4
Follow these steps to start scanning using the SmarThru:
1
Make sure that your machine and computer are turned on
and properly connected to each other.
2
Place your photograph or page on the document glass
or ADF.
3
Once you have installed Samsung SmarThru, you will see
the SmarThru 4 icon on your desktop. Double-click the
SmarThru 4 icon.
Click Scan To. The Scan To menu bar appears on the
SmarThru 4 window.
Scan To
menu bar
Adjust the
scan settings.
Double-click this icon.
Click to start
scanning.
The SmarThru 4 window opens.
Scan To lets you use the following services:
•Application
Scanning an image and placing it in an image editor
application, such as Paint or Adobe Photoshop.
Make sure that your
printer is selected.
•E-mail
Scanning an image and emailing it. Allows you to scan an
image, preview it, and email it.
•Scan To
NOTE: To send an image by e-mail, you must have a mail
Allows you to scan an image and save it to an application
or folder, email it, or publish it on a web site.
client program, like Outlook Express, which has been set up
with your e-mail account.
•Image
Allows you to edit an image you have saved as a graphic
file and send it to a selected application or folder, email it,
or publish it on a web site.
•Folder
Scanning an image and saving it to a folder. Allows you to
scan an image, preview it, and save it to the folder of your
choice.
•Copy
Allows you to produce professional quality copies. You can
make black and white or color copies of an image if your
machine supports it, and customize the copy settings.
•OCR
Scanning an image and performing text recognition.
Allows you to scan an image, preview it, and send it to the
OCR program for text recognition.
•Print
Allows you to print images you have saved. You can print
images in black and white or color mode if your machine
supports it.
- Recommended Scan Option for OCR
- Resolution: 200 or 300 dpi
- Image Type: Grayscale or Black & White
•Fax
•Web
Allows you to fax images or files you have saved on your
computer. This is available when your machine supports
the fax feature.
Scanning an image, previewing it, and publishing it on a
web site, using the specified file format for the image you
want to publish.
•Settings
Customizing settings of Scan To basic functions. Allows
you to customize settings for Application, E-mail, OCR,
and Web functions.
27
Downloaded From ManualsPrinter.com Manuals
Scanning
5
Click the service icon according to your job.
6
SmarThru 4 opens for the selected service. Adjust the
scan settings.
7
Scanning Using the WIA Driver
Your machine also supports the Windows Image Acquisition (WIA)
driver for scanning images. WIA is one of the standard components
provided by Microsoft Windows XP/Vista and works with digital
cameras and scanners. Unlike the TWAIN driver, the WIA driver
allows you to scan and easily manipulate images without using
additional software.
To start scanning, click Scan.
NOTE: If you want to cancel the scan job, click Cancel.
NOTE: The WIA driver works only on Windows XP/Vista with USB port.
Using Onscreen Help File
Windows XP
For more information about SmarThru, click
at the top right
corner of the window. The SmarThru Help window opens and
allows you to view onscreen help supplied on the SmarThru
program.
1
OR
2
Scanning Process with TWAINenabled Software
3
If you want to scan documents using other software, you will
need to use TWAIN-compliant software, such as Adobe
PhotoDeluxe or Adobe Photoshop. The first time you scan with
your machine, select it as your TWAIN source in the application
you use.
5
6
4
7
The basic scanning process involves a number of steps:
1
2
Make sure that your machine and computer are turned on
and properly connected to each other.
Load the document(s) face up into the ADF.
Enter a picture name, and select a file format and
destination to save the picture.
Follow the on-screen instructions to edit the picture after it
is copied to your computer.
button on the Scanner and Camera Wizard.
Place a single document face down on the document
glass.
Open an application, such as PhotoDeluxe or Photoshop.
Open the TWAIN window and set the scan options.
Scan and save your scanned image.
NOTE: You need to follow the program’s instructions for
acquiring an image. Please refer to the user’s guide of the
application.
28
Downloaded From ManualsPrinter.com Manuals
Place a single document face down on the document glass.
From the Start menu on your desktop window, select
Control Panel, and then Scanners and Cameras.
Double click your scanner driver icon. The Scanner and
Camera Wizard launches.
Choose your scanning preferences and click Preview to
see how your preferences affect the picture.
Click Next.
NOTE: If you want to cancel the scan job, press the Cancel
OR
3
4
5
Load the document(s) face up into the DADF (or ADF).
Scanning
Windows Vista
1
Load the document(s) face up into the DADF (or ADF).
OR
Place a single document face down on the document glass.
2
Click Start → Control Panel → Hardware and Sound →
Scanners and Cameras.
3
Click on Scan a document or picture. Then Windows Fax
and Scan application is opened automatically.
NOTE:
• To view scanners, user can click on View Scanners and
Cameras.
• If there is not Scan a document or picture, open the MS paint
program and click From Scanner or Camera... on File menu.
4
Click New Scan and then scan driver is opened.
5
Choose your scanning preferences and click Preview to see
your preferences affect the picture.
6
Click Scan.
NOTE: If you want to cancel the scan job, press the Cancel
button on the Scanner and Camera Wizard.
29
Downloaded From ManualsPrinter.com Manuals
Scanning
7
Using Your Printer in
Linux
Installing the Unified Linux
Driver
You can use your machine in a Linux environment.
Installing the Unified Linux Driver
1
This chapter includes:
• Getting Started
2
• Installing the Unified Linux Driver
Make sure that you connect your machine to your
computer. Turn both the computer and the machine on.
When the Administrator Login window appears, type in
root in the Login field and enter the system password.
• Using the Unified Driver Configurator
NOTE: You must log in as a super user (root) to install the
• Configuring Printer Properties
printer software. If you are not a super user, ask your system
administrator.
• Printing a Document
• Scanning a Document
3
Insert the printer software CD-ROM. The CD-ROM will
automatically run.
Getting Started
If the CD-ROM does not automatically run, click the
icon at the bottom of the desktop. When the Terminal
screen appears, type in:
The supplied CD-ROM provides you with Samsung’s Unified
Linux Driver package for using your machine with a Linux
computer.
If the CD-ROM is secondary master and the location to
mount is /mnt/cdrom,
Samsung’s Unified Linux Driver package contains printer and
scanner drivers, providing the ability to print documents and
scan images. The package also delivers powerful applications
for configuring your machine and further processing of the
scanned documents.
[[email protected] root]#cd /mnt/cdrom/Linux
[[email protected] root]#mount -t iso9660 /dev/hdc /mnt/
cdrom
[[email protected] root]#./install.sh
After the driver is installed on your Linux system, the driver
package allows you to monitor a number of machine devices via
fast ECP parallel ports and USB simultaneously.
NOTE: The installation program runs automatically if you
have an autorun software package installed and configured.
The acquired documents can then be edited, printed on the
same local or network machine devices, sent by e-mail,
uploaded to an FTP site, or transferred to an external OCR
system.
4
The Unified Linux Driver package is supplied with a smart and
flexible installation program. You don't need to search for
additional components that might be necessary for the Unified
Linux Driver software: all required packages will be carried onto
your system and installed automatically; this is possible on a
wide set of the most popular Linux clones.
30
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
When the welcome screen appears, click Next.
5
Uninstalling the Unified Linux Driver
When the installation is complete, click Finish.
1
When the Administrator Login window appears, type in
root in the Login field and enter the system password.
NOTE: You must log in as a super user (root) to install the
printer software. If you are not a super user, ask your system
administrator.
2
Insert the printer software CD-ROM. The CD-ROM will
automatically run.
If the CD-ROM does not automatically run, click the
icon at the bottom of the desktop. When the Terminal
screen appears, type in:
If the CD-ROM is secondary master and the location to
mount is /mnt/cdrom,
The installation program has added the Unified Driver
Configurator desktop icon and Samsung Unified Driver
group to the system menu for your convenience. If you
have any difficulties, consult the onscreen help that is
available through your system menu or can otherwise be
called from the driver package windows applications,
such as Unified Driver Configurator or Image
Manager.
[[email protected] root]#mount -t iso9660 /dev/hdc /mnt/
cdrom
[[email protected] root]#cd /mnt/cdrom/Linux
[[email protected] root]#./uninstall.sh
NOTE: The installation program runs automatically if you
have an autorun software package installed and configured.
31
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
3
4
Click Uninstall.
5
Click Finish.
Click Next.
Printers Configuration
Using the Unified Driver
Configurator
Printers configuration has the two tabs: Printers and Classes.
Printers Tab
You can see the current system’s printer configuration by
clicking on the printer icon button on the left side of the Unified
Driver Configurator window.
Unified Linux Driver Configurator is a tool primarily intended for
configuring Printer or MFP devices. Since an MFP device
combines the printer and scanner, the Unified Linux Driver
Configurator provides options logically grouped for printer and
scanner functions. There is also a special MFP port option
responsible for the regulation of access to an MFP printer and
scanner via a single I/O channel.
Switches to Printer
configuration.
After installing the Unified Linux driver, the Unified Linux Driver
Configurator icon will automatically be created on your desktop.
Shows all of the
installed printer.
Opening the Unified Driver
Configurator
1
2
Shows the status,
model name and
URI of your printer.
Double-click Unified Driver Configurator on the
desktop.
You can also click the Startup Menu icon and select
Samsung Unified Driver and then Samsung Unified
Driver Configurator.
Press each button on the Modules pane to switch to the
corresponding configuration window.
You can use the following printer control buttons:
• Refresh: renews the available printers list.
• Add Printer: allows you to add a new printer.
• Remove Printer: removes the selected printer.
Printers Configuration button
• Set as Default: sets the current printer as a default
printer.
Scanners Configuration button
• Stop/Start: stops/starts the printer.
• Test: allows you to print a test page to check if the
machine is working properly.
Ports Configuration button
• Properties: allows you to view and change the printer
properties. For details, see page 34.
3
You can use the onscreen help by clicking Help.
After changing the configurations, click Exit to close the
Unified Driver Configurator.
32
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
Classes Tab
Ports Configuration
The Classes tab shows a list of available printer classes.
In this window, you can view the list of available ports, check
the status of each port and release a port that is stalled in busy
state when its owner is terminated for any reason.
Shows all of the
printer classes.
Switches to
ports
configuration.
Shows the status of the
class and the number of
printers in the class.
Shows all of the
available ports.
Shows the port type,
device connected to
the port and status
• Refresh : Renews the classes list.
• Add Class... : Allows you to add a new printer class.
• Refresh : Renews the available ports list.
• Remove Class : Removes the selected printer class.
• Release port : Releases the selected port.
Sharing Ports Between Printers and Scanners
Scanners Configuration
Your machine may be connected to a host computer via the
parallel port or USB port. Since the MFP device contains more
than one device (printer and scanner), it is necessary to
organize proper access of “consumer” applications to these
devices via the single I/O port.
In this window, you can monitor the activity of scanner devices,
view a list of installed Samsung MFP devices, change device
properties, and scan images.
Switches to
Scanners
configuration.
The Samsung Unified Linux Driver package provides an
appropriate port sharing mechanism that is used by Samsung
printer and scanner drivers. The drivers address their devices
via so-called MFP ports. The current status of any MFP port can
be viewed via the Ports Configuration. The port sharing
prevents you from accessing one functional block of the MFP
device, while another block is in use.
Shows all of the
installed scanners.
When you install a new MFP device onto your system, it is
strongly recommended you do this with the assistance of an
Unified Driver Configurator. In this case you will be asked to
choose I/O port for the new device. This choice will provide the
most suitable configuration for MFP’s functionality. For MFP
scanners I/O ports are being chosen by scanner drivers
automatically, so proper settings are applied by default.
Shows the vendor,
model name and type
of your scanner.
• Properties... : Allows you to change the scan properties
and scan a document. See page 35.
33
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
Configuring Printer Properties
Printing a Document
Using the properties window provided by the Printers
configuration, you can change the various properties for your
machine as a printer.
1 Open the Unified Driver Configurator.
Printing from Applications
2
3
There are a lot of Linux applications that you are allowed to
print from using Common UNIX Printing System (CUPS). You
can print on your machine from any such application.
1 From the application you are using, select Print from the
File menu.
2 Select Print directly using lpr.
If necessary, switch to Printers configuration.
Select your machine on the available printers list and click
Properties.
The Printer Properties window opens.
3
In the LPR GUI window, select the model name of your
machine from the Printer list and click Properties.
Click.
4
The following five tabs display at the top of the window:
•General: allows you to change the printer name, location
and description. The name entered in this tab displays on
the printer list in Printers configuration.
•Connection: allows you to view or select another port. If
you change the printer port from USB to parallel or vice
versa while in use, you must re-configure the printer port
in this tab.
•Driver: allows you to view or select another printer
driver. By clicking Options, you can set the default
device options.
•Jobs: shows the list of print jobs. Click Cancel job to
cancel the selected job and select the Show completed
jobs check box to see previous jobs on the job list.
•Classes: shows the class that your printer is in. Click
Add to Class to add your printer to a specific class or
click Remove from Class to remove the printer from the
selected class.
Click OK to apply the changes and close the Printer
Properties Window.
4
34
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
Change the printer and print job properties.
5
6
7
The following four tabs display at the top of the window.
•General - allows you to change the paper size, the paper
type, and the orientation of the documents, enables the
duplex feature, adds start and end banners, and changes
the number of pages per sheet.
•Text - allows you to specify the page margins and set the
text options, such as spacing or columns.
•Graphics - allows you to set image options that are used
when printing images/files, such as color options, image
size, or image position.
•Device: allows you to set the print resolution, paper
source, and destination.
Click Apply to apply the changes and close the Properties
window.
Click OK in the LPR GUI window to start printing.
Scanning a Document
You can scan a document using the Unified Driver Configurator
window.
1 Double-click the Unified Driver Configurator on your
desktop.
2
3
The Printing window appears, allowing you to monitor the
status of your print job.
Click the
button to switch to Scanners Configuration.
Select the scanner on the list.
Click your
scanner.
To abort the current job, click Cancel.
Printing Files
You can print many different types of files on the Samsung
machine device using the standard CUPS way - directly from
the command line interface. The CUPS lpr utility allows you do
that. But the drivers package replaces the standard lpr tool by
a much more user-friendly LPR GUI program.
To print any document file:
1 Type lpr <file_name> from the Linux shell command
line and press Enter. The LPR GUI window appears.
2
3
When you have only one MFP device and it is connected
to the computer and turned on, your scanner appears on
the list and is automatically selected.
When you type only lpr and press Enter, the Select
file(s) to print window appears first. Just select any files
you want to print and click Open.
In the LPR GUI window, select your printer from the list,
and change the printer and print job properties.
For details about the properties window, see page 34.
Click OK to start printing.
4
5
6
35
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
If you have two or more scanners attached to your
computer, you can select any scanner to work at any
time. For example, while acquisition is in progress on the
first scanner, you may select the second scanner, set the
device options and start the image acquisition
simultaneously.
Click Properties.
Load the document to be scanned face up into the ADF
(Automatic Document Feeder) or face down on the
document glass.
Click Preview in the Scanner Properties window.
10 When you are finished, click Save on the toolbar.
11 Select the file directory where you want to save the image
The document is scanned and the image preview appears
in the Preview Pane.
and enter the file name.
12 Click Save.
Adding Job Type Settings
You can save your scan option settings to retrieve for a later
scanning.
To save a new Job Type setting:
1 Change the options from the Scanner Properties window.
Drag the pointer to
set the image area
to be scanned.
2
3
4
Click Save As.
Enter the name for your setting.
Click OK.
Your setting is added to the Saved Settings drop-down
list.
To save a Job Type setting for the next scan job:
Select the setting you want to use from the Job Type dropdown list.
2 The next time you open the Scanner Properties window,
the saved setting is automatically selected for the scan
job.
1
7
Change the scan options in the Image Quality and Scan
Area sections.
•Image Quality: allows you to select the color
composition and the scan resolution for the image.
•Scan Area: allows you to select the page size. The
Advanced button enables you to set the page size
manually.
To delete a Job Type setting:
Select the setting you want to delete from the Job Type
drop-down list.
2 Click Delete.
1
If you want to use one of the preset scan option settings,
select from the Job Type drop-down list. For details about
the preset Job Type settings, see page 36.
8
9
The setting is deleted from the list
Using the Image Manager
You can restore the default setting for the scan options
by clicking Default.
When you have finished, click Scan to start scanning.
The Image Manager application provides you with menu
commands and tools to edit your scanned image.
The status bar appears on the bottom left of the window
to show you the progress of the scan. To cancel scanning,
click Cancel.
The scanned image appears in the new Image Manager
tab.
Use these tools to
edit the image.
If you want to edit the scanned image, use the toolbar.
For further details about editing an image, see page 36.
36
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
You can use the following tools to edit the image:
Tools
Function
Saves the image.
Cancels your last action.
Restores the action you canceled.
Allows you to scroll through the image.
Crops the selected image area.
Zooms the image out.
Zooms the image in.
Allows you to scale the image size; you can
enter the size manually, or set the rate to
scale proportionally, vertically, or
horizontally.
Allows you to rotate the image; you can
select the number of degrees from the dropdown list.
Allows you to flip the image vertically or
horizontally.
Allows you to adjust the brightness or
contrast of the image, or to invert the
image.
Shows the properties of the image.
For further details about the Image Manager application, refer
to the onscreen help.
37
Downloaded From ManualsPrinter.com Manuals
Using Your Printer in Linux
8
Using Your Printer with
a Macintosh
Installing Software for
Macintosh
Your printer supports Macintosh systems with a built-in USB
interface or 10/100 Base-TX network interface card. When you
print a file from a Macintosh computer, you can use the CUPS driver
by installing the PPD file.
The CD-ROM that came with your printer provides you with the
PPD file that allows you to use the CUPS driver or Apple
LaserWriter driver (only available when you use a printer
which supports the PostScript driver), for printing on a
Macintosh computer.
NOTE: Some printers do not support a network
Also, it provides you with the Twain driver for scanning on a
Macintosh computer.
interface. Make sure that your printer supports a
network interface by referring to Printer Specifications
in your Printer User’s Guide.
Install the Printer driver
1
This chapter includes:
2
• Installing Software for Macintosh
3
• Setting Up the Printer
• Printing
4
5
6
7
8
• Scanning
Make sure that you connect your printer to the computer.
Turn on your computer and printer.
Insert the CD-ROM which came with your printer into the
CD-ROM drive.
Double-click CD-ROM icon that appears on your
Macintosh desktop.
Double-click the MAC_Installer folder.
Double-click the MAC_Printer folder.
Double-click the Samsung SPLC Installer icon.
Enter the password and click OK.
The Samsung SPL Installer window opens. Click Continue
and then click Continue.
Select Easy Install and click Install.
9
10 After the installation is finished, click Quit.
Uninstalling the Printer driver
Uninstall is required if you are upgrading the software, or if
installation fails.
1 Insert the CD-ROM which came with your printer into the
CD-ROM drive.
2 Double-click CD-ROM icon that appears on your
Macintosh desktop.
3 Double-click the MAC_Installer folder.
4
5
6
7
8
9
38
Downloaded From ManualsPrinter.com Manuals
Using Your Printer with a Macintosh
Double-click the MAC_Printer folder.
Double-click the Samsung SPLC Installer icon.
Enter the password and click OK.
The Samsung SPL Installer window opens. Click Continue
and then click Continue.
Select Uninstall and then click Uninstall.
When the uninstallation is done, click Quit.
2
Install the Scan driver
1
2
3
Make sure that you connect your printer to the computer.
Turn on your computer and printer.
Insert the CD-ROM which came with your printer into the
CD-ROM drive.
Double-click CD-ROM icon that appears on your
Macintosh desktop.
Double-click the MAC_Installer folder.
•For MAC OS 10.5, open System Preferences from the
Applications folder, and click Printer & Fax.
3
4
3
4
5
6
7
8
•For MAC OS 10.4, click IP Printer.
Insert the CD-ROM which came with your printer into the
CD-ROM drive.
Double-click CD-ROM icon that appears on your
Macintosh desktop.
Double-click the MAC_Installer folder.
Double-click the MAC_Twain folder.
5
Select Socket/HP Jet Direct in Printer Type.
WHEN PRINTING A DOCUMENT CONTAINING MANY
PAGES, PRINTING PERFORMANCE MAY BE
ENHANCED BY CHOOSING SOCKET FOR PRINTER
TYPE OPTION.
6
Enter the printer’s IP address in the Printer Address
field.
7
Enter the queue name in the Queue Name field. If you
cannot determine the queue name for your printer server,
try using the default queue first.
8
Select Samsung in Printer Model and your printer in
Model Name.
9 Click Add.
10 Your printer’s IP address appears on the Printer List, and
Double-click the Samsung ScanThru Installer icon.
Enter the password and click OK.
is set as the default printer.
Click Continue.
For a USB-connected Macintosh
Select Uninstall from the Installation Type and then Click
Uninstall.
Click Continue.
9
10 When the uninstallation is done, click Quit.
1
Follow the instructions on “Installing Software for
Macintosh” on page 38 to install the PPD and Filter files on
your computer.
2
Open the Applications folder → Utilities, and Print
Setup Utility.
•For MAC OS 10.5, open System Preferences from the
Applications folder, and click Printer & Fax.
Setting Up the Printer
3
Set up for your printer will be different depending on which
cable you use to connect the printer to your computer—the
network cable or the USB cable.
4
For MAC OS 10.3, select the USB tab.
•For MAC OS 10.4, click Default Browser and find the
USB connection.
NOTE: Some printers do not support a network interface.
•For MAC OS 10.5, click Default and find the USB
connection.
Before connecting your printer, make sure that your
printer supports a network interface by referring to Printer
Specifications in your Printer User’s Guide.
5
6
Follow the instructions on “Installing Software for
Macintosh” on page 38 to install the PPD and Filter files on
your computer.
Select Samsung in Printer Model and your printer in
Model Name.
Click Add.
Your printer appears on the Printer List, and is set as the
default printer.
39
Downloaded From ManualsPrinter.com Manuals
Click Add on the Printer List.
•For MAC OS 10.5, press the “+” icon then a display
window will pop up.
For a Network-connected Macintosh
1
For MAC OS 10.3, select the IP Printing tab.
•For MAC OS 10.5, click IP.
Uninstalling the Scan driver
2
Click Add on the Printer List.
•For MAC OS 10.5, press the “+” icon then a display
window will pop up.
4
5 Double-click the MAC_Twain folder.
6 Double-click the Samsung ScanThru Installer icon.
7 Enter the password and click OK.
8 Click Continue.
9 Click Install.
10 Click Continue.
11 After the installation is finished, click Quit.
1
Open the Applications folder → Utilities, and Print
Setup Utility.
Using Your Printer with a Macintosh
Changing Printer Settings
Printing
You can use advanced printing features when using your
printer.
From your Macintosh application, select Print from the File
menu. The printer name which appears in the printer properties
window may differ depending on the printer in use. Except for
the name, the composition of the printer properties window is
similar.
NOTES:
• The Macintosh printer’s properties window that appears in
this User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• You can check your printer name in the supplied CDROM.
NOTES:
The setting options may differ depending on printers and
Macintosh OS version.
Printing a Document
When you print with a Macintosh, you need to check the printer
software setting in each application you use. Follow these steps
to print from a Macintosh.
1
2
3
Layout Setting
The Layout tab provides options to adjust how the document
appears on the printed page. You can print multiple pages on
one sheet of paper.
Open a Macintosh application and select the file you want
to print.
Open the File menu and click Page Setup (Document
Setup in some applications).
Choose your paper size, orientation, scaling, and other
options and click OK.
Select Layout from the Presets drop-down list to access the
following features. For details, see “Printing Multiple Pages on
One Sheet of Paper” on the next column.
Make sure that your
printer is selected.
▲ Mac OS 10.3
▲ Mac OS 10.3
4
5
6
Open the File menu and click Print.
Choose the number of copies you want and indicate which
pages you want to print.
Click Print when you finish setting the options.
40
Downloaded From ManualsPrinter.com Manuals
Using Your Printer with a Macintosh
Printing Multiple Pages on One Sheet
of Paper
Printer Features Setting
The Printer Features tab provides options for selecting the
paper type and adjusting print quality.
You can print more than one page on a single sheet of paper.
This feature provides a cost-effective way to print draft pages.
Select Printer Features from the Presets drop-down list to
access the following features:
1
2
From your Macintosh application, select Print from the
File menu.
Select Layout.
▲ Mac OS 10.3
Paper Type
Set Type to correspond to the paper loaded in the tray from
which you want to print. This will let you get the best quality
printout. If you load a different type of print material, select the
corresponding paper type.
Resolution(Quality)
The Resolution options you can select may vary
depending on your printer model. You can select the
printing resolution. The higher the setting, the sharper the clarity
of printed characters and graphics. The higher setting also may
increase the time it takes to print a document.
▲ Mac OS 10.3
3
Color Mode
You can set the color options. Setting to Color typically produces
the best possible print quality for color documents. If you want to
print a color document in grayscale, select Grayscale.
4
5
41
Downloaded From ManualsPrinter.com Manuals
Using Your Printer with a Macintosh
Select the number of pages you want to print on one sheet
of paper on the Pages per Sheet drop-down list.
Select the page order from the Layout Direction option.
To print a border around each page on the sheet, select
the option you want from the Border drop-down list.
Click Print, and the printer prints the selected number of
pages on one side of each page.
Scanning
If you want to scan documents using other software, you will
need to use TWAIN-compliant software, such as Adobe
PhotoDeluxe or Adobe Photoshop. The first time you scan with
your machine, select it as your TWAIN source in the application
you use.
The basic scanning process involves a number of steps:
1. Load the document(s) face up into the DADF (or ADF).
OR
Place a single document face down on the documentglass.
2. Open an application, such as PhotoDeluxe or Photoshop.
3. Open the TWAIN window and set the scan options.
4. Scan and save your scanned image.
NOTE: You need to follow the program’s instructions for
acquiring an image. Please refer to the User’s Guide of the
application.
42
Downloaded From ManualsPrinter.com Manuals
Using Your Printer with a Macintosh
SOFTWARE SECTION
INDEX
A
advanced printing, use 18
installing
Linux software 30
B
L
P
Layout properties, set
Macintosh 40
Windows 13
Linux
driver, install 30
paper size, set
print 35
paper source, set 35
paper type, set
print 35
print resolution 35
printer properties 34
printing 34
scanning 35
Paper properties, set 14
paper size, set 14
paper source, set
Windows 14
paper type, set
Macintosh 41
poster, print 19
print
document 12
fit to page 20
from Macintosh 40
from Windows 12
N-up
Macintosh 41
Windows 18
overlay 22
PRN 12
scaling 20
watermark 21
printer driver, install
Linux 30
printer properties
Linux 34
printer properties, set
Macintosh 40
Windows 13
printer resolution, set
Macintosh 41
Windows 15
printer software
install
Macintosh 38
Windows 4
uninstall
Macintosh 38
Windows 11
printing
booklets 19
double-sided 20
from Linux 34
booklet printing 19
C
canceling
scan 28, 29
Color 15
D
document, print
Macintosh 40
Windows 12
double-sided printing 20
E
Extras properties, set 16
F
favorites settings, use 17
G
Graphics 15
Graphics properties, set 15
H
help, use 17
I
install
printer driver
Macintosh 38
Windows 4
M
Macintosh
driver
install 38
uninstall 38
printing 40
scanning 42
setting up the printer 39
MFP driver, install
Linux 30
N
n-up printing
Macintosh 41
Windows 18
O
orientation, print
Windows 13
overlay
create 22
43
Downloaded From ManualsPrinter.com Manuals
delete 22
print 22
R
WIA, scan 28
resolution
printing 35
S
scanning
Linux 35
SmarThru 26
TWAIN 28
WIA driver 28
scanning from Macintosh 42
setting
darkness 15
favorites 17
image mode 15
resolution
Macintosh 41
Windows 15
true-type option 15
software
install
Macintosh 38
Windows 4
reinstall
Windows 10
system requirements
Macintosh 38
uninstall
Macintosh 38
Windows 11
status monitor, use 24
T
TWAIN, scan 28
U
uninstall, software
Macintosh 38
Windows 11
uninstalling
MFP driver
Linux 31
Using 21
W
watermark
create 21
delete 21
edit 21
print 21
44
Downloaded From ManualsPrinter.com Manuals
