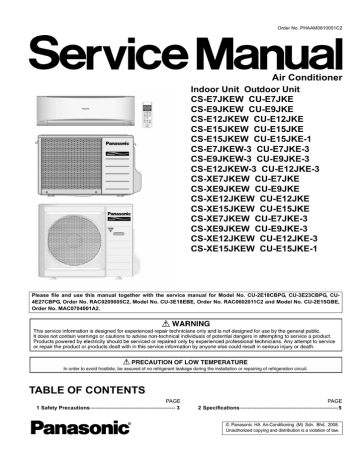

Air Conditioner

Order No. PHAAM0810051C2

Air Conditioner

Indoor Unit Outdoor Unit

CS-E7JKEW CU-E7JKE

CS-E9JKEW CU-E9JKE

CS-E12JKEW CU-E12JKE

CS-E15JKEW CU-E15JKE

CS-E15JKEW CU-E15JKE-1

CS-E7JKEW-3 CU-E7JKE-3

CS-E9JKEW-3 CU-E9JKE-3

CS-E12JKEW-3 CU-E12JKE-3

CS-XE7JKEW CU-E7JKE

CS-XE9JKEW CU-E9JKE

CS-XE12JKEW CU-E12JKE

CS-XE15JKEW CU-E15JKE

CS-XE7JKEW CU-E7JKE-3

CS-XE9JKEW CU-E9JKE-3

CS-XE12JKEW CU-E12JKE-3

CS-XE15JKEW CU-E15JKE-1

Please file and use this manual together with the service manual for Model No. CU-2E18CBPG, CU-3E23CBPG, CU-

4E27CBPG, Order No. RAC0209005C2, Model No. CU-3E18EBE, Order No. RAC0602011C2 and Model No. CU-2E15GBE,

Order No. MAC0704001A2.

TABLE OF CONTENTS

PAGE

1 Safety Precautions----------------------------------------------- 3

PAGE

2 Specifications ------------------------------------------------------5

© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2008.

Unauthorized copying and distribution is a violation of law.

3 Features ------------------------------------------------------------ 26

4 Location of Controls and Components ------------------ 27

4.1. Indoor Unit ------------------------------------------------- 27

4.2. Outdoor Unit ----------------------------------------------- 27

4.3. Remote Control ------------------------------------------- 27

5 Dimensions ------------------------------------------------------- 28

5.1. Indoor Unit ------------------------------------------------- 28

5.2. Outdoor Unit ----------------------------------------------- 29

6 Refrigeration Cycle Diagram -------------------------------- 30

6.1. CU-E7JKE CU-E9JKE CU-E12JKE CU-

E15JKE-1 -------------------------------------------------- 30

6.2. CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3 ------- 31

6.3. CU-E15JKE------------------------------------------------ 32

7 Block Diagram --------------------------------------------------- 33

7.1. CU-E7JKE CU-E9JKE CU-E12JKE CU-

E15JKE-1 -------------------------------------------------- 33

7.2. CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3 ------- 34

7.3. CU-E15JKE------------------------------------------------ 35

8 Wiring Connection Diagram --------------------------------- 36

8.1. Indoor Unit ------------------------------------------------- 36

8.2. Outdoor Unit ----------------------------------------------- 37

9 Electronic Circuit Diagram----------------------------------- 41

9.1. Indoor Unit ------------------------------------------------- 41

9.2. Outdoor Unit ----------------------------------------------- 42

10 Printed Circuit Board ------------------------------------------ 46

10.1. Indoor Unit ------------------------------------------------- 46

10.2. Outdoor Unit ----------------------------------------------- 49

11 Installation Instruction ---------------------------------------- 52

11.1. Select the Best Location ------------------------------- 52

11.2. Indoor Unit ------------------------------------------------- 53

11.3. Outdoor Unit ----------------------------------------------- 56

12 Operation and Control----------------------------------------- 59

12.1. Basic Function -------------------------------------------- 59

12.2. Indoor Fan Motor Operation --------------------------- 60

12.3. Outdoor Fan Motor Operation------------------------- 61

12.4. Airflow Direction ------------------------------------------ 61

12.5. Quiet operation (Cooling Mode/Cooling area of Dry Mode)----------------------------------------------- 62

12.6. Quiet operation (Heating) ------------------------------ 62

12.7. Powerful Mode Operation ------------------------------ 63

12.8. Timer Control---------------------------------------------- 63

12.9. Auto Restart Control------------------------------------- 63

12.10. Indication Panel------------------------------------------- 64

12.11. Patrol Operation ------------------------------------------ 64

12.12. e-ion Operation ------------------------------------------- 66

12.13. Mild Dry Cooling Operation ---------------------------- 68

13 Protection Control ---------------------------------------------- 69

13.1. Protection Control For All Operations --------------- 69

13.2. Protection Control For Cooling & Soft Dry

Operation--------------------------------------------------- 71

13.3. Protection Control For Heating Operation --------- 72

14 Servicing Mode -------------------------------------------------- 73

14.1. Auto OFF/ON Button ------------------------------------ 73

14.2. Remote Control Button --------------------------------- 74

15 Troubleshooting Guide---------------------------------------- 75

15.1. Refrigeration Cycle System --------------------------- 75

15.2. Breakdown Self Diagnosis Function ---------------- 77

15.3. Error Codes Table---------------------------------------- 78

15.4. Self-diagnosis Method ---------------------------------- 80

16 Disassembly and Assembly Instructions ------------- 110

16.1. Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal Procedures----- 110

16.2. Outdoor Electronic Controller Removal

Procedure------------------------------------------------- 114

17 Technical Data -------------------------------------------------- 116

17.1. Operation Characteristics ---------------------------- 116

17.2. Sensible Capacity Chart ------------------------------ 148

18 Exploded View and Replacement Parts List---------- 149

18.1. Indoor Unit------------------------------------------------ 149

18.2. Outdoor Unit --------------------------------------------- 156

2

1 Safety Precautions

• Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.

• Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model installed.

• The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below. Incorrect installation or servicing due to ignoring of the instruction will cause harm or damage, and the seriousness is classified by the following indications.

This indication shows the possibility of causing death or serious injury.

This indication shows the possibility of causing injury or damage to properties.

• The items to be followed are classified by the symbols:

This symbol denotes item that is PROHIBITTED from doing.

• Carry out test run to confirm that no abnormality occurs after the servicing. Then, explain to user the operation, care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for future reference.

1.

Do not modify the machine, part, material during repairing service.

2.

If wiring unit is supplied as repairing part, do not repair or connect the wire even only partial wire break. Exchange the whole wiring unit.

3.

Do not wrench the fasten terminal. Pull it out or insert it straightly.

4.

Engage dealer or specialist for installation and servicing. If installation or servicing done by the user is defective, it will cause water leakage, electrical shock or fire.

5.

Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock or fire.

6.

Use the attached accessories parts and specified parts for installation and servicing. Otherwise, it will cause the set to fall, water leakage, fire or electrical shock.

7.

Install at a strong and firm location which is able to withstand the set's weight. If the strength is not enough or installation is not properly done, the set will drop and cause injury.

8.

For electrical work, follow the local national wiring standard, regulation and the installation instruction. An independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.

9.

This equipment is strongly recommended to install with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD).

Otherwise, it may cause electrical shock and fire in case equipment breakdown or insulation breakdown.

10. Use the specified cable 4 x 1.5mm

2

, and connect tightly for indoor/outdoor connection. Connect tightly and clamp the cable so that no external force will be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.

11. Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause heat-up or fire at connection point of terminal, fire or electrical shock.

12. When carrying out piping connection, take care not to let air substances other than the specified refrigerant go into refrigeration cycle.

Otherwise, it will cause lower capacity, abnormal high pressure in the refrigeration cycle, explosive and injury.

13. Do not install outdoor unit near handrail of veranda. When installing air-conditioner unit at veranda of high rise building, child may climb up to outdoor unit and cross over the handrail and causing accident.

14. This equipment must be properly earthed. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and telephone. Otherwise, it may cause electric shock in case equipment breakdown or insulation breakdown.

15. Keep away from small children, the thin film may cling to nose and mouth and prevent breathing.

16. Do not damage or use unspecified power supply cord. Otherwise it will cause fire or electric shock.

17. Do not modify the length of the power supply cord or use extension cord, and do not share the single outlet with other electrical appliances. Otherwise, it will cause fire or electric shock.

3

18. In case of using existing (R22) pipes during installation of R410 models, must carry out pump down properly to collect back the refrigerant and oil before installation new unit.

Thickness of copper pipes used with R410A must be more than 0.8mm. Never use copper pipes thinner than 0.8mm.

It is desirable that the amount of residual oil is less than 40 mg/10m.

19. During installation, before run the compressor, confirm the refrigerant pipes are fixed. Operation of compressor without fixing the piping, setting the valves at open condition, a burst may occur and cause injury.

20. During pump down operation, stop the compressor before remove the refrigerant piping. When remove piping while valves at open condition, burst may occur and cause injury.

21. After completion of installation or service, confirm there is no leakage or refrigerant gas. It may generate toxic gas when the refrigerant contacts with fire.

22. Ventilate if there is refrigerant gas leakage during operation. It may cause toxic gas when refrigerant contacts with fire.

23. Do not insert your fingers or other objects into the unit, high speed rotating fan may cause injury.

24. Must not use other parts except original parts describe in catalog and manual.

1.

Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the unit, it may cause fire.

2.

Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage the furniture.

3.

Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare may break and cause refrigerant gas leakage.

4.

Do not touch outdoor unit air inlet and aluminium fin. It may cause injury.

5.

Select an installation location which is easy for maintenance.

6.

Pb free solder has a higher melting point than standard solder; typically the melting point is 50°F - 70°F (30°C - 40°C) higher. Please use a high temperature solder iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C). Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

7.

Power supply connection to the air conditioner. Connect the power supply cord of the air conditioner to the mains using one of the following methods.

Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries, permanent connection of this room air conditioner to the power supply is prohibited.

i. Power supply connection to the receptacle using a power plug. Use an approved 15/16A (3/4~1.75HP), 16A (2.0HP), 20A (2.5HP) or

25A (3.0HP) power plug with earth pin for the connection to the socket.

ii. Power supply connection to a circuit breaker for the permanent connection. Use an approved 16A (3/4~2.0HP), 20A (2.5HP) or 25A

(3.0HP) circuit breaker for the permanent connection. It must be a double pole switch with a minimum 3.0 mm contact gap.

8.

Do not release refrigerant during piping work for installation, servicing, reinstallation and during repairing a refrigerant parts.

Take care of the liquid refrigerant, it may cause frostbite.

9.

Installation or servicing work: It may need two people to carry out the installation or servicing work.

10. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

11. Do not sit or step on the unit, you may fall down accidentally.

12. Do not touch the sharp aluminium fin, sharp parts may cause injury.

4

2 Specifications

MODEL

Performance Test Condition

Power Supply

INDOOR

OUTDOOR

Phase, Hz

V

Capacity

Running Current

Input Power

Annual Consumption

EER

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Capacity

Running Current

Input Power

COP

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Low Temp. : Capacity (kW) / I.Power (W) / COP

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP

Max Current (A) / Max Input Power (W)

Starting Current (A)

Compressor

Type

Motor Type

Output Power W

Type

Material

Motor Type

Input Power

Output Power

W

W rpm rpm rpm rpm rpm

Speed

QLo

Lo

Me

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Hi

SHi

Heat

Cool

Heat rpm rpm rpm rpm rpm

Kcal/h

A

W

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

Kcal/h

A

W kWh

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

0.70

2390

600

160

4.38

3.75

Min.

0.70

2390

600

CS-E7JKEW, CS-XE7JKEW

CU-E7JKE

EUROVENT

Single, 50

230

Mid.

2.05

170

4.12

3.53

6990

1760

2.2

470

235

4.36

3.74

93

Max.

2.40

8180

2060

580

4.14

3.55

37 / 24 / 20

53 / 40 / 36

45 / -

60 / -

2.80

9550

2410

3.0

635

4.41

3.80

92

38 / 25 / 22

54 / 41 / 38

46 / -

61 / -

4.00

13600

3440

1.02k

3.92

3.37

2.90 / 900 / 3.22

2.35 / 930 / 2.53

4.7 / 1.02k

3.0

Hermetic Motor

Brushless (6-poles)

650

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

590

680

670

730

860

910

1050

1090

1110

1150

0.80

2730

690

165

4.85

4.18

Min.

0.80

2730

690

CS-E9JKEW, CS-XE9JKEW

CU-E9JKE

EUROVENT

Single, 50

230

Mid.

2.50

175

4.57

3.94

8530

2150

2.6

545

273

4.59

3.94

91

Max.

3.00

10200

2580

740

4.05

3.49

39 / 25 / 20

55 / 41 / 36

46 / -

61 / -

3.40

11600

2920

3.4

740

4.59

3.95

95

40 / 27 / 24

56 / 43 / 40

47 / -

62 / -

5.00

17100

4300

1.31k

3.82

3.28

3.62 / 1.16k / 3.12

2.88 / 1.19k / 2.42

5.8 / 1.31k

3.4

Hermetic Motor

Brushless (6-poles)

700

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

630

770

740

830

950

1030

1170

1240

1240

1320

5

MODEL INDOOR

OUTDOOR

Type

Material

Motor Type

Input Power

Output Power

Speed

Moisture Removal

Indoor Airflow

QLo

Lo

Me

Hi

SHi

Hi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Outdoor Airflow Hi

Cool

Heat

Refrigeration Cycle

Control Device

Refrigerant Oil

Dimension

Refrigerant Type

Height (I/D / O/D)

Width (I/D / O/D)

Weight

Depth (I/D / O/D)

Net (I/D / O/D)

Pipe Diameter (Liquid / Gas)

Standard Length

Length Range (min - max)

I/D & O/D Height Different

Additional Gas Amount

Length for Additional Gas

Drain Hose

Indoor Heat

Exchanger

Outdoor Heat

Exchanger

Inner Diameter

Length

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L) cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lb) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

W

W rpm

L/h (Pt/h) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) mm mm

Air Filter

Material

Type

Power Supply

Power Supply Cord

Thermostat

Protection Device

A

CS-E7JKEW, CS-XE7JKEW

CU-E7JKE

Propeller Fan

PP

Induction (6-poles)

62

25

750

1.3 (2.7)

5.6 (198)

6.6 (233)

6.5 (230)

7.2 (254)

8.7 (307)

9.3 (328)

10.9 (385)

11.4 (400)

11.6 (410)

12.0 (424)

28.8 (1020)

28.8 (1020)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 780 (27.5)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 33 (73)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 17

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

CS-E9JKEW, CS-XE9JKEW

CU-E9JKE

Propeller Fan

PP

Induction (6-poles)

65

25

770

1.5 (3.2)

4.9 (173)

6.5 (230)

6.1 (215)

7.2 (254)

8.7 (307)

9.6 (339)

11.3 (400)

11.9 (420)

11.9 (420)

13.1 (463)

29.8 (1050)

29.8 (1050)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 960 (33.9)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 34 (75)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 19

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

6

MODEL

Indoor Operation Range

Outdoor Operation Range

Cooling

Heating

Cooling

Heating

INDOOR

OUTDOOR

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

CS-E7JKEW, CS-XE7JKEW

CU-E7JKE

Dry Bulb Wet Bulb

32

16

30

16

23

11

43

16

24

-5

26

11

18

-6

CS-E9JKEW, CS-XE9JKEW

CU-E9JKE

Dry Bulb Wet Bulb

32

16

30

16

23

11

43

16

24

-5

26

11

18

-6

1. Cooling capacities are based on indoor temperature of 27

°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35

°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20

°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry

Bulb (44.6

°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor

-7/-8

°C

5. Specifications are subjected to change without prior notice for further improvement.

7

MODEL

Performance Test Condition

Power Supply

INDOOR

OUTDOOR

Phase, Hz

V

Capacity

Running Current

Input Power

Annual Consumption

EER

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Capacity

Running Current

Input Power

COP

A

W

W/W

Kcal/hW

Power Factor % dB-A

Indoor Noise (H / L / QLo)

Power Level dB dB-A

Outdoor Noise (H / L)

Power Level dB

Low Temp. : Capacity (kW) / I.Power (W) / COP

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP

Max Current (A) / Max Input Power (W)

Starting Current (A)

Compressor

Type

Motor Type

Output Power W

Type

Material

Motor Type

Input Power

Output Power

Speed

QLo

Lo

Me

Hi

SHi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

W

W rpm rpm rpm rpm rpm rpm rpm rpm rpm rpm kW

BTU/h

Kcal/h

A

W kWh

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

Kcal/h

0.80

2730

690

175

4.57

3.94

690

185

4.32

3.73

CS-E12JKEW, CS-XE12JKEW

CU-E12JKE

EUROVENT

Single, 50

Min.

0.80

2730

230

Mid.

3.50

11900

Max.

4.00

13600

3010

4.1

905

453

3.87

3.33

96

42 / 28 / 20

3440

1.18k

3.39

2.92

58 / 44 / 36

48 / -

63 / -

4.40

15000

3780

5.1

1.09k

4.04

3.47

93

42 / 33 / 30

58 / 49 / 46

50 / -

65 / -

4.85 / 1.67k / 2.90

3.75 / 1.68k / 2.23

8.9 / 1.93k

5.1

Hermetic Motor

Brushless (6-poles)

6.70

22800

5760

1.93k

3.47

2.98

700

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

630

950

830

1010

1040

1150

1260

1300

1320

1340

0.90

3070

770

245

3.67

3.14

770

215

4.19

3.58

CS-E15JKEW, CS-XE15JKEW

CU-E15JKE

EUROVENT

Single, 50

Min.

0.90

3070

230

Mid.

4.20

14300

Max.

5.00

17100

3610

5.8

1.22k

610

3.44

2.96

92

43 / 32 / 29

4300

1.60k

3.13

2.69

59 / 48 / 45

46 / -

61 / -

5.40

18400

4640

6.9

1.46k

3.70

3.18

92

43 / 35 / 32

59 / 51 / 48

46 / -

61 / -

5.14 / 1.96k / 2.62

4.10 / 2.10k / 1.95

9.7 / 2.21k

6.9

Hermetic Motor

Brushless (4-poles)

7.10

24200

6110

2.21k

3.21

2.76

900

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

730

1000

870

1080

1070

1210

1270

1350

1340

1370

8

MODEL

Power Supply

Power Supply Cord

Thermostat

Protection Device

INDOOR

OUTDOOR

Type

Material

Motor Type

Input Power

Output Power

Speed

W

W rpm

Air Filter

Hi

Moisture Removal

Indoor Airflow

QLo

Lo

Me

Hi

SHi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Outdoor Airflow Hi

Cool

Heat

Refrigeration Cycle

Control Device

Refrigerant Oil

Dimension

Refrigerant Type

Height (I/D / O/D)

Width (I/D / O/D)

Weight

Depth (I/D / O/D)

Net (I/D / O/D)

Pipe Diameter (Liquid / Gas)

Standard Length

Length Range (min - max)

I/D & O/D Height Different

Additional Gas Amount

Length for Additional Gas

Drain Hose

Indoor Heat

Exchanger

Inner Diameter

Length

Fin Material

Fin Type

Outdoor Heat

Exchanger

Row x Stage x FPI

Size (W x H x L)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L) cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lb) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

L/h (Pt/h) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) mm mm

Material

Type

A

CS-E12JKEW, CS-XE12JKEW

CU-E12JKE

Propeller Fan

PP

Induction (6-poles)

70

30

830

2.0 (4.2)

4.9 (173)

8.7 (307)

7.2 (254)

9.4 (332)

9.7 (343)

11.0 (389)

12.5 (440)

12.8 (450)

13.1 (463)

13.3 (470)

31.0 (1090)

31.0 (1090)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 970 (34.2)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 34 (75)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 21

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

CS-E15JKEW, CS-XE15JKEW

CU-E15JKE

Propeller Fan

PP

Transistor (8-poles)

40

Cool : 660

Heat : 640

2.4 (5.1)

6.0 (212)

9.2 (325)

7.7 (272)

10.2 (360)

10.1 (357)

11.7 (413)

12.5 (440)

13.4 (475)

13.3 (470)

13.6 (480)

48.5 (1710)

46.8 (1650)

Expansion Valve

RB68A or Freol Alpha 68M (400)

R410A, 1.06k (37.4)

290 (11-7/16) / 750 (29-17/32)

870 (34-9/32) / 875 (34-15/32)

204 (8-1/16) / 345 (13-19/32)

9 (20) / 48 (106)

6.35 (1/4) / 12.70 (1/2)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 21

610 x 315 x 25.4

Aluminium

Corrugated Fin

1 x 28 x 18

22 x 711 x 835

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

9

MODEL

Indoor Operation Range

Outdoor Operation Range

Cooling

Heating

Cooling

Heating

INDOOR

OUTDOOR

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

CS-E12JKEW, CS-XE12JKEW

Dry Bulb

CU-E12JKE

Wet Bulb

43

16

24

-5

32

16

30

16

26

11

18

-6

23

11

CS-E15JKEW, CS-XE15JKEW

Dry Bulb

CU-E15JKE

Wet Bulb

43

16

24

-5

32

16

30

16

26

11

18

-6

23

11

1. Cooling capacities are based on indoor temperature of 27

°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35

°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20

°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry

Bulb (44.6

°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor

-7/-8

°C

5. Specifications are subjected to change without prior notice for further improvement.

10

MODEL

Performance Test Condition

Power Supply

INDOOR

OUTDOOR

Phase, Hz

V

Capacity

Running Current

Input Power

Annual Consumption

EER

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Capacity

Running Current

Input Power

COP

A

W

W/W

Kcal/hW

Power Factor % dB-A

Indoor Noise (H / L / QLo)

Power Level dB dB-A

Outdoor Noise (H / L)

Power Level dB

Low Temp. : Capacity (kW) / I.Power (W) / COP

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP

Max Current (A) / Max Input Power (W)

Starting Current (A)

Compressor

Type

Motor Type

Output Power W

Type

Material

Motor Type

Input Power

Output Power

Speed

QLo

Lo

Me

Hi

SHi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

W

W rpm rpm rpm rpm rpm rpm rpm rpm rpm rpm kW

BTU/h

Kcal/h

A

W kWh

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

Kcal/h

0.70

2390

600

160

4.38

3.75

600

170

4.12

3.53

CS-E7JKEW-3, CS-XE7JKEW

CU-E7JKE-3

EUROVENT

Single, 50

Min.

0.70

2390

230

Mid.

2.05

6990

Max.

2.40

8180

1760

2.2

470

235

4.36

3.74

93

37 / 24 / 20

2060

580

4.14

3.55

53 / 40 / 36

45 / -

60 / -

2.80

9550

2410

3.0

635

4.41

3.80

92

38 / 25 / 22

54 / 41 / 38

46 / -

61 / -

2.90 / 900 / 3.22

2.35 / 930 / 2.53

4.7 / 1.02k

3.0

Hermetic Motor

Brushless (6-poles)

4.00

13600

3440

1.02k

3.92

3.37

650

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

590

680

670

730

860

910

1050

1090

1110

1150

0.80

2730

690

165

4.85

4.18

690

175

4.57

3.94

CS-E9JKEW-3, CS-XE9JKEW

CU-E9JKE-3

EUROVENT

Single, 50

Min.

0.80

2730

230

Mid.

2.50

8530

Max.

3.00

10200

2150

2.6

545

273

4.59

3.94

91

39 / 25 / 20

2580

740

4.05

3.49

55 / 41 / 36

46 / -

61 / -

3.40

11600

2920

3.4

740

4.59

3.95

95

40 / 27 / 24

56 / 43 / 40

47 / -

62 / -

3.62 / 1.16k / 3.12

2.88 / 1.19k / 2.42

5.8 / 1.31k

3.4

Hermetic Motor

Brushless (6-poles)

5.00

17100

4300

1.31k

3.82

3.28

700

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

630

770

740

830

950

1030

1170

1240

1240

1320

11

MODEL INDOOR

OUTDOOR

Type

Material

Motor Type

Input Power

Output Power

Speed

Moisture Removal

Indoor Airflow

QLo

Lo

Me

Hi

SHi

Hi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Outdoor Airflow Hi

Cool

Heat

Refrigeration Cycle

Control Device

Refrigerant Oil

Dimension

Refrigerant Type

Height (I/D / O/D)

Width (I/D / O/D)

Weight

Depth (I/D / O/D)

Net (I/D / O/D)

Pipe Diameter (Liquid / Gas)

Standard Length

Length Range (min - max)

I/D & O/D Height Different

Additional Gas Amount

Length for Additional Gas

Drain Hose

Indoor Heat

Exchanger

Outdoor Heat

Exchanger

Inner Diameter

Length

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L) cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lb) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

W

W rpm

L/h (Pt/h) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) mm mm

Air Filter

Material

Type

Power Supply

Power Supply Cord

Thermostat

Protection Device

A

CS-E7JKEW-3, CS-XE7JKEW

CU-E7JKE-3

Propeller Fan

PP

Induction (6-poles)

62

25

750

1.3 (2.7)

5.6 (198)

6.6 (233)

6.5 (230)

7.2 (254)

8.7 (307)

9.3 (328)

10.9 (385)

11.4 (400)

11.6 (410)

12.0 (424)

28.8 (1020)

28.8 (1020)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 780 (27.5)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 33 (73)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 17

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

CS-E9JKEW-3, CS-XE9JKEW

CU-E9JKE-3

Propeller Fan

PP

Induction (6-poles)

65

25

770

1.5 (3.2)

4.9 (173)

6.5 (230)

6.1 (215)

7.2 (254)

8.7 (307)

9.6 (339)

11.3 (400)

11.9 (420)

11.9 (420)

13.1 (463)

29.8 (1050)

29.8 (1050)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 960 (33.9)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 34 (75)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 19

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

12

MODEL

Indoor Operation Range

Outdoor Operation Range

Cooling

Heating

Cooling

Heating

INDOOR

OUTDOOR

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

CS-E7JKEW-3, CS-XE7JKEW

Dry Bulb

CU-E7JKE-3

Wet Bulb

43

16

24

-15

32

16

30

16

26

11

18

-16

23

11

CS-E9JKEW-3, CS-XE9JKEW

Dry Bulb

CU-E9JKE-3

Wet Bulb

43

16

24

-15

32

16

30

16

26

11

18

-16

23

11

1. Cooling capacities are based on indoor temperature of 27

°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35

°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20

°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry

Bulb (44.6

°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor

-7/-8

°C

5. Specifications are subjected to change without prior notice for further improvement.

13

MODEL

Performance Test Condition

Power Supply

INDOOR

OUTDOOR

Phase, Hz

V

Capacity

Running Current

Input Power

Annual Consumption

EER

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Capacity

Running Current

Input Power

COP

A

W

W/W

Kcal/hW

Power Factor % dB-A

Indoor Noise (H / L / QLo)

Power Level dB dB-A

Outdoor Noise (H / L)

Power Level dB

Low Temp. : Capacity (kW) / I.Power (W) / COP

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP

Max Current (A) / Max Input Power (W)

Starting Current (A)

Compressor

Type

Motor Type

Output Power W

Type

Material

Motor Type

Input Power

Output Power

Speed

QLo

Lo

Me

Hi

SHi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

W

W rpm rpm rpm rpm rpm rpm rpm rpm rpm rpm kW

BTU/h

Kcal/h

A

W kWh

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

Kcal/h

0.80

2730

690

175

4.57

3.94

Min.

0.80

2730

690

185

4.32

3.73

CS-E12JKEW-3, CS-XE12JKEW

CU-E12JKE-3

EUROVENT

Single, 50

230

Mid.

3.50

11900

3010

4.1

905

453

3.87

3.33

96

42 / 28 / 20

58 / 44 / 36

48 / -

63 / -

4.40

15000

3780

5.1

1.09k

4.04

3.47

93

42 / 33 / 30

58 / 49 / 46

50 / -

65 / -

4.85 / 1.67k / 2.90

3.75 / 1.68k / 2.23

8.9 / 1.93k

5.1

Hermetic Motor

Brushless (6-poles)

700

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

630

950

830

1010

1040

1150

1260

1300

1320

1340

6.70

22800

5760

1.93k

3.47

2.98

Max.

4.00

13600

3440

1.18k

3.39

2.92

14

MODEL INDOOR

OUTDOOR

Type

Material

Motor Type

Input Power

Output Power

Speed

Moisture Removal

Indoor Airflow

QLo

Lo

Me

Hi

SHi

Hi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Outdoor Airflow Hi

Cool

Heat

Refrigeration Cycle

Control Device

Refrigerant Oil

Dimension

Refrigerant Type

Height (I/D / O/D)

Width (I/D / O/D)

Weight

Depth (I/D / O/D)

Net (I/D / O/D)

Pipe Diameter (Liquid / Gas)

Standard Length

Length Range (min - max)

I/D & O/D Height Different

Additional Gas Amount

Length for Additional Gas

Drain Hose

Indoor Heat

Exchanger

Outdoor Heat

Exchanger

Inner Diameter

Length

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L) cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lb) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

W

W rpm

L/h (Pt/h) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) mm mm

Air Filter

Material

Type

Power Supply

Power Supply Cord

Thermostat

Protection Device

A

CS-E12JKEW-3, CS-XE12JKEW

CU-E12JKE-3

Propeller Fan

PP

Induction (6-poles)

70

30

830

2.0 (4.2)

4.9 (173)

8.7 (307)

7.2 (254)

9.4 (332)

9.7 (343)

11.0 (389)

12.5 (440)

12.8 (450)

13.1 (463)

13.3 (470)

31.0 (1090)

31.0 (1090)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 970 (34.2)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 34 (75)

6.35 (1/4) / 9.52 (3/8)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15.0 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 21

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

15

MODEL

Indoor Operation Range

Outdoor Operation Range

Cooling

Heating

Cooling

Heating

INDOOR

OUTDOOR

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Dry Bulb

CS-E12JKEW-3, CS-XE12JKEW

CU-E12JKE-3

Wet Bulb

32

16

30

16

23

11

43

16

24

-15

26

11

18

-16

1. Cooling capacities are based on indoor temperature of 27

°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35

°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20

°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry

Bulb (44.6

°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor

-7/-8

°C

5. Specifications are subjected to change without prior notice for further improvement.

16

MODEL

Performance Test Condition

Power Supply

INDOOR

OUTDOOR

Phase, Hz

V

Capacity

Running Current

Input Power

Annual Consumption

EER

Power Factor

Indoor Noise (H / L / QLo)

Outdoor Noise (H / L)

Capacity

Running Current

Input Power

COP

A

W

W/W

Kcal/hW

Power Factor % dB-A

Indoor Noise (H / L / QLo)

Power Level dB dB-A

Outdoor Noise (H / L)

Power Level dB

Low Temp. : Capacity (kW) / I.Power (W) / COP

Extr Low Temp. : Capacity (kW) / I.Power (W) / COP

Max Current (A) / Max Input Power (W)

Starting Current (A)

Compressor

Type

Motor Type

Output Power W

Type

Material

Motor Type

Input Power

Output Power

Speed

QLo

Lo

Me

Hi

SHi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

W

W rpm rpm rpm rpm rpm rpm rpm rpm rpm rpm kW

BTU/h

Kcal/h

A

W kWh

W/W

Kcal/hW

% dB-A

Power Level dB dB-A

Power Level dB kW

BTU/h

Kcal/h

0.80

2730

690

185

4.32

3.73

Min.

0.80

2730

690

195

4.10

3.54

CS-E15JKEW, CS-XE15JKEW

CU-E15JKE-1

EUROVENT

Single, 50

230

Mid.

4.20

14300

3610

5.7

1.26k

630

3.33

2.87

96

43 / 31 / 25

59 / 47 / 41

49 / -

64 / -

5.30

18100

4560

6.6

1.44k

3.68

3.17

95

43 / 35 / 32

59 / 51 / 48

51 / -

66 / -

4.92 / 1.72k / 2.86

3.94 / 1.83k / 2.15

9.0 / 1.94k

6.6

Hermetic Motor

Brushless (6-poles)

700

Cross-flow Fan

ASG20K1

Transistor (8-poles)

40

730

1000

870

1080

1070

1210

1270

1350

1340

1370

6.80

23200

5850

1.94k

3.51

3.02

Max.

5.00

17100

4300

1.57k

3.18

2.74

17

MODEL INDOOR

OUTDOOR

Type

Material

Motor Type

Input Power

Output Power

Speed

Moisture Removal

Indoor Airflow

QLo

Lo

Me

Hi

SHi

Hi

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Cool

Heat

Outdoor Airflow Hi

Cool

Heat

Refrigeration Cycle

Control Device

Refrigerant Oil

Dimension

Refrigerant Type

Height (I/D / O/D)

Width (I/D / O/D)

Weight

Depth (I/D / O/D)

Net (I/D / O/D)

Pipe Diameter (Liquid / Gas)

Standard Length

Length Range (min - max)

I/D & O/D Height Different

Additional Gas Amount

Length for Additional Gas

Drain Hose

Indoor Heat

Exchanger

Outdoor Heat

Exchanger

Inner Diameter

Length

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L)

Fin Material

Fin Type

Row x Stage x FPI

Size (W x H x L) cm

3 g (oz) mm (inch) mm (inch) mm (inch) kg (lb) mm (inch) m (ft) m (ft) m (ft) g/m (oz/ft) m (ft) mm mm

W

W rpm

L/h (Pt/h) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) m

3

/min (ft

3

/min) mm mm

Air Filter

Material

Type

Power Supply

Power Supply Cord

Thermostat

Protection Device

A

CS-E15JKEW, CS-XE15JKEW

CU-E15JKE-1

Propeller Fan

PP

Induction (6-poles)

70

30

850

2.4 (5.1)

6.0 (212)

9.2 (325)

7.7 (272)

10.2 (360)

10.1 (357)

11.7 (413)

12.5 (440)

13.4 (475)

13.3 (470)

13.6 (480)

31.4 (1110)

31.4 (1110)

Check Valve & Capillary Tube

RB68A or Freol Alpha 68M (320)

R410A, 1010 (35.7)

290 (11-7/16) / 540 (21-9/32)

870 (34-9/32) / 780 (30-23/32)

204 (8-1/16) / 289 (11-13/32)

9 (20) / 34 (75)

6.35 (1/4) / 12.7 (1/2)

5 (16.4)

3 (9.8) ~ 15 (49.2)

15 (49.2)

20 (0.2)

7.5 (24.6)

16

650

Aluminium (Pre Coat)

Slit Fin

2 x 15 x 21

610 x 315 x 25.4

Aluminium

Corrugated Fin

2 x 24 x 17

36.4 x 504 x 713

684

Polypropelene

One-touch

Outdoor Power Supply

Nil

Electronic Control

Electronic Control

18

MODEL

Indoor Operation Range

Outdoor Operation Range

Cooling

Heating

Cooling

Heating

INDOOR

OUTDOOR

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Maximum

Minimum

Dry Bulb

32

16

30

16

43

16

24

-5

CS-E15JKEW, CS-XE15JKEW

CU-E15JKE-1

Wet Bulb

23

11

26

11

18

-6

1. Cooling capacities are based on indoor temperature of 27

°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air temperature of 35

°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)

2. Heating capacities are based on indoor temperature of 20

°C Dry Bulb (68°F Dry Bulb) and outdoor air temperature of 7°C Dry

Bulb (44.6

°F Dry Bulb), 6°C Wet Bulb (42.8°F Wet Bulb)

3. Heating low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor 2/1°C

4. Heating extreme low temperature capacity, Input Power and COP measured at 230 V, indoor temperature 20

°C, outdoor

-7/-8

°C

5. Specifications are subjected to change without prior notice for further improvement.

19

• Multi Split Combination Possibility:

- A single outdoor unit enables air conditioning of up to two separate rooms for CU-2E15GBE, CU-2E18CBPG.

- A single outdoor unit enables air conditioning of up to three separate rooms for CU-3E18EBE, CU-3E23CBPG.

- A single outdoor unit enables air conditioning of up to four separate rooms for CU-4E27CBPG.

20

21

22

23

24

25

3 Features

• Inverter Technology

- Wider output power range

- Energy saving

- Quick Cooling

- Quick Heating

- More precise temperature control

E-ion Air Purifying System with Patrol Sensor

- Active e-ions are released to catch dust particles and bring them back the large positively charged filter

Environment Protection

- Non-ozone depletion substances refrigerant (R410A)

Long Installation Piping

- Long piping up to 15 meters

Easy to use remote control

Quality Improvement

- Random auto restart after power failure for safety restart operation

- Gas leakage protection

- Prevent compressor reverse cycle

- Inner protector to protect Compressor

- Noise prevention during soft dry operation

• Operation Improvement

- Quiet mode to reduce the indoor unit operating sound

- Powerful mode to reach the desired room temperature quickly

- 24-hour timer setting

• Serviceability Improvement

- Breakdown Self Diagnosis function

26

4 Location of Controls and Components

4.1.

Indoor Unit

4.2.

Outdoor Unit

4.3.

Remote Control

27

5 Dimensions

5.1.

Indoor Unit

28

5.2.

Outdoor Unit

5.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1 CU-E7JKE-3 CU-E9JKE-3

CU-E12JKE-3

5.2.2.

CU-E15JKE

29

6 Refrigeration Cycle Diagram

6.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1

30

6.2.

CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3

31

6.3.

CU-E15JKE

32

7 Block Diagram

7.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1

33

7.2.

CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3

34

7.3.

CU-E15JKE

35

8 Wiring Connection Diagram

8.1.

Indoor Unit

36

8.2.

Outdoor Unit

8.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE

37

8.2.2.

CU-E15JKE

38

8.2.3.

CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3

39

8.2.4.

CU-E15JKE-1

40

9 Electronic Circuit Diagram

9.1.

Indoor Unit

41

9.2.

Outdoor Unit

9.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE

42

9.2.2.

CU-E15JKE

43

9.2.3.

CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3

44

9.2.4.

CU-E15JKE-1

45

10 Printed Circuit Board

10.1. Indoor Unit

10.1.1.

Main Printed Circuit Board

46

10.1.2.

Power Printed Circuit Board

10.1.3.

Indicator Printed Circuit Board

47

10.1.4.

Receiver Printed Circuit Board

10.1.5.

High Voltage Power Supply Printed Circuit Board

48

10.2. Outdoor Unit

10.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1

49

10.2.2.

CU-E15JKE

50

10.2.3.

CU-E7JKE-3 CU-E9JKE-3 CU-E12JKE-3

51

11 Installation Instruction

11.1. Select the Best Location

11.1.1.

Indoor Unit

• Do not install the unit in excessive oil fume area such as kitchen, workshop and etc.

• There should not be any heat source or steam near the unit.

• There should not be any obstacles blocking the air circulation.

• A place where air circulation in the room is good.

• A place where drainage can be easily done.

• A place where noise prevention is taken into consideration.

• Do not install the unit near the door way.

• Ensure the spaces indicated by arrows from the wall, ceiling, fence or other obstacles.

• Recommended installation height for indoor unit shall be at least 2.5 m.

11.1.2.

Outdoor Unit

• If an awning is built over the unit to prevent direct sunlight or rain, be careful that heat radiation from the condenser is not obstructed.

• There should not be any animal or plant which could be affected by hot air discharged.

• Keep the spaces indicated by arrows from wall, ceiling, fence or other obstacles.

• Do not place any obstacles which may cause a short circuit of the discharged air.

• If piping length is over the [piping length for additional gas], additional refrigerant should be added as shown in the table.

11.1.3.

Indoor/Outdoor Unit Installation

Diagram

E15***,

XE15***

E18***,

XE18***

E21***,

XE21***

E24***,

XE24***

E28***

Model

Horse

Power

(HP)

Piping size

Gas

Liquid

Std.

Length

(m)

Max.

Ele-

Min.

Piping vation Length

(m) (m)

Max.

Piping

Length

(m)

Additional

Refrigerant

(g/m)

Piping

Length for add. gas

(m)

E7***,

XE7***

E9***,

XE9***

E12***,

XE12***

3/4 ~

1.75HP

3/8”

15

15

15

3

3

3

15

15

15

20

20

20

7.5

7.5

7.5

2.0 ~

3.0HP

1/2”

5/8”

1/4” 5

15

15

15

20

20

3

3

3

3

3

15

20

20

30

30

20

20

20

30

30

7.5

10

10

10

10

Example: For E9***

If the unit is installed at 10 m distance, the quantity of additional refrigerant should be 38 g .... (10-7.5) m x 15 g/m = 38 g

52

11.2. Indoor Unit

11.2.1.

How to Fix Installation Plate

The mounting wall is strong and solid enough to prevent it from the vibration.

11.2.2.

To Drill a Hole in the Wall and Install a Sleeve of Piping

1. Insert the piping sleeve to the hole.

2. Fix the bushing to the sleeve.

3. Cut the sleeve until it extrudes about 15 mm from the wall.

Caution

When the wall is hollow, please be sure to use the sleeve for tube ass’y to prevent dangers caused by mice biting the connecting cable.

4. Finish by sealing the sleeve with putty or caulking compound at the final stage.

Model Dimension

E7***, XE7***

E9***, XE9***

E12***, XE12***

E15***, XE15***

485 mm 82 mm 165 mm 158 mm 43 mm 95 mm

E18***, XE18***

E21***, XE21***

E24***, XE24***

E28***

585 mm 82 mm 165 mm 158 mm 169 mm 219 mm

The centre of installation plate should be at more than at right and left of the wall.

The distance from installation plate edge to ceiling should more than .

From installation plate left edge to unit’s left side is .

From installation plate right edge to unit’s right is .

B : For left side piping, piping connection for liquid should be about from this line.

: For left side piping, piping connection for gas should be about from this line.

1. Mount the installation plate on the wall with 5 screws or more (at least 5 screws).

(If mounting the unit on the concrete wall, consider using anchor bolts.)

• Always mount the installation plate horizontally by aligning the marking-off line with the thread and using a level gauge.

2. Drill the piping plate hole with ø70 mm hole-core drill.

• Line according to the left and right side of the installation plate. The meeting point of the extended line is the center of the hole. Another method is by putting measuring tape at position as shown in the diagram above. The hole center is obtained by measuring the distance namely 128 mm for left and right hole respectively.

• Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor side.

11.2.3.

Indoor Unit Installation

53

1. For the right rear piping

2. For the right and right bottom piping

3. For the embedded piping

54

(This can be used for left rear piping and bottom piping also.)

11.2.4.

Connect the Cable to the Indoor Unit

1. The inside and outside connecting cable can be connected without removing the front grille.

2. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 x 1.5 mm

2 flexible cord, type designation 245 IEC 57 or heavier cord.

• Secure the connecting cable onto the control board with the holder (clamper).

This equipment must be properly earthed.

• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.

• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

CUTTING AND FLARING THE PIPING

1. Please cut using pipe cutter and then remove the burrs.

2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.

Turn the piping end down to avoid the metal powder entering the pipe.

3. Please make flare after inserting the flare nut onto the copper pipes.

55

11.3. Outdoor Unit

11.3.1.

Install the Outdoor Unit

• After selecting the best location, start installation according to Indoor/Outdoor Unit Installation Diagram.

1. Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10 mm).

2. When installing at roof, please consider strong wind and earthquake. Please fasten the installation stand firmly with bolt or nails.

Model

E7***

E9***, XE9***

E12***, XE12***

E15***-1

E15***, E15***-3

E18***, XE18***

E21***

E24***, XE24***

E28***

A B C D

570 mm 105 mm 18.5 mm 320 mm

612.5 mm 131 mm 19 mm 383 mm

613 mm 131 mm 16 mm 360.5 mm

11.3.2.

Connect the Piping

Connecting the Piping to Indoor

Please make flare after inserting flare nut (locate at joint portion of tube assembly) onto the copper pipe.

(In case of using long piping)

Connect the piping

• Align the center of piping and sufficiently tighten the flare nut with fingers.

• Further tighten the flare nut with torque wrench in specified torque as stated in the table.

Do not over tighten, over tightening cause gas leakage.

Piping Size

1/4” (6.35 mm)

3/8” (9.52 mm)

1/2” (12.7 mm)

5/8” (15.88 mm)

3/4” (19.05 mm)

Torque

[18 N

•m (1.8 kgf.m)]

[42 N

•m (4.3 kgf.m)]

[55 N

•m (5.6 kgf.m)]

[65 N

•m (6.6 kgf.m)]

[100 N

•m (10.2 kgf.m)]

Connecting the Piping to Outdoor

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut

(located at valve) onto the copper pipe.

Align center of piping to valve and then tighten with torque wrench to the specified torque as stated in the table.

Connecting the Piping to Outdoor Multi

Decide piping length and then cut by using pipe cutter. Remove burrs from cut edge. Make flare after inserting the flare nut (located at valve) onto the copper pipe.

Align center of piping to valve and then tighten with torque wrench to the specified torque as stated in the table.

56

11.3.3.

Evacuation of the Equipment

WHEN INSTALLING AN AIR CONDITIONER, BE SURE TO EVACUATE THE AIR INSIDE THE INDOOR UNIT AND PIPES in the following procedure.

1. Connect a charging hose with a push pin to the Low side of a charging set and the service port of the 3-way valve.

• Be sure to connect the end of the charging hose with the push pin to the service port.

2. Connect the center hose of the charging set to a vacuum pump.

3. Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from 0 cmHg (0 MPa) to

-76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.

4. Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the gauge does not move after approximately five minutes.

Note: BE SURE TO TAKE THIS PROCEDURE IN ORDER TO AVOID REFRIGERANT GAS LEAKAGE.

5. Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.

6. Tighten the service port caps of the 3-way valve at a torque of 18 N

• m with a torque wrench.

7. Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN” using a hexagonal wrench (4 mm).

8. Mount valve caps onto the 2-way valve and the 3-way valve.

• Be sure to check for gas leakage.

CAUTION

• If gauge needle does not move from 0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa), in step above take the following measure:

- If the leak stops when the piping connections are tightened further, continue working from step .

- If the leak does not stop when the connections are retightened, repair the location of leak.

- Do not release refrigerant during piping work for installation and reinstallation.

- Take care of the liquid refrigerant, it may cause frostbite.

11.3.4.

Connect the Cable to the Outdoor Unit

1. Remove the control board cover from the unit by loosening the screw.

2. Cable connection to the power supply through Isolating

Devices (Disconnecting means).

• Connect approved type polychloroprene sheathed

power supply cord 3 x 1.5 mm

2

(3/4 ~ 1.75HP), 3 x 2.5

mm

2

(2.0 ~ 2.5HP) or 3 x 4.0 mm

2

(3.0HP) type designation 245 IEC 57 or heavier cord to the terminal board, and connect the others end of the cord to

Isolating Devices (Disconnecting means).

3. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 x 1.5 mm

2 flexible cord, type designation 245 IEC 57 or heavier cord.

4. Connect the power supply cord and connecting cable between indoor unit and outdoor unit according to the diagram below.

57

5. Secure the power supply cord and connecting cable onto the control board with the holder.

6. Attach the control board cover back to the original position with screw.

7. For wire stripping and connection requirement, refer to instruction of indoor unit.

This equipment must be properly earthed.

• Note: Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.

• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

11.3.5.

Pipe Insulation

1. Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.

2. If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by using POLY-E

FOAM with thickness 6mm or above.

58

12 Operation and Control

12.1. Basic Function

Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes, automatically adjusts output power for maximum comfort always. In order to achieve the suitable operating mode, the microcomputer maintains the set temperature by measuring the temperature of the environment and performing temperature shifting. The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the condition according to internal setting temperature and intake air temperature.

12.1.1.

Internal Setting Temperature

Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting processes.

These shifting processes are depending on the air conditioner settings and the operation environment. The final shifted value will be used as internal setting temperature and it is updated continuously whenever the electrical power is supplied to the unit.

12.1.2.

Cooling Operation

12.1.2.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5

°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point.

12.1.3.

Soft Dry Operation

12.1.3.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.0

°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF point.

12.1.4.

Heating Operation

12.1.4.1. Thermostat control

• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +2.0

°C.

• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature < Compressor OFF point.

59

12.1.5.

Automatic Operation

• This mode can be set using remote control and the operation is decided by remote control setting temperature, remote control operation mode, indoor intake air temperature and outdoor air temperature.

• During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 30 seconds to detect the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.

• Every 30 minutes, the indoor and outdoor temperature is judged. Based on remote control setting temperature, the value of T1 will increase up to 10

°C, T2 will decrease by 3°C and T3 will decrease up to 8°C.

• The Auto Operation Mode shifting will take place whenever operation mode changed from Cool/Soft Dry to Heating or vice versa.

12.2. Indoor Fan Motor Operation

A. Basic Rotation Speed (rpm)

i. Manual Fan Speed

[Cooling, Dry]

• Fan motor’s number of rotation is determined according to remote control setting.

Remote Control

Tab

O

Hi

O

Me+

O

Me

[Heating]

• Fan motor’s number of rotation is determined according to remote control setting.

O

Me-

O

Lo

Remote Control

Tab

O

SHi

O

Me+

O

Me

O

Meii. Auto Fan Speed

[Cooling, Dry]

• According to room temperature and setting temperature, indoor fan speed is determined automatically.

• The indoor fan will operate according to pattern below.

O

Lo

60

[Heating]

• According to indoor pipe temperature, automatic heating fan speed is determined as follows.

B. Feedback control

• Immediately after the fan motor started, feedback control is performed once every second.

• During fan motor on, if fan motor feedback 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan motor error is detected.

Operation stops and cannot on back.

12.3. Outdoor Fan Motor Operation

Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops 30 seconds after compressor stops operation.

12.4. Airflow Direction

1. There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by vertical vanes).

2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using remote control).

12.4.1.

Vertical Airflow

Operation Mode

Heating

Cooling and Ion

Soft Dry

Airflow Direction

Auto with Heat Exchanger

Temperature

Manual

Auto

Manual

Auto

Manual

A

B

C

1

20

20

2

Vane Angle (

°)

3 4

20

32

57

32

45

20 ~ 45

57

26

26

32

20 ~ 45

32

37

37

5

68

45

20 45

1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated above. For heating mode operation, the angle of the vane depands on the indoor heat exchanger temperature as Figure 1 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

61

2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the vane will shift to close position.

12.4.2.

Horizontal Airflow

• The horizontal airflow direction louvers can be adjusted manually by hand.

12.5. Quiet operation (Cooling Mode/Cooling area of Dry Mode)

A. Purpose

To provide quiet cooling operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “Quiet” button at remote control is pressed.

Quiet LED illuminates.

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops: a. Powerful button is pressed.

b. Stop by OFF/ON switch.

c. Timer “off” activates.

d. Quiet button is pressed again.

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

C. Control contents

1. Fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB (some models more than 3dB).

2. Fan speed for quiet operation is -1 step from setting fan speed.

12.6. Quiet operation (Heating)

A. Purpose

To provide quiet heating operation compare to normal operation.

B. Control condition

a. Quiet operation start condition

• When “Quiet” button at remote control is pressed.

Quiet LED illuminates.

b. Quiet operation stop condition

1. When one of the following conditions is satisfied, quiet operation stops: a. Powerful button is pressed.

b. Stop by OFF/ON switch.

c. Timer “off” activates.

d. Quiet button is pressed again.

62

2. When quiet operation is stopped, operation is shifted to normal operation with previous setting.

3. When fan speed is changed, quiet operation is shifted to quiet operation of the new fan speed.

4. When operation mode is changed, quiet operation is shifted to quiet operation of the new mode, expect fan only mode.

5. During quiet operation, if timer “on” activates, quiet operation maintains.

6. After off, when on back, quiet operation is not memorised.

C. Control contents

a. Fan Speed manual

1. Fan speed is changed from normal setting to quiet setting of respective fan speed.

This is to reduce sound of Hi, Me, Lo for 3dB.

2. Fan speed for quiet operation is -1 step from setting fan speed.

b. Fan Speed Auto

1. Indoor FM RPM depends on pipe temp sensor of indoor heat exchanger.

12.7. Powerful Mode Operation

• When the powerful mode is selected, the internal setting temperature will shift lower up to 2

°C (for Cooling/Soft Dry) or higher up to 3.5

°C (for Heating) than remote control setting temperature for 20 minutes to achieve the setting temperature quickly.

12.8. Timer Control

12.8.1.

ON Timer Control

• ON timer can be set using remote control, the unit with timer set will start operate earlier than the setting time. This is to provide a comfortable environment when reaching the set ON time.

• 60 minutes before the set time, indoor (at fan speed of Lo-) and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time.

• From the above judgment, the decided operation will start operate earlier than the set time as shown below.

12.8.2.

OFF Timer Control

OFF timer can be set using remote control, the unit with timer set will stop operate at set time.

12.9. Auto Restart Control

1. When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly) after power supply resumes.

2. This type of control is not applicable during ON/OFF Timer setting.

63

12.10. Indication Panel

LED

Color

POWER

Green

TIMER

Orange

QUIET

Orange

POWERFUL

Orange e-ion

Blue

Mild Dry Cooling

Blue

Light ON Operation ON Quiet Setting ON Quiet Mode ON Powerful Mode ON e-ion ON Mild Dry Cooling ON

Light OFF Operation OFF Quiet Setting OFF Quiet Mode OFF Powerful Mode OFF e-ion OFF Mild Dry Cooling OFF

PATROL SENSOR

Blue

PATROL ON

PATROL OFF

Note:

• If POWER LED is blinking, the possible operation of the unit are Hot Start, during Deice operation, operation mode judgment, or

ON timer sampling.

• If Timer LED is blinking, there is an abnormality operation occurs.

• If e-ion LED is blinking, there is an abnormality of e-ion occurs.

• If PATROL LED is blinking, there is a gas sensor error detection.

12.11. Patrol Operation

A. Purpose

To monitor air dirtiness level by using Patrol sensor and to maintain air freshness by activates e-ion operation.

B. Control Condition

a. Patrol operation start condition

• When the unit operation is started with “OFF/ON” button.

• When the unit stops, “Patrol” button is pressed, Patrol individual operation will start.

• During cooling only operation, “Patrol” button is pressed.

b. Patrol operation stop condition

When any of the following condition is fulfilled:

• When “OFF/ON” button is pressed.

• During any operation with Patrol, “Patrol” button is pressed again.

• When “e-ion” button is pressed.

• When OFF Timer activates.

64

c. Patrol operation disable

• To disable the Patrol Operation during unit start (default) with “OFF/ON” button, press “Patrol” button and hold for 5 seconds, then release.

• To disable the Patrol Operation, press “Patrol” button and hold for 15 seconds, then release.

C. Control Content

a. Patrol Sensor Control

• First 2 minutes from Patrol function activates is stabilization time, during stabilization time, no air dirtiness level is monitored.

The Air Dirtiness level is set to level 2.

• After that, gas sensor starts to record the resistance value at fixed interval. Higher resistance value indicates cleaner air.

• The air dirtiness level is monitored by comparing the current resistance value with maximum resistance value from time to time to get the Air Dirtiness Value.

• There are 3 air dirtiness levels, based on the Air Dirtiness Value:

- Air Dirtiness level 0: Clean

- Air Dirtiness level 1: Moderate

- Air Dirtiness level 2: Contaminated

• Dirtiness level sensitivity adjustment

It is possible to change the gas sensor sensitivity, where the Threshold value (G1 ~ G4) will be shifted accordingly:

1. Press and release “SET” buttton.

2. Press “Timer increment” / “Timer decrement” button to select sensitivity. (Low Standard (Default) High)

3. Confirm setting by pressing “Timer Set” button. LCD returned to original display after 2 seconds.

4. LCD returned to original display if remote control does not operate for 30 seconds.

b. e-ion Control

• When dirtiness level is 1 or 2, e-ion operation starts.

• If dirtiness level improves from level 2 to level 1, the unit carries out level change after 60 seconds.

• When dirtiness level returns to level 0 continuously for 10 minutes or more, e-ion operation stops.

Dirtiness Level Shift

• For Auto Fan Speed, the fan speed increased based on dirtiness level: c. Indoor Fan Control

• During any operation mode combines with Patrol operation, fan speed follows respective operation mode.

• During Patrol individual operation if e-ion starts, only Auto Fan Speed and no Powerful operation is allowed. Even if “Fan

Speed” button is pressed, no signal is sent to air conditioner, and no change on LCD display.

• During Patrol individual operation if e-ion stops, Indoor Fan stop operation.

d. Airflow direction (Horizontal, Vertical) Control

• During any operation mode combines with Patrol operation, airflow direction follows respective operation mode.

• During Patrol individual operation if e-ion starts, only Auto Air Swing is allowed. Even if “Air Swing” button is pressed, no signal is sent to air conditioner, and no change on LCD display.

• During Patrol individual operation if e-ion stops, Airflow direction louver closed.

65

e. Indicator

• When Patrol operation starts, Patrol Sensor indicator ON.

• When e-ion operation starts based on dirtiness level, e-ion indicator ON.

f. Remote Control Receiving Sound

• Normal Operation

• Patrol Mode

• Patrol Mode

• Stop

Patrol Mode

Stop

Normal Operation

Patrol

:

:

: Beep

Long Beep

Beep

: Beep g. Timer Control

• When ON timer activates when unit stops, previous operation resumes and restored last saved patrol operation status.

• When ON timer activates during any operation, no change and carry on current operation.

• When OFF timer activates during any operation, all operation stops and the latest patrol operation status is saved.

h. Power failure

• During Patrol individual operation, if power failure occurs, after power resumes, Patrol individual operation resumes immediately.

• During combination operation, if power failure occurs, after power resumes combination operation resume immediately.

i. Error Detection Control

• The Patrol error detection control starts once the power is supplied to Patrol sensor. However, the error will display when the

Patrol operation is ON.

• Error detection method:

- If the Patrol sensor feedback is 0V or 5V continuous for 6 hours, Patrol sensor error occurs. However, the error will display only when the Patrol operation is ON.

• Patrol Sensor Control after error occurs

- During any operation mode combines with Patrol operation

• Power supply to Patrol sensor is OFF

• Air conditioner normal mode operation continues with Patrol LED and Timer LED blinking and “H58” is indicated.

• Timer LED will always blinking and the Patrol LED continues blinking if the Patrol operation is ON and stops blinking if the patrol operation is OFF.

- During Patrol individual mode

• Power supply to Patrol sensor is OFF

• Patrol LED and Timer LED blinking and “H58” is indicated.

• Timer LED will always blinking and the Patrol LED continues blinking if the Patrol operation is ON and stops blinking if the

Patrol operation is OFF.

• Error cancel condition:

- Power supply reset

12.12. e-ion Operation

A. Purpose

This operation provides clean air by producing negative ions to attract dust captured at the positively charged e-ion filters.

66

B. Control Condition

a. e-ion operation start condition

• During unit running at any operation mode, if “e-ion” button is pressed, combination operation (operation mode + e-ion operation) starts.

• During unit is OFF, if “e-ion” button is pressed, e-ion individual operation starts.

b. e-ion operation stop condition

• When “OFF/ON” button is pressed to stop the operation.

• When “e-ion” button is pressed again.

• When “Patrol” button is pressed.

• When OFF Timer activates.

c. e-ion operation pause condition

• When indoor fan stop (during deice, odor cut control, thermostat off, etc.). e-ion operation resume after indoor fan restarts.

• When indoor intake temperature 40

°C. e-ion operation resume after indoor intake temperature < 40°C continuously for 30 minutes.

C. Control Content

a. Indoor fan control

• During any operation mode combines with e-ion operation, fan speed follows respective operation mode.

• During e-ion individual operation - only Auto Fan Speed and no Powerful operation is allowed. Even if Fan Speed button is pressed, no signal is sent to air conditioner, and no change on LCD display.

Auto Fan Speed for e-ion operation switches between HLo and CLo at pattern below: b. Airflow direction control

• During any operation mode combines with e-ion operation, airflow direction follows respective operation mode.

• During e-ion individual operation, only Auto Air Swing is allowed. Even if Air Swing button is pressed, no signal is sent to air conditioner, and no change on LCD display.

c. Timer control

• When ON timer activates when unit stops, previous operation resumes and restores last saved e-ion operation status.

• When ON timer activates during any operation, no change and carry on current operation.

• When OFF timer activates during any operation, all operation stops and the latest e-ion operation status is saved.

d. Indicator

• When e-ion operation starts, e-ion indicator ON.

e. e-ion Check Mode

• To check if e-ion is malfunctioning, press “e-ion” button and follow by “Check” button to enter e-ion check mode and supplies power to the e-ion Air Purifying System.

• If abnormal discharge is detected at filter (short-circuited) due to water or dust adhesion, etc., the e-ion indicator blinks immediately.

f. Power failure

• During e-ion individual operation, if power failure occurs, after power resumes, e-ion individual operation resumes immediately.

• During combination operation, if power failure occurs, after power resumes, combination operation resume immediately.

g. Error Detection Control

When e-ion indicator blink, it indicates error listed below: i. e-ion Air Purifying system main connector to PCB is open:

Judgement Method

• During e-ion operation (include during Patrol operation), e-ion Air Purifying system main connector to PCB is opened.

67

Troubleshooting Methods

• Connect the connector or stop operation (include during Patrol operation) to cancel the blinking.

ii. Abnormal Discharge

Judgement Method

• During e-ion operation, when feedback voltage is -Lo (at microcontroller) is detected, it is judged abnormal discharge and stops power supplies to the e-ion Air Purifying system.

• The unit retries after 30 minutes and repeat for 24 times. (not applicable for e-ion Check Mode)

Troubleshooting Method

• Press “e-ion” button or “OFF/ON” button to stop the operation and check the e-ion Air Purifying system main connector to

PCB.

• After that, press “e-ion” button again to confirm the e-ion indicator not blinking.

• The 24 times counter will be clear after 10 minutes of normal operation or when operation stops.

Error Reset Method

• Press “OFF/ON” button to OFF the operation.

• Press AUTO OFF/ON button at indoor unit to OFF the operation.

• OFF Timer activates.

• Press “e-ion” button during e-ion individual mode.

• Power supply reset.

iii. e-ion breakdown

Judgement Method

• When hi-feedback voltage (at microcontroller) supplied to filter during e-ion stop, due to PCB or filter’s high voltage power supply damage.

• Operations except e-ion continue. Both Timer indicator and e-ion indicator blink.

Troubleshooting Method

• Press “e-ion” button or “OFF/ON” button to stop the operation.

• Change main circuit board or filter’s high voltage power supply.

• When lo-feedback voltage supplied to e-ion Air Purifying system during e-ion operation, e-ion indicator and Timer indicator stop blinking.

12.13. Mild Dry Cooling Operation

• This operation helps to prevent decreases in room humidity while maintaining the setting temperature.

• During unit running at Cooling operation mode, if “Mild Dry Cooling” button is pressed, Mild Dry Cooling operation starts and Mild

Dry Cooling indicators turns ON.

• Mild dry cooling operation is unavailable when the unit is operating Auto mode, Soft Dry mode, Patrol individual operation or e-ion individual operation.

• Mild dry cooling operation is cancelled when the unit turned OFF, or when the operation mode changed from Cooling to other mode.

• Powerful, Quiet and Mild Dry Cooling mode cannot function at the same time, the unit will follows the operation according to the last signal received.

• During this operation, the compressor frequency changes according to operating condition to prevent room humidity decreases and when AUTO AIR SWING is set, the vertical airflow direction fixed at lower limit position.

68

13 Protection Control

13.1. Protection Control For All Operations

13.1.1.

Restart Control (Time Delay Safety Control)

• The Compressor will not turn on within 3 minutes from the moment operation stops, although the unit is turned on again by pressing OFF/ON button at remote control within this period.

• This control is not applicable if the power supply is cut off and on again.

• This phenomenon is to balance the pressure inside the refrigerant cycle.

13.1.2.

30 Seconds Forced Operation

• Once the air conditioner is turned on, the compressor will not stop within 30 seconds in a normal operation although the intake air temperature has reached the thermo-off temperature. However, force stop by pressing the OFF/ON button at the remote control is permitted or the Auto OFF/ON button at indoor unit.

• The reason for the compressor to force operation for minimum 30 seconds is to allow the refrigerant oil run in a full cycle and return back to the outdoor unit.

13.1.3.

Total Running Current Control

1. When the outdoor unit total running current (AC) exceeds X value, the frequency instructed for compressor operation will be decreased.

2. If the running current does not exceed X value for 5 seconds, the frequency instructed will be increased.

3. However, if total outdoor unit running current exceeds Y value, compressor will be stopped immediately for 3 minutes.

Model

Operation Mode

Cooling/Soft Dry (A)

Cooling/Soft Dry (B)

Heating

X (A)

3.95

3.6

4.37

E7JK

Y (A)

15.0

15.0

15.0

X (A)

4.54

4.12

5.57

E9JK

Y (A)

15.0

15.0

15.0

4. The first 30 minutes of cooling operation, (A) will be applied.

X (A)

6.86

6.35

8.03

E12JK

Y (A)

15.0

15.0

15.0

E15JK-1

X (A) Y (A)

7.52

7.16

8.55

15.0

15.0

15.0

X (A)

E15JKE

Y (A)

9.0

8.5

9.8

15.0

15.0

15.0

13.1.4.

IPM (Power transistor) Prevention Control

A. Overheating Prevention Control

1. When the IPM temperature rises to 100

°C, compressor operation will stop immediately.

2. Compressor operation restarts after 3 minutes the temperature decreases to 95

°C.

3. If this condition repeats continuously 4 times within 20 minutes, timer LED will be blinking (“F96” is indicated).

B. DC Peak Current Control

1. When electric current to IPM exceeds set value of 18.5 A, the compressor will stop operate. Then, operation will restart after 3 minutes.

2. If the set value is exceeded again more than 30 seconds after the compressor starts, the operation will restart after 2 minutes.

3. If the set value exceeded again within 30 seconds after the compressor starts, the operation will restart after 1 minute. If this condition repeats continuously for 7 times, all indoor and outdoor relays will be cut off, timer LED will be blinking (“F99” is indicated).

69

13.1.5.

Compressor Overheating Prevention Control

• Instructed frequency for compressor operation will be regulated by compressor discharge temperature. The changes of frequency are as below.

• If compressor discharge temperature exceeds 110

°C, compressor will be stopped, occurs 4 times per 20 minutes, timer LED will be blinking. (“F97” is indicated.)

13.1.6.

Low Pressure Prevention Control (Gas Leakage Detection)

a. Control start conditions

• For 5 minutes, the compressor continuously operates and outdoor total current is between 0.65A and 1.65A.

• During Cooling and Soft Dry operations:

Indoor suction temperature - indoor piping temperature is below 4

°C.

• During Heating operations :

Indoor piping temperature - indoor suction is under 5

°C.

b. Control contents

• Compressor stops (and restart after 3 minutes).

• If the conditions above happen 2 times within 20 minutes, the unit will:

- Stop operation

- Timer LED blinks and “F91” indicated.

13.1.7.

Compressor Tank Temperature Rise Protection Control

a. Control start conditions

• For 5 minutes, the compressor continuously operates and outdoor total current is between 0.65A and 1.65A.

• During Cooling and Soft Dry operations:

Indoor suction temperature - indoor piping temperature is below 4

°C.

Indoor temperature and outdoor temperature is 30±5

°C.

Remote Control setting 16

°C and Hi Fan Speed.

• During Heating operations:

Indoor piping temperature - indoor suction is under 5

°C.

Indoor temperature and outdoor temperature is 20 ± 2

°C.

Remote control setting 30

°C and Hi Fan Speed.

b. Control contents

• Compressor stops (and restart after 3 minutes)

• If the conditions above happen 2 times within 20 minutes, the unit will:

- Stop operation

- Timer LED blinks and “F91” indicated

13.1.8.

Low Frequency Protection Control 1

• When the compressor operate at frequency lower than 24 Hz continued for 20 minutes, the operation frequency will be changed to 23 Hz for 2 minutes.

70

13.1.9.

Low Frequency Protection Control 2

• When all the below conditions comply, the compressor frequency will change to lower frequency.

Temperature, T, for:

Indoor intake air (

°C)

Outdoor air (

°C)

Indoor heat exchanger (

°C)

Cooling/Soft Dry

T < 15 or T 30

T < 16 or T 38

T < 30

Heating

T < 4 or T 24

13.2. Protection Control For Cooling & Soft Dry Operation

13.2.1.

Outdoor Air Temperature Control

• The compressor operating frequency is regulated in accordance to the outdoor air temperature as shown in the diagram below.

• This control will begin 1 minute after the compressor starts.

• Compressor frequency will adjust base on outdoor air temperature.

13.2.2.

Cooling Overload Control

• Detects the Outdoor pipe temperature and carry out below restriction/limitation (Limit the compressor Operation frequency)

• The compressor stop if outdoor pipe temperature exceeds 61

°C

• If the compressor stops 4 times in 20 minutes, Timer LED blinking (F95 indicated: outdoor high pressure rise protection)

13.2.3.

Freeze Prevention Control 1

1. When indoor heat exchanger temperature is lower than 0

°C continuously for 6 minutes, compressor will stop operating.

2. Compressor will resume its operation 3 minutes after the indoor heat exchanger is higher than 13

°C.

3. At the same time, indoor fan speed will be higher than during its normal operation.

4. If indoor heat exchanger temperature is higher than 13

°C for 5 minutes, the fan speed will return to its normal operation.

13.2.4.

Freeze Prevention Control 2

1. Control start conditions

• During Cooling operation and soft dry operation

- During thermo OFF condition, indoor intake temperature is less than 10

°C or

- Compressor stops for freeze prevention control

• Either one of the conditions above occurs 5 times in 60 minutes.

2. Control contents

• Operation stops

• Timer LED blinks and “H99” indicated

13.2.5.

Dew Prevention Control 1

• To prevent dew formation at indoor unit discharge area.

• This control will be activated if:

- Outdoor air temperature and Indoor pipe temperature judgment by microcontroller is fulfilled.

- When Cooling or Dry mode is operated more than 20 minutes or more.

• This control stopped if:

- Compressor stopped.

- Remote control setting changed (fan speed / temperature).

- Outdoor air temperature and indoor intake temperature changed.

• Fan speed, angle of louver (vertical airflow angle) will be adjusted accordingly in this control.

- Fan speed will be increased slowly if the unit is in quiet mode but no change in normal cooling mode.

71

13.2.6.

Dew Prevention Control 2

• To prevent dew formation at indoor unit discharge area.

• This control starts if all conditions continue for 20 minutes:

- Operated with Cooling or Soft Dry Mode.

- Indoor intake temperature is between 25

°C and 29°C.

- Outdoor air temperature is less than 30

°C.

- Quiet Lo fan speed.

• This control stopped if:

- When receive air swing change signal from Remote Control.

• The horizontal louver will be fixed at 26

° (regardless of Auto or Manual Airflow Direction Setting).

13.3. Protection Control For Heating Operation

13.3.1.

Intake Air Temperature Control

Compressor will operate at Max freq. if either one of the below conditions occur:

1. When the indoor intake air temperature is 30

°C or above.

13.3.2.

Outdoor Air Temperature Control

• The Max current value is regulated when the outdoor air temperature rise above 16

°C in order to avoid compressor overloading.

13.3.3.

Overload Protection Control

• The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown below.

• If the heat exchanger temperature exceeds 60

°C, compressor will stop.

13.3.4.

Low Temperature Compressor Oil Return Control

• In heating operation, if the outdoor temperature falls below -10

°C when compressor starts, the compressor frequency will be regulated up to 600 seconds.

13.3.5.

Cold Draught Prevention Control

• When indoor pipe temperature is low, cold draught operation starts where indoor fan speed will be reduced.

13.3.6.

Deice Operation

• When outdoor pipe temperature and outdoor air temperature is low, deice operation start where indoor fan motor and outdoor fan motor stop and operation LED blinks.

72

14 Servicing Mode

14.1. Auto OFF/ON Button

1. AUTO OPERATION MODE

The Auto operation will be activated immediately once the Auto OFF/ON button is pressed. This operation can be used to operate air conditioner with limited function if remote control is misplaced or malfunction.

2. TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run operation will be activated if the Auto OFF/ON button is pressed continuously for more than 5 seconds. A “beep” sound will heard at the fifth seconds, in order to identify the starting of Test Run operation (Forced cooling operation). Within 5 minutes after Forced cooling operation start, the Auto OFF/ON button is pressed for more than 5 seconds. A 2 “beep” sounds will heard at the fifth seconds, in order to identify the starting of Forced heating operation.

The Auto OFF/ON button may be used together with remote control to set / change the advance setting of air conditioner operation.

3. REMOTE CONTROL NUMBER SWITCH MODE

The Remote Control Number Switch Mode will be activated if the Auto OFF/ON button is pressed continuously for more than

11 seconds (3 “beep” sounds will occur at 11th seconds to identify the Remote Control Number Switch Mode is in standby condition) and press “AC RESET” button and then press any button at remote control to transmit and store the desired transmission code to the EEPROM.

There are 4 types of remote control transmission code could be selected and stored in EEPROM of indoor unit. The indoor unit will only operate when received signal with same transmission code from remote control. This could prevent signal interference when there are 2 or more indoor units installed nearby together.

To change remote control transmission code, short or open jumpers at the remote control printed circuit board.

Open

Remote Control Printed Circuit Board

Jumper A (J-A)

Short

Jumper B (J-B)

Open

Open

Remote Control No.

A (Default)

B

Short

Open

Short

Short

C

D

• During Remote Control Number Switch Mode, press any button at remote control to transmit and store the transmission code to the EEPROM.

73

4. REMOTE CONTROL RECEIVING SOUND OFF/ON MODE

The Remote Control Receiving Sound OFF/ON Mode will be activated if the Auto OFF/ON button is pressed continuously for more than 16 seconds (4 “beep” sounds will occur at 16th seconds to identify the Remote Control Receiving Sound Off/On

Mode is in standby condition) and press “AC Reset” button and then press “Check” button at remote control.

Press “Auto OFF/ON button” to toggle remote control receiving sound.

- Short “beep”: Turn OFF remote control receiving sound.

- Long “beep”: Turn ON remote control receiving sound.

After Auto OFF/ON Button is pressed, the 20 seconds counter for Remote Control Receiving Sound OFF/ON Mode is restarted.

14.2. Remote Control Button

14.2.1.

SET BUTTON

• To check remote control transmission code and store the transmission code to EEPROM

- Press “SET” button for more than 10 seconds by using pointer.

- Press “TIMER SET” button until a “beep” sound is heard as confirmation of transmission code changed.

• To change the air quality sensor sensitivity

- Press and release by using pointer.

- Press the Timer Decrement button to select sensitivity:

1. Low Sensitivity

2. Standard (Default)

3. Hi Sensitivity

- Confirm setting by pressing Timer Set button, a “Beep” sound will be heard. LCD returns to original display after 2 seconds.

- LCD returns to original display if remote control does not operate for 30 seconds.

14.2.2.

CLOCK BUTTON

• To change the remote control’s time format

- Press for more than 5 seconds.

14.2.3.

RESET (RC)

• To clear and restore the remote control setting to factory default

- Press once to clear the memory.

14.2.4.

RESET (AC)

• To restore the unit’s setting to factory default

- Press once to restore the unit’s setting.

14.2.5.

TIMER

• To change indoor unit indicator’s LED intensity

- Press continuously for 5 seconds.

14.2.6.

TIMER

• To change remote control display from Degree Celsius (

°C) to Degree Fahrenheit (°F).

- Press continuously for 10 seconds.

74

15 Troubleshooting Guide

15.1. Refrigeration Cycle System

In order to diagnose malfunctions, make sure that there are no electrical problems before inspecting the refrigeration cycle.

Such problems include insufficient insulation, problem with the power source, malfunction of a compressor and a fan.

The normal outlet air temperature and pressure of the refrigeration cycle depends on various conditions, the standard values for them are shown in the table on the right.

75

15.1.1.

Relationship between the condition of the air conditioner and pressure and electric current

Condition of the air conditioner

Low Pressure

Cooling Mode

High Pressure

Electric current during operating

Low Pressure

Heating Mode

High Pressure

Electric current during operating

Insufficient refrigerant

(gas leakage)

Clogged capillary tube or Strainer

Short circuit in the indoor unit

Heat radiation deficiency of the outdoor unit

Inefficient compression

• Carry out the measurements of pressure, electric current, and temperature fifteen minutes after an operation is started.

76

15.2. Breakdown Self Diagnosis Function

15.2.1.

Self Diagnosis Function (Three Digits Alphanumeric Code)

• Once abnormality has occurred during operation, the unit will stop its operation, and Timer LED blinks.

• Although Timer LED goes off when power supply is turned off, if the unit is operated under a breakdown condition, the

LED will light up again.

• In operation after breakdown repair, the Timer LED will no more blink. The last error code (abnormality) will be stored in

IC memory.

To make a diagnosis

1. Timer LED start to blink and the unit automatically stops the operation.

2. Press the CHECK button on the remote controller contiguously for 5 seconds.

3. “- -” will be displayed on the remote controller display.

Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

4. Press the “TIMER” or button on the remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit.

5. Every press of the button (up or down) will increase abnormality numbers and transmit abnormality code signal to the main unit.

6. When the latest abnormality code on the main unit and code transmitted from the remote controller are matched, power LED will light up for 30 seconds and a beep sound

(continuously for 4 seconds) will be heard. If no codes are matched, power LED will light up for 0.5 seconds and no sound will be heard.

7. The breakdown diagnosis mode will be canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8. The LED will be off if the unit is turned off or the RESET button on the main unit is pressed.

7. The breakdown diagnosis mode will be canceled unless pressing the CHECK button continuously for 5 seconds or operating the unit for 30 seconds.

8. The same diagnosis can be repeated by turning power on again.

To clear memorized error (Protective operation) status

after repair:

1. Turn power on (in standby condition).

2. Press the AUTO button for 5 seconds (A beep receiving sound) on the main unit to operate the unit at Forced

Cooling Operation modes.

3. Press the CHECK button on the remote controller for about 1 second with a pointed object to transmit signal to main unit. A beep sound is heard from main unit and the data is cleared.

Temporary Operation (Depending on breakdown status)

1. Press the AUTO button (A beep receiving sound) on the main unit to operate the unit. (Remote control will become possible.)

2. The unit can temporarily be used until repaired.

To display memorized error (Protective operation)

status

1. Turn power on.

2. Press the CHECK button on the remote controller contiguously for 5 seconds.

3. “- -” will be displayed on the remote controller display.

Note: Display only for “- -”. (No transmitting signal, no receiving sound and no Power LED blinking.)

Error Code

H23

H27, H28

Operation

Cooling

Cooling, Heating

Temporary items

Emergency Operation with limited power

4. Press the “TIMER” or button on the remote controller. The code “H00” (no abnormality) will be displayed and signal will be transmitted to the main unit.

The power LED lights up. If no abnormality is stored in the memory, three beeps sound will be heard.

5. Every press of the button (up or down) will increase abnormality numbers and transmit abnormality code signal to the main unit.

6. When the latest abnormality code on the main unit and code transmitted from the remote controller are matched, power LED will light up for 30 seconds and a beep sound

(continuously for 4 seconds) will be heard. If no codes are matched, power LED will light up for 0.5 seconds and no sound will be heard.

77

15.3.

Error Codes Table

H16

H19

H23

H25

H27

H00

H11

H12

H14

H15

H33

H34

H36

H37

H38

H39

H28

H30

H32

H41

H58

H64

H97

H98

H99

F11

F17

F90

Diagnosis display

Abnormality / Protection control

Abnormality

Judgement

Emergency operation

Primary location to verify

No abnormality detected

Indoor / outdoor abnormal communication

Indoor unit capacity unmatched

Indoor intake air temperature sensor abnormality

Outdoor compressor temperature sensor abnormality

Outdoor Current Transformer open circuit

Indoor fan motor merchanism lock

Indoor heat exchanger temperature sensor abnormality

E-Ion breakdown

— Normal operation

> 1 min after starting operation

Indoor fan operation only

Continue for 5 sec.

Continue for 5 sec.

7 times occurance continuously

Continue for 5 sec.

Continue for 5 sec.

Continue for 5 sec.

Continue for 5 sec.

O

(Cooling only)

O

O

• Internal / external cable connections

• Indoor / Outdoor PCB

• Intake air temperature sensor

(defective or disconnected)

• Compressor temperature sensor

(defective or disconnected)

• Outdoor PCB

• IPM (Power transistor) module

• Indoor PCB

• Fan motor

• Heat exchanger temperature sensor

(defective or disconnected)

• Indoor PCB

• E-Ion PCB

• Outdoor temperature sensor (defective or disconnected)

• Outdoor heat exchanger temperature sensor (defective or disconnected)

• Discharge temperature sensor

Outdoor air temperature sensor abnormality

Outdoor heat exchanger temperature sensor 1 abnormality

Outdoor discharge temperature sensor abnormality

Outdoor heat exchanger temperature sensor 2 abnormality

Indoor/Outdoor wrong connection

Outdoor heat sink temperature sensor abnormality

Outdoor gas pipe temperature sensor abnormality

Outdoor liquid pipe temperature sensor abnormality

Indoor/Outdoor mismatch (brand code)

Abnormal indoor operating unit or standby units

Abnormal wiring or piping connection

Abnormal gas sensor

Continue for 6 hours

• Indoor/Outdoor supply voltage

• Gas sensor

(defective or disconnected)

— Outdoor high pressure sensor abnormality

Outdoor Fan Motor lock abnormality —

Indoor high pressure protection

Indoor heat exchanger anti-freezing protection

Cooling / Heating cycle changeover abnormality

Indoor standby units freezing abnormality

PFC control

2 times occurance within 20 minutes

4 times occurance within 30 minutes

4 times occurance within 10 minutes

• Outdoor PCB

• Outdoor Fan Motor

• Air filter dirty

• Air circulation short circuit

• Insufficient refrigerant

• Air filter dirty

• 4-way valve

• V-coil

• Voltage at PFC

78

Diagnosis display

Abnormality / Protection control

Abnormality

Judgement

Emergency operation

Primary location to verify

F91

F93

F94

F95

Refrigeration cycle abnormality 7 times occurance continuously

Outdoor compressor abnormal revolution 4 times occurance within 20 minutes

Compressor discharge pressure overshoot protection

Outdoor cooling high pressure protection 4 times occurance within 20 minutes

IPM (power transistor) overheating protection

4 times occurance within 30 minutes

• No refrigerant

(3-way valve is closed)

• Outdoor compressor

• Outdoor refrigerant circuit

F96

F97

F98

F99

Outdoor compressor overheating protection

Total running current protection

Outdoor Direct Current (DC) peak detection

4 times occurance within 20 minutes

3 times occurance within 20 minutes

7 times occurance continuously

• Excess refrigerant

• Improper heat radiation

• IPM (Power transistor)

• Insufficient refrigerant

• Compressor

• Excess refrigerant

• Improper heat radiation

• Outdoor PCB

• IPM (Power transistor)

• Compressor

Note:

“O” - Frequency measured and fan speed fixed.

The memory data of error code is erased when the power supply is cut off, or press the Auto Switch until “beep” sound heard following by pressing the “CHECK” button at Remote Control.

Although operation forced to stop when abnormality detected, emergency operation is possible for certain errors (refer to Error

Codes Table) by using Remote Control or Auto Switch at indoor unit. However, the Remote Control signal receiving sound is changed from one “beep” to four “beep” sounds.

79

15.4. Self-diagnosis Method

15.4.1.

H11 (Indoor/Outdoor Abnormal Communication)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the data received from outdoor unit in indoor unit signal transmission is checked whether it is normal.

Malfunction Caused

• Faulty indoor unit PCB.

• Faulty outdoor unit PCB.

• Indoor unit-outdoor unit signal transmission error due to wrong wiring.

• Indoor unit-outdoor unit signal transmission error due to breaking of wire in the connection wires between the indoor and outdoor units.

• Indoor unit-outdoor unit signal transmission error due to disturbed power supply waveform.

Troubleshooting

80

15.4.2.

H12 (Indoor/Outdoor Capacity Rank Mismatched)

Malfunction Decision Conditions

During startup, error code appears when different types of indoor and outdoor units are interconnected.

Malfunction Caused

• Wrong models interconnected.

• Wrong indoor unit or outdoor unit PCBs mounted.

• Indoor unit or outdoor unit PCBs defective.

• Indoor-outdoor unit signal transmission error due to wrong wiring.

• Indoor-outdoor unit signal transmission error due to breaking of wire 3 in the connection wires between the indoor and outdoor units.

Troubleshooting

81

15.4.3.

H14 (Indoor Intake Air Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the indoor intake air temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

82

15.4.4.

H15 (Compressor Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor compressor temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

83

15.4.5.

H16 (Outdoor Current Transformer Open Circuit)

Malfunction Decision Conditions

A current transformer (CT) is detected by checking the compressor running frequency ( rated frequency) and CT detected input current (less than 0.65A) for continuously 20 seconds.

Malfunction Caused

• CT defective

• Outdoor PCB defective

• Compressor defective (low compression)

Troubleshooting

84

15.4.6.

H19 (Indoor Fan Motor - DC Motor Mechanism Locked)

Malfunction Decision Conditions

The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor (feedback of rotation > 2550rpm or < 50rpm)

Malfunction Caused

• Operation stops due to short circuit inside the fan motor winding.

• Operation stops due to breaking of wire inside the fan motor.

• Operation stops due to breaking of fan motor lead wires.

• Operation stops due to Hall IC malfunction.

• Operation error due to faulty indoor unit PCB.

Troubleshooting

85

15.4.7.

H23 (Indoor Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the indoor heat exchanger temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

86

15.4.8.

H25 (e-ion Air Purifying System Abnormal)

Malfunction Decision Conditions

During standby of cooling and heating operation, e-ion breakdown occurs and air conditioner stops operation.

Malfunction Caused

• Faulty indoor main PCB.

• Faulty indoor e-ion power module.

Troubleshooting

87

15.4.9.

H27 (Outdoor Air Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor air temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

88

15.4.10. H28 (Outdoor Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

89

15.4.11. H30 (Compressor Discharge Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor discharge pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

90

15.4.12. H32 (Outdoor Heat Exchanger Temperature Sensor 2 Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor heat exchanger temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

91

15.4.13. H33 (Unspecified Voltage between Indoor and Outdoor)

Malfunction Decision Conditions

The supply power is detected for its requirement by the indoor/outdoor transmission.

Malfunction Caused

• Wrong models interconnected.

• Wrong indoor unit and outdoor unit PCBs used.

• Indoor unit or outdoor unit PCB defective.

Troubleshooting

92

15.4.14. H34 (Outdoor Heat Sink Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor heat sink temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

93

15.4.15. H36 (Outdoor Gas Pipe Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor gas pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

94

15.4.16. H37 (Outdoor Liquid Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

During startup and operation of cooling and heating, the temperatures detected by the outdoor liquid pipe temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

Troubleshooting

95

15.4.17. H58 (Patrol Sensor Abnormality)

Malfunction Decision Conditions

• If Patrol sensor feedback is 0V or 5V continuous for 6 hours.

• Error will display only when the Patrol operation is ON.

Malfunction Caused

• Faulty connector connection.

• Faulty Patrol sensor.

Troubleshooting

96

15.4.18. H97 (Outdoor Fan Motor - DC Motor Mechanism Locked)

Malfunction Decision Conditions

The rotation speed detected by the Hall IC during fan motor operation is used to determine abnormal fan motor.

Malfunction Caused

• Operation stops due to short circuit inside the fan motor winding.

• Operation stops due to breaking of wire inside the fan motor.

• Operation stops due to breaking of fan motor lead wires.

• Operation stops due to Hall IC malfunction.

• Operation error due to faulty outdoor unit PCB.

Troubleshooting

97

15.4.19. H98 (Indoor High Pressure Protection)

Error Code will not display (no Timer LED blinking) but store in EEPROM

Malfunction Decision Conditions

During heating operation, the temperature detected by the indoor pipe temperature sensor is above 60

°C.

Malfunction Caused

• Clogged air filter of the indoor unit

• Dust accumulation on the indoor unit heat exchanger

• Air short circuit

• Detection error due to faulty indoor pipe temperature sensor

• Detection error due to faulty indoor unit PCB

Troubleshooting

98

15.4.20. H99 (Indoor Freeze Prevention Protection: Cooling or Soft Dry)

Error code will not display (no TIMER LED blinking) but store in EEPROM

Malfunction Decision Conditions

Freeze prevention control takes place (when indoor pipe temperature is lower than 2

°C)

Malfunction Caused

• Clogged air filter of the indoor unit

• Dust accumulation on the indoor unit heat exchanger

• Air short circuit

• Detection error due to faulty indoor pipe temperature sensor

• Detection error due to faulty indoor unit PCB

Troubleshooting

99

15.4.21. F11 (4-way valve Abnormality)

Malfunction Decision Conditions

• When heating operation, when indoor pipe temperature is below 10

°C

• When cooling operation, when indoor pipe temperature is above 45

°C

Malfunction Caused

• Connector in poor contact

• Faulty sensor

• Faulty outdoor unit PCB

• 4-way valve defective

Troubleshooting

100

15.4.22. F17 (Indoor Standby Units Freezing Abnormality)

Malfunction Decision Conditions

• When the different between indoor intake air temperature and indoor pipe temperature is above 10

°C or indoor pipe temperature is below -1.0

°C

Remark:

When the indoor standby unit is freezing, the outdoor unit transfers F17 error code to the corresponding indoor unit and H39 to other indoor unit(s).

Malfunction Caused

• Wrong wiring connection

• Faulty sensor

• Faulty expansion valve

Troubleshooting

101

15.4.23. F90 (Power Factor Correction Protection)

Malfunction Decision Conditions

During startup and operation of cooling and heating, when Power Factor Correction (PFC) protection circuitry at the outdoor unit main PCB senses abnormal high DC voltage level.

Malfunction Caused

• DC voltage peak due to power supply surge.

• DC voltage peak due to compressor windings not uniform.

• Faulty outdoor PCB.

Troubleshooting

102

15.4.24. F91 (Refrigeration Cycle Abnormality)

Malfunction Decision Conditions

• During cooling, compressor frequency = Fcmax.

• During heating, compressor frequency > Fhrated.

• During cooling and heating operation, running current: 0.65A < I < 1.65A.

• During cooling, indoor intake - indoor pipe < 4

°C

• During heating, indoor pipe - indoor intake < 5

°C

Multi Models Only

- Gas shortage detection 1: A gas shortage is detected by checking the CT-detected input current value and the compressor running frequency. During startup and operating of cooling and heating, input current < 8.78/256 (A/Hz) x compressor running frequency + 0.25.

- Gas shortage detection 2: A gas shortage is detected by checking the difference between indoor pipe temperature and indoor intake air temperature during cooling and heating.

Malfunction Caused

• Refrigerant shortage (refrigerant leakage)

• Poor compression performance of compressor.

• 2/3 way valve closed.

• Detection error due to faulty indoor intake air or indoor pipe temperature sensors.

Troubleshooting

103

15.4.25. F93 (Compressor Rotation Failure)

Malfunction Decision Conditions

A compressor rotation failure is detected by checking the compressor running condition through the position detection circuit.

Malfunction Caused

• Compressor terminal disconnect

• Outdoor PCB malfunction

Troubleshooting

104

15.4.26. F95 (Cooling High Pressure Abnormality)

Malfunction Decision Conditions

During operation of cooling, when outdoor unit heat exchanger high temperature data (61

°C) is detected by the outdoor pipe temperature sensor.

Malfunction Caused

• Outdoor pipe temperature rise due to short circuit of hot discharge air flow.

• Outdoor pipe temperature rise due to defective of outdoor fan motor.

• Outdoor pipe temperature rise due to defective outdoor pipe temperature sensor.

• Outdoor pipe temperature rise due to defective outdoor unit PCB.

Troubleshooting

105

15.4.27. F96 (IPM Overheating)

Malfunction Decision Conditions

During operating of cooling and heating, when IPM temperature data (100

°C) is detected by the IPM temperature sensor.

Multi Models Only

• Compressor Overheating: During operation of cooling and heating, when the compressor OL is activated.

• Heat Sink Overheating: During operation of cooling and heating, when heat sink temperature data (90

°C) is detected by the heat sink temperature sensor.

Malfunction Caused

• IPM overheats due to short circuit of hot discharge air flow.

• IPM overheats due to defective of outdoor fan motor.

• IPM overheats due to defective of internal circuitry of IPM.

• IPM overheats due to defective IPM temperature sensor.

Multi Models Only

- Compressor OL connector poor contact.

- Compressor OL faulty.

Troubleshooting

106

15.4.28. F97 (Compressor Overheating)

Malfunction Decision Conditions

During operation of cooling and heating, when compressor tank temperature data (112

°C) is detected by the compressor tank temperature sensor.

Malfunction Caused

• Refrigerant shortage (refrigerant leakage).

• 2/3 way valve closed.

• Detection error due to faulty compressor tank temperature sensor.

Troubleshooting

107

15.4.29. F98 (Input Over Current Detection)

Malfunction Decision Conditions

During operation of cooling and heating, when an input over-current (16.8A) is detected by checking the input current value being detected by current transformer (CT) with the compressor running.

Malfunction Caused

• Over-current due to compressor failure.

• Over-current due to defective outdoor unit PCB.

• Over-current due to defective inverter main circuit electrolytic capacitor.

• Over-current due to excessive refrigerant.

Troubleshooting

108

15.4.30. F99 (Output Over Current Detection)

Malfunction Decision Conditions

During operation of cooling and heating, when an output over-current (18.5A) is detected by checking the current that flows in the inverter DC peak sensing circuitry.

Malfunction Caused

• DC peak due to compressor failure.

• DC peak due to defective power transistor(s).

• DC peak due to defective outdoor unit PCB.

Troubleshooting

• Checking the power transistor

• Never touch any live parts for at least 10 minutes after turning off the circuit breaker.

• If unavoidable necessary to touch a live part, make sure the power transistor’s supply voltage is below 50V using the tester.

• For the UVW, make measurement at the Faston terminal on the board of the relay connector.

Tester’s negative terminal

Tester’s positive terminal

Normal resistance

Abnormal resistance

Power transistor (+)

UVW

UVW Power transistor (-)

Power transistor (+) UVW

Several k

Ω to several MΩ

0 or

UVW

Power transistor (-)

109

16 Disassembly and Assembly Instructions

High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.

16.1. Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor

Removal Procedures

16.1.1.

To remove front grille

1. Lift to open the horizotal

16.1.2.

To remove power electronic controller

110

16.1.3.

To remove discharge grille

111

16.1.4.

To remove control board

16.1.5.

To remove cross flow fan and indoor fan motor

112

113

16.2. Outdoor Electronic Controller Removal Procedure

16.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1 CU-E7JKE-3 CU-E9JKE-3

CU-E12JKE-3

Caution! When handling electronic controller, be careful of electrostatic discharge.

1. Remove the 3 screws of the Top Panel.

5. Remove the Control Board as follows:

Fig. 1

2. Remove the 6 screws of the Front Panel.

Fig. 4

Fig. 2

3. Remove the screw of the Terminal Board Cover.

4. Remove the Top Cover of the Control Board by 4 hooks.

Fig. 5

Fig. 3

114

Fig. 6

16.2.2.

CU-E15JKE

1. Remove the 4 screws of the Top Panel.

4. Remove the Control Board.

Fig. 1

2. Remove the 10 screws of the Front Panel.

Fig. 4

5. Remove the 8 screws of the Electronic Controller.

Fig. 2

3. Remove the Top Cover of the Electronic Controller.

Fig. 5

Caution! When handling electronic controller, be careful of electrostatic discharge.

Fig. 3

115

17 Technical Data

17.1. Operation Characteristics

17.1.1.

CU-E7JKE

116

117

118

119

17.1.2.

CU-E9JKE

120

121

122

123

17.1.3.

CU-E12JKE

124

125

126

127

17.1.4.

CU-E15JKE

128

129

130

131

17.1.5.

CU-E15JKE-1

132

133

134

135

17.1.6.

CU-E7JKE-3

136

137

138

139

17.1.7.

CU-E9JKE-3

140

141

142

143

17.1.8.

CU-E12JKE-3

144

145

146

147

17.2. Sensible Capacity Chart

O CU-E7JKE CU-E7JKE-3

230V

Indoor wet bulb temp.

17.0

°C

19.0

°C

19.5

°C

22.0

°C

TC

2.03

2.23

2.43

30

SHC

1.54

1.61

1.67

IP

0.43

0.44

0.45

TC

1.90

2.05

2.09

2.27

35

SHC

1.48

1.55

1.61

Outdoor Temp. (

°C)

IP

0.46

0.47

0.47

0.48

TC

1.77

1.94

2.12

40

SHC

1.42

1.49

1.55

IP

0.50

0.50

0.51

TC

1.61

46

SHC

1.35

IP

0.53

1.77

1.92

1.42

1.48

0.54

0.55

O CU-E9JKE CU-E9JKE-3

230V

Indoor wet bulb temp.

17.0

°C

19.0

°C

19.5

°C

22.0

°C

TC

2.48

2.72

2.97

30

SHC

1.88

1.97

2.04

IP

0.50

0.51

0.52

TC

2.32

2.50

2.55

2.77

35

SHC

1.80

1.89

1.96

Outdoor Temp. (

°C)

IP

0.54

0.55

0.55

0.56

TC

2.16

2.37

2.58

40

SHC

1.73

1.82

1.89

IP

0.57

0.59

0.60

TC

1.96

46

SHC

1.65

2.15

2.35

1.73

1.81

IP

0.62

0.63

0.64

O CU-E12JKE CU-E12JKE-3

230V

Indoor wet bulb temp.

17.0

°C

19.0

°C

19.5

°C

22.0

°C

TC

3.47

3.81

4.15

O CU-E15JKE

230V

Indoor wet bulb temp.

17.0

°C

19.0

°C

19.5

°C

22.0

°C

TC

4.17

4.57

4.99

O CU-E15JKE-1

230V

Indoor wet bulb temp.

17.0

°C

19.0

°C

19.5

°C

22.0

°C

TC

4.17

4.57

4.99

30

SHC

2.63

2.76

2.86

30

SHC

3.16

3.31

3.43

30

SHC

3.16

3.31

3.43

IP

0.83

0.84

0.86

IP

1.12

1.14

1.16

IP

1.15

1.18

1.20

TC

SHC

IP

-

-

-

Total Cooling Capacity (kW)

Sensible Heat Capacity (kW)

Input Power (kW)

Indoor 27

°C/19°C

Outdoor 35

°C/24°C

TC

3.24

3.50

3.56

3.88

35

SHC

2.52

2.65

2.75

Outdoor Temp. (

°C)

IP

0.89

0.91

0.91

0.92

TC

3.02

3.31

3.61

40

SHC

2.43

2.55

2.65

IP

0.95

0.97

0.99

TC

2.74

46

SHC

2.30

3.01

3.28

2.43

2.53

IP

1.03

1.05

1.07

TC

3.89

4.20

4.28

4.66

35

SHC

3.03

3.18

3.30

Outdoor Temp. (

°C)

IP

1.20

1.22

1.22

1.25

TC

3.62

3.98

4.33

40

SHC

2.91

3.06

3.18

IP

1.29

1.31

1.33

TC

3.29

46

SHC

2.77

3.62

3.94

2.91

3.03

IP

1.39

1.41

1.44

TC

3.89

4.20

4.28

4.66

35

SHC

3.03

3.18

3.30

Outdoor Temp. (

°C)

IP

1.24

1.26

1.27

1.29

TC

3.62

3.98

4.33

40

SHC

2.91

3.06

3.18

IP

1.33

1.35

1.38

TC

3.29

46

SHC

2.77

3.62

3.94

2.91

3.03

IP

1.43

1.46

1.49

148

18 Exploded View and Replacement Parts List

18.1. Indoor Unit

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

149

REF.

NO.

PART NAME & DESCRIPTION

1 CHASSY COMPLETE

QTY.

2 FAN MOTOR

3 CROSS FLOW FAN COMPLETE

4

5

BEARING ASSY

SCREW - CROSS FLOW FAN

6 EVAPORATOR CO.

7 FLARE NUT (LIQUID)

8

9

FLARE NUT (GAS)

CLIP FOR SENSOR

10 DISCHARGE GRILLE COMPLETE

11 VERTICAL VANE

12

13

CONNECTING BAR

CONNECTING BAR

14 CONNECTING BAR

15 CONNECTING BAR

16

17

FULCRUM

AIR SWING MOTOR

18 CAP - DRAIN TRAY

19 HORIZONTAL VANE COMPLETE

20

21

BACK COVER CHASSIS

CONTROL BOARD CASING

22 TERMINAL BOARD COMPLETE

23 ELECTRONIC CONTROLLER - MAIN

24 ELECTRONIC CONTROLLER - POWER 1

25 ELECTRONIC CONTROLLER - INDICATOR 1

1

1

1

1

1

1

1

1

1

1

1

1

1

11

1

1

1

1

1

1

CS-E7JKEW

1 CWD50C1599

1 L6CBYYYL0037

1 CWH02C1076

CWH64K007

CWH551146

CWB30C2960

CWT251030

CWT251031

CWH32143

CWE20C3009

CWE241287

CWE261152

CWE261153

CWE261154

CWE261155

CWH621102

CWA981240

CWH521096

CWE24C1268

CWD933019

CWH102370

CWA28C2357

CWA73C3769

CWA745322

CWA745479

26 INDICATOR HOLDER

27 SENSOR COMPLETE

28 CONTROL BOARD FRONT COVER

29 CONTROL BOARD TOP COVER

30 LEAD WIRE - COMP (A.S.MOTOR)

31 REMOTE CONTROL COMPLETE

1

1

1

1

1

1

CWD933021

CWA50C2401

CWH13C1183

CWH131350

CWA75C3229

32 FRONT GRILLE COMPLETE

33 INTAKE GRILLE COMPLETE

34 GRILLE DOOR COMPLETE

35 E-ION FILTER

36 SCREW - FRONT GRILLE

37 CAP - FRONT GRILLE

38 DRAIN HOSE

39 INSTALLATION PLATE 1

40 BAG COMPLETE - INSTALLATION SCREW 1

41 E-ION AIR PURIFYING SYSTEM

42 ELECTRONIC CONTROLLER - HVU

1

1

2

2

1

1

1

1

2

CWE11C4154

CWE22C1507

CWE14C1029

CWD00K1014

XTT4+16CFJ

CWH521194

CWH851063

CWH361097

CWH82C067

CWD93C1090

CWA745348

43 GENERATOR COMPLETE

44 ELECTRONIC CONTROLLER - RECEIVER

45 OPERATION INSTRUCTIONS

46 INSTALLATION INSTRUCTIONS

47 INSTALLATION INSTRUCTIONS

48 INSTALLATION INSTRUCTIONS

49 INSTALLATION INSTRUCTIONS

50 INSTALLATION INSTRUCTIONS

51 INSTALLATION INSTRUCTIONS

52 INSTALLATION INSTRUCTIONS

53 INSTALLATION INSTRUCTIONS

1

1

1

1

1

1

1

1

1

1

1

CWH94C0028

CWA745288

CWF566693

CWF613869

CWF613870

CWF613871

CWF613872

CWF613873

CWF613874

CWF613875

CWF613876

CS-E9JKEW CS-E12JKEW CS-E15JKEW REMARKS

CWA73C3771

CWB30C3002 CWB30C2803 CWB30C2945

CWT251032

CWA73C3773

CWA73C3775

O

O

O

O

O

O

O

O

O

O

O

150

REF.

NO.

PART NAME & DESCRIPTION

54 INSTALLATION INSTRUCTIONS

QTY.

CS-E7JKEW

1 —

CS-E9JKEW

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

CS-E12JKEW CS-E15JKEW REMARKS

← ←

151

REF.

NO.

PART NAME & DESCRIPTION

1 CHASSY COMPLETE

QTY.

2 FAN MOTOR

3 CROSS FLOW FAN COMPLETE

4

5

BEARING ASSY

SCREW - CROSS FLOW FAN

6 EVAPORATOR CO.

7 FLARE NUT (LIQUID)

8

9

FLARE NUT (GAS)

CLIP FOR SENSOR

10 DISCHARGE GRILLE COMPLETE

11 VERTICAL VANE

12

13

CONNECTING BAR

CONNECTING BAR

14 CONNECTING BAR

15 CONNECTING BAR

16

17

FULCRUM

AIR SWING MOTOR

18 CAP - DRAIN TRAY

19 HORIZONTAL VANE COMPLETE

20

21

BACK COVER CHASSIS

CONTROL BOARD CASING

22 TERMINAL BOARD COMPLETE

23 ELECTRONIC CONTROLLER - MAIN

24 ELECTRONIC CONTROLLER - POWER 1

25 ELECTRONIC CONTROLLER - INDICATOR 1

1

1

1

1

1

1

1

1

1

1

1

1

1

11

1

1

1

1

1

1

CS-XE7JKEW

1 CWD50C1605

1 L6CBYYYL0037

1 CWH02C1076

CWH64K007

CWH551146

CWB30C2960

CWT251030

CWT251031

CWH32143

CWE20C2920

CWE241287

CWE261152

CWE261153

CWE261154

CWE261155

CWH621102

CWA981240

CWH521096

CWE24C1288

CWD933019A

CWH102370

CWA28C2357

CWA73C3787

CWA745322

CWA745479

26 INDICATOR HOLDER

27 SENSOR COMPLETE

28 CONTROL BOARD FRONT COVER

29 CONTROL BOARD TOP COVER

30 LEAD WIRE - COMP (A.S.MOTOR)

31 REMOTE CONTROL COMPLETE

1

1

1

1

1

1

CWD933021

CWA50C2401

CWH13C1183

CWH131350

CWA75C3229

32 FRONT GRILLE COMPLETE

33 INTAKE GRILLE COMPLETE

34 GRILLE DOOR COMPLETE

35 E-ION FILTER

36 SCREW - FRONT GRILLE

37 CAP - FRONT GRILLE

38 DRAIN HOSE

39 INSTALLATION PLATE 1

40 BAG COMPLETE - INSTALLATION SCREW 1

41 E-ION AIR PURIFYING SYSTEM

42 ELECTRONIC CONTROLLER - HVU

1

1

2

2

1

1

1

1

2

CWE11C4173

CWE22C1482

CWE14C1038

CWD00K1014

XTT4+16CFJ

CWH521194A

CWH851063

CWH361097

CWH82C067

CWD93C1090

CWA745348

43 GENERATOR COMPLETE

44 ELECTRONIC CONTROLLER - RECEIVER

45 OPERATION INSTRUCTIONS

46 INSTALLATION INSTRUCTIONS

47 INSTALLATION INSTRUCTIONS

48 INSTALLATION INSTRUCTIONS

49 INSTALLATION INSTRUCTIONS

50 INSTALLATION INSTRUCTIONS

51 INSTALLATION INSTRUCTIONS

52 INSTALLATION INSTRUCTIONS

53 INSTALLATION INSTRUCTIONS

1

1

1

1

1

1

1

1

1

1

1

CWH94C0028

CWA745288

CWF566691

CWF613869

CWF613870

CWF613871

CWF613872

CWF613873

CWF613874

CWF613875

CWF613876

CS-XE9JKEW CS-XE12JKEW CS-XE15JKEW REMARKS

CWA73C3788

CWB30C3002 CWB30C2803 CWB30C2945

CWT251032

CWA73C3790

CWA73C3792

O

O

O

O

O

O

O

O

O

O

O

152

REF.

NO.

PART NAME & DESCRIPTION

54 INSTALLATION INSTRUCTIONS

QTY.

CS-XE7JKEW

1 CWF613877

CS-XE9JKEW CS-XE12JKEW CS-XE15JKEW REMARKS

← ←

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

153

REF.

NO.

PART NAME & DESCRIPTION

1 CHASSY COMPLETE

QTY.

2 FAN MOTOR

3 CROSS FLOW FAN COMPLETE

4

5

BEARING ASSY

SCREW - CROSS FLOW FAN

6 EVAPORATOR CO.

7 FLARE NUT (LIQUID)

8

9

FLARE NUT (GAS)

CLIP FOR SENSOR

10 DISCHARGE GRILLE COMPLETE

11 VERTICAL VANE

12

13

CONNECTING BAR

CONNECTING BAR

14 CONNECTING BAR

15 CONNECTING BAR

16

17

FULCRUM

AIR SWING MOTOR

18 CAP - DRAIN TRAY

19 HORIZONTAL VANE COMPLETE

20

21

BACK COVER CHASSIS

CONTROL BOARD CASING

22 TERMINAL BOARD COMPLETE

23 ELECTRONIC CONTROLLER - MAIN

24 ELECTRONIC CONTROLLER - POWER 1

25 ELECTRONIC CONTROLLER - INDICATOR 1

1

1

1

1

1

1

1

1

1

1

1

1

1

11

1

1

1

1

1

1

1

1

1

26 INDICATOR HOLDER

27 SENSOR COMPLETE

28 CONTROL BOARD FRONT COVER

29 CONTROL BOARD TOP COVER

30 LEAD WIRE - COMP (A.S.MOTOR)

31 REMOTE CONTROL COMPLETE

1

1

1

1

1

1

32 FRONT GRILLE COMPLETE

33 INTAKE GRILLE COMPLETE

34 GRILLE DOOR COMPLETE

35 E-ION FILTER

36 SCREW - FRONT GRILLE

37 CAP - FRONT GRILLE

38 DRAIN HOSE

39 INSTALLATION PLATE 1

40 BAG COMPLETE - INSTALLATION SCREW 1

41 E-ION AIR PURIFYING SYSTEM

42 ELECTRONIC CONTROLLER - HVU

1

1

2

2

1

1

1

1

2

43 GENERATOR COMPLETE

44 ELECTRONIC CONTROLLER - RECEIVER

45 OPERATION INSTRUCTIONS

46 INSTALLATION INSTRUCTIONS

47 INSTALLATION INSTRUCTIONS

48 INSTALLATION INSTRUCTIONS

49 INSTALLATION INSTRUCTIONS

50 INSTALLATION INSTRUCTIONS

51 INSTALLATION INSTRUCTIONS

52 INSTALLATION INSTRUCTIONS

53 INSTALLATION INSTRUCTIONS

1

1

1

1

1

1

1

1

1

1

1

CS-E7JKEW-3

CWH621102

CWA981240

CWH521096

CWE24C1268

CWD933019

CWH102370

CWA28C2357

CWA73C3769

CWA745322

CWA745479

CWD933021

CWA50C2401

CWH13C1183

CWH131350

CWA75C3229

CWD50C1599

L6CBYYYL0037

CWH02C1076

CWH64K007

CWH551146

CWB30C2960

CWT251030

CWT251031

CWH32143

CWE20C3009

CWE241287

CWE261152

CWE261153

CWE261154

CWE261155

CWE11C4154

CWE22C1507

CWE14C1029

CWD00K1014

XTT4+16CFJ

CWH521194

CWH851063

CWH361097

CWH82C067

CWD93C1090

CWA745348

CWH94C0028

CWA745288

CWF566694

CWF613869

CWF613870

CWF613871

CWF613872

CWF613873

CWF613874

CWF613875

CWF613876

CS-E12JKEW-3

CWB30C2803

CWA73C3773

REMARKS

O

O

O

O

O

O

O

O

O

O

O

CS-E9JKEW-3

CWB30C3002

CWA73C3771

154

REF.

NO.

PART NAME & DESCRIPTION

54 INSTALLATION INSTRUCTIONS

QTY.

1

CS-E7JKEW-3

CWF613877

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

CS-E9JKEW-3

CS-E12JKEW-3

REMARKS

155

18.2. Outdoor Unit

18.2.1.

CU-E7JKE CU-E9JKE CU-E12JKE CU-E15JKE-1 CU-E7JKE-3 CU-E9JKE-3

CU-E12JKE-3

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

156

27

28

29

30

23B

24

25

26

20

21

22

23A

15

16

17

19

11

12

13

14

7

8

9

10

REF. NO.

1

2

5

6

3

4

31

32

33

34

35

38

39

40

41

43

44

PART NAME & DESCRIPTION

CHASSY ASS’Y

SOUND PROOF MATERIAL

FAN MOTOR BRACKET

SCREW - FAN MOTOR BRACKET

FAN MOTOR

SCREW - FAN MOTOR MOUNT

PROPELLER FAN ASS’Y

NUT - PROPELLER FAN

COMPRESSOR

ANTI - VIBRATION BUSHING

NUT - COMPRESSOR MOUNT

CONDENSER

TUBE ASS’Y CO. (CAP. / CHK VALVE)

DISCHARGE MUFFLER

HOLDER COUPLING

2-WAYS VALVE (LIQUID)

3-WAYS VALVE (GAS)

REACTOR

TERMINAL COVER

NUT - TERMINAL COVER

SOUND PROOF BOARD

SOUND PROOF MATERIAL

SOUND PROOF MATERIAL

SENSOR COMPLETE

CONTROL BOARD COVER

ELECTRONIC CONTROLLER - MAIN

TERMINAL BOARD ASS’Y

CABINET SIDE PLATE CO.

SENSOR COMPLETE

CABINET SIDE PLATE

CABINET FRONT PLATE CO.

CABINET TOP PLATE

PLATE - C. B. COVER

CONTROL BOARD COVER CO.

HANDLE

4-WAYS VALVE

V - COIL COMPLETE

WIRE NET

ACCESSORY CO. (DRAIN ELBOW)

HOLDER SENSOR

HOLDER SENSOR

QTY.

1

1

1

2

1

4

1

1

CU-E7JKE

CWD50K2073

CWG302447

CWD541089

CWH551217

CWA951536

CWH55406J

CWH03K1010

CWH56053J

CU-E9JKE

CWA951553

1 5RS092XCD01 5RS102XBC01

3

3

1

CWH50077

CWH56000J

CWB32C2485 CWB32C2448

CU-E12JKE

CWA951542

CU-E15JKE-1

CWA951555

CWH55252J

1

1

1

1

1

1

1

1

1

1

1

1

1

CWT01C4849 CWT01C4850 CWT01C4851 CWT01C4852

CWB121010

CWH351023

CWB021301

CWB011374

CWB011367

G0C193J00003 G0C193J00002 G0C193J00004

CWH171039A

CWH7080300J

CWH151172

CWG302443

CWA50C2205

CWH131264

CWG302292

CWG302293

1 CWA73C3797R CWA73C3798R CWA73C3799R CWA73C3803R

1

1

1

1

1

1

1

1

1

1

1

1

1

1

CWA28K1110J

CWE04C1116

CWA50C2391

CWE041248A

CWE06C1039

CWE031014A

CWH131301

CWH13C1064

CWE161010

CWB001037J

CWA43C2143J

CWD041111A

CWG87C900

— CWH321023

REMARKS

O

O

O

O

O

O

O

O

O

O

O

1 — — — CWH32143

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

157

26

27

28

29

23B

23C

24

25

20

21

22

23A

15

16

17

19

11

12

13

14

7

8

9

10

REF. NO.

1

2

5

6

3

4

30

31

32

33

34

35

38

39

40

41

47

PART NAME & DESCRIPTION

CHASSY ASS’Y

SOUND PROOF MATERIAL

FAN MOTOR BRACKET

SCREW - FAN MOTOR BRACKET

FAN MOTOR

SCREW - FAN MOTOR MOUNT

PROPELLER FAN ASS’Y

NUT - PROPELLER FAN

COMPRESSOR

ANTI - VIBRATION BUSHING

NUT - COMPRESSOR MOUNT

CONDENSER

TUBE ASS’Y CO. (CAP. / CHK VALVE)

DISCHARGE MUFFLER

HOLDER COUPLING

2-WAYS VALVE (LIQUID)

3-WAYS VALVE (GAS)

REACTOR

TERMINAL COVER

NUT - TERMINAL COVER

SOUND PROOF BOARD

SOUND PROOF MATERIAL

SOUND PROOF MATERIAL

SOUND PROOF MATERIAL

SENSOR COMPLETE

CONTROL BOARD COVER

ELECTRONIC CONTROLLER - MAIN

TERMINAL BOARD ASS’Y

CABINET SIDE PLATE CO.

SENSOR COMPLETE

CABINET SIDE PLATE

CABINET FRONT PLATE CO.

CABINET TOP PLATE

PLATE - C. B. COVER

CONTROL BOARD COVER CO.

HANDLE

4-WAYS VALVE

V - COIL COMPLETE

WIRE NET

ACCESSORY CO. (DRAIN ELBOW)

CRANKCASE HEATER

CWH351023

CWB021301

CWB011374

G0C193J00003

CWH171039A

CWH7080300J

CWH151172

CWG302316

CWG302317

CWG302315

CWA50C2205

CWH131264

CWA73C3800R

CWA28K1110J

CWE04C1116

CWA50C2391

CU-E7JKE-3

CWD50K2073

CWG302314

CWD541089

CWH551217

CWA951536

CWH55406J

CWH03K1010

CWH56053J

5RS092XCD01

CWH50077

CWH56000J

CWB32C2485

CWT01C4849

CWB121010

CWE041248A

CWE06C1039

CWE031014A

CWH131301

CWH13C1064

CWE161010

CWB001037J

CWA43C2143J

CWD041111A

CWG87C900

CWA341044

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

1

1

3

1

1

QTY.

1

1

1

4

1

2

1

1

1

1

1

1

1

1

1

1

1

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

CU-E9JKE-3

CWA951553

5RS102XBC01

CWB32C2448

CWT01C4850

CWA73C3801R

CWE06C1136

CU-E12JKE-3

CWA951542

CWT01C4851

G0C193J00004

CWA73C3802R

REMARKS

O

O

O

O

O

O

O

O

O

O

O

158

18.2.2.

CU-E15JKE

Note

The above exploded view is for the purpose of parts disassembly and replacement.

The non-numbered parts are not kept as standard service parts.

159

11

12

14

15

16

8

9

6

7

10

REF. NO.

3

4

1

2

5

17

18

19

20

22

23

24

25

27

28

29

46

47

48

49

56

41

42

43

44

45

58

59

60

61

30

31

33

35

38

40

DESCRIPTION & NAME

CHASSY ASS’Y

ANTI-VIBRATION BUSHING

COMPRESSOR

NUT-COMPRESSOR MOUNT

SOUND PROOF MATERIAL

FAN MOTOR BRACKET

FAN MOTOR

SCREW - FAN MOTOR BRACKET

SCREW - FAN MOTOR MOUNT

PROPELLER FAN ASSY

NUT - PROPELLER FAN

CONDENSER

EXPANSION VALVE

4 WAYS VALVE

HOLDER SENSOR

HOLDER SENSOR

HOLDER - COUPLING

3 WAYS VALVE (GAS)

2 WAYS VALVE (LIQUID)

SOUND PROOF BOARD

TERMINAL COVER

NUT-TERMINAL COVER

SENSOR COMPLETE (COMP. TOP)

V-COIL COMPLETE (4 - WAYS VALVE)

V-COIL COMPLETE (EXPAND VALVE)

SENSOR COMPLETE (COMP. DISC.)

SENSOR COMPLETE

REACTOR

TERMINAL BOARD ASSY

FUSE

ELECTRONIC CONTROLLER - MAIN

CONTROL BOARD COVER (TOP)

CABINET SIDE PLATE (LEFT)

HANDLE

CABINET SIDE PLATE (RIGHT)

HANDLE

CABINET FRONT PLATE CO.

WIRE NET

CABINET TOP PLATE

CONTROL BOARD COVER (BOTTOM)

CONTROL BOARD COVER (TOP)

ACCESSORY CO. (DRAIN ELBOW)

SOUND PROOF MATERIAL

SOUND PROOF MATERIAL

ACCUMULATOR

RECEIVER

(NOTE)

• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).

• “O” marked parts are recommended to be kept in stock.

1

1

1

1

1

2

4

1

1

1

QTY.

1

3

1

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

CU-E15JKE

CWD50K2085

CWH50077

5CS130XAD04

CWH56000J

CWG302302

CWD541084

CWA981166J

CWH551217

CWH55252J

CWH03K1016

CWH56053J

CWB32C2817

CWB051016J

CWB001026J

CWMH320001

CWH32074

CWH351056

CWB011361

CWB021292

CWH151050

CWH171039A

CWH7080300J

CWA50C2185

CWA43C2168J

CWA43C2058J

CWA50C2180

CWA50C2181

G0C203J00003

CWA28K1110J

K5D303BBA002

CWA73C3804R

CWH131167

CWE041255A

CWE161010

CWE041158A

CWE16000E

CWE06K1043

CWD041041A

CWE031031A

CWH131168

CWH131169A

CWG87C900

CWG302290

CWG302301

CWB131024

CWB14011

REMARKS

O

O

O

O

O

O

160

[PHAAM] Printed in Malaysia

SFYW0810-00

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
