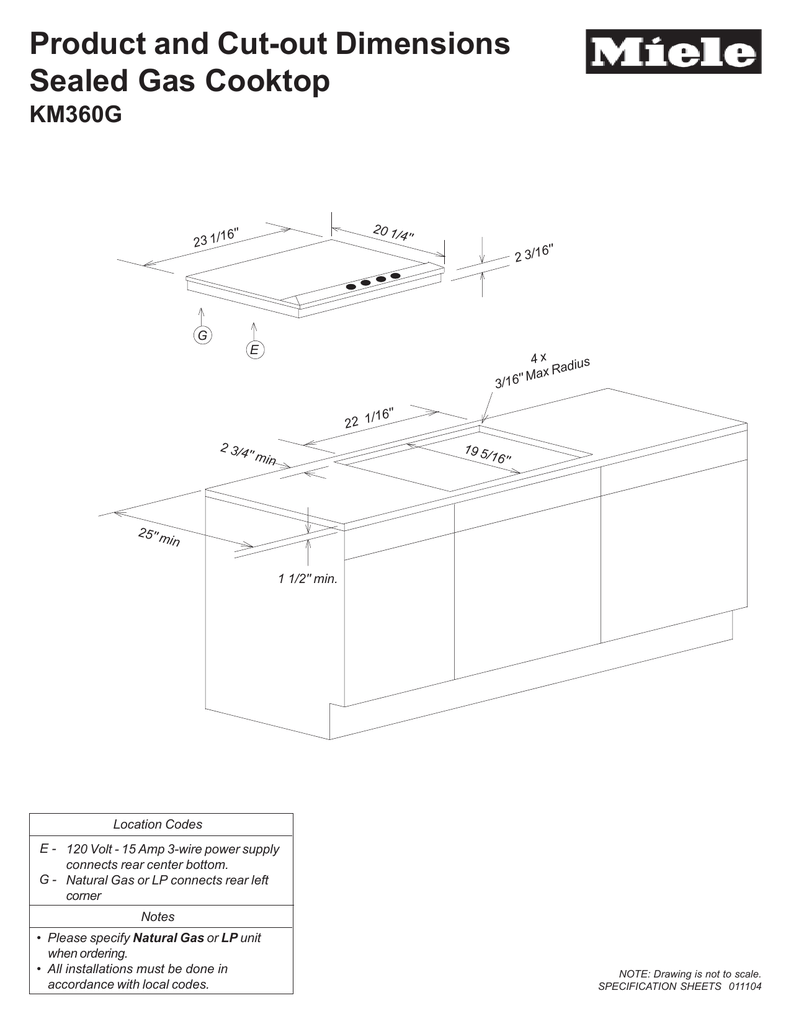

Product and Cut-out Dimensions
Sealed Gas Cooktop
KM360G
25" min
20 1/4"
23 1/16"
2 3/16"
G
E
2 3/4" min
22 1/16"
4 x
3/16" Max Radius
19 5/16"
1 1/2" min.
Location Codes
E -
G -
120 Volt - 15 Amp 3-wire power supply connects rear center bottom.
Natural Gas or LP connects rear left corner
Notes
• Please specify Natural Gas or LP unit when ordering.
• All installations must be done in accordance with local codes.
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 011104
