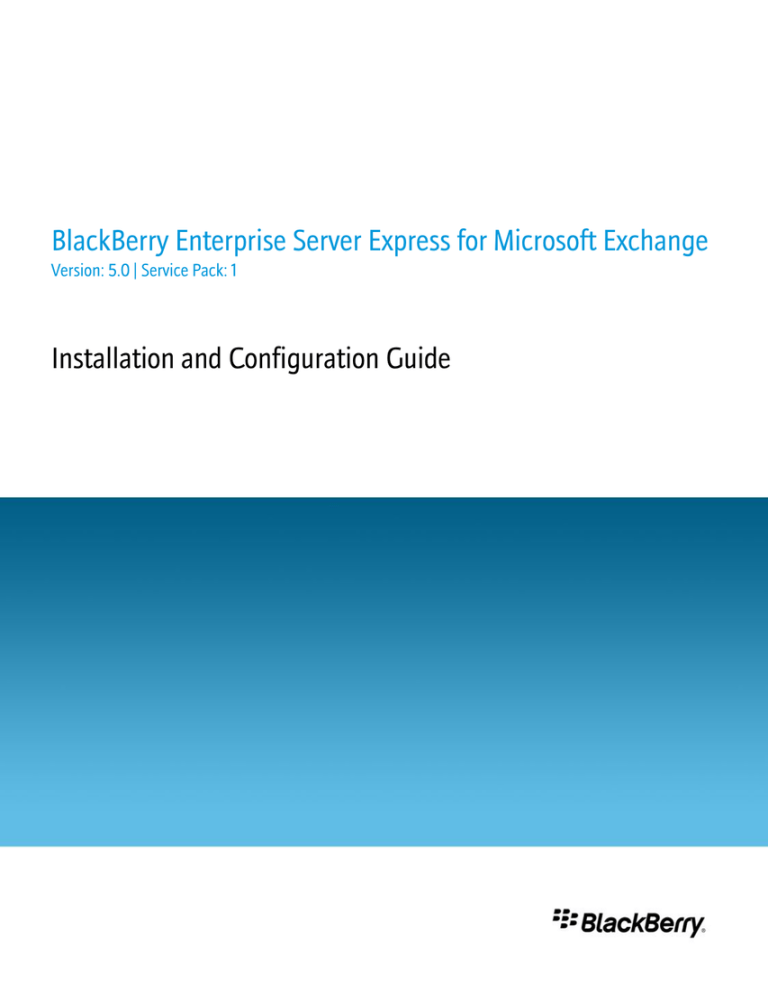

BlackBerry Enterprise Server Express for Microsoft Exchange

Version: 5.0 | Service Pack: 1

Installation and Configuration Guide

Published: 2010-03-17

SWD-984521-0317024918-001

Contents

1

Overview: BlackBerry Enterprise Server Express....................................................................................................................

4

2 Planning a BlackBerry Enterprise Server Express installation.............................................................................................

5

Installing all BlackBerry Enterprise Server Express components on one computer................................................................

5

Installing the BlackBerry Administration Service........................................................................................................................

5

Installing the BlackBerry Attachment Service.............................................................................................................................

6

Installing the BlackBerry MDS Connection Service....................................................................................................................

6

Installing the BlackBerry Router...................................................................................................................................................

6

3 Hardware requirements: BlackBerry Enterprise Server Express..........................................................................................

8

4 System requirements..................................................................................................................................................................

10

System requirements: BlackBerry Enterprise Server Express....................................................................................................

10

System requirements: BlackBerry Administration Service and BlackBerry Web Desktop Manager.....................................

11

System requirements: BlackBerry Enterprise Server Express databases.................................................................................

11

System requirements: BlackBerry Attachment Service..............................................................................................................

12

System requirements: BlackBerry MDS Connection Service.....................................................................................................

13

System requirements: BlackBerry Router.....................................................................................................................................

13

System requirements: Computers for BlackBerry Web Desktop Manager and BlackBerry Administration Service users

...........................................................................................................................................................................................................

14

System requirements: Messaging server.....................................................................................................................................

15

System requirements: Firewall......................................................................................................................................................

15

Supported features and environments.........................................................................................................................................

15

Unsupported environments...........................................................................................................................................................

16

5 Preinstallation tasks....................................................................................................................................................................

17

Configuring a Microsoft Exchange 2010 messaging environment...........................................................................................

17

Create a Windows account that has a Microsoft Exchange 2010 mailbox......................................................................

17

Configure Microsoft Exchange 2010 permissions for the Windows account..................................................................

17

Turn off client throttling in Microsoft Exchange 2010.......................................................................................................

18

Increase the maximum number of connections to the Address Book service in Microsoft Exchange 2010...............

18

Configure a management role for Microsoft Exchange Web Services.............................................................................

18

Configure the BlackBerry Enterprise Server to run without public folders.....................................................................

19

Configuring a Microsoft Exchange 2007 messaging environment..........................................................................................

19

Create a Windows account that has a Microsoft Exchange 2007 mailbox.....................................................................

19

Configure Microsoft Exchange 2007 permissions for the Windows account..................................................................

20

Permit BlackBerry device users to send email messages in a Microsoft Exchange environment................................

20

Configuring a Microsoft Exchange 2003 messaging environment..........................................................................................

21

Create a Windows account that has a Microsoft Exchange 2003 mailbox.....................................................................

21

Configure Microsoft Exchange 2003 permissions for the Windows account.................................................................

21

Permit BlackBerry device users to send email messages in a Microsoft Exchange environment................................

22

Configure permissions for the Windows account........................................................................................................................

23

Prevent the Microsoft Exchange known issues for wireless calendar synchronization..........................................................

23

Verify if the Windows account can access a user account in Microsoft Exchange.................................................................

24

Configuring connections for the BlackBerry Enterprise Server Express database..................................................................

24

Specifying permissions when you connect to the BlackBerry Enterprise Server Express database using Windows authentication or Microsoft SQL Server authentication....................................................................................................

25

Create a BlackBerry Configuration Database.....................................................................................................................

26

Applications that are installed with the BlackBerry Enterprise Server Express components................................................

27

6 Installing the BlackBerry Enterprise Server software............................................................................................................

29

Prerequisites: Installing the BlackBerry Enterprise Server software........................................................................................

29

Install the BlackBerry Enterprise Server Express software.........................................................................................................

29

Install a BlackBerry Enterprise Server Express component on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server Express....................................................................................................................................

31

Install a standalone BlackBerry Router........................................................................................................................................

33

7 Postinstallation tasks..................................................................................................................................................................

34

Test the BlackBerry Enterprise Server installation......................................................................................................................

34

Install the BlackBerry database notification system...................................................................................................................

34

Best practice: Running the BlackBerry Enterprise Server..........................................................................................................

35

Configure support for Unicode languages...................................................................................................................................

36

Configure support for Unicode text in calendars on BlackBerry devices in a Microsoft Exchange environment...............

36

Log in to the BlackBerry Administration Service for the first time............................................................................................

37

There is a problem with this website's security certificate................................................................................................

37

Configuring communication with distributed components.......................................................................................................

38

Connecting to a BlackBerry Attachment Service...............................................................................................................

38

Connecting to a BlackBerry Router......................................................................................................................................

40

Restrict database permissions for the BlackBerry Attachment Service...................................................................................

42

Configuring minimum Microsoft SQL Server permissions for the Windows account.............................................................

43

Configure minimum Microsoft SQL Server permissions for the Windows account........................................................

43

Changing the BlackBerry Configuration Database.....................................................................................................................

44

8 Adding or removing BlackBerry Enterprise Server Express components...........................................................................

45

Add or remove a BlackBerry Enterprise Server Express component.........................................................................................

46

Remove BlackBerry Enterprise Server component information from the BlackBerry Configuration Database..................

48

9 Removing the BlackBerry Enterprise Server software...........................................................................................................

49

Remove the BlackBerry Enterprise Server software....................................................................................................................

49

Delete registry keys........................................................................................................................................................................

49

BlackBerry Enterprise Server registry keys..........................................................................................................................

49

Removing the BlackBerry database notification system............................................................................................................

50

Remove the BlackBerry database notification system from a BlackBerry Configuration Database............................

50

Remove the BlackBerry database notification system from all BlackBerry Configuration Database instances.........

50

10 Troubleshooting the BlackBerry Enterprise Server installation process.............................................................................

52

Failed to write License Key to the Database................................................................................................................................

52

Previous version detected but no database available................................................................................................................

52

A third-party tool did not install and the BlackBerry Enterprise Server setup application closed........................................

53

The setup application did not prompt you to change or confirm the MAPI profile................................................................

53

You cannot determine the BlackBerry Attachment Connector that the BlackBerry Enterprise Server or the BlackBerry

MDS Connection Service uses.......................................................................................................................................................

53

Users experience unexpected behavior with message lists and calendars on BlackBerry devices......................................

54

Various BlackBerry Enterprise Server Express components do not start.................................................................................

55

You cannot access the BlackBerry Administration Service........................................................................................................

56

You cannot create a user account in the BlackBerry Administration Service..........................................................................

56

The text in the license agreement is not readable......................................................................................................................

57

11 Provide feedback.........................................................................................................................................................................

58

12 Glossary.........................................................................................................................................................................................

59

13 Legal notice..................................................................................................................................................................................

62

4

Installation and Configuration Guide Overview: BlackBerry Enterprise Server Express

Overview: BlackBerry Enterprise Server Express

1

The BlackBerry® Enterprise Server Express is designed to be a secure, centralized link between an organization's wireless network, communications software, applications, and BlackBerry devices. The BlackBerry® Enterprise Server Express integrates with your organization's existing infrastructure, which can include messaging software, calendar and contact information, wireless Internet and intranet access, and custom applications, to provide BlackBerry device users with mobile access to your organization's resources. You can install the BlackBerry Enterprise Server Express on the same server as Microsoft® Exchange or Windows®

Small Business Server, or you can install the BlackBerry Enterprise Server Express on a separate server.

The BlackBerry Enterprise Server Express supports BlackBerry devices that are associated with a BlackBerry® Enterprise Server or the BlackBerry® Internet Service.

The BlackBerry Enterprise Server Express supports AES and Triple DES encryption to protect and ensure the integrity of wireless data that is transmitted between the BlackBerry Enterprise Server Express components and BlackBerry devices. You can configure

IT policy rules to control the features of the BlackBerry devices that are used in your organization's environment.

You can manage the BlackBerry Enterprise Server Express, BlackBerry devices, and user accounts using the BlackBerry

Administration Service, a web application that is accessible from any computer that can access the computer that hosts the

BlackBerry Administration Service. You can use the BlackBerry Administration Service to manage a BlackBerry Domain, which consists of one or more BlackBerry Enterprise Server instances and remote components that use a single BlackBerry Configuration

Database.

Installation and Configuration Guide Planning a BlackBerry Enterprise Server Express installation

Planning a BlackBerry Enterprise Server Express installation

2

You can install all BlackBerry® Enterprise Server Express components on one computer, or you can install specific components on separate computers. You should consider any impact to system resources before you decide where to install the components.

You install all components on one computer if you do not plan to activate many BlackBerry devices, if you determine that the computer can manage the volume of traffic for the BlackBerry Enterprise Server Express components, and if it is acceptable that the computer has direct access to the Internet without being located in the DMZ.

Installing all BlackBerry Enterprise Server Express components on one computer

If you want to evaluate the BlackBerry® Enterprise Server Express or complete a BlackBerry Enterprise Server Express installation for a small number of users, you can install all the BlackBerry Enterprise Server Express components on the same computer.

During the installation process you can choose to install the BlackBerry® Web Desktop Manager and the BlackBerry

Administration Service with the BlackBerry Enterprise Server Express. All of the other BlackBerry Enterprise Server Express components are installed automatically when you install the BlackBerry Enterprise Server Express.

Installing the BlackBerry Administration Service

The BlackBerry® Administration Service permits you to manage a BlackBerry Domain through a web-based application. A

BlackBerry Domain consists of one BlackBerry Configuration Database and all BlackBerry® Enterprise Server instances and remote components that use the BlackBerry Configuration Database.

You can install the BlackBerry Administration Service with other BlackBerry Enterprise Server components or by itself on a separate computer. You can install the BlackBerry Administration Service on a separate computer to limit the impact that the BlackBerry

Administration Service might have on system resources and to prevent administrators in your organization from accessing any part of the computer that hosts the BlackBerry Enterprise Server. If you install the BlackBerry Administration Service before you install a BlackBerry Enterprise Server, the installation process can create and populate the BlackBerry Configuration Database.

When you install the BlackBerry Administration Service, you can install the BlackBerry® Web Desktop Manager and select whether you want administrators to use Windows® authentication or BlackBerry Administration Service authentication to log in to the

BlackBerry Administration Service. You must verify that all administrators have access to the BlackBerry Administration Service web address (https://<computer_name>:<port>/webconsole/app).

5

6

Installation and Configuration Guide Installing the BlackBerry Attachment Service

Installing the BlackBerry Attachment Service

The BlackBerry® Attachment Service converts supported attachments into a format that users can view on their BlackBerry devices. By default, the BlackBerry® Enterprise Server includes the BlackBerry Attachment Service.

The BlackBerry Attachment Service might use increased system resources when it processes numerous conversion requests simultaneously. If you want to increase the number of conversion requests that can occur concurrently without impacting message delivery, you can install a BlackBerry Attachment Service on a computer that is separate from the computer that hosts the

BlackBerry Enterprise Server.

You can connect multiple BlackBerry® Enterprise Server instances and BlackBerry MDS Connection Service instances to a

BlackBerry Attachment Service instance.

When you install the BlackBerry Attachment Service on a computer that is separate from the computer that hosts the BlackBerry

Enterprise Server, the installation process installs the BlackBerry Attachment Service and BlackBerry Controller. The BlackBerry

Controller monitors the BlackBerry Attachment Service and restarts it if it stops responding.

Installing the BlackBerry MDS Connection Service

The BlackBerry® MDS Connection Service provides users with access to online content and applications on your organization's intranet or the Internet. By default, the BlackBerry® Enterprise Server includes the BlackBerry MDS Connection Service.

The BlackBerry MDS Connection Service might use increased system resources when it processes content requests. If you want to minimize the impact this has on message delivery, you can install the BlackBerry MDS Connection Service by itself on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server.

You can connect multiple BlackBerry® Enterprise Server instances to a BlackBerry MDS Connection Service instance.

When you install the BlackBerry MDS Connection Service on a separate computer, you must assign at least one BlackBerry

Enterprise Server instance to it during the installation process. The BlackBerry MDS Connection Service uses the BlackBerry

Enterprise Server information to connect to the BlackBerry Attachment Service.

When you install the BlackBerry MDS Connection Service on a separate computer, the installation process installs the BlackBerry

MDS Connection Service and BlackBerry Controller. The BlackBerry Controller monitors the BlackBerry MDS Connection Service and restarts it if it stops responding.

Installing the BlackBerry Router

The BlackBerry® Router connects to the wireless network and sends data to and from BlackBerry devices.

Installation and Configuration Guide Installing the BlackBerry Router

You can install a BlackBerry Router with other BlackBerry® Enterprise Server components or by itself on a separate computer.

You can install the BlackBerry Router on a computer that is separate from the computer that hosts the BlackBerry Enterprise

Server if you want to install the BlackBerry Router in the DMZ, or to install standby BlackBerry Router instances as failover components in case the primary BlackBerry Router is unavailable.

You can connect multiple BlackBerry Enterprise Server instances to a BlackBerry Router instance.

If you install the BlackBerry Router on a separate computer, the installation process installs the BlackBerry Router and BlackBerry

Controller. The BlackBerry Controller monitors the BlackBerry Router and restarts it if it stops responding.

7

Installation and Configuration Guide Hardware requirements: BlackBerry Enterprise Server Express

8

Hardware requirements: BlackBerry Enterprise Server

Express

3

The following are requirements for a BlackBerry® Enterprise Server Express and the BlackBerry Enterprise Server Express components that you install on a single computer that uses Microsoft® Exchange. The requirements are for a BlackBerry Enterprise

Server Express environment that includes users that receive 100 to 200 email messages each day.

You can improve the performance and reliability of the BlackBerry Enterprise Server Express by installing the BlackBerry Enterprise

Server Express components on multiple computers. If you install all BlackBerry Enterprise Server Express components on the same computer as Microsoft Exchange or Windows® Small Business Server, it is a best practice to support up to 75 users only on the BlackBerry Enterprise Server Express. If you want to support more than 75 users on the BlackBerry Enterprise Server Express, it is a best practice to install the BlackBerry Enterprise Server Express components on computers that are separate from the computer that hosts Microsoft Exchange or Windows® Small Business Server.

If your BlackBerry Enterprise Server Express environment supports up to 1000 users, install the BlackBerry Configuration Database on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server Express. If your BlackBerry Enterprise

Server Express environment supports up to 2000 users, install the BlackBerry Configuration Database and the BlackBerry

Administration Service on computers that are separate from the computer that hosts the BlackBerry Enterprise Server Express.

Item

BlackBerry Enterprise Server Express that supports up to 75 users on the same server as Microsoft Exchange or

Microsoft Small Business Server

BlackBerry Enterprise Server Express that supports up to 200 users

Requirement

• Visit www.microsoft.com

to see the requirements for Microsoft Exchange or

Microsoft Small Business Server

• Add 1.5 GB memory for BlackBerry Enterprise Server Express services

BlackBerry Enterprise Server Express that supports up to 500 users

BlackBerry Enterprise Server Express that supports up to 1000 users

BlackBerry Enterprise Server Express that supports up to 2000 users

• Single processor, 2.0 GHz Intel® Xeon® (two processors recommended)

• 2 GB of memory

• 2 drives, RAID 1

• Two processors, 2.0 GHz Intel Xeon

• 2 GB of memory

• 2 drives, RAID 1

• Two processors, 2.0 GHz Intel Xeon

• 3 GB of memory

• 2 drives, RAID 1

• Two processors, 2.8 GHz Intel Xeon or two processors, 1.86 GHz Intel Xeon

5100 Series (Dual Core)

• 6 GB of memory

Installation and Configuration Guide

Item

Hardware requirements: BlackBerry Enterprise Server Express

Requirement

• 2 drives, RAID 1 or 4 drives, RAID 1+0

9

Installation and Configuration Guide System requirements

10

System requirements

For information about calculating hardware requirements, visit www.blackberry.com/go/serverdocs to see the BlackBerry

Enterprise Server Capacity Calculator and BlackBerry Enterprise Server Performance Benchmarking Guide.

4

System requirements: BlackBerry Enterprise Server Express

Item operating system

Microsoft® Exchange system tools

Microsoft Exchange organization of the system tools for the messaging server

CDO library

Unicode support for calendars browser media player

Requirement

Any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server 2008 SP2 (32-bit or 64-bit)

• Windows® Small Business Server 2003

• Windows Small Business Server 2008

Any of the following system tools:

• Microsoft Exchange 2003 SP2 System Manager

• Microsoft Exchange Server MAPI client and CDO 1.2.1

To support Microsoft Exchange 2010, you must install Microsoft Exchange Server

MAPI client and CDO 1.2.1 version 6.5.8146.0 or higher.

For more information about installing MAPI and CDO patches on your organization's BlackBerry® Enterprise Server Express, visit http:// support.microsoft.com

to read article 917481.

The same Microsoft Exchange organization that the messaging server uses

To support the latest version for Microsoft Exchange in your organization's environment, the latest version of the CDO library that applies to that version

To support Microsoft Exchange 2003, the following Microsoft hotfixes:

• 913643 on the messaging server

• 923537 on the computer that hosts the BlackBerry Enterprise Server Express

Windows® Internet Explorer® 6.0 to 8.0 with language preferences configured to display encoded web pages

To support audio attachments, Windows Media® Player 9 or later

Installation and Configuration Guide System requirements: BlackBerry Administration Service and BlackBerry Web Desktop Manager

Item network proximity

Requirement

A high-speed, switched connection between the BlackBerry Enterprise Server

Express and messaging servers

System requirements: BlackBerry Administration Service and BlackBerry

Web Desktop Manager

The following system requirements apply when you install the BlackBerry® Administration Service and BlackBerry® Web Desktop

Manager on a computer that is separate from the computer that hosts the BlackBerry® Enterprise Server.

Item operating system memory browser

Requirement

Any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server® 2008 SP2 (32-bit or 64-bit)

• Windows® Small Business Server 2003

• Windows Small Business Server 2008

• Microsoft® hotfix 955839 installed on the computer that hosts the BlackBerry

Administration Service and BlackBerry Web Desktop Manager

A minimum of 1.2 GB of memory

Windows® Internet Explorer® version 6.0 to 8.0 with the following settings:

• language preferences configured to display encoded web pages

• the BlackBerry Administration Service and BlackBerry Web Desktop Manager web sites assigned to the local intranet or trusted sites security zone

System requirements: BlackBerry Enterprise Server Express databases

Item database management system

Requirement

Any of the following database management systems:

• MSDE 2000 SP3

• Microsoft® SQL Server® 2005 SP3 (32-bit or 64-bit)

11

Installation and Configuration Guide System requirements: BlackBerry Attachment Service

Item collation setting remote database conditions database transactional replication

Requirement

• Microsoft SQL Server 2005 Express Edition SP3

• Microsoft SQL Server 2008 SP1 (32-bit or 64-bit)

• Microsoft SQL Server 2008 Express Edition SP1 (32-bit or 64-bit)

For all versions of the Microsoft SQL Server earlier than Microsoft SQL Server 2005 SP3,

Microsoft Security Bulletin MS09-004 (for more information, visit http:// technet.microsoft.com

to read article KB960082).

The following conditions on the database server:

• collation set to default case-insensitive

• BlackBerry® Configuration Database collation set to default case-insensitive

• BlackBerry® database notification system and Microsoft SQL Server collation must be the same

• default collations are recommended though non-default collations are supported

(for more information, visit http://technet.microsoft.com

to read articles KB04785 and KB15534)

TCP/IP network protocols turned on

To support database transactional replication for the BlackBerry Configuration Database , the following conditions:

• the database server must be Microsoft SQL Server 2005 SP3 or later

• the database server that hosts the replicated database must use the same version and build as the primary database

System requirements: BlackBerry Attachment Service

The following system requirements apply when you install the BlackBerry® Attachment Service on a computer that is separate from the computer that hosts the BlackBerry® Enterprise Server.

Item operating system

Requirement

Any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server® 2008 SP2 (32-bit or 64-bit)

• Windows® Small Business Server 2003

12

Installation and Configuration Guide System requirements: BlackBerry MDS Connection Service

Item media player browser

Requirement

• Windows Small Business Server 2008

To support audio attachments, Windows Media® Player version 9 or later

Windows® Internet Explorer® version 6.0 to 8.0 with language preferences configured to display encoded web pages

System requirements: BlackBerry MDS Connection Service

The following system requirements apply when you install the BlackBerry® MDS Connection Service on a computer that is separate from the computer that hosts the BlackBerry® Enterprise Server.

Item operating system

RSA® Authentication Agent memory

Requirement

Any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server® 2008 SP2 (32-bit or 64-bit)

• Windows® Small Business Server 2003

• Windows Small Business Server 2008

To support enhanced network authentication (optional), RSA® Authentication

Agent version 5.0 for Windows®

One of the following:

• if you install a central push server and less than 1000 user accounts, a minimum of 1024 MB

• if you install a central push server and more than 1000 user accounts, a minimum of 3 GB

• if you do not install a central push server, a minimum of 512 MB

System requirements: BlackBerry Router

To install the BlackBerry® Router on a computer that is separate from the computer that hosts the BlackBerry® Enterprise Server, any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server® 2008 SP2 (32-bit or 64-bit)

13

Installation and Configuration Guide System requirements: Computers for BlackBerry Web Desktop Manager and BlackBerry Administration Service users

System requirements: Computers for BlackBerry Web Desktop Manager and

BlackBerry Administration Service users

Item operating system browser browser settings

Requirement

Any of the following operating systems:

• Windows Server® 2003 SP2 (32-bit or 64-bit)

• Windows Server 2003 R2 SP2 (32-bit or 64-bit)

• Windows Server® 2008 SP2 (32-bit or 64-bit)

• Windows® Small Business Server 2003

• Windows Small Business Server 2008

Windows® Internet Explorer® version 6.0 to 8.0

The following conditions must be met:

• the BlackBerry Web Desktop Manager and BlackBerry Administration Service web sites assigned to the local intranet or trusted sites security zone

• Microsoft® hotfix 955839 installed on the users' computers to make sure the correct time zones are displayed

• the following settings turned on to support Microsoft® ActiveX®:

• Automatic prompting for ActiveX controls

• Download signed Microsoft ActiveX controls

• Run ActiveX controls and plug-ins

• Script ActiveX controls marked safe for scripting

• support for JavaScript®

• support for TLS or SSL

• the SSL certificate installed to permit trusted connections with the BlackBerry

Administration Service

• if using Windows Vista, the BlackBerry Administration Service web address added as a trusted site and Enable protected mode cleared

14

Installation and Configuration Guide System requirements: Messaging server

System requirements: Messaging server

Any of the following messaging servers located in close proximity to where you want to install the primary BlackBerry® Enterprise

Server Express:

• Microsoft® Exchange 2010 and Microsoft Exchange 2010 Update Rollup 1

• Microsoft Exchange 2007 SP2

• Microsoft Exchange 2003 SP2

• Microsoft Exchange mixed environment (Microsoft Exchange 2003 and 2007)

System requirements: Firewall

To install the BlackBerry® Enterprise Server, configure a firewall or proxy firewall with the following conditions:

• exclusive use of port 3101 to open and maintain an outbound, bidirectional TCP/IP connection to an external server

• support for resolving Internet addresses that use DNS

• for proxy firewalls, transparency of the proxy server

Supported features and environments

Item virtual environment enhanced network authentication

SNMP monitoring remote access messaging server

Description

The BlackBerry® Enterprise Server Express and BlackBerry Enterprise Server

Express components support VMware® Infrastructure version 3.5.

The BlackBerry Enterprise Server Express and BlackBerry Enterprise Server Express components support RSA® Authentication Agent version 5.0 for Windows®.

The BlackBerry Enterprise Server Express and BlackBerry Enterprise Server Express components support the SNMP service.

The BlackBerry Enterprise Server Express and BlackBerry Enterprise Server Express components support remote access by administrators who use Remote Desktop

Connection.

The BlackBerry Enterprise Server Express and BlackBerry Enterprise Server Express components support installation on the same computer as the messaging server.

15

Installation and Configuration Guide Unsupported environments

Unsupported environments

Item Description

DMZ The BlackBerry® Enterprise Server Express and BlackBerry Enterprise Server

Express components, with the exception of the BlackBerry Router, do not support installation in a DMZ.

BlackBerry database notification system The BlackBerry database notification system does not support installation on a computer that hosts Microsoft® SQL Server® and runs Windows Server® 2008.

BlackBerry Attachment Service upgrades or migration

If the BlackBerry Attachment Service is hosted on a computer that uses Windows

Server® 2008, the BlackBerry Attachment Service does not support .mp3 audio files on BlackBerry devices, and the BlackBerry Attachment Service does not support any audio file formats on BlackBerry® 7100 Series devices that support CDMA networks. You must host the BlackBerry Attachment Service on a computer that uses Windows Server 2003 if you want the BlackBerry Attachment Service to support .mp3 audio files on BlackBerry devices and all audio formats on BlackBerry

7100 Series devices that support CDMA networks.

The BlackBerry Enterprise Server Express does not support upgrades or migration from the following products:

• BlackBerry® Enterprise Server versions 5.x, 4.x, 3.x, or 2.x

• BlackBerry® Professional Software version 4.1.4

mixed environment The BlackBerry Enterprise Server Express does not support the connection of

BlackBerry Enterprise Server Express and the BlackBerry Enterprise Server to the same domain. You can, however, configure a domain for BlackBerry Enterprise

Server Express for one group of users, and another domain for the BlackBerry

Enterprise Server for a different group of users.

16

Installation and Configuration Guide Preinstallation tasks

Preinstallation tasks

5

Configuring a Microsoft Exchange 2010 messaging environment

Create a Windows account that has a Microsoft Exchange 2010 mailbox

You must create a Windows® account with a Microsoft® Exchange 2010 mailbox so that the Windows account can authenticate with the Microsoft® Exchange Server.

Before you begin: If you want free/busy lookups to work in Microsoft® Outlook® 2003 and earlier, you must configure Microsoft

Exchange 2010 to support Microsoft Outlook 2003 and earlier by creating a public folder database. For more information about supporting Microsoft Outlook 2003 and earlier, visit http://support.microsoft.com

to read article 555851 and visit http:// technet.microsoft.com

to read articles 123694, 124270, 397221, and 691120.

1.

On the computer that hosts Microsoft Exchange, log in using an administrator account that has the permission to create accounts.

2.

Open the Microsoft Exchange Management Console.

3.

Create an account and mailbox that you name BESAdmin.

4.

To permit the BlackBerry® Enterprise Server to check if a BlackBerry device user has permission to access a public folder, assign the Owner permission for all public folders to the administrator account.

After you finish:

• To verify that you created the Windows account, log in to a computer using the Windows account.

• Verify that the Windows account is not a member of the Domain Administrators group in Microsoft® Active Directory®.

• Verify that BlackBerry device users have Read permissions and Visible permissions to public folders.

• To permit BlackBerry device users to check the availability of meeting participants using BlackBerry® Device Software 4.5

or later, configure the Schedule+ Free/Busy information for the system public folder. For more information, visit http:// technet.microsoft.com

to read articles 629523 and 691129.

Configure Microsoft Exchange 2010 permissions for the Windows account

1.

On a computer that hosts the Microsoft® Exchange Management Shell, open the Microsoft Exchange Management Shell.

2.

Type Get-MailboxDatabase | Add-ADPermission -User "BESAdmin" -AccessRights ExtendedRight -ExtendedRights

Receive-As, ms-Exch-Store-Admin.

3.

Type Add-RoleGroupMember "View-Only Organization Management" -Member "BESAdmin".

17

Installation and Configuration Guide Configuring a Microsoft Exchange 2010 messaging environment

4.

Type Add-ADPermission -InheritedObjectType User -InheritanceType Descendents -ExtendedRights Send-As -

User "BESAdmin" -Identity "CN=Users,DC=<domain_1>,DC=<domain_2>,DC=<domain_3>" where <domain_1>,

<domain_2>, and <domain_3> form the name of the domain.

For example, if the domain name is www.example.com, type www for <domain_1>, example for <domain_2>, and com for

<domain_3>.

After you finish: If you create a new mailbox database for Microsoft Exchange, repeat step 2.

Turn off client throttling in Microsoft Exchange 2010

By default, Microsoft® Exchange 2010 uses client throttling policies to track the bandwidth that each Microsoft Exchange user consumes and enforce bandwidth limits, as necessary. The policies affect the performance of the BlackBerry® Enterprise Server negatively, so you should turn off client throttling for the Windows® account that has a Microsoft Exchange mailbox.

1.

On a computer that hosts the Microsoft Exchange Management Shell, open the Microsoft Exchange Management Shell.

2.

Type New-ThrottlingPolicy BESPolicy.

3.

Type Set-Mailbox "BESAdmin" -ThrottlingPolicy BESPolicy.

Increase the maximum number of connections to the Address Book service in Microsoft

Exchange 2010

By default, Microsoft® Exchange 2010 limits the maximum number of connections from the BlackBerry® Enterprise Server to the

Address Book service to 50. To permit the BlackBerry Enterprise Server to run, you must increase the number of permitted connections to a large value (for example, 100,000).

1.

On the computer that hosts the Microsoft Exchange CAS server, in <drive>:\Program Files\Microsoft\Exchange Server\V14

\Bin, in a text editor, open the microsoft.exchange.addressbook.service.exe.config file.

2.

Change the value of the MaxSessionsPerUser key to 100000.

3.

Save and close the file.

4.

Restart the Address Book service.

Configure a management role for Microsoft Exchange Web Services

If you want the BlackBerry® Enterprise Server to use Microsoft® Exchange Web Services to manage calendars on BlackBerry devices, you must configure a management role for Microsoft Exchange Web Services in Microsoft Exchange 2010.

For more information about configuring the BlackBerry Enterprise Server to use Microsoft Exchange Web Services, see the

BlackBerry Enterprise Server Administration Guide.

1.

On a computer that hosts the Microsoft Exchange Management Shell, open the Microsoft Exchange Management Shell.

18

Installation and Configuration Guide Configuring a Microsoft Exchange 2007 messaging environment

2.

Type New-ManagementRoleAssignment -Name "BES Admin EWS" -Role ApplicationImpersonation -User

"BESAdmin".

Configure the BlackBerry Enterprise Server to run without public folders

If you did not install any public folders in Microsoft® Exchange, you must configure the BlackBerry® Enterprise Server to run without public folders by changing a registry key.

1.

On each computer that hosts the BlackBerry Enterprise Server, click Start > Run.

2.

In the Open field, type regedit.

3.

Click OK.

4.

Perform one of the following actions:

• If you are running a 32-bit version of Windows®, navigate to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows

Messaging Subsystem\CDO.

• If you are running a 64-bit version of Windows, navigate to HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node

\Microsoft\Windows Messaging Subsystem.

5.

If the CDO registry key does not exist, create a registry key that you name CDO.

6.

In the CDO registry key, if the DWORD value does not exist, create a DWORD value that you name Ignore No PF.

7.

Change the DWORD value to 1.

8.

Click OK.

Configuring a Microsoft Exchange 2007 messaging environment

Create a Windows account that has a Microsoft Exchange 2007 mailbox

You must create a Windows® account that has a Microsoft® Exchange 2007 mailbox so that the Windows account can authenticate with the Microsoft® Exchange Server.

Before you begin: You must configure Microsoft Exchange 2007 to support versions of Microsoft® Outlook® that are earlier than 2007 by creating a public folder database. For more information about supporting versions of Microsoft Outlook that are earlier than 2007, visit http://support.microsoft.com

to read article 555851 and visit http://technet.microsoft.com

to read articles

123694, 124270, 397221, and 691120.

1.

On the computer that hosts Microsoft Exchange, log in using an administrator account that has the correct permission to create accounts.

2.

Open the Microsoft Exchange Management Console.

3.

Create an account and mailbox that you name BESAdmin.

4.

To permit the BlackBerry Enterprise Server to check if a user has permissions for a public folder, assign the Owner permission for all public folders to the administrator account.

19

Installation and Configuration Guide Configuring a Microsoft Exchange 2007 messaging environment

After you finish:

• To verify that you created the Windows account, log in to a computer using the Windows account.

• Verify that the Windows account is not a member of the Domain Administrators group in Microsoft® Active Directory®.

• Verify that BlackBerry device users have Read and Visible permissions to public folders.

• To permit BlackBerry device users to check the availability of meeting participants in BlackBerry® Device Software 4.5 or later, configure the Schedule+ Free/Busy information for the system public folder. For more information, visit http:// technet.microsoft.com

to read articles 629523 and 691129.

Configure Microsoft Exchange 2007 permissions for the Windows account

1.

On a computer that hosts the Microsoft® Exchange Management Shell, open the Microsoft Exchange Management Shell.

2.

Perform one of the following actions:

• If you logged in to a Microsoft® Exchange Server 2007, type add-exchangeadministrator "BESAdmin" -role

ViewOnlyAdmin.

• If you logged in to another computer, type get-mailboxserver "<messaging_server_name>" | addexchangeadministrator "BESAdmin" -role ViewOnlyAdmin.

3.

For each Microsoft Exchange Server 2007 that hosts BlackBerry® device users, type the following command: getmailboxserver "<messaging_server_name>" | add-adpermission -user "BESAdmin" -accessrights ExtendedRight extendedrights Receive-As, ms-Exch-Store-Admin.

Permit BlackBerry device users to send email messages in a Microsoft Exchange environment

To permit BlackBerry® device users to send email messages, you must configure Send As permissions for the Microsoft® Active

Directory® user object that contains BlackBerry device users. This task describes how to configure the Send As permissions for the entire Windows® domain but you can also configure the permissions at the user object level or on a container of user objects.

For more information about Send As permissions and the BlackBerry® Enterprise Server, visit www.blackberry.com/support to read KB04707. For more information about assigning Send As permissions permissions to multiple user accounts, visit www.support.microsoft.com

to read article 912918.

1.

Log in to a computer in the Windows® domain as an administrator that has permissions to modify user objects in Microsoft

Active Directory.

2.

On the taskbar, click Start > Administrative Tools > Active Directory Users and Computers.

3.

On the View menu, click Advanced Features.

4.

Right-click the domain root. Click Properties.

5.

On the Security tab, click Advanced.

6.

Click Add.

7.

Type the name of the Windows account that you created (for example, BESAdmin).

8.

Click Check Names.

20

Installation and Configuration Guide Configuring a Microsoft Exchange 2003 messaging environment

9.

Click OK.

10. In the Apply drop-down list, click User Objects.

11.

In the Allow column, select the Send As check box.

12. Click Apply.

13. Click OK.

Configuring a Microsoft Exchange 2003 messaging environment

Create a Windows account that has a Microsoft Exchange 2003 mailbox

You must create a Windows® account that has a Microsoft® Exchange 2003 mailbox so that the Windows account can authenticate with the Microsoft Exchange messaging server.

1.

On any computer in the Windows domain, on the taskbar, click Start > Programs > Microsoft Exchange > Active Directory

Users and Computers.

2.

Create an account that has the following attributes:

• Name: BESAdmin

• Group membership: Domain User

3.

Create a Microsoft Exchange mailbox for the account.

4.

To activate the new mailbox, send a test email message.

After you finish:

If you cannot see the Windows account in the Microsoft Active Directory to verify that you created it, log in to a computer using the Windows account.

For more information about the Send As permission and the BlackBerry® Enterprise Server, visit www.blackberry.com

to read

KB04707.

For more information about assigning the Send As permission to multiple user accounts, visit www.support.microsoft.com

to read article 912918.

Configure Microsoft Exchange 2003 permissions for the Windows account

On each Microsoft® Exchange 2003 server that hosts BlackBerry® device users, you must configure Microsoft Exchange permissions for the Windows® account (for example, BESAdmin) that you want to use to install the BlackBerry® Enterprise Server components.

21

Installation and Configuration Guide Configuring a Microsoft Exchange 2003 messaging environment

This task describes how to configure the Microsoft Exchange permissions at the administrative group level for every Microsoft

Exchange 2003 server that hosts BlackBerry device users but you can also configure the permissions at other levels, such as at the root of the organization or another administrative group.

1.

On the computer that hosts the Microsoft Exchange 2003 System Manager, open the Microsoft Exchange 2003 System

Manager.

2.

Configure the Exchange View Only Administrator permission for the Windows account in the administrative group that contains the Microsoft Exchange 2003 servers that host BlackBerry device users.

3.

On each Microsoft Exchange 2003 server that hosts BlackBerry device users, assign the following permissions to the Windows account:

• Send As

• Receive As

• Administer Information Store

4.

To permit the BlackBerry Enterprise Server to check if users have permissions to access a public folder, assign the Owner permission for all public folders to the Windows account.

After you finish: Verify that the users have Read and Visible permissions to public folders.

Permit BlackBerry device users to send email messages in a Microsoft Exchange environment

To permit BlackBerry® device users to send email messages, you must configure Send As permissions for the Microsoft® Active

Directory® user object that contains BlackBerry device users. This task describes how to configure the Send As permissions for the entire Windows® domain but you can also configure the permissions at the user object level or on a container of user objects.

For more information about Send As permissions and the BlackBerry® Enterprise Server, visit www.blackberry.com/support to read KB04707. For more information about assigning Send As permissions permissions to multiple user accounts, visit www.support.microsoft.com

to read article 912918.

1.

Log in to a computer in the Windows® domain as an administrator that has permissions to modify user objects in Microsoft

Active Directory.

2.

On the taskbar, click Start > Administrative Tools > Active Directory Users and Computers.

3.

On the View menu, click Advanced Features.

4.

Right-click the domain root. Click Properties.

5.

On the Security tab, click Advanced.

6.

Click Add.

7.

Type the name of the Windows account that you created (for example, BESAdmin).

8.

Click Check Names.

9.

Click OK.

10. In the Apply drop-down list, click User Objects.

22

Installation and Configuration Guide Configure permissions for the Windows account

11.

In the Allow column, select the Send As check box.

12. Click Apply.

13. Click OK.

Configure permissions for the Windows account

On each computer that you want to install the BlackBerry® Enterprise Server components on, you must configure permissions for the Windows® account that you want to use to install the BlackBerry Enterprise Server components and run the services for the BlackBerry Enterprise Server.

Without the correct permissions, the BlackBerry Enterprise Server cannot run.

1.

Right-click My Computer. Click Manage.

2.

In the left pane, expand Local Users and Groups.

3.

Navigate to the Groups folder.

4.

In the right pane, double-click Administrators.

5.

Click Add.

6.

In the Enter the object names to select field, type the Windows account name that you want the services for the BlackBerry

Enterprise Server to use (for example, BESAdmin).

7.

Click OK.

8.

Click Apply.

9.

Click OK.

10. On the taskbar, click Start > Programs > Administrative Tools > Local Security Policy.

11.

Configure the following permissions for the Windows account:

• log on locally with local permissions (if not assigned by default)

• log on as a service

12. On the taskbar, click Start > Programs > Administrative Tools > Computer Management.

13. Add the Windows account to the local administrators group.

Prevent the Microsoft Exchange known issues for wireless calendar synchronization

Some known issues for Microsoft® Exchange impact how the BlackBerry® Enterprise Server synchronizes calendars over the wireless network. To prevent the known issues from occurring, you can read about the known issues for Microsoft Exchange that might impact your organization's messaging environment and install the hotfixes for them. If your organization's messaging environment includes multiple messaging servers, you can resolve the known issues that apply to the latest Microsoft Exchange software version in your organization's environment.

23

Installation and Configuration Guide Verify if the Windows account can access a user account in Microsoft Exchange

If you do not install the correct hotfixes, the BlackBerry Enterprise Server cannot run.

1.

Visit http://support.microsoft.com

to read articles 823343 and 894470.

2.

Verify that your organization's environment meets the requirements that are described in the applicable known issues.

3.

Download the hotfixes for the known issues on the computers that you want to install the BlackBerry Enterprise Server or

BlackBerry Administration Service on.

4.

Install the hotfixes.

Verify if the Windows account can access a user account in Microsoft

Exchange

The BlackBerry® Enterprise Server requires permission to access each BlackBerry device user's mailbox to process email messages.

The IEMSText.exe tool runs a test to verify whether the Windows® account has the Send As permission in Microsoft® Exchange so that the BlackBerry Enterprise Server can access user accounts. The IEMSText.exe tool does not verify whether the BlackBerry

Enterprise Server can send email messages on behalf of a BlackBerry device user.

1.

Copy the BlackBerry® Enterprise Server installation files to the computer that you want to install the BlackBerry Enterprise

Server on.

2.

Extract the contents to a folder on the computer.

3.

Navigate to <extracted_folder>\Tools.

4.

Double-click IEMSTest.exe.

5.

In the Profile Name drop-down list, select the profile names for the user accounts.

6.

Click OK.

7.

In the left pane, select the user accounts that you want to check.

8.

Click Select.

9.

Click OK.

Configuring connections for the BlackBerry Enterprise Server Express database

The BlackBerry® Enterprise Server Express stores data in its own database. The database for the BlackBerry Enterprise Server

Express is the BlackBerry Configuration Database. You create the BlackBerry Configuration Database when you install a

BlackBerry Enterprise Server Express or BlackBerry Administration Service or when you run the CreateDB executable.

The BlackBerry Enterprise Server Express can connect to its database on the Microsoft® SQL Server® using Windows® authentication or database authentication. By default, the BlackBerry Enterprise Server Express logs in to its database using the

Windows account that you use to complete the installation process or the database credentials you provided during the installation process.

24

Installation and Configuration Guide Configuring connections for the BlackBerry Enterprise Server Express database

Specifying permissions when you connect to the BlackBerry Enterprise Server Express database using Windows authentication or Microsoft SQL Server authentication

If you connect the BlackBerry® Enterprise Server Express to the BlackBerry Enterprise Server Express database using Windows® authentication or Microsoft® SQL Server® authentication during the BlackBerry Enterprise Server Express installation process, the Windows account or Microsoft SQL Server account that you specify must have database permissions on the database server.

The type of permissions that you specify is determined by the setup option that you select and whether you create the BlackBerry

Enterprise Server Express database on the computer that hosts the BlackBerry Enterprise Server Express components or on another database server.

Specifying permissions for the Windows account or Microsoft SQL Server account

If you install Microsoft® SQL Server® 2005 Express during the BlackBerry® Enterprise Server installation process, you might need to specify permissions for the Windows® account or Microsoft SQL Server account, depending on the type of authentication you select.

When you select Windows authentication during the BlackBerry Enterprise Server installation process, the setup application automatically assigns the required permissions to the Windows account that you use to complete the installation process.

When you select Microsoft SQL Server authentication during the BlackBerry Enterprise Server installation process, you must assign the required database permissions to the Microsoft SQL Server account that you use to complete the installation process.

Assign permissions to the Windows account or Microsoft SQL Server account

Perform one of the following actions:

• If you create the BlackBerry® Enterprise Server databases on the computer that hosts the BlackBerry Enterprise Server and you require the setup application to install Microsoft® SQL Server® Express during the installation process and you choose Windows® authentication, you are not required to assign Microsoft SQL Server permissions to the Windows account. If you want the setup application to install the BlackBerry database notification system, you must assign the

Microsoft SQL Server permission for the database system administrator (also called the sysadmin server role in Microsoft

SQL Server Management Studio) to the Windows account.

• If you create the BlackBerry Enterprise Server databases on the computer that hosts the BlackBerry Enterprise Server and you require the setup application to install Microsoft SQL Server Express during the installation process and you choose Microsoft SQL Server authentication, you must assign the database creator (dbcreator server role) Microsoft SQL

Server permission to the Microsoft SQL Server account. If you want the setup application to install the BlackBerry database notification system, you must assign the Microsoft SQL Server permission for the database system administrator (also called the sysadmin server role in Microsoft SQL Server Management Studio) to the Microsoft SQL Server account.

• If you create the BlackBerry Enterprise Server databases on the computer that hosts the BlackBerry Enterprise Server and the computer already hosts a Microsoft SQL Server, you must assign the database creator (dbcreator server role)

Microsoft SQL Server permission to the Windows account or Microsoft SQL Server account that you use to complete the

25

Installation and Configuration Guide Configuring connections for the BlackBerry Enterprise Server Express database

BlackBerry Enterprise Server installation process. If you want the setup application to install the BlackBerry database notification system, you must assign the Microsoft SQL Server permission for the database system administrator (also called the sysadmin server role in Microsoft SQL Server Management Studio) to the Windows account or Microsoft SQL

Server account.

• If you create the BlackBerry Enterprise Server databases on a computer that does not host the BlackBerry Enterprise

Server, you must assign the database creator (dbcreator server role) Microsoft SQL Server permission to the Windows or Microsoft SQL Server account that you use to complete the BlackBerry Enterprise Server installation process. If you want the setup application to install the BlackBerry database notification system, you must assign the Microsoft SQL

Server permission for the database system administrator (also called the sysadmin server role in Microsoft SQL Server

Management Studio) to the Windows account or Microsoft SQL Server account.

Create a BlackBerry Configuration Database

If the security required by your organization does not allow applications to have permissions to create or upgrade databases, you can run the CreateDB executable on the database server to create the BlackBerry® Configuration Database instead of using the setup application. After you create or upgrade the BlackBerry Configuration Database using the CreateDB executable, you can run the setup application using a Windows® account with minimum requirements to the database server.

Before you begin: Verify that the appropriate permissions are configured on the database server.

1.

Log in to the computer that hosts the database server using a local administrator account or a Windows account that has

SQL administrator permissions.

2.

Copy the BlackBerry® Enterprise Server installation media to the database server that you want to configure as the host server for the BlackBerry Configuration Database.

3.

Extract the contents to a folder on the computer.

4.

Navigate to <extracted_folder>\Database.

5.

Open the BesMgmt.cfg file in a text editor.

6.

Change the file to include information that is specific to your organization's environment.

7.

Save and close the file.

8.

Open a command prompt window.

9.

Change to <extracted_folder>\Database.

10. Type CreateDB.exe BESMgmt.cfg.

BESMgmt.cfg properties

Property

DATABASE_NAME

Description

This property specifies the name of the BlackBerry® Configuration Database.

26

Installation and Configuration Guide Applications that are installed with the BlackBerry Enterprise Server Express components

Property

CMD

USERID

PASSWORD

SCRIPT_ROOT

LOG_DIR

DBMS

DB_FILE_DIR

BACKUP_DIR

Description

This property specifies the type of action that the CreateDB executable must complete (for example, whether to install or upgrade the BlackBerry Configuration

Database).

If you use database authentication, this property specifies the user name of the database account that has server administrator permission and database creator permission.

If you use database authentication, this property specifies the password for the database account.

This property specifies the path to the DBInstallScripts folder.

By default, this folder is in the same root folder that the CreateDB.exe file is located in.

This property specifies the path to the folder that you want to create log files in.

By default, this folder is in the same root folder that the CreateDB.exe file is located in.

This property specifies the database management system that your organization uses.

This property specifies an existing folder that you want to save the database files in.

By default, this folder is in the same root folder that the CreateDB.exe file is located in.

This property specifies an existing folder where you want to save the database backup in.

By default, this folder is located in the same root folder that the CreateDB.exe file is located in.

Applications that are installed with the BlackBerry Enterprise Server Express components

The BlackBerry® Enterprise Server Express installation process can include the installation of third-party applications.

27

Installation and Configuration Guide Applications that are installed with the BlackBerry Enterprise Server Express components

Application

JDK with JRE™ version 1.6.15

JDK version 1.6.15

Microsoft® XML Parser version 6.0 SP2

Microsoft® SQL Server® 2005 Express Edition

SP3 (if selected)

Microsoft® .NET Framework version 2.0

(if you are installing Microsoft SQL Server

Express)

BlackBerry Enterprise Server Express components that the application is installed with

• BlackBerry Administration Service

• BlackBerry Administration Service

• BlackBerry MDS Connection Service all components except the BlackBerry Router

• BlackBerry Administration Service

• any other components

• All components

28

Installation and Configuration Guide Installing the BlackBerry Enterprise Server software

Installing the BlackBerry Enterprise Server software

6

Prerequisites: Installing the BlackBerry Enterprise Server software

• Verify that the Windows® account that you use to install the BlackBerry® Enterprise Server software is assigned the local administrator permission on the computer that you perform the installation process on.

• Verify that the Windows account that you want to use to install the BlackBerry Enterprise Server software is not a member of the Domain Admins group in Microsoft® Active Directory®.

• In a Microsoft® Exchange 2003 environment, to start the MAPI subsystem, open the Microsoft Exchange System Manager.

• Retrieve the following information:

• BlackBerry® Client Access License key

• SRP host (in BlackBerry Enterprise Server version 5.0 and later, the format of the SRP host is different from earlier versions)

• SRP identifier

• SRP key

• computer name and port number of the proxy server (if applicable)

• Add the blackberry.net domain to the permitted lists in the antivirus and anti-spam applications that the messaging server or gateway uses.

• Verify that the computer has access to www.blackberry.com (optional).

• If your organization uses a proxy server for Internet access, obtain the credentials for the proxy server.

• Verify that you installed the appropriate languages and text services on the computer that you use to install the BlackBerry

Enterprise Server.

• If you want to install Microsoft® SQL Server® 2005 Express Edition SP3 on a computer that does not host any BlackBerry

Enterprise Server components, you can navigate to the Tools folder in the BlackBerry Enterprise Server installation files and run Sqlexpr.exe.

• If you are installing the BlackBerry Administration Service, verify that the computers that host the BlackBerry Administration

Service and the BlackBerry Configuration Database are not separated by a WAN bridge.

• If you are performing the installation on a computer that has more than one NIC, verify that the production NIC is first in the bind order in Windows network settings.

Install the BlackBerry Enterprise Server Express software

During the BlackBerry® Enterprise Server Express installation process, you must restart the computer.

29

Installation and Configuration Guide Install the BlackBerry Enterprise Server Express software

Note: To administer the BlackBerry Enterprise Server Express, you must install the BlackBerry Administration Service. You can install the BlackBerry Administration Service on the computer that hosts the BlackBerry Enterprise Server Express or on a separate computer. You must install the BlackBerry Administration Service if you create a BlackBerry Configuration Database and you must also either install or upgrade the BlackBerry Administration Service on the computer that you perform the installation process on in the BlackBerry Domain first.

1.

Log in to the computer that you want to install the BlackBerry Enterprise Server Express on using the Windows® account that you created and that has correct permissions. This account runs the BlackBerry Enterprise Server Express services.

2.

In the BlackBerry Enterprise Server Express installation files, double-click setup.exe.

3.

Accept the BlackBerry Enterprise Server Express license agreement. Click Next.

4.

In the Setup type dialog box, select Create a BlackBerry Configuration Database.

5.

In the Setup options dialog box, specify whether you want the setup application to install all the components of the

BlackBerry Enterprise Server Express on the computer that you logged into or some of the BlackBerry Enterprise Server

Express components on a different computer. Click Next.

6.

In the Preinstallation checklist dialog box, perform one of the following actions:

• To continue, click Next.

• To address requirements that were identified in the checklist, click Cancel. You can restart the installation or upgrade at a later time.

7.

In the Database options dialog box, specify whether you want the setup application to install Microsoft® SQL Server®

2005 Express on your computer. Click Next.

8.

In the Accounts and Folders dialog box, in the Name field, type the name of the BlackBerry Enterprise Server Express that you want the BlackBerry Administration Service to display. Click Next.

9.

In the Summary dialog box, verify the setup information.

10. Click Install to start the installation process.

11.

When the setup application prompts you to restart the computer, click Yes.

12. Log in to the computer that you want to install the BlackBerry Enterprise Server on using the same account that you used in step 1.

13. In the Database information dialog box, select whether to install the BlackBerry Configuration Database locally (on the same server as the BlackBerry Enterprise Server Express) or remotely.

14. Type the name or IP address of the host computer for the database.

15. Specify the database name.

16. Specify the port configuration. If the configuration is static, specify the port number that BlackBerry Enterprise Server

Express uses to connect to the database.

17. Select one of the following authentication types:

• If you are installing a local database, set the authentication method to Windows authentication.

• If the BlackBerry Enterprise Server Express will connect to a remote database, select the authentication type for that database.

30

Installation and Configuration Guide Install a BlackBerry Enterprise Server Express component on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server Express

18. Click Next.

19. If you are installing a local database, when you are prompted to create the BlackBerry Configuration Database, click Yes.

You are notified when the database is created.

20. In the BlackBerry CAL and SRP information dialog box, type the BlackBerry® CAL key, SRP host, and SRP authentication information that you received with your installation package.

21. Click Verify to verify that the information is correct.

22. Click Next.

23. In the Administration settings dialog box, accept the default settings. Click Next.

24. In the Active Directory® settings dialog box, type the Microsoft® Active Directory® login credentials. Click Next.

25. In the Advanced administration settings dialog box, specify the type of authentication that you want to use. Click Next.

26. In the Start services dialog box, click Start Services. You are notified as each of the BlackBerry Enterprise Server Express services starts. Click Next.

27. In the Console addresses dialog box, copy the web addresses for the BlackBerry Enterprise Server Express components and paste them into a document for future reference. You can use the web addresses to log in to the BlackBerry Enterprise

Server Express components that you installed.

28. Click Finish.

After you finish:

• Verify that the collation setting for the BlackBerry Configuration Database is default case-insensitive.

• If you reinstalled the BlackBerry Administration Service, in Windows® Internet Explorer®, delete the cache.

Install a BlackBerry Enterprise Server Express component on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server

Express

Before you begin:

• Install a BlackBerry® Enterprise Server Express and the BlackBerry Administration Service in your organization's environment.

• Verify that the BlackBerry Administration Service is running on a Windows® account that has permission to access and modify the Windows registry on the computer that you want to install the BlackBerry Enterprise Server Express component on.

1.

Using the Windows account that you created, log in to the computer that is separate from the computer that hosts the

BlackBerry Enterprise Server Express. This account runs the services for the BlackBerry Enterprise Server Express components.

2.

In the BlackBerry Enterprise Server Express installation files, double-click setup.exe.

31

Installation and Configuration Guide Install a BlackBerry Enterprise Server Express component on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server Express

3.

Accept the BlackBerry Enterprise Server Express license agreement. Click Next.

4.

In the Setup type dialog box, select Use an existing BlackBerry Configuration Database.

5.

In the Database information dialog box, verify that the information is correct. Click Next.

6.

In the Setup options dialog box, select the components that you want to add. The setup application upgrades any components that you installed previously that you select and the components might be unavailable for users during the installation process. Click Next.

7.

In the Preinstallation checklist dialog box, perform one of the following actions:

• To continue, click Next.

• To address requirements that were identified in the checklist, click Cancel. You can restart the installation or upgrade at a later time.

8.

In the Accounts and folders dialog box, type the Windows account password. Click Next.

9.

In the Summary dialog box, verify the setup information.

10. Click Install to start the installation process.

11.

When the setup application prompts you to restart the computer, click Yes.

12. Log in to the computer using the same account that you used in step 1.

13. In the BlackBerry CAL and SRP information dialog box, verify that the information is correct. If you change any information, click Verify to verify that the changed information is correct .

14. Click Next.

15. In the Administration settings dialog box, accept the default settings. Click Next.

16. In the Active Directory® settings dialog box, in the User password field, type the password for the Microsoft® Active

Directory® account (for example, BESAdmin) that the BlackBerry Enterprise Server Express instance uses to authenticate to Microsoft Active Directory. Click Next.

17. In the Start services dialog box, click Start Services. You are notified as each of the BlackBerry Enterprise Server Express services starts. Click Next.

18. In the Console addresses dialog box, copy the web addresses for the BlackBerry Enterprise Server Express components and paste them into a document for future reference. You can use the web addresses to log in to the BlackBerry Enterprise

Server Express components that you installed.

19. ClickFinish.

After you finish:

• To view the BlackBerry Enterprise Server Express component in the BlackBerry Administration Service, restart the BlackBerry

Administration Service.

• If you reinstalled the BlackBerry Administration Service, in Windows® Internet Explorer®, delete the cache.

32

Installation and Configuration Guide Install a standalone BlackBerry Router

Install a standalone BlackBerry Router

A standalone BlackBerry® Router is a BlackBerry Router that is hosted by a computer that does not host any other BlackBerry®

Enterprise Server components except the BlackBerry Controller. The BlackBerry Controller monitors the BlackBerry Router and restarts the BlackBerry Router if it stops responding.

Note: You cannot manage the BlackBerry Controller that monitors a standalone BlackBerry Router in the BlackBerry

Administration Service. You must manage the BlackBerry Controller in the BlackBerry Configuration Panel on the computer that hosts the standalone BlackBerry Router.

1.

Log in to the computer using the Windows® account that you want to use to run the BlackBerry Router.

2.

In the BlackBerry Enterprise Server installation files, double-click Setup.exe.

3.

Accept the BlackBerry Enterprise Server Express license agreement. Click Next.

4.

In the Setup type dialog box, select Install a standalone BlackBerry Router.

5.

In the Setup options dialog box, accept the default selection. Click Next.

6.

In the Preinstallation checklist dialog box, perform one of the following actions:

• To continue, click Next.

• To address requirements that were identified in the checklist, click Cancel. You can restart the installation or upgrade at a later time.

7.

In the Accounts and folders dialog box, type the Windows account password. Click Next.

8.

In the Summary dialog box, verify the setup information.

9.

Click Install to start the installation process.

10. When the setup application prompts you to restart the computer, click Yes.

11.

Log in to the computer using the same account that you used in step 1.

12. In the BlackBerry CAL and SRP information dialog box, verify that the information is correct. If you change any information, click Verify to verify that the changed information is correct .

13. In the Start services dialog box, click Start Services. You are notified as each of the BlackBerry Enterprise Server Express services starts. Click Next.

14. In the Console addresses dialog box, copy the web addresses for the BlackBerry Enterprise Server Express components and paste them into a document for future reference. You can use the web addresses to log in to the BlackBerry Enterprise

Server Express components that you installed.

15. Click Finish.

33

Installation and Configuration Guide Postinstallation tasks

Postinstallation tasks

7

Test the BlackBerry Enterprise Server installation

1.

In the Windows® Services, verify that the services for the BlackBerry® Enterprise Server are running.

2.

In the Windows Event Viewer and log files that are located in <drive>:\Program Files\Research In Motion\BlackBerry

Enterprise Server\Logs, check for error messages.

3.

In the BlackBerry Administration Service, add a test user account.

If you can add a test user account, the connection from the BlackBerry Enterprise Server to the BlackBerry Configuration

Database and the messaging server is open.

4.

If you installed the BlackBerry MDS Connection Service, browse to http://<BES_host>:8080.

If the status page appears, the BlackBerry MDS Connection Service is running.

After you finish: For troubleshooting information, visit www.blackberry.com/support .

Install the BlackBerry database notification system

The BlackBerry® database notification system is designed to reduce the number of database queries that a BlackBerry® Enterprise

Server makes to the BlackBerry Configuration Database.

If you create the BlackBerry Configuration Database on the computer that hosts the BlackBerry Enterprise Server, the BlackBerry database notification system installs automatically.

If you create the BlackBerry Configuration Database on a database server that you installed on a computer that is not the computer that hosts the BlackBerry Enterprise Server, you can install the BlackBerry database notification system manually after you complete the BlackBerry Enterprise Server installation process.

Before you begin:

• You must have the system administrator permission for the database.

• The database server must run on Windows Server® 2003.

1.

On the database server, open the BlackBerry Enterprise Server installation files.

2.

Perform one of the following actions:

• If a 32-bit Microsoft® SQL Server® 2005 is running in your organization's environment, in the Tools\DBNS\x86 folder, copy the RimEsp.dll file to C:\Program Files\Microsoft SQL Server\MSSQL\Binn.

• If a 64-bit Microsoft SQL Server 2005 is running in your organization's environment, in the Tools\DBNS\x64 folder, copy the RimEsp.dll file to C:\Program Files\Microsoft SQL Server\MSSQL\Binn.

3.

Open the Microsoft SQL Server Management Studio.

34

Installation and Configuration Guide Best practice: Running the BlackBerry Enterprise Server

4.

Using the Microsoft SQL Server Management Studio, navigate to Database\DBInstallScripts\SQLServer\5.0 in the

BlackBerry Enterprise Server installation files.

5.

Open the NotifyMasterInstall.sql file.

6.

Run the script.

7.

Open the NotifyInstall.sql file.

8.

Change <_DATABASENAME_> to the name of the BlackBerry Configuration Database (for example, BesMgmt).

9.

Run the script.

10. Confirm that the Microsoft SQL Server Management Studio displays the "Function dbo.xp_RIMxxxx registered" message.

11.

To add additional BlackBerry Configuration Database instances in your organization's environment, repeat steps 7 to 10.

Best practice: Running the BlackBerry Enterprise Server

Best practice

Do not change the startup type for the

BlackBerry® Enterprise Server services.

Description

When you install or upgrade the BlackBerry Enterprise Server, the setup application configures the startup type for the BlackBerry Enterprise Server services to automatic or manual. For example, the setup application configures the startup type for the BlackBerry Mail Store Service, BlackBerry Policy Service, and BlackBerry

Synchronization Service to manual.

Do not change the account information for BlackBerry Enterprise Server services.

Run the BlackBerry Configuration Panel as an administrator.

To avoid errors in the BlackBerry Enterprise Server, do not change the startup type for the BlackBerry Enterprise Server services.

When you install or upgrade the BlackBerry Enterprise Server, the setup application configures the account information for the BlackBerry Enterprise Server services.

Do not change the account information for the BlackBerry Enterprise Server unless the BlackBerry Enterprise Server documentation specifies that you can.

Consider the following guidelines if you are running the BlackBerry Configuration

Panel on Windows Server® 2008:

• Log in to the computer with a user account that is in the Administrator group on the Windows Server.

• Right-click the BlackBerry Configuration Panel icon and click Run as administrator.

35

Installation and Configuration Guide Configure support for Unicode languages

Configure support for Unicode languages

You can make sure that the messaging application can display the Unicode messages that the BlackBerry® device sends by configuring the BlackBerry® Enterprise Server to support Unicode languages (for example, Japanese, Korean, or Simplified

Chinese).

1.

On the computer that hosts the BlackBerry Enterprise Server, on the taskbar, click Start > Run.

2.

Type regedit.

3.

Click OK.

4.

Perform one of the following actions:

• If you are running a 32-bit version of Windows, go to HKEY_LOCAL_MACHINE\SOFTWARE\Research In Motion

\BlackBerry Enterprise Server\Agents.

• If you are running a 64-bit version of Windows, go to HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Research

In Motion\BlackBerry Enterprise Server\Agents.

5.

If the MAPIEncoding registry key exists, perform one of the following actions:

• Delete the key.

• Change the value of the key to 1.

6.

Perform one of the following actions:

• If you are running a 32-bit version of Windows, go to HKEY_LOCAL_MACHINE\SOFTWARE\Research In Motion

\BlackBerry Enterprise Server\Setup.

• If you are running a 64-bit version of Windows, go to HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Research

In Motion\BlackBerry Enterprise Server\Setup.

7.

Verify that the ConfigKeystoreCountry registry key is set to one of the following values, depending on your organization's environment:

• CN for Simplified Chinese

• JP for Japanese

• KR for Korean

8.

In the Windows® Services, restart the BlackBerry Dispatcher.

Configure support for Unicode text in calendars on BlackBerry devices in a

Microsoft Exchange environment

You must complete this task for all Microsoft® Exchange versions to ensure calendar items use the correct Unicode characters in fields such as subject, location, or notes.

Before you begin: In a Microsoft Exchange 2003 environment, install the hotfixes for wireless calendar synchronization for

Microsoft Exchange 2003.

36

Installation and Configuration Guide Log in to the BlackBerry Administration Service for the first time

1.

On the BlackBerry® Enterprise Server, on the Start menu, click Run.

2.

Type regedit.

3.

Click OK.

4.

Perform one of the following actions:

• If you are running a 32-bit version of Windows®, navigate to HKEY_LOCAL_MACHINE\Software\Research In Motion

\BlackBerry Enterprise Server\Agents.

• If you are running a 64-bit version of Windows, navigate to HKEY_LOCAL_MACHINE\Software\WOW6432Node

\Research In Motion\BlackBerry Enterprise Server\Agents.

5.

Create a DWORD value that is named SetLocaleIDs.

6.

Set the value to 1.

7.

In the Windows® Services, restart the BlackBerry Messaging Agent.

Log in to the BlackBerry Administration Service for the first time

To open the BlackBerry® Administration Service, you can use a browser on any computer that has access to the computer that hosts the BlackBerry Administration Service.

Before you begin: To manage a BlackBerry device using the BlackBerry Administration Service while the BlackBerry device is connected to the computer, the browser must permit Microsoft® ActiveX® controls.

1.

In the browser, type https://<server_name>/webconsole/app, where <server_name> is the name of the computer that hosts the BlackBerry Administration Service.

2.

In the User name field, type admin.

3.

In the Password field, type the password that you created during the installation process.

4.

In the Log in using drop-down list, click BlackBerry Administration Service.

5.

Click Log in.

There is a problem with this website's security certificate

Description

The browser displays this error message when you try to navigate to the BlackBerry® Administration Service using Windows®

Internet Explorer® version 7 or later.

Possible solution

Add the web address for the BlackBerry Administration Service to the list of trusted web sites in Windows Internet Explorer, and install the certificate for the BlackBerry Administration Service in the certificate store of your computer.

1.

In Windows Internet Explorer, navigate to the BlackBerry Administration Service console.

2.

Click Continue to this website (not recommended).

37

Installation and Configuration Guide Configuring communication with distributed components

3.

On the Tools menu, click Internet Options.

4.

On the Security tab, click Trusted Sites.

5.

Click Sites.

6.

Click Add to add the console to the list of trusted web sites.

7.

Click Close.

8.

Click OK.

9.

In the browser window, on the toolbar, click Certificate Error.

10. Click View certificates.

11.

Click Install certificate. The Certificate Import Wizard opens.

12. Complete the instructions in the Certificate Import Wizard. If you are trying to log in to the BlackBerry Administration Service using a computer that runs Windows Vista™, perform the following actions in the Certificate Import Wizard.

a.

In the Certificate Store dialog box, click Place all certificates in the following store.

b.

Click Browse.

c.

Click Trusted Root Certification Authorities.

d.

Click OK.

13. Close and reopen the browser.

Configuring communication with distributed components

Connecting to a BlackBerry Attachment Service

Perform the following actions if you installed the BlackBerry® Attachment Service on a computer that is separate from the computer that host the BlackBerry® Enterprise Server or BlackBerry Enterprise Server components that connect to the BlackBerry

Attachment Service. These actions ensure that BlackBerry Enterprise Server components can connect to the BlackBerry

Attachment Service.

Connect a BlackBerry MDS Connection Service to a remote BlackBerry Attachment Service

Perform the following task if you did not install the BlackBerry® Attachment Service on the same computer as the BlackBerry

MDS Connection Service.

1.

In the BlackBerry Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain > Component view > Attachment > Connector.

2.

Click the BlackBerry Attachment Connector that is installed with the BlackBerry MDS Connection Service.

3.

Click Edit instance.

4.

On the Supported Attachment Server instances tab, in the Name drop-down list, select the BlackBerry Attachment

Service instance that you want to connect the BlackBerry MDS Connection Service to.

38

Installation and Configuration Guide Configuring communication with distributed components

5.

In the Results query period(s) field, type the number of seconds that you want the BlackBerry MDS Connection Service to wait for a response before it sends a request to another BlackBerry Attachment Service instance.

6.

In the Dedicated server drop-down list, click yes if you want the BlackBerry Attachment Service instance to process specific content types only for the BlackBerry MDS Connection Service.

7.

In the Pool drop-down list, perform one of the following actions:

• To include the BlackBerry Attachment Service instance in the primary group of instances in a pool, select Primary. You must include at least one BlackBerry Attachment Service instance in the primary group. If you are not configuring high availability, select Primary.

• To include the BlackBerry Attachment Service instance in the secondary group, select Secondary.

8.

Perform the following actions:

• To turn on support for an attachment file format, in the Extensions section, type the file extension of the format. Click the Add icon beside the extension that you typed.

• To turn off support for an attachment file format, in the Extensions section, click the Delete icon beside the file extension.

9.

Click the Add icon.

10. Click Save All.

11.

Repeat steps 2 to 10 for each BlackBerry MDS Connection Service instance in your organization's environment that requires the BlackBerry Attachment Service instance.

Connect a BlackBerry Enterprise Server to a remote BlackBerry Attachment Service

Perform the following actions if you did not install the BlackBerry® Attachment Service on the same computer as the BlackBerry®

Enterprise Server. The BlackBerry Messaging Agent requires access to the remote BlackBerry Attachment Service so that it can process attachment requests.

1.

In the BlackBerry Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain > Component view > Attachment > Connector.

2.

Click the BlackBerry Attachment Connector that is installed with the BlackBerry Enterprise Server.

3.

Click Edit instance.

4.

On the Supported Attachment Server instances tab, in the Name drop-down list, select the BlackBerry Attachment

Service instance that you want to connect to the BlackBerry Enterprise Server.

5.

In the Results query period(s) field, type the number of seconds that you want the BlackBerry Enterprise Server to wait for a response before it sends a request to another BlackBerry Attachment Service instance.

6.

In the Dedicated server drop-down list, click yes if you want the BlackBerry Attachment Service instance to process specific content types only for the BlackBerry Enterprise Server.

7.

In the Pool drop-down list, perform one of the following actions:

• To include the BlackBerry Attachment Service instance in the primary group of instances in a pool, select Primary. You must include at least one BlackBerry Attachment Service instance in the primary group. If you are not configuring

BlackBerry Attachment Service high availability, select Primary.

• To include the BlackBerry Attachment Service instance in the secondary group, select Secondary.

39

Installation and Configuration Guide Configuring communication with distributed components

8.

Perform the following actions:

• To turn on support for an attachment file format, in the Extensions section, type the file extension of the format. Click the Add icon beside the extension that you typed.

• To turn off support for an attachment file format, in the Extensions section, click the Delete icon beside the file extension.

9.

Click the Add icon.

10. Click Save All.

11.

Repeat steps 2 to 10 for each BlackBerry Enterprise Server instance in your organization's environment that requires the

BlackBerry Attachment Service instance.

12. Restart the BlackBerry Enterprise Server.

a.

In the Component view, expand BlackBerry Enterprise Server.

b.

Click the BlackBerry Enterprise Server instance.

c.

Click Restart instance.

Connect a remote BlackBerry Attachment Service to a BlackBerry Enterprise Server

Perform the following actions if you did not install the BlackBerry® Attachment Service on the same computer as the BlackBerry®

Enterprise Server. The BlackBerry Messaging Agent requires access to the remote BlackBerry Attachment Service so that it can process attachment requests.

1.

In the BlackBerry Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain > Component view > Attachment > Server.

2.

Click the name of the remote BlackBerry Attachment Service.

3.

Click Edit instance.

4.

On the Supported Attachment Connector instances tab, add the BlackBerry Attachment Connector that is installed with the BlackBerry Enterprise Server.

5.

Click Save All.

6.

To restart the BlackBerry Attachment Service, on the Instance information tab, in the Status list, click Restart instance.

Connecting to a BlackBerry Router

Perform the following tasks if you installed the BlackBerry® Router on a computer that is separate from the computer that hosts the BlackBerry® Enterprise Server. These tasks ensure that the BlackBerry Enterprise Server can connect to the BlackBerry Router.

40

Installation and Configuration Guide

Permit a BlackBerry Enterprise Server to connect to a remote BlackBerry Router

If you installed a BlackBerry® Router on a computer that is separate from the computer that hosts a BlackBerry® Enterprise

Server, you must permit the BlackBerry Dispatcher that you installed with the BlackBerry Enterprise Server to connect to the

BlackBerry Router. The BlackBerry Router that you installed on a separate computer can send BlackBerry traffic from the

BlackBerry Enterprise Server to BlackBerry devices.

1.

On the computer that hosts the BlackBerry Router, click Start > Run.

2.

Type regedit.

3.

Click OK.

4.

Perform one of the following actions:

• If you are running a 32-bit version of Windows®, change the registry entry value for \\HKEY_LOCAL_MACHINE

\SOFTWARE\Research In Motion\BlackBerryRouter\AllowRemoteServices from 0 to 1.

• If you are running a 64-bit version of Windows, change the registry entry value for \\HKEY_LOCAL_MACHINE

\SOFTWARE\WOW6432Node \Research In Motion\BlackBerryRouter\AllowRemoteServices from 0 to 1.

5.

In the Windows Services, restart the BlackBerry Router service.

Connect a BlackBerry Enterprise Server to a remote BlackBerry Router

1.

In the BlackBerry® Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain > Component view > BlackBerry Enterprise Server.

2.

Click the BlackBerry® Enterprise Server instance or BlackBerry Enterprise Server pair that you want to assign the BlackBerry

Router to.

3.

Click Edit instance.

4.

In the Router address section, type the FQDN of the computer that hosts the BlackBerry Router.

5.

If the BlackBerry Router uses a port number other than port number 3101, in the Port override field, type the port number.

6.

Click the Add icon.

7.

Click Save All.

8.

Restart the BlackBerry Enterprise Server using one of the following methods:

• If you changed a BlackBerry Enterprise Server instance, on the Instance tab, click Restart instance.

• If you changed a BlackBerry Enterprise Server pair, click one of the instances and on the Instance tab, click Restart instance. Repeat this step for the other instance.

• In the Windows® Services, restart the BlackBerry Dispatcher.

41

Installation and Configuration Guide Restrict database permissions for the BlackBerry Attachment Service

Restrict database permissions for the BlackBerry Attachment Service

The BlackBerry® Attachment Service accesses the BlackBerry Configuration Database to read attachment data using a Windows® account or a SQL authentication account. To limit the access that the BlackBerry Attachment Service account has to the tables in the BlackBerry Configuration Database, you can configure a BlackBerry Attachment Service account that has limited database permissions. This account is not the same as the account that the BlackBerry® Enterprise Server uses to access the BlackBerry

Configuration Database.

Before you begin:

• Create a Windows® account for the BlackBerry Attachment Service.

• To use database authentication, create a SQL authentication account for the BlackBerry Attachment Service.

1.

In the Microsoft® SQL Server® management console, create a SQL login for the Windows account or SQL authentication account.

2.

Assign the account to the rim_db_AttachmentServer role in the BlackBerry Configuration Database.

3.

If you want the BlackBerry Attachment Service to use a SQL authentication account to access the BlackBerry Configuration

Database, perform the following actions: a.

On the computer that you installed the BlackBerry Attachment Service on, log in using the Windows account that the

BlackBerry Attachment Service is running on.

b.

Click Start > Run.

c.

Type regedit. Click OK.

d.

If you are running a 32-bit version of Windows, navigate to HKEY_CURRENT_USER\SOFTWARE\Research In Motion.

e.

If you are running a 64-bit version of Windows, navigate to HKEY_CURRENT_USER\SOFTWARE\WOW6432Node

\Research In Motion.

f.

Create the BBAttachServer\Database keys.

g.

In the Database key, create the Login and Password string values for the SQL authentication account.

After you finish: After you complete the BlackBerry Attachment Service installation process, in the Windows Services, verify that the service for the BlackBerry Attachment Service is using the Windows account that you configured. If you need to change the account information, restart the BlackBerry Attachment Service.

42

Installation and Configuration Guide Configuring minimum Microsoft SQL Server permissions for the Windows account

Configuring minimum Microsoft SQL Server permissions for the Windows account

The BlackBerry® Enterprise Server Express setup application requires the Windows® account that it uses during the installation process or upgrade process to have Microsoft® SQL Server® permissions to create or upgrade the BlackBerry Configuration

Database. The setup application requires the Windows account to have more Microsoft SQL Server permissions to install the

BlackBerry Enterprise Server Express than the BlackBerry Enterprise Server Express requires to run.

After the installation or upgrade process completes, you can change the Microsoft SQL Server permissions of the Windows account to the Microsoft SQL Server permissions that the BlackBerry Enterprise Server Express requires to run. When you change the

Microsoft SQL Server permissions of the Windows account, you can use Microsoft SQL Server security to minimize the operations that the Windows account can perform on the BlackBerry Configuration Database.

The following table describes the Microsoft SQL Server permissions for the setup application and the Windows account that the

BlackBerry Enterprise Server Express uses to run.

Server and database roles db_owner rim_db_bes_server

Description

The setup applicaton requires this role to install and upgrade the BlackBerry

Configuration Database.

You can remove this role from the Windows account that the BlackBerry Enterprise

Server Express uses to run after the setup application creates or upgrades the

BlackBerry Configuration Database.

The BlackBerry Enterprise Server Express requires this role to run the BlackBerry

Enterprise Server Express services. The setup application or the createDB executable creates the role automatically when it creates the BlackBerry

Configuration Database.

This role is the minimum Microsoft SQL Server permission for running the BlackBerry

Enterprise Server Express.

Configure minimum Microsoft SQL Server permissions for the Windows account

You can configure the minimum Microsoft® SQL Server® permissions for the Windows® account that the BlackBerry® Enterprise

Server uses to run.

1.

Open the Microsoft SQL Server console.

2.

Expand Microsoft SQL Server > Security > Logins.

43

Installation and Configuration Guide Changing the BlackBerry Configuration Database

3.

Right-click the Windows account that the BlackBerry Enterprise Server uses to run. Click Properties.

4.

Map the Windows account to the BlackBerry Configuration Database.

5.

Change the Database role membership to rim_db_bes_server.

6.

Remove all other database role memberships.

7.

Apply your changes.

Changing the BlackBerry Configuration Database

If you want a BlackBerry® Enterprise Server to use a different BlackBerry Configuration Database, you must run the setup application and specify the BlackBerry Configuration Database that you want the BlackBerry Enterprise Server to use.

When you change the BlackBerry Configuration Database, the BlackBerry Enterprise Server becomes unavailable and users cannot send or receive messages on their BlackBerry devices. Organizer data synchronization occurs after you have changed the

BlackBerry Configuration Database.

44

Installation and Configuration Guide Adding or removing BlackBerry Enterprise Server Express components

Adding or removing BlackBerry Enterprise Server Express components

8

If you installed a BlackBerry® Enterprise Server Express previously, you can add one or more BlackBerry Enterprise Server Express components to the existing BlackBerry Enterprise Server Express, or you can remove existing BlackBerry Enterprise Server Express components from the BlackBerry Enterprise Server Express.

To add or remove a BlackBerry Enterprise Server Express component, you must run the setup application again. The setup application removes the existing BlackBerry Enterprise Server Express software from the computer, and installs only the BlackBerry

Enterprise Server Express components that you select. You can also choose to install either a BlackBerry Enterprise Server Express or install one or more remote components.

If you installed a BlackBerry Enterprise Server Express and, when you run the setup application again you select the remote component setup option, the setup application removes the existing BlackBerry Enterprise Server Express software. If you installed one or more remote components and you select the BlackBerry Enterprise Server Express setup option, the setup application removes the existing remote components.

You can add or remove the following BlackBerry Enterprise Server Express components.

Component

BlackBerry Enterprise Server Express

BlackBerry Administration Service

Options

You can choose one of the following options:

• You can remove a BlackBerry Enterprise Server Express (which includes a

BlackBerry Attachment Service, BlackBerry Dispatcher, BlackBerry MDS

Connection Service, BlackBerry Messaging Agent, BlackBerry Policy Service,

BlackBerry Router, and BlackBerry Synchronization Service) and install one or more remote components instead.

• You can remove any remote components and install a BlackBerry Enterprise

Server Express instead.

You can choose one of the following options:

• If you installed a BlackBerry Administration Service with a BlackBerry

Enterprise Server Express, you can remove the BlackBerry Administration

Service.

• If you installed a BlackBerry Enterprise Server Express, you can add a

BlackBerry Administration Service.

• If you installed a BlackBerry Administration Service as a remote component, you can remove it.

45

Installation and Configuration Guide Add or remove a BlackBerry Enterprise Server Express component

Component

BlackBerry Attachment Service

BlackBerry MDS Connection Service

BlackBerry Router

Options

• If you installed remote components, you can add a BlackBerry Administration

Service.

You can choose one of the following options:

• If you installed a BlackBerry Attachment Service as a remote component, you can remove it.

• You can add a BlackBerry Attachment Service to an existing installation of another remote component.

You can choose one of the following options:

• If you installed a BlackBerry MDS Connection Service as a remote component, you can remove it.

• You can add a BlackBerry MDS Connection Service to an existing installation of another remote component.

You can choose one of the following options:

• If you installed a BlackBerry Router as a remote component, you can remove it.

• You can add a BlackBerry Router to an existing installation of another remote component.

Add or remove a BlackBerry Enterprise Server Express component

When you perform this task, the BlackBerry® Enterprise Server Express components on the computer that you perform this task on are unavailable for use until the installation process is complete and you have restarted the BlackBerry Enterprise Server

Express services.

The process includes a restart of a BlackBerry Enterprise Server Express.

Before you begin: If you want to remove a BlackBerry Router, BlackBerry Attachment Service or BlackBerry MDS Connection

Service, use the BlackBerry Administration Service to remove the component from the list of component instances that the

BlackBerry Enterprise Server Express instances use.

1.

Log in to a computer using the Windows® account that you used to install the BlackBerry Enterprise Server Express components.

2.

In the BlackBerry Enterprise Server Express installation files, double-click setup.exe.

3.

Accept the BlackBerry Enterprise Server Express license agreement. Click Next.

4.

In the Database information dialog box, verify that the information is correct. Click Next.

46

Installation and Configuration Guide Add or remove a BlackBerry Enterprise Server Express component

5.

In the Setup options dialog box, select the components that you want to add and clear the checkboxes for the components that you want to remove. The setup application upgrades any components that you installed previously that you select and the components might be unavailable for users during the installation process.

6.

In the Preinstallation checklist dialog box, perform one of the following actions:

• To continue, click Next.

• To address requirements that were identified in the checklist, click Cancel. You can restart the installation or upgrade at a later time.

7.

In the Accounts and folders dialog box, type the Windows account password. Click Next.

8.

In the Summary dialog box, verify the setup information.

9.

Click Install to start the installation process.

10. When the setup application prompts you to restart the computer, click Yes.

11.

Log in to the computer using the same account that you used in step 1.

12. In the BlackBerry CAL and SRP information dialog box, verify that the information is correct. If you change any information, click Verify to verify that the changed information is correct .

13. Click Next.

14. In the Administration settings dialog box, accept the default settings. Click Next.

15. In the Microsoft Active Directory settings dialog box, in the User password field, type the password for the Microsoft®

Active Directory® account (for example, BESAdmin) that the BlackBerry Enterprise Server Express instance uses to authenticate to Microsoft Active Directory. Click Next.

16. In the Start services dialog box, click Start Services. You are notified as each of the BlackBerry Enterprise Server Express services starts. Click Next.

17. In the Console addresses dialog box, copy the web addresses for the BlackBerry Enterprise Server Express components and paste them into a document for future reference. You can use the web addresses to log in to the BlackBerry Enterprise

Server Express components that you installed.

18. Click Finish.

After you finish:

• If you added a component, to view the component information in the BlackBerry Administration Service, perform one of the following actions:

• Restart the BlackBerry Administration Service.

• On every computer that hosts the BlackBerry Administration Service, in the BlackBerry Administration Service, in the

Servers and components menu, expand BlackBerry Solution topology > BlackBerry Domain. Click Component view and then click Refresh list of registered components.

• If you removed a component other than the BlackBerry Router, to delete the component information from the BlackBerry

Configuration Database, use the BlackBerry Administration Service.

• If you reinstalled the BlackBerry Administration Service, in Windows® Internet Explorer®, delete the cache content.

47

Installation and Configuration Guide Remove BlackBerry Enterprise Server component information from the BlackBerry Configuration Database

Remove BlackBerry Enterprise Server component information from the

BlackBerry Configuration Database

If you remove the software for a BlackBerry® Enterprise Server component from a computer, the software removal process does not delete the component information from the BlackBerry Configuration Database. You must delete the information manually using the BlackBerry Administration Service so that the BlackBerry Administration Service does not display the information for the component that you removed.

Before you begin: Remove the software for the BlackBerry Enterprise Server component from the computer.

1.

In the BlackBerry Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain.

2.

Click Component view.

3.

Beside the component that you removed, click the Delete icon.

4.

Click Yes - Delete the instance until you return to the main page.

48

Installation and Configuration Guide Removing the BlackBerry Enterprise Server software

Removing the BlackBerry Enterprise Server software

9

Remove the BlackBerry Enterprise Server software

1.

On the taskbar, click Start > Settings > Control Panel > Add/Remove Programs.

2.

Click BlackBerry Enterprise Server.

3.

Click Remove.

4.

Click Yes.

After you finish: To remove third-party software that the setup application installed during the BlackBerry® Enterprise Server installation process, you can remove the JRE™ software and Java® Web Start software from the computer.

Delete registry keys

The BlackBerry® Enterprise Server setup application might not remove all of the registry keys from the Windows® registry when you remove the BlackBerry Enterprise Server software. You can remove the registry keys from the Windows registry manually after the process to remove the BlackBerry Enterprise Server software completes successfully.

1.

On the computer that you removed the BlackBerry Enterprise Server software from, on the Start menu, click Run.

2.

Type regedit.

3.

Click OK.

4.

Delete the remaining registry keys.

BlackBerry Enterprise Server registry keys

The setup application might not remove the following BlackBerry® Enterprise Server registry keys from the Windows® Registry when you remove the BlackBerry Enterprise Server software.

Key

Research In Motion

BBAttachServer and any keys that start with BAS, BB, or

BlackBerry

BBAttachServer and any keys that start with BAS, BB, or

BlackBerry

BBAttachServer and any keys that start with BAS, BB, or

BlackBerry

Location

HKEY_LOCAL_MACHINE\SOFTWARE

HKEY_LOCAL_MACHINE\System\CurrentControlSet

\Services

HKEY_LOCAL_MACHINE\System\ControlSet001\Services

HKEY_LOCAL_MACHINE\System\ControlSet00n\Services

49

Installation and Configuration Guide Removing the BlackBerry database notification system

Key Location

Research In Motion any keys that are named BlackBerryServer, or are named the name of the BlackBerry Enterprise Server in your organization

Research In Motion

HKEY_CURRENT_USER\Software

HKEY_CURRENT_USER\Software\Microsoft\Windows NT

\CurrentVersion\Windows Messaging SubSystem\Profiles

HKEY_USERS\.DEFAULT\Software

BESManmmc.dll

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows

\CurrentVersion\App Paths any key where ProductName is BlackBerry Enterprise Server HKEY_CLASSES_ROOT\Installer\Products

Removing the BlackBerry database notification system

You must remove the BlackBerry® database notification system manually if you installed it manually. You can remove the

BlackBerry database notification system from one BlackBerry Configuration Database instance or all BlackBerry Configuration

Database instances.

Remove the BlackBerry database notification system from a BlackBerry Configuration

Database

1.

Open the Microsoft® SQL Server® Management Studio.

2.

Using the console, navigate to Database\DBInstallScripts\SQLServer\5.0 in the BlackBerry® Enterprise Server installation files.

3.

Open the NotifyUnInstall.sql file.

4.

Delete all commands after --- delete notification stored procedures and -- delete notification tables.

5.

Run the script.

6.

Perform one of the following actions:

• Restart Microsoft® SQL Server®.

• In Windows® Explorer, navigate to C:\Program Files\Microsoft SQL Server\MSSQL\Binn. Rename the RimEsp.dll file

(for example, RimEspXXX.tmp).

Remove the BlackBerry database notification system from all BlackBerry Configuration

Database instances

1.

Open the Microsoft® SQL Server® Management Studio.

2.

Using the console, navigate to Database\DBInstallScripts\SQLServer\5.0 in the BlackBerry® Enterprise Server installation files.

50

Installation and Configuration Guide Removing the BlackBerry database notification system

3.

Open the NotifyUnInstall.sql file.

4.

Run the script.

5.

Using Windows® Explorer, navigate to <drive>:\Program Files\Microsoft SQL Server\MSSQL\Binn.

6.

Delete the RimEsp.dll file.

51

Installation and Configuration Guide Troubleshooting the BlackBerry Enterprise Server installation process

Troubleshooting the BlackBerry Enterprise Server installation process

10

Failed to write License Key to the Database

This error message appears when you try to add the BlackBerry® Client Access License key during the installation process.

Possible solution

After you restart the computer during the BlackBerry® Enterprise Server installation process, you must log in using the same

Windows® account that you used to start the installation process.

1.

Close the setup application.

2.

Log out of the computer.

3.

Log in to the computer.

4.

Restart the setup application.

Previous version detected but no database available

This error message appears when you cannot start the setup application or the setup application stops responding.

Possible solution

Verify that the registry keys that identify the BlackBerry® Configuration Database exist in the Windows® registry.

1.

On the computer that you want to install or upgrade the BlackBerry® Enterprise Server on, on the Start menu, click Run.

2.

Type regedit.

3.

Click OK.

4.

In the left pane, navigate to HKEY_LOCAL_MACHINE\Software\Research In Motion\BlackBerry Enterprise Server

\Database.

5.

If necessary, create case-sensitive strings that you name DatabaseName and DatabaseServerMachineName.

6.

Specify the name of the BlackBerry Configuration Database as the value for DatabaseName.

7.

Specify the FQDN name of the database server as the value for DatabaseServerMachineName.

8.

Restart the setup application.

52

Installation and Configuration Guide A third-party tool did not install and the BlackBerry Enterprise Server setup application closed

A third-party tool did not install and the BlackBerry Enterprise Server setup application closed

Possible solution

1.

On the BlackBerry® Enterprise Server installation media, open the Tools folder.

2.

Double-click the setup application file for the tool that you want to install.

3.

Complete the instructions on the screen.

4.

Restart the BlackBerry Enterprise Server setup application.

The setup application did not prompt you to change or confirm the MAPI profile

Possible solution

Create and change the MAPI profile manually.

1.

On the BlackBerry® Enterprise Server installation media, open the Tools folder.

2.

Double-click the Fixmapisvc.exe file.

3.

Verify that mapisvc.inf is installed in C:\winnt\system32\ or C:\windows\system32\.

4.

On the taskbar, click Start > All Programs > BlackBerry Enterprise Server > BlackBerry Server Configuration..

5.

On the BlackBerry Server tab, click Edit MAPI profile.

6.

Type the Microsoft® Exchange server name.

7.

Click the Windows® account that is associated with the MAPI profile.

8.

Click OK.

You cannot determine the BlackBerry Attachment Connector that the

BlackBerry Enterprise Server or the BlackBerry MDS Connection Service uses

If you install a BlackBerry® Enterprise Server, the setup application also installs two BlackBerry Attachment Connector instances automatically. One of the BlackBerry Attachment Connector instances connects the BlackBerry Enterprise Server to the

BlackBerry Attachment Service. The other instance connects the BlackBerry MDS Connection Service to the BlackBerry

Attachment Service. During the installation process, the setup application gives both BlackBerry Attachment Connector instances a name that includes the computer name (for example, <computer_name>_AC).

53

Installation and Configuration Guide Users experience unexpected behavior with message lists and calendars on BlackBerry devices

The BlackBerry Administration Service displays the names of both the BlackBerry Attachment Connector instances. By default, you cannot determine easily which instance connects to the BlackBerry Enterprise Server or the BlackBerry MDS Connection

Service, so you can change the display names of both the BlackBerry Attachment Connector instances to make them easier to identify.

1.

In the BlackBerry Administration Service, on the Servers and components menu, expand BlackBerry Solution topology

> BlackBerry Domain > Component view > Attachment > Connector.

2.

Click one of the BlackBerry Attachment Connector instances.

3.

On the Instance information tab, locate either the MDS Connection Service Instance name section or the Email

(Exchange) Instance name section. Consider the following naming conventions:

• If you locate the section that is named MDS Connection Service Instance name, the BlackBerry MDS Connection

Service connects to this BlackBerry Attachment Connector instance.

• If you locate the section that is named Email (Exchange) Instance name, the BlackBerry Enterprise Server connects to this BlackBerry Attachment Connector instance.

4.

Click Edit instance.

5.

Perform one of the following actions:

• If the BlackBerry MDS Connection Service connects to the BlackBerry Attachment Connector instance, in the Instance information section, in the Friendly description field, type a unique name (for example,

<server_name>_AC_MDSCS).

• If the BlackBerry Enterprise Server uses the BlackBerry Attachment Connector instance, in the Instance information section, in the Friendly description field, type a unique name (for example, <server_name>_AC_BES).

6.

Click Save all.

The BlackBerry Administration Service updates the list of BlackBerry Attachment Connector instances automatically to use the names that you typed.

Users experience unexpected behavior with message lists and calendars on

BlackBerry devices

Possible cause

If the MAPI and CDO client version 6.5.8022 was installed without uninstalling previous versions of the MAPI and CDO client

(including the associated .DLL files), users might experience unexpected behavior with message lists and calendars on

BlackBerry® devices.

Possible solution

For more information about Microsoft® Exchange Server MAPI Client and CDO version 1.2.1, visit www.microsoft.com

.

1.

In the Windows® Services, stop the services for the BlackBerry® Enterprise Server and any processes that use the MAPI and

CDO client.

2.

Remove the MAPI and CDO client version 6.5.8022.

54

Installation and Configuration Guide Various BlackBerry Enterprise Server Express components do not start

3.

Verify that the following files are not present in C:\Windows\System32 or any other directory in the environment path:

• CDO.DLL

• EMSABP32.DLL

• EMSMDB32.DLL

• EMSUI32.DLL

• EMSUIX32.DLL

• GAPI32.DLL

• MAPISP32.EXE

• MSPST32.DLL

• WMSUI32.DLL

4.

In C:\Windows\System32, run the FixMapi.exe application.

5.

Install the MAPI and CDO client version 6.5.8022.

6.

Restart the services for the BlackBerry Enterprise Server and any processes that use the MAPI and CDO client.

If you run the BlackBerry Enterprise Server setup application after you complete the possible solution, when the setup application displays the preinstallation checklist, an error message indicates that the setup application could not detect the MAPI and CDO client. The setup application displays this error message because you installed the MAPI and CDO client version 6.5.8022 in a different directory than the directory that you installed it in for previous versions. The error mesage does not prevent the BlackBerry

Enterprise Server setup application from completing the installation process successfully.

Various BlackBerry Enterprise Server Express components do not start

Possible cause

The BlackBerry® Administration Service and BlackBerry MDS Connection

Service are configured to use a dynamic port when they connect to the

BlackBerry Configuration Database, but the database server uses a static port.

Possible solution

Configure a static port for the BlackBerry Configuration Database.

1.

On the computer that hosts the BlackBerry® Enterprise Server Express component, on the taskbar, click Start > Programs > BlackBerry Enterprise

Server > BlackBerry Server Configuration.

2.

On the Database Connectivity tab, clear the Use dynamic ports or specify

SQL port check box.

3.

Type the port number in the Use dynamic ports or specify SQL port field.

4.

Click OK.

5.

In the Windows® Services, restart the services for the BlackBerry Enterprise

Server Express component.

55

Installation and Configuration Guide You cannot access the BlackBerry Administration Service

Possible cause

The BlackBerry Administration Service and BlackBerry MDS Connection

Service are configured to use an incorrect static port number when they connect to the BlackBerry Configuration

Database.

Possible solution

Configure the component to use the correct port number.

1.

On the computer that hosts the BlackBerry Enterprise Server Express component, on the taskbar, click Start > Programs > BlackBerry Enterprise

Server > BlackBerry Server Configuration.

2.

Type the correct port number in the Use dynamic ports or specify SQL port field.

3.

Click OK.

4.

In the Windows Services, restart the services for the BlackBerry Enterprise

Server Express component.

You cannot access the BlackBerry Administration Service

Possible cause

The computer that hosts the BlackBerry® Administration Service has more than one NIC and the production NIC is not first in the bind order in Windows® network settings as it must be for you to access the BlackBerry Administration Service.

Possible solution

On the computer that hosts the BlackBerry Administration Service, in the Windows network settings, verify that the production

NIC is first in the bind order. For more information, visit www.blackberry.com/support to read article KB18190.

You cannot create a user account in the BlackBerry Administration Service

Possible cause

The BlackBerry® Administration Service is configured to use static ports when it connects to the BlackBerry

Configuration Database server, but the

BlackBerry Configuration Database server uses a dynamic port.

Possible solution

Configure the BlackBerry Administration Service to use a dynamic port for the

BlackBerry Configuration Database.

1.

On the computer that hosts the BlackBerry® Enterprise Server or BlackBerry

Enterprise Server components, on the taskbar, click Start > Programs >

BlackBerry Enterprise Server > BlackBerry Server Configuration.

2.

On the Database Connectivity tab, select the Use dynamic ports or specify

SQL port check box.

3.

Click OK.

56

Installation and Configuration Guide The text in the license agreement is not readable

Possible cause Possible solution

4.

In the Windows® Services, restart the services for the BlackBerry

Administration Service.

The text in the license agreement is not readable

Possible cause

You have not installed the appropriate languages and text services on the computer that you use to install the BlackBerry®

Enterprise Server.

Possible solution

Verify that you installed the appropriate languages and text services on the computer that you use to install the BlackBerry

Enterprise Server.

57

Installation and Configuration Guide

Provide feedback

To provide feedback on this deliverable, visit www.blackberry.com/docsfeedback .

Provide feedback

11

58

Installation and Configuration Guide Glossary

Glossary

12

AES

Advanced Encryption Standard

AJAX

Asynchronous JavaScript® and XML

BlackBerry CAL

A BlackBerry® Client Access License (BlackBerry CAL) limits how many users you can add to a BlackBerry® Enterprise Server.

BlackBerry Domain

A BlackBerry Domain consists of the BlackBerry Configuration Database with its users and any BlackBerry® Enterprise Server instances that connect to it.

BlackBerry MDS

BlackBerry® Mobile Data System

CDO

Collaboration Data Object

CDMA

Code Division Multiple Access

DMZ

A demilitarized zone (DMZ) is a neutral subnetwork outside of an organization's firewall. It exists between the trusted LAN of the organization and the untrusted external wireless network and public Internet.

DNS

Domain Name System

FQDN fully qualified domain name

HTTP

Hypertext Transfer Protocol

HTTPS

Hypertext Transfer Protocol over Secure Sockets Layer

IIS

Internet Information Services

59

Installation and Configuration Guide Glossary

IP

Internet Protocol

IP address

An Internet Protocol (IP) address is an identification number that each computer or mobile device uses when it sends or receives information over a network, such as the Internet. This identification number identifies the specific computer or mobile device on the network.

JDK

Java® Development Kit

JRE

Java® Runtime Environment

LAN local area network

LDAP

Lightweight Directory Access Protocol

MAPI

Messaging Application Programming Interface messaging server

A messaging server sends and processes messages and provides collaboration services, such as updating and communicating calendar and address book information.

MSDE

Microsoft® SQL Server® Desktop Engine

NIC network interface card

RAID redundant array of independent (or inexpensive) disks

SMS

Short Message Service

SNMP

Simple Network Management Protocol

SQL

Structured Query Language

60

Installation and Configuration Guide Glossary

SRP

Server Routing Protocol

SSL

Secure Sockets Layer

TCP

Transmission Control Protocol

TCP/IP

Transmission Control Protocol/Internet Protocol (TCP/IP) is a set of communication protocols that is used to transmit data over networks, such as the Internet.

TLS

Transport Layer Security

Triple DES

Triple Data Encryption Standard

XML

Extensible Markup Language

WAN wide area network

61

Installation and Configuration Guide Legal notice

Legal notice

13

©2010 Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, SureType®, SurePress™ and related trademarks, names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S.

and countries around the world.

IBM, Lotus, and Sametime are trademarks of International Business Machines Corporation. Intel and Xeon are trademarks of

Intel Corporation. Microsoft, Active Directory, ActiveX, Internet Explorer, Microsoft Exchange Server, Outlook, SQL Server,

Windows, Windows Media, Windows Server, and Windows Vista are trademarks of Microsoft Corporation. Novell and GroupWise are trademarks of Novell, Inc. RSA is a trademark of RSA Security. Java, JavaScript, and JRE are trademarks of Sun Microsystems,

Inc. VMware is a trademark of VMware, Inc. All other trademarks are the property of their respective owners.

The BlackBerry smartphone and other devices and/or associated software are protected by copyright, international treaties, and various patents, including one or more of the following U.S. patents: 6,278,442; 6,271,605; 6,219,694; 6,075,470; 6,073,318;

D445,428; D433,460; D416,256. Other patents are registered or pending in the U.S. and in various countries around the world.

Visit www.rim.com/patents for a list of RIM (as hereinafter defined) patents.

This documentation including all documentation incorporated by reference herein such as documentation provided or made available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition, endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies

("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation may describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information that is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates, enhancements, or other additions to this documentation to you in a timely manner or at all.

This documentation might contain references to third-party sources of information, hardware or software, products or services including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third

Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including, without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency, links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any way.

EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS,

ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING

WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF

DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NON-

INFRINGEMENT, SATISFACTORY QUALITY, OR TITLE, OR ARISING FROM A STATUTE OR CUSTOM OR A COURSE OF DEALING

OR USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE

OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE

HEREBY EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS

MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT

62

Installation and Configuration Guide Legal notice

PERMITTED BY LAW, ANY IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT

THEY CANNOT BE EXCLUDED AS SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM

THE DATE YOU FIRST ACQUIRED THE DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE

FOR ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-

PERFORMANCE OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED

HEREIN INCLUDING WITHOUT LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY,

INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR AGGRAVATED DAMAGES, DAMAGES FOR LOSS OF PROFITS OR REVENUES,

FAILURE TO REALIZE ANY EXPECTED SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF

BUSINESS OPPORTUNITY, OR CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE ANY DATA, PROBLEMS

ASSOCIATED WITH ANY APPLICATIONS USED IN CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS,

LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF

SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY

LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER

OBLIGATION, DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY

FOR NEGLIGENCE OR STRICT LIABILITY.

THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE

CAUSE OF ACTION, DEMAND, OR ACTION BY YOU INCLUDING BUT NOT LIMITED TO BREACH OF CONTRACT, NEGLIGENCE,

TORT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES

OR THE FAILURE OF THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B)

TO RIM AND ITS AFFILIATED COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME

SERVICE PROVIDERS), AUTHORIZED RIM DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR

RESPECTIVE DIRECTORS, EMPLOYEES, AND INDEPENDENT CONTRACTORS.

IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE,

AGENT, DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY

ARISING FROM OR RELATED TO THE DOCUMENTATION.

Prior to subscribing for, installing, or using any Third Party Products and Services, it is your responsibility to ensure that your airtime service provider has agreed to support all of their features. Some airtime service providers might not offer Internet browsing functionality with a subscription to the BlackBerry® Internet Service. Check with your service provider for availability, roaming arrangements, service plans and features. Installation or use of Third Party Products and Services with RIM's products and services may require one or more patent, trademark, copyright, or other licenses in order to avoid infringement or violation of third party rights. You are solely responsible for determining whether to use Third Party Products and Services and if any third party licenses are required to do so. If required you are responsible for acquiring them. You should not install or use Third Party Products and

Services until all necessary licenses have been acquired. Any Third Party Products and Services that are provided with RIM's products and services are provided as a convenience to you and are provided "AS IS" with no express or implied conditions, endorsements, guarantees, representations, or warranties of any kind by RIM and RIM assumes no liability whatsoever, in relation thereto. Your use of Third Party Products and Services shall be governed by and subject to you agreeing to the terms of separate licenses and other agreements applicable thereto with third parties, except to the extent expressly covered by a license or other agreement with RIM.

63

Installation and Configuration Guide Legal notice

Certain features outlined in this documentation require a minimum version of BlackBerry® Enterprise Server, BlackBerry® Desktop

Software, and/or BlackBerry® Device Software.

The terms of use of any RIM product or service are set out in a separate license or other agreement with RIM applicable thereto.

NOTHING IN THIS DOCUMENTATION IS INTENDED TO SUPERSEDE ANY EXPRESS WRITTEN AGREEMENTS OR WARRANTIES

PROVIDED BY RIM FOR PORTIONS OF ANY RIM PRODUCT OR SERVICE OTHER THAN THIS DOCUMENTATION.

Certain features outlined in this documentation might require additional development or Third Party Products and Services for access to corporate applications.

This product contains a modified version of HTML Tidy. Copyright © 1998-2003 World Wide Web Consortium (Massachusetts

Institute of Technology, European Research Consortium for Informatics and Mathematics, Keio University). All Rights Reserved.

This product includes software developed by the Apache Software Foundation ( www.apache.org/ ) and/or is licensed pursuant to one of the licenses listed at ( www.apache.org/licenses/ ). For more information, see the NOTICE.txt file included with the software.

Research In Motion Limited

295 Phillip Street

Waterloo, ON N2L 3W8

Canada

Research In Motion UK Limited

Centrum House

36 Station Road

Egham, Surrey TW20 9LF

United Kingdom

Published in Canada

64

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
