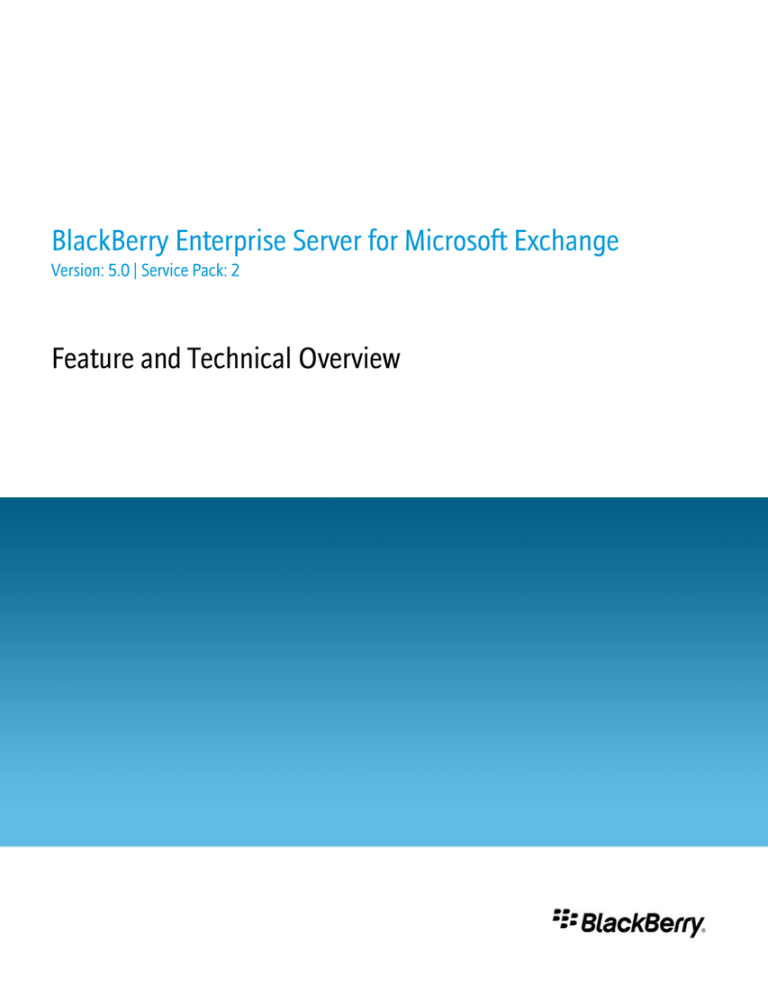

BlackBerry Enterprise Server for Microsoft Exchange

Version: 5.0 | Service Pack: 2

Feature and Technical Overview

Published: 2010-06-16

SWDT305802-1108946-0615123042-001

Contents

1

Overview: BlackBerry Enterprise Server..................................................................................................................................

5

New in this release.........................................................................................................................................................................

5

2 BlackBerry Enterprise Server architecture..............................................................................................................................

11

Architecture: BlackBerry Enterprise Server.................................................................................................................................

11

Architecture: Remote BlackBerry Collaboration Service............................................................................................................

16

Architecture: Remote BlackBerry MDS Connection Service......................................................................................................

18

Architecture: Remote BlackBerry MDS Integration Service......................................................................................................

19

Architecture: Remote BlackBerry Router.....................................................................................................................................

21

Architecture: Remote BlackBerry Administration Service.........................................................................................................

22

Architecture: Remote BlackBerry Monitoring Service................................................................................................................

23

Architecture: Remote BlackBerry Attachment Service...............................................................................................................

25

Architecture: BlackBerry Web Desktop Manager........................................................................................................................

27

3 BlackBerry Enterprise Server components and features.......................................................................................................

28

BlackBerry Administration Service................................................................................................................................................

28

BlackBerry Configuration Panel....................................................................................................................................................

29

BlackBerry Mail Store Service........................................................................................................................................................

29

Database tables in the BlackBerry Configuration Database that store contact information.......................................

29

Contact information that the BlackBerry Mail Store Service stores in the BlackBerry Configuration Database.......

30

How the BlackBerry Mail Store Service accesses contact information that is stored on the messaging server........

31

Configuring the BlackBerry Mail Store Service instance that updates the contact list.................................................

31

BlackBerry messaging and collaboration services......................................................................................................................

32

BlackBerry Messaging Agent................................................................................................................................................

32

BlackBerry Collaboration Service.........................................................................................................................................

36

BlackBerry Synchronization Service.....................................................................................................................................

38

BlackBerry Attachment Service............................................................................................................................................

40

BlackBerry MDS..............................................................................................................................................................................

41

BlackBerry Applications.........................................................................................................................................................

42

BlackBerry MDS Connection Service...................................................................................................................................

44

BlackBerry MDS Integration Service....................................................................................................................................

45

Managing BlackBerry Java Applications and BlackBerry Device Software..............................................................................

46

BlackBerry MDS Application Console...........................................................................................................................................

47

BlackBerry device management....................................................................................................................................................

48

Controlling third-party applications on BlackBerry devices.............................................................................................

48

BlackBerry Monitoring Service......................................................................................................................................................

48

BlackBerry Threshold Analysis Tool......................................................................................................................................

50

BlackBerry Policy Service...............................................................................................................................................................

51

BlackBerry Router...........................................................................................................................................................................

52

BlackBerry Web Desktop Manager...............................................................................................................................................

52

Comparison of BlackBerry Web Desktop Manager and BlackBerry Desktop Manager features..................................

53

Managing a distributed environment for BlackBerry Enterprise Server components............................................................

57

Wireless activation..........................................................................................................................................................................

57

4 BlackBerry Enterprise Solution security...................................................................................................................................

58

Security features of the BlackBerry Enterprise Solution............................................................................................................

58

Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other..................................

59

Algorithms that the BlackBerry Enterprise Solution uses to encrypt data......................................................................

60

Extending messaging security to a BlackBerry device...............................................................................................................

61

Encrypting user data on a locked BlackBerry device..................................................................................................................

61

Encrypting the device transport key on a locked BlackBerry device........................................................................................

62

Managing BlackBerry device access to the BlackBerry Enterprise Server...............................................................................

62

Using an IT policy to manage BlackBerry Enterprise Solution security...................................................................................

63

Using IT administration commands to protect a lost or stolen BlackBerry device.................................................................

63

5 BlackBerry Enterprise Server high availability........................................................................................................................

65

BlackBerry Enterprise Server high availability in a small-scale environment.........................................................................

65

How the BlackBerry Enterprise Server calculates health scores...............................................................................................

66

Conditions for failover to a standby BlackBerry Enterprise Server...........................................................................................

67

How a primary BlackBerry Enterprise Server self-demotes.......................................................................................................

67

Scenario: What happens after a primary BlackBerry Enterprise Server stops responding....................................................

67

Scenario: What happens after the health score of a primary BlackBerry Enterprise Server falls below the failover threshold

...........................................................................................................................................................................................................

68

BlackBerry Configuration Database high availability.................................................................................................................

69

BlackBerry Configuration Database mirroring....................................................................................................................

69

Scenario: What happens after the principal BlackBerry Configuration Database stops responding..........................

70

High availability in a distributed environment............................................................................................................................

71

6 Wi-Fi enabled BlackBerry devices.............................................................................................................................................

74

Types of Wi-Fi networks.................................................................................................................................................................

74

Wireless access points....................................................................................................................................................................

75

Connections that BlackBerry devices make to mobile and Wi-Fi networks.............................................................................

76

Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise Server over a Wi-Fi connection....................

77

Direct connections between BlackBerry devices and the BlackBerry Router over an enterprise Wi-Fi network.......

77

Wi-Fi connection when a VPN connection or direct connection between BlackBerry devices and the BlackBerry

Router is not possible.............................................................................................................................................................

78

Priority for connections that BlackBerry devices make over a Wi-Fi network.................................................................

78

BlackBerry services that are available over Wi-Fi connections.................................................................................................

78

IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support................................................

81

Characteristics of the IEEE 802.11a wireless networking standard that Wi-Fi enabled BlackBerry devices support

..................................................................................................................................................................................................

81

Characteristics of the IEEE 802.11b wireless networking standard that Wi-Fi enabled BlackBerry devices support

..................................................................................................................................................................................................

82

Characteristics of the IEEE 802.11g wireless networking standard that Wi-Fi enabled BlackBerry devices support

..................................................................................................................................................................................................

82

Security features of a Wi-Fi enabled BlackBerry device.............................................................................................................

83

7 BlackBerry Enterprise Server process flows............................................................................................................................

85

Messaging process flows...............................................................................................................................................................

85

Process flow: Sending a message to a BlackBerry device.................................................................................................

85

Process flow: Sending a message from a BlackBerry device.............................................................................................

86

Process flow: Sending a message that contains an attachment from a BlackBerry device..........................................

86

Process flow: Searching an organization's address book from a BlackBerry device......................................................

87

Instant messaging process flows..................................................................................................................................................

88

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office Live

Communications Server 2005 (Microsoft Office Communicator)....................................................................................

88

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office

Communications Server 2007..............................................................................................................................................

90

Process flow: Starting an instant messaging session using the BlackBerry Client for IBM Lotus Sametime.............

91

Process flow: Starting an instant messaging session using the BlackBerry Client for Novell GroupWise Messenger

..................................................................................................................................................................................................

93

Process flow: Sending a file to a contact using the BlackBerry Client for IBM Lotus Sametime..................................

94

Message attachment process flows..............................................................................................................................................

95

Process flow: Viewing a message attachment....................................................................................................................

95

Process flow: Viewing an attachment using a link.............................................................................................................

97

Organizer data process flows........................................................................................................................................................

97

Process flow: Synchronizing organizer data for the first time on a BlackBerry device..................................................

98

Process flow: Synchronizing subsequent changes to organizer data..............................................................................

99

Process flow: Adding a contact picture on a BlackBerry device....................................................................................... 100

Mobile data process flows..............................................................................................................................................................

101

Process flow: Requesting BlackBerry Browser content on a BlackBerry device.............................................................

101

Process flow: Requesting BlackBerry Browser content while access control is turned on for the BlackBerry MDS

Connection Service................................................................................................................................................................. 102

Process flow: Requesting BlackBerry Browser content with two-factor authentication turned on............................. 103

Process flow: Pushing application content to a BlackBerry device.................................................................................. 104

Process flow: Installing a BlackBerry Java Application on a BlackBerry device over the wireless network................ 105

Process flow: Installing a BlackBerry MDS Runtime Application on a BlackBerry device over the wireless network

.................................................................................................................................................................................................. 106

Process flow: Installing a BlackBerry Browser Application on a BlackBerry device over the wireless network.......... 108

BlackBerry device management process flows........................................................................................................................... 109

Process flow: Activating a BlackBerry device over the wireless network........................................................................ 109

Process flow: Resending an IT policy to a BlackBerry device manually...........................................................................

110

Process flow: Authenticating data on a BlackBerry device without connecting to the BlackBerry Infrastructure

..................................................................................................................................................................................................

110

Monitoring process flows...............................................................................................................................................................

110

Process flow: Updating and displaying data in the BlackBerry Monitoring Service console........................................

111

Process flow: Storing data in the BlackBerry Monitoring Service database...................................................................

111

8 Glossary.........................................................................................................................................................................................

112

9 Provide feedback.........................................................................................................................................................................

118

10 Legal notice..................................................................................................................................................................................

119

Feature and Technical Overview Overview: BlackBerry Enterprise Server

Overview: BlackBerry Enterprise Server

1

The BlackBerry® Enterprise Server is designed to be a secure, centralized link between an organization's wireless network, communications software, applications, and BlackBerry devices. The BlackBerry Enterprise Server integrates with your organization's existing infrastructure, which can include messaging and collaboration software, calendar and contact information, wireless Internet and intranet access, and custom applications, to provide BlackBerry device users with mobile access to your organization's resources.

The BlackBerry Enterprise Server supports AES and Triple DES encryption to protect and ensure the integrity of wireless data that is transmitted between the BlackBerry Enterprise Server components and BlackBerry devices. You can select from more than

450 IT policy rules that you can configure to control the features of the BlackBerry devices that are used in your organization's environment.

The BlackBerry Enterprise Server supports several optional components and configurations to meet your organization's requirements. The BlackBerry Collaboration Service integrates with supported third-party instant messaging servers to permit users to access your organization's instant messaging system from their BlackBerry devices using the BlackBerry instant messaging client. The BlackBerry MDS Integration Service supports custom application development and distribution. You can configure the BlackBerry Enterprise Server and the BlackBerry Enterprise Server components to support high availability to enhance the consistency and reliability of your organization's environment.

You can manage the BlackBerry Enterprise Server, BlackBerry devices, and user accounts using the BlackBerry Administration

Service, a web application that is accessible from any computer that can access the computer that hosts the BlackBerry

Administration Service. You can use the BlackBerry Administration Service to manage a BlackBerry Domain, which consists of one or more BlackBerry Enterprise Server instances and remote components that use a single BlackBerry Configuration Database.

New in this release

Feature Description automatic discovery of Microsoft®

Exchange Web Services

The BlackBerry® Messaging Agent can discover Microsoft Exchange Web Services automatically and use it to connect to the messaging server when the BlackBerry

Messaging Agent synchronizes calendar entries.

BlackBerry Configuration Panel logging When you use the BlackBerry Configuration Panel to configure high availability or change Microsoft® Active Directory® account information, the BlackBerry

Configuration Panel writes the following information to its log file:

• name of the Windows® account that you use to log in to the computer

• date and time

5

Feature and Technical Overview New in this release

6

Feature Description

BlackBerry MDS Connection Service integrated authentication

By default, the BlackBerry Configuration Panel stores its log file in the C:\Program

Files\Research In Motion\BlackBerry Enterprise Server\Logs\Installer folder.

When BlackBerry device users want to access your organization's resources from

BlackBerry devices, you can configure the BlackBerry MDS Connection Service to authenticate users with your organization's network automatically using their

Windows accounts.

changes to the BlackBerry

Configuration Database schema

The changes to the BlackBerry Configuration Database schema for BlackBerry®

Enterprise Server 5.0 SP2 are summarized in the UpgradeV99990101.sql file in the installation folder.

default groups with preconfigured roles The BlackBerry Administration Service includes new default groups that have preconfigured roles and that you can add different types of administrator accounts to. The default groups help make sure that users without administrative privileges cannot escalate their permissions. For example, junior administrators cannot change their roles to senior administrator roles. The group names are

Administrators, Help desk representatives, and BlackBerry® Web Desktop Manager users.

enhancements to activation and prepopulation

For more information about upgrade implications, see the BlackBerry Enterprise

Server Upgrade Guide.

The BlackBerry Enterprise Server includes the following enhancements to activation:

• The BlackBerry Messaging Agent now monitors the Junk folder as well as the

Inbox for activation messages.

• You can now configure the BlackBerry Enterprise Server to prepopulate a maximum count of 3000 email messages and a maximum message age of 30 days.

enhancements to logging The BlackBerry Enterprise Server now logs the following information:

• CPU use of the BlackBerry Messaging Agent

• event 20634 and event 20489 at the information logging level rather than the warning logging level

• additional information when the LogReceiver of the BlackBerry Controller cannot bind to a socket enhancements to S/MIME encryption The BlackBerry Enterprise Server includes the following enhancements to S/MIME encryption:

Feature and Technical Overview New in this release

Feature enhancements to SRP connections enhancement to synchronization of email message content enhancements to the BlackBerry

Administration Service enhancements to the BlackBerry

Monitoring Service

Description

• If users configure S/MIME encryption on devices, you are no longer required to turn on S/MIME encryption on the BlackBerry Enterprise Server before the

BlackBerry Enterprise Server can process S/MIME-protected messages.

• The BlackBerry Enterprise Server includes improvements to the option that permits it to encrypt messages for a second time when it processes S/MIMEprotected messages that are weakly encrypted or are signed but not encrypted.

When you install a BlackBerry Enterprise Server or start the BlackBerry Dispatcher, the BlackBerry Enterprise Server verifies whether the SRP ID is currently in use by another BlackBerry Enterprise Server. If it is in use, the BlackBerry Enterprise Server does not open the SRP connection.

The BlackBerry Enterprise Server forwards the full content of email messages that are sent from email applications to a device, rather than just the message header and subject.

The BlackBerry Administration Service includes the following enhancements:

• option to configure BlackBerry Administration Service instances to communicate with each other using additional protocols

• option to specify and display the column that the user search results is sorted by

• option to configure database mirroring for a BlackBerry Domain

• on the Component view page, you can view which BlackBerry Enterprise Server components you removed

• if an administrator types an incorrect password 10 times when the administrator tries to log in, the administrator account is locked for a 15 minute period and the administrator cannot log in

The BlackBerry Monitoring Service includes the following enhancements:

• metric that displays the number of BlackBerry Messaging Agent instances on a BlackBerry Enterprise Server

• metric that displays the number of user accounts on a BlackBerry Enterprise

Server that have pending email messages

• metric that displays the number of email messages that the BlackBerry

Enterprise Server detected while it scanned the messaging server in the previous hour

• option to monitor when a user account does not initialize

7

Feature and Technical Overview New in this release

8

Feature Description

• user search results that include the mailbox state of all user accounts in the

BlackBerry Domain

• user details page that includes the initialization state of the user account

• option to generate a report that lists all of the uninitialized users on all

BlackBerry Enterprise Server instances that the BlackBerry Monitoring Service monitors

• additional notifications when a user account does not initialize

• license information available at the BlackBerry Domain level

• type of instant messaging environment displayed enhancements to the BlackBerry Web

Desktop Manager

• timestamps displayed in UTC format

If you configure the appropriate option in the BlackBerry Administration Service, the BlackBerry Web Desktop Manager permits users to perform the following selfservice tasks:

• specify a new device password and lock a device

• delete all device data and disable a device enhancements to the setup application The setup application performs the following actions:

• verifies the disk space that is available on the computer

• verifies whether the SRP ID that you specify is available for use

• changes the default log folder when you change the installation folder

• verifies whether the setup application can connect to IBM® Lotus® Sametime® enhancements to the upgrade application for service packs

You can perform the following actions during the installation process or upgrade process:

• choose to stop BlackBerry Administration Service services on remote computers during the upgrade process

• export the console web addresses of the BlackBerry Enterprise Server components to a .txt file

• when you install a BlackBerry Enterprise Server, choose not to include the

BlackBerry MDS Connection Service or BlackBerry Attachment Service

Previously the upgrade application for service packs verified whether a BlackBerry

Enterprise Server was installed on the computer before it upgraded the BlackBerry

Enterprise Server. In this release, if the upgrade application supports the version of the BlackBerry Configuration Database that you want to connect the BlackBerry

Feature and Technical Overview New in this release

Feature language support new IT policy rules new preconfigured IT policy new traits reduction to disk I/O impact

RSA® authentication for specific intranet sites single sign-on authentication

Description

Enterprise Server to, the upgrade application can install a new BlackBerry Enterprise

Server instance on a computer or upgrade a BlackBerry Enterprise Server instance from versions earlier than version 5.0.

The BlackBerry Enterprise Server is now available in Brazilian Portuguese, as well as English, French, German, Italian, Japanese, and Spanish.

For information about new IT policy groups and IT policy rules, see the BlackBerry

Enterprise Server Policy Reference Guide.

The BlackBerry Enterprise Server includes a new preconfigured IT policy called the

Individual-Liable Devices IT policy.

You can use the Individual-Liable Devices IT policy if your organization includes users who purchase their own devices and connect the devices to a BlackBerry

Enterprise Server instance in your organization's environment.

The BlackBerry Enterprise Trait Tool includes the following new traits:

• ActiveDirectoryLDAPConnectTimeout

• EnableLegacyProfileConfig

• ExchangeEnableMLangConversion

• ExchangeEnableWriteUserStatsToMailbox

• ExchangeSuppressBodyOfSentItems

• DatabaseMirroringPingTimeout

• MailstorePublicFolderLookupEnabled

• MonitorJunkEmailFolderForETP

• PolicySRPWhitelist

For more information about the traits, see the BlackBerry Enterprise Server

Administration Guide.

The BlackBerry Enterprise Server does not write updates for user statistics to mailboxes to reduce the load on the Microsoft® Exchange Server.

You can configure the BlackBerry MDS Connection Service so that users must use

RSA authentication to access specific intranet sites from devices.

You can configure the BlackBerry Administration Service to log administrators or users in to the BlackBerry Administration Service and BlackBerry Web Desktop

Manager automatically using their Windows accounts.

9

Feature and Technical Overview New in this release

Feature support for a Microsoft Active Directory that is configured for multi-tenancy support for applying and resolving multiple IT policies to user accounts support for Microsoft® SQL Server®

2008 R2 support for sending more content for calendar entries in the initial data packet support for web browsers

Description

You can configure the BlackBerry Enterprise Server to limit the scope of LDAP searches when the BlackBerry Enterprise Server finds user accounts and calendar information if your organization's Microsoft Active Directory is configured for multitenancy.

If you assign IT policies to user accounts and groups, you can apply all the IT policies to devices. You can configure rules that the BlackBerry Enterprise Server can use to determine which IT policy rules to apply to devices and resolve any conflicts that exist between the IT policy rules and device settings.

The BlackBerry Enterprise Server is designed to support Microsoft SQL Server 2008

R2.

The default body size of calendar entries that the BlackBerry Enterprise Server synchronizes with devices is now larger.

You can use any of the following browsers to access the BlackBerry Administration

Service, BlackBerry Monitoring Service console, or BlackBerry MDS Application

Console:

• Windows® Internet Explorer® 7

• Windows Internet Explorer 8

• Mozilla® Firefox® 3.6

• Safari 4 (on computers that run Mac OS)

• Google Chrome™ 4.0

Browsers other than Windows Internet Explorer do not support managing devices.

support for Windows Server® 2008 R2 The BlackBerry Enterprise Server is designed to support Windows Server 2008 R2 with the language packs for Brazilian Portuguese, English, French, German, Italian,

Japanese, and Spanish.

10

Feature and Technical Overview BlackBerry Enterprise Server architecture

BlackBerry Enterprise Server architecture

2

Architecture: BlackBerry Enterprise Server

The BlackBerry® Enterprise Server consists of various components that are designed to perform the following actions:

• permit users to access your organization's tools and data from BlackBerry devices and run your organization's applications on devices

• monitor other BlackBerry Enterprise Server components

• process, route, compress, and encrypt data

• communicate with the wireless network

11

Feature and Technical Overview Architecture: BlackBerry Enterprise Server

12

Feature and Technical Overview Architecture: BlackBerry Enterprise Server

Component

BlackBerry Administration Service

BlackBerry Mail Store Service

BlackBerry Attachment Service

BlackBerry Collaboration Service

BlackBerry Configuration Database

BlackBerry Controller

BlackBerry Dispatcher

Description

The BlackBerry Administration Service connects to the BlackBerry Configuration

Database. You can use the BlackBerry Administration Service to manage the

BlackBerry Domain, which includes BlackBerry Enterprise Server components, user accounts, and features for BlackBerry device administration.

The BlackBerry Mail Store Service connects to the messaging servers in your organization's environment and retrieves the contact information that the

BlackBerry Administration Service requires to search for user accounts on the messaging servers.

You install a BlackBerry Mail Store Service when you install a BlackBerry Enterprise

Server. The BlackBerry Mail Store Service connects to the messaging server using the same connection information that the BlackBerry Enterprise Server uses. The

BlackBerry Administration Service is designed to communicate with the BlackBerry

Mail Store Service using RPC.

The BlackBerry Attachment Service converts supported message attachments to a format that users can view on their devices.

The BlackBerry Collaboration Service provides a connection between your organization's instant messaging server and the collaboration client on devices.

The BlackBerry Configuration Database is a relational database that contains configuration information that BlackBerry Enterprise Server components use. For example, the BlackBerry Configuration Database includes the following information:

• details about the connection from a BlackBerry Enterprise Server to the wireless network

• user list

• address mappings between PINs and email addresses for BlackBerry MDS

Connection Service push features

The BlackBerry Controller monitors BlackBerry Enterprise Server components and restarts them if they stop responding.

The BlackBerry Dispatcher compresses and encrypts all data that devices send and receive. The BlackBerry Dispatcher sends the data through the BlackBerry Router, to and from the wireless network.

13

Feature and Technical Overview Architecture: BlackBerry Enterprise Server

14

Component Description

BlackBerry MDS Application Console The BlackBerry MDS Application Console is a web-based administration console that you can use to manage BlackBerry MDS Runtime Applications and BlackBerry®

Browser Applications that are located in the BlackBerry MDS Application

Repository. You can use the BlackBerry MDS Application Console to send requests to a BlackBerry MDS Integration Service to install, update, and manage BlackBerry

MDS Runtime Applications and BlackBerry Browser Applications on devices.

BlackBerry MDS Connection Service

BlackBerry MDS Integration Service

The BlackBerry MDS Connection Service permits users to access web content, the

Internet, or your organization's intranet, and also permits applications on devices to connect to your organization's application servers or content servers for application data and updates.

The BlackBerry MDS Integration Service provides application-level integration for

BlackBerry MDS Runtime Applications and BlackBerry Browser Applications on devices. You can use the BlackBerry MDS Integration Service to install BlackBerry

MDS Runtime Applications and BlackBerry Browser Applications on devices.

BlackBerry Messaging Agent

The BlackBerry MDS Application Repository is a service hosted by the BlackBerry

MDS Integration Service. The BlackBerry MDS Application Repository stores

BlackBerry MDS Runtime Applications and BlackBerry Browser Applications.

Your organization's developers can create and publish BlackBerry MDS Runtime

Applications using the BlackBerry® MDS Studio or the BlackBerry® Plug-in for

Microsoft® Visual Studio® developer tools. Your organization's developers can create BlackBerry Browser Applications using standard text editors and publish

BlackBerry Browser Applications in the BlackBerry MDS Application Repository using the BlackBerry MDS Application Console.

The BlackBerry Messaging Agent connects to the IMAP server so that users can activate their devices over the wireless network. The BlackBerry Messaging Agent connects to your organization's messaging server to provide messaging services, calendar management, address lookups, attachment viewing, attachment downloading, and encryption key generation. The BlackBerry Messaging Agent also acts as a gateway so that the BlackBerry Synchronization Service can access organizer data on the messaging server. The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database and the BlackBerry profiles database. The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database

Feature and Technical Overview Architecture: BlackBerry Enterprise Server

Component Description

BlackBerry Monitoring Service

BlackBerry Monitoring Service database The BlackBerry Monitoring Service database stores information that it collects about your organization's BlackBerry Enterprise Server environment in a Microsoft® SQL

Server® database for 57 weeks. You can access the information from the database using standard SQL call operations.

BlackBerry Policy Service

BlackBerry Router

The BlackBerry Policy Service performs administration services over the wireless network. It sends IT policies and IT administration commands and provisions service books. IT policies and IT administration commands specify security, settings for synchronizing data over the wireless network, and other configuration settings on devices. The BlackBerry Policy Service also sends service books to devices to configure settings for features and components on devices.

The BlackBerry Router connects to the wireless network to send data to and from devices. It also sends data over your organization's network to devices that users connected to computers that host the BlackBerry® Device Manager.

BlackBerry Synchronization Service and user mailboxes. The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database and the message store databases.

The BlackBerry Monitoring Service is a web-based application that is designed to help you monitor your organization's BlackBerry Domain. You can use the

BlackBerry Monitoring Service to troubleshoot issues and monitor the health of your organization's BlackBerry Domain proactively.

BlackBerry® Web Desktop Manager

The BlackBerry Synchronization Service synchronizes organizer data between

BlackBerry devices and the messaging server over the wireless network.

The BlackBerry Web Desktop Manager is a web-based application that permits users to manage their devices. For example, users can activate devices, back up and restore data, select messaging options, synchronize data, and install applications.

The BlackBerry Web Desktop Manager includes the BlackBerry Device Manager.

organization's application server or content server instant messaging server messaging server

Your organization's application server or content server provides push applications and intranet content that the BlackBerry MDS Services use.

The instant messaging server stores instant messaging accounts.

The messaging server stores email accounts.

15

Feature and Technical Overview Architecture: Remote BlackBerry Collaboration Service

Component user's computer that hosts the

BlackBerry Device Manager

Description

The user's computer that hosts the BlackBerry Device Manager permits users to connect their devices to their computers using a serial connection or USB connection. The BlackBerry Enterprise Server and devices use the connection to send data between each other.

Data traffic from devices bypasses the wireless network when devices are connected to users' computers. The BlackBerry Device Manager connects to the BlackBerry

Router, which sends data directly to devices.

Users can install the BlackBerry Device Manager when they install the BlackBerry®

Desktop Software or at another time. The BlackBerry Device Manager is an optional component, but it is required to support a bypass connection to the BlackBerry

Router.

Architecture: Remote BlackBerry Collaboration Service

You can install the BlackBerry® Collaboration Service on a computer that is separate from the computer that hosts the BlackBerry®

Enterprise Server. You can install the BlackBerry Collaboration Service on a remote computer to support multiple BlackBerry

Enterprise Server instances, configure high availability for the BlackBerry Enterprise Server but exclude the BlackBerry

Collaboration Service, or create a BlackBerry Collaboration Service pool that can support multiple BlackBerry Enterprise Server instances. For more information about configuring the BlackBerry Collaboration Service high availability, see the BlackBerry

Enterprise Server Planning Guide.

The BlackBerry Collaboration Service uses a persistent socket connection for each instant messaging session. You can install the

BlackBerry Collaboration Service on a remote computer to maximize the number of available sockets.

You can install only one type of BlackBerry Collaboration Service (for example, IBM® Lotus® Sametime®). Users can use only one type of collaboration client on their BlackBerry devices.

16

Feature and Technical Overview Architecture: Remote BlackBerry Collaboration Service

Component

BlackBerry Administration Service

BlackBerry Collaboration Service

BlackBerry Configuration Database

BlackBerry Enterprise Server

BlackBerry Router

Description

The BlackBerry Administration Service permits you to manage the BlackBerry

Collaboration Service and configure instant messaging features.

The BlackBerry Collaboration Service delivers messages between the instant messaging server, BlackBerry Enterprise Server, and BlackBerry devices.

The BlackBerry Configuration Database contains configuration data that the

BlackBerry Collaboration Service uses.

The BlackBerry Enterprise Server encrypts and compresses instant messaging data that BlackBerry devices receive, and decompresses and decrypts instant messaging data that BlackBerry devices send.

The BlackBerry Router connects to the wireless network to send instant messaging data to and from BlackBerry devices.

17

Feature and Technical Overview Architecture: Remote BlackBerry MDS Connection Service

Architecture: Remote BlackBerry MDS Connection Service

You can install the BlackBerry® MDS Connection Service on a computer that is separate from the computer that hosts the

BlackBerry® Enterprise Server. The BlackBerry MDS Connection Service can use increased system resources when it processes requests for content. You can install the BlackBerry MDS Connection Service on a remote computer to minimize the impact on the delivery of messages and data, support multiple BlackBerry Enterprise Server instances, or create a BlackBerry MDS

Connection Service pool that can support multiple BlackBerry Enterprise Server instances.

For information about configuring BlackBerry MDS Connection Service high availability, see the BlackBerry Enterprise Server

Planning Guide.

18

Component

BlackBerry Administration Service

BlackBerry Configuration Database

Description

The BlackBerry Administration Service permits you to manage the BlackBerry MDS

Connection Service, configure the central push server, and configure the browsing and application features.

The BlackBerry Configuration Database contains the configuration data that the

BlackBerry MDS Connection Service uses.

Feature and Technical Overview Architecture: Remote BlackBerry MDS Integration Service

Component

BlackBerry Enterprise Server

BlackBerry MDS Connection Service

BlackBerry Router organization's application servers or content servers proxy servers

Description

The BlackBerry Enterprise Server encrypts and compresses content data that

BlackBerry devices receive, and decompresses and decrypts content data that

BlackBerry devices send.

The BlackBerry MDS Connection Service processes requests for web content from the BlackBerry® Browser or a BlackBerry Java® Application, and it manages the connections between a BlackBerry® Application and the application that is located on your organization’s application servers, web servers, or databases.

The BlackBerry Router connects to the wireless network to send content to and from

BlackBerry devices.

Your organization's application servers or content server provide push applications and intranet content for the BlackBerry MDS Services.

Proxy servers authenticate the BlackBerry Browser or a BlackBerry Java Application before they can access push applications or content data.

Architecture: Remote BlackBerry MDS Integration Service

You can install the BlackBerry® MDS Integration Service on a computer that is separate from the computer that hosts the

BlackBerry® Enterprise Server however, the BlackBerry MDS Integration Service can use increased system resources when it processes requests for content. You can install the BlackBerry MDS Integration Service on a remote computer to minimize the impact on the delivery of messages and data to and from other BlackBerry Enterprise Server components and third-party applications, support multiple BlackBerry Enterprise Server instances, or create a remote BlackBerry MDS Integration Service pool for high availability.

For information about how to configure the BlackBerry MDS Integration Service for high availability, see the BlackBerry Enterprise

Server Planning Guide.

19

Feature and Technical Overview Architecture: Remote BlackBerry MDS Integration Service

20

Component Description

BlackBerry Administration Service The BlackBerry Administration Service permits you to manage the BlackBerry MDS

Integration Service, create software configurations, publish applications, and configure application features.

BlackBerry MDS Application Console The BlackBerry MDS Application Console is a tool that manages applications published using the BlackBerry MDS Integration Service.

BlackBerry Configuration Database

BlackBerry Enterprise Server

The BlackBerry Configuration Database contains configuration data for the

BlackBerry MDS Integration Service.

The BlackBerry Enterprise Server encrypts and compresses application data that

BlackBerry devices receive, and decompresses and decrypts application data that

BlackBerry devices send.

BlackBerry MDS Application Repository The BlackBerry MDS Application Repository is a service that is hosted by the

BlackBerry MDS Integration Service and stores the applications that your organization published so that users can install them on their BlackBerry devices.

BlackBerry MDS Integration Service The BlackBerry MDS Integration Service permits a BlackBerry MDS Runtime

Application to interact with server-side systems that expose standard interfaces or can be accessed by a direct database connection.

Feature and Technical Overview Architecture: Remote BlackBerry Router

Component

BlackBerry Router organization's application servers or content servers

Description

The BlackBerry Router connects to the wireless network to send application data to and from BlackBerry devices.

Your organization's application servers or content servers provide push applications and intranet content used by the BlackBerry MDS Services.

Architecture: Remote BlackBerry Router

You can install the BlackBerry® Router on a computer that is separate from the computer that hosts the BlackBerry® Enterprise

Server. You can install the BlackBerry Router on a remote computer if you want to support multiple BlackBerry Enterprise Server instances, create a remote BlackBerry Router pool, or if your organization's security policy requires that internal systems cannot make connections directly to the Internet and all systems must connect through another system in the DMZ.

The BlackBerry Router does not use many system resources, but it is a critical connection point for the BlackBerry® Enterprise

Solution. You can install multiple BlackBerry Router instances for high availability if the primary BlackBerry Router becomes unavailable.

If you install the BlackBerry Router in the DMZ, you can permit users to log in to your organization's LAN remotely and you can deploy BlackBerry devices through a computer that is running the BlackBerry® Device Manager.

21

Feature and Technical Overview Architecture: Remote BlackBerry Administration Service

Component

BlackBerry Configuration Database

BlackBerry Device Manager

BlackBerry Enterprise Server

BlackBerry Router

Description

The BlackBerry Configuration Database contains configuration data that the

BlackBerry Administration Service manages.

The BlackBerry Device Manager permits BlackBerry devices to connect to the

BlackBerry Router.

The BlackBerry Enterprise Server encrypts and compresses data that BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

The BlackBerry Router connects to the wireless network to send data to and from

BlackBerry devices.

Architecture: Remote BlackBerry Administration Service

You can install the BlackBerry® Administration Service on a computer that is separate from the computer that hosts the

BlackBerry® Enterprise Server. The BlackBerry Administration Service can use increased system resources when it processes requests. You can install the BlackBerry Administration Service remotely to minimize the impact on the delivery of messages and data, or to create a BlackBerry Administration Service pool to support multiple BlackBerry Enterprise Server instances.

For more information about configuring BlackBerry Administration Service high availability, see the BlackBerry Enterprise Server

Planning Guide.

You can install the BlackBerry® Web Desktop Manager with the BlackBerry Administration Service. You can install the BlackBerry

Web Desktop Manager separately to make sure that BlackBerry device users cannot access the computer that hosts the BlackBerry

Enterprise Server.

22

Feature and Technical Overview Architecture: Remote BlackBerry Monitoring Service

Component

BlackBerry Administration Service

BlackBerry Configuration Database

BlackBerry Enterprise Server

BlackBerry Router

BlackBerry Web Desktop Manager

Description

The BlackBerry Administration Service permits you to manage the BlackBerry

Enterprise Server, user accounts, and BlackBerry devices.

The BlackBerry Configuration Database contains configuration data that the

BlackBerry Administration Service manages.

The BlackBerry Enterprise Server encrypts and compresses data that BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

The BlackBerry Router connects to the wireless network to send data to and from

BlackBerry devices.

The BlackBerry Web Desktop Manager permits users to activate and manage their

BlackBerry devices, back up and restore data, configure email settings, update the

BlackBerry® Device Software, and install new applications.

Architecture: Remote BlackBerry Monitoring Service

You can install the BlackBerry® Monitoring Service on a computer that is separate from the computer that hosts the BlackBerry®

Enterprise Server. If you install the BlackBerry Monitoring Service and BlackBerry Enterprise Server on the same computer, and that computer becomes unavailable, the BlackBerry Monitoring Service might not be able to monitor the BlackBerry Enterprise

Server.

23

Feature and Technical Overview Architecture: Remote BlackBerry Monitoring Service

You can install the BlackBerry Monitoring Service database on the same computer as the BlackBerry Monitoring Service, on the same database server as the BlackBerry Configuration Database, or on another database server. You can install the BlackBerry

Monitoring Service database on another database server if you do not want the BlackBerry Monitoring Service database to become unavailable at the same time as the BlackBerry Configuration Database, if your system resources are limited, or if you plan to run reports frequently.

24

Component

BlackBerry Administration Service

BlackBerry Configuration Database

BlackBerry Enterprise Server

BlackBerry Monitoring Service

Description

The BlackBerry Administration Service permits you to manage the BlackBerry

Enterprise Server, user accounts, and BlackBerry devices.

The BlackBerry Configuration Database contains configuration data that the

BlackBerry Administration Service manages.

The BlackBerry Enterprise Server encrypts and compresses the data that BlackBerry devices receive, and decompresses and decrypts the data that BlackBerry devices send.

The BlackBerry Monitoring Service is a web-based application that you can use to monitor your organization's BlackBerry Domain. The BlackBerry Monitoring Service consists of an administration console and Windows® services. The BlackBerry

Monitoring Service console displays issues or events in the BlackBerry Domain that could cause an interruption to the BlackBerry Enterprise Server services and sends notification messages to contacts that you specify.

Feature and Technical Overview Architecture: Remote BlackBerry Attachment Service

Component Description

BlackBerry Monitoring Service console The BlackBerry Monitoring Service console is a web-based application that provides a UI that you can use to manage and interact with the BlackBerry Monitoring

Service.

BlackBerry Monitoring Service

Application Core

BlackBerry Monitoring Service Polling

Engine

The BlackBerry Monitoring Service Application Core processes rules that you define for monitoring your organization's BlackBerry Domain.

The BlackBerry Monitoring Service Polling Engine polls the BlackBerry Enterprise

Server for SNMP data. The BlackBerry Monitoring Service Polling Engine sends the

SNMP data to the BlackBerry Monitoring Service Application Core.

BlackBerry Monitoring Service database The BlackBerry Monitoring Service database is a Microsoft® SQL Server® database where the BlackBerry Monitoring Service stores data that it collects about your organization's BlackBerry Domain for 57 weeks. You can access the data in the database using standard SQL call operations.

BlackBerry Monitoring Service Data

Collection Subsystem

The BlackBerry Monitoring Service Data Collection Subsystem manages the persistence of historical monitoring data for building graphs. It also stores and retrieves data, and listens for data that the BlackBerry Monitoring Service Polling

Engine sends.

Architecture: Remote BlackBerry Attachment Service

You can install the BlackBerry® Attachment Service on a computer that is separate from the computer that hosts the BlackBerry®

Enterprise Server. You can install the BlackBerry Attachment Service remotely if you want to increase the number of conversion requests that can occur concurrently without impacting message delivery, support multiple BlackBerry Enterprise Server instances, or create a BlackBerry Attachment Service pool that can support multiple BlackBerry Enterprise Server instances. For more information about how to configure the BlackBerry Attachment Service for high availability, see the BlackBerry Enterprise

Server Planning Guide.

25

Feature and Technical Overview Architecture: Remote BlackBerry Attachment Service

26

Component

BlackBerry Administration Service

BlackBerry Attachment Service

BlackBerry Configuration Database

BlackBerry Enterprise Server

BlackBerry Router

Description

The BlackBerry Administration Service permits you to manage the BlackBerry

Attachment Service instances and set up attachment conversion features.

The BlackBerry Attachment Service converts the attachment and returns the attachment data to the BlackBerry Attachment Connector.

The BlackBerry Configuration Database contains the conversion data that the

BlackBerry Attachment Service uses when processing attachment data.

The BlackBerry Enterprise Server receives requests to convert message attachments from BlackBerry devices and uses theBlackBerry Attachment Connector to send the attachment data to a BlackBerry Attachment Service instance for conversion. After the BlackBerry Attachment Service instance returns the converted attachment to the BlackBerry Attachment Connector, the BlackBerry Enterprise Server sends the attachment data to the user's BlackBerry device for viewing.

The BlackBerry Router connects to the wireless network to send email messages and attachments to and from BlackBerry devices.

Feature and Technical Overview Architecture: BlackBerry Web Desktop Manager

Architecture: BlackBerry Web Desktop Manager

The BlackBerry® Web Desktop Manager consists of server-side services that are installed with the BlackBerry Administration

Service and Microsoft® ActiveX® controls that are installed on the browser of the BlackBerry device user. HTTPS authentication secures the connection between the server and the browser.

Component

BlackBerry Administration Service

BlackBerry Enterprise Server

BlackBerry Configuration Database messaging server user's computer with BlackBerry Web

Desktop Manager browser application

BlackBerry Administration Service and

BlackBerry Web Desktop Manager services

Description

The BlackBerry Administration Service is a web application that is a required component of the BlackBerry® Enterprise Server. Administrators use the BlackBerry

Administration Service to manage user accounts; assign user groups, administrator roles, software configurations, and IT policies to user accounts; and manage servers and components in a BlackBerry Domain.

The BlackBerry Enterprise Server encrypts and compresses data that BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

The BlackBerry Configuration Database is a relational database that contains configuration information, such as BlackBerry Enterprise Server connection details and user information.

The messaging server stores the email accounts of the BlackBerry device users.

The BlackBerry Web Desktop Manager browser application is the Microsoft ActiveX controls that a user installs in a browser to manage the BlackBerry device.

The BlackBerry Administration Service and BlackBerry Web Desktop Manager services provide the server-side services for the BlackBerry Web Desktop Manager browser application.

27

Feature and Technical Overview BlackBerry Enterprise Server components and features

BlackBerry Enterprise Server components and features

3

BlackBerry Administration Service

The BlackBerry® Administration Service is a web application you can use to manage user accounts; assign user groups, administrative roles, and software configurations and apply IT policies to user accounts; and manage servers and component instances in a BlackBerry Domain. You can open the BlackBerry Administration Service in a browser on any computer that can access the computer that hosts the BlackBerry Administration Service. You can share administrative duties with multiple administrators who can access the BlackBerry Administration Service simultaneously using unique user names and passwords.

When Microsoft® ActiveX® controls are turned on in your browser, you can connect BlackBerry devices to your computers and manage the BlackBerry devices while you are logged in to the BlackBerry Administration Service.

Feature Description high availability of BlackBerry Enterprise

Server components

You can install standby instances of BlackBerry® Enterprise Server components and configure a manual or automatic failover to a standby instance.

ability to assign users to multiple groups Groups permit you to share administrative roles, IT policies, and other configuration settings among similar user accounts so that properties can be set once instead of for every user. You can assign a user account to more than one group so that the user inherits the properties of every group that the user belongs to. You can also assign groups to other groups to share the properties of the parent group with all of the user accounts in the child groups.

custom server and component names using friendly names custom administrative roles

To help you identify servers and component instances, you can define a friendly name for each BlackBerry Enterprise Server and component instance that displays in the BlackBerry Administration Service. Each regional language that the

BlackBerry Administration Service supports can have unique friendly names.

Each action that you perform in the BlackBerry Administration Service is associated with a privilege. You can specify the actions that administrators can perform by changing the privilege that you assign to administrative roles.

BlackBerry Administration Service authentication or external authentication

Administrators that log in to the BlackBerry Administration Service must provide their user names and passwords. A user name and a password is a unique combination that is stored securely in the BlackBerry Configuration Database and known only to the BlackBerry Administration Service. Alternatively, you can use

28

Feature and Technical Overview BlackBerry Configuration Panel

Feature options for viewing the BlackBerry

Domain

Description external authentication, which permits administrators to log in to the BlackBerry

Administration Service using the same information that administrators use to access your organization's messaging server.

You can find and manage BlackBerry Enterprise Server component instances using the server view or component view.

BlackBerry Configuration Panel

The BlackBerry® Configuration Panel displays data, such as BlackBerry Configuration Database settings, that the BlackBerry®

Enterprise Server setup application gathered during the installation process. You can use the BlackBerry Configuration Panel to change configuration data after you install the BlackBerry Enterprise Server.

BlackBerry Mail Store Service

The BlackBerry Mail Store Service connects to the messaging servers in your organization's environment and retrieves the contact information that the BlackBerry Administration Service requires to search for user accounts on the messaging servers.

The BlackBerry Mail Store Service performs the following actions:

• synchronizes your organization's contact list to the BlackBerry Configuration Database

• updates the contact list in the BlackBerry Configuration Database every 24 hours automatically

• permits the BlackBerry Administration Service to access user account information that is stored in the mailbox or mail file on the messaging servers

• exposes an API that the BlackBerry Administration Service can use to connect to the BlackBerry Mail Store Service

• searches for contact information on behalf of the BlackBerry Administration Service

You install a BlackBerry Mail Store Service when you install a BlackBerry Enterprise Server. The BlackBerry Mail Store Service connects to the messaging server using the same connection information that the BlackBerry Enterprise Server uses. The

BlackBerry Administration Service is designed to communicate with the BlackBerry Mail Store Service using RPC.

Database tables in the BlackBerry Configuration Database that store contact information

The BlackBerry® Mail Store Service synchronizes contact information to two database tables in the BlackBerry Configuration

Database.

29

Feature and Technical Overview BlackBerry Mail Store Service

Table name

MsDomains

MsAddresses

Description

This table contains a list of domains and messaging servers that are located in your organization's environment.

This table contains a list of the email addresses that are included in your organization's contact list.

Contact information that the BlackBerry Mail Store Service stores in the BlackBerry

Configuration Database

The BlackBerry® Mail Store Service synchronizes contact information that is stored in the messaging environment to the

BlackBerry Configuration Database. To compare the contact information changes that occurred between synchronization processes, the BlackBerry Mail Store Service maintains two copies of the contact information.

The BlackBerry Mail Store Service synchronizes contact information that is stored in the messaging environment to the BlackBerry

Configuration Database. The contact information is stored in database properties in the BlackBerry Configuration Database.

Contact information

Database property name address type display name email address mailbox path messaging server path

Type

DisplayName

MailboxSMTP

MailboxKey

ServerName

Database property name in BlackBerry

Configuration Database version 4.1

Description

UserConfig.DisplayName

This property specifies the display name for the user account.

UserConfig.MailboxSMTP

Addr

This property specifies the email address for the user account.

UserConfig.MailboxDN

This property specifies whether this is the address for a user or distribution list.

UserConfig.ServerDN

This property specifies the unique mailbox path.

This property specifies the path to the messaging server.

30

Feature and Technical Overview

How the BlackBerry Mail Store Service accesses contact information that is stored on the messaging server

In a Microsoft® Exchange environment, the BlackBerry® Mail Store Service can connect to the messaging server and search for contact information using MAPI or LDAP. By default, the BlackBerry Mail Store Service uses MAPI to search for contact information.

If you configure the BlackBerry® Enterprise Server to use LDAP to search for contact information, the BlackBerry Mail Store

Service can also use LDAP to search for contact information.

For more information about how the BlackBerry Enterprise Server uses LDAP, visit www.blackberry.com/support to read article

KB05174.

Configuring the BlackBerry Mail Store Service instance that updates the contact list

The BlackBerry® Configuration Database contains your organization's contact list and a list of BlackBerry® Enterprise Server instances. By default, the BlackBerry Mail Store Service instance that you installed with the first BlackBerry Enterprise Server instance that appears in the list updates the contact list. If you prevent the BlackBerry Mail Store Service that you installed with the first BlackBerry Enterprise Server instance from updating the contact list, the next available BlackBerry Mail Store Service instance in the list updates the contact list.

By default, if you install multiple BlackBerry Mail Store Service instances, each instance can update the contact list in the

BlackBerry Configuration Database. The first BlackBerry Mail Store Service instance that updates the contact list prevents the other instances from also updating the contact list. Each BlackBerry Mail Store Service instance searches for time stamp information in the BlackBerry Configuration Database to determine if another BlackBerry Mail Store Service instance is updating the contact list already before it starts to update the contact list.

You must verify that at least one BlackBerry Mail Store Service instance can update the contact list in the BlackBerry Configuration

Database so that the BlackBerry Administration Service can access the latest contact list information when you create and manage user accounts. If you prevent all of the BlackBerry Mail Store Service instances from updating the contact list, the

BlackBerry Configuration Database might not contain the contact information for all user accounts on your organization's messaging server.

If the BlackBerry Configuration Database does not contain contact information for a user account, you cannot create the user account by searching for the contact information in the BlackBerry Administration Service. You can only create the user account if you use the Add from company directory option in the BlackBerry Administration Service. The Add from company directory option permits the BlackBerry Mail Store Service to search the contact information that is stored in the messaging environment so that you can create the user account even if the BlackBerry Configuration Database does not contain the contact information for the user account.

31

Feature and Technical Overview BlackBerry messaging and collaboration services

BlackBerry messaging and collaboration services

The BlackBerry® messaging and collaboration services provide a wireless extension of your organization's messaging environment. These services include the BlackBerry Messaging Agent, BlackBerry Collaboration Service, BlackBerry

Synchronization Service, and BlackBerry Attachment Service.

BlackBerry Messaging Agent

The BlackBerry® Messaging Agent connects to your organization's messaging server and provides messaging services, calendar management, address lookups, attachment viewing, attachment downloading, and encryption key generation. The BlackBerry

Messaging Agent acts as a gateway for the BlackBerry Synchronization Service to access organizer data on the messaging server.

The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database and user mailboxes.

The BlackBerry Messaging Agent integrates with existing email accounts in your organization. The BlackBerry Messaging Agent redirects messages from users’ email applications to their BlackBerry devices automatically. If users configure identical signatures on their BlackBerry devices and in their email accounts, recipients cannot distinguish between messages that users send from

BlackBerry devices and messages that they send from email applications.

When users move or delete messages or mark messages as read or unread on their BlackBerry devices or in their email applications, the BlackBerry Messaging Agent reconciles changes over the wireless network between BlackBerry devices and email applications. By default, BlackBerry devices and the BlackBerry® Enterprise Server reconcile email messages over the wireless network.

Wireless messaging features

BlackBerry® device users can use many of the same messaging features that are available in the email applications on their computers.

Feature email reconciliation

Description

The BlackBerry® Enterprise Server reconciles the status of messages between users'

BlackBerry devices and their email applications. If users delete, archive, or move messages to personal folders in their email applications, the messages are deleted from the message list on the users' BlackBerry devices. If users mark messages as read or unread in their email applications, the messages appear with the same status on their BlackBerry devices.

You can turn off wireless email reconciliation.

32

Feature and Technical Overview BlackBerry messaging and collaboration services

Feature email message filters message forwarding signature out-of-office reply contact lookup contact list updates custom fields in the contact list attachments

Description

You or users can create and change email message filters. Email message filters determine the actions that the BlackBerry Enterprise Server takes if incoming messages match specific criteria: forward, forward with priority, or do not forward to BlackBerry devices. For example, users can create email message filters to forward messages from specific senders to their BlackBerry devices with high priority.

Users can turn off message forwarding to their BlackBerry devices (for example, if users are outside of a wireless coverage area). You can also turn off message forwarding to users' BlackBerry devices.

Users can add a signature to all messages that they send from their BlackBerry devices. You can add a signature and disclaimers to all messages that the members of a user group send or a specific user sends.

Users can set and change their out-of-office replies using their BlackBerry devices.

Users can search for a contact’s first name, last name, or both in their organization's directory. The BlackBerry Enterprise Server returns results for a maximum of 20 of the closest matches.

When users select contacts from the contact lookup results, they can add the contacts to the contact lists on their BlackBerry devices.

If your organization maintains custom fields in users’ personal contact lists, you can map these fields to corresponding fields that appear in the contact list on BlackBerry devices. Users can use these custom fields to search for contacts on their BlackBerry devices.

Users can send messages that contain attachments from their BlackBerry devices.

The BlackBerry Attachment Service does not convert these messages; the

BlackBerry Messaging Agent processes them only. Attachments must meet the following requirements:

• If a user sends one attachment in a message, the file size of the attachment cannot exceed 3 MB.

• If a user sends multiple attachments in a message, the total file size of the attachments cannot exceed 5 MB.

• If an attachment exceeds 64 KB, the BlackBerry device sends the attachment in multiple data packets.

33

Feature and Technical Overview

Feature downloading attachments save sent messages personal distribution lists public folders personal folders

BlackBerry messaging and collaboration services

Description

Users can send messages with attachments only from supported BlackBerry devices that are running BlackBerry® Device Software version 4.2 or later. If you want to manage the system resources that the BlackBerry Messaging Agent uses to upload and send attachments, you can limit the file size of attachments or prevent users from attaching files to messages. For example, if too many users are sending large attachments, such as pictures or videos, you might want to limit the file size of supported attachments or turn off support for message attachments.

Users with BlackBerry devices that are running BlackBerry Device Software version

4.5 or later can download attachments and store them on their BlackBerry devices.

Users can open and make changes to the downloaded attachments using an appropriate third-party application on their BlackBerry devices. Users can open supported attachment file formats using the media application on their BlackBerry devices.

To manage network resources in your organization's environment, you can change the maximum file size of attachments that users can download to their BlackBerry devices.

Users can configure their BlackBerry devices to save copies of messages that they send from their BlackBerry devices in the sent items folder in their email applications.

Users with BlackBerry Device Software version 5.0 or later can view personal distribution lists in their contact lists. Users can send messages to the personal distribution lists and delete personal distribution lists from their BlackBerry devices.

Users with BlackBerry Device Software version 5.0 or later can view and use contacts in public folders from their BlackBerry devices, and copy the contacts to their contact lists. Users can only view the public folders that they have the appropriate permissions for.

Users can specify which public folders they want to synchronize to their BlackBerry devices using the BlackBerry® Desktop Manager or BlackBerry® Web Desktop

Manager. You can limit the number of public folders that users can synchronize to their BlackBerry devices.

Users with BlackBerry devices that are running BlackBerry Device Software version

5.0 or later can add, delete, move, and rename personal folders from their BlackBerry devices.

34

Feature and Technical Overview BlackBerry messaging and collaboration services

Feature follow up flag personal contact subfolders forwarding calendar entries availability of meeting invitees remote search for email messages rich content email messages

Description

Users with BlackBerry devices that are running BlackBerry Device Software version

5.0 or later can flag messages from their BlackBerry devices and set reminder times.

Users with BlackBerry devices that are running BlackBerry Device Software version

5.0 or later can view personal contact subfolders on their BlackBerry devices and change contact information.

Users can specify which contact subfolders that they want to synchronize to their

BlackBerry devices using BlackBerry Desktop Manager or BlackBerry Web Desktop

Manager. You can limit the number of contact subfolders that a user can synchronize to their BlackBerry devices.

Users with BlackBerry devices that are running BlackBerry Device Software version

5.0 or later can forward meeting invitations and calendar entries from their

BlackBerry devices.

Users with BlackBerry devices that are running BlackBerry Device Software version

4.5 or later can view the availability of meeting invitees on their BlackBerry devices.

You can turn off this feature using the BlackBerry Administration Service.

Users with BlackBerry devices that are running BlackBerry Device Software version

4.5 or later can search for email messages that are located on the messaging server from their BlackBerry devices. You can turn off this feature using the BlackBerry

Administration Service.

Users with BlackBerry devices that are running BlackBerry Device Software version

4.5 or later can view HTML and rich content email messages. You can turn off this feature using the BlackBerry Administration Service.

Access to documents on a network from BlackBerry devices

Users with BlackBerry® devices that are running BlackBerry® Device Software version 5.0 or later can use a file browser on their

BlackBerry devices to access documents that are located in a shared location such as a network drive. Users can view document information such as the file name, file type, file size, author, and date the file was last changed. Users must have access to the shared location using their network credentials, or you must configure the BlackBerry® Enterprise Server to access the documents for the users.

Users can send the documents as attachments in messages or instant messages, view supported document types using the attachment viewer, download copies of the documents, or open and make changes to the documents using an appropriate thirdparty application on their BlackBerry devices. They can also add attachments from messages or documents that they access using the BlackBerry® Browser to the network drive.

35

Feature and Technical Overview BlackBerry messaging and collaboration services

BlackBerry Collaboration Service

The BlackBerry® Collaboration Service provides a connection between your organization's instant messaging server and the collaboration client on BlackBerry devices. The BlackBerry Collaboration Service integrates with existing instant messaging applications. The BlackBerry® Enterprise Server supports the following collaboration clients:

• BlackBerry® Client for use with Microsoft® Office Live Communications Server 2005

• BlackBerry® Client for use with Microsoft® Office Communications Server 2007

• BlackBerry® Client for IBM® Lotus® Sametime®

• BlackBerry® Client for Novell® GroupWise® Messenger

The BlackBerry Collaboration Service sends messages between your organization's instant messaging server, BlackBerry

Enterprise Server, and BlackBerry devices using public APIs, a Research In Motion proprietary protocol, and protocols that are defined by IBM, Microsoft, and Novell.

Instant messaging features

Using the collaboration clients on their BlackBerry® devices, users can use many of the same features that are available in the instant messaging applications on their computers.

Feature session management conversations with multiple contacts availability status presence updates

Description

You can specify the number of simultaneous instant messaging sessions that the

BlackBerry Collaboration Service supports. You can also specify a timeout threshold, after which the BlackBerry Collaboration Service ends inactive sessions automatically and permits new sessions to start.

You can control whether users of specific versions of the BlackBerry® Client for

IBM® Lotus® Sametime® or the BlackBerry® Client for Novell® GroupWise®

Messenger can see an icon on their BlackBerry devices when contacts in their contact lists are using the same collaboration clients. By default, the icon appears.

Users can start and manage conversations with multiple instant messaging contacts on their BlackBerry devices.

Users can change their availability status when they are logged in to their collaboration clients. For example, users can set their availability status to away or busy.

Using the latest versions of the collaboration clients, users can set their availability status to display as away if they do not use their BlackBerry devices for a specified period of time.

36

Feature and Technical Overview BlackBerry messaging and collaboration services

Feature Description access levels contact pictures synchronized contact lists contact alerts file transfer

Using the latest version of the BlackBerry® Client for use with Microsoft® Office

Communications Server 2007, users can set the access level of contacts in their contact lists. Each access level consists of rules that define how contacts can interact with a user through the instant messaging application. For example, users can assign the Personal access level to their contacts.

Using the latest versions of the collaboration clients, users can add pictures to the contacts in their contact lists. The pictures that users add using the collaboration clients on their BlackBerry devices are not synchronized with the instant messaging applications on users' computers.

The instant messaging contact lists on users' BlackBerry devices are synchronized with the contact lists in their organization's instant messaging application.

Users can request alerts when specific contacts become available.

Using the latest version of the BlackBerry Client for IBM Lotus Sametime, users can send files to contacts in their contact lists. Recipients can open supported file formats on their BlackBerry devices.

link instant messaging contacts to the contact list on BlackBerry devices

Using the latest versions of the collaboration clients, users can link instant messaging contacts to existing contact list entries on their BlackBerry devices. They can also create new contact list entries for instant messaging contacts and populate them with information from their organization's messaging server.

send email messages from contact list Using the latest versions of the collaboration clients, users can send email messages to contacts directly from their contact lists.

call contacts Using the latest versions of the collaboration clients, users can call instant messaging contacts directly from their contact lists. After a user starts an instant messaging conversation with a contact, the user can make a call to that contact from the conversation window. Phone numbers for contacts are retrieved from the messaging server or from the contact list on the BlackBerry device if the user is linked to an existing contact list entry.

email conversation history embedded links

Using the latest versions of the collaboration clients, users who participate in an instant messaging conversation can send the history of the conversation as an email message to other participants of the conversation and to additional contacts from their contact lists on their BlackBerry devices.

Users can click phone numbers in instant messages to make calls. They can also click links in instant messages to view web pages.

37

Feature and Technical Overview BlackBerry messaging and collaboration services

Feature public groups location information announcements send messages to contacts who are not included in a contact list dormant mode

Description

Using the latest version of the BlackBerry Client for IBM Lotus Sametime, users can add public groups to their instant messaging contact lists.

Using the latest version of the BlackBerry Client for IBM Lotus Sametime or the

BlackBerry Client for use with Microsoft Office Communications Server 2007, users can set their current location to display in their contact information. For example, users can set their current location to In the office. This feature is not available if your organization's environment uses IBM Lotus Sametime version 6.5.1.

Using the latest version of the BlackBerry Client for IBM Lotus Sametime or

BlackBerry Client for Novell GroupWise Messenger, users can send announcements to groups or multiple contacts in their contact lists.

Using the latest version of the BlackBerry Client for IBM Lotus Sametime,

BlackBerry® Client for use with Microsoft® Office Live Communications Server

2005, or BlackBerry Client for use with Microsoft Office Communications Server

2007, users can send instant messages to contacts that are not included in their contact lists.

The collaboration clients enter dormant mode after five minutes of inactivity. In dormant mode, the applications do not receive presence updates for contacts.

Dormant mode is designed to reduce wireless network traffic in an organization's messaging environment. The collaboration clients turn off dormant mode when users open or use the applications, or receive conference requests, alerts, or messages from contacts.

BlackBerry Synchronization Service

The BlackBerry® Synchronization Service synchronizes organizer data such as tasks, memos, and contacts over the wireless network so that the entries on BlackBerry devices are consistent with the entries in the email applications. With wireless data synchronization and wireless email reconciliation, users are not required to connect their BlackBerry devices to the BlackBerry®

Desktop Software to synchronize organizer data and reconcile email messages.

The BlackBerry Synchronization Service backs up user settings and data over the wireless network from BlackBerry devices to the BlackBerry Configuration Database. You can restore the user settings and data to BlackBerry devices when the BlackBerry devices are activated over the wireless network. By default, the BlackBerry® Enterprise Server automatically backs up the user settings and data over the wireless network.

38

Feature and Technical Overview BlackBerry messaging and collaboration services

Synchronization features

You can change the settings for synchronization features so that users can manage the user experience and system resources in your organization's environment.

Feature initial synchronization

Description

When the BlackBerry® Enterprise Server sends service books to BlackBerry devices to turn on wireless data synchronization, an initial data synchronization process starts. The process synchronizes the data for calendar items and messages between users' BlackBerry devices and the email applications on their computers. It also resolves conflicting or duplicate entries to prevent data loss.

synchronization settings

By default, the calendar on the BlackBerry device synchronizes up to 31 days in the past from the activation date, and up to 28 years into the future from the activation date.

You can configure settings for wireless data synchronization that apply to specific users, user groups, or all users on all BlackBerry Enterprise Server instances. You can define which organizer data items the BlackBerry Synchronization Service synchronizes, how data conflicts are resolved, and whether changes are synchronized in both directions or in one direction only between BlackBerry devices and email applications. You can use IT policies to configure the settings for wireless data synchronization.

support for different types of user access The BlackBerry Enterprise Server requires access to the organizer application databases for all users. You can define the location of the database replicas in each user’s profile, create roaming user profiles, or use web access templates in your organization's messaging environment.

synchronization of contact pictures The BlackBerry Synchronization Service synchronizes contact pictures between users’ BlackBerry devices and the email applications on their computers. If users use their BlackBerry devices to add, change, or delete contact pictures, the contact lists in their email applications reflect the changes.

The BlackBerry Synchronization Service cannot synchronize contact pictures that exceed 32 KB.

39

Feature and Technical Overview BlackBerry messaging and collaboration services

BlackBerry Attachment Service

The BlackBerry® Attachment Service converts supported message attachments into a format that users can view on their

BlackBerry devices. The BlackBerry Attachment Service processes attachments and converts them into a binary format that retains most of the layout, appearance, and navigation of the original attachments. You do not have to install the applications that are associated with the attachment formats on BlackBerry devices. The attachment viewer installs automatically with the

BlackBerry® Device Software.

The BlackBerry Attachment Service receives attachments that are embedded in messages from the messaging server, through the BlackBerry Messaging Agent. The BlackBerry Attachment Service also receives attachments that are accessed through links in the BlackBerry® Browser.

The BlackBerry Attachment Service enables users to play supported audio attachments on supported BlackBerry devices that are running BlackBerry Device Software version 4.2 or later. The BlackBerry Attachment Service can convert .wav files into an audio format that a BlackBerry device series supports (for example, .mp3 files on BlackBerry® 8700 Series devices).

If the BlackBerry Attachment Service is hosted on a computer that uses Windows Server® 2008, the BlackBerry Attachment

Service does not support .mp3 audio files on BlackBerry devices, and the BlackBerry Attachment Service does not support any audio file formats on BlackBerry® 7100 Series devices that support CDMA networks. You must host the BlackBerry Attachment

Service on a computer that uses Windows Server 2003 if you want the BlackBerry Attachment Service to support .mp3 audio files on BlackBerry devices and all audio formats on BlackBerry 7100 Series devices that support CDMA networks.

Attachment file formats that the BlackBerry Attachment Service supports

Format

Adobe® Acrobat®

ASCII text audio

Corel® WordPerfect® 7-10

HTML images

Microsoft® Excel® 97-2003, 2007, and XP

Microsoft® PowerPoint® 97-2003, 2007, and XP

Microsoft® Word 97-2003, 2007, and XP

OpenOffice Format version 1.1

RTF

Extension

.pdf

.txt

.amr, .mp3, .wav, .wma

.wpd

.htm, .html

.bmp, .gif, .jpeg, .jpg, .png, .ppm, .tif, .tif

f, .wmf

.xls, .xlsx

.pps, .ppsx, .ppt, .pptx

.doc, .dot, .dotx, .docx

.odp, .ods, .odt, .ott

.rtf

40

Feature and Technical Overview BlackBerry MDS

Format

ZIP archives

Extension

.zip

BlackBerry MDS

The BlackBerry® Mobile Data System is a flexible framework for application development that you can use to add and manage applications in your organization's environment. As a component of the BlackBerry® Enterprise Server, the BlackBerry MDS offers security, wireless connectivity, and manageability options. It also supports several preferred development methods that you can use to create wireless applications and deliver them to BlackBerry devices. To simplify the integration of wireless applications with existing applications and systems, the BlackBerry MDS uses standards-based methods and protocols.

Component

BlackBerry MDS Services

BlackBerry MDS development tools

Description

You can use the BlackBerry MDS Services to send wireless applications to BlackBerry devices, and to maintain and manage wireless applications on BlackBerry devices.

The BlackBerry MDS Services are designed to provide wireless connectivity between applications on BlackBerry devices and your organization's existing applications.

The BlackBerry MDS Services include the following components:

• BlackBerry MDS Integration Service: The BlackBerry MDS Integration

Service enables BlackBerry MDS Runtime Applications to interact with backend systems using web services or direct database connections. You can install the BlackBerry MDS Integration Service when you install the BlackBerry

Enterprise Server.

• BlackBerry MDS Connection Service: The BlackBerry MDS Connection

Service processes requests for web content from the BlackBerry® Browser or from BlackBerry Java® Applications. The BlackBerry MDS Connection Service also manages TCP/IP and HTTP connections between BlackBerry Applications and the applications that reside on your organization’s application servers, web servers, or databases that are located inside your organization's firewall.

Developers in your organization can use development tools to create the following types of wireless applications for BlackBerry devices: BlackBerry Browser

Applications, BlackBerry Java Applications, and BlackBerry MDS Runtime

Applications.

41

Feature and Technical Overview BlackBerry MDS

Component

BlackBerry MDS device software

Description

For more information about BlackBerry MDS development tools, visit www.blackberry.com/developers .

BlackBerry devices use the following BlackBerry MDS device software to run

BlackBerry Applications:

• BlackBerry® MDS Runtime: runs BlackBerry MDS Runtime Applications

• BlackBerry APIs and Java® ME: runs BlackBerry Java Applications; standard on BlackBerry devices

• BlackBerry Browser: runs BlackBerry Browser Applications and is standard on

BlackBerry devices

To download the BlackBerry MDS Runtime, visit www.blackberry.com

.

For more information about the BlackBerry MDS and the types of BlackBerry Applications, visit www.blackberry.com/ developers to see the BlackBerry Mobile Data System Technical Overview.

BlackBerry Applications

BlackBerry® devices support BlackBerry® Browser Applications, BlackBerry Java® Applications, and BlackBerry® MDS Runtime

Applications. Application developers in your organization can create BlackBerry Applications using BlackBerry development tools or third-party development tools. You can install and manage BlackBerry Java Applications on BlackBerry devices using the

BlackBerry Administration Service. You can install and manage BlackBerry MDS Runtime Applications and BlackBerry Browser

Applications on BlackBerry devices using the BlackBerry MDS Application Console.

For more information about the options for developing BlackBerry Applications, visit www.blackberry.com/developers to see the

BlackBerry Mobile Data System Technical Overview.

BlackBerry Java Applications

BlackBerry® Java® Applications can range from simple applications, such as a game on BlackBerry devices, to complex applications with advanced UIs and various options for data management, storage, and network communication. BlackBerry Java

Applications can use a client-only architecture (that is, the applications do not send data to or receive data from a content server) or they can use a client/server application model (that is, the applications send data to and receive data from a content server).

For example, a developer can create a BlackBerry Java Application so that users can send data to and receive data from a central sales database.

Developers can create BlackBerry Java Applications using the BlackBerry® Java® Development Environment, the BlackBerry®

JDE Plug-in for Eclipse®, or other Java authoring tools. BlackBerry devices run BlackBerry Java Applications using BlackBerry

APIs and Java ME, which are standard on BlackBerry devices.

42

Feature and Technical Overview BlackBerry MDS

For more information about developing and customizing BlackBerry Applications, visit www.blackberry.com/developers .

BlackBerry MDS Runtime Applications

BlackBerry® MDS Runtime Applications are lightweight, rich-client applications that are created using BlackBerry® MDS Studio or the BlackBerry® Plug-in for Microsoft® Visual Studio®. BlackBerry MDS Runtime Applications communicate with an organization's systems through the BlackBerry MDS Integration Service, a component of the BlackBerry® Enterprise Server.

BlackBerry MDS Runtime Applications can range from simple to complex, but they are typically forms-based applications that users can use to access web services or databases that are located inside your organization's firewall. Web services or a database contain the data and operations that developers can use to create BlackBerry MDS Runtime Applications. Web services or a database also process the data that they receive from BlackBerry MDS Runtime Applications. For example, a developer can create a BlackBerry MDS Runtime Application so that users can look up data from a directory in your organization.

Using the latest versions of the BlackBerry MDS Studio Plug-in for Eclipse or the BlackBerry Plug-in for Microsoft Visual Studio, application developers in your organization can create BlackBerry MDS Runtime Applications that standard applications on

BlackBerry devices (for example, the contact list) and custom BlackBerry Java® Applications can invoke. Developers can also create BlackBerry MDS Runtime Applications that can invoke standard applications on BlackBerry devices, custom BlackBerry

Java Applications, or other BlackBerry MDS Runtime Applications.

You must install and activate the BlackBerry MDS Runtime on BlackBerry devices before you install BlackBerry MDS Runtime

Applications on BlackBerry devices.

For more information about developing and customizing BlackBerry Applications, visit www.blackberry.com/developers .

BlackBerry Browser Applications

BlackBerry® Browser Applications are simplified, web-based applications that you can use to push web content to the BlackBerry

Browser on BlackBerry devices. Developers can create BlackBerry Browser Applications using BlackBerry templates or standard web development tools.

The BlackBerry MDS Integration Service includes a Browser Push Engine that can poll specific web addresses for changes or updates, and push the web content to BlackBerry devices at an interval that developers specify. For example, a developer can create a BlackBerry Browser Application that pushes a web page about the local weather to BlackBerry devices every morning.

The BlackBerry® Enterprise Server supports the following types of BlackBerry Browser Applications.

Type browser channel push applications

Description

An icon displays on the Home screens of users' BlackBerry devices to indicate whether users viewed the latest version of the web content that the Browser Push

Engine has pushed to their BlackBerry devices.

43

Feature and Technical Overview BlackBerry MDS

Type browser cache push applications browser message push applications

Description

The Browser Push Engine pushes web content to the cache of the BlackBerry

Browser on users' BlackBerry devices. To view the web content, users browse to the appropriate web address using the BlackBerry Browser.

A message appears in the message list on users' BlackBerry devices to provide a link to new or updated web content.

For more information about developing and customizing BlackBerry Applications, visit www.blackberry.com/developers .

BlackBerry MDS Connection Service

The BlackBerry® MDS Connection Service connects wireless applications on BlackBerry devices to the applications on an organization’s application servers or web servers. After a wireless application is installed on BlackBerry devices, the application can receive data from push applications that are located on application servers or web servers. The application can also receive data by sending pull requests from BlackBerry devices to applications that are located on application servers or web servers. The

BlackBerry MDS Connection Service processes push and pull requests and delivers data and updates to BlackBerry Applications.

The BlackBerry MDS Connection Service also receives and responds to web requests from the BlackBerry® Browser and other

BlackBerry Applications, so that users can view Internet and intranet content on their BlackBerry devices. The BlackBerry MDS

Connection Service sends login requests and requests for instant messaging sessions from BlackBerry devices to the BlackBerry

Collaboration Service. If you stop the BlackBerry MDS Connection Service, you also stop the BlackBerry Collaboration Service.

Feature protocol connections encrypted communications data conversion data optimization

Description

You can define connections to the web servers on your organization’s intranet or the Internet using standard Internet protocols such as HTTP, HTTPS, and TCP/IP.

The BlackBerry MDS Connection Service encrypts content using the same standard

BlackBerry encryption that the BlackBerry Dispatcher uses to encrypt messages and other data.

The BlackBerry MDS Connection Service converts data from application servers and web servers to a format that BlackBerry Applications can interpret and display.

The BlackBerry MDS Connection Service processes content that users can view in the BlackBerry Browser. For example, the BlackBerry MDS Connection Service can change the data format or remove extraneous data to reduce network traffic.

44

Feature and Technical Overview BlackBerry MDS

Feature authentication methods integration with proxy servers access control media content management

Description

You can configure authentication requirements that match your organization's sign-on scheme using standard methods such as NTLM, Kerberos™, and LTPA. You can also define a period of time after which the BlackBerry MDS Connection Service requests user information and caches cookies.

You can use two-factor authentication to create VPN connections between wireless applications on BlackBerry devices and your organization’s application servers and web servers.

You can provide access to specific content through your organization's proxy servers using the following items:

• proxy exclusion list, which defines the organization-specific URLs that the

BlackBerry MDS Connection Service uses to connect directly to external web services instead of routing the connections through your organization's proxy server

• proxy auto-configuration (.pac) file

You can configure push initiators and push rules that define which server-side push applications can send application data and updates to BlackBerry devices, and which users can receive push requests. You can configure pull rules to specify which web servers users can access using the BlackBerry Browser and other applications on BlackBerry devices.

You can control which media files users can receive and access using the BlackBerry

Browser and BlackBerry Applications. You can prevent users from receiving specific media types (for example, video files) or specific subtypes of media (for example, .mp3 files). You can also configure size limits for media files that users can receive on their BlackBerry devices.

BlackBerry MDS Integration Service

The BlackBerry® MDS Integration Service permits you to install, update, and manage BlackBerry MDS Runtime Applications on

BlackBerry devices. The BlackBerry MDS Integration Service supports standard methods of integrating wireless applications and enterprise applications, for example, by permitting BlackBerry MDS Runtime Applications to access and use web services on an application server.

45

Feature and Technical Overview Managing BlackBerry Java Applications and BlackBerry Device Software

Your organization’s developers can create BlackBerry MDS Runtime Applications using the BlackBerry® MDS Studio or

BlackBerry® Plug-in for Microsoft® Visual Studio®, and publish the applications to the BlackBerry MDS Application Repository.

You can install, update, and remove BlackBerry MDS Runtime Applications on BlackBerry devices over the wireless network, and you can manage different versions of BlackBerry MDS Runtime Applications.

Feature installation options encrypted communication troubleshooting tools message monitoring

Description

You can prevent users from searching for BlackBerry MDS Runtime Applications.

You can also require users to install, update, or remove specific BlackBerry MDS

Runtime Applications from BlackBerry devices.

The BlackBerry MDS Integration Service encrypts all data that it sends to and receives from BlackBerry devices.

A series of error messages display when unexpected behavior occurs, such as if an application cannot connect to a content server.

BlackBerry MDS Runtime Applications can request data from application servers or web servers using a series of messages. Web servers return the requested data using the same message format.

You can monitor the messages that BlackBerry MDS Runtime Applications send to or from the application servers or web servers that host application content.

PKI-compliant application certificates The BlackBerry MDS Studio creates certificates and uses them to sign applications that comply with the PKI X.509 standard.

control user access and permissions performance management

You can use certificates to encrypt the connections that the BlackBerry MDS

Integration Service establishes to sensitive content.

You can configure IT policy rules in the BlackBerry MDS Integration Service policy group to control how users can search for and access BlackBerry MDS Runtime

Applications, and to define whether BlackBerry MDS Runtime Applications can access data from other applications on BlackBerry devices.

You can specify message queue limits for data that BlackBerry MDS Runtime

Applications send and receive.

Managing BlackBerry Java Applications and BlackBerry Device Software

You can use the BlackBerry® Administration Service to install and manage the BlackBerry® Device Software and BlackBerry

Java® Applications on BlackBerry devices.

46

Feature and Technical Overview BlackBerry MDS Application Console

To send BlackBerry Java Applications to BlackBerry devices, you must first add the applications to the application repository. You can use the application repository to store and manage all versions of the BlackBerry Java Applications that you want to install on, update on, or remove from BlackBerry devices.

In the BlackBerry Administration Service, you create software configurations to specify the versions of the BlackBerry Device

Software and BlackBerry Java Applications that you want to install on, update on, or remove from BlackBerry devices. You also use software configurations to specify which applications are required, optional, or not permitted on BlackBerry devices. When you create a software configuration, you must also specify whether users can install applications that are not listed in the software configuration on their BlackBerry devices.

When you add a BlackBerry Java Application to a software configuration, you must assign an application control policy to the application to specify what resources the application can access on BlackBerry devices. You can use default application control policies or you can create and use custom application control policies for the application. If you permit users to install unlisted applications, you must create an application control policy for unlisted applications that specifies what resources the applications can access on BlackBerry devices.

When you assign a software configuration to a group or individual user accounts, the BlackBerry Administration Service creates a deployment job to install the BlackBerry Device Software and BlackBerry Java Applications on BlackBerry devices and to apply access control policies to BlackBerry devices. A deployment job consists of a number of tasks. Each task manages the delivery of a specific object (for example, a BlackBerry Java Application or an access control policy) to a BlackBerry device by communicating with the appropriate BlackBerry® Enterprise Server components.

If you assign more than one software configuration to a user account, all of the settings in the multiple software configurations are applied to the user's BlackBerry device. The BlackBerry Enterprise Server resolves conflicting settings using predefined reconciliation rules and prioritized rankings that you can specify using the BlackBerry Administration Service. After you install the BlackBerry Device Software and BlackBerry Java Applications on BlackBerry devices, you can view details about how the

BlackBerry Administration Service resolved software configuration conflicts.

For more information about installing and managing the BlackBerry Device Software on BlackBerry devices, visit www.blackberry.com/go/serverdocs to see the BlackBerry Device Software Update Guide.

BlackBerry MDS Application Console

The BlackBerry® MDS Application Console is a web-based administration console that you can use to manage BlackBerry® MDS

Runtime Applications and BlackBerry® Browser Applications that are located in the BlackBerry MDS Application Repository. You can use the BlackBerry MDS Application Console to send requests to a BlackBerry MDS Integration Service to install or update

BlackBerry MDS Runtime Applications and BlackBerry Browser Applications on BlackBerry devices, or remove the applications from BlackBerry devices. You must use the BlackBerry Administration Service to manage BlackBerry Java® Applications on

BlackBerry devices. You install the BlackBerry MDS Application Console when you install the BlackBerry MDS Integration Service.

The BlackBerry MDS Application Console supports BlackBerry MDS Integration Service version 5.0 or later only.

47

Feature and Technical Overview BlackBerry device management

BlackBerry device management

You can use the BlackBerry® Enterprise Server to control how you implement, maintain, and upgrade BlackBerry devices across your organization.

Controlling third-party applications on BlackBerry devices

Feature control the installation and removal of third-party applications control the resources that third-party applications can access control the availability of BlackBerry®

MDS Runtime Applications

Description

You can use the BlackBerry® Administration Service to install applications on

BlackBerry devices over the wireless network, or you can permit users to download and install third-party applications on their BlackBerry devices. You can remove applications from BlackBerry devices over the wireless network, and you can also prevent users from downloading applications.

You can use standard application control policies or create custom application control policies to specify the resources that third-party applications can access on

BlackBerry devices (for example, message, phone, and key store).

You can create IT policies that specify the types of connections that third-party applications on BlackBerry devices can establish (for example, opening network connections inside the firewall).

Use BlackBerry MDS Integration Service IT policy rules to control whether users can search for and install BlackBerry MDS Runtime Applications in the BlackBerry

MDS Application Repository.

BlackBerry Monitoring Service

You can use the BlackBerry® Monitoring Service to monitor and troubleshoot issues with a BlackBerry® Enterprise Server in your organization's environment and to monitor the activity of the BlackBerry device users that are associated with the BlackBerry

Enterprise Server.

The BlackBerry Monitoring Service monitors the BlackBerry Enterprise Server components. It polls each component and retrieves

SNMP data that it stores in a database and displays in the BlackBerry Monitoring Service console.

48

Feature and Technical Overview BlackBerry Monitoring Service

Feature web-based administration console monitoring of BlackBerry Enterprise

Server components

BlackBerry device diagnostic tests and user monitoring

Description

You can use the BlackBerry Monitoring Service console to monitor a BlackBerry

Enterprise Server in your organization's environment by creating thresholds that monitor the activity of BlackBerry Enterprise Server components. You can configure the BlackBerry Monitoring Service to send notification messages to contacts when a component's activity exceeds levels that you specify as acceptable.

The BlackBerry Monitoring Service console provides configuration settings and statistics that you can use to review BlackBerry Enterprise Server activity.

The BlackBerry Monitoring Service can provide the following types of data:

• configuration settings, such as the component name, component version, and computer name

• statistics such as CPU usage, memory usage, number of requests to process, and number of processing threads

• BlackBerry® Client Access License information, such as the number of used and available licenses

• high availability information, such as the high availability status of components

• policy information, such as the service books and IT policies that the BlackBerry

Enterprise Server sends to BlackBerry devices

• messaging statistics, such as the number of email messages that BlackBerry devices send and receive

• messaging server information, such as the hung thread count

• connection information for the BlackBerry Configuration Database, BlackBerry

Controller, and SRP connections

You can use the BlackBerry Monitoring Service console to run diagnostic tests for

BlackBerry devices and identify any issues with BlackBerry devices. The BlackBerry device diagnostic tool is available for BlackBerry devices that are running

BlackBerry® Device Software version 5.0 and later.

The BlackBerry Monitoring Service can monitor the following types of data:

• configuration information for BlackBerry devices, such as the PIN, network type, and phone number

• message statistics, such as the pending and expired email messages, and email messages that BlackBerry devices send and receive

49

Feature and Technical Overview

Feature thresholds notification messages reports graphs integration with a network management framework

Description

• BlackBerry device statistics, such as the battery level and network coverage

You can define thresholds that you can use to monitor components and BlackBerry device users. When the activity of a component or BlackBerry device user that the

BlackBerry Monitoring Service monitors reaches a threshold, the BlackBerry

Monitoring Service displays an alarm in the BlackBerry Monitoring Service console and sends notification messages to specific contacts.

You can configure the BlackBerry Monitoring Service to send notification messages to one or more recipients by creating a contact. A contact can include one or more email addresses, PINs, IP addresses, or phone numbers that support SMS text messages. If a component goes into an alarm state, the BlackBerry Monitoring

Service sends a notification message to all of the recipients in the contact.

You can run default reports or create custom reports to return data about the

BlackBerry Enterprise Server instances in your organization's environment. You can export reports to a .csv, a .pdf, or an .html file. You can use the information that you collect from the reports to analyze historical data.

You can use the BlackBerry Monitoring Service console to generate a graph of a component's historical activity.

The BlackBerry Monitoring Service can send notifications as SNMP trap messages.

This permits you to integrate the BlackBerry Monitoring Service with a network management tool that can receive SNMP trap messages. The BlackBerry Monitoring

Service sends an SNMP trap message when the activity of a component or

BlackBerry device user that the BlackBerry Monitoring Service monitors reaches a threshold.

BlackBerry Threshold Analysis Tool

The BlackBerry® Threshold Analysis Tool is designed to reduce the effort it takes to create a threshold that you can use to monitor a data attribute of a BlackBerry® Enterprise Server component. The BlackBerry Threshold Analysis Tool creates thresholds that are appropriate for a data attribute based on the previous activity of the data attribute. You can run the tool instead of creating rules in the BlackBerry Monitoring Service console manually. You can run the tool using a command prompt on the computer that hosts the BlackBerry Monitoring Service. The tool creates rules in the BlackBerry Monitoring Service console. You can change or delete the rules.

You install the tool when you install the BlackBerry Monitoring Service.

50

Feature and Technical Overview BlackBerry Policy Service

BlackBerry Policy Service

The BlackBerry® Policy Service sends IT policies and IT administration commands to BlackBerry devices and provisions service books over the wireless network. When you activate a BlackBerry device, change an IT policy, or request that a BlackBerry®

Enterprise Server resend service books, the BlackBerry Enterprise Server uses the BlackBerry Policy Service to send the updates to the BlackBerry device.

An IT policy consists of rules that define BlackBerry device security, settings for synchronizing data over the wireless network, and other behaviors for the individual groups or user accounts that you define. You can configure IT policies using the BlackBerry

Administration Service.

Feature wireless delivery

IT policy coverage

IT policy assignment resend options security enforcement

Description

When you configure an IT policy, all rules take effect when the BlackBerry Policy

Service delivers the IT policy to a BlackBerry device over the wireless network.

The BlackBerry device stores new IT policy rule values in the user configurations on the BlackBerry device automatically.

To keep the IT policy rules current, a BlackBerry Enterprise Server sends the IT policy to the BlackBerry device over the wireless network periodically.

When you add a user account to a BlackBerry Enterprise Server, the BlackBerry

Policy Service applies the Default IT policy to the user account automatically. The user account is not active on the BlackBerry Enterprise Server until a BlackBerry device accepts the IT policy.

You can apply a different IT policy to a user account. If you delete an IT policy that you applied to a user account, the BlackBerry Policy Service applies the user account to the Default IT policy automatically.

You can apply an IT policy to a group or an individual user account.

If a BlackBerry Enterprise Server cannot send an updated IT policy to a BlackBerry device immediately (for example, if a user is outside of a wireless coverage area), you can resend the IT policy manually or configure when the BlackBerry Policy

Service resends the IT policy. The BlackBerry Enterprise Server continues to resend the IT policy until it delivers the IT policy.

You can configure IT polices that define security settings for BlackBerry devices, the BlackBerry® Desktop Software and the BlackBerry® Web Desktop Manager, and that override security settings that users define on their BlackBerry devices.

51

Feature and Technical Overview BlackBerry Router

Feature Description

For example, you can configure whether a password is required for a BlackBerry device, the length of time that the password can exist before it becomes invalid, and the length and composition of the password. You can also use IT policies to specify encryption key details.

BlackBerry Router

The BlackBerry® Router connects to the wireless network. It sends data to and receives data from the BlackBerry® Infrastructure for a BlackBerry® Enterprise Server.

The BlackBerry Router also sends data to and receives data from BlackBerry devices that are connected to the BlackBerry

Enterprise Server using the BlackBerry® Device Manager.

You can install the BlackBerry Router on a computer that is separate from the computer that hosts the BlackBerry Enterprise

Server to route data between the BlackBerry Infrastructure and one or more BlackBerry Enterprise Server instances.

BlackBerry Web Desktop Manager

The BlackBerry® Web Desktop Manager is a web application that provides many of the same features that the BlackBerry®

Desktop Manager does. Users can connect their BlackBerry devices to their computers using a USB connection or Bluetooth® connection, and log in to BlackBerry Web Desktop Manager to activate and manage their BlackBerry devices, back up and restore data, define email settings, and update the BlackBerry® Device Software.

Feature access application management

BlackBerry Device Software management control user's access to features customizable interface

Description

Users can access device management and configuration capabilities from any computer that can access the intranet.

Users can use the BlackBerry Web Desktop Manager to install, manage, and remove the applications that are installed on their BlackBerry devices.

Users can use the BlackBerry Web Desktop Manager to update the BlackBerry

Device Software on their BlackBerry devices.

You can specify the BlackBerry Web Desktop Manager features that users can access using IT policies and settings in the BlackBerry Administration Service.

You can customize the appearance of the UI to match your organization's requirements. You can customize the font colors, logo, and the help.

52

Feature and Technical Overview BlackBerry Web Desktop Manager

Feature device activation switch devices folder redirection language support simplified administration service statistics synchronization of contact folders

Description

Users can use the BlackBerry Web Desktop Manager to set activation passwords and activate their BlackBerry devices.

Users can use the BlackBerry Web Desktop Manager to switch BlackBerry devices, and migrate from third-party devices that have BlackBerry® Application Suite installed, to BlackBerry devices.

Users can use the BlackBerry Web Desktop Manager to select the folders that the

BlackBerry® Enterprise Server redirects messages from.

The BlackBerry Web Desktop Manager is available in English, French, German,

Italian, Spanish, and Japanese. Users can select a language before they log in to the BlackBerry Web Desktop Manager.

The web UI does not require you to deploy, support, and maintain client-side software such as the BlackBerry Desktop Manager.

The BlackBerry Web Desktop Manager provides users with statistics about the message status (forwarded, sent, pending, expired, filtered), last contact time, and information about the last message sent or received.

Users can use the BlackBerry Web Desktop Manager to select the public or private contact folders that they want to synchronize to their BlackBerry devices over the wireless network.

Comparison of BlackBerry Web Desktop Manager and BlackBerry Desktop Manager features

Supported feature ability to view the BlackBerry® Desktop

Software that is installed on the users' computers application loader tool

BlackBerry Web Desktop Manager supported supported with the following conditions:

• option to choose not to save the backup file

• BlackBerry services are not maintained if the users disconnect their BlackBerry devices before completing the process

BlackBerry Desktop Manager supported supported with the following conditions:

• no option to choose whether to save the backup file

53

Feature and Technical Overview BlackBerry Web Desktop Manager

54

Supported feature

BlackBerry® Desktop Redirector not included

BlackBerry® Device Software updates supported with the following conditions:

• you install the software on a shared network drive

• BlackBerry® Web Desktop

Manager forces users to update the

BlackBerry® Device Software when a software configuration is assigned to the user accounts certificate synchronization changing the email profile options connections to BlackBerry devices device activation

BlackBerry Web Desktop Manager not supported not supported supported with the following conditions:

• users can connect to multiple

BlackBerry devices at the same time

• BlackBerry Web Desktop Manager does not prompt users if they want to switch from using a Bluetooth® connection to using a USB connection supported with the following conditions:

• occurs automatically for new users

• if users without active BlackBerry devices connect BlackBerry devices that belong to other users, the BlackBerry Web Desktop

Manager prompts the users who

BlackBerry Desktop Manager

• BlackBerry services are maintained if the users disconnect their

BlackBerry devices before clicking the Close button in the Load was successful dialog box included supported with the following conditions:

• users install the software on their computers and run the application loader tool

• BlackBerry Desktop Manager notifies the users when a newer version of BlackBerry Device

Software is available on their computers supported supported supported with the following conditions:

• users can connect to only one

BlackBerry device at a time

• BlackBerry Desktop Manager prompts users if they want to switch from using a Bluetooth connection to using a USB connection supported with the following conditions:

• occurs automatically each time users plug in a BlackBerry device

• if users without active BlackBerry devices connect BlackBerry devices that belong to other users, the BlackBerry Desktop Manager

Feature and Technical Overview BlackBerry Web Desktop Manager

Supported feature BlackBerry Web Desktop Manager connected the BlackBerry devices if they want to switch to the

BlackBerry devices

BlackBerry Desktop Manager notifies the users who connected the BlackBerry devices that an activation process is underway by asking the users whether an encryption key should be created switching devices email message settings supported with the following conditions:

• users can switch from third-party devices that are running

BlackBerry® Application Suite to

BlackBerry devices

• users can switch between

BlackBerry devices

• BlackBerry services are not maintained if users disconnect their BlackBerry devices before completing the process supported with the following conditions:

• users can import data from the address book when creating or changing a filter

• users cannot turn off message redirection while their BlackBerry devices are connected

• users cannot generate encryption keys

• users cannot override email addresses supported with the following conditions:

• users can switch from third-party devices to BlackBerry devices

• BlackBerry services are maintained if users disconnect their BlackBerry devices before clicking the Close button in the Switch was successful dialog box supported with the following conditions:

• users can import data for filtering

• users can turn off message redirection while their BlackBerry device are connected

• users can generate encryption keys

• users can override email addresses media management modem support for devices prompt for BlackBerry device password BlackBerry devices can connect without a prompt for the device password statistics for user accounts not supported not supported supported supported required before BlackBerry devices can connect to the users' computers supported with the following conditions: supported with the following conditions:

55

Feature and Technical Overview

Supported feature supported BlackBerry Device Software versions supported IT policies

BlackBerry Web Desktop Manager

• all supported messaging environments

• users cannot clear the redirection queue

• users cannot clear the redirection statistics

BlackBerry Device Software version 4.0

and later

• Auto Backup Enabled

• Auto Backup Exclude Messages

• Auto Backup Exclude Sync

• Auto Backup Frequency

• Auto Backup Include All

• Desktop Allow Device Switch

• Desktop Password Cache Timeout

• Do Not Save Sent Messages

• Force Load Message synchronization over a serial connection users cannot synchronize the following data over a serial connection:

• organizer data email messages third-party application data date and time

BlackBerry Desktop Manager

• Microsoft® Exchange environments only

• users can clear the redirection queue

• users can clear the redirection statistics all

• Auto Backup Enabled

• Auto Backup Exclude Messages

• Auto Backup Exclude Sync

• Auto Backup Frequency

• Auto Backup Include All

• Desktop Allow Device Switch

• Desktop Password Cache Timeout

• Disable Media Manager

• Do Not Save Sent Messages

• Force Load Count

• Forward Message In Cradle

• Message Prompt

• Show AppLoader

• Show Web Link users can synchronize the following data over a serial connection:

• organizer data

• email messages

• third-party application data

• date and time

56

Feature and Technical Overview Managing a distributed environment for BlackBerry Enterprise Server components

Managing a distributed environment for BlackBerry Enterprise Server components

You can install the BlackBerry® Enterprise Server components on multiple computers so that you can manage the size of your organization's BlackBerry Domain. For example, you can install the BlackBerry Attachment Service and BlackBerry MDS

Connection Service on separate computers to provide the computer that hosts the BlackBerry Enterprise Server with additional resources that the BlackBerry Enterprise Server can use to process email messages.

Wireless activation

The wireless activation process activates BlackBerry® devices that are associated with a BlackBerry® Enterprise Server over the wireless network. Neither you nor the BlackBerry device users are required to connect the BlackBerry devices to a computer in your organization's network to complete the activation process.

You can use wireless activation to activate a large number of BlackBerry devices over the wireless network. When BlackBerry device users want to activate new or replacement BlackBerry devices that are associated with the BlackBerry Enterprise Server over the wireless network, they must notify you or access the provisioning server console. You or the BlackBerry device user can create activation passwords.

The BlackBerry® Enterprise Solution can begin the wireless activation process automatically or when BlackBerry device users open the activation application on their BlackBerry devices and type their activation passwords and email addresses. When the activation process completes, the BlackBerry device users are activated and can send email messages from and receive email messages on their BlackBerry devices.

If users purchase BlackBerry devices, you must make sure that the BlackBerry devices can be associated with the BlackBerry

Enterprise Server and not the BlackBerry® Internet Service. You must create user accounts and activate BlackBerry devices so that you can associate the BlackBerry devices with a BlackBerry Enterprise Server.

57

Feature and Technical Overview BlackBerry Enterprise Solution security

BlackBerry Enterprise Solution security

4

The BlackBerry® Enterprise Solution consists of various products and components that are designed to extend your organization’s communication methods to BlackBerry devices. The BlackBerry Enterprise Solution is designed to help protect data that is in transit at all points between a device and the BlackBerry® Enterprise Server. To help protect data that is in transit over the wireless network, the BlackBerry Enterprise Server and device use symmetric key cryptography to encrypt the data sent between them.

The BlackBerry Enterprise Solution is designed to prevent third parties, including wireless service providers, from accessing your organization's potentially sensitive information in a decrypted format.

The BlackBerry Enterprise Solution uses confidentiality, integrity, and authenticity, which are principles for information security, to help protect your organization from data loss or alteration.

Principles confidentiality integrity authenticity

Description

The BlackBerry Enterprise Solution uses symmetric key cryptography to help make sure that only intended recipients can view the contents of email messages.

The BlackBerry Enterprise Solution uses symmetric key cryptography to help protect every email message that the device sends and to help prevent third parties from decrypting or altering the message data.

Only the BlackBerry Enterprise Server and the device know the value of the keys that they use to encrypt messages and recognize the format of a decrypted and decompressed message. The BlackBerry Enterprise Server or the device rejects a message automatically if it is not encrypted with keys that they recognize as valid.

Before the BlackBerry Enterprise Server sends data to the device, the device authenticates with the BlackBerry Enterprise Server to prove that the device knows the device transport key that is used to encrypt data.

Security features of the BlackBerry Enterprise Solution

Feature data protection

Description

The BlackBerry® Enterprise Solution is designed to protect data that is in transit between the BlackBerry® Enterprise Server and a BlackBerry device and data that is in transit between your organization’s messaging server and the email application on the user’s computer. The BlackBerry Enterprise Solution encrypts data that is

58

Feature and Technical Overview Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other

Feature encryption key protection control of BlackBerry device connections

Description stored on the BlackBerry device and in the BlackBerry Configuration Database. To help protect data that is stored on the BlackBerry device, you can require a user to authenticate to the BlackBerry device using a password, a smart card, or both.

The BlackBerry device is designed to protect the encryption keys that are stored on the BlackBerry device. The BlackBerry device encrypts the encryption keys when the BlackBerry device is locked.

The BlackBerry Enterprise Solution is designed to control the following connections:

• connections using Bluetooth® technology to and from the BlackBerry device

• connections from a Wi-Fi® enabled BlackBerry device to enterprise Wi-Fi networks control of the behavior of the BlackBerry device and BlackBerry® Desktop

Software

The BlackBerry Enterprise Solution is designed to control which BlackBerry devices can connect to the BlackBerry Enterprise Server.

To control the behavior of the BlackBerry device and BlackBerry Desktop Software, you can send IT administration commands, IT policies, and application control policies to the BlackBerry device. You can use IT administration commands, IT policies, and application control policies to perform the following actions:

• You can send IT administration commands to delete application data from the

BlackBerry device and to lock the BlackBerry device.

• You can send an IT policy to a BlackBerry device to change security settings.

You can use the IT policy to enforce the BlackBerry device password and

BlackBerry® Smart Card Reader password.

• You can send an application control policy to a BlackBerry device to control whether third-party applications are available and can connect to the

BlackBerry device.

Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other

To encrypt data that is in transit between the BlackBerry® Enterprise Server and a BlackBerry device in your organization, the

BlackBerry® Enterprise Solution uses BlackBerry transport layer encryption. BlackBerry transport layer encryption is designed to encrypt data from the time that a BlackBerry device user sends a message from the BlackBerry device to when the BlackBerry

Enterprise Server receives the message, and from the time that the BlackBerry Enterprise Server sends a message to when the

BlackBerry device receives the message.

59

Feature and Technical Overview Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other

Before the BlackBerry device sends a message, it compresses and encrypts the message using the device transport key. When the BlackBerry Enterprise Server receives a message from the BlackBerry device, the BlackBerry Dispatcher decrypts the message using the device transport key, and then decompresses the message.

Algorithms that the BlackBerry Enterprise Solution uses to encrypt data

The BlackBerry® Enterprise Solution uses AES or Triple DES as the symmetric key cryptographic algorithm for encrypting data.

By default, the BlackBerry® Enterprise Server uses the strongest algorithm that both the BlackBerry Enterprise Server and the

BlackBerry device support for BlackBerry transport layer encryption.

If you configure the BlackBerry Enterprise Server to support AES and Triple DES, by default, the BlackBerry Enterprise Solution generates device transport keys using AES encryption. If a BlackBerry device uses BlackBerry® Device Software version 3.7 or earlier or BlackBerry® Desktop Software version 3.7 or earlier, the BlackBerry Enterprise Solution generates the device transport keys of the BlackBerry device using Triple DES.

How the BlackBerry Enterprise Solution uses AES to encrypt data

By default, when a BlackBerry® device supports AES, the BlackBerry® Enterprise Solution uses AES for BlackBerry transport layer encryption. The BlackBerry Enterprise Solution uses AES in CBC mode to generate the message keys and device transport keys.

The keys consist of 256 bits of data.

BlackBerry® Enterprise Server version 4.0 or later, BlackBerry® Device Software version 4.0 or later, and BlackBerry® Desktop

Software version 4.0 or later support AES.

For more information about how the BlackBerry Enterprise Server uses AES for BlackBerry transport layer encryption to communicate with BlackBerry devices, visit www.blackberry.com/support to read article KB05429.

How the BlackBerry Enterprise Solution uses Triple DES to encrypt data

The BlackBerry® Enterprise Solution uses a two-key Triple DES encryption algorithm to generate message keys and device transport keys. In the three iterations of the DES algorithm, the first 56-bit key in outer CBC mode encrypts the data, the second

56-bit key decrypts the data, and the first key encrypts the data again.

The BlackBerry Enterprise Solution stores the message keys and device transport keys as 128-bit binary strings with each parity bit in the least significant bit of each of the 8 bytes of key data. The message keys and device transport keys have overall key lengths of 112 bits and include 16 bits of parity data.

All versions of the BlackBerry® Enterprise Server, BlackBerry® Device Software, and BlackBerry® Desktop Software support Triple

DES.

For more information about Triple DES, see Federal Information Processing Standard - FIPS PUB 81 [3].

60

Feature and Technical Overview Extending messaging security to a BlackBerry device

Extending messaging security to a BlackBerry device

If your organization's messaging environment supports highly secure messaging technology such as PGP® encryption or S/MIME encryption, you can configure the BlackBerry® Enterprise Solution to encrypt a message using PGP encryption or S/MIME encryption so that the message remains encrypted when the BlackBerry® Enterprise Server forwards the message to the email applications of recipients. To extend messaging security, the sender and recipient must install highly secure messaging technology on the computers that host the email applications and on their BlackBerry devices, and you must configure the BlackBerry devices to use the highly secure messaging technology.

Encrypting user data on a locked BlackBerry device

If you or a BlackBerry® device user turns on content protection, you or the user can configure a locked BlackBerry device to encrypt stored user data and data that the locked BlackBerry device receives. When you or a user turns on content protection, a locked BlackBerry device is designed to use AES-256 encryption to encrypt stored data and an ECC public key to encrypt data that the locked BlackBerry device receives.

For example, the locked BlackBerry device uses content protection to encrypt the following items:

• subject, location, meeting organizer, attendees, and any notes in all appointments or meeting requests

• all contact information in the contact list except for the contact title and category

• subject, email addresses of intended recipients, message body, and attachments in all email messages

• title and information that is included in the body of a note for all memos (also known as posted messages)

• subject and all information that is included in the body of tasks (also known as posted all day appointments)

• if you use software tokens, contents of the .sdtid file seed that is stored in flash memory

• all data that is associated with third-party applications that a user installs on the BlackBerry device

• in the BlackBerry® Browser, content that web sites or third-party applications push to the BlackBerry device, any web sites that the user saves on the BlackBerry device, and the browser cache

• all text that replaces the text automatically that the user types on the BlackBerry device

You can change the Content Protection of Contact List IT policy rule to Required to prevent the user from turning off content protection for the contact list on the BlackBerry device. If you change the Content Protection of Contact List IT policy rule to

Required, the BlackBerry device does not permit call display and does not share contacts over a Bluetooth® connection when the BlackBerry device is locked.

61

Feature and Technical Overview Encrypting the device transport key on a locked BlackBerry device

Encrypting the device transport key on a locked BlackBerry device

If you turn on content protection for device transport keys, a BlackBerry® device uses the principal encryption key to encrypt the device transport keys that are stored in flash memory. The BlackBerry device encrypts the principal encryption key using the content protection key. When a locked BlackBerry device receives data that is encrypted using the device transport key, it uses the decrypted principal encryption key to decrypt the device transport key in flash memory and then uses the decrypted device transport key to decrypt data.

When you, a user, or a password timeout locks the BlackBerry device, the wireless transceiver remains on and the BlackBerry device does not delete the memory that is associated with the principal encryption key or device transport key. The BlackBerry device is designed to prevent the decrypted principal encryption key and the decrypted device transport key from appearing in flash memory.

You can turn on content protection for device transport keys on the BlackBerry device when you configure the Force Content

Protection of Master Keys IT policy rule. When you turn on content protection of device transport keys, the BlackBerry device uses the ECC key strength that you specified in the Content Protection Strength IT policy rule to encrypt the device transport keys.

Managing BlackBerry device access to the BlackBerry Enterprise Server

You can use the Enterprise Service Policy to control which BlackBerry® devices can connect to a BlackBerry® Enterprise Server.

By default, after you turn on the Enterprise Service Policy, the BlackBerry Enterprise Server permits connections from any

BlackBerry device or BlackBerry enabled device that you previously associated with the BlackBerry Enterprise Server. The

BlackBerry Enterprise Server also prevents connections from any BlackBerry device that you associate with the BlackBerry

Enterprise Server after you turn on the Enterprise Service Policy.

You can configure an allowed list to determine which BlackBerry devices can access a BlackBerry Enterprise Server. A BlackBerry device that meets the criteria that you specify in the allowed list can associate with the BlackBerry Enterprise Server when the

BlackBerry device activates over the wireless network.

You can define the following types of criteria:

• specific BlackBerry device PINs

• range of BlackBerry device PINs

• specific manufacturers

• specific BlackBerry device models

The BlackBerry Administration Service includes lists of permitted manufacturers and models of BlackBerry devices that you associated with the BlackBerry Enterprise Server previously.

You can permit a user to override the Enterprise Service Policy so that a BlackBerry device or BlackBerry enabled device can connect to the BlackBerry Enterprise Server even if you configure the allowed list with criteria that exclude that BlackBerry device or BlackBerry enabled device.

62

Feature and Technical Overview Using an IT policy to manage BlackBerry Enterprise Solution security

For more information, see the BlackBerry Enterprise Server Administration Guide.

Using an IT policy to manage BlackBerry Enterprise Solution security

You can use an IT policy to control a BlackBerry® device, a BlackBerry enabled device, the BlackBerry® Desktop Software, and the BlackBerry® Web Desktop Manager in your organization's environment. An IT policy consists of multiple IT policy rules that manage the security and behavior of the BlackBerry® Enterprise Solution. For example, you can use IT policy rules to manage the following security features and behaviors of the BlackBerry device:

• encryption (for example, encryption of user data and messages that the BlackBerry® Enterprise Server forwards to message recipients) and encryption strength

• use of a password or pass phrase

• connections that use Bluetooth® wireless technology

• protection of user data and device transport keys on the BlackBerry device

• control of BlackBerry device resources, such as the camera or GPS, that are available to third-party applications

The BlackBerry Enterprise Server includes preconfigured IT policies that you can use to manage the security of the BlackBerry

Enterprise Solution. The Default IT policy includes IT policy rules that are configured to indicate the default behavior of the

BlackBerry device or BlackBerry Desktop Software.

After a BlackBerry device user activates a BlackBerry device, the BlackBerry Enterprise Server automatically sends to the

BlackBerry device the IT policy that you assigned to the user account or group. By default, if you do not assign an IT policy to the user account or group, the BlackBerry Enterprise Server sends the Default IT policy. If you delete an IT policy that you assigned to the user account or group, the BlackBerry Enterprise Server automatically re-assigns the Default IT policy to the user account and resends the Default IT policy to the BlackBerry device.

For more information, see the BlackBerry Enterprise Server Policy Reference Guide.

Using IT administration commands to protect a lost or stolen BlackBerry device

The BlackBerry® Enterprise Server includes IT administration commands that you can send over the wireless network to protect sensitive data on a BlackBerry device. You can use these commands to lock the BlackBerry device, permanently delete user information and application data, and return the BlackBerry device settings to the default values.

63

Feature and Technical Overview Using IT administration commands to protect a lost or stolen BlackBerry device

IT administration command

Specify new device password and lock device

Description

This command creates a new password and locks a BlackBerry device over the wireless network. You can communicate the new password to the user verbally when the BlackBerry device user locates the BlackBerry device. When the BlackBerry device user unlocks the BlackBerry device, the BlackBerry device prompts the user to accept or reject the new password.

You can use this command if the BlackBerry device is lost. If you or a user turned on content protection and a BlackBerry device is running BlackBerry® Device

Software version 4.3.1 or earlier, you cannot use this command.

Delete all device data and disable device This command permanently deletes all user information and application data that the BlackBerry device stores. You can configure the following options when you use this command:

• specify a delay, in hours, before the BlackBerry device starts to delete all the user information and application data

• require the BlackBerry device to return to its factory default settings when it receives this command

• specify whether to permit the BlackBerry device user to stop permanently deleting data from the BlackBerry device and making the BlackBerry device unavailable during the delay period

You can send this command to a BlackBerry device that you want to distribute to another BlackBerry device user in your organization, or to a BlackBerry device that is lost and that the BlackBerry device user might recover.

64

Feature and Technical Overview BlackBerry Enterprise Server high availability

BlackBerry Enterprise Server high availability

5

High availability permits you to provide minimum downtime for BlackBerry® services if BlackBerry® Enterprise Server components stop responding or if they require maintenance. BlackBerry Enterprise Server high availability consists of a minimum of two

BlackBerry Enterprise Server instances and the BlackBerry Configuration Database which is replicated across two database servers. High availability is designed so that no single point of failure exists in the BlackBerry® Enterprise Solution that could break the messaging data flow and application data flow to and from BlackBerry devices.

When you configure the BlackBerry Enterprise Server for high availability, you install a primary BlackBerry Enterprise Server and a standby BlackBerry Enterprise Server on different computers within the same network segment. These BlackBerry Enterprise

Server instances create a BlackBerry Enterprise Server pair. Both BlackBerry Enterprise Server instances use the same SRP credentials and BlackBerry Configuration Database. You can configure an automatic failover process or a manual failover process.

The standby BlackBerry Enterprise Server connects to the primary BlackBerry Enterprise Server and checks periodically that the primary BlackBerry Enterprise Server is healthy. The health of a BlackBerry Enterprise Server is determined by thresholds that you can configure. If the health of the primary BlackBerry Enterprise Server falls below the failover threshold or if the primary

BlackBerry Enterprise Server stops responding, the standby BlackBerry Enterprise Server tries to promote itself. If the messaging server and the BlackBerry Configuration Database remain available during the failover process, the message delays that device users might experience are similar to the delays that users experience when you start a BlackBerry Enterprise Server instance.

If your organization's environment includes the BlackBerry Enterprise Server for Novell® GroupWise®, the Novell® GroupWise®

SOAP connector only runs on the primary instance of the BlackBerry Enterprise Server. This reduces resource consumption on the GroupWise server. When a failover occurs, the GroupWise SOAP connector on the primary instance of the BlackBerry Enterprise

Server shuts down and the GroupWise SOAP connector on the standby instance of the BlackBerry Enterprise Server starts up.

BlackBerry Enterprise Server high availability in a small-scale environment

The following diagram shows how you can configure a BlackBerry® Enterprise Server for high availability in a small-scale environment. Each primary BlackBerry Enterprise Server instance requires its own standby BlackBerry Enterprise Server instance.

You install the primary BlackBerry Enterprise Server and standby BlackBerry Enterprise Server on different computers. You can install all BlackBerry Enterprise Server components on both computers to minimize the number of computers that the BlackBerry

Enterprise Server environment requires.

65

Feature and Technical Overview How the BlackBerry Enterprise Server calculates health scores

Both BlackBerry Enterprise Server instances in the BlackBerry Enterprise Server pair include, by default, the BlackBerry Attachment

Service, BlackBerry Dispatcher, BlackBerry MDS Connection Service, BlackBerry Messaging Agent, BlackBerry Policy Service,

BlackBerry Router, and BlackBerry Synchronization Service. By default, if you choose to install the BlackBerry Collaboration

Service with both instances, the BlackBerry Collaboration Service is included in the BlackBerry Enterprise Server pair.

To administer the BlackBerry Enterprise Server pair, you can install the BlackBerry Administration Service with both BlackBerry

Enterprise Server instances and configure high availability for the BlackBerry Administration Service separately.

In a large-scale environment, you can add any number of BlackBerry Enterprise Server pairs that use the same BlackBerry

Configuration Database.

How the BlackBerry Enterprise Server calculates health scores

Certain BlackBerry® Enterprise Server components calculate a health score that indicates how well the component can provide specific services. The components send their health scores to the BlackBerry Dispatcher, which combines the health scores of the components to calculate the overall health score of the BlackBerry Enterprise Server. The BlackBerry Dispatcher writes the information to the BlackBerry Configuration Database, and it provides the information to a BlackBerry Enterprise Server that requests it.

The BlackBerry Enterprise Server components calculate their health scores by examining their operating health, the stability of their connections to other components, and the health scores of the other components.

The health score of the BlackBerry Enterprise Server consists of various health parameters. Each health parameter indicates whether a particular service or feature is available. If you turn on the automatic failover feature for the BlackBerry Enterprise

Server, you can configure health parameters so that the BlackBerry Enterprise Server fails over automatically when critical services or features are no longer available.

66

Feature and Technical Overview Conditions for failover to a standby BlackBerry Enterprise Server

Conditions for failover to a standby BlackBerry Enterprise Server

Failover between the primary and standby BlackBerry® Enterprise Server instances occurs when the standby BlackBerry Enterprise

Server determines that its health score is above the promotion threshold and one or more of the following events occurred:

• The standby BlackBerry Enterprise Server receives a health score from the primary BlackBerry Enterprise Server that is below the failover threshold.

• The standby BlackBerry Enterprise Server reads, in the BlackBerry Configuration Database, a health score for the primary

BlackBerry Enterprise Server that is below the failover threshold.

• The standby BlackBerry Enterprise Server does not receive a response when it checks the BlackBerry Dispatcher for the health score of the primary BlackBerry Enterprise Server.

• The standby BlackBerry Enterprise Server pings the BlackBerry Dispatcher on the network but cannot determine whether the primary BlackBerry Enterprise Server is running.

How a primary BlackBerry Enterprise Server self-demotes

After the primary BlackBerry® Enterprise Server receives a request from a standby BlackBerry Enterprise Server to self-demote, the primary BlackBerry Enterprise Server performs the following actions:

• closes its SRP connection to the BlackBerry® Infrastructure

• stops the flow of all messages

• stops the Novell® GroupWise® SOAP connector if your organization's environment includes the BlackBerry® Enterprise

Server for Novell® GroupWise®

• demotes its connections to the messaging server and BlackBerry Configuration Database to standby connections

• informs the standby BlackBerry Enterprise Server that it self-demoted

Scenario: What happens after a primary BlackBerry Enterprise Server stops responding

If a primary BlackBerry® Enterprise Server stops responding, the standby BlackBerry Enterprise Server performs one of two actions depending on whether its health score is above or below the promotion threshold.

The standby BlackBerry Enterprise Server can perform the following actions if the messaging server, BlackBerry® Infrastructure, and BlackBerry Configuration Database are available.

Action that the standby BlackBerry Enterprise Server performs when its health score is above the promotion threshold

1.

The standby BlackBerry Enterprise Server determines that the primary BlackBerry Enterprise Server stopped responding.

67

Feature and Technical Overview Scenario: What happens after the health score of a primary BlackBerry Enterprise Server falls below the failover threshold

2.

The standby BlackBerry Enterprise Server checks its own health score and determines that the health score is above the promotion threshold.

3.

The standby BlackBerry Enterprise Server opens active connections to the BlackBerry Configuration Database and messaging server.

4.

If your organization's environment includes the BlackBerry Enterprise Server for Novell® GroupWise®, the standby

BlackBerry Enterprise Server starts the GroupWise SOAP connector.

5.

The standby BlackBerry Enterprise Server tries to open an SRP connection to the BlackBerry Infrastructure.

6.

When the connection to the BlackBerry Infrastructure is stable, the standby BlackBerry Enterprise Server writes its identity as the primary BlackBerry Enterprise Server to the BlackBerry Configuration Database.

Action that the standby BlackBerry Enterprise Server performs when its health score is below the promotion threshold

1.

The standby BlackBerry Enterprise Server determines that the primary BlackBerry Enterprise Server stopped responding.

2.

The standby BlackBerry Enterprise Server checks its own health score and determines that the health score is below the promotion threshold.

The standby BlackBerry Enterprise Server cannot become the primary instance. You must resolve any issues before the standby BlackBerry Enterprise Server can recover.

Scenario: What happens after the health score of a primary BlackBerry

Enterprise Server falls below the failover threshold

The following scenario can occur if the messaging server, BlackBerry® Infrastructure, and BlackBerry Configuration Database are available.

1.

The standby BlackBerry® Enterprise Server determines that the health score of the primary BlackBerry Enterprise Server fell below the failover threshold.

2.

The standby BlackBerry Enterprise Server checks its own health score and determines that its health score is above the promotion threshold and higher than the health score of the primary BlackBerry Enterprise Server.

3.

The standby BlackBerry Enterprise Server sends a demotion request to the primary BlackBerry Enterprise Server.

4.

The primary BlackBerry Enterprise Server self-demotes.

5.

If your organization's environment includes the BlackBerry® Enterprise Server for Novell® GroupWise®, the primary

BlackBerry Enterprise Server stops the Novell® GroupWise® SOAP connector.

6.

The standby BlackBerry Enterprise Server opens active connections to the BlackBerry Configuration Database and messaging server.

7.

If your organization's environment includes the BlackBerry Enterprise Server for GroupWise, the standby BlackBerry

Enterprise Server starts the GroupWise SOAP connector.

8.

The standby BlackBerry Enterprise Server tries to open an SRP connection to the BlackBerry Infrastructure.

68

Feature and Technical Overview BlackBerry Configuration Database high availability

9.

The standby BlackBerry Enterprise Server writes its identity as the primary BlackBerry Enterprise Server to the BlackBerry

Configuration Database.

BlackBerry Configuration Database high availability

The type of BlackBerry® Configuration Database high availability that you can configure depends on the type of database server that is in your organization's environment.

If your organization's environment includes Microsoft® SQL Server® 2005 SP2 or later, you can configure database mirroring.

Database mirroring requires a principal database, mirror database, and, optionally, a witness. Although the BlackBerry® Enterprise

Server can contact the mirror database, it opens active connections to the principal database only. If the principal database stops responding, the BlackBerry Enterprise Server opens an active connection to the mirror database automatically. Database mirroring provides fault tolerance for the BlackBerry® Enterprise Solution.

If your organization's environment includes a version of Microsoft SQL Server that is earlier than version 2005 SP2, you can configure transactional replication of the BlackBerry Configuration Database and create a replicated BlackBerry Configuration

Database. If the BlackBerry Configuration Database stops responding, you must fail over the BlackBerry Enterprise Server to the replicated BlackBerry Configuration Database manually.

For more information about database mirroring, visit www.microsoft.com

.

BlackBerry Configuration Database mirroring

The following diagram shows how you can configure the BlackBerry® Configuration Database with principal and mirror instances for high availability. The BlackBerry Configuration Database supports an optional witness. The BlackBerry® Enterprise Server connects to the principal BlackBerry Configuration Database directly, and can fail over to the mirror BlackBerry Configuration

Database if the principal BlackBerry Configuration Database stops responding.

69

Feature and Technical Overview BlackBerry Configuration Database high availability

The primary BlackBerry Enterprise Server connects to the principal BlackBerry Configuration Database and accesses data from it. The name of the mirror BlackBerry Configuration Database is stored in the Windows® registry of the computers that hosts the primary and standby BlackBerry Enterprise Server instances. The BlackBerry Enterprise Server instances do not connect to the mirror BlackBerry Configuration Database until after the principal BlackBerry Configuration Database stops responding.

The primary BlackBerry Enterprise Server connects to the messaging server and processes the messaging data that it sends to and receives from BlackBerry devices.

The standby BlackBerry Enterprise Server opens standby connections to the principal BlackBerry Configuration Database and the messaging server.

Scenario: What happens after the principal BlackBerry Configuration Database stops responding

If a principal BlackBerry® Configuration Database stops responding, the response of the primary BlackBerry® Enterprise Server depends on whether it can connect to the mirror BlackBerry Configuration Database.

The following responses assume that the messaging server and BlackBerry® Infrastructure are available.

Response of a primary BlackBerry Enterprise Server that can connect to the mirror BlackBerry

Configuration Database

1.

The primary BlackBerry Enterprise Server loses its connection to the principal BlackBerry Configuration Database.

2.

The primary BlackBerry Enterprise Server connects to the mirror BlackBerry Configuration Database.

3.

The primary BlackBerry Enterprise Server remains the primary instance.

Response of a primary BlackBerry Enterprise Server that cannot connect to the mirror BlackBerry

Configuration Database

70

Feature and Technical Overview High availability in a distributed environment

1.

The primary BlackBerry Enterprise Server loses its connection to the principal BlackBerry Configuration Database.

2.

The primary BlackBerry Enterprise Server tries to connect to the mirror BlackBerry Configuration Database, but is unsuccessful.

3.

The primary BlackBerry Enterprise Server lowers its health score and continues to provide limited services.

One of the following events occurs:

• If the standby BlackBerry Enterprise Server can open a connection to the principal or mirror BlackBerry Configuration

Database, it demotes the primary BlackBerry Enterprise Server and promotes itself to become the primary instance.

• If the standby BlackBerry Enterprise Server cannot open a connection to the principal or mirror BlackBerry

Configuration Database, it cannot promote itself. You must resolve any issues before the BlackBerry Enterprise Server pair can recover.

High availability in a distributed environment

If you install multiple BlackBerry® Enterprise Server components on different computers to create a distributed environment, you can configure the components for high availability. High availability for a distributed component requires that you install two or more instances of the component in your organization's environment. When an instance stops responding, the other instances can take over.

When you install multiple BlackBerry Enterprise Server components in a distributed environment, each BlackBerry Enterprise

Server component implements high availablility differently.

Component

BlackBerry Administration

Service

BlackBerry Attachment

Service

High availability type load balancing using DNS round robin, or a hardware load balancer load-balancing with primary and secondary groups

Description

When you install two or more BlackBerry Administration

Service instances, you can create a BlackBerry Administration

Service pool. You can access the BlackBerry Administration

Service instances using a single web address. The load is distributed across the instances. If a BlackBerry

Administration Service instance stops responding, the pool routes requests to the available instances.

When you install two or more BlackBerry Attachment Service instances, you can create a BlackBerry Attachment Service pool for each BlackBerry Enterprise Server instance. You can configure a pool with a primary group of instances and, optionally, a secondary group of instances. The BlackBerry

Enterprise Server sends all requests to the primary group. If

71

Feature and Technical Overview High availability in a distributed environment

Component

BlackBerry Collaboration

Service

BlackBerry Configuration

Database

BlackBerry MDS Connection

Service

BlackBerry MDS Integration

Service

High availability type failover with an active connection to one instance and standby connections to other instances database mirroring failover with an active connection to one instance and standby connections to other instances load balancing with DNS round robin or a hardware load balancer

Description the primary group cannot convert a specific file format, the

BlackBerry Enterprise Server forwards conversion requests for the specific file format to the secondary group.

When you install two or more BlackBerry Collaboration Service instances, you can create a BlackBerry Collaboration Service pool for each BlackBerry Enterprise Server instance. Each

BlackBerry Enterprise Server assigns one of the connections to the BlackBerry Collaboration Service instances as the active connection, and the other connections as standby connections. If the BlackBerry Collaboration Service that the active connection is assigned to stops responding, the

BlackBerry Enterprise Server assigns the active connection to another BlackBerry Collaboration Service instance.

If you install the BlackBerry Configuration Database on

Microsoft® SQL Server® 2005 SP2 or later, you can configure database mirroring. If the principal BlackBerry Configuration

Database stops responding, the BlackBerry Enterprise Server fails over to the mirror BlackBerry Configuration Database.

When you install two or more BlackBerry MDS Connection

Service instances, you can create a BlackBerry MDS

Connection Service pool for each BlackBerry Enterprise Server instance. Each BlackBerry Enterprise Server assigns one of the connections to the BlackBerry MDS Connection Service instances as the active connection, and the other connections as standby connections. If the BlackBerry MDS Connection

Service that the active connection is assigned to stops responding, the BlackBerry Enterprise Server assigns the active connection to another BlackBerry MDS Connection

Service instance.

When you install two or more BlackBerry MDS Integration

Service instances, you can create a BlackBerry MDS

Integration Service pool using DNS round robin or a hardware

72

Feature and Technical Overview High availability in a distributed environment

Component

BlackBerry Monitoring

Service

BlackBerry Router

High availability type none failover

Description load balancer. If a BlackBerry MDS Integration Service instance stops responding, DNS round robin or the hardware load balancer redistributes requests to the available instances.

The BlackBerry Monitoring Service does not support high availability. If you install two or more BlackBerry Monitoring

Service instances in your organization's environment, only the first instance is used.

When you install two or more BlackBerry Router instances, you can create a BlackBerry Router pool for each BlackBerry

Enterprise Server or BlackBerry Enterprise Server pair. If a

BlackBerry Router stops responding, the BlackBerry

Enterprise Server selects another instance using information that is stored in the BlackBerry Configuration Database.

73

Feature and Technical Overview Wi-Fi enabled BlackBerry devices

Wi-Fi enabled BlackBerry devices

6

Wi-Fi® enabled BlackBerry® devices permit users with qualifying data plans to access BlackBerry services over a mobile network,

Wi-Fi network, or both networks simultaneously.

When users can access a mobile network and Wi-Fi network simulaneously, users can perform multiple tasks over both networks.

For example, a user with a BlackBerry® 8820 smartphone can send messages over a Wi-Fi network and can make a call over the mobile network at the same time.

If users' mobile network providers make UMA technology (GAN technology) available, and users have subscribed to the UMA feature, Wi-Fi enabled BlackBerry devices can access the mobile network providers' voice services and data services over a mobile network or a Wi-Fi network.

Wi-Fi enabled BlackBerry devices can open a Wi-Fi connection from an enterprise Wi-Fi network or, with a VPN session, from a home Wi-Fi network or Wi-Fi hotspot to connect directly to the BlackBerry Router.

Wi-Fi enabled BlackBerry devices are designed to open a connection to the BlackBerry® Internet Service to access the BlackBerry

MDS Connection Service, BlackBerry® Messenger, and other BlackBerry devices for PIN messaging. You can verify with your organization's wireless service provider whether your organization's service plan provides access to these services over a Wi-Fi network.

Types of Wi-Fi networks

Wi-Fi® enabled BlackBerry® devices can access BlackBerry services using enterprise Wi-Fi networks, home Wi-Fi networks, or hotspots.

Type enterprise Wi-Fi networks

Description

An enterprise Wi-Fi network has multiple wireless access points to provide ubiquitous coverage, hotspot coverage, or ubiquitous and hotspot coverage. You can use a Wi-Fi enabled BlackBerry device in any coverage area.

You can configure an enterprise Wi-Fi network to require layer 2 authentication. An organization might consider an enterprise Wi-Fi network to be untrusted and require that all Wi-Fi connections to the organization's network occur through a VPN concentrator. You must configure Wi-Fi enabled BlackBerry devices to support the authentication type that your organization uses.

An enterprise Wi-Fi network permits optimized access to the BlackBerry® Enterprise

Server over a direct IP connection to the BlackBerry Router.

74

Feature and Technical Overview Wireless access points

Type home Wi-Fi networks hotspots

Description

A home Wi-Fi network uses a single access point to provide Internet access through a broadband gateway. The broadband gateway can implement NAT and permit VPN connections through the firewall. You can configure a home Wi-Fi network with layer 2 security and password authentication. You must configure BlackBerry devices to support the authentication that the home Wi-Fi network requires.

A home Wi-Fi network permits users to access all BlackBerry services from Wi-Fi enabled BlackBerry devices using the BlackBerry® Infrastructure.

A hotspot offered by an ISP, a mobile network provider, or a property owner can provide a Wi-Fi connection in public and semipublic areas. The network can be an open network without layer 2 security and use a captive portal for authentication.

The captive portal blocks all network traffic except traffic that uses HTTP and it redirects HTTP requests to a login page.

After a user logs in to the hotspot, the captive portal permits the user to access wireless network services.

Hotspots can use a firewall and they can permit VPN connections. A hotspot permits users to access all BlackBerry services from their Wi-Fi enabled BlackBerry devices using the BlackBerry Infrastructure.

Wireless access points

Wi-Fi® enabled BlackBerry® devices use wireless access points to connect to the Wi-Fi network. An access point must conform to the IEEE® 802.11a™, IEEE® 802.11b™, or IEEE® 802.11g™ wireless networking standard.

Type thin access point

Description

A thin access point (or controller-based access point) is part of an enterprise Wi-Fi network that you can manage from a central location. This type of access point requires an external controller to manage network traffic. You can administer one or more thin access points through the controller.

Thin access points with an external controller can provide a more seamless roaming experience for users with Wi-Fi enabled BlackBerry devices during data and voice sessions.

75

Feature and Technical Overview Connections that BlackBerry devices make to mobile and Wi-Fi networks

Type thick access point

Description

A thick access point (or intelligent or autonomous access point), has the intelligence to operate as a standalone component without a controller.

Connections that BlackBerry devices make to mobile and Wi-Fi networks

Wi-Fi® enabled BlackBerry® devices connect to different components in the the mobile and Wi-Fi networks so that they can communicate with the BlackBerry® Enterprise Server and provide BlackBerry services for users.

76

Component

BlackBerry Enterprise Server

BlackBerry® Infrastructure

Description

The BlackBerry Enterprise Server provides productivity tools and data from an organization's applications to BlackBerry devices over the wireless network, and processes, routes, compresses, and encrypts data.

The BlackBerry Infrastructure is designed to communicate with the BlackBerry Enterprise

Server using a RIM proprietary protocol SRP.

Feature and Technical Overview Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise Server over a Wi-Fi connection

Component Description

BlackBerry® Internet Service

UNC/GANC

The BlackBerry Internet Service is an email and Internet service for BlackBerry devices that is designed to provide subscribers with automatic delivery of email messages, mobile access to email message attachments, and convenient access to Internet content.

The UNC/GANC is the gateway for Wi-Fi or mobile communications. The UNC/GANC exists in your organization’s gateway only if the wireless service provider supports UMA.

An access point for a home Wi-Fi network or hotspot permits the BlackBerry device to connect to a home Wi-Fi network or hotspot.

wireless access point for a home

Wi-Fi network or hotspot wireless access point for an enterprise Wi-Fi network wireless service provider

An access point for an enterprise Wi-Fi network permits a BlackBerry device to connect to an enterprise Wi-Fi network using strong authentication and link layer security.

A wireless service provider is a telephone company that provides services for BlackBerry devices.

Wi-Fi enabled BlackBerry device A Wi-Fi enabled BlackBerry device permits a user to access voice and data services across multiple radio technologies.

Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise

Server over a Wi-Fi connection

Direct connections between BlackBerry devices and the BlackBerry Router over an enterprise

Wi-Fi network

Wi-Fi® enabled BlackBerry® devices can open a direct connection to the BlackBerry Router over an enterprise Wi-Fi network after you configured a Wi-Fi profile for the user accounts. You can use direct connections to the BlackBerry Router when Wi-Fi enabled BlackBerry devices are located in your organization’s existing Wi-Fi environment. When BlackBerry devices connect to the BlackBerry Router, they can bypass SRP connectivity and authentication to connect to the BlackBerry® Enterprise Server directly.

After BlackBerry devices connect to the Wi-Fi network using a Wi-Fi profile, the BlackBerry devices try to make a direct IP connection to the BlackBerry Router. With some network architectures, a VPN session might be required to complete the direct connection to the BlackBerry Router.

Wi-Fi enabled BlackBerry devices include a built-in VPN client that you can configure and assign to any Wi-Fi profile on the

BlackBerry devices. If a direct connection to the BlackBerry Router is possible (with or without a VPN session), the BlackBerry

Enterprise Server starts sending data.

77

Feature and Technical Overview BlackBerry services that are available over Wi-Fi connections

Wi-Fi connection when a VPN connection or direct connection between BlackBerry devices and the BlackBerry Router is not possible

If Wi-Fi® enabled BlackBerry® devices cannot connect directly to the BlackBerry Router (with or without a VPN connection) over a Wi-Fi network that can access the Internet (for example, a home Wi-Fi network or hotspot), the Wi-Fi enabled BlackBerry devices open SSL connections over the Internet to the BlackBerry® Infrastructure. After the Wi-Fi enabled BlackBerry devices connect to the BlackBerry Infrastructure, the users' provisioned data services start to send data to the Wi-Fi enabled BlackBerry devices.

Priority for connections that BlackBerry devices make over a Wi-Fi network

Wi-Fi® enabled BlackBerry® devices connect over a Wi-Fi network to the BlackBerry Router or BlackBerry® Infrastructure using the best possible connection or combination of available connections in the following order:

• connection to the BlackBerry® Enterprise Server or BlackBerry MDS Connection Service over a serial, USB, or Bluetooth® connection that uses the BlackBerry® Device Manager

• connection to the BlackBerry Router from a Wi-Fi network, with or without a VPN connection

• SSL connection through the Internet to the BlackBerry Infrastructure over a Wi-Fi network

• connection to the BlackBerry Infrastructure provided by a wireless service provider that uses the GSM® network, EDGE network, or UMA

The order of connections assumes that all routes to the BlackBerry Router and Internet are available when the Wi-Fi enabled

BlackBerry devices connect to the Wi-Fi network.

BlackBerry services that are available over Wi-Fi connections

For more information about supported services and features, contact your organization's wireless service provider. Not all

BlackBerry® data plans support Wi-Fi® access to BlackBerry data services.

When you configure a Wi-Fi network to open a connection (with or without a VPN connection) to the BlackBerry Router, you can keep all data transfers entirely within the enterprise Wi-Fi network and reduce the routing required.

78

Feature and Technical Overview BlackBerry services that are available over Wi-Fi connections

BlackBerry services services from the

BlackBerry®

Enterprise Server

(for example, messaging, organizer data synchronization) services from the

BlackBerry®

Internet Service

(for example, messaging, browsing) services from the

BlackBerry MDS

Connection

Service (for example, application push, application access, browsing)

BlackBerry®

Messenger

PIN messaging instant messaging using a collaboration

Service provider with GSM®/EDGE network or UMA network

Wi-Fi network and service provider with GSM/EDGE network

X X

Wi-Fi network and no service provider with

GSM/EDGE network or UMA, and no UMA available

X

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no

UMA, and no UMA available

X

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no

UMA available

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

79

Feature and Technical Overview BlackBerry services that are available over Wi-Fi connections

BlackBerry services client (for example,

Microsoft® Office

Live

Communications

Server) instant messaging using a third-party instant messaging application (for example,

Windows®

Messenger)

X

BlackBerry® Maps X service provider messaging (for example, SMS) content downloading provided by a wireless service provider (for example, ring tones)

X

X

Service provider with GSM®/EDGE network or UMA network

Wi-Fi network and service provider with GSM/EDGE network

Wi-Fi network and no service provider with

GSM/EDGE network or UMA, and no UMA available

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no

UMA, and no UMA available

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no

UMA available

X

X

X

X

X

X

X

X

X

X

X

X

80

Feature and Technical Overview IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support

BlackBerry services web browsing provided by a wireless service provider (for example, WAP) voice plan provided by a wireless service provider

Service provider with GSM®/EDGE network or UMA network

Wi-Fi network and service provider with GSM/EDGE network

X X

Wi-Fi network and no service provider with

GSM/EDGE network or UMA, and no UMA available

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no

UMA, and no UMA available

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no

UMA available

X

X X X

IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support

Wi-Fi® enabled BlackBerry® devices support the IEEE® 802.11a™, IEEE® 802.11b™, and IEEE® 802.11g™ wireless networking standards.

Characteristics of the IEEE 802.11a wireless networking standard that Wi-Fi enabled

BlackBerry devices support

Characteristic fallback speeds frequency maximum speed nonoverlapping channels sources of interference

Description

48, 36, 24, 18, 12, 9, and 6 Mbps

5 GHz

54 Mbps up to 19

• Bluetooth® wireless technology

81

Feature and Technical Overview IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support

Characteristic throughput speed

Description

• some satellite systems

• 5 GHz cordless phones

23 Mbps

Characteristics of the IEEE 802.11b wireless networking standard that Wi-Fi enabled

BlackBerry devices support

Characteristic fallback speeds frequency maximum speed nonoverlapping channels sources of interference throughput speed

Description

5.5, 2, and 1 Mbps

2.4 GHz

11 Mbps

3

• Bluetooth® wireless technology

• microwave ovens

• 2.4 GHz cordless phones

4.5 Mbps

Characteristics of the IEEE 802.11g wireless networking standard that Wi-Fi enabled

BlackBerry devices support

Characteristic fallback speeds frequency maximum speed nonoverlapping channels sources of interference throughput speed

Description

48, 36, 24, 18, 12, 9, and 6 Mbps

2.4 GHz

54 Mbps

3

• Bluetooth® wireless technology

• microwave ovens

• 2.4 GHz cordless phones

19 Mbps

82

Feature and Technical Overview Security features of a Wi-Fi enabled BlackBerry device

Security features of a Wi-Fi enabled BlackBerry device

Feature activation of BlackBerry® devices over an enterprise Wi-Fi® network authenticated connection with

BlackBerry Router

Description

Activation of BlackBerry devices over an enterprise Wi-Fi network is designed to simplify the actions of activating or updating BlackBerry devices.

An authenticated connection with a BlackBerry Router permits BlackBerry devices to open a direct connection to the BlackBerry® Enterprise Server after they authenticate with the BlackBerry Router.

BlackBerry devices connected to an enterprise Wi-Fi network do not use an SRP connection to send data to the BlackBerry Enterprise Server.

BlackBerry transport layer encryption BlackBerry transport layer encryption is designed to encrypt messages that the

BlackBerry device and the BlackBerry Enterprise Server send between each other direct access to the BlackBerry®

Infrastructure over a Wi-Fi connection after they open an authenticated connection.

Direct access to the BlackBerry Infrastructure over a Wi-Fi connection permits Wi-

Fi enabled BlackBerry devices to access BlackBerry services over the Internet, even if UMA is not available.

encrypted communication over the Wi-

Fi network expanded groups of Wi-Fi and VPN configuration settings limited connections multiple Wi-Fi and VPN profiles proxy server

You can verify with your organization's wireless service provider that your organization's service plan supports access to BlackBerry services over a Wi-Fi connection.

BlackBerry devices support multiple security methods that are designed to encrypt communication over the enterprise Wi-Fi network between the BlackBerry device and wireless access points or a network firewall on the enterprise Wi-Fi network.

Expanded groups of Wi-Fi and VPN configuration settings permit you to control Wi-

Fi connections from BlackBerry devices.

Wi-Fi enabled BlackBerry devices are designed to reject incoming connections, to support limited connections in infrastructure mode only, and to prevent ad-hoc mode (also known as peer-to-peer) connections.

Multiple Wi-Fi and VPN profiles are designed to address user requirements in a variety of different environments.

The BlackBerry device supports the use of a transparent proxy server that you can configure between the enterprise Wi-Fi network and the BlackBerry device.

83

Feature and Technical Overview Security features of a Wi-Fi enabled BlackBerry device

Feature software token provisioning user-specific configuration settings and

IT policy rules wireless backup of Wi-Fi and VPN profiles wireless software updates

Description

Software token provisioning is designed to permit you to provision and manage the seed for software token authentication (for example, for VPN connections) centrally on BlackBerry devices.

The BlackBerry Enterprise Server is designed to work with the RSA® Authentication

Manager to provide software token support for use with layer 2 and layer 3 authentication on supported BlackBerry devices.

User-specific configuration settings and IT policy rules are designed to simplify the configuration of user-specific Wi-Fi and VPN information (such as user IDs and passwords).

Wireless backup of Wi-Fi and VPN profiles on BlackBerry devices over a Wi-Fi connection permits users to restore the profiles, if necessary.

Wireless software updates permits users to update the BlackBerry® Device Software without using the BlackBerry® Desktop Manager or first downloading the software update to a computer.

84

Feature and Technical Overview

BlackBerry Enterprise Server process flows

Messaging process flows

Process flow: Sending a message to a BlackBerry device

BlackBerry Enterprise Server process flows

7

1.

A message arrives in a user’s mailbox. Microsoft® Exchange notifies the BlackBerry® Messaging Agent.

2.

3.

The BlackBerry Messaging Agent applies global filter rules to the messages in the user’s mailbox and filters the messages that match the filter criteria.

If global filter rules do not apply, the BlackBerry Messaging Agent applies filter rules that the user specified to the messages in the user’s mailbox.

4.

The BlackBerry Messaging Agent sends the first 2 KB of the message (plain text, or in an HTML message, the equivalent to

2 KB of plain text) to the BlackBerry Dispatcher.

5.

The BlackBerry Dispatcher compresses the first 2 KB of the message, encrypts it using the device transport key of the

BlackBerry device, and sends the encrypted data to the BlackBerry Router.

6.

The BlackBerry Router sends the encrypted data to the wireless network over port 3101, or over port 4101 if the BlackBerry device is a Wi-Fi® enabled BlackBerry device that is connected to the enterprise Wi-Fi network.

7.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network, and sends the message data to the BlackBerry device.

8.

The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher. The BlackBerry Dispatcher sends the delivery confirmation to the BlackBerry Messaging Agent.

If the BlackBerry Messaging Agent does not receive a delivery confirmation within four hours, it sends the message to the wireless network again.

The delivery confirmation verifies that the wireless network delivered the message to the BlackBerry device, but it does not verify that the user received or opened the message.

9.

The BlackBerry device decrypts and decompresses the message so that the user can view it, and notifies the user that the message arrived.

85

Feature and Technical Overview

Process flow: Sending a message from a BlackBerry device

Messaging process flows

This process flow applies to new messages, reconciled messages (messages that a user moved, deleted, or marked as read or unread), and wireless calendar entries.

1.

A user sends a message from a BlackBerry® device.

The BlackBerry device assigns a RefId to the message. If the message is a meeting invitation or calendar entry, the BlackBerry device appends the calendar information to the message. The BlackBerry device compresses and encrypts the message, and sends the message to the wireless network over port 3101, or over port 4101 if the BlackBerry device is a Wi-Fi® enabled

BlackBerry device that is connected to the enterprise Wi-Fi network.

2.

The wireless network sends the message to the BlackBerry® Enterprise Server.

The BlackBerry Enterprise Server accepts only encrypted messages from the BlackBerry device.

3.

The BlackBerry Dispatcher uses the device transport key of the BlackBerry device to decrypt and decompress the message.

If the BlackBerry Dispatcher cannot decrypt the message using the device transport key, the BlackBerry Enterprise Server ignores the message and sends an error message to the BlackBerry device.

4.

The BlackBerry Messaging Agent sends the message to the user’s email application.

5.

The BlackBerry Messaging Agent sends a copy of the message to the Sent Items view in the user’s email application.

6.

The messaging server delivers the message to the recipients.

Process flow: Sending a message that contains an attachment from a BlackBerry device

1.

A user attaches a file to a message on a BlackBerry® device and sends the message.

• If the BlackBerry device is not running BlackBerry® Device Software version 4.2 or later, and if the BlackBerry device does not have a CMIME service book that indicates that the BlackBerry® Enterprise Server supports attachment uploads, the Add Attachment menu item does not appear on the BlackBerry device.

86

Feature and Technical Overview Messaging process flows

• If the user tries to attach a file that exceeds the maximum file size that you specified, a notification appears and the user cannot attach the file.

2.

The BlackBerry device compresses and encrypts the message, and sends the message to the wireless network over port 3101.

The BlackBerry device formats the header of the message to indicate that a large attachment is part of the message. The

BlackBerry device does not send the attachment content.

3.

The wireless network sends the message to the BlackBerry Enterprise Server.

4.

The BlackBerry Dispatcher decrypts and decompresses the message using the device transport key of the BlackBerry device.

If the BlackBerry Dispatcher cannot decrypt the message using the device transport key, the BlackBerry Enterprise Server ignores the message and sends an error message to the BlackBerry device.

5.

The BlackBerry Messaging Agent stores the message properties in the user’s mailbox.

The BlackBerry Messaging Agent sends a request for the attachment content through the BlackBerry Dispatcher to the

BlackBerry device.

6.

The BlackBerry device sends the attachment content through the BlackBerry Dispatcher to the BlackBerry Messaging Agent.

If the file size of the attachment content exceeds a single data packet, the BlackBerry device divides the content into multiple data packets and sends the data packets to the BlackBerry Messaging Agent.

7.

The BlackBerry Messaging Agent verifies the validity of the attachment content, and stores the content in memory as the content arrives.

During the delivery of the attachment content, if the BlackBerry Messaging Agent does not receive content from the

BlackBerry device for 15 minutes, the BlackBerry Messaging Agent cancels the message, deletes the partial attachment content from temporary storage, and sends an error message to the BlackBerry device.

After all of the attachment content arrives, the BlackBerry Messaging Agent checks for other attachments that might be part of the same message.

• If other attachments exist, the BlackBerry Messaging Agent requests the attachment content.

• If no additional attachments exist, the BlackBerry Messaging Agent finishes processing the message and sends the message to the user’s email application.

The messaging server delivers the message to the intended recipients.

Process flow: Searching an organization's address book from a BlackBerry device

1.

A user searches for a contact on a BlackBerry® device.

87

Feature and Technical Overview Instant messaging process flows

2.

The BlackBerry device assigns a RefId to the search request, compresses and encrypts the request, and sends the request to the BlackBerry® Enterprise Server over port 3101.

3.

The BlackBerry Dispatcher decrypts and decompresses the request using the device transport key of the BlackBerry device, and sends the request to the BlackBerry Messaging Agent.

4.

The BlackBerry Messaging Agent searches the GAL on the Microsoft® Exchange server and retrieves the 20 closest matches for the contact lookup request.

The BlackBerry Messaging Agent sends the contact lookup results to the BlackBerry Dispatcher.

5.

The BlackBerry Dispatcher encrypts the results using the device transport key of the BlackBerry device, compresses the encrypted data, and sends it to the BlackBerry Router for delivery to the BlackBerry device.

6.

The BlackBerry Router sends the encrypted data to the wireless network over port 3101.

7.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network, and sends the encrypted data to the BlackBerry device.

8.

The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher, which sends it to the BlackBerry Messaging

Agent.

If the BlackBerry Enterprise Server does not receive a delivery confirmation within four hours, it resubmits the contact lookup results to the wireless network.

9.

The BlackBerry device decrypts and decompresses the contact lookup results with the device transport key so that the user can view them on the BlackBerry device or add them to the contact list on the BlackBerry device.

Instant messaging process flows

Process flow: Starting an instant messaging session using the BlackBerry Client for use with

Microsoft Office Live Communications Server 2005 (Microsoft Office Communicator)

88

Feature and Technical Overview Instant messaging process flows

1.

A user logs in to a collaboration client on a BlackBerry® device.

2.

The BlackBerry device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry

Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion® proprietary protocol.

4.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration Service logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If no idle sessions exist, the BlackBerry Collaboration Service sends a "Server Busy" status message to the BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the HTTP persistent connection supports, the BlackBerry Collaboration Service sends a "Failed" status message to the BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and tries to authenticate the user using Integrated Windows® Authentication. If the authentication is not successful, the BlackBerry Collaboration Service tries a forms-based login process instead. The

BlackBerry Collaboration Service sends a login request in JSON, a lightweight data-interchange format, to the Microsoft®

Office Communicator Web Access server.

The BlackBerry Collaboration Service opens the connection using HTTPS over port 443. You can also configure the connection to use HTTP, the transport protocol that the AJAX service uses, or a custom port number.

5.

The Microsoft Office Communicator Web Access server formats the request using a Microsoft API and sends the request to the Microsoft® Office Live Communications Server over an MTLS connection.

6.

The Microsoft Office Live Communications Server accepts the request, processes the login information, and sends the acceptance to the Microsoft Office Communicator Web Access server.

7.

The Microsoft Office Communicator Web Access server sends the acceptance to the BlackBerry Collaboration Service.

8.

The BlackBerry Collaboration Service sends the acceptance, in encrypted and compressed format, through the BlackBerry

Dispatcher to the BlackBerry device, and creates a cache of the connectivity information to maintain the instant messaging session.

9.

The collaboration client on the BlackBerry device starts the session using an open GET request over the HTTPS persistent connection.

The BlackBerry Collaboration Service receives events that the server initiates from the Microsoft Office Communicator Web

Access server using an HTTP GET or HTTPS GET request, and sends the events to the collaboration client over the session. The

BlackBerry Collaboration Service sends events that the BlackBerry device initiates to the Microsoft Office Communicator Web

Access server using an HTTP POST or HTTPS POST request.

89

Feature and Technical Overview Instant messaging process flows

Process flow: Starting an instant messaging session using the BlackBerry Client for use with

Microsoft Office Communications Server 2007

1.

A user logs in to a collaboration client on a BlackBerry® device.

2.

The BlackBerry device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry

Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion® proprietary protocol.

4.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration Service logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If no idle sessions exist, the BlackBerry Collaboration Service sends a "Server Busy" status message to the BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the HTTP persistent connection supports, the BlackBerry Collaboration Service sends a "Failed" status message to the BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and tries to authenticate the user using Integrated Windows® Authentication. If the authentication is not successful, the BlackBerry Collaboration Service tries a forms-based login process instead. The

BlackBerry Collaboration Service sends a login request in XML format to the Microsoft® Office Communicator Web Access server.

90

Feature and Technical Overview Instant messaging process flows

The BlackBerry Collaboration Service opens the connection using HTTPS over port 443. You can also configure the connection to use HTTP, the transport protocol that the AJAX service uses, or a custom port number.

5.

The Microsoft Office Communicator Web Access server formats the request using a Microsoft API and sends the request to the Microsoft® Office Live Communications Server over an MTLS connection.

6.

The Microsoft Office Live Communications Server accepts the request, processes the login information, and sends the acceptance to the Microsoft Office Communicator Web Access server.

7.

The Microsoft Office Communicator Web Access server sends the acceptance to the BlackBerry Collaboration Service.

8.

The BlackBerry Collaboration Service sends the acceptance, in encrypted and compressed format, through the BlackBerry

Dispatcher to the BlackBerry device, and creates a cache of the connectivity information to maintain the instant messaging session.

9.

The collaboration client on the BlackBerry device starts the session using an open GET request over the HTTPS persistent connection.

The BlackBerry Collaboration Service receives events that the server initates from the Microsoft Office Communicator Web Access server using an HTTP GET or HTTPS GET request, and sends the events to the collaboration client over the session. The BlackBerry

Collaboration Service sends events that the BlackBerry device initiates to the Microsoft Office Communicator Web Access server using an HTTP POST or HTTPS POST request.

Process flow: Starting an instant messaging session using the BlackBerry Client for IBM Lotus

Sametime

1.

A user logs in to a collaboration client on a BlackBerry® device.

2.

The BlackBerry device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

91

Feature and Technical Overview Instant messaging process flows

3.

The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry

Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion® proprietary protocol.

4.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration Service logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If no idle sessions exist, the BlackBerry Configuration Database sends a "Server Busy" status message to the BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the IBM®

Lotus® Sametime® API supports, the BlackBerry Configuration Database sends a "Failed" status message to the

BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and connects to the IBM Lotus Sametime server. The BlackBerry Collaboration Service starts an encrypted proxy connection over TCP/IP using the IBM Lotus Sametime API, reformats the request from the RIM proprietary protocol format into one that the IBM Lotus Sametime API supports, and sends the request.

By default, the BlackBerry Collaboration Service starts the connection over port 1533 unless you specify a custom port number.

5.

The IBM Lotus Sametime server accepts the login request from the BlackBerry device, starts a dedicated TCP/IP connection for the session, and listens for requests from the BlackBerry device for the session.

6.

The BlackBerry Collaboration Service sends the acceptance, in encrypted and compressed format, through the BlackBerry

Dispatcher to the BlackBerry device, and creates a cache of the connectivity information to maintain the instant messaging session.

92

Feature and Technical Overview Instant messaging process flows

Process flow: Starting an instant messaging session using the BlackBerry Client for Novell

GroupWise Messenger

1.

A user logs in to a collaboration client on a BlackBerry® device.

2.

The BlackBerry device compresses and encrypts the user ID and password and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry

Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion proprietary protocol.

4.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration Service logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If there are no idle sessions, the BlackBerry Configuration Database sends a "Server Busy" status message to the

BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the Novell®

GroupWise® protocol supports, the BlackBerry device sends a "Failed (300)" status message to the BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and connects to the Novell GroupWise Messenger server.

The BlackBerry Collaboration Service starts an encrypted proxy (SSL) connection using the Novell GroupWise protocol and sends the request. By default, the BlackBerry Collaboration Service opens the connection over port 8300, but it can also open the connection over a custom port number.

93

Feature and Technical Overview Instant messaging process flows

5.

The Novell GroupWise Messenger server accepts the login request from the BlackBerry device, opens a dedicated SSL connection for the session, and listens for requests from the BlackBerry device.

6.

The BlackBerry Collaboration Service sends the acceptance, in encrypted and compressed format, through the BlackBerry

Dispatcher to the BlackBerry device, and creates a cache of the connectivity information to maintain the instant messaging session.

Process flow: Sending a file to a contact using the BlackBerry Client for IBM Lotus Sametime

1.

A user opens a conversation with a contact, clicks Send File on the menu, and selects a file to send to the contact.

2.

The BlackBerry® Client for IBM® Lotus® Sametime® creates an invitation request and sends it to the BlackBerry

Collaboration Service.

3.

The BlackBerry Collaboration Service checks the size of the file to verify that it does not exceed the maximum file size that you configure on the BlackBerry® Enterprise Server, associates the file extension and the conversation ID with the invitation request, and sends the request to the IBM Lotus Sametime server.

4.

The IBM Lotus Sametime server checks the file size to verify that it does not exceed the maximum file size that you configured on the IBM Lotus Sametime server (by default, 1 MB), associates the file with the conversation that is open between the sender and recipient, and sends the request to the BlackBerry Collaboration Service.

5.

The BlackBerry Collaboration Service converts the request into an instant messaging invitation and sends it to the client on the recipient's BlackBerry device.

6.

In the conversation window on the recipient's client, the recipient receives a request to accept or decline the file. The recipient can also select an option to optimize the file for viewing on the BlackBerry device.

The BlackBerry Collaboration Service can optimize files for viewing on the BlackBerry device only if it has access to the

BlackBerry Attachment Service in your organization's environment.

7.

The recipient accepts the request.

If the recipient selected the optimize option, the file will be downloaded to the memory of the BlackBerry device. If the recipient did not select the optimize option, the client prompts the recipient to save the file to a location in the file system on the BlackBerry device.

8.

The recipient's client sends a content request packet to the BlackBerry Collaboration Service.

94

Feature and Technical Overview Message attachment process flows

9.

The BlackBerry Collaboration Service requests the file size from the IBM Lotus Sametime server, and sends data to the IBM

Lotus Sametime server to begin the file transfer process.

By default, the media transfer state on the BlackBerry Collaboration Service is set to transfer.

10. The sender's client sends the data for the file in content message packets to the BlackBerry Collaboration Service.

11.

The BlackBerry Collaboration Service checks the order of the content message packets and sends them to the recipient's client using a BlackBerry instant messaging protocol.

12. The recipient's client receives the first content message packet, sends an acknowledgement message to the BlackBerry

Collaboration Service, and requests the next content message packet from the BlackBerry Collaboration Service. This continues until the client receives all of the content message packets.

If the recipient selected the option to optimize the file for viewing, the BlackBerry Attachment Service converts the file into a format that is optimized for viewing on the BlackBerry device.

13. When the BlackBerry Collaboration Service receives an acknowledgement message for the last content message packet from the recipient's client, it changes its media transfer state to done and stops the file transfer process on the IBM Lotus

Sametime server.

14. In the conversation window, the client notifies the recipient that the file has been received.

The recipient can open the file from the conversation window or from the file system on the BlackBerry device. The BlackBerry device uses the BlackBerry® Browser to render supported files. If the recipient selected the option to optimize the file for viewing, the recipient can open and view supported files in the attachment viewer on the BlackBerry device. The recipient can also save the optimized file to a location in the file system on the BlackBerry device.

Message attachment process flows

Process flow: Viewing a message attachment

1.

A user receives a message with an attachment on a BlackBerry® device.

2.

The BlackBerry Messaging Agent verifies that the format of the attachment is valid for conversion.

If the format is not valid and the user’s BlackBerry device is Java® based, the Open Attachment menu item does not appear on the user’s BlackBerry device.

95

Feature and Technical Overview Message attachment process flows

3.

The user clicks the Open Attachment menu item to view the attachment on the BlackBerry device.

4.

The attachment viewer sends the request to the BlackBerry Messaging Agent.

5.

The BlackBerry Messaging Agent connects to the BlackBerry Attachment Service over port 1900.

6.

The BlackBerry Attachment Service retrieves the attachment in binary format from the user’s message store using the

BlackBerry Messaging Agent link to the messaging server.

The BlackBerry Attachment Service distills the attachment and extracts the content, layout, appearance, and navigation information from the attachment.

The BlackBerry Attachment Service organizes, stores, and links the information in a proprietary DOM in a binary XML style.

The BlackBerry Attachment Service formats the attachment for the BlackBerry device and converts it to UCS format. The formatting is based on the request for content (for example, page and paragraph information, or search words) and the available BlackBerry device information (for example, screen size, display, or available space).

The BlackBerry Attachment Service sends the UCS data to the BlackBerry Messaging Agent using a TCP/IP connection over port 1900.

7.

The BlackBerry Messaging Agent sends the converted attachment to the BlackBerry Dispatcher.

8.

The BlackBerry Dispatcher compresses the first portion of the attachment, encrypts it using the device transport key of the

BlackBerry device, and sends the first portion of the attachment to the BlackBerry Router.

9.

The BlackBerry Router sends the first portion of the attachment to the wireless network over port 3101.

10. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network.

11.

The wireless network delivers the attachment to the BlackBerry device.

12. The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher, which sends it to the BlackBerry Messaging

Agent. If the BlackBerry® Enterprise Server does not receive a delivery confirmation within 4 hours, it sends the attachment data to the wireless network again.

13. The BlackBerry device uses its device transport key to decrypt and decompress the attachment so that the user can view the attachment.

14. The user views the attachment on the BlackBerry device by selecting a section from the table of contents, or by viewing the full attachment. The original formatting of the attachment, including indents, tables, fonts, and bullets, is reflected on the

BlackBerry device.

96

Feature and Technical Overview

Process flow: Viewing an attachment using a link

Organizer data process flows

1.

A user clicks the Get Link menu item to view an attachment on a BlackBerry® device.

2.

The BlackBerry device sends the request to the BlackBerry® Enterprise Server over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4.

The BlackBerry MDS Connection Service creates an HTTP session for the user and sends the request to the web server.

The BlackBerry MDS Connection Service retrieves the requested content and sends it to the BlackBerry Attachment Service.

5.

The BlackBerry Attachment Service extracts the content, layout, appearance, and navigation information from the attachment and organizes, stores, and links the information in a proprietary DOM in a binary XML style.

6.

The BlackBerry Attachment Service formats the attachment for the BlackBerry device and converts it to UCS format.

The formatting is based on the request for content (for example, page and paragraph information, or search words) and the available BlackBerry device information (for example, screen size, display, or available space).

7.

The BlackBerry Attachment Service sends the converted attachment to the BlackBerry MDS Connection Service using HTTP.

8.

The BlackBerry MDS Connection Service sends the first 250 KB of content to the BlackBerry Dispatcher over port 3200.

9.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

10. The BlackBerry Router sends the encrypted content to the BlackBerry device.

11.

The BlackBerry device uses its device transport key to decrypt and decompress the attachment content so that the user can view the attachment.

12. The user views the attachment on the BlackBerry device using the browser plug-in for the attachment viewer. The attachment viewer processes 3 KB at a time.

Organizer data process flows

97

Feature and Technical Overview Organizer data process flows

Process flow: Synchronizing organizer data for the first time on a BlackBerry device

1.

A user activates a new BlackBerry® device or upgrades an existing BlackBerry device and receives the service book for the

BlackBerry Synchronization Service.

2.

The BlackBerry device requests the synchronization configuration information from the BlackBerry Synchronization Service.

The configuration information indicates whether wireless data synchronization on the BlackBerry® Enterprise Server is turned on, and which database can be synchronized. The configuration information also provides database synchronization types and conflict resolution settings. All data that the BlackBerry device and BlackBerry Enterprise Server send between each other is compressed and encrypted.

3.

The BlackBerry Synchronization Service returns the configuration information and synchronizes the databases using that information.

A synchronization agent on the BlackBerry device tracks which databases can be synchronized over the wireless network.

If data already exists on both the BlackBerry device and BlackBerry Enterprise Server, the BlackBerry Synchronization Service merges, adds, or updates the records during the synchronization process. If data exists on only the BlackBerry device or

BlackBerry Enterprise Server, the BlackBerry Synchronization Service restores the data from the appropriate location. The

BlackBerry device and BlackBerry Enterprise Server do not delete records during the initial synchronization process.

After the BlackBerry Synchronization Service registers a database for wireless data synchronization, it can no longer be synchronized or restored using the BlackBerry® Desktop Software.

The initial synchronization process is complete when the data on the BlackBerry device and the data on the BlackBerry Enterprise

Server are synchronized. Future changes on the BlackBerry device or BlackBerry Enterprise Server are synchronized over the wireless network.

If the user changes data on the BlackBerry device or in the organizer application on the user's computer during the initial synchronization process, the BlackBerry Synchronization Service synchronizes the changes after the initial synchronization completes.

If the user connects the BlackBerry device to a computer that is running the BlackBerry® Device Manager, the initial synchronization process can occur over the connection to the BlackBerry Router instead of over the wireless network.

98

Feature and Technical Overview

Process flow: Synchronizing subsequent changes to organizer data

Organizer data process flows

1.

A user saves a change to the organizer data or BlackBerry® device settings (for example, a new AutoText entry) on a

BlackBerry device or in the organizer application on the user's computer.

2.

Depending on where the user made the change, the BlackBerry device or the BlackBerry® Enterprise Server adds the change to a changelist and sends the changelist to the BlackBerry Synchronization Service.

The changelist includes the target database and record information for the organizer application.

3.

The BlackBerry Synchronization Service sends a change to organizer data over the wireless network, along with other entries in the changelist for the user.

The BlackBerry Synchronization Service sends other changes, including BlackBerry device information, time zone information, and backup and restore data, at the batch synchronization interval that is set on the BlackBerry Enterprise

Server. By default, the batch synchronization interval is 10 minutes.

To prevent synchronization errors, the BlackBerry Enterprise Server and BlackBerry device can send only a single changelist at a time for a user account.

The BlackBerry Synchronization Service writes a synchronization request entry to the SynchRequest table of the BlackBerry

Configuration Database, and sends the changed records to the BlackBerry Dispatcher.

4.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router for delivery to the BlackBerry device.

5.

The BlackBerry device sends a delivery confirmation to the BlackBerry Synchronization Service for each record that it receives.

6.

The BlackBerry Synchronization Service receives delivery confirmations, deletes the corresponding synchronization request entries from the SyncRequest table, and writes an entry to the SyncRecordState table for each delivery confirmation.

Each organizer database record has a unique identifier that is mapped to a corresponding record on the BlackBerry device.

99

Feature and Technical Overview

Process flow: Adding a contact picture on a BlackBerry device

1.

A user adds a picture to a contact in the address book on a BlackBerry® device and saves the change.

2.

The BlackBerry device creates a changelist request to synchronize the changed record. The changelist request includes the updated record information and identifies the address book as the target for the update.

The BlackBerry device compresses and encrypts the request, and sends the request to the BlackBerry Dispatcher over port

3101.

3.

The BlackBerry Dispatcher uses the device transport key of the BlackBerry device to decrypt and decompress the request, and sends the request to the BlackBerry Synchronization Service.

4.

The BlackBerry Synchronization Service receives the changelist request, writes a synchronization request entry in the

SynchRequest table of the BlackBerry Configuration Database, and sends the changed record to the BlackBerry Dispatcher.

5.

The BlackBerry Dispatcher sends the changed record, in XML format, to the BlackBerry Messaging Agent.

If the file size of the picture exceeds 32 KB, the BlackBerry Messaging Agent rejects the synchronization request.

6.

The BlackBerry Messaging Agent sends the changed record to the messaging server.

7.

The messaging server updates the user’s personal contact list.

8.

The BlackBerry Messaging Agent sends a delivery confirmation to the BlackBerry Dispatcher.

9.

The BlackBerry Dispatcher sends the delivery confirmation to the BlackBerry Synchronization Service.

10. The BlackBerry Synchronization Service deletes the synchronization request entry from the SyncRequest table, writes an entry in the SyncRecordState table, and sends the delivery confirmation to the BlackBerry Dispatcher.

11.

The BlackBerry Dispatcher encrypts the results using the device transport key of the BlackBerry device, compresses them, and sends them to the BlackBerry Router.

12. The BlackBerry Router sends the results to the wireless network over port 3101.

13. The wireless network verifies that the PIN belongs to a valid BlackBerry device and sends the delivery confirmation to the

BlackBerry device.

If the BlackBerry device does not receive the delivery confirmation from the wireless network within 20 minutes, it sends the synchronization request to the wireless network again. If the BlackBerry device does not receive the delivery confirmation within 8 hours, it stops resending the synchronization request to the wireless network.

100

Feature and Technical Overview

Mobile data process flows

Process flow: Requesting BlackBerry Browser content on a BlackBerry device

Mobile data process flows

1.

A user requests Internet or intranet content from your organization's content server using the BlackBerry® Browser on a

BlackBerry device.

2.

The BlackBerry device sends the request to the BlackBerry® Enterprise Server over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4.

The BlackBerry MDS Connection Service creates an HTTP session for the user and retrieves the requested Internet or intranet content from the content server.

The BlackBerry MDS Connection Service converts the content so that the user can view it on the BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

5.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

6.

The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

7.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

8.

The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

101

Feature and Technical Overview Mobile data process flows

Process flow: Requesting BlackBerry Browser content while access control is turned on for the BlackBerry MDS Connection Service

1.

A user requests Internet or intranet content from your organization's content server using the BlackBerry® Browser on a

BlackBerry device.

2.

The BlackBerry device sends the request to the BlackBerry® Enterprise Server over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4.

The BlackBerry MDS Connection Service checks the BlackBerry Configuration Database to verify whether pull authorization is turned on, and whether the user has permission to pull content from the specified content server.

If the user does not have permission to pull content from the specified content server, the BlackBerry MDS Connection

Service rejects the request and sends an error message to the BlackBerry device.

5.

The BlackBerry MDS Connection Service creates an HTTP session for the user and sends the user’s authentication credentials to the content server. If the user authenticates, the BlackBerry MDS Connection Service sends the HTTP request to the content server. If the user does not authenticate, the BlackBerry Browser displays an "HTTP 403 Error" message, and prompts the user to type the correct credentials.

6.

The BlackBerry MDS Connection Service retrieves the content from the content server, converts it so that the user can view it on the BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

7.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

8.

The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

9.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

10. The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

102

Feature and Technical Overview Mobile data process flows

Process flow: Requesting BlackBerry Browser content with two-factor authentication turned on

1.

A user requests Internet or intranet content from your organization's content server using the BlackBerry® Browser on a

BlackBerry device.

2.

The BlackBerry device sends the request to the BlackBerry® Enterprise Server over port 3101.

3.

The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4.

The BlackBerry MDS Connection Service checks whether the user's BlackBerry device is running an authenticated connection that can support the content request.

If the BlackBerry device is not running an authenticated connection, the BlackBerry MDS Connection Service redirects the user to a login web page. If the user logs in, using an RSA SecurID® user name and passcode, the BlackBerry MDS Connection

Service creates a connection to the content server. By default, the BlackBerry device caches the user’s information for 24 hours of activity on the authenticated connection, or 60 minutes of inactivity.

The BlackBerry MDS Connection Service creates an HTTP session for the user and retrieves the Internet or intranet content from the content server. The BlackBerry MDS Connection Service converts the content so that the user can view it on the

BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

5.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

6.

The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

7.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

8.

The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

103

Feature and Technical Overview

Process flow: Pushing application content to a BlackBerry device

Mobile data process flows

1.

A push application on an application server or a content server behind your organization's firewall sends an HTTP POST request to a central push server over the listen port for the content server. The default port number is 8080.

You can define one or more instances of the BlackBerry® MDS Connection Service in a BlackBerry Domain as a central push server. A push application specifies the BlackBerry® Enterprise Server host name and the connection port number that the

BlackBerry MDS Connection Service listens on.

2.

The central push server checks the BlackBerry Configuration Database for the following information about the intended recipients of the application content: the PINs that are associated with the user accounts, whether the PINs are enabled for the BlackBerry MDS Connection Service, and the active BlackBerry Enterprise Server instances that the users are located on.

User accounts that do not appear in the BlackBerry Configuration Database, or that are pending deletion, cannot receive the push content.

The central push server responds to the push application to acknowledge that it is processing the request, and sends the push content to the BlackBerry MDS Connection Service instances that have active, primary connections to the BlackBerry

Enterprise Server instances.

3.

The BlackBerry MDS Connection Service converts the content so that the user can view it on the BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

4.

The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

5.

The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network, and sends the encrypted content to the BlackBerry device.

6.

The BlackBerry device sends a delivery confirmation to the BlackBerry Router.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

7.

The BlackBerry device decrypts and decompresses the content.

104

Feature and Technical Overview Mobile data process flows

The BlackBerry Application detects the incoming content by listening on a port number that the application developer specified. For example, the BlackBerry® Browser listens for push application connections on port 7874. The application displays the content on the BlackBerry device when the user runs the application.

Process flow: Installing a BlackBerry Java Application on a BlackBerry device over the wireless network

1.

A developer creates a BlackBerry® Java® Application using the BlackBerry® Java® Development Environment or another

Java authoring tool. The developer produces an application bundle.

The application bundle contains an .alx file that stores information about the attributes of the BlackBerry Java Application, including the author name, a description of the application, and copyright information.

2.

In the BlackBerry Administration Service, you publish the application bundle to the application repository.

3.

You create a software configuration and add the BlackBerry Java Application to the software configuration. You specify that the application is required, assign an application control policy to the application, and specify wireless delivery to BlackBerry devices.

You assign the software configuration to a group.

4.

The BlackBerry Administration Service creates a deployment job.

A deployment job represents the objects that must be sent to each user's BlackBerry device and consists of multiple tasks.

Each task manages the delivery of an object (for example, a BlackBerry Java Application, an access control policy, or an IT policy) to a BlackBerry device.

5.

The delivery manager component of the BlackBerry Administration Service receives tasks to send a BlackBerry Java

Application to BlackBerry devices.

6.

The BlackBerry Administration Service exports the files for the BlackBerry Java Application to a shared network folder.

7.

The delivery manager converts the tasks into send module commands, queues send module commands into logical groups for each user, and sends the send module commands to the BlackBerry Policy Service. Separate applications are queued in separate groups.

8.

The BlackBerry Policy Service processes the send module commands in the queue in sequence. When the BlackBerry Policy

Service processes a group of send module commands, it retrieves the data for the BlackBerry Java Application from the shared network folder, and sends the send module commands with the application data to the BlackBerry Dispatcher.

105

Feature and Technical Overview Mobile data process flows

If the send module commands are less than 56 KB, the BlackBerry Policy Service sends them in one data packet. If the send module commands exceed 56 KB, the BlackBerry Policy Service sends them in multiple data packets.

9.

The BlackBerry Dispatcher sends the send module commands to the BlackBerry Router.

10. The BlackBerry Router sends the send module commands to a BlackBerry device over the wireless network.

11.

The BlackBerry device installs the BlackBerry Java Application. The BlackBerry device sends an acknowledgement packet for the BlackBerry Java Application to the BlackBerry Router.

12. The BlackBerry Router sends the acknowledgement packet to the BlackBerry Dispatcher.

13. The BlackBerry Dispatcher delivers the acknowledgement packet to the BlackBerry Policy Service.

14. The BlackBerry Policy Service clears the send module commands for the BlackBerry device from the queue and processes the next group of send module commands that are in the queue.

15. The BlackBerry Administration Service displays that the BlackBerry Java Application was delivered to the BlackBerry device.

If the BlackBerry device does not receive all of the send module commands within 4 hours, the BlackBerry device sends a failure acknowledgement packet to the BlackBerry Policy Service. The BlackBerry Administration Service detects the failure acknowledgement packet and displays an installation failure message for the BlackBerry device.

Process flow: Installing a BlackBerry MDS Runtime Application on a BlackBerry device over the wireless network

1.

A developer creates a BlackBerry® MDS Runtime Application using the latest version of BlackBerry® MDS Studio or the

BlackBerry® Plug-in for Microsoft® Visual Studio®. The developer produces an application bundle and publishes it to the

BlackBerry MDS Application Repository.

2.

The BlackBerry MDS Application Console displays the application as available for installation in the application directory view.

3.

Using the BlackBerry MDS Application Console, you assign the BlackBerry MDS Runtime Application to the members of a group.

106

Feature and Technical Overview Mobile data process flows

4.

The BlackBerry MDS Application Console sends an installation request to the BlackBerry MDS Integration Service that you assign BlackBerry devices to.

5.

The BlackBerry MDS Integration Service retrieves the files for the BlackBerry MDS Runtime Application from the BlackBerry

MDS Application Repository. The BlackBerry MDS Integration Service repackages the files so that they can be sent to the

BlackBerry device over the wireless network, and sends an installation request to the BlackBerry MDS Connection Service using the Push Access Protocol.

6.

The BlackBerry MDS Connection Service sends the installation request to the BlackBerry Dispatcher.

7.

The BlackBerry Dispatcher sends the installation request to the BlackBerry Router.

8.

The BlackBerry Router sends the installation request to the BlackBerry device over the wireless network.

9.

The BlackBerry device receives the installation request on the port number that the BlackBerry MDS Runtime uses to listen for incoming messages from the BlackBerry MDS Integration Service.

If the BlackBerry device does not receive the installation request (for example, if the BlackBerry device is outside of a wireless coverage area), the BlackBerry MDS Integration Service tries to send the request up to two more times before it sends an installation failure message to the BlackBerry MDS Application Console.

10. The BlackBerry MDS Runtime on the BlackBerry device verifies that the BlackBerry MDS Runtime Application can be installed on the BlackBerry device.

The BlackBerry MDS Runtime sends a confirmation message to the BlackBerry MDS Integration Service and retrieves the files that are required to install the BlackBerry MDS Runtime Application. The BlackBerry MDS Integration Service sends other information about the application to the BlackBerry device, including identification information, signing information, and the URI version.

The BlackBerry MDS Runtime installs the BlackBerry MDS Runtime Application on the BlackBerry device and sends a delivery confirmation message to the BlackBerry MDS Integration Service.

If the BlackBerry MDS Runtime cannot install the BlackBerry MDS Runtime Application on the BlackBerry device, it sends an installation failure message to the BlackBerry MDS Integration Service, which sends the message to the BlackBerry MDS

Application Console.

11.

The BlackBerry MDS Integration Service reports the status of the installation to the BlackBerry MDS Application Console.

12. The BlackBerry MDS Application Console displays that the BlackBerry MDS Runtime Application is installed on the

BlackBerry device.

107

Feature and Technical Overview Mobile data process flows

Process flow: Installing a BlackBerry Browser Application on a BlackBerry device over the wireless network

1.

A developer creates a BlackBerry® Browser Application using a template. The developer produces an application bundle that contains two .xml files.

The ApplicationAttributes.xml file contains application attributes. The deployment .xml file contains deployment information and specifies the web address to push to and display on BlackBerry devices.

2.

Using the BlackBerry MDS Application Console, you publish the application bundle to the BlackBerry MDS Application

Repository.

Using the BlackBerry MDS Application Console, you assign a BlackBerry Browser Application to a group.

3.

The BlackBerry MDS Application Console sends an installation message to the BlackBerry MDS Integration Service that

BlackBerry devices are assigned to.

4.

The Browser Push Engine on the BlackBerry MDS Integration Service sends the installation message to the BlackBerry MDS

Connection Service using Push Access Protocol.

5.

The BlackBerry MDS Connection Service sends the installation message to the BlackBerry Dispatcher.

6.

The BlackBerry Dispatcher sends the installation message to the BlackBerry Router.

7.

The BlackBerry Router sends the installation message to a BlackBerry device over the wireless network.

The BlackBerry device receives the installation message on the port number that it uses to listen for browser updates.

8.

The BlackBerry Browser Application installs on the BlackBerry device. Depending on the type of BlackBerry Browser

Application, one of the following occurs on the BlackBerry device:

• If the application is a browser channel push application, an "unread" icon displays on the Home screen of the BlackBerry device. After the user clicks the icon to view the web page in the BlackBerry® Browser, the icon becomes a "read" icon.

• If the application is a browser cache push application, the web page is stored in the cache of the BlackBerry Browser.

To access the web page, the user can browse to the web address using the BlackBerry Browser.

108

Feature and Technical Overview BlackBerry device management process flows

• If the application is a browser message push application, an email message that includes the web address appears in the message list.

The Browser Push Engine on the BlackBerry MDS Integration Service polls the web page that is specified in the BlackBerry

Browser Application for changes. The configuration that is specified in the deployment .xml file specifies the frequency of the polling interval. When the Browser Push Engine detects changes to the web page, it pushes a browser update to the BlackBerry device. Depending on the type of BlackBerry Browser Application, the updated web page is displayed through an "unread" icon on the home screen, updated in the BlackBerry Browser cache, or linked to a new message in the messages list on the BlackBerry device.

BlackBerry device management process flows

Process flow: Activating a BlackBerry device over the wireless network

A user receives or purchases a new BlackBerry® device.

1.

The user contacts your organization's IT department to activate the BlackBerry device.

2.

You create a temporary activation password for the user account and communicate the password to the user. The password applies to the user account only.

3.

To activate the BlackBerry device over the wireless network, the user opens the activation application on the BlackBerry device and types the appropriate email address and activation password.

4.

The BlackBerry device sends an activation request message to the email account. The message contains information about the BlackBerry device, such as routing information and the public keys for the BlackBerry device.

5.

The BlackBerry® Enterprise Server sends the BlackBerry device an activation response that contains routing information about the BlackBerry Enterprise Server and the public keys for the BlackBerry Enterprise Server.

The BlackBerry Enterprise Server and BlackBerry device establish a device transport key. The BlackBerry Enterprise Server and BlackBerry device confirm knowledge of the device transport key to each other. If the confirmation is successful, the activation proceeds and further communication between the BlackBerry Enterprise Server and BlackBerry device is encrypted.

The BlackBerry Enterprise Server sends the IT policy to the BlackBerry device. If the BlackBerry device cannot accept the IT policy, the activation process does not complete.

The BlackBerry Enterprise Server sends the appropriate service books (for example, the messaging service book, wireless calendar service book, browser service book, and other service books) to the BlackBerry device. The user can now send messages from and receive messages on the BlackBerry device.

6.

If the user account is configured for wireless synchronization, and if wireless backup and wireless calendar synchronization on the BlackBerry device are turned on, the BlackBerry Enterprise Server sends user data to the BlackBerry device.

109

Feature and Technical Overview Monitoring process flows

Process flow: Resending an IT policy to a BlackBerry device manually

1.

Click a user account, and then click Resend IT Policy.

2.

The BlackBerry Policy Service reads the current IT policy settings for the user account from the BlackBerry Configuration

Database to determine which IT policy to send to the BlackBerry device.

The BlackBerry Policy Service prepares to send the IT policy using the GME protocol by adding the unique identifier and

BlackBerry® Enterprise Server version.

The BlackBerry Policy Service adds the unique key that the BlackBerry Domain uses to sign IT policy data packets to the IT policy data packet.

The BlackBerry Policy Service sends the IT policy data packet to the BlackBerry Dispatcher.

3.

The BlackBerry Dispatcher encrypts the IT policy data packet using the device transport key of the BlackBerry device, compresses the content, and sends it to the BlackBerry Router for delivery to the BlackBerry device.

4.

The BlackBerry Router sends the encrypted IT policy data packet to the wireless network over port 3101. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network.

Process flow: Authenticating data on a BlackBerry device without connecting to the

BlackBerry Infrastructure

1.

A user connects a BlackBerry® device to a computer that the BlackBerry® Device Manager is running on.

2.

The BlackBerry Router uses a unique authentication protocol to verify that the user is a valid BlackBerry device user.

The authentication sequence uses the same authentication information for the BlackBerry® Enterprise Server and BlackBerry device that the SRP authentication sequence uses to validate the BlackBerry Enterprise Server before permitting it to connect to the BlackBerry® Infrastructure. The BlackBerry Router cannot access the value of the device transport key of the BlackBerry device and BlackBerry Enterprise Server.

3.

The BlackBerry device and BlackBerry Router use the BlackBerry Device Manager to send data to each other over the physical connection, behind the firewall. All the data that the BlackBerry device and BlackBerry Enterprise Server send to each other is compressed and encrypted. This data bypasses the wireless network.

The transfer of wireless data over an SRP connection is restored when the user disconnects the BlackBerry device from the computer or closes the BlackBerry Device Manager.

Monitoring process flows

110

Feature and Technical Overview Monitoring process flows

Process flow: Updating and displaying data in the BlackBerry Monitoring Service console

1.

The BlackBerry® Monitoring Service Polling Engine polls all BlackBerry® Enterprise Server components for SNMP data about BlackBerry Enterprise Server components and BlackBerry device users. The BlackBerry Monitoring Service Polling

Engine sends the SNMP data to the BlackBerry Monitoring Service Application Core.

2.

The BlackBerry Monitoring Service Application Core processes the SNMP data and updates the data in the BlackBerry

Monitoring Service console by performing the following actions:

• updates statistics for data attributes of BlackBerry Enterprise Server components and BlackBerry device users

• updates the alarm state for data attributes

• generates notification messages for any data attributes with an alarm state that is changing

3.

The BlackBerry Monitoring Service console displays the updated data.

Process flow: Storing data in the BlackBerry Monitoring Service database

1.

The BlackBerry® Monitoring Service Polling Engine polls all BlackBerry® Enterprise Server components for SNMP data and sends the data to the BlackBerry Monitoring Service Data Collection Subsystem.

2.

The BlackBerry Monitoring Service Data Collection Subsystem processes the SNMP data and sends the data to the BlackBerry

Monitoring Service database.

3.

The BlackBerry Monitoring Service database stores the data.

111

Feature and Technical Overview Glossary

Glossary

8

AES

Advanced Encryption Standard

AJAX

Asynchronous JavaScript® and XML

API application programming interface

ASCII

American Standard Code for Information Interchange

BlackBerry CAL

A BlackBerry® Client Access License (BlackBerry CAL) limits how many users you can add to a BlackBerry® Enterprise Server.

BlackBerry Domain

A BlackBerry Domain consists of the BlackBerry Configuration Database with its users and any BlackBerry® Enterprise Server instances that connect to it.

BlackBerry MDS

BlackBerry® Mobile Data System

BlackBerry transport layer encryption

BlackBerry transport layer encryption (formerly known as standard BlackBerry encryption) uses a symmetric key encryption algorithm to help protect data that is in transit between a BlackBerry device and the BlackBerry® Enterprise Server when the data is outside an organization's firewall.

CBC cipher block chaining

CDMA

Code Division Multiple Access

CDO

Collaboration Data Object

CMIME

Compressed Multipurpose Internet Mail Extensions content protection

112

Feature and Technical Overview Glossary

Content protection helps protect user data on a locked BlackBerry device by encrypting the user data using the content protection key and ECC private key.

DES

Data Encryption Standard device transport key

The device transport key (formerly known as the master encryption key) is unique to a BlackBerry device. The BlackBerry device and BlackBerry® Enterprise Server use the device transport key to encrypt the message keys.

DMZ

A demilitarized zone (DMZ) is a neutral subnetwork outside of an organization's firewall. It exists between the trusted LAN of the organization and the untrusted external wireless network and public Internet.

DNS

A Domain Name System (DNS) is an Internet database that translates domain names that are meaningful and recognizable by people into the numeric IP addresses that the Internet uses.

DOM

Document Object Model

DSML

Directory Service Markup Language

ECC

Elliptic Curve Cryptography

EDGE

Enhanced Data Rates for Global Evolution

Enterprise Service Policy

The Enterprise Service Policy controls which BlackBerry devices can connect to a BlackBerry® Enterprise Server.

GAL

Global Address List

GAN generic access network

GANC generic access network controller

GME

113

Feature and Technical Overview Glossary

The gateway message envelope (GME) protocol is a Research In Motion proprietary protocol that allows the transfer of compressed and encrypted data between the wireless network and BlackBerry devices. The protocol defines a routing layer that specifies the types of message contents allowed and the addressing information for the data. Gateways and routing components use this information to identify the type and source of the BlackBerry device data, and the appropriate destination service to route the data to.

GPS

Global Positioning System

HTML

Hypertext Markup Language

HTTP

Hypertext Transfer Protocol

HTTPS

Hypertext Transfer Protocol over Secure Sockets Layer

ISP

Internet service provider

IP

Internet Protocol

IP address

An Internet Protocol (IP) address is an identification number that each computer or mobile device uses when it sends or receives information over a network, such as the Internet. This identification number identifies the specific computer or mobile device on the network.

IT administration command

An IT administration command is a command that you can send over the wireless network to protect sensitive information on a BlackBerry device or delete all BlackBerry device data.

IT policy

An IT policy consists of various IT policy rules that control the security features and behavior of BlackBerry devices, BlackBerry enabled devices, the BlackBerry® Desktop Software, and the BlackBerry® Web Desktop Manager.

IT policy rule

An IT policy rule permits you to customize and control the actions that BlackBerry devices, BlackBerry enabled devices, the

BlackBerry® Desktop Software, and the BlackBerry® Web Desktop Manager can perform.

Java ME

Java® Platform, Micro Edition

JSON

114

Feature and Technical Overview Glossary

JavaScript® Object Notation

LAN

A local area network (LAN) is a computer network shared by a group of computers in a small area, such as an office building.

Any computer in this network can communicate with another computer that is part of the same network.

LDAP

Lightweight Directory Access Protocol

LTPA

Lightweight Third-Party Authentication

MAPI

Messaging Application Programming Interface message keys

The message keys encrypt the data that is sent to and from a BlackBerry device.

messaging server

A messaging server sends and processes messages and provides collaboration services, such as updating and communicating calendar and address book information.

MTLS

Mutual Transport Layer Security

NAT network address translation

NTLM

NT LAN Manager

PIN personal identification number

PKI

Public Key Infrastructure principal encryption key

The principal encryption key encrypts the device transport key when a BlackBerry device is locked.

RPC remote procedure call

RTF

Rich Text Format

115

Feature and Technical Overview Glossary service books

Service books determine which services are available on BlackBerry devices or BlackBerry enabled devices.

S/MIME

Secure Multipurpose Internet Mail Extensions

SMS

Short Message Service

SNMP

Simple Network Management Protocol

SQL

Structured Query Language

SRP

Server Routing Protocol

SSL

Secure Sockets Layer

SVG

Scalable Vector Graphics

TCP/IP

Transmission Control Protocol/Internet Protocol (TCP/IP) is a set of communication protocols that is used to transmit data over networks, such as the Internet.

Triple DES

Triple Data Encryption Standard

UCS

Universal Content Stream

UMA

Unlicensed Mobile Access

UNC

Universal Naming Convention

USB

Universal Serial Bus

UTC

Coordinated Universal Time

116

Feature and Technical Overview

VPN virtual private network

WAP

Wireless Application Protocol

XML

Extensible Markup Language

Glossary

117

Feature and Technical Overview

Provide feedback

To provide feedback on this deliverable, visit www.blackberry.com/docsfeedback .

Provide feedback

9

118

Feature and Technical Overview Legal notice

Legal notice

10

©2010 Research In Motion Limited. All rights reserved. BlackBerry®, RIM®, Research In Motion®, SureType®, SurePress™ and related trademarks, names, and logos are the property of Research In Motion Limited and are registered and/or used in the U.S.

and countries around the world.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated. Bluetooth is a trademark of Bluetooth SIG. Chalk and Pushcast are trademarks of Chalk Media Service Corp. Corel and WordPerfect are trademarks of Corel Corporation. Eclipse is a trademark of Eclipse Foundation, Inc. Google Chrome is a trademark of Google Inc. GSM is a trademark of the GSM MOU Association. IBM,

Lotus, and Sametime are trademarks of International Business Machines Corporation. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g

and IEEE are trademarks of the Institute of Electrical and Electronics Engineers, Inc. Java and JavaScript are trademarks of Sun

Microsystems, Inc. Kerberos is a trademark of the Massachusetts Institute of Technology. Microsoft, ActiveX, Active Directory,

Excel, Internet Explorer, PowerPoint, SQL Server, Visual Studio, Windows, and Windows Server are trademarks of Microsoft

Corporation. Mozilla and Firefox are trademarks of Mozilla Foundation. Novell and GroupWise are trademarks of Novell, Inc. PGP is a trademark of PGP Corporation. RSA and RSA SecurID are trademarks of RSA Security. Safari is a trademark of Apple Inc. Wi-

Fi is a trademark of the Wi-Fi Alliance. All other trademarks are the property of their respective owners.

This documentation including all documentation incorporated by reference herein such as documentation provided or made available at www.blackberry.com/go/docs is provided or made accessible "AS IS" and "AS AVAILABLE" and without condition, endorsement, guarantee, representation, or warranty of any kind by Research In Motion Limited and its affiliated companies

("RIM") and RIM assumes no responsibility for any typographical, technical, or other inaccuracies, errors, or omissions in this documentation. In order to protect RIM proprietary and confidential information and/or trade secrets, this documentation may describe some aspects of RIM technology in generalized terms. RIM reserves the right to periodically change information that is contained in this documentation; however, RIM makes no commitment to provide any such changes, updates, enhancements, or other additions to this documentation to you in a timely manner or at all.

This documentation might contain references to third-party sources of information, hardware or software, products or services including components and content such as content protected by copyright and/or third-party web sites (collectively the "Third

Party Products and Services"). RIM does not control, and is not responsible for, any Third Party Products and Services including, without limitation the content, accuracy, copyright compliance, compatibility, performance, trustworthiness, legality, decency, links, or any other aspect of Third Party Products and Services. The inclusion of a reference to Third Party Products and Services in this documentation does not imply endorsement by RIM of the Third Party Products and Services or the third party in any way.

EXCEPT TO THE EXTENT SPECIFICALLY PROHIBITED BY APPLICABLE LAW IN YOUR JURISDICTION, ALL CONDITIONS,

ENDORSEMENTS, GUARANTEES, REPRESENTATIONS, OR WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING

WITHOUT LIMITATION, ANY CONDITIONS, ENDORSEMENTS, GUARANTEES, REPRESENTATIONS OR WARRANTIES OF

DURABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, MERCHANTABILITY, MERCHANTABLE QUALITY, NON-

INFRINGEMENT, SATISFACTORY QUALITY, OR TITLE, OR ARISING FROM A STATUTE OR CUSTOM OR A COURSE OF DEALING

OR USAGE OF TRADE, OR RELATED TO THE DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-PERFORMANCE

OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED HEREIN, ARE

HEREBY EXCLUDED. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR PROVINCE. SOME JURISDICTIONS

MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES AND CONDITIONS. TO THE EXTENT

119

Feature and Technical Overview Legal notice

PERMITTED BY LAW, ANY IMPLIED WARRANTIES OR CONDITIONS RELATING TO THE DOCUMENTATION TO THE EXTENT

THEY CANNOT BE EXCLUDED AS SET OUT ABOVE, BUT CAN BE LIMITED, ARE HEREBY LIMITED TO NINETY (90) DAYS FROM

THE DATE YOU FIRST ACQUIRED THE DOCUMENTATION OR THE ITEM THAT IS THE SUBJECT OF THE CLAIM.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, IN NO EVENT SHALL RIM BE LIABLE

FOR ANY TYPE OF DAMAGES RELATED TO THIS DOCUMENTATION OR ITS USE, OR PERFORMANCE OR NON-

PERFORMANCE OF ANY SOFTWARE, HARDWARE, SERVICE, OR ANY THIRD PARTY PRODUCTS AND SERVICES REFERENCED

HEREIN INCLUDING WITHOUT LIMITATION ANY OF THE FOLLOWING DAMAGES: DIRECT, CONSEQUENTIAL, EXEMPLARY,

INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR AGGRAVATED DAMAGES, DAMAGES FOR LOSS OF PROFITS OR REVENUES,

FAILURE TO REALIZE ANY EXPECTED SAVINGS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF

BUSINESS OPPORTUNITY, OR CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE ANY DATA, PROBLEMS

ASSOCIATED WITH ANY APPLICATIONS USED IN CONJUNCTION WITH RIM PRODUCTS OR SERVICES, DOWNTIME COSTS,

LOSS OF THE USE OF RIM PRODUCTS OR SERVICES OR ANY PORTION THEREOF OR OF ANY AIRTIME SERVICES, COST OF

SUBSTITUTE GOODS, COSTS OF COVER, FACILITIES OR SERVICES, COST OF CAPITAL, OR OTHER SIMILAR PECUNIARY

LOSSES, WHETHER OR NOT SUCH DAMAGES WERE FORESEEN OR UNFORESEEN, AND EVEN IF RIM HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION, RIM SHALL HAVE NO OTHER

OBLIGATION, DUTY, OR LIABILITY WHATSOEVER IN CONTRACT, TORT, OR OTHERWISE TO YOU INCLUDING ANY LIABILITY

FOR NEGLIGENCE OR STRICT LIABILITY.

THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS HEREIN SHALL APPLY: (A) IRRESPECTIVE OF THE NATURE OF THE

CAUSE OF ACTION, DEMAND, OR ACTION BY YOU INCLUDING BUT NOT LIMITED TO BREACH OF CONTRACT, NEGLIGENCE,

TORT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY AND SHALL SURVIVE A FUNDAMENTAL BREACH OR BREACHES

OR THE FAILURE OF THE ESSENTIAL PURPOSE OF THIS AGREEMENT OR OF ANY REMEDY CONTAINED HEREIN; AND (B)

TO RIM AND ITS AFFILIATED COMPANIES, THEIR SUCCESSORS, ASSIGNS, AGENTS, SUPPLIERS (INCLUDING AIRTIME

SERVICE PROVIDERS), AUTHORIZED RIM DISTRIBUTORS (ALSO INCLUDING AIRTIME SERVICE PROVIDERS) AND THEIR

RESPECTIVE DIRECTORS, EMPLOYEES, AND INDEPENDENT CONTRACTORS.

IN ADDITION TO THE LIMITATIONS AND EXCLUSIONS SET OUT ABOVE, IN NO EVENT SHALL ANY DIRECTOR, EMPLOYEE,

AGENT, DISTRIBUTOR, SUPPLIER, INDEPENDENT CONTRACTOR OF RIM OR ANY AFFILIATES OF RIM HAVE ANY LIABILITY

ARISING FROM OR RELATED TO THE DOCUMENTATION.
